A18SAG125
Original instructions
2
Important!
It is essential that you read the instructions in this manual before
assembling, operating, and maintaining the product.
Subject to technical modifications.
3
p. 5
p.6
p. 9 p. 10
START
STOP
p. 7 p. 8
p. 5p.4
Toolless grinding guard
Grinding wheel
Auxiliary handle,
insulated gripping surface
Backing flange
Locking flange
Sanding disc
Guard lever lock
Spindle lock button
Paddle switch
Handle, insulated
gripping surface
Battery
Cutting disc
Wrench
Toolless cutting guard
Lock-out switch
4
1
1
2

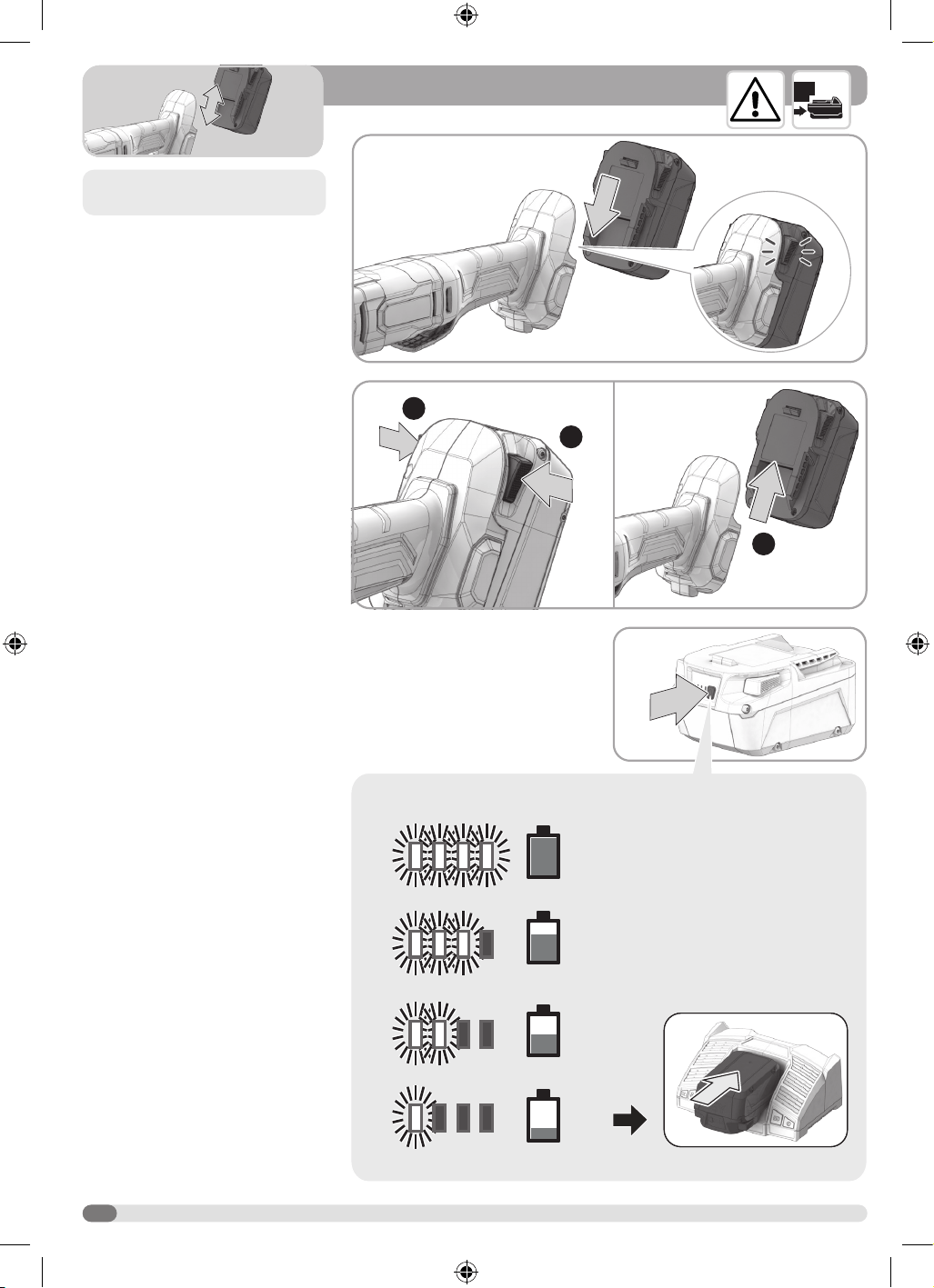

75-100 %
50-75 %
25-50 %
0-25 %
Remove the battery pack before starting any
work on the product.
5

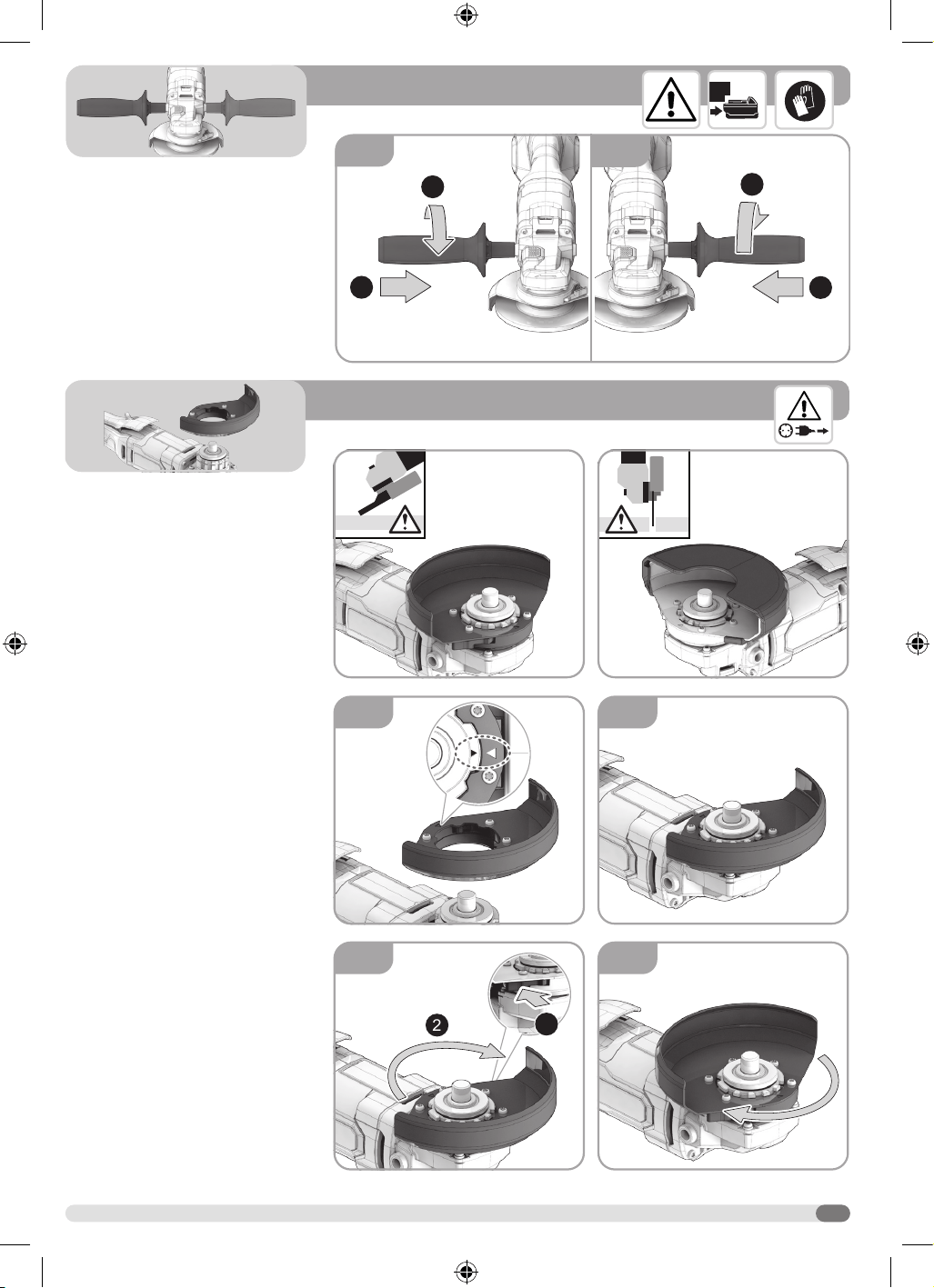

1
2
2
1
B
A
2
1
4
3
2
1
6

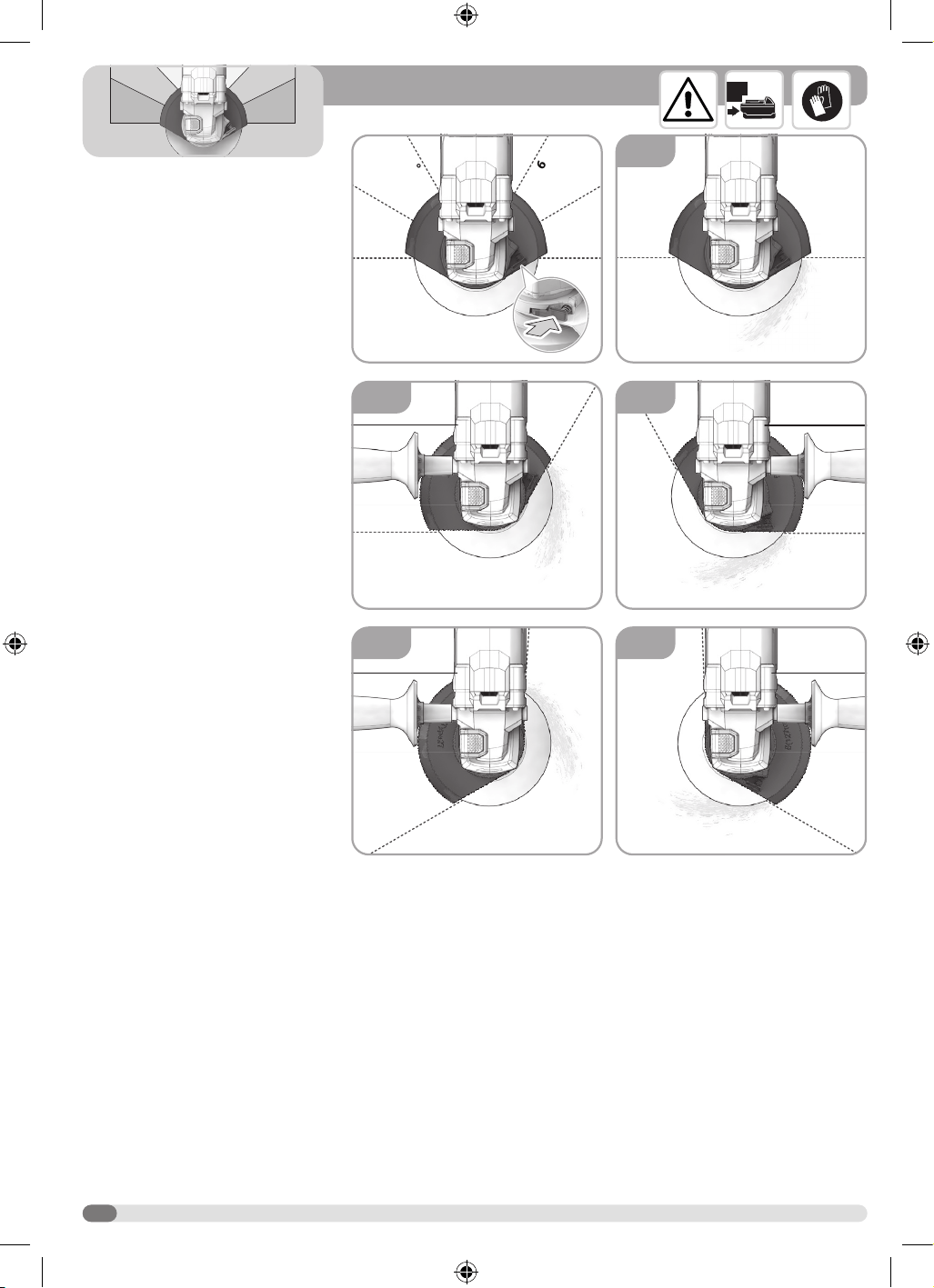

30
°
60
60 °
30 °
60 °
0 °
0 °
0
°
30
°
30
°
60
°
60
°
7
15°
3
4
1
2
5
2
2
1
1
1
2

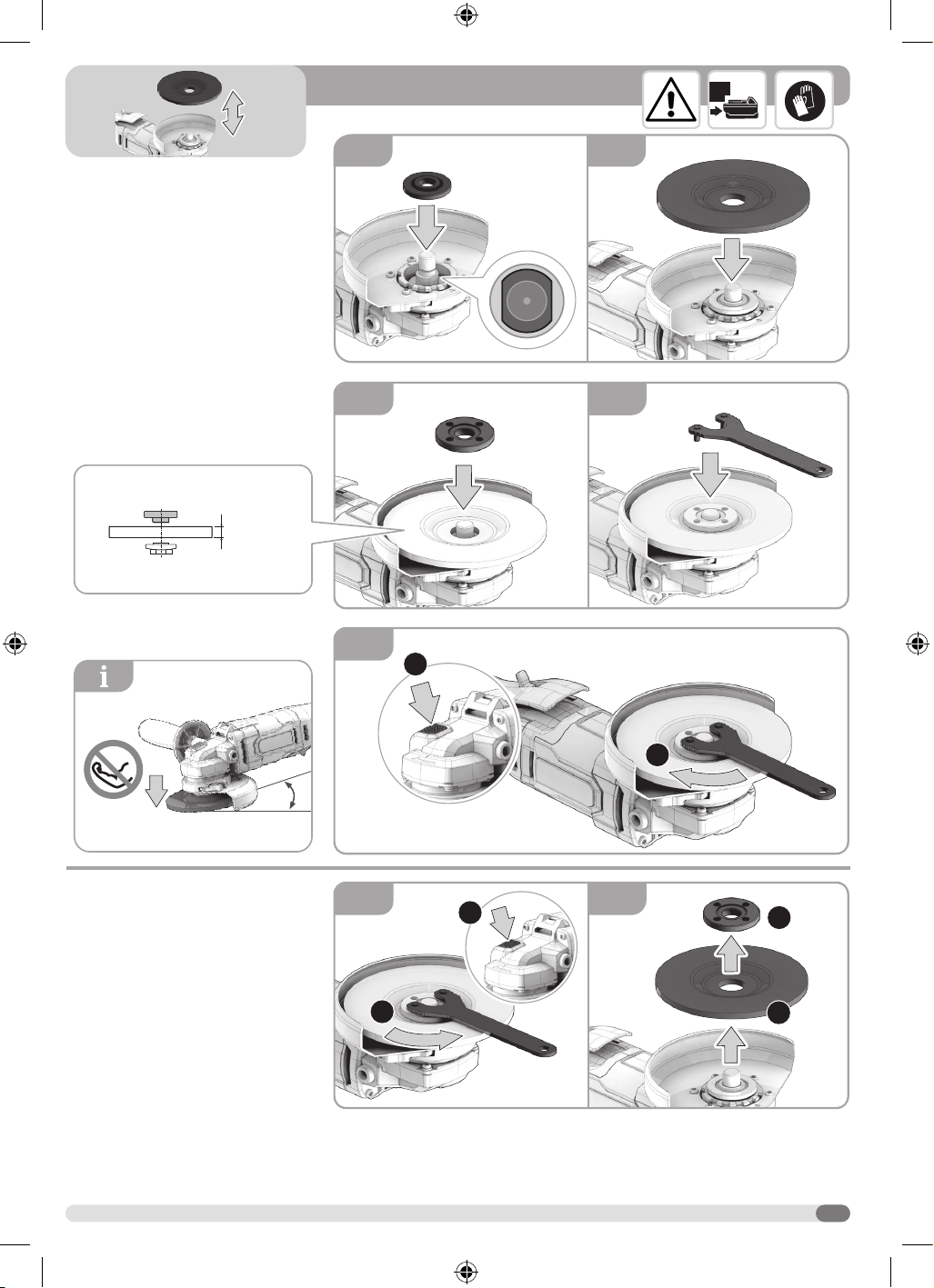

≤ 6 mm
2
1
8
3
4
2
1
5
6
2
7
8
1
1
2

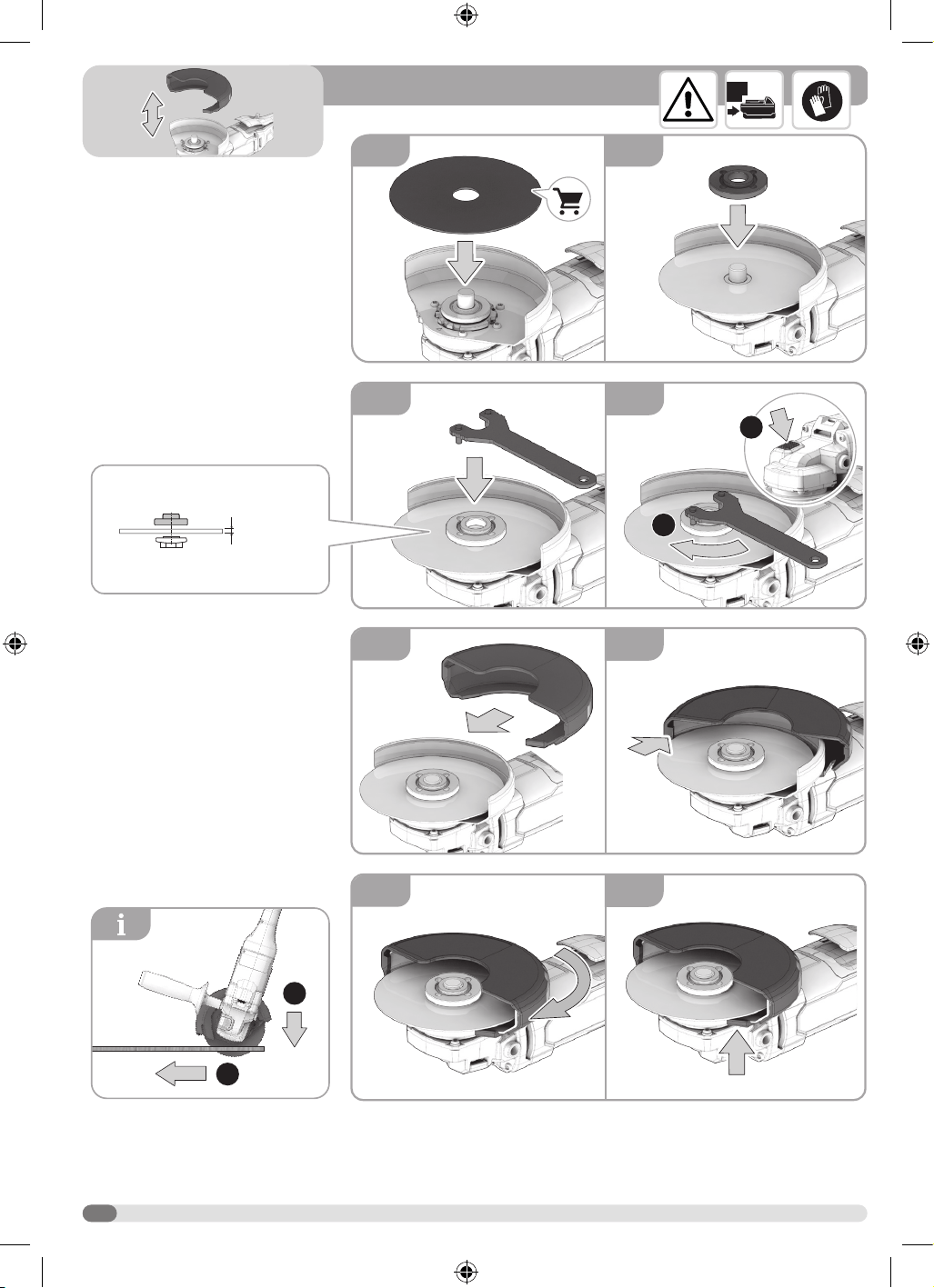

≤ 1.2 mm

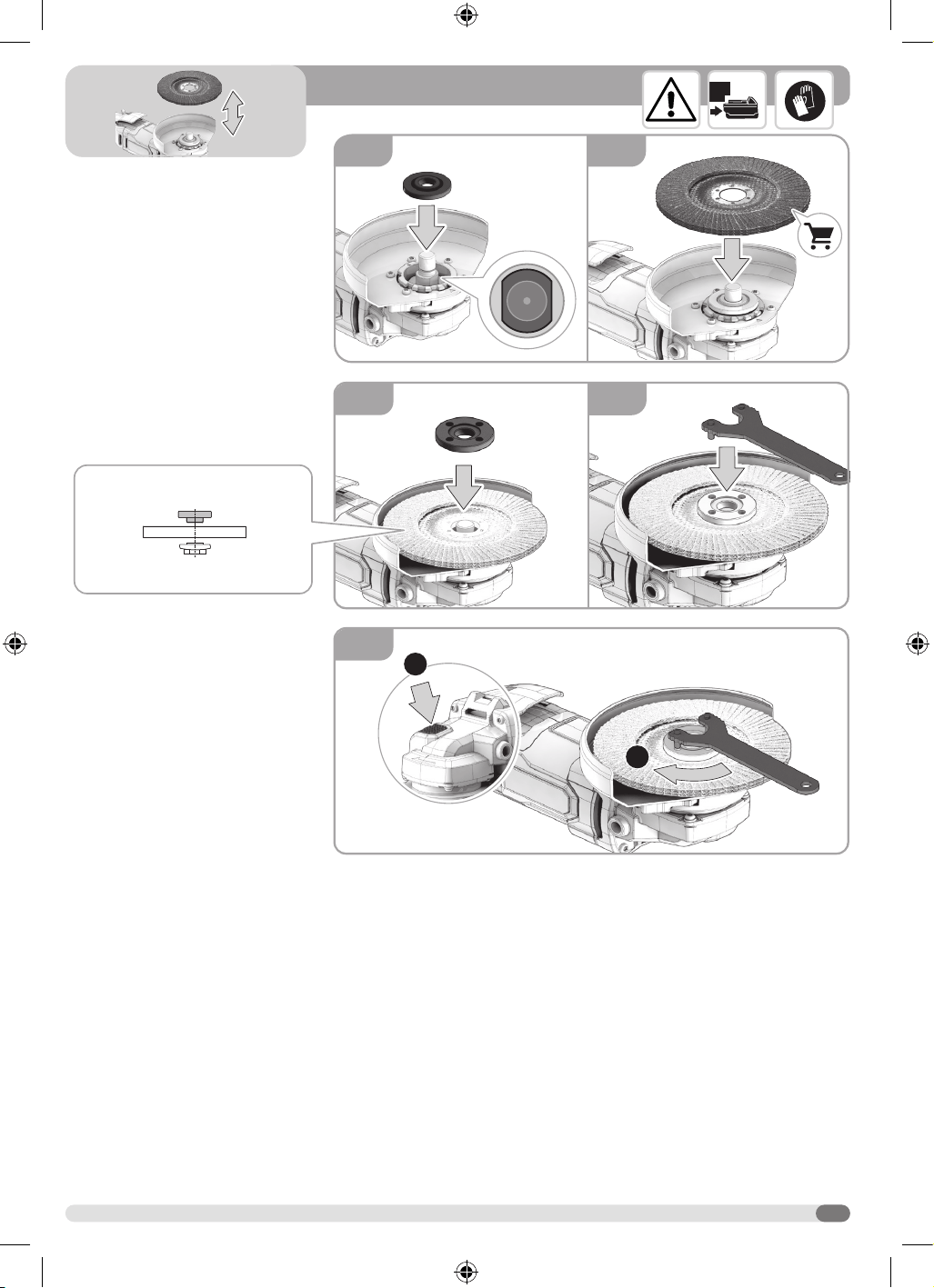

9
3
4
5
1
2
1
2
10

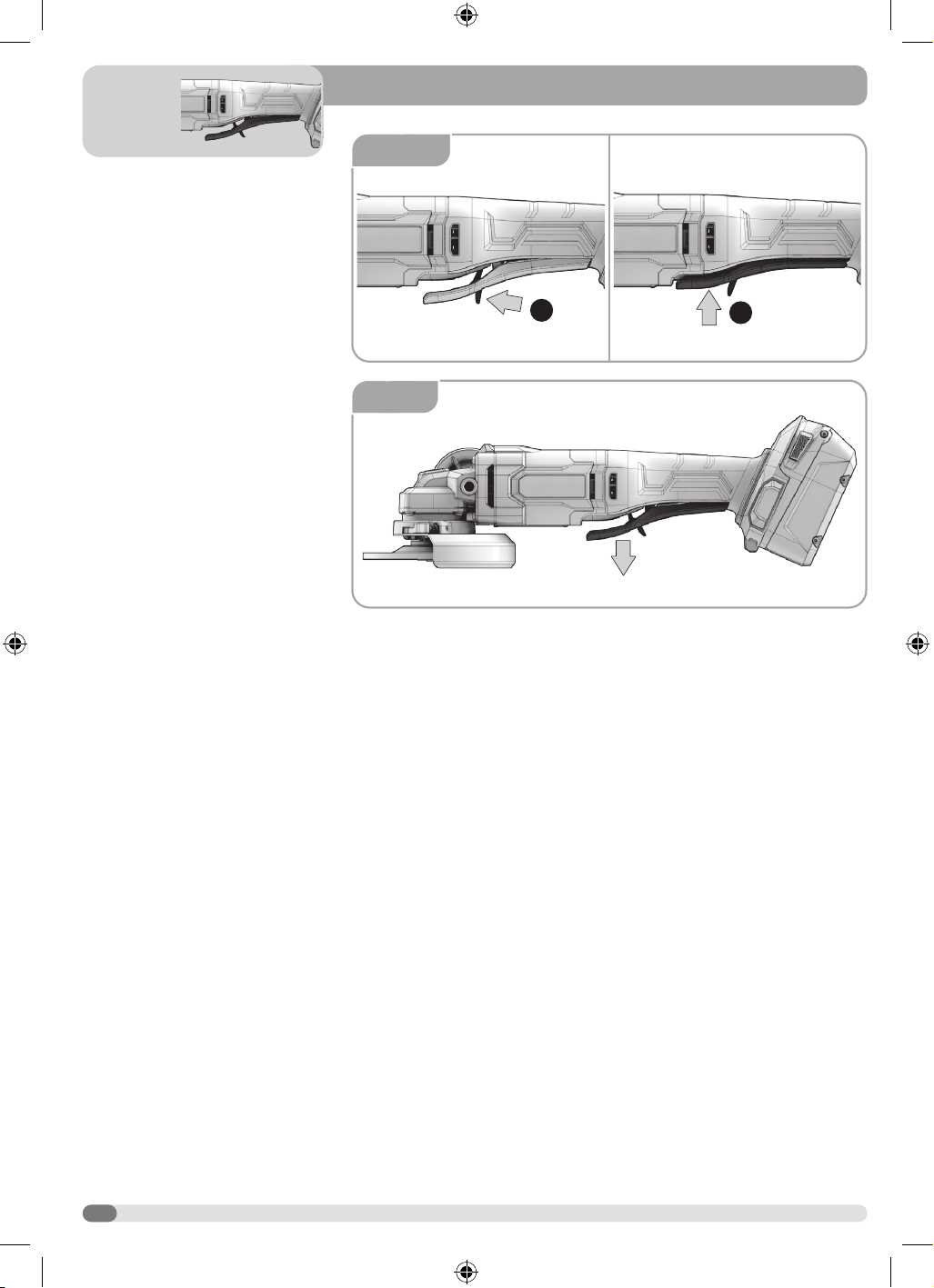

START
STOP
START
STOP
2
1
11
TECHNICAL DATA A18SAG125
Type Cordless angle grinder
Battery voltage 18 V
Rated speed
9,200 min
-1
Grinding disc diameter max.
125 mm
Grinding disc hole diameter
22.2 mm
Grinding disc thickness min./max.
6 mm
Grinding surface diameter max.
125 mm
Cutting disc thickness min./max.
1.2 mm
Cutting disc diameter max.
125 mm
Cutting disc hole diameter
22.2 mm
Thread of work spindle
M14
Weight (without battery)
2.52 kg
Noise Information
Measured values determined according to EN 62841
A-weighted sound pressure level
L
p
= 82 dB(A)
Uncertainty K = 3.0 dB(A)
A-weighted sound power level
L
W
= 90 dB(A)
Uncertainty K = 3.0 dB(A)
Wear ear protection!
Vibration Information
Total vibration values (vector sum in the three axes) determined
according to EN 62841
Surface grinding a
h.AG
< 2.5 m/s
2
Uncertainty K = 1.5 m/s
2
Cutting-off a
h.CO
< 2.5 m/s
2
Uncertainty K = 1.5 m/s
2
Sanding a
h.DS
< 2.5 m/s
2
Uncertainty K = 1.5 m/s
2
s
WARNING!
The declared vibration total values and the declared noise emission values given in this instruction manual have been measured in
accordance with a standardised test given in EN 62841 and may be used to compare one tool with another. They may be used for a
preliminary assessment of exposure.
The declared vibration and noise emission values represent the main applications of the tool. However, if the tool is used for different
applications, used with different accessories, or poorly maintained, the vibration and noise emission may differ. These conditions may
signicantly increase the exposure levels over the total working period.
An estimation of the level of exposure to vibration and noise should take into account the times when the tool is turned off or when it is
running idle. These conditions may signicantly reduce the exposure level over the total working period.
Identify additional safety measures to protect the operator from the effects of vibration and noise, such as maintaining the tool and the
accessories, keeping the hands warm, and organising work patterns.
DISCLAIMER - Techtronic
Exposure to silica and other dust conditions can be a health risk. Organisations have legal responsibilities to protect the health of their
workers. Techtronic Industries Australia Pty Ltd, (ACN 002 277 509) (TECHTRONIC) considers the safety of all users of our products to
be of paramount importance. It is recommended that all users of TECHTRONIC products wear the correct personal protective equipment
and clothing, and use the appropriate dust extractor, including on-tool extraction, and otherwise follow all recommended dust suppression
practices. It is the responsibility of the purchasing customer to ensure that any dust extractor is suitable for the task and type of dust being
collected. TECHTRONIC does not, and will not, recommend a dust extractor to customers. TECHTRONIC recommends a risk assessment
be carried out by the purchasing customer, or an independent third party specialist, to ensure any dust extractor is t for the purpose
intended by the customer before they make a purchase. TECHTRONIC recommends the customer use all products and equipment strictly
in accordance with the user manual or instructions provided, and the customer ensures all personal protective equipment and clothing,
and dust extractors, are tted properly. All brochures, catalogues, descriptions, photos and other promotional materials are to be treated
as illustrative only and are not intended to amount to advice or recommendations on which a customer can or should rely. In no event will
TECHTRONIC be liable for any loss or damage as a result of a customer using a TECHTRONIC product for which dust is a byproduct or
using a TECHTRONIC dust extractor that is selected by the customer.
12
COMPATIBLE BATTERY PACKS (NOT INCLUDED)
L1820R
L1820S
A18FB2
L1825R
L1830R-X5
A18B4
A18B5
L1840R
A18FB4
L1850R
A18FB5
A18OB6
A18OB8
L1860R
L1860R-X5
L1890R
Use AEG 18V battery and charger only.
WARNING! Read all safety warnings, instructions,
illustrations and specications provided with this power tool.
Failure to follow all instructions listed below may result in electric
shock, re, and/or serious injury.
Save all warnings and instructions for future reference.
ANGLE GRINDER SAFETY WARNINGS
SAFETY WARNINGS COMMON FOR GRINDING, SANDING OR
CUTTING-OFF OPERATIONS:
This power tool is intended to function as a grinder, sander
or cut-off tool. Read all safety warnings, instructions,
illustrations and specications provided with this power tool.
Failure to follow all instructions listed below may result in electric
shock, re and/or serious injury.
Operations such as wire brushing, polishing, or hole cutting
are not to be performed with this power tool. Operations for
which the power tool was not designed may create a hazard and
cause personal injury.
Do not convert this power tool to operate in a way which is not
specically designed and specied by the tool manufacturer. Such
a conversion may result in a loss of control and cause serious
personal injury.
Do not use accessories which are not specically designed
and specied by the tool manufacturer. Just because the
accessory can be attached to your power tool, it does not assure
safe operation.
The rated speed of the accessory must be at least equal to the
maximum speed marked on the power tool. Accessories running
faster than their rated speed can break and y apart.
The outside diameter and the thickness of your accessory
must be within the capacity rating of your power tool.
Incorrectly sized accessories cannot be adequately guarded or
controlled.
The dimensions of the accessory mounting must t the
dimensions of the mounting hardware of the power tool.
Accessories that do not match the mounting hardware of the power
tool will run out of balance, vibrate excessively and may cause loss
of control.
Do not use a damaged accessory. Before each use inspect
the accessory such as abrasive wheels for chips and cracks,
backing pad for cracks, tear or excess wear, wire brush for
loose or cracked wires. If power tool or accessory is dropped,
inspect for damage or install an undamaged accessory. After
inspecting and installing an accessory, position yourself and
bystanders away from the plane of the rotating accessory and
run the power tool at maximum no-load speed for one minute.
Damaged accessories will normally break apart during this test
time.
Wear personal protective equipment. Depending on
application, use face shield, safety goggles or safety glasses.
As appropriate, wear dust mask, hearing protectors, gloves
and workshop apron capable of stopping small abrasive or
workpiece fragments. The eye protection must be capable of
stopping ying debris generated by various applications. The dust
mask or respirator must be capable of ltrating particles generated
by particular application. Prolonged exposure to high intensity
noise may cause hearing loss.
Keep bystanders a safe distance away from work area.
Anyone entering the work area must wear personal protective
equipment. Fragments of workpiece or of a broken accessory may
y away and cause injury beyond immediate area of operation.
Hold the power tool by insulated gripping surfaces only, when
performing an operation where the cutting tool may contact
hidden wiring. Contact with a “live” wire will also make exposed
metal parts of the power tool “live” and could give the operator an
electric shock.
Never lay the power tool down until the accessory has come
to a complete stop. The spinning accessory may grab the surface
and pull the power tool out of your control.
Do not run the power tool while carrying it at your side.
Accidental contact with the spinning accessory could snag your
clothing, pulling the accessory into your body.
Regularly clean the power tool’s air vents. The motor’s fan will
draw the dust inside the housing and excessive accumulation of
powdered metal may cause electrical hazards.
Do not operate the power tool near ammable materials.
Sparks could ignite these materials.
Do not use accessories that require liquid coolants. Using
water or other liquid coolants may result in electrocution or shock.
KICKBACK AND RELATED WARNINGS
Kickback is a sudden reaction to a pinched or snagged rotating
wheel, backing pad, brush or any other accessory. Pinching or
snagging causes rapid stalling of the rotating accessory which in
turn causes the uncontrolled power tool to be forced in the direction
opposite of the accessory’s rotation at the point of the binding.
For example, if an abrasive wheel is snagged or pinched by the
workpiece, the edge of the wheel that is entering into the pinch
point can dig into the surface of the material causing the wheel to
climb out or kick out. The wheel may either jump toward or away
from the operator, depending on direction of the wheel’s movement
at the point of pinching. Abrasive wheels may also break under
these conditions.
Kickback is the result of power tool misuse and/or incorrect
operating procedures or conditions and can be avoided by taking
proper precautions as given below:
• Maintain a firm grip with both hands on the power tool
and position your body and arm to allow you to resist
kickback forces. Always use auxiliary handle, if provided, for
maximum control over kickback or torque reaction during
start-up. The operator can control torque reactions or kickback
forces, if proper precautions are taken.
• Never place your hand near the rotating accessory.
Accessory may kickback over your hand.
• Do not position your body in the area where power tool
will move if kickback occurs. Kickback will propel the tool
in direction opposite to the wheel’s movement at the point of
snagging.
• Use special care when working corners, sharp edges, etc.
Avoid bouncing and snagging the accessory. Corners,
sharp edges or bouncing have a tendency to snag the rotating
accessory and cause loss of control or kickback.
• Do not attach a saw chain woodcarving blade, segmented
diamond wheel with a peripheral gap greater than 10 mm or
toothed saw blade. Such blades create frequent kickback and
loss of control.
SAFETY WARNINGS SPECIFIC FOR GRINDING AND CUTTING-
OFF OPERATIONS
Use only wheel types that are specied for your power tool
and the specic guard designed for the selected wheel. Wheels
for which the power tool was not designed cannot be adequately
guarded and are unsafe.
The grinding surface of centre depressed wheels must be
mounted below the plane of the guard lip. An improperly
mounted wheel that projects through the plane of the guard lip
cannot be adequately protected.
The guard must be securely attached to the power tool and
positioned for maximum safety, so the least amount of wheel
is exposed towards the operator. The guard helps to protect
the operator from broken wheel fragments, accidental contact with
wheel and sparks that could ignite clothing.
Wheels must be used only for specied applications. For
example: do not grind with the side of cut-off wheel. Abrasive
cut-off wheels are intended for peripheral grinding, side forces
applied to these wheels may cause them to shatter.
Always use undamaged wheel anges that are of correct size
and shape for your selected wheel. Proper wheel anges support
the wheel thus reducing the possibility of wheel breakage. Flanges
for cut-off wheels may be different from grinding wheel anges.
13
Do not use worn down wheels from larger power tools. A wheel
intended for larger power tool is not suitable for the higher speed of
a smaller tool and may burst.
When using dual purpose wheels always use the correct guard
for the application being performed. Failure to use the correct
guard may not provide the desired level of guarding, which could
lead to serious injury.
ADDITIONAL SAFETY WARNINGS SPECIFIC FOR CUTTING-
OFF OPERATIONS
Do not “jam” the cut-off wheel or apply excessive pressure.
Do not attempt to make an excessive depth of cut.
Overstressing the wheel increases the loading and susceptibility
to twisting or binding of the wheel in the cut and the possibility of
kickback or wheel breakage.
Do not position your body in line with and behind the rotating
wheel. When the wheel, at the point of operation, is moving away
from your body, the possible kickback may propel the spinning
wheel and the power tool directly at you.
When the wheel is binding or when interrupting a cut for any
reason, switch off the power tool and hold it motionless until
the wheel comes to a complete stop. Never attempt to remove
the cut-off wheel from the cut while the wheel is in motion,
otherwise kickback may occur. Investigate and take corrective
action to eliminate the cause of wheel binding.
Do not restart the cutting operation in the workpiece. Let the
wheel reach full speed and carefully re-enter the cut. The wheel
may bind, walk up or kickback if the power tool is restarted in the
workpiece.
Support panels or any oversized workpiece to minimize the
risk of wheel pinching and kickback. Large workpieces tend to
sag under their own weight. Supports must be placed under the
workpiece near the line of cut and near the edge of the workpiece
on both sides of the wheel.
Use extra caution when making a “pocket cut” into existing
walls or other blind areas. The protruding wheel may cut gas or
water pipes, electrical wiring or objects that can cause kickback.
Do not attempt to do curved cutting. Overstressing the wheel
increases the loading and susceptibility to twisting or binding of the
wheel in the cut and the possibility of kickback or wheel breakage,
which can lead to serious injury.
ADDITIONAL SAFETY INSTRUCTIONS FOR SANDING
OPERATIONS
Safety warnings specic for sanding operations:
Use proper sized sanding disc paper. Follow manufacturers
recommendations, when selecting sanding paper. Larger
sanding paper extending too far beyond the sanding pad presents
a laceration hazard and may cause snagging, tearing of the disc
or kickback.
ADDITIONAL SAFETY AND WORKING INSTRUCTIONS
Clamp your workpiece with a clamping device. Unclamped
workpieces can cause severe injury and damage.
The product will restart automatically if stalled. Switch off the
product immediately if it stalls. Determine why the product has
stalled and rectify it, paying heed to the safety instructions. If
necessary, remove the insertion tool.
When grinding metal, hot sparks may be produced that could
cause a risk of re. Keep bystanders and combustible materials
away from the spark ight zone or working area. Do not use dust
extraction when grinding metals.
Prevent ying sparks from hitting your body.
Never reach into the danger area of the product when it is running.
Chips and splinters must not be removed while the product is
running.
Dust created by operating the product can cause respiratory
injury. Wear appropriate respiratory masks with lters suitable for
protecting against particles from the material being worked on.
Ensure adequate workplace ventilation. Do not eat, drink, or smoke
in the work area.
Damage to eyes from ying dust and debris particles. Always wear
suitable eye protection.
Always wear goggles when using the product. It is recommended
to wear gloves, sturdy non-slipping shoes and apron.
Always use the protective shields on the product.
Remove the battery pack before starting any work on the product.
Immediately turn off the product in case of considerable vibrations
or if other malfunctions occur. Check the product in order to nd
out the cause.
Under extreme conditions (e.g. smooth-grinding metals with the
arbour and vulcanised bre grinding disc), signicant contamination
can build up on the inside of the angle grinder. For safety reasons
in such conditions, a ground fault interrupter must be connected in
series. If the ground fault interrupter trips, the product must be sent
for service.
Do not let any metal parts enter the ventilation slots to avoid short
circuit.
Never break open battery packs and chargers, and store only in dry
rooms. Keep dry at all times.
Use only AEG chargers for charging AEG battery packs. Do not
use battery packs from other systems.
Ambient temperature range for tool during operation is between 0
°C and 40 °C.
Ambient temperature range for tool storage is between 0 °C and
40 °C.
The recommended ambient temperature range for the charging
system during charging is between 10 °C and 38 °C.
ADDITIONAL BATTERY SAFETY WARNINGS
WARNING! To reduce the risk of re, personal injury, and
product damage due to a short circuit, never immerse your tool,
battery pack, or charger in uid or allow uid to ow inside them.
Corrosive or conductive uids, such as seawater, certain industrial
chemicals, and bleach or bleach containing products, etc., can
cause a short circuit.
Remove the battery pack before starting any work on the product.
Do not dispose of used battery packs in the household refuse or
by burning them. AEG distributors offer to retrieve old batteries to
protect our environment.
Do not store the battery pack together with metal objects (short
circuit risk).
Use only System AEG chargers for charging System AEG battery
packs. Do not use battery packs from other systems.
Never break open battery packs and chargers, and store only in dry
rooms. Keep dry at all times.
Battery acid may leak from damaged batteries under extreme load
or extreme temperatures. In case of contact with battery acid wash
it off immediately with soap and water. In case of eye contact rinse
thoroughly for at least 10 minutes and immediately seek medical
attention.
No metal parts must be allowed to enter the battery section of the
charger (short circuit risk).
Check with the forwarding company for further advice.
ADDITIONAL SAFETY WARNING
Switch the device off immediately if the insertion tool stalls! Do not
switch the device on again while the insertion tool is stalled, as
doing so could trigger a sudden recoil with a high reactive force.
Determine why the insertion tool stalled and rectify this, paying
heed to the safety instructions.
The possible causes may be:
● It is tilted in the work piece to be machined
● It has pierced through the material to be machined
● The power tool is overloaded
RESIDUAL RISKS
Even when the product is used as prescribed, it is still impossible
to completely eliminate certain residual risk factors. The operator
should pay particular and additional attention to these points in
order to reduce the risk of serious personal injury.
• Injury to hearing – Wear suitable ear protection and limit
exposure.
14
• Injury to sight – Wear protective eye shields or goggles when
using the product.
• Injury caused by vibration – Hold the tool by the designated
handles and limit exposure to vibration. See “RISK
REDUCTION”.
• Electric shock after contact with hidden wires – Hold the
product only by insulated surfaces.
• Respiratory injury – Dust created by operating the product,
wear suitable protection dependent on type of dust.
RISK REDUCTION
It has been reported that vibrations from handheld tools may
contribute to a condition called Raynaud’s Syndrome in certain
individuals. Symptoms may include tingling, numbness, and
blanching of the ngers, usually apparent upon exposure to cold.
Hereditary factors, exposure to cold and dampness, diet, smoking,
and work practices are all thought to contribute to the development
of these symptoms. There are measures that can be taken by the
operator to possibly reduce the effects of vibration:
• Keep your body warm in cold weather. When operating the
product wear gloves to keep the hands and wrists warm. It
is reported that cold weather is a major factor contributing to
Raynaud’s Syndrome.
• After each period of operation, exercise to increase blood
circulation.
• Take frequent work breaks. Limit the amount of exposure per
day.
If you experience any of the symptoms of this condition,
immediately discontinue use and see your doctor about these
symptoms.
SPECIFIED CONDITIONS OF USE
The cordless angle grinder is intended for grinding, sanding and
cutting metal, stone, and ceramic materials.
Use the cutting guard from the accessories range for cutting
application.
Refer to the instructions supplied by the accessory manufacturer.
The product is suitable only for working without water.
Do not use the product for any other purpose.
WARNING! Read all safety warnings, instructions,
illustrations and specications provided with this power tool.
Failure to follow all instructions listed below may result in electric
shock, re and/or serious injury.
Save all warnings and instructions for future reference.
BATTERIES
Battery packs which have not been used for some time should be
recharged before use.
Temperatures in excess of 50 °C (122 °F) reduce the performance
of the battery pack. Avoid extended exposure to heat or sunshine
(risk of overheating).
The contacts of chargers and battery packs must be kept clean.
For an optimum lifetime, the battery packs have to be fully charged
after use.
To obtain the longest possible battery life, remove the battery pack
from the charger once it is fully charged.
For battery pack storage longer than 30 days:
• Store the battery pack where the temperature is below 27 °C
and away from moisture.
• Store the battery packs in a 30% - 50% charged condition.
• Every six months of storage, charge the pack as normal.
TRANSPORTING LITHIUM BATTERIES
Lithium-ion batteries are subject to the Dangerous Goods
Legislation requirements.
Transportation of those batteries has to be done in accordance with
local, national, and international provisions and regulations.
■ The user can transport the batteries by road without further
requirements.
■ Commercial transport of lithium-ion batteries by third parties is
subject to Dangerous Goods regulations. Transport preparation
and transport are exclusively to be carried out by appropriately
trained persons and the process has to be accompanied by
corresponding experts.
When transporting batteries:
■ Ensure that battery contact terminals are protected and
insulated to prevent short circuit.
■ Ensure that battery pack is secured against movement within
packaging.
■ Do not transport batteries that are cracked or leaking.
Check with forwarding company for further advice.
BATTERY PACK PROTECTION
The battery pack has overload protection that protects it from being
overloaded and helps to ensure long life. Under extreme stress
the battery electronics switch off the battery-lamp automatically.
To restart, switch the battery-lamp off and then on again. If the
battery-lamp does not start up again, the battery pack may have
discharged completely. In this case it must be recharged in the
battery charger.
WORKING INSTRUCTIONS
For accessories intended to be tted with threaded hole wheel,
ensure that the thread in the wheel is long enough to accept the
spindle length.
Always use and store the cutting and grinding discs according to
the manufacturer’s instructions.
Always use the correct guard for cutting and grinding.
The grinding surface of the centre-depressed discs must be
mounted minimum of 2 mm below the plane of the guard lip.
The adjusting nut must be tightened before starting to work with
the product.
Always use the auxiliary handle.
The workpiece must be xed if it is not heavy enough to be steady.
Never move the workpiece towards the rotating disc by hand.
RESTART CUT-OUT
A zero-voltage switch prevents the product from restarting after a
power cut (battery change).
When resuming work, turn off the product and turn it back on again.
SMOOTH START
Electronic smooth start for safe use prevents jerky run-up of the
product.
MAINTENANCE
The ventilation slots of the product must be kept clear at all times.
Avoid using solvents when cleaning plastic parts. Most plastics
are susceptible to various types of commercial solvents and may
be damaged by their use. Use clean cloths to remove dirt, carbon
dust, etc.
Use only AEG accessories and AEG spare parts. Should
components need to be replaced that have not been described,
please contact one of our AEG service agents (see our list of
guarantee/service addresses).
If needed, an exploded view of the product can be ordered. Please
state the article number as well as the product type printed on the
label and order the drawing at your local service agents or directly
at:
Techtronic Industries Australia Pty Ltd
PO Box 1065
Mount Waverley VIC 3149
Tel. no. 1300 234 797
Australia
Techtronic Industries N.Z. Limited
PO Box 12-806
Penrose AUCKLAND 1642
Tel. no. 0800 234 797(0800 AEGPWR)
New Zealand
15
SYMBOLS
Read the instructions carefully before starting the
product.
CAUTION! WARNING! DANGER!
Always wear goggles when using the product.
Wear ear protectors.
Wear a suitable dust protection mask.
Wear protective gloves.
Always operate with two hands.
Do not use the guard for cut-off operations.
Not for wet grinding. Using water or other
liquid coolants may result in electrocution
or shock.
Do not use chipped, cracked, or defective
grinding wheel.
Regulatory Compliance Mark (RCM). Product meets
applicable regulatory requirements.
Direct current
No-load speed
V
Volts
Remove the battery pack before starting any work on
the product.
Do not dispose of waste batteries, waste electrical and
electronic equipment as unsorted municipal waste.
Waste batteries and waste electrical and electronic
equipment must be collected separately. Waste
batteries, waste accumulators, and light sources
have to be removed from the equipment. Check with
your local authority or retailer for recycling advice
and collection point. According to local regulations,
retailers may have an obligation to take back waste
batteries and waste electrical and electronic equipment
free of charge. Your contribution to the reuse and
recycling of waste batteries and waste electrical and
electronic equipment helps to reduce the demand
of raw materials. Waste batteries, in particular
containing lithium, and waste electrical and electronic
equipment contain valuable and recyclable materials,
which can adversely impact the environment and the
human health if not disposed of in an environmentally
compatible manner. Delete personal data from waste
equipment, if any.
Techtronic Industries Australia Pty Ltd
31 Gilby Road, Mount Waverley,
VIC, 3149, Australia
Techtronic Industries N.Z. Limited
Unit C, 70 Business Parade South,
Highbrook, Auckland 2013, New Zealand
www.aegpowertools.com.au
www.aegpowertools.co.nz
AEG is a registered trade mark used under
license from AB Electrolux (publ).
01923800301Q-01A
