BEWS18-115 X
BEWS18-125 X
Original instructions
2
3
Important!
It is essential that you read the instructions in this manual before
operating this machine.
Subject to technical modifications.

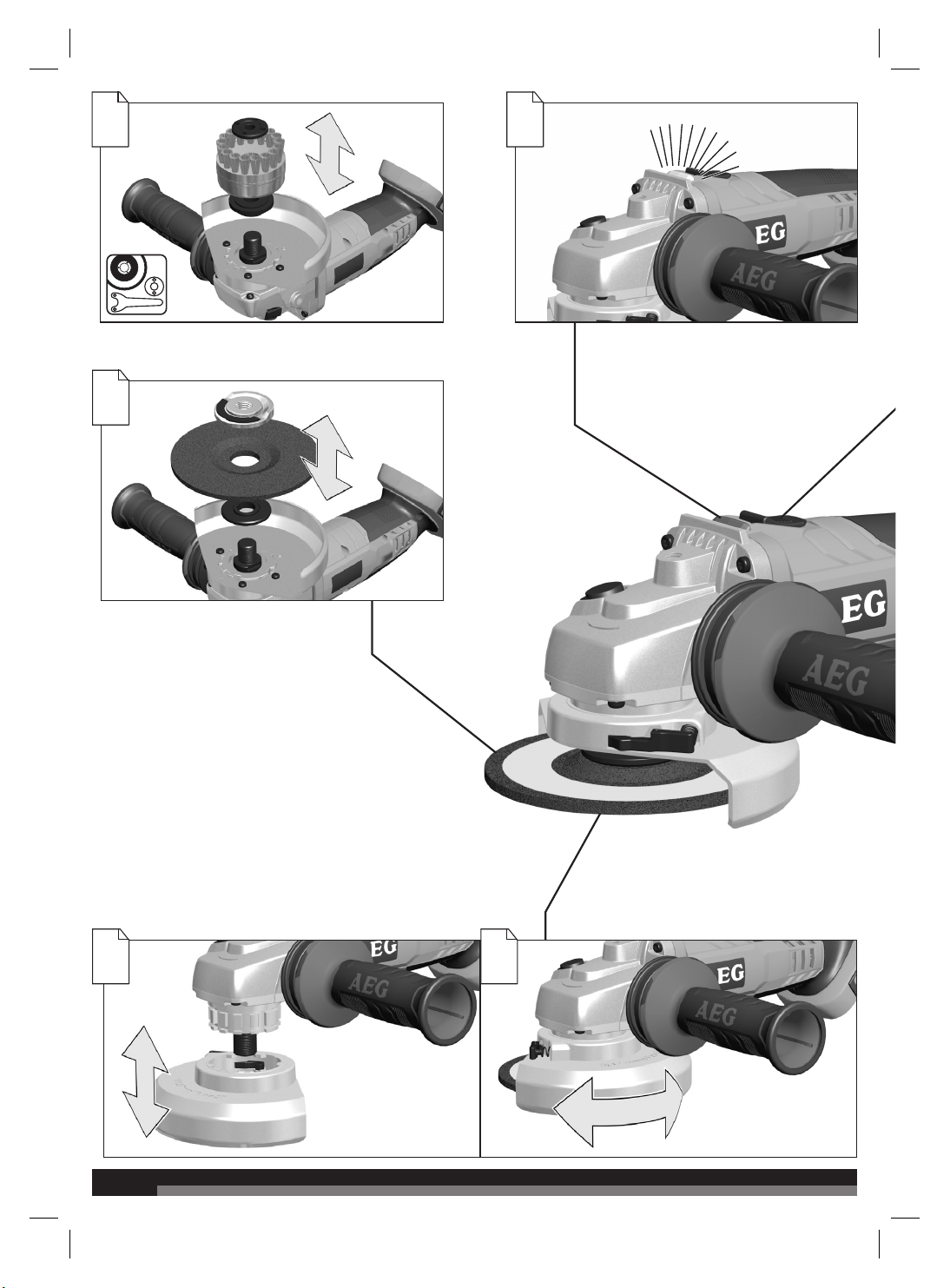

4
910
18
12
14

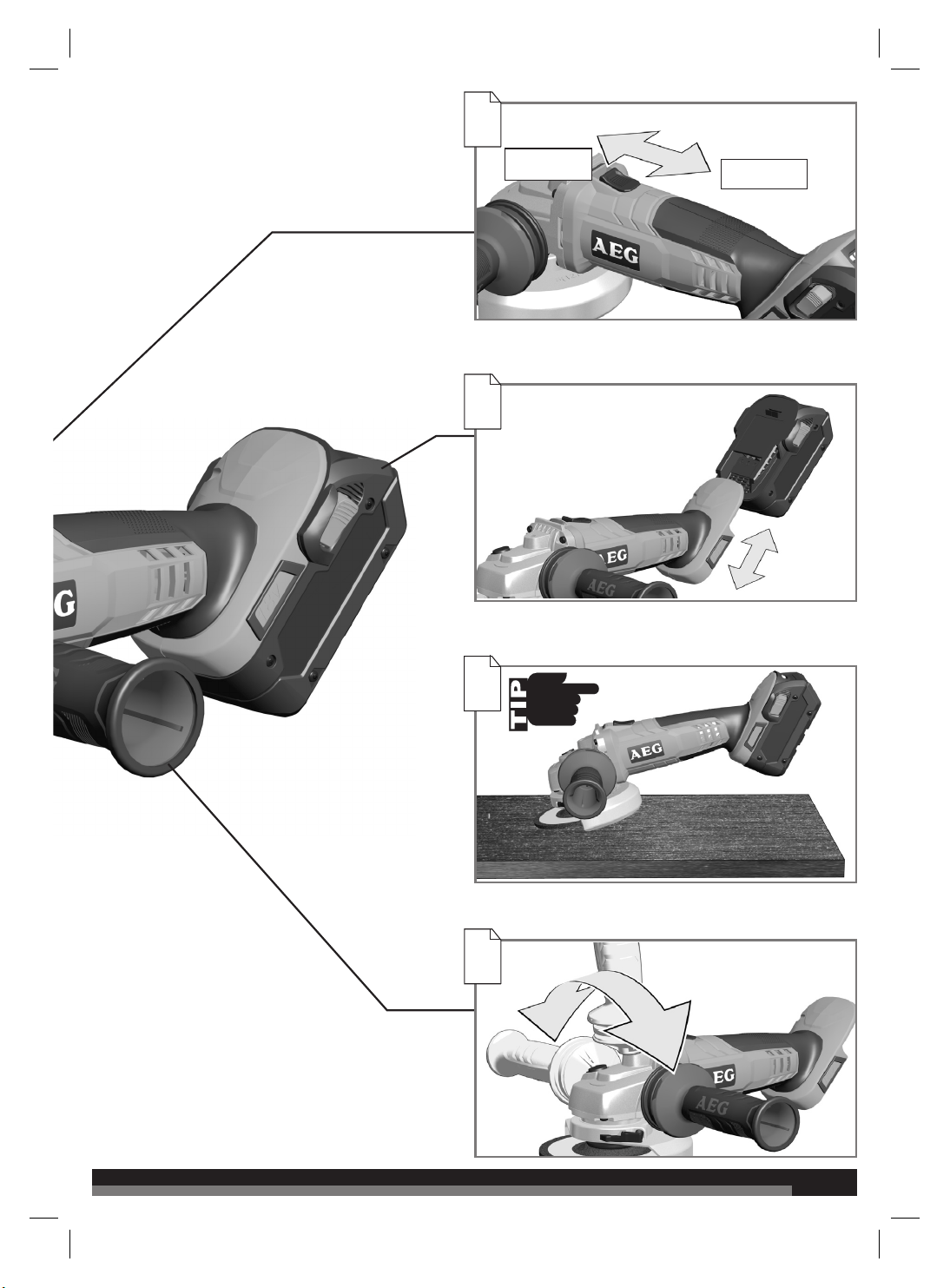

5
8
6
17
16
START
STOP

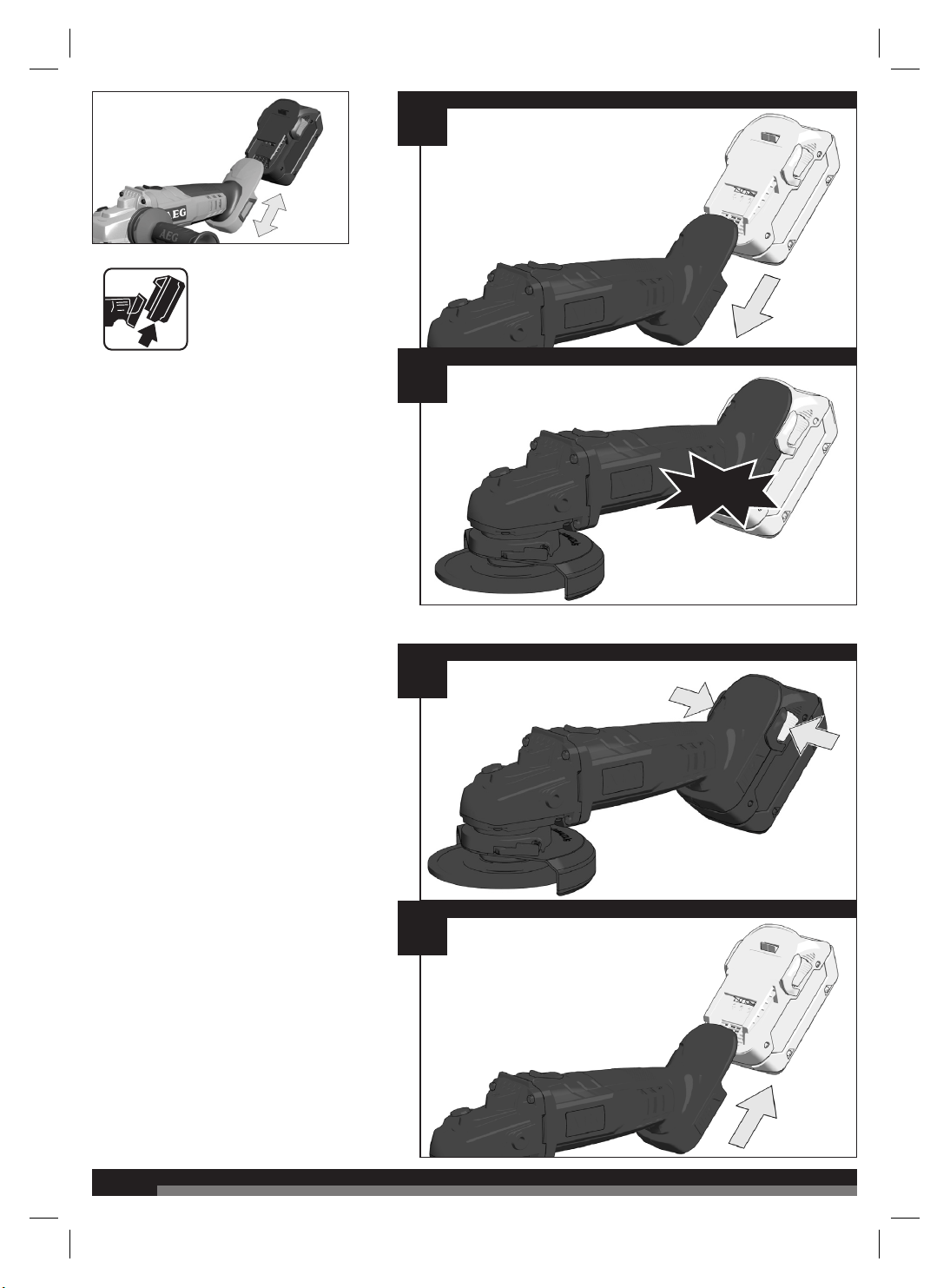

6
click
1
2
1
2

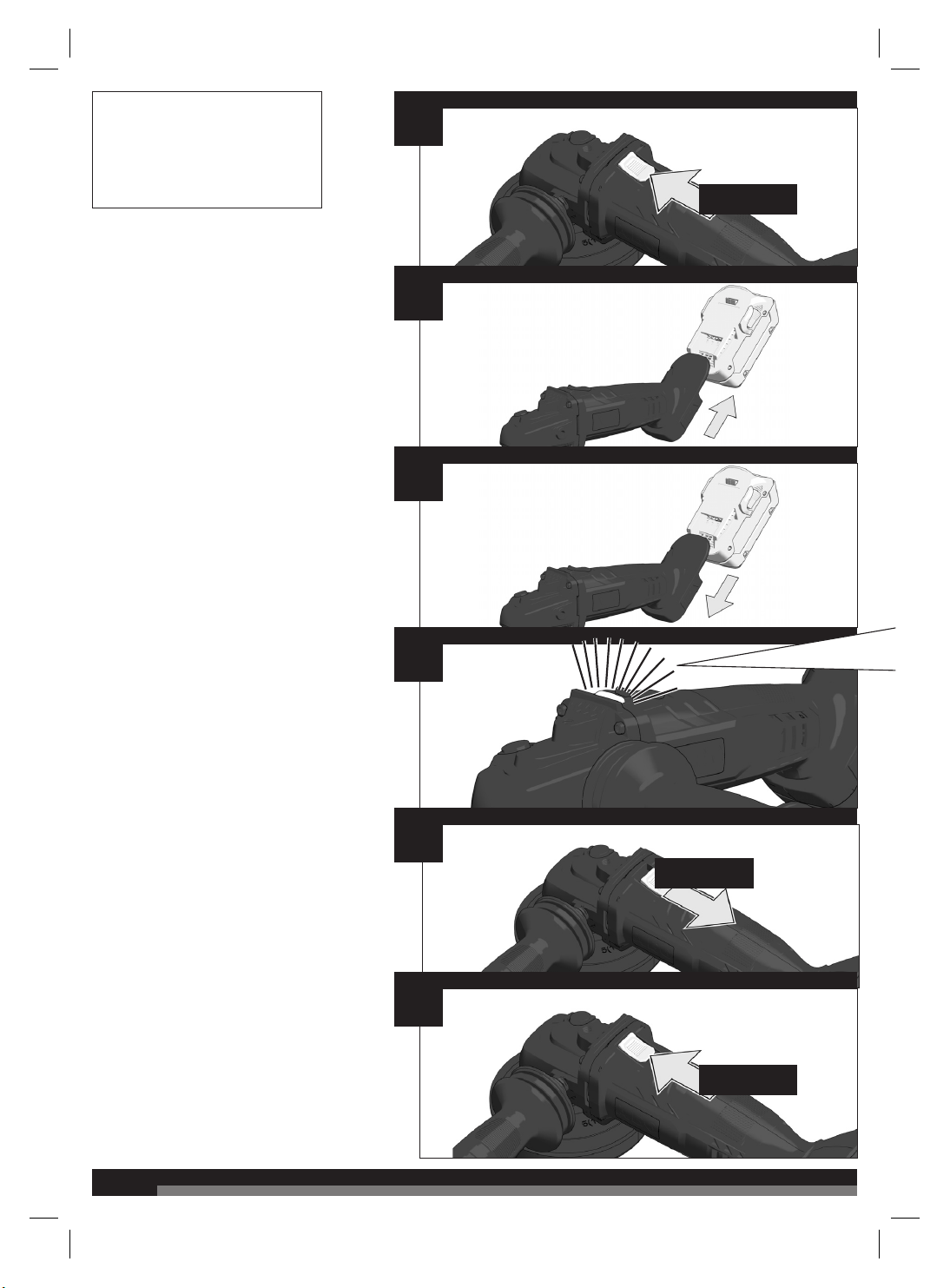

Remove the battery pack
before starting any work on
the machine.
7

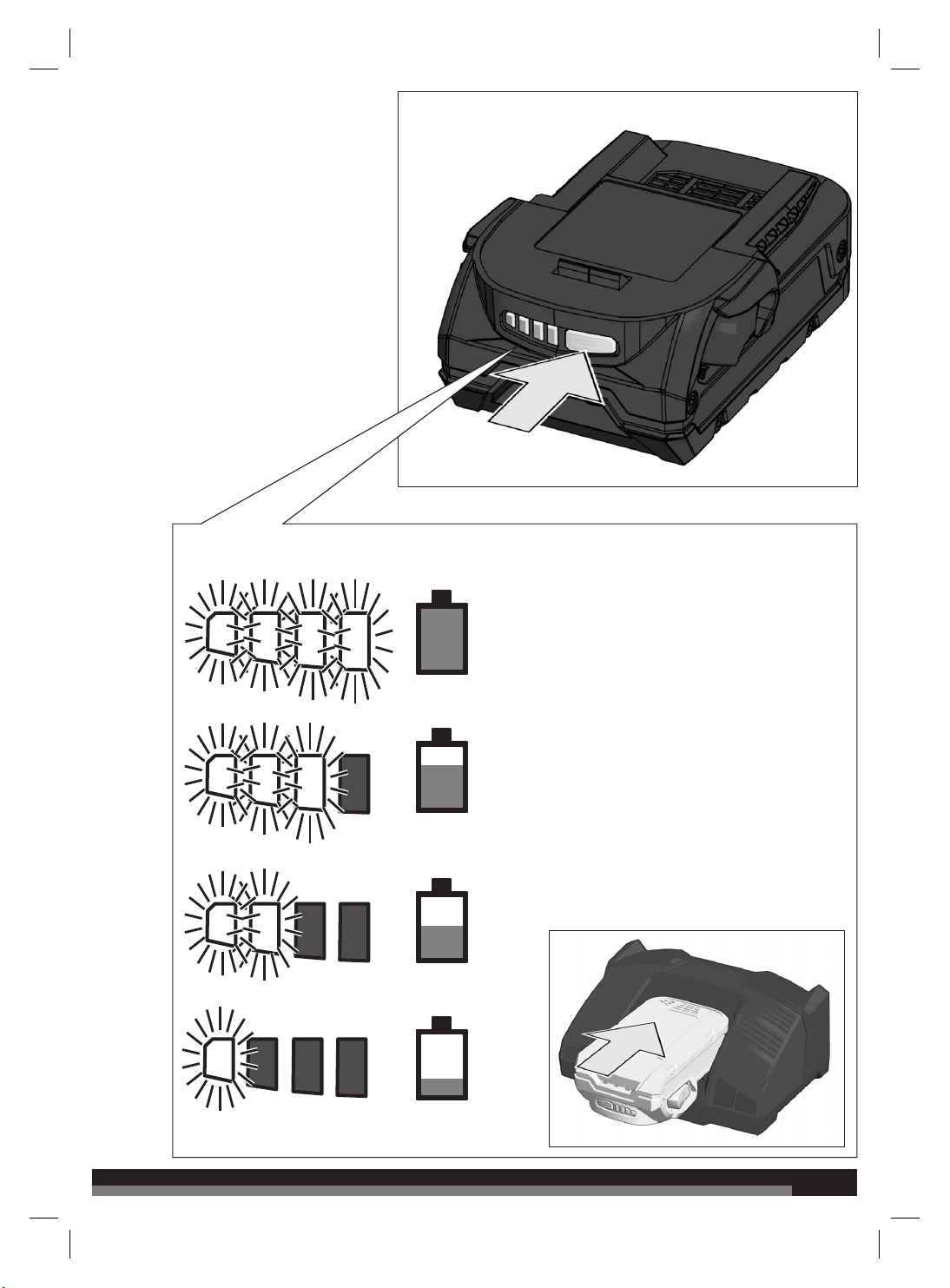

75-100 %
50-75 %
25-50 %
0-25 %

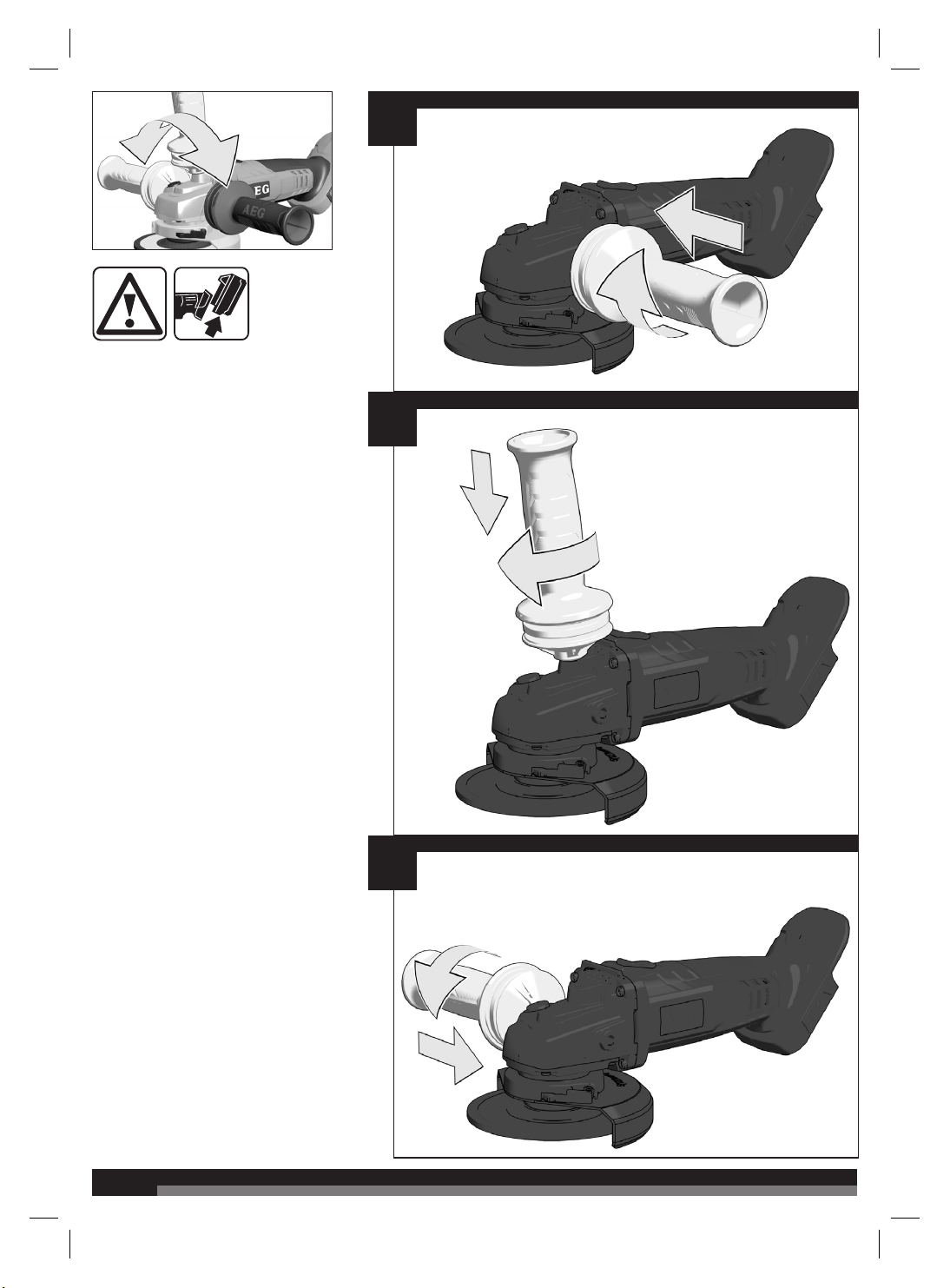

8
1
2
3

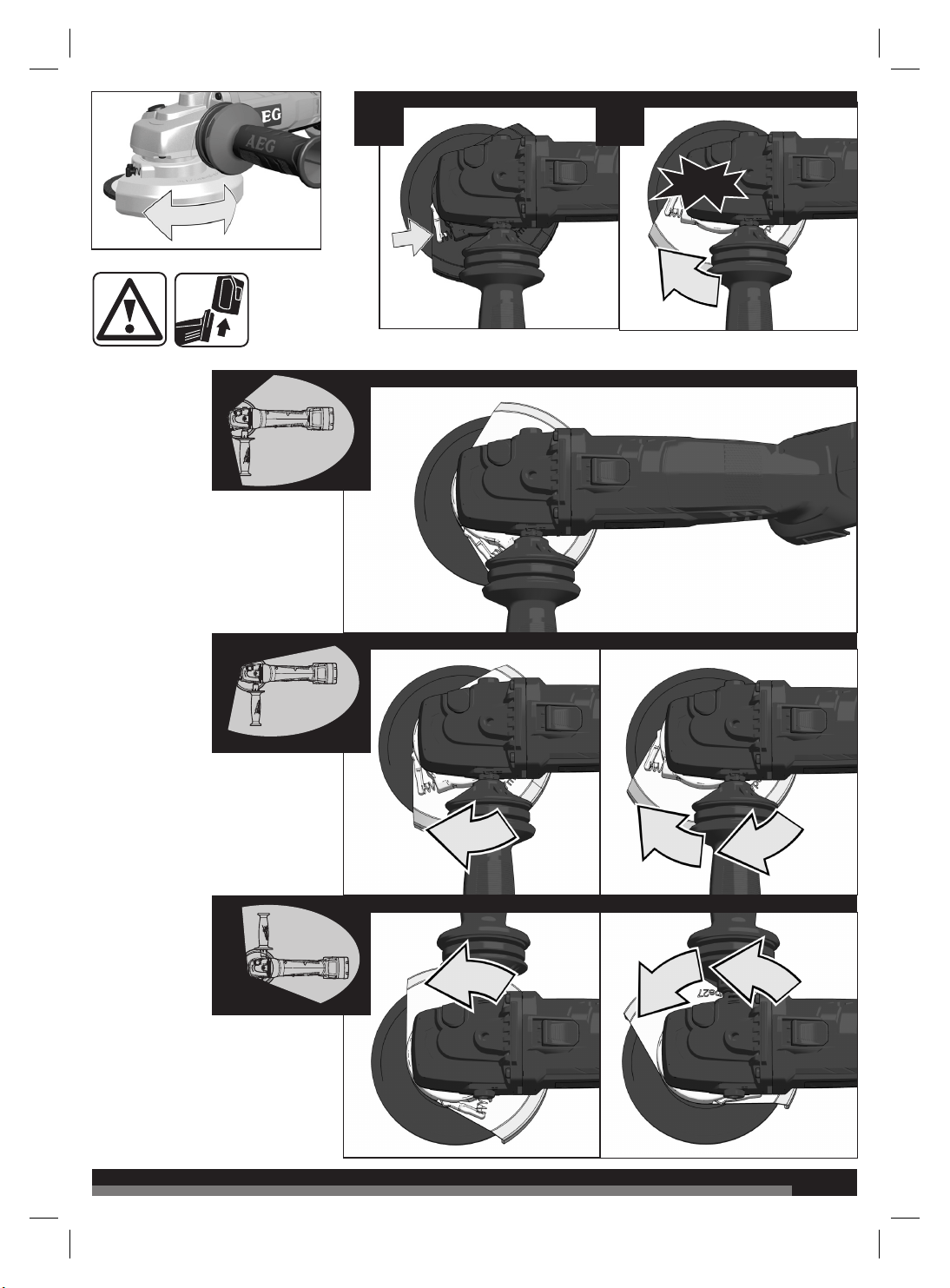

9
1 2
30°
30°
0°
60°
60°
click

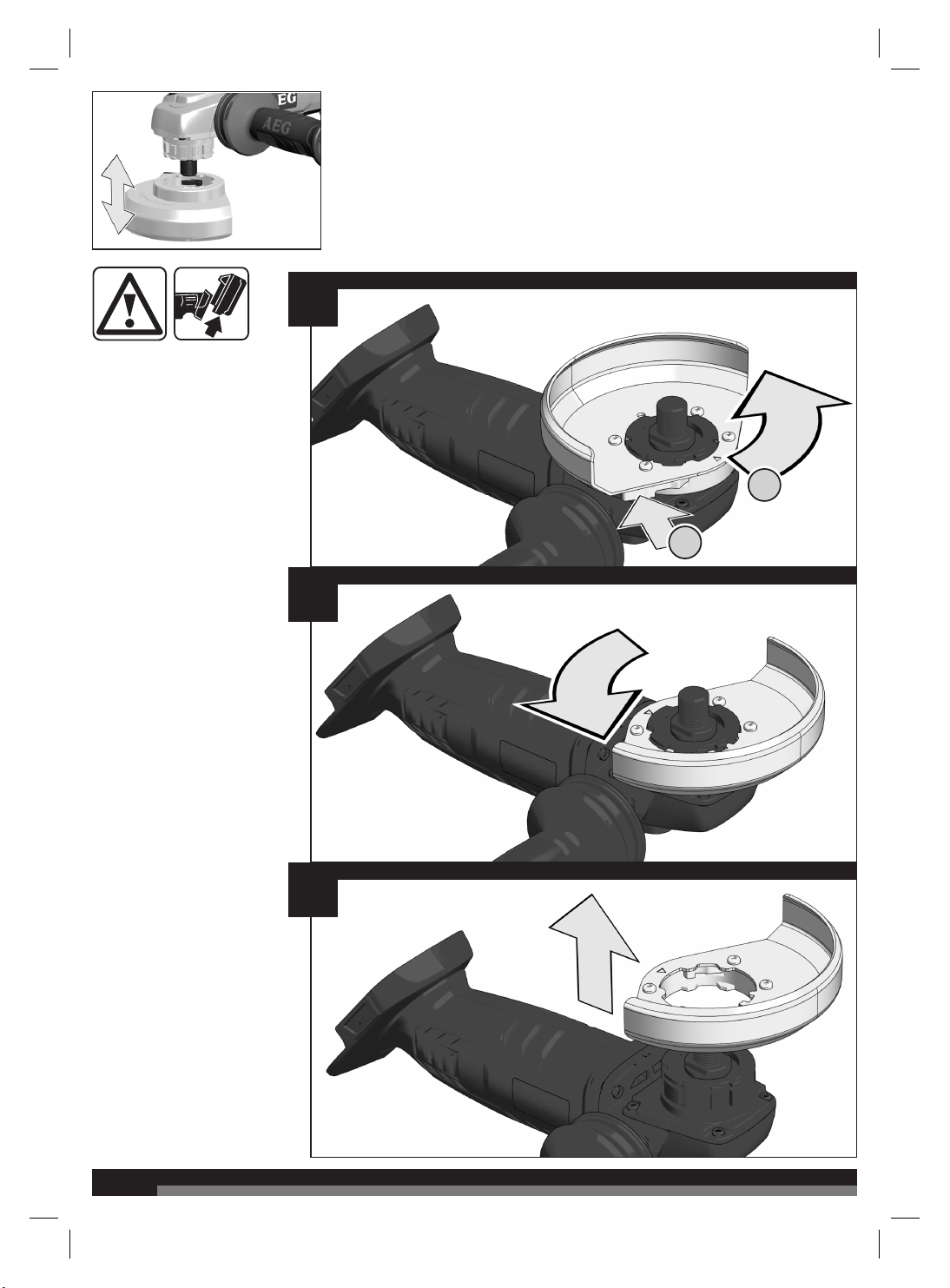

10
1
2
3
1
2

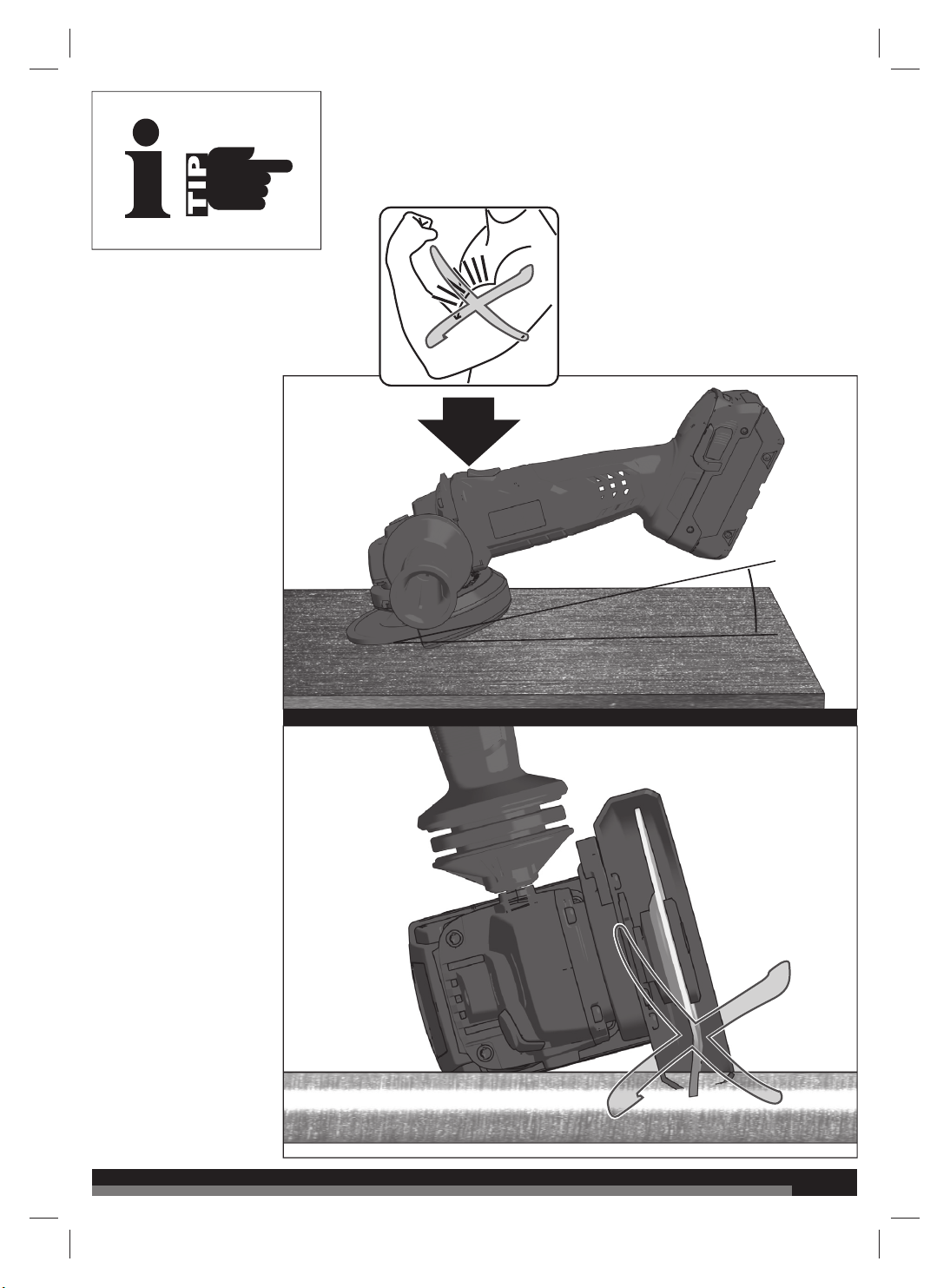

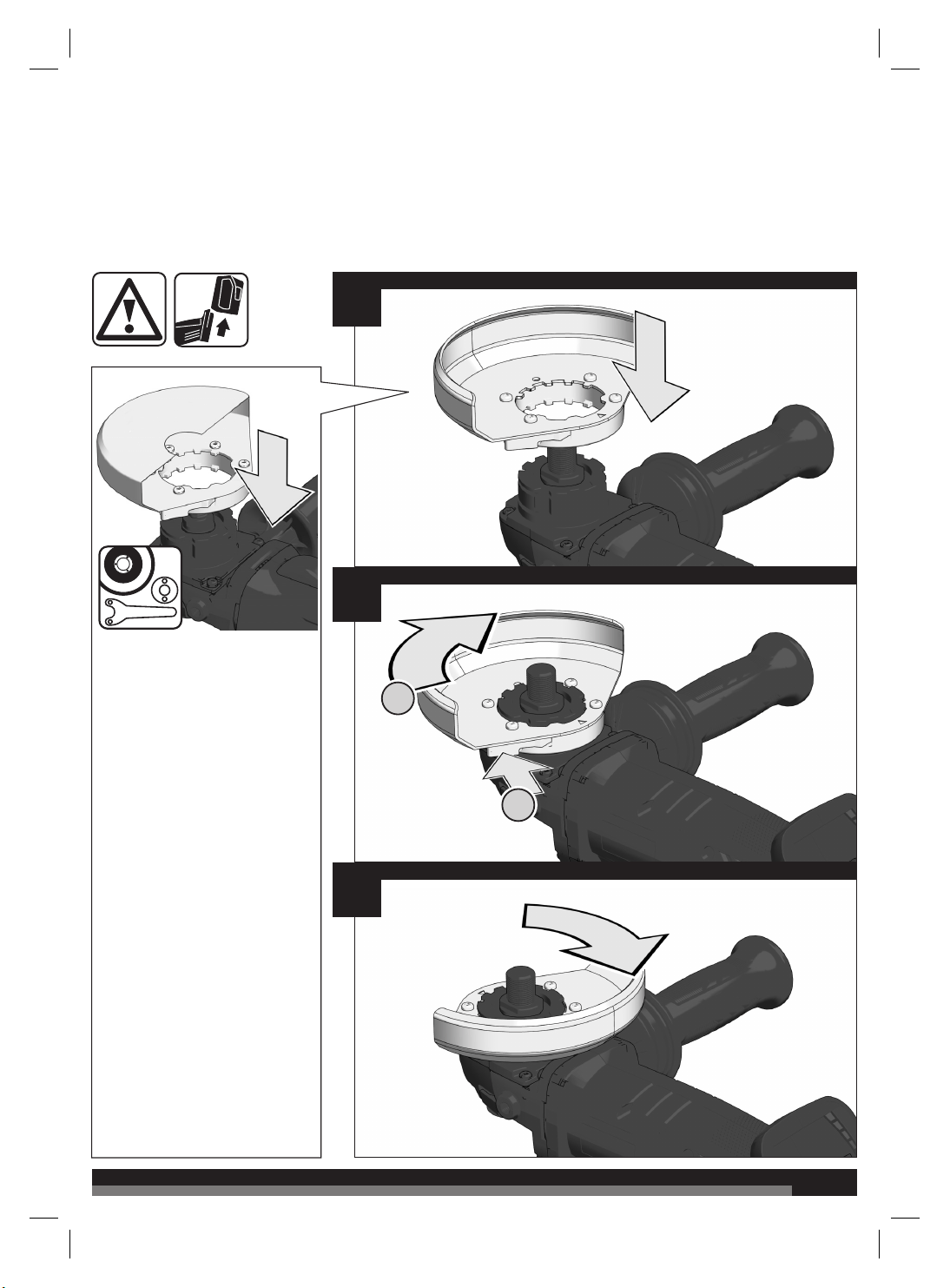

11
1
2
3
1
2
For Separating!

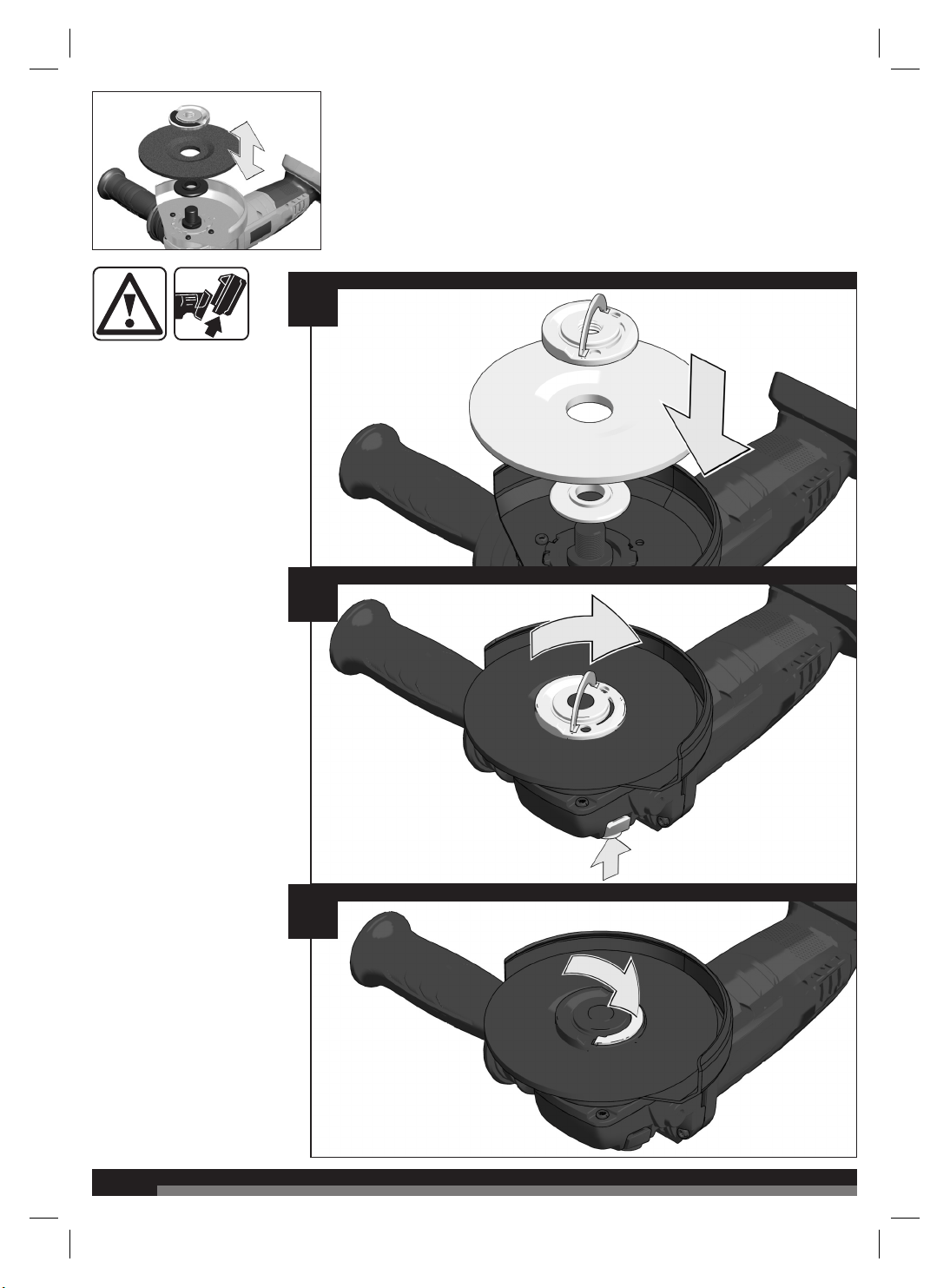

12
1
2
3

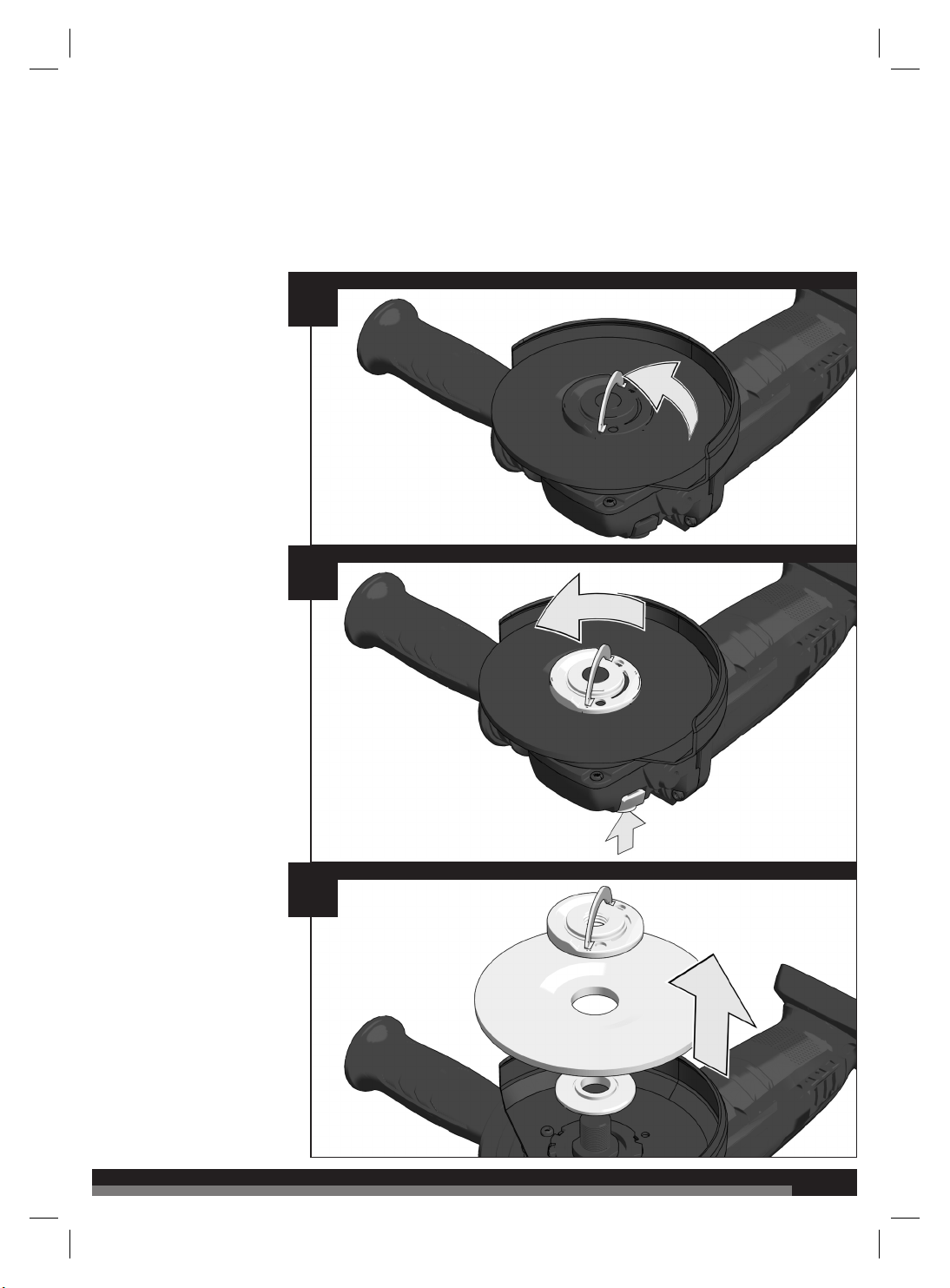

13
1
2
3

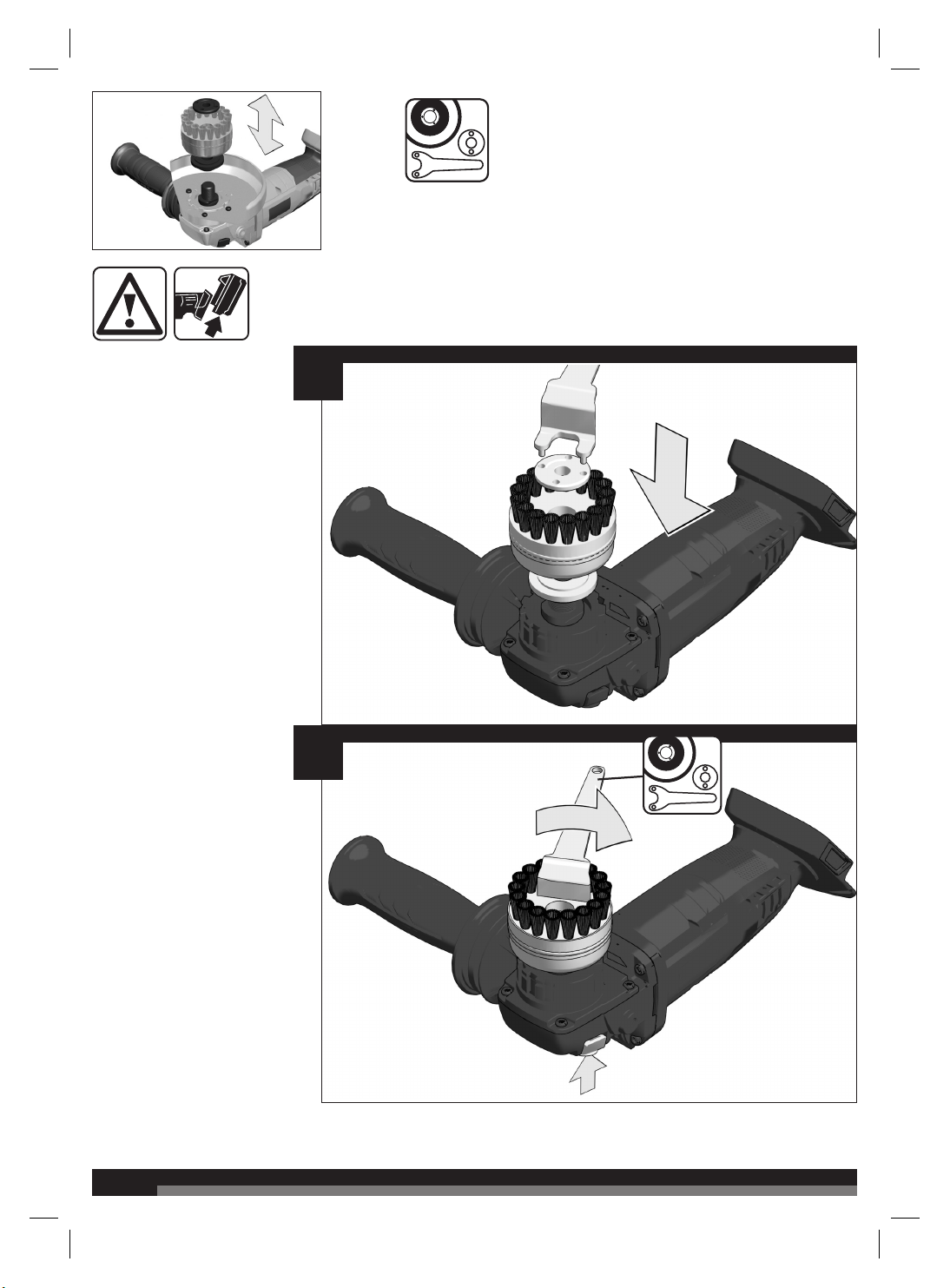

14
1
2
Accessory

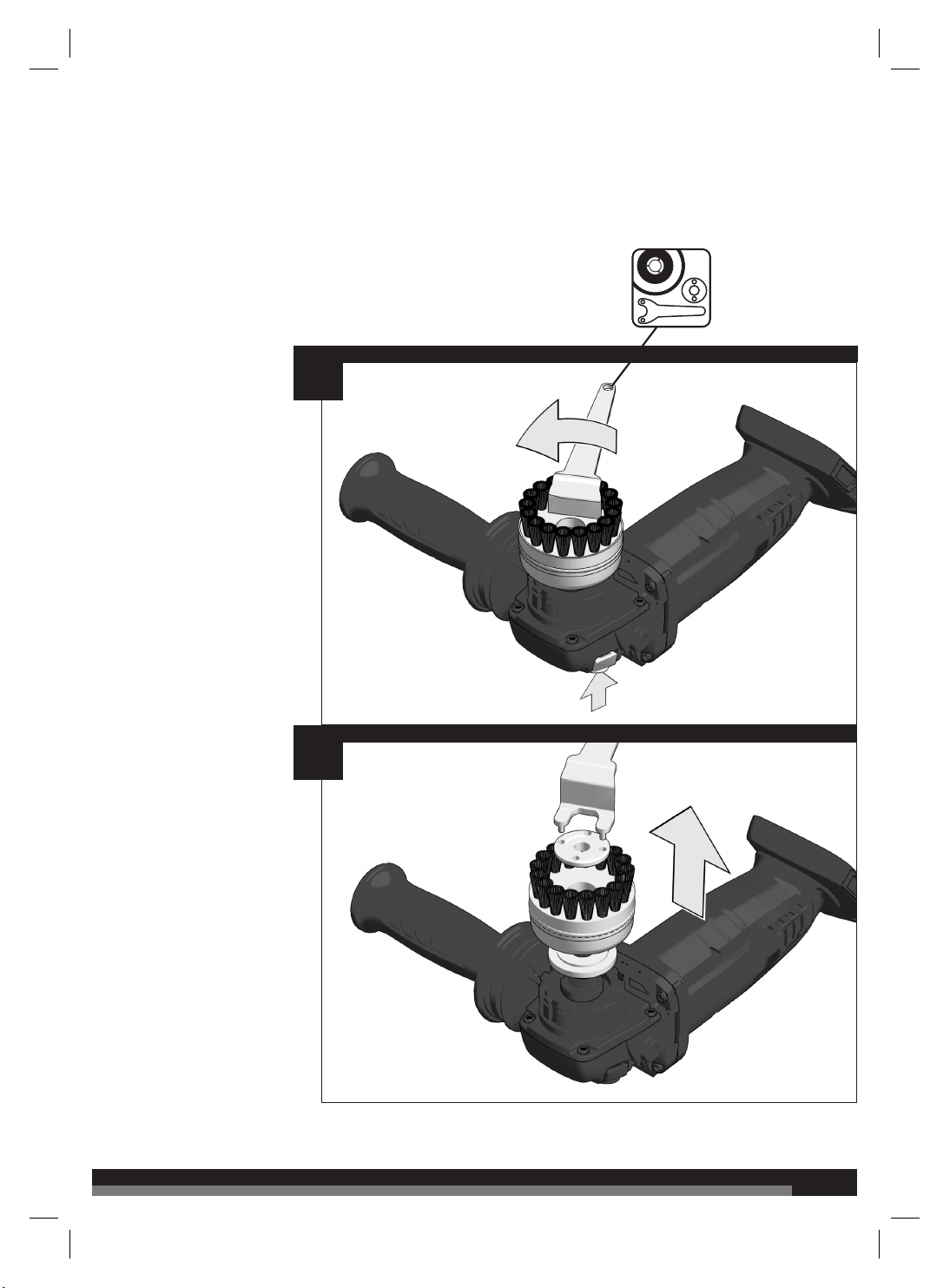

15
1
2

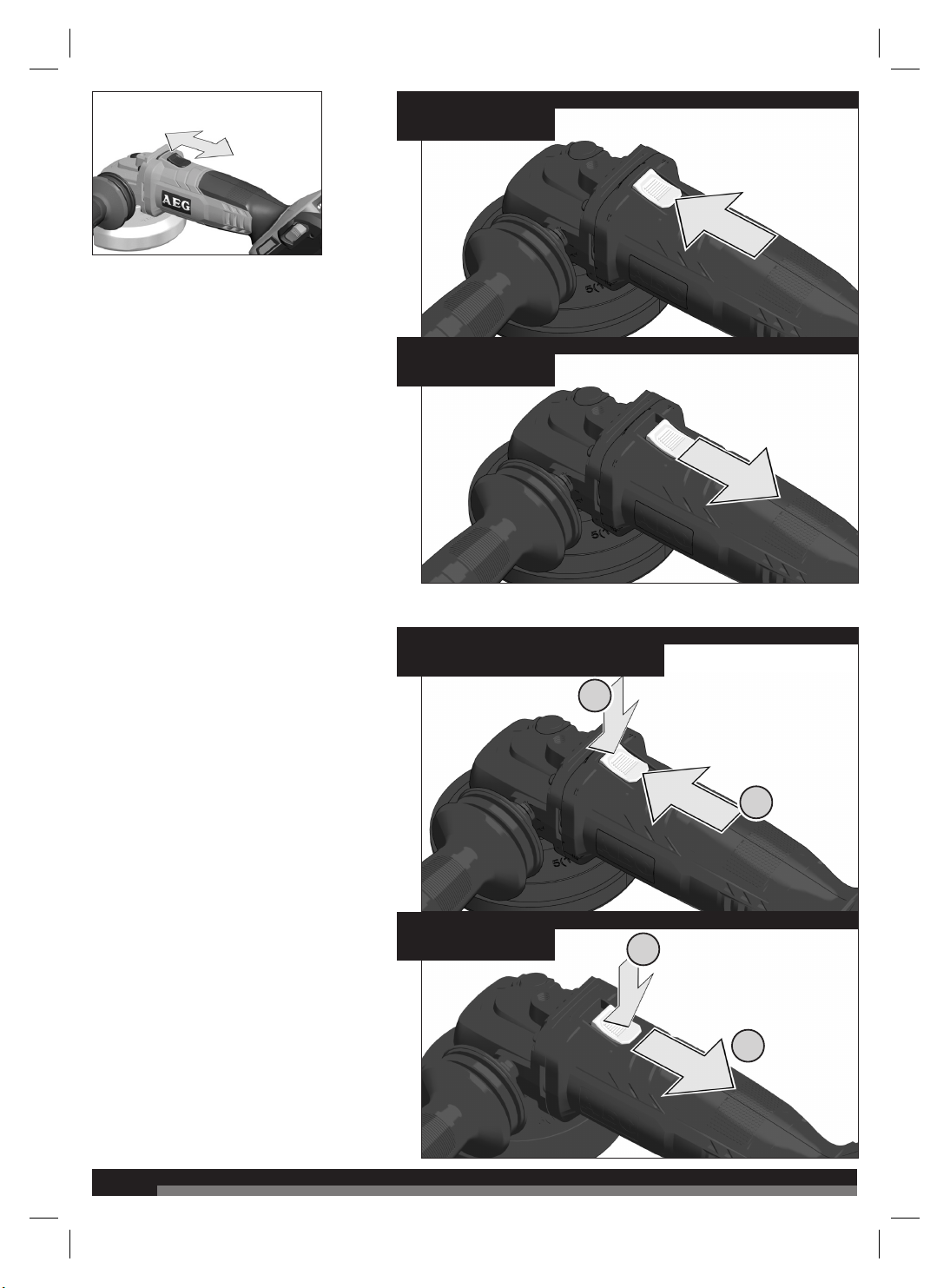

16
START
STOP
START/LOCK
STOP
1
1
2
2
17
30°
18
START
START
STOP
LLO
Line Lock Out Function
1
2
3
4
5
6
Line Lock Out Function
19
If the control lamp is lit:
The restart cut-out is active. The machine will not start if the
battery is fi tted whilst the machine is switched on. Switch the
machine off and then on again.

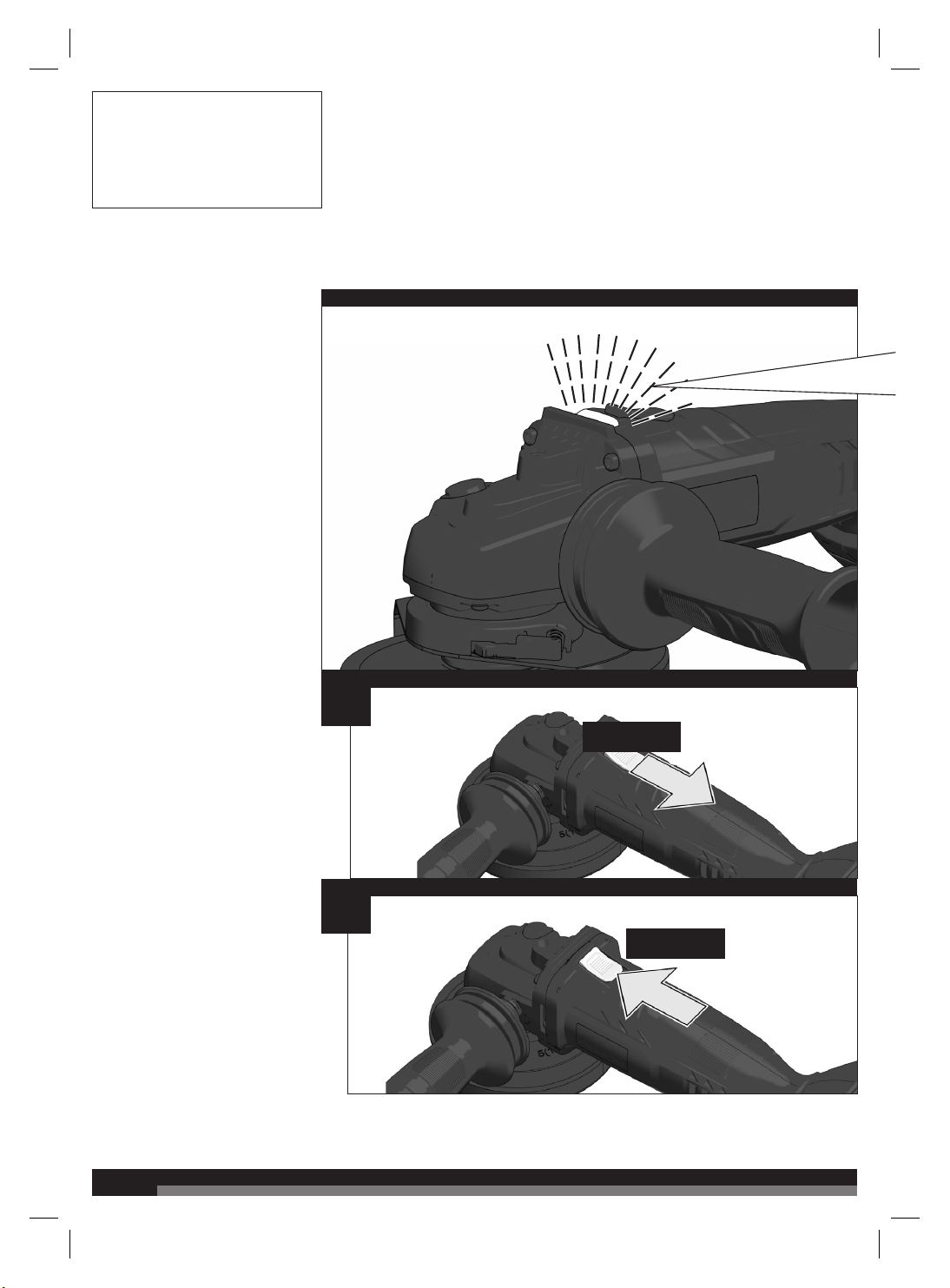

20
START
STOP
1
2
Overload Protection
21
The control lamp fl ashes:
To protect the tool, please let it continue rotating with no-load, or
reduce the load until the
protection: if the motor is overloaded, it will trip the overload protection
and the tool will automatically stop rotating. To continue
working, switch the machine off and then on again.
lamp is off; Load-dependent motor
22
BEWS18-115 X BEWS18-125 X
.............................18 V ............................... 18 V
.........................9000 min
-1
...................... 9000 min
-1
...........................115 mm .......................... 125 mm
.........................M 14 .............................. M 14
............................2,5 kg ............................. 2,6 kg
..........................80,5 dB(A) ...................... 80,5 dB(A)
..........................91,5 dB(A) ..................... 91,5 dB(A)
............................7,3 m/s
2
.......................... 7,3 m/s
2
............................1,5 m/s
2
.......................... 1,5 m/s
2
............................6,1 m/s
2
.......................... 6,1 m/s
2
............................1,5 m/s
2
.......................... 1,5 m/s
2
TECHNICAL DATA Cordless Angle Grinder
Battery voltage..............................................................................
Rated speed .................................................................................
Grinding disk diameter..................................................................
Thread of work spindle ................................................................
Weight according EPT
A-Procedure 01/2003 ................................
Noise/Vibration Information
Measured values determined according to EN 60745.Typically,
the A-weighted noise levels of the
tool are:
Sound pressure level (K = 3 dB(A)) ............................................
Sound power level (K = 3 dB(A)) ................................................
Wear ear protection!
Total vibration values (vector sum in the three axes) determined
according to EN 60745:
Surface grinding:
Vibration emission value a
h
..........................................................
Uncertainty K = ............................................................................
Sanding
Vibration emission value a
h
..........................................................
Uncertainty K = ............................................................................
For other applications, e.g. Abrasive Cutting-Off Operations or
Wire Brushing other vibration values could occur.
WARNING! Read all safety warnings and all
instructions, including those given in the accompanying
brochure. Failure to follow the warnings and instructions may
result in electric shock, fi re and/or serious injury.
Save all warnings and instructions for future reference.
SAFETY INSTRUCTIONS
Safety Warnings Common for Grinding, Wire Brushing or
Abrasive Cutting-Off Operations:
a) This power tool is intended to function as a grinder, wire
brush, or cut-off tool. Read all safety warnings,
instructions, illustrations and specifi cations provided with
this power tool. Failure to follow all instructions listed below
may result in electric shock, fi re and/or serious injury
.
b) Operations such as sanding or polishing are not
recommended to be performed with this power tool.
Operations for which the power tool was not designed may
create a hazard and cause personal injury.
c) Do not use accessories which are not specifi cally
designed and recommended by the tool manufacturer. Just
because the accessory can be attached to your power tool, it
does not assure safe operation.
d) The rated speed of the accessory must be at least equal
to the maximum speed marked on the power tool.
Accessories running faster than their rated speed can break
and fl y apart.
e) The outside diameter and the thickness of your
accessory must be within the capacity rating of your
power tool. Incorrectly sized accessories cannot be
adequately guarded or controlled.
f) The arbour size of wheels, fl anges, backing pads or any
other accessory must properly fi t the spindle of the power
tool. Accessories with arbour holes that do not match the
mounting hardware of the power tool will run out of balance,
vibrate excessively and may cause loss of control.
g) Do not use a damaged accessory. Before each use
inspect the accessory such as abrasive wheels for chips
and cracks, backing pad for cracks, tear or excess wear,
wire brush for loose or cracked wires. If power tool or
accessory is dropped, inspect for damage or install an
undamaged accessory. After inspecting and installing an
accessory, position yourself and bystanders away from the
plane of the rotating accessory and run the power tool at
maximum no-load speed for one minute. Damaged
accessories will normally break apart during this test time.
h) Wear personal protective equipment. Depending on
application, use face shield, safety goggles or safety
glasses. As appropriate, wear dust mask, hearing
protectors, gloves and shop apron capable of stopping
small abrasive or workpiece fragments. The eye protection
must be capable of stopping fl ying debris generated by various
operations. The dust mask or respirator must be capable of
fi ltrating particles generated by your operation. Prolonged
exposure to high intensity noise may cause hearing loss.
i) Keep bystanders a safe distance away from work area.
Anyone entering the work area must wear personal
protective equipment. Fragments of workpiece or of a broken
accessory may fl y away and cause injury beyond immediate
area of operation.
j) Hold the power tool by insulated gripping surfaces only,
when performing an operation where the cutting tool may
contact hidden wiring. Contact with a "live" wire will also
make exposed metal parts of the power tool "live" and could
give the operator an electric shock.
k) Position the cord clear of the spinning accessory. If you
lose control, the cord may be cut or snagged and your hand or
arm may be pulled into the spinning accessory.
l) Never lay the power tool down until the accessory has
come to a complete stop. The spinning accessory may grab
the surface and pull the power tool out of your control.
WARNING
The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in
EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.
The declared vibration emission level represents the main applications of the tool. However if the tool is used for different
applications, with different accessories or poorly maintained, the vibration emission may differ. This may signifi cantly increase the
exposure level over the total working period.
An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is
running but not actually doing the job. This may signifi cantly reduce the exposure level over the total working period.
Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the
accessories, keep the hands warm, organisation of work patterns.
23
m) Do not run the power tool while carrying it at your side.
Accidental contact with the spinning accessory could snag your
clothing, pulling the accessory into your body.
n) Regularly clean the power tool’s air vents. The motor’s
fan will draw the dust inside the housing and excessive
accumulation of powdered metal may cause electrical hazards.
o) Do not operate the power tool near fl ammable materials.
Sparks could ignite these materials.
p) Do not use accessories that require liquid coolants.
Using water or other liquid coolants may result in electrocution
or shock.
Kickback and Related Warnings
Kickback is a sudden reaction to a pinched or snagged rotating
wheel, backing pad, brush or any other accessory. Pinching or
snagging causes rapid stalling of the rotating accessory which
in turn causes the uncontrolled power tool to be forced in the
direction opposite of the accessory’s rotation at the point of the
binding.
For example, if an abrasive wheel is snagged or pinched by the
workpiece, the edge of the wheel that is entering into the pinch
point can dig into the surface of the material causing the wheel
to climb out or kick out. The wheel may either jump toward or
away from the operator, depending on direction of the wheel’s
movement at the point of pinching. Abrasive wheels may also
break under these conditions.
Kickback is the result of power tool misuse and/or incorrect
operating procedures or conditions and can be avoided by
taking proper precautions as given below.
a) Maintain a fi rm grip on the power tool and position your
body and arm to allow you to resist kickback forces.
Always use auxiliary handle, if provided, for maximum
control over kickback or torque reaction during start-up.
The operator can control torque reactions or kickback forces, if
proper precautions are taken.
b) Never place your hand near the rotating accessory.
Accessory may kickback over your hand.
c) Do not position your body in the area where power tool
will move if kickback occurs. Kickback will propel the tool in
direction opposite to the wheel’s movement at the point of
snagging.
d) Use special care when working corners, sharp edges
etc. Avoid bouncing and snagging the accessory. Corners,
sharp edges or bouncing have a tendency to snag the rotating
accessory and cause loss of control or kickback.
e) Do not attach a saw chain, woodcarving blade or
toothed saw blade. Such blades create frequent kickback and
loss of control.
Safety Warnings Specifi c for Grinding and Abrasive
Cutting-Off Operations:
a) Use only wheel types that are recommended for your
power tool and the specifi c guard designed for the
selected wheel. Wheels for which the power tool was not
designed cannot be adequately guarded and are unsafe.
b) The guard must be securely attached to the power tool
and positioned for maximum safety, so the least amount of
wheel is exposed towards the operator. The guard helps to
protect the operator from broken wheel fragments, accidental
contact with wheel and sparks that could ignite clothing.
c) Wheels must be used only for recommended
applications. For example: do not grind with the side of
cut-off wheel. Abrasive cut-off wheels are intended for
peripheral grinding, side forces applied to these wheels may
cause them to shatter.
d) Always use undamaged wheel fl anges that are of correct
size and shape for your selected wheel. Proper wheel
fl anges support the wheel thus reducing the possibility of wheel
breakage. Flanges for cut-off wheels may be different from
grinding wheel fl anges.
e) Do not use worn down wheels from larger power tools.
Wheel intended for larger power tool is not suitable for the
higher speed of a smaller tool and may burst.
Additional Safety Warnings Specifi c for Abrasive
Cutting-Off Operations:
a) Do not “jam” the cut-off wheel or apply excessive
pressure. Do not attempt to make an excessive depth of
cut. Overstressing the wheel increases the loading and
susceptibility to twisting or binding of the wheel in the cut and
the possibility of kickback or wheel breakage.
b) Do not position your body in line with and behind the
rotating wheel. When the wheel, at the point of operation, is
moving away from your body, the possible kickback may propel
the spinning wheel and the power tool directly at you.
c) When wheel is binding or when interrupting a cut for
any reason, switch off the power tool and hold the power
tool motionless until the wheel comes to a complete stop.
Never attempt to remove the cut-off wheel from the cut
while the wheel is in motion otherwise kickback may
occur. Investigate and take corrective action to eliminate the
cause of wheel binding.
d) Do not restart the cutting operation in the workpiece.
Let the wheel reach full speed and carefully re-enter the
cut. The wheel may bind, walk up or kickback if the power tool
is restarted in the workpiece.
e) Support panels or any oversized workpiece to minimize
the risk of wheel pinching and kickback. Large workpieces
tend to sag under their own weight. Supports must be placed
under the workpiece near the line of cut and near the edge of
the workpiece on both sides of the wheel.
f) Use extra caution when making a “pocket cut” into
existing walls or other blind areas. The protruding wheel
may cut gas or water pipes, electrical wiring or objects that can
cause kickback.
Safety Warnings Specifi c for Wire Brushing Operations:
a) Be aware that wire bristles are thrown by the brush even
during ordinary operation. Do not overstress the wires by
applying excessive load to the brush. The wire bristles can
easily penetrate light clothing and/or skin.
b) If the use of a guard is recommended for wire brushing,
do not allow any interference of the wire wheel or brush
with the guard. Wire wheel or brush may expand in diameter
due to work load and centrifugal forces.
Dust and splinters must not be removed while the machine is
running.
Never reach into the danger area of the tool when it is running.
Always use the auxiliary handle.
Always use the protecting cap when roughing-down and
separating.
Immediately switch off the machine in case of considerable
vibrations or if other malfunctions occur. Check the machine in
order to fi nd out the cause.
Always use and store the grinding disks according to the
manufacturer's instructions.
When grinding metal, fl ying sparks are produced. Take care
that no persons are endangered. Because of the danger of fi re,
no combustible materials should be located in the vicinity
(spark fl ight zone). Do not use dust extraction.
Due care should be taken that no sparks or sanding dust fl ying
from the workpiece come into contact with you.
The adjusting nut must be tightened before starting to work with
the machine.
The workpiece must be fi xed if it is not heavy enough to be
steady. Never lead the workpiece to the grinding disk with your
hand.
24
For accessories intended to be fi tted with threaded hole wheel,
ensure that the thread in the wheel is long enough to accept
the spindle length.
For cutting or separating use a closed protection cap, available
as an accessory.
Do not dispose of used battery packs in the household refuse
or by burning them. AEG Distributors offer to retrieve old
batteries to protect our environment.
Do not store the battery pack together with metal objects (short
circuit risk).
Use only System GBS chargers for charging System GBS
battery packs. Do not use battery packs from other systems.
Never break open battery packs and chargers and store only in
dry rooms. Keep dry at all times.
Battery acid may leak from damaged batteries under extreme
load or extreme temperatures. In case of contact with battery
acid wash it off immediately with soap and water. In case of eye
contact rinse thoroughly for at least 10 minutes and
immediately seek medical attention.
SPECIFIED CONDITIONS OF USE
The angle grinder may be used for cutting-off, grinding and wire
brushing a wide range of materials, such as metal or stone. If
you have any doubts, please refer to the instructions supplied
by the accessory manufacturer.
Do not use this product in any other way as stated for normal
use.
BATTERIES
New battery packs reach full loading capacity after 4 - 5
chargings and dischargings. Battery packs which have not
been used for some time should be recharged before use.
Temperatures in excess of 50°C (122°F) reduce the
performance of the battery pack. Avoid extended exposure to
heat or sunshine (risk of overheating).
The contacts of chargers and battery packs must be kept clean.
For an optimum life-time, after use, the battery packs have to
be fully charged.
MAINTENANCE
The ventilation slots of the machine must be kept clear at all
times.
Do not let any metal parts reach the airing slots - danger of
short circuit!
Use only
AEG accessories and spare parts. Should
components need to be exchanged which have not been
described, please contact one of our AEG service agents (see
our list of guarantee/service addresses).
If needed, an exploded view of the tool can be ordered. Please
state the ten-digit No. as well as the machine type printed on
the label and order the drawing at your local service agents or
directly at: AEG Electric Tools GmbH, Max-Eyth-Straße 10,
D-71364 Winnenden, Germany.
SYMBOLS
Please read the instructions carefully before starting
the machine.
Always wear goggles when using the machine.
Remove the battery pack before starting any work on
the machine.
Accessory - Not included in standard equipment,
available as an accessory.
Do not dispose of electric tools together with
household waste material! In observance of European
Directive 2002/96/EC on waste electrical and
electronic equipment and its implementation in
accordance with national law, electric tools that have
reached the end of their life must be collected
separately and returned to an environmentally
compatible recycling facility.
To obtain the longest possible battery life remove the battery
pack from the charger once it is fully charged.
For battery pack storage longer than 30 days:
Store the battery pack where the temperature is below 27°C
and away from moisture
Store the battery packs in a 30% - 50% charged condition
Every six months of storage, charge the pack as normal.
www.aegpowertools.com.au
Max-Eyth-Straße 10
D-71364 Winnenden
Germany
AEG Electric Tools GmbH
961004004-01A
