T910
User Guide
OPENF IT
CATALOGUE
Catalogue
IN THE BOX
APP
Charging Case External Indicator LED
Charging Case Internal Indicator LED
INDICATOR LED
WEAR & USE
Pairing
Earbud Diagram
Wearing
Charging the Earbuds
Charging the Charging Case
On/Off and Standby
POWER SOURCE
Resetting
Auto Connect
ADDITIONAL FEATURES
Call Control
Single Earbud Control
Music Control
TOUCH CONTROL
04
03
05
Earbud Case
06
07
09
11
12
13
16
18
20
14
15
21
22
01
02
IP Rating
Cleaning
MAINTENANCE

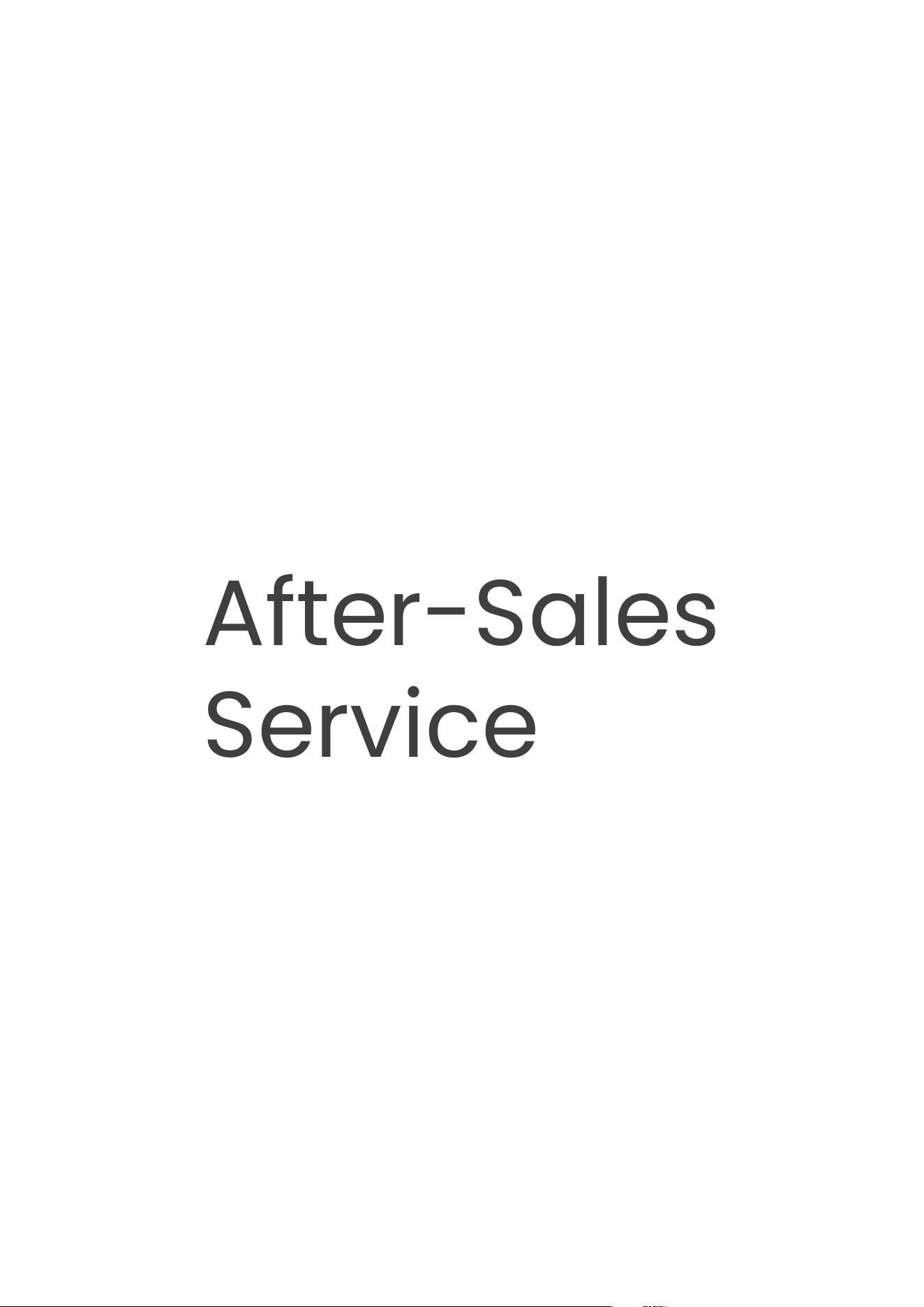

AFTER-SALES SERVICE
Warranty

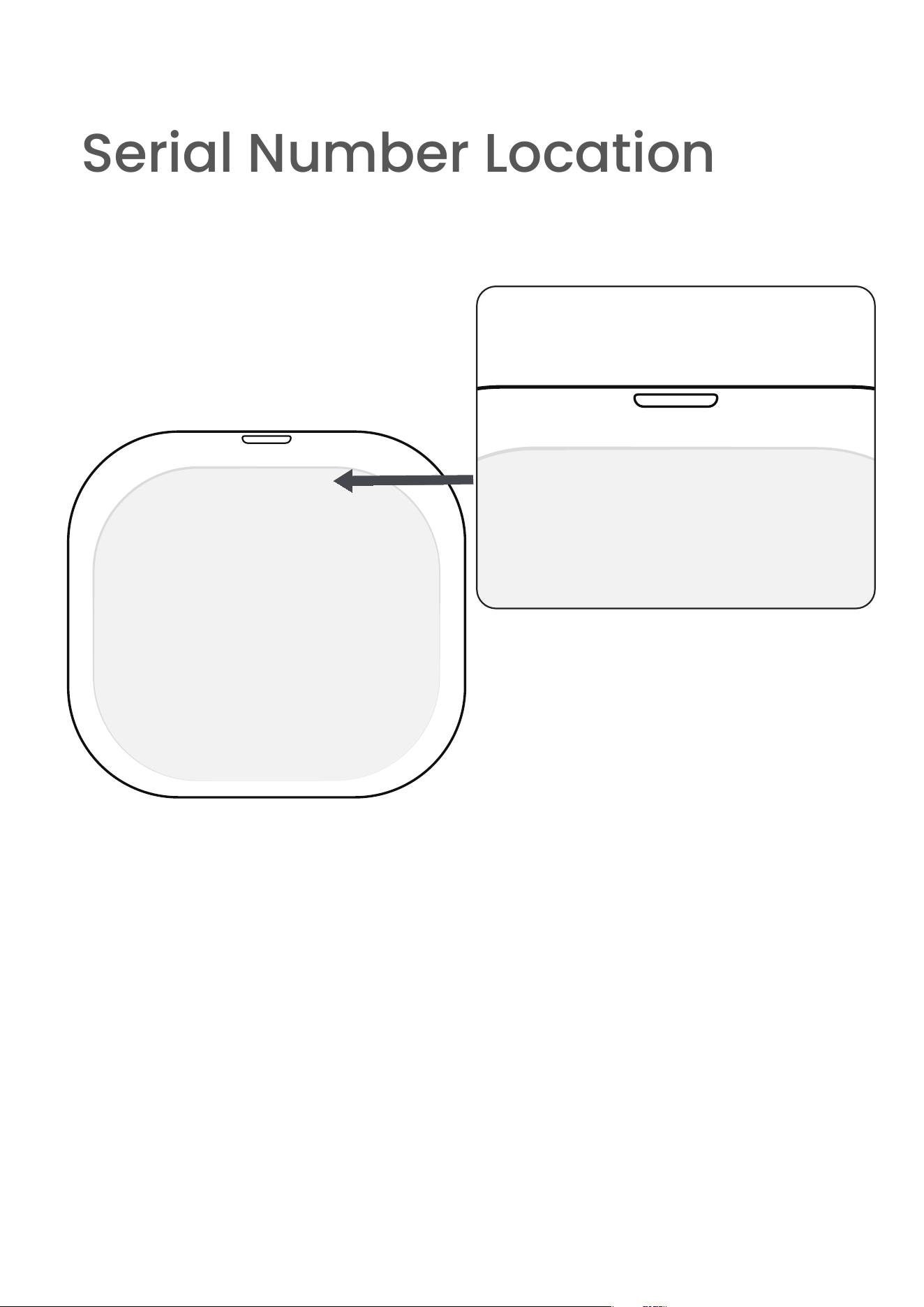

Serial Number Location
23
24
25
26
APP
APP
Download the Shokz App
The Shokz App supports customized EQ modes, custom touch
functions, firmware updates, and other functions! Define your
sound the way you want.
Download the Shokz App now to enjoy the best experience.
Android users: Please use your mobile browser to scan the QR
code and download the app.
* Availability is limited by region. Go to
userguide.shokz.net/OpenFit for more information.
APP
03
In the Box
In the Box
User Guide & Legal Statement *1
(versions vary by region)
User Guide
App Card*1
APP Card
Warranty Card*1
Warranty
IN THE BOX
Do not use the product if any of the above items are missing
or the product is damaged. Please contact your dealer, or
reach out to us immediately.
(See Page 30 : After-Sales Service - Contact Us)
OpenFit
True Wireless Earbuds*2
OpenFit
Charging case*1
OpenFit
Packing Box*1
USB-C
Charging Cable*1
OPENFIT
04
Wear & Use
Ear hooks
Microphone
Battery compartment
Earbud Diagram
EARBUD DIAGRAM
Touch area
*The protrusion of the touch area is the effective position
of the touch button.
05
Earbud Case
Charging case Internal Indicator LED
Charging case External Indicator LED
EARBUD CASE
06

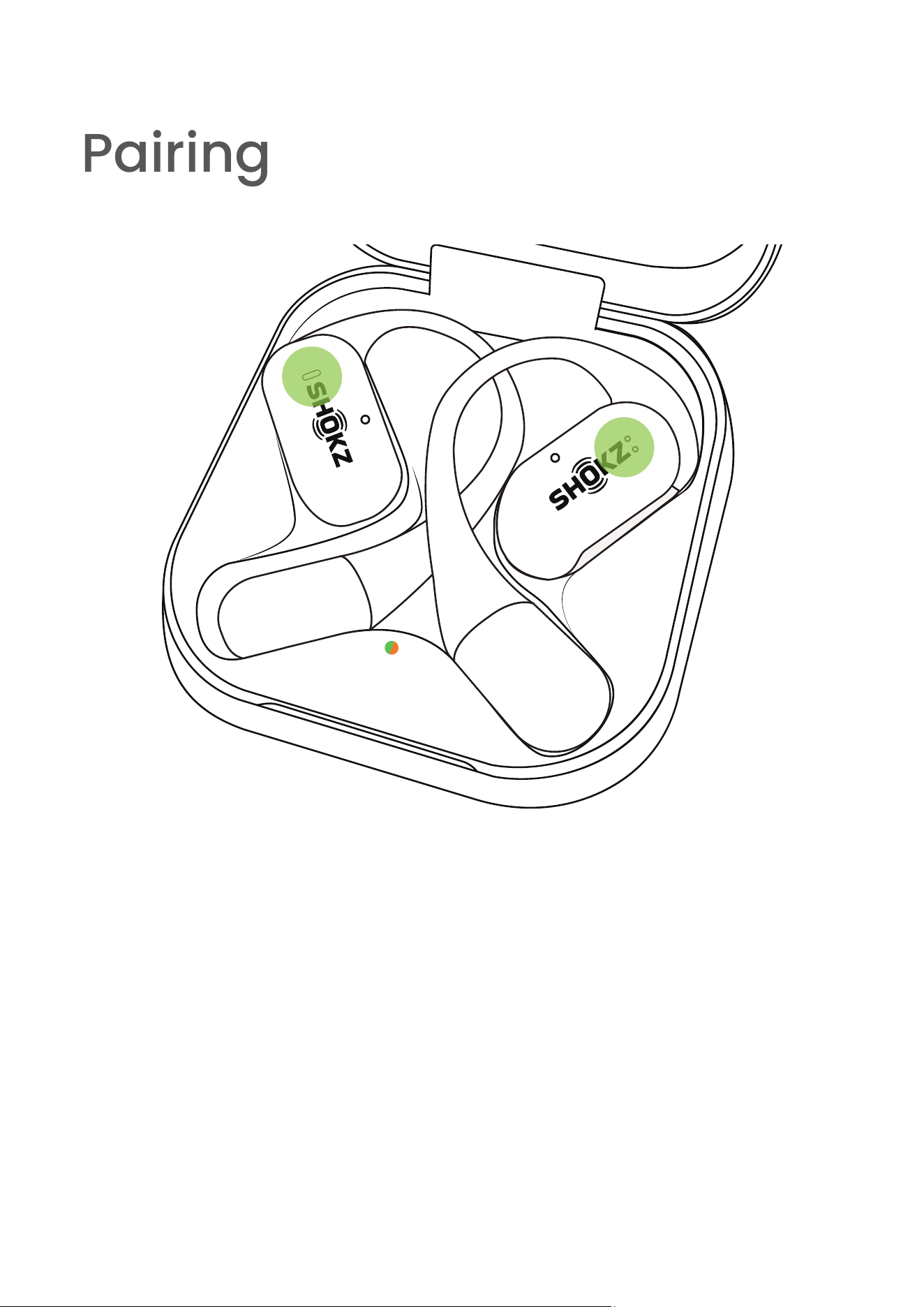

Pairing
PAIRING
When using for the first time: Open the charging case to
immediately enter Bluetooth pairing mode, with the indi-
cator lights in the case flashing orange and green.
For subsequent pairings:
1. Place both earbuds into the charging case;
2. Press and hold the touch area of the earbuds with two
fingers simultaneously until the indicator lights flash
orange and green, which indicates the earbuds have en-
tered pairing mode;
07
3. Enable the Bluetooth function and select
"OpenFit by Shokz." The device will display the successful
pairing when complete.
PAIRING
When using for the first time: Open the charging case to
immediately enter Bluetooth pairing mode, with the indi-
cator lights in the case flashing orange and green.
For subsequent pairings:
1. Place both earbuds into the charging case;
2. Press and hold the touch area of the earbuds with two
fingers simultaneously until the indicator lights flash
orange and green, which indicates the earbuds have en-
tered pairing mode;
Bluetooth
OpenFit by Shokz
08

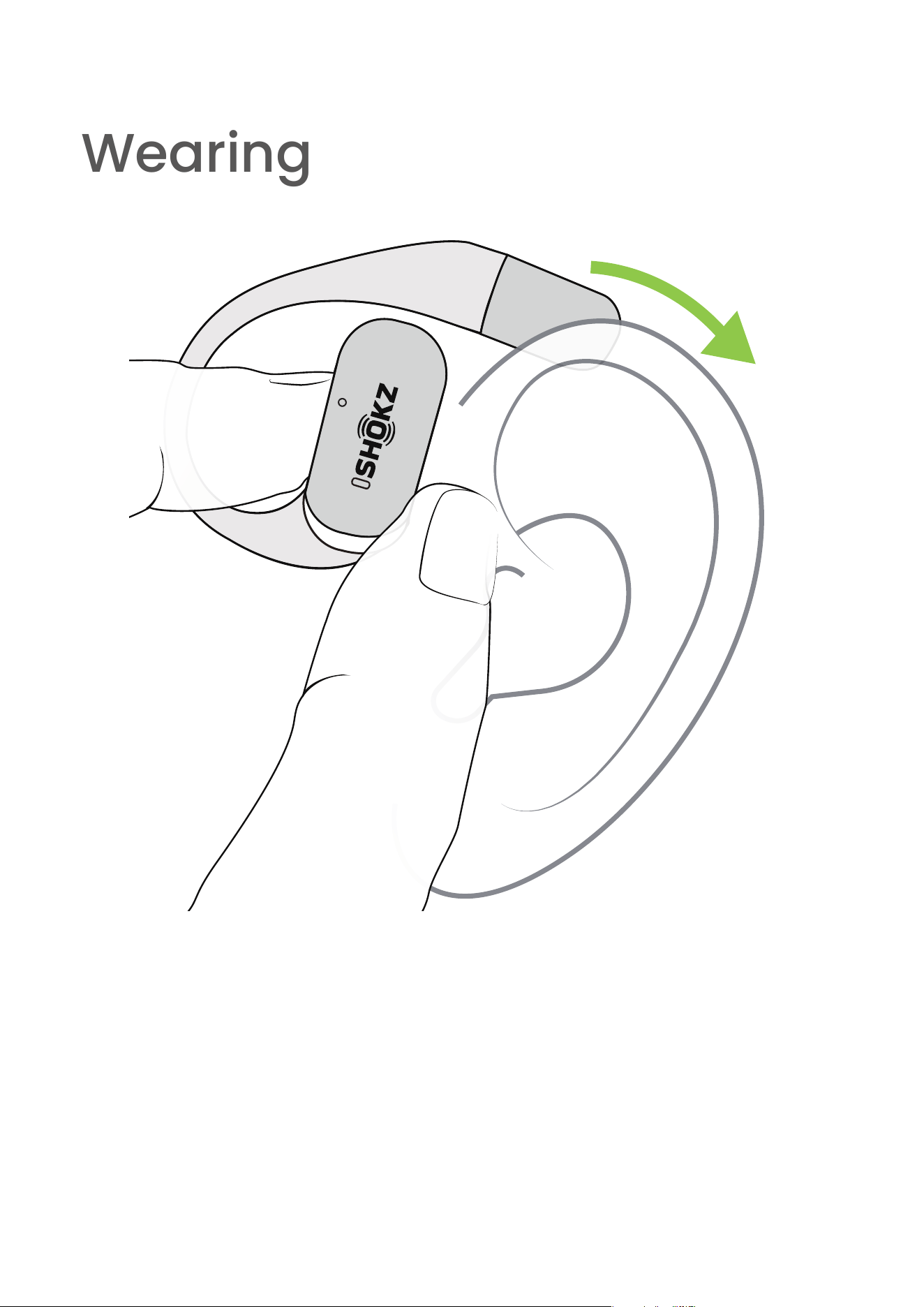

1. Take the earbuds out of the charging case;
2. Hold them just above your ears;
Wearing
WEARING
09

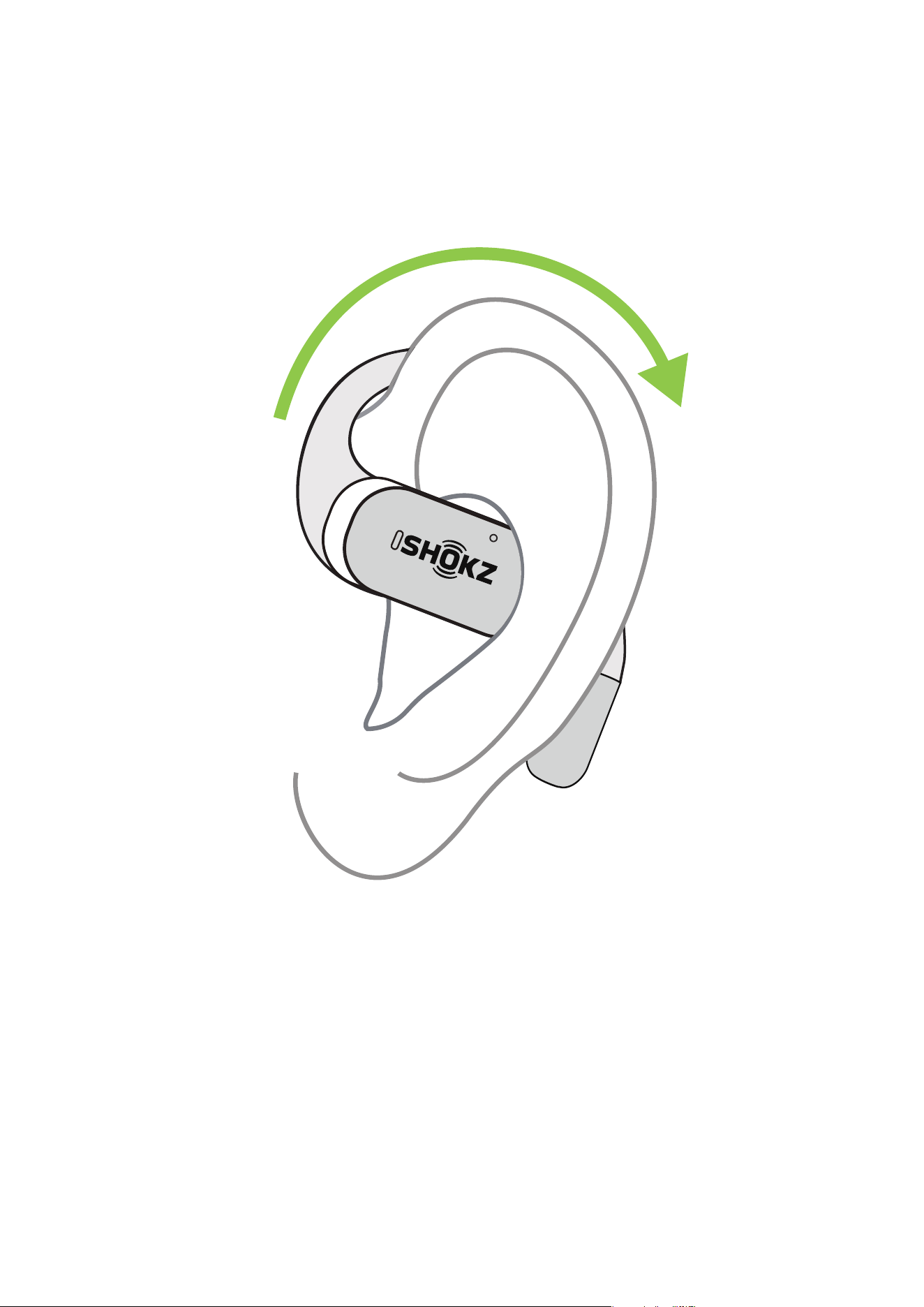

3. Rotate the ear hooks downward along the auricle of
the ear to achieve proper positioning;
4. Complete insertion.
WEARING
10
Touch Control
MUSIC CONTROL
Music Control
Volume control:
Use the volume control button on the paired
Bluetooth device.
Touch area
Double-tap either earbud.
Tap and hold the left earbud for 3 seconds.
Tap and hold the right earbud for 3 seconds.
Play/pause music
Previous track Next track
11
CALL CONTROL
Call Control
Call volume adjustment:
Use the volume control button on the paired Bluetooth device.
Double-tap either earbud
Double-tap on either earbud
Answer a call
End a call
Tap and hold either earbud
Reject a call
Touch area
12

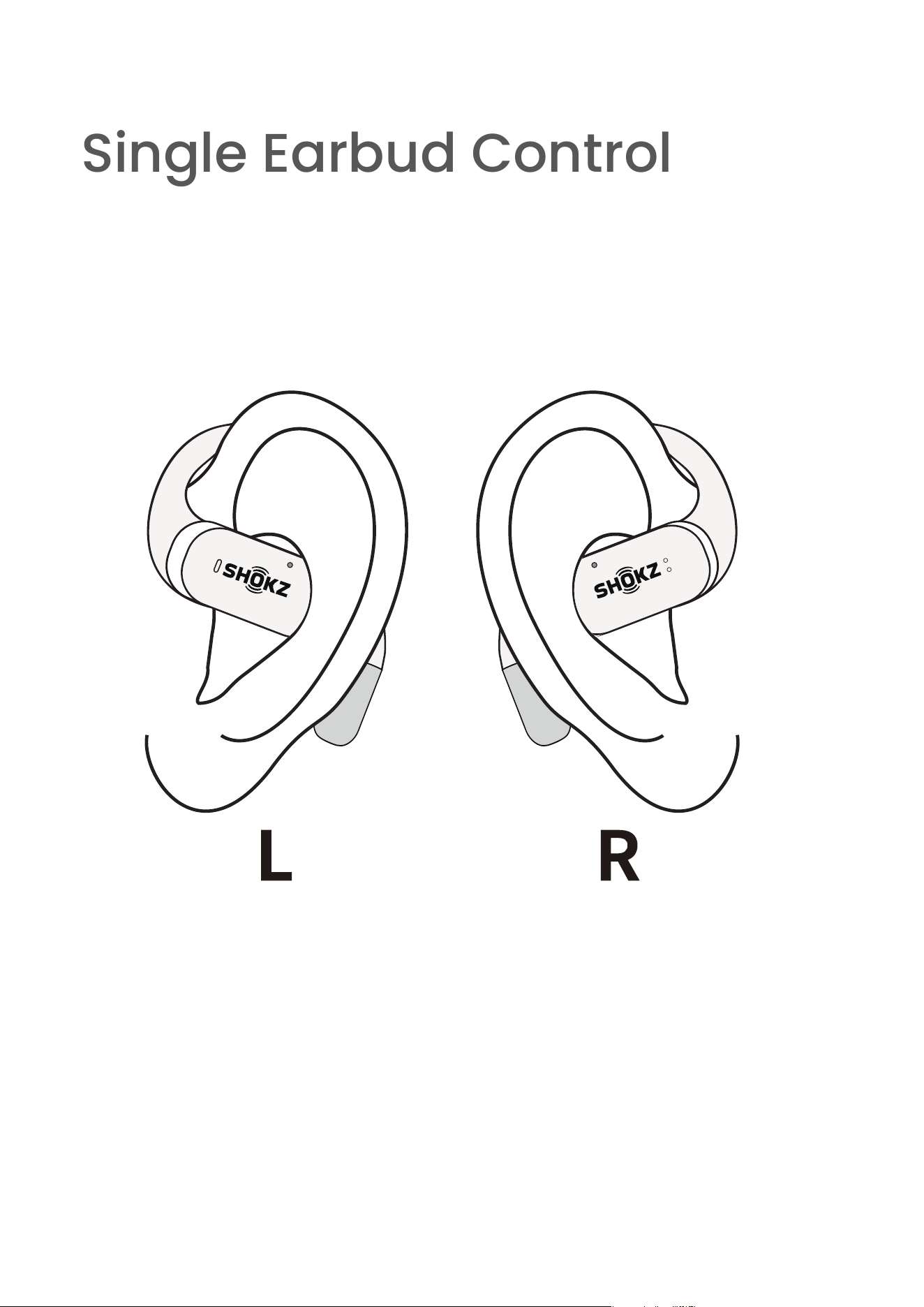

Both earbuds support independent use for mono music or
calls. When used alone, the earbud retains the function of
its current button. (Refer to music control on Page 11 and
call control on Page 12)
SINGLE EARBUD CONTROL
Single Earbud Control
13
Both earbuds support independent use for mono music or
calls. When used alone, the earbud retains the function of
its current button. (Refer to music control on Page 11 and
call control on Page 12)
Indicator LED
Charging Case Internal
Indicator LED
CHARGING CASE INTERNAL INDICATOR LED
The earbud state indicator is located between the two earbuds
in the charging case, informing the state of charge of the earbuds.
* Note: When two earbuds are in the charging case,
the LED will indicate the battery of the one with the lower
battery level.
Charging case Internal Indicator LED
Pairing
Factory data reset
Low battery level
High battery level
The indicator lights flash orange and green.
The orange light goes off after 5 seconds.
When opening, the orange light goes off after 5 seconds.
When opening, the green light goes off after 5 seconds.
14
Charging Case External
Indicator LED
CHARGING CASE EXTERNAL INDICATOR LED
Charging case External Indicator LED
High battery level of
charging case
Low battery level of
charging case
When not connected to an external power supply
Charging completed
When the charging case is open or closed, the green
light is off after 5 seconds
When the charging case is open or closed, the orange
light is off after 5 seconds
The green light stays on
Charging
When connected to an external power supply
The orange light stays on
The earbud state indicator is located at the opening of the
charging case, informing users of its charging state.
15
Power Source
On/Off and Standby

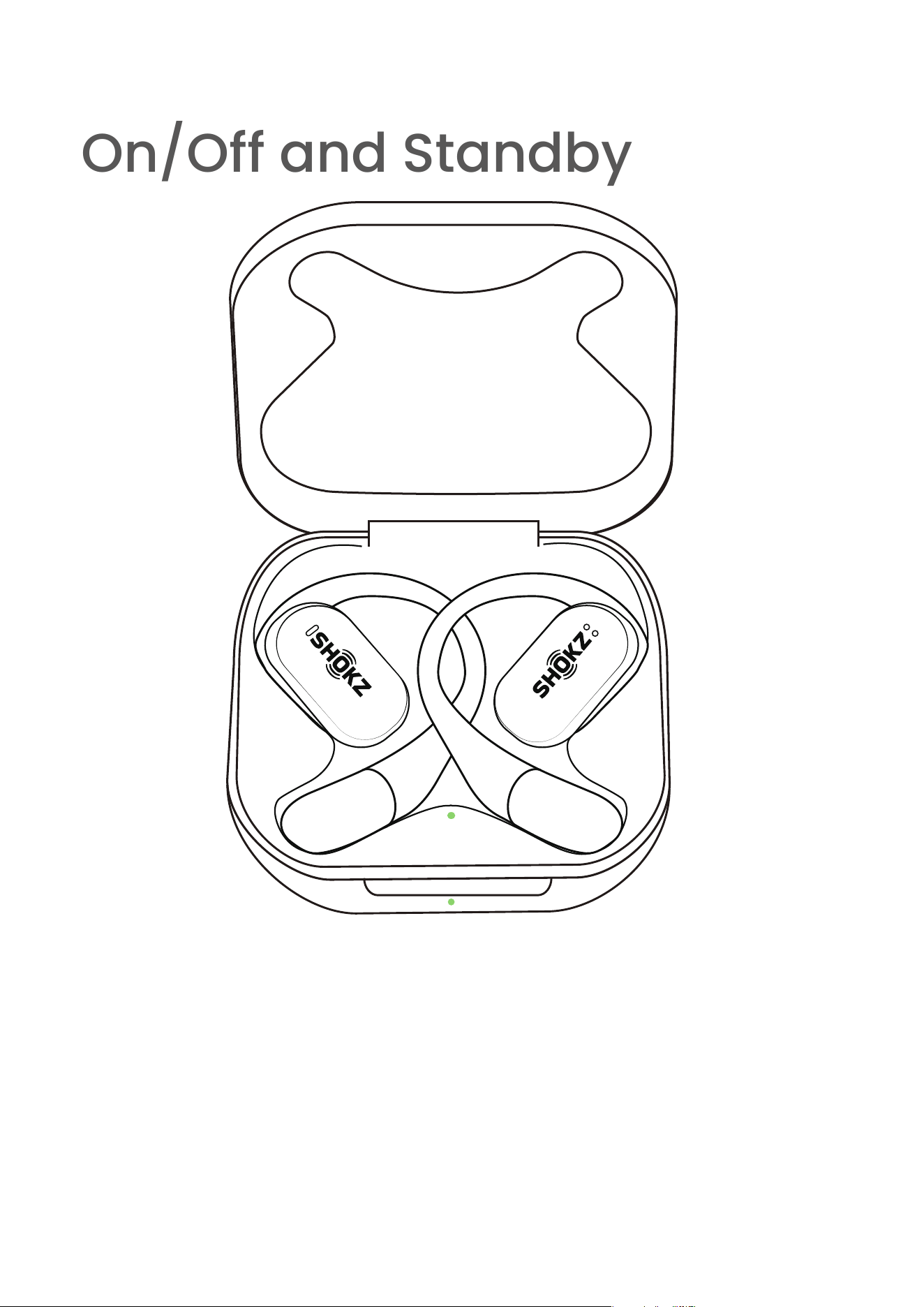

ON/OFF AND STANDBY
1. On
If the earbuds are in the charging case when opened, the ear-
buds will be powered on, the state indicators of the earbuds
and the charging case will be on, and the earbuds will be on.
*Note: Closing the charging case after removing the earbuds
will help maintain the battery level and prevents debris from
falling into the box.
16
2. Off
When the charging case is closed after the two earbuds are
placed inside, the earbuds will be switched off.
3. Standby
When the earbuds are not in the charging case and are not
connected to the device for 3 minutes, the earbuds will switch
to standby mode to reserve earbud battery power.
ON/OFF AND STANDBY
17
Charging the Earbuds

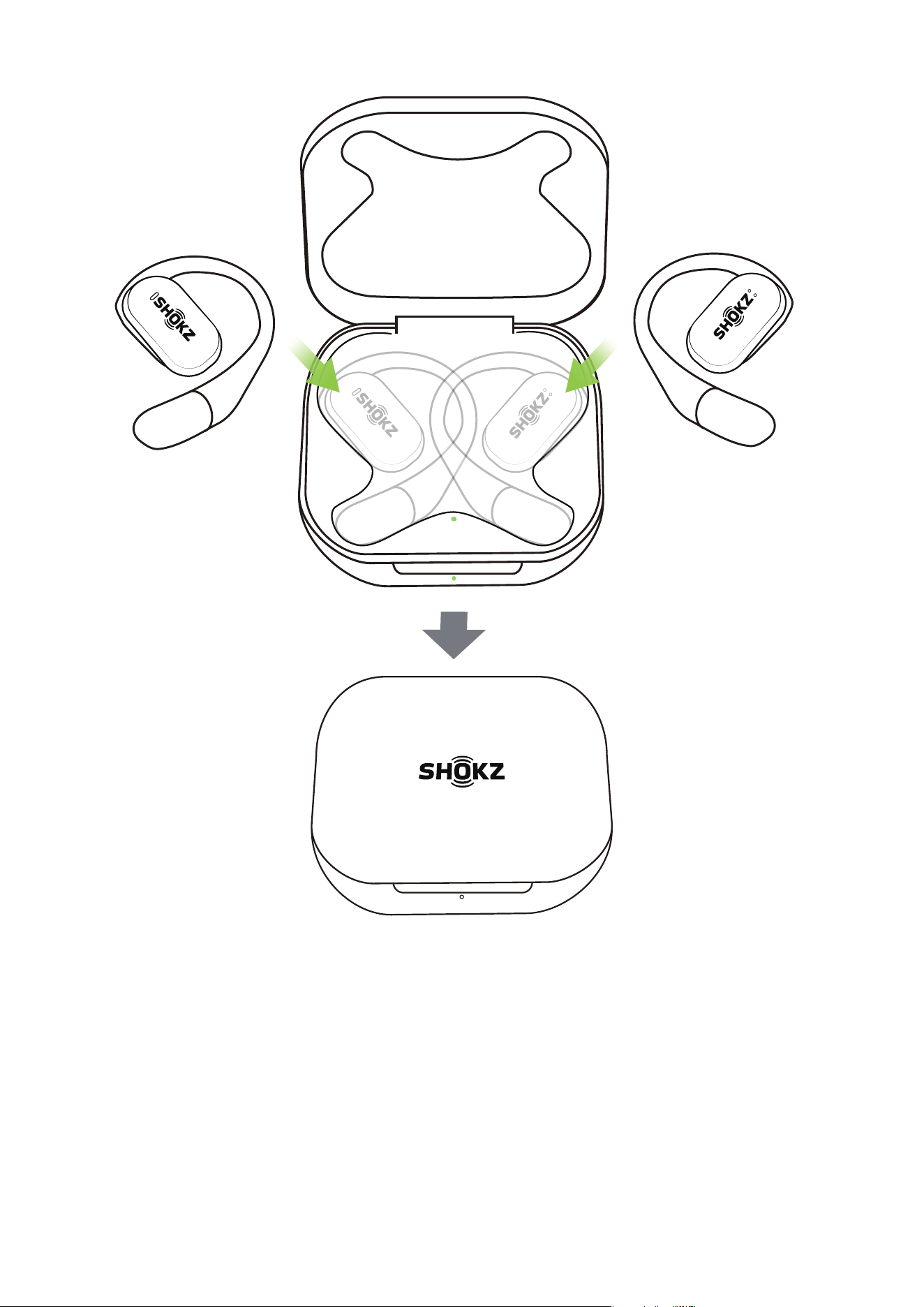

CHARGING THE EARBUDS
18
Green light indicates a high battery level
Orange light indicates a low battery level
Place the earbuds in the charging case until they are mag-
netically attached. The charging case can be closed when
the indicator light of the earbuds is on.
CHARGING THE EARBUDS
LED Indicator
19
*Please note:
• The LED indicator in the charging case will show the state of
charge of the earbuds in the charging case. A green light
indicates a high battery level, while an orange light indicates low. If
both of the earbuds are in the charging case, the LED indicator will
indicate the state of charge of the earbud with the lower battery
level.
• The earbuds will be fully charged after approx. 60 minutes in the
charging case. The charging case needs to have a sufficient
battery level to charge the earbuds.
Charging the Charging Case
Orange light on the charging case Charging port
CHARGING THE CHARGING CASE
Insert the USB-A to USB-C charging cable into the charging
case and USB-A power supply or certified wall charger. A solid
orange light on the charging case indicates that the charging
case is charging. A solid green light indicates the charging
case is fully charged.
Please note:
• It takes approx. 2 hours for the charging case to be fully
charged. The charging case uses the standard 5V±5A USB volt-
age. Using a high-voltage power source to charge the earbuds
is not recommended. It may also take longer to charge the
charging case with a third-party charging cable.
• Before charging, ensure that the charging port is dry and free
of liquid residue like sweat. Use a soft dry cloth to wipe any
liquid residue from the charging port.
20
Additional
Features

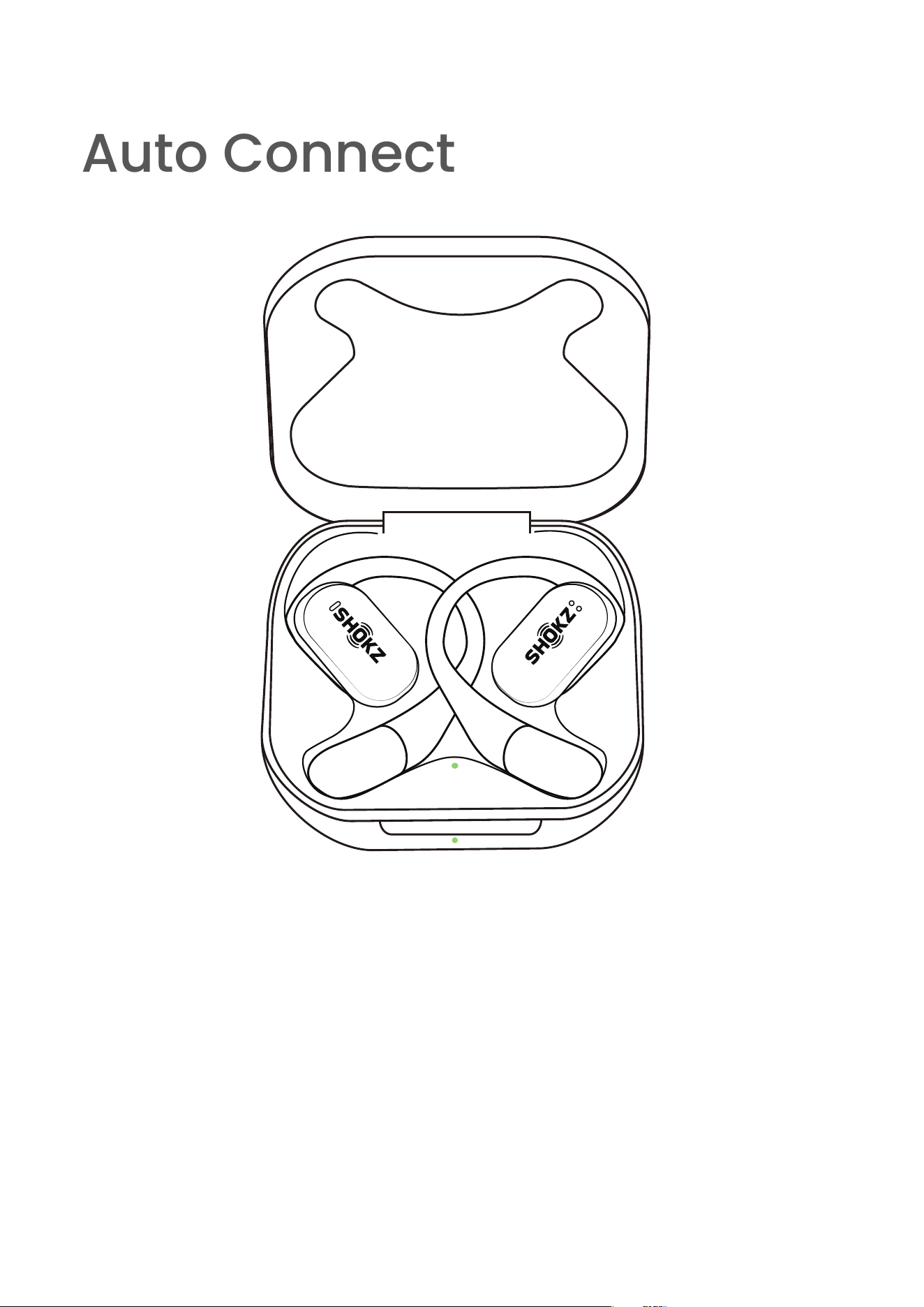

Auto Connect
AUTO CONNECT
1. When the earbuds are on, they will automatically try to
connect to the most recently connected device and issue a
prompt when the connection is successful.
2. During use, the earbud may disconnect from the paired
device due to limitations of connection range. If the earbud
automatically re-connects within 3 minutes, it will issue a
prompt.
*The paired devices must be within connection range (10m)
and must be powered on. Make sure your intended device
has Bluetooth enabled.
21
Resetting

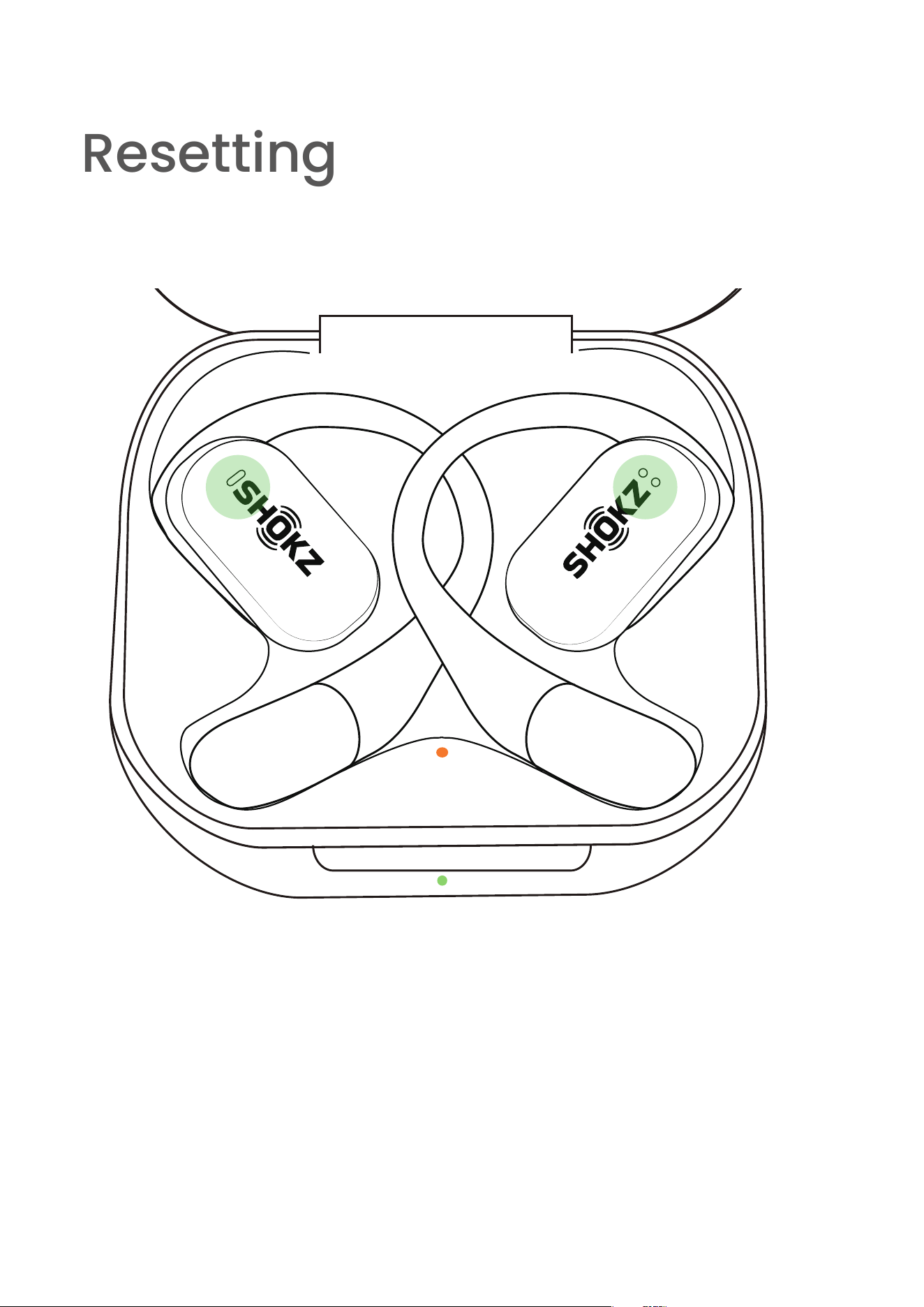

RESETTING
Resetting the earbuds will clear the list of paired devices and
reset all settings.
1. Place both earbuds in the charging case.
2. Press and hold the touch area of two earphones for 15
seconds simultaneously. The orange light in the box will flash
for 5 seconds and then go out, indicating that the reset is
complete. At this time, the status light in the charging box
will flash alternately orange and green, which can be used
directly for pairing.
22
Maintenance
CLEANING
Cleaning
1. Earbuds:
It is recommended to use a soft and clean dry cloth to clean
the earbuds. When cleaning the earphone mesh, gently brush
away dirt and earwax with a clean and dry cotton swab, then
wipe with a soft cloth.
*Please note:
• Before cleaning and maintenance, please stop using the
earbuds and disconnect all connections with other devices.
• This product does not support washing with water. Do not
wash the earbuds directly with water or use ultrasonic cleaning.
• Do not allow liquid to enter any opening of the earbuds.
• To avoid damage, deformation, and discoloration of the
earbuds, please do not use an abrasive cleaner or spray,
high-concentration cleaner, chemical cleaner, alcohol, or
acetone solvent for cleaning. Do not use any sharp or abrasive
objects.
2. Charging Case:
It is recommended to clean the charging case with a soft and
clean, dry cloth. Use a clean, dry, soft brush to remove debris
from the charging interface. Use a clean and dry cotton swab
to wipe the charging contact surface of the charging box
gently.
*Please note:
• Before cleaning and maintenance, please disconnect the
charging case from the charging cable.
• Do not use abrasive items to clean the charging case.
23
IP Rating
1. Earbuds:
It is recommended to use a soft and clean dry cloth to clean
the earbuds. When cleaning the earphone mesh, gently brush
away dirt and earwax with a clean and dry cotton swab, then
wipe with a soft cloth.
*Please note:
• Before cleaning and maintenance, please stop using the
earbuds and disconnect all connections with other devices.
• This product does not support washing with water. Do not
wash the earbuds directly with water or use ultrasonic cleaning.
• Do not allow liquid to enter any opening of the earbuds.
• To avoid damage, deformation, and discoloration of the
earbuds, please do not use an abrasive cleaner or spray,
high-concentration cleaner, chemical cleaner, alcohol, or
acetone solvent for cleaning. Do not use any sharp or abrasive
objects.
2. Charging Case:
It is recommended to clean the charging case with a soft and
clean, dry cloth. Use a clean, dry, soft brush to remove debris
from the charging interface. Use a clean and dry cotton swab
to wipe the charging contact surface of the charging box
gently.
*Please note:
• Before cleaning and maintenance, please disconnect the
charging case from the charging cable.
• Do not use abrasive items to clean the charging case.
IP RATING
24
*Please note:
• IP54 dust and water-resistant conditions only apply to the
earphone body, not the charging case.
• The splash-proof function is not permanent and may
decrease with daily use.
• Do not immerse this product in water or expose it to wet
environments for extended periods, or wear when swimming,
water skiing, surfing, or other water sports.
• If this product and its accessories are accidentally
contaminated with water, please wipe them as soon as
possible and place them in a ventilated and cool place for
drying. Do not use or charge until completely dry.
Tested under controlled laboratory conditions, the earphone
part of this product can prevent splashing at an IP54 level
under IEC 60529 standard.
After-Sales
Service
Serial Number Location
The product serial number has been indicated on the
bar code of the packaging and warranty card.
The charging case also has a serial number printed
on the bottom.
SERIAL NUMBER LOCATION
sxxxxxxxxxxxxx
sxxxxxxxxxxxxx
25
Warranty
WARRANTY
Your headphones are covered by a warrantyVisit our
website at https://shokz.com/pages/warranty-landing
for details of the limited warranty.
26
