Contents
01. AC300 INTRODUCTION ........................... 01
02. GENERAL SAFETY INSTRUCTIONS ............ 02
03. IN THE BOX ........................................... 05
04. APP USER GUIDE ................................... 07

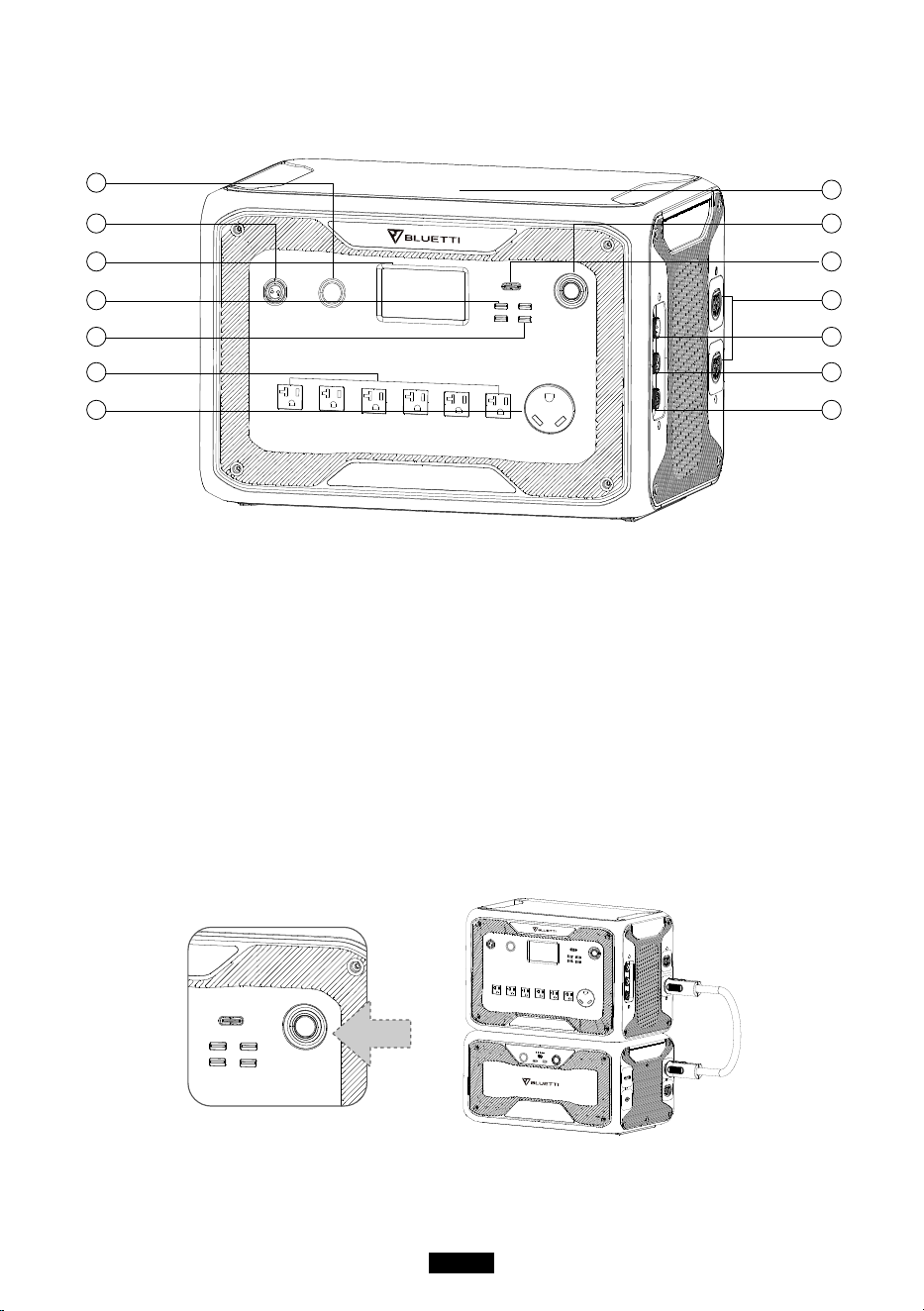

05. FEATURES OF AC300 ............................... 11
06. STARTUP & POWER OFF ........................... 11

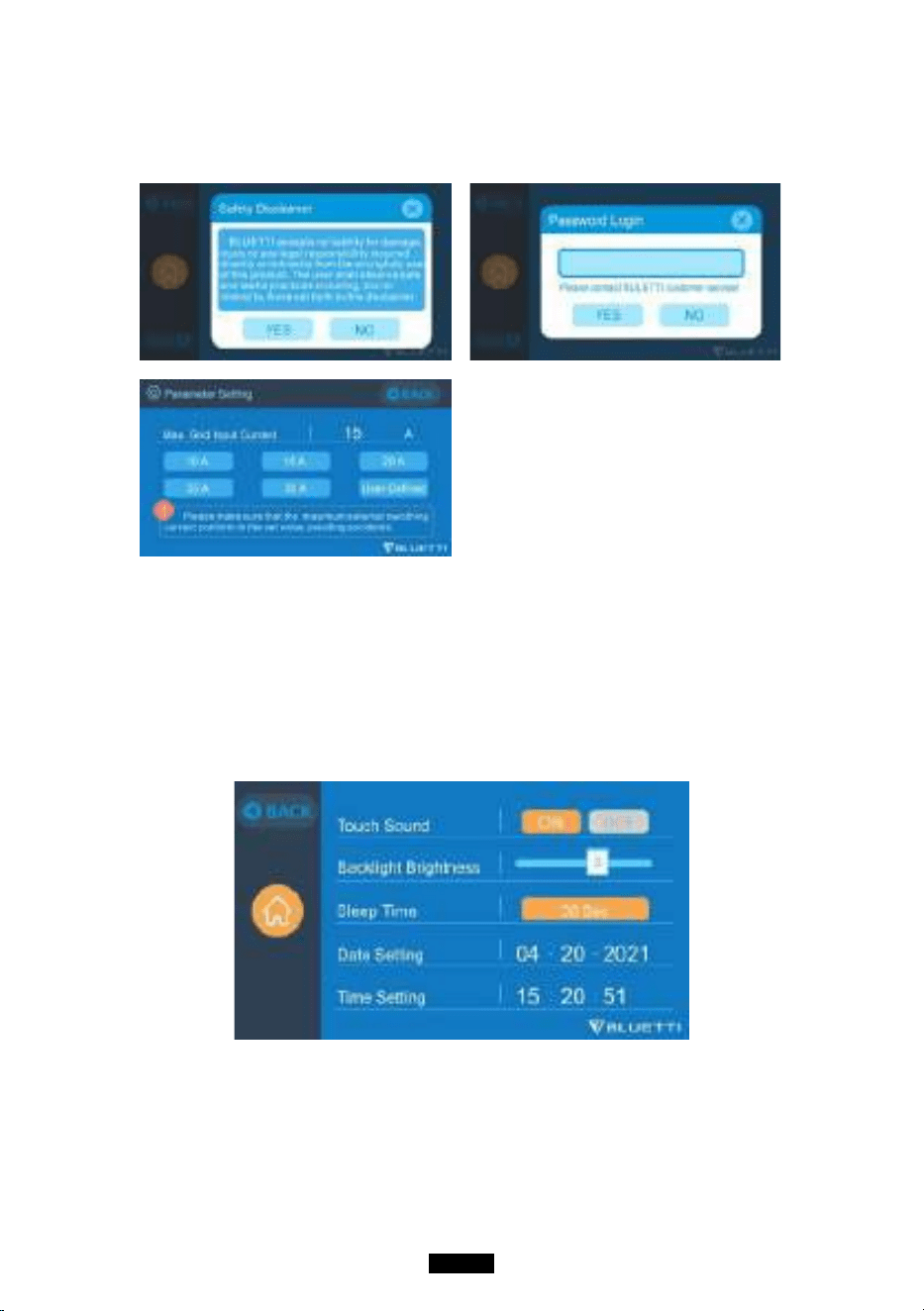

07. USER INTERFACE ................................... 12

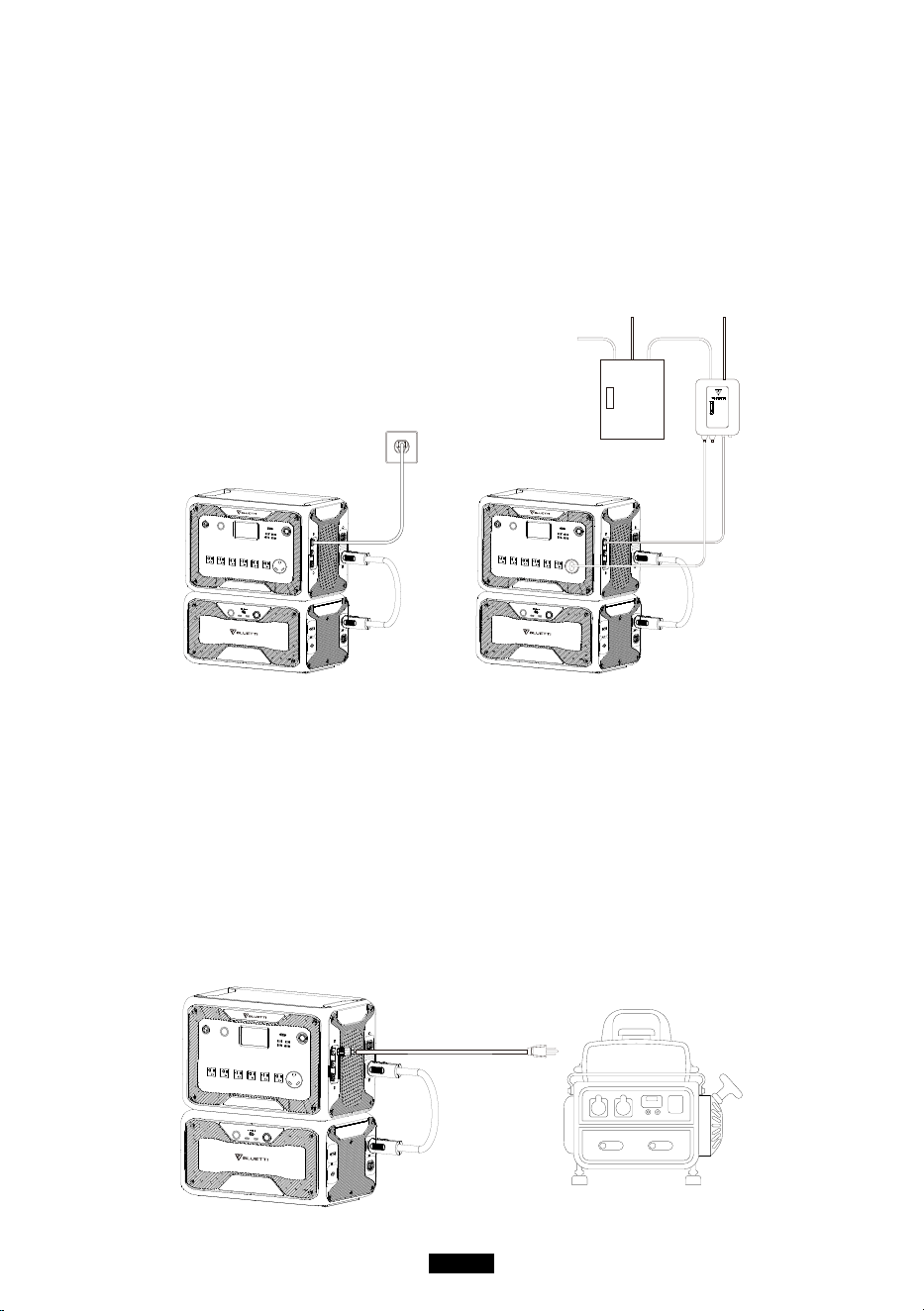

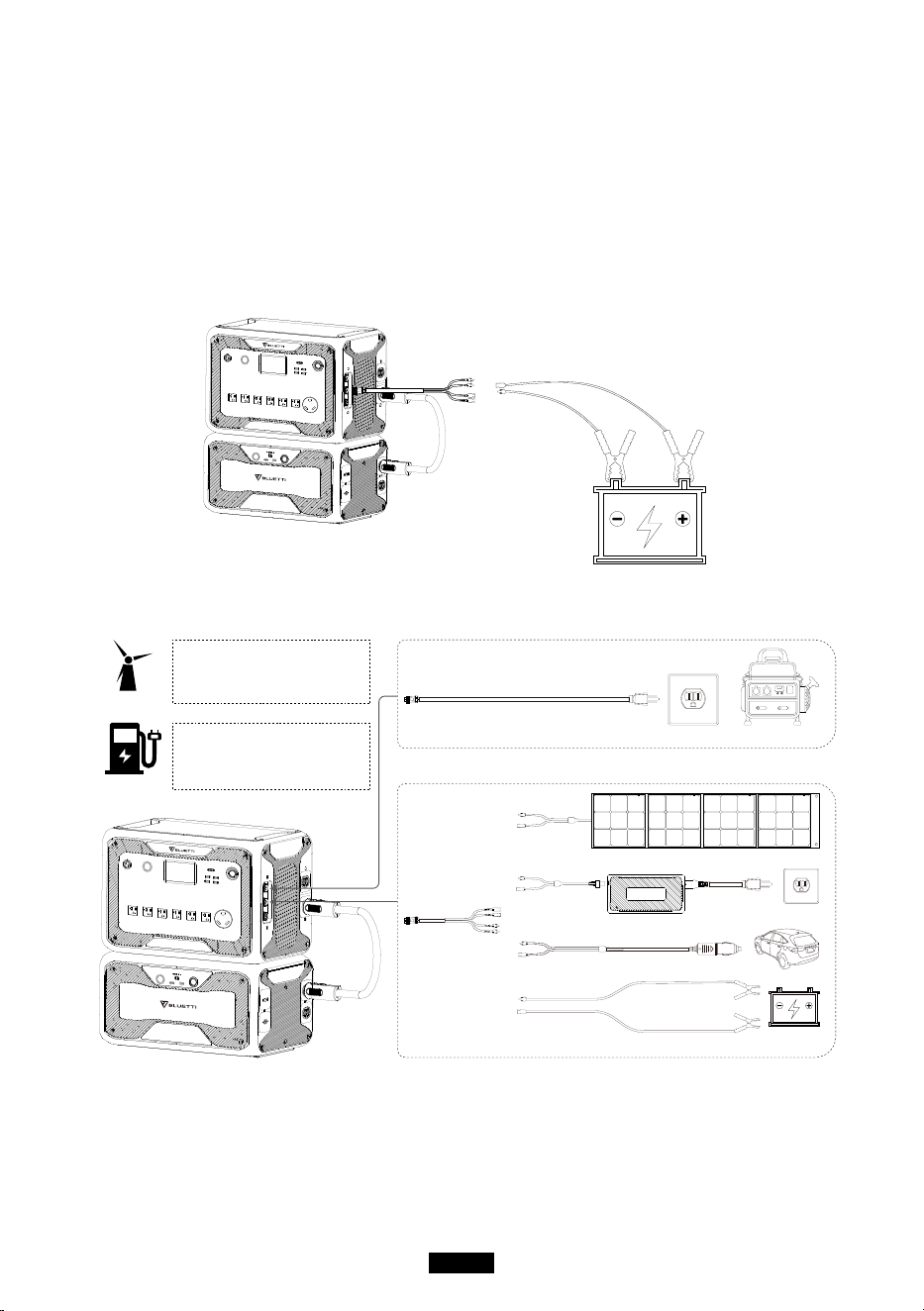

08. HOW TO RECHARGE AC300+B300 (INPUT) .. 19
09. DISCHARGE (OUTPUT) ............................ 25

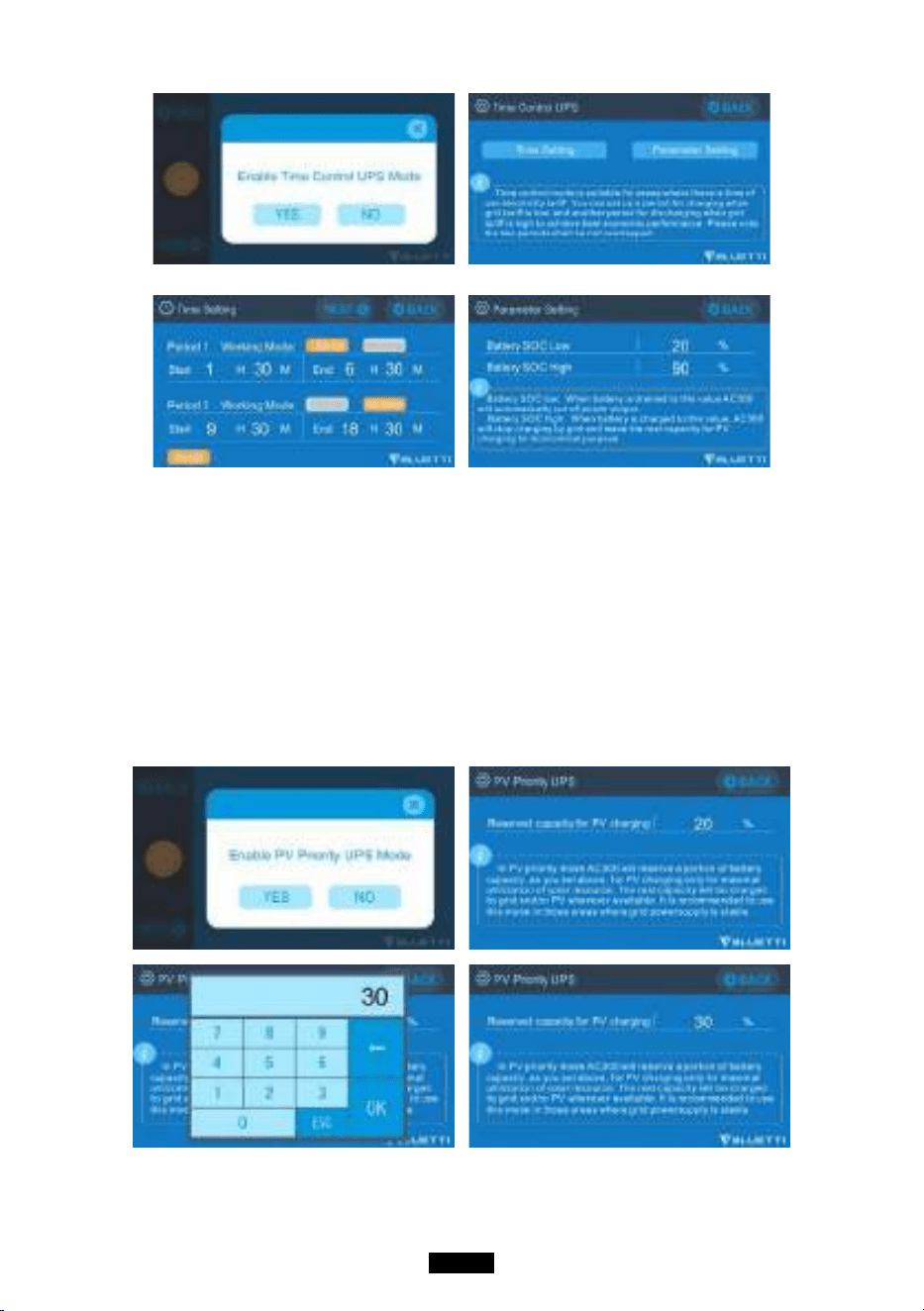

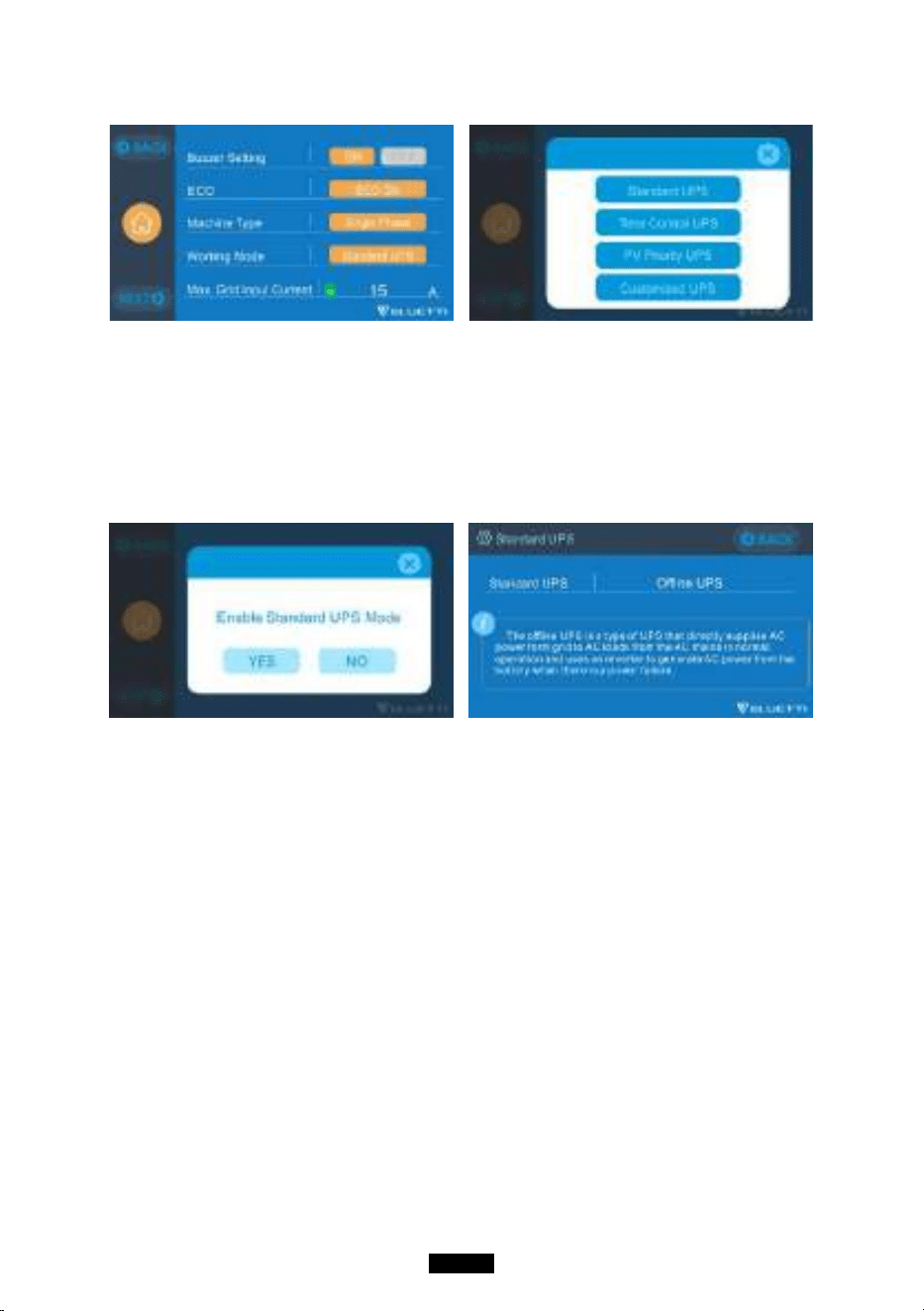

10. UPS ...................................................... 28

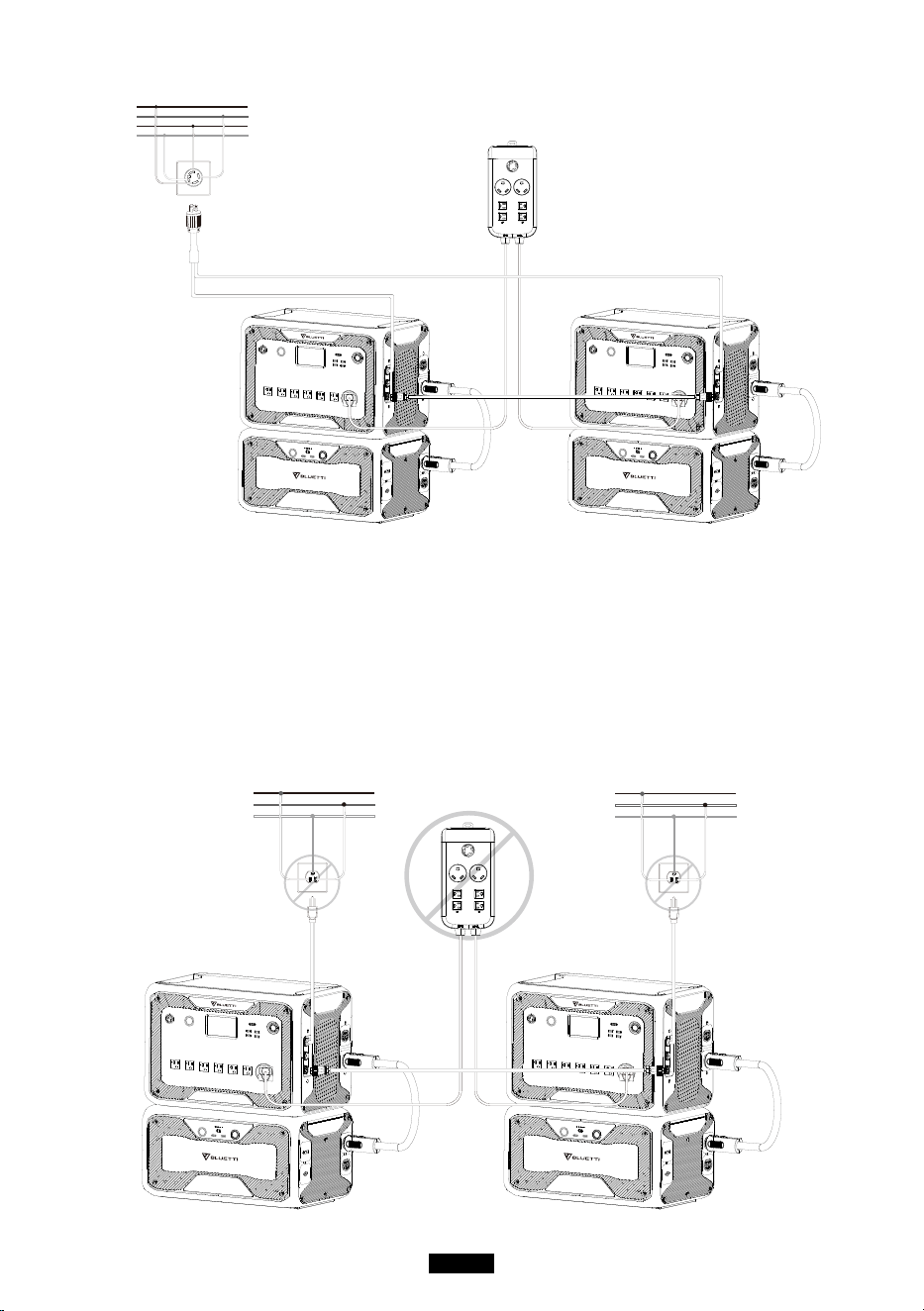

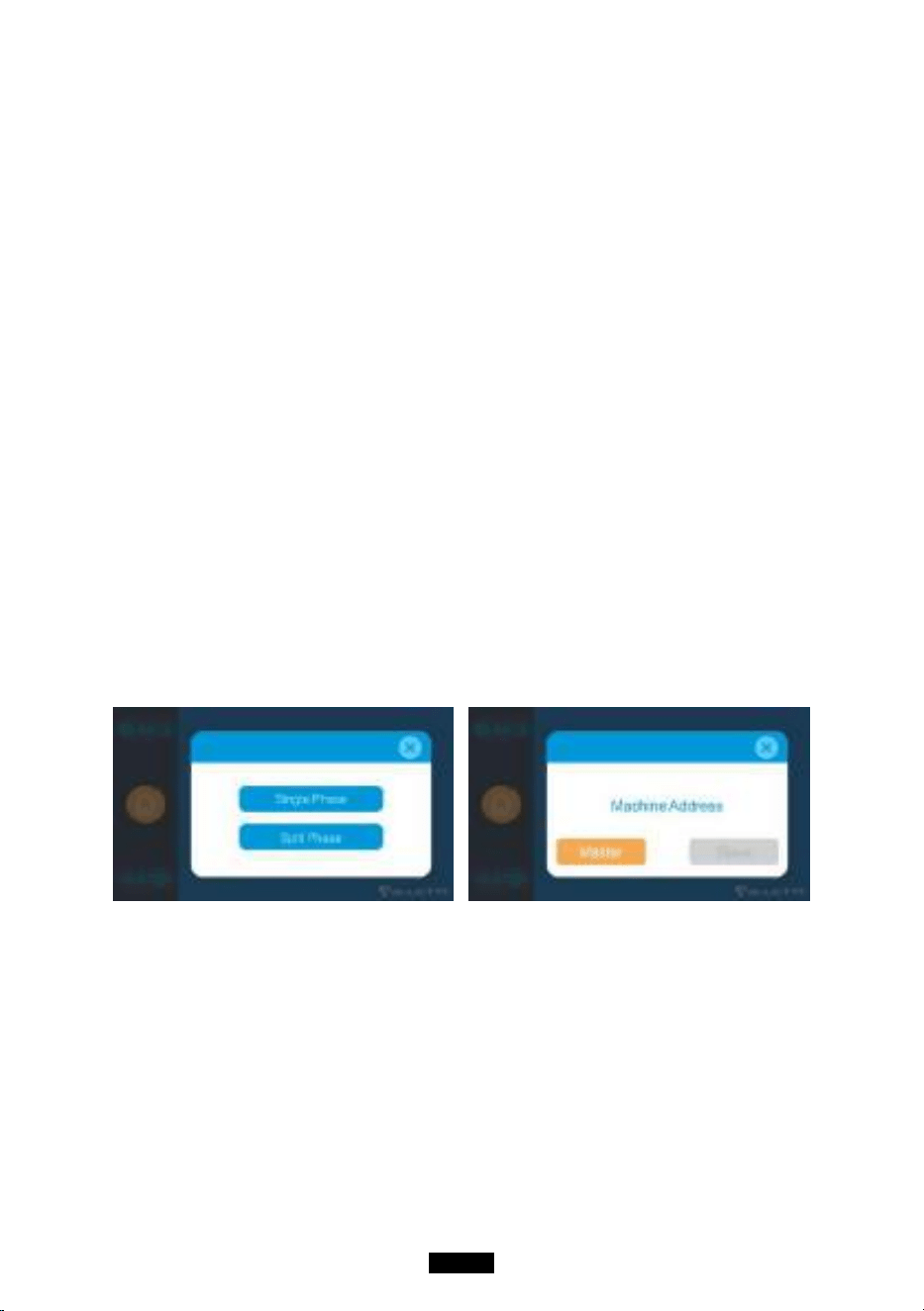

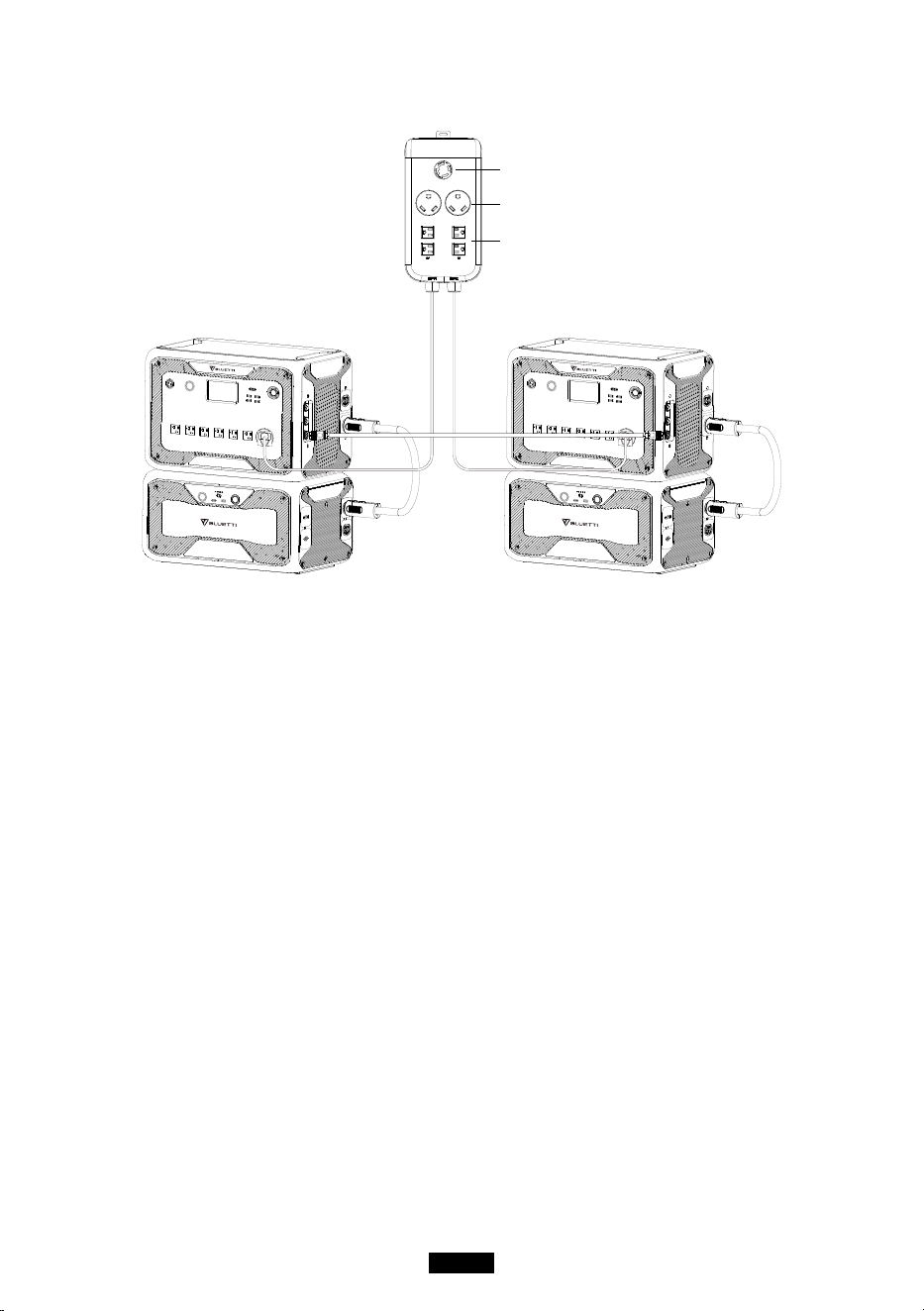

11. SPLIT PHASE FUNCTION ......................... 32
12. TECHNICAL SPECIFICATION .................... 36
13. STORAGE AND MAINTENANCE ................. 38
14. TROUBLESHOOTING ............................... 38
15. FAQ (Frequently Asked Questions) ............ 43
16. DECLARATION ........................................ 44
17. FCC WARNING ........................................ 45
01
01. AC300 INTRODUCTION
1.1. Introduction
● The AC300 uses a dual-core controller (ARM controller + DSP controller)
which combines digital and analog signals perfectly to manage and control
the MPPT module, the AC Inverter module which uses a bidirectional topology
supporting AC reverse fast charging, and the DC-to-DC module. The AC300
does not have a built-in battery pack, requires at least one B300 connected,
and supports up to four B300 battery packs connected.
● This product integrates a solar charge controller, AC charge controller, AC
inverter, lithium battery and battery management system into one. It converts
clean and environmentally friendly solar energy and grid electricity into clean
electricity and sends it to all of your connected loads.

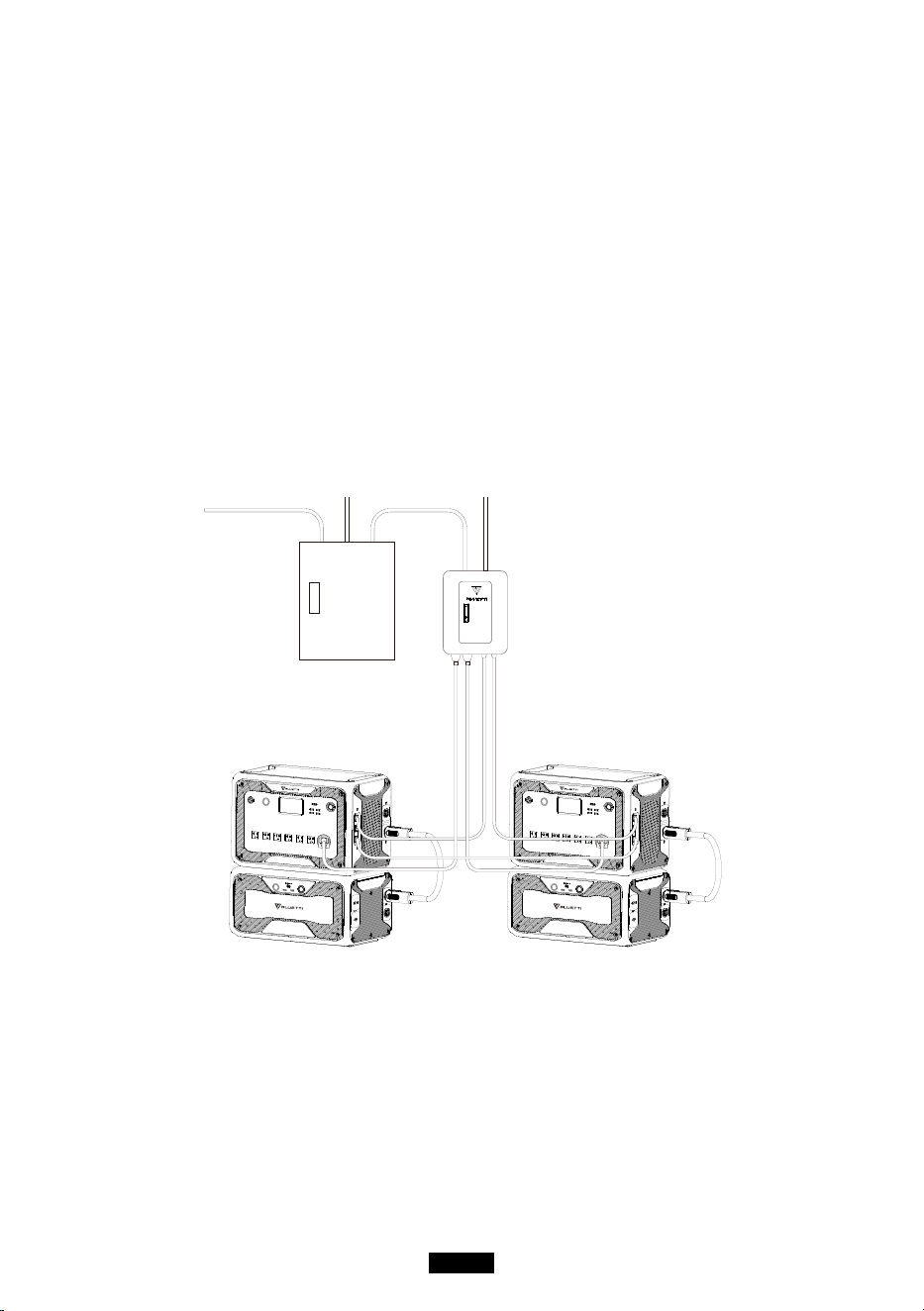

(Main Panel) (BLUETTI Sub Panel)
( AC300 grid-tie home power back-up system )
1.2. Abbreviation
● BMS: Battery Management System
● MPPT: Maximum Power Point Tracking
● UPS: Uninterruptible Power Supply
● AC: Alternating Current
● DC: Direct Current
02
● PV: Solar Panel(s) Charging (Photovoltaic)
● Grid: Home Power Supplied by Utility
● T500: 500W Charger
● DOD: Depth of Discharge
● ECO Mode: A power saving mode for the AC300+B300. The AC output ports
are automatically turned o if the load is less than 30W over a span of 4 hours.
02. GENERAL SAFETY INSTRUCTIONS
Please read this manual before operating.
● A licensed electrician is required to install the grid-tie power system as it
involves connecting the wires of critical loads from your main electrical box to the
BLUETTI Sub Panel (Optional Purchase).
● DO NOT place the power station near heat sources. It is prohibited to place
the equipment in an environment with ammable, explosive gas, or smoke. It
is also prohibited to operate the equipment in this environment.
● DO NOT attempt to replace the internal battery or any other component of the
equipment by anyone other than authorized personnel. There are no enduser
serviceable components.
● DO NOT operate in wet conditions. If the equipment becomes wet, please let
the unit dry completely before using.
● Please ensure proper ventilation while in use and do not obstruct fan
openings. Inadequate ventilation may cause permanent damage to the
equipment.
● DO NOT move the unit while operating as vibrations and sudden impacts
may lead to poor connections to the hardware inside.
● Warning: DO NOT insert foreign objects into any ports of the AC300+B300
(both AC & DC & ventilation holes). The power station generates the same
potentially lethal AC power as a household wall outlet. Please use carefully and
keep children away from it.
● If necessary, only dry powder re extinguisher is suitable for the product.
● For safety purposes, please use only the original charger and cables
designed for the equipment. We are not liable for damage caused by third-
party equipment and may render your warranty, invalid.
03
2.1. Installation (for grid-tie system)
● Before touching any conductor surface or terminal, measure the voltage of
the contact point to conrm that there is no danger of electric shock.
● After the equipment is installed, empty packaging materials such as cartons,
foam, plastic, cable ties, etc. should be removed from the equipment area.
● Except for those who operate the equipment, please keep others away from
operating AC300.
● The handling of any tools being used needs to be insulated and protected
from shock, or use insulated tools.
● All wiring holes need to be sealed. Use re-resistant mud to seal the wiring
holes that have been routed and use the cover of the cabinet.
● It is strictly forbidden to alter, damage or obscure the logo and nameplate on
the equipment.
● When installing the device, please use the appropriate tools to tighten any
screws.
● Live operation is strictly prohibited during installation.
● Paint scratches during equipment transportation and installation must be
repaired in a timely manner. Long-term scratches are strictly prohibited and
may cause damage.
● Before operation, the equipment should be secured onto a floor or other
stable objects, such as walls or possibly mounting brackets if needed.
● It is prohibited to clean any electrical components inside and outside the
cabinet with water.
● Do not change or modify the structure, installation sequence, etc. of the
equipment without prior authorization.
2.1.1. Personal Safety
● During the operation of the equipment, if a malfunction that may cause
personal injury or equipment damage is found, it should be powered off
immediately.
● DO NOT power on the device if the device has not been properly installed or
conrmed by all relevant personnel.
2.1.2. Personnel Requirements
● The personnel responsible for the installation and maintenance of the
equipment must first undergo rigorous training to understand various safety
04
precautions and grasp the correct method of operation.
● Trained personnel: personnel who have undergone corresponding technical
training and have the necessary experience to be aware of the danger that may
be brought to him during the operation, and can take measures to reduce the
danger to himself or other personnel to at the lowest limit.
● The replacement of equipment or parts (including software) must be done
by professionals or authorized personnel.
2.1.3. Anti-static requirements
When installing the sub-panel with your main panel, you must wear anti-static
gloves or an anti-static wrist strap before touching the device. The other end of
the anti-static wrist strap should be properly grounded. Do not touch any bare
components directly with your hands.
2.1.4. Drilling
The following safety precautions are to be considered when drilling holes on the
wall or into the ground:
● It is strictly forbidden to drill holes into the equipment. Drilling will alter and
damage the electromagnetic shielding performance of the equipment, internal
components, and cables. The risk of metal shavings entering the device can
cause short circuits on the circuit board.
● Wear goggles and protective gloves when drilling holes.
● The equipment should be shielded and protected during the drilling process
to prevent debris from falling into the equipment. After drilling, any debris
which may have landed on the equipment should be removed and cleaned on
time.
2.2. Installation environment requirements
● When the equipment is running, please do not block the vents or the heat
dissipation system in order to prevent high temperatures and/or res.
● The equipment should be installed in an area away from liquids. It is
forbidden to install it near or below water pipes, air outlets and other locations
that are prone to water condensation.
● It is forbidden to install the unit underneath pipes, windows or other similar
areas that are prone to water leaks in order to prevent liquids from entering
into the equipment. Failure to do so may result in a short circuit.
05
● If liquid is found inside the device, user must turn o the power immediately.
● The equipment room must be properly insulated and the walls and floors
must be damp-proof.
03. IN THE BOX
Standard Accessories
No. Category Quantity
1
AC300 Power Station
1
2
AC Charging Cable
(15A Charge the AC300 with B300）
1
3
Multifunctional DC Charging Cable
For solar, car, lead-acid battery charging.
1
4
Car Charging Cable
Charging AC300+B300 with cable No3.
1
5
AC300 POWER STATION
Please read this manual before use and follow its guidance. Keep this manual for future reference.
User Manual
1
6
AC300 POWER STATION
Please read this manual before use and follow its guidance. Keep this manual for future reference.
Warranty Card
1
7
AC300 POWER STATION
Please read this manual before use and follow its guidance. Keep this manual for future reference.
Certicate of QC PASS
1
06
Additional Purchase Accessories
Sold on BLUETTIPOWER.COM
No. Category
8
30A Charging Cable
Full speed charging from L14-30 receptacle.
9
Lead-acid Battery Charging Cable
Charging AC300+B300 via Lead-acid battery.
10
PV Drop Down Module（D300S)
Connect to rigid panels.
11
12V/30A XT60 to Aviation Plug
For 30A
DC
Output
12
XT60 to SPC45
To support DC power supply for RV.
13
100W USB-C to USB-C
To charge electronics with USB-C port.
14
AC Charging Cable for Split Phase
Charging two AC300 connected in split
phase mode via wall outlet.
15
Sub Panel
Integrate the power station to your home circuit as backup UPS.
07
04. APP USER GUIDE

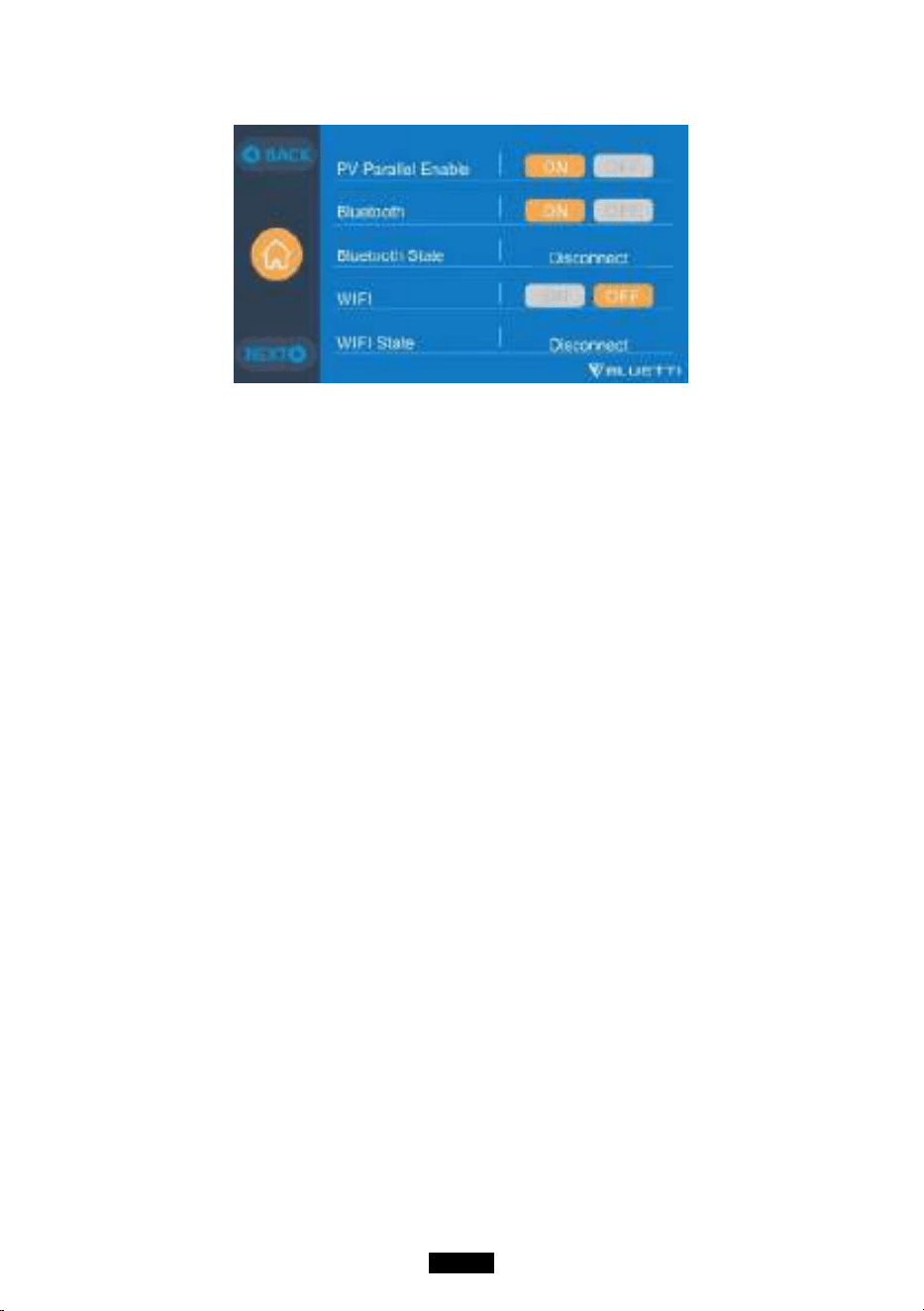

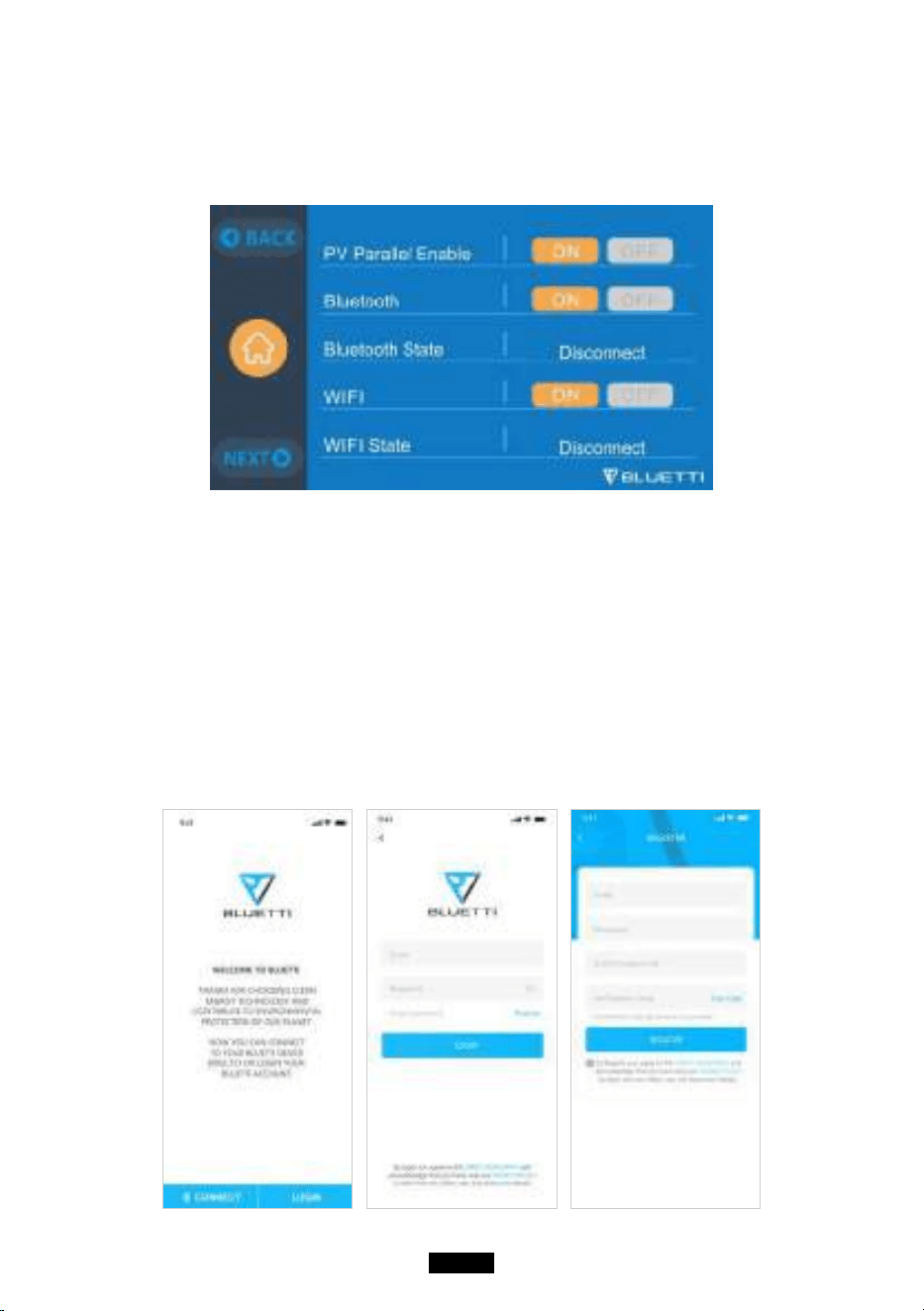

Please make sure the Bluetooth & Wi-Fi State is “ON” (set on touchscreen of
AC300) before connecting AC300+B300 to BLUETTI App.
( Main Interface - Settings - Next - Next - Next )
Step 1:
● Search for “BLUETTI” in the App Store (for iOS devices) or Google Play
(for Android devices) to download the BLUETTI App to remotely control
your AC300+B300. The AC300+B300 system can be controlled via either
Bluetooth or Wi-Fi. In order to access the AC300+B300, please launch the
BLUETTI App once downloaded and installed, and tap the “LOGIN” icon
to register your BLUETTI account. Fill with your related information to
continue.
08

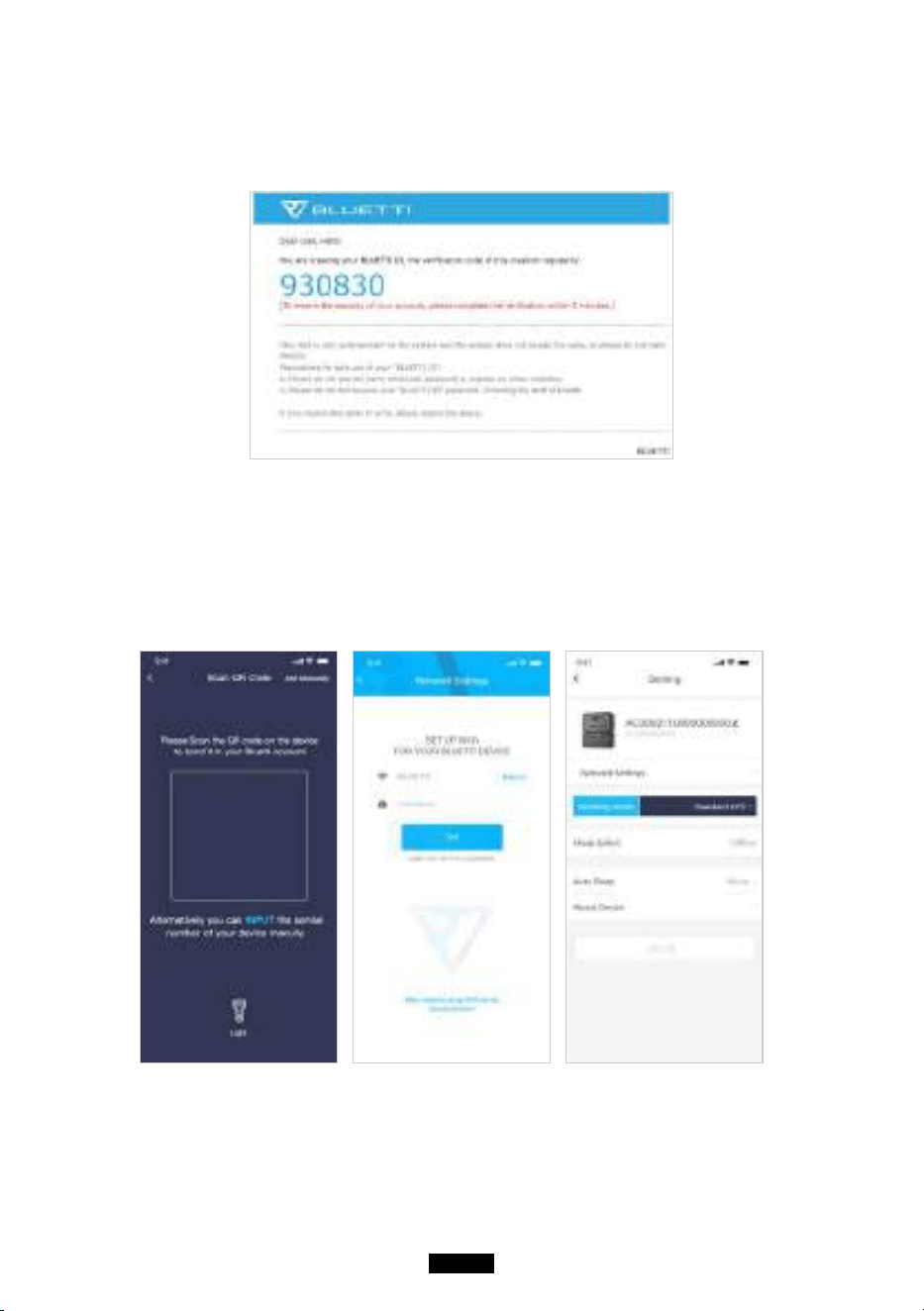

● Check your email account you used in the BLUETTI App for the verication
code sent from BLUETTI server and ll in the activation code located within the
email to activate your BLUETTI account.
Step 2：
● Connect AC300 with B300. Scan the unique QR code on AC300 to add the
unit on the available device list on the App, and ll it with the password of
your 2.4GWi-Fi network to activate the communication function of AC300 for
data syncing.

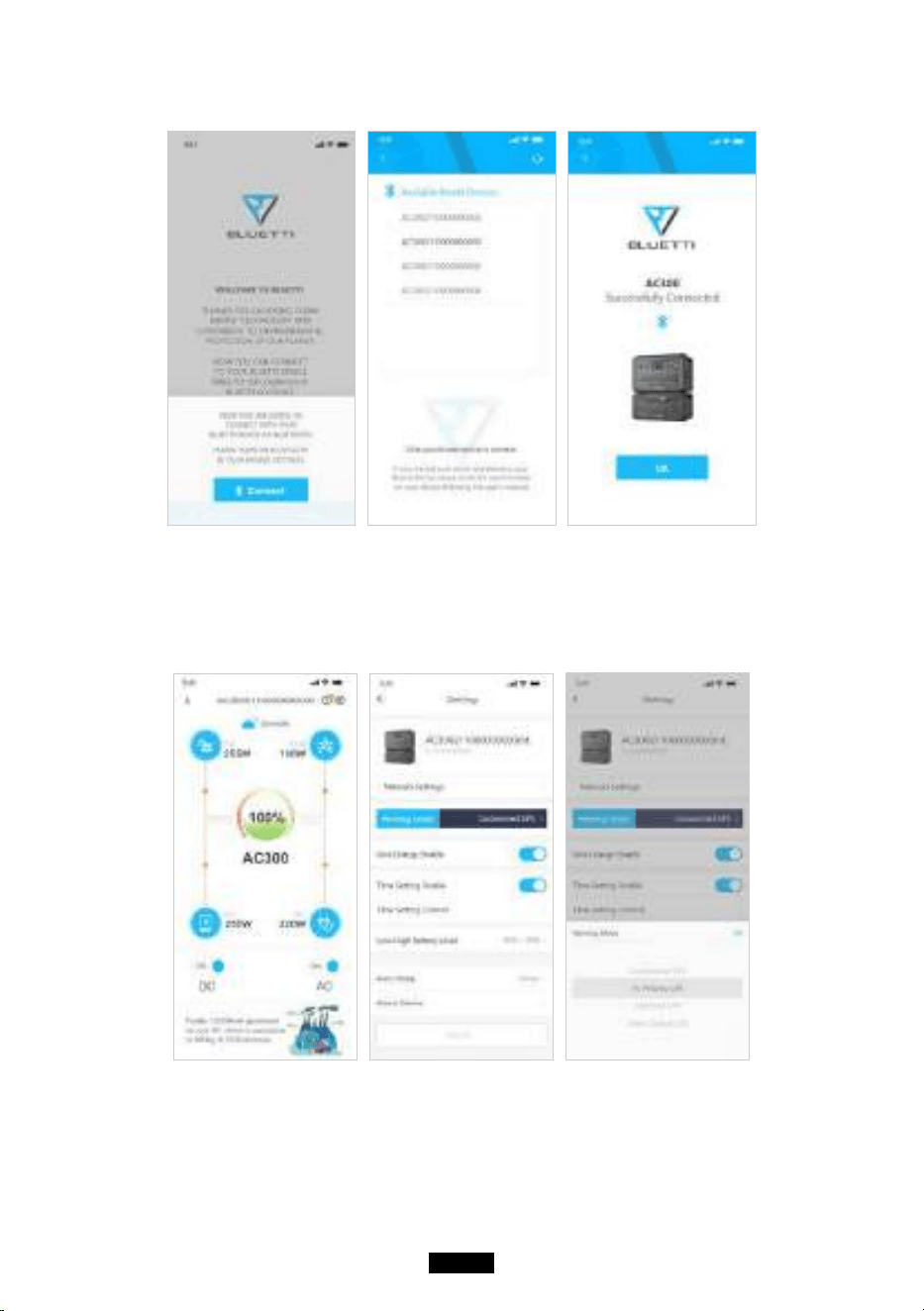

● For Bluetooth Connecting, tap ‘’CONNECT’’ at the homepage to connect
AC300+B300 with your phone via Bluetooth, select the SN number of your devices.
09

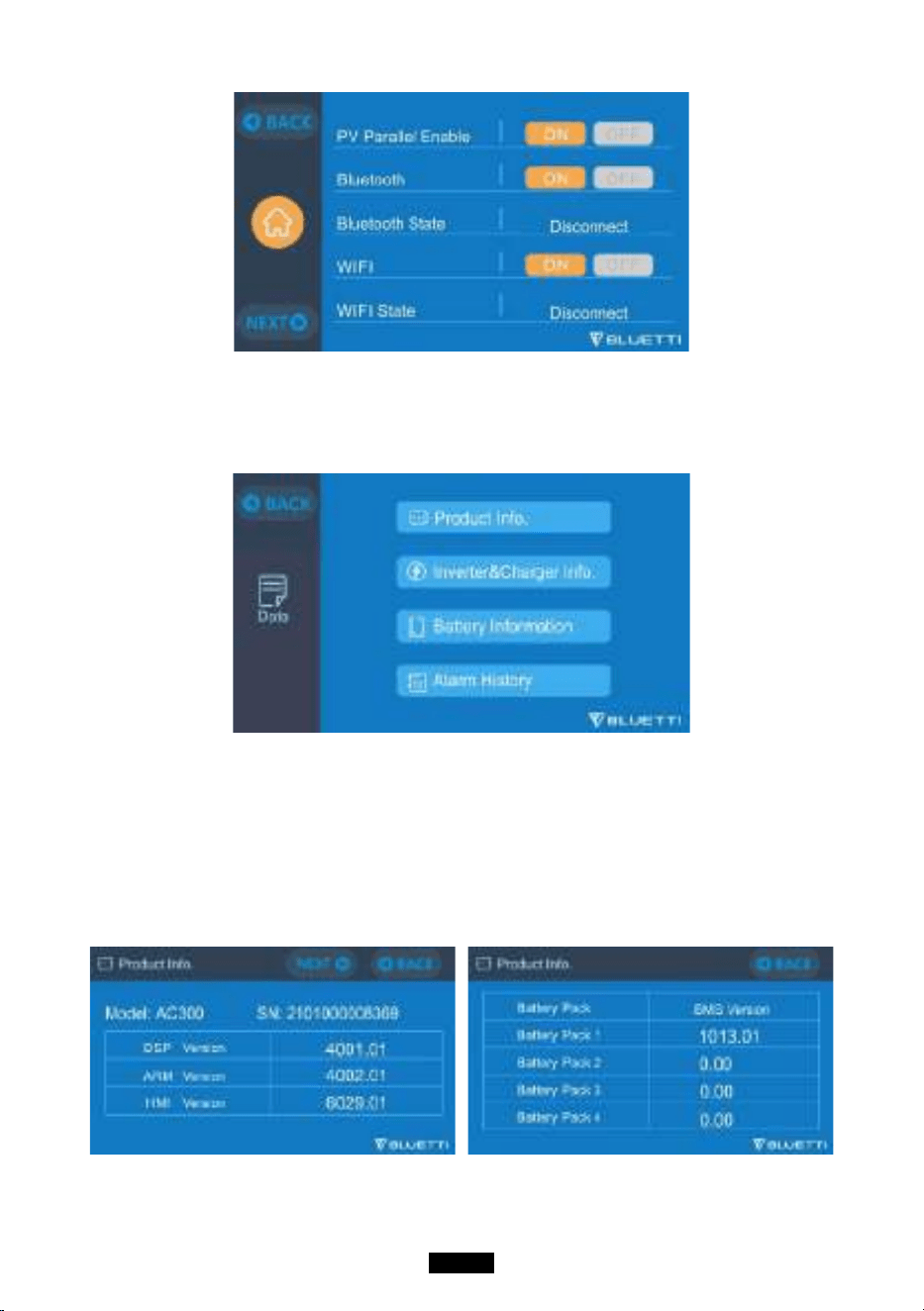

Please tap ‘’settings-product info’’ on AC300 to view the SN number of your unit.
● The basic information can be viewed after the unit is connected with App
successfully. Tap ‘’gear icon’’ to customize the current working mode and
parameters of your AC300 under “Settings”.

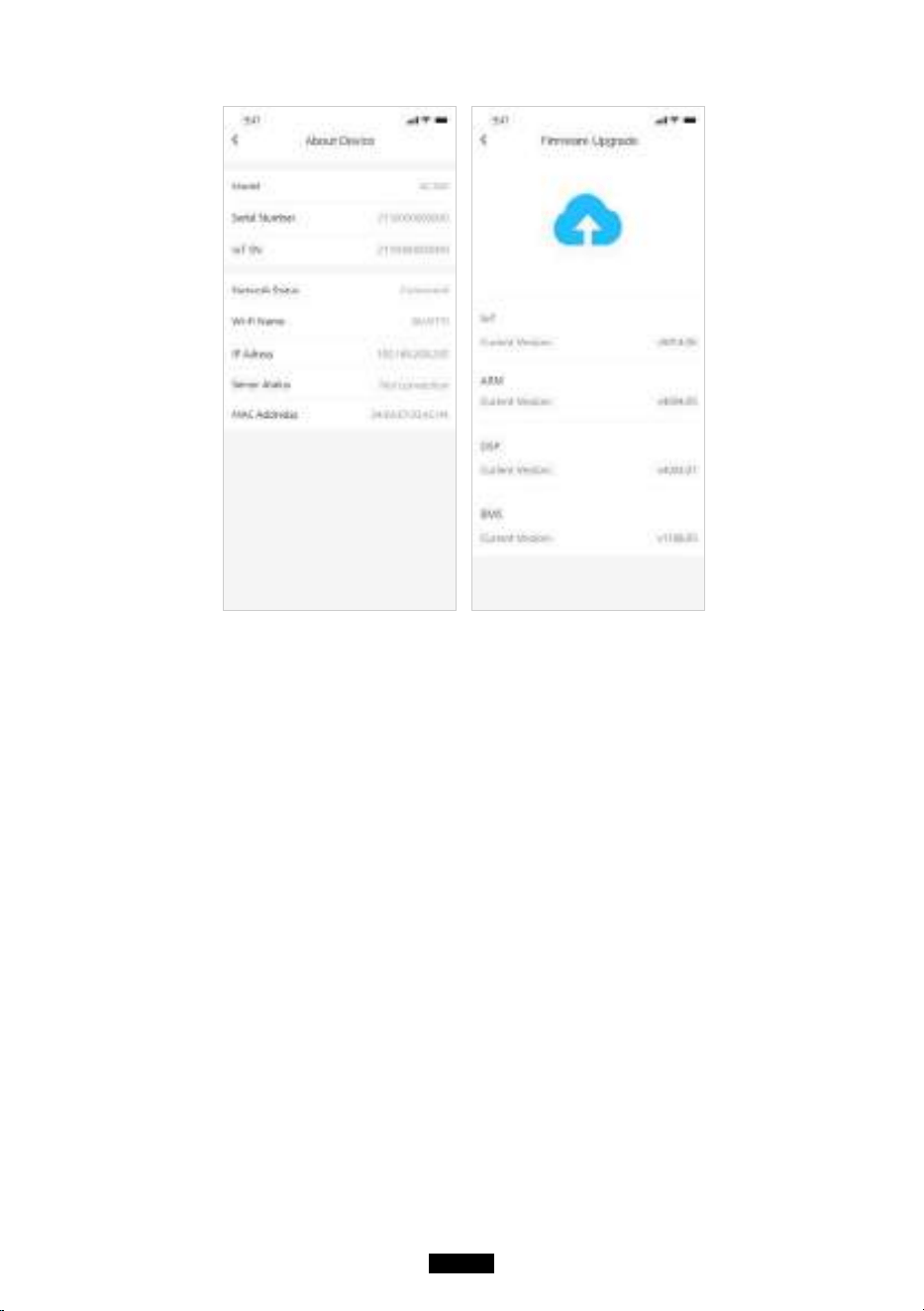

● The BLUETTI App supports a “Firmware Update” function which allows access
to the latest software upgrades for continued features, improvements and xes.
10
Note: Please keep your phone 5m/16.4ft within the AC300+B300 for a
better connection during update.
User cannot turn on AC300 via BLUETTI App.
Also, if BLUETTI APP fails to connect to the Internet. Tap "Settings" on the
mainpage of your phone and scroll down until the BLUETTI App shows
up(IOS). Tap "Settings" on mainpage of your phone, tap “Application
Management” and select BLUETTI(Android).
Tap the BLUETTI icon and verify that "Wireless and Data" permissions are
enabled.
11

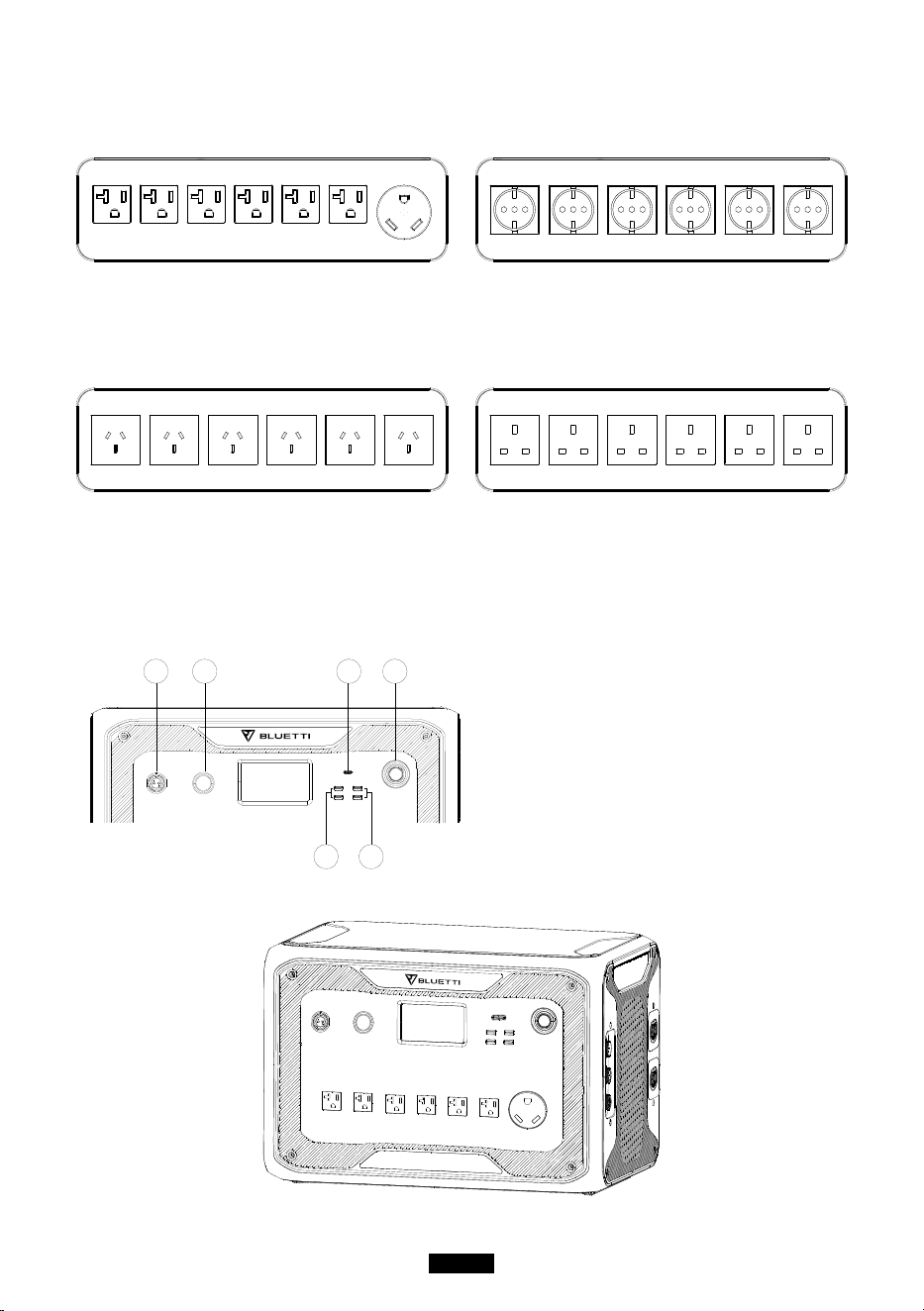

05. FEATURES OF AC300
09
08
10
11
12
13
14
02
03
04
05
06
07
01
24V/10A Cigarette Lighter Port
12V/30A Port
LCD Screen
USB-A (fast charging)
USB-A
AC Output Port(20A MAX)
AC Output Port(30A MAX)
Wireless Charging Pad
Power Button
USB-C(PD3.0 protocol supported)
Battery connection port
AC Input Port
DC1/DC2 Input Port
Communication Interface
06. STARTUP & POWER OFF
● Connect AC300 with B300. Please follow the steps on B300 User Manual.
● Power On AC300: Long press the power button for 1 second. The power
12
button indicator will illuminate.
● Power O AC300: Long press the power button. The power button indicator
light will turn o.
● DC power switch and AC power switch are accessible via the Touchscreen
LCD. Press the “DC ON/OFF” button and/or “AC ON/OFF” button on the screen
to turn ON/OFF the DC/AC output.
● AC300+B300 will turn on automatically from Power O status when either
grid charging and/or PV charging is applied to the unit.
● User can also power ON/OFF of the system by turning ON/OFF B300.
● AC300+B300 will turn o in 4 hours under:
a: No Input and Output b: AC and DC switch at OFF state
07. USER INTERFACE

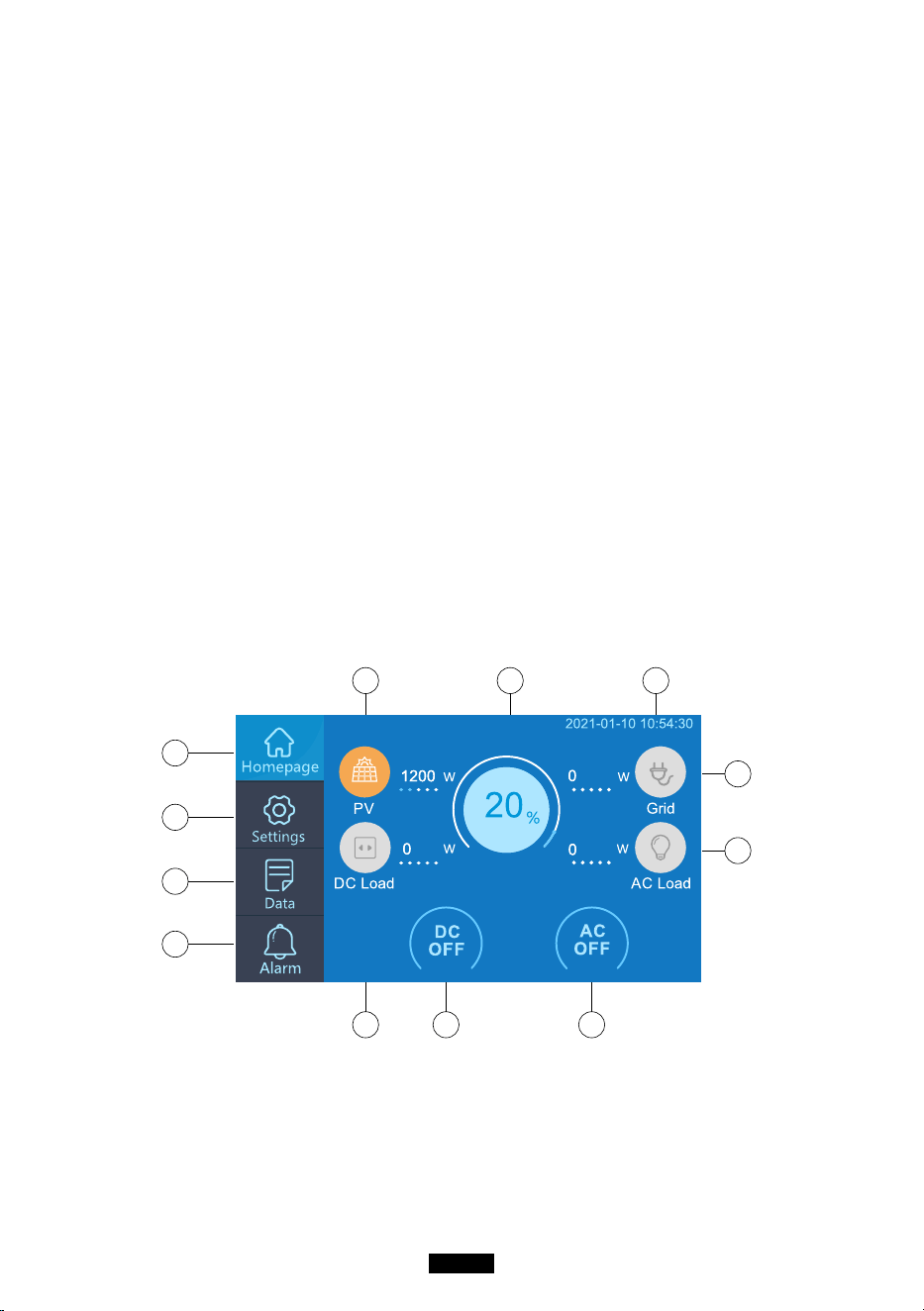

7.1. Main Interface
Tip:
The LCD resistive touchscreen, recommended to press lightly with the edge of
your ngernail until it "beeps" when it registers a press. (NOTE: Touchscreen
sounds can be disabled in the Settings menu).
e
f
g
k
l
ih j
a
b
c
d
13
. Homepage
. Settings
. Data
. Alarm
. PV Charging Information
. BMS Information
. Date/Time
. DC load Information
. DC ON/OFF
. AC ON/OFF
. AC load Information
. AC Charging Information
a
b
c
d
e
f
g
h
i
j
k
l
7.2. Settings
● You can customize the working mode of AC300+B300 and tweak the
parameters such as language, voltage, frequency, current (UPS In-Grid Mode),
working type, date/time, etc.
● Click the Settings Button in the homepage to enter the setting interface.

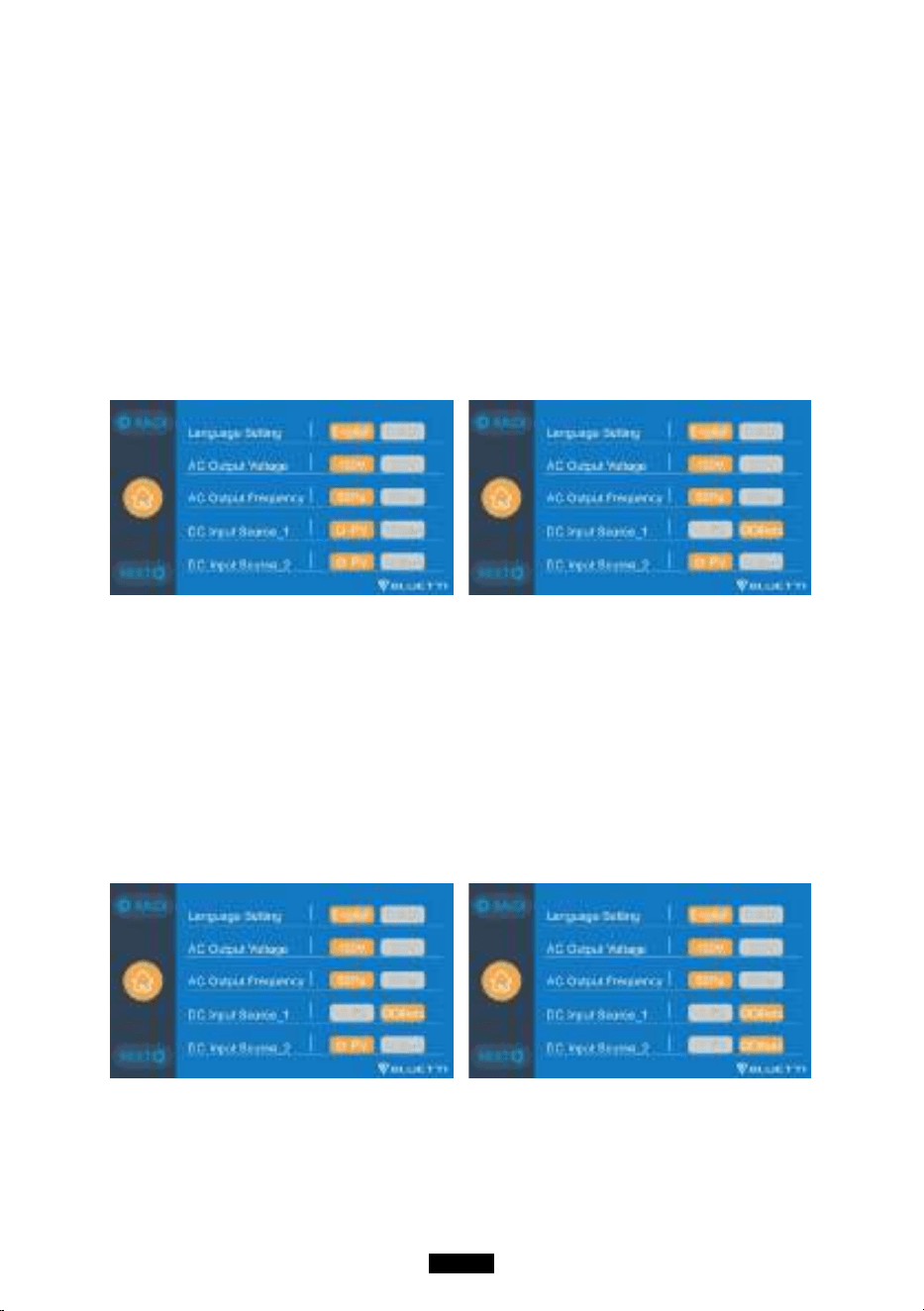

7.2.1. AC Output Voltage & Frequency
● NOTE: Please check the output voltage, frequency, and other parameters
BEFORE using for the rst time. The AC300 100-120V AC version cannot be
set to 220-240V AC output. Users can tap the screen to set the parameters as
needed. Output frequency and voltage can only be tweaked when the AC is
OFF (tap the AC icon at homepage to turn o AC output).
● The list of standard output voltage and frequency in 5 regions or countries.
●JP Output: 100V/50 or 60Hz
●US Output: 120V/60Hz
●AU Output: 240V/50Hz
●EU/UK Output: 230V/50Hz

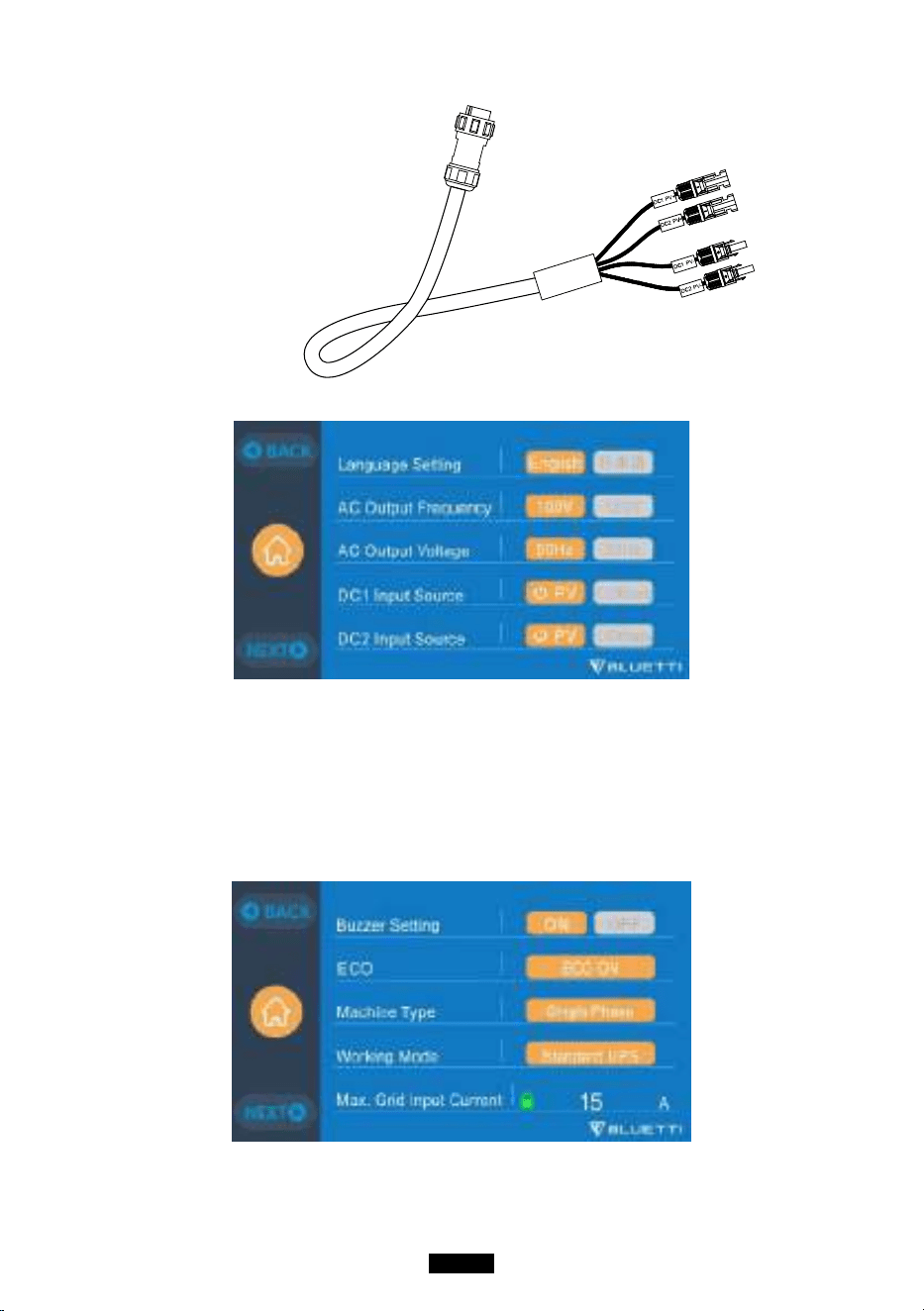

7.2.2. DC Input Source
DC Input Source: AC300 integrates dual MPPT and separates the DC input
source into DC1 and DC2 in parallel. DC1 indicates the first group of DC
input source as the labels written on MC4 plug of PV charging cables:
DC1 PV+ and DC1 PV-, DC2 PV+ and DC2 PV-.
DC1/DC2 consist of both positive pole and negative pole of the MC4 plugs.
Both DC1 and DC2 input source can be set on touchscreen: (Mainpage -
Settings - DC1/DC2 Input Source).
14
DC2 PV+/PV-
DC1 PV+/PV-
Can be set on screen: (Mainpage -
Settings - DC1/DC2 Input Source)
(Cable No.3)
7.2.3 Language Setting & ECO Mode
● Press “English” or “Japanese” icon to set as the system language display of
your AC300.
● ECO: The power saving mode of the unit to turn o the AC output to conserve
energy if the AC load is less than 30W over 4 hours.
15
7.2.4. Machine Type (for split phase setting, exclusive for 100-120V Version)
*1 NEMA L14-30 receptacle, 30A
*2 NEMA TT-30 receptacle, 30A
*4 Standard AC receptacle, 20A
(Split Phase for *2 AC300 + B300)
7.2.5. Working Mode
Tip: The AC300+B300 defaults to Standard UPS Mode.
There are 4 working modes you can select in settings:
Standard UPS Mode: Default working mode.
Time Control UPS Mode: Suitable for areas with peak and o-peak time-of
use rates in order to save money.
PV Priority UPS Mode: Recommended for areas in stable power supply.
Customized UPS Mode: Customized the parameters for a better user
experience. For more details on each UPS Mode setting, please read Chapter
10. UPS.
7.2.6. Max. Grid Input Current
● Please check the specication of your grid, sockets, connections, wires, etc.
to determine the maximum allowable current that can be drawn by the AC300.
BLUETTI is not liable for any damages, injuries, or any other legal responsibility
incurred directly or indirectly from changes made to this setting.
● Max. Grid Input Current: limit the Max. input current of the tied grid, when
the current exceeds the preset value, AC300 will take charge to be the power
source of the circuit.
16
Note: Only take effect when AC300 has been connected into grid. The
value presets at 15A. Email the render for safety password to unlock the
Max. grid input current limit.
7.2.7. Date and time & Touch Sound & Backlight Brightness
● Tap each respective date and time setting in order to set the date and time
as applicable to your local time zone.
● Tap to Enable/Disable touch sound.
● You may change the Backlight Brightness of the LCD by using the slider on
the screen.
7.2.8. Bluetooth & Wi-Fi Connection
The Bluetooth and Wi-Fi connection can be turned ON or OFF by tapping the
ON and OFF icon for either function.
User cannot connect AC300+B300 to BLUETTI App when both of the Wi-Fi and
Bluetooth function is disabled.
17
7.3. Data
In the Data section, you can check the Battery Status of B300, Product Info,
Inverter & Charger Info, and Alarm/Fault History.
7.3.1. Product Info
● When you select the “Product Info” button, you can view the product model,
serial number (SN), control software version, monitoring software version, BMS
monitoring software version and display software version.
● The Serial Number (SN) can also be used to pair to BLUETTI APP manually.
18

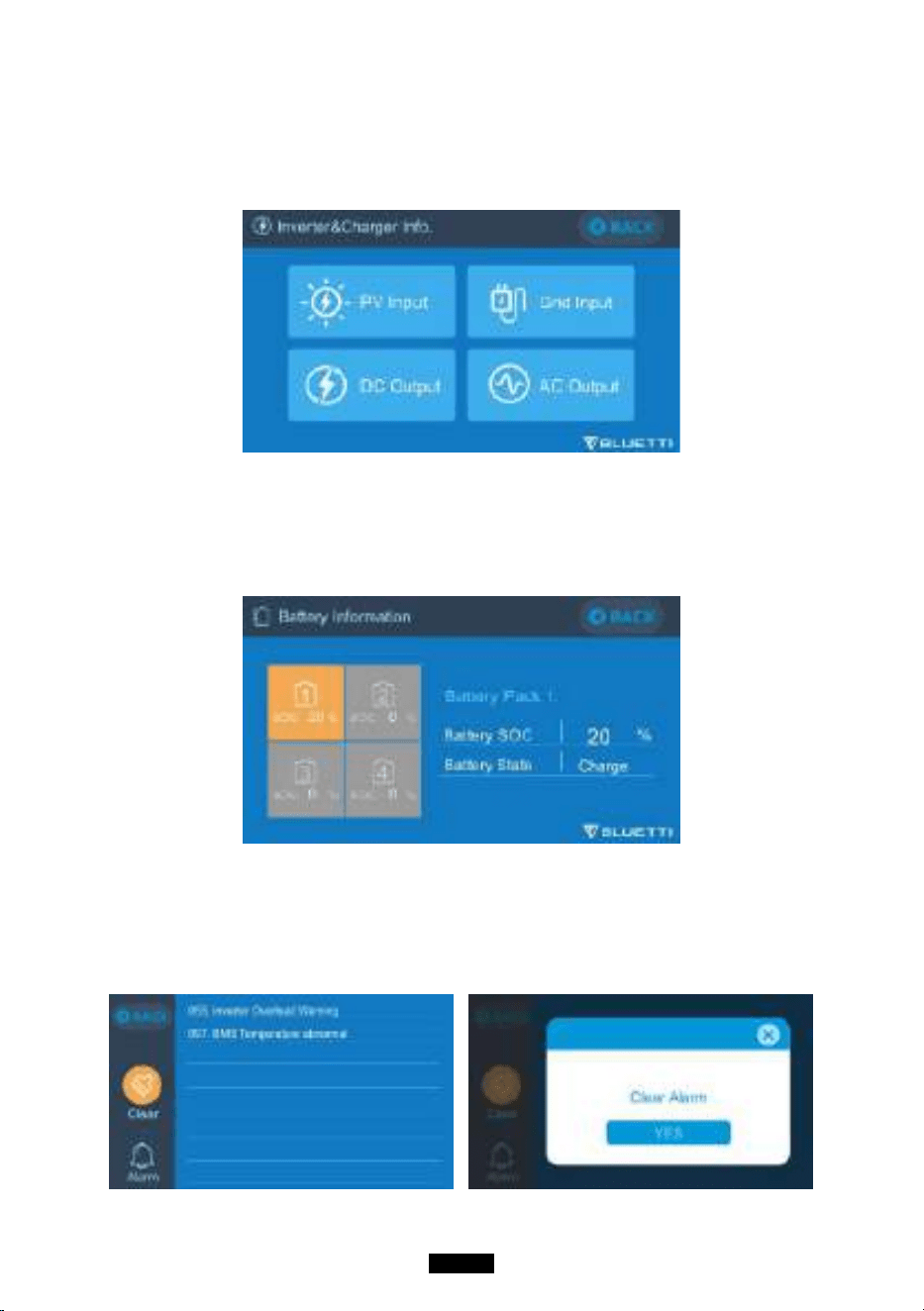

7.3.2. Inverter & Charger Info
By tapping the “Inverter & Charger Info” button, user can view the PV charging,
adapter charging, DC output and AC output working status. This section can
also be accessed directly from the shortcut icon on the homepage.
7.3.3. Battery Information
By tapping the “Battery Information” button, user can view the live information
of the status of the B300 battery pack.This section can also be accessed directly
from the shortcut icon on the homepage.
7.3.4. Alarm History
Tap the “Alarm History” button, user can view all the alarm information
generated by the machine. User can turn to the Chapter 14 Troubleshooting
to check the corresponding solutions.
19

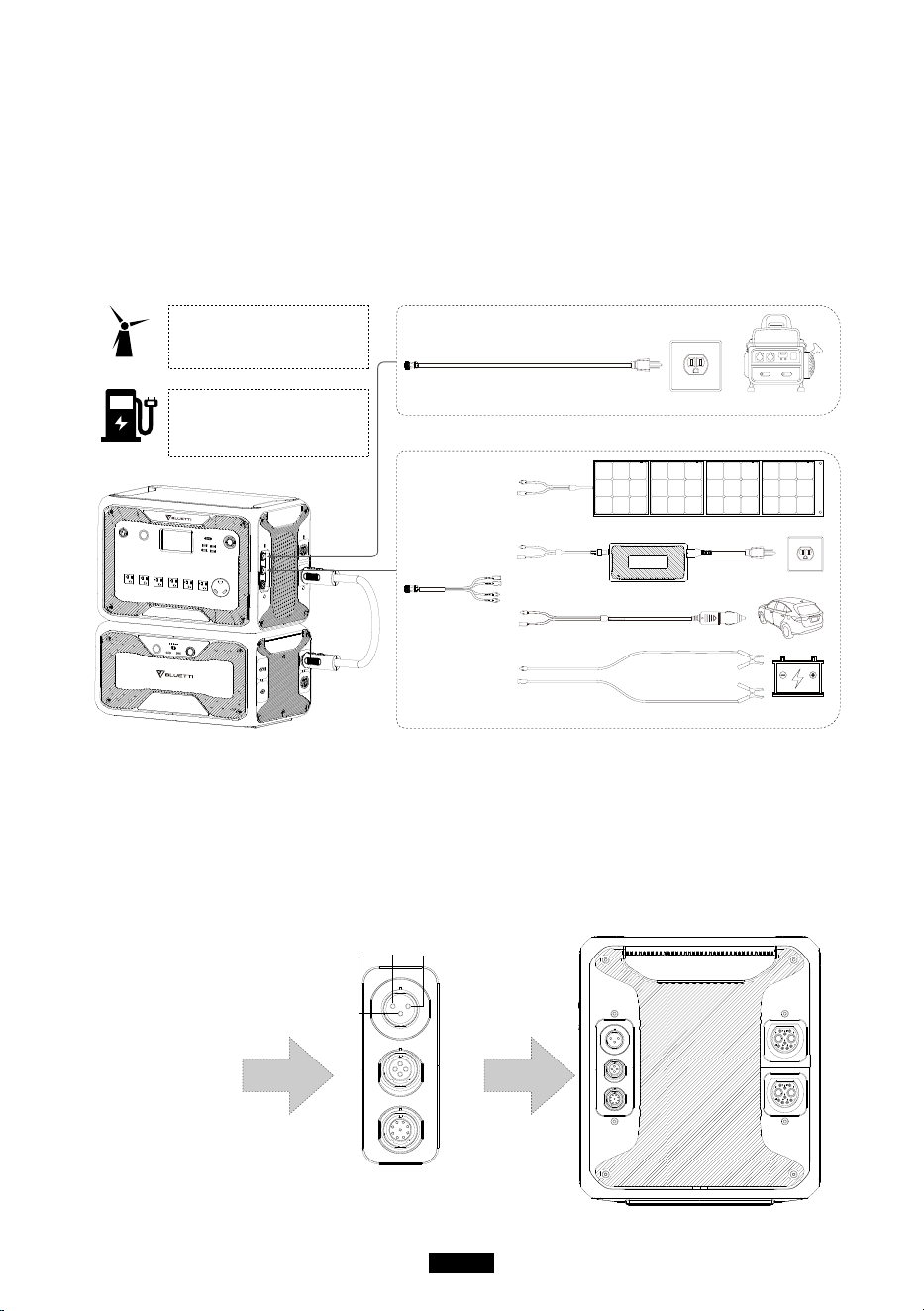

08. HOW TO RECHARGE AC300+B300 (INPUT)
● The AC300 includes two charging ports which can be recharged in dierent
methods . They will be covered in three dierent sections according to which
port(s) are being connected.
● The two ports are named as Aviation Charging Port 1 [CP1] and Aviation
Charging Port 2 [CP2].
Wall Outlet
Aviation Port 1(CP1)
Aviation Port 1(CP2)
EV Charging
Station
Wind Turbine
Generator
Solar panels
T500 adapter
Car
Lead-acid Battery
By using BLUETTI Wind Turbines, an ultra-
connect, highly efficient wind charger lets
you harness the wind to rapidly recharge
the AC300+B300.
Now, you can also get dash charging via the
EV charging stations all over the US soil.
● AC300+B300 supports AC, generator, solar, additional adapter, car, lead-acid
battery, EV, wind turbine and DUAL charging through Aviation Port 1 [CP1] and
Aviation Port 2 [CP2].
8.1. CP1 (1st Charging Port)
Pin1Pin2Pin3
Pin1:L
Pin2:N
Pin3:PE
20
8.1.1. Charging Method 1: From Wall Outlet (by AC charging cable)
Connect the AC300+B300 from CP1 via the AC charging cable to the wall outlet
@1500W/100Vac, @1800W/120Vac Max. The charging process will
automatically stop when it reaches 100% capacity. Additionally, you can choose
to access the BLUETTI Sub Panel or the L14-30 receptacle, the maximum
charging power allowed will be up to 3000W.
DO NOT charge the JP/US version(100-120V) AC300+B300 through 220-
240V circuit.
(Wall Outlet)
(Main Panel) (Sub Panel)
Charging via wall outlet Charging via BLUETTI Sub Panel
8.1.2. Charging Method 2: From Generator (gasoline, propane, or diesel)
● Connect the AC300 from CP1 via the generator charging cable (sold
separately) to the AC output of the generator. The charging process will
automatically stop when it reaches 100%.
● The required output power of your generator has to exceed the Max. input
power of the AC input port of the AC300. Also a generator with a pure sine
wave output is recommended (e.g. Inverted-based Generators) Voltage limit:
85-110VAC/JP(100VAC),102-132VAC/US(120VAC), 207-253VAC/EU/UK/AU.
Frequency limit: 47Hz-53Hz(50Hz),57Hz-63Hz(60Hz).
(Generator)
21
8.2. CP2 (2
nd
Charging Port)
Pin1
Pin2
Pin3
Pin4
Pin1:DC1 PV+
Pin2:DC2 PV+
Pin3:DC1 PV-
Pin4:DC2 PV-

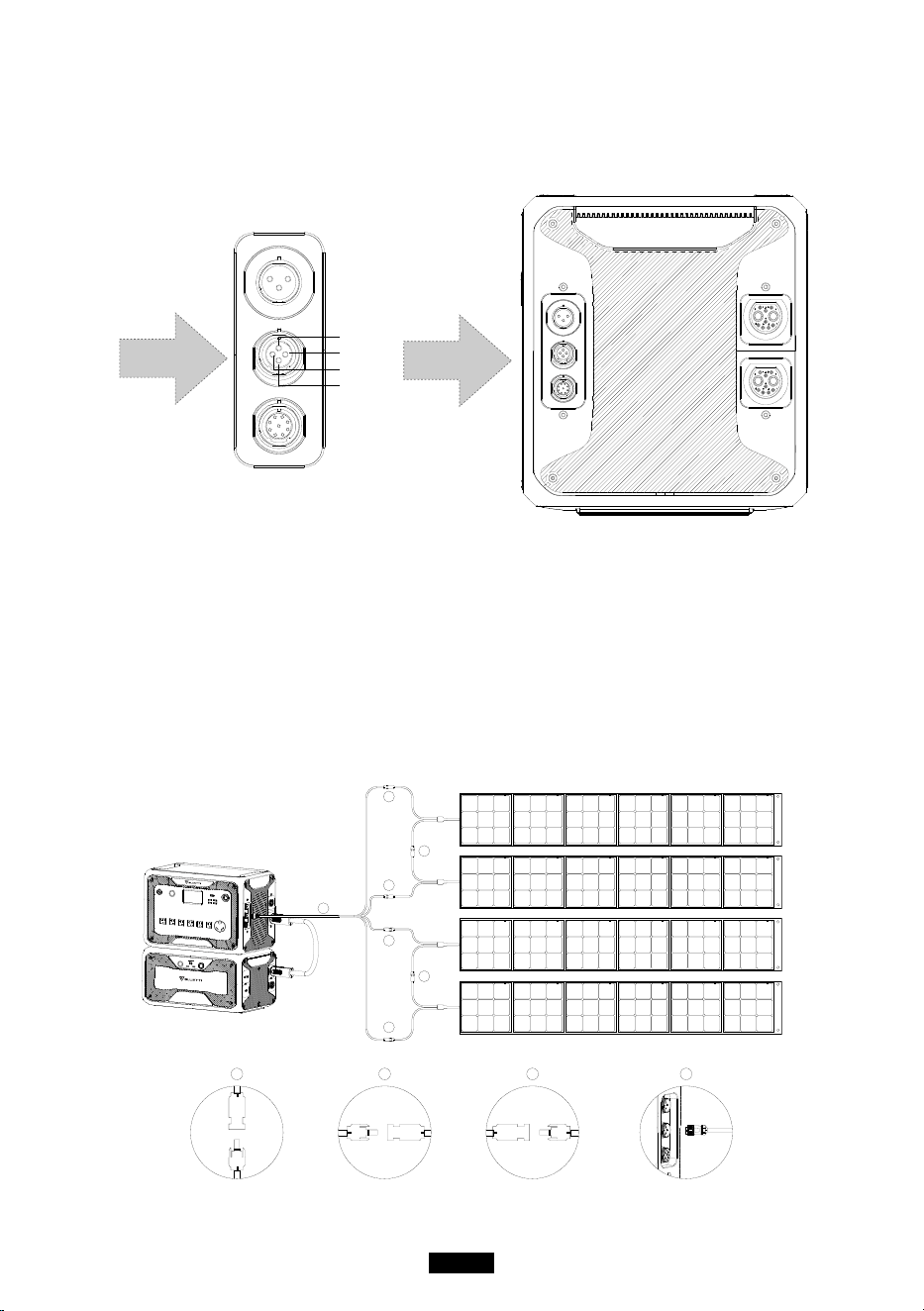

8.2.1. Charging Method 3: Solar Panels (via 4pin aviation-MC4 cable)
● For regular solar panels:
The AC300+B300 supports two PV inputs. Each individual input supports up to
12A and the charging voltage should be between 12-150V. The AC300+B300
can achieve a combined maximum of 2400W of total solar input.
a. User can connect solar panels in series(Figure 1).
b. Connect the MC4 port of solar panels to the MC4-Aviation cable (Figure2/3).
c. Plug the Aviation cable to the middle input port on AC300.(Figure 4)
1
2 3
4
4
1
2
2
3
3
1
( Easy steps to solar charging )
22
● If you choose roof/rigid panels to be the solar power source to charge
your AC300+B300, user can easily connect your rigid panels with the MC4-
to-Aviation cable to your AC300+B300. The optional PV Module (additional
accessory) is required to step down the voltage if the open circuit voltage
produced by your roof panels exceeds the limit of AC300 can handle: 12-
150VDC, 12A*2.
Note: This PV module doesn’t work with solar panels that have built-in
microinverters, and open circuit voltage over 550V.
(Rigid panel charging)
b
a
c
d
a
b
c d
a.DC Output Cable to AC300 c.DC2 poles to PV2 poles
b.DC1 poles to PV1 poles d.DC Output Cable to D300S
8.2.2. Charging Method 4 :Car Charging
● Press the power button and connect it to the cigarette lighter port through
the car charging cable.
● Enter the setting interface as shown in through the display screen to set DC1/2
input source to others; The product can be charged with 8.2A maximum current.
23
8.2.3. Charging Method 5 :Charging via Lead-acid battery
● Connect to the positive and negative poles of the battery through the
provided solar charging cable(pay attention to distinguish the positive and
negative poles of the battery, the red clamp indicates the positive pole, and the
black one indicates the negative pole) .
● Tap “setting” at homepage to set DC1/2 input source to “Others” to charge
from lead-acid battery.
8.3. Dual Charging
Wall Outlet
Aviation Port 1(CP1)
Aviation Port 1(CP2)
EV Charging
Station
Wind Turbine
Generator
Solar panels
T500 adapter
Car
Lead-acid Battery
By using BLUETTI Wind Turbines, an ultra-
connect, highly efficient wind charger lets
you harness the wind to rapidly recharge
the AC300+B300.
Now, you can also get dash charging via the
EV charging stations all over the US soil.

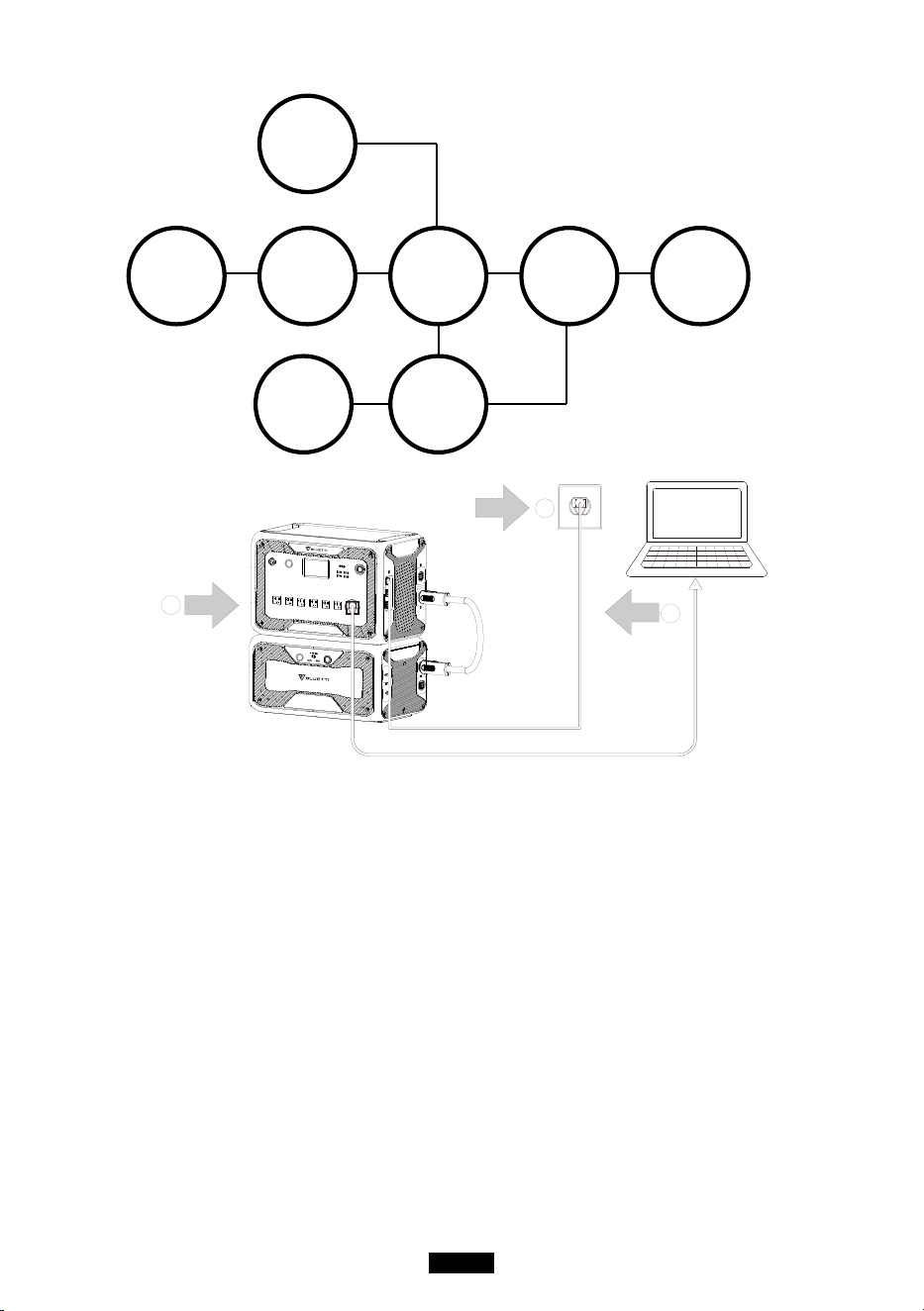

Charging Method 5: Supports charging the AC300+B300 with CP1 and CP2 at
same time. You can use any charging methods listed previously, simultaneous,
to maximize charging power input. They are listed here again for your
convenience. Select one method for CP1 and one method for CP2 for
simultaneous charging.
24
CP1 Charging Port Select:
Method 1: GEN charging cable Method 2: AC charging cable
CP2 Charging Port Select:
DC Input1:
Method 3: Solar panels (DC Input Source 1, Select PV on the touchscreen)
Method 4: T500 charging adapter (DC Input Source 1, Select Others on the
touchscreen)
Method 5: 12V Car Charger/Storage battery (DC Input Source 1, Select Others
on the touchscreen)Method 6: 24V Car Charger/Storage battery(DC Input
Source 1, Select Others on the touchscreen)
DC Input2:
Method 7: Solar panels (DC Input Source 2, Select PV on the touchscreen)
Method 8: T500 charging adapter (DC Input Source 2, Select Others on the
touchscreen)
Method 9: 12V Car Charger/Storage battery (DC Input Source 2, Select Others
on the touchscreen)
Method 10: 24V Car Charger/Storage battery (DC Input Source 2, Select Others
on the touchscreen)
25
Method 11:PV Parallel ( PV parallel needs to be enabled on the touchscreen)
8.4. How to calculate the recharging time of AC300
E.g. : The total recharging power is 5400W(3000W+2400W) recharged by AC
and 2nd PV at same time, the estimation time will be 1.6-2.1Hrs.(AC300 with
two B300 in parallel)
09. DISCHARGE (OUTPUT)
The running time of the AC300+B300 is subject to factors such as ambient
temperature, discharge rate, remaining battery capacity, altitude and other
factors.
9.1. The Output Port
9.1.1. AC Output Port
● AC300 is equipped with *7 AC(US, JP version) / *6 AC(AU,EU,UK) outputs
with a continuous 3000W Max. power of output in total, and the ability to
support surges up to 6000W.
● Please make sure the combined power requirements of your appliances does
not exceed the 3000W limit.
26
JP/US Version
7 * 100-120V/20A
AU Version
6 * 220-240V/20A
EU Version
6 * 220-240V/20A
UK Version
6 * 220-240V/20A
Only the NEMA TT-30 can generate 3000W,30A
power of output, the standard AC output port
can produce 2000-2400W,20A power of output.
9.1.2. DC Output Port
1. *1 RV port
2. *1 24V/10A Cigarette Lighter Port
3. *1 USB-C (PD 100W)
4. *1 Power button
5. *2 USB-A (fast charging)
6. *2 USB-A
1 2 3 4
5 6
27

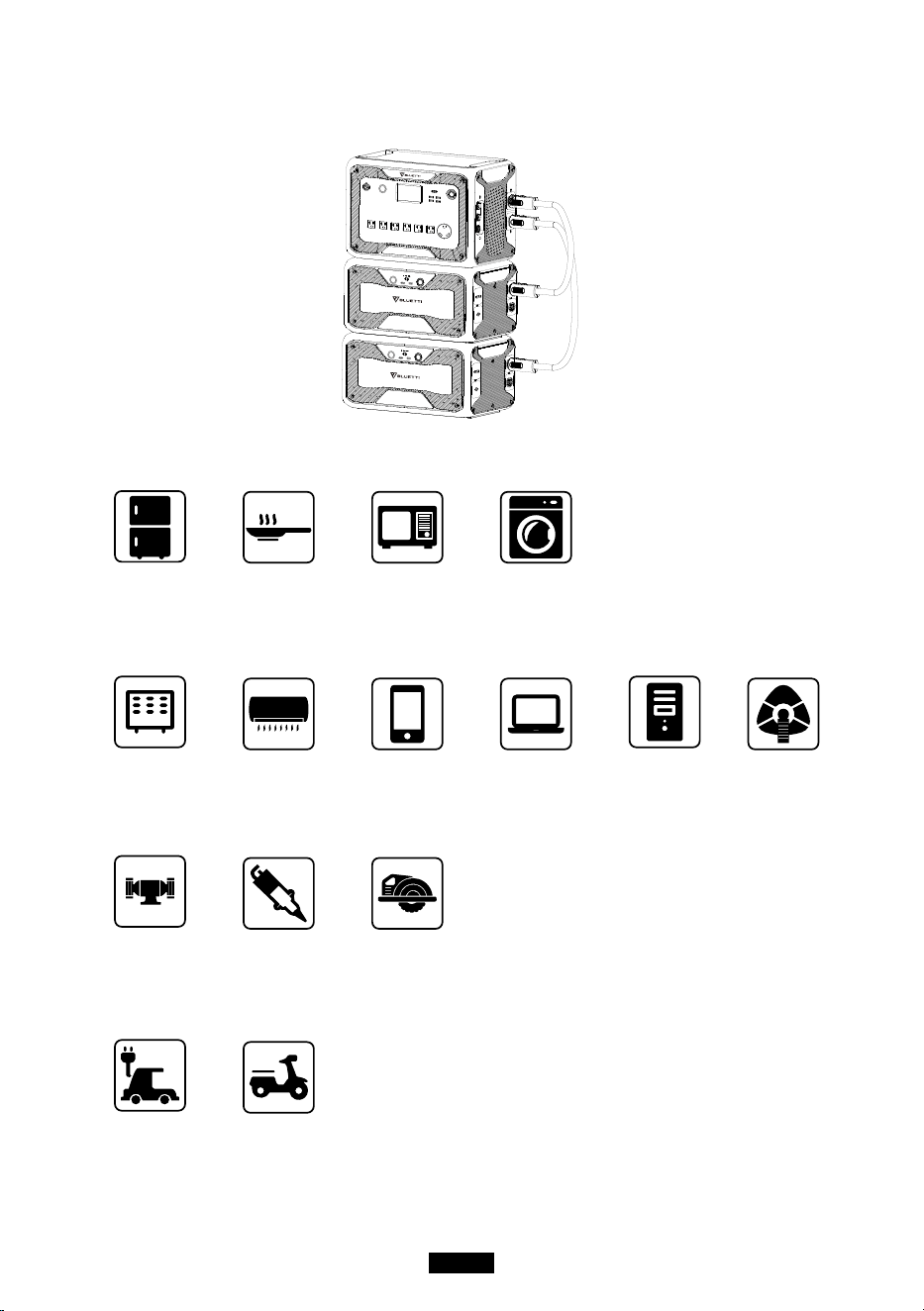

9.2. Operation Time Estimation
AC300 + B300*2 = 6144Wh
●Kitchen Equipment
Refrigerator
700W(24h)
2.8 Day
Electric Fry Pan
1500W
3.3 Hrs
Microwave Oven
1000W
5.0 Hrs
Washer
500W(1000W)
4.8-9.2 Hrs
●Home Equipment
Space Heater
1500W
3.2 Hrs
Air Conditioner
8000Btu
2 Hrs
Smart Phone
18Wh
115 Times
Laptop
45Wh
71 Times
Desktop
300W
14.5 Hrs
CPAP
40W
77 Hrs
●Tools
Bench Grinder
1400W
3.5 Hrs
Welding Machine
1800W
2.8 Hrs
Circular Saw
1400W(2300W)
2.1-3.5 Hrs
●Transportation
Electric Vehicle(16A)
1800W
13.5-16 Miles
E-Bike
500W
9.2 Times
（ The estimation operating time is only for reference ）
28
9.3. How to Calculate the Operation Time
●What is the depth of discharge (DoD)?
To extend the battery-life, the power station set the 90% DOD, which means that
only 90% of the battery capacity can be discharged. 10% of the energy is reserved to
avoid damage to the battery due to over-discharge.
η indicates local inverter eciency. DOD=90%, η =90%.
10. UPS
10.1. UPS Description
An uninterruptible power supply or uninterruptible power source (UPS) is
an electrical apparatus that provides emergency power to a load when the
input power source or mains power fails. A UPS differs from an auxiliary or
emergency power system or standby generator in that it will provide near-
instantaneous protection from input power interruptions, by supplying energy
stored in batteries, supercapacitors, or ywheels.
10.1.1. FYI (For Your Information)
Max. capacity retention indicates the limit of capacity of the unit that can be
recharged by grid, if you set the Max. battery capacity at 80% at Time Control
UPS Mode and Customized UPS Mode then AC300 could be charged to 80% via
grid. The rest of the 20% capacity will be recharged via solar panels.
10.1.2. UPS working system introduction
(Main Panel) (Sub Panel)
29
BLUETTI
Sub Panel
BLUETTI
PV Module
Main Panel
Solar Panel

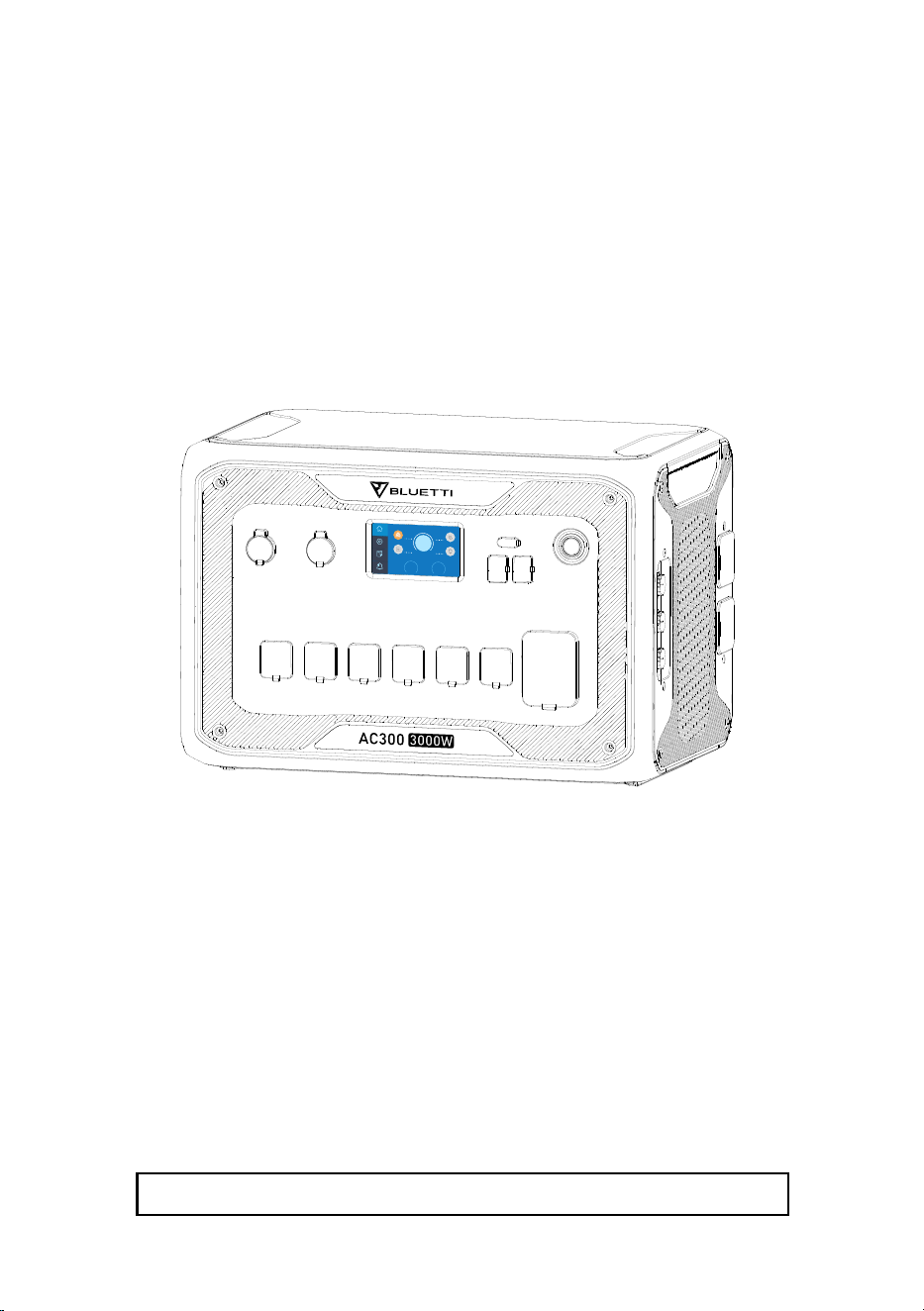

AC300
Critical Load
≤3000W
Non-critical
Load ≥ 3000W
Grid
( AC300 grid-tied home power back-up
system with Sub Panel and roof panels )
1
2
3
( Plug-in UPS system )
Step1: Plug the AC charging cable into the wall outlet.
Step2: Plug the AC charging cable into the AC input port.
Step3：Connect the load to AC300 via AC output port
Note: The output power in Plug-in UPS Mode is subject to the specication of
the current and voltage from home circuit.
a, Standard UPS Mode. b, Time Control UPS Mode.
c, PV Priority UPS Mode. d,Customized UPS Mode.
Eg: Current (15A wire) X Voltage (120V) = 1800W in US
Eg: Current (30A wire) X Voltage (120V) = 3000W in US
10.1.3. Turn On UPS Function
● Select “Setting” on the main touchscreen interface. Select “Next” and select
“Working Mode” to choose UPS Mode.
30
●The default working mode is “Standard UPS Mode”.
10.2. Enable UPS Running Mode
10.2.1 Standard UPS Mode
● The AC300+B300 will power your load directly from the grid and maintain a
100% charge. When grid power fails, the AC300 switches to internal batteries.
10.2.2. Time Control UPS Mode
● Set the times of the AC300+B300 to be charged via grid power and the
times to run loads from its battery.
Charge Time: Set the time of when the AC300+B300 is to be recharged by
grid to avoid the higher electricity rates.
Discharge Time: Set the time to switch to batteries to power loads connected
to the Sub Panel (Optional Purchase).
● Parameter Setting:
Battery SOC Low: When the remaining capacity of AC300+B300 is under the
preset High/Low battery capacity, AC300+B300 will stop powering connected
loads.
Battery SOC High: The maximum capacity AC300+B300 can be charged via
grid. Remaining capacity will be charged via solar panels, car, lead-acid battery
or second adapter only.
31
10.2.3. PV Priority UPS Mode
● PV Priority Mode: Recommended for areas with stable grid power. The
battery will be recharged mainly by PV for power savings.
● Note: In PV Priority Mode, AC300 can only be recharged via grid to 30%
capacity, and also discharge to 30% of the capacity (you can tweak it to
100% for full grid charging manually on touchscreen or App) as the "Reserved
capacity for PV charging". And rest of the capacity will be fully charged from
either solar power or 2 adaptors.
32

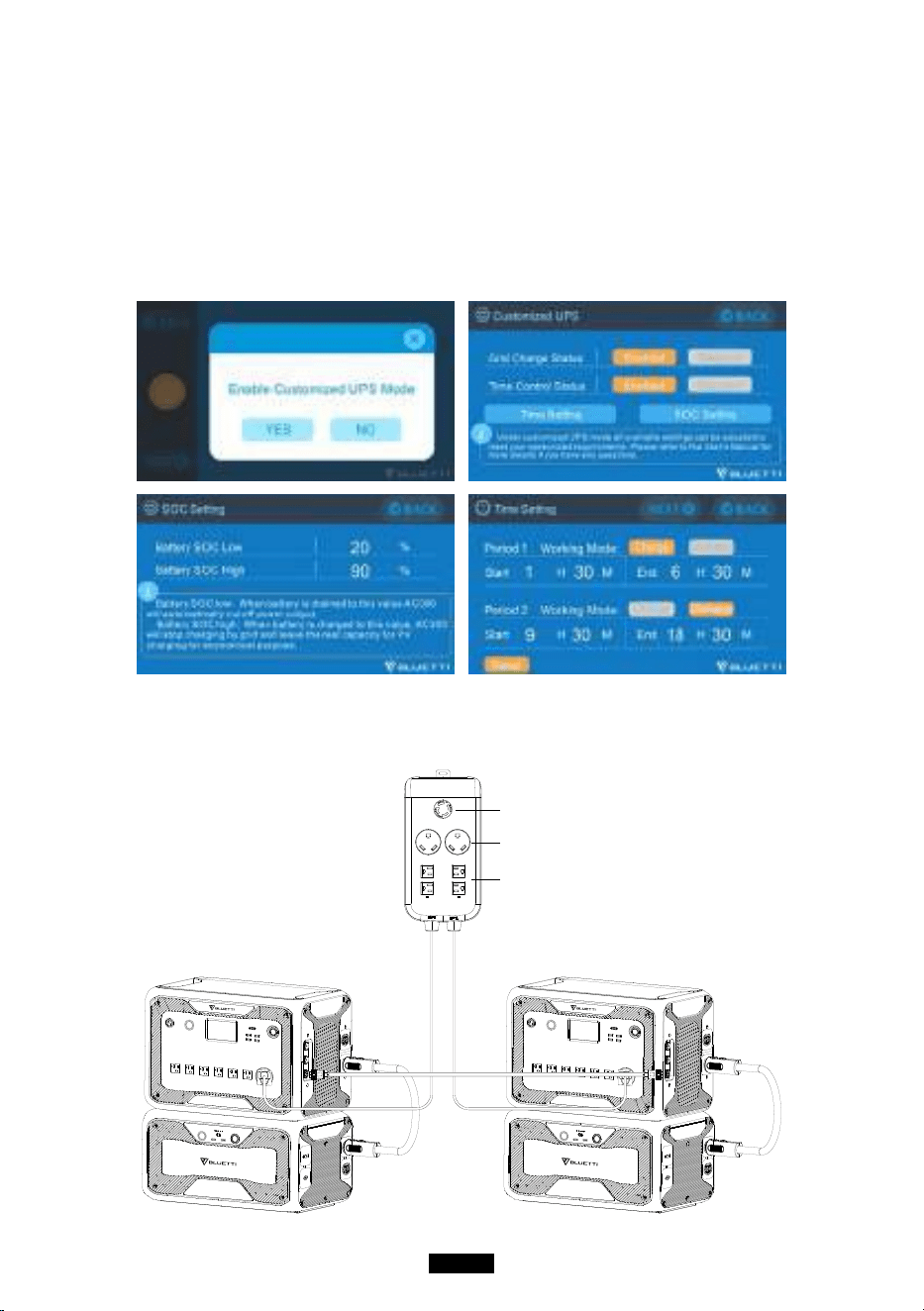

10.2.4. Customized UPS Mode
● Charge/Discharge time, and High/Low Battery SOC can be set in this UPS mode.
● Ability to disable the grid charging. The unit will not charge batteries from grid.
● Apart from Time Control UPS, the main switch of grid charging and time
mode settings are involved. The setting of "Time Setting" and "SOC Setting"
will take eect on both PV Priority Mode, and Time Control Mode.
11. SPLIT PHASE FUNCTION
*1 NEMA L14-30 receptacle, 30A
*2 NEMA TT-30 receptacle, 30A
*4 Standard AC receptacle, 20A
33
Just Power On

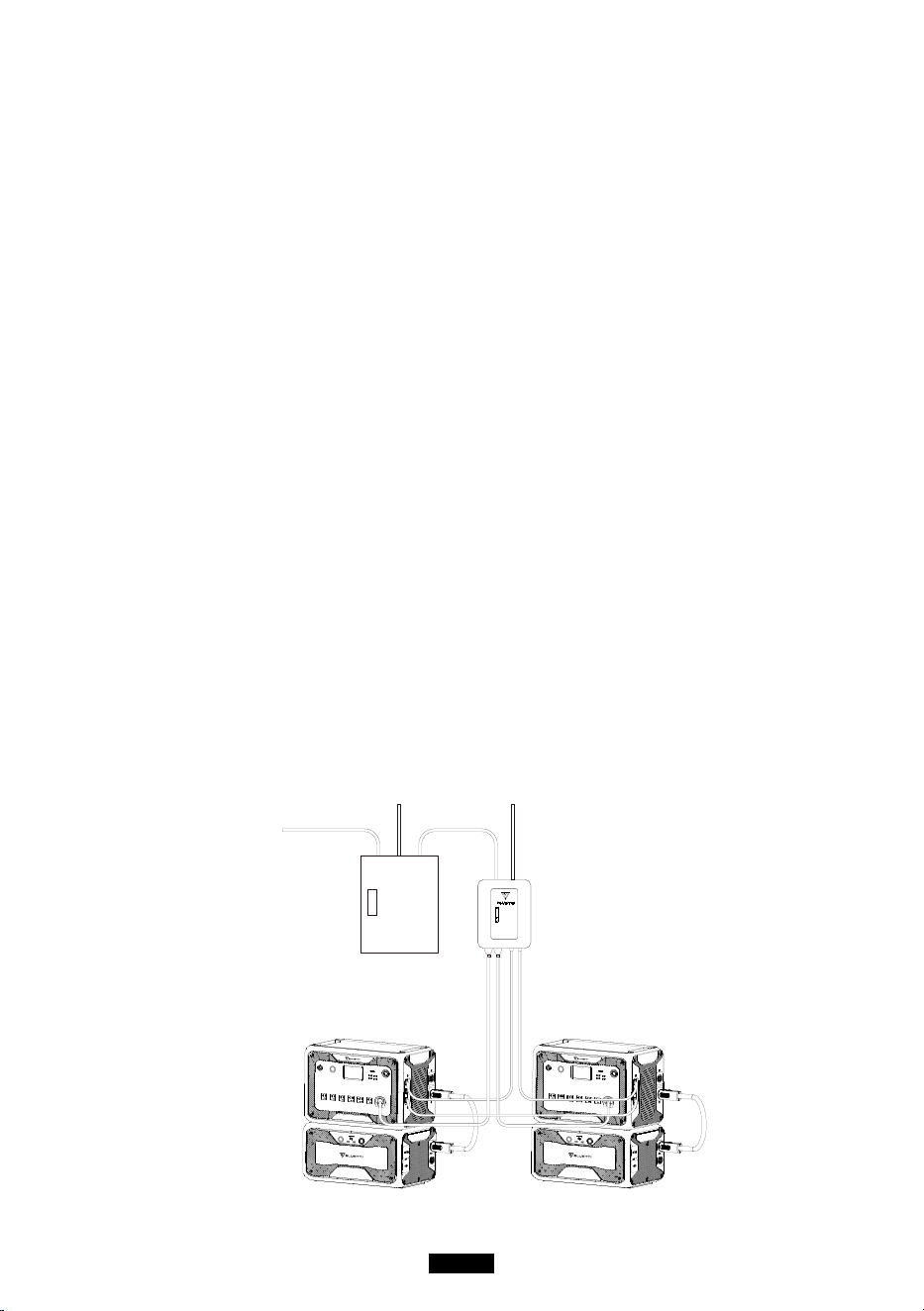

CONNECTION 2 (Power Mode)
In Split Phase Power System, it is recommended that you choose the Fusion AC
Input Cable. The AC input ports of the two set of AC300+B300 should be connected
to be as the phase sequence: L1,N,PE and L2,N,PE. Make sure that the phase
sequence of the two machines is correct.
Wrong Connection will damage the power station and your warranty will be
invalid, BLUETTI will not take responsibility for the damage caused by personal
negligence or wrong operation.
The Fusion AC Input Cable(Optional Purchase) is designed to power the Split Phase
System. One end of the cable is going to be connected to NEMA L14-30 socket, and
connect the aviation plugs to the AC input ports of the two set of AC300+B300.
The current of AC input plug: ≥ 30A.
Note:
(1) Please disconnect the AC charging cable for both AC300 units while
binding into Fusion Box Pro.
(2) Certificated Technician is required to build the split phase system to
power the Sub Panel.
Warning: If you insist to charge the AC300 which has been connected
into Fusion Box Pro already, please make sure the L1/L2/N wire is set at
the right phase sequence or the AC300 will be damaged.
L: Live wire N: Neutral wire
CONNECTION 1 (Standard Mode)
“Single Phase” is set as the default machine type if you are operating a single
AC300+B300 system. It`s the only and correct setting if a single AC300+B300
is being used. "Machine Type" is only used to set for Split Phase, “Split Phase” is
only used for connecting both *2 AC300+B300 (exclusive for AC300 100-120V
Version) bonded 2 pairs of AC300+B300 to one power supply system to double
the output power, voltage, so as to capacity. Please refer to Split Phase Setting
for detailed information.
34
L1 N PE
PE
G(PE)
L2
W(N)
L1
X(L1)
N
Y(L2)
L2 N PE
AC Input
Cable(L14-30)
WRONG CONNECTION
It`s forbidden to charge AC300+B300 through the original AC charging
cable in Split Phase System, please use Fusion AC Input Cable(Optional
Purchase) to charge the two set of the AC300+B300 in Split Phase
System.
Wrong Connection will damage the power station and your warranty will
be invalid, BLUETTI will not take responsible for the damage caused by
personal negligence or wrong operation.
PE
G(PE)
W(N)
L1
X(L1)
N
PE
G(PE)
W(N)
L1
X(L1)
N
35
● The “Machine Type” setting on screen is used to enable or disable Split
Phase output. Split-Phase output is achieved by bonding two AC300 into one
power system to double the available output power, voltage, and capacity.
●“Split Phase” is only used for connecting both *2 AC300 together (exclusive
for the 100-120V version of the AC300). A Fusion Box(P30A) is required (sold
separately).
● Launch Split Phase Function:
Note:
If one of the AC300 is out of power, the Split Phase Bonding function will
deactivate automatically.
Step 1: Plug the output cables from each of the two AC300 to the Split Fusion
Box Pro.
Step 2: Plug the communication cables from each of the two AC300 to the Split
Fusion Box Pro.
Step 3: Set the Machine Type to "Split Phase" on AC300 either.
Step 4: Select "Master" or "Slave" on the operating AC300. Select "Master" will
set the operating AC300 as the one to control both two AC300. Then select
"Slave" for another AC300.
Step 5: Clear the alarm history if the connection failed and reconnect the
cables.
36
12. TECHNICAL SPECIFICATION
Model AC300-JP AC300-US
AC300-EU/UK/AU
Net Weight 21.6kg (47.62lbs)
Dimensions 520*320*358mm (20.5*12.5*14.1in)
Charge Temperature 0-40℃ (32-104 ℉ )
Discharge Temperature -20-40℃ (-4-104 ℉ )
Storage Temperature -20-40℃ (-4-104 ℉ )
Working Environment
Humidity
10-90%
Certication PSE, FCC, CE, UN38.3, msds, UL, SAA and ROHS
Capacity 3072-12288Wh (60-240Ah)
Battery Type LiFePO4
Standard Battery Voltage 51.2VDC
Battery Cell Voltage Range 44.8-57.6VDC
Short-circuit Protection Included
Over-temperature
Protection
Included
MPPT Built-in
Over-temperature Protection
Discharge Over-
temperature
65℃
Discharge Over-
temperature Recovery
55℃
Charge Over-temperature 55℃
Charge Over-temperature
Recovery
45℃
AC Output
AC Inverter *7 3000W total *6 3000W total
Rated Output Voltage 100VAC 120VAC 220-240VAC
37
Rated Output Frequency 50/60Hz
Rated Continuous Power 3000W
Rated Output Current 30A 25A 13A
Power of Over-load
3100W ＜ load ＜ 3750W, 2min;
3750W ＜ load ＜ 4500W, 5s;
4500W ＜ load ＜ 6000W, 500ms
Eciency >88%
THD <5%
DC Output
Cigarette Lighter Port *1 24VDC,10A
USB-A *2 5VDC,3A,15W total
USB-A(fast charging) *2 3.6-12VDC,3A;18W*2 total
USB-C (Type-C) *1 5-15VDC,3A;20VDC,5A,100W
Wireless Charging Pad *2 5/7.5/10/15W*2
RV Port *1 12VDC,30A 418W>load, 2S
AC Input
Input Voltage 85-110VAC/JP 102-132VAC/US
207-253VAC
EU/UK/AU
Input Frequency 47Hz-63Hz
Max. Input Current 30A
Congurable Input Current Preset at 15A, can be changed on screen
AC Charging Voltage Range 90-264VAC
AC Charging Frequency Range 47Hz-63Hz
Power of Charging 3000W Max
PV Input
Max. Input Voltage 150VDC
MPPT Voltage Range 12-150VDC
Max. Power of Input 1200W*2
Rated Input Current 12A*2
38
BLUETTI
13. STORAGE AND MAINTENANCE
14. TROUBLESHOOTING
Error
Code
Error List Troubleshooting
001 D-AMCU Warning
Please contact with the dealer if the error still
exists after rebooting the unit.
002 D-BMS Warning
Please contact with the dealer if the error still
exists after rebooting the unit.
003 D-A Communication Error
Please contact with the dealer if the error still
exists after rebooting the unit.
004
Battery Voltage High
-Hardware
Please contact with the dealer if the error still
exists after rebooting the unit.
005
BUS Voltage High-
Hardware
Please contact with the dealer if the error still
exists after rebooting the unit.
006
SPS Voltage Low-
Hardware
Please contact with the dealer if the error still
exists after rebooting the unit.
007 Fan Warning-Hardware
Clean or replace the fan to ensure proper
ventilation.
Please contact with the dealer if the error still
exists after rebooting the unit.
● Please turn o the unit and charge it to 50-70% capacity every time before
storing it.
● To preserve the battery health, please discharge and fully charge the unit at
least once every 6 months.
● Ensure proper ventilation in use or store and keep away from any
combustible materials or gases.
● Avoid exposing the unit to rain or wet environment, and direct sunlight (32-
113 ℉ , 0-45℃ ), clean and dry environment is strongly recommended.
● Dry, non-abrasive cloths to wipe will be perfect. The power station is a
versatile tool for various adventures, simple cleaning would be required from
time to time to keep the unit in a good condition.
● Keep the unit away from children and pets.
39
008
OCP (Over Current
Protection)- Hardware
Please contact with the dealer if the error still
exists after rebooting the unit.
009 LLC Soft-Start Failure
Please contact with the dealer if the error still
exists after rebooting the unit.
010 BUS Soft-Start Failure
Please contact with the dealer if the error still
exists after rebooting the unit.
011 H-BUS Voltage High
Please contact with the dealer if the error still
exists after rebooting the unit.
012 Bus Voltage High
Please contact with the dealer if the error still
exists after rebooting the unit.
013 LLC-Bus Voltage High
Please contact with the dealer if the error still
exists after rebooting the unit.
014 Bus Voltage Low
Please contact with the dealer if the error still
exists after rebooting the unit.
015 DC Input Voltage High
Please contact with the dealer if the error still
exists after rebooting the unit.
016 DC Input Voltage Low
Please contact with the dealer if the error still
exists after rebooting the unit.
017 DC Input Over Current
Please contact with the dealer if the error still
exists after rebooting the unit.
018
Inverter Output Over
Current
The output power of load exceeds.
Please contact with the dealer if the error still
exists after rebooting the unit.
019 Inverter Voltage High
Please check if the output of load meets the
specications of the unit.
Turn on the AC after rebooting, please contact
with the dealer if the error still exists.
020 Inverter Voltage Low
Please check if the output of the load meets
the specications of the unit.
Turn on the AC after rebooting, please contact
with the dealer if the error still exists.
021 Grid Input Over Current
Please check if the input of the current meets
the specications of the unit.
Turn on the AC after rebooting, please contact
with the dealer if the error still exists.
40
022
Inverter Output Short
circuit
Please disconnect the load to make sure the
load has been connected properly.
Click to clear the alarm history.
023
Inverter Over-load
Protection
Please disconnect the load to make sure the
output power of loads meet the limit of the
unit.
Click to clear the alarm history.
024 Phase Integration Error
Check the input wire and whether the “Master”
unit or “Slave”unit can work well.
025 AC Relay Short Circuit
Please contact with the dealer if the error still
exists after rebooting the unit.
026 AC Relay Open Circuit
Please contact with the dealer if the error still
exists after rebooting the unit.
027 Load Relay Short Circuit
Please contact with the dealer if the error still
exists after rebooting the unit.
028 Load Relay Open Circuit
Please contact with the dealer if the error still
exists after rebooting the unit.
029 INV Soft-Start Failure
Please contact with the dealer if the error still
exists after rebooting the unit.
049 PV1 Over Current
Please contact with the dealer if the error still
exists after rebooting the unit.
050 PV2 Over Current
Please contact with the dealer if the error still
exists after rebooting the unit.
051 PV1 Over Voltage
Please check if the open circuit voltage
of solar panels exceeds the input voltage
standard of AC300.
052 PV2 Over Voltage
Please check if the open circuit voltage
of solar panels exceeds the input voltage
standard of AC300.
053 D-BAT Full The battery is full.
054 D-BAT Drained
Empty of battery.
When SOC ＞ 5%，the alarm is cleared.
You need to turn AC ON again on the screen.
055
Inverter Overload
Warning
The output power of load exceeds.
41
056 AC Overload Warning The output power of load exceeds.
057 Grid Voltage High
Please check whether the grid voltage ts the
input voltage standard of AC300.
058 Grid Voltage Low
Please check whether the grid voltage ts the
input voltage standard of AC300.
059 Grid Frequency High
Please check whether the grid frequency ts
the input frequency of AC300.
060 Grid Frequency Low
Please check whether the grid frequency ts
the input frequency of AC300.
061
Multi Communication
Error
Please check whether the communication
cable is connected correctly.
Clear the alarm history or restart the unit.
062 Multi Address Error
Please check whether the communication
cable is connected correctly.
Please check whether the communication
cable is connected correctly.
Clear the alarm history or restart the unit.
063
Multi Synchronization
Error
Please check whether the communication
cable is connected correctly.
Clear the alarm history or restart the unit.
064 Multi Brak Phase Error
Please check if the input of the AC voltage
meets the specications of the unit.
Clear the alarm history or restart the unit.
065 PV Paralleling Error
Please check whether the PV parallel enable
setting is consistent with the PV input.
Please contact with the dealer if the error still
exists after rebooting the unit.
081
BMS Communication
Interrupt
Please contact with the dealer if the error still
exists after rebooting the unit.
082
LCD Communication
Interrupt
Please contact with the dealer if the error still
exists after rebooting the unit.
083
EEPROM Read & Write
Error
Please contact with the dealer if the error still
exists after rebooting the unit.
084 DSP Conguration Error
Please contact with the dealer if the error still
exists after rebooting the unit.
42
085 RTC Read & Write Error
Please contact with the dealer if the error still
exists after rebooting the unit.
086 12V/30A Port OCP
Please disconnect the appliances on DC
12V/30A ports.
Clear the alarm history or restart the unit.
087 24V/10A Port OCP
Please disconnect the appliances on DC
24V/10A ports.
Clear the alarm history or restart the unit.
088
USB/TYPE-C/PD Port
Current High
Please disconnect the appliances on USB
ports.
Clear the alarm history or restart the unit.
089
DC 12V/30A Output
Current High
Please disconnect the appliances on DC
12V/30A ports.
Clear the alarm history or restart the unit.
090
DC 24V/10A Output
Current High
Please disconnect the appliances on DC
24V/10A ports.
Clear the alarm history or restart the unit.
091
DC Output soft start
Failure
Please contact with the dealer if the error still
exists after rebooting the unit.
092
DC 12V/30A Output Short
Circuit
Please disconnect the appliances on DC
output ports.
093
DC 24V/10A Output Short
Circuit
Please disconnect the appliances on DC
output ports.
094
USB/TYPE-C/PD Port
Locked
Please disconnect the load to make sure the output
power of loads meet the limit of the unit.
Please contact with the dealer if the error still
exists after rebooting the unit.
095 12V/30A DC Port Locked
Please disconnect the load to make sure the
output power of loads meet the limit of the unit.
Please contact with the dealer if the error still
exists after rebooting the unit.
096 24V/10A DC Port Locked
Please disconnect the load to make sure the
output power of loads meet the limit of the
unit.
Please contact with the dealer if the error still
exists after rebooting the unit.
43
097
BMS Temperature
abnormal
Please store AC300 at the recommended
temperature and leave it until the temperature
inside back to the normal standard.
098 BMS Over Voltage
Please contact with the dealer if the error still
exists after rebooting the unit.
099 BMS Low Voltage
Please contact with the dealer if the error still
exists after rebooting the unit.
100 BMS Over Current
Please contact with the dealer if the error still
exists after rebooting the unit.
101 BMS Precharge Error
Please contact with the dealer if the error still
exists after rebooting the unit.
102 BMS Output Short Circuit
Please contact with the dealer if the error still
exists after rebooting the unit.
103
BMS communication cable
error
Please check whether the battery power cable
is reliably connected.
Please check whether the lock switch on the
power cable has been turnd on.
Please contact with the dealer if the error still
exists after rebooting the unit.
107 NTC Faulty
Please leave the unit at the recommended
temperature few hours to recover.
Please contact with the dealer if the error still
exists after rebooting the unit.
108 Fan Faulty
Clean or replace the fan to ensure proper
ventilation.
Please contact with the dealer if the error still
exists after rebooting the unit.
15. FAQ (Frequently Asked Questions)
● How to claim the warranty and extended warranty?
Please refer to the warranty card you received from where you have ordered
the product from. Any extended warranty, if purchased, will only take effect
after the default warranty has expired.
● Can the unit rmware be upgraded?
44
The rmware including ARM, DSP, IoT and BMS can be upgraded online through
BLUETTI APP.
● Can it be charged and discharged at the same time?
Yes, the unit supports pass-through charging function for both AC and DC
outputs.
● What is the UPS switching latency?
20ms from oine UPS.
● Can I connect my two AC300+B300 units with a Fusion Box(P020A) to
achieve double the output power, voltage and capacity?
Only Fusion Box Pro(P030A) can be connected two set of AC300+B300 power
station.
● Can I use third-party solar panels to charge the unit?
Yes, the third-party solar panels are available as long as they contain MC4
connectors, besides the voltage (in series or parallel) is between 12V to 150V
and the maximum combined input power from the two PV input ports is
2400W. If the open circuit voltage of the panels is between 150V-550V, you can
choose D300S to drop down the voltage of the panels to achieve solar charging.
● How do I know whether my appliance can work well with the power station?
Calculate how much the continuous loads are for your appliances are in total.
As long as they do not exceed the rated output power of the power station, it
should work.
● How can I connect the product to my main panel?
To install the grid-tie power system, an electrician with a professional technician
certicate is required, connect the wires of critical equipment from your main
electrical box to the BLUETTI Sub Panel (optional purchase), then connect
AC300 to the Sub Panel.
16. DECLARATION
● Some changes including App may not be noticed specifically such as
appearance or specifications due to the exterior material or hardware
improvement of the product.
● BLUETTI shall not be liable for any damage caused by force majeure such as
re, typhoon, ood, earthquake or the user's intentional negligence, misuse or
other abnormal conditions.
● No compensation for damages shall be made for utilizing non-standard
45
adapters and accessories.
● BLUETTI will not bear all responsibilities if the damage is caused by not
operating the product properly according to the instruction of user manual.
● AC300 is not suitable for use on the relevant equipment or machines
involving:
Personal safety, such as atomic energy devices, aerospace devices, or any
equipment or machines that require highly reliable power sources. We are not
responsible for accidents, fires, or wrongful or negligent actions done to the
machine and equipment which result in damage.
17. FCC WARNING
This device complies with Part 15 of the FCC Rules.
Operation on AC300 is subject to the following conditions:
(1) this device may not cause harmful interference.
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Any changes or modications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio
frequency energy, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
46
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with a minimum distance of 0.65ft between the radiator and your body.
Company: POWEROAK GmbH
Address: Lindwurmstr. 114, 80337
München Germany
Mail: [email protected]
Company: POWEROAK ENERGY UK CO.,LTD
Address: Suite 108 Chase Business Center 39-41
Chase Side London United Kingdom N14 5BP
Mail:[email protected]
P/N:17.0303.0400-01A1
