IRTC650
Thermal Imager
3
Thermal Imaging Camera
Page
5
5
6
8
9
9
9
10
10
10
11
11
12
12
13
13
14
15
16
16
16
17
17
17
18
19
19
19
20
20
20
20
21
21
22
22
23
23
23
24
24
24
Content
1.Introduction.................................................................................
2.Safety Information.......................................................................
3.Specifications..............................................................................
...................................................................4.Structure Description
...........................................................................5.Before You Start
5-1.How to Charge the Battery.......................................................
5-2.Power On................................................................................
............................................................................... 5-3.Power Off
5-4.Desktop..................................................................................
5-5.Shutter...................................................................................
...................................................... 5-6.Temperature Measurement
5-7.Emissivity Adjustment.............................................................
............................................................ 5-8.Reflected Temperature
5-9.Thermal Imager Reporter Software..........................................
6.Menus.........................................................................................
6-1.Setting Menu..........................................................................
Image Mode............................................................................ 6-2.
Image Palette......................................................................... 6-3.
Histgram Mode and Auto Mode................................................ 6-4.
Image Align............................................................................ 6-5.
................................................................... 6-6.Image Adjustment
....................................................................... 6-7.Lock Operation
6-8.Device Setting........................................................................
Time/Date............................................................................... 6-9.
............................................................................. 6-10.USB Mode
Language.............................................................................. 6-11.
Auto Power Off...................................................................... 6-12.
About.................................................................................... 6-13.
Measure Setting.................................................................... 6-14.
........................................................................ 6-14-1.Max Temp
6-14-2.Min Temp........................................................................
6-14-3.Emissivity........................................................................
.................................. 6-14-4.Ambient Temperature Composation
6-14-5.Reflective Temperature....................................................
..................................................................... 6-14-6.Alarm Mode
6-14-7.Distance..........................................................................
................................................................... 6-14-8.Distance Unit
6-14-9.Temperature Range..........................................................
6-14-10.Temperature Unit...........................................................
............................................................................. 6-14-11.Reset
6-14-12.Format Memory..............................................................
6-14-13.Factory Settings.............................................................
4
Thermal Imaging Camera
Page
25
25
25
26
26
26
27
27
27
27
27
27
27
29
30
30
30
31
31
31
Content
Measure Setting.................................................................... 6-15.
...................................................................... 6-16-1.Save Image
...................................................................... 6-16-2.Video Menu
6-16-3.Files Browser...................................................................
6-16-4.Play a Video.....................................................................
.................................................................... 6-16-5.Delete a File
7.Android/iOS APP InfraRead........................................................
7-1.Software Install and Uninstall.................................................
7-1-1.System Required...............................................................
7-1-2.InfraRead App Install.......................................................
7-2.InfraRead Function................................................................
7-2-1.Import Pictures.................................................................
7-2-2.Analyze.............................................................................
7-2-3.Report and Share...............................................................
8.PC Software.................................................................................
8-1.System Required.....................................................................
8-2.IRMeter Install........................................................................
8-3.Running..................................................................................
8-4.Uninstall.................................................................................
9.Fault diagnosis and Exclusion.......................................................
5
Thermal Imaging Camera
1.Introduction
• The Thermal Imager is handheld imaging camera used for predictive maintenance, equipment troubleshooting
and verification.
• Focus the len to the object, then the thermal and visual images are displayed on the LCD and can be saved to a
Micro SD Memory card.
• Transferring images to a PC is accomplished by removing the SD memory card and connecting it to a PC through
the included card reader, or transfer the images and video stream to the smart device with “InfraRead” apps
installed.
• In addition to the features mentioned above, the Thermal Imager provide video recording and play back.
2.Safety Information
• Do not disassemble or do a modification to the Thermal Imager.
• Do not point the Thermal Imager (with or without the lens cover) at intensive energy sources, for example devices
that emit laser radiation, or the sun, this can have an unwanted effect on the accuracy of the camera, it can also
cause damage to the detector in the Thermal Imager.
• Do not use the Thermal Imager in a temperature higher than 50°C (122°F), lower than -20°C (-4°F), high
temperature or low temperature can cause damage to the Thermal Imager.
• Only use the correct equipment to discharge the battery, if you do not use the correct equipment, you can decrease
the performance or the life cycle of the battery.
• If you do not use the correct equipment, an incorrect flow of current to the battery can occur, this can cause the
battery to become hot, or cause an explosion and injury to persons.
• Do not pull out the battery when the thermal imager is working, if you pull out the battery when the thermal
imager is working, it may cause the thermal imager work unnormal.
• Do not disassemble or do a modification to the battery, the battery contains safety and protection devices which,
if they become damaged, can cause the battery to become hot, or cause an explosion or an ignition.
• If there is a leak from the battery and the fluid gets into your eyes, do not rub your eyes, flush well with water
and immediately get medical care.
• Do not make holes in the battery with objects, Do not hit the battery with a hammer, Do not step on the battery,
or apply strong impacts or shocks to it.
• Do not put the battery in or near a fire, or in direct sunlight, or other high-temperature locations, Do not solder
directly onto the battery.
• Always charge the battery in the special temperature rang, the temperature range through which you can charge
the battery is 0 to 50°C (32 to 122°F), if you charge the battery at temperatures out of this range, it can cause
the battery to become hot or to break, it can also decrease the performance or the life cycle of the battery.
• Do not get water or salt water on the battery, or permit the battery to get wet.
• Clean the case with a damp cloth and a weak soap solution, Do not use abrasives, isopropyl alcohol, or solvents
to clean the case or lens/screen.
• Be careful when you clean the infrared lens, Do not clean the infrared lens too vigorously, this can damage the
anti-reflective coating.
6
Thermal Imaging Camera
• Take the Thermal Imager from from cold to hot, it will appear condensation in thermal Imager, to protect the
Thermal Imager, you should power of the Thermal Imager, wait until the Thermal Imager has become war enough
for the condensation to evaporate.
• If you do not use the Thermal Imager, put the Thermal Imager in cool and dry environment, if you store Thermal
Imager equipped with the battery, the power of the battery will be exhausted.
3.Specifications
56°x 42°/0.5m
3.75mrad
<0.04°C at 30°C (86°F)/40mK
Focus fr
9Hz
ee
2.6mm
Uncooled microbolometer/7.5-14µm
256x192 pixels
3.2 in. LCD, 320x240 pixels
IR image, Visual image, Picture in Picture, Auto fusion
IRON, Rainbow, Grey, Grey Inverted, Brown, Blue-red, Hot-cold, Feather
-20 to 550°C (-4 to 1022°F)
±2°C (3.6°F) or ±2% of reading (Environment temperature 10 to 35°C,
object temperature >0°C)
Center Spot
Auto hot or cold markers
Emissivity, Reflected temperature
8Gbytes Micro SD card and 3.4GB internal EMMC
Standard MPEG-4 encode, 240x320 at 30fps, on memory card >30minutes
IR/visual images; simultaneous storage of IR and visual images
Imaging and Optical Data
Field of View (FOV)/Minimum Focus Distance
Spatial Resolution (IFOV)
Thermal Sensitivity/NETD
Image Frequency
Focus Mode
Focal Length
Focal Plane Array (FPA)/Spectral Range
IR Resolution
Image Presentation
Display
Image Modes
Color Palettes
Measurement
Object Temperature Range
Accuracy
Measurement Analysis
Spot
Automatic Hot/Cold detection
Measurement Corrections
Storage of Videos
Storage Media
Video Storage Format
Video Storage Mode
7
Thermal Imaging Camera
Standard JPEG or HIR files including measurement data, on memory
card >6000 pictures
IR/visual images; simultaneous storage of IR and visual images
Internal image analyse tools, Complete function
Local adaptation of units, language, date and time formats, information
of camera
Multinational
2 Megapixels
FOV 65°
USB-Type C
Data transform between camera and PC
Live video between camera and PC
Li-ion battery, 4 hours operating time
DC 5V
In camera (AC adapter)
Automatic shutdown
-15 to 50°C (5 to 122°F)
-40 to 70°C (-40 to 158°F)
10% to 90%
2m
25g (IEC60068-2-29)
2g (IEC60068-2-6)
<500g
224x77x96mm
Storage of Images
Image Storage Format
Image Storage Mode
Image Analyse
Set-Up
Set-Up Commands
Languages
Digital Camera
Built-in Digital Camera
Built-in Digital Lens Data
Data Communication Interfaces
Interfaces
USB
Power System
Battery
Input Voltage
Charging System
Power Management
Environmental Data
Operating Temperature Range
Storage Temperature Range
Humidity (Operating and Storage)
Drop Test
Bump
Vibration
Physical Data
Camera Weight, Incl. Battery
Camera Size (LxWxH)
8
Thermal Imaging Camera

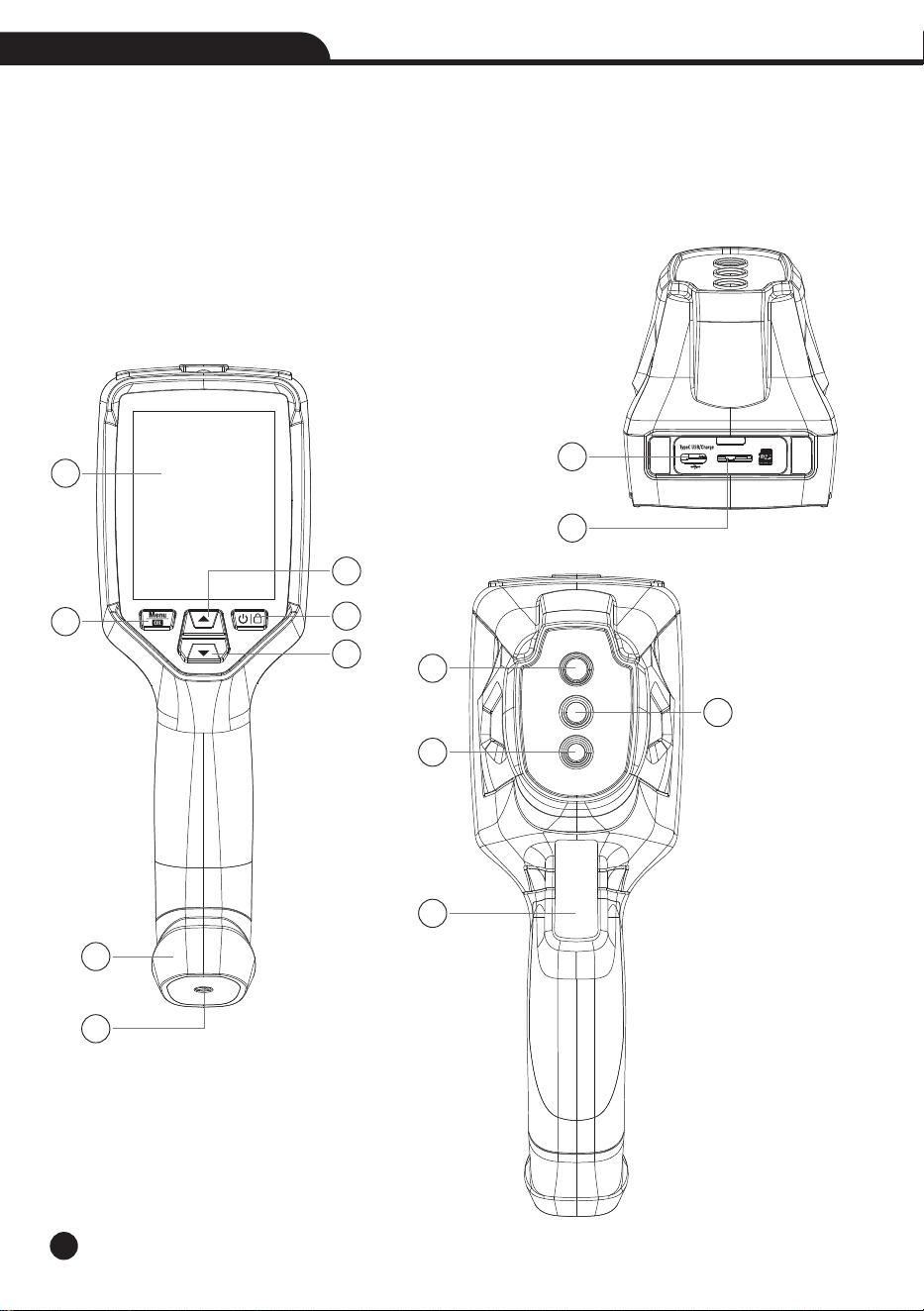

4.Structure Description
1-LCD Display and Screen
2-MENU/OK Button
3-Up Arrow Button
4-Power/Lock Button
5-Down Arrow Button
6-Battery
7-Hole for Tripod Insertion
8-Flashlight
9-Infrared Camera Lens
10-Visual Camera
11-The Trigger
12-TypeC USB/Charge
13-Micro SD Card Slot
1
2
3
4
5
6
7
8
10
9
11
12
13
9
Thermal Imaging Camera

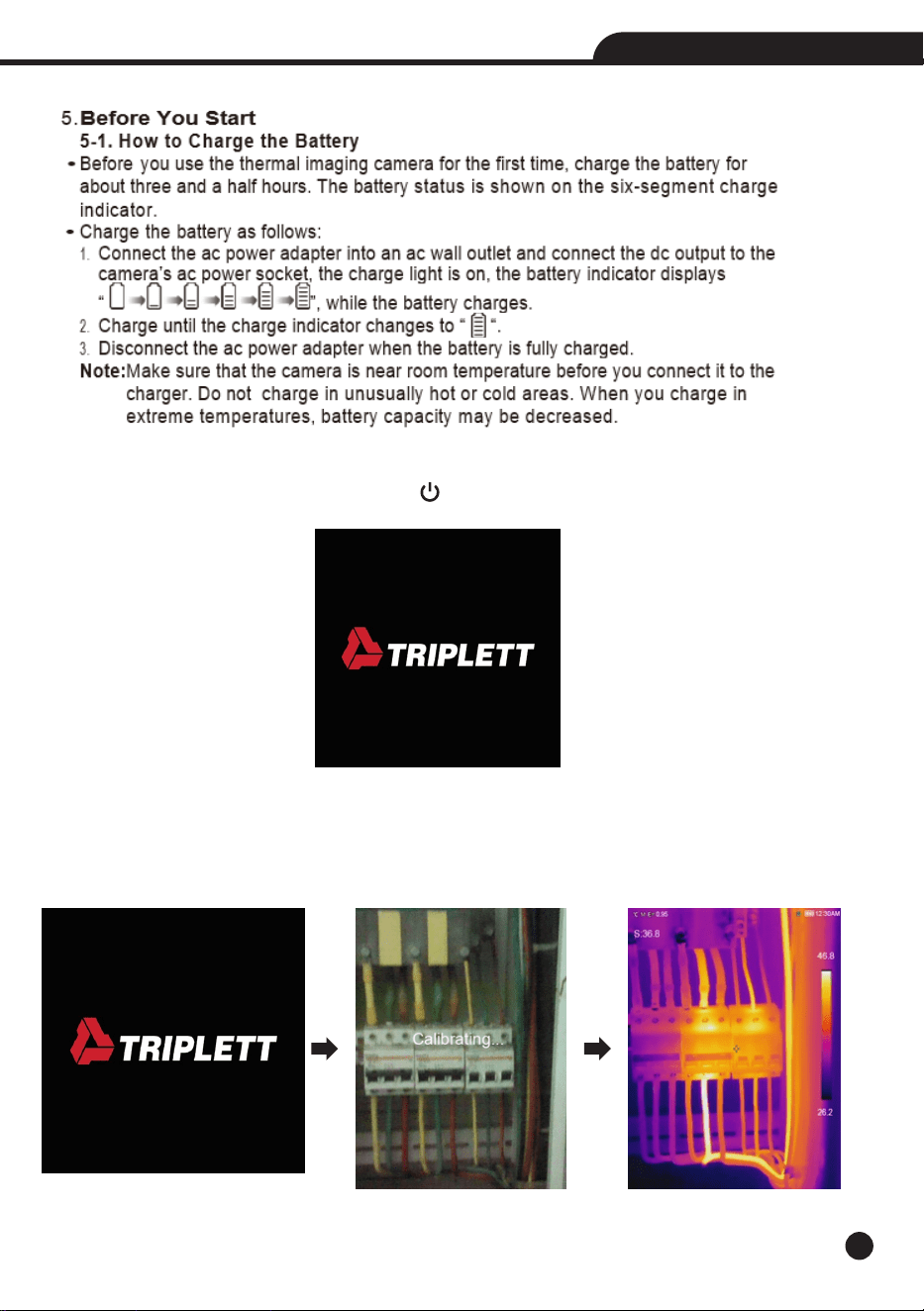

5-2.Power
On
To
turn
the
Thermal
Imager
on,
push
the
Power
“
”
Button.
Note: After power on the device, the thermal Imager needs sufficient warm-up time for the most accurate
temperature measurements and best image quality. So the visible image will first appear, and the thermal sensor
will calibrate internal for sevearal seconds. After that the thermal image will be displayed on the screen.
10
Thermal Imaging Camera
5-3.Power Off
When Thermal Imagers power on, push and hold the Power “ ” Button for two seconds, the device will be power off
directly.
5-4.Desktop

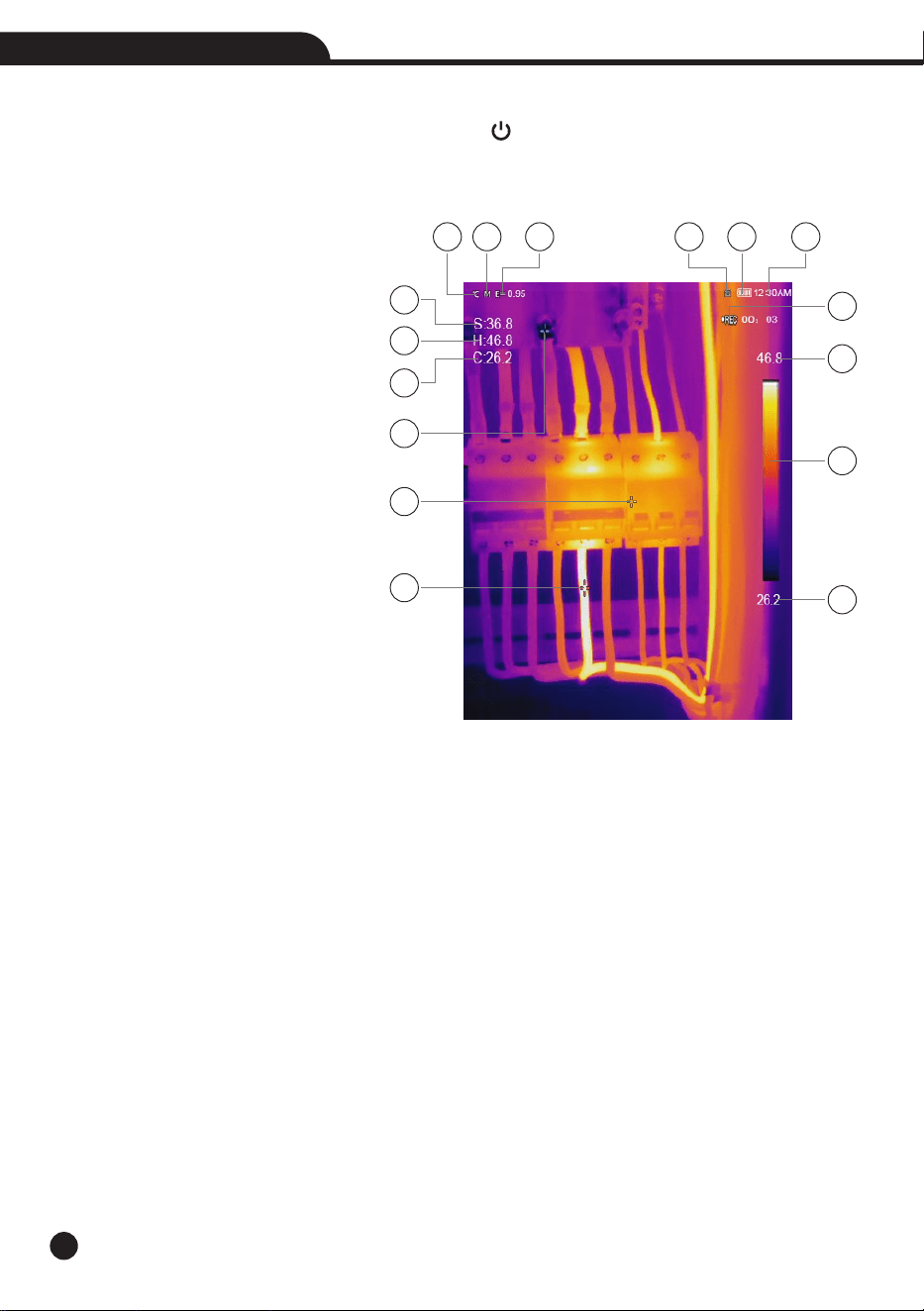

The Desktop is as follow:
1-Temperature unit
2-Distance unit
3-Emissivity
4-Centre point temperature readings
5-MAX temperature point readings
6-MIN temperature point readings
7-SD card
8-Battery capacity status
9-Time
10-Video recording indicator
11-MAX temperature of current scene
12-Color bar
13-MIN temperature of current scene
14-MIN temperature point cross
15-Centre point cross
16-MAX temperature point cross
5-5.Shutter
• The thermal image of the Thermal Imager becomes blurry, when the Thermal Imager no correcting after some
minutes or the Thermal Imager changes target, to get fine thermal image, the Thermal Imager need to correct.
• The Thermal Imager has two mode for correcting, Manual and Auto Mode.
• In Manual Mode, long press the down arrow button, the Thermal Imager will correct.
• In Auto Mode, the Thermal Imager can correct automatically while The thermal image of the Thermal Imager
becomes blurry.
21 3
4
6
5
87 9
10
11
12
13
14
15
16
Emissivity
0.96
0.14
0.09
0.96
0.97
0.81
0.95
0.85
0.75
Material
Water
Stainless steel
Aluminum plate
Asphalt
Concrete
Cast iron
Rubber
Wood
Brick
Emissivity
0.96
0.06
0.98
0.93
0.80
0.78
0.80
0.90
0.93
Material
Tape
Brass plate
Human skin
PVC plastic
Polycarbonate
Oxidized copper
Rust
Paint
Soil
11
Thermal Imaging Camera
5-6.Temperature Measurement
• All objects radiate infrared energy, the quantity of energy radiated is base on the actual surface temperature and
the surface emissivity of the object, the Thermal Imager senses the infrared energy from the surface of the object
and uses this data to calculate an estimated temperature value.
Many common objects and materials such as painted metal, wood, water, skin and cloth are very good at radiating•
energy and it is easy to get relatively accurate measurements, for surfaces that are good at radiating energy
(High emissivity), the emissivity factor is >0.90.
This simplification does not work on shiny surfaces or unpainted metals as they have an emissivity of <0.6, these•
materials are not good at radiating energy and are classified as low emissivity.
• To more accurately measure materials with a low emissivity, an emissivity correction is necessary, adjustment to
the emissivity setting will usually allow the Thermal Imager to calculate a more accurate estimate of the actual
temperature.
• More information please see Emissivity Adjustment to get the most accurate temperature measurements.
5-7.Emissivity Adjustment
The correct emissivity value is important to make the most accurate temperature measurement, emissivity of a•
surface can have a large effect on the apparent temperatures that the Thermal Imager observes.
Understanding the emissivity of the surface, but may not always, allow you to obtain more accurate temperature•
measurements.
Note: Surfaces with an emissivity of <0.60 make reliable and consistent determination of actual temperature
problematic, the lower the emissivity, the more potential error is associated with the Imager’s temperature
measurement calculations, this is also true even when adjustments to the emissivity and reflected background
adjustments are performed properly.
Emissivity is set directly as a value or from a list of emissivity values for some common materials, the global•
emissivity displays in LCD Screen as E=x.xx.
The following table gives typical emissivity of important materials.•
12
Thermal Imaging Camera
5-8.Reflected Temperature
• Using the offset factor, the reflection is calculated out due to the low emissivity and the accuracy of the
temperature measurement with infrared instruments is improved.
• In most cases, the reflected temperature is identical to the ambient air temperature, only when objects with
strong emissions with much higher temperature are in the proximity of the object being measured should be
determined and used, the reflected temperature has only little effect on objects with high emissivity.
• The reflected temperature can be set individually, follow these steps to get the right value for the reflected
temperature.
1.Set the emissivity to 1.0.
2.Adjust the optical lens to near focus.
3.Looking in the opposite direction away from the object, take a measurement and freeze the image.
4.Determine the average value of the image and use that value for your input of reflected temperature.
5-9.Thermal Imager Reporter Software
• Thermal Imager Reporter software is supplied with the Thermal Imager, this Software is intended for Thermal
Imager and contains feature to analyze images, organize data and information, and make professional reports.
• Thermal Imager Reporter software allows audio annotations and commentary to be reviewed on a PC.
13
Thermal Imaging Camera
6.Menus
The menus, together with buttons, are access for image, measurement, Emiss, Palette, temperature measurement
range, take photo and video, review, and settings.

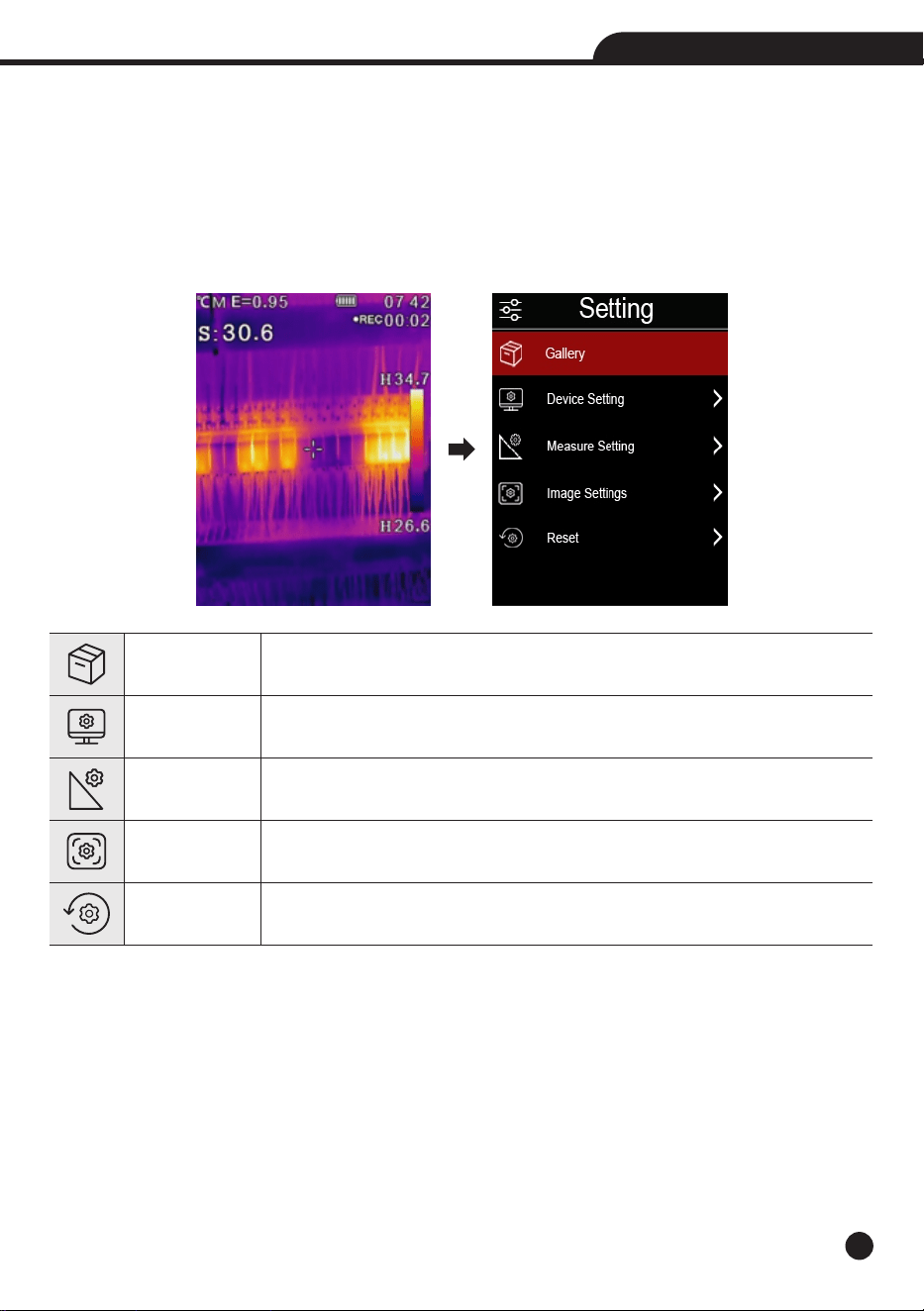

6-1.Setting Menu
• Press the MENU/OK Button, the setting menu will be poped up, Setting Menu is the main interface of the Thermal
Imager’s menus.
• It contains five items such as Gallery, Device setting, Measure setting, Image setting, Reset.
Gallery
Device Setting
Measure Setting
Image Settings
Reset
Enter gallery.
Some settings for devices and systems, including time and date, language, flashlights
and automatic shutdown and so on.
Contains settings for maximum temperature, minimum temperature, reflection
temperature, emissivity, alarm mode, range, and temperature units
Contains settings such as color bars, super-resolution, image translation and so on.
Includes restoring factory settings and formatting storage settings.
14
Thermal Imaging Camera
6-2.Image Mode
• In main menu, press the Up or Down Button, then you can loop switching image mode.
• We offer four image modes to choose from, which are: Thermal image, Camera, Picture in picture and Auto fusion.
Thermal image
Camera
Picture in picture
Auto fusion
15
Thermal Imaging Camera

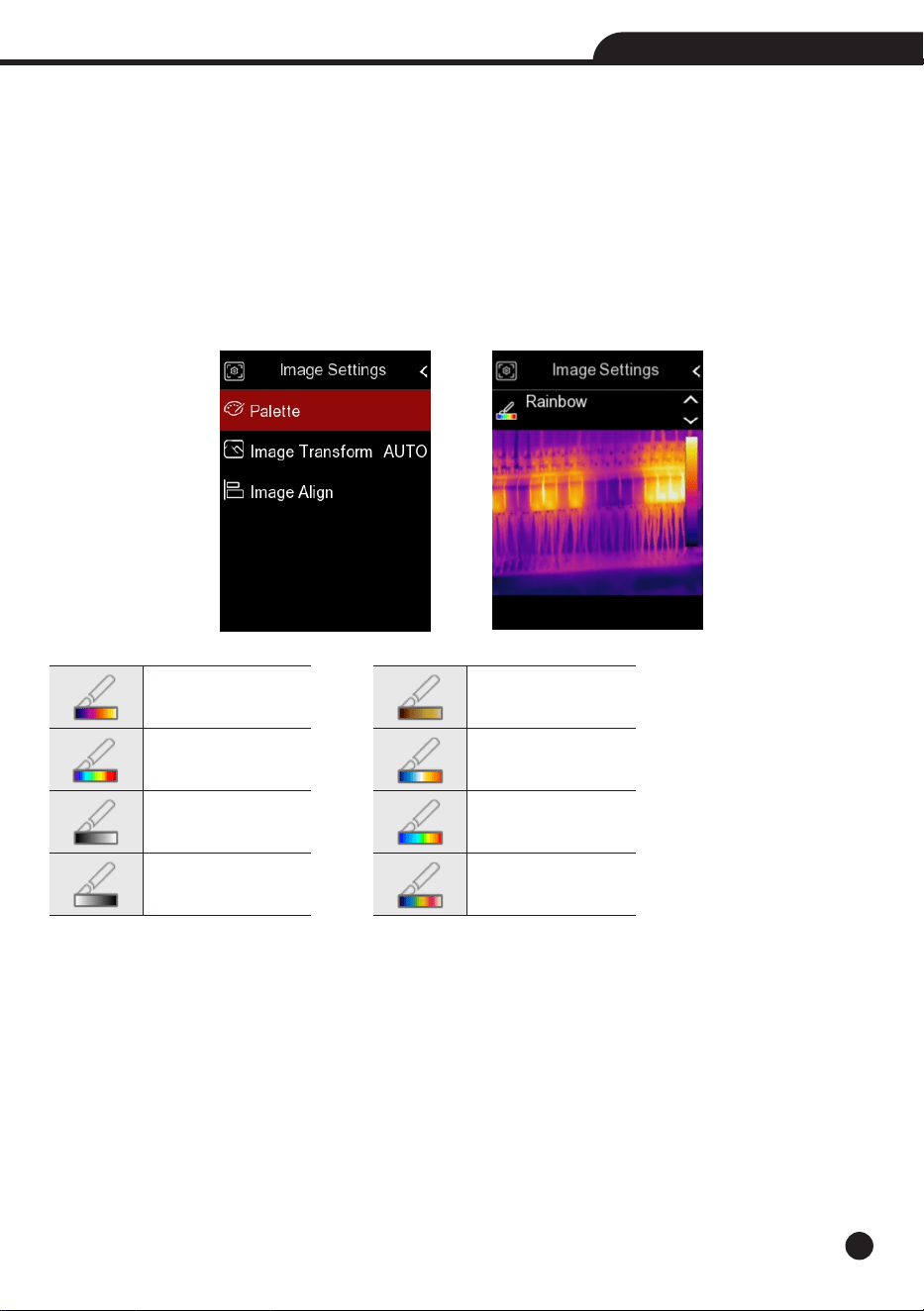

6-3.Image Palette
The Image Palette lets you change the false-color presentation of the infrared images on display or captured.•
A variety of palettes are available for specific applications, the standard palettes offer an equal, linear presentation•
of colors that allow for best presentation of detail.
Standard Palette
1.In main menu, press the Up or Down Button, highlight “Palette”.
2.Press the MENU/OK Button, popup Image submenu which contains 8 kinds of color palettes.
3.Press the Up or Down Button, highlight the palette which you want to choose.
4.The palette mode will be changed after you choose it.
Iron
Rainbow
Grey
Grey Invert
Brown Hot
Blue Red
Hot Cold
Feather
16
Thermal Imaging Camera
6-4.Histgram Mode and Auto Mode
• Auto Mode: Level and span are decided by the thermal image of minimum temperature and maximum temperature,
the relationship between temperature and color is linear.
• Histgram Mode: The thermal image is enhanced by histogram algorithm, the relationship between temperature
and color is not linear, some part of the image is enhanced.
• Press the Power/Lock Button to change the mode.

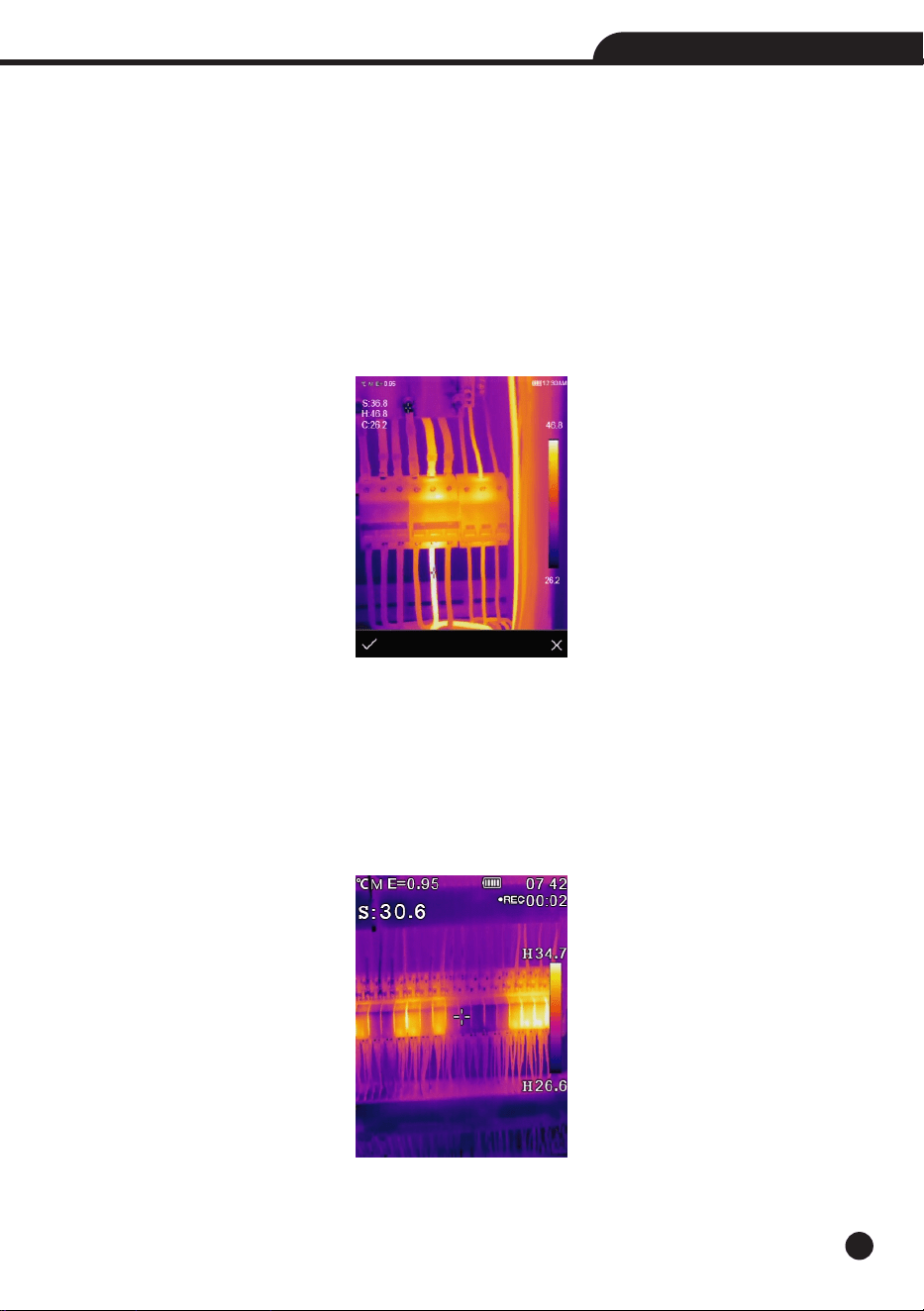

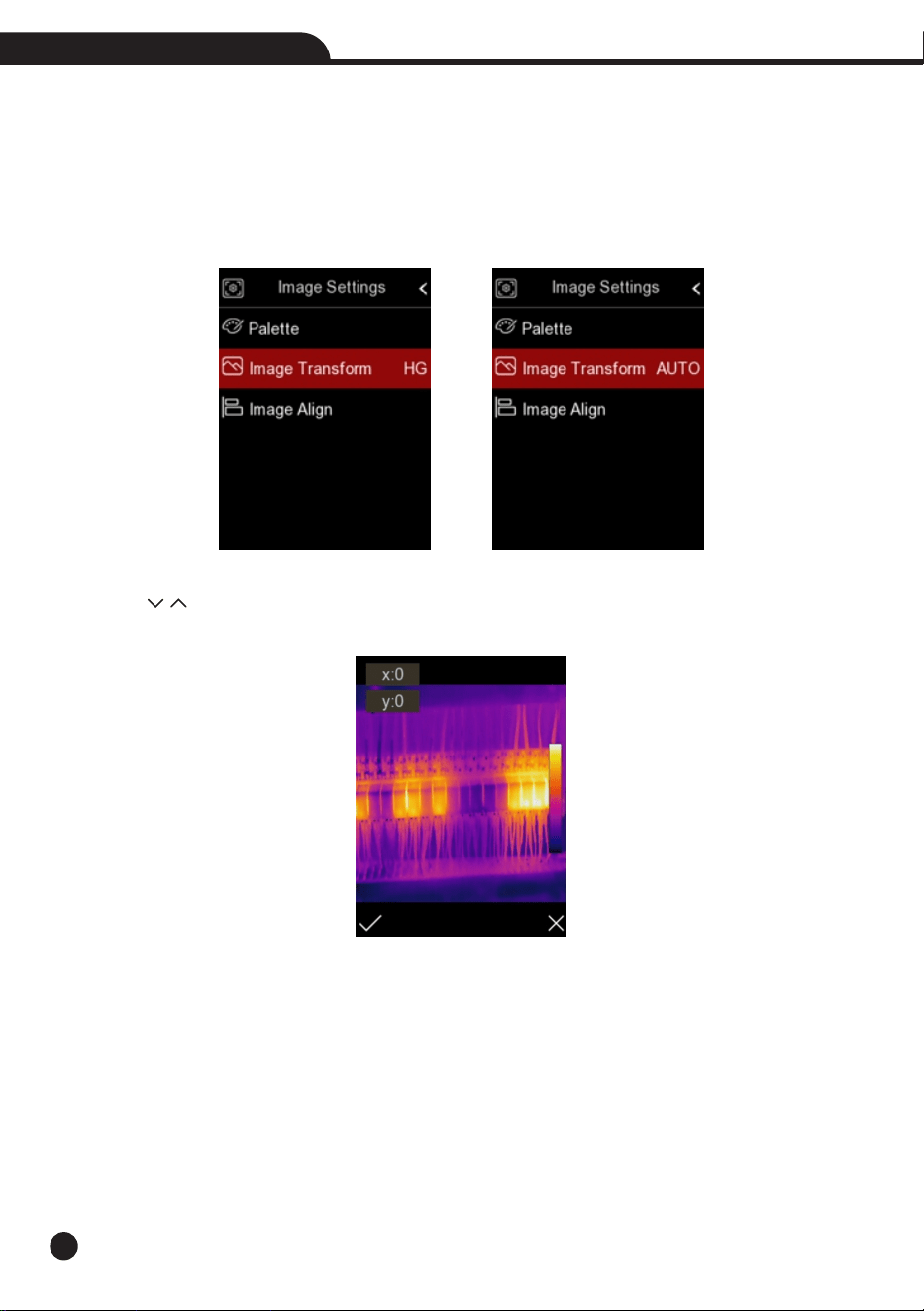

6-5.Image Align
• Press the “ , ” and Trigger button to adjust the vision’s position to align the vision and infrared.
• Press the Power/Lock Button to cancel the setting, press the MENU/OK Button to save the aligment setting.
6-6.Image Adjustment
There are three kinds of mode for image adjustment, Histgramm and Auto.
17
Thermal Imaging Camera

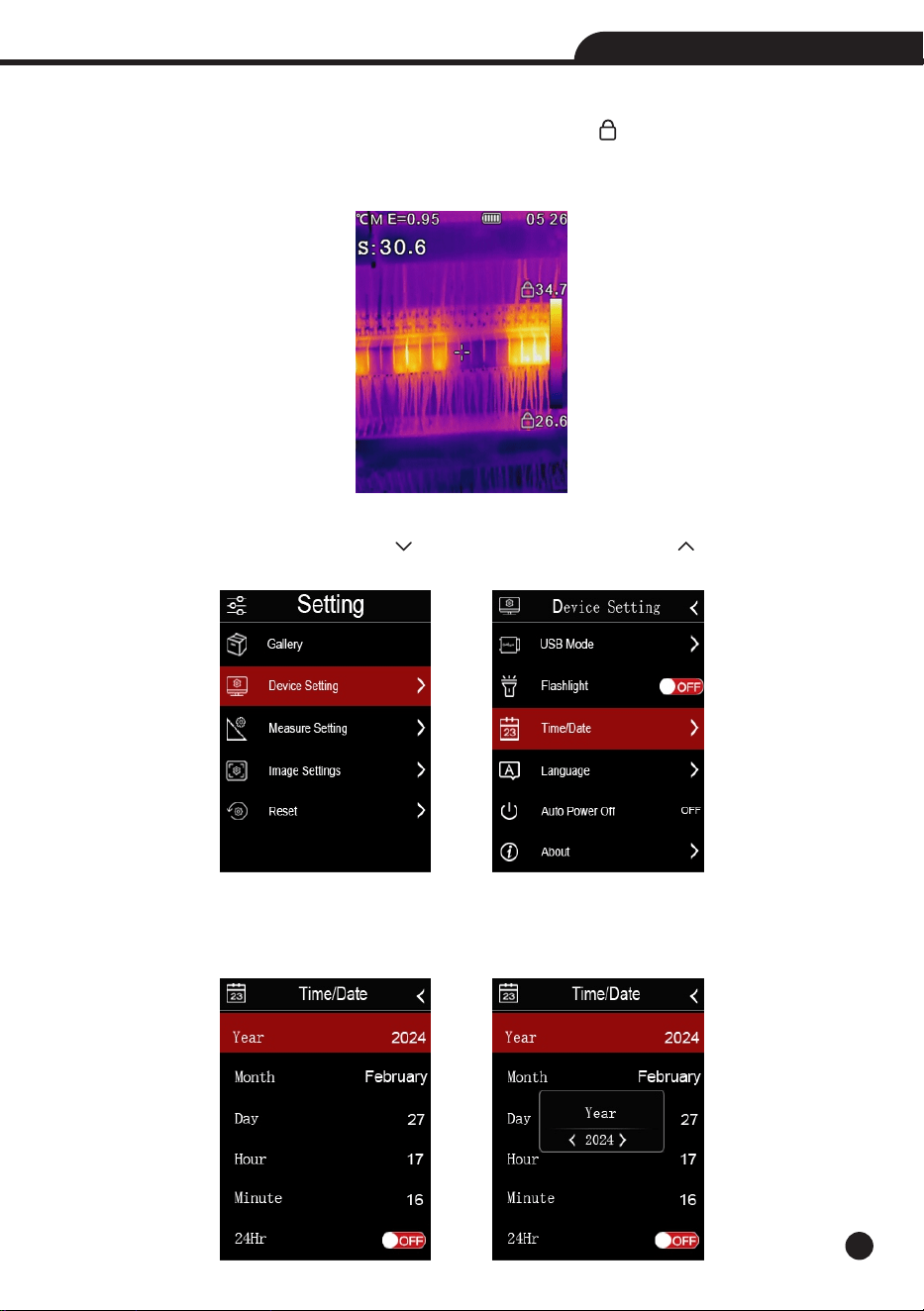

6-7.Lock Operation
• Press the Power/Lock Button to lock the current scene temperature ran ge.
After locked the current scene temperature range, press the a, you can adjust the High/Low temperature level to•
see what temperature your interested range image.
Device Setting 6-8.
There are multipages in Device setting, use the Button to go to next item, or use the Button to go to previous
item.
6-9.Time/Date
Up Down MENU/OK Right Press the or Button to select year, month and so on, then press the or Button to change
Time/Date.
18
Thermal Imaging Camera
6-10.USB Mode

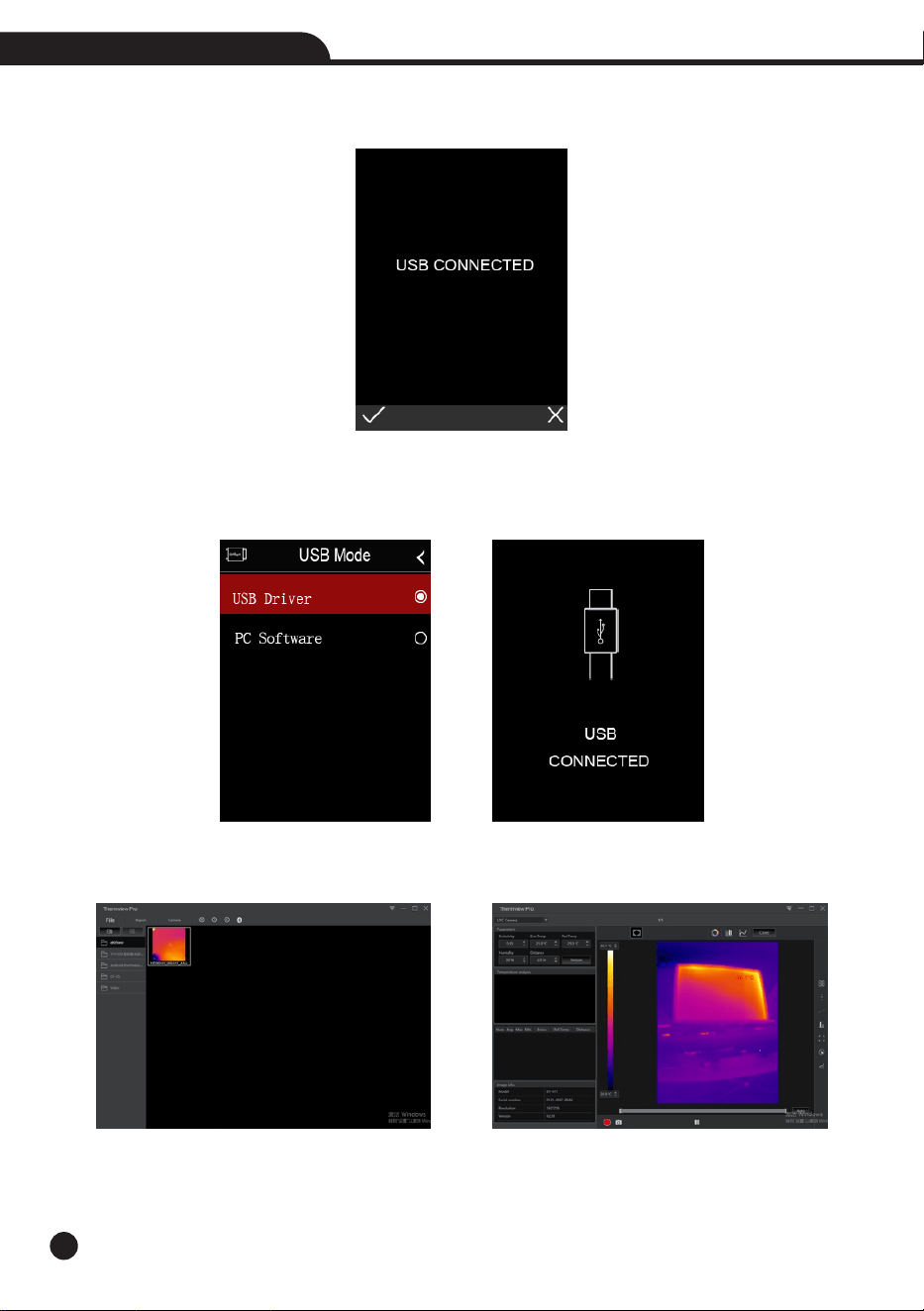

• Connect USB cable to device, popup the menu as follow:
• Up DownThere are two modes for USB, Storage and PC Camera, press the or Button to switch mode.
Browse files stored on the SD card on your computer, if select Storage mode, will display a picture• USB Driver:
as follow:
The device is a USB camera for your computer, if select this mode, open PC software “• PC Software: Thermalview
Pro Camera ” and select “ ” menu, will display a picture as follow:
In PC software, you can realtime analyse the thermal image or you can record the thermal video and analyse the•
thermal video.
19
Thermal Imaging Camera
6-11.Language

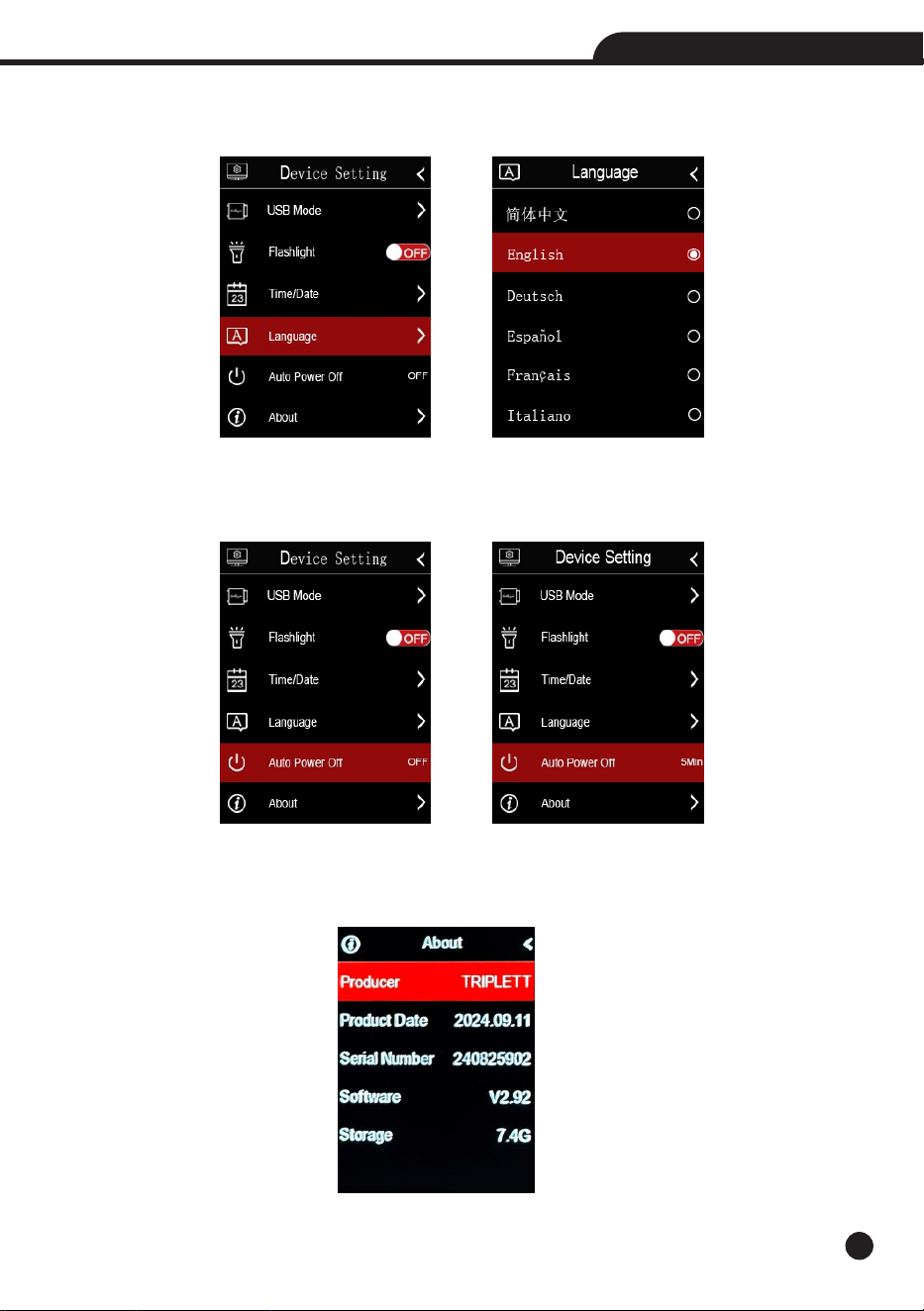

Press the Up or Down Button to select language and use MENU/OK Button to set selected language to be valid.
Auto Power Off 6-12.
Thera are four options in auto power off menu, as follows: “OFF”, “5Min”, “10Min”, “15Min” and “30Min”.•
When press the MENU/OK Button, the timer of Auto Power Off will be cleared and re-timed.•
About 6-13.
The info menu contains all of the product information, such as: Software version, Serial number and so on.
20
Thermal Imaging Camera
6-14.Measure Setting
Select the “Measure Setting” menu, the Measure Setting menu will be displayed.•
Thera are several options in Measure setting menu, as follow picture.•
6-14-1.Max Temp
Press the MENU/OK Button to turn on or turn off maximum temperature measurement.
6-14-2.Min Temp
Press the MENU/OK Button to turn on or turn off minimum temperature measurement.

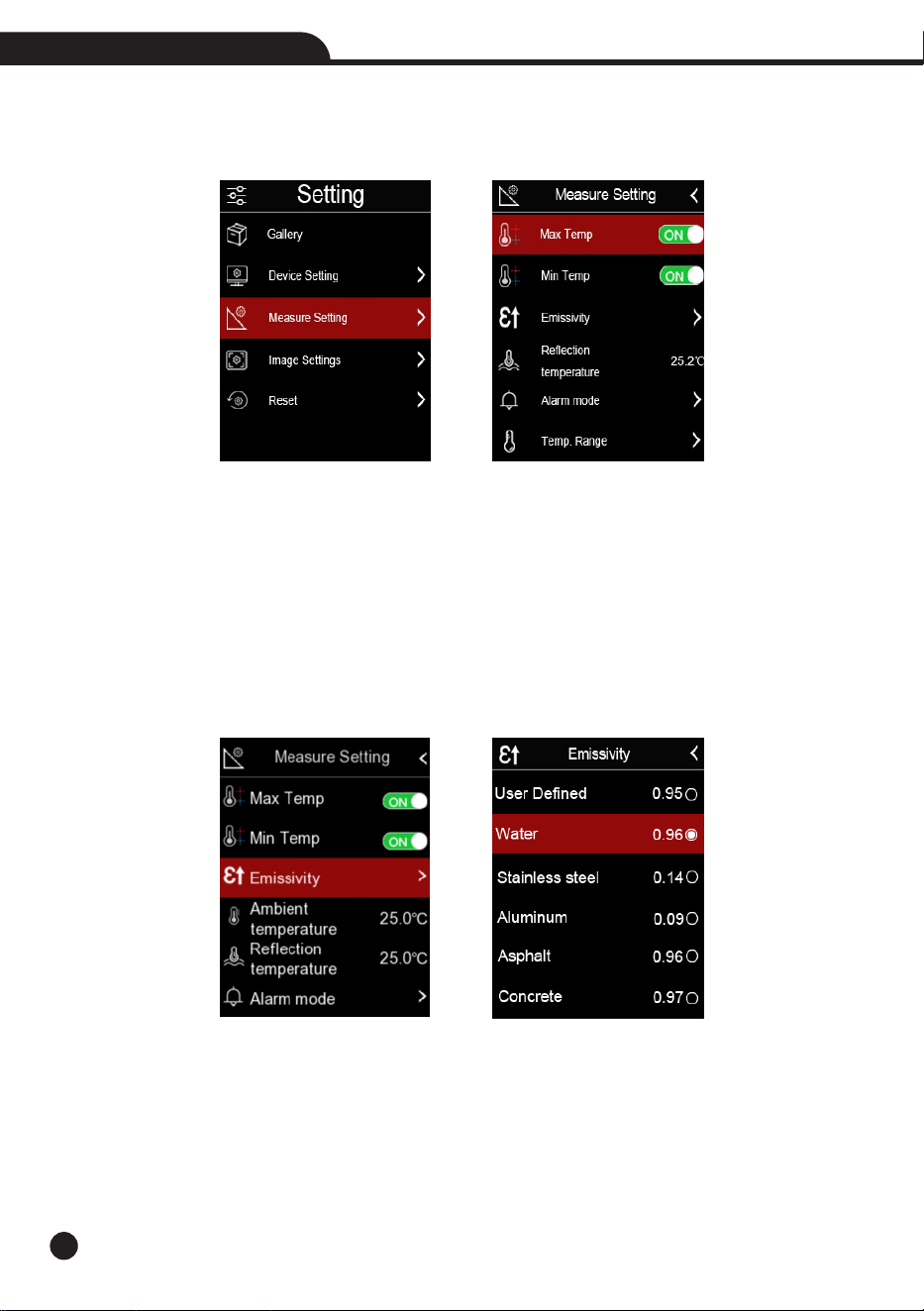

6-14-3.Emissivity
• In emissivity submenu, press the “Up” and “Down” arrow to change the emissivity values.
“Emiss” sets object emissivity, the value range is 0.01 to 1.00.•
21
Thermal Imaging Camera

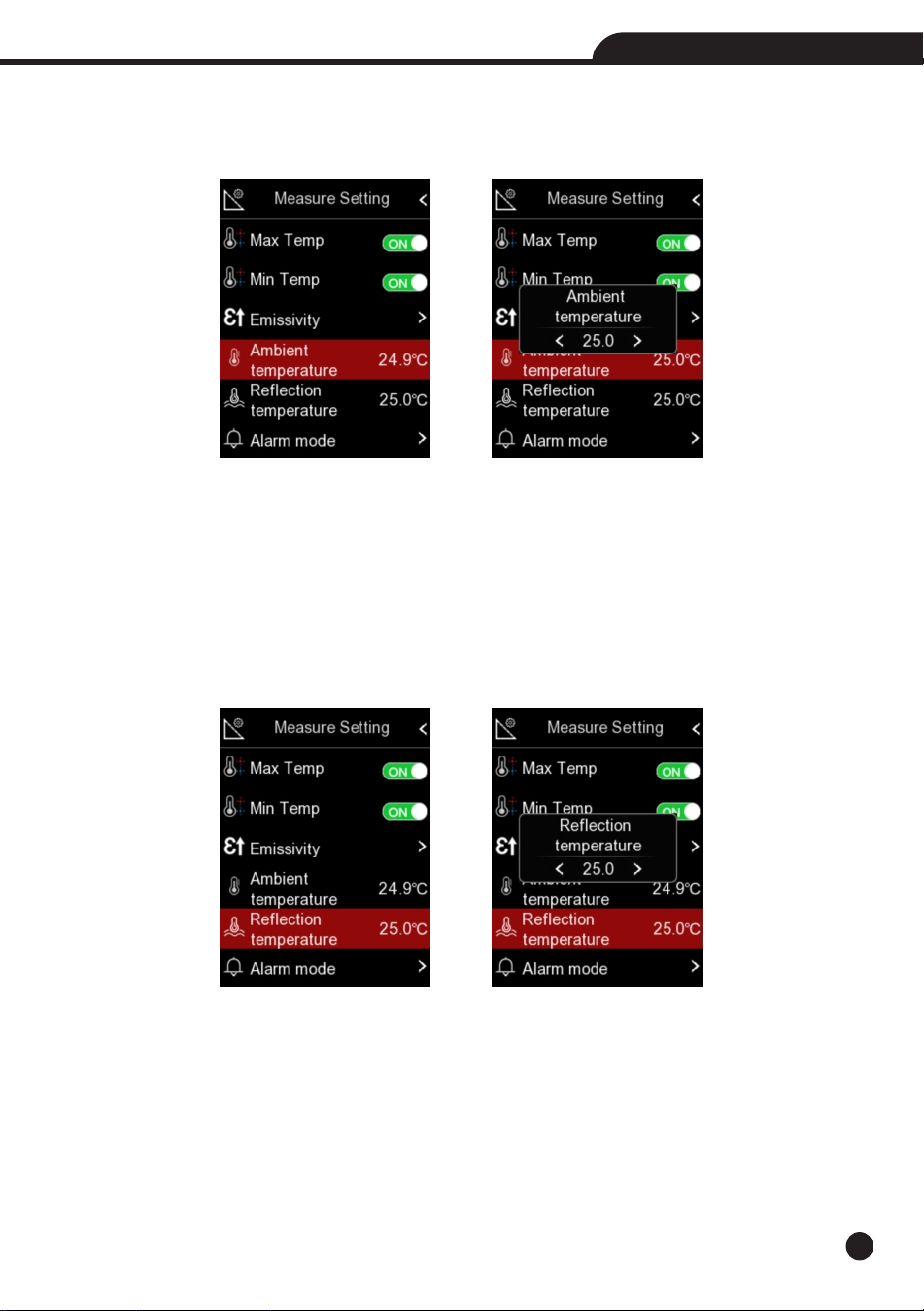

6-14-4.Ambient Temperature Composation
Ambient temperature will affect the measurement of the thermal imager, it can be composite from 0 degree to
50 degree.
6-14-5.Reflective Temperature
Up Down• In reflective temperature submenu, press the “ ” and “ ” arrow to change the temperature values.
• The reflective temperature is important for radiometric temperature measurement, Thermal Imager has
temperature compensation for reflective temperature, to get more accurate temperature measurement, accurately
set the reflective temperature.
• In most cases, the reflected temperature is identical to the ambient temperature, only when objects with strong
emissions with much higher temperature are in the proximity of the object being measured, the reflected
temperature must set.
22
Thermal Imaging Camera

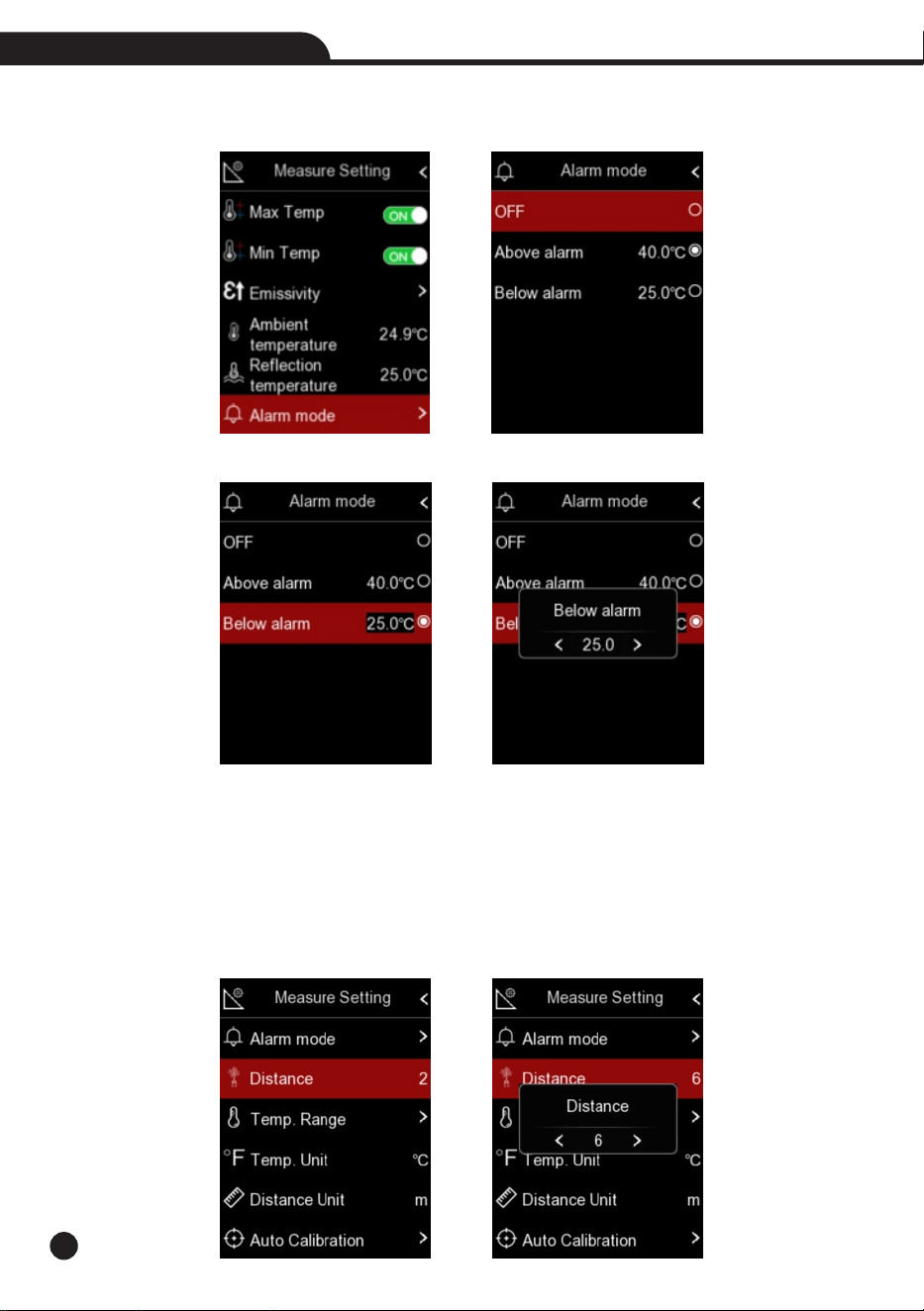

6-14-6.Alarm Mode
• OFF: Turn off the alarm display and sound.
• Below Alarm: If the temperature of the object below the low alarm value, there will be alarm sound and display.
• Above Alarm: If the temperature of the object exceeds the above alarm value, there will be alarm sound and
display.
6-14-7.Distance
There are many substances in the air that can absorb infrared rays, so the infrared ray of the object will decaied
as the distance increase.
23
Thermal Imaging Camera
6-14-8.Distance Unit
• Change the distance unit between “m” (meter) and “ft” (Foot).
1ft=0.3048m; 1m=3.2808399ft•

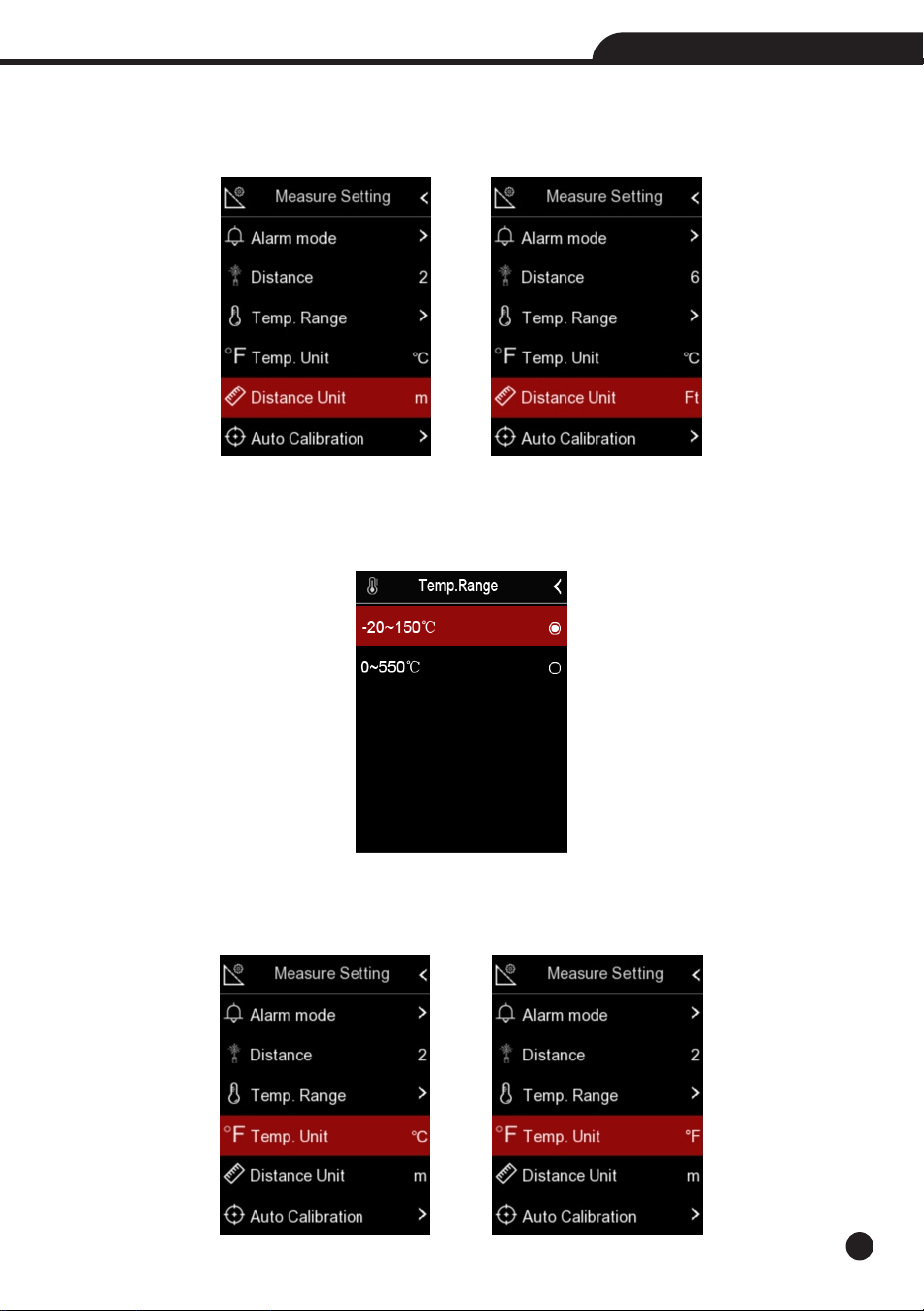

6-14-9.Temperature Range
• The temperature measurement ranges have “-20 to 150°C” and “0 to 550°C” to choose.
• The overlap temperature of the two ranges is more accurate to choose “-20 to 150°C”.
6-14-10.Temperature Unit
• Temperature Unit have three types to choose: °C, °F and K.
• Conversion relationship: °F=1.8x°C+32, K=273.15+°C.
24
Thermal Imaging Camera

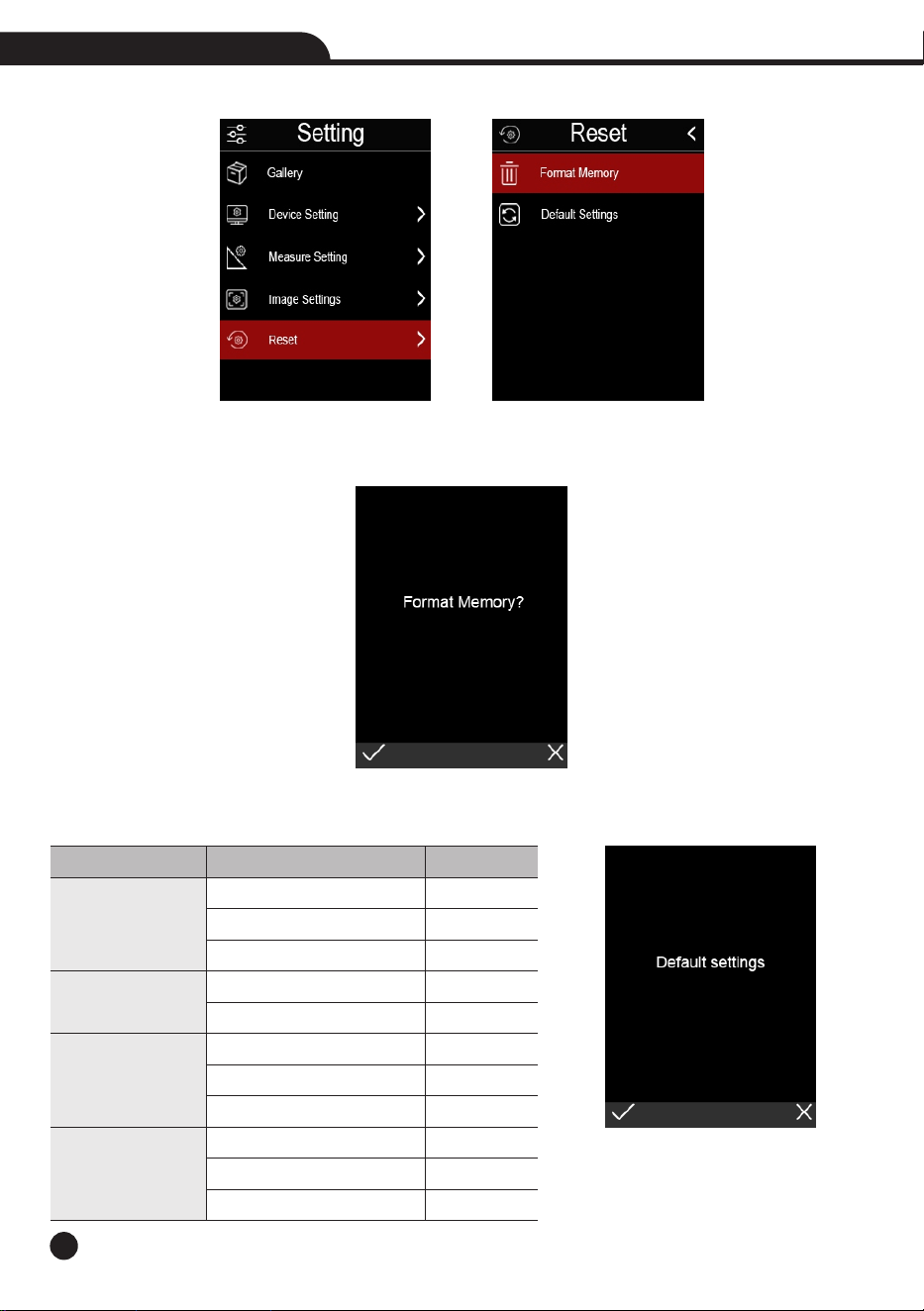

6-14-11.Reset
6-14-12.Format Memory
Format Memory operation will format all the Picture Gallery, the device setting is not affected.
6-14-13.Factory Settings
Factory Settings of the Thermal Imager is as follow:
Parameter
Center Spot Measurement
Hot Spot Measurement
Cold Spot Measurement
Emissivity
Reflective Temperature
Mode
Palette
Adjustment
Language
USB mode
Lamp
Value
On
Off
Off
0.95
25°C
Infrared
Iron
Auto
English
USB Driver
Off
Item
Measurement
Measurement
Parameters
System Setting
25
Thermal Imaging Camera
6-15.Camera Menu
• Thermal Imager has photo and video functions.
• In photo function, the Imager can save thousands of images, every image resolution is 1280x960, format is “.jpg”
and stores infrared data and visible data in an image.
• In video function, the Imager has “.mp4” video capture for hours and save infrared data in .mp4 format.
Images and video files are stored in SD Memory Card, images can easily be read and second analyzed withinNote:
Thermal Imager PC software.
6-15-1.Save Image
1.In desktop, press the Trigger button, freeze an image, the save menu will display.
2.Press the /OK Button to save image and the image will flash for a second, after the image is saved, theMENU
image will be unfreezed.
6-15-2.Video Menu
The Thermal Imager has “.mp4” video capture.
1.In desktop, press the Trigger button and hold for about 2 seconds, start video capture.
2.To stop video capture, press the Trigger button again, the video saved in the video file.
26
Thermal Imaging Camera
6-15-3.Files Browser

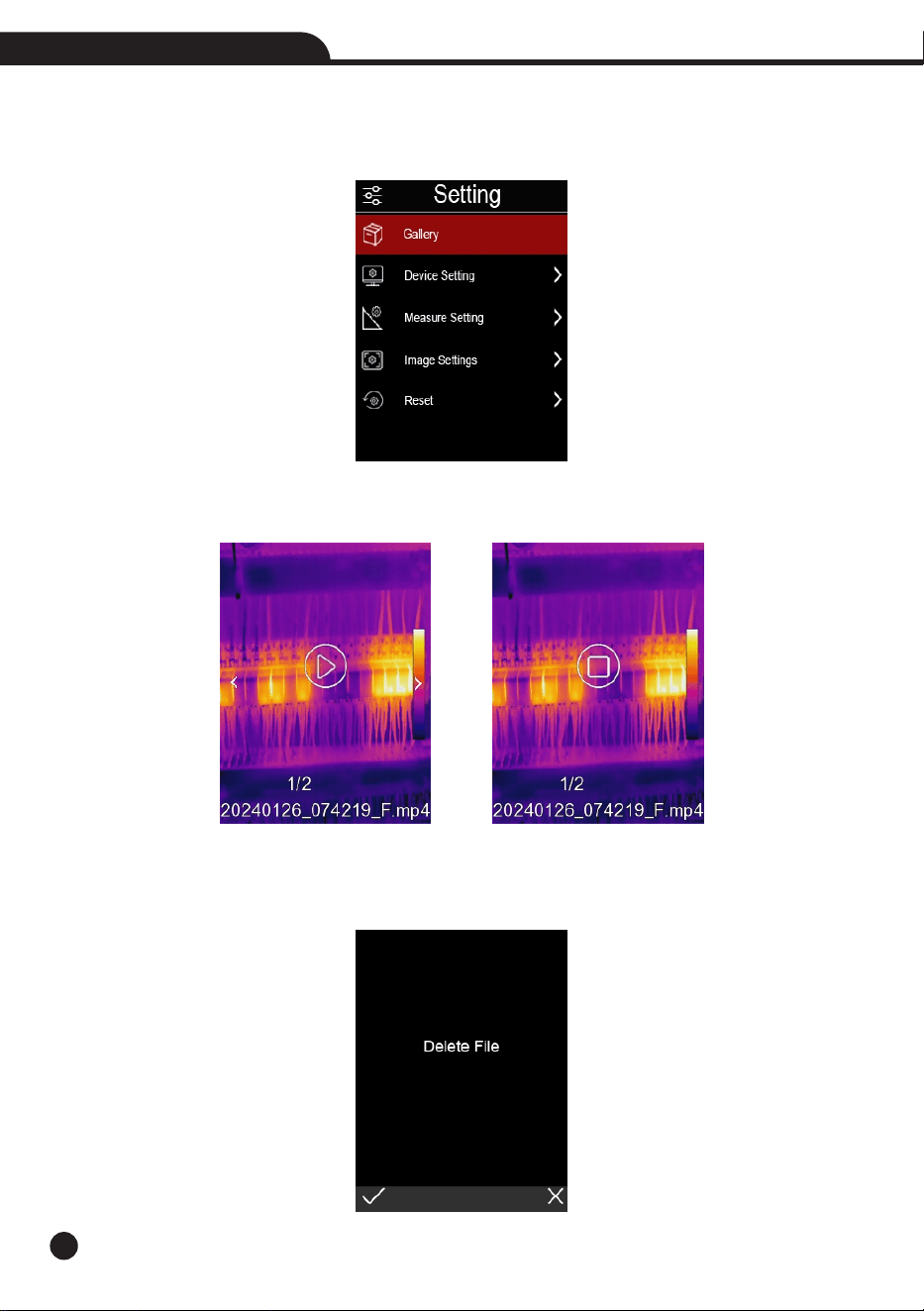

Press the MENU/OK Button, highlight “Gallery”, then press the MENU/OK Button to popup files browser, which
displays pictures and videos saved in SD Memory Card.
6-15-4.Play a Video
When current file type is video, press the Trigger button to play video or stop play video.
6-15-5.Delete a File
Press the MENU/OK Button, then press the MENU/OK Button again to delete the current file.
27
Thermal Imaging Camera
7.Android/iOS APP
InfraRead
7-1.Software Install and Uninstall
7-1-1.System Required
Android mobile phone: Android 4.0 above, with USB OTG Support
iOS: iPhone4 above
7-1-2.InfraRead App Install
Android: Search “InfraRead” on Google Play and install it.
iOS: Search “Thermview” on Apple Store and install it.

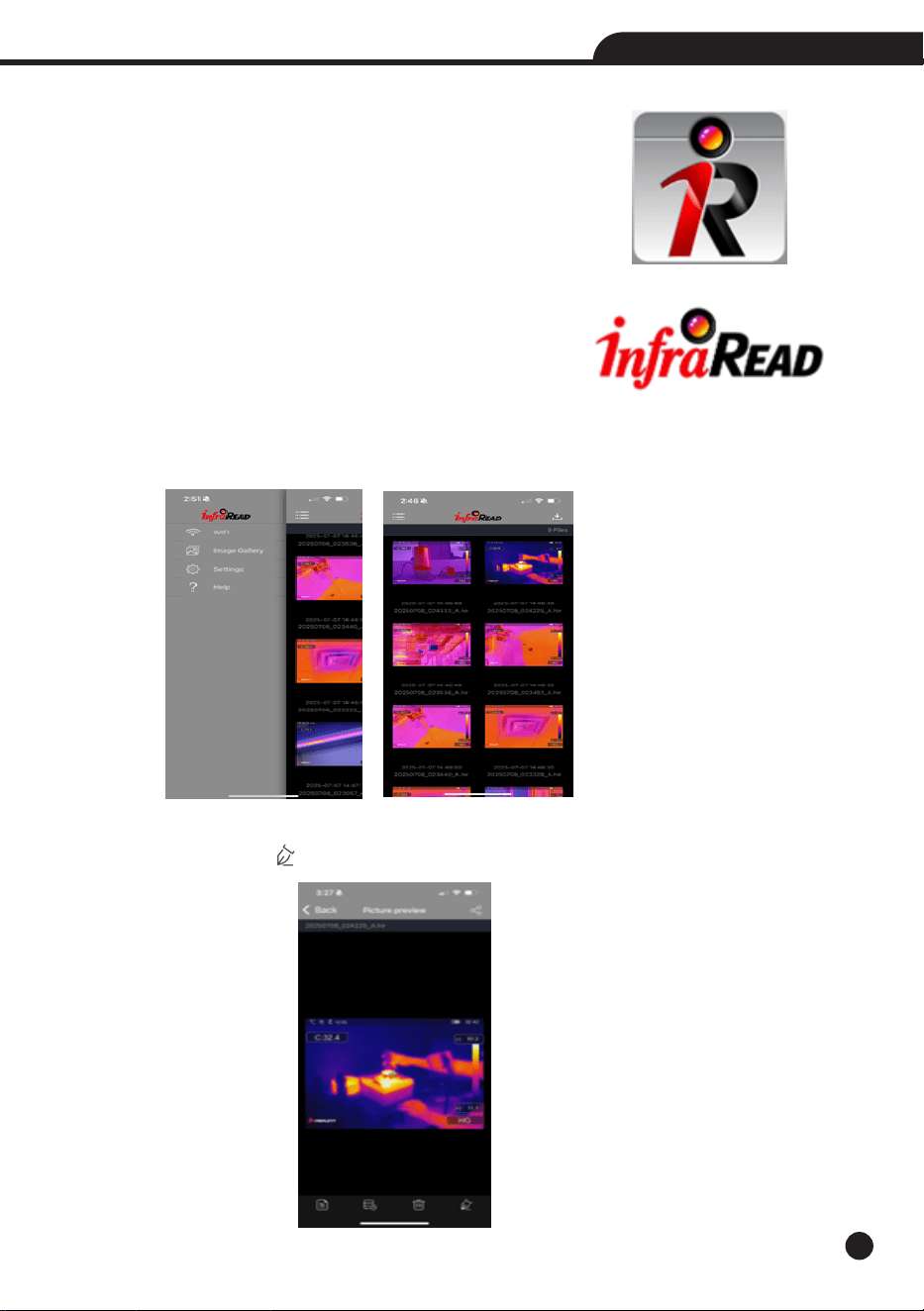

7-2.InfraRead Function
7-2-1.Import Pictures
• Use the USB OTG cable download the IR pictures from the thermal imager directly.
• Copy the IR pictures from PC or SD card.

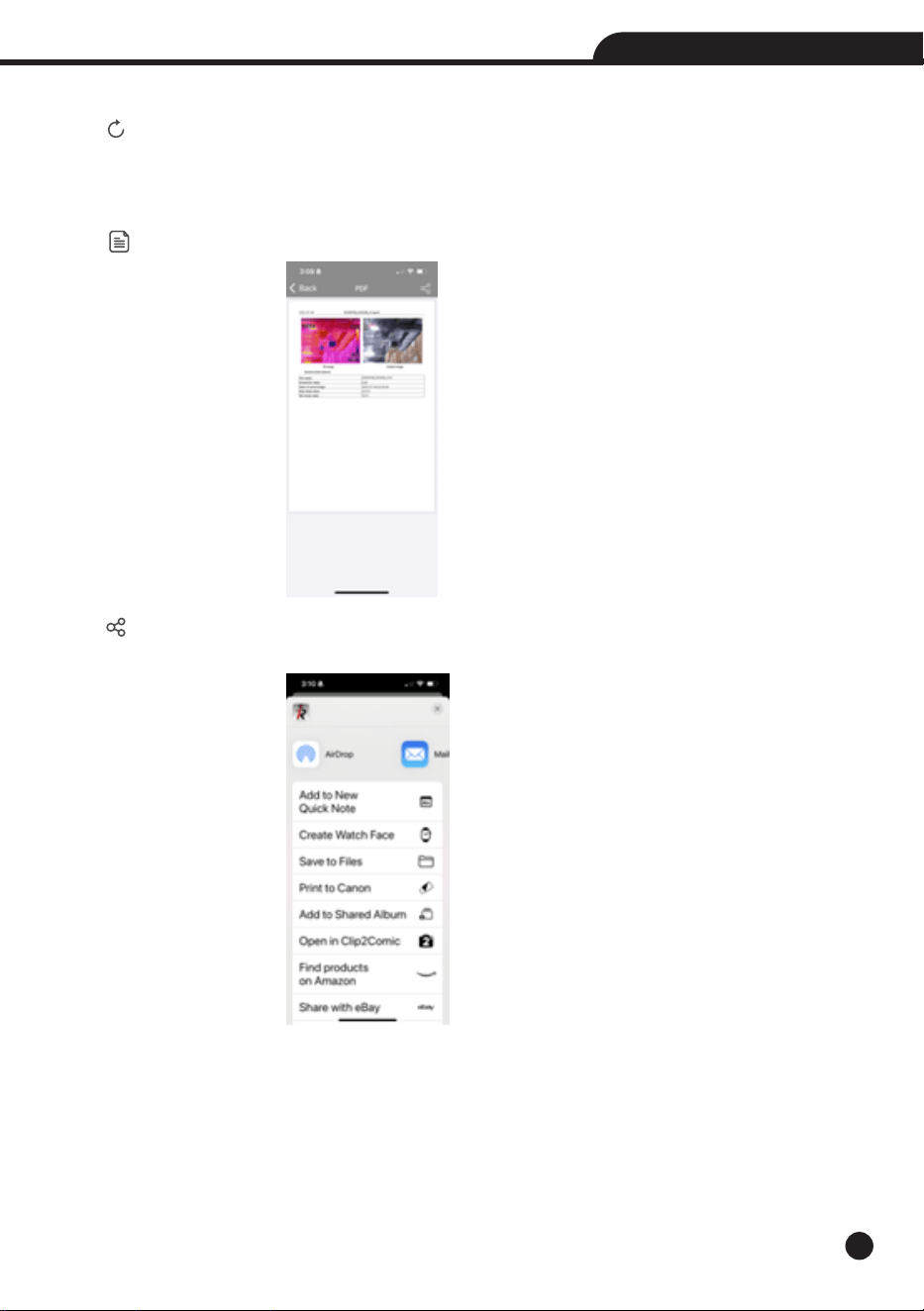

7-2-2.Analyze
Select a IR Picture and click “ ” icon to analyse it.
28
Thermal Imaging Camera

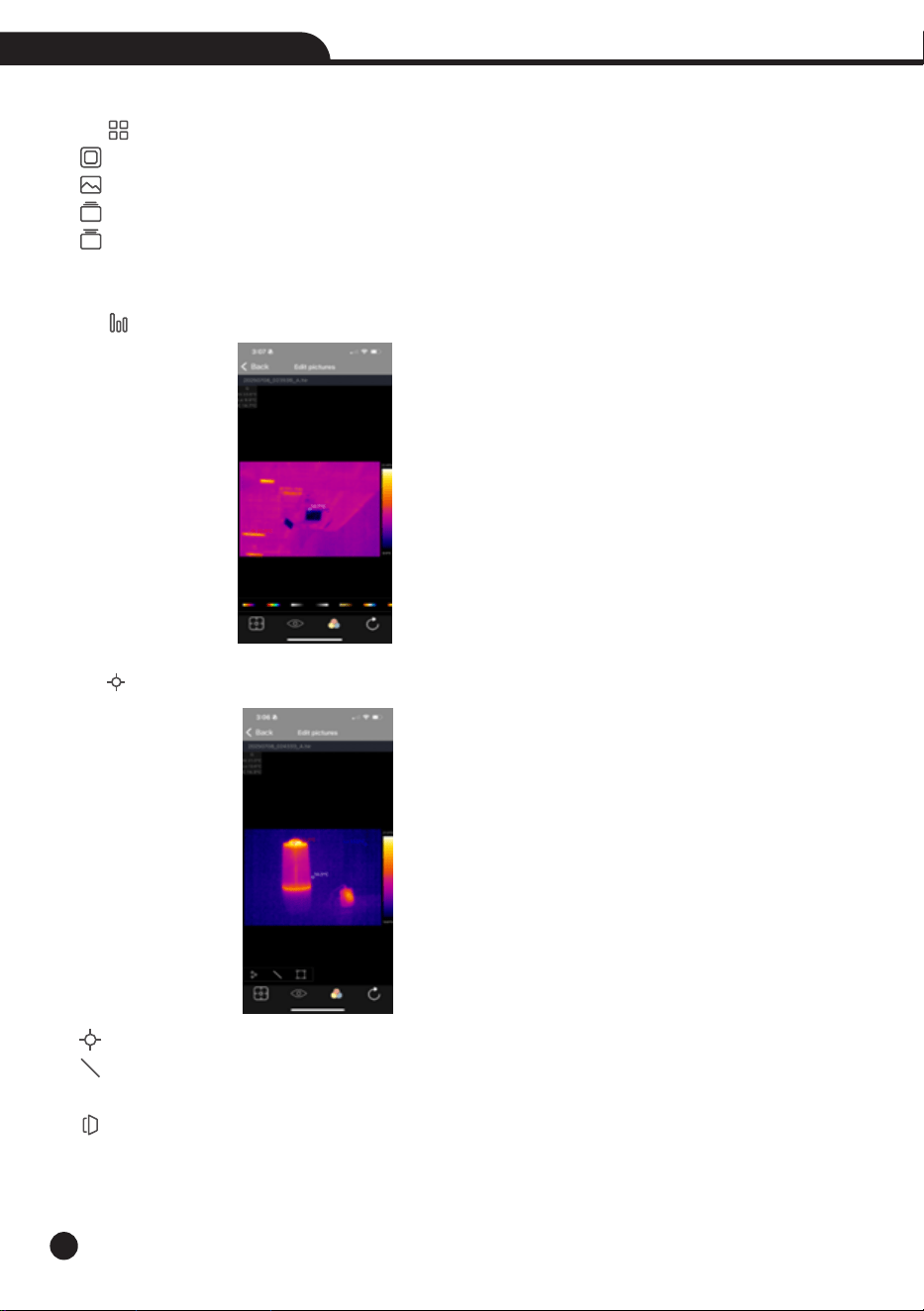

1.Image Mode
Click “ ” icon to select image mode, there are four mode for you to select.
(1) IR Mode: only infrared picture displayed.
(2) Visible Mode: only visible picture displayed.
(3) IR Fusion Mode: The infrared picture is fusioned with visible picture.
(4) Visible Fusion Mode: full screen fusion, the visible picture is fusioned with infrared picture.
2.Colorbar Select
Click “ ” icon to select colorbar, there are eight colorbar for you choice.
3. Analyze
Click “ ” icon to analyze the IR pictures, there are three analyze tools.
(1) Point Analyze: Add a point to the picture, it will display the temperature of the point.
(2) Line Analyze: Add a line to the picture, it will display the highest, lowest and average temperature of the
line.
(3) Area Analyze: Add a rectangle to the picture, it will display the highest, lowest and average temperature of
the rectangle.
29
Thermal Imaging Camera
4.Save and Exit
Click “ ” to save and return to the main page of the APP.
7-2-3.Report and Share
1.Report
Click “ ” icon to report as a “.pdf” file.
2.Share
Click “ ” icon to share the Infrared picture with Email, Cloud or Message and so on.
30
Thermal Imaging Camera
8.PC Software
8-1.System Required
• Window XP or higher version of Windows system, please make sure you have installed Net Framework 2.0 or Net
Framework 3.5(include 2.0)when you install PCIMeter software. If not, please find and install our Microsoft.
NET_Framework_v2.0.exe that provided to you.
• Open the net framework 2.0,Follow all tips to install Net Framework 2.0 till it finishes.
• If your system already have installed Net Framework 2.0, then no need to install again.
8-2.PCIMeter Install

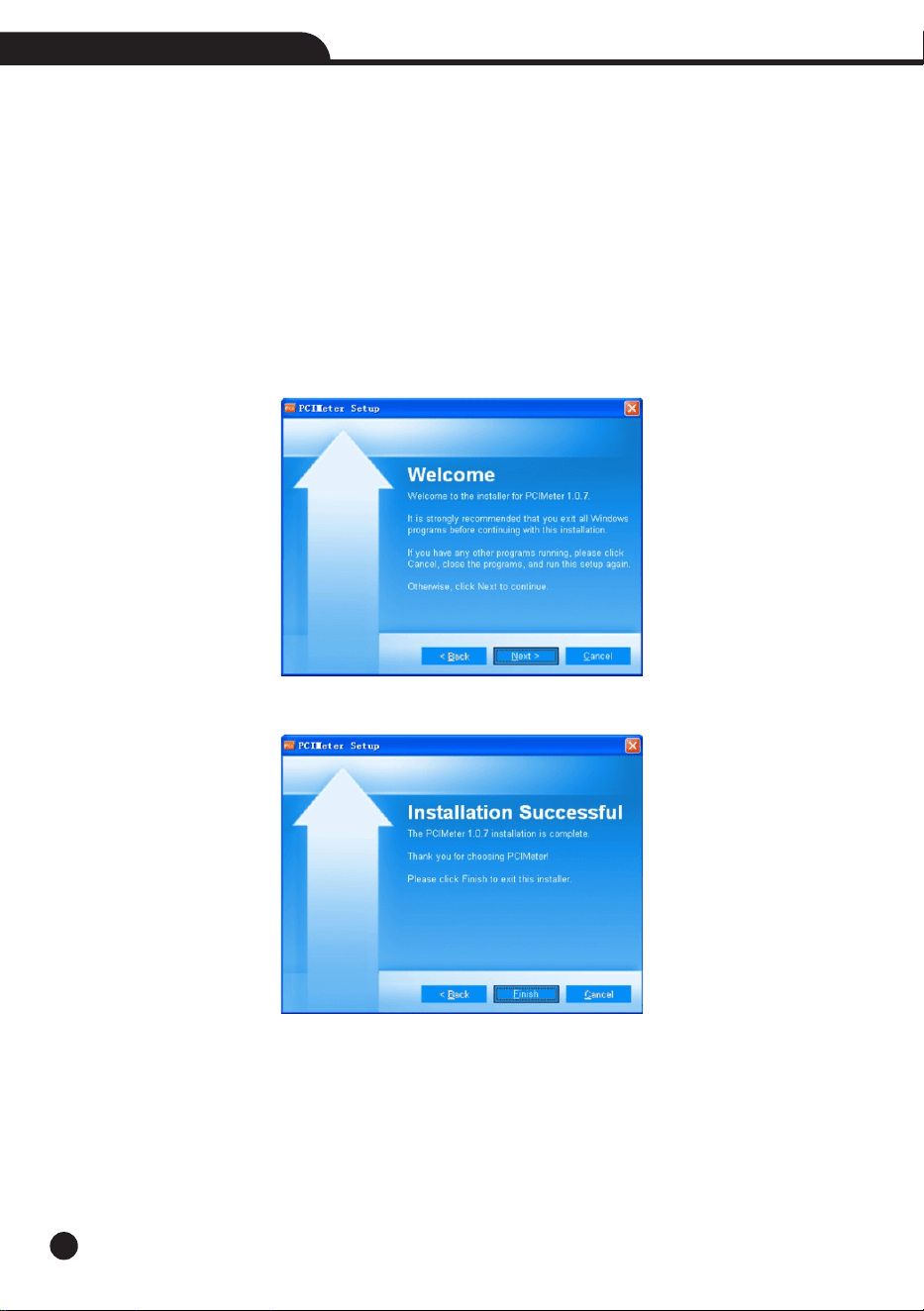

1.You can insert your installation CD to install directly if you have one, or you can run “setup.exe” to install it as
follow.
2.Click “Next” to install, till finish installation.
3.Installation Successful after click “Finish” like above.
31
Thermal Imaging Camera
8-3.Running

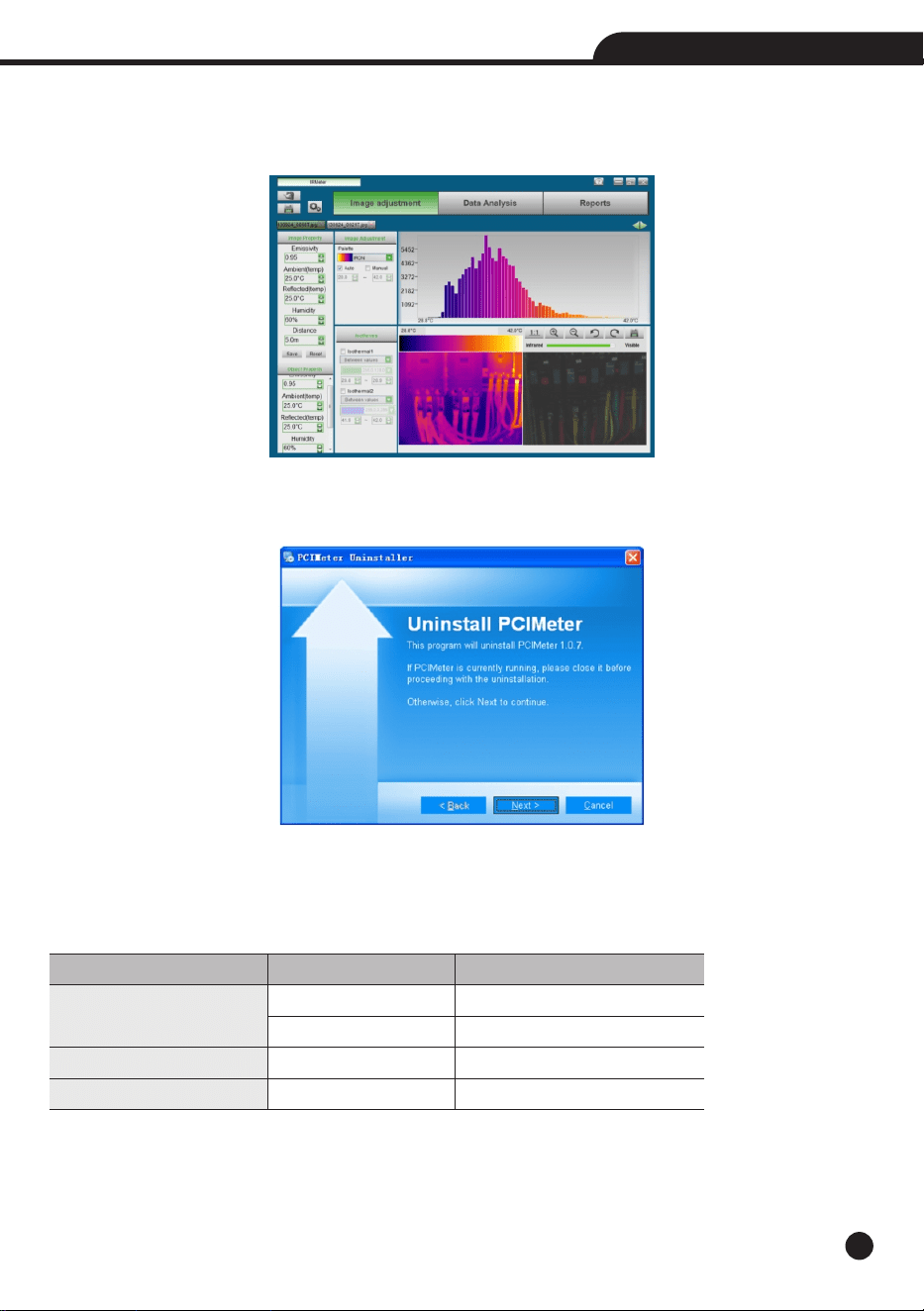

After ensuring PCIMeter software has been installed, click shortcuts on the desktop or start menu to run the
software.
8-4.Uninstall
Uninstall PCIMeter in the start menu as follow, then click “Next” to finish uninstall.
9.Fault diagnosis and Exclusion
• If you encounter any problems while using the thermal imager, overhaul according to the following table.
• If the problem persists, disconnect the power and contact with the company's technical support department.
Cause of the Fault
No battery
No power
No power
The lens cap cover
Solution
Inserting the battery
Replace the battery or charge it
Replace the battery or charge it
Opened the lens cap
Phenomenon of the Fault
Thermal imager cannot start
Thermal imager shut down
No Thermal image
Rev.241031
Thermal Imaging Camera
