Item # 1008 121 901
Model # 92350-904

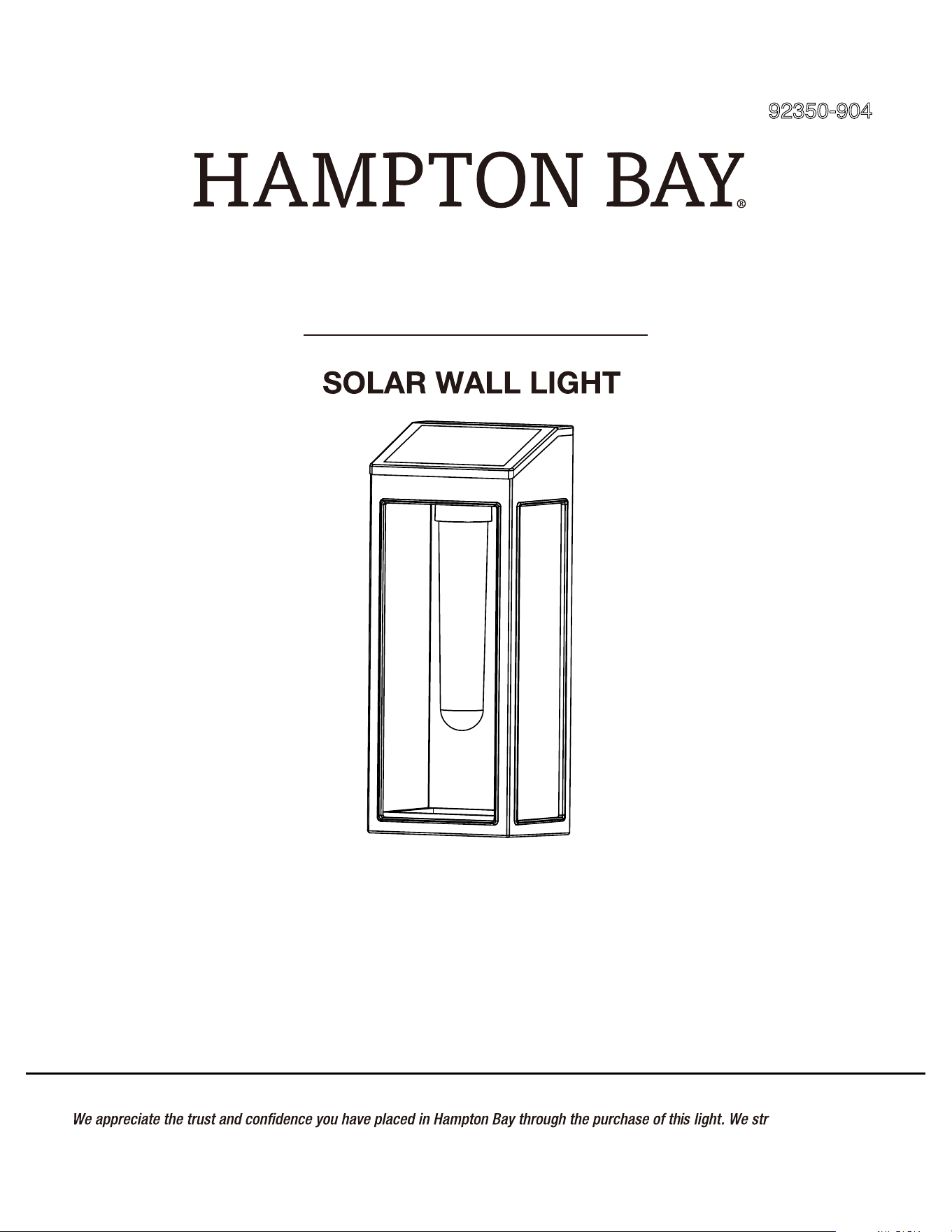

USE AND CARE GUIDE
THANK YOU
ive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Hampton Bay!
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
2
Table of Contents
Table of Contents
................................................................
2
Safety Information
...............................................................
2
Warranty
.................................................................................
2
Pre-Installation
.....................................................................
3
Planning Installation
.........................................................
3
How Solar Works
..............................................................
3
Package Contents
............................................................
3
Installation
.............................................................................
4
Maintenance
.........................................................................
5
Replacing the Battery
......................................................
5
Care and Cleaning
...............................................................
5
Troubleshooting
...................................................................
5
Safety Information
Please read and understand the instructions in this
entire manual before installing the solar light.
WARNING:
Only use NiMh rechargeable batteries
with these solar lights. Do not mix battery types.
WARNING:
Do not open, short circuit, or mutilate
batteries as injury may occur. Batteries must be
recycled or disposed of properly.
Warranty
workmanship. This warranty applies only to the original consumer purchaser and only to products used in normal use
and service. If this product is found to be defective, the manufacturer’s only obligation, and your exclusive remedy, is the
repair or replacement of the product at the manufacturer’s discretion, provided that the product has not been damaged
through misuse, abuse, accident, modifications, alterations, neglect, or mishandling. This warranty shall not apply to any
product that is found to have been improperly installed, set up, or used in any way not in accordance with the
instructions supplied with the product. This warranty shall not apply to a failure of the product as a result of an accident,
misuse, abuse, negligence, alteration, or faulty installation or any other failure not relating to faulty workmanship. This
warranty shall not apply to the finish on any portion of the product, such as surface and/or weathering, as this is
considered normal wear and tear. The manufacturer does not warrant and specifically disclaims any warranty, whether
expressed or implied, or fitness for a particular purpose, other than the warranty contained herein. The manufacturer
specifically disclaims any liability and shall not be liable for any consequential or incidental loss or damage, including any
labor/expense costs involved in the replacement or repair of said product.
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.Hamptonbay.com.
The manufacturer warrants this product to be free for two (2) years against any defects that are due to faulty materials or
AA 1.2V 700mAh NiMh
(4 x 20mm)
1
1
2
2
Pre-Installation
PLANNING INSTALLATION
Compare all parts in the package with the Package Contents list. Verify that all parts are included and that there is no
damage. If any parts are missing or damaged, contact the Customer Service Team at 1-855-HD-HAMPTON or visit
www.HamptonBay.com.
Choose an installation location where direct sunlight can be absorbed onto the face of the solar panel for as many hours
as possible throughout the day. Shadows cast by homes, trees, and structures will restrict the charging of the battery
and affect the light's total hours of operation of the lights.
NOTE: The battery comes pre-charged but
some discharge may happen during storage or
transit.
HOW SOLAR WORKS
During daylight hours, the sun will charge the battery in the solar panel and the light will turn on at dusk. Light output
depends upon how much light the solar panel receives. Position the solar panel so that it receives maximum sunlight. If
there are streetlights or other lighting that could shine directly into or near the solar panel, these lights may trigger the
light sensor and the lights may turn off. The solar panel must sense darkness to operate.
PACKAGE CONTENTS
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
A
B
C
D
□
□
□
Drill two holes on the wall, mount the anchor (C)
first, then the screw (B).
1
□ Open the top of the solar light (A) and remove the
tab from the battery compartment (1) located on
the underside of the solar panel top.
□ Put the top of the solar light back on.
1
Preparing the solar light
NOTE
: To allow the battery to reach full capacity
and
perform correctly, pull out the plastic tab and place
the solar light in full sunlight for the first 12 hours.
Failure to do so can shorten the life of the battery or
operation of the light. On cloudy or rainy days it may
take several days for the battery to fully charge.
NOTE: To protect the solar panel from damage, do
not use force during assembly. Keep the plastic
shades in the packaging until you need to install
them.
A
2
Installing the solar light
Installation
C
B
A
battery
Maintenance
REPLACING THE BATTERY
WARNING: Only use NiMh rechargeable batteries
with this solar light. Do not mix battery types.
CAUTION: Do not use a smaller mAh battery as it
will affect performance. Larger mAh batteries are
acceptable. Ensure you have positioned the
batteries with the correct polarity (+) and (-).
NOTE
: Battery performance is affected by weather
and temperature. Expect reduced performance in
adverse conditions of cold, extreme cold, extreme
heat, plus humidity and dampness.
Take off the top of the solar light assembly and remove the battery cover.
Remove
the old battery and clean the battery contacts on the new battery and the solar light.
Replace with new AA 1.2V 700mAh NiMh rechargeable batter
y.
Replace the battery cover.
Put the top of the solar head back onto the top of the solar light assembly.
□
□
□
□
□
Care and Cleaning
□ It is recommended that solar lights not be used in freezing conditions. Monitor weather and take solar items
indoors for storage as needed. Keep snow or other buildup off the solar panels so that the batteries are able to
recharge.
□ Remove batteries from equipment that will not be used for an extended period of time.
Troubleshooting
Problem Solution
The solar lights do not
come on.
Check to ensure there are no obstructions over the top of the solar panel.
Check to ensure that the battery(s) are installed correctly and there is nothing blocking
the battery terminals from making contact.
Check to ensure the solar panel is positioned to sense both daylight and night time. If
bright lights shine near or into the solar panel, these lights may trigger the light sensor
and the lights may turn off. Bright lights can act like daylight and keep the system from
starting.
Batteries may need to be changed and vary by use, temperature, weather conditions,
and heat. Replace the batteries with the exact same type of rechargeable batteries.
Ensure the batteries are fully charged. It is important to charge the batteries for 12 hours
in full sun before usage. Cloudy or rainy days may require a longer charging time.
In some cases, you may have to open the battery compartment and “seat” the batteries
correctly between metal clips as some dislodging may occur during the shipment. Also
ensure the correct polarity (+) and (-).
Cloudy or rainy days generate far less charge on the solar panel and thus fewer hours of
operation. Prolonged cloudy or rainy days can affect performance dramatically.
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
