EPA Est.NO.98581-CHN-1
Made In China
support@jafanda.com
Jafanda LLC.
JF180 Air Purifier User Manual
1309 Coffeen Avenue STE 4304
Sheridan,Wyoming 82801
JAFANDA.COM
THANK YOU FOR YOUR PURCHASE!
Contact our support team by Email:
Join the jafanda Community on Social Media
TABLE OF CONTENTS
Package content
Specifications
Safety information
Getting to know your air purifier
Touch panel controls
Product features
Operating instructions
Using your air purifier
Care & Maintenance
Replacement filters
Troubleshooting
Warranty & Support
1
1
2
3
4
5
6
8
9
10
11
12
Returns & Refunds 12
JAFANDA.COM
THANK YOU FOR YOUR PURCHASE!
Contact our support team by Email:
Join the jafanda Community on Social Media
TABLE OF CONTENTS
Package content
Specifications
Safety information
Getting to know your air purifier
Touch panel controls
Product features
Operating instructions
Using your air purifier
Care & Maintenance
Replacement filters
Troubleshooting
Warranty & Support
1
1
2
3
4
5
6
8
9
10
11
12
Returns & Refunds 12
1
2
JF180 Air Purifier 1 pcs
Ture HEPA Filter 2 pcs (assembled in the appliance)
AC Power Adapter 1 pcs (DC 24V)
User Manual
Aroma Pad
1 pcs
4 pcs
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Package content
Package content
Specifications

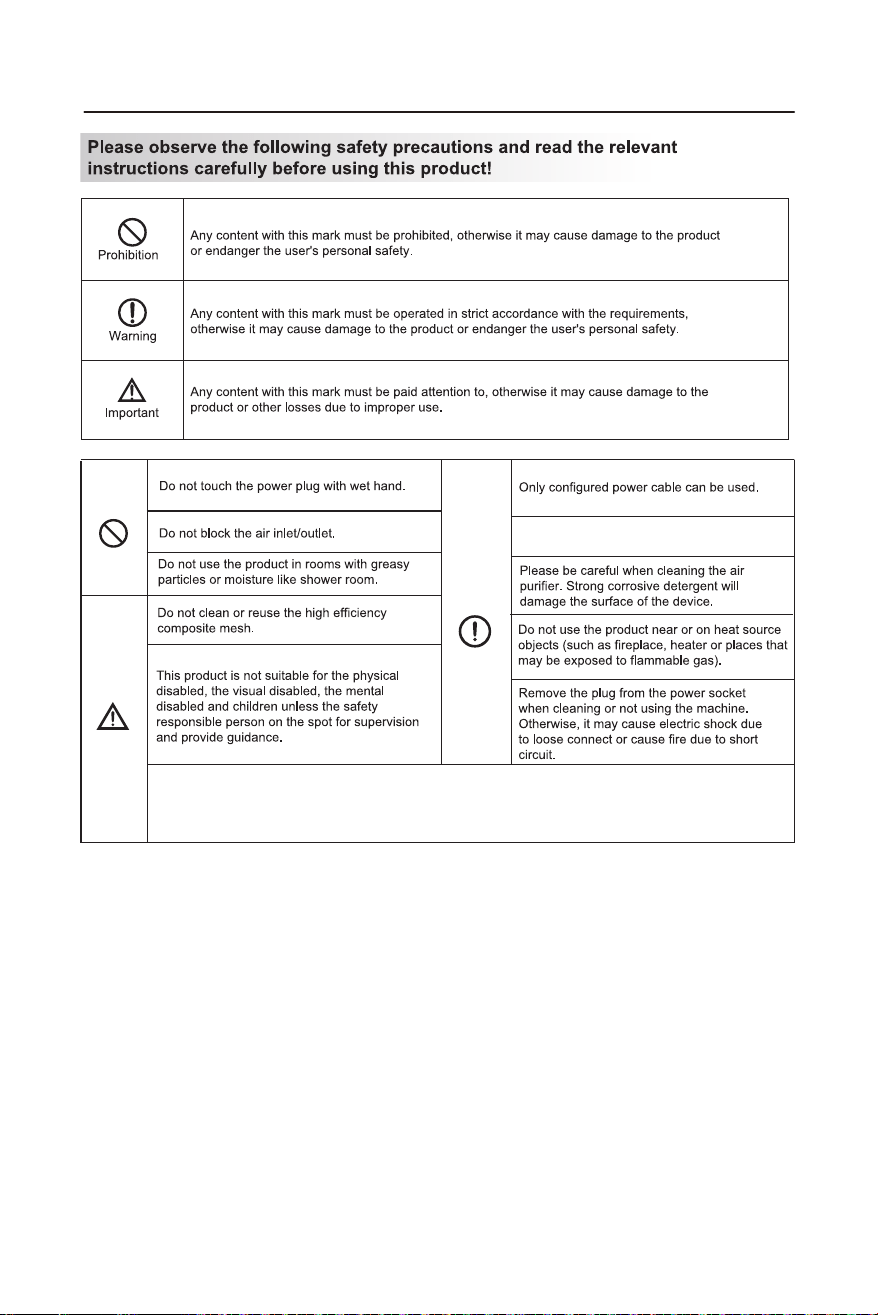

Safety information
Product name Model JF180
Rated Power
CADR
(Clean Air Delivery Rate)
Standby Power
Power Adapter
(Input)
Power Adapter
(Output)
Air Purifier
(supporting foot included)
Product size
N.W.
G.W.
5.7lb/2.6kg
7.1lb/3.2kg
9.37x 6.69 x 11.42 in
23.8 x 17 x 29.0 cm
Package Size
11.38 x 7.87 x 13.7 in
28.9 x 20 x 34.8 cm
24W
100CFM (170m³/h)
Noise Level
Low Speed:22dB
High Speed:53dB
Operating
Conditions
Humidity:
Temperature:
14℉-104 ℉/-10 ℃-40 ℃
20%-95% RH
156
2
ft (5 Times/h)
390
2
ft (2 Times/h)
780
2
ft (1 Times/h)
< 0.5W
100-240V~ 50/60Hz
24V 1.0A
Room Area
Served
Filter life
Please remove dust from the product body
and power plugs periodically.
3000H
PRODUCT TECHNICAL
1
2
JF180 Air Purifier 1 pcs
Ture HEPA Filter 2 pcs (assembled in the appliance)
AC Power Adapter 1 pcs (DC 24V)
User Manual
Aroma Pad
1 pcs
4 pcs
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Package content
Package content
Specifications
Safety information
Product name Model JF180
Rated Power
CADR
(Clean Air Delivery Rate)
Standby Power
Power Adapter
(Input)
Power Adapter
(Output)
Air Purifier
(supporting foot included)
Product size
N.W.
G.W.
5.7lb/2.6kg
7.1lb/3.2kg
9.37x 6.69 x 11.42 in
23.8 x 17 x 29.0 cm
Package Size
11.38 x 7.87 x 13.7 in
28.9 x 20 x 34.8 cm
24W
100CFM (170m³/h)
Noise Level
Low Speed:22dB
High Speed:53dB
Operating
Conditions
Humidity:
Temperature:
14℉-104 ℉/-10 ℃-40 ℃
20%-95% RH
156
2
ft (5 Times/h)
390
2
ft (2 Times/h)
780
2
ft (1 Times/h)
< 0.5W
100-240V~ 50/60Hz
24V 1.0A
Room Area
Served
Filter life
Please remove dust from the product body
and power plugs periodically.
3000H
PRODUCT TECHNICAL
Fragrance Box
FilterCover
Filters
1
2
Air outlet Grid
3
4
5
SupportingFoot
Knob
6
Supply Hub
7
Air inlet Hole
8
AC Power Adapter
9
3
4
Press this button to adjust the ambiance light color
Turn on/off the purifier (Left is off, right is on).
In work status, tap the fan speed knob to choose the speed level
from Low to High (The knob is stepless speed regulation).
FanSpeed
When the icon is red, it indicates that the filter needs to be replaced
Filter Reset
Light button
Power On / Off
Power OffFilterReset
MaxFan
speed
Knob Light button
In case of a discrepancy between the product picture and real
product, the real product will prevail.
Getting to know your air purifier
Touch panel controls
9
1
4
6
8
77
5
23
symbol
Symbol name
Meaning
P
o
w
e
r
O
n
Fragrance Box
FilterCover
Filters
1
2
Air outlet Grid
3
4
5
SupportingFoot
Knob
6
Supply Hub
7
Air inlet Hole
8
AC Power Adapter
9
3
4
Press this button to adjust the ambiance light color
Turn on/off the purifier (Left is off, right is on).
In work status, tap the fan speed knob to choose the speed level
from Low to High (The knob is stepless speed regulation).
FanSpeed
When the icon is red, it indicates that the filter needs to be replaced
Filter Reset
Light button
Power On / Off
Power OffFilterReset
MaxFan
speed
Knob Light button
In case of a discrepancy between the product picture and real
product, the real product will prevail.
Getting to know your air purifier
Touch panel controls
9
1
4
6
8
77
5
23
symbol
Symbol name
Meaning
P
o
w
e
r
O
n
5
6
Combine Multiple Functions
High-Efficiency Purification: Remove PM 2.5, smog,
pollen and other particulate pollutants.
Fan speed stepless regulation
Replacement Filter
Adjustable colorful ambiance lights
Built-in essential oil box and aroma pad, add
essential oil to freshen the air continuously
2. Lift the filter cover from the air purifier.
3. Take out the new filters with plastic packaging.
1. Press down down the button on rear cover plate
and pull it out slightly, then take out 2x Filter.
4. Remove the protective film on the filter
before use.
5. Put into New 2x Filter without protective
film.
6. Close the rear cover plate,then it is done.
Product features
Operating instructions
3重净化技术
3-Stages Filtration System
Pre-filter
Activated
carbon filter
HEPA Filter
HEPA Filter
Intercepts hair, dander, fibers, and particles of visible large size. Can be vacuumed
regularly.
H13 HEPA filter for high-efficiency filtration of particles as small as 0.3 micron, such
as PM2.5, smoke, pollen, dust, and other pollutants.
High iodine value activated carbon, effective adsorption of VOC, cigarette odor, pet
odor, and other harmful gases.
Pre-filter
Activated
carbon filter
Note: activated carbon fiter, HEPA filter and Pre-filters are compounded in the same filter.
All filters are included inside the air purifier.
Before use, make sure the plastic bag outside the filter is
removed and installed properly.
Precautions
for use
5
6
Combine Multiple Functions
High-Efficiency Purification: Remove PM 2.5, smog,
pollen and other particulate pollutants.
Fan speed stepless regulation
Replacement Filter
Adjustable colorful ambiance lights
Built-in essential oil box and aroma pad, add
essential oil to freshen the air continuously
2. Lift the filter cover from the air purifier.
3. Take out the new filters with plastic packaging.
1. Press down down the button on rear cover plate
and pull it out slightly, then take out 2x Filter.
4. Remove the protective film on the filter
before use.
5. Put into New 2x Filter without protective
film.
6. Close the rear cover plate,then it is done.
Product features
Operating instructions
3重净化技术
3-Stages Filtration System
Pre-filter
Activated
carbon filter
HEPA Filter
HEPA Filter
Intercepts hair, dander, fibers, and particles of visible large size. Can be vacuumed
regularly.
H13 HEPA filter for high-efficiency filtration of particles as small as 0.3 micron, such
as PM2.5, smoke, pollen, dust, and other pollutants.
High iodine value activated carbon, effective adsorption of VOC, cigarette odor, pet
odor, and other harmful gases.
Pre-filter
Activated
carbon filter
Note: activated carbon fiter, HEPA filter and Pre-filters are compounded in the same filter.
All filters are included inside the air purifier.
Before use, make sure the plastic bag outside the filter is
removed and installed properly.
Precautions
for use
Getting Started
7. Press the essential oil box and the box will
pops up.
7
8
8. Take out the essential oil box.
① When it’s powered on, there is a “DING” sound.
9. Add an appropriate amount of essential oil to
the aroma pad inside the essential oil box(Be
careful not to overflow).
10. Put the essential oil box in and buckle it
up in place.
② Rotate the knob and adjust it to the fan speed appropriate.
7
8
9
10
Operating instructions
Using your air purifier
When you rotate the knob in standby status, rotate the knob clockwise to
power on, and rotate the knob counterclockwise to the leftmost end to
power off.
In the initial state of power-on, the light and filter life buttons are light white,
and the ambient light has seven colors, which cycle continuously in the order
of white, red, orange, yellow, green, blue, blue, and purple (a cycle is 32
seconds) .
Touch the light button once, and the ambient light will lock the current color.
Touch the light button twice to turn off the ambient light. At this time, the filter
life and light buttons are dimly lit.
Touch the light button for the third time to turn off all lights (ambient light, filter
life and light buttons are all off)
The fourth time to touch any button, the machine will wake up, and at the
same time, return to working states before the light is turned off.
So 1,2,3,4 cycle operation.
When the machine is working, turn the knob clockwise to adjust it to maximum
fan speed. Turn it counterclockwise to lower the fan speed until shutdown.
Filter replacement:
he lifetime of the filter is 3000 hours (about 6 months). When the lifetime is less
than 3%, the indicator of filter lifetime flashes red (0.5 seconds/time),
it reminds you that’s the time to prepare new filters for replacement, if the reset
is not completed after 30 minutes, the red light will be steady long on, (After
replace new filter) now please tap and hold the filter button for 3 seconds or
more, then the red light will be turned off with 3 beeps"dididi".it indicates that
the resetting of filter life is successful and the white light will light up again.
Filter life reset:
Unplug the power supply first, then plug in and don’t turn it on (keep the knob
stay off). Within 20 seconds, long press the filter life icon for more than 3
seconds(don’t release it, keep touch), you will hear 1 beeps"di", then use
another hand to tap the light button for 3 times (every times with 1 beeps ”di”
sound), now you can release you both hand, then you will hear 3 beeps"dididi",
it indicates that the resetting of filter life is successful.
Power On / Off
Lighting
Fan speed
Filter Reset
Symbol Symbol name Meaning
P
o
w
e
r
O
n
Getting Started
7. Press the essential oil box and the box will
pops up.
7
8
8. Take out the essential oil box.
① When it’s powered on, there is a “DING” sound.
9. Add an appropriate amount of essential oil to
the aroma pad inside the essential oil box(Be
careful not to overflow).
10. Put the essential oil box in and buckle it
up in place.
② Rotate the knob and adjust it to the fan speed appropriate.
7
8
9
10
Operating instructions
Using your air purifier
When you rotate the knob in standby status, rotate the knob clockwise to
power on, and rotate the knob counterclockwise to the leftmost end to
power off.
In the initial state of power-on, the light and filter life buttons are light white,
and the ambient light has seven colors, which cycle continuously in the order
of white, red, orange, yellow, green, blue, blue, and purple (a cycle is 32
seconds) .
Touch the light button once, and the ambient light will lock the current color.
Touch the light button twice to turn off the ambient light. At this time, the filter
life and light buttons are dimly lit.
Touch the light button for the third time to turn off all lights (ambient light, filter
life and light buttons are all off)
The fourth time to touch any button, the machine will wake up, and at the
same time, return to working states before the light is turned off.
So 1,2,3,4 cycle operation.
When the machine is working, turn the knob clockwise to adjust it to maximum
fan speed. Turn it counterclockwise to lower the fan speed until shutdown.
Filter replacement:
he lifetime of the filter is 3000 hours (about 6 months). When the lifetime is less
than 3%, the indicator of filter lifetime flashes red (0.5 seconds/time),
it reminds you that’s the time to prepare new filters for replacement, if the reset
is not completed after 30 minutes, the red light will be steady long on, (After
replace new filter) now please tap and hold the filter button for 3 seconds or
more, then the red light will be turned off with 3 beeps"dididi".it indicates that
the resetting of filter life is successful and the white light will light up again.
Filter life reset:
Unplug the power supply first, then plug in and don’t turn it on (keep the knob
stay off). Within 20 seconds, long press the filter life icon for more than 3
seconds(don’t release it, keep touch), you will hear 1 beeps"di", then use
another hand to tap the light button for 3 times (every times with 1 beeps ”di”
sound), now you can release you both hand, then you will hear 3 beeps"dididi",
it indicates that the resetting of filter life is successful.
Power On / Off
Lighting
Fan speed
Filter Reset
Symbol Symbol name Meaning
P
o
w
e
r
O
n
9
10
2. Rotate the knob left to the leftmost
end, turn off the machine and unplug
the adapter
4. Lift the filter cover off from
the air purifier
5. Take out the old filter from
the machine
5. Plug in the adapter and twist the
rotary clockwise to power on and
adjust it to the position for appropriate
fan speed.
1
2
3
4
5
6
7
8
9
3. Press down down the button on
rear cover plate and pull it out slightly,
then take out 2x Filter.
6. Remove the protective film on the
filter before use.
7. Put into New 2x Filter without
protective film.
8. Close the rear cover plate,then it
is done.
THE ADAPTER MUST BE UNPLUGGED BEFORE ANY MACHINE MAINTENANCE OPERATION.
1. CLEANING THE BODY OF THE DEVICE (RECOMMENDED ONCE A MONTH):
1) Use a soft cloth to remove stains.
2) Stubborn stains that are not easy to clean can be wiped off with a soft cloth dipped in an
appropriate amount of neutral detergent.
Note: do not use hard objects to scratch the machine shell. When removing the base,
follow the instructions to avoid damaging machine parts.
2. FILTER CLEANING AND REPLACEMENT :
1) Filter replacement will be reminded by the built-in program, which can be replaced
according to the service life of the machine, or can be replaced in real-time by the
filter‘s mandatory service life reset function.
2) when dust accumulates on the surface of the composite filter, you can use a vacuum
cleaner to clean the surface dust, to extend the service life of the filter (it is
recommended to clean once a month. Do not wash).
* Depending on the machine’s environment, the filter’s life will be different. For example, in
places where people smoke and pets are present, the life of the screen is shorter. When the
purification effect is not good, replace the filter in time.
* Please dispose of the used waste filters according to the relevant regulations of solid waste.
1. When the filter reset button
lights red, it prompts the user
to replace the filter
Care & Maintenance
Replacement filters
P
o
w
e
r
O
n
9
10
2. Rotate the knob left to the leftmost
end, turn off the machine and unplug
the adapter
4. Lift the filter cover off from
the air purifier
5. Take out the old filter from
the machine
5. Plug in the adapter and twist the
rotary clockwise to power on and
adjust it to the position for appropriate
fan speed.
1
2
3
4
5
6
7
8
9
3. Press down down the button on
rear cover plate and pull it out slightly,
then take out 2x Filter.
6. Remove the protective film on the
filter before use.
7. Put into New 2x Filter without
protective film.
8. Close the rear cover plate,then it
is done.
THE ADAPTER MUST BE UNPLUGGED BEFORE ANY MACHINE MAINTENANCE OPERATION.
1. CLEANING THE BODY OF THE DEVICE (RECOMMENDED ONCE A MONTH):
1) Use a soft cloth to remove stains.
2) Stubborn stains that are not easy to clean can be wiped off with a soft cloth dipped in an
appropriate amount of neutral detergent.
Note: do not use hard objects to scratch the machine shell. When removing the base,
follow the instructions to avoid damaging machine parts.
2. FILTER CLEANING AND REPLACEMENT :
1) Filter replacement will be reminded by the built-in program, which can be replaced
according to the service life of the machine, or can be replaced in real-time by the
filter‘s mandatory service life reset function.
2) when dust accumulates on the surface of the composite filter, you can use a vacuum
cleaner to clean the surface dust, to extend the service life of the filter (it is
recommended to clean once a month. Do not wash).
* Depending on the machine’s environment, the filter’s life will be different. For example, in
places where people smoke and pets are present, the life of the screen is shorter. When the
purification effect is not good, replace the filter in time.
* Please dispose of the used waste filters according to the relevant regulations of solid waste.
1. When the filter reset button
lights red, it prompts the user
to replace the filter
Care & Maintenance
Replacement filters
P
o
w
e
r
O
n
11
12
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
The product is not working
properly
1. The connection is faulty.
2. The base is not properly
installed.
1. Check whether the plug is inserted
into the socket and whether the
POWER ON/OFF button is turned on.
2. Reinstall the base.
Fresh air doesn’t flow
smoothly out of the
outlet
1. The plastic package of the new
air filter has not been removed.
2. The air outlet of the purifier is
blocked by foreign objects.
1. Remove the packing plastic
bag first.
2. Remove foreign bodies.
The machine makes an
abnormal sound during
the operation
1. The air intake vent or air exhaust
vent is blocked by foreign bodies.
2. Foreign objects fall into the air
duct of the machine.
1. Please move the obstructing
object.
2. Remove the foreign body.
After replacing the filter,
the filter replacement the
indicator is still blinking
1. The filter’s reset button was not
pressed.
1. Long press the filter button for
more than 3 seconds. The filter
reset is completed after the “ding”.
Feel the wind weakening 1. The life of the filter has expired,
or the filter is blocked by hair.
1. Use a vacuum cleaner to clean dust
and hair on the surface of the filter;
Replace the expired filter screen.
The air purifier gives off
a bad smell
1. The concentration of
environmental pollutants may be
too high, and the filter screen may
suffer early saturation.
1. The filter needs to be replaced
to avoid secondary pollution.
The most Frequently Asked Questions about this product are listed here.
If you cannot find the answer to your question, please contact our
after-sales service department.
Warranty
Troubleshooting
Warranty & Support
Returns & Refunds
Jafanda products have a One Year warranty from the date of purchase and a Free Extended
One -Year warranty after registering your product with your order and purchase date via
www.jafanda.com/pages/warranty.
Jafanda always takes responsibility for all our products.
Jafanda always pays high importance to the customer's purchase experience and satisfaction.
If for any reason you are not fully satisfied with your purchase experience within 30 days, we
are happy to help with a replacement or refund.
For more detail, please visit our after-sales website page:
www.jafanda.com/pages/returns-refunds
Or scan below QR code using WhatsApp to join us After-sales Live Chat Service;
11
12
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
The product is not working
properly
1. The connection is faulty.
2. The base is not properly
installed.
1. Check whether the plug is inserted
into the socket and whether the
POWER ON/OFF button is turned on.
2. Reinstall the base.
Fresh air doesn’t flow
smoothly out of the
outlet
1. The plastic package of the new
air filter has not been removed.
2. The air outlet of the purifier is
blocked by foreign objects.
1. Remove the packing plastic
bag first.
2. Remove foreign bodies.
The machine makes an
abnormal sound during
the operation
1. The air intake vent or air exhaust
vent is blocked by foreign bodies.
2. Foreign objects fall into the air
duct of the machine.
1. Please move the obstructing
object.
2. Remove the foreign body.
After replacing the filter,
the filter replacement the
indicator is still blinking
1. The filter’s reset button was not
pressed.
1. Long press the filter button for
more than 3 seconds. The filter
reset is completed after the “ding”.
Feel the wind weakening 1. The life of the filter has expired,
or the filter is blocked by hair.
1. Use a vacuum cleaner to clean dust
and hair on the surface of the filter;
Replace the expired filter screen.
The air purifier gives off
a bad smell
1. The concentration of
environmental pollutants may be
too high, and the filter screen may
suffer early saturation.
1. The filter needs to be replaced
to avoid secondary pollution.
The most Frequently Asked Questions about this product are listed here.
If you cannot find the answer to your question, please contact our
after-sales service department.
Warranty
Troubleshooting
Warranty & Support
Returns & Refunds
Jafanda products have a One Year warranty from the date of purchase and a Free Extended
One -Year warranty after registering your product with your order and purchase date via
www.jafanda.com/pages/warranty.
Jafanda always takes responsibility for all our products.
Jafanda always pays high importance to the customer's purchase experience and satisfaction.
If for any reason you are not fully satisfied with your purchase experience within 30 days, we
are happy to help with a replacement or refund.
For more detail, please visit our after-sales website page:
www.jafanda.com/pages/returns-refunds
Or scan below QR code using WhatsApp to join us After-sales Live Chat Service;
EPA Est.NO.98581-CHN-1
Made In China
support@jafanda.com
Jafanda LLC.
JF180 Air Purifier User Manual
1309 Coffeen Avenue STE 4304
Sheridan,Wyoming 82801
