PLANNING GUIDE
—
[DD Month] 2011
PLANNING GUIDEPLANNING GUIDE
INTEGRATED
REFRIGERATORS
—
AUGUST 2017
DRAWING
TO COME
Title
Model no:
XXXX
Dimensions
mm
a Overall height* of product
478
B Overall width of product
895
c Depth of product front and control panel
(excludes handle and dials)
22
d Depth of product chassis (does not include oven front)
544
CONTENTS
RS9120WRU1 & RS9120WRJ1
with Stainless Steel Door panels
Product & Cavity Dimensions 3
Door Opening & Clearance Dimensions 5

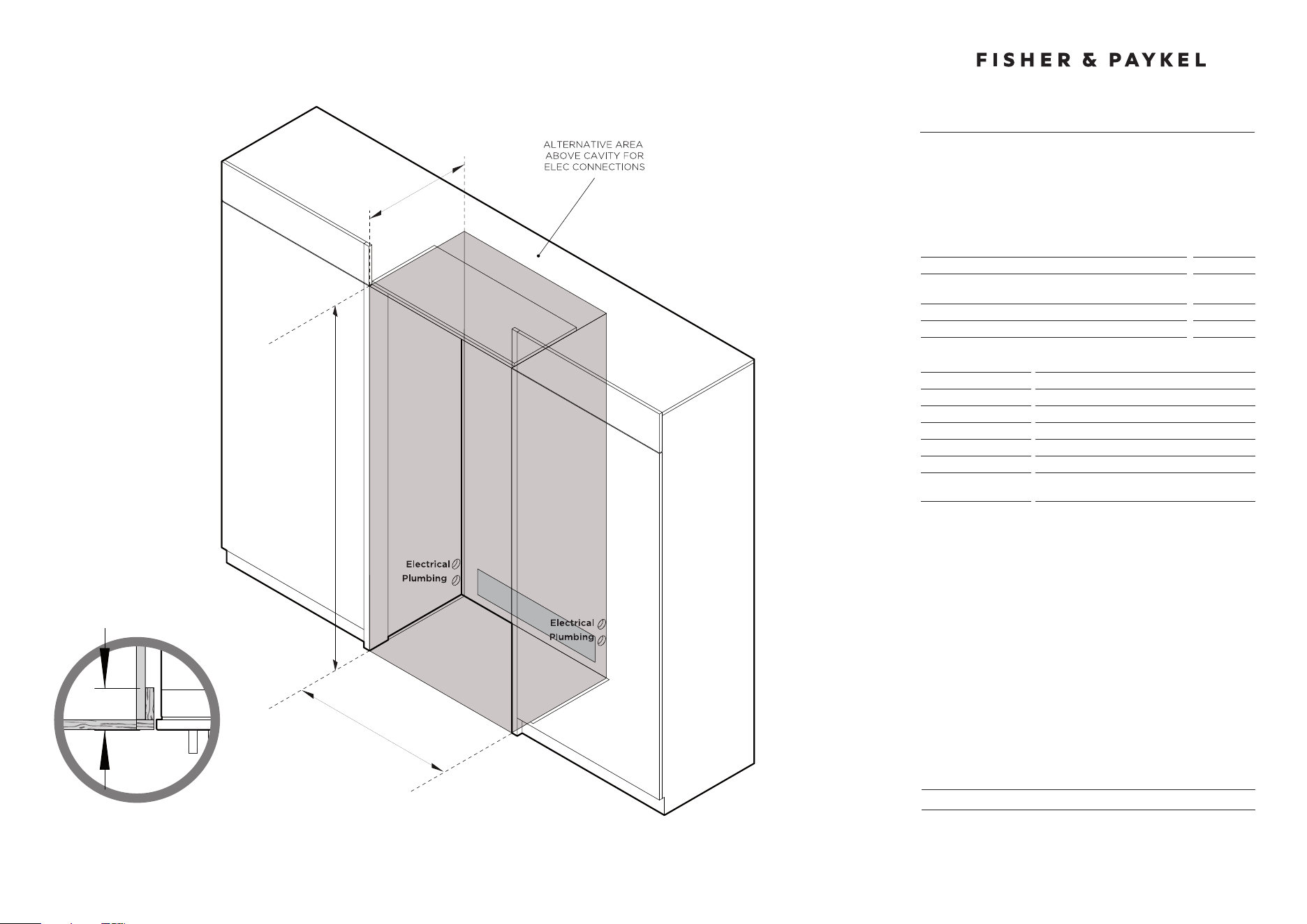

Cavity Preparation 11

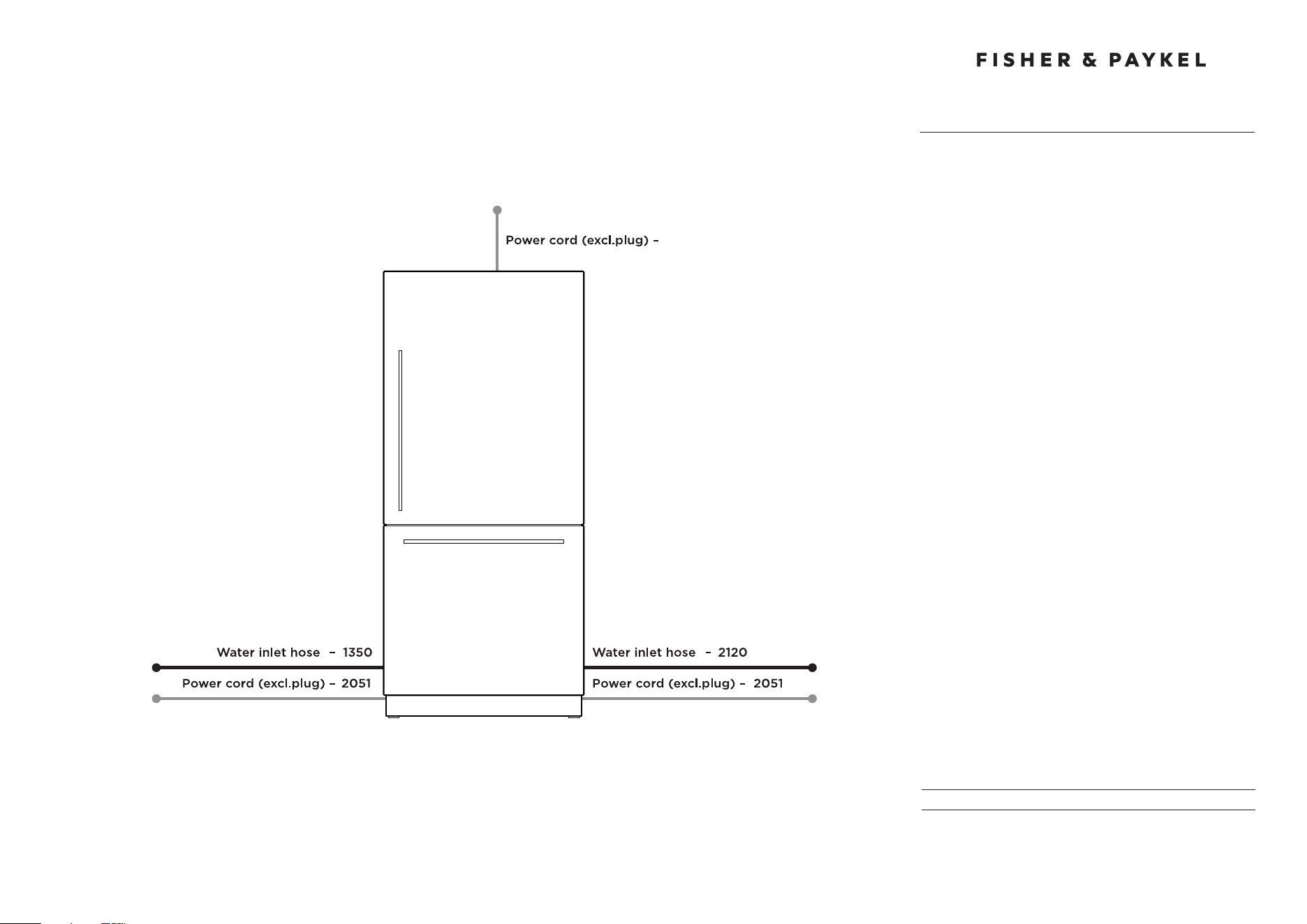

Max Distance of Hose & Cord 14
RS9120WRJ1
with Custom Door panels
Product & Cavity Dimensions 6
Door Opening & Clearance Dimensions 7
Custom Panel Dimensions 8
Custom Panel Preparation 9
Cavity Preparation 11
Max Distance of Hose & Cord 14
Note: This guide shows specifications for right hand models.
For left hand models, specifications are mirrored.
Model no:
RS9120WRU1
(with Stainless Steel Door panels PART NO. RD9120WRU)
Cavity Dimensions
mm
a Overall height of cavity
2134
B Overall width of cavity
914
c Overall minimum depth of cavity
635
Total front panel width with required gaps at sides = 914 (E product width + 2
x F cabinetry gaps).
Height of front panels with required gap above = 2134 (D product height + F
cabinetry gap.
Product Dimensions
mm
D Overall height of product*
2130
E Overall width of product
906
F Minimum cabinetry gap clearance from edge of product
4
G Overall depth of product (excl. front door panels)
606
H Depth of toekick (measured from front of door panels)
71 - 101
I Height of toekick**
102
J Height of bottom drawer panel
772
K Height of top door panel
1252
L Depth of product front panels (excludes handles)***
19
* Includes mounted feet
** Supplied with stainless steel toekick, or custom toekick can be
manufactured and fitted by cabinetmaker.
*** Optional EZKleen Stainless Steel front panels – PART NO. RD9120WRU
NOTE: There is no left hand model available with a water dispenser
INDICATES CAVITY CLEARANCES
DATE: 12.08.2017
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Please read the installation manual for detailed information on installing the
product. For full installation instructions & specifications visit fisherpaykel.com

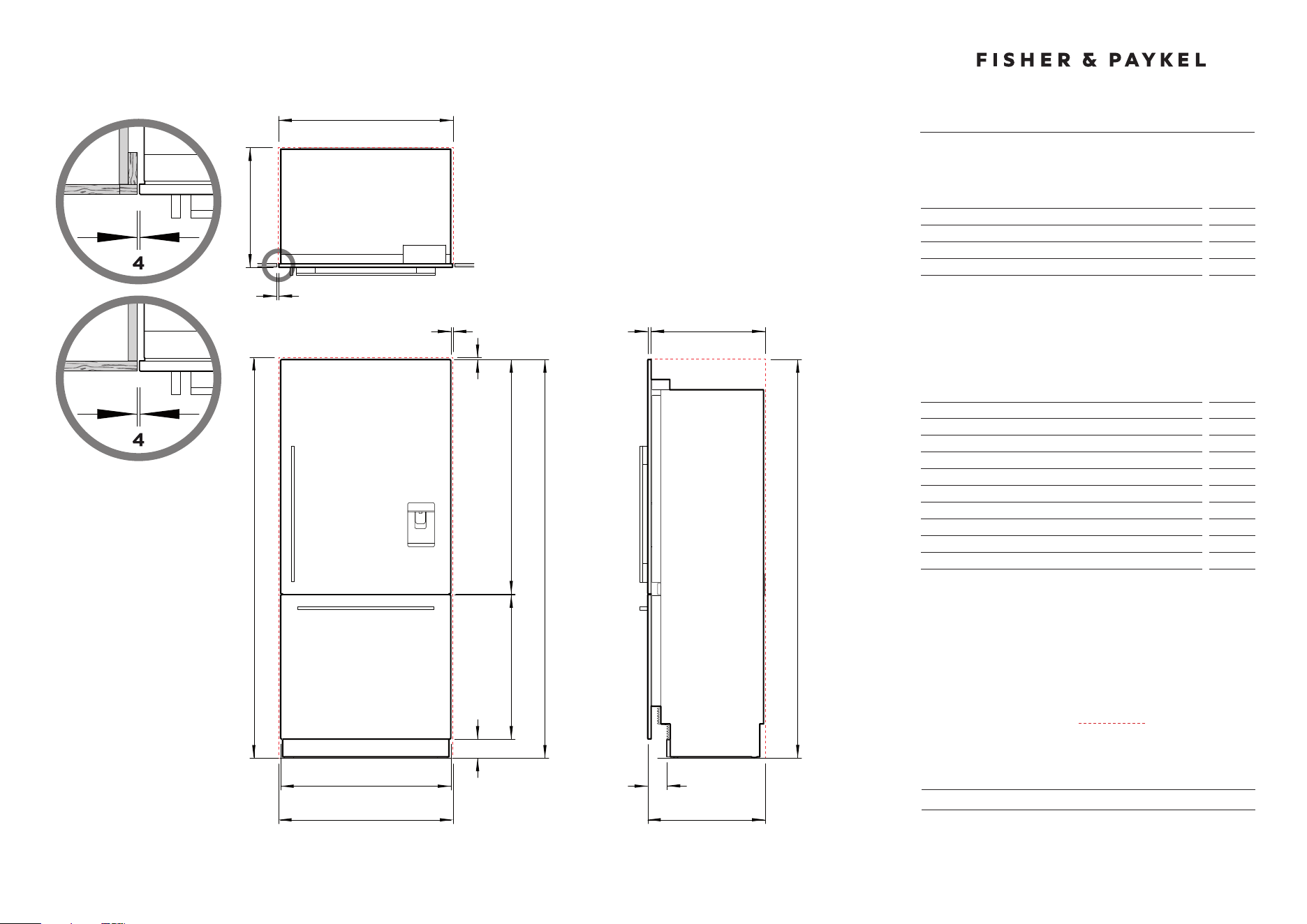

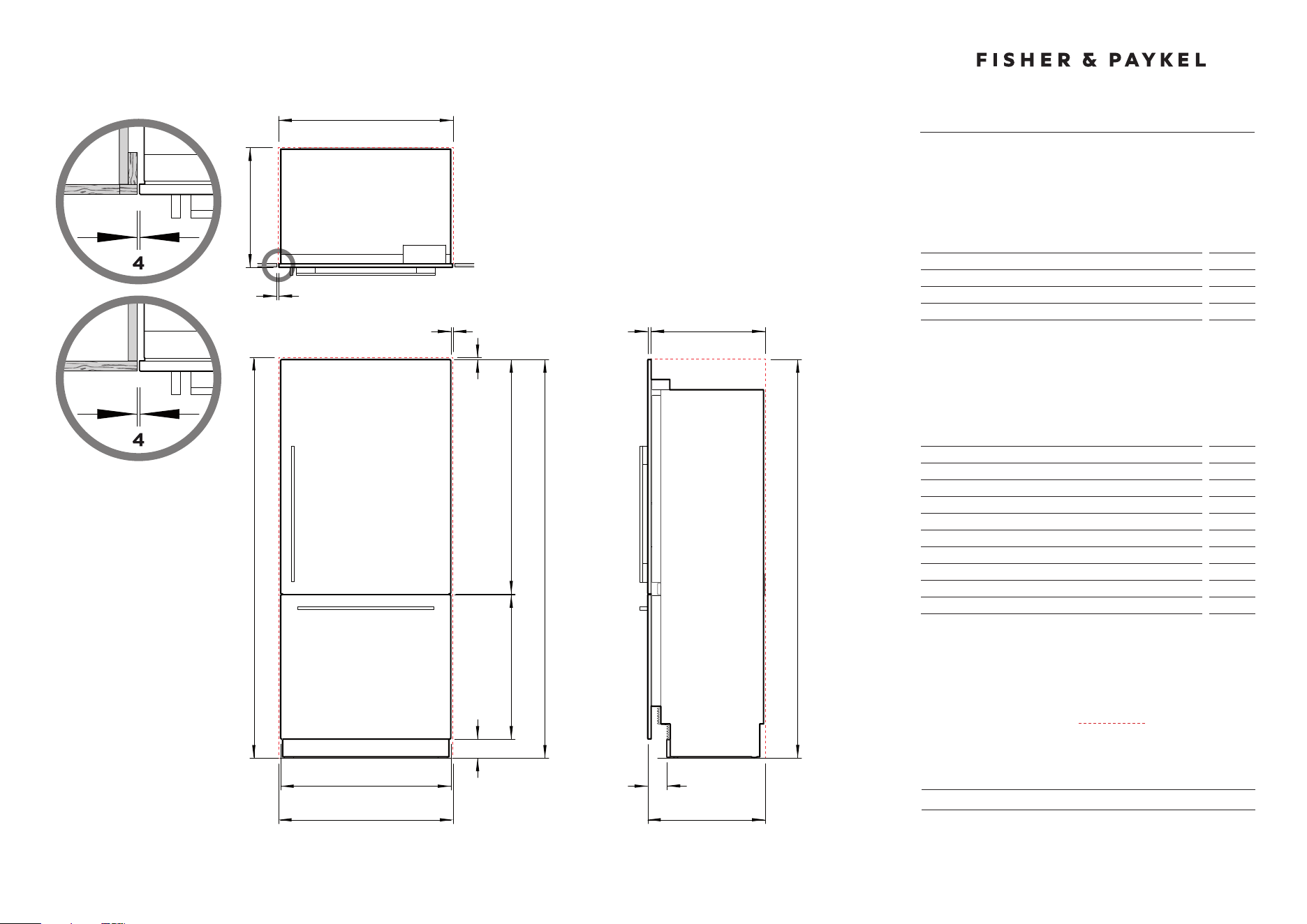

PRODUCT & CAVITY DIMENSIONS
914mm ActiveSmart Built-In Fridge
B
C
F
F
F
L
G
D
K
J
A
E
B
I
A
C
H
PLAN VIEW
FRONT VIEW PROFILE VIEW
FLUSH WITH FRONT OF CABINETRY
FRAMELESS
FRAMED
Model no:
RS9120WRJ1
(with Stainless Steel Door panels PART NO. RD9120WR)
RS9120WLJ1
(with Stainless Steel Door panels PART NO. RD9120WL)
Note: Left hand hinge model is a mirrored version of image shown.
Cavity Dimensions
mm
a Overall height of cavity
2134
B Overall width of cavity
914
c Overall minimum depth of cavity
635
Total front panel width with required gaps at sides = 914 (E product width + 2
x F cabinetry gaps).
Height of front panels with required gap above = 2134 (D product height + F
cabinetry gap.
Product Dimensions
mm
D Overall height of product*
2130
E Overall width of product
906
F Minimum cabinetry gap clearance from edge of product
4
G Overall depth of product (excl. front door panels)
606
H Depth of toekick (measured from front of door panels)
71 - 101
I Height of toekick**
102
J Height of bottom drawer panel
772
K Height of top door panel
1252
L Depth of product front panels (excludes handles)***
19
* Includes mounted feet
** Supplied with stainless steel toekick, or custom toekick can be
manufactured and fitted by cabinetmaker.
*** Optional EZKleen Stainless Steel front panels – PART NO. RD9120WR
(right hand version illustrated, PART NO. RD9120WL for left hand model)
INDICATES CAVITY CLEARANCES
DATE: 12.08.2017
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Please read the installation manual for detailed information on installing the
product. For full installation instructions & specifications visit fisherpaykel.com
PRODUCT & CAVITY DIMENSIONS
914mm ActiveSmart Built-In Fridge
B
C
F
F
F
L
G
D
K
J
A
E
B
I
A
C
H
PLAN VIEW
FRONT VIEW PROFILE VIEW
FLUSH WITH FRONT OF CABINETRY
FRAMELESS
FRAMED
Model no:
RS9120WRU1 (with Stainless Steel Door panels PART NO.
RD9120WRU)
RS9120WRJ1 (with Stainless Steel Door panels PART NO.
RD9120WR)
RS9120WLJ1 (with Stainless Steel Door panels PART NO.
RD9120WL)
Note: Left hand hinge model is a mirrored version of image shown.
Door Opening & Clearance Dimensions
mm
a Depth of door (widest opening) measured from front of door
940
B Depth of drawer (open) measured from front of drawer,
including handle
400
C Depth of drawer (open) measured from front of drawer,
excluding handle
360
D Minimum door clearance to adjacent wall* (115° – full internal
access)
410
E Minimum door clearance to adjacent wall* (90° – reduced
internal access)
110
* Measured from front cabinetry edge.
INDICATES CAVITY CLEARANCES
C
B
D
C
B
E
A
90° DOOR OPENING115° DOOR OPENING
[FULL ROTATION]
WALL WALL
DATE: 12.08.2017
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Please read the installation manual for detailed information on installing the
product. For full installation instructions & specifications visit fisherpaykel.com
a
DOOR OPENING & CLEARANCE DIMENSIONS
914mm ActiveSmart Built-In Fridge
Model no:
RS9120WRJ1
RS9120WLJ1
NOTE: Left hand hinge model is a mirrored version of image
shown.
Cavity Dimensions
mm
a Overall height of cavity*
2032
/ 2134
B Overall width of cavity
914
c Overall minimum depth of cavity**
635
Total front panel width with required gaps at sides = 914mm (Refer custom
panel dimensions page 8 – panel width + 2 x
F cabinetry gaps).
* Removable top trim enables cavity height to be either 2032mm or2134mm.
** Assumes a door panel thickness of 19mm.
Product Dimensions
mm
D Overall height of product* (does not include front panels)
2028
E Overall width of product (does not include front panels)
890
F Minimum cabinetry gap from edge of custom panels*
4
G Overall depth of product (excl. front door panels)
606
H Depth of toekick (measured from front of door panels - 19mm
panels shown)**
71 - 101
I Height of toekick**
102 – 152
J Depth of product front panels shown (excludes handles)***
19
* Includes mounted feet
** For custom panel dimensions refer to page 8
*** Door panels and toekick to be manufactured and fitted by cabinetmaker,
door panel thickness min 16mm – max 25mm
INDICATES CAVITY CLEARANCES
DATE: 12.08.2017
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Please read the installation manual for detailed information on installing the
product. For full installation instructions & specifications visit fisherpaykel.com
4
4
Note: Shown with custom panel
and handle attached to fridge

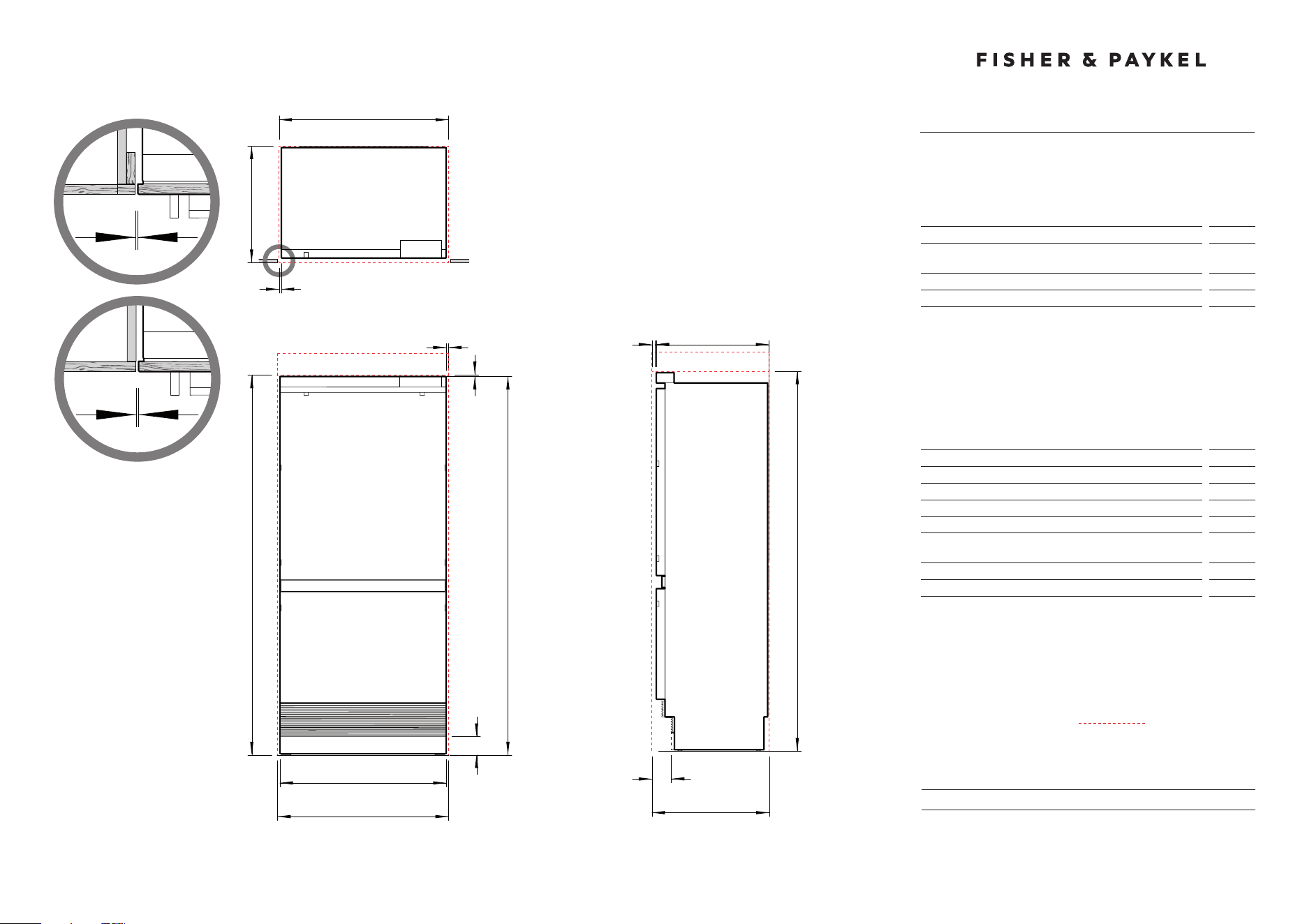

PRODUCT & CLEARANCE DIMENSIONS
914mm ActiveSmart Built-In Fridge
FRAMELESS
FRAMED
B
PLAN VIEW
C
F
F
F
J G
D
A
E
B
I
A
C
H
FRONT VIEW PROFILE VIEW
FLUSH WITH FRONT OF CABINETRY
Model no:
RS9120WRJ1
RS9120WLJ1
Note: Left hand hinge model is a mirrored version of image shown.
Door Opening & Clearance Dimensions
mm
a Depth of door (widest opening) measured from front of door
940
B Depth of drawer (open) measured from front of cabinetry*
338
C Minimum door clearance** to adjacent wall* (115° – full internal
access)
410
D Minimum door clearance** to adjacent wall* (90° – reduced
internal access)*
110
* Does not include the custom door panels or handles to be manufactured and
fitted by cabinetmaker.
** Measured from front cabinetry edge.
INDICATES CAVITY CLEARANCES
B
C
B
D
A
90° DOOR OPENING115° DOOR OPENING
[FULL ROTATION]
DATE: 12.08.2017
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Please read the installation manual for detailed information on installing the
product. For full installation instructions & specifications visit fisherpaykel.com
WALLWALL WALL
a
DOOR OPENING CLEARANCE DIMENSIONS
914mm ActiveSmart Built-In Fridge
Model no:
RS9120WRJ1
RS9120WLJ1
Note: Left hand hinge model is a mirrored version of image shown.
Custom Panel Dimensions
mm
a Height of top door panel*
1150 / 1252
B Width of top door and bottom drawer panel
906
C Height of bottom drawer panel**
722 – 772
D Height from bottom of product to top of bottom drawer panel
874
E Gap between top door panel and bottom drawer panel
4
F Height of toekick panel**
102 – 152
G Maximum depth of custom panels
min 16
max 25
Maximum weight of top door panel***
20kg
Maximum weight of bottom drawer panel***
11kg
* Removable top trim allows installation into 2032mm or 2134mm H cavity.
Ensure top door panel corresponds to cavity height.
** Product is supplied with 102mm H stainless steel toekick, alternatively a
custom toekick can be manufactured and fitted by cabinetmaker at either
102 or 152mm height. The bottom grille can be reduced to allow for a higher
toekick. Adjust the height of the bottom drawer accordingly.
*** Includes weight of handle.
Custom door panels/toekick to be manufactured and fitted by cabinetmaker.
Door handle kit is available as an optional accessory.
INDICATES CAVITY CLEARANCES
DATE: 12.08.2017
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Please read the installation manual for detailed information on installing the
product. For full installation instructions & specifications visit fisherpaykel.com

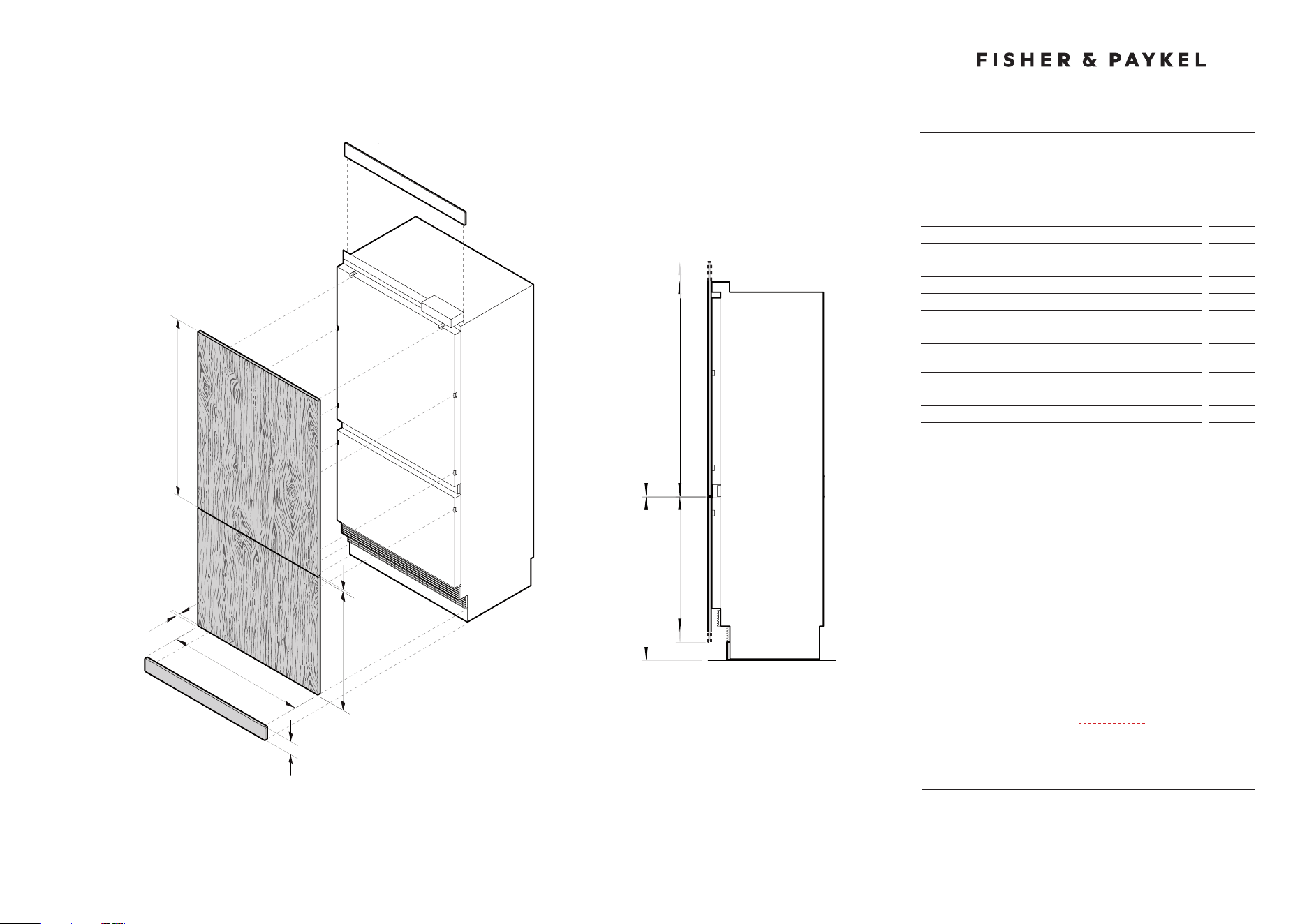

CUSTOM PANEL DIMENSIONS
914mm ActiveSmart Built-In Fridge
Note: Top trim supplied for
84" installation
ISO VIEW PROFILE VIEW
A
g
b
c
e
d
e
c
A
f
Note: Top trim supplied for
2134mm installation
Model no:
RS9120WRJ1
RS9120WLJ1
Note: Left hand hinge model is a mirrored version of image shown
Custom Panel Preparation
Dimensions are shown in Metric (mm)
Dimensions apply for the preparation and installation of custom panels
Custom panels are for non-Ice & Water models only
Handle
Ensure handle is mounted 65mm from edge of panel to the center – this will
avoid interference with brackets (refer red dash line)
Dwg & Dxf Files
Dwg and Dxf files of the panel preparation are available within the download
folder for this product and can be found on
http://thekitchentools.fisherpaykel.com
DATE: 12.08.2017
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Please read the installation manual for detailed information on installing the
product. For full installation instructions & specifications visit fisherpaykel.com
INDICATES MINIMUM HANDLE CLEARANCE FROM EDGE

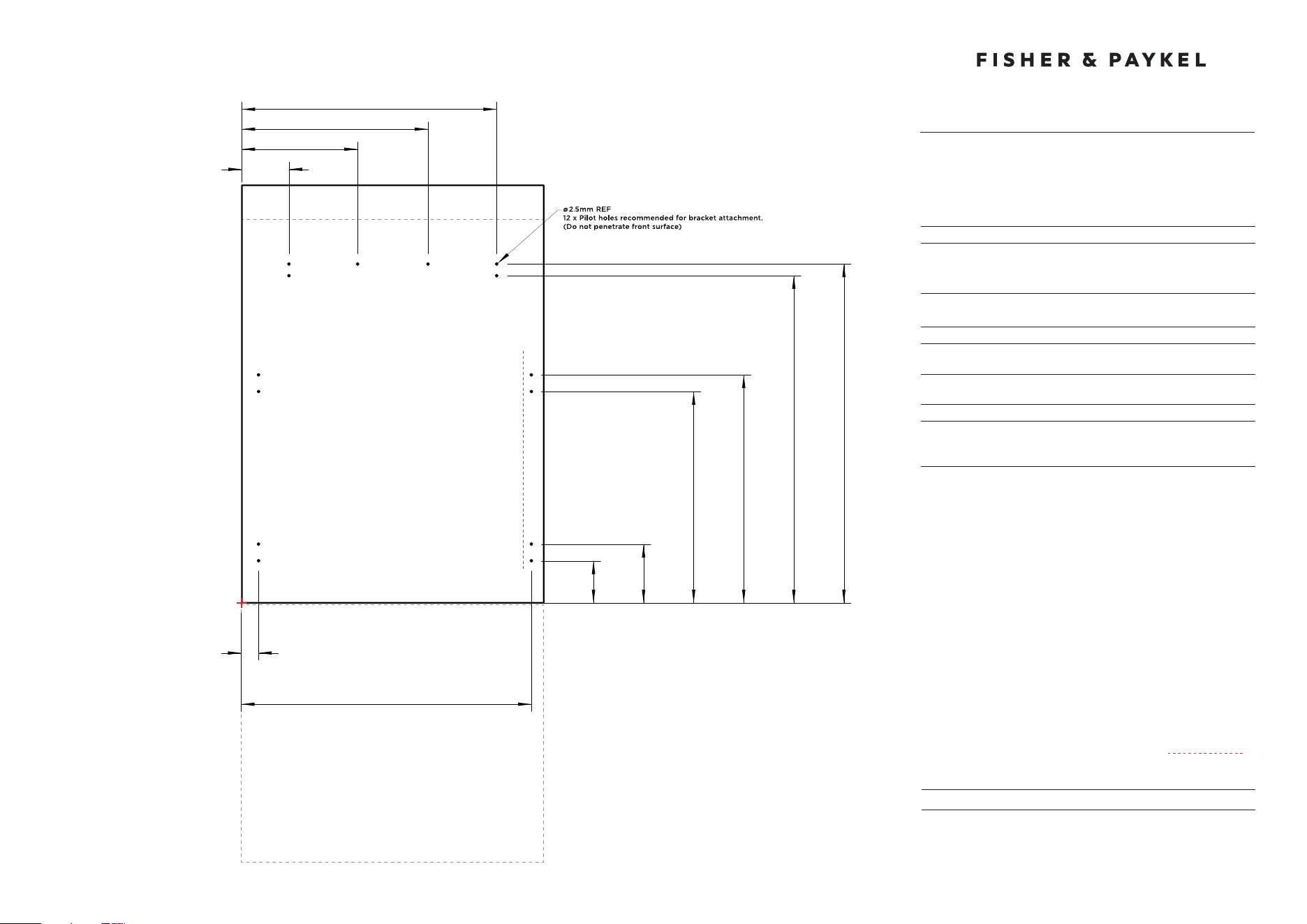

CUSTOM PANEL PREPARATION
914mm ActiveSmart Built-In Fridge
TOP PANEL – REAR VIEW
All measurements to be made
from bottom left corner
764mm
558mm
347mm
141mm
37mm
869mm
126mm
176mm
634mm
684mm
981mm
1016mm
Model no:
RS9120WRJ1
RS9120WLJ1
Custom Panel Preparation
Dimensions are shown in Metric (mm)
Dimensions apply for the preparation and installation of custom panels
Custom panels are for non-Ice & Water models only
Handles
Ensure handle screw heads are countersunk into back of panel to avoid
interfering with hanging bracket
Dwg & Dxf Files
Dwg and Dxf files of the panel preparation are available within the download
folder for this product and can be found on
http://thekitchentools.fisherpaykel.com
BOTTOM PANEL – REAR VIEW
DATE: 12.08.2017
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Please read the installation manual for detailed information on installing the
product. For full installation instructions & specifications visit fisherpaykel.com
87mm
29mm
492mm542mm
385mm
128mm
416mm
10 x Pilot holes recommended for bracket attachment.
(Do not penetrate front surface)
Cutouts are located in attachment bracket
for Fisher & Paykel handle only.
If locating custom handle in the shaded area shown,
ensure handle screw heads are countersunk into back
of panel to avoid interference with hanging bracket.
All measurements to be made
from top and centreline
CUSTOM PANEL PREPARATION
914mm ActiveSmart Built-In Fridge
mm
A
B
C
ISO VIEW OF CAVITY
Model no:
RS9120WRU1 (with Stainless Steel Door panels PART NO.
RD9120WRU)
RS9120WRJ1 (with Stainless Steel Door panels PART NO.
RD9120WR)
RS9120WLJ1 (with Stainless Steel Door panels PART NO.
RD9120WL)
Cavity Dimensions mm
a Overall height of cavity (stainless steel panels)
Overall height of cavity* (custom panels)
2134
2032 / 2134
B Overall width of cavity
914
c Overall minimum depth of cavity
635
Specifications
Electrical
Supply
230 VAC, 50 Hz
Service
10 amp circuit
Plumbing
Supply
stainless steel braided hose supplied
Pressure
min 22 psi (150 kPa)
max 120 psi (827 kPa) @ 20°C
NOTE: Electrical connection can be located an adjacent cabinet to either side
of the fridge or above the fridge cavity.
* Ensure custom panel height corresponds to cavity height. Supplied top trim
enables cavity height to be either 2032mm or 2134mm.
DATE: 12.08.2017
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Please read the installation manual for detailed information on installing the
product. For full installation instructions & specifications visit fisherpaykel.com
127
CAVITY PREPARATION - FRAMELESS
914mm ActiveSmart Built-In Fridge
FRAMELESS: Finished return
side and top
A
B
C
ISO VIEW OF CAVITY
Model no:
RS9120WRU1 (with Stainless Steel Door panels PART NO.
RD9120WRU)
RS9120WRJ1 (with Stainless Steel Door panels PART NO.
RD9120WR)
RS9120WLJ1 (with Stainless Steel Door panels PART NO.
RD9120WL)
Cavity Dimensions mm
a Overall height of cavity (stainless steel panels)
Overall height of cavity* (custom panels)
2134
2032 / 2134
B Overall width of cavity
914
c Overall minimum depth of cavity
635
Specifications
Electrical
Supply
230 VAC, 50 Hz
Service
10 amp circuit
Plumbing
Supply
stainless steel braided hose supplied
Pressure
min 22 psi (150 kPa)
max 120 psi (827 kPa) @ 20°C
NOTE: Electrical connection can be located an adjacent cabinet to either side
of the fridge or above the fridge cavity.
* Ensure custom panel height corresponds to cavity height. Supplied top trim
enables cavity height to be either 2032mm or 2134mm.
DATE: 12.08.2017
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Please read the installation manual for detailed information on installing the
product. For full installation instructions & specifications visit fisherpaykel.com
127
CAVITY PREPARATION - FRAMED
914mm ActiveSmart Built-In Fridge
FRAMED: Finished return
side and top
Model no:
RS9120WRU1 (with Stainless Steel Door panels PART NO.
RD9120WRU)
RS9120WRJ1 (with Stainless Steel Door panels PART NO.
RD9120WR)
RS9120WLJ1 (with Stainless Steel Door panels PART NO.
RD9120WL)
Cavity Dimensions mm
a Overall height of cavity (stainless steel panels)
Overall height of cavity* (custom panels)
2134
2032 / 2134
B Overall width of cavity
914
c Overall minimum depth of cavity
635
Specifications
Electrical
Supply
230 VAC, 50 Hz
Service
10 amp circuit
Plumbing
Supply
stainless steel braided hose supplied
Pressure
min 22 psi (150 kPa)
max 120 psi (827 kPa) @ 20°C
NOTE: Electrical connection can be located an adjacent cabinet to either side
of the fridge or above the fridge cavity.
* Ensure custom panel height corresponds to cavity height. Supplied top trim
enables cavity height to be either 2032mm or 2134mm.
REAR OF CAVITY
LEFT SIDE
OF CAVITY
FLOOR
ELECTRICAL AND WATER CONNECTIONS
MUST BE WITHIN THIS SPACE IF LOCATED
BEHIND THE REFRIGERATOR
DATE: 12.08.2017
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Please read the installation manual for detailed information on installing the
product. For full installation instructions & specifications visit fisherpaykel.com
756mm
51mm 73mm
143mm
CAVITY PREPARATION
914mm ActiveSmart Built-In Fridge
Model no:
RS9120WRU1 (with Stainless Steel Door panels PART NO.
RD9120WRU)
RS9120WRJ1 (with Stainless Steel Door panels PART NO.
RD9120WR)
RS9120WLJ1 (with Stainless Steel Door panels PART NO.
RD9120WL)
RIGHT HAND SIDELEFT HAND SIDE
DATE: 12.08.2017
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Please read the installation manual for detailed information on installing the
product. For full installation instructions & specifications visit fisherpaykel.com
MAX DISTANCE OF HOSE AND CORD
914mm ActiveSmart Built-In Fridge
700
IMPORTANT NOTE: The product dimensions and specifications
apply at the date of issue. Under our policy of continuous product
improvement, these dimensions and specifications may change at
any time. Dimensions may vary by ±2mm.
Please read the installation manual for detailed information
on installing the product or visit fisherpaykel.com.
