Usage Notices
5
Usage Notices
All functionality, features, specifications, and other device information provided in
this document, including but not limited to, benefits, design, pricing, components,
performance, availability, and capabilities of the device are subject to change without
notice. Samsung reserves the right to alter this document or the device described herein
at any time, without obligation to provide notification of such changes.
Precautions for Repair
Samsung is not liable for any damage or defect determined to be caused by repair by
a non-authorised carrier, self repair or non-professional repair of the device. Samsung
is not liable for any resulting damage to the device, or any injury or other device safety
issue caused by any attempt to repair the device which does not follow these repair and
maintenance instructions.
Any damage to the device or defect caused by an attempt to repair the device by any
person other than a Samsung certified carrier will not be covered by the warranty.
•
Use only demagnetised tools that are specifically designed for small electronic
repairs, as most electronic parts are sensitive to electromagnetic forces.
•
Use only high quality screwdrivers when servicing devices. Low quality screwdrivers
can easily damage the heads of screws.
•
Always use genuine replacement parts. Third-party replacement parts may not
function properly and could cause a fire or injury.
•
Some parts, such as sensors (laser AF/proximity/fingerprint), the rear camera,
the TSP (touch panel), speakers, and other components, may need calibration to
guarantee their performance after repair.
•
The performance of the device’s water and dust resistance cannot be guaranteed
when it is repaired by the user or another unskilled worker.
•
If you need to access the failure data of your device or need to get a more detailed
diagnosis, visit a Samsung Service Centre.
•
If you need to replace unsold parts, visit a Samsung Service Centre and receive
further instruction.
•
Before conducting repairs, remember to make backup copies of all important data
stored in the device.
Usage Notices
6
•
Make sure to wear the appropriate safety equipment before carrying out repairs.
Samsung is not responsible for injuries that may occur because of not wearing the
proper safety equipment. Refer to Tools for Disassembly and Assembly for a list of
tools that you will need for assembling and disassembling the device.
•
Repair the device in a safe place.
•
Before repairing the device, make sure the device is turned off. To turn off the
device, press the Volume Down button and the Side button at the same time, or open
the notification panel and tap the Power icon.
•
If the device is damaged, emits smoke, or if you smell something burning, stop using
the device immediately and contact Samsung.
•
It is recommended to use safety equipment such as glasses, gloves, and a mask
when repairing the device.
•
Be careful not to damage the device when removing the back cover.
•
Before assembly, ensure that there are no screws or foreign objects around the
battery.
•
During assembly, check if there are any abnormalities before reattaching the back
cover, and be careful not to damage the battery by hitting or denting it. If the battery
is damaged, visit a Samsung Service Centre.
•
Do not place the device directly into a microwave and heat it.
•
Before repairing your device, make sure its battery is fully discharged.
•
Visit www.samsung.com to view the device information, related material, and safety
information.
ESD (Electrostatic Discharge) Precautions
It is the sudden flow of electricity between two electrically charged objects caused by
contact, an electrical short, or dielectric breakdown. ESD can cause negative effects on
mobile devices, especially electrical parts.
•
It is recommended to use ESD safety (Anti-static) equipment such as an anti-static
wrist strap and gloves, and an ESD safe mat when repairing the device.
•
Increase the airflow to the work area to decrease the chance of accidental static
electricity discharges, as the potential for static electricity discharge may be
increased in low-humidity environments, such as air-conditioned rooms.
Usage Notices
7
Instructional Icons
Warning: situations that could cause injury to yourself or others
Caution: situations that could cause damage to your device or other equipment
Notice: notes, usage tips, or additional information
Software Update
8
Software Update
Updating Software through FOTA
Update your device’s software through the firmware over-the-air (FOTA) service. You can
also schedule software updates.
Launch the
Settings
app and tap
Software update
→
Download and install
.
•
Install now
: Install updates.
•
Schedule install
: Set the time to install updates automatically.
•
You may incur additional charges when updating the software through a mobile
network.
•
If the latest software has been downloaded to the device, these options will not
appear.
Software Update Failure
If your device becomes disconnected from a network before the update is complete, the
update may fail. Reconnect to a network and complete the update.
Updating Software through Smart Switch
You can use Smart Switch to update your device’s software to the latest
version. You must download the desktop version of the Smart Switch app from
www.samsung.com/smartswitch.
•
This feature may not be supported on some devices or computers.
•
Limitations apply. Visit www.samsung.com/smartswitch for details. Samsung
takes copyright seriously.
1 On the computer, visit www.samsung.com/smartswitch to download Smart Switch.
2 On the computer, launch
Smart Switch
.
3 Connect your device to the computer using the device’s USB cable.
4 Click
Update
.
Software Update
9
5 Read the on-screen instructions and click
Continue
.
6 Read the precautions about the update and click
OK
.
7 Read and agree to the terms and conditions.
The update will start.
Recovering from a Software Update Failure
If a software update is interrupted because of an error on your device or computer, your
device may fail to operate normally. If this occurs, you can perform a factory data reset
on your device for emergency recovery.
Before performing the factory data reset, remember to make backup copies of all
important data stored in the device. Samsung is not responsible for the loss of data
stored in the device.
1 Disconnect your device from the computer and launch
Smart Switch
again on the
computer.
2 Click
→
Emergency Software Recovery and Reset
.
The device list will appear.
3 Click the device that experienced a software update error and click
Device reset
→
OK
.
The device will perform a factory data reset.
Recovering on Another Computer
If the emergency recovery process continues to fail on the computer where the software
update failed, you can repair your device on another computer using the recovery code.
This will include a factory data reset of your device.
•
Before performing the factory data reset, remember to make backup copies of
all important data stored in the device. Samsung is not responsible for the loss
of data stored in the device.
•
The recovery code can be found only on the computer where the software
update has failed.
1 On the computer where the software update has failed, launch
Smart Switch
.
2 Click
→
Emergency Software Recovery and Reset
.
Software Update
10
3 On the devices list, click the device that failed to update the software and check the
recovery code.
4 On another computer, launch
Smart Switch
.
5 Click
→
Emergency Software Recovery and Reset
→
Emergency code recovery
.
6 Enter the recovery code and click
OK
.
7 Follow the on-screen instructions to put your device into recovery mode and
complete the emergency recovery.
Performing a Factory Data Reset
The factory data reset restores the device’s default settings. This erases all data,
including files and downloaded apps, from the device.
Before performing the factory data reset, remember to make backup copies of all
important data stored in the device. Samsung is not responsible for the loss of data
stored in the device.
Make sure your device’s battery level is sufficient, as losing power during a factory
reset may result in system problems.

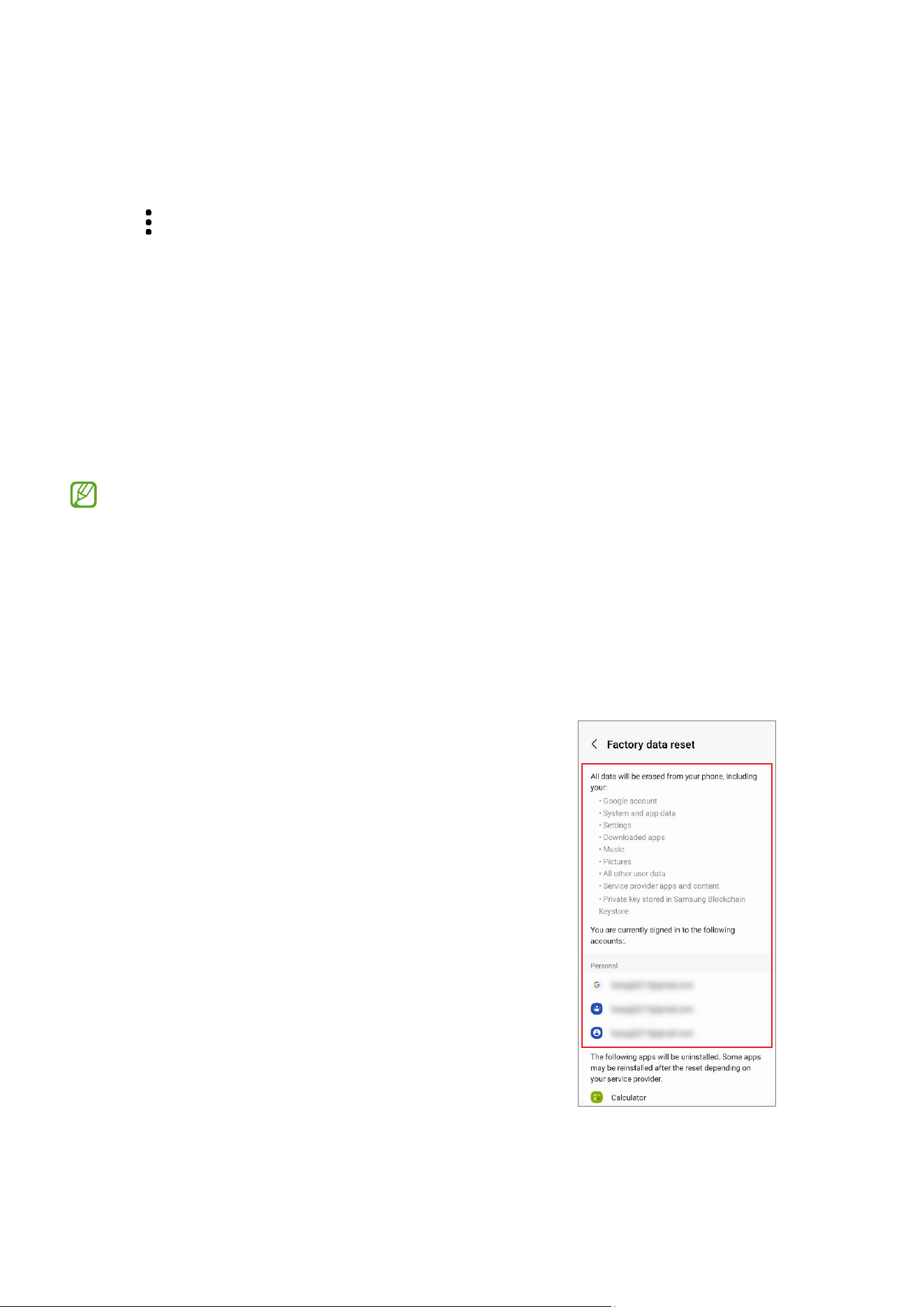

1 Launch the
Settings
app and tap
General management
→
Reset
→
Factory data
reset
.
2 Read the on-screen instructions and check
which account you are signed in with.
If your device is signed in to your Google
account, log out of your Google account. If
you do not log out of your Google account,
logging in to another account after the
factory data reset will not be possible,
because your device will be locked.
Software Update
11
3 Tap
Reset
→
Delete all
.
All data will be deleted when rebooting.
During a factory data reset, the device may repeat rebooting and the logo may be
displayed for a long time.
Quality Test
12
Quality Test
Quality Test Using the Samsung Members App
It is recommended to evaluate your device through the Samsung Members app
after it has been repaired to guarantee its performance. If the test results show any
abnormalities or that another malfunction has occurred because of the repair, visit a
Samsung Service Centre to receive further instruction. Any malfunctions caused by your
repair may incur additional repair charges.
•
The Samsung Members app is subject to update without any prior notice.
•
To use this feature, you must sign in to your Samsung account.
•
Some features may not be available depending on the carrier or model.
Device Diagnostics
1 Launch the
Samsung Members
app.
If you do not have the app, download it from the
Galaxy Store
or
Play Store
.
2 Tap
Support
→

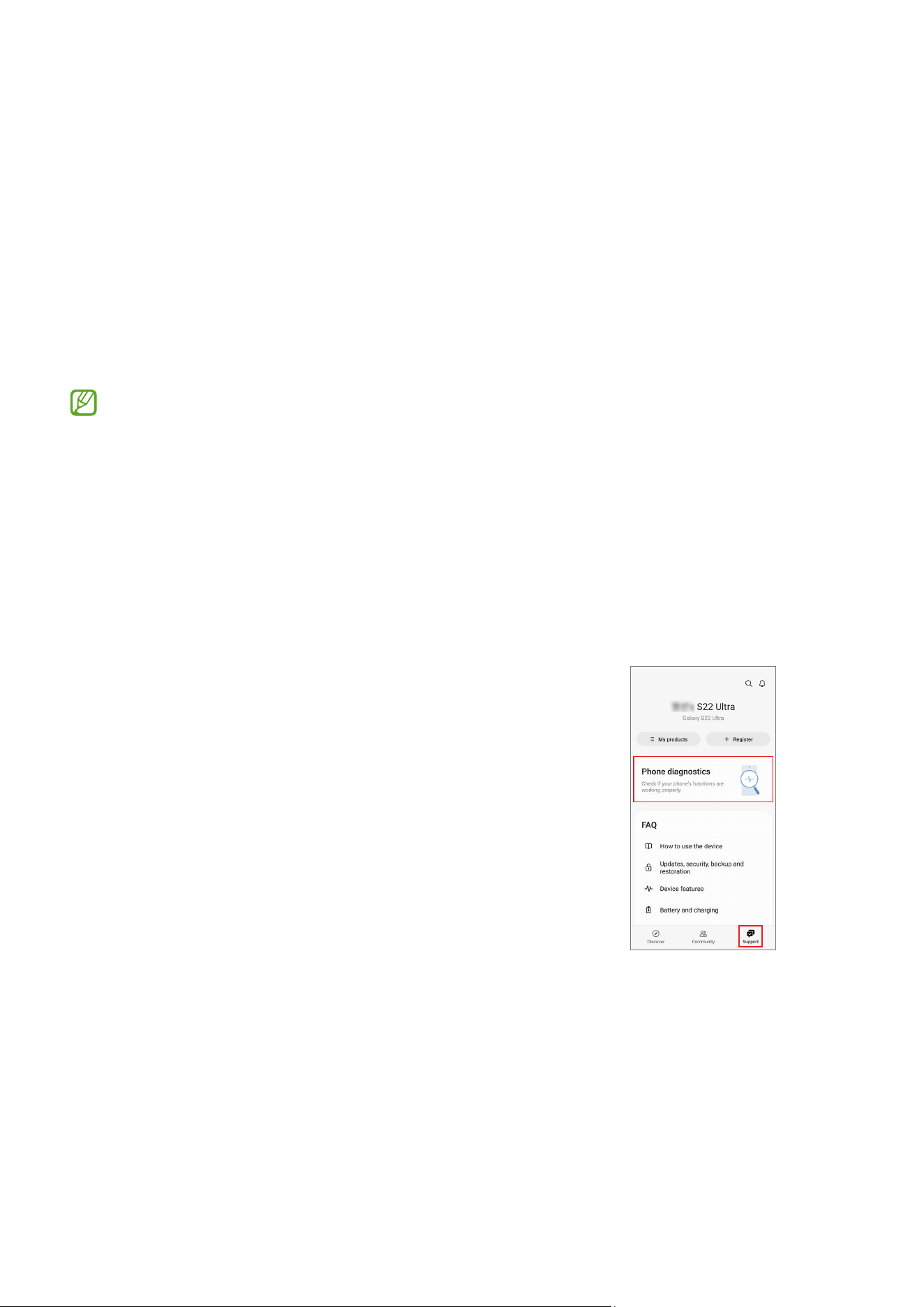

Phone diagnostics
.

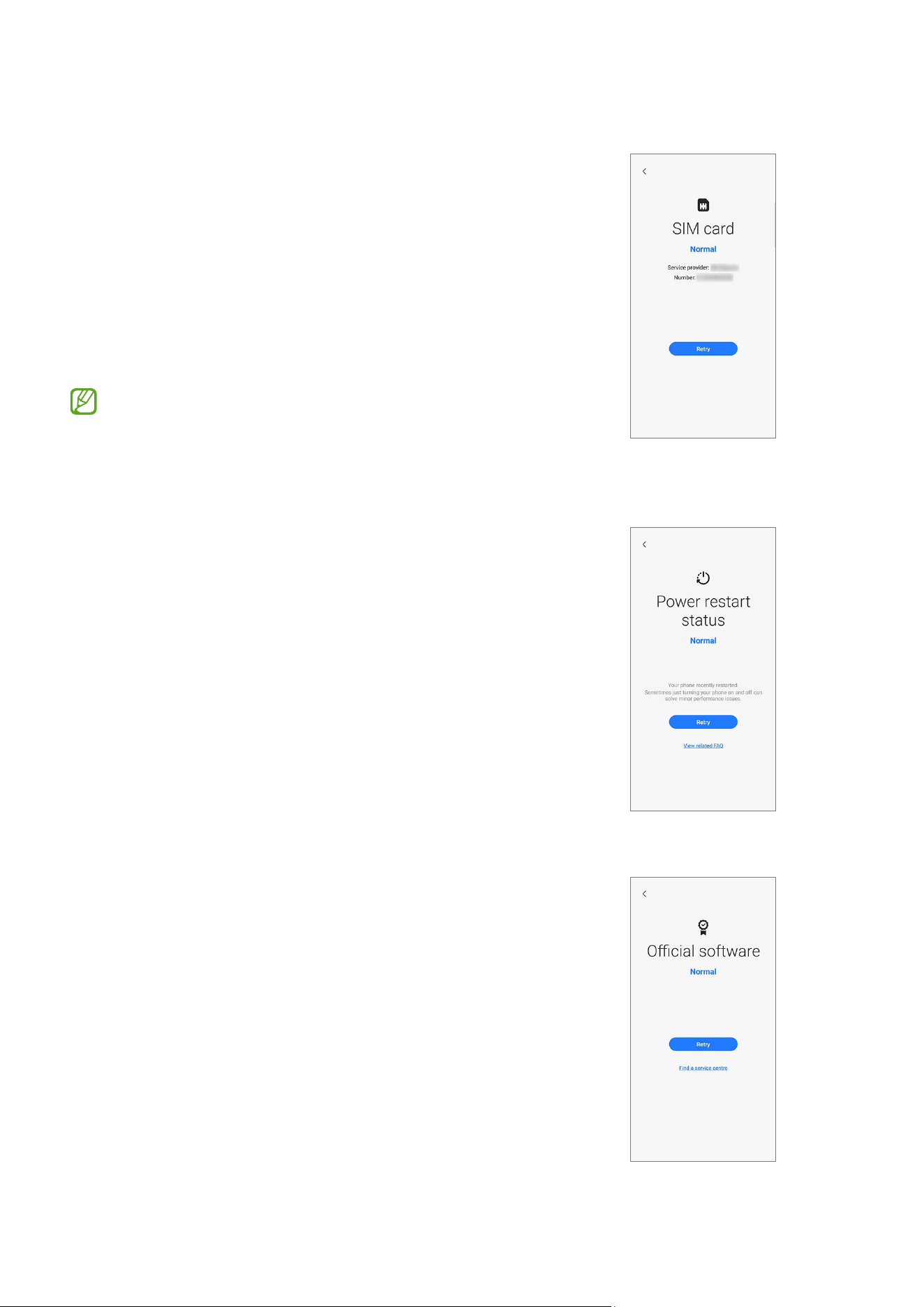

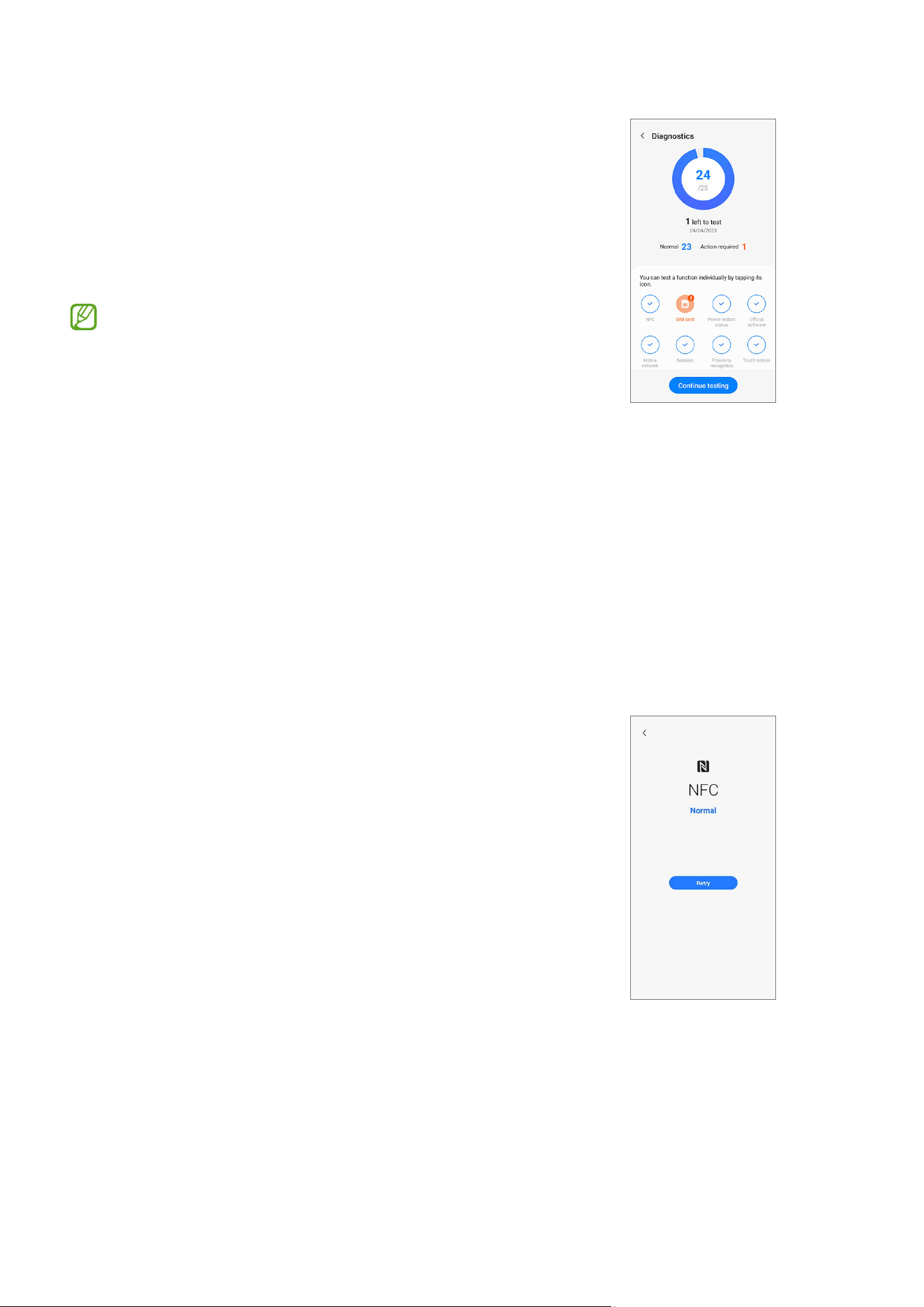

The diagnostics screen will appear and you can
check the test status and items.
Quality Test
13
3 Tap
Test all
.
The device performs a test on all items.
When the test is finished, you can check the test
results.
•
Tick mark: Working normally
•
Exclamation mark: Needs further inspection
•
The test proceeds automatically, but you may
need to follow the on-screen instructions
depending on the test item. Keep an eye on
the screen during testing to ensure smooth
progress.
•
If the exclamation mark appears on any test
items after finishing the test, tap them to find
the solutions. If the problem persists, visit a
Samsung Service Centre.

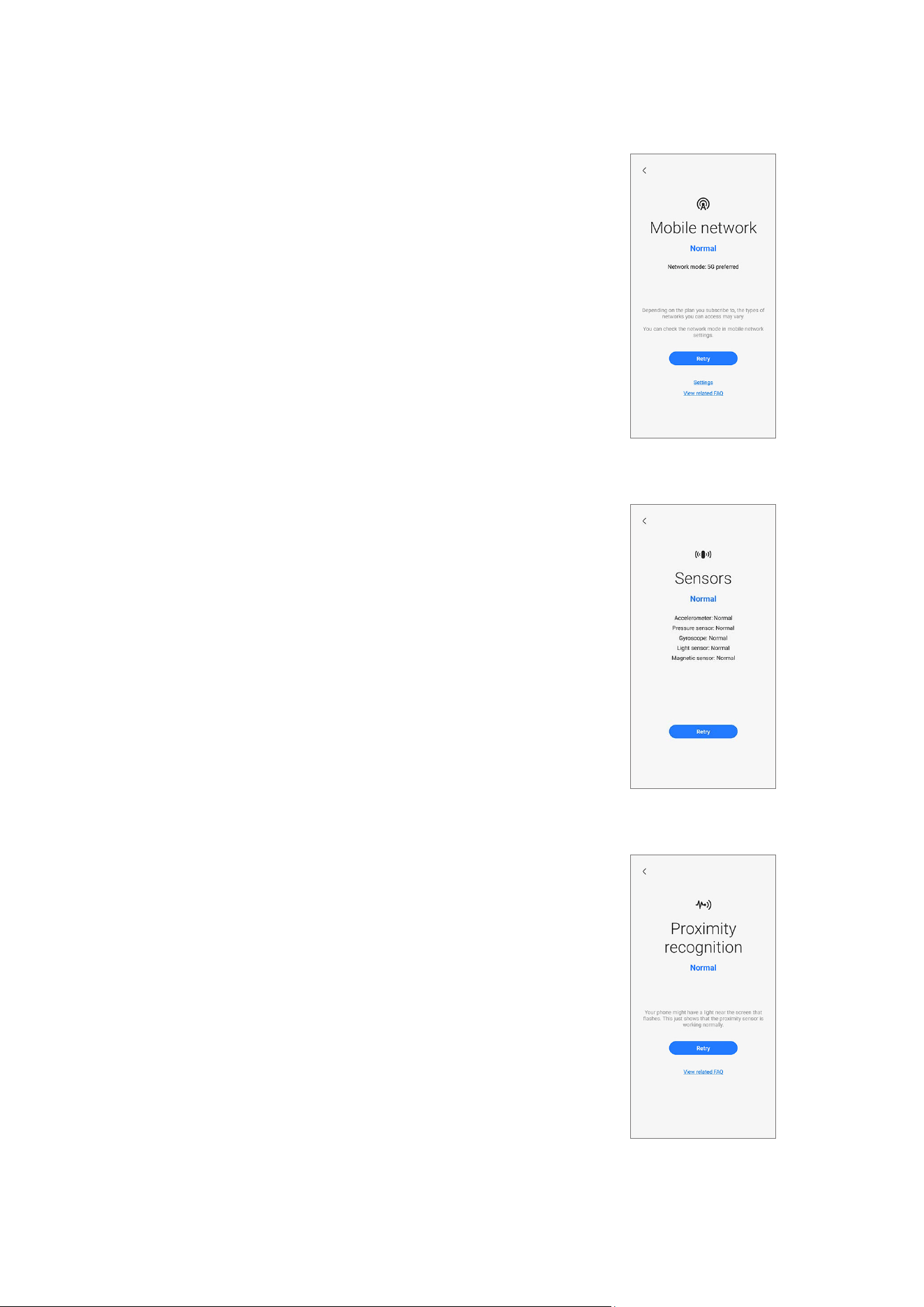

Test Items
NFC
•
Function: Check whether your device can read
near field communication (NFC) tags that contain
information about products.
•
Provided information
‒
Status: View whether the feature is working
normally.
Quality Test
14
SIM card
•
Function: Check whether the SIM card is working
normally.
•
Provided information
‒
Status: View whether the feature is working
normally.
‒
Service provider: View the carrier.
‒
Number: View the phone number.
If the test result is not
Normal
, remove the SIM
card from the SIM card tray and replace it. If
possible, try again with another SIM card.
Power restart status
•
Function: Check your device’s restart history.
•
Provided information
‒
Status: View whether the feature is working
normally.
‒
FAQ: View frequently asked questions.
‒
History: View your device’s restart history.
Official software
•
Function: Check whether the software is working
normally.
•
Provided information
‒
Status: View whether the feature is working
normally.
‒
Service information: View the Samsung
Service Centre location.
Quality Test
15
Mobile network
•
Function: Check whether your mobile network is
working normally.
•
Provided information
‒
Status: View whether the feature is working
normally.
‒
Settings: Configure your mobile network
settings.
‒
FAQ: View frequently asked questions.
Sensors
•
Function: Check whether the sensors are working
normally.
•
Provided information
‒
Status: View whether the feature is working
normally.
‒
Sensor types: View the status of each sensor.
Proximity recognition
•
Function: Check whether the proximity
recognition feature is working normally.
•
Provided information
‒
Status: View whether the feature is working
normally.
‒
FAQ: View frequently asked questions.
Quality Test
16
Touch screen
•

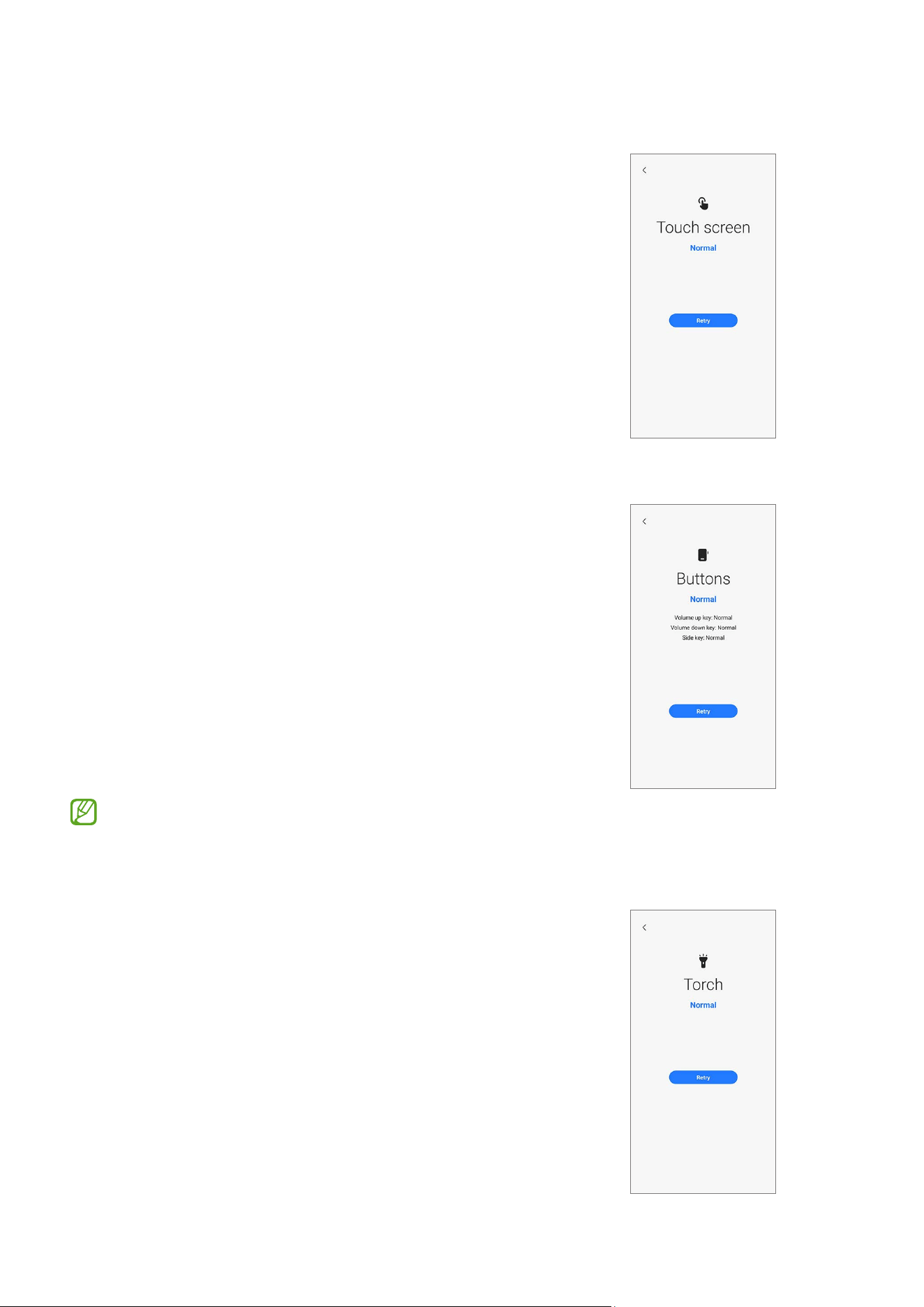

Function: Check whether the touchscreen is
working normally.
•
Provided information
‒
Status: View whether the feature is working
normally.
Buttons
•
Function: Check whether the buttons are working
normally.
•
How to check:
Press the buttons by following the directions on
the screen.
•
Provided information
‒
Status: View whether the feature is working
normally.
‒
Button types: View the status of each button.
Make sure that the buttons are not
contaminated to get more accurate test results.
Torch
•
Function: Check whether the torch is working
normally.
•
Provided information
‒
Status: View whether the feature is working
normally.
Quality Test
17

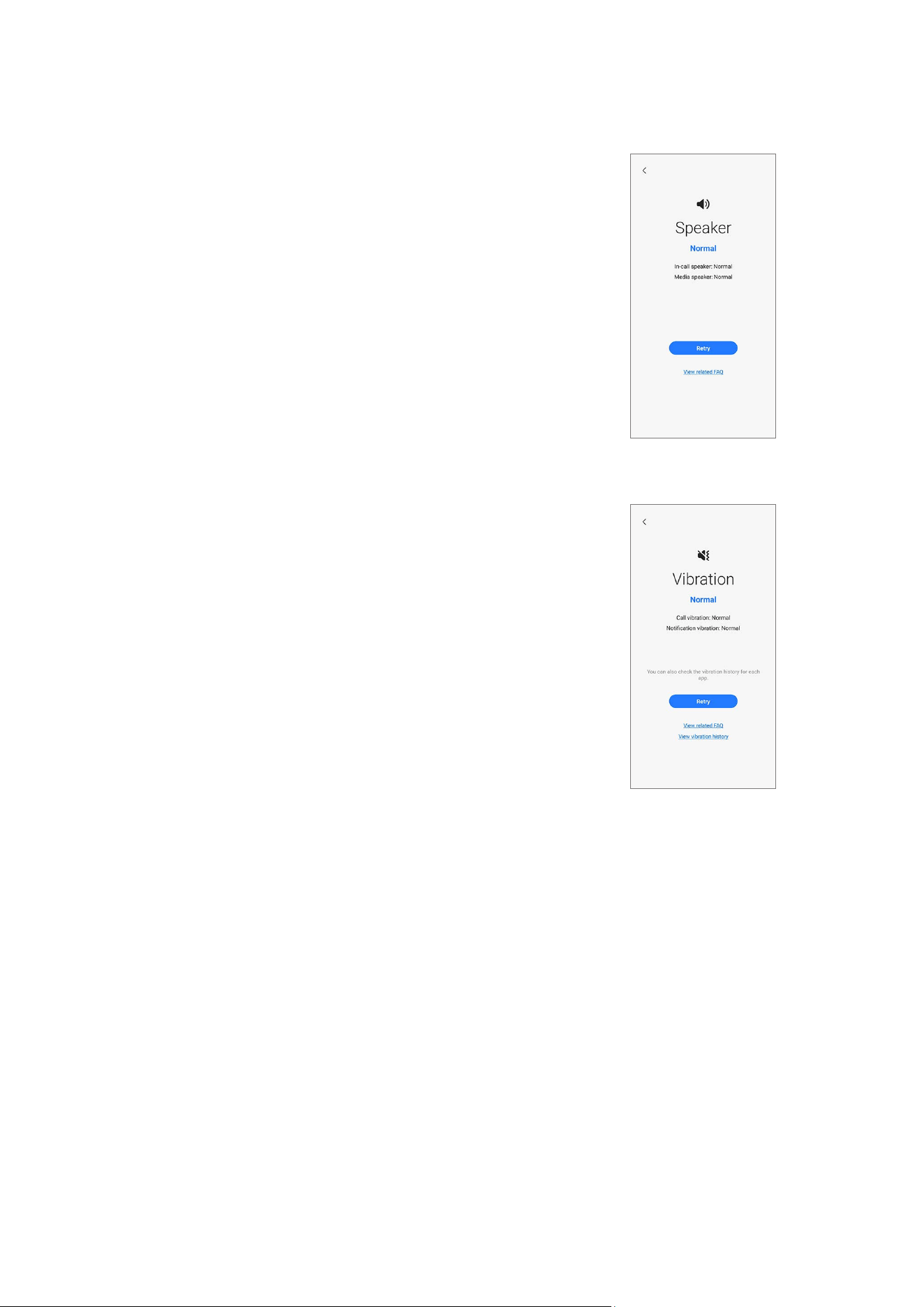

Speaker
•
Function: Check whether the speakers are
working normally.
•
Provided information
‒
Status: View whether the feature is working
normally.
‒
Speaker types: View the status of each
speaker.
‒
FAQ: View frequently asked questions.
Vibration
•
Function: Check whether the vibration feature is
working normally.
•
Provided information
‒
Status: View whether the feature is working
normally.
‒
Vibration types: View the status of each type
of vibration.
‒
FAQ: View frequently asked questions.
‒
History: View the vibration history.
Quality Test
18

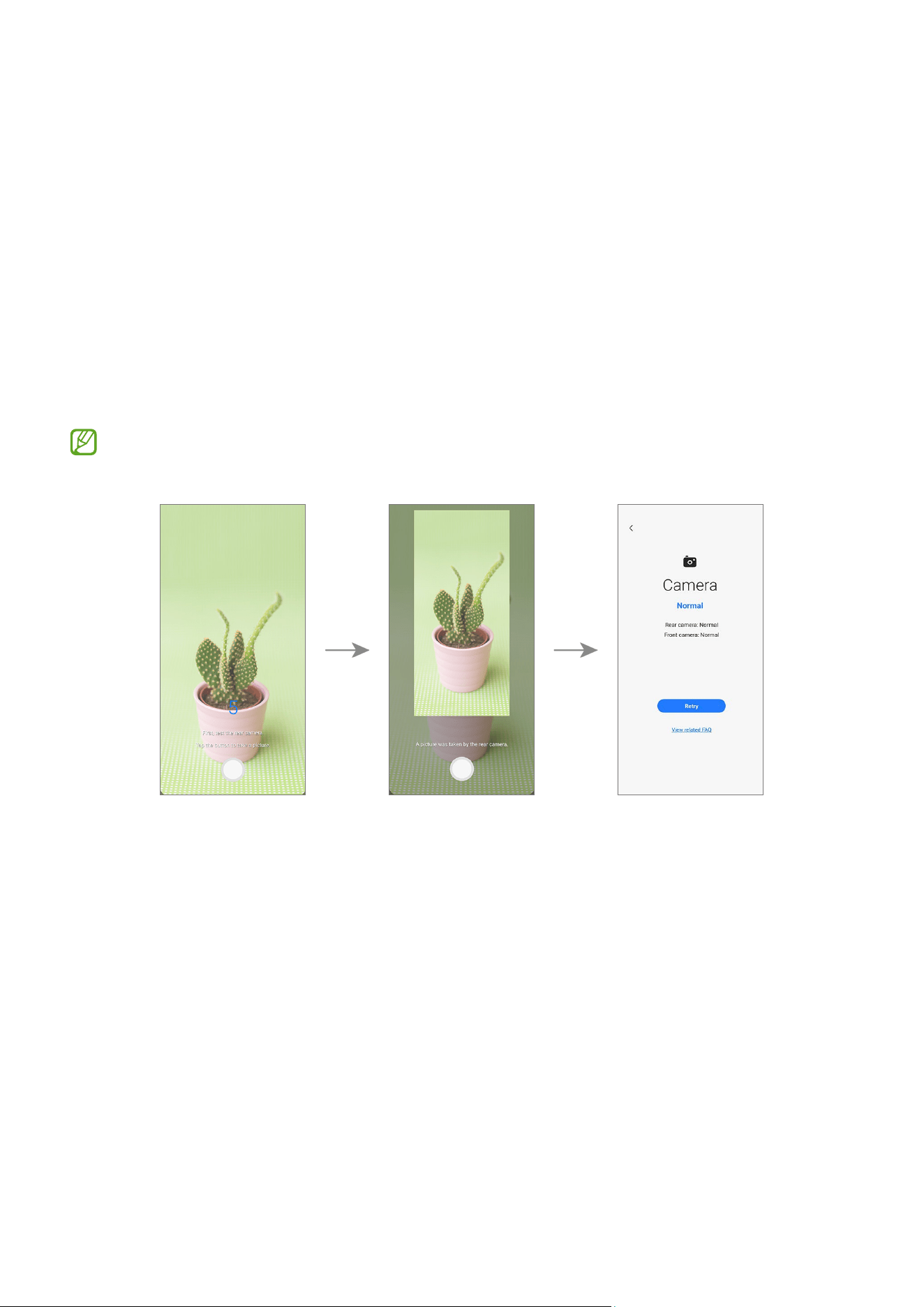

Camera
•
Function: Check whether the rear and front cameras are working normally.
•
How to check:
Tap the camera button to test the rear and front cameras.
The picture that was taken will be displayed to check the quality of the pictures.
•
Provided information
‒
Status: View the status whether the feature is working normally.
‒
Camera types: View the status of each camera.
‒
FAQ: View frequently asked questions.
To test this more accurately, check if the camera is obstructed by foreign objects,
the case, or protective film.
Quality Test
19

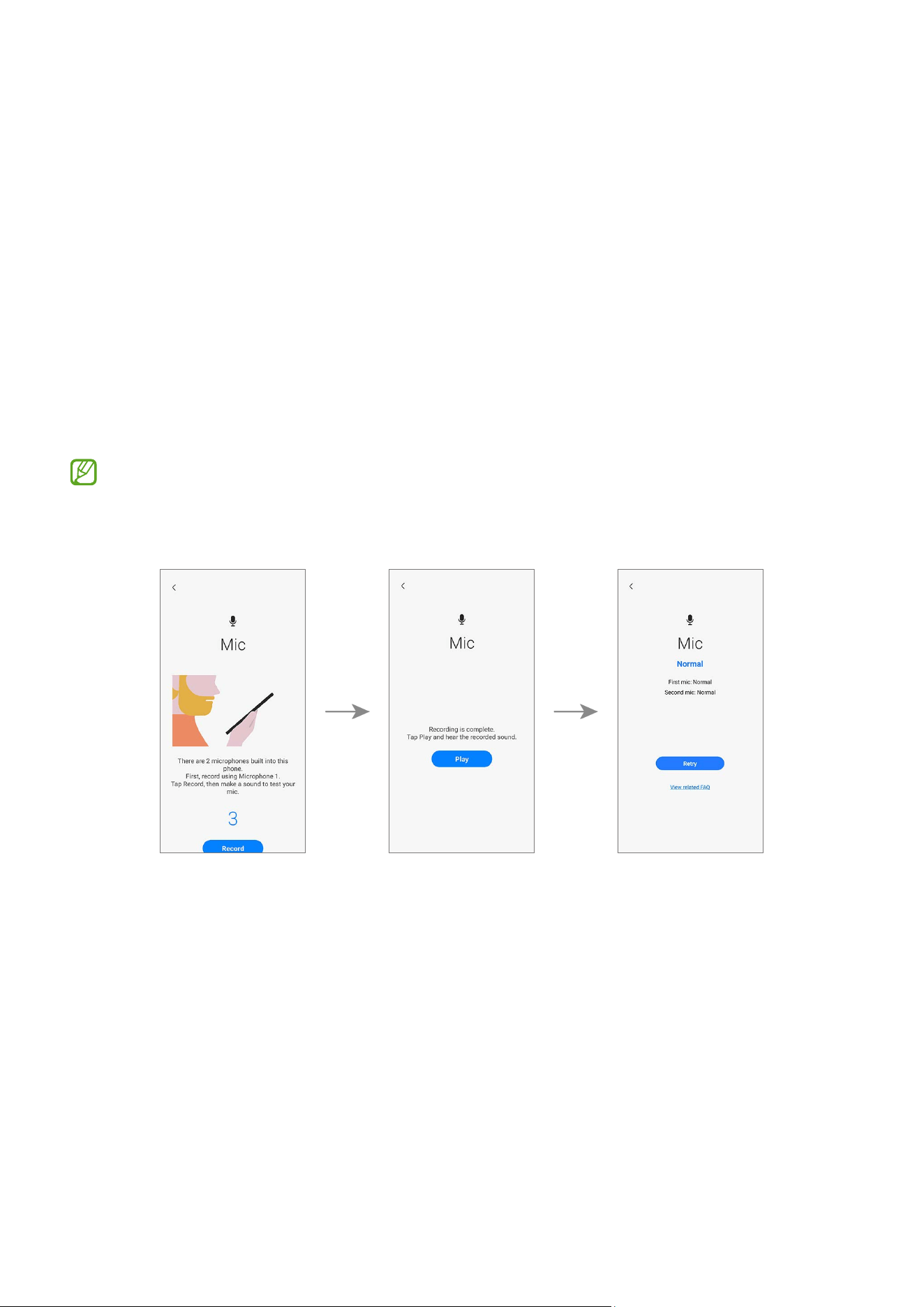

Mic
•
Function: Check whether the microphone is working normally.
•
How to check:
1) Tap
Record
and say something for the recording.
2) When the recording is finished, tap
Play
and select a button according to the
question.
•
Provided information
‒
Status: View whether the feature is working properly.
‒
Mic types: View the status of each mic.
‒
FAQ: View frequently asked questions.
•
The number of tests may vary depending on the model.
•
If you cannot hear anything after recording, check whether the media volume is
turned up.
Quality Test
20

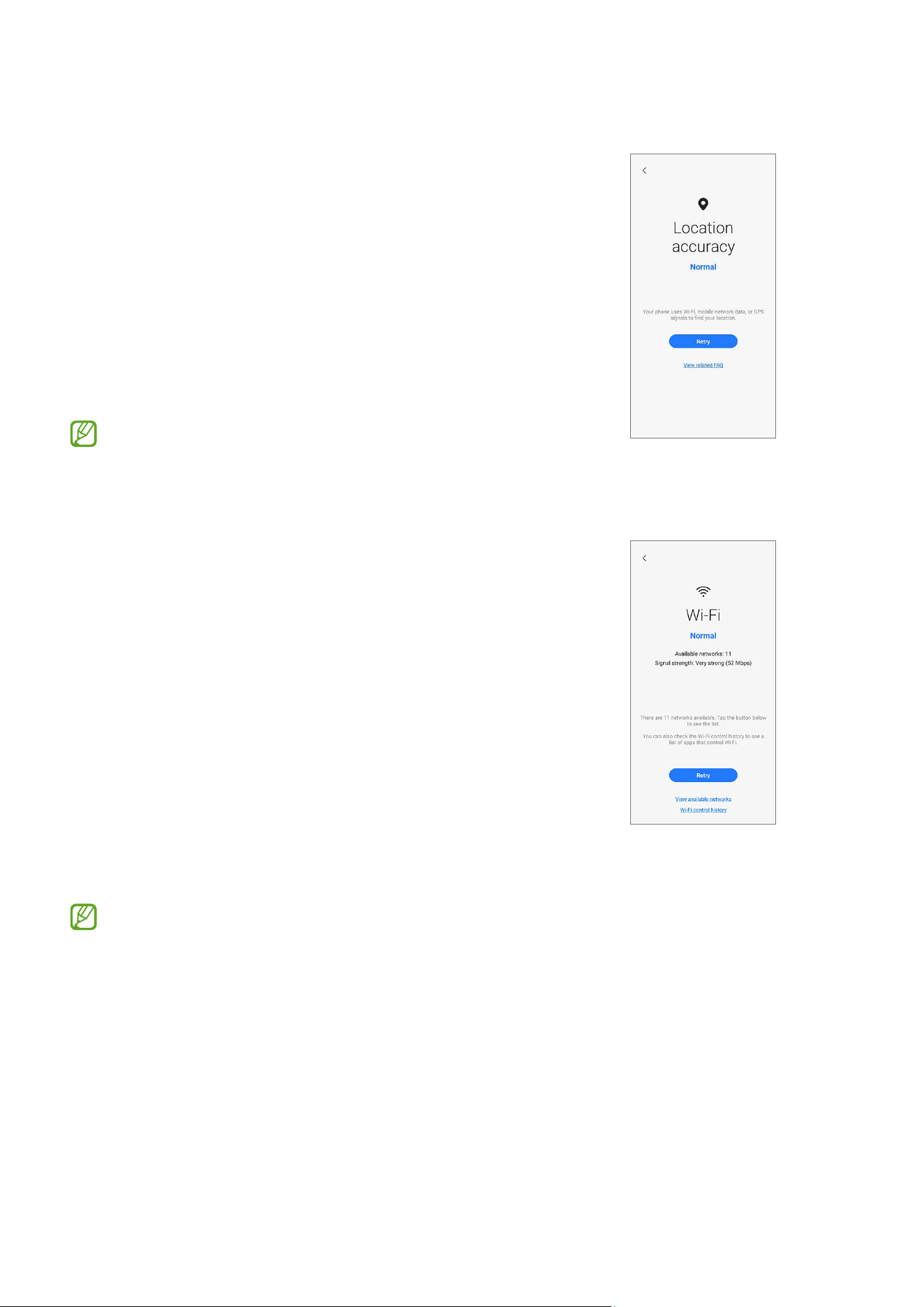

Location accuracy
•
Function: Check whether the location accuracy is
working normally.
•
How to check:
Tap
Start
.
•
Provided information
‒
Status: View whether the feature is working
normally.
‒
FAQ: View frequently asked questions.
The results might be more accurate when you
test outside.
Wi-Fi
•
Function: Check whether Wi-Fi can search for
Wi-Fi routers.
•
Provided information
‒
Status: View whether the feature is working
normally.
‒
Available networks: View the number of
available networks.
‒
Signal strength: View the signal strength of
the connected Wi-Fi router.
‒
Networks: View available networks.
‒
History: View the Wi-Fi control history.
To test this feature, the Wi-Fi feature must be
activated.
Quality Test
21

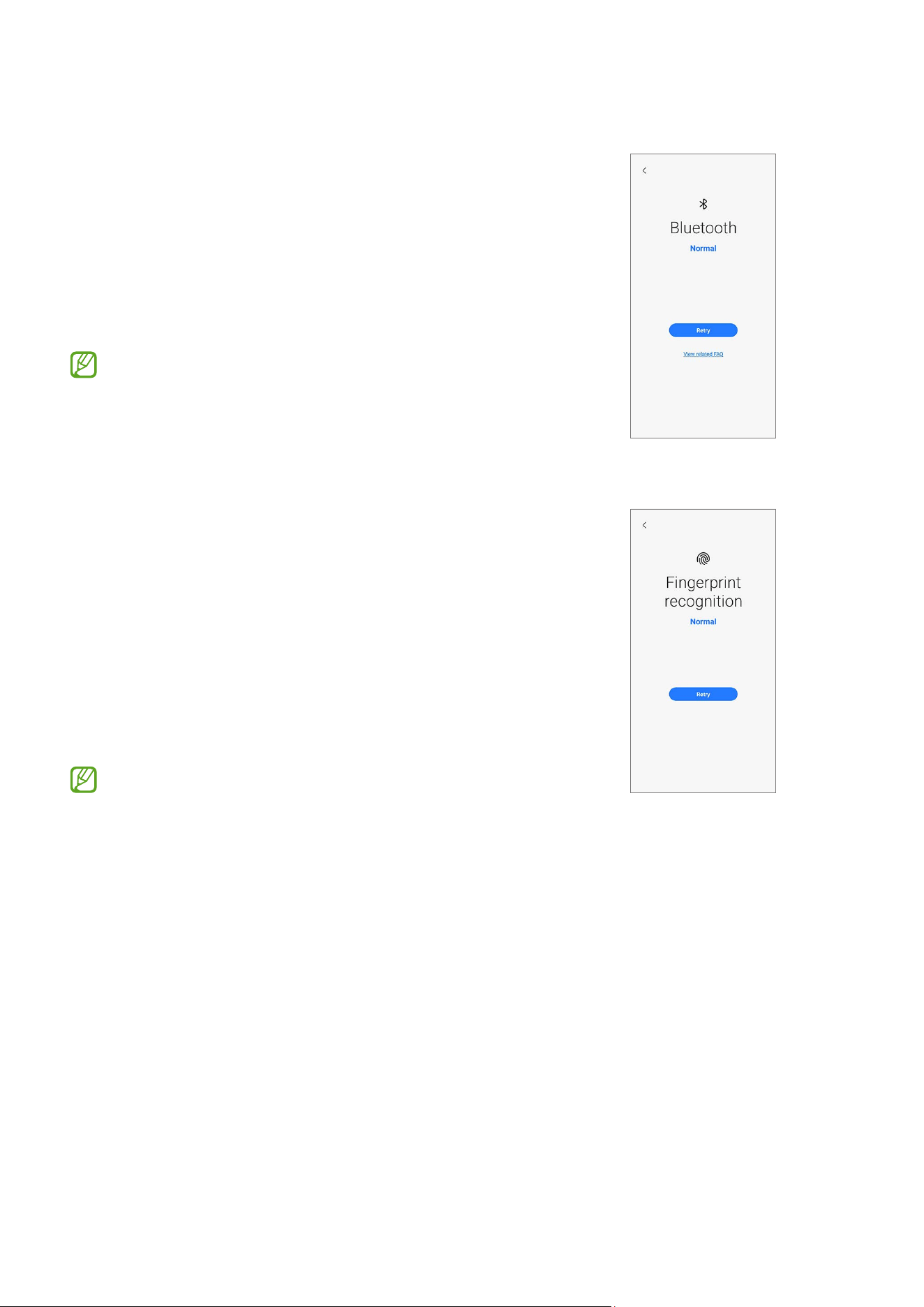

Bluetooth
•
Purpose: Check whether Bluetooth can search for
other Bluetooth devices.
•
Provided information
‒
Status: View whether the feature is working
normally.
‒
FAQ: View frequently asked questions.
To test this feature, the Bluetooth feature must
be activated.
Fingerprint recognition
•
Purpose: Check whether the fingerprint
recognition sensor is working.
•
How to check:
Place your finger on the fingerprint recognition
sensor.
•
Provided information
‒
Status: View whether the feature is working
normally.
To test this feature, your fingerprint must be
registered.
Quality Test
22
Face recognition
•
Purpose: Check whether the face recognition
sensor is working.
•
How to check:
Look at the screen.
•
Provided information
‒
Status: View whether the feature is working
normally.
‒
FAQ: View frequently asked questions.
To test this feature, your face must be
registered.

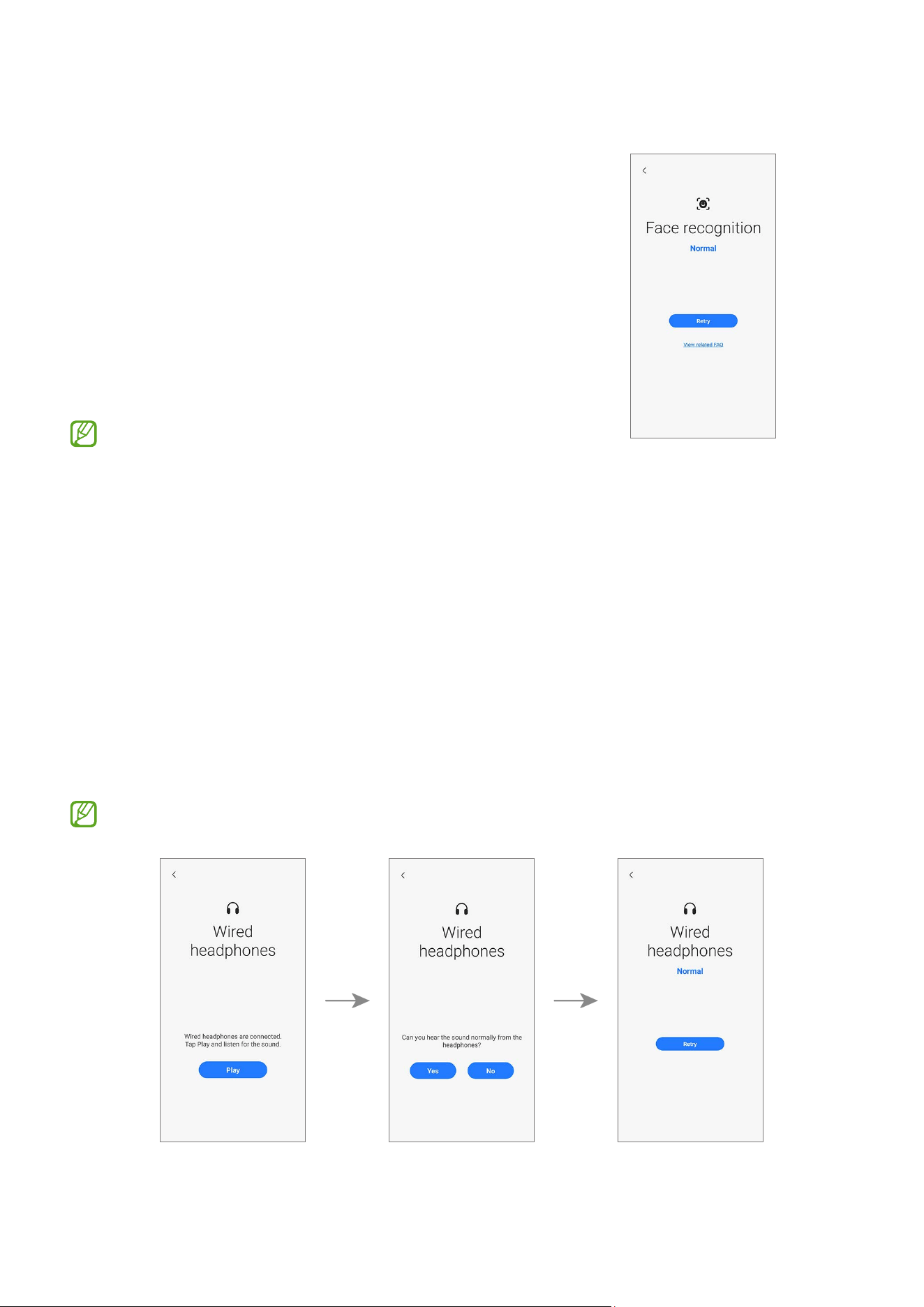

Wired headphones
•
Purpose: Check whether the headphone jack recognises the headphones normally.
•
How to check:
1) Connect headphones to your device.
2) Tap
Play
and listen for the sound.
3) Answer the question using the buttons.
•
Provided information
‒
Status: View whether the feature is working normally.
To test this feature, you must connect headphones.
Quality Test
23

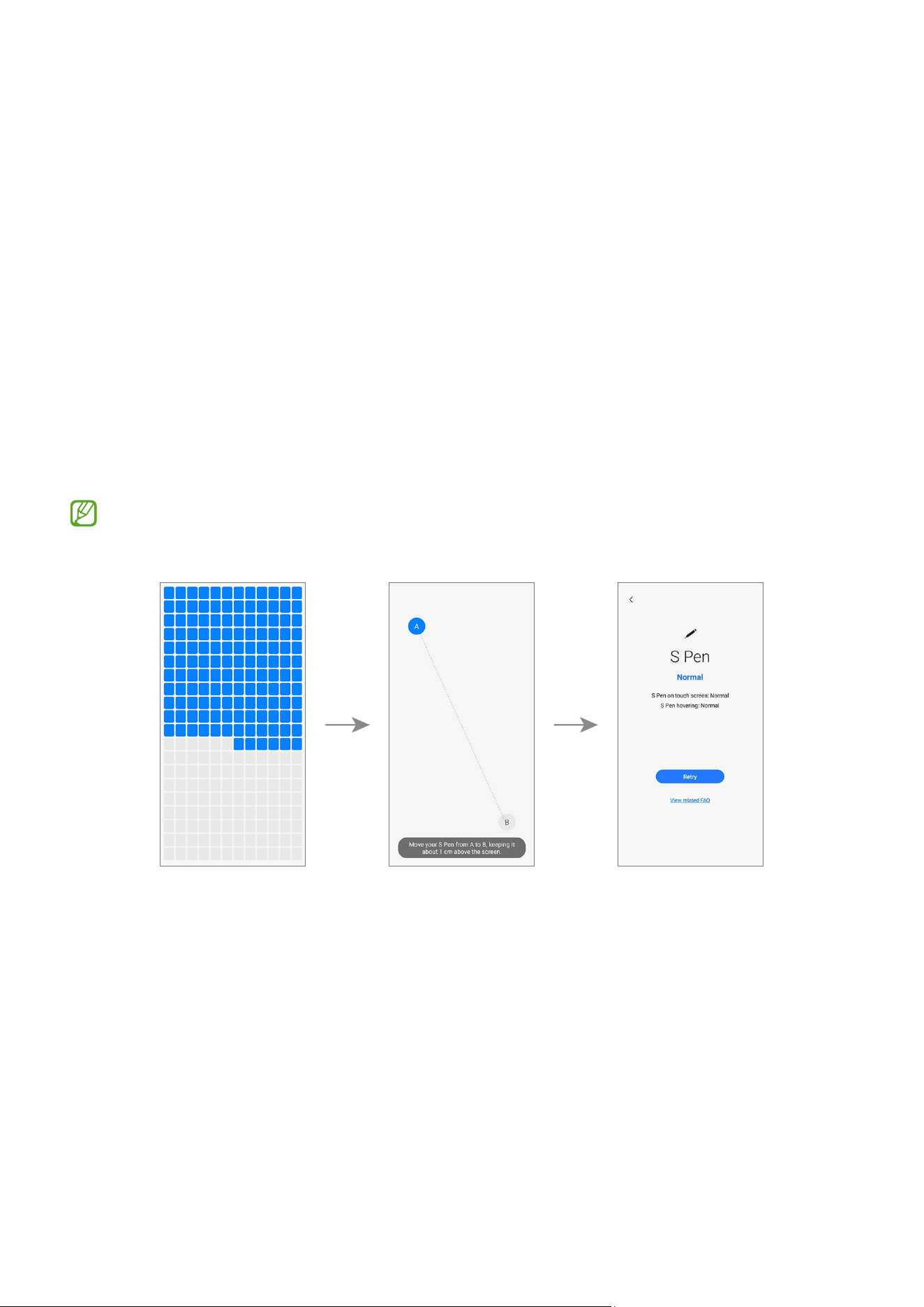

S Pen
•
Purpose: Check whether the S Pen is recognised in all areas of the touchscreen.
•
How to check:
1) Tap all the rectangles on the screen with the S Pen.
The tapped or dragged rectangles will turn blue.
2) Hover the S Pen over the screen and move from A to B.
The blue circle will move along with the S Pen.
•
Provided information
‒
Status: View whether the feature is working normally.
‒
S Pen features: View the status of S Pen features.
‒
FAQ: View frequently asked questions.
•
Make sure that the screen is clean to get more accurate test results.
•
This test is only available for the S Pen supported models.
Quality Test
24

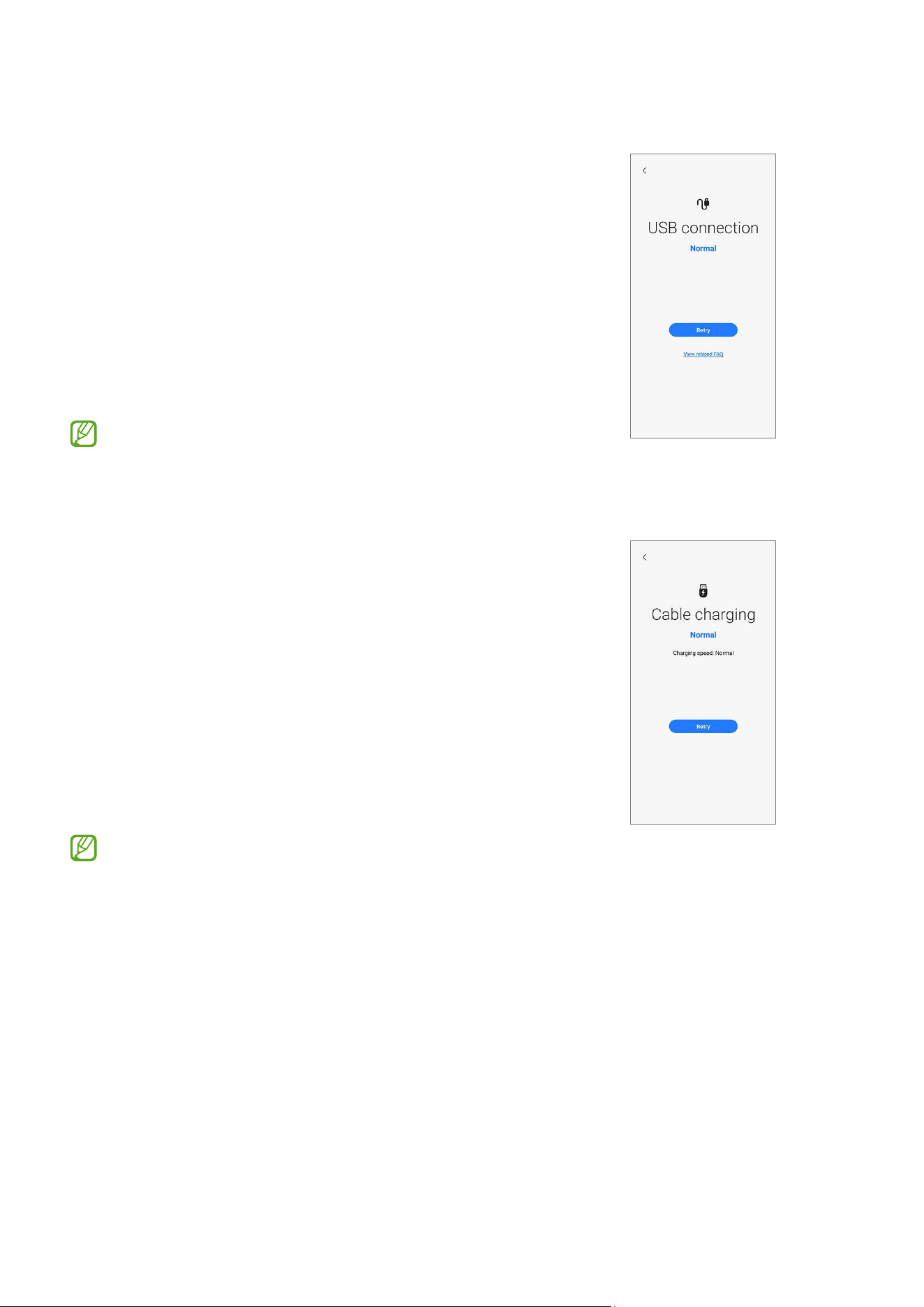

USB connection
•
Purpose: Check whether the multipurpose jack
recognises the USB cable normally.
•
How to check:
Connect any USB cable to your device.
•
Provided information
‒
Status: View whether the feature is working
normally.
‒
FAQ: View frequently asked questions.
To test this feature, the USB cable must be
connected to a computer.
Cable charging
•
Purpose: Check whether the multipurpose jack
recognises the charger normally.
•
How to check:
Connect a charger to your device.
•
Provided information
‒
Status: View whether the feature is working
normally.
‒
Charging speed: View the charging speed
according to the charger you connected.
Use only Samsung-approved chargers.
Quality Test
25

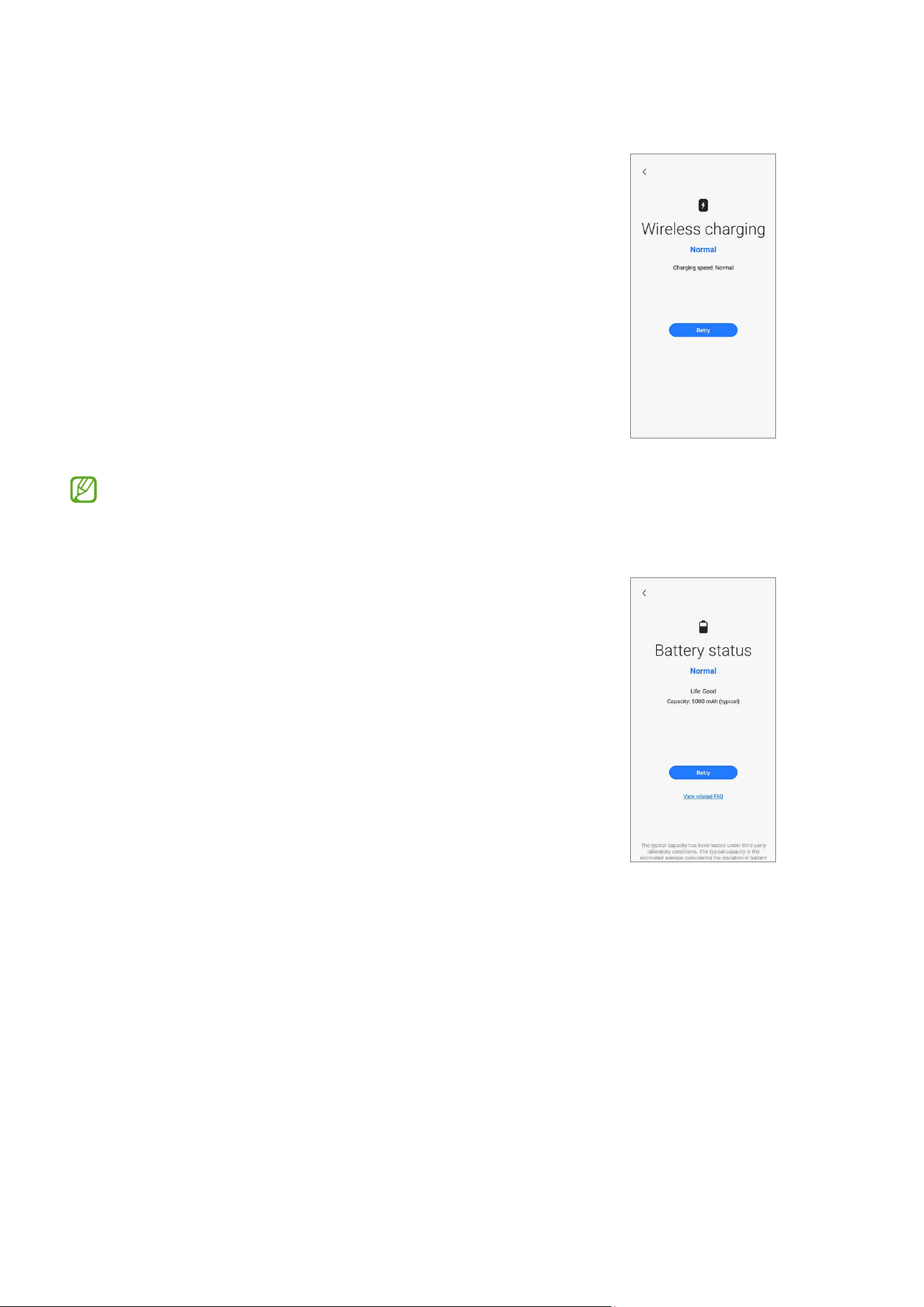

Wireless charging
•
Purpose: Check whether the wireless charging
feature is working normally.
•
How to check:
Put your device on a wireless charger.
•
Provided information
‒
Status: View whether the feature is working
normally.
‒
Charging speed: View the charging speed
according to the wireless charger you put your
device on.
Use only Samsung-approved wireless chargers.
Battery status
•
Function: Check the battery values and analysis.
•
Provided information
‒
Status: View whether the feature is working
normally.
‒
Life: View the remaining battery life
(measured by comprehensive battery values).
‒
Capacity: View the battery capacity.
‒
FAQ: View frequently asked questions.
Calibrations
26
Calibrations
Calibrations
In order to guarantee the stable and correct performance of components or sensors, it is
required to conduct calibrations through the
Self Repair Assistant
app after repair.
If the calibration results show any malfunctions, visit a Samsung Service Centre for
further action. Any malfunctions caused by your repair may incur additional repair
charges.
•
The
Self Repair Assistant
app is subject to update without any prior notice.
•
In order to conduct the accurate calibrations after repair, visit a Samsung Service
Centre or website to buy calibration equipment if you do not have any.
Used Parts and Calibration Functions in Supported Models
The calibration functions are automatically conducted based on the selected parts.
Screen Battery Back Glass Charging Port Speaker
Optical
Fingerprint Cal.
Yes No No No No
Range Sensor
Cal.
Yes Yes Yes Yes Yes
Battery Cycle
Resets.
No Yes No No No
Touch Screen
Panel Cal.
Yes No No No No
Speaker Cal. No No No No Yes
Under-display
Camera Cal.
Yes No No No No
Digital Hall
Sensor Cal.
Yes No No No No
Calibrations
27
•
Depending on the model, the screen module may include batteries. So when
the screen module is replaced, the battery also has to be selected and a battery
cycle reset must be performed.
•
In the Fold models, touch screen panel calibration is performed for both the
main and cover screens.
•
Digital hall sensor calibration is only for the Fold and Flip models and
under-display camera calibration is only for the Fold models.
Using the Self Repair Assistant App
1 Download the
Self Repair Assistant
app from
Galaxy Store
.

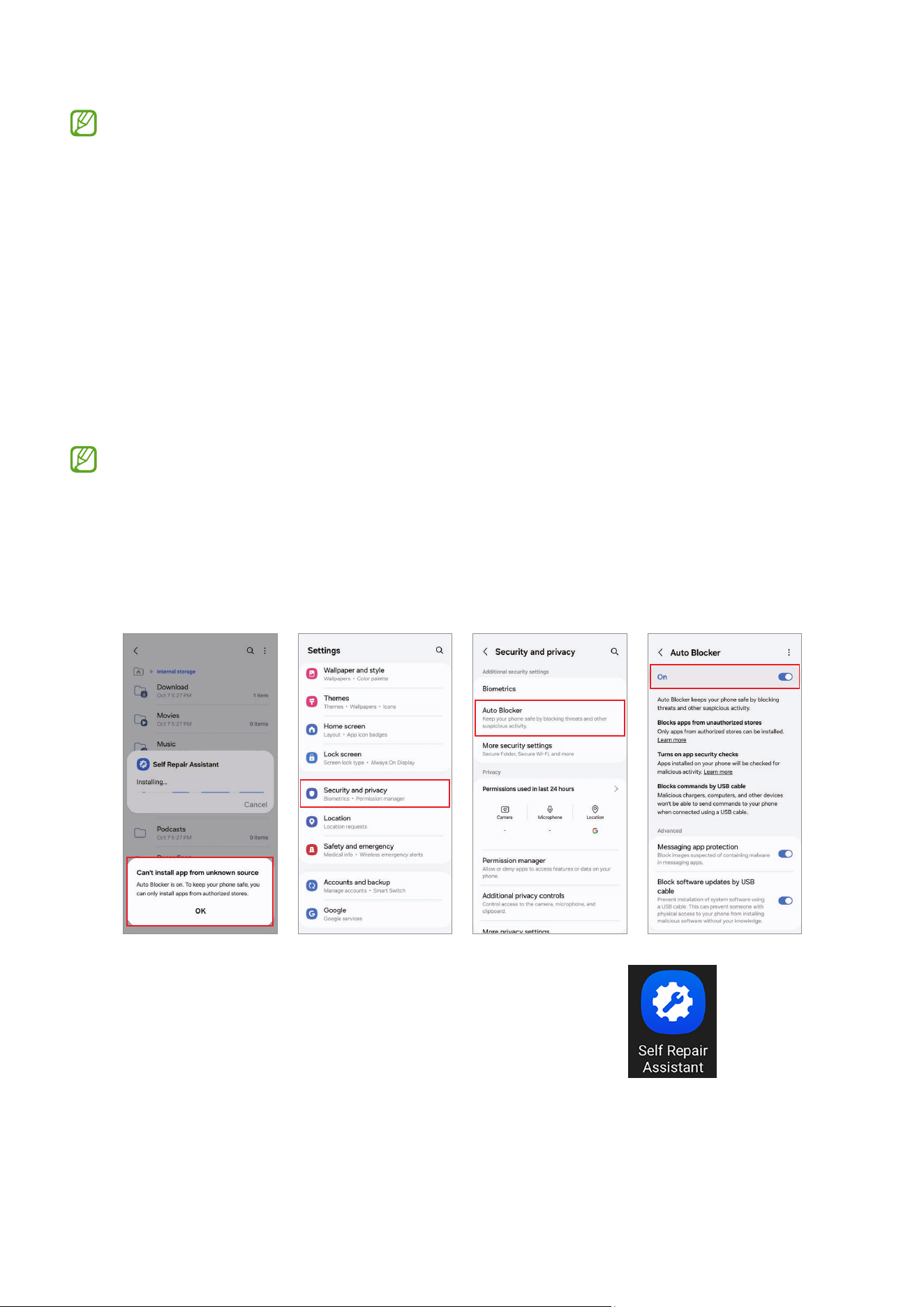

For US devices, you need to install the APK file for the
Self Repair Assistant
app
manually. However, if the
Auto Blocker
function which is provided from Android
OS 14 (U OS) is turned on, you cannot install any APK files manually through the
My
Files
app. In this case, launch the
Settings
app, tap
Security and privacy
→
Auto
Blocker
, and then tap the switch to turn it off to install the
Self Repair Assistant
app.
2 Launch the
Self Repair Assistant
app.
Calibrations
28

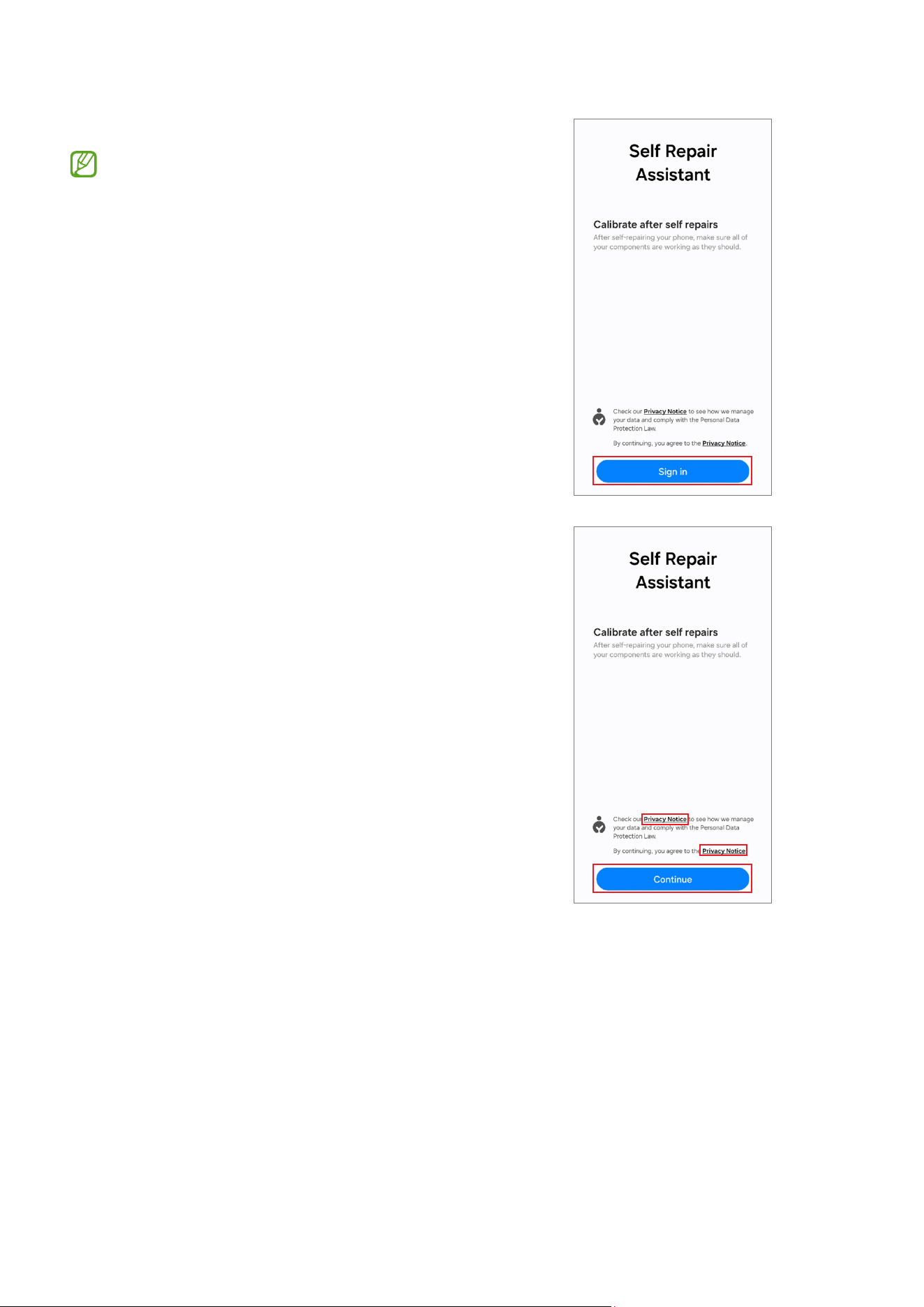

3 Read Privacy Notice and tap
Continue
.
•
If you are not signed in to your
Samsung account, a button will appear
to sign in.
•
If you select the link to read the full
Privacy Notice, you will be directed to
our site.
Calibrations
29

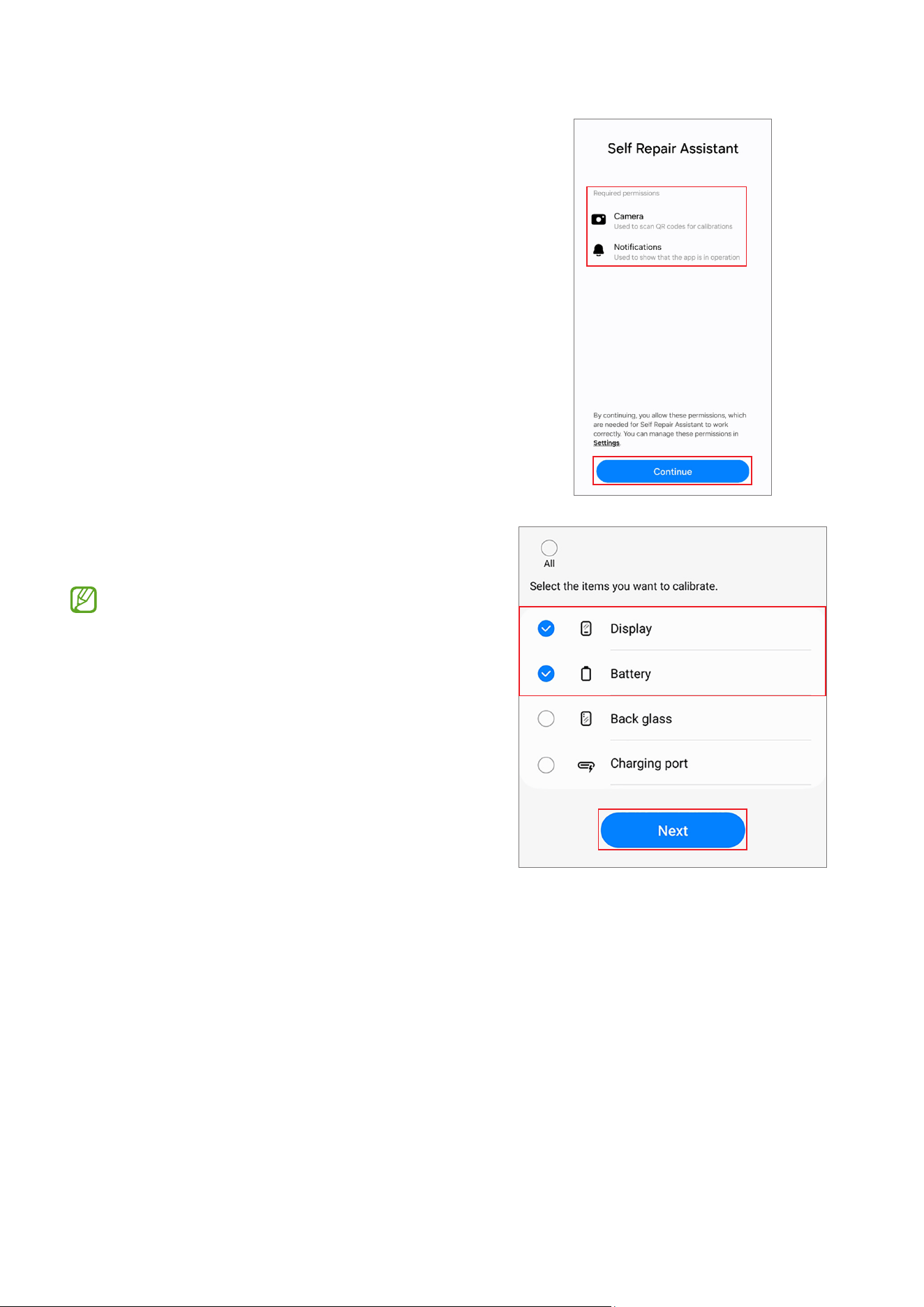

4 Check permissions and tap
Continue
.

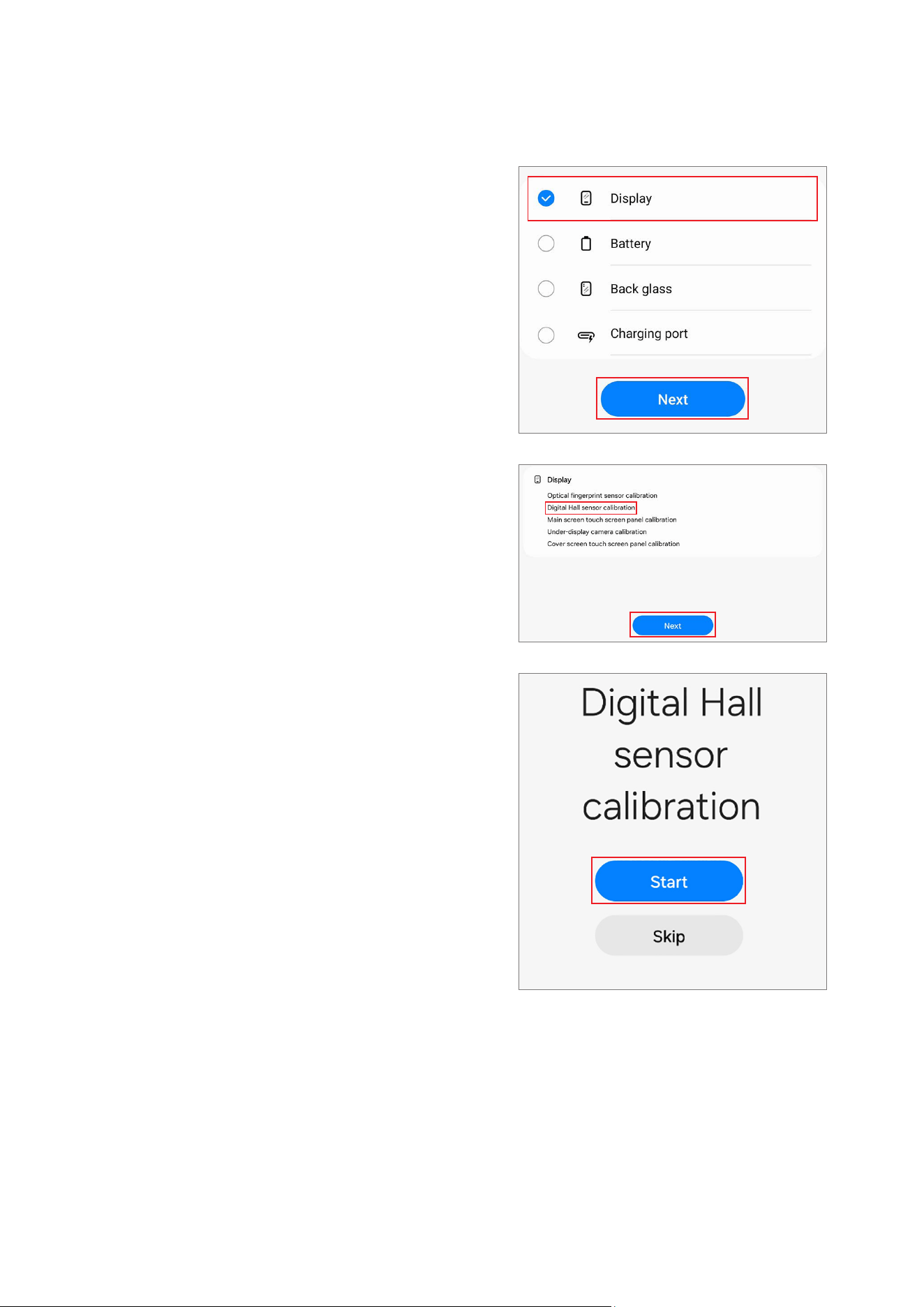

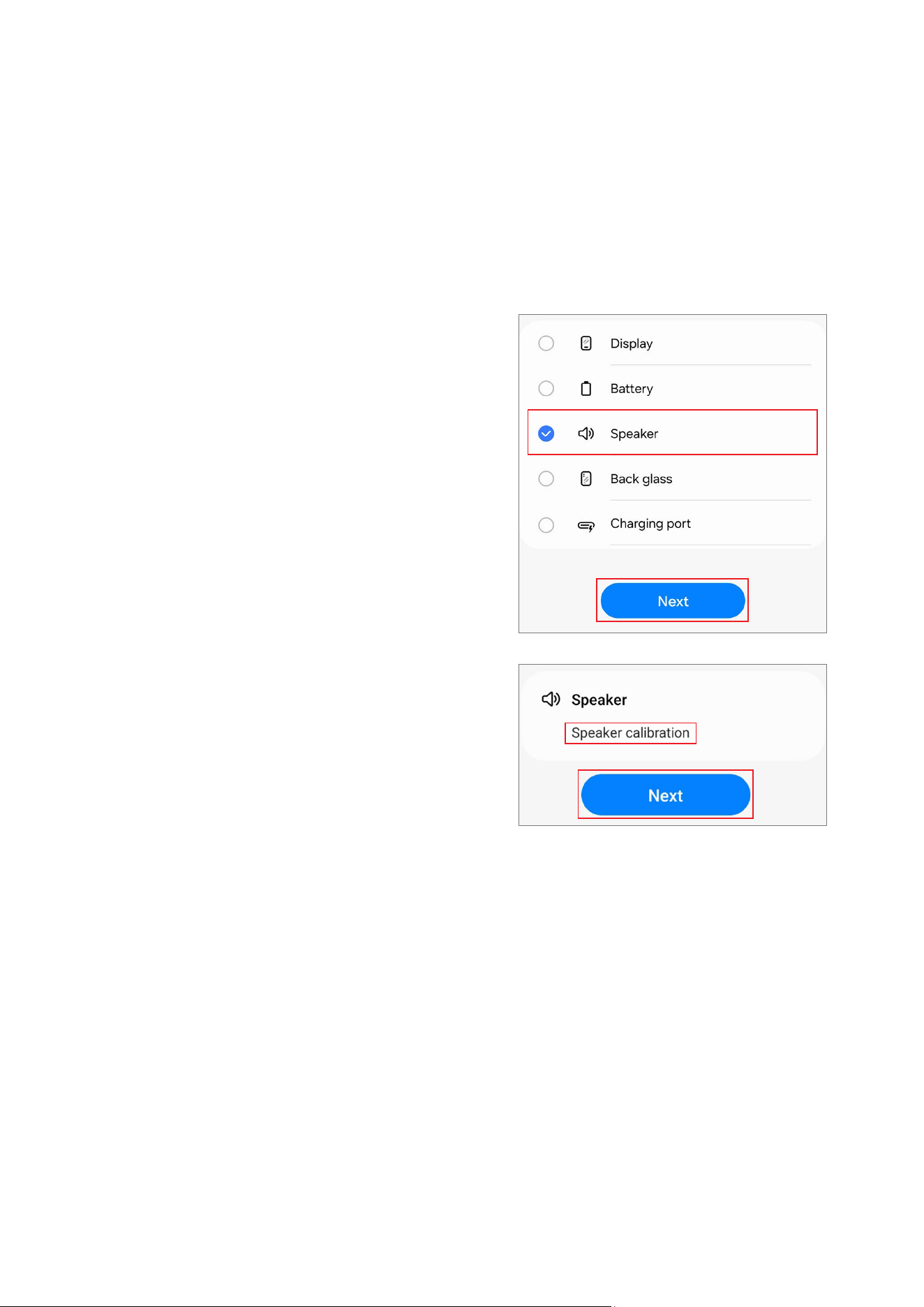

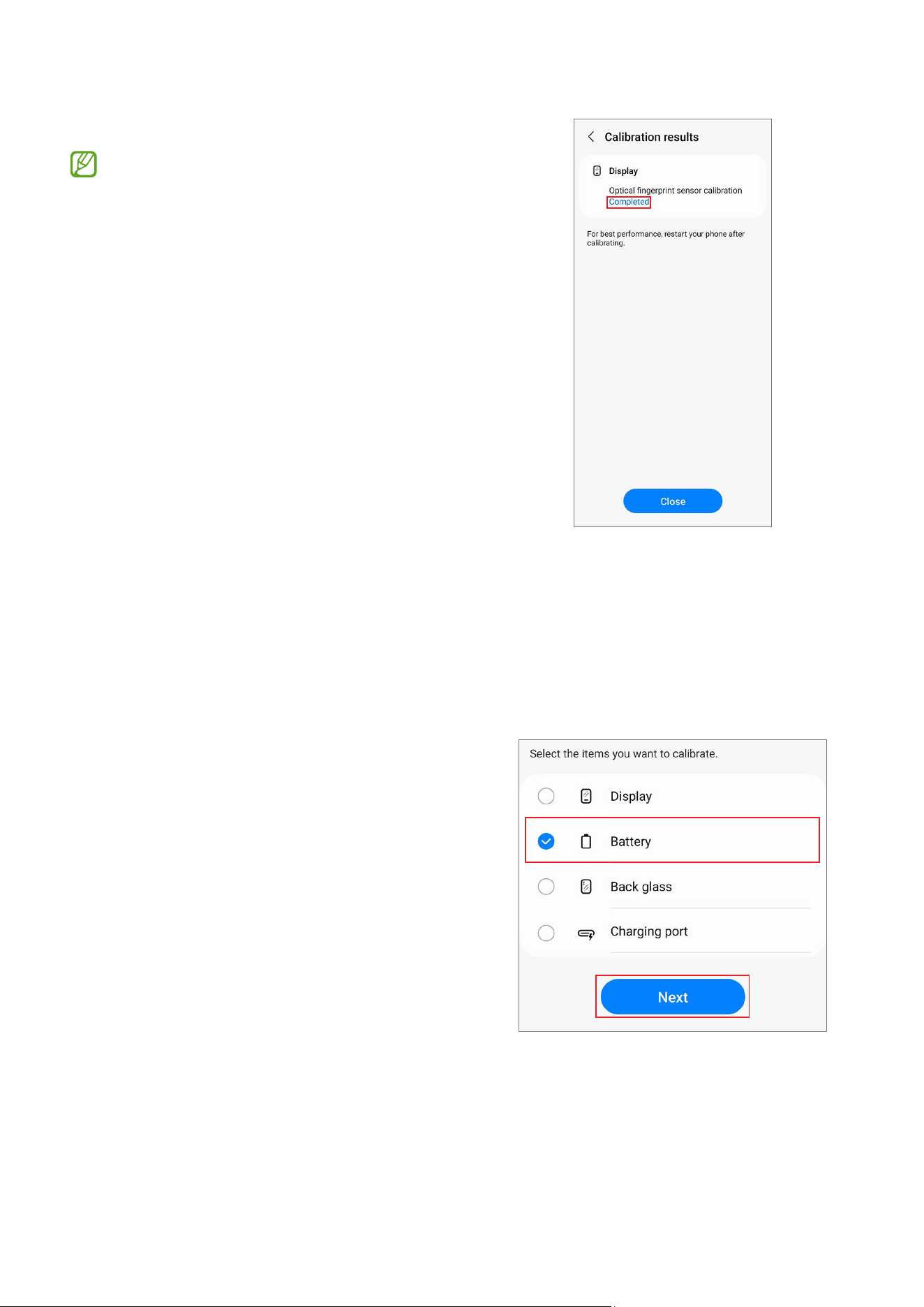

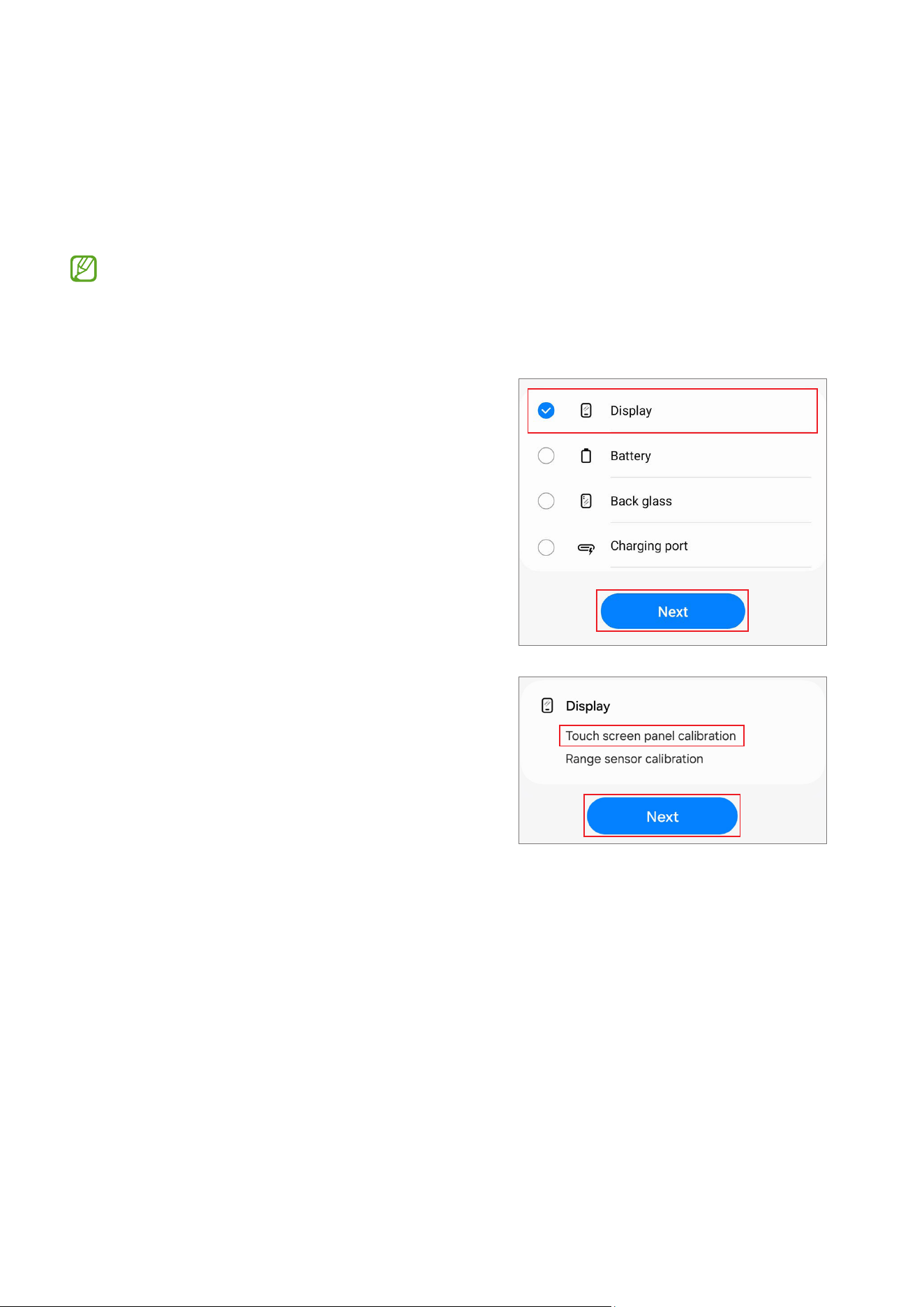

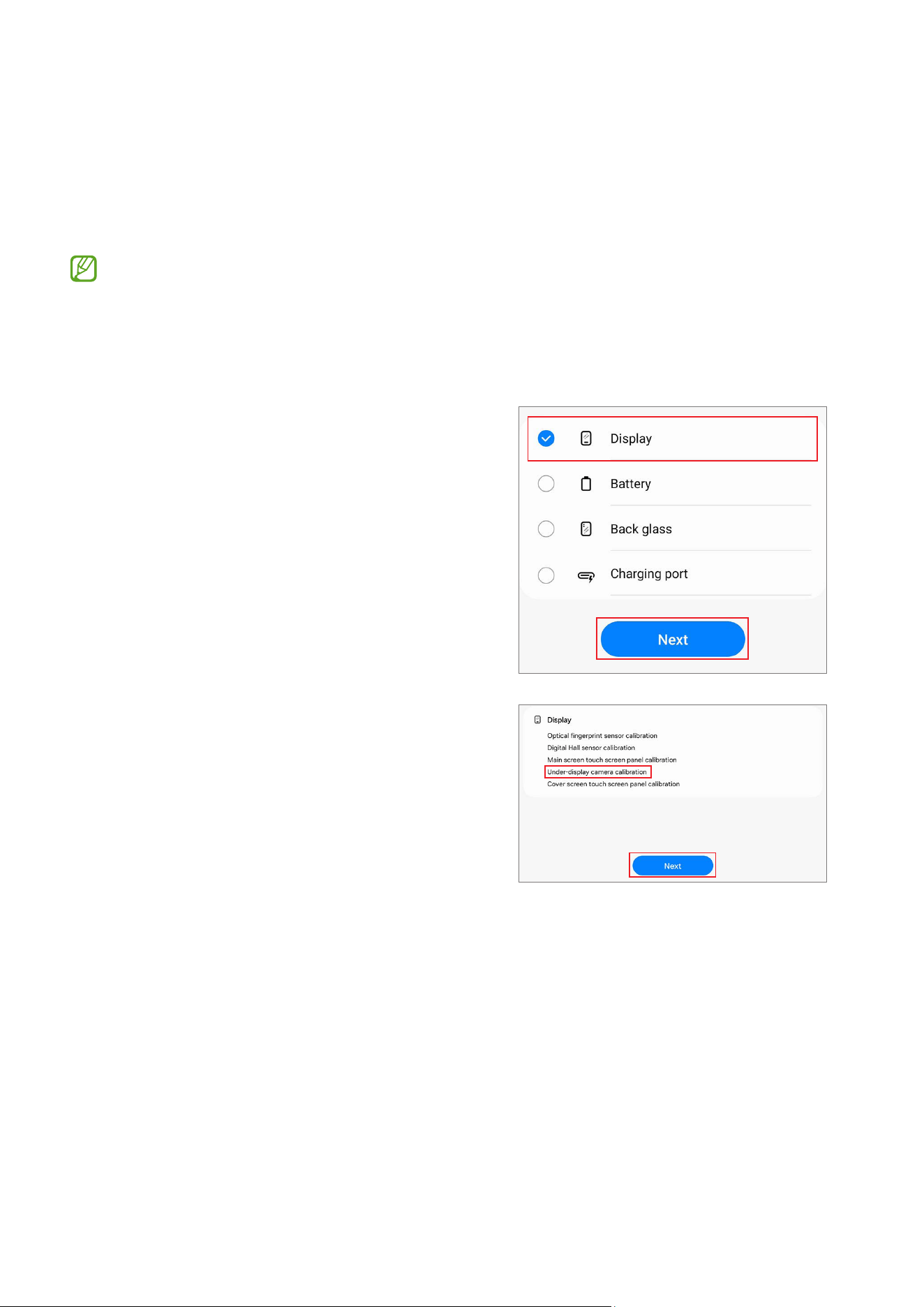

5 Select the part that you have replaced and
tap
Next
.
•
The required calibrations will be
conducted automatically.
•
If the device does not have certain
components or sensors associated
with the part that has been replaced,
relative calibration will be skipped
automatically.
Calibrations
30

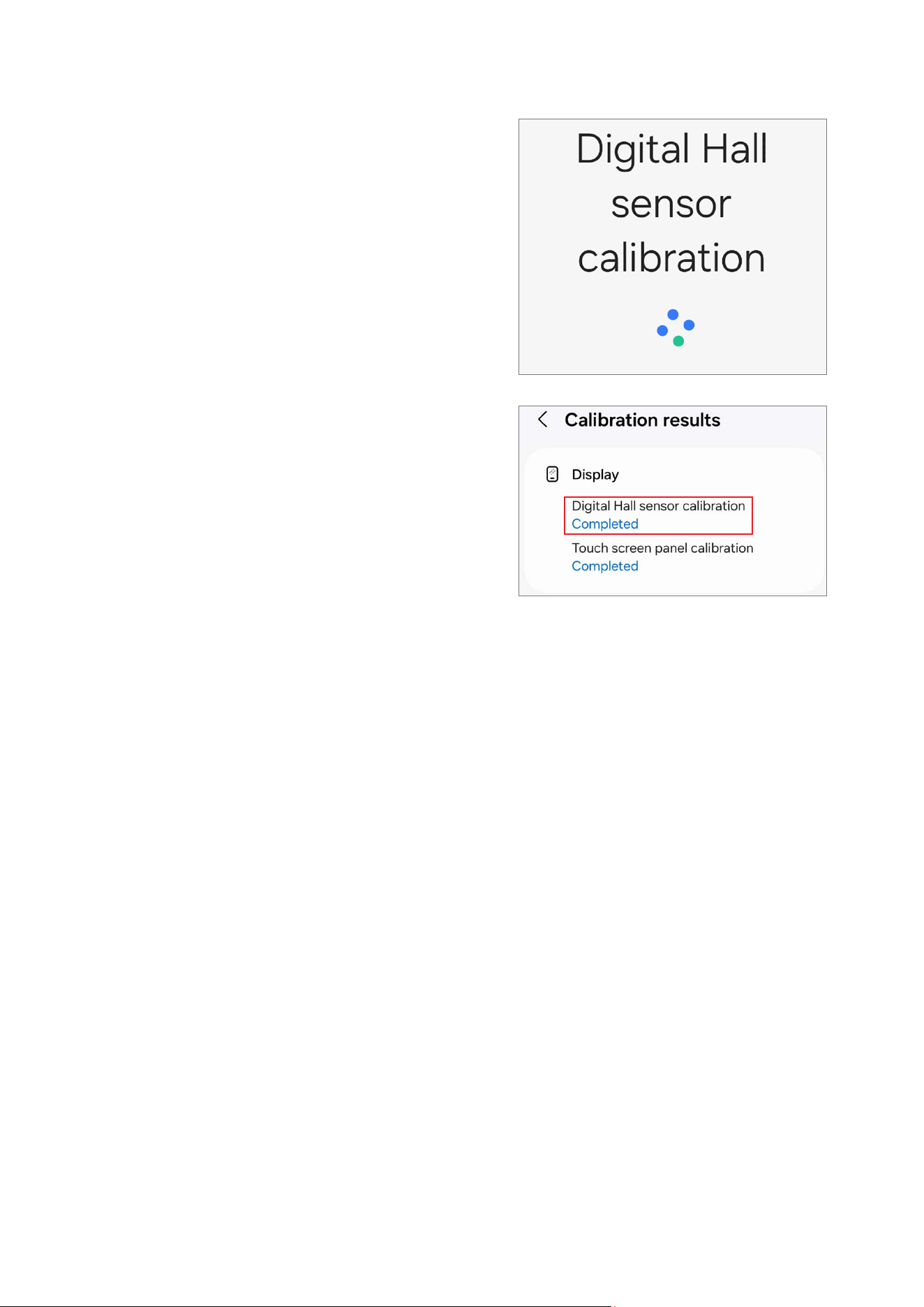

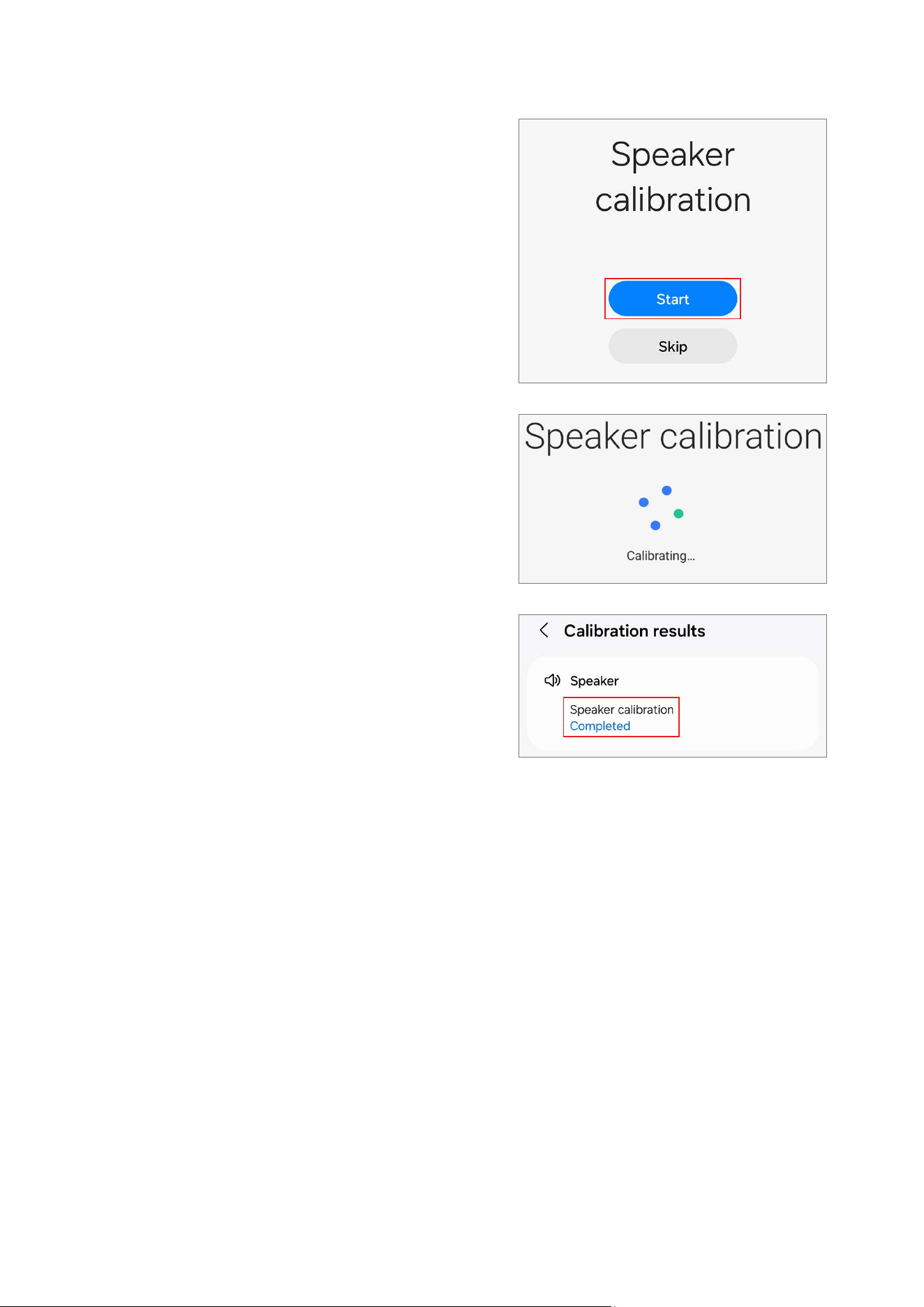

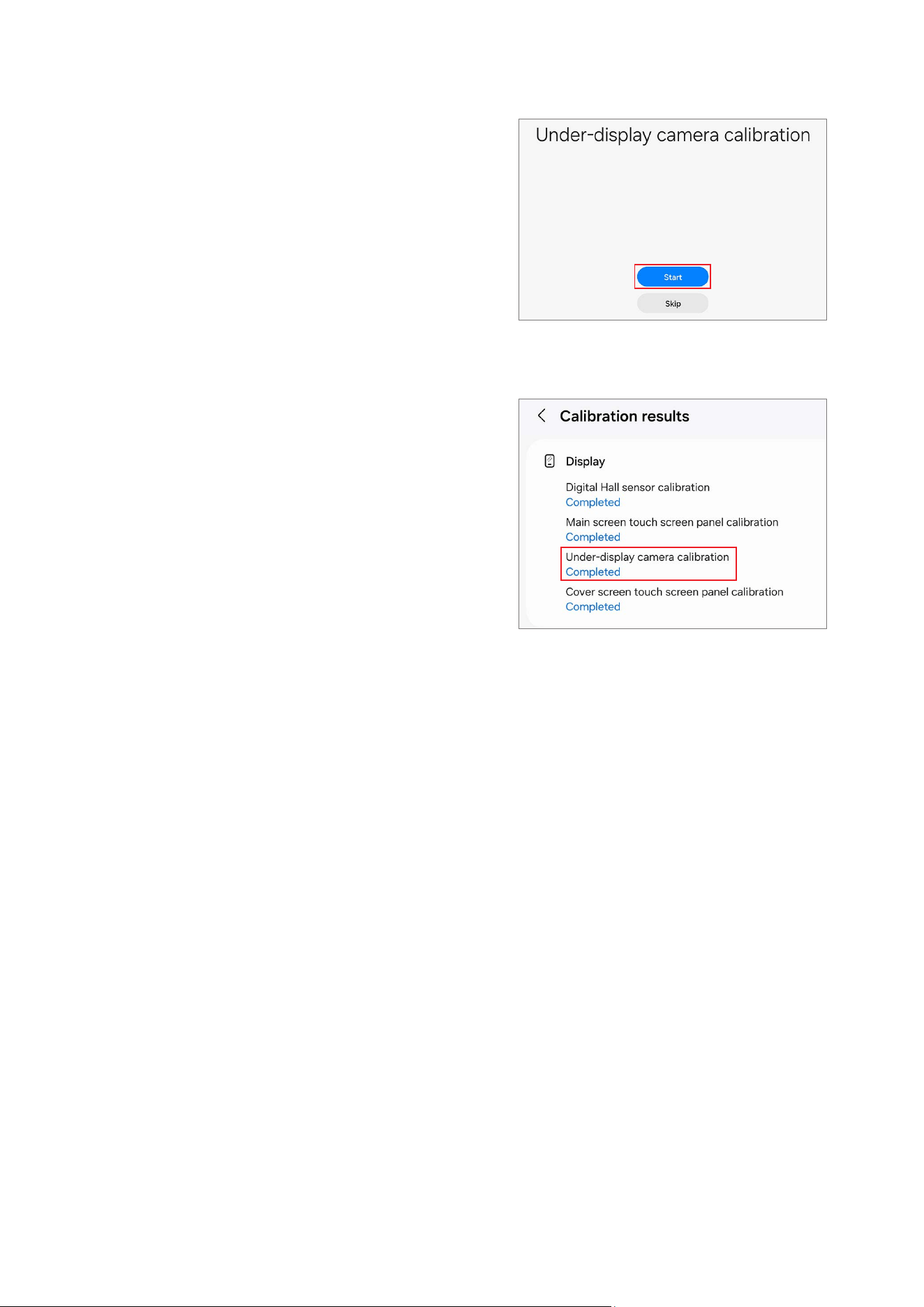

6 Read the on-screen instructions and tap
Start
.

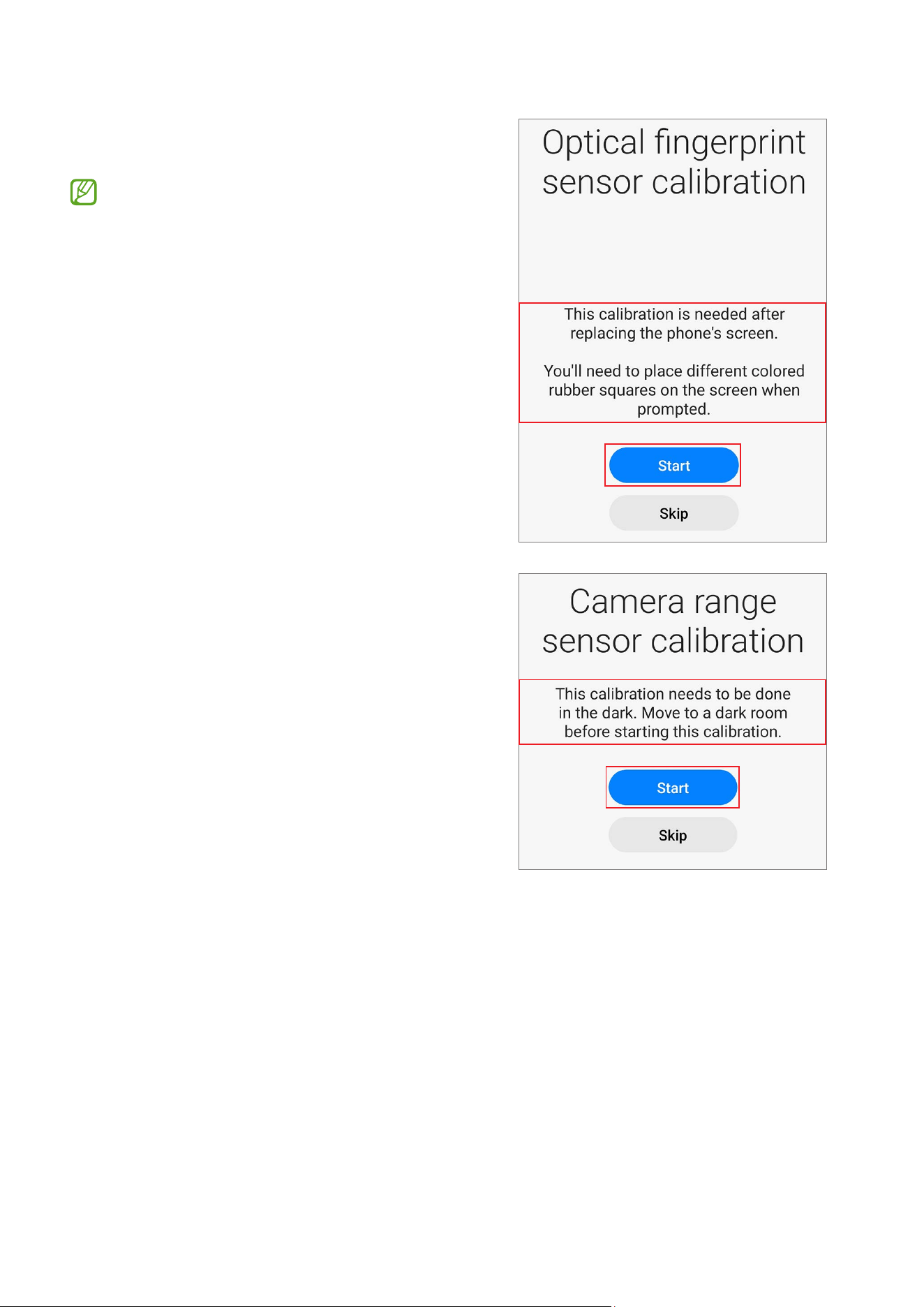

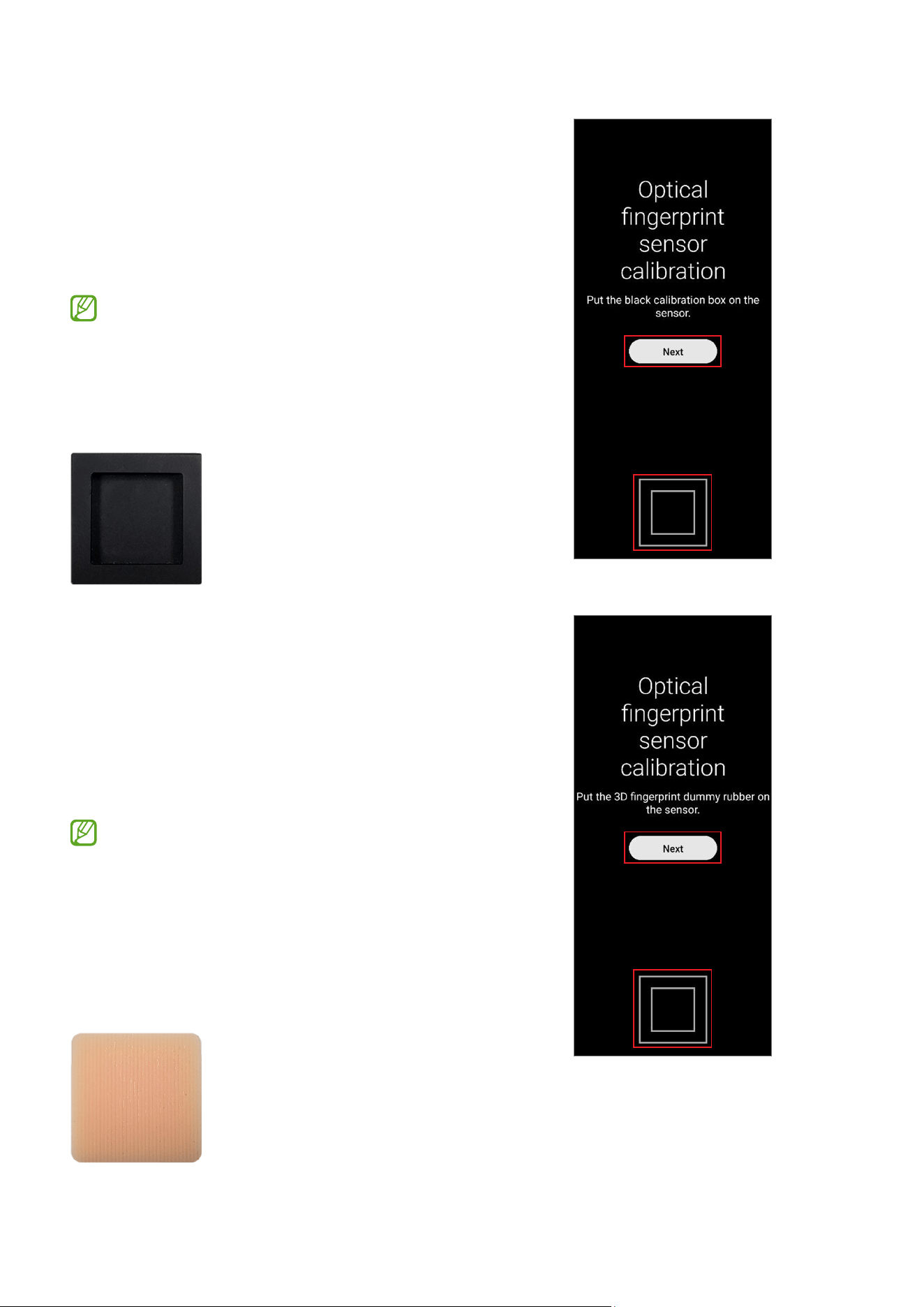

Refer to Optical Fingerprint Sensor
Calibration, Resetting the Battery Cycle
Count, Range Sensor Calibration, Touch
Screen Panel Calibration, Speaker
Calibration, Under-display Camera
Calibration (Fold Models Only), and
Digital Hall Sensor Calibration (Fold and
Flip Models Only) for more information.
Calibrations
31
7 Check the results of each calibration item.
•
Completed
: Calibration was done
normally.
•
Failed
: Calibration failed.
•
Skipped
: Calibration was skipped.
8 On the calibration results page, tap
Close
to close the app.
Restart your device to finish calibrating.
Calibrations
32

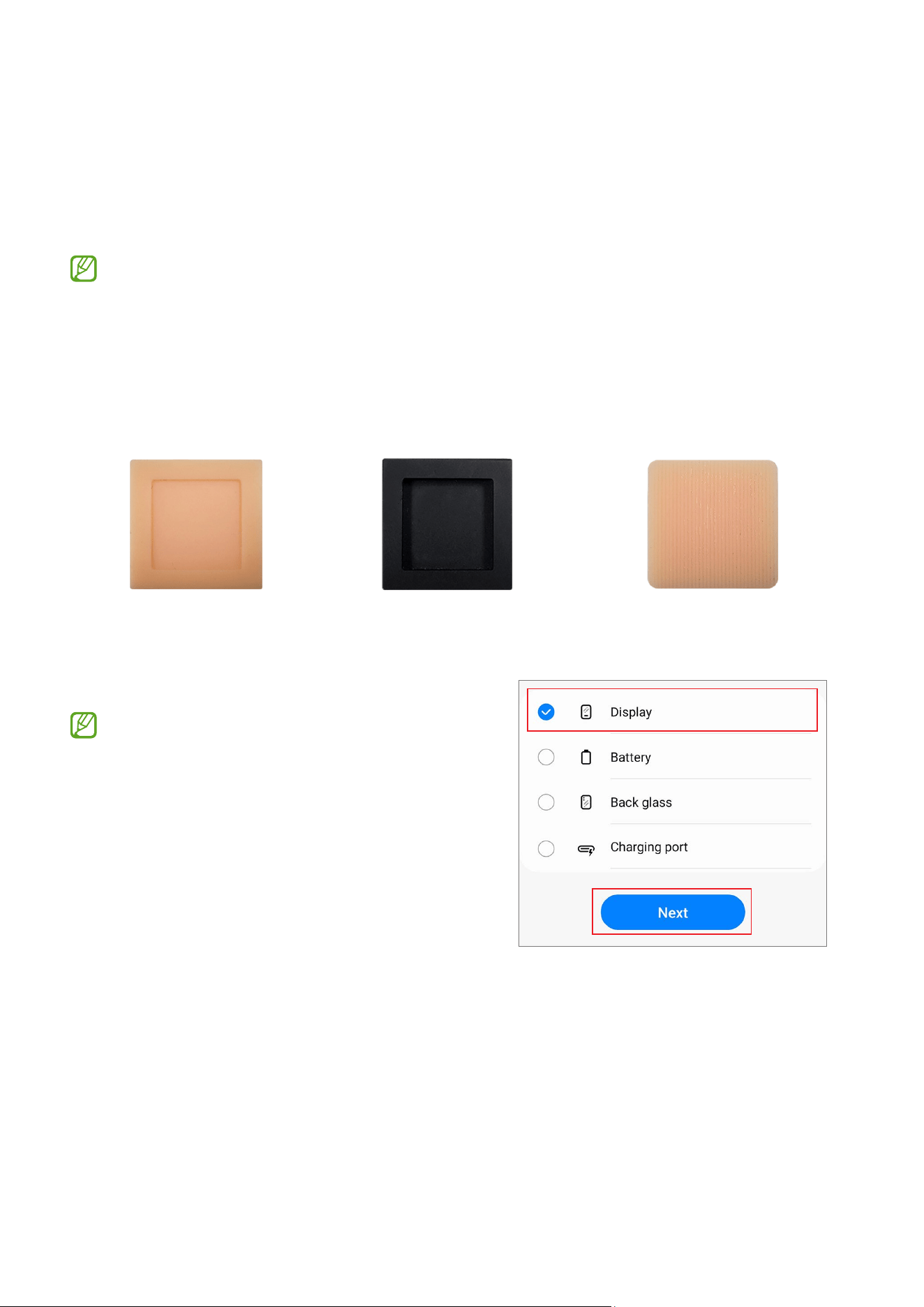

Optical Fingerprint Sensor Calibration
Whenever the screen is replaced, the optical fingerprint sensor must be calibrated to
guarantee optimised fingerprint sensor performance for devices that have it.
Optical fingerprint sensor calibration is available through the
Self Repair Assistant
app.
•
This feature may not be available depending on the model. The availability of
this feature can be automatically checked in the Self Repair Assistant app, so
please follow the guidance of the Self Repair Assistant app.
•
Three rubbers (the white calibration box, the black calibration box, and the 3D
fingerprint dummy rubber) are required to start this calibration.
White calibration box Black calibration box 3D fingerprint dummy rubber
1 Launch the
Self Repair Assistant
app.
2 Tap
Display
→
Next
.
•
The required calibration or test items
will be processed automatically.
•
If the device does not have certain
components or sensors associated
with the part that has been replaced,
relative calibration will be skipped
automatically.
Calibrations
33

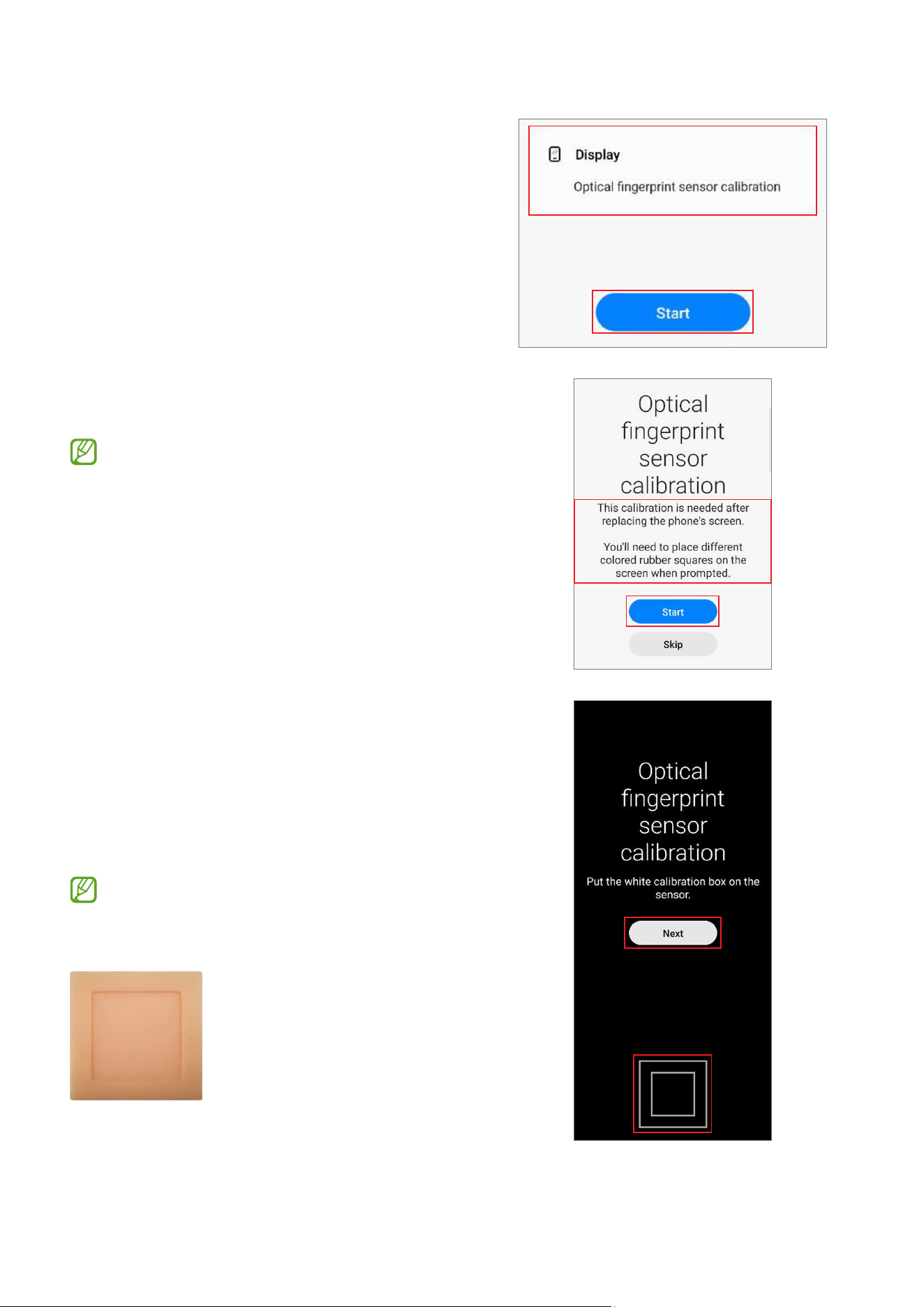

3 Check the part and calibration and then tap
Start
.
4 Read the on-screen instructions and tap
Start
.
The white calibration box must be
prepared before you start.
5 Put the white calibration box on the sensor
area (below the square side) and push the
rubber by applying force with your finger.
Tap
Next
and keep pushing the rubber
with your finger until you see the success
message.
The bottom side of the rubber that is
shaped like a square should be located
on the square guide line.
Calibrations
34
6 Put the black calibration box on the sensor
area (below the square side) and push the
rubber by applying force with your finger.
Tap
Next
and keep pushing the rubber
with your finger until you see the success
message.
•
The black calibration box must be
prepared before you start.
•
The bottom side of the rubber that is
shaped like a square should be located
on the square guide line.
7 Put the 3D fingerprint dummy rubber on
the sensor area (below the square side) and
push the rubber by applying force with your
finger.
Tap
Next
and keep pushing the rubber
with your finger until you see the success
message.
•
The 3D fingerprint dummy rubber
must be prepared before you start.
•
The bottom side of the rubber that is
shaped like a square should be located
on the square guide line. (Do not place
the pattern horizontally on the 3D
fingerprint dummy rubber.)
Calibrations
35

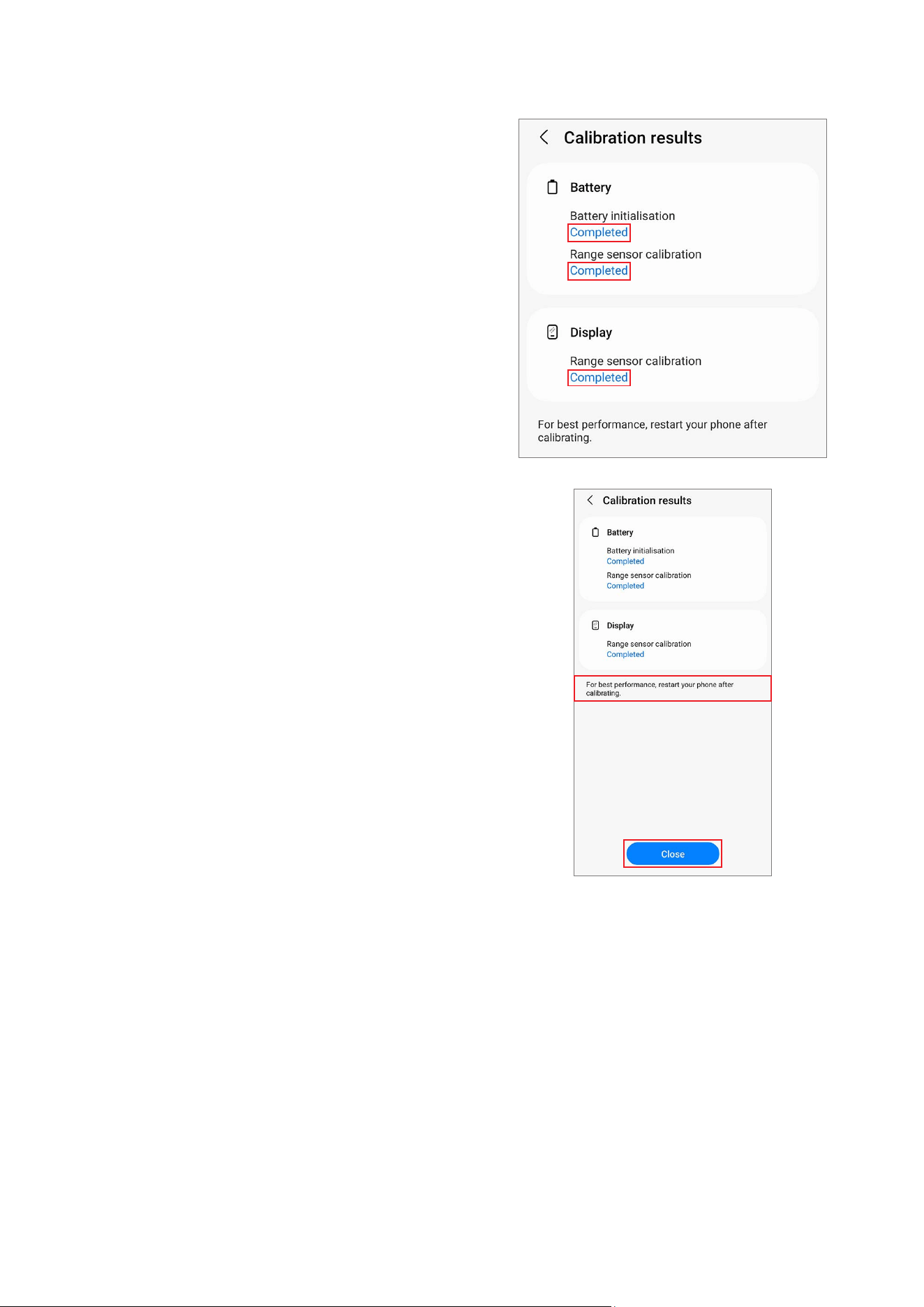

8 Check the result of the calibration.
Completed
appears only when the
calibration is successfully completed.
If
Completed
does not appear, try
calibrating again.
Resetting the Battery Cycle Count
The battery cycle count should be reset whenever your device’s battery is replaced.
1 Launch the
Self Repair Assistant
app.
2 Select the part that you have replaced.
Tap
Battery
→
Next
.
Calibrations
36

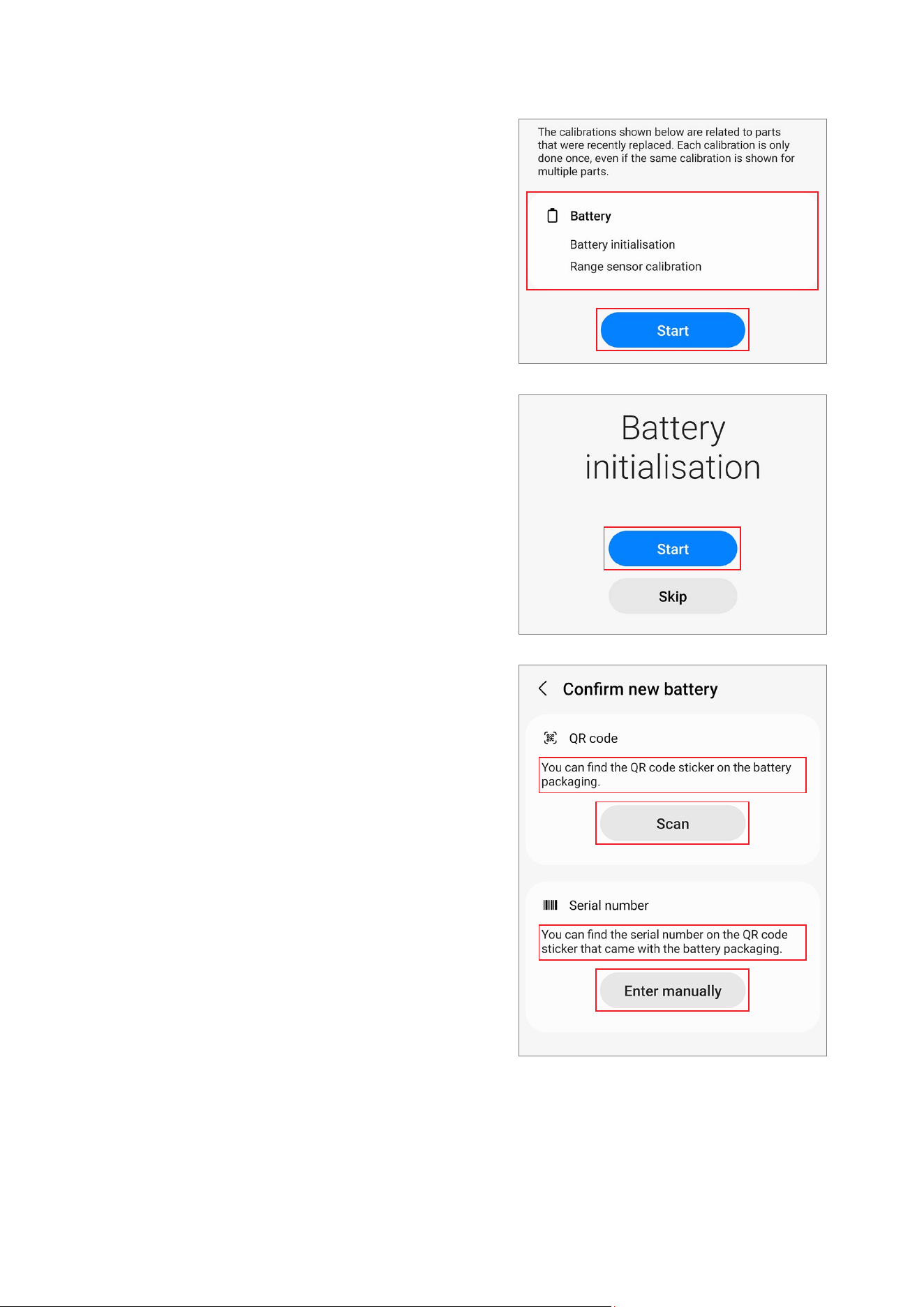

3 Check part and calibration and tap
Start
.
4 Tap
Start
.
5 Read the on-screen instructions and tap
Scan
to scan the QR code, or tap
Enter
manually
to enter the serial number
manually.
Calibrations
37

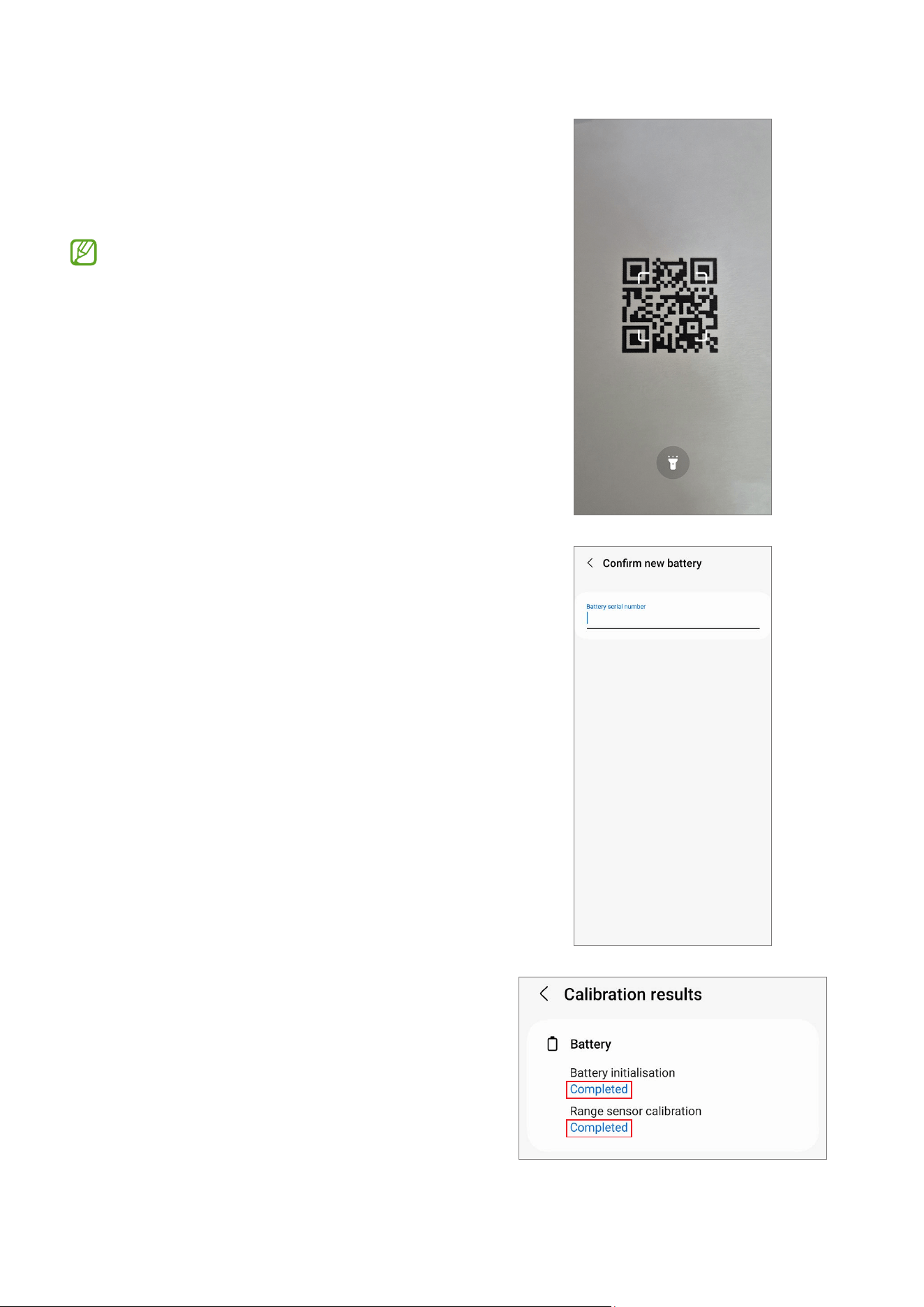

6 Scan the QR code or enter the serial
number that appears on the battery
package.
The reset will begin.
This image is an example of the QR code.
Make sure to scan the QR code on the
battery package.
7 Check the calibration results.
Calibrations
38

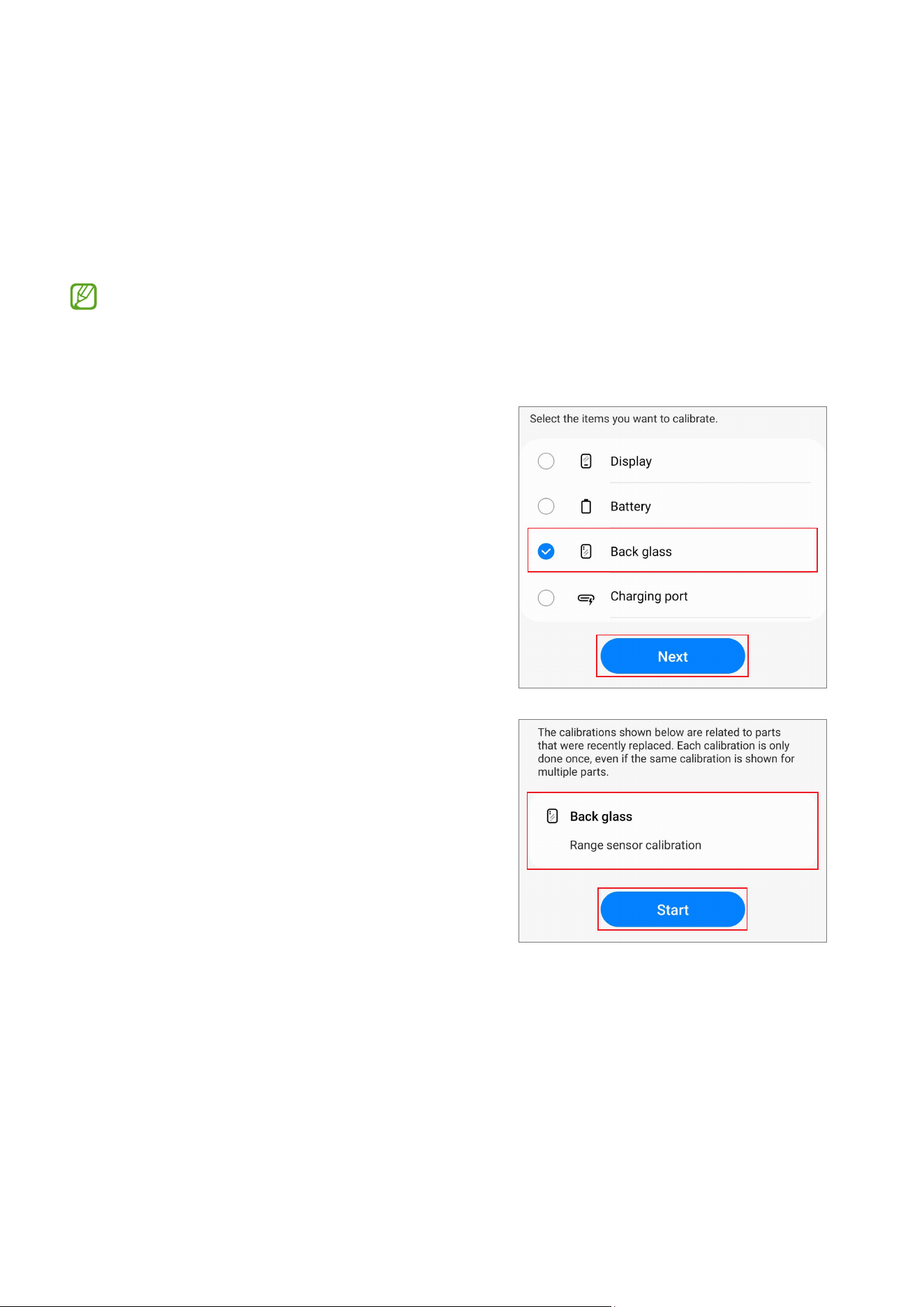

Range Sensor Calibration
When replacing screens, batteries, back glasses, or charging ports, range sensor
calibration is required to ensure the range sensors of devices equipped with them are
optimised.
Range sensor calibration is available through the
Self Repair Assistant
app.
Some content may differ from your device depending on the region, service
provider, model specifications, or device’s software.
1 Launch the
Self Repair Assistant
app.
2 Select the part that you have replaced and
tap
Next
.
3 Check part and calibration and tap
Start
.
Calibrations
39
4 Read the on-screen instructions and tap
Start
.

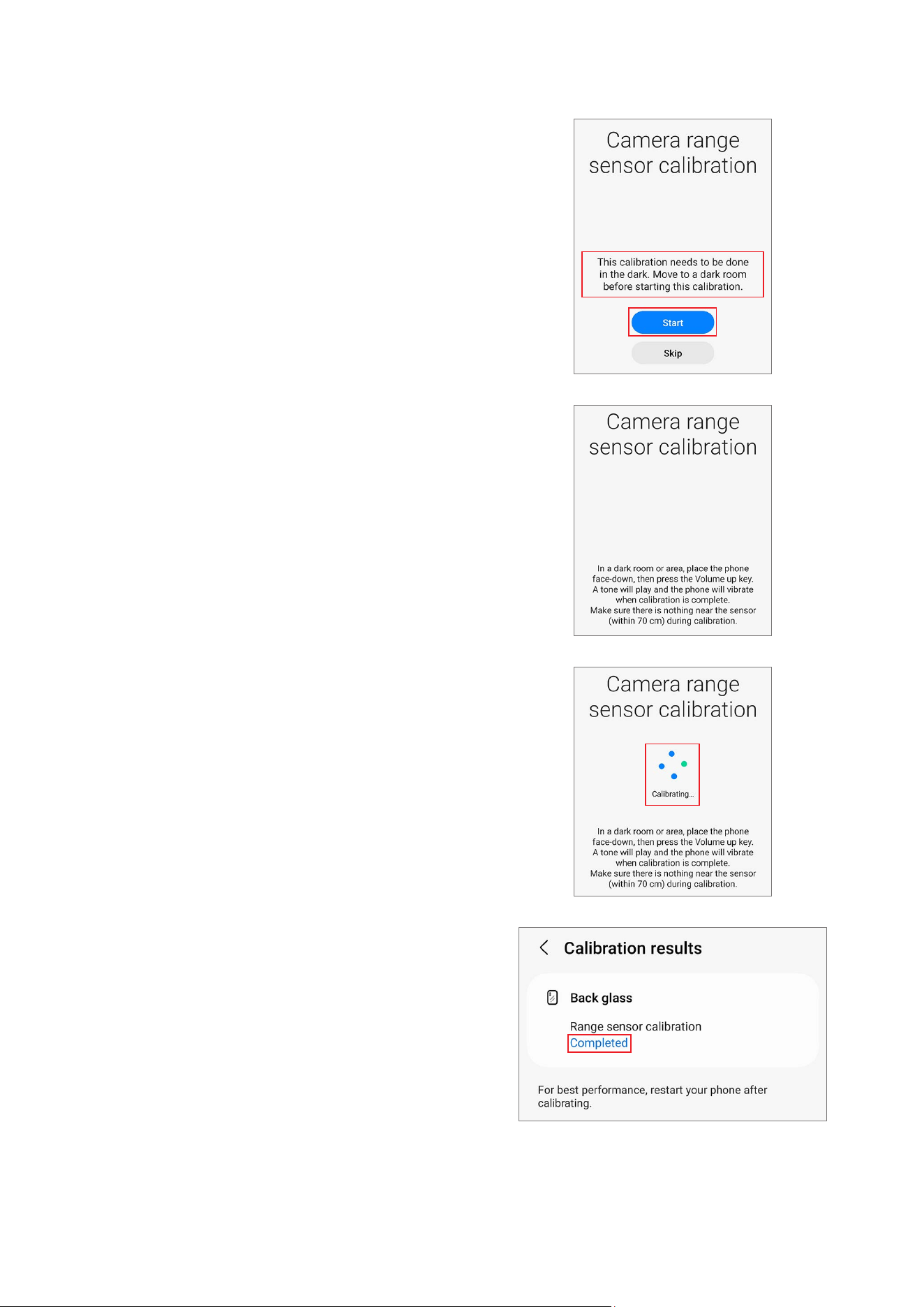

5 In a dark room or area, place the phone
face-down, then press the Volume button.
6 The calibration will perform automatically.
A tone will play when calibration is
complete.
7 Check the calibration result.
Calibrations
40
Touch Screen Panel Calibration
When replacing screens, touch screen panel calibration is required to ensure accurate
touch input.
Touch screen panel calibration is available through the
Self Repair Assistant
app.
In the Fold models, touch screen panel calibration is performed for both the main
and cover screens.
1 Launch the
Self Repair Assistant
app.
2 Select the part that you have replaced and
tap
Next
.
3 Check part and calibration and tap
Next
.
Calibrations
41

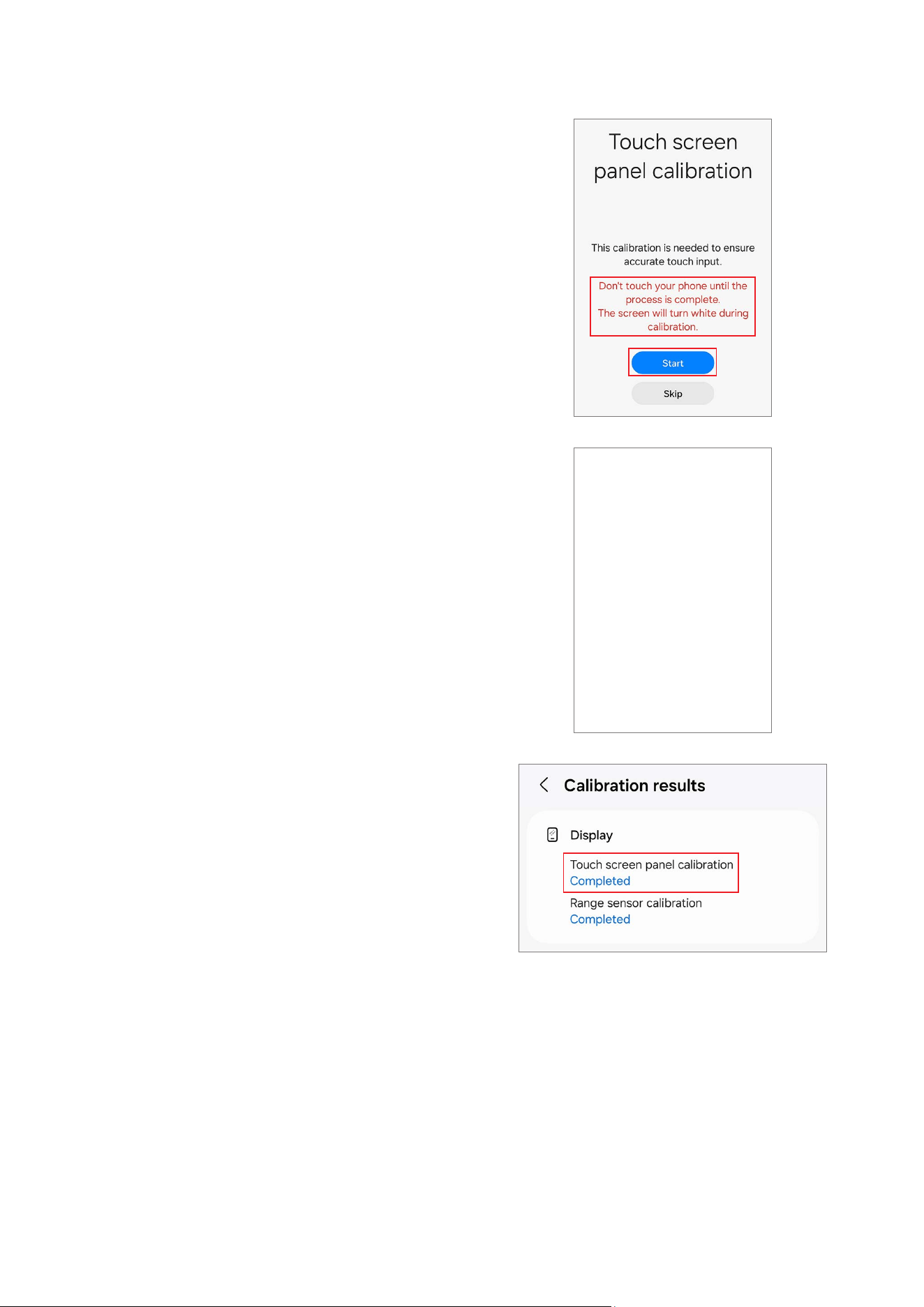

4 Read the on-screen instructions and tap
Start
.
5 The calibration will perform automatically
and the screen will turn white during
calibration.
6 Check the calibration result.
Calibrations
42
Speaker Calibration
When replacing speakers, the speaker must be calibrated to guarantee optimised
speaker performance for devices that have it.
Speaker calibration is available through the
Self Repair Assistant
app.
1 Launch the
Self Repair Assistant
app.
2 Select the part that you have replaced and
tap
Next
.
3 Check part and calibration and tap
Next
.
Calibrations
43
4 Tap
Start
.
5 The calibration will perform automatically.
6 Check the calibration result.
Calibrations
44
Under-display Camera Calibration (Fold Models Only)
Whenever the screen is replaced, the under-display camera must be calibrated to
guarantee optimised under-display camera performance for devices that have it.
Under-display camera calibration is available through the
Self Repair Assistant
app.
This feature may not be available depending on the model. The availability of this
feature can be automatically checked in the Self Repair Assistant app, so please
follow the guidance of the Self Repair Assistant app.
1 Launch the
Self Repair Assistant
app.
2 Select the part that you have replaced and
tap
Next
.
3 Check part and calibration and tap
Next
.
Calibrations
45
4 Tap
Start
.
5 The calibration will perform automatically.
6 Check the calibration result.
Calibrations
46
Digital Hall Sensor Calibration (Fold and Flip Models Only)
Whenever the screen is replaced, the digital hall sensor must be calibrated to guarantee
optimised digital hall sensor performance for devices that have it.
Digital hall sensor calibration is available through the
Self Repair Assistant
app.
•
This feature may not be available depending on the model. The availability of
this feature can be automatically checked in the Self Repair Assistant app, so
please follow the guidance of the Self Repair Assistant app.
•
For Fold models: If the main screen does not turn on after being replaced (the
main screen is off and the cover screen is on when the device is unfolded),
follow the steps below to perform digital hall sensor calibration. The boot
screen (the screen where the Samsung and carrier logos appear) will appear
normally and then turn off, so it is not a hardware failure.
1) Fold the device and launch the
Self Repair Assistant
app on the cover
screen.
2) Move to the digital hall sensor calibration screen, unfold the device, and
then press the Volume Up button or the Volume Down button.
3) You will hear a vibration, and the calibration will be performed
automatically.
When calibration is complete, the main screen will turn on normally.
•
For Flip models: If the main screen does not turn on after being replaced (the
main screen is off and the cover screen is on when the device is unfolded),
follow the steps below to force the main screen to turn on and perform digital
hall sensor calibration. The boot screen (the screen where the Samsung and
carrier logos appear) will appear normally and then turn off, so it is not a
hardware failure.
1) Connect the USB cable to the device, and connect the other end of the USB
cable to the USB power adapter or your computer.
2) While pressing and holding the Side button, press the Volume Up button
once and the Volume Down button twice.
3) When the main screen turns on, perform digital hall sensor calibration.
Calibrations
47
1 Launch the
Self Repair Assistant
app.
2 Select the part that you have replaced and
tap
Next
.
3 Check part and calibration and tap
Next
.
4 Tap
Start
.
Calibrations
48
5 The calibration will perform automatically.
6 Check the calibration result.
Exploded View and Parts List
49
Exploded View and Parts List
The product’s composition may vary depending on the country, region, or carrier.

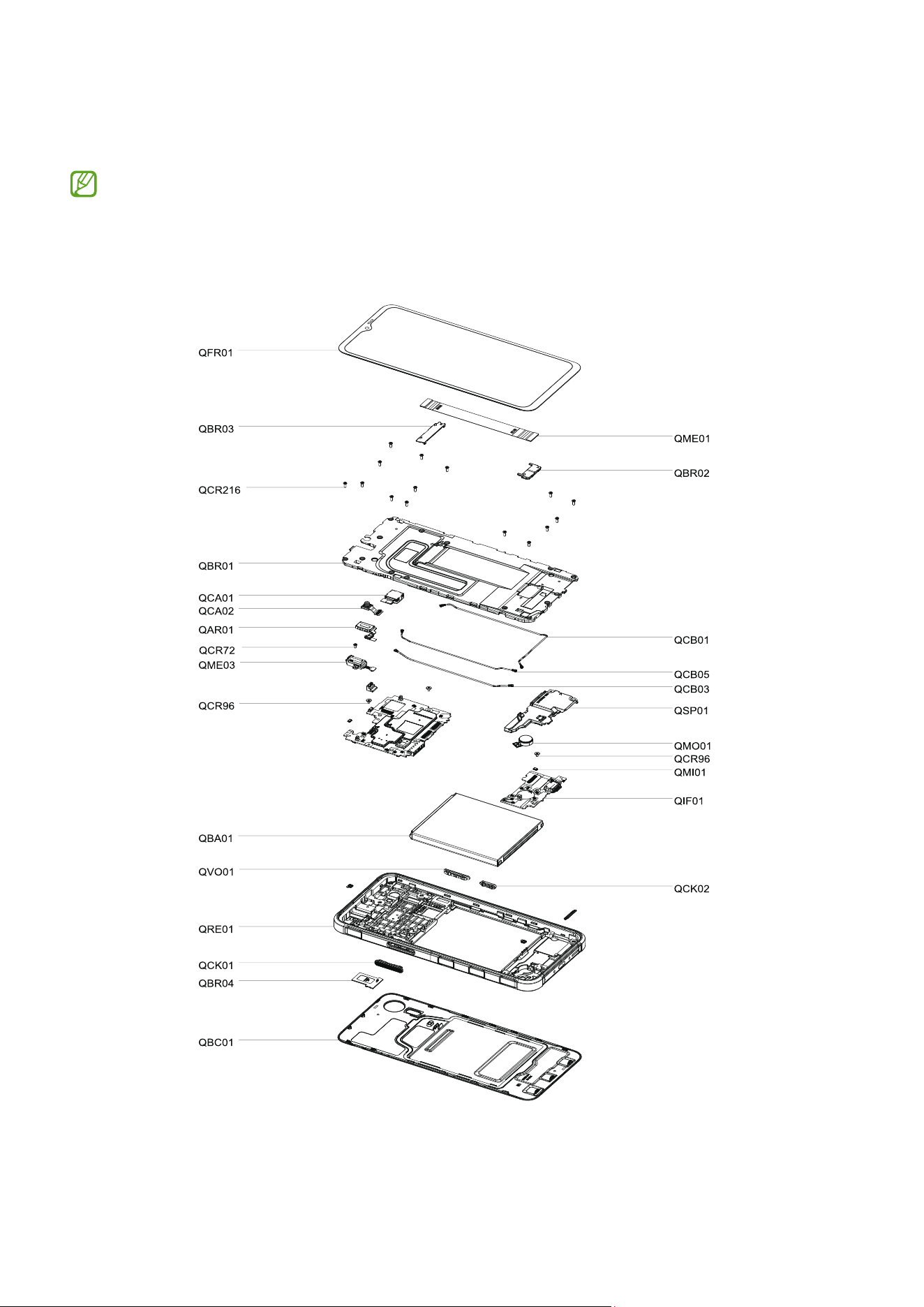

Exploded View
Exploded View and Parts List
50
Parts List
Number Name
QFR01 Screen
QRE01 Device Frame
QCK01 XCover Button
QBR01 Bracket
QBC01 Back Cover
QSP01 Speaker
QCA01 Rear Camera (Wide)
QCA02 Front Camera
QIF01 Charging Port
QCK02 Side Button
QVO01 Volume Button
QBR02 Cable Connector Cover
QBR03 Screen Cable Connector Cover
QBR04 Receiver Cover
QME01 Main Flex Cable (Sub PBA to PBA)
QME03 Headphone
QBA01 Battery
QCB05 Antenna Flex Cable (Red)
QCB01 Antenna Flex Cable (Blue)
QCB03 Antenna Flex Cable (White)
QMO01 Vibrator Motor
QCR216 Screw 3373
QCR96 Screw 2259
QCR72 Screw 2051
QAR01 Receiver
QMI01 Microphone
Disassembly and Assembly
51
Disassembly and Assembly
Tools for Disassembly and Assembly
When repairing devices, you absolutely must wear protective equipment for your safety.
Availability of rental services for toolkits with a complete set of tools for self
repair service may vary depending on the country and is currently available only in
limited countries.
Tool & Part Code Image Description

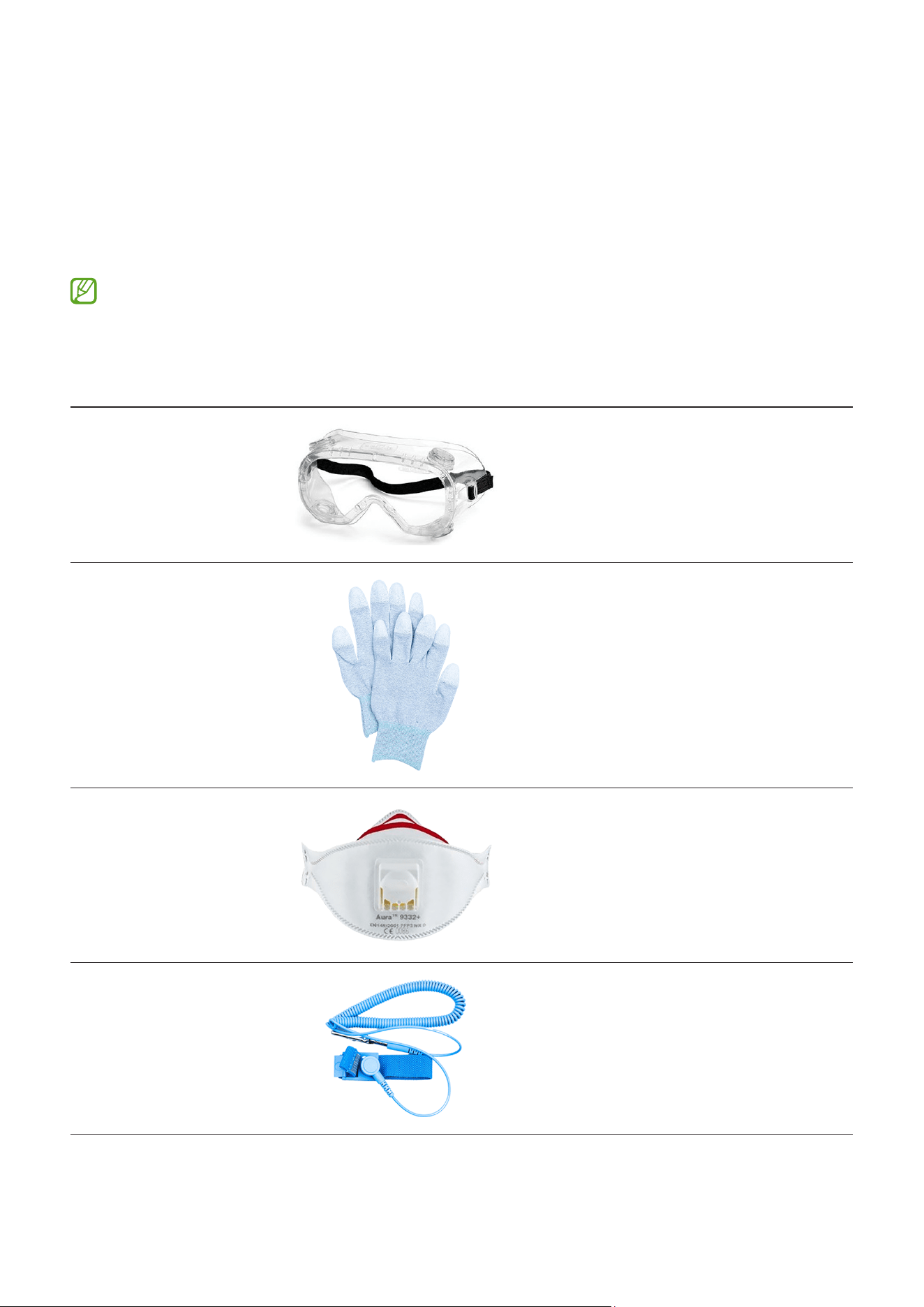

Safety Goggles
Prevents accidents during repair
(protective equipment)
Safety Gloves (ESD
safe, cut-resistant)
Prevents accidents during repair
(protective equipment)
Safety Mask
Prevents accidents during repair
(protective equipment)
Anti-static Wrist
Strap
Prevents electrostatic damage
(recommended)
Disassembly and Assembly
52
Tool & Part Code Image Description

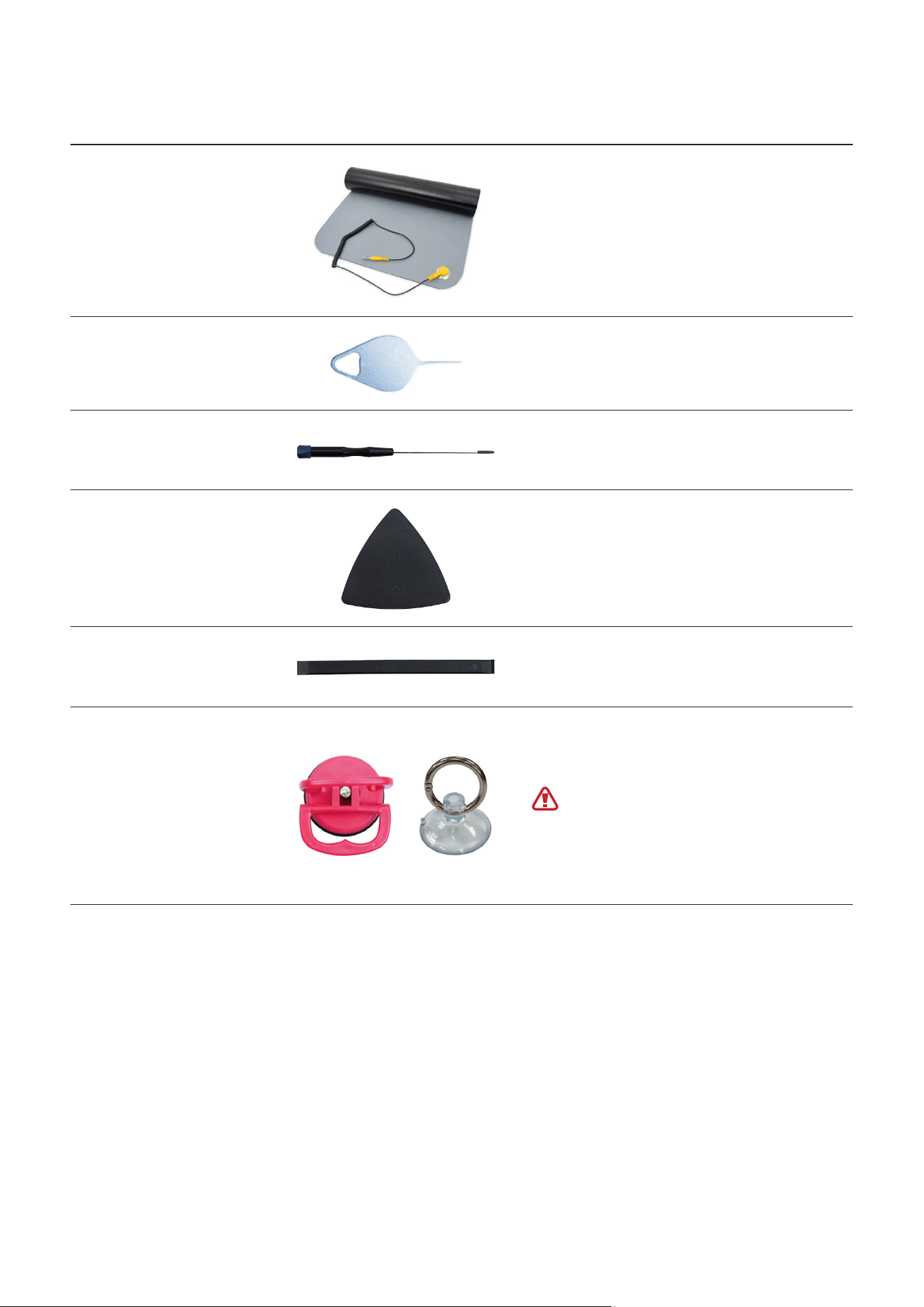

ESD Safe Mat
Prevents electrostatic damage
(recommended)
Ejection Pin
Pin for ejecting the SIM card tray
Cross-head
Screwdriver
Tool for screwing in cross-head
screws
Opening Pick
Tool for disassembling the screen
and other parts
Opening Tool
Tool for disassembling the
connector and other parts

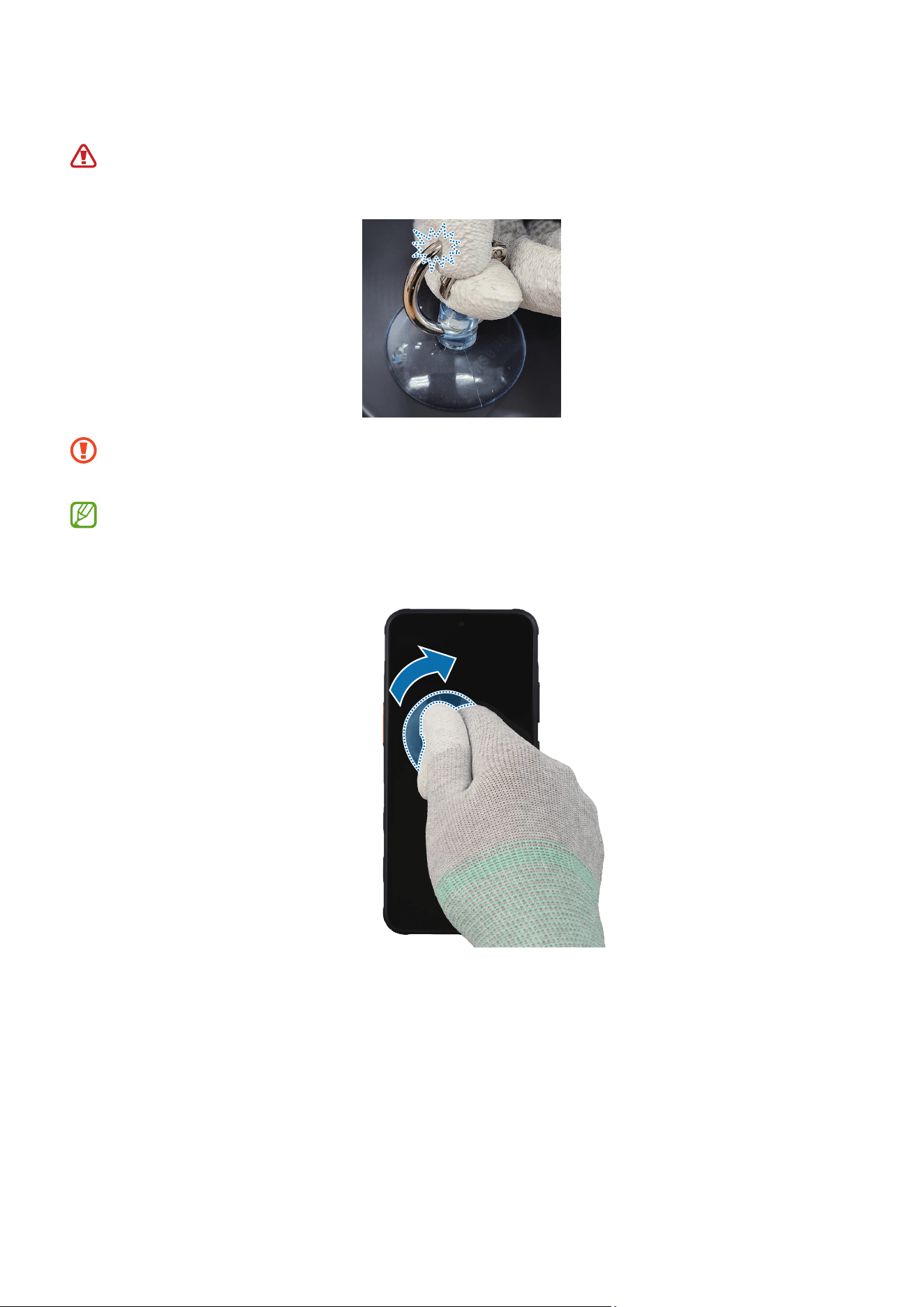

Suction Cup
Tool for disassembling the screen
and other parts
For separable handle suction
cups, be careful not to injure
yourself as the handle can be
parted during use.
Disassembly and Assembly
53
Tool & Part Code Image Description

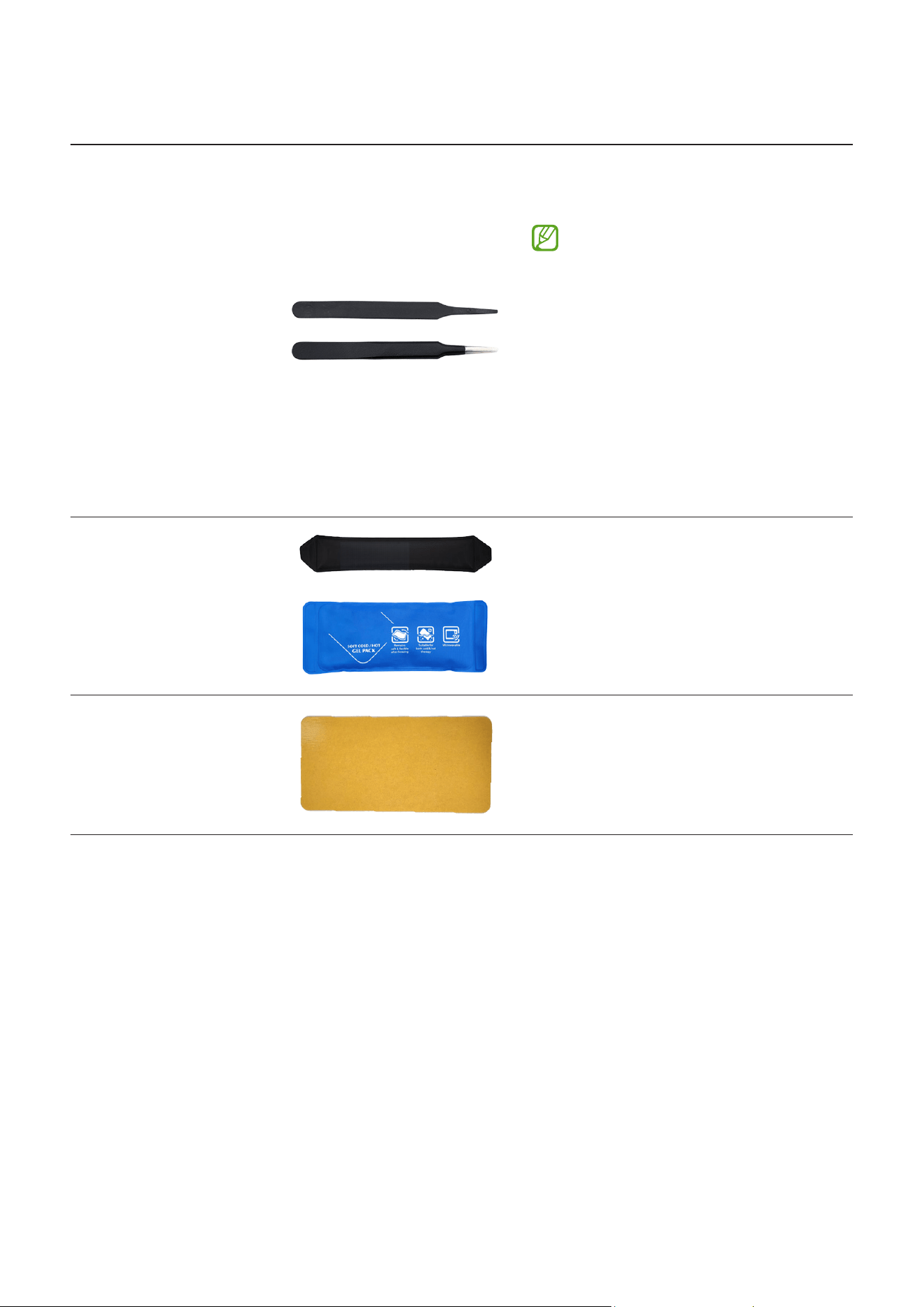

ESD Safe Tweezers
and Round Tip
Metal Tweezers
Tool for handling connectors,
cables, and other parts
•
Because it is possible
to damage parts or
components when using
sharp tweezers, use
tweezers made with plastic
or rubber material.
•
When removing a vibrator
motor, it is required to
use the round tip metal
tweezers.
Heating Bag
Tool for disassembling the screen
and other parts
Acrylic Protective
Cover for Broken
Glass
For screen
Prevents injuries and scattering
caused by broken glass
Disassembly and Assembly
54
Tool & Part Code Image Description

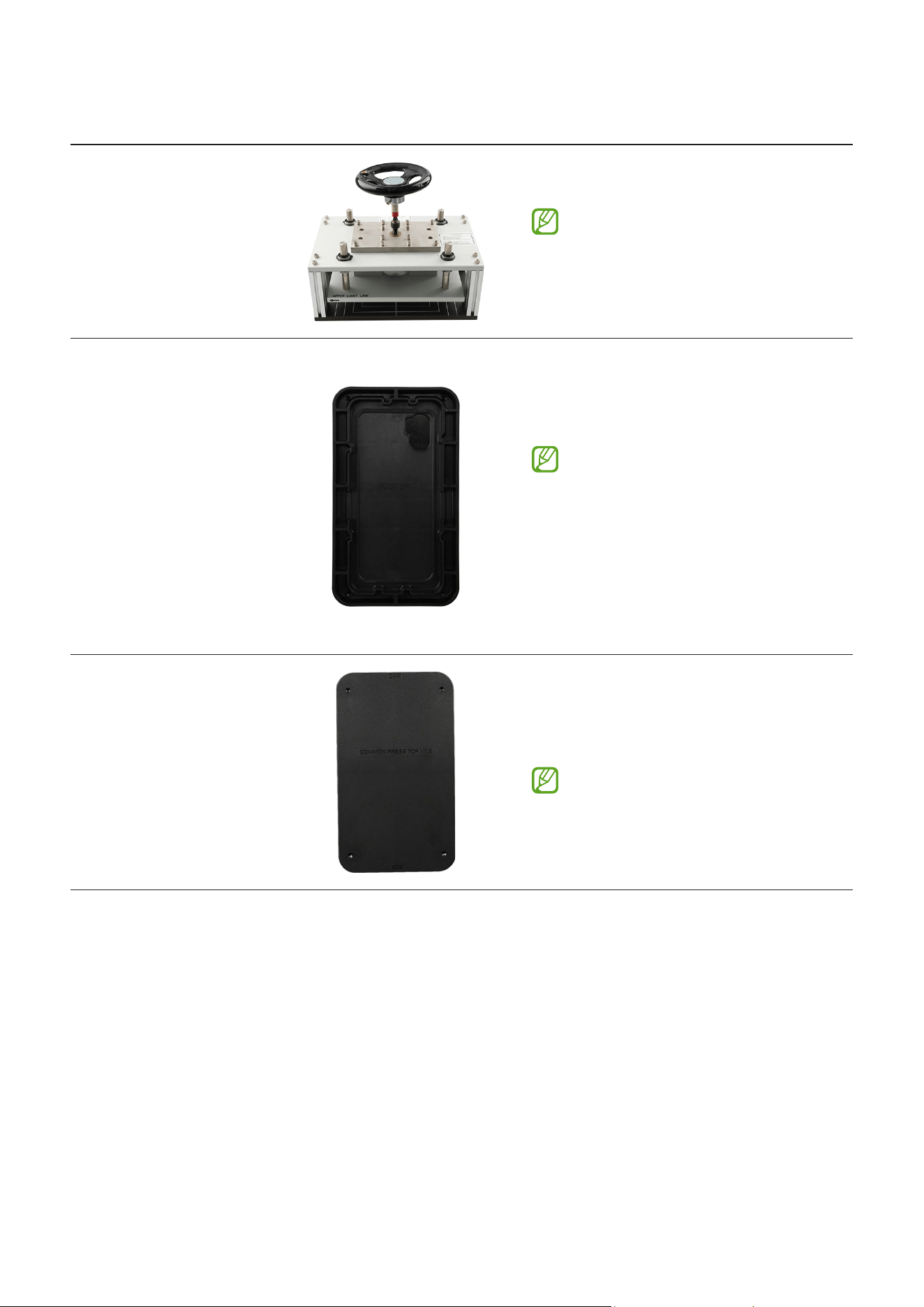

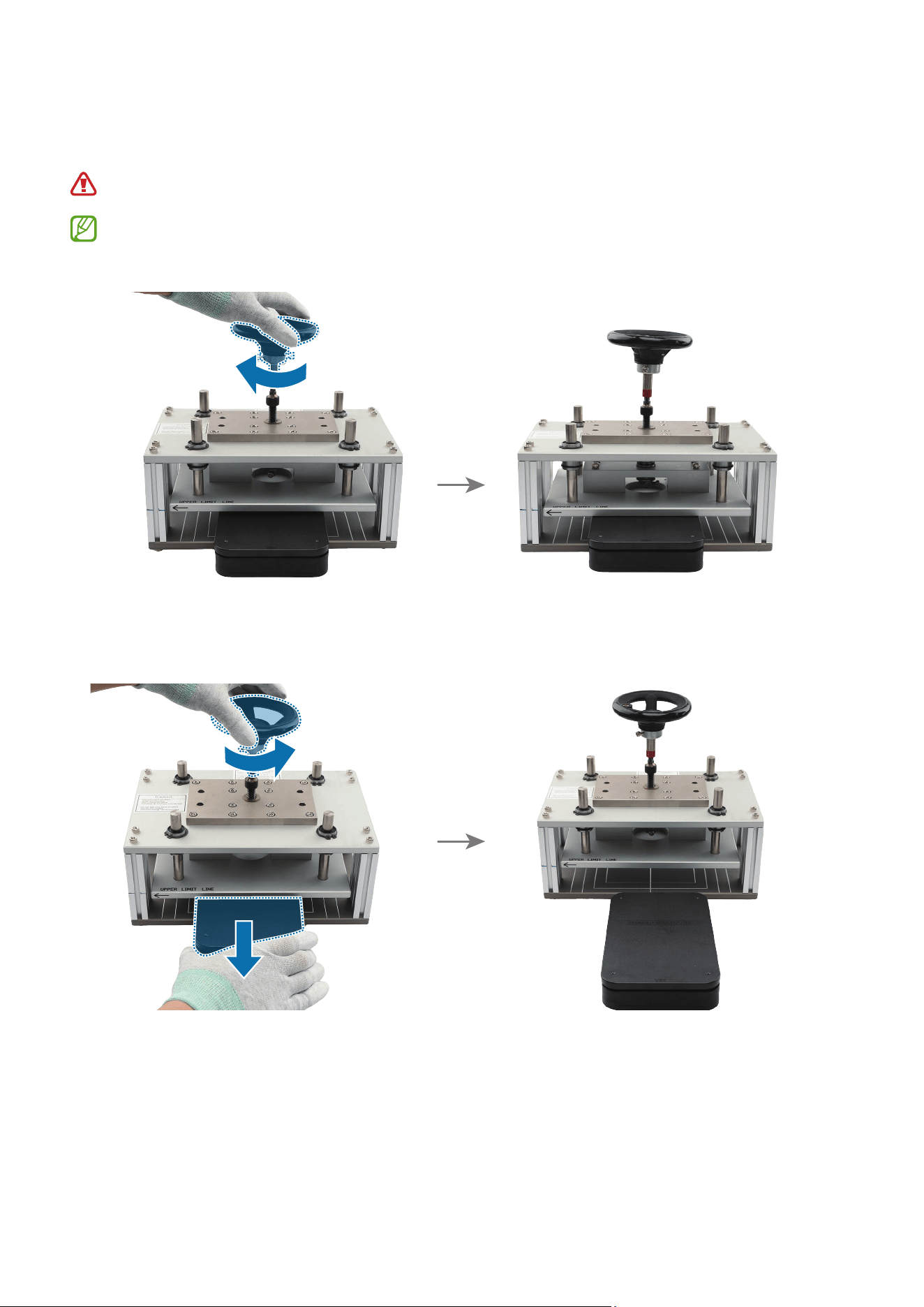

Press Fixture
Tool for pressing the screen
This tool is available to use
by the rental of tool kit that
contains a complete set of the
tools for self repair service.
Bottom Press Tray
Tool to place the device when
pressing the screen using the press
fixture
•
This tool is available to use
by the rental of tool kit that
contains a complete set
of the tools for self repair
service.
•
This tool may vary
depending on the device.
Top Press Tray
Tool to cover the bottom press tray
when pressing the screen using
the press fixture
This tool is available to use
by the rental of tool kit that
contains a complete set of the
tools for self repair service.
Disassembly and Assembly
55
Tool & Part Code Image Description

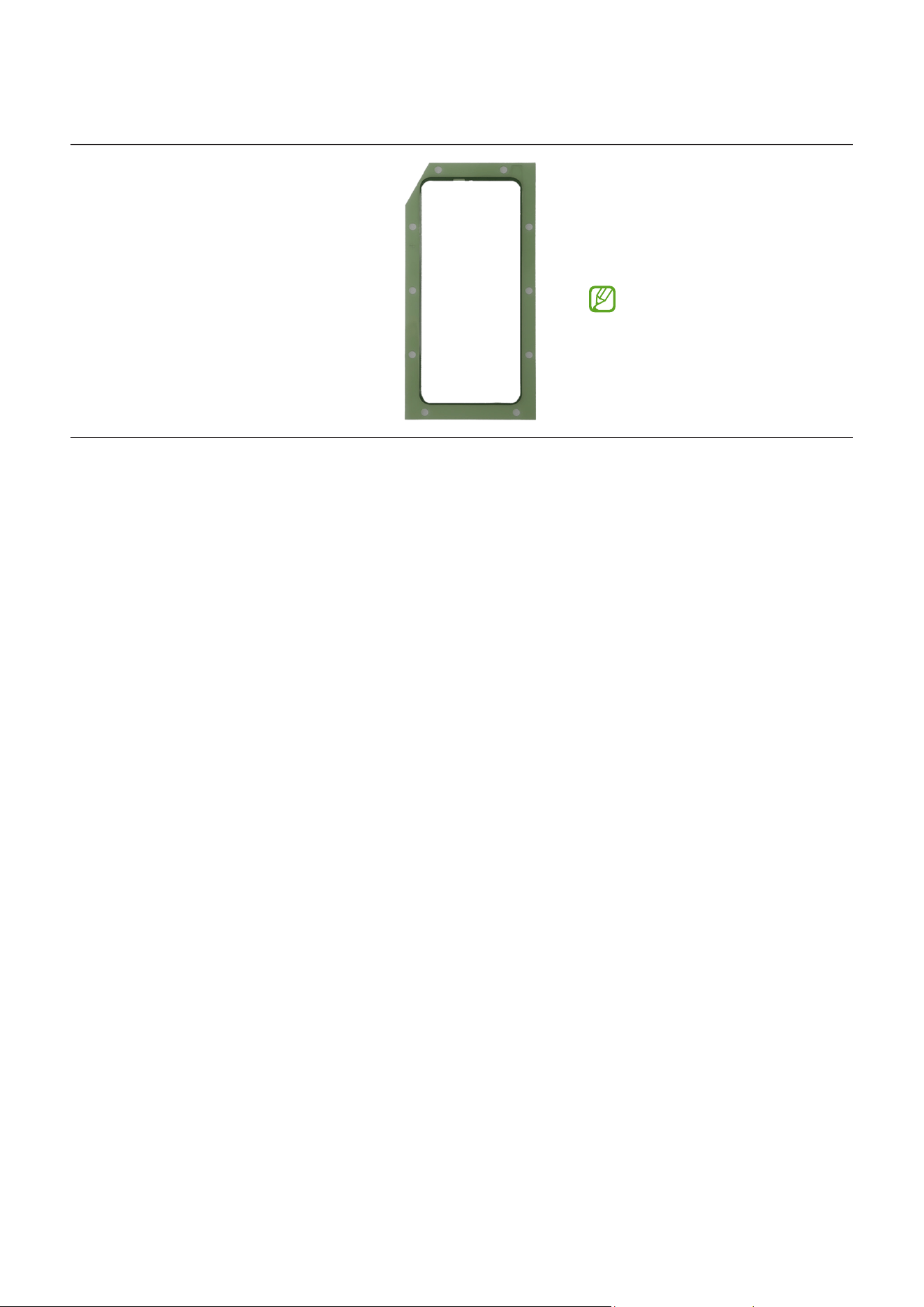

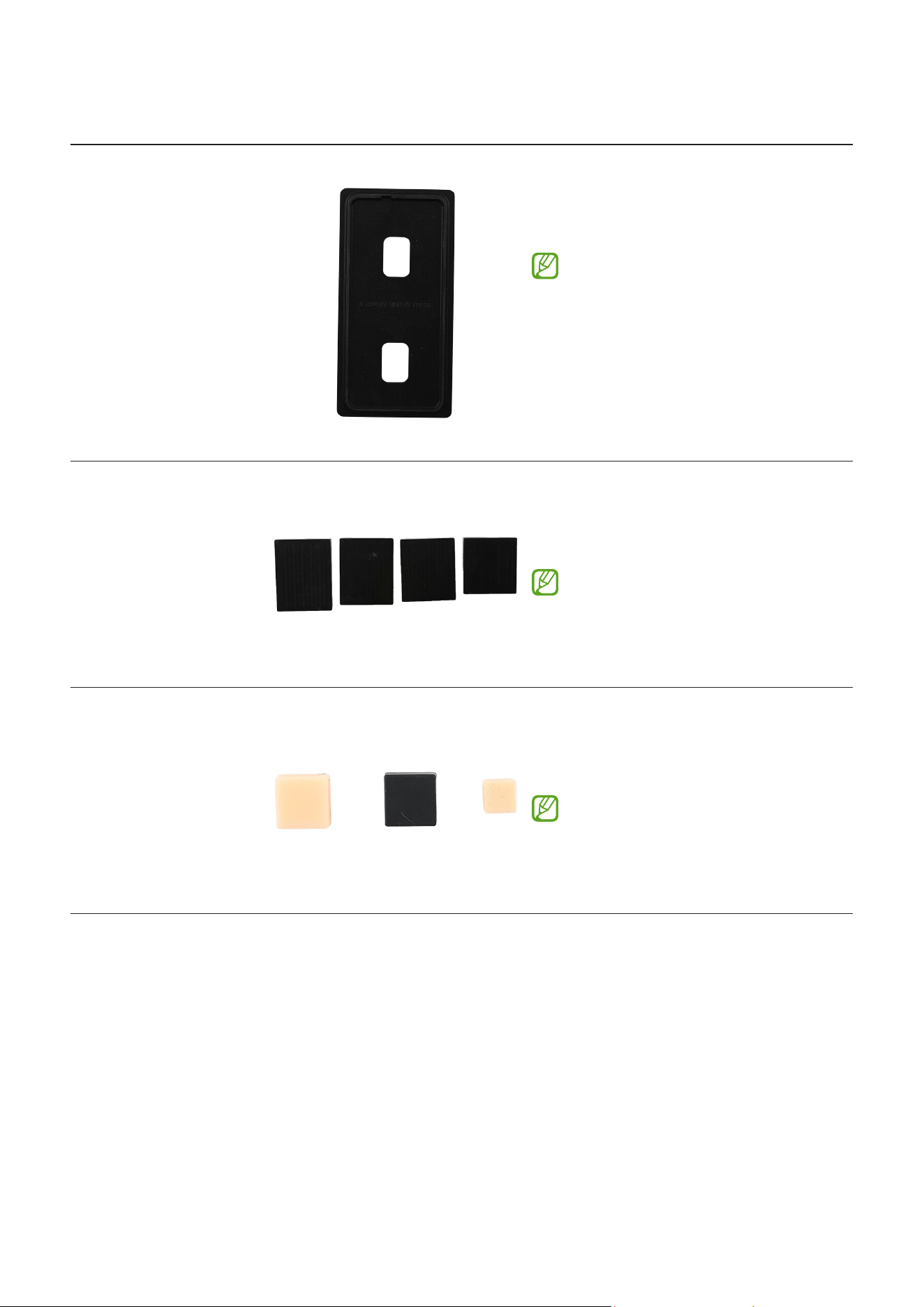

Top Rubber Pad
Tool to place into the top press tray
when pressing the back cover or
screen using the press fixture
•
This tool is available to use
by the rental of tool kit that
contains a complete set
of the tools for self repair
service.
•
This tool may vary
depending on the device.
Battery Rubber Pad
Tool to cover the battery when
pressing the battery using the
press fixture
This tool is available to use
by the rental of tool kit that
contains a complete set of the
tools for self repair service.
Calibration
Rubber for Optical
Fingerprint Sensor
Tool to calibrate the optical
fingerprint sensor after replacing
the screen
This tool is available to use
by the rental of tool kit that
contains a complete set of the
tools for self repair service.
Disassembly and Assembly
56
Fasteners (Adhesives and Materials) for Assembly
The fasteners composition may vary depending on the repair parts, country, region, or
carrier.
Item Quantity Image Description

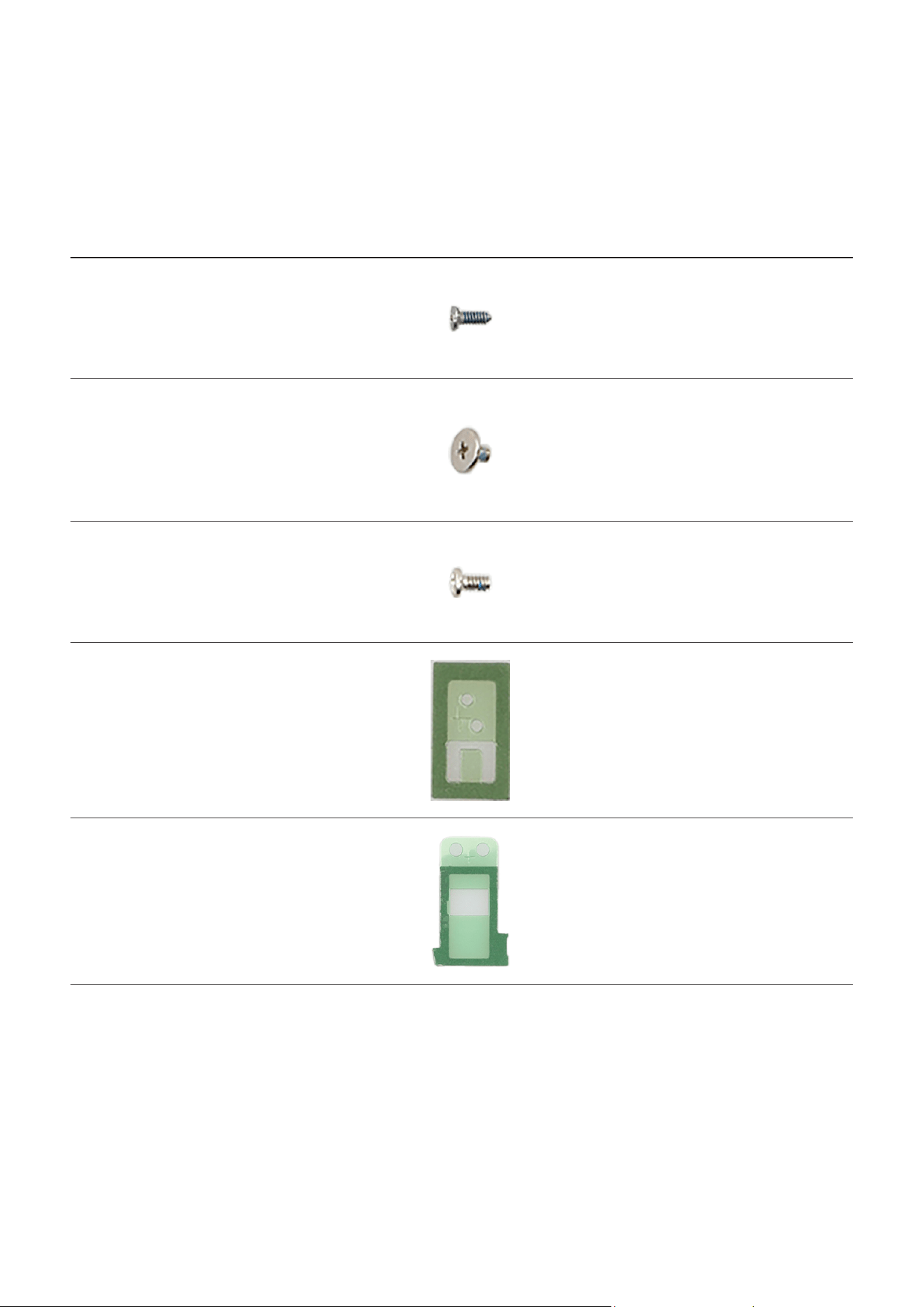

Screw 3373
6001-003373
15
Screws for the rear bracket
(15 ea)
Screw 2259
6001-002259
3
Screws for the main board
(2 ea)
Screw for the charging port
(1 ea)
Screw 2051
6001-002051
1
Screw for the headphone
(1 ea)
Top Receiver
Adhesive Tape
GH02-25696A
1
Double sided adhesive tape
for attaching the receiver to
the device frame
Top Receiver Cover
Adhesive Tape
GH02-24123A
1
Double sided adhesive tape
for attaching the receiver
cover to the device frame
Disassembly and Assembly
57
Item Quantity Image Description
Screen Side
Adhesive Tape
GH02-24129A
1
Double sided adhesive tape
for attaching the sides of the
screen to the device frame
This tape is only
available when
the screen itself is
repaired.
Disassembly and Assembly
58
Disassembly and Reassembly for replacement
The product’s composition may vary depending on the country, region, or carrier.
Before disassembling:
•
Unplug and turn off device before disassembling.
•
Wear an anti-static wrist strap and connect it to the grounded ESD safe mat.
Before reassembling:
•
Remove the adhesive tape residues perfectly.
•
Prepare all existing screws of this device and adhesive tapes.
•
Wear an anti-static wrist strap and connect it to the grounded ESD safe mat.
•
Leaving screws inside the device may damage internal components, such as the
battery. When assembling, be extra careful not to leave any unassembled screws
inside the device.

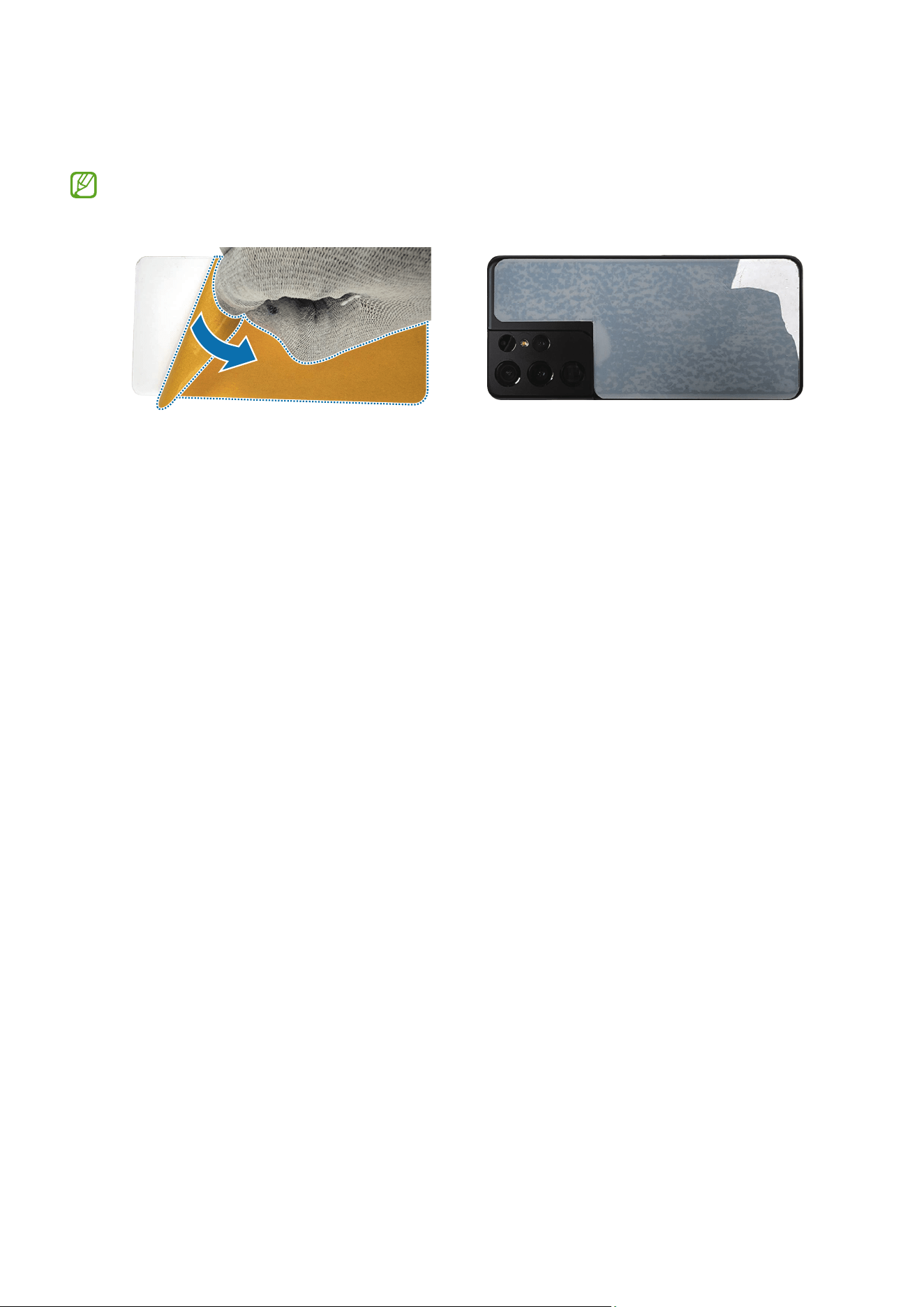

For all cases of broken glass:
1 Wear safety goggles and cut-resistant gloves.
2 Remove the release film of the acrylic protective cover.
3 To prevent injuries and scattering caused by broken glass, attach an acrylic protective
cover.
If your device’s glass breaks, be careful not to injure your hands or other body parts
on debris.
Disassembly and Assembly
59
4 Press the acrylic protective cover with strong force so that it is strongly attached to
the glass.
Wait more than 5 minutes until the bond between the acrylic protective cover and
the glass is strengthened.
Acrylic protective cover
5 Follow the disassembly steps in this guide.
Disassembly and Assembly
60
Back Cover
Disassembly

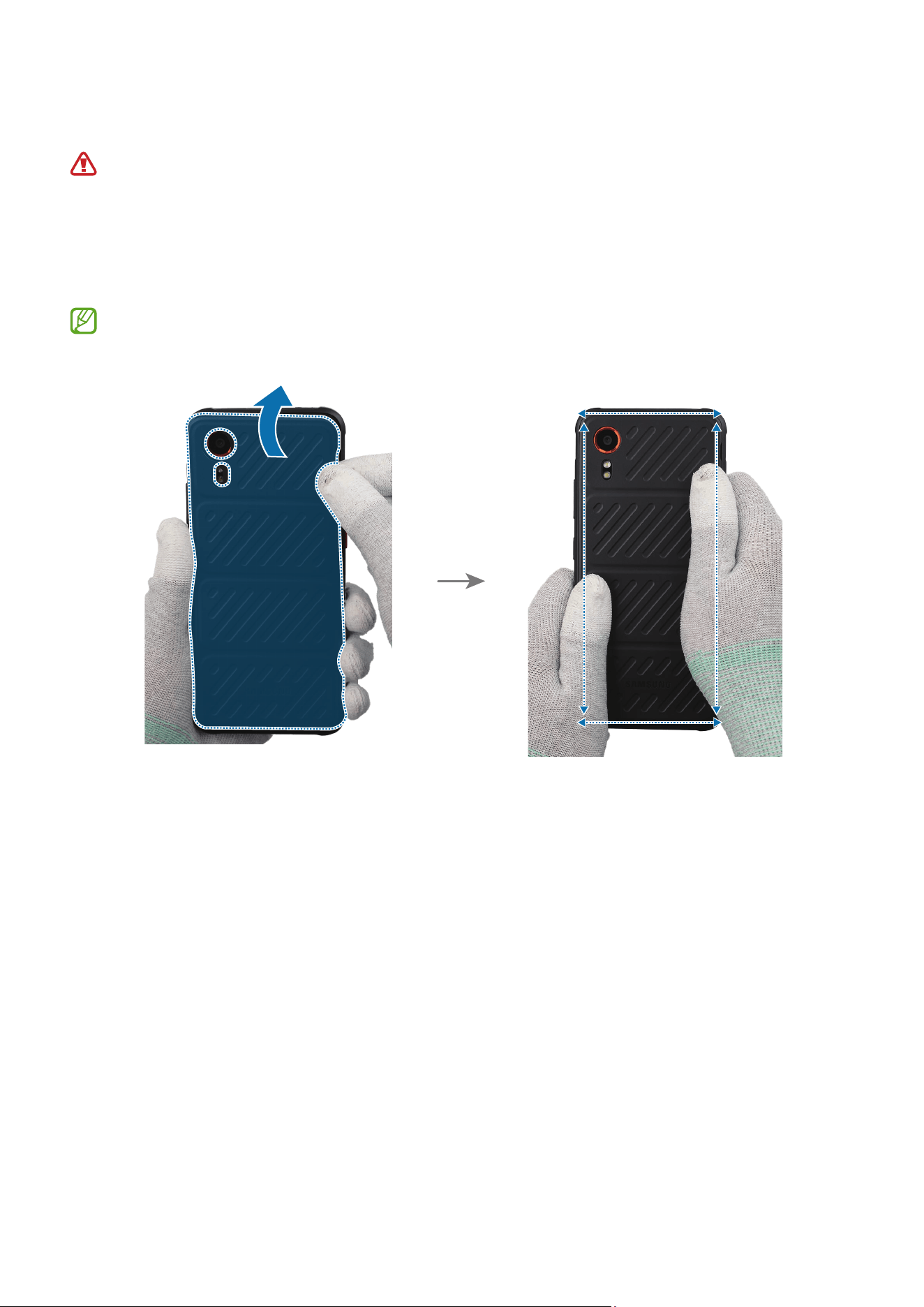

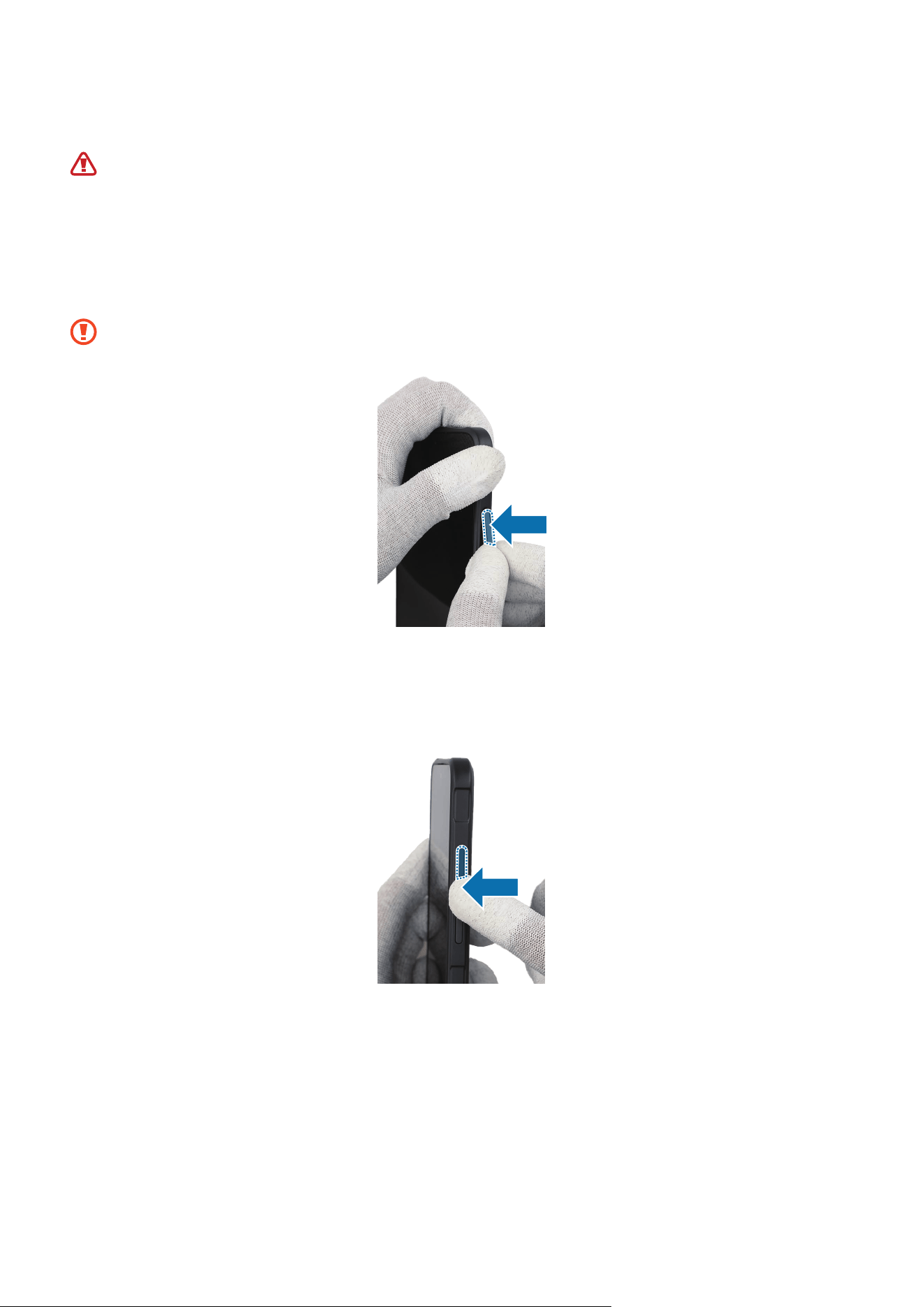

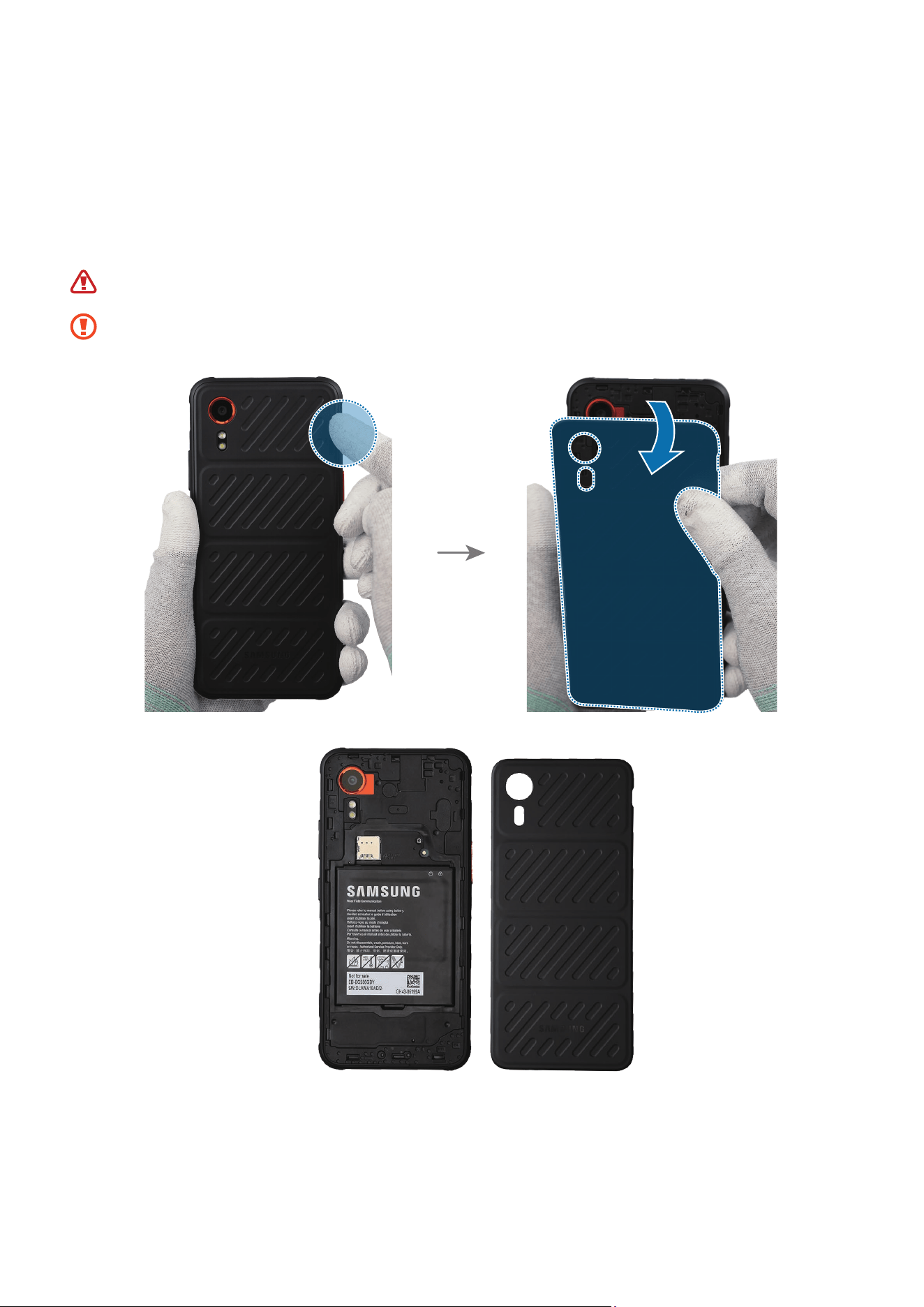

Using your fingers, lift up on the separator groove of the back cover and remove it
carefully.
Be careful not to damage your fingernails when you remove the back cover.
Do not bend or twist the back cover excessively. Doing so may damage the cover.
Disassembly and Assembly
61
Reassembly
Leaving screws inside the device may damage internal components, such as the
battery. When assembling, be extra careful not to leave any unassembled screws
inside the device.

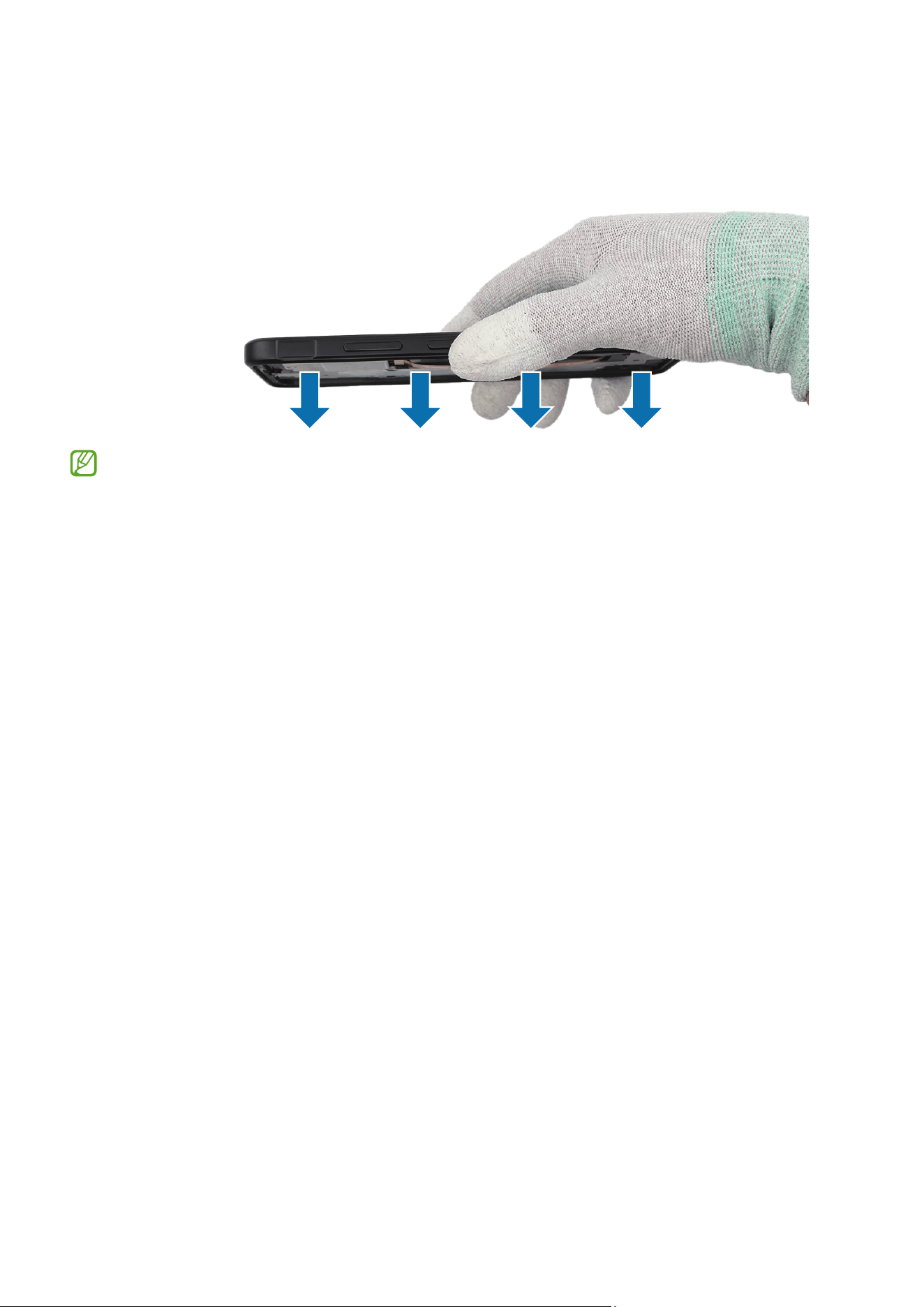

Attach the back cover and press down on the edges of the back cover. Check the gap
between the back cover and device frame.
If you feel some gap, remove the back cover and attach it again. Some foreign
materials can be inside the device.
Disassembly and Assembly
63
Reassembly
Leaving screws inside the device may damage internal components, such as the
battery. When assembling, be extra careful not to leave any unassembled screws
inside the device.

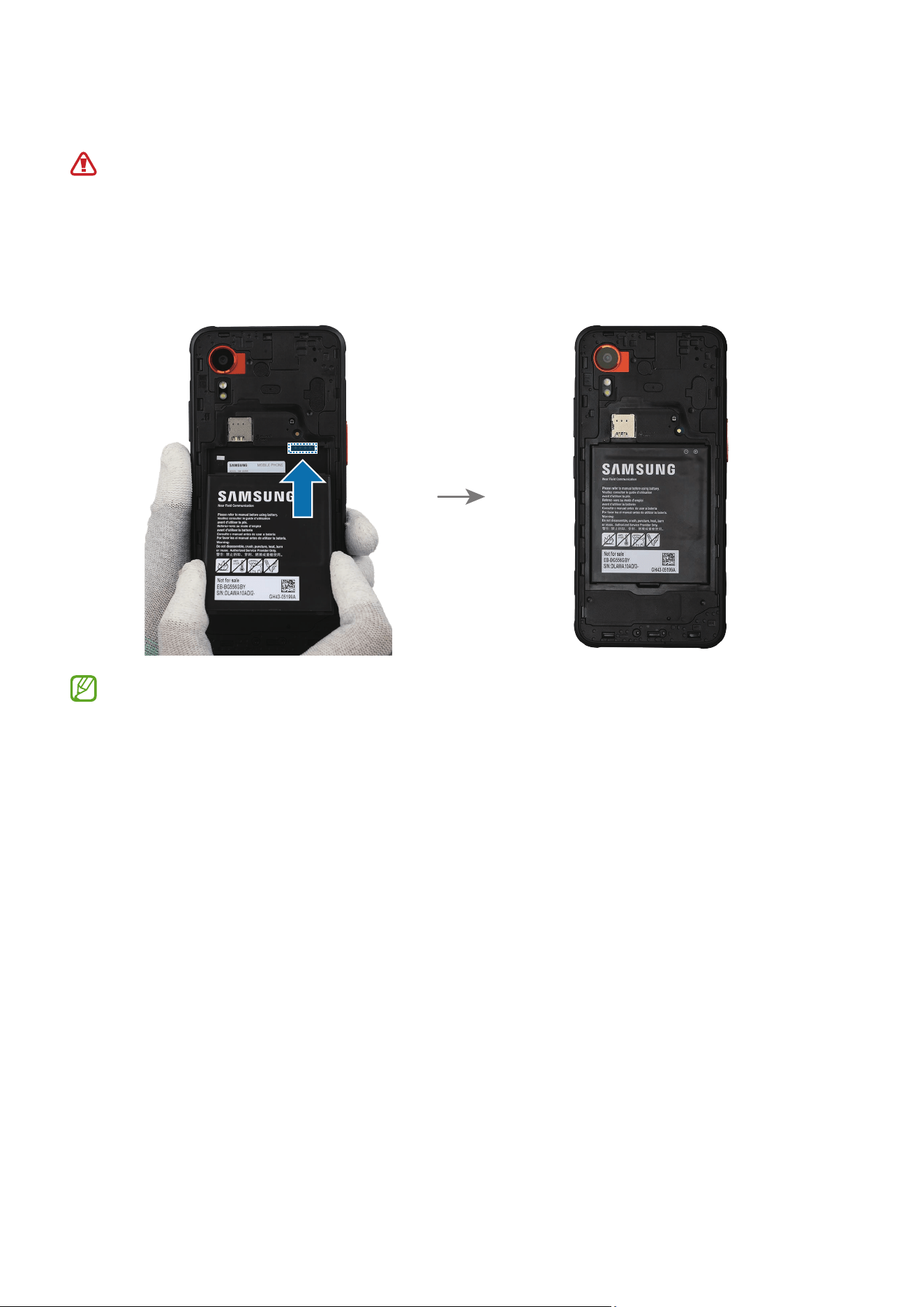

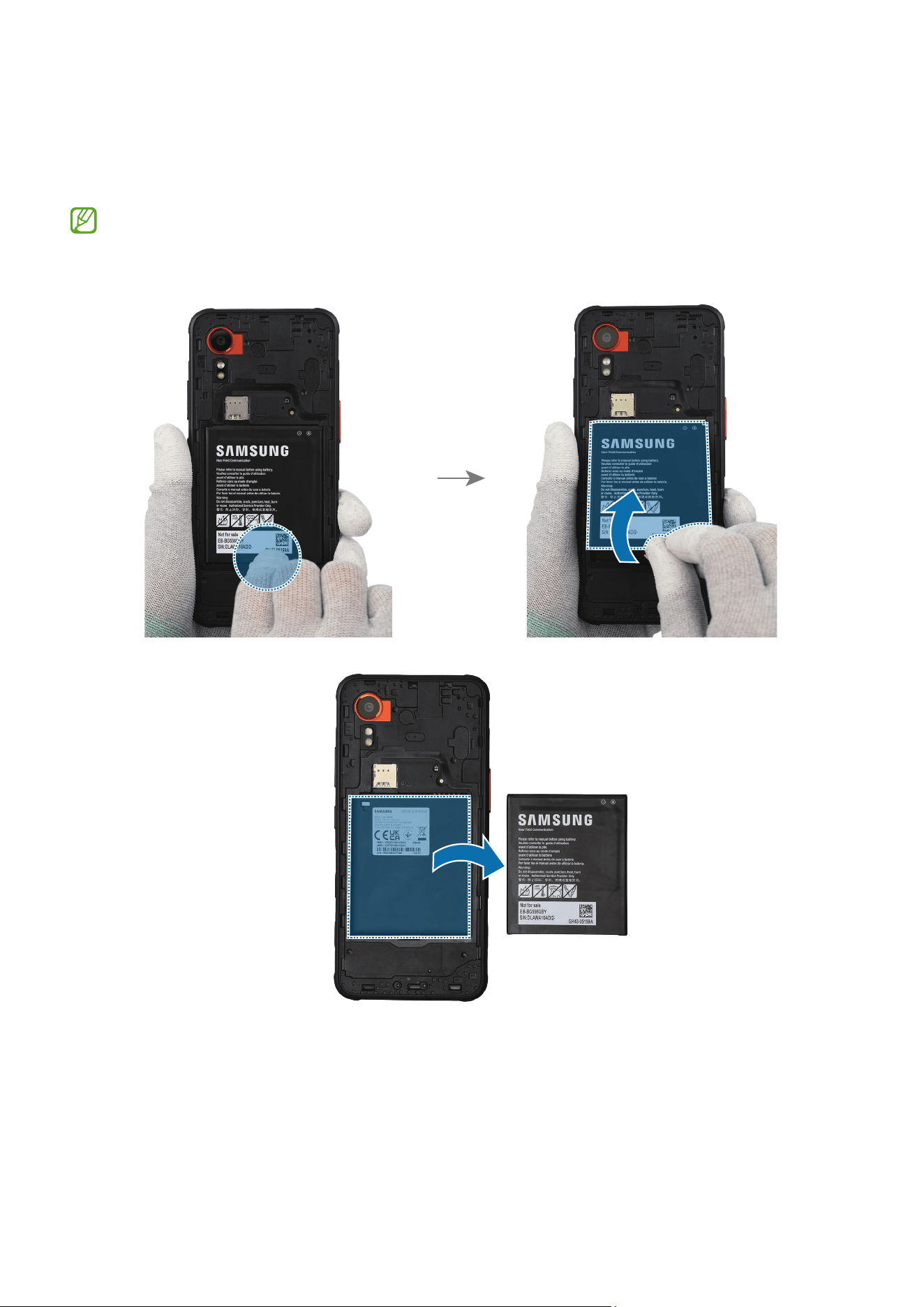

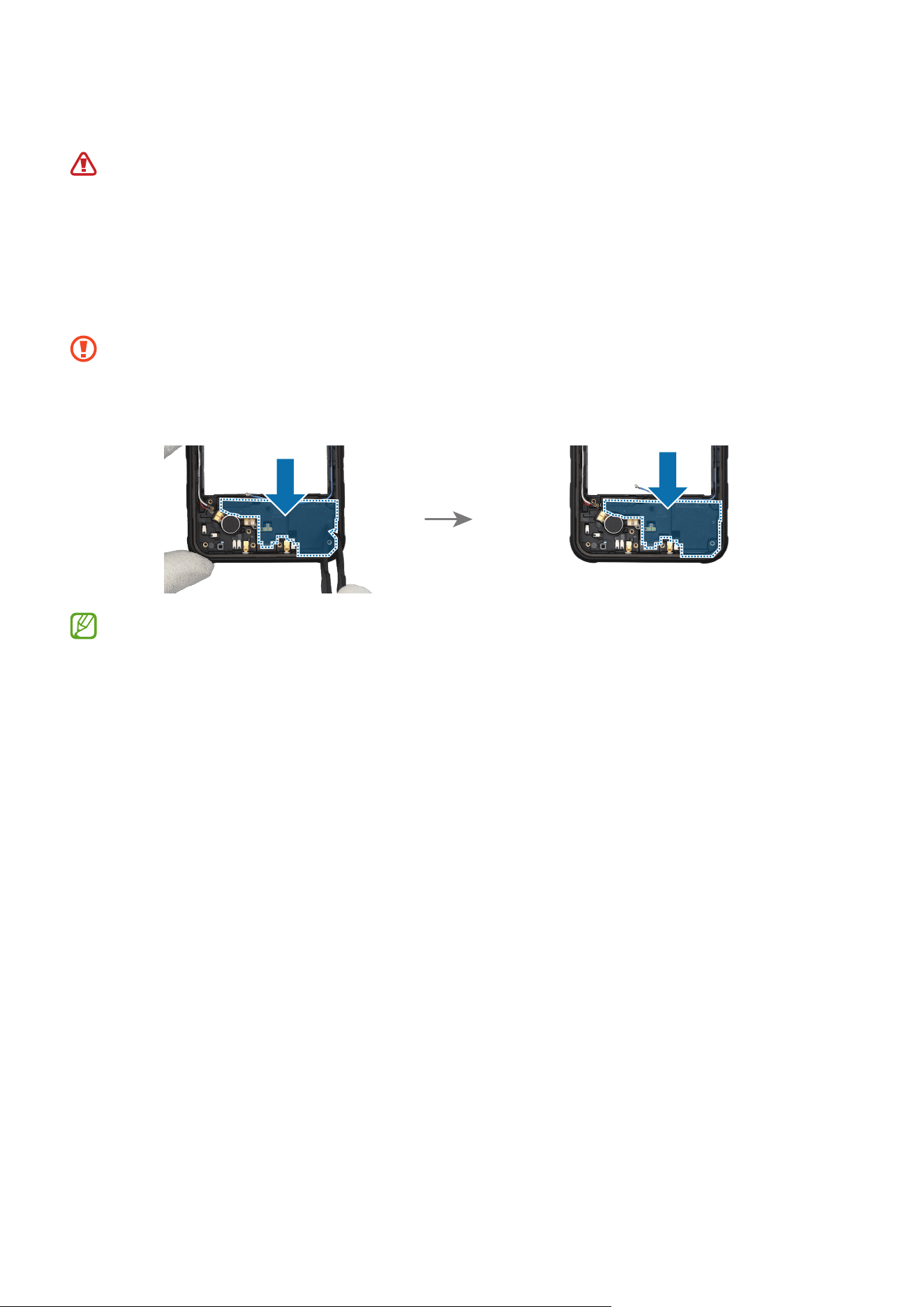

Insert the battery with the battery’s gold-coloured contacts properly aligned with the
device’s contacts.
Reassemble the Back Cover to complete assembly.
Disassembly and Assembly
64
Screen
Disassembly
When removing the screen, ensure that the device is fixed on a flat surface.
Remove the Back Cover and Battery first before you begin.

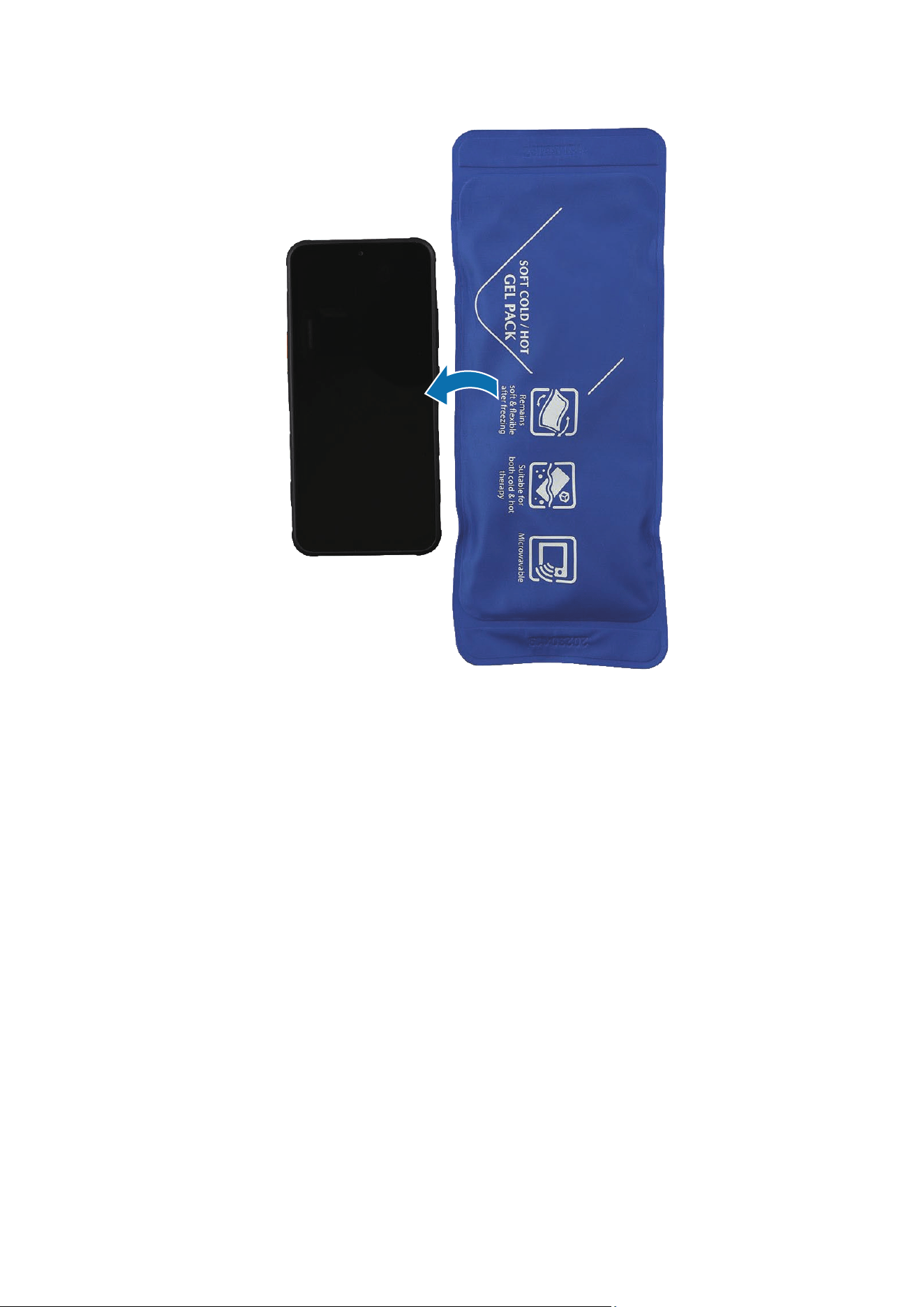

1 Heat the microwaveable heating bag and apply it on the screen for 3 minutes to
soften the adhesive of the screen edge.
•
It is possible for the device or battery to be damaged by heat.
•
Do not heat the device in a microwave. Doing so could cause an explosion.
•
If your device’s glass breaks, the debris can cause injury to your hands or
other body parts. For your safety, attach an acrylic protective cover before
disassembling the device.
•
Follow the heating bag’s instructions for heating. The recommended time for
heating the bag is 50 seconds in a 1000 W microwave and 70 seconds in a 700 W
microwave. (Correct temperature for use: 55-65 ℃.)
•
Be careful not to damage the device through excessive heat. (It is
recommended to disassemble the device in an area with a temperature gauge.)
Disassembly and Assembly
65
Disassembly and Assembly
66
2 Place the suction cup in the centre of the left edge of the screen, and lift it upwards.
For separable handle suction cups, be careful not to injure yourself as the handle
can be parted during use.
Be careful that the suction cup does not adhere to the area where the tape or
sticker is attached.
If you have trouble creating a gap, heat the microwaveable heating bag
additionally, and apply it on the screen to further soften the adhesive. When
reheating, it should be heated no longer than 30 seconds.
Disassembly and Assembly
67

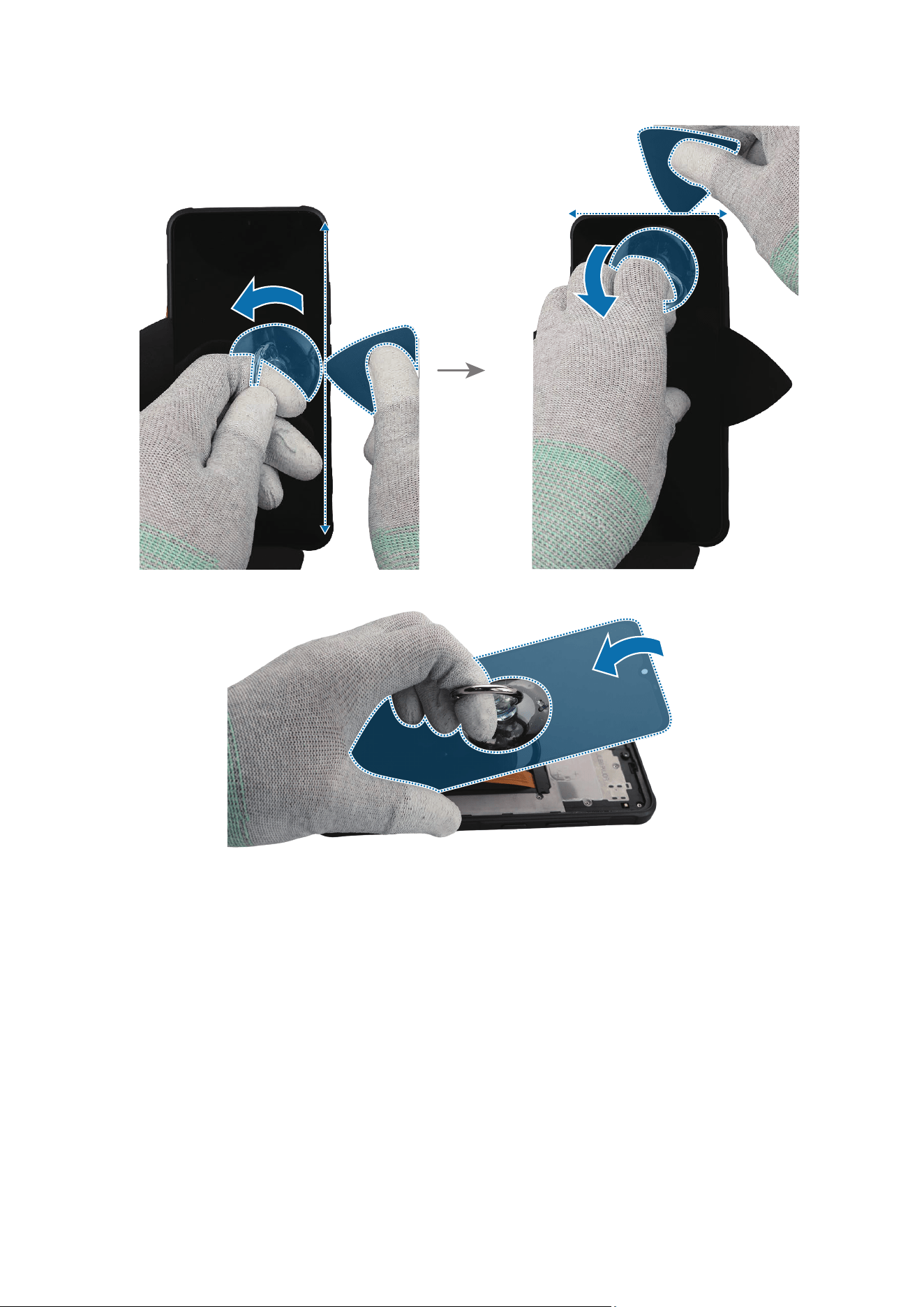

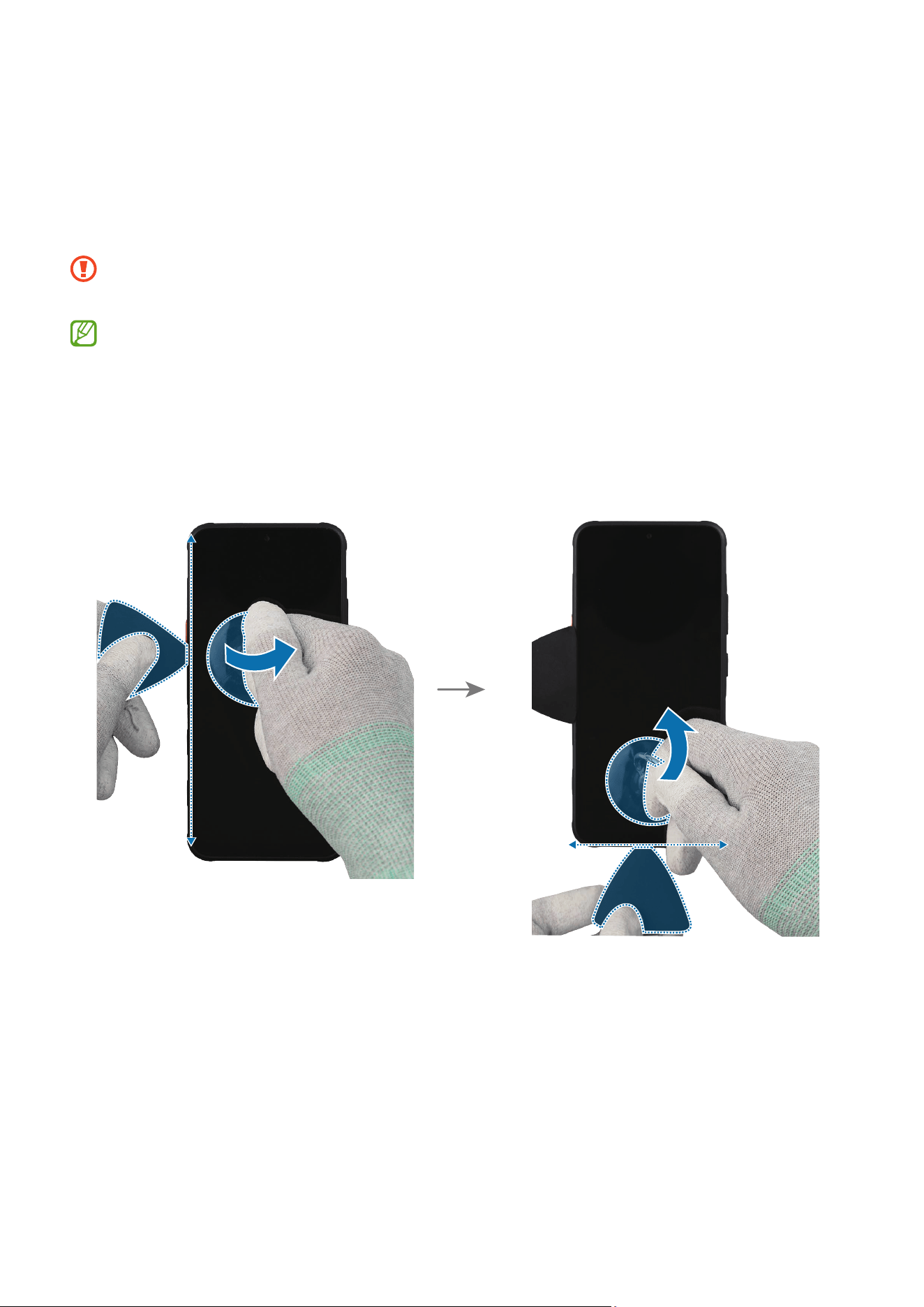

3 While pulling up the suction cup with strong, steady force to create the gap between
the screen and the device frame, place the opening pick in the gap between the
screen and the device frame and slide the opening pick back and forth along the
edge to slice through the adhesive. Repeat this on the all sides and slice through the
adhesive. Lift up the screen slowly and remove it gently from the device.
As the internal circuitry can be damaged, do not insert the opening pick more
than 2 mm.
•
Make sure to leave the opening pick inserted in the edges to prevent the
adhesive from resealing. It is recommended that a large area of the opening
pick be inserted.
•
If you have trouble creating a gap, heat the microwaveable heating bag
additionally, and apply it on the screen to further soften the adhesive. When
reheating, it should be heated no longer than 30 seconds.
Disassembly and Assembly
68
Disassembly and Assembly
69

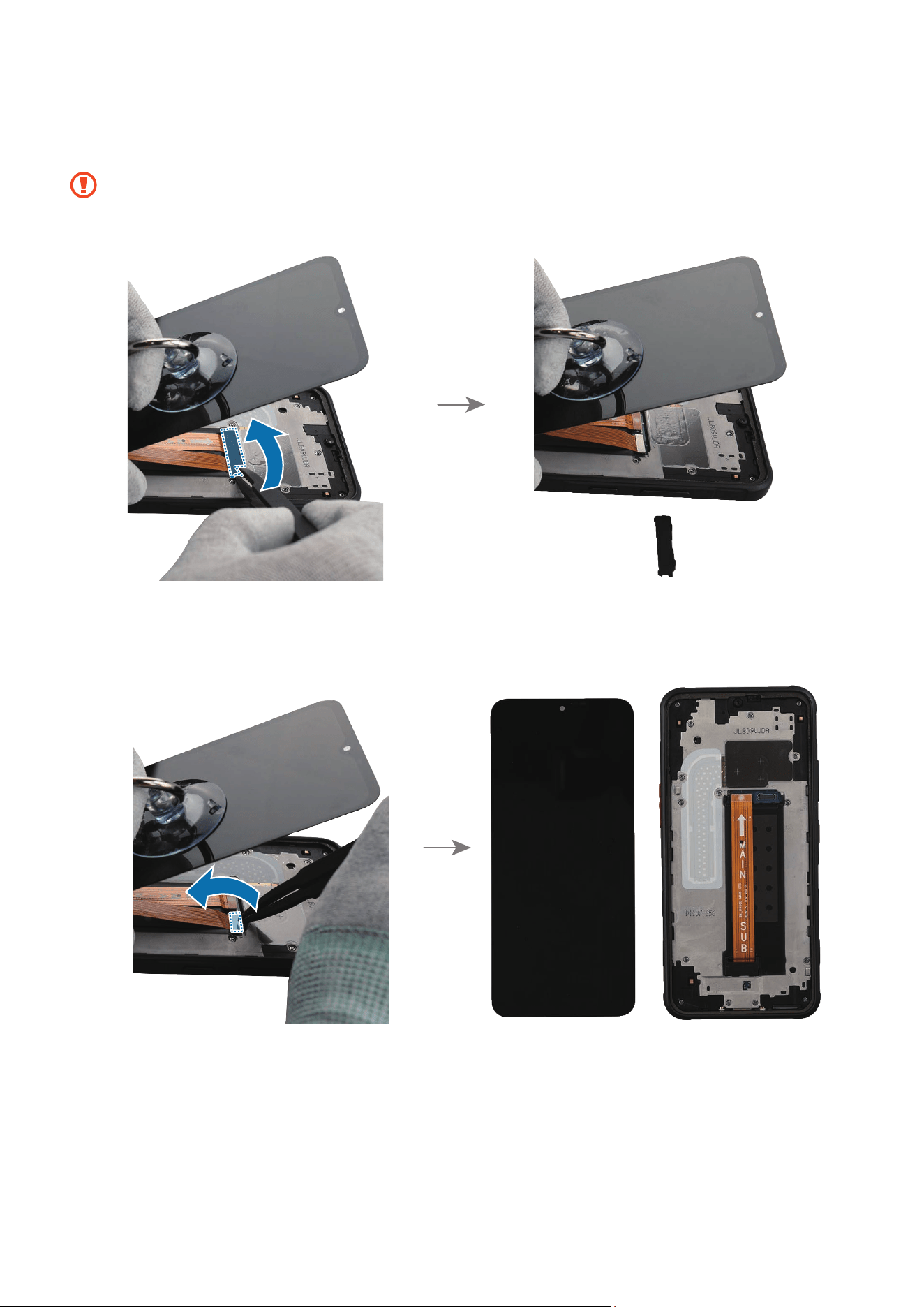

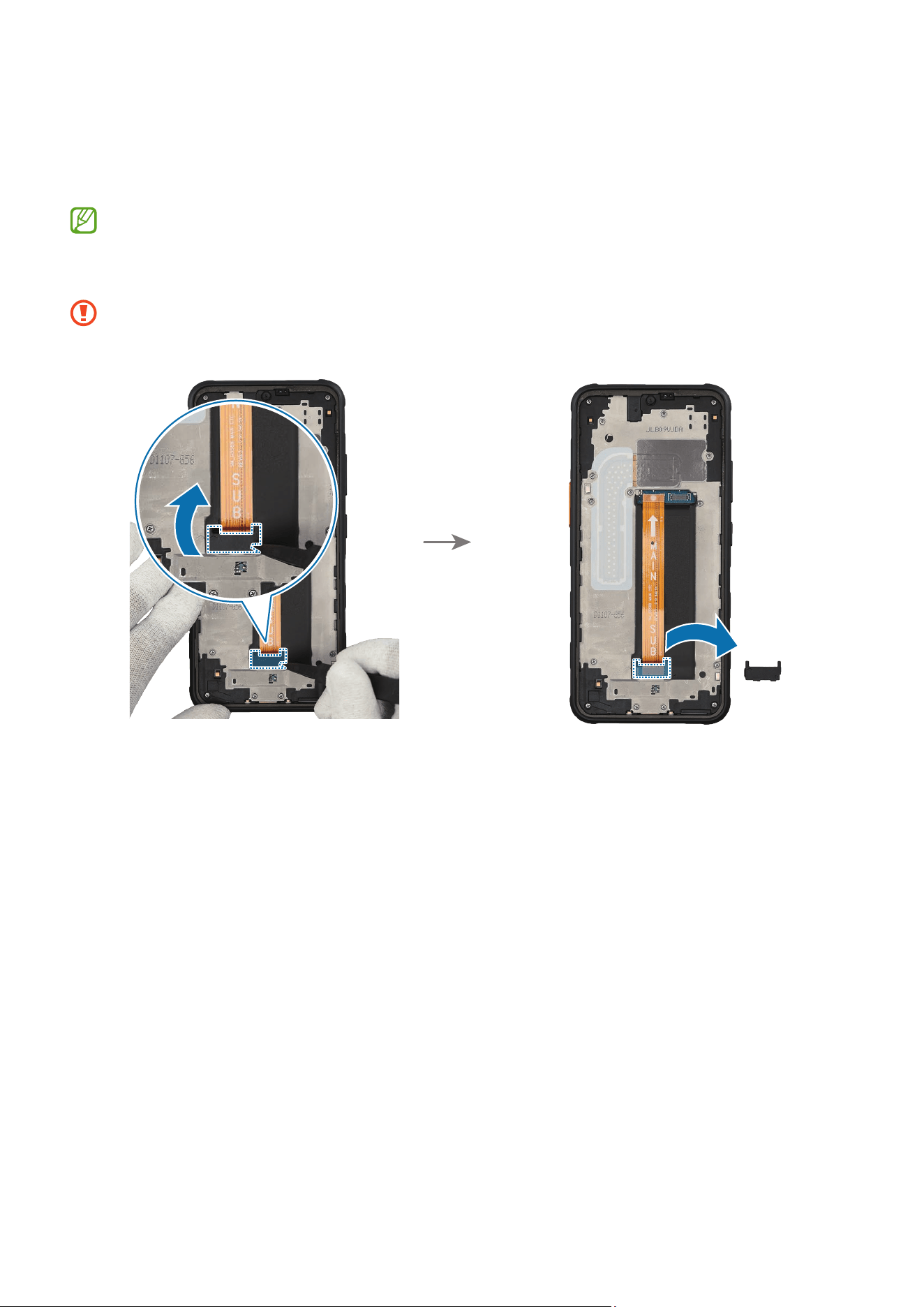

4 Using the tweezers, disassemble the screen’s FPCB cable connector cover before
removing the screen completely.
As the bracket can be damaged by excessive force, be careful not to damage the
bracket.
5 Using the tweezers, disassemble the screen’s FPCB cable connector and separate the
screen completely.
Disassembly and Assembly
70
Reassembly
Leaving screws inside the device may damage internal components, such as the
battery. When assembling, be extra careful not to leave any unassembled screws
inside the device.
Before attaching the screen, make absolutely sure that there are no screws,
miscellaneous parts, or other foreign objects on the inside of the device (among
the battery, PBA, etc.).

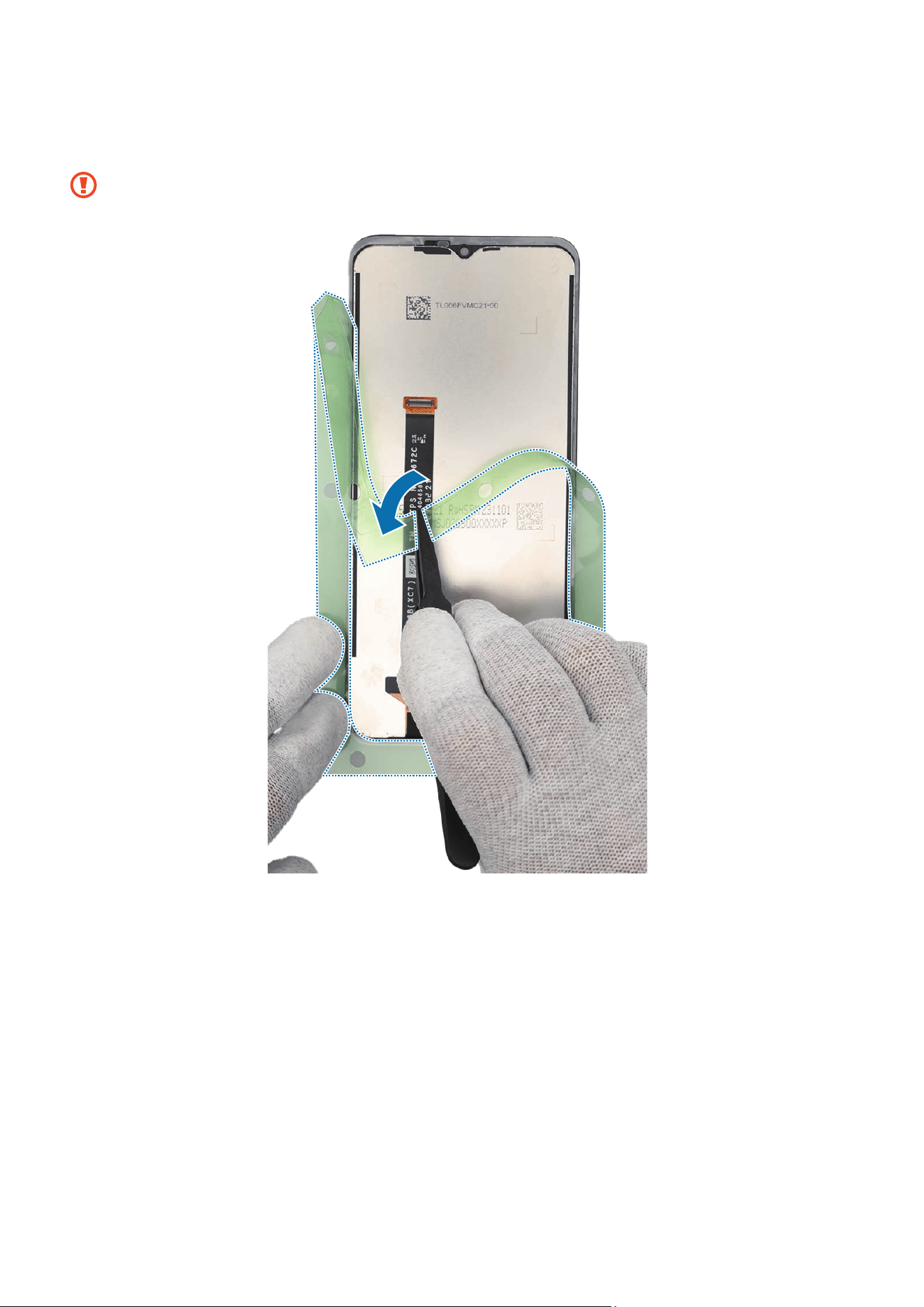

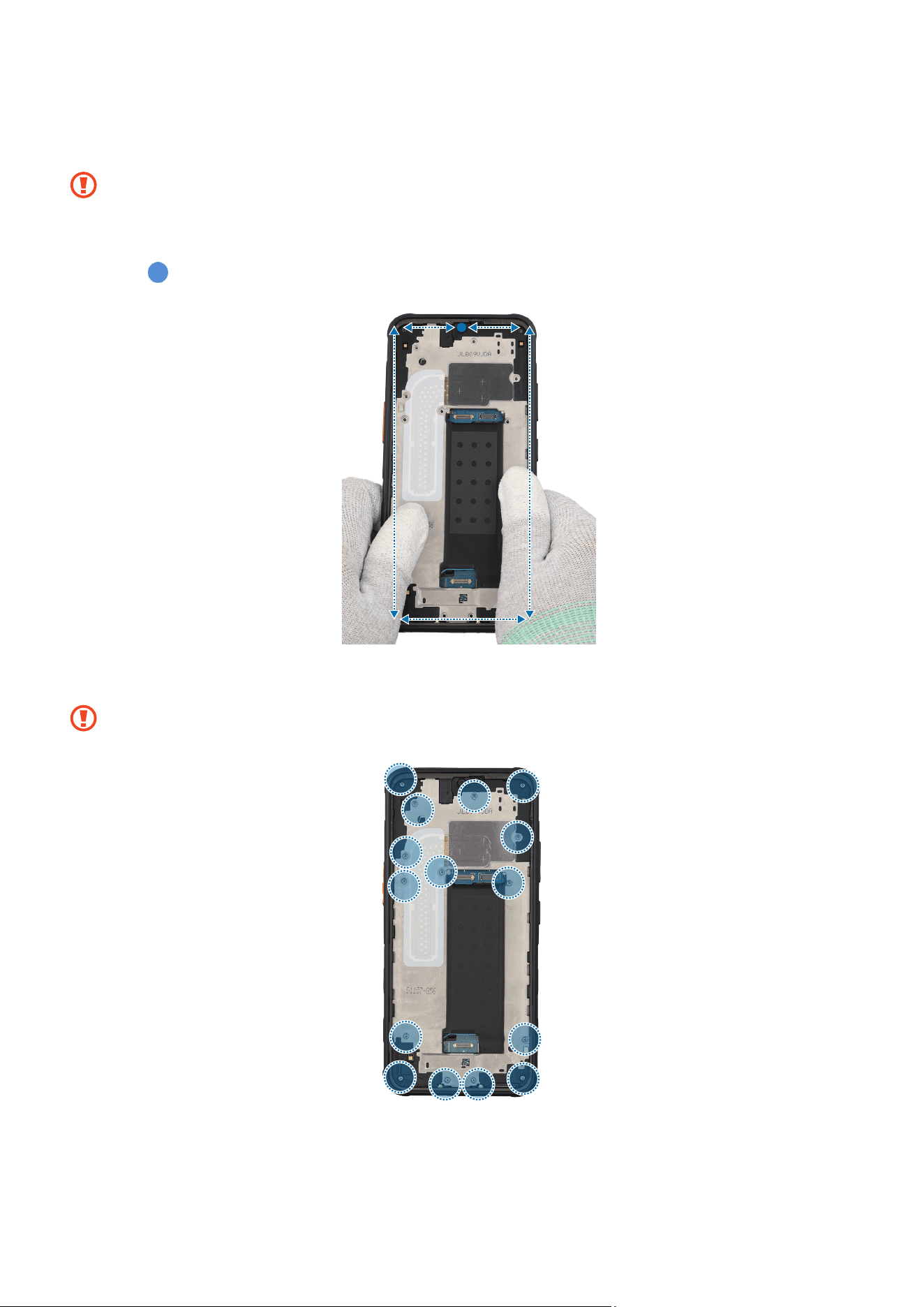

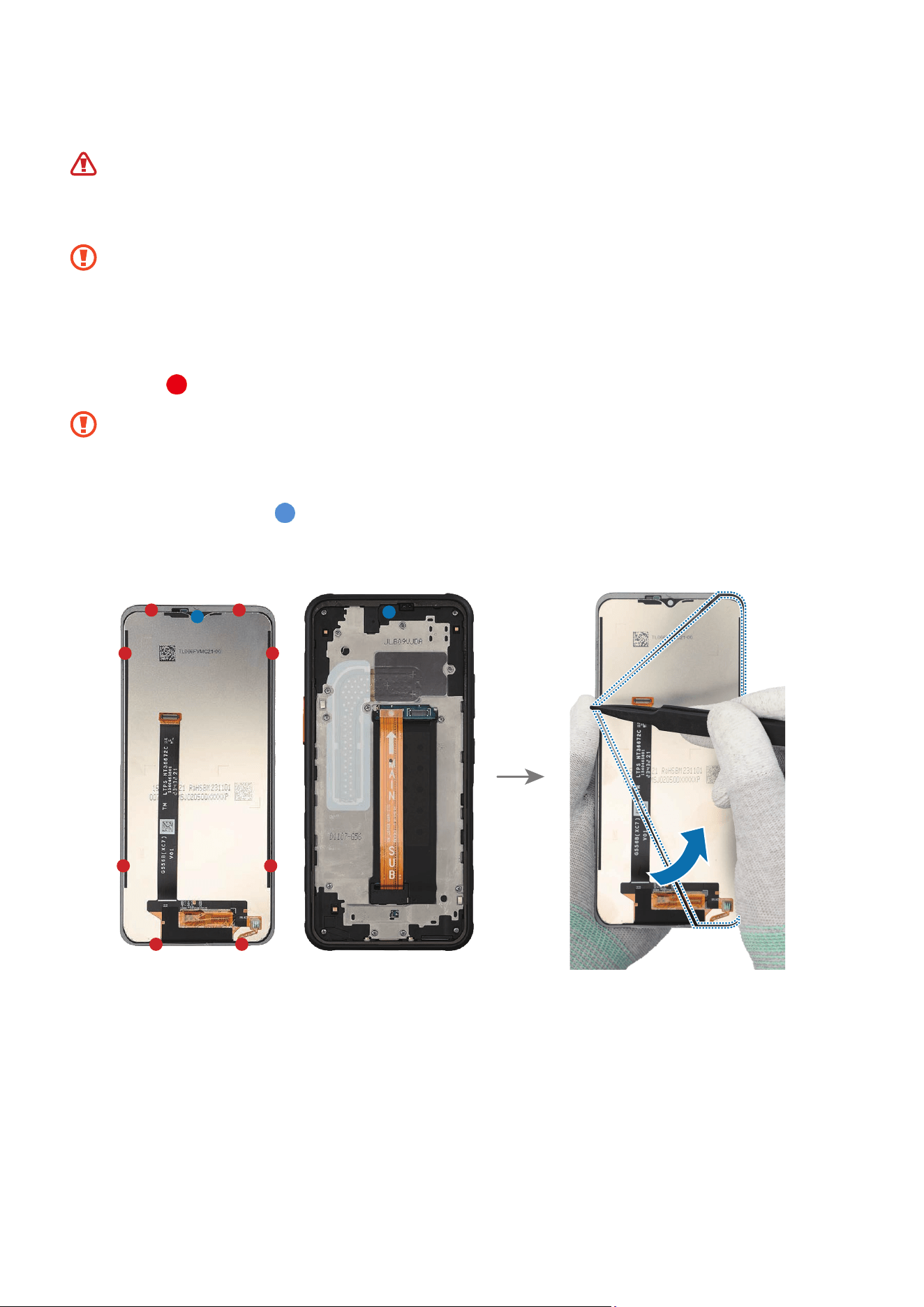

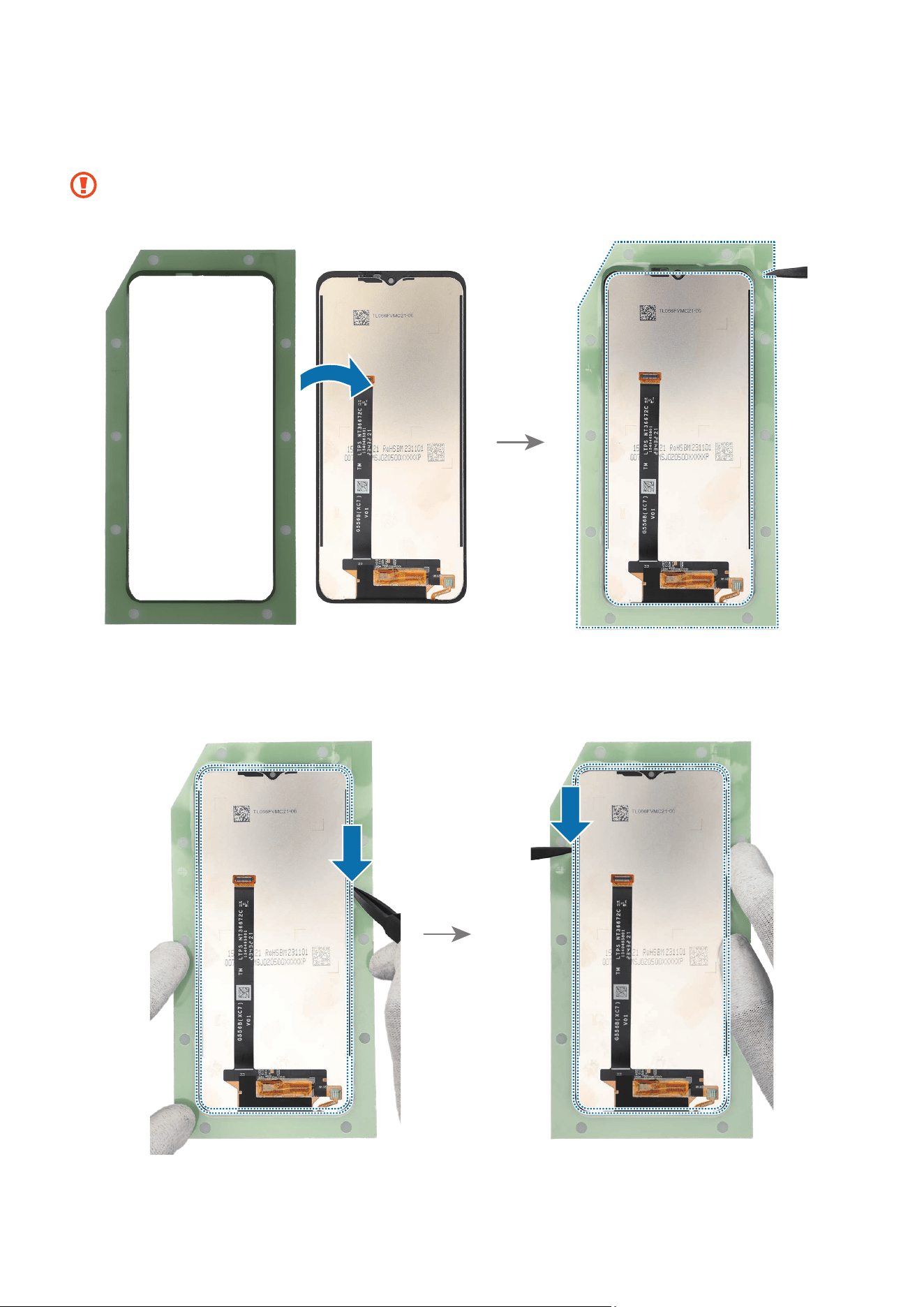

1 Using the tweezers and your fingers, remove all adhesive tapes on the edge of the
screen (
).
•
Make sure to remove any residual tapes attached to the screen before
reassembling the screen.
•
Be careful not to put your fingertips or any foreign objects on the front camera
or screen lens (
).
•
Be careful not to damage the device and near components.
Disassembly and Assembly
71
2 Remove the transparent film of the new screen side adhesive tape. Using the
tweezers or your fingers, align the adhesive tape precisely on the screen and attach it.
Be careful not to damage the device and near components.
3 Using the tweezers and your fingers, gently press around the edges of the tape to
ensure a secure fit.
Disassembly and Assembly
72
4 Using the tweezers and your fingers, remove the release film of the attached
adhesive tape.
Be careful not to damage the device and near components.
Disassembly and Assembly
73

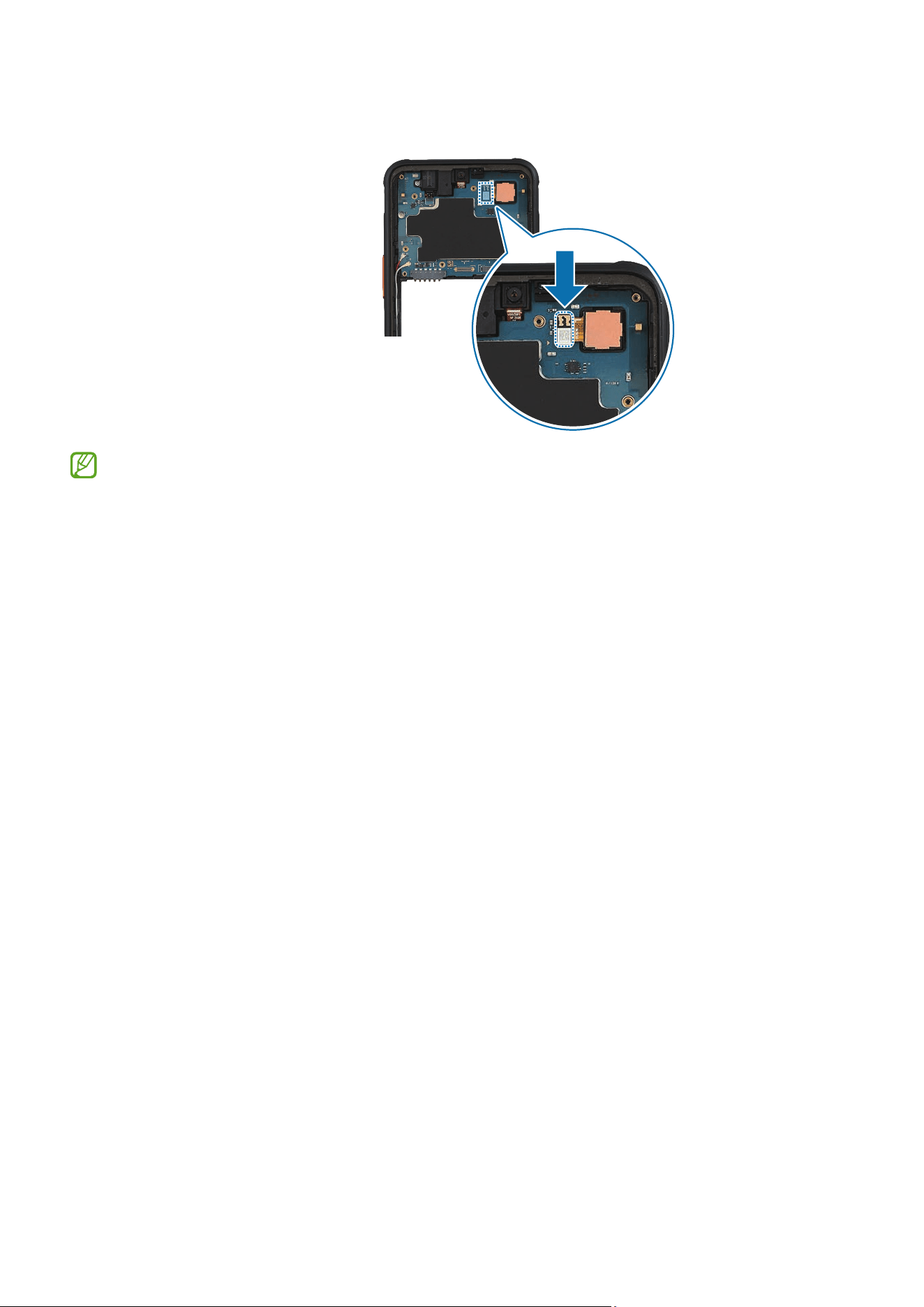

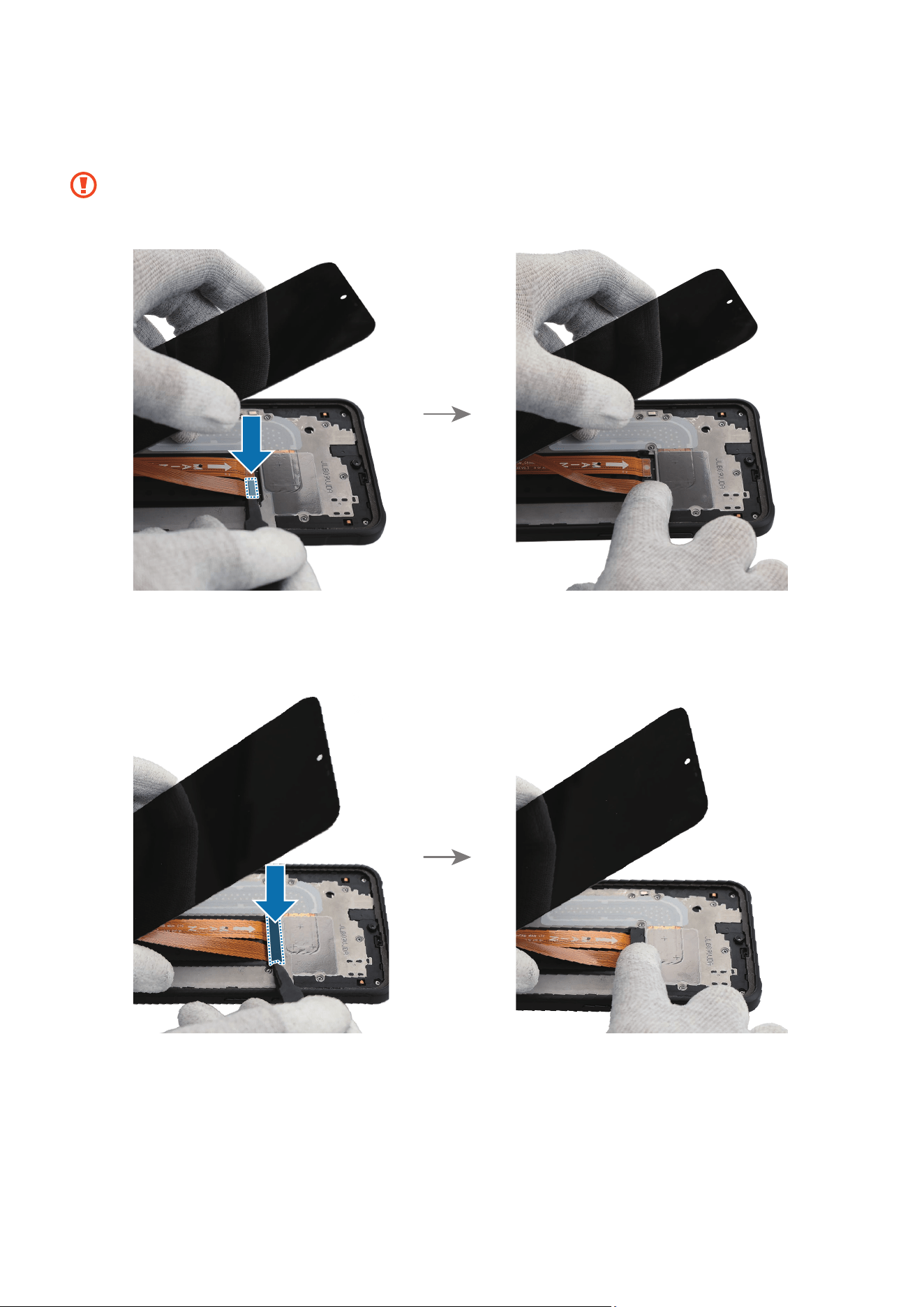

5 Using the tweezers, assemble the screen’s FPCB cable connector to the main board
first and press it down with your fingers.
When assembling the screen’s FPCB cable connector, be careful not to damage
the FPCB cable.
6 Using the tweezers or your fingers, assemble the screen’s FPCB cable connector cover
and press it down softly.
Disassembly and Assembly
74

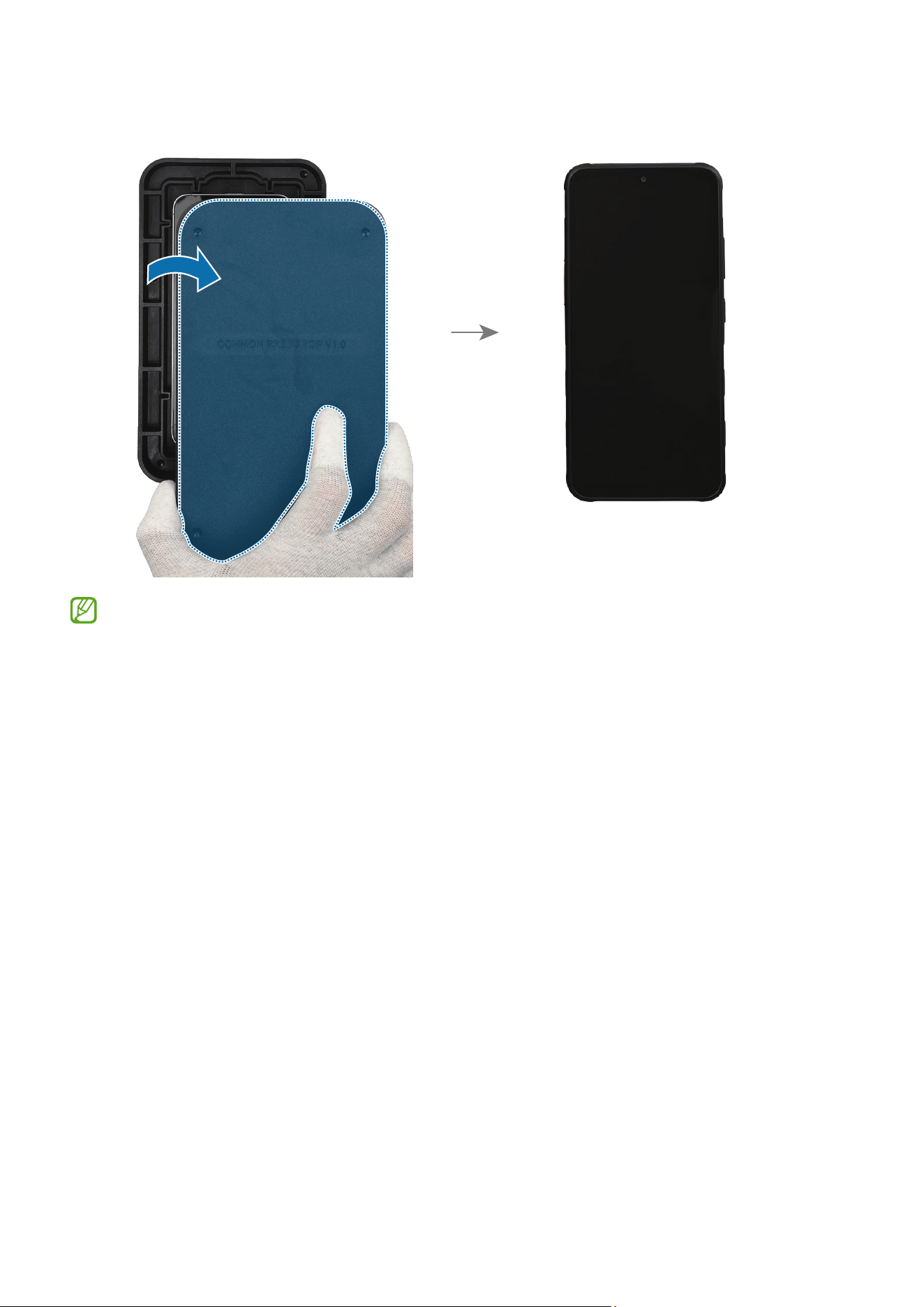

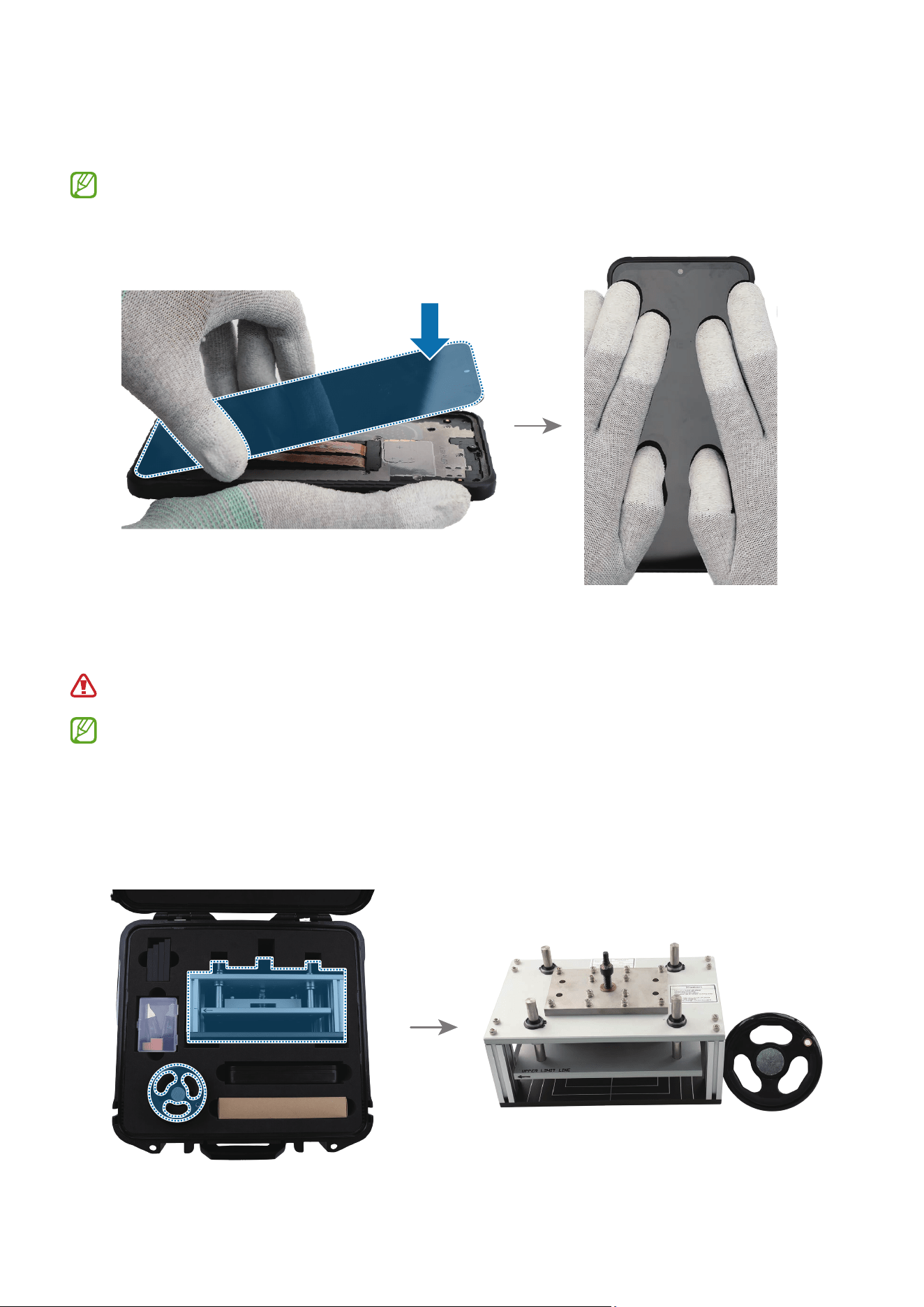

7 Attach the screen and press down on the edges of the screen. Check the gap between
the screen and the device frame.
If you feel some gap, remove the screen and attach it again. Some foreign
materials can be inside the device.

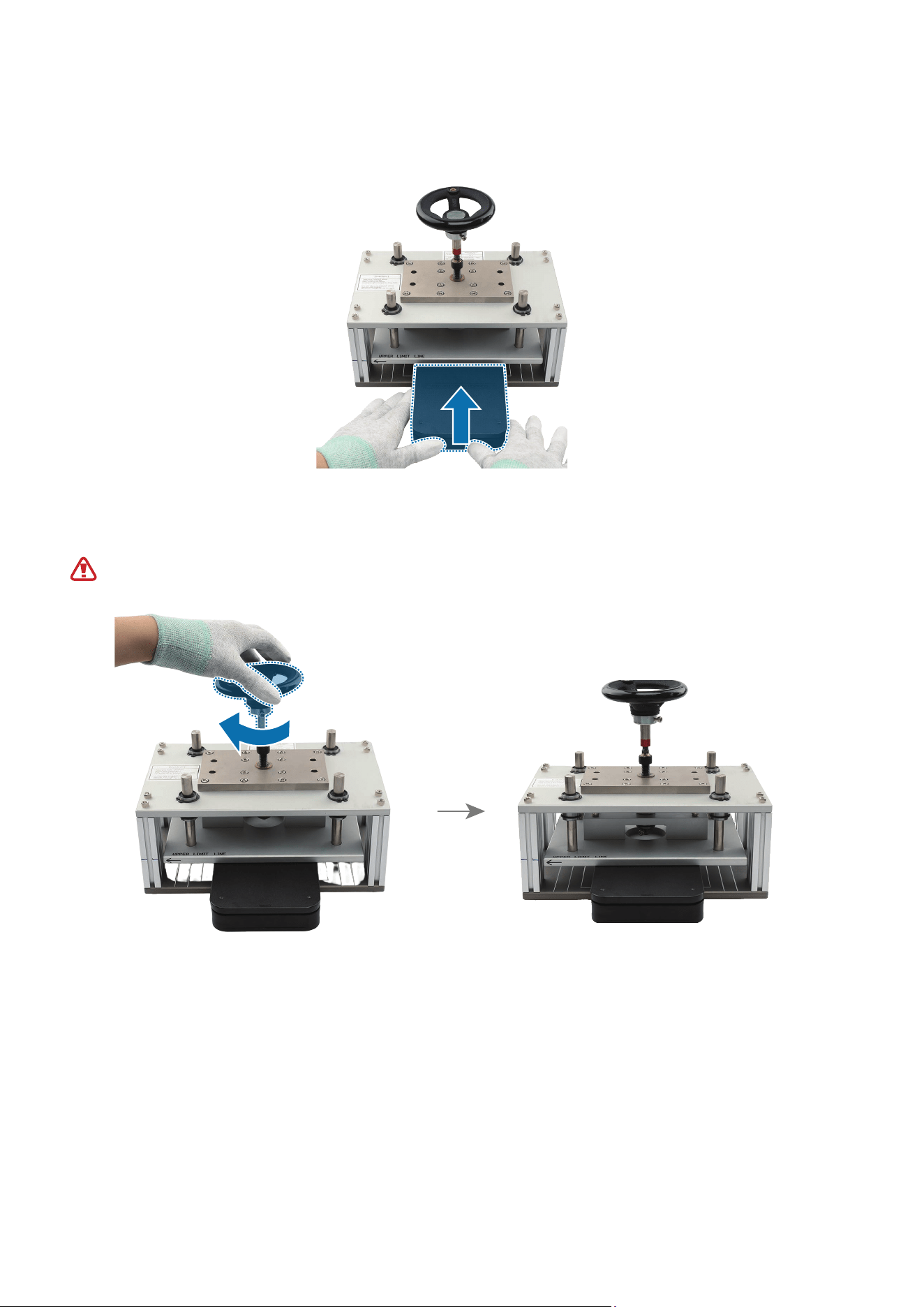

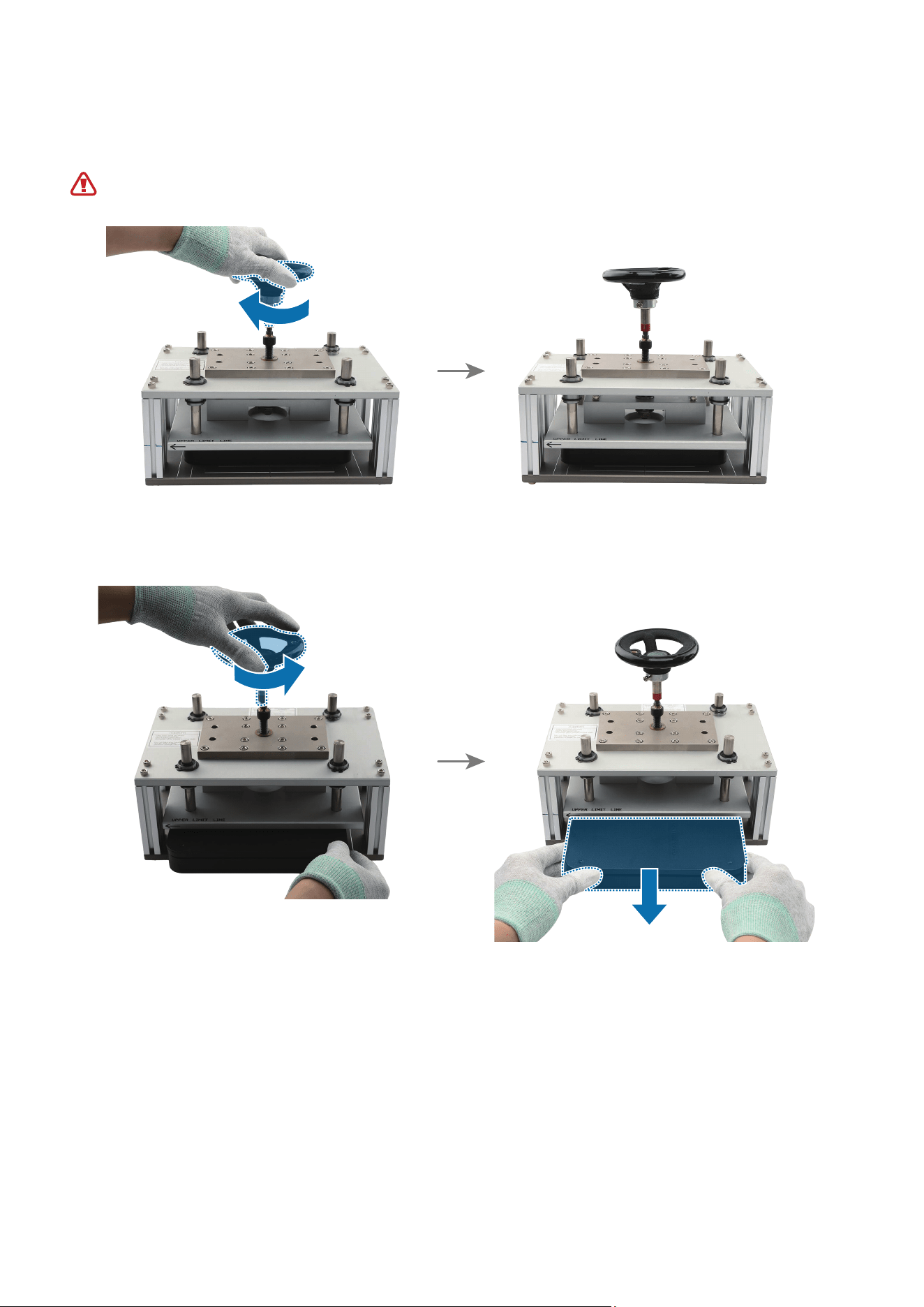

8 Now you can press the fully assembled screen using the press fixture. Remove the
press fixture body and its handle from the rental tool kit packaging.
Keep your hands out of the press fixture to avoid mechanical pinching and injury.
•
This tool is only available to use by the rental of tool kit that contains a
complete set of the tools for self repair service.
•
Availability of rental service may vary depending on the country and is currently
available only in limited countries.
•
A rented tool kit packaging may have different packaging than shown.
Disassembly and Assembly
75

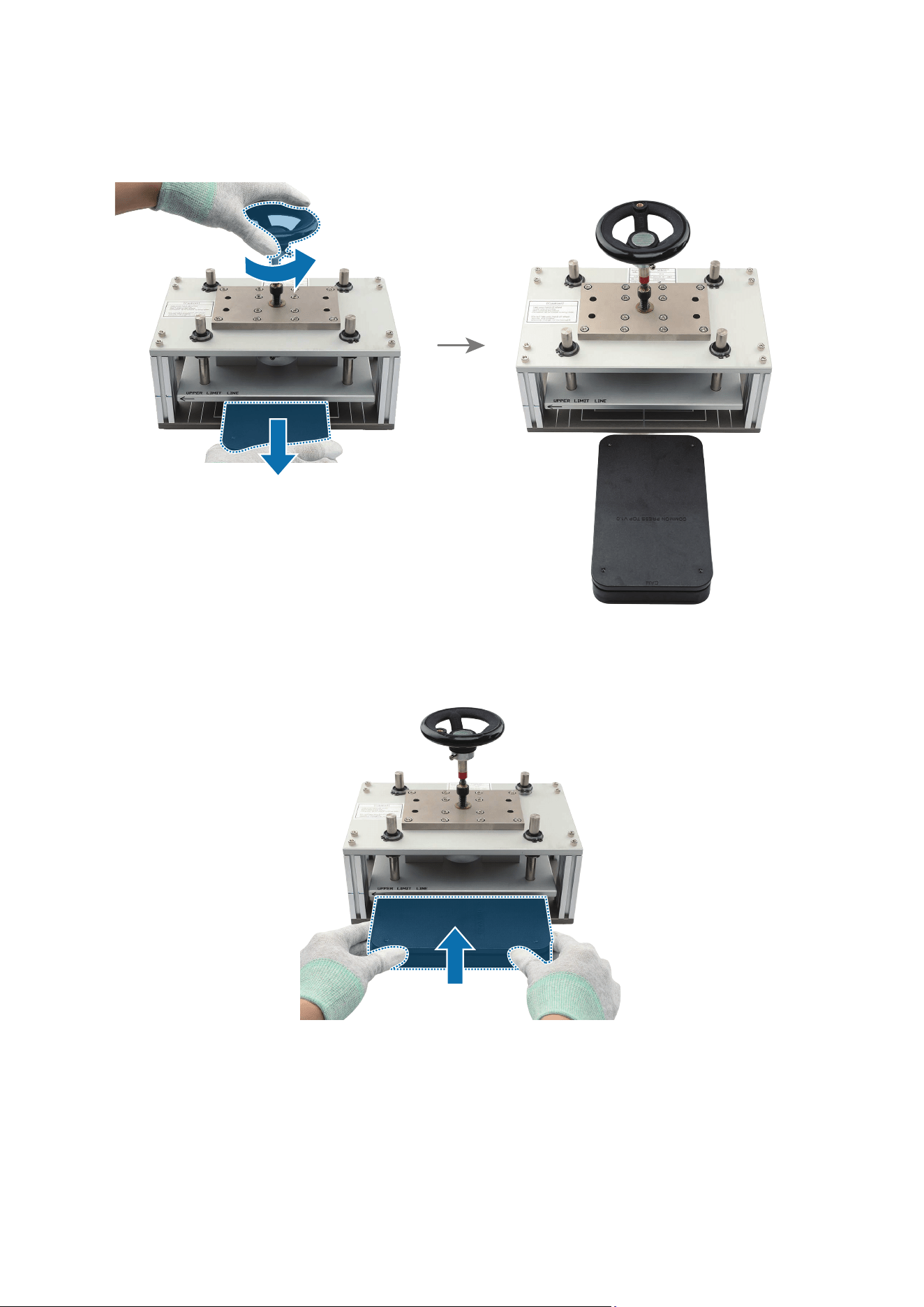

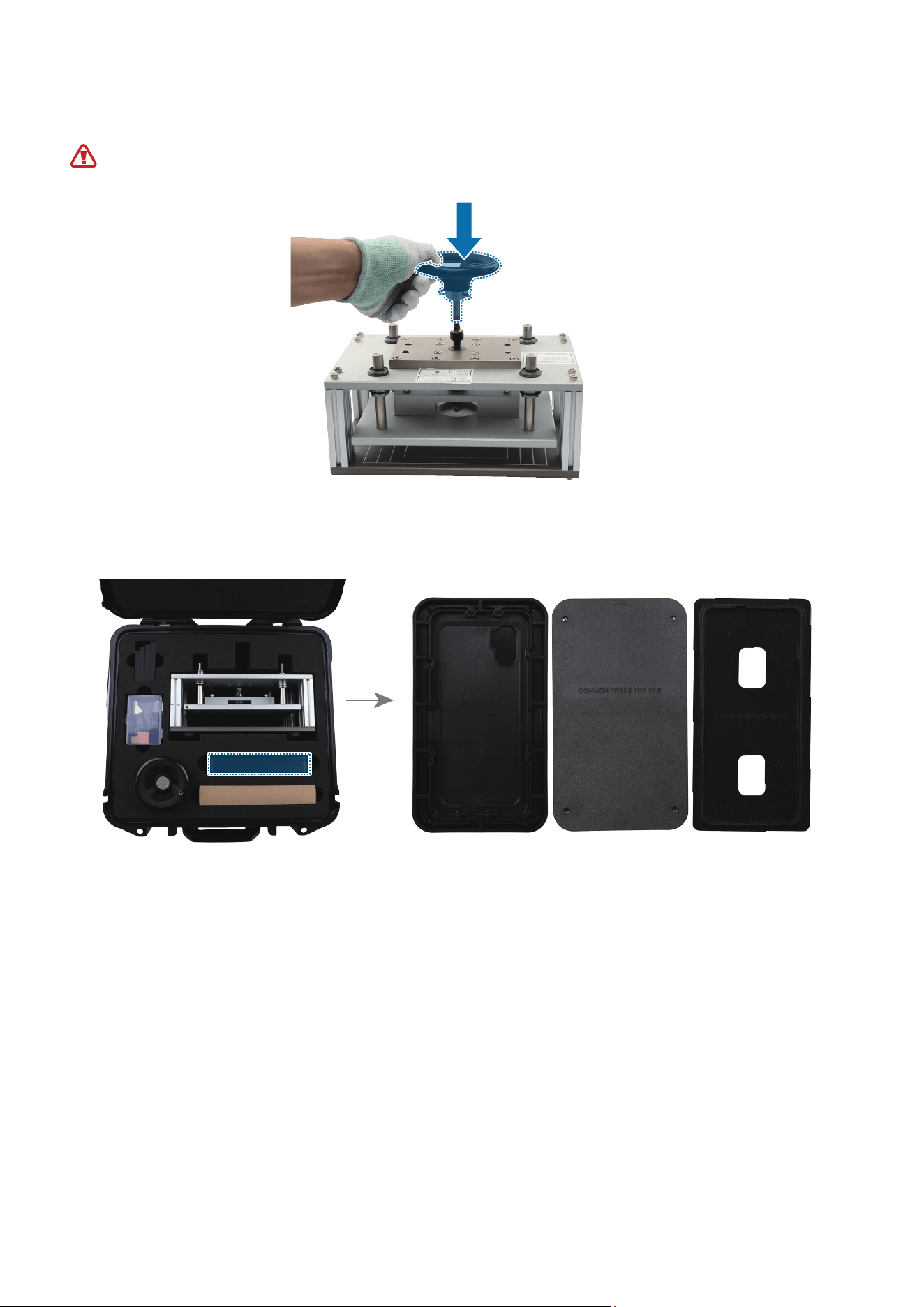

9 Carefully position the torque limit handle horizontally at the top of the press fixture.
Keep your hands out of the press fixture to avoid mechanical pinching and injury.
10
Remove the bottom press tray, top press tray, and top rubber pad for the screen from
the rental tool kit packaging.
Disassembly and Assembly
76

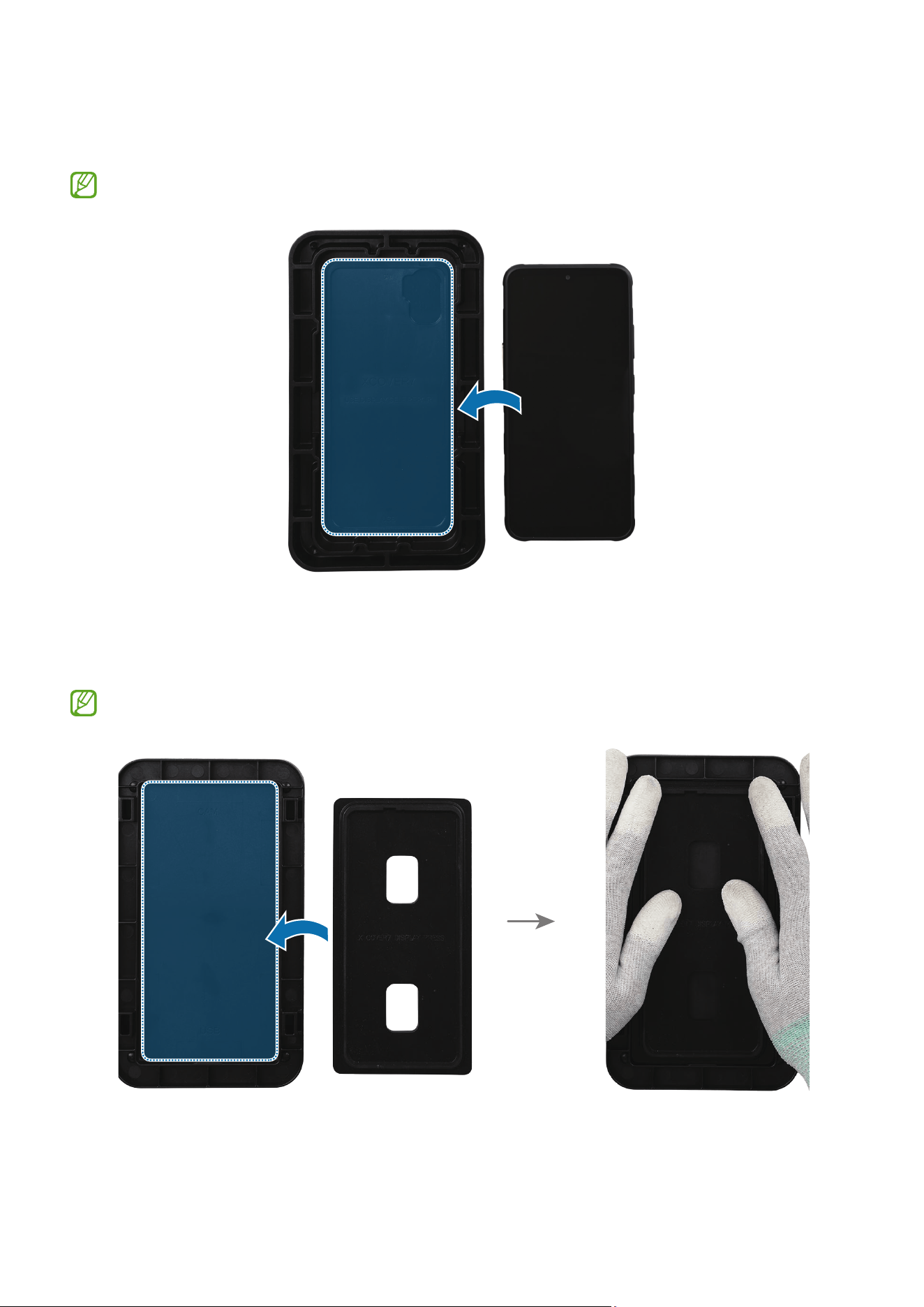

11
Leave the bottom press tray so that the side for the screen is visible. Then, place the
device into the tray facing up.
The bottom press tray may vary depending on the device.
12
Insert the top rubber pad for the screen into the top press tray. Press down the edges
of the rubber pad entirely using your fingers and make sure that the pad is pressed in
completely.
The rubber pad may vary depending on the device.
Disassembly and Assembly
77

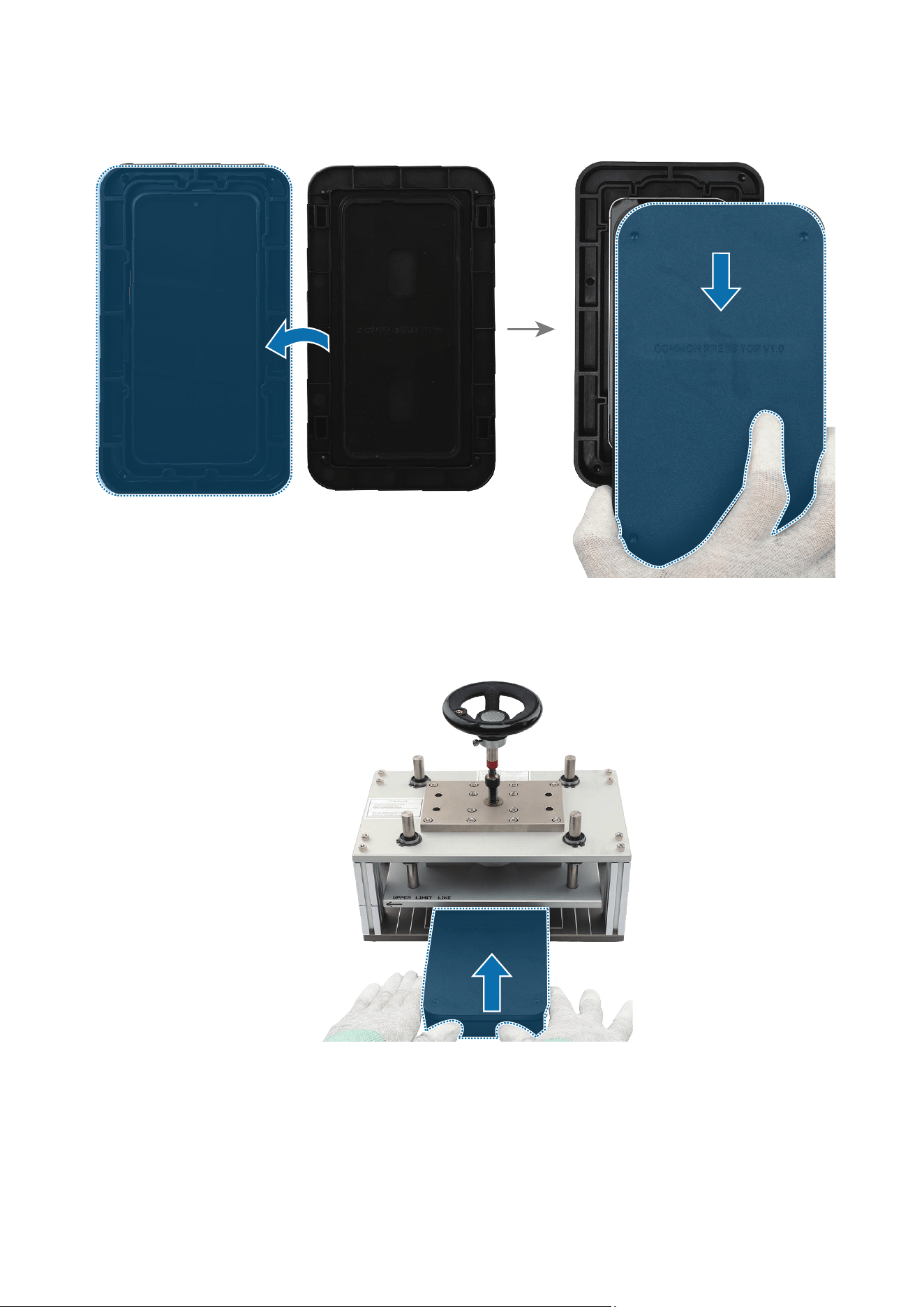

13
Carefully place the top press tray over the bottom press tray.
14
Position the top 2/3 of the screen press tray with the device lengthwise in the centre
of the press fixture.
Disassembly and Assembly
78
15
Rotate the torque limit handle to the clockwise until it makes a sound. In that press
state, stay the tray for 30 seconds.
Keep your hands out of the press fixture to avoid mechanical pinching and injury.
When you reach the required maximum force (1 N), a sound is made from the
handle if you turn the handle.
16
When the press is completed after 30 seconds, rotate the torque limit handle to the
anticlockwise and remove the tray from the press fixture.
Disassembly and Assembly
79
17
Position the bottom 2/3 of the screen press tray with the device lengthwise in the
centre of the press fixture.
18
Rotate the torque limit handle to the clockwise until it makes a sound. In that press
state, stay the tray again for 30 seconds.
Keep your hands out the of press fixture to avoid mechanical pinching and injury.
Disassembly and Assembly
80
19
When the second press is completed after 30 seconds, rotate the torque limit handle
to the anticlockwise and remove the tray from the press fixture.
20
Position the entire screen press tray with the device horizontally in the centre of the
press fixture.
Disassembly and Assembly
81
21
Rotate the torque limit handle to the clockwise until it makes a sound. In that press
state, stay the tray for 30 seconds.
Keep your hands out of the press fixture to avoid mechanical pinching and injury.
22
When the third press is completed after 30 seconds, rotate the torque limit handle to
the anticlockwise and remove the tray from the press fixture.
Disassembly and Assembly
84
2 Using the tweezers, disconnect the 2 flex cable connectors and remove the flex cable
completely.
Be careful not to damage the cable.
Disassembly and Assembly
85

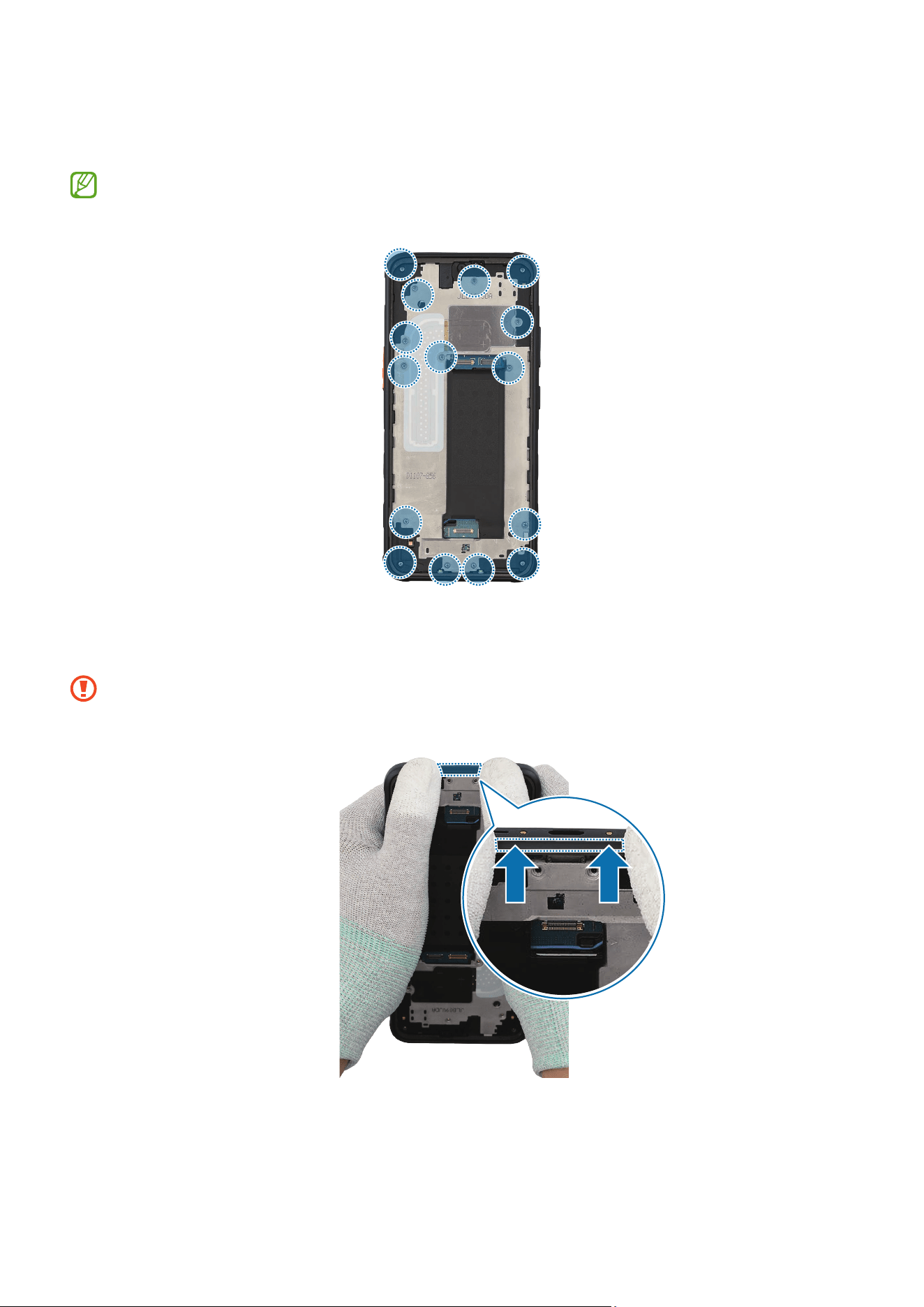

3 Check and remove the screws at the 15 different points on the bracket using a
cross-head screwdriver.
Check the number of screws that have been removed, and store them carefully to
make sure that no unassembled screws are left inside the device during assembly.

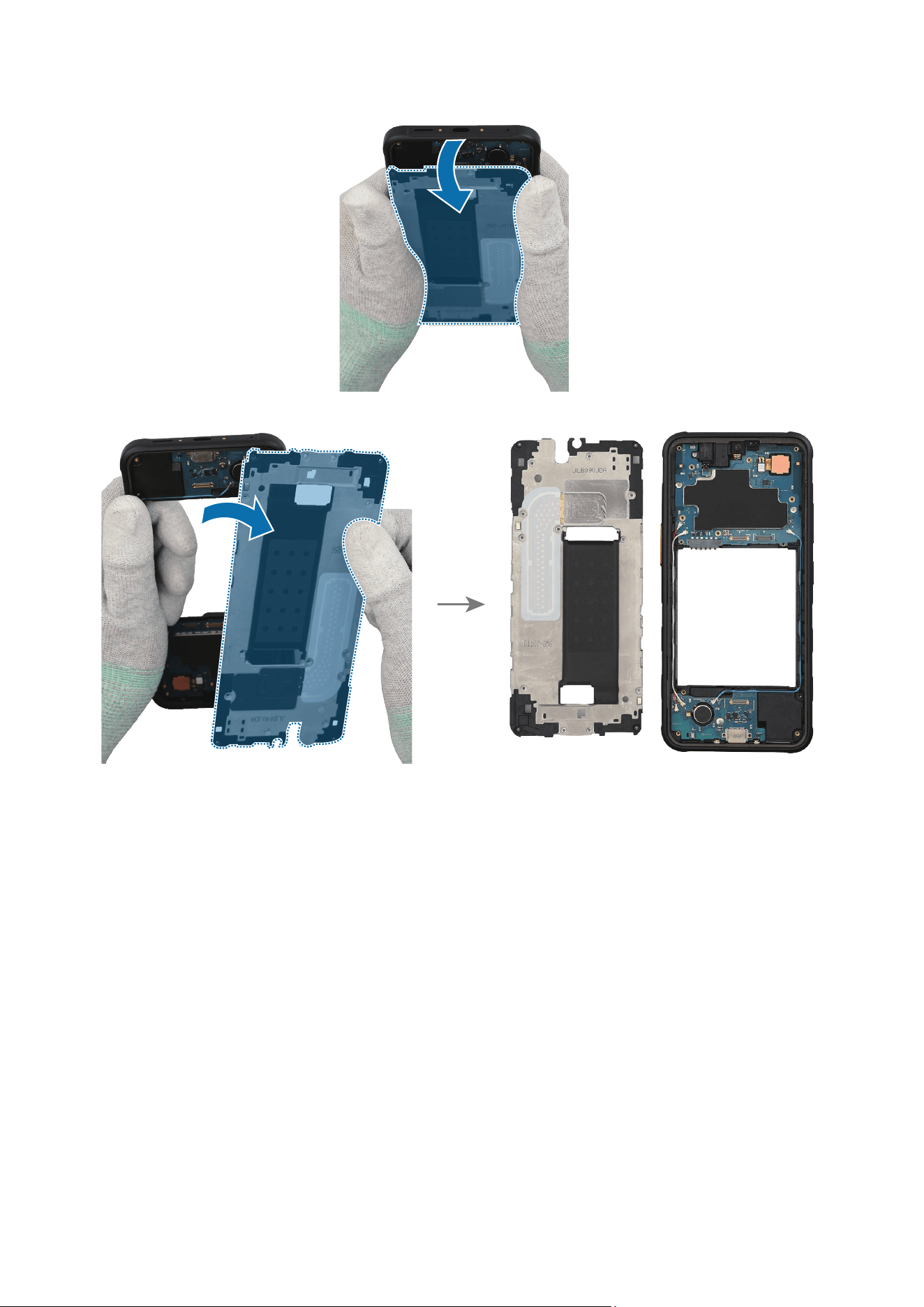

4 Using your fingers, carefully separate the bracket by gently pushing the device frame
from the bottom of the device frame.
As the frame and bracket can be damaged by excessive force, be careful not to
damage the frame and bracket.
Disassembly and Assembly
86
Disassembly and Assembly
87
Reassembly
Leaving screws inside the device may damage internal components, such as the
battery. When assembling, be extra careful not to leave any unassembled screws
inside the device.

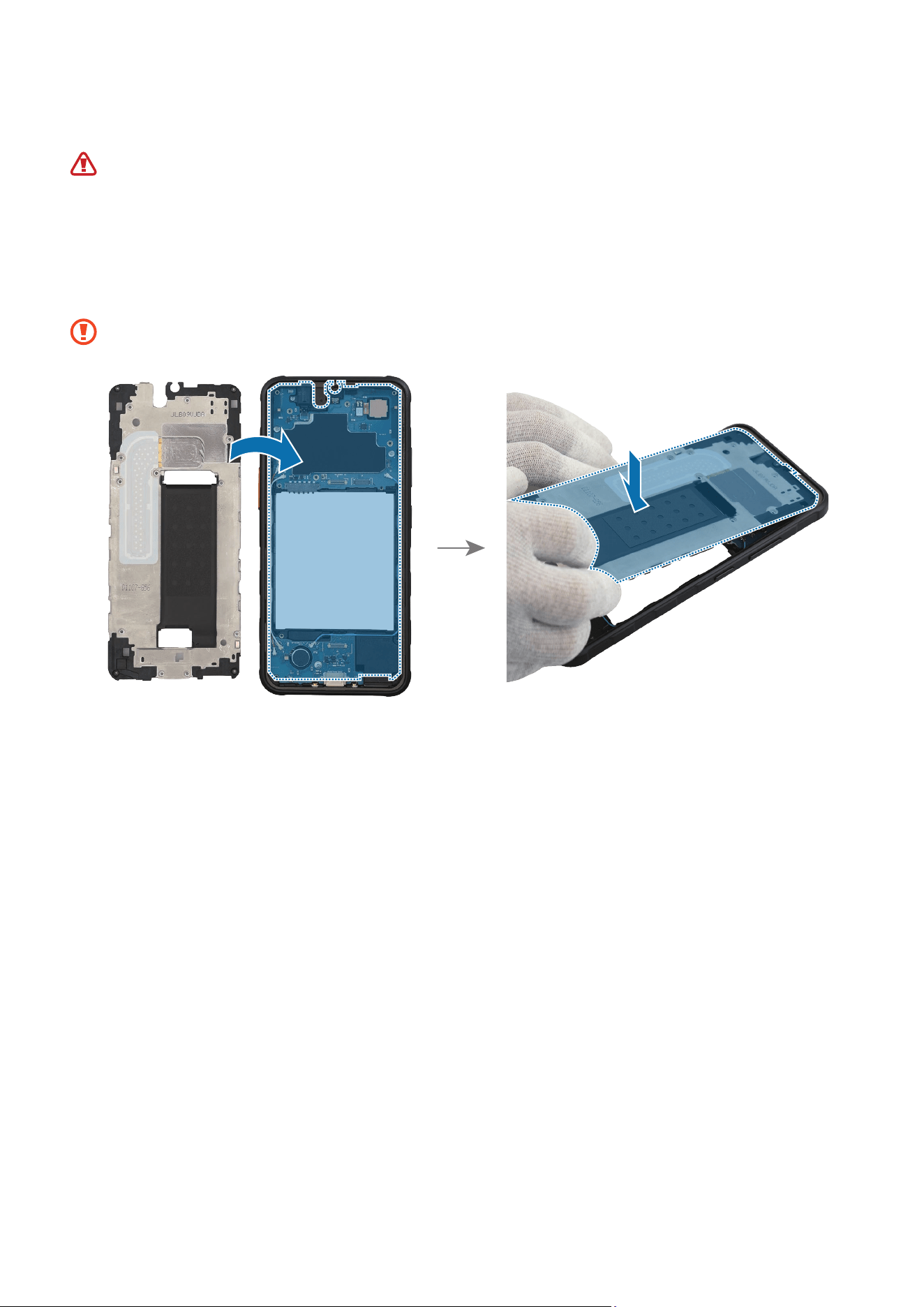

1 Carefully place the bracket based on the upper side of the bracket. Using your fingers,
assemble the bracket to the exact position of the device frame.
Be careful not to damage the frame and near components.
Disassembly and Assembly
88
2 Press down on all the edges of the bracket with your fingers softly and evenly so that
the bracket can be assembled perfectly.
•
As the bracket can be damaged by excessive force, be careful not to damage the
bracket.
•
Be careful not to put your fingertips or any foreign objects on the front cameras
(
).
3 Check the screw 3373 (15 ea) and fasten them using a cross-head screwdriver.
Be careful not to damage the near components.
Disassembly and Assembly
89

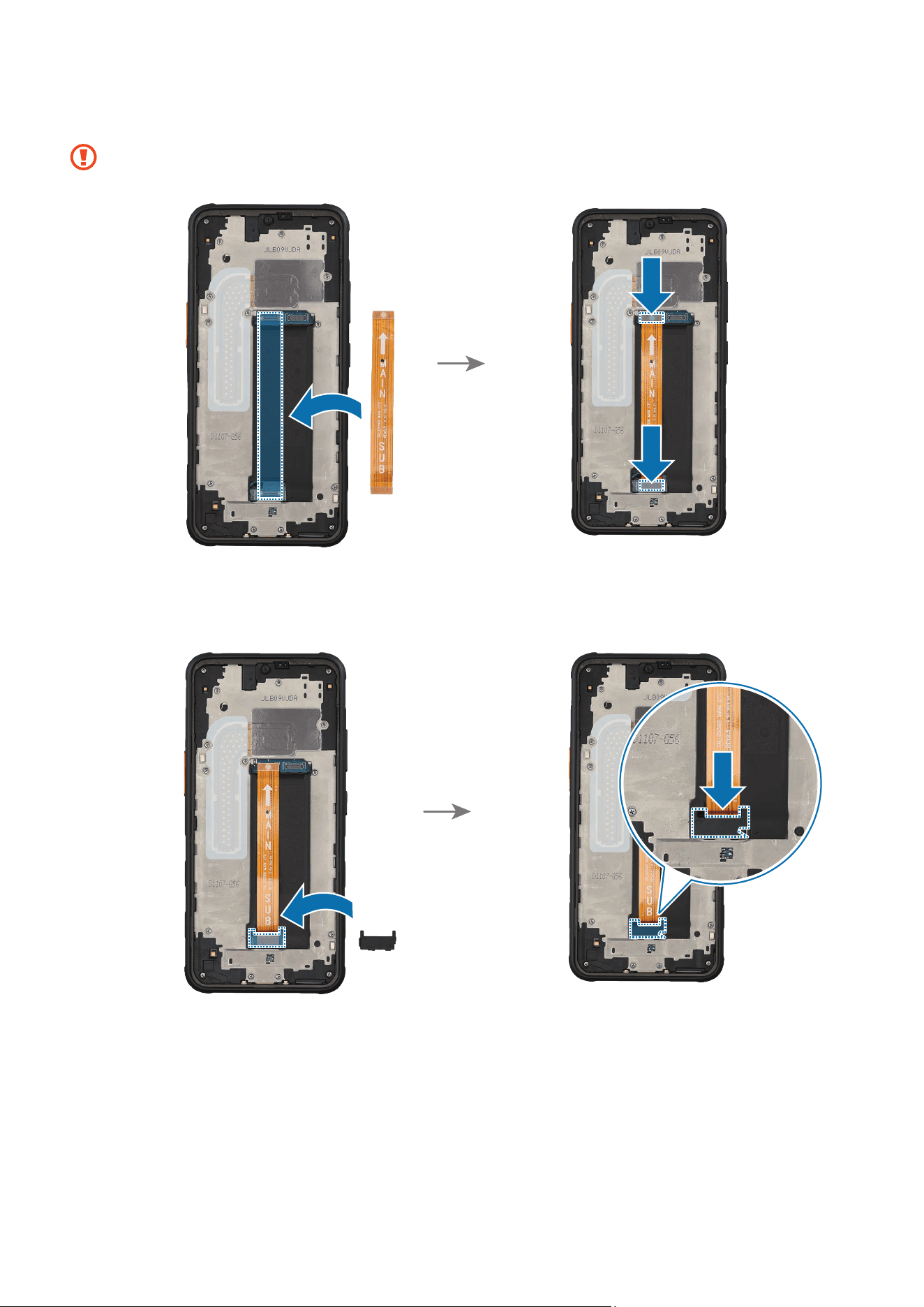

4 Place the flex cable to the device frame and connect the 2 connectors carefully.
Be careful not to damage the cable.
5 Using the tweezers or your fingers, assemble the FPCB cable connector cover and
press it down softly.
Disassembly and Assembly
90
6 Check carefully with your fingers to see if there are any screws or other foreign
substances inside the device (battery, PBA, cable, etc.). Shake the device lightly with
the back of the device facing down to remove any remaining screws.
Reassemble the Screen, Battery, and Back Cover to complete assembly.
Disassembly and Assembly
91
Charging Port and Microphone
The microphone is built into the charging port module.
Disassembly
Remove the Back Cover, Battery, Screen, and Bracket first before you begin.
1 Check the screw on the charging port and remove it using a cross-head screwdriver.
Be careful not to damage the charging port and near components.
Check the number of screws that have been removed, and store them carefully to
make sure that no unassembled screws are left inside the device during assembly.
Disassembly and Assembly
92

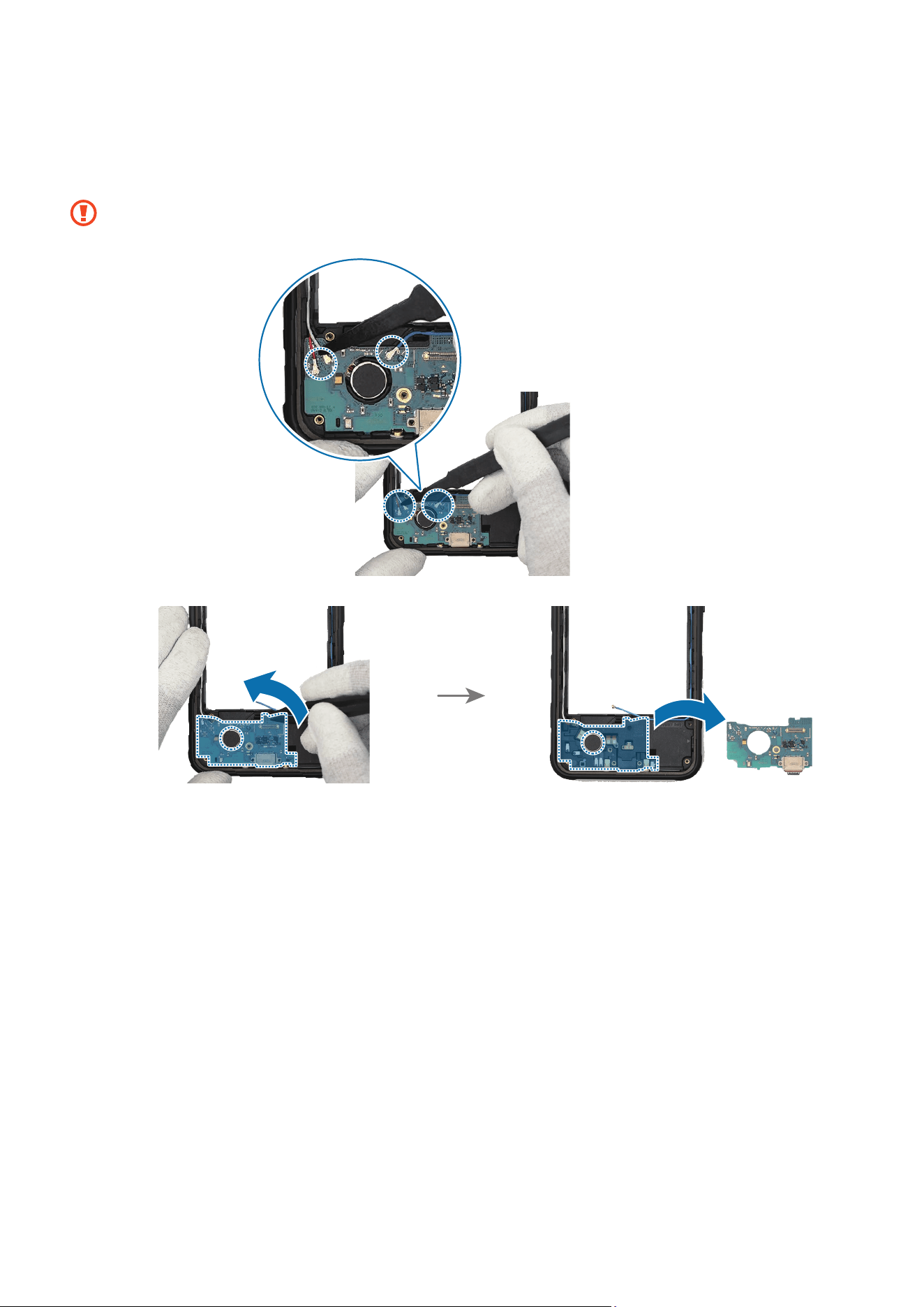

2 Using the tweezers, disconnect the 3 coaxial cable connectors (Red/White/Blue) from
the charging port. Then, lift up on the separator groove of the charging port module,
and remove it carefully.
Be careful not to damage the charging port and near components.
Disassembly and Assembly
93
Reassembly
Leaving screws inside the device may damage internal components, such as the
battery. When assembling, be extra careful not to leave any unassembled screws
inside the device.

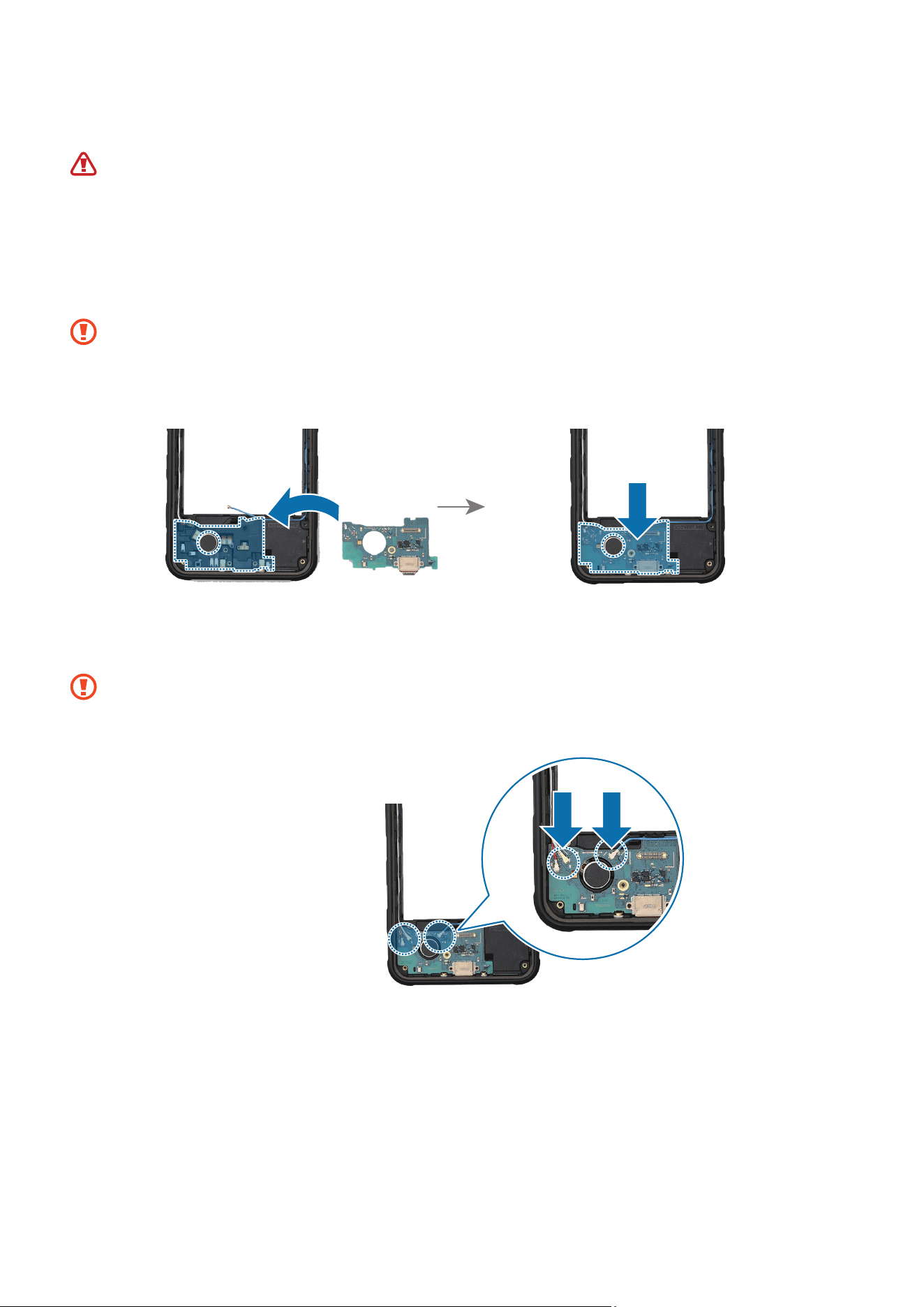

1 Using the tweezers or your fingers, insert the charging port module to the bottom of
the device frame, and press down on it in its position smoothly.
•
The cables have to be positioned outside so as not to interfere when assembling
the charging port.
•
Be careful not to damage the charging port and near components.
2 Using the tweezers or your fingers, connect the 3 coaxial cable connectors (Red/
White/Blue) to the charging port.
•
Be careful not to damage the cable.
•
Be careful not to damage the charging port and near components.

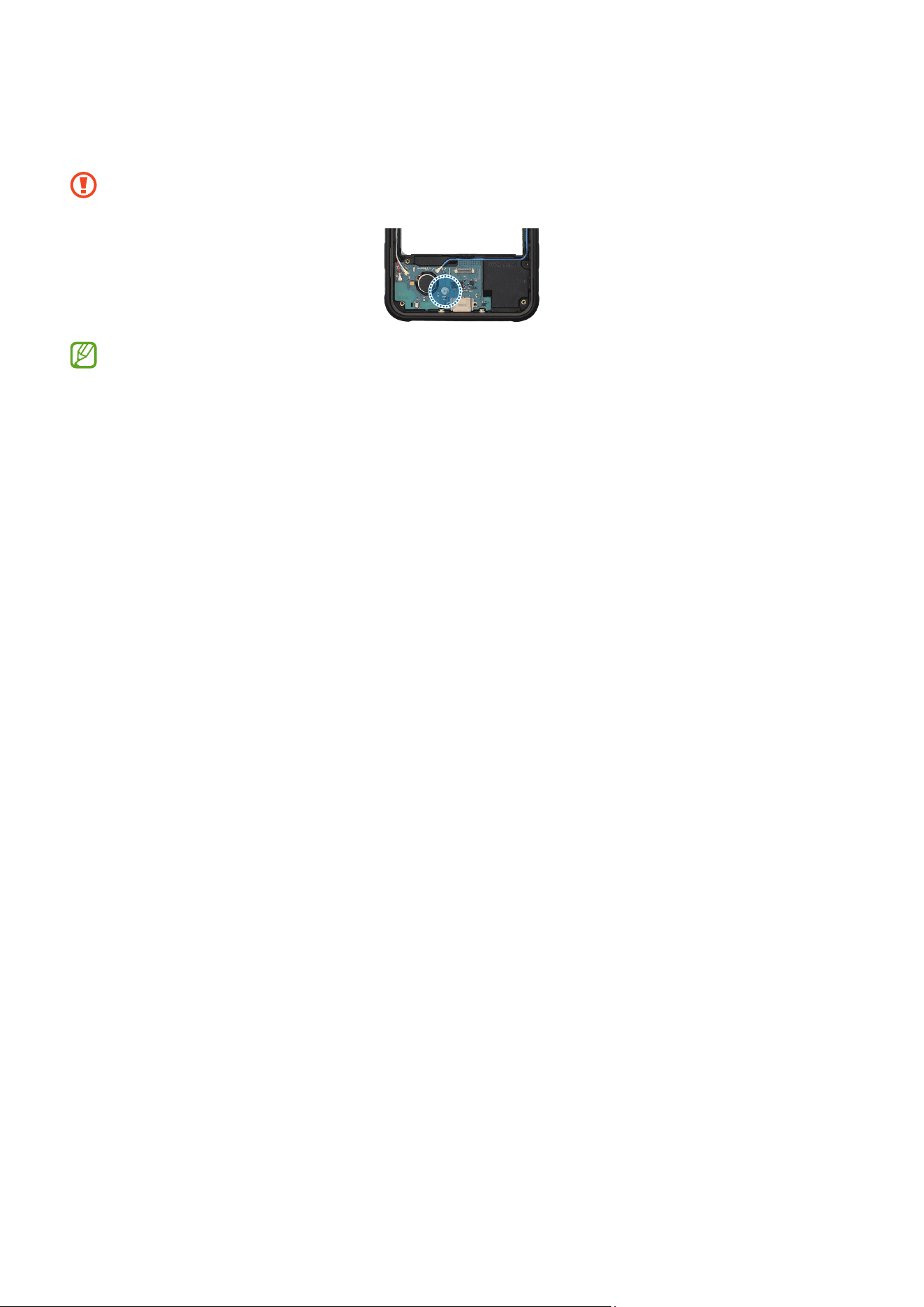

Disassembly and Assembly
95
Rear Camera
Disassembly
Remove the Back Cover, Battery, Screen, and Bracket first before you begin.

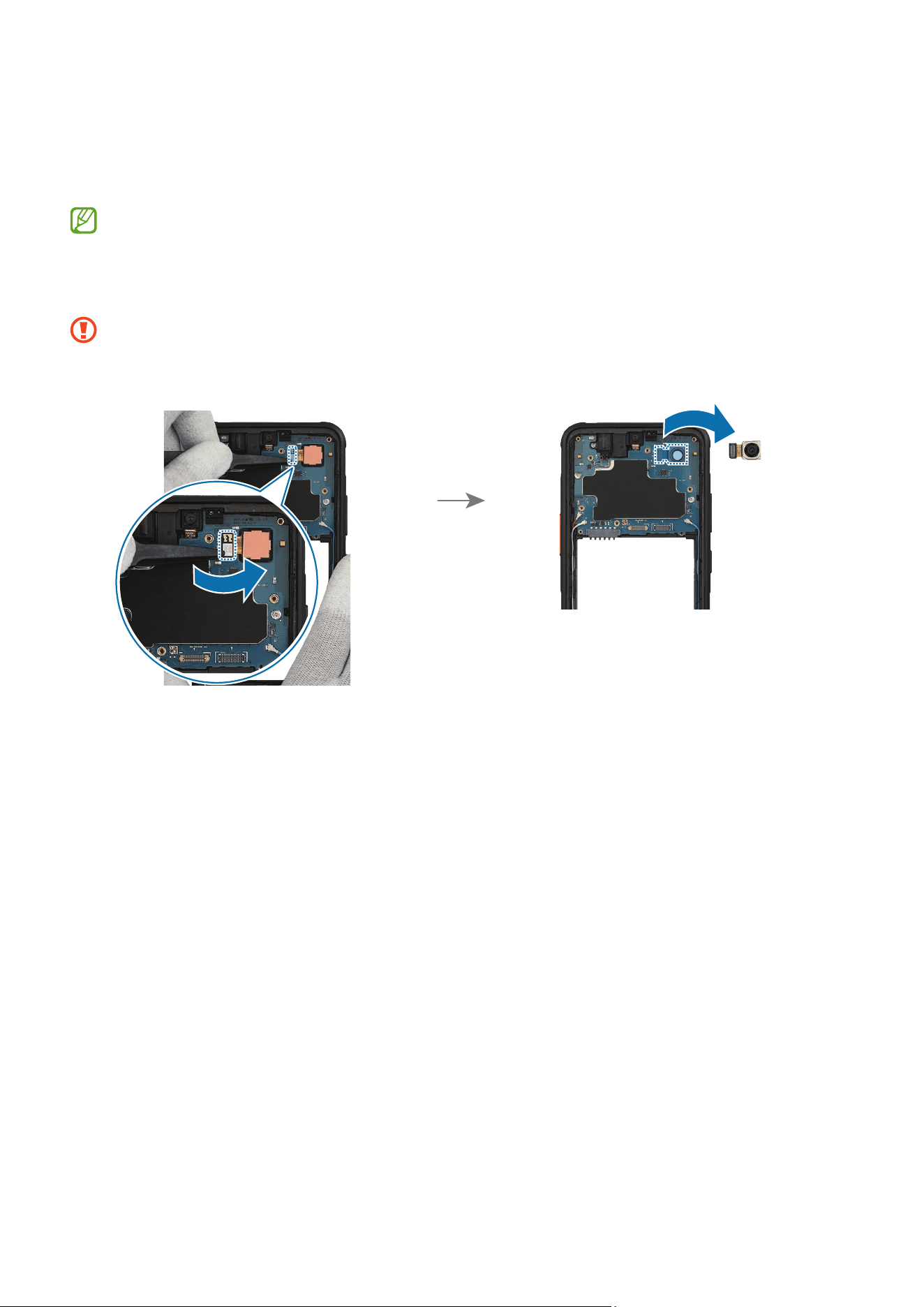

Using the tweezers, separate the rear camera connector from the main board and
remove the rear camera carefully from the device. Leave the camera lens facing up.
•
Be careful not to touch the camera lens while removing the camera.
•
Be careful not to damage the camera and near components.
Disassembly and Assembly
96
Reassembly
Leaving screws inside the device may damage internal components, such as the
battery. When assembling, be extra careful not to leave any unassembled screws
inside the device.

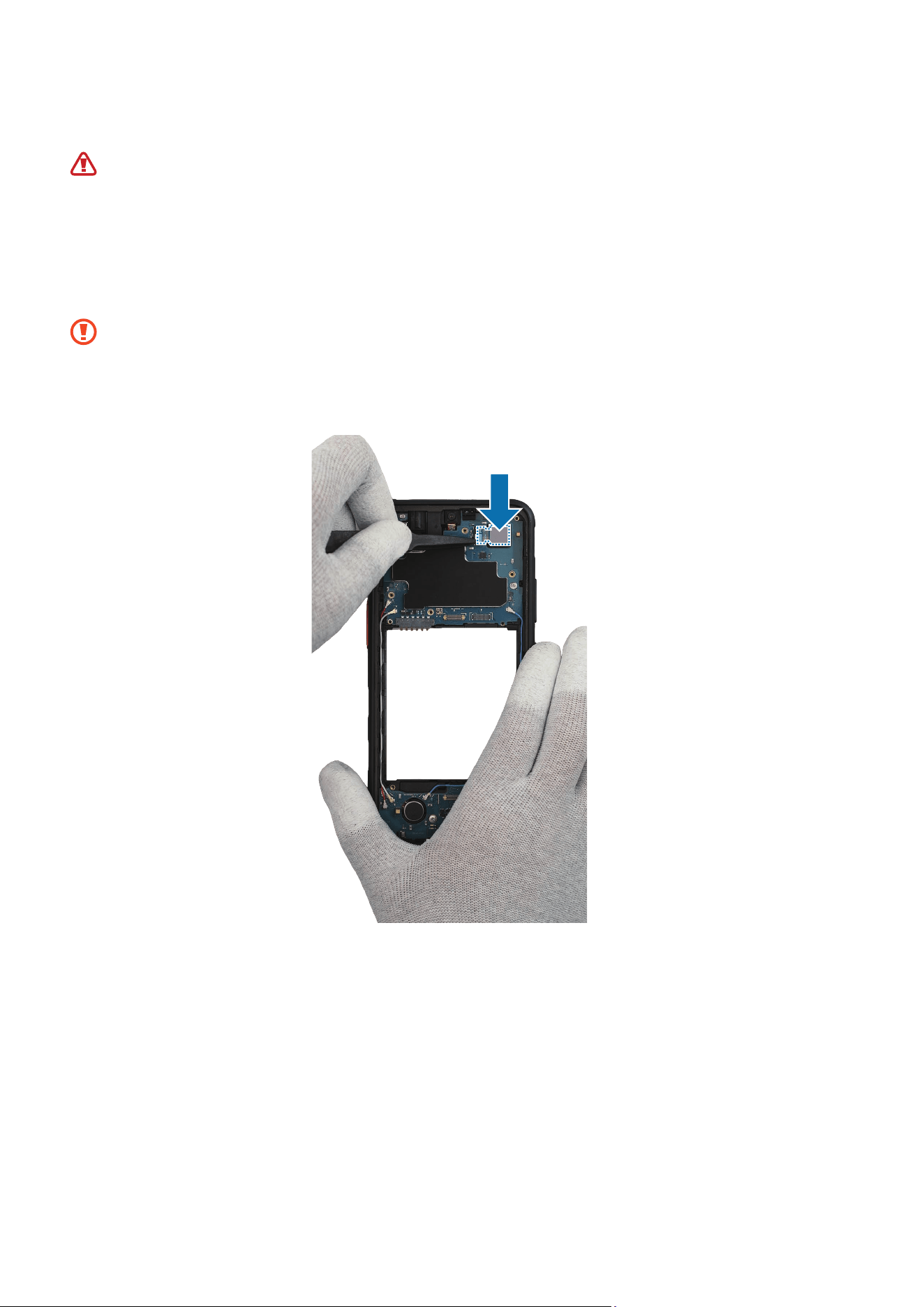

1 Using the tweezers or your fingers, place the rear camera in the camera hole so that
the lens faces forward, and gently insert the rear camera.
•
Be careful not to damage the camera lens and near components.
•
Be careful not to damage the main board.
•
Be careful not to damage and scratch the camera module.
Disassembly and Assembly
98
Front Camera
Disassembly
Remove the Back Cover, Battery, Screen, and Bracket first before you begin.

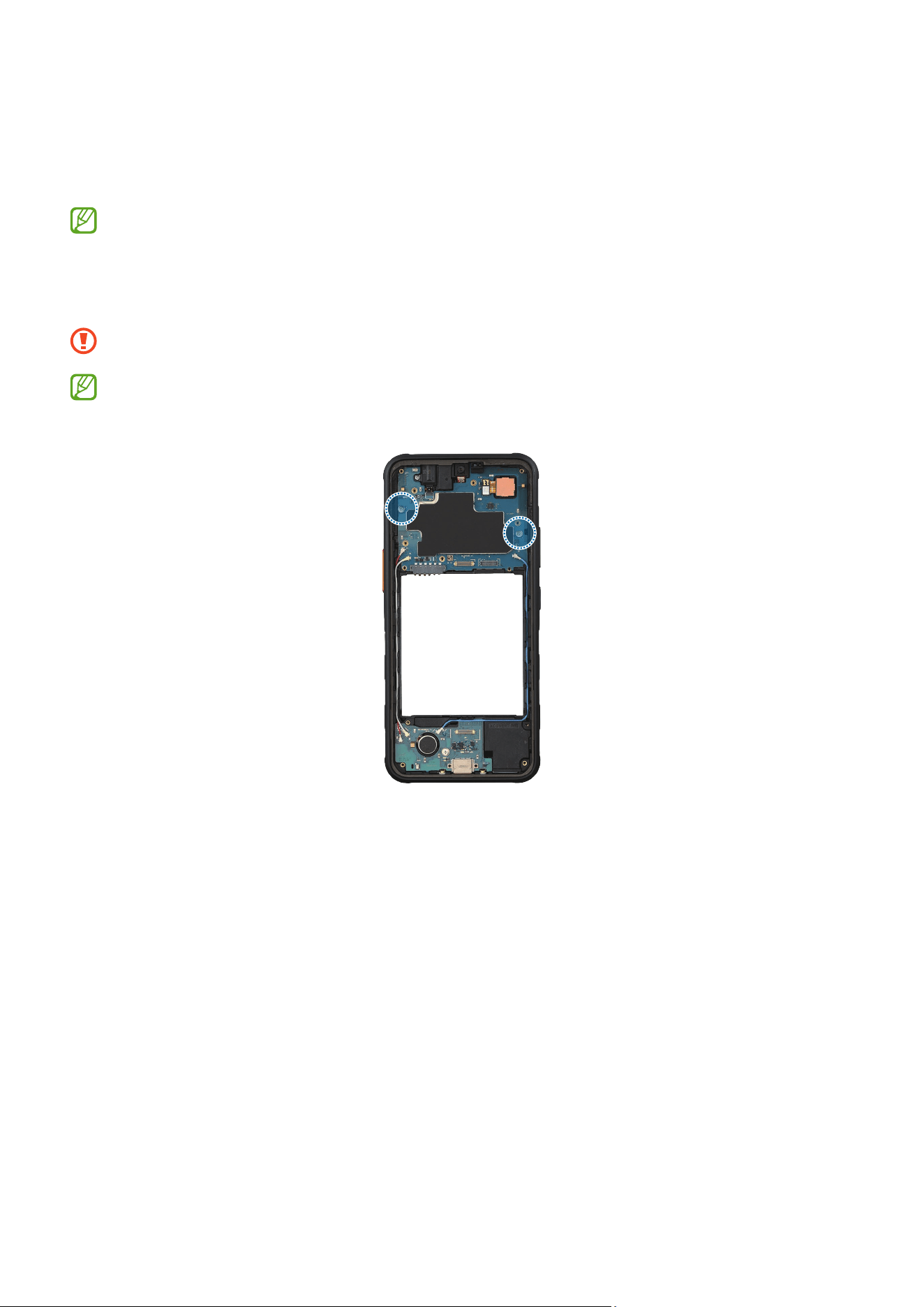

1 Check the 2 screws on the main board and remove them using a cross-head
screwdriver.
Be careful not to damage the main board and near components.
Check the number of screws that have been removed, and store them carefully to
make sure that no unassembled screws are left inside the device during assembly.
Disassembly and Assembly
99

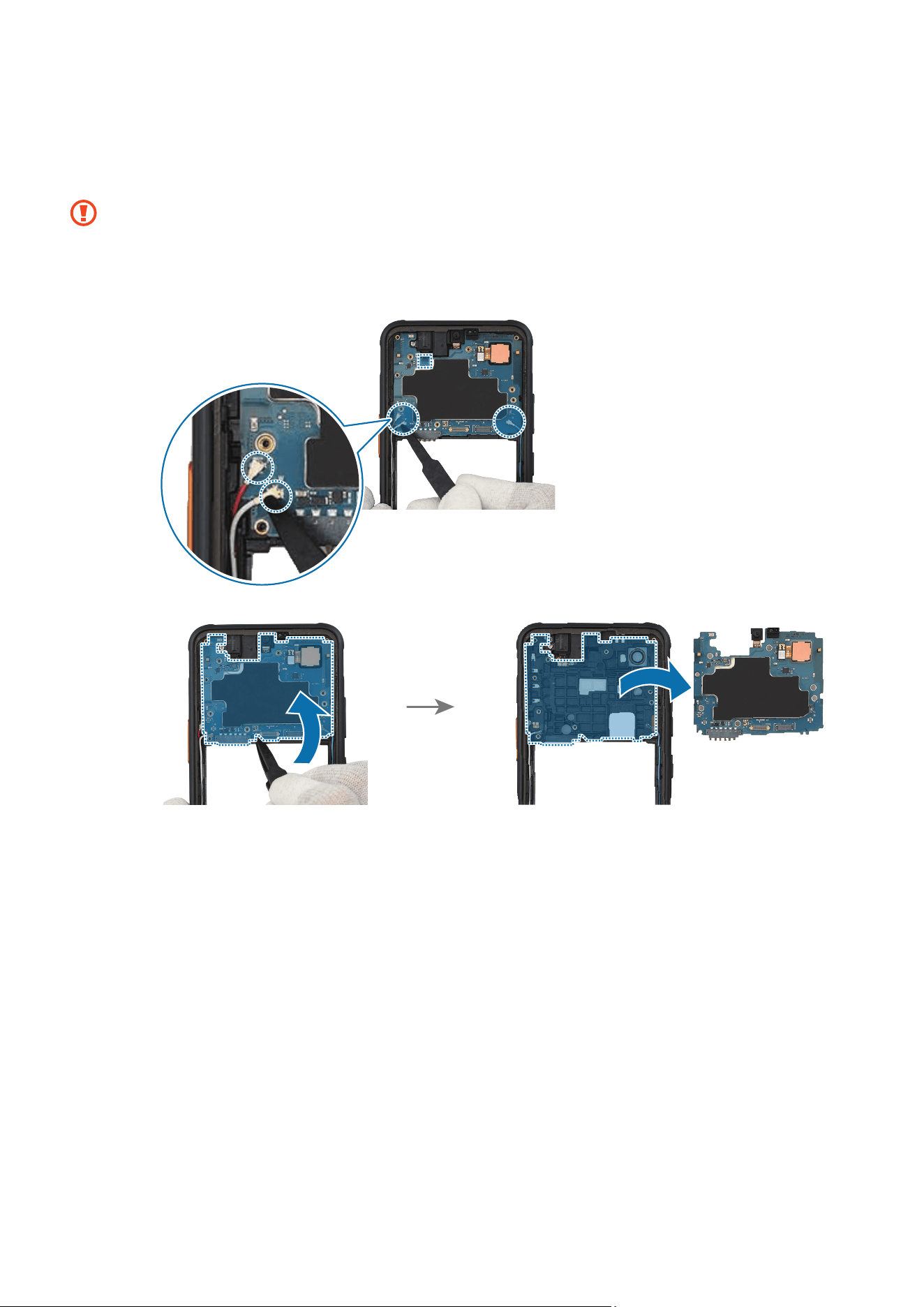

2 Using the tweezers, disconnect the headphone connector and 3 coaxial cable
connectors (Red/White/Blue) from the main board. Then, lift up on the separator
groove of the main board and remove it carefully.
•
Be careful not to damage the main board.
•
Be careful not to touch the camera lens while removing the camera.
•
Be careful not to damage the camera and near components.
Disassembly and Assembly
100

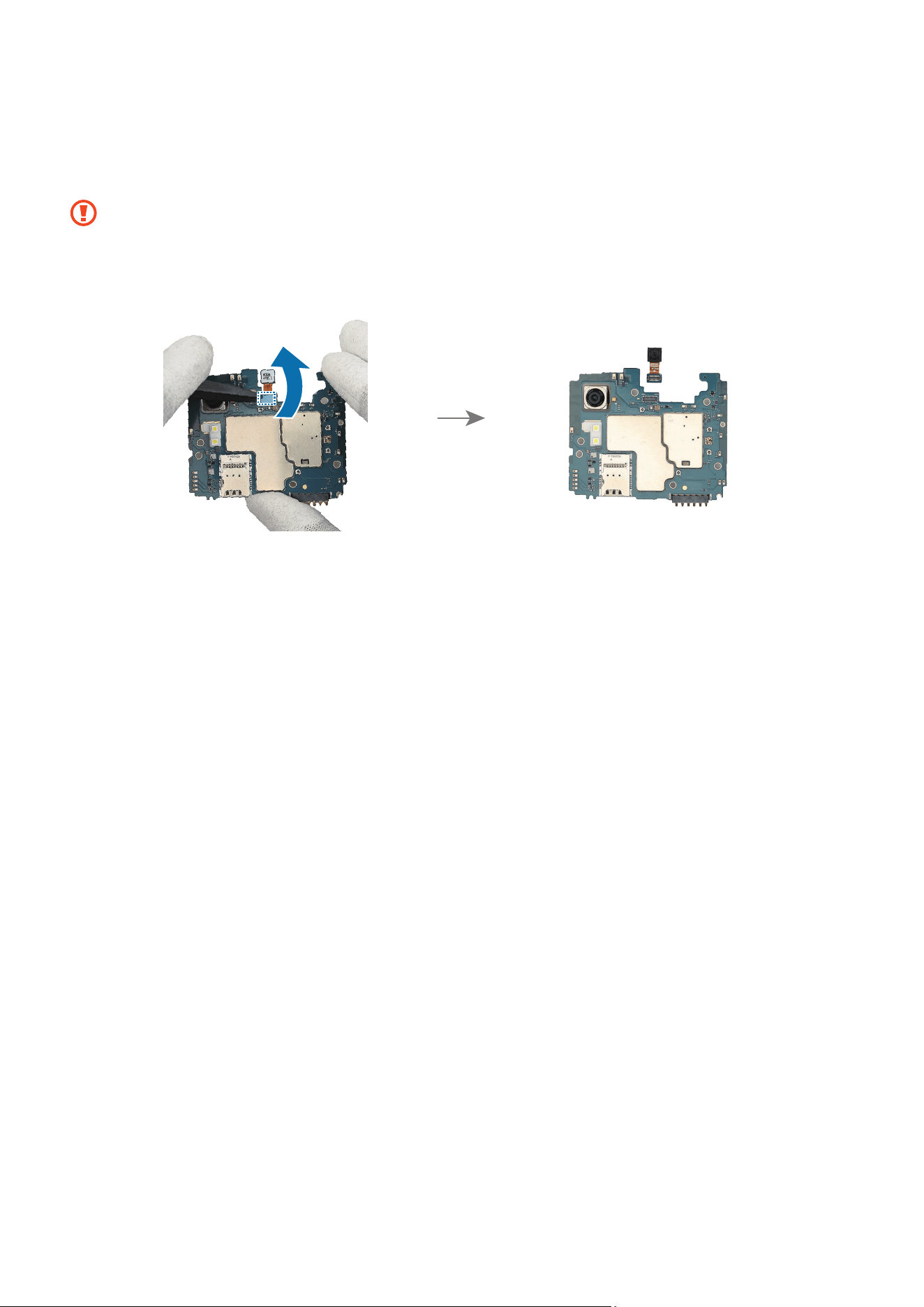

3 Disconnect the front camera connector from the main board using the tweezers, and
remove the front camera carefully from the main board. Leave the camera lens facing
up.
•
Be careful not to touch the camera lens while removing the camera.
•
Be careful not to damage the camera and near components.
•
Be careful not to damage the main board.
Disassembly and Assembly
101
Reassembly
Leaving screws inside the device may damage internal components, such as the
battery. When assembling, be extra careful not to leave any unassembled screws
inside the device.

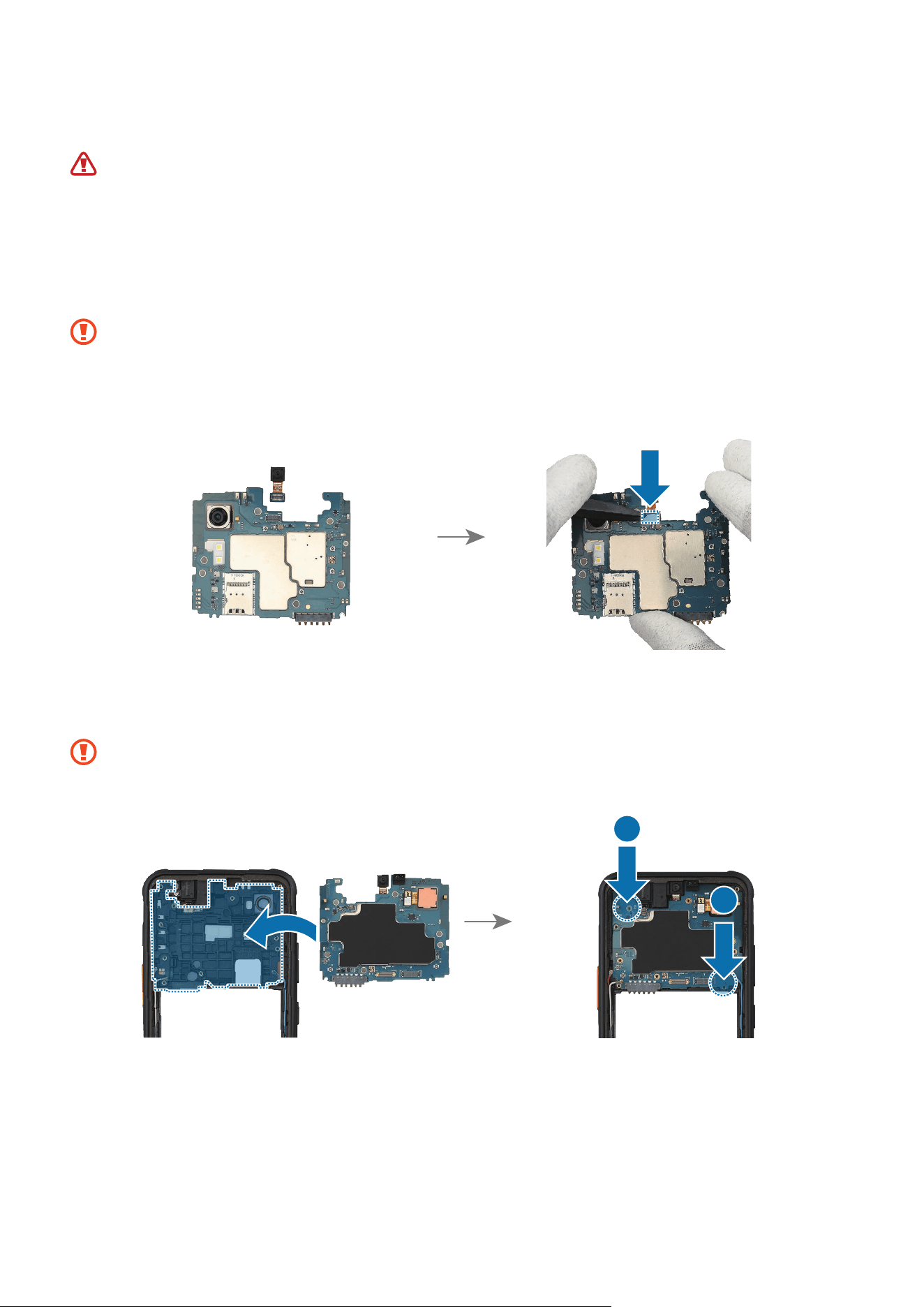

1 Using the tweezers or your fingers, connect the front camera connector on the main
board.
•
Be careful not to drop the camera while connecting the connector.
•
Be careful not to damage the camera lens and near components.
•
Be careful not to damage the main board.
2 Align the main board module onto the device frame. After attaching the upper part of
the main board diagonally on the screen module, assemble the lower part.
The cables have to be positioned outside so as not to interfere when assembling
the main board.
1
2
Disassembly and Assembly
102

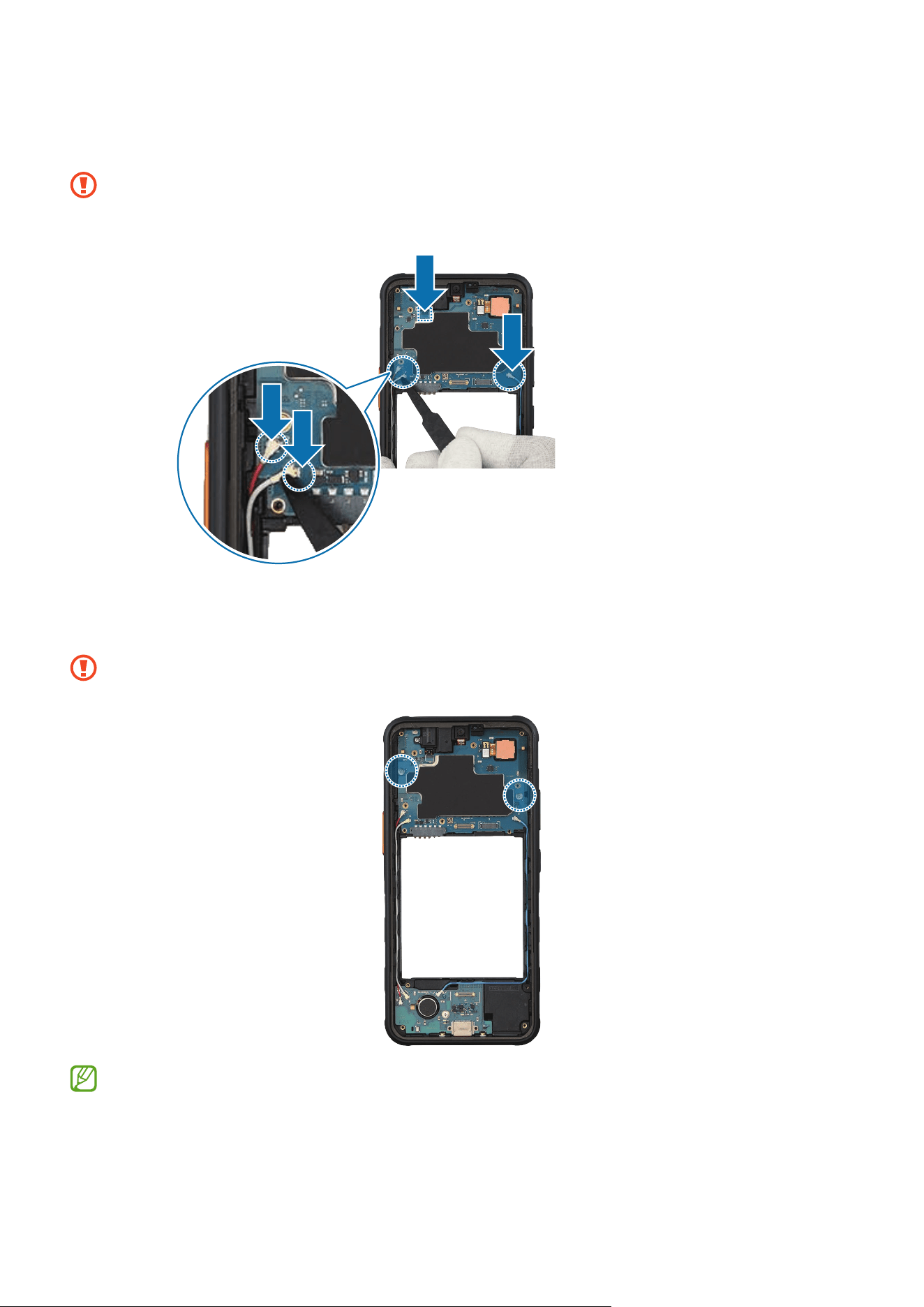

3 Using the tweezers or your fingers, connect the headphone connector and 3 coaxial
cable connectors (Red/White/Blue) to the main board.
•
Be careful not to damage the cable.
•
Be careful not to damage the main board and near components.
4 Check the screw 2259 (2 ea) and fasten them on the main board using a cross-head
screwdriver.
Be careful not to damage the main board and near components.
Reassemble the Bracket, Screen, Battery, and Back Cover to complete assembly.
Disassembly and Assembly
103
Top Receiver
Disassembly
Remove the Back Cover, Battery, Screen, and Bracket first before you begin.

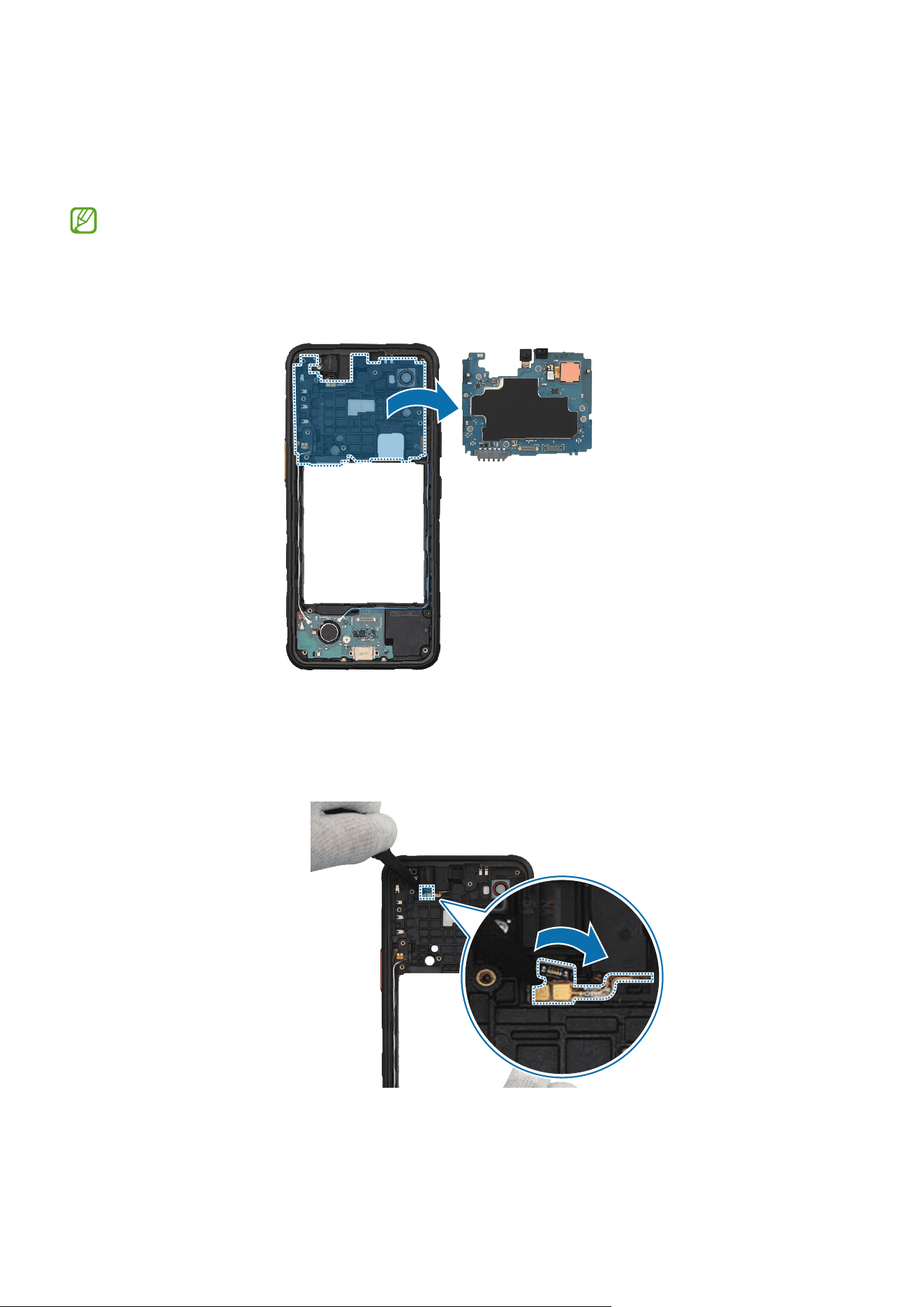

1 Check for the disassembly steps of the Front Camera and completely separate the
main board module.
2 Using the tweezers, separate the FPCB of the top receiver carefully. Then, lift up on
the separator groove of the receiver cover at the back of the device frame and remove
it carefully.
Disassembly and Assembly
104

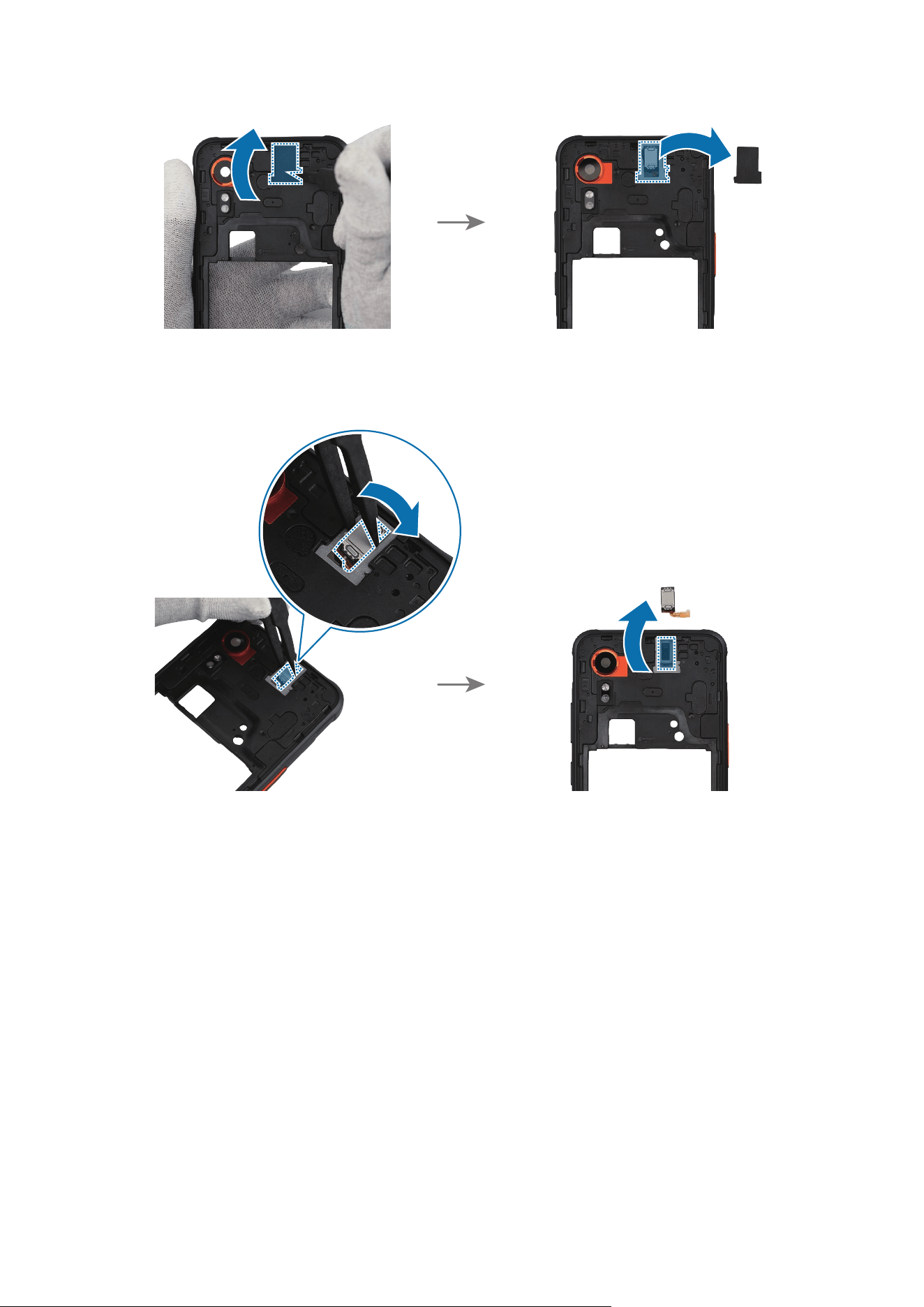

3 Using the tweezers, lift up on the separator groove of the top receiver and remove it
carefully.
Disassembly and Assembly
105
Reassembly
Leaving screws inside the device may damage internal components, such as the
battery. When assembling, be extra careful not to leave any unassembled screws
inside the device.

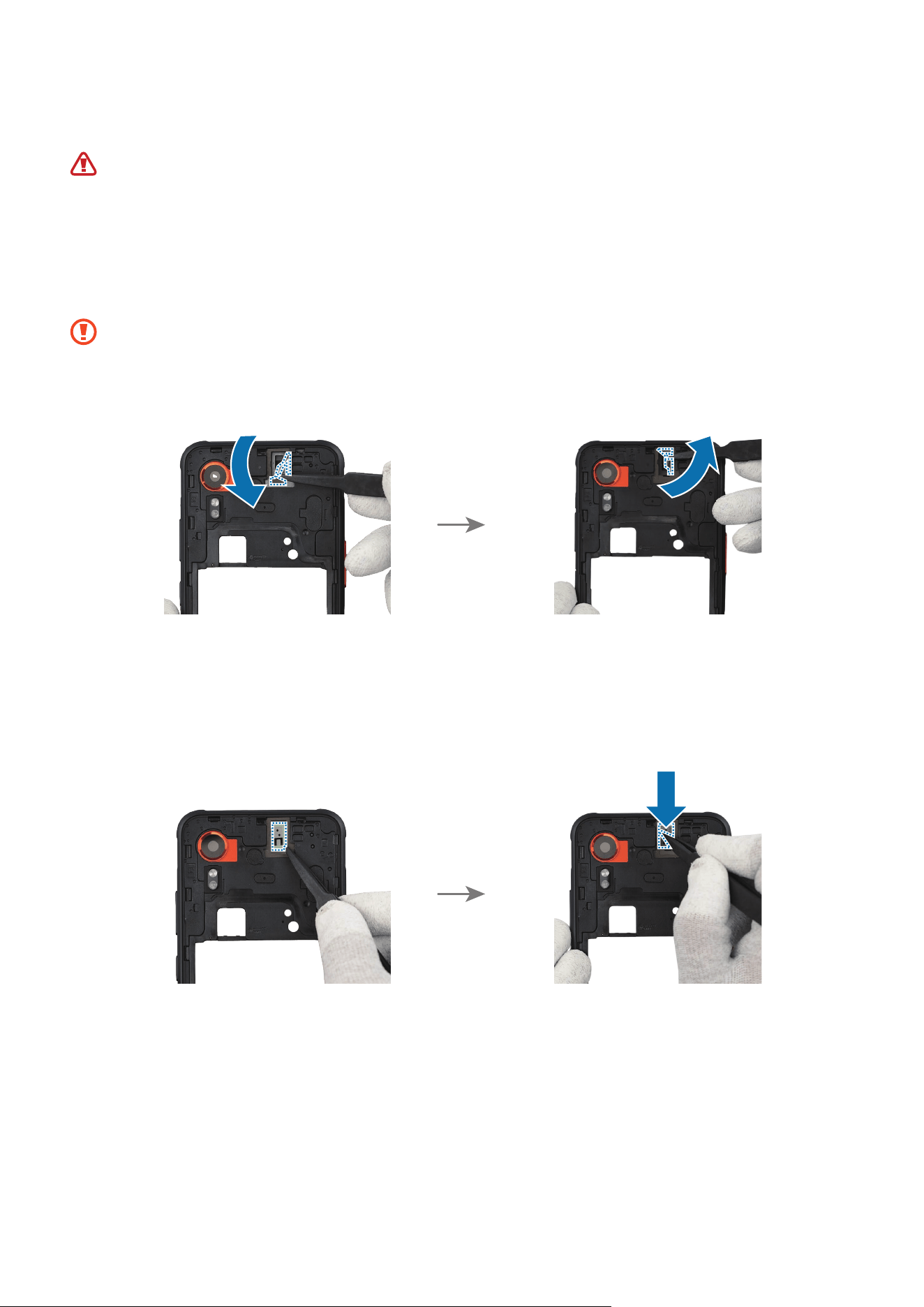

1 Using the tweezers, remove the adhesive tapes from where the receiver cover and top
receiver were attached.
•
Make sure to remove any residual tapes attached to the position of the
separated receiver before reassembling the new receiver.
•
Be careful not to damage the near components.
2 Using the tweezers, remove the release film of the new top receiver adhesive tape.
Align the outside shape of the tape with the top receiver position and attach it
accurately. Then, gently press down the tape with the tweezers so that the tape can
be attached well.
Disassembly and Assembly
106

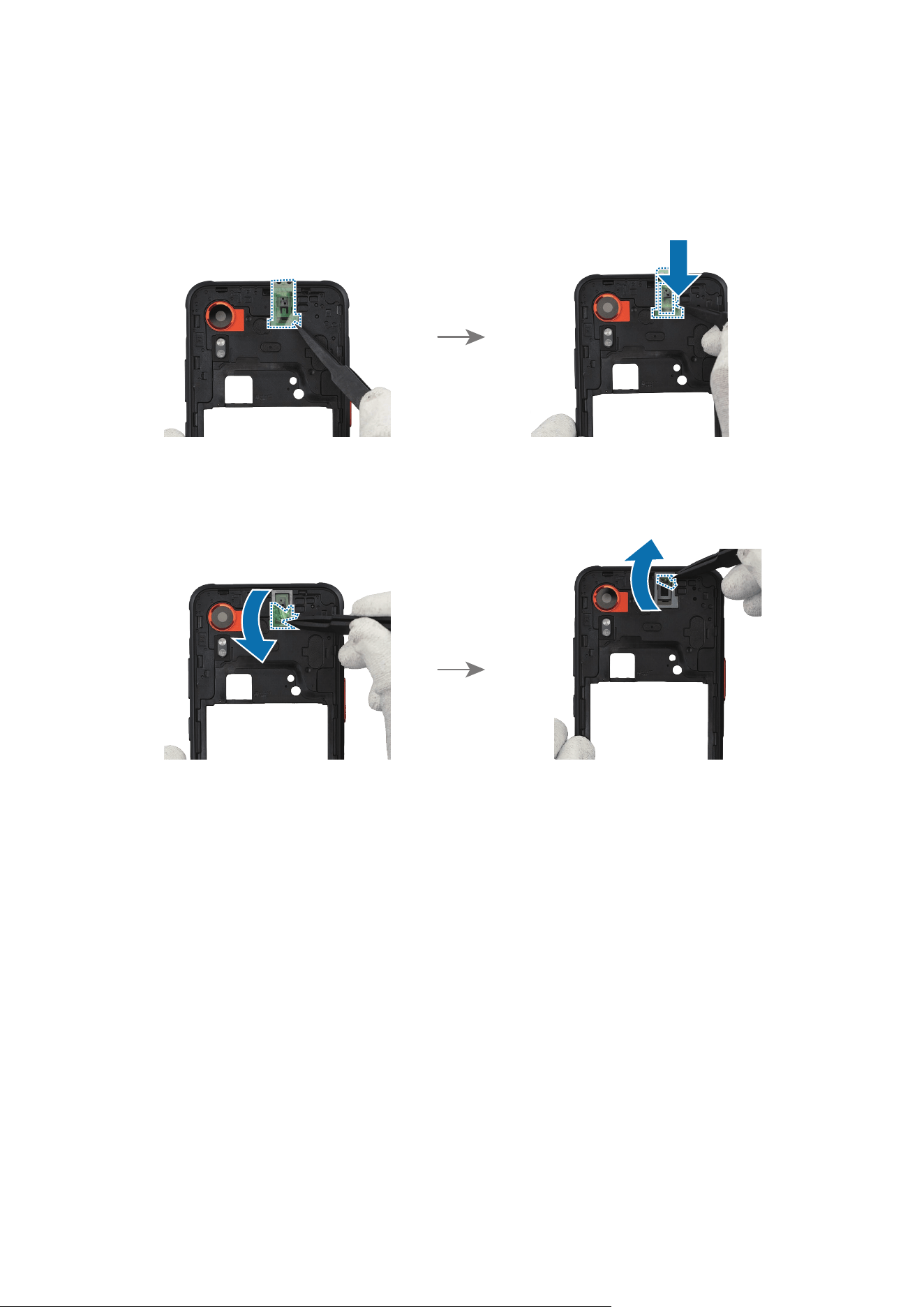

3 Using the tweezers, remove the release film of the new top receiver cover adhesive
tape. Align the outside shape of the tape with the top receiver cover position and
attach it accurately. Then, gently press down the tape with the tweezers so that the
tape can be attached well.
4 Using the tweezers, hold the protruding release films of the attached tape and
carefully remove them all.
Disassembly and Assembly
107

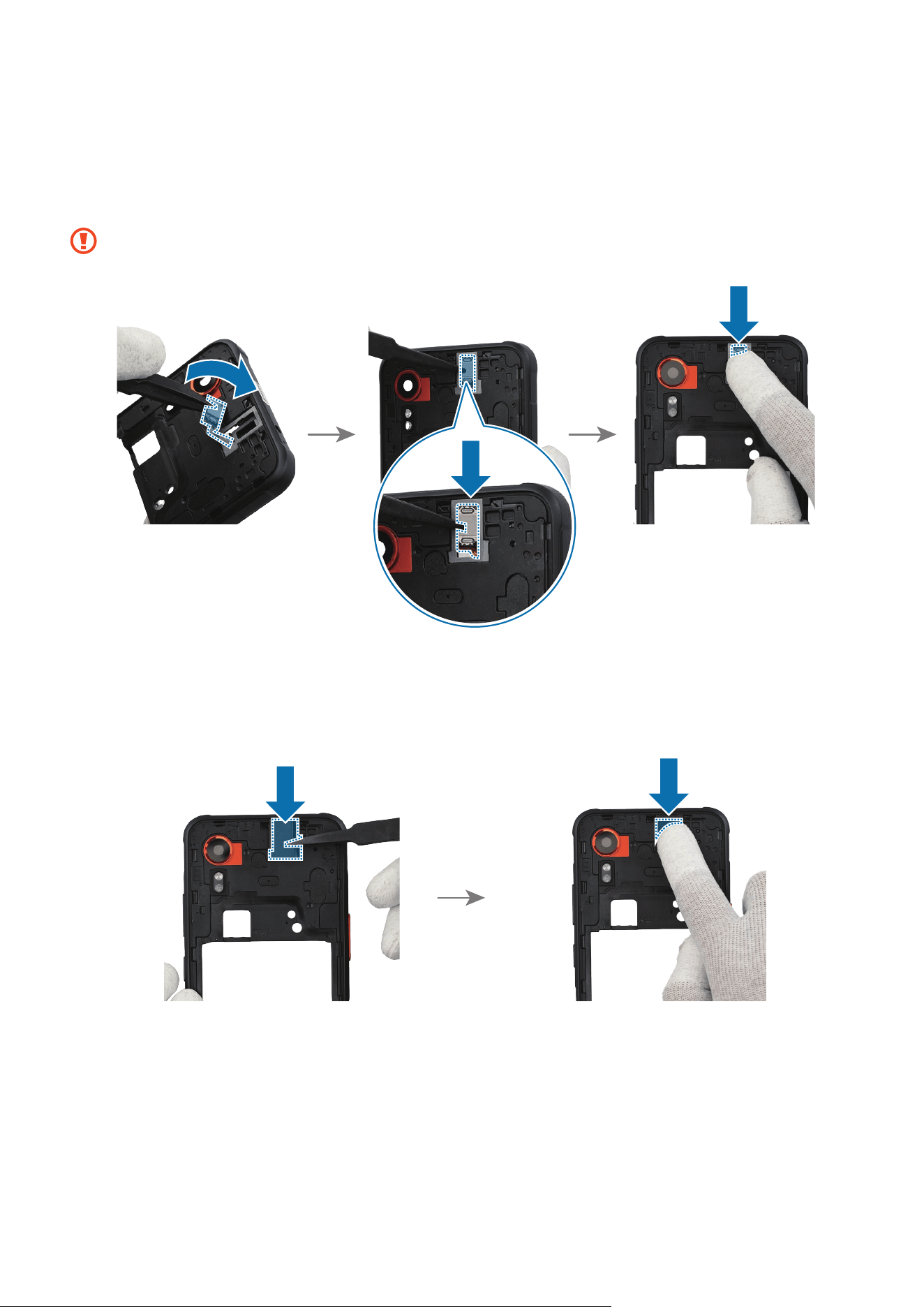

5 Remove the release film from the new top receiver. Using the tweezers, carefully
insert the top receiver FPCB into the FPCB hole of the device frame and assemble the
receiver in the correct position. Press the top receiver with your fingers softly so that
the receiver can be assembled well.
Be careful not to damage the receiver and near components.
6 Using the tweezers or your fingers, assemble the receiver cover in the correct
position. Press the receiver cover with your fingers softly so that the receiver cover
can be assembled well.
Disassembly and Assembly
108

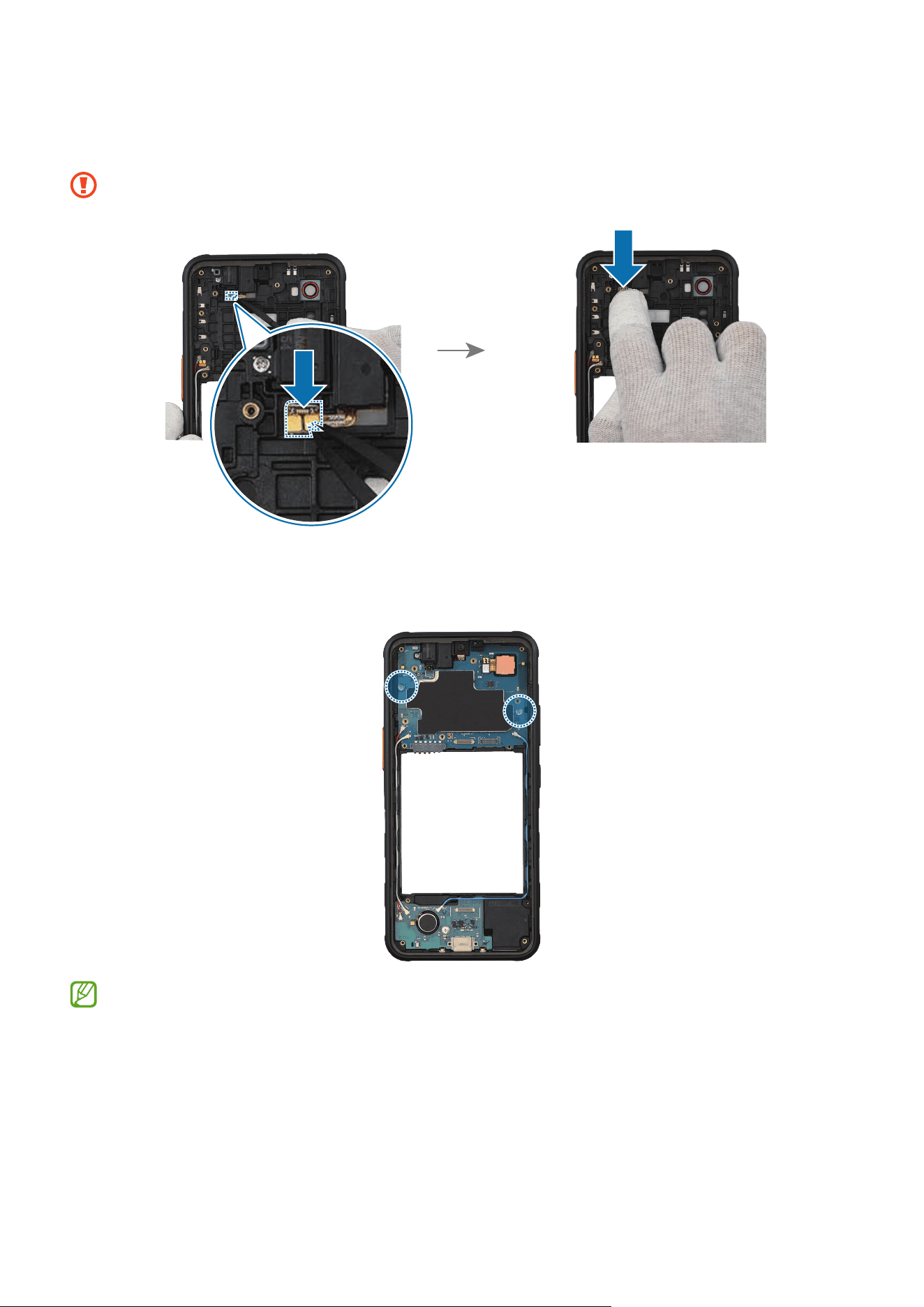

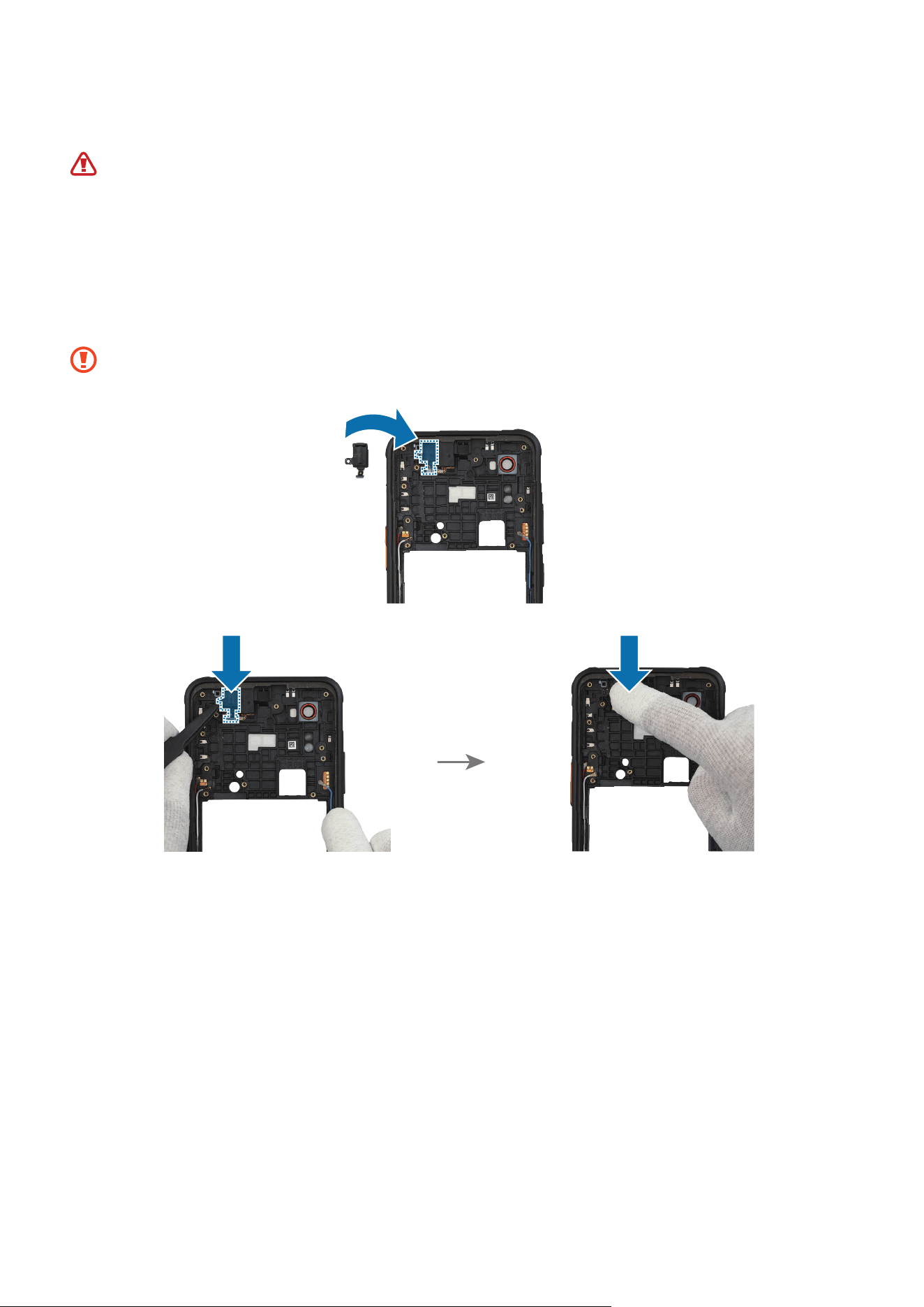

7 Using the tweezers, attach the upper receiver FPCB to the correct position. Press the
top receiver FPCB with your fingers softly so that the receiver can be assembled well.
Be careful not to damage the receiver.
8 Check for the reassembly steps of the Front Camera and completely reassemble the
main board module.
Reassemble the Bracket, Screen, Battery, and Back Cover to complete assembly.
Disassembly and Assembly
109
Headphone
Disassembly
Remove the Back Cover, Battery, Screen, and Bracket first before you begin.

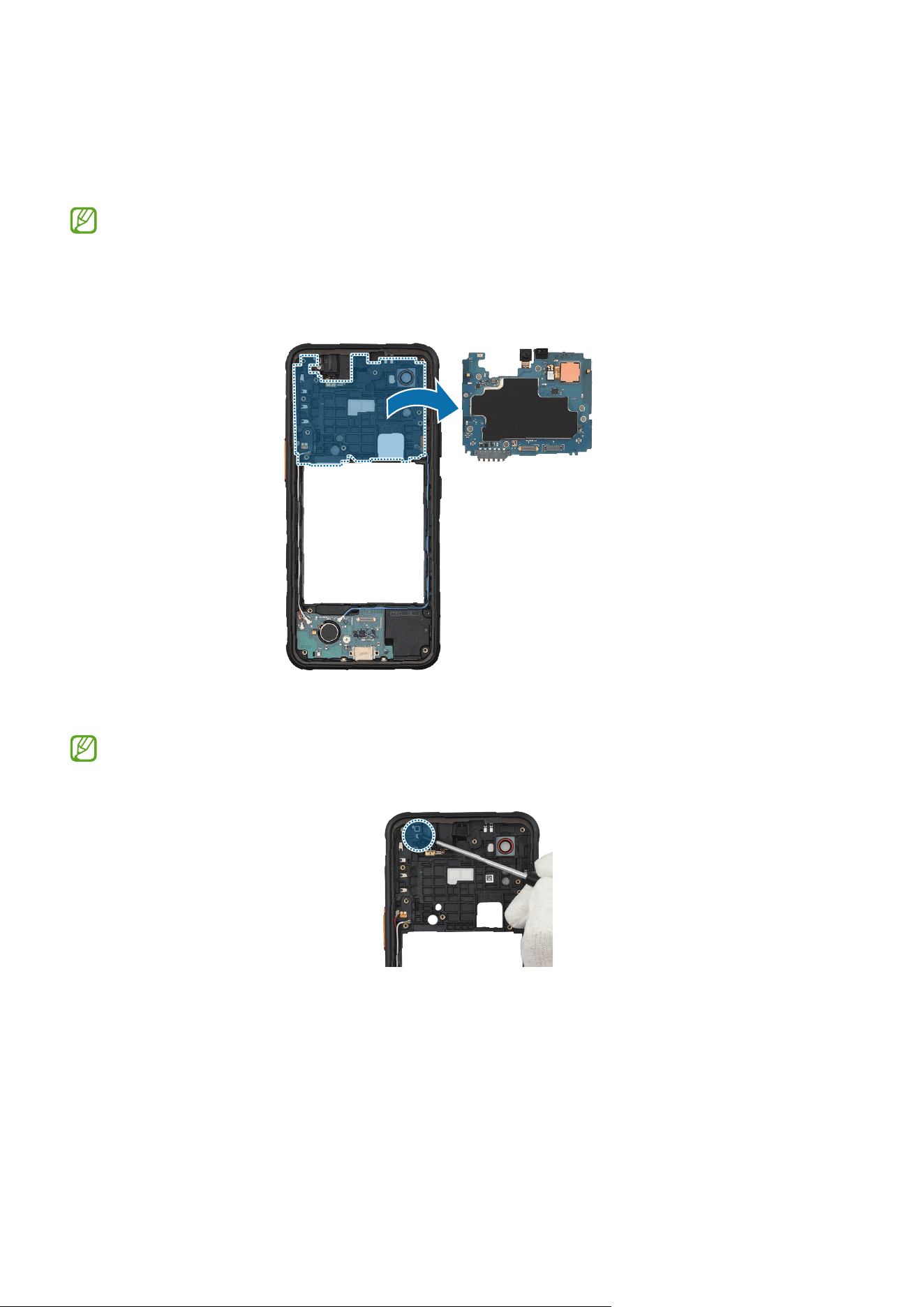

1 Check for the disassembly steps of the Front Camera and completely separate the
main board module.
2 Check the screw on the headphone and remove it using a cross-head screwdriver.
Check the number of screws that have been removed, and store them carefully to
make sure that no unassembled screws are left inside the device during assembly.
Disassembly and Assembly
110

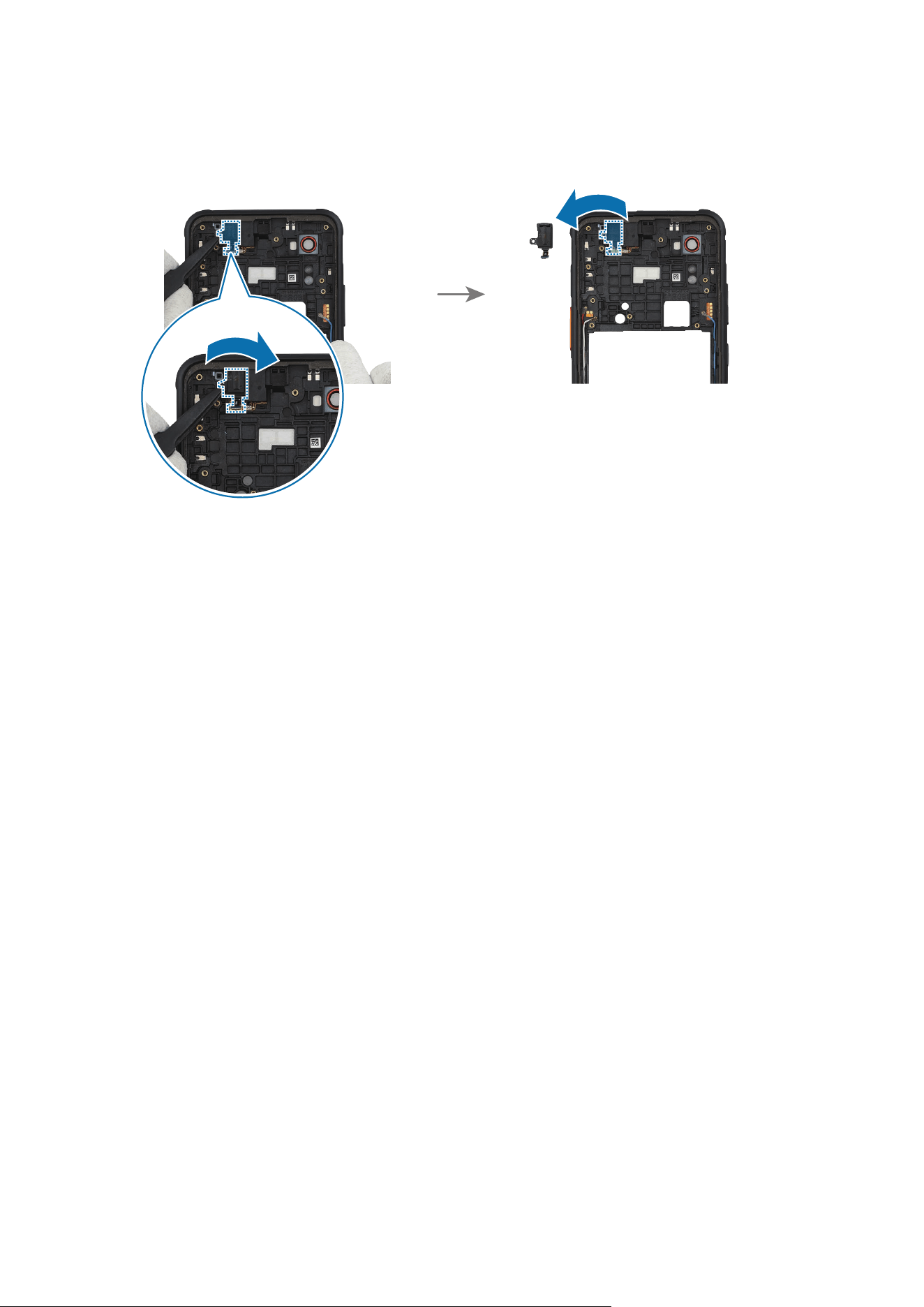

3 Using the tweezers, lift up on the screw hole of the headphone and remove it
carefully.
Disassembly and Assembly
111
Reassembly
Leaving screws inside the device may damage internal components, such as the
battery. When assembling, be extra careful not to leave any unassembled screws
inside the device.
1 Using the tweezers, insert the top part of the headphone in the correct position and
assemble the headphone. Press the headphone with your fingers softly so that the
headphone can be assembled well.
Be careful not to damage the headphone.
Disassembly and Assembly
112

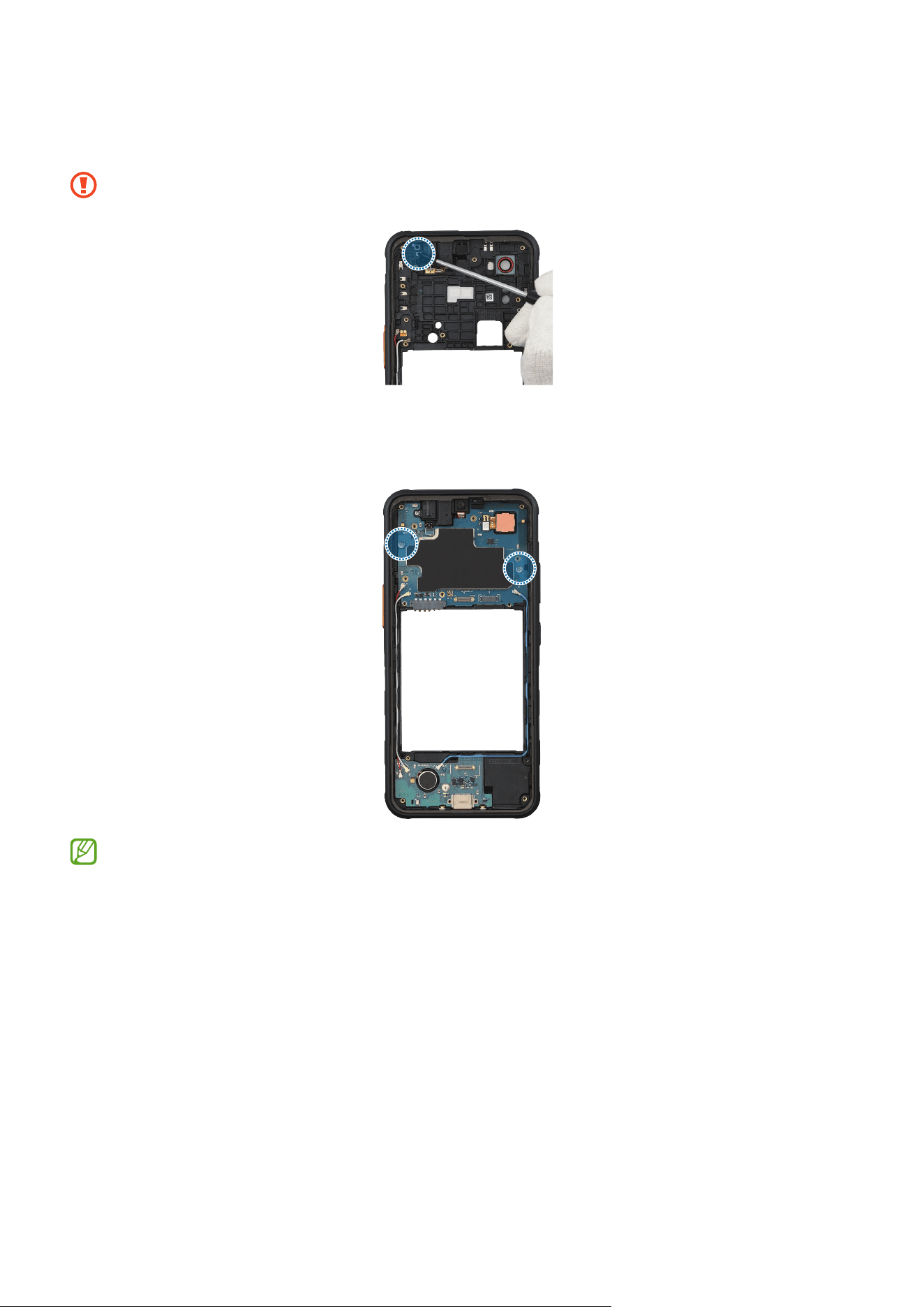

2 Check the screw 2051 (1 ea) and fasten the screw on the headphone using a
cross-head screwdriver.
Be careful not to damage the headphone and near components.
3 Check for the reassembly steps of the Front Camera and completely reassemble the
main board module.
Reassemble the Bracket, Screen, Battery, and Back Cover to complete assembly.
Disassembly and Assembly
113
Bottom Speaker
Disassembly
Remove the Back Cover, Battery, Screen, Bracket, and Charging Port and
Microphone first before you begin.

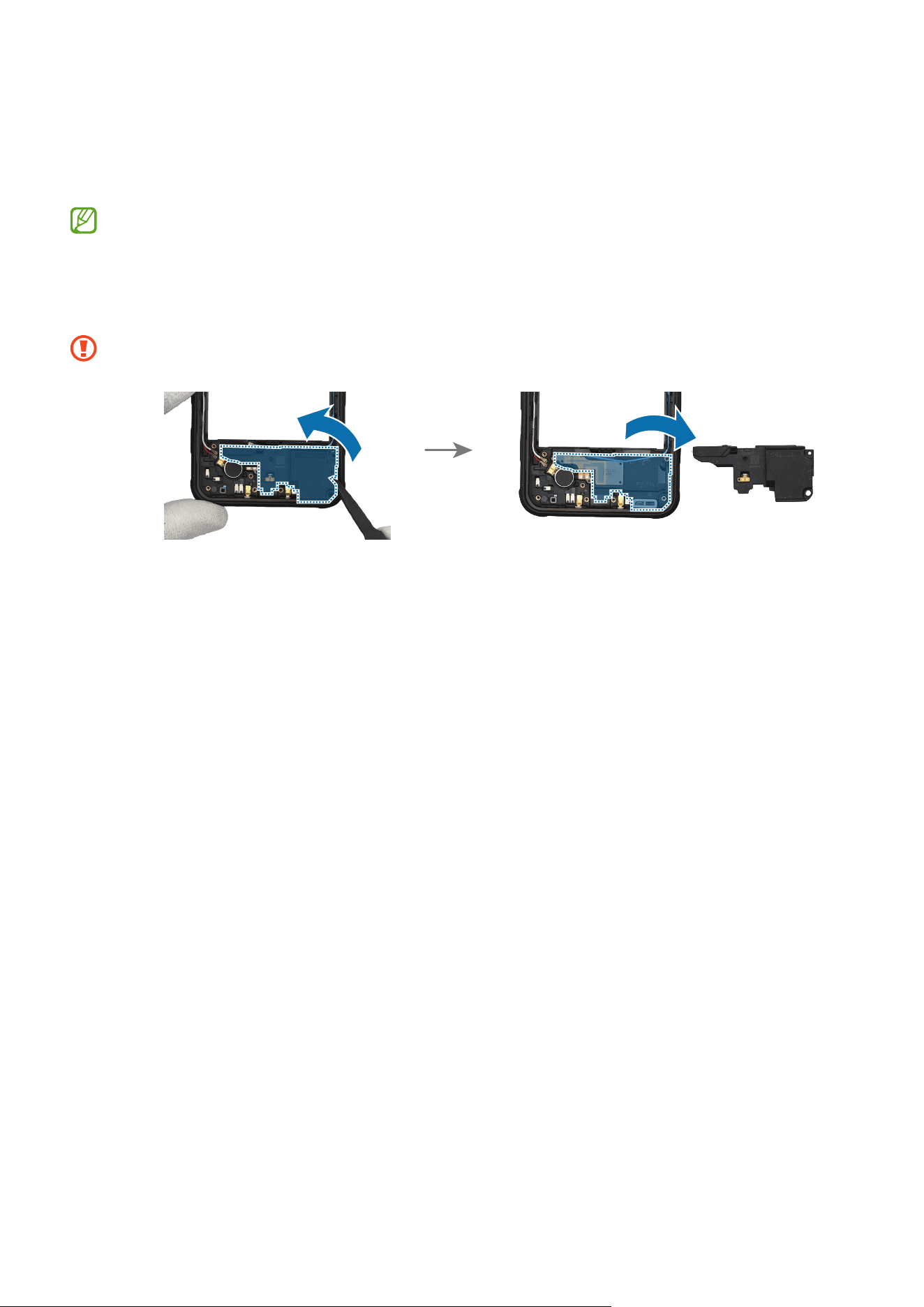

Using the tweezers, lift up on the separator groove of the bottom speaker and remove it
carefully.
Be careful not to damage the speaker and near components.
Disassembly and Assembly
114
Reassembly
Leaving screws inside the device may damage internal components, such as the
battery. During assembly, be extra careful not to leave any unassembled screws
inside the device.
Remove the release film from the new bottom speaker and assemble it to the exact
position of the device frame using the tweezers or your fingers. Press the bottom
speaker with your fingers softly so that the speaker can be assembled well.
•
The cables have to be positioned outside so as not to interfere when assembling
the speaker.
•
Be careful not to damage the speaker and near components.
Reassemble the Charging Port and Microphone, Bracket, Screen, Battery, and
Back Cover to complete assembly.
Disassembly and Assembly
115
Button
The buttons are already built into the device frame. Disassemble the buttons only
if the buttons themselves require repairs.
Disassembly

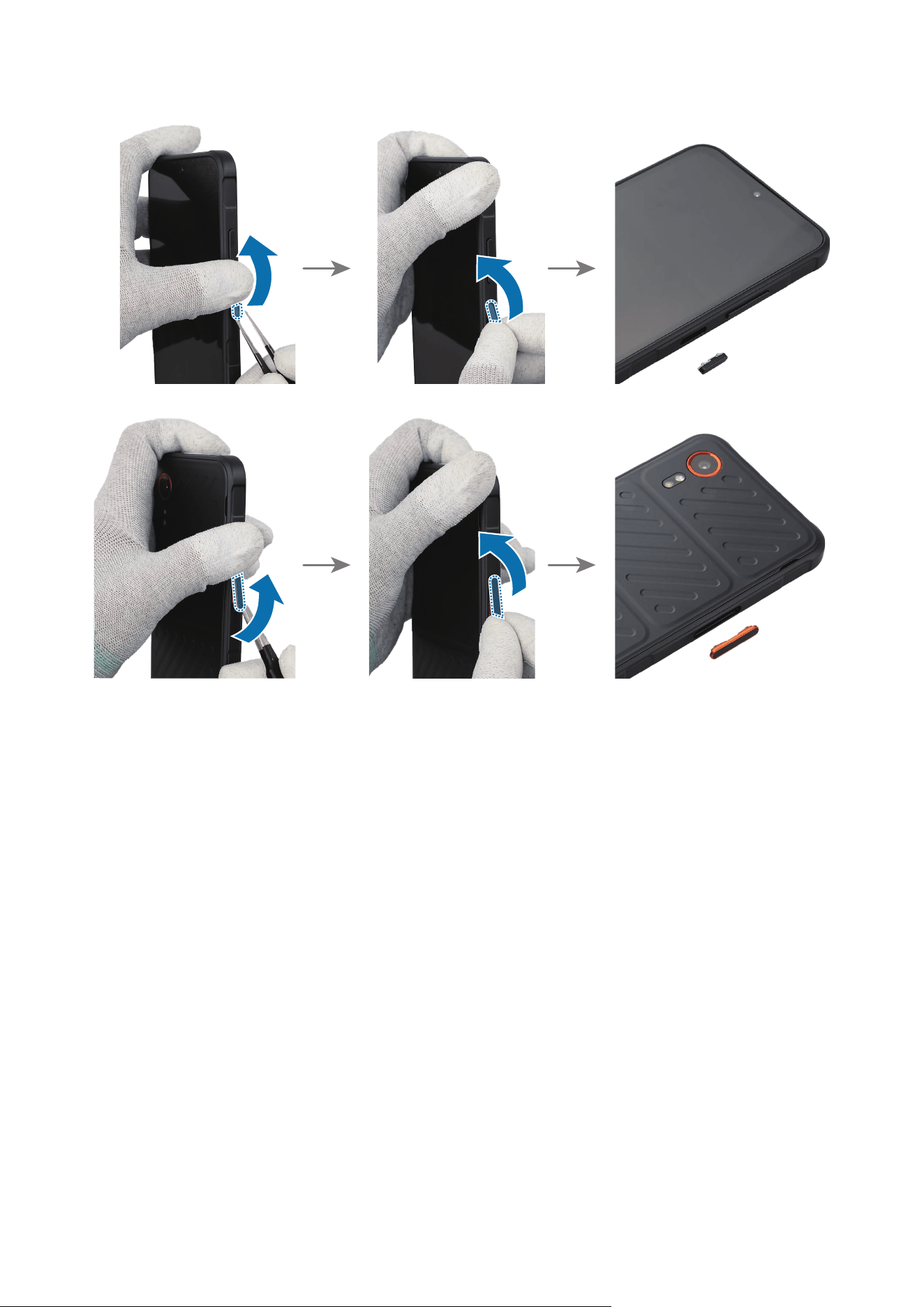

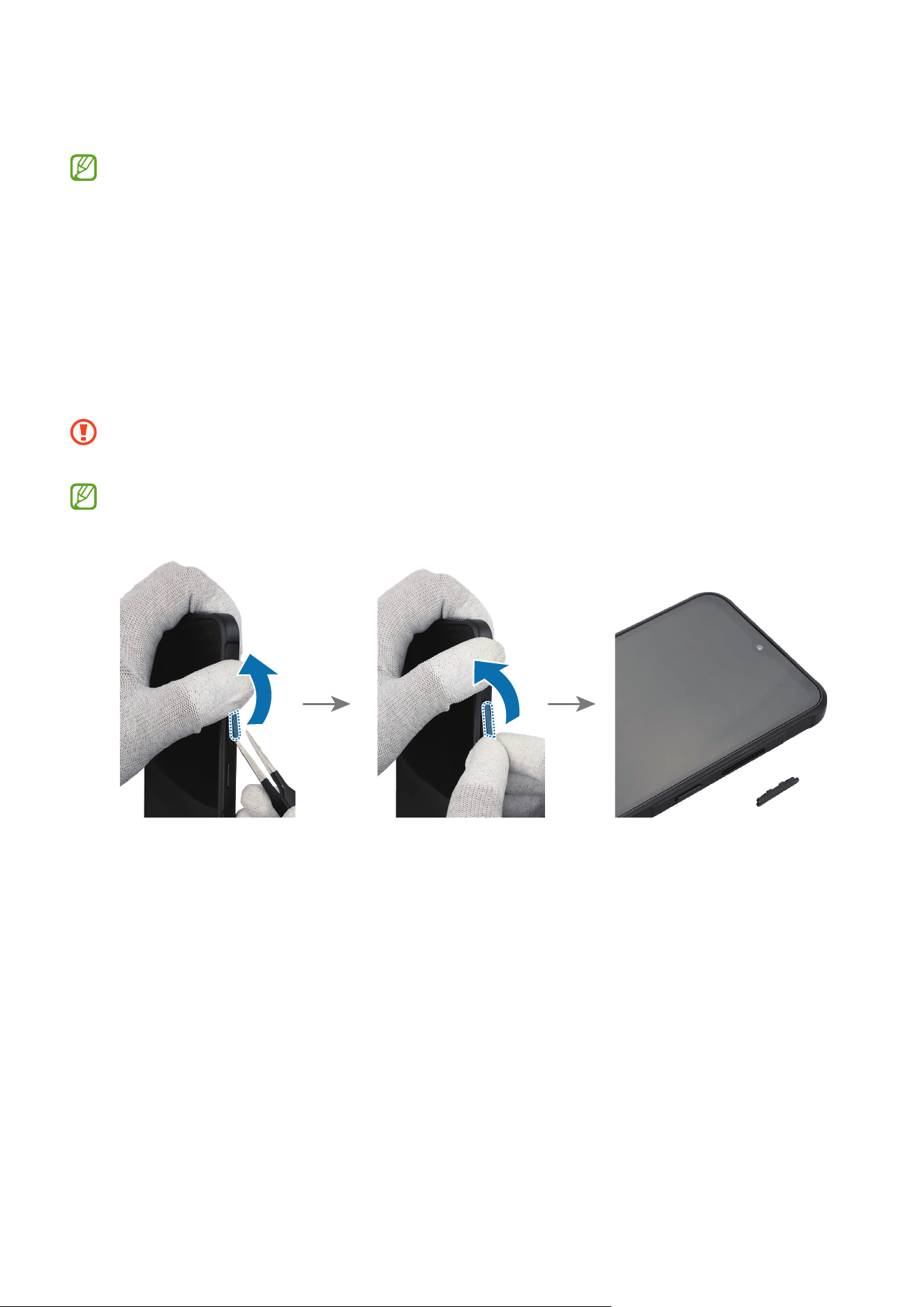

To remove the Volume button, Side button, or XCover button, lightly press one end of the
button with your fingers so that the other end protrudes. Push the tip of the protruding
button up carefully with the round-tip metal tweezers and lift it up until you can grab
it with your fingers. Grab the button with your fingers and pull it out carefully from the
device.
When holding the buttons with the tweezers, be careful not to damage or scratch
the device.
If you have trouble separating the buttons with your tweezers, please try using a
sharper and thinner tool.
Disassembly and Assembly
116
Disassembly and Assembly
117
Reassembly
Leaving screws inside the device may damage internal components, such as the
battery. During assembly, be extra careful not to leave any unassembled screws
inside the device.
1 Remove the release film of the new Volume button. Using your fingers, grab the
Volume button and insert it on the slot carefully.
Be careful not to damage the button and device.
2 Press down the Volume button softly and evenly so that the button can be completely
assembled. Press the button to make sure it clicks. It should have the same sound
and feel as before disassembly.
Disassembly and Assembly
118

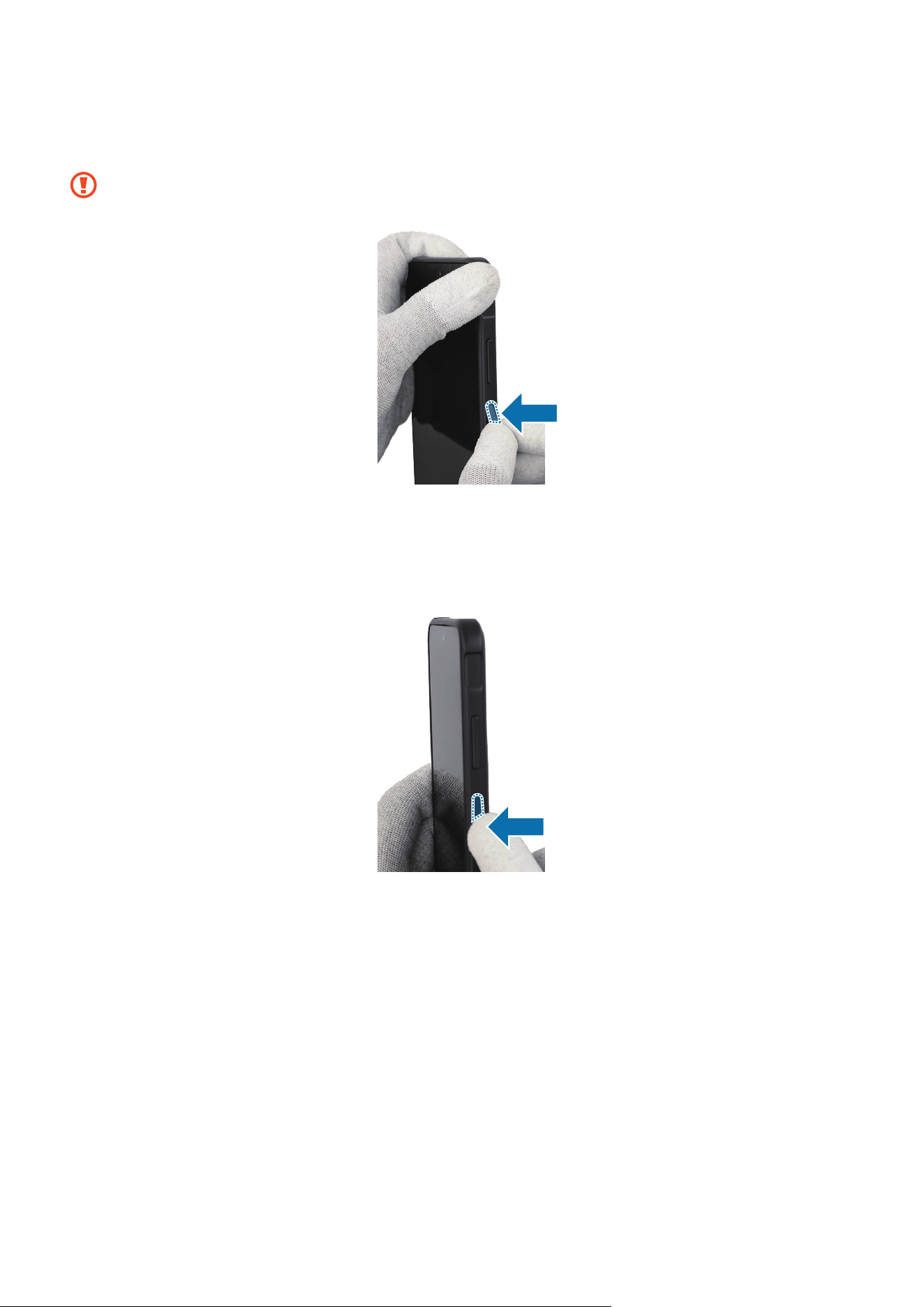

3 Remove the release film of the new Side button. Using your fingers, grab the Side
button and insert it on the slot carefully.
Be careful not to damage the button and device.
4 Press down the Side button softly and evenly so that the button can be completely
assembled. Press the button to make sure it clicks. It should have the same sound
and feel as before disassembly.
Disassembly and Assembly
119

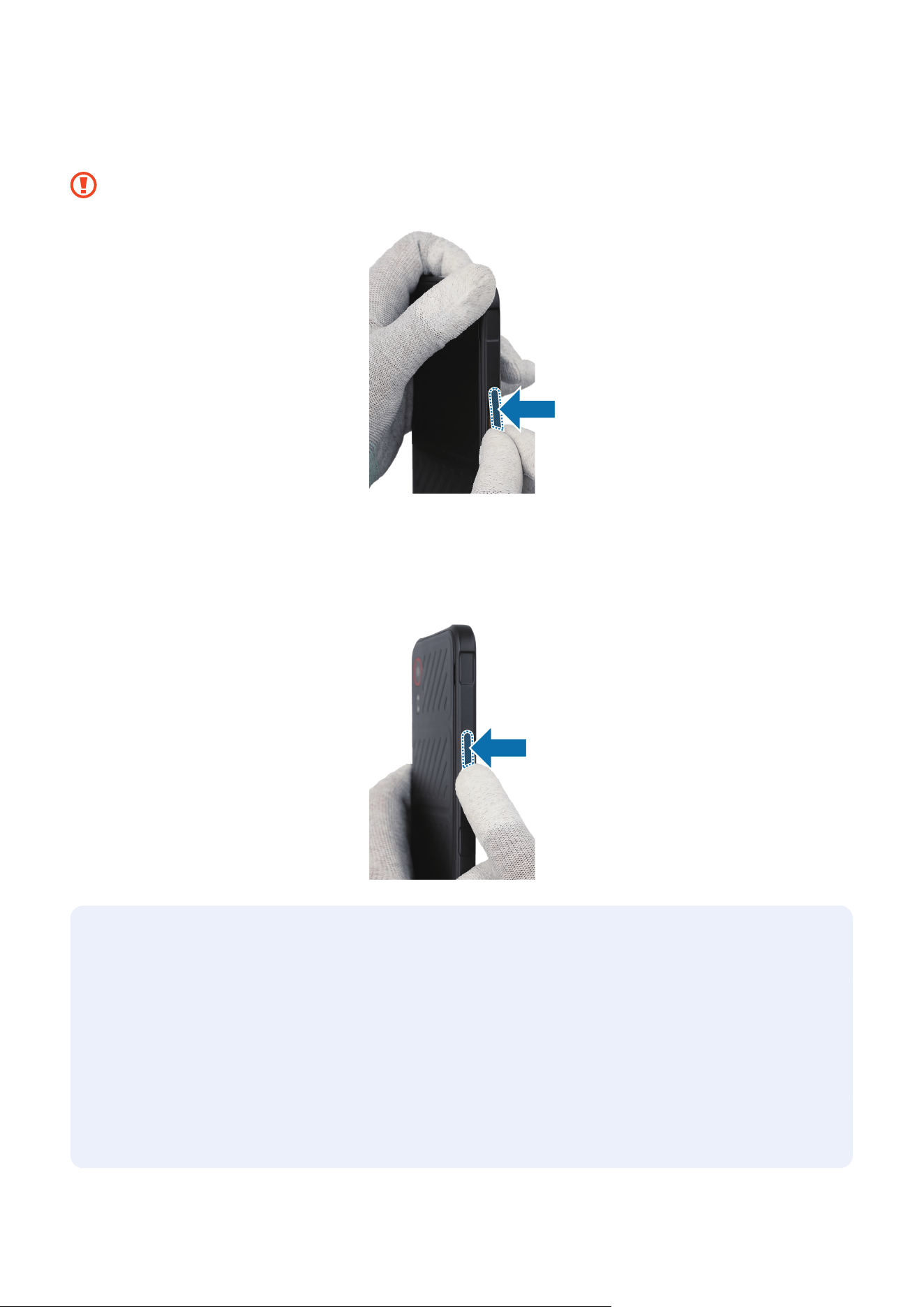

5 Remove the release film of the new XCover button. Using your fingers, grab the
XCover button and insert it on the slot carefully.
Be careful not to damage the button and device.
6 Press down the XCover button softly and evenly so that the button can be completely
assembled. Press the button to make sure it clicks. It should have the same sound
and feel as before disassembly.
After reassembling
•
Check whether the parts or sensors in the device work properly with the Self
Repair Assistant app after repairing and assembling your device. Refer to
Calibrations for more information.
•
Visit a Samsung Service Centre when finding some issues from the calibration
results. However, you may incur additional charges if the device has a
malfunction because of DIY repairs.
Disassembly and Assembly
120
Directive 2012/19/EU Annex VII Components
Directive 2012/19/EU Annex VII requirements apply to the following components.
Component Samsung Part Name Removal Instructions
Printed circuit board
if the surface is
greater than 10 square
centimetres
Main Board (PBA)
In the Rear Camera disassembly
step, after disassembling the rear
camera, check for the disassembly
steps of the Front Camera and
separate the main board.
Liquid crystal display
of a surface greater
than 100 square
centimetres and all
those back-lighted
with gas discharge
lamps
Screen
Check for the disassembly steps of
the Screen and separate the screen.
Battery Battery
Check for the disassembly steps
of the Battery and separate the
battery.
External electric cable USB Cable
Disconnect the USB cable.
This guide is a property of Samsung Electronics Co., Ltd.
Any unauthorised use of guide can be punished under applicable international and/or
domestic law.
© Samsung Electronics Co., Ltd.

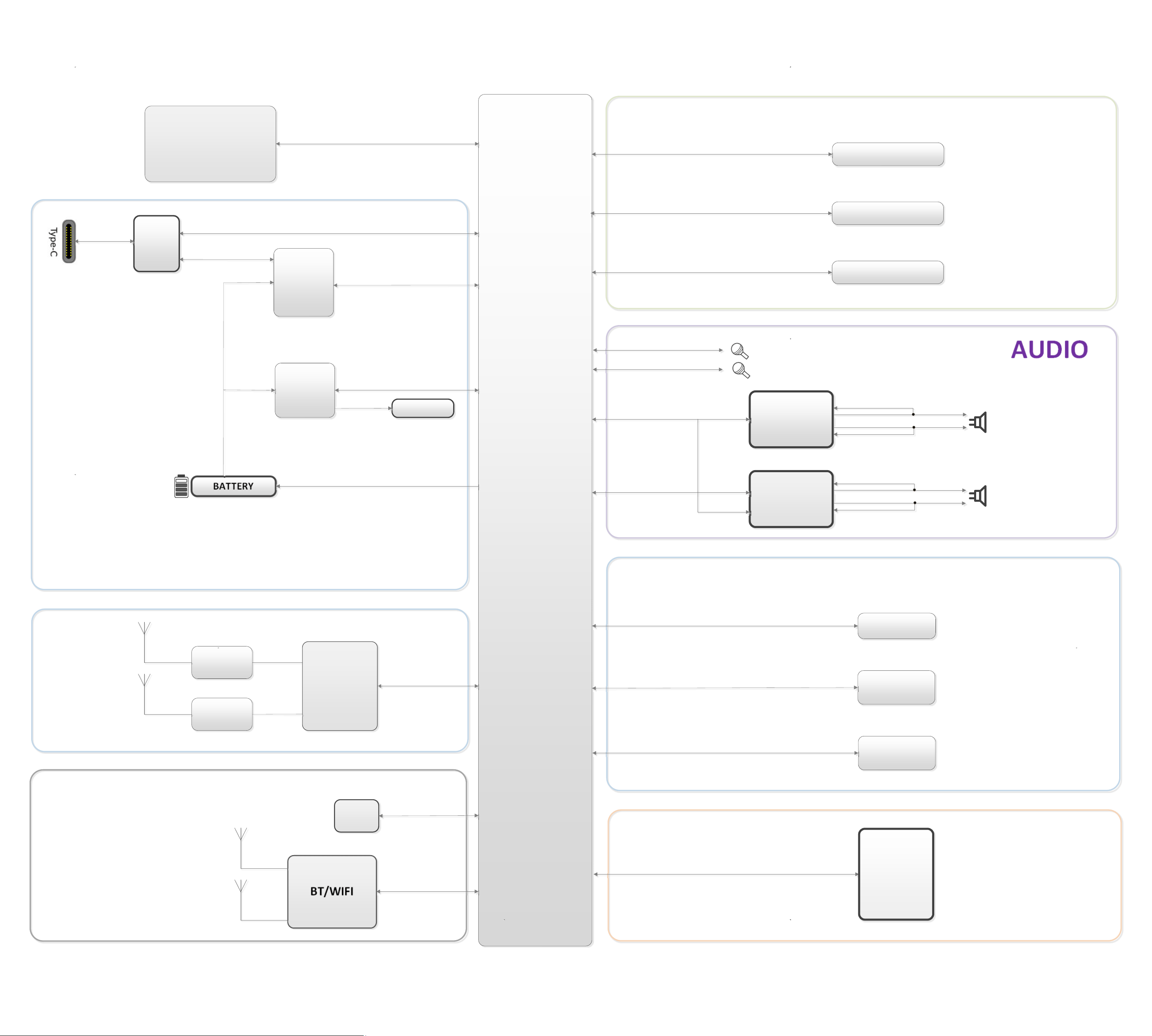

AP
REAR
WIDECAM
SENSOR
AUDIO
CAMERA
FRONTCAM
FLASHLED
Memory
(Storage)
BT/WIFI
WIFI/BT/NFC
NFC
RCV
MAINMIC
2ndMIC
SPK
RCVAmp
SPKAmp
BATTERY
POWER
LDO
DISPLAY
MAIN
Display
+
TSP
PMIC
Motor
OVP
RF
RFTX&RX
TRANSCIEVER
RFTX&RX
ACC&GYRO
Magnetic
Light&Proxy
