User Manual
The color and the appearance may differ depending on the product, and the specifications are subject to change without prior
notice to improve the performance.
The contents of this manual are subject to change without notice to improve quality.
© Samsung Electronics
Samsung Electronics owns the copyright for this manual.
Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited.
Trademarks other than that of Samsung Electronics are owned by their respective owners.
SE200 SE450 SE650 SERIES
• An administration fee may be charged if either
‒ (a) an engineer is called out at your request and there is no defect in the product
(i.e. where you have failed to read this user manual).
‒ (b) you bring the unit to a repair center and there is no defect in the product
(i.e. where you have failed to read this user manual).
• The amount of such administration charge will be advised to you before any work or home visit is carried out.
2
Table of contents
Before Using the Product
Securing the Installation Space 4
Precautions for storage 4
Safety Precautions 4
Symbols 5
Cleaning 5
Electricity and Safety 5
Installation 6
Operation 7
Preparations
Parts 9

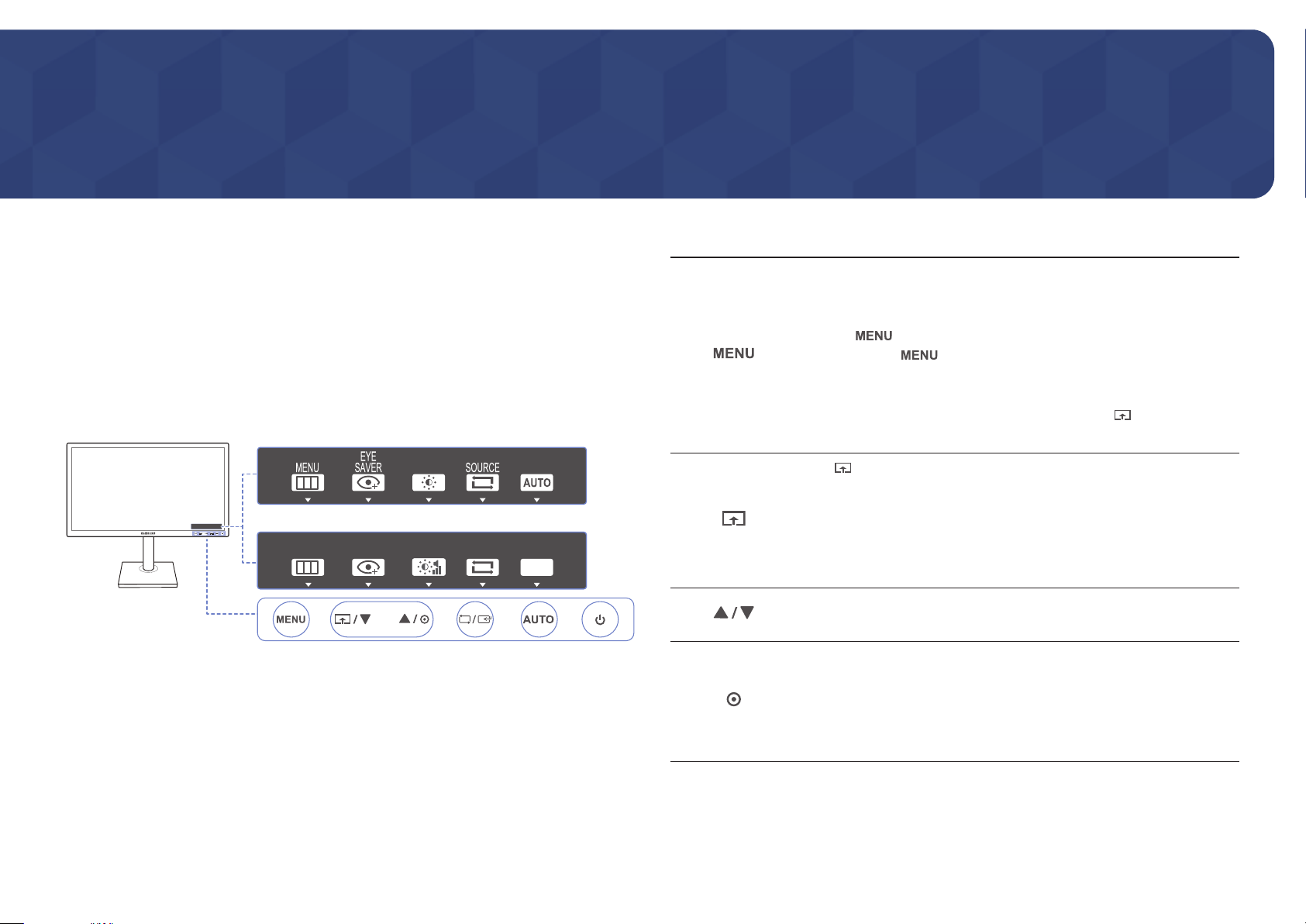

Frontal Buttons 9
Reverse Side 10
Right Side View (S**E450D*) 11
Changing Brightness, Contrast and Sharpness
settings 12
Changing the Volume setting 12
Adjusting the Product Tilt (SE200 Series) 13
Adjusting the Product Tilt and Height
(SE450, SE650 Series) 13
Rotating the Monitor (SE450, SE650 Series) 14
Anti-theft Lock 14
Installing a Wall-mount Kit or Desktop Stand 15
Installation 18

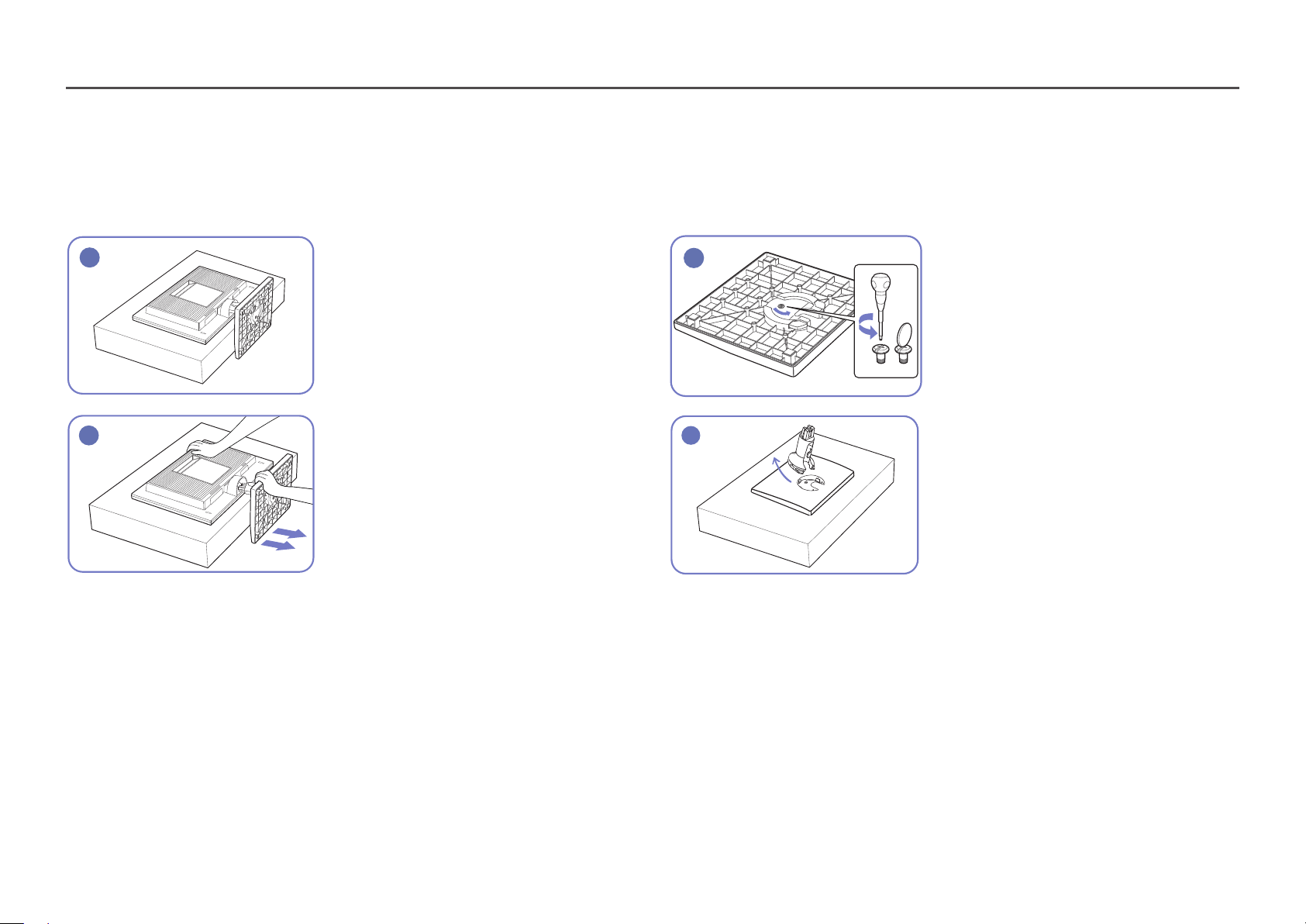

Attaching the Stand (SE200 Series) 18
Attaching the Stand (SE450, SE650 Series) 19
Removing the Stand (SE200 Series) 20
Connecting and Using a Source Device
Read below before installing the monitor. 21
Connecting and Using a PC 21

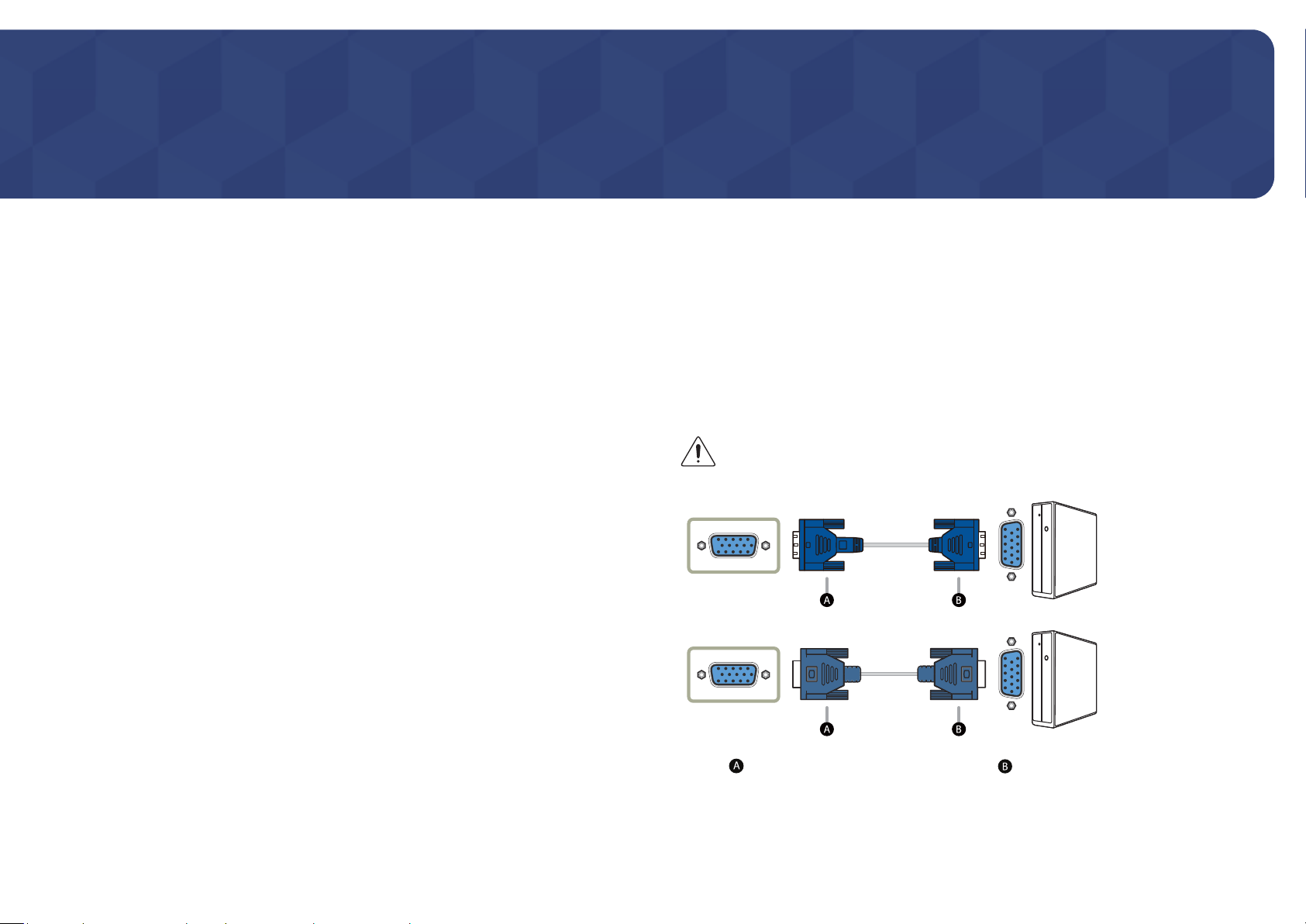

Connection Using the D-SUB Cable (Analog Type) 21

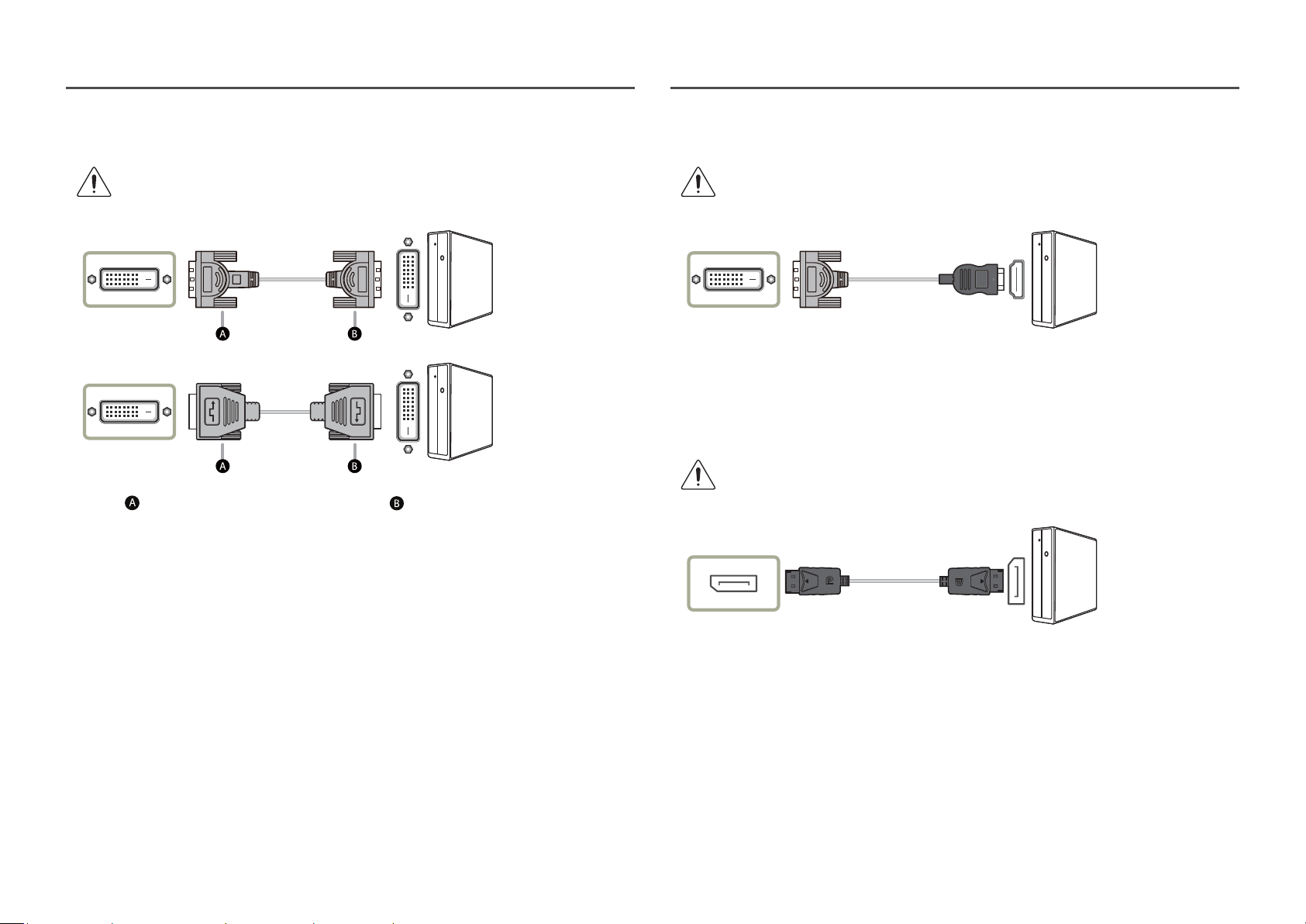

Connection Using the DVI Cable 22
Connection Using the DVI-HDMI Cable 22
Connection Using the DP Cable (S**E450D*) 22
Connecting to Headphones or Speakers
(S**E450M*) 23
Connecting the Power 23

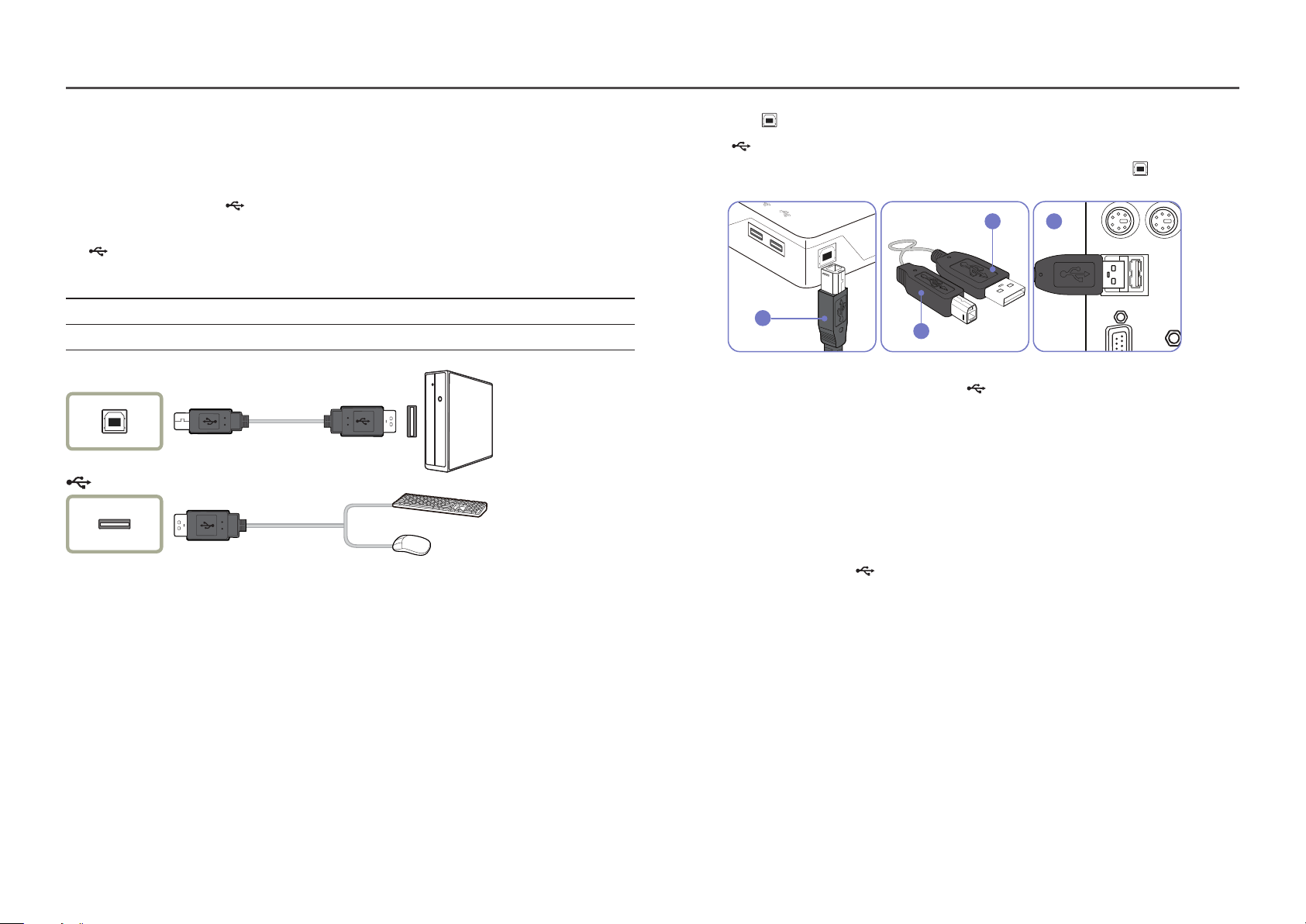

Connecting a USB device (S**E450D*) 24
Correct posture to use the product 25
Driver Installation 25
Setting Optimum Resolution 25
Screen Setup
Brightness 26
Contrast 26
Sharpness 26
Eye Saver Mode 27
Game Mode 27
SAMSUNG MAGIC Bright 27
SAMSUNG MAGIC Angle (Except S19E200NY /
S22E200NY / S24E650BW) 28
SAMSUNG MAGIC Upscale 28
Image Size (Except S19E200BR / S19E450BR /
S19E450MR) 29
Response Time (S24E650BW) 29
H-Position & V-Position 29
Coarse 29
Fine 29
Configuring Tint
Red 30
Green 30
Blue 30
Color Tone 31
Gamma 31
Resizing or Relocating the Screen
Language 32
Menu H-Position & Menu V-Position 32
Display Time 32
Transparency 32
3
Table of contents
Setup and Reset
Reset All 33
Smart Eco Saving 33
Off Timer (S19E200NW / S19E200NY /
S22E200N / S22E200NY) 33
Off Timer Plus (Except S19E200NW /
S19E200NY / S22E200N / S22E200NY) 34
PC/AV Mode (Except S19E200NW /
S19E200NY / S22E200N / S22E200NY) 34
Key Repeat Time 34
Source Detection (Except S19E200NW /
S19E200NY / S22E200N / S22E200NY) 34
INFORMATION 35
Installing the Software
MultiScreen 36
Troubleshooting Guide
Requirements Before Contacting Samsung Customer
Service Center 37
Testing the Product 37
Checking the Resolution and Frequency 37
Check the following. 37
Q & A 39
Specifications
General 40
Standard Signal Mode Table 42
Appendix
Responsibility for the Pay Service (Cost to
Customers) 49
Not a product defect 49
A Product damage caused by customer's fault 49
Others 49
Extended warranty 50
4
Securing the Installation Space
Ensure some space around the product for ventilation. An internal temperature rise may cause fire and
damage the product. Be sure to allow the amount of space as shown below or greater when installing
the product.
―
The exterior may differ depending on the product.
10 cm
(3.93 inches)
10 cm
(3.93 inches)
10 cm (3.93 inches)
10 cm (3.93 inches)
10 cm
(3.93 inches)
10 cm
(3.93 inches)
10 cm (3.93 inches)
10 cm (3.93 inches)
10 cm (3.93 inches)
10 cm
(3.93 inches)
10 cm
(3.93 inches)
10 cm (3.93 inches)
10 cm (3.93 inches)
10 cm (3.93 inches)
10 cm
(3.93 inches)
10 cm
(3.93 inches)
10 cm (3.93 inches)
10 cm (3.93 inches)
10 cm (3.93 inches)
Precautions for storage
High-glossy models can develop white stains on the surface if an ultrasonic wave humidifier is used
nearby.
―
Contact your nearest Samsung Customer Service Center if you want to clean the inside of the product
(Service fee will be charged.)
Safety Precautions
Caution
RISK OF ELECTRIC SHOCK DO NOT OPEN
Caution : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER. (OR BACK)
THERE ARE NO USER SERVICEABLE PARTS INSIDE.
REFER ALL SERVICING TO QUALIFIED PERSONNEL.
This symbol indicates that high voltage is present inside.
It is dangerous to make any kind of contact with any internal part of
this product.
This symbol alerts you that important literature concerning operation
and maintenance has been included with this product.
Before Using the Product
Chapter 01
5
Symbols
Warning
A serious or fatal injury may result if instructions are not followed.
Caution
Personal injury or damage to properties may result if instructions are
not followed.
Cleaning
―
Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.
―
Take the following steps when cleaning.
1
Power off the product and computer.
2
Disconnect the power cord from the product.
―
Hold the power cable by the plug and do not touch the cable with wet hands. Otherwise, an electric
shock may result.
3
Wipe the monitor with a clean, soft and dry cloth.
‒ Do not apply a cleaning agent that contains alcohol, solvent, or surfactant to the monitor.
‒ Do not spray water or detergent directly on the product.
4
Wet a soft and dry cloth in water and wring thoroughly to clean the exterior of the product.
5
Connect the power cord to the product when cleaning is finished.
6
Power on the product and computer.
Electricity and Safety
Warning
• Do not use a damaged power cord or plug, or a loose power socket.
• Do not use multiple products with a single power socket.
• Do not touch the power plug with wet hands.
• Insert the power plug all the way in so it is not loose.
• Connect the power plug to a grounded power socket (type 1 insulated devices only).
• Do not bend or pull the power cord with force. Be careful not to leave the power cord under a heavy
object.
• Do not place the power cord or product near heat sources.
• Clean any dust around the pins of the power plug or the power socket with a dry cloth.
Caution
• Do not disconnect the power cord while the product is being used.
• Only use the power cord provided with your product by Samsung. Do not use the power cord with
other products.
• Keep the power socket where the power cord is connected unobstructed.
‒ The power cord must be disconnected to cut off power to the product when an issue occurs.
• Hold the plug when disconnecting the power cord from the power socket.
6
Warning
• DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE PRODUCT. DO NOT
INSTALL THE PRODUCT NEAR HEAT SOURCES.
• Do not install the product in poorly ventilated spaces such as a bookcase or closet.
• Install the product at least 10 cm away from the wall to allow ventilation.
• Keep the plastic packaging out of the reach of children.
‒ Children may suffocate.
• Do not install the product on an unstable or vibrating surface (insecure shelf, sloped surface, etc.)
‒ The product may fall and become damaged and/or cause an injury.
‒ Using the product in an area with excess vibration may damage the product or cause a fire.
• Do not install the product in a vehicle or a place exposed to dust, moisture (water drips, etc.), oil, or
smoke.
• Do not expose the product to direct sunlight, heat, or a hot object such as a stove.
‒ The product lifespan may be reduced or a fire may result.
• Do not install the product within the reach of young children.
‒ The product may fall and injure children.
• Edible oil (such as soybean oil) may damage or distort the product. Keep the product away from oil
pollution. And do not install or use the product in the kitchen or near the kitchen stove.
Caution
• Do not drop the product while moving.
• Do not set down the product on its front.
• When installing the product on a cabinet or shelf, make sure that the bottom edge of the front of
the product is not protruding.
‒ The product may fall and become damaged and/or cause an injury.
‒ Install the product only on cabinets or shelves of the right size.
• Set down the product gently.
‒ Product failure or personal injury may result.
• Installing the product in an unusual place (a place exposed to a lot of fine dust, chemical
substances, extreme temperatures or a significant presence of moisture, or a place where
the product will operate continuously for an extended period of time) may seriously affect its
performance.
‒ Be sure to consult Samsung Customer Service Center if you want to install the product at such a
place.
Installation
7
Warning
• There is a high voltage inside the product. Never disassemble, repair or modify the product
yourself.
‒ Contact Samsung Customer Service Center for repairs.
• To move the product, first disconnect all the cables from it, including the power cable.
• If the product generates abnormal sounds, a burning smell or smoke, disconnect the power cord
immediately and contact Samsung Customer Service Center.
• Do not let children hang from the product or climb on top of it.
‒ Children may become injured or seriously harmed.
• If the product is dropped or the outer case is damaged, turn off the power and disconnect the
power cord. Then contact Samsung Customer Service Center.
‒ Continued use can result in a fire or electric shock.
• Do not leave heavy objects or items that children like (toys, sweets, etc.) on top of the product.
‒ The product or heavy objects may fall as children try to reach for the toys or sweets resulting in a
serious injury.
• During a lightning or thunderstorm, power off the product and remove the power cable.
• Do not drop objects on the product or apply impact.
• Do not move the product by pulling the power cord or any cable.
• If a gas leakage is found, do not touch the product or power plug. Also, ventilate the area
immediately.
• Do not lift or move the product by pulling the power cord or any cable.
• Do not use or keep combustible spray or an inflammable substance near the product.
• Ensure the vents are not blocked by tablecloths or curtains.
‒ An increased internal temperature may cause a fire.
• Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects that burn easily (paper,
matches, etc) into the product (via the vent or input/output ports, etc).
‒ Be sure to power off the product and disconnect the power cord when water or other foreign
substances have entered the product. Then contact Samsung Customer Service Center.
• Do not place objects containing liquid (vases, pots, bottles, etc) or metallic objects on top of the
product.
‒ Be sure to power off the product and disconnect the power cord when water or other foreign
substances have entered the product. Then contact Samsung Customer Service Center.
Operation
8
Caution
• Leaving the screen fixed on a stationary image for an extended period of time may cause
afterimage burn-in or defective pixels.
‒ Activate power-saving mode or a moving-picture screen saver if you will not be using the
product for an extended period of time.
• Disconnect the power cord from the power socket if you do not plan on using the product for an
extended period of time (vacation, etc).
‒ Dust accumulation combined with heat can cause a fire, electric shock or electric leakage.
• Use the product at the recommended resolution and frequency.
‒ Your eyesight may deteriorate.
• Do not hold the product upside-down or move it by holding the stand.
‒ The product may fall and become damaged or cause an injury.
• Looking at the screen too close for an extended period of time can deteriorate your eyesight.
• Do not use humidifiers or stoves around the product.
• Rest your eyes for more than 5 minutes or look at distance objects for every 1 hour of product use.
• Do not touch the screen when the product has been turned on for an extended period of time as it
will become hot.
• Store small accessories out of the reach of children.
• Exercise caution when adjusting the product angle or stand height.
‒ Your hand or finger may get stuck and injured.
‒ Tilting the product at an excessive angle may cause the product to fall and an injury may result.
• Do not place heavy objects on the product.
‒ Product failure or personal injury may result.
• When using headphones or earphones, do not turn the volume too high.
‒ Having the sound too loud may damage your hearing.
9
Preparations
Chapter 02
Parts
Frontal Buttons
―
The color and shape of parts may differ from what is shown. Specifications are subject to change without
notice to improve quality.
EYE
SAVERMENU SOURCE
AUTO
EYE
SAVERMENU SOURCE
AUTO
Key Guide
SE200 Series, S**E450B*, S**E650B*, S**E450D*
S**E450M*
Icons Description
Open or close the onscreen display (OSD) menu, or return to the parent menu.
OSD control lock: Maintain the current settings, or lock the OSD control to
prevent unintended changes to settings. Enable: To lock the OSD control,
press the
button for 10 seconds. Disable: To unlock the locked OSD
control, press the button for more than 10 seconds.
―
If the OSD control is locked, Brightness and Contrast can be adjusted. Eye Saver
Mode is available. INFORMATION can be viewed.
The Eye Saver Mode function can be used by pressing the
button. (The Eye
Saver Mode is available even when the OSD control is locked.)
Press to enable or disable Eye Saver Mode.
The items below are not available if the Eye Saver Mode function is enable.
• PICTURE → Brightness, Game Mode,
SAMSUNG
MAGIC
Bright,
SAMSUNG
MAGIC
Angle
• COLOR
• SETUP&RESET → Smart ECO Saving
Move to the upper or lower menu or adjust the value for an option on the OSD
menu.
Use this button to control the brightness, contrast and sharpness of the
screen. (Except S**E450M*)
Use this button to control the brightness and contrast of the screen.
(S**E450M*)
―
Volume can be adjusted if a cable is connected to the IN port. (S**E450M*)
10
Icons Description
Confirm a menu selection.
Pressing the button when the OSD menu is not displayed will change
the input source (Analog / DVI / DisplayPort (S**E450D*)). If you power on the
product or change the input source by pressing the
button, a message
that shows the changed input source will appear at the top left corner of the
screen.
―
This function is not available for products with an Analog interface only.
Press the button to automatically adjust the screen settings.
―
Changing the resolution in Display Properties will activate the Auto Adjustment
function.
―
This function is only available in Analog mode.
Turn the screen on or off.
Key Guide
When a control button on the product is pressed, the Key Guide will be
displayed before the onscreen menu opens. (The guide shows the function of
the button pressed.)
To access the onscreen menu when the guide is displayed, press the
corresponding button again.
The Key Guide may vary depending on the function or product model.
Refer to the actual product.
Reverse Side
―
The color and shape of parts may differ from what is shown. Specifications are subject to change without
notice to improve quality.
Port Description
Connect to a PC using a DP cable. (S**E450D*)
Connect to a PC using the DVI cable.
―
The DVI IN terminal is supplied for the digital (DVI)-dedicated models only.
Connect to a PC using the D-SUB cable.
Connect to an audio output device such as headphones. (S**E450M*)
―
Applicable to the models that have speakers only.
Connect to an audio-input source using an audio cable. (S**E450M*)
―
Applicable to the models that have speakers only.
Connect the port of the monitor and the USB port of the computer with the
USB cable. (S**E450D*)
―
Applicable to the stand models that have USB ports only.
Connect to an external device.
Connect the power cord for your monitor to the POWER IN port on the back of
the product.
11
Right Side View (S**E450D*)
―
The color and shape of parts may differ from what is shown. Specifications are subject to change without
notice to improve quality.
Port Description
Connect to a USB device.
―
Applicable to the stand models that have USB ports only.
12
Changing Brightness, Contrast and Sharpness settings
Adjust the Brightness, Contrast and Sharpness setting using the buttons in the initial screen (where
no OSD menu is displayed).
Brightness
Contrast
Sharpness
100
―
The displayed image may differ depending on the model.
―
The default brightness can vary depending on the region.
Brightness
―
This menu is not available when
SAMSUNG
MAGIC
Bright is set to Dynamic Contrast mode.
―
This menu is not available when Smart Eco Saving is enabled.
―
This menu is not available when Eye Saver Mode is enabled.
Contrast
―
This menu is not available when
SAMSUNG
MAGIC
Bright is in Cinema or Dynamic Contrast mode.
―
This menu is not available when Game Mode is enabled.
Sharpness
―
This menu is not available when
SAMSUNG
MAGIC
Bright is in Cinema or Dynamic Contrast mode.
―
This menu is not available when
SAMSUNG
MAGIC
Upscale is in Mode1 or Mode2 mode.
―
This menu is not available when Game Mode is enabled.
Changing the Volume setting
Adjust the Volume by pressing the button when the Key Guide is displayed.
Volume
10
―
The displayed image may differ depending on the model.
―
Applicable to the models that have speakers only.
―
Volume can be adjusted if a cable is connected to the IN port.
―
The functions available on the monitor may vary depending on the model. Refer to the actual product.
13
Adjusting the Product Tilt (SE200 Series)
―
The color and shape of parts may differ from what is shown. Specifications are subject to change without
notice to improve quality.
• You can adjust the tilt of your monitor.
• Hold the lower part of the product and adjust the tilt carefully.
Adjusting the Product Tilt and Height (SE450, SE650
Series)
―
The color and shape of parts may differ from what is shown. Specifications are subject to change without
notice to improve quality.
0 (± 5 mm) -
100 mm (± 5 mm)
0 (± 5 mm) -
130 mm (± 5 mm)
19" ~ 24"
-3° (±2°) ~ +25° (±2°)
19"~ 22" (without a USB port) 23" ~ 27" / 21.5", 22" (with a USB port)
• To adjust the height, remove the fixing pin.
• The monitor tilt and height can be adjusted.
• Hold the top center of the product and adjust the height carefully.
• The rotation and height adjustment has a certain tolerance. Stay within the tolerances when
rotating or adjusting the height of the product.
27"
-4° (±2°) ~ +25° (±2°)
-1° (-2°/+1°) ~ 20° (0°/+2°)
14
Rotating the Monitor (SE450, SE650 Series)
―
The color and shape of parts may differ from what is shown. Specifications are subject to change without
notice to improve quality.
You can rotate your monitor as shown below.
1 2 3
4 5 6
• Be sure to fully extend the stand before rotating the monitor.
• If you rotate the monitor without fully extending the stand, the corner of the monitor may hit the
floor and get damaged.
• Do not rotate the monitor counterclockwise. The product may get damaged.
Anti-theft Lock
―
An anti-theft lock allows you to use the product securely even in public places.
―
The locking device shape and locking method depend on the manufacturer. Refer to the user guide
provided with your anti-theft locking device for details.
To lock an anti-theft locking device:
SE200 Series SE450, SE650 Series
RGB INDVI IN
POWER IN
1
Fix the cable of your anti-theft locking device to a heavy object such as a desk.
2
Put one end of the cable through the loop on the other end.
3
Insert the locking device into the anti-theft lock slot at the back of the product.
4
Lock the locking device.
‒ An anti-theft locking device can be purchased separately.
‒ Refer to the user guide provided with your anti-theft locking device for details.
‒ Anti-theft locking devices can be purchased at electronics retailers or online.
15
Installing a Wall-mount Kit or Desktop Stand
Before Installation
―
Power the product off and remove the power cable from the power socket.
SE200 Series
Place a protective cloth or cushion on a flat surface. Next,
place the product with the face down on top of the cloth or
cushion.
Hold the main body of the product with your hand as shown
by the figure.
Pull the stand in the direction of the arrow as shown in the
figure to separate it.
SE450, SE650 Series
Place a protective cloth or cushion on a flat surface. Next,
place the product with the face down on top of the cloth or
cushion.
Unfasten the screw from the back of the product.
Lift and detach the stand.
16
Installing a Wall-mount Kit or Desktop Stand
SE200 Series
1
4
3
B
2
A
Attach the wall-mount kit or desktop stand here
Bracket (sold separately)
Align the grooves and tightly fasten the screws on the bracket on the product with the corresponding
parts on the wall-mount kit or desktop stand you want to attach.
• Notes
‒ Using a screw longer than the standard length can damage the internal components of the
product.
‒ The length of screws required for a wall mount that does not comply with the VESA standards
may vary depending on the specifications.
‒ Do not use screws that do not comply with the VESA standards. Do not attach the wall-mount kit
or desktop stand using excessive force. The product may get damaged or fall and cause personal
injury. Samsung shall not be held liable for any damage or injury caused by using improper
screws or attaching the wall-mount kit or desktop stand using excessive force.
‒ Samsung shall not be held liable for any product damage or personal injury caused by using a
wall-mount kit other than the one specified or from an attempt to install the wall-mount kit on
your own.
‒ To mount the product on a wall, ensure you purchase a wall-mount kit that can be installed 10
cm or farther away from the wall.
‒ Be sure to use a wall-mount kit that complies with the standards.
Unit: mm (inches)
Model name VESA screw hole specs
(A * B) in millimeters
Standard Screw Quantity
SE200 Series 100.0 x 100.0 (3.9 x 3.9) M4 4
―
Do not install your Wall Mount Kit while your product is turned on. It may result in personal injury due to
electric shock.
17
SE450, SE650 Series
B
Attach the wall-mount kit or desktop stand here
Bracket (sold separately)
Align the grooves and tightly fasten the screws on the bracket on the product with the corresponding
parts on the wall-mount kit or desktop stand you want to attach.
• Notes
‒ Using a screw longer than the standard length can damage the internal components of the
product.
‒ The length of screws required for a wall mount that does not comply with the VESA standards
may vary depending on the specifications.
‒ Do not use screws that do not comply with the VESA standards. Do not attach the wall-mount kit
or desktop stand using excessive force. The product may get damaged or fall and cause personal
injury. Samsung shall not be held liable for any damage or injury caused by using improper
screws or attaching the wall-mount kit or desktop stand using excessive force.
‒ Samsung shall not be held liable for any product damage or personal injury caused by using a
wall-mount kit other than the one specified or from an attempt to install the wall-mount kit on
your own.
‒ To mount the product on a wall, ensure you purchase a wall-mount kit that can be installed 10
cm or farther away from the wall.
‒ Be sure to use a wall-mount kit that complies with the standards.
‒ To install the monitor using a wall mount, disconnect the stand base from the monitor.
Unit: mm (inches)
Model name VESA screw hole specs
(A * B) in millimeters
Standard Screw Quantity
SE450, SE650 Series 100.0 x 100.0 (3.9 x 3.9) M4 4
―
Do not install your Wall Mount Kit while your product is turned on. It may result in personal injury due to
electric shock.
18
Installation
Attaching the Stand (SE200 Series)
―
Before assembling the product, place the product down on a flat and stable surface so that the screen is facing downwards.
―
The exterior may differ depending on the product.
1
2
3
4
Insert the Stand Connector into the Stand in the
direction shown by the figure.
Check if the Stand Connector is firmly connected. Turn the connecting screw at the bottom of the
stand fully so that it is completely fixed.
Place a soft cloth over the table to protect
the product and place the product onto the
cloth so that the front of the product is facing
downwards.
5
Hold the main body of the product with your
hand as shown by the figure.
Push the assembled stand into the main body in
the direction of the arrow as shown in the figure.
- Caution
Do not hold the product upside down only by the
stand.
19
Attaching the Stand (SE450, SE650 Series)
―
Before assembling the product, place the product down on a flat and stable surface so that the screen is facing downwards.
―
The exterior may differ depending on the product.
―
Disassembly is the reverse order of assembly.
1 2
3
4
Place a protective cloth or cushion on a flat
surface. Next, place the product with the face
down on top of the cloth or cushion.
Do not remove the fixing pin until you are
finished attaching the stand.
Insert the stand base into the stand in the
direction of the arrow.
Fasten the screw tightly (using a screwdriver or
coin) into the bottom of the stand base.
5
6
After installing the stand, place the product
upright.
You can remove the fixing pin and adjust the
stand now.
- Caution
Do not hold the product upside down only by the
stand.
20
Removing the Stand (SE200 Series)
―
Before assembling the product, place the product down on a flat and stable surface so that the screen is facing downwards.
―
The exterior may differ depending on the product.
1
Place a soft cloth over the table to protect the product
and place the product onto the cloth so that the front
of the product faces downwards.
2
While holding the stand neck with one hand, pound the
other fisted hand down onto the top of the stand base
in the direction of the arrow to detach the stand base.
3
Turn the connecting screw at the bottom of the stand
base to separate it.
4
Remove the stand neck from the stand base by
pulling it in the direction of the arrow as shown
in the figure.
21
Connecting and Using a Source Device
Chapter 03
Read below before installing the monitor.
1
Check the shapes of both ends of the cables that came with the monitor, and check the shapes and
positions of the matching ports on the monitor and external devices.
2
Before connecting signal cables, disconnect the power cables for the monitor and external devices
from the power outlet to prevent device damage from a short circuit or overcurrent.
3
After connecting all signal cables, connect the power cables for the monitor and external devices
to the power outlet.
4
Read the user manual to familiarize yourself with the monitor functions, precautions, and proper
use, before using the installed monitor.
Connecting and Using a PC
Select a connection method suitable for your PC.
―
Connecting parts may differ in different products.
―
Provided ports may vary depending on the product.
Connection Using the D-SUB Cable (Analog Type)
Check to make sure that the power cables for the monitor and external devices, such as
computers and set-top boxes, are not connected to the power outlet.
RGB IN
RGB IN
―
Connect
to the RGB IN port on the product, then connect to the RGB port on the computer.
22
Connection Using the DVI Cable
Check to make sure that the power cables for the monitor and external devices, such as
computers and set-top boxes, are not connected to the power outlet.
DVI IN
DVI IN
―
Connect
to the DVI IN port on the product, then connect to the DVI port on the computer.
―
The DVI IN terminal is supplied for the digital (DVI)-dedicated models only.
Connection Using the DVI-HDMI Cable
Check to make sure that the power cables for the monitor and external devices, such as
computers and set-top boxes, are not connected to the power outlet.
DVI IN
―
The DVI IN terminal is supplied for the digital (DVI)-dedicated models only.
Connection Using the DP Cable (S**E450D*)
Check to make sure that the power cables for the monitor and external devices, such as
computers and set-top boxes, are not connected to the power outlet.
DP IN
23
Connecting to Headphones or Speakers (S**E450M*)
IN
OUT
―
Applicable to the models that have speakers only.
Connecting the Power
POWER IN
To use the product, connect the power cable to a power outlet and the POWER IN port on the product.
―
The input voltage is switched automatically.
24
Connecting a USB device (S**E450D*)
―
Applicable to the stand models that have USB ports only.
―
You can use a USB device such as a mouse, keyboard, memory stick or external hard disk drive (HDD) by
connecting it directly to the
port on the monitor. You do not need to connect it to the computer.
For an external mass-storage HDD requiring external power supply, be sure to connect it to a power source.
The USB port of the monitor supports High-Speed Certified USB 2.0.
High speed Full speed Low speed
Data Rate 480 Mbps 12 Mbps 1.5 Mbps
Power Consumption 2.5 W (Max., each port) 2.5 W (Max., each port) 2.5 W (Max., each port)
1
Connect the port of the monitor and the USB port of the computer with the USB cable.
―
To use
port, you have to connect the UP (Upstream Cable) to the PC.
―
Make sure to use the USB cable supplied with this monitor to connect the monitor's
port and your
computer's USB port.
A
B
USB
B
A
2
Use the USB cable to connect a USB device to the port on the monitor.
3
The use procedures are as the same as those for using an external device connecting to the PC.
• You can connect and use a keyboard and mouse.
• You can play a file from a media device. (Examples of media devices: MP3, digital camera, etc.)
• You can run, move, copy or delete the files on the storage device. (Examples of storage devices:
external memory, memory card, memory reader, HDD-type MP3 player, etc.)
• You can use other USB devices that can be connected to a computer.
―
When connecting a device to the
port of the monitor, connect the device using a cable appropriate to
the device.
―
For the purchase of the cable and external devices, ask the service center of the corresponding product.
―
The company is not liable for problems or damages to an external device caused by using an unauthorized
cable for the connection.
―
Some products do not follow the USB standard, and it may cause a malfunction of the device.
―
If the device malfunctions even if it is connected to the computer, contact the service center of the device/
computer.
25
Correct posture to use the product
Use the product in the correct posture as follows:
• Straighten your back.
• Allow a distance of 45 to 50cm between your eye and the screen, and look slightly downward at
the screen.
• Keep your eyes directly in front of the screen.
• Adjust the angle so light does not reflect on the screen.
• Keep your forearms perpendicular to your upper arms and level with the back of your hands.
• Keep your elbows at about a right angle.
• Adjust the height of the product so you can keep your knees bent at 90 degrees or more, your heels
attached to the floor, and your arms lower than your heart.
• Do the Eye excercises or blink frequently,then eye fatigue will be relieved.
Driver Installation
―
You can set the optimum resolution and frequency for this product by installing the corresponding drivers.
―
To install the latest version of the product driver, download it from the Samsung Electronics website at
http://www.samsung.com.
Setting Optimum Resolution
An information message about setting optimum resolution will appear if you power on the product for
the first time after purchase.
Select a language on the product and change the resolution on your PC to the optimum setting.
―
If the optimum resolution is not selected, the message will appear up to three times for a specified time
even when the product is turned off and on again.
―
The optimum resolution can also be selected in Control Panel on your PC.
26
Screen Setup
Configure the screen settings such as brightness.
A detailed description of each function is provided. Refer to your product for details.
Chapter 04
―
The functions available may vary depending on the product model. The color and shape of parts may differ
from what is shown. Specifications are subject to change without notice to improve quality.
Brightness
You can adjust the general brightness of the picture. (Range: 0~100)
A higher value will make the picture appear brighter.
―
This menu is not available when
SAMSUNG
MAGIC
Bright is set to Dynamic Contrast mode.
―
This menu is not available when Smart Eco Saving is enabled.
―
This menu is not available when Eye Saver Mode is enabled.
Contrast
Adjust the contrast between the objects and background. (Range: 0~100)
A higher value will increase the contrast to make the object appear clearer.
―
This option is not available when
SAMSUNG
MAGIC
Bright is in Cinema or Dynamic Contrast mode.
―
This menu is not available when Game Mode is enabled.
Sharpness
Make the outline of objects more clear or blurry. (Range: 0~100)
A higher value will make the outline of objects clearer.
―
This option is not available when
SAMSUNG
MAGIC
Bright is in Cinema or Dynamic Contrast mode.
―
This menu is not available when
SAMSUNG
MAGIC
Upscale is in Mode1 or Mode2 mode.
―
This menu is not available when Game Mode is enabled.
27
Eye Saver Mode
Set to an optimum picture quality suitable for eye relaxation.
TÜV Rheinland “Low Blue Light Content” is a certification for products which meet requirements for
lower blue light levels. When Eye Saver Mode is 'On', the blue light that wavelength is around 400nm
will decrease, and it will provide an optimum picture quality suitable for eye relaxation. At the same
time, the blue light level is lower than in the default settings, and it was tested by TÜV Rheinland and
certified as it met the requirements of TÜV Rheinland “Low Blue Light Content” standards.
Game Mode
Configure the product screen settings for game mode.
Use this feature when playing games on a PC or when a game console such as PlayStation™ or Xbox™
is connected.
―
This menu is not available when Eye Saver Mode or Smart Eco Saving is enabled.
―
When the monitor turns off, enters power-saving mode or changes input sources, Game Mode turns Off
even if it is set to On.
―
If you want to keep Game Mode enabled all the time, select Always On.
SAMSUNG MAGIC Bright
This menu provides an optimum picture quality suitable for the environment where the product will be
used.
―
This menu is not available when Smart Eco Saving is enabled.
―
This menu is not available when Game Mode is enabled.
―
This menu is not available when Eye Saver Mode is enabled.
―
This menu is not available when
SAMSUNG
MAGIC
Angle is enabled.
You can customize the brightness to suit your preferences.
• Custom: Customize the contrast and brightness as required.
• Web mode: Obtain the best screen for editing documents and browsing the Internet without the
issue of narrow viewing angles. (S19E200NY, S22E200NY)
• Standard: Obtain a picture quality suitable for editing documents or using Internet.
• Cinema: Obtain the brightness and sharpness of TVs suitable for enjoying video and DVD content.
• Dynamic Contrast: Obtain balanced brightness through automatic contrast adjustment.
28
SAMSUNG MAGIC Angle (Except S19E200NY /
S22E200NY / S24E650BW)
SAMSUNG
MAGIC
Angle allows you to configure the settings to obtain the optimum picture quality according to
your viewing angle.
―
This menu is not available when
SAMSUNG
MAGIC
Bright is set to Cinema or Dynamic Contrast mode.
―
This menu is not available when Game Mode or Eye Saver Mode is enabled.
You can customize the angle to suit your preferences.
4
2
3
1
1
5 5
• Off
1
: Select this option to view directly in front of the product.
• Lean Back Mode 1
2
: Select this option to view from a place slightly lower than the product.
• Lean Back Mode 2
3
: Select this option to view from a place lower than Lean Back Mode 1.
• Standing Mode
4
: Select this option to view from a place higher than the product.
• Side Mode
5
: Select this option to view from either side of the product.
• Group View: Select this option for more than one viewer to view from places
1
,
4
, and
5
.
• Custom: Lean Back Mode 1 will be applied by default if Custom is selected.
SAMSUNG MAGIC Upscale
SAMSUNG
MAGIC
Upscale function can enhance the layers of the picture details and the vividness of the picture.
The function has more obvious effects on low-resolution pictures.
―
This menu is not available when
SAMSUNG
MAGIC
Bright is set to Cinema or Dynamic Contrast mode.
―
This menu is not available when Game Mode is enabled.
• Off / Mode1 / Mode2
―
Comparing with Mode1, Mode2 has a stronger effect.
29
Image Size (Except S19E200BR / S19E450BR /
S19E450MR)
Change the picture size.
In PC mode
• Auto: Display the picture according to the aspect ratio of the input source.
• Wide: Display the picture in full screen regardless of the aspect ratio of the input source.
In AV mode
• 4:3: Display the picture with an aspect ratio of 4:3. Suitable for videos and standard broadcasts.
• 16:9: Display the picture with an aspect ratio of 16:9.
• Screen Fit: Display the picture with the original aspect ratio without cutting off.
• Wide: Display the picture in full screen regardless of the aspect ratio of the input source.
(S19E200NW, S19E200BW, S22E200BW, S19E450BW, S19E450MW, S22E450BW, S22E450MW,
S22E450DW)
―
The function may not be supported depending on the ports provided with the product.
―
Changing the screen size is available when the following conditions are satisfied.
―
A digital output device is connected using the DVI/DP cable.
―
The input signal is 480p, 576p, 720p, or 1080p and monitor can display normally (Not every model can
support all of these signals.).
―
This can only be set when the external input is connected through DVI/DP and PC/AV Mode is set to AV.
Response Time (S24E650BW)
Accelerate the panel response rate to make video appear more vivid and natural.
―
It is best to set Response Time to Standard or Faster when you are not viewing a movie.
H-Position & V-Position
H-Position: Move the screen to the left or right.
V-Position: Move the screen up or down.
―
This menu is available in Analog mode only.
―
This menu is only available when Image Size is set to Screen Fit in AV Mode.
When a 480P or 576P or 720P or 1080P signal is input in AV mode and the monitor can display normally,
select Screen Fit to adjust horizontal position in 0-6 levels.
Coarse
Adjust the screen frequency.
―
This menu is available in Analog mode only.
Fine
Fine-adjust the screen to obtain a vivid picture.
―
This menu is available in Analog mode only.
30
Configuring Tint
A detailed description of each function is provided. Refer to your product for details.
Adjust the tint of the screen. This menu is not available when
SAMSUNG
MAGIC
Bright is in Cinema or Web mode, Dynamic Contrast mode. This menu is not available when Game Mode or Eye Saver Mode is enabled.
Chapter 05
―
The functions available may vary depending on the product model. The color and shape of parts may differ
from what is shown. Specifications are subject to change without notice to improve quality.
Red
Adjust the value of the color red in the picture. (Range: 0~100)
A higher value will increase the intensity of the color.
Green
Adjust the value of the color green in the picture. (Range: 0~100)
A higher value will increase the intensity of the color.
Blue
Adjust the value of the color blue in the picture. (Range: 0~100)
A higher value will increase the intensity of the color.
31
Color Tone
Adjust the general color tone of the picture.
―
This menu is not available when
SAMSUNG
MAGIC
Angle is enabled.
• Cool 2: Set the color temperature to be cooler than Cool 1.
• Cool 1: Set the color temperature to be cooler than Normal mode.
• Normal: Display the standard color tone.
• Warm 1: Set the color temperature to be warmer than Normal mode.
• Warm 2: Set the color temperature to be warmer than Warm 1.
• Custom: Customize the color tone.
Gamma
Adjust the mid-range brightness (Gamma) for the picture.
―
This menu is not available when
SAMSUNG
MAGIC
Angle is enabled.
• Mode1 / Mode2 / Mode3
32
Resizing or Relocating the Screen
A detailed description of each function is provided. Refer to your product for details.
Chapter 06
―
The functions available may vary depending on the product model. The color and shape of parts may differ
from what is shown. Specifications are subject to change without notice to improve quality.
Language
Set the menu language.
―
A change to the language setting will only be applied to the onscreen menu display.
―
It will not be applied to other functions on your PC.
Menu H-Position & Menu V-Position
Menu H-Position: Move the menu position to the left or right.
Menu V-Position: Move the menu position up or down.
Display Time
Set the on-screen display (OSD) menu to automatically disappear if the menu is not used for a specified
period of time.
Display Time can be used to specify the time after which you want the OSD menu to disappear.
Transparency
Set the transparency for the menu windows.
33
Setup and Reset
A detailed description of each function is provided. Refer to your product for details.
Chapter 07
―
The functions available may vary depending on the product model. The color and shape of parts may differ
from what is shown. Specifications are subject to change without notice to improve quality.
Reset All
Return all the settings for the product to the default factory settings.
Smart Eco Saving
The Smart Eco Saving function reduces power consumption by controlling the electric current used by
the monitor panel.
―
This menu is not available when Eye Saver Mode is enabled.
―
Game Mode will automatically turn off when Smart Eco Saving is enabled.
―
Dynamic Contrast mode is not available when Smart Eco Saving is enabled.
• Off: Deactivate the Smart Eco Saving function.
• On: The power consumption will automatically be reduced by about 10% over the current setting.
(The reduction of power consumption depends on the customer screen brightness condition.)
Off Timer (S19E200NW / S19E200NY /
S22E200N / S22E200NY)
Configuring Off Timer
Off Timer: Turn on Off Timer mode.
Turn Off After: The off timer can be set within a range of 1 to 23 hours. The product will automatically
power off after the specified number of hours.
―
This option is only available when Off Timer is set to On.
―
For products for the market in some regions, the Off Timer is set to automatically activate 4 hours after the
product powers on. This is done in accordance with power supply regulations. If you do not want the timer
to activate, go to MENU → SETUP&RESET and set Off Timer to Off.
34
Off Timer Plus (Except S19E200NW /
S19E200NY / S22E200N / S22E200NY)
Configuring Off Timer
Off Timer: Turn on Off Timer mode.
Turn Off After: The off timer can be set within a range of 1 to 23 hours. The product will automatically
power off after the specified number of hours.
―
This option is only available when Off Timer is set to On.
―
For products for the market in some regions, the Off Timer is set to automatically activate 4 hours after the
product powers on. This is done in accordance with power supply regulations. If you do not want the timer
to activate, go to MENU → SETUP&RESET → Off Timer Plus and set Off Timer to Off.
Configuring Eco Timer
Eco Timer: Turn on Eco Timer mode.
Eco Off After: The Eco Timer can be set between 10 and 180 minutes. The product will automatically
power off after the specified time has elapsed.
―
This option is only available when Eco Timer is set to On.
―
This menu is not available for S19E200NY, S19E200NW, S22E200NY and S22E200N models.
PC/AV Mode (Except S19E200NW /
S19E200NY / S22E200N / S22E200NY)
Set PC/AV Mode to AV. The picture size will be enlarged.
This option is useful when you view a movie.
• Set to PC when connected to a PC.
• Set to AV when connected to an AV device.
―
This function does not support Analog mode.
―
Supplied for the wide models only such as 16:9 or 16:10.
―
If the monitor (when set to DVI/DP) is in power saving mode or is displaying the message Check Signal
Cable, press the
button to display the On Screen Display (OSD). You can select PC or AV.
Key Repeat Time
Control the response rate of a button when the button is pressed.
Acceleration, 1 sec, or 2 sec can be selected. If No Repeat is selected, a command responds only once
when a button is pressed.
Source Detection (Except S19E200NW /
S19E200NY / S22E200N / S22E200NY)
Select either Auto or Manual as the method to recognize input signal.
35
INFORMATION
View the current input source, frequency and resolution.
COLOR
MENU SETTINGS
SETUP&RESET
INFORMATION
INFORMATION
LS********/**
S / N : ***************
Analog
**kHz **Hz **
****x****
Optimal Mode
****x**** **Hz
―
The displayed image may differ depending on the model.
36
Installing the Software
Chapter 08
MultiScreen
MultiScreen enables users to use the monitor by partitioning multiple sections.
―
The software may not work properly if you do not restart the computer after the installation.
―
The MultiScreen icon may not appear depending on the computer system and the product specifications.
―
If the shortcut icon does not appear, press the F5 key.
Restrictions and Problems with the Installation
The MultiScreen installation may be affected by the Graphics Card, Motherboard and the Networking
Environment.
System Requirements
OS Hardware
• Windows™ 2000
• Windows XP Home Edition
• Windows XP Professional
• Windows Vista 32Bit
• Windows 7 32Bit
• Windows 8 32Bit
• Windows 10 32Bit
• At least 32MB of memory
• At least 60MB of free space on the hard disk drive
―
For MultiScreen, the operating systems Windows 2000 or later is recommended.
37
Troubleshooting Guide
Chapter 09
Requirements Before Contacting Samsung
Customer Service Center
―
Before calling Samsung Customer Service Center, test your product as follows. If the problem persists,
contact Samsung Customer Service Center.
Testing the Product
Check if your product is operating normally by using the product test function.
If the screen is turned off and the power indicator blinks even though the product is properly connected
to a PC, perform a self-diagnosis test.
1
Power off both the PC and product.
2
Disconnect the cables from the product.
3
Power on the product.
4
If the message Check Signal Cable appears, the product is working normally.
―
If the screen remains blank, check the PC system, video controller and cable.
Checking the Resolution and Frequency
For a mode that exceeds the supported resolution(refer to Standard Signal Mode Table), the message
Not Optimum Mode will appear for a short time.
―
The displayed resolution may vary, depending on the computer system settings and cables.
Check the following.
Installation issue (PC mode)
The screen keeps switching on and off.
Check the cable connection between the product and PC, and ensure the connectors are locked.
Screen issue
The power LED is off. The screen will not switch on.
Check that the power cable is connected properly.
The message Check Signal Cable appears.
Check that the cable is properly connected to the product.
Check that the device connected to the product is powered on.
Not Optimum Mode is displayed.
This message appears when the signal from the graphics card exceeds the maximum resolution or
frequency for the product.
Change the maximum resolution and frequency to suit the product performance, referring to
Standard Signal Mode Table (P.42).
The images on the screen look distorted.
Check the cable connection to the product.
38
The screen is not clear. The screen is blurry.
Adjust Coarse and Fine.
Remove any accessories (video extension cable, etc.) and try again.
Set the resolution and frequency to the recommended level.
The screen appears unstable and shaky. There are shadows or ghost images left on the screen.
Check that the resolution and frequency for the PC are within the range of resolution and frequency
compatible with the product. Next, if required, change the settings, referring to Standard Signal
Mode Table (P.42) in this manual and the INFORMATION menu on the product.
The screen is too bright. The screen is too dark.
Adjust Brightness and Contrast.
Screen color is inconsistent.
Change the COLOR settings.
The colors on the screen have a shadow and are distorted.
Change the COLOR settings.
White does not really look white.
Change the COLOR settings.
There is no image on the screen and the power LED blinks every 0.5 to 1 second.
The product is operating in power-saving mode.
Press any key on the keyboard or move the mouse to return to normal operating mode.
Sound issue
There is no sound.
Check the connection of the audio cable or adjust the volume.
Check the volume.
The volume is too low.
Adjust the volume.
If the volume is still low after turning it up to the maximum level, adjust the volume on your PC sound
card or software program.
Source device issue
A beeping sound is heard when my PC is booting.
If a beeping sound is heard when your PC is booting, have your PC serviced.
―
The LED lights on the frame of the product may be seen depending on the user's viewing angle. The light is
harmless to people and has no bearing on product features and performance. The product is safe to use.
39
Q & A
―
Refer to the user manual for your PC or graphics card for further instructions on adjustment.
How can I change the frequency?
Set the frequency on your graphics card.
• Windows XP: Go to Control Panel → Appearance and Themes → Display → Settings → Advanced → Monitor, and adjust Refresh rate under Monitor settings.
• Windows ME/2000: Go to Control Panel → Display → Settings → Advanced → Monitor, and adjust Refresh rate under Monitor settings.
• Windows Vista: Go to Control Panel → Appearance and Personalization → Personalization → Display Settings → Advanced Settings → Monitor, and adjust Refresh rate under Monitor settings.
• Windows 7: Go to Control Panel → Appearance and Personalization → Display → Screen Resolution → Advanced settings → Monitor, and adjust Refresh rate under Monitor settings.
• Windows 8(Windows 8.1): Go to Settings → Control Panel → Appearance and Personalization → Display → Screen Resolution → Advanced settings → Monitor, and adjust Refresh rate under Monitor settings.
• Windows 10: Go to Settings → System → Display → Advanced display settings → Display adapter properties → Monitor, and adjust Screen refresh rate under Monitor settings.
How can I change the resolution?
• Windows XP: Go to Control Panel → Appearance and Themes → Display → Settings, and adjust the resolution.
• Windows ME/2000: Go to Control Panel → Display → Settings, and adjust the resolution.
• Windows Vista: Go to Control Panel → Appearance and Personalization → Personalize → Display Settings, and adjust the resolution.
• Windows 7: Go to Control Panel → Appearance and Personalization → Display → Adjust Resolution, and adjust the resolution.
• Windows 8(Windows 8.1): Go to Settings → Control Panel → Appearance and Personalization → Display → Adjust Resolution, and adjust the resolution.
• Windows 10: Go to Settings → System → Display → Advanced display settings, and adjust the resolution.
How do I set power-saving mode?
• Windows XP: Set power-saving mode in Control Panel → Appearance and Themes → Display → Screen Saver Settings → Power options or BIOS SETUP on the PC.
• Windows ME/2000: Set power-saving mode in Control Panel → Display → Screen Saver Settings → Power options or BIOS SETUP on the PC.
• Windows Vista: Set power-saving mode in Control Panel → Appearance and Personalization → Personalize → Screen Saver Settings → Power options or BIOS SETUP on the PC.
• Windows 7: Set power-saving mode in Control Panel → Appearance and Personalization → Personalize → Screen Saver Settings → Power options or BIOS SETUP on the PC.
• Windows 8(Windows 8.1): Set power-saving mode in Settings → Control Panel → Appearance and Personalization → Personalize → Screen Saver Settings → Power options or BIOS SETUP on the PC.
• Windows 10: Set power-saving mode in Settings → Personalization → Lock screen → Screen timeout settings → Power & sleep or BIOS SETUP on the PC.
40
Specifications
Chapter 10
General
Model Name S19E200NY S19E200NW / S19E200BW / S19E450BW /
S19E450MW
S19E200BR / S19E450BR / S19E450MR S22E200NY / S22E200B / S22E200N /
S22E450B / S22E450M / S22E450D
Size
19 CLASS (18.5 inches / 47.0 cm) 19 CLASS (19.0 inches / 48.1 cm) 19 CLASS (19.0 inches / 48.2 cm) 22 CLASS (21.5 inches / 54.6 cm)
Display area
409.8 mm (H) x 230.4 mm (V)
16.1 Inches (H) x 9.1 Inches (V)
408.24 mm (H) x 255.15 mm (V)
16.1 Inches (H) x 10.0 Inches (V)
376.32 mm (H) x 301.06 mm (V)
14.8 Inches (H) x 11.9 Inches (V)
476.64 mm (H) x 268.11 mm (V)
18.8 Inches (H) x 10.6 Inches (V)
Pixel Pitch
0.300 mm (H) x 0.300 mm (V)
0.011811 Inches (H) x 0.011811 Inches (V)
0.2835 mm (H) x 0.2835 mm (V)
0.011161 Inches (H) x 0.011161 Inches (V)
0.294 mm (H) x 0.294 mm (V)
0.011575 Inches (H) x 0.011575 Inches (V)
0.24825 mm (H) x 0.24825 mm (V)
0.009774 Inches (H) x 0.009774 Inches (V)
Model Name
S22E200BW / S22E450BW / S22E450MW /
S22E450DW
S23E200B / S23E450B S24E200BL / S24E450BL / S24E450DL S24E450B / S24E450M / S24E450D
Size
22 CLASS (22.0 inches / 55.8 cm) 23 CLASS (23.0 inches / 58.4 cm) 24 CLASS (23.6 inches / 59.8 cm) 24 CLASS (24.0 inches / 60.9 cm)
Display area
473.76 mm (H) x 296.1 mm (V)
18.7 Inches (H) x 11.7 Inches (V)
509.76 mm (H) x 286.74 mm (V)
20.1 Inches (H) x 11.3 Inches (V)
521.28 mm (H) x 293.22 mm (V)
20.5 Inches (H) x 11.5 Inches (V)
531.36 mm (H) x 298.89 mm (V)
20.9 Inches (H) x 11.8 Inches (V)
Pixel Pitch
0.282 mm (H) x 0.282 mm (V)
0.011102 Inches (H) x 0.011102 Inches (V)
0.2655 mm (H) x 0.2655 mm (V)
0.010453 Inches (H) x 0.010453 Inches (V)
0.2715 mm (H) x 0.2715 mm (V)
0.010689 Inches (H) x 0.010689 Inches (V)
0.27675 mm (H) x 0.27675 mm (V)
0.010896 Inches (H) x 0.010896 Inches (V)
41
Model Name S24E650BW S27E450B / S27E450D
Size
24 CLASS (24.0 inches / 61.1 cm) 27 CLASS (27.0 inches / 68.5 cm)
Display area
518.4 mm (H) x 324.0 mm (V)
20.4 Inches (H) x 12.8 Inches (V)
597.6 mm (H) x 336.15 mm (V)
23.5 Inches (H) x 13.2 Inches (V)
Pixel Pitch
0.270 mm (H) x 0.270 mm (V)
0.01063 Inches (H) x 0.01063 Inches (V)
0.3114 mm (H) x 0.3114 mm (V)
0.01226 Inches (H) x 0.01226 Inches (V)
Power Supply
This product uses 100 to 240 V.
Refer to the label at the back of the product as the standard voltage can vary in different countries.
Environmental
conditions
Operating
Temperature: 50 °F – 104 °F (10 °C – 40 °C)
Humidity: 10% – 80%, non-condensing
Storage
Temperature: -4 °F – 113 °F (-20 °C – 45 °C)
Humidity: 5% – 95%, non-condensing
―
Plug-and-Play
This monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically.
However, you can customize the installation settings if desired.
―
Panel Dots (Pixels)
Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance.
―
The above specifications are subject to change without notice to improve quality.
―
This device is a Class B digital apparatus.
―
For detailed device specifications, visit the Samsung Electronics website.
42
Standard Signal Mode Table
Model Name
Synchronization Resolution
Horizontal Frequency Vertical Frequency Optimum Resolution Maximum Resolution
S19E200NY 30 – 81 kHz 56 – 75 Hz 1366 x 768 @ 60 Hz 1366 x 768 @ 60 Hz
S19E200NW / S19E200BW / S19E450BW / S19E450MW 1440 x 900 @ 60 Hz 1440 x 900 @ 75 Hz
S19E200BR / S19E450BR / S19E450MR 1280 x 1024 @ 60 Hz 1280 x 1024 @ 75 Hz
S22E200BW / S22E450BW / S22E450MW / S22E450DW 1680 x 1050 @ 60 Hz 1680 x 1050 @ 60 Hz
S22E200B / S23E200B / S24E200BL / S22E200NY / S22E200N /
S22E450B / S22E450M / S22E450D / S23E450B / S24E450BL /
S24E450DL
1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz
S24E650BW 56 – 60 Hz 1920 x 1200 @ 60 Hz 1920 x 1200 @ 60 Hz
S24E450B / S24E450M / S24E450D / S27E450B / S27E450D 56 – 75 Hz 1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz
If a signal that belongs to the following standard signal modes is transmitted from your PC, the screen will automatically be adjusted. If the signal transmitted from the PC does not belong to the standard signal
modes, the screen may be blank even though the power LED turns on. In such a case, change the settings according to the following table by referring to the graphics card user manual.
43
S19E200NY
Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock (MHz) Sync Polarity (H/V)
IBM, 720 x 400
31.469 70.087 28.322 -/+
MAC, 640 x 480
35.000 66.667 30.240 -/-
MAC, 832 x 624
49.726 74.551 57.284 -/-
VESA, 640 x 480
31.469 59.940 25.175 -/-
VESA, 640 x 480
37.861 72.809 31.500 -/-
VESA, 640 x 480
37.500 75.000 31.500 -/-
VESA, 800 x 600
35.156 56.250 36.000 +/+
VESA, 800 x 600
37.879 60.317 40.000 +/+
VESA, 800 x 600
48.077 72.188 50.000 +/+
VESA, 800 x 600
46.875 75.000 49.500 +/+
VESA, 1024 x 768
48.363 60.004 65.000 -/-
VESA, 1024 x 768
56.476 70.069 75.000 -/-
VESA, 1024 x 768
60.023 75.029 78.750 +/+
VESA, 1280 x 720
45.000 60.000 74.250 +/+
VESA, 1366 x 768
47.712 59.790 85.500 +/+
44
S19E200NW / S19E200BW / S19E450BW / S19E450MW
Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock (MHz) Sync Polarity (H/V)
IBM, 720 x 400
31.469 70.087 28.322 -/+
MAC, 640 x 480
35.000 66.667 30.240 -/-
MAC, 832 x 624
49.726 74.551 57.284 -/-
MAC, 1152 x 870
68.681 75.062 100.000 -/-
VESA, 640 x 480
31.469 59.940 25.175 -/-
VESA, 640 x 480
37.861 72.809 31.500 -/-
VESA, 640 x 480
37.500 75.000 31.500 -/-
VESA, 800 x 600
35.156 56.250 36.000 +/+
VESA, 800 x 600
37.879 60.317 40.000 +/+
VESA, 800 x 600
48.077 72.188 50.000 +/+
VESA, 800 x 600
46.875 75.000 49.500 +/+
VESA, 1024 x 768
48.363 60.004 65.000 -/-
VESA, 1024 x 768
56.476 70.069 75.000 -/-
VESA, 1024 x 768
60.023 75.029 78.750 +/+
VESA, 1152 x 864
67.500 75.000 108.000 +/+
VESA, 1280 x 720
45.000 60.000 74.250 +/+
VESA, 1280 x 800
49.702 59.810 83.500 -/+
VESA, 1440 x 900
55.935 59.887 106.500 -/+
VESA, 1440 x 900
70.635 74.984 136.750 -/+
45
S19E200BR / S19E450BR / S19E450MR
Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock (MHz) Sync Polarity (H/V)
IBM, 720 x 400
31.469 70.087 28.322 -/+
MAC, 640 x 480
35.000 66.667 30.240 -/-
MAC, 832 x 624
49.726 74.551 57.284 -/-
MAC, 1152 x 870
68.681 75.062 100.000 -/-
VESA, 640 x 480
31.469 59.940 25.175 -/-
VESA, 640 x 480
37.861 72.809 31.500 -/-
VESA, 640 x 480
37.500 75.000 31.500 -/-
VESA, 800 x 600
35.156 56.250 36.000 +/+
VESA, 800 x 600
37.879 60.317 40.000 +/+
VESA, 800 x 600
48.077 72.188 50.000 +/+
VESA, 800 x 600
46.875 75.000 49.500 +/+
VESA, 1024 x 768
48.363 60.004 65.000 -/-
VESA, 1024 x 768
56.476 70.069 75.000 -/-
VESA, 1024 x 768
60.023 75.029 78.750 +/+
VESA, 1152 x 864
67.500 75.000 108.000 +/+
VESA, 1280 x 720
45.000 60.000 74.250 +/+
VESA, 1280 x 800
49.702 59.810 83.500 -/+
VESA, 1280 x 960
60.000 60.000 108.000 +/+
VESA, 1280 x 1024
63.981 60.020 108.000 +/+
VESA, 1280 x 1024
79.976 75.025 135.000 +/+
46
S22E200NY / S22E200N / S22E200B / S23E200B / S24E200BL / S22E450B / S22E450M / S22E450D / S23E450B / S24E450BL / S24E450DL / S24E450B / S24E450M / S24E450D / S27E450B / S27E450D
Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock (MHz) Sync Polarity (H/V)
IBM, 720 x 400
31.469 70.087 28.322 -/+
MAC, 640 x 480
35.000 66.667 30.240 -/-
MAC, 832 x 624
49.726 74.551 57.284 -/-
MAC, 1152 x 870
68.681 75.062 100.000 -/-
VESA, 640 x 480
31.469 59.940 25.175 -/-
VESA, 640 x 480
37.861 72.809 31.500 -/-
VESA, 640 x 480
37.500 75.000 31.500 -/-
VESA, 800 x 600
35.156 56.250 36.000 +/+
VESA, 800 x 600
37.879 60.317 40.000 +/+
VESA, 800 x 600
48.077 72.188 50.000 +/+
VESA, 800 x 600
46.875 75.000 49.500 +/+
VESA, 1024 x 768
48.363 60.004 65.000 -/-
VESA, 1024 x 768
56.476 70.069 75.000 -/-
VESA, 1024 x 768
60.023 75.029 78.750 +/+
VESA, 1152 x 864
67.500 75.000 108.000 +/+
VESA, 1280 x 720
45.000 60.000 74.250 +/+
VESA, 1280 x 800
49.702 59.810 83.500 -/+
VESA, 1280 x 1024
63.981 60.020 108.000 +/+
VESA, 1280 x 1024
79.976 75.025 135.000 +/+
VESA, 1440 x 900
55.935 59.887 106.500 -/+
VESA, 1600 x 900
60.000 60.000 108.000 +/+
VESA, 1680 x 1050
65.290 59.954 146.250 -/+
VESA, 1920 x 1080
67.500 60.000 148.500 +/+
47
S22E200BW / S22E450BW / S22E450MW / S22E450DW
Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock (MHz) Sync Polarity (H/V)
IBM, 720 x 400
31.469 70.087 28.322 -/+
MAC, 640 x 480
35.000 66.667 30.240 -/-
MAC, 832 x 624
49.726 74.551 57.284 -/-
MAC, 1152 x 870
68.681 75.062 100.000 -/-
VESA, 640 x 480
31.469 59.940 25.175 -/-
VESA, 640 x 480
37.861 72.809 31.500 -/-
VESA, 640 x 480
37.500 75.000 31.500 -/-
VESA, 800 x 600
35.156 56.250 36.000 +/+
VESA, 800 x 600
37.879 60.317 40.000 +/+
VESA, 800 x 600
48.077 72.188 50.000 +/+
VESA, 800 x 600
46.875 75.000 49.500 +/+
VESA, 1024 x 768
48.363 60.004 65.000 -/-
VESA, 1024 x 768
56.476 70.069 75.000 -/-
VESA, 1024 x 768
60.023 75.029 78.750 +/+
VESA, 1152 x 864
67.500 75.000 108.000 +/+
VESA, 1280 x 720
45.000 60.000 74.250 +/+
VESA, 1280 x 800
49.702 59.810 83.500 -/+
VESA, 1280 x 1024
63.981 60.020 108.000 +/+
VESA, 1280 x 1024
79.976 75.025 135.000 +/+
VESA, 1440 x 900
55.935 59.887 106.500 -/+
VESA, 1600 x 900
60.000 60.000 108.000 +/+
VESA, 1680 x 1050
65.290 59.954 146.250 -/+
48
S24E650BW
Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock (MHz) Sync Polarity (H/V)
VESA, 640 x 480
31.469 59.940 25.175 -/-
VESA, 800 x 600
35.156 56.250 36.000 +/+
VESA, 800 x 600
37.879 60.317 40.000 +/+
VESA, 1024 x 768
48.363 60.004 65.000 -/-
VESA, 1280 x 720
45.000 60.000 74.250 +/+
VESA, 1280 x 800
49.702 59.810 83.500 -/+
VESA, 1280 x 1024
63.981 60.020 108.000 +/+
VESA, 1440 x 900
55.935 59.887 106.500 -/+
VESA, 1600 x 900
60.000 60.000 108.000 +/+
VESA, 1680 x 1050
65.290 59.954 146.250 -/+
VESA, 1920 x 1080
67.500 60.000 148.500 +/+
VESA, 1920 x 1200
74.038 59.950 154.000 +/-
―
Horizontal Frequency
The time required to scan a single line from the left to the right side of the screen is called a horizontal cycle. The reciprocal number of a horizontal cycle is called horizontal frequency. Horizontal frequency is measured in
kHz.
―
Vertical Frequency
Repeating the same picture dozens of times per second allows you to view natural pictures. The repeat frequency is called "vertical frequency" or "refresh rate" and is indicated in Hz.
―
This product can be set to only one resolution for each screen size to obtain the optimum picture quality due to the nature of the panel. Using a resolution other than the specified resolution may degrade the picture quality.
To avoid this, it is recommended that you select the optimum resolution specified for your product.
―
Check the frequency when you exchange a CDT monitor (connected to a PC) for an LCD monitor. If the LCD monitor does not support 85 Hz, change the vertical frequency to 60 Hz using the CDT monitor before you exchange it
with the LCD monitor.
49
Appendix
Chapter 11
Responsibility for the Pay Service (Cost to
Customers)
―
When the service is requested, in spite of in warranty, we may charge you for a visit from a service
technician in the following cases.
Not a product defect
Cleaning of the product, Adjustment, Explanation, Re-installation and etc.
• If a service technician gives instructions on how to use product or simply adjusts options without
disassembling product.
• If a defect is caused by external environmental factors (Internet, Antenna, Wired Signal, etc.)
• If a product is reinstalled or devices are connected additionally after installing the purchased
product for the first time.
• If a product is reinstalled to move to a different spot or to move to a different house.
• If customer requests instructions on how to use because of another company's product.
• If customer requests instructions on how to use the network or another company's Program.
• If customer requests software installation and setup for the product.
• If a service technician removes/cleans dusts or foreign materials inside of the product.
• If customer requests an installation additionally after purchasing a product through home-
shopping or online.
A Product damage caused by customer's fault
Product damage caused by customer's mishandling or wrong repair
If a product damage is caused by;
• External impact or drop.
• Use of supplies or separately sold product unspecified by Samsung.
• Repair from a person besides an engineer of outsourcing service company or partner of Samsung
Electronics Co., Ltd.
• Remodeling or repairing the product by customer.
• Using it with incorrect voltage or non-authorised electrical connections.
• Not following the "cautions" in User Manual.
Others
• If product fails by natural disaster. (lightning, fire, earthquake, flood damage, etc)
• If consumable components are all used up. (Battery, Toner, Fluorescent lights, Head, Vibrator,
Lamp, Filter, Ribbon, etc.)
―
If customer requests a service in case the product has no defect, service fee may be charged. So please
read User Manual first.
50
Extended warranty
You can buy an extended warranty within 90 days of purchasing the product.
The extended warranty will cover an additional period of 3 years, beyond the standard 3 year warranty.
Samsung guarantee that replacement parts will be available for 5 years after the end of production.
After 5 years, in the event that the Samsung’s service center has run out of replacement parts and
cannot repair the product, Samsung will replace your product at no additional charge. If the model you
purchased is no longer available, Samsung replace it with the current equivalent model.
