User
Manual
WSnow20
20-in. Snow Blower
WR1002-2300-500L15S
2
|
English
TABLE OF CONTENTS
Introduction ....................................................................................................................................................................2-3
Safety ............................................................................................................................................................................4-6
Electrical ........................................................................................................................................................................... 7
Components .....................................................................................................................................................................8
Assembly .....................................................................................................................................................................9-12
Operation ...................................................................................................................................................................12-14
Maintenance ..............................................................................................................................................................14-15
Troubleshooting ..............................................................................................................................................................15
Service Hot Line/Company Address..................................................................................................................Back Page
INTRODUCTION
WARNING
Operating, servicing, and main-
taining this equipment may expose you to chemicals
which are known to the State of California to cause
cancer and birth defects or other reproductive harm.
To minimize exposure, wear gloves or wash your
hands frequently when servicing this equipment. For
more information go to www.P65warnings.ca.gov.
DISCLAIMERS
All information, illustrations, and specifications in this manual
were in effect at the time of publishing. The illustrations used
in this manual are intended as representative reference
views only. We reserve the right to make any specification
or design change without notice.
ALL RIGHTS RESERVED
All rights reserved. No reproduction allowed in any form
without written permission from Westinghouse Outdoor
Power Equipment.
DANGER
Read this manual before
using or performing maintenance on this prod-
uct. Failure to follow the instructions and safety
precautions in this manual can result in serious
injury or death.
UPDATES
The latest User Manual for your Westinghouse products can
be found under our support tab. wpowereq.com/pages/
manuals
Or scan the following QR code with your smartphone camera
to be directed to the link.
PRODUCT REGISTRATION
For trouble-free warranty coverage, it
is important to register your Westing-
house product.
You can register by:
z Completing and mailing the product
registration card included in the
carton.
z Registering your product on-line at: wpowereq.com/
pages/warranty-registration
z Scanning the above QR code with your smartphone cam-
era to be directed to the mobile registration link.
For Your Records
Date of Purchase:
Model Number:
Serial Number:
Place of Purchase:
z Sending the following product information to:
Westinghouse Outdoor Power
Warranty registration
777 Manor Park Drive
Columbus, OH 43228
IMPORTANT: Keep your purchase receipt for trouble-free
warranty coverage.
English
|
3
INTRODUCTION
SPECIFICATIONS
AC Voltage .......................................120V//60Hz, 15 Amps
Clearing Width ...........................................20 in. (50.8 cm)
Maximum Throwing Distance ...................... 29.5 ft (8.9 m)
Maximum Snow Intake Height ...................10 in. (25.4 cm)
Wheel Size ................................................7 in. (17.78 cm)
Machine Weight ..................................... 30.6 lbs. (13.8 kg)
No Load Speed ................................................. 3000 RPM
Chute Range of Motion ....................... Horizontal 0º - 180º
Vertical 15º - 60º
NOTICE
Thank you for choosing Westinghouse!
PLEASE READ BEFORE RETURNING THIS PROD-
UCT FOR ANY REASON.
If you have a question or experience a problem with your
Westinghouse purchase, call us at 1-855-944-3571 to
speak with an agent.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
NOTICE
This product is designed and rated for
continuous operation at ambient temperatures above
23°F (–5°C). If needed, this product can be operated in
extremely hot or extremely cold temperatures for short
periods. If the product is exposed to extreme tempera-
tures during storage, it should be brought back within
the optimal temperature range before operation.
HAVE QUESTIONS?
Email us at service@wpowereq.com
or call 1-855-944-3571
4
|
English
SAFETY DEFINITIONS
The words DANGER, WARNING, CAUTION, and NOTICE
are used throughout this manual to highlight important
information. Make sure that the meanings of this safety in-
formation is known to all who operate, perform maintenance
on, or are near the generator.
This safety alert symbol appears with
most safety statements. It means at-
tention, become alert, your safety is
involved! Please read and abide by the
message that follows the safety alerts
symbol.
DANGER
Indicates a hazardous situation
which, if not avoided, will result in death or serious
injury.
WARNING
Indicates a hazardous situation
which, if not avoided, could result in death or serious
injury.
CAUTION
Indicates a hazardous situation
which, if not avoided, could result in minor or moder-
ate injury.
NOTICE
Indicates a situation which can cause
damage to the generator, personal property, and/or
the environment, or cause the equipment to operate
improperly.
NOTE: Indicates a procedure, practice or condition
that should be followed for the generator to function in
the manner intended.

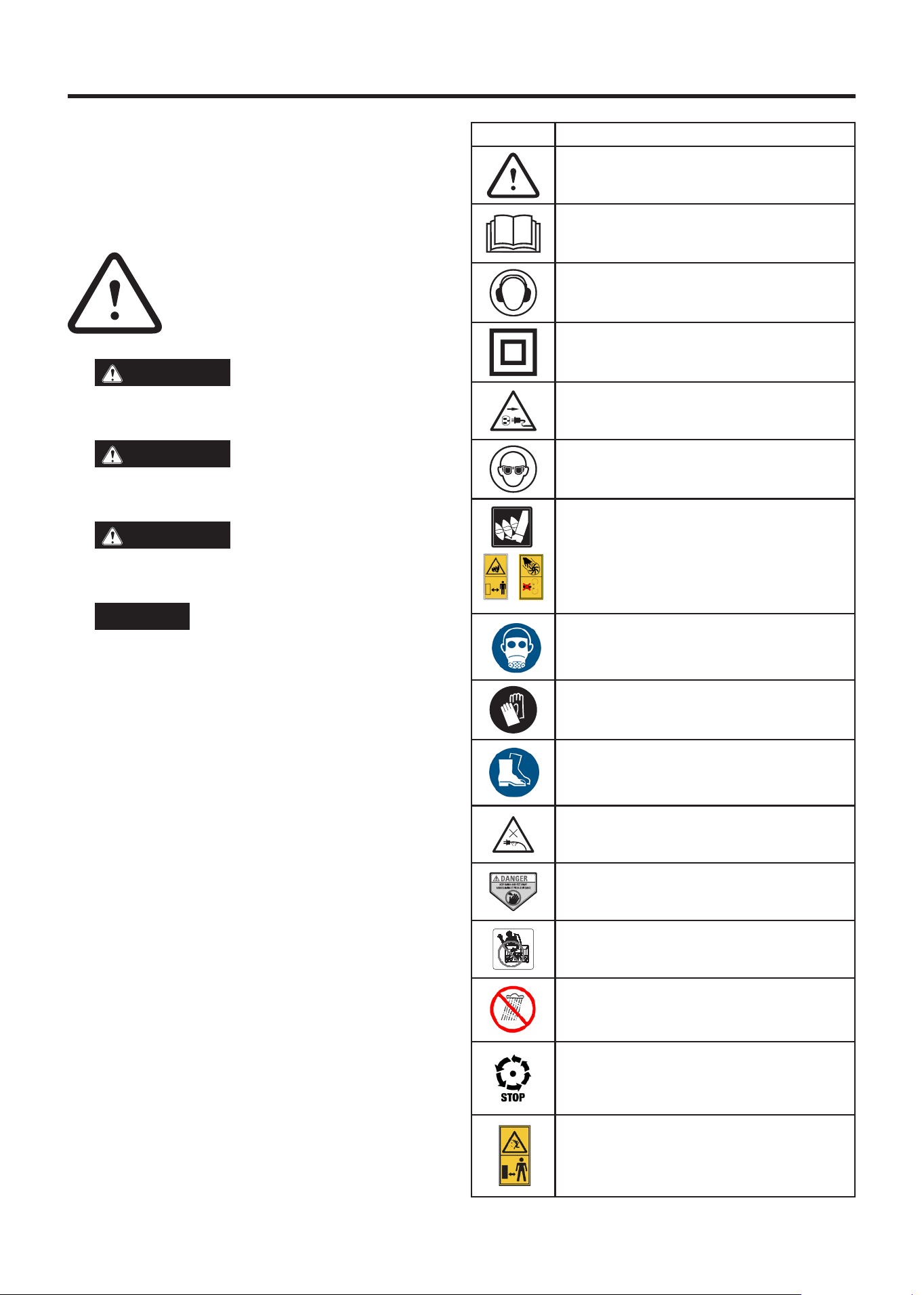

SAFETY SYMBOLS
Follow all safety information contained in this user’s manual
as well as the information on the product labeling.
SYMBOL
DESCRIPTION
Safety Alert Symbol. Indicates a potential
personal injury hazard.
Read Operator’s Manual. To reduce the risk
of injury, user must read and understand
operator’s manual before using this product.
Wear Ear Protection.
Double Insulation.
Before any work on the machine itself, pull
the power plug from the outlet.
Wear Eye Protection. Always wear eye pro-
tection with side shields marked to comply
with ANSI Z87.1.
DANGER! avoid injury from rotating auger –
Keep hands, feet, and clothing away.
Wear Dust Mask.
Wear Protective Gloves.
Wear nonslip footwear when using the tool.
Before working with your tool, make sure that
no power cords will be damaged.
Keep Hands and Feet Away. Keep hands and
feet away from auger and chute.
DANGER! Shut off motor before unclogging
discharge chute.
Wet Conditions Alert. Do not expose plug to
water or rain.
The rotating part will continuously run for sev-
eral seconds after you turn off the machine.
Beware of stones and other objects that
could be thrown from the appliance. Keep
all bystanders and domestic animals a safe
distance away from the work area.
SAFETY
English
|
5
SAFETY
WARNING
READ AND UNDERSTAND ALL
INSTRUCTIONS. Failure to follow all instructions list-
ed below and on the machine may result in electric
shock, fire, and/or serious personal injury.
z Know your snow blower. Read operator’s manual care-
fully. Learn its applications and limitations, as well as the
specific potential hazards related to this snow blower.
Following this rule will reduce the risk of electric shock,
fire, or serious injury.
z Do not permit children to use snow blower. It is not a toy.
z Use only accessories that are recommended by the
manufacturer for your model described in this manual.
Accessories that may be suitable for one snow blower
may create a risk of injury when used on another snow
blower. Use only as described in this manual.
z Do not put any object into openings. Do not use with any
opening blocked; keep free of dust, lint, hair, and anything
that may reduce air flow.
z Keep hair, loose clothing, fingers, and all parts of body
away from openings and moving parts.
z Make sure your extension cord is in good condition. When
using an extension cord, be sure to use one heavy enough
to carry the current your product will draw. A wire gauge
size (A.W.G.) of at least 14 is recommended for an ex-
tension cord 50 feet or less in length. If in doubt, use the
next heavier gauge. The smaller the gauge number, the
heavier the cord. An undersized cord will cause a drop
in line voltage resulting in loss of power and overheating.
z WARNING: Use outdoor extension cords marked SW-A,
SOW-A, STW-A, STOW-A, SJW-A, SJTW-A, or SJTOW-A.
These cords are rated for outdoor use and reduce the
risk of electric shock.
z Ground Fault Circuit Interrupter (GFCI) protection should
be provided on the circuit(s) or outlet(s) to be used for the
product. Receptacles are available having built-in GFCI
protection and may be used for this measure of safety.
z This snow blower should be grounded while in use to pro-
tect the operator from electric shock. The snow blower is
equipped with an approved 3-conductor cord and 3-prong
grounding-type plug to fit the proper grounding-type
receptacle. The green or green and yellow conductor in
the cord is the grounding wire. Never connect the green
or green and yellow wire to a live terminal.
z Use only 3-wire outdoor extension cords that have 3-prong
grounding-type plugs and 3-pole receptacles that accept
the snow blower’s plug. Replace or repair damaged cords.
z This product is designed with a cord retainer that prevents
the extension cord from being pulled loose while using.
z If cord is damaged in any manner while plugged in, pull
extension cord from wall receptacle.
z Don’t Abuse Cord — Never carry snow blower by cord
or yank it to disconnect from receptacle. Keep cord from
heat, oil, and sharp edges.
z Keep hands away from moving parts.
z Avoid Unintentional Starting – Do not carry plugged in
appliance with finger on trigger. Be sure the switch trigger
is not engaged before plugging in.
z Do not use tool if switch trigger does not turn it on or off.
Any tool that cannot be controlled with the switch trigger
is dangerous and must be repaired.
z Do not operate snow blowers in explosive atmospheres,
such as in the presence of flammable liquids, gases, or
dust. Snow blowers create sparks which may ignite the
dust or fumes.
z Keep bystanders, children, and visitors at least 100 ft.
away while operating a snow blower. Distractions can
cause you to lose control.
z If appliance is not working as it should, has been dropped,
damaged, left outdoors, or dropped into water, return it
to a service center.
z Stay alert, watch what you are doing and use common
sense when operating a power snow blower. Do not use
snow blower while tired, upset, or under the influence of
drugs, alcohol, or medication. A moment of inattention
while operating snow blowers may result in serious per-
sonal injury.
z Use safety equipment. Always wear eye protection. Dust
mask, non-skid safety shoes, hard hat, or hearing protec-
tion must be used for appropriate conditions.
z Dress properly — Do not wear loose clothing, scarves, or
jewelry. They can be caught in moving parts.
z Check for misalignment or binding of moving parts,
breakage of parts, and any other condition that may affect
the snow blower’s operation. If damaged, have the snow
blower serviced before using. Many accidents are caused
by poorly maintained snow blowers.
z Keep the snow blower and its handle dry, clean and free
from oil and grease. Always use a clean cloth when clean-
ing. Never use brake fluids, gasoline, petroleum-based
products, or any strong solvents to clean your snow blower.
Following this rule will reduce the risk of loss of control
and deterioration of the enclosure plastic.
z Always wear safety glasses with side shields. Everyday
glasses have only impact resistant lenses. They are NOT
safety glasses. Following this rule will reduce the risk of
eye injury.
6
|
English
z Always wear eye protection with side shields marked to
comply with ANSI Z87.1 along with hearing protection
when operating this equipment.
z Protect your hearing. Wear hearing protection during
extended periods of operation. Following this rule will
reduce the risk of serious personal injury.
z Don’t expose snow blowers to rain. Water entering a snow
blower will increase the risk of electric shock.
z Wear heavy long pants, long sleeves, boots, and gloves.
Avoid loose garments or jewelry that could get caught in
moving parts of the machine or its motor.
z Wear rubber boots when operating the snow blower.
Protective footwear will protect your feet and improve
your footing on slippery surfaces. Do not go barefoot or
wear sandals.
z Keep firm footing and balance. Do not overreach.
Overreaching can result in loss of balance.
z Do not operate the snow blower in a direction that will
cause snow to be thrown on people or pets. Thrown snow
or other objects can cause serious personal injuries.
z Store Idle Snow Blowers Indoors — When not in use,
snow blower should be stored indoors in a dry, locked
up place — unplugged and out of the reach of children.
z Keep all bystanders, children, and pets at least 100 ft. away.
z Snow blower service must be performed only by qualified
repair personnel. Service or maintenance performed by
unqualified personnel may result in a risk of injury.
z When servicing a snow blower, use only identical replace-
ment parts. Replace or repair damaged cords. Follow
instructions in the Maintenance section of this manual.
Use of unauthorized parts or failure to follow Maintenance
Instructions may create a risk of shock or injury.
z Never use snow blower near fires, fireplaces, hot ashes,
barbecue pits, etc. Use near fires or ashes can spread
fires and result in serious injury and/or property damage.
z Never use snow blower to spread chemicals, fertilizers, or
any other toxic substances. Spreading these substances
could result in serious injury to the operator or bystanders.
z Never place snow blower on any surface, except a hard,
clean surface when motor is running. Gravel, sand, and
other debris can be picked up by the air inlet and thrown
at the operator or bystanders, causing possible serious
injuries.
z Check the work area before each use. Remove all objects
such as rocks, broken glass, nails, wire, or string which
can be thrown or become entangled in the machine.
z Do not use snow blower on ice, which can cause the
operator to slip and fall, resulting in possible serious
personal injury.
z Never use snow blower on frozen lakes, rivers, or similar
surfaces. Serious injury or death could occur if the ice
breaks.
z Never use the snow blower on a rooftop or other unstable
surface, which can result in death or serious personal injury.
z For household use only.
z Use the right appliance — Do not use the snow blower
for any job except that for which it is intended.
z Do not force the snow blower - It will do the job better and
safer at the rate for which it was designed.
z Never direct discharged material toward anyone. Avoid
discharging material against a wall or obstruction. Material
may ricochet back toward the operator. Stop the snow
blower when crossing gravel or rocky surfaces.
z If the snow blower strikes a foreign object, follow these
steps:
• Release the switch trigger and wait until the unit comes
to a complete stop.
• Disconnect the snow blower from the power supply.
• Thoroughly inspect the snow blower for any damage.
• Repair any damage before restarting and continuing to
operate the snow blower.
z Do not lift up or hold the snow blower above the ground
when operating, which can result in loss of control and
possible serious personal injury. Only operate the snow
blower in accordance with the operating instructions
provided in this operator’s manual.
z Keep guards in place and in working order.
z Disconnect the plug from power source when not in use,
before servicing, and when changing accessories.
z Maintain Snow Blowers With Care — Follow instructions
for lubricating and changing accessories.
z Save these instructions. Refer to them frequently and
use them to instruct others who may use this tool. If you
loan someone this tool, loan them these instructions also.
SAFETY
English
|
7
ELECTRICALELECTRICAL SAFETY
EXTENSION CORDS
See Figure 1.
When using a power tool at a considerable distance from
a power source, be sure to use an extension cord that has
the capacity to handle the current the product will draw. An
undersized cord will cause a drop in line voltage, resulting
in overheating and loss of power. Use the chart to determine
the minimum wire size required in an extension cord. Only
round jacketed cords listed by Underwriter’s Laboratories
(UL) should be used.
When working outdoors with a product, use an extension
cord that is designed for outside use. This type of cord is
designated with “WA” or “W” on the cord’s jacket. Be sure
to use a heavy guage (A.W.G.) wire for your product based
on the chart below. If in doubt, use the next heavier gauge.
(smaller gauge numbers equal heavier cords). Using an
undersized cord will cause a drop in line voltage and result
in loss of power and overheating.
**Ampere rating (on product data plate)
0-2.0 2.1-3.4 3.5-5.0 5.1-7.0 7.1-12.0 12.1-16.0
Cord Length
Wire Size (A.W.G.)
25’ 16 16 16 16 14 14
50’ 16 16 16 14 14 12
**Used on 12 gauge – 20 amp circuit.
NOTE: AWG = American Wire Gauge
Before using any extension cord, inspect it for loose or
exposed wires and cut or worn insulation.
It is possible to tie the extension cord and power cord in a
knot to prevent them from becoming disconnected during
use. Make the knot as shown in figure 1, then connect the
plug end of the power cord into the receptacle end of the
extension cord. This method can also be used to tie two
extension cords together.
WARNING
Keep the extension cord clear
of the working area. Position the cord so that it will
not get caught on lumber, tools, or other obstructions
while you are working with a power tool. Failure to do
so can result in serious personal injury.
WARNING
Check extension cords before
each use. If damaged replace immediately. Never use
the product with a damaged cord since touching the
damaged area could cause electrical shock resulting
in serious injury.
ELECTRICAL CONNECTION
This product has a precision-built electric motor. It should
be connected to a power supply that is nominal 120V/60Hz
AC (typical U.S. household circuit). Do not operate this
product on direct current (DC). A substantial voltage drop
will cause a loss of power and the motor will overheat. If
the product does not operate when plugged into an outlet,
double-check the power supply.
SPEED AND WIRING
The speed is not constant and decreases under a load or
with lower voltage. For voltage, the wiring in a shop is as
important as the motor’s horsepower rating. A line intended
only for lights cannot properly carry a power tool motor. Wire
that is heavy enough for a short distance will be too light for
a greater distance. A line that can support one power tool
may not be able to support two or three tools.
POLARIZED PLUG
See Figure 2.
To reduce the risk of electric shock, this product has a
polarized plug featuring one blade that is wider than the
other. Do not modify the plug provided. The plug will fit into a
polarized extension cord only one way. Use only a polarized
UL-, CSA-, or ETL-listed extension cord when using this
snow shovel. If the plug does not fully fit into the extension
cord, reverse the plug. If the plug still does not fit, obtain a
correct polarized extension cord. A polarized extension cord
will require the use of a polarized wall outlet.
WARNING
Improper installation of a non-
polarized extension cord increases the risk of electric
shock.
Repair or replace a damaged or worn cord immediately.
This product is for use on a nominal 120 V circuit and has
a polarized plug similar to the plug illustrated in figure 2.
Only connect the product to an extension cord having the
same configuration as the plug. Do not use an adapter with
this product.

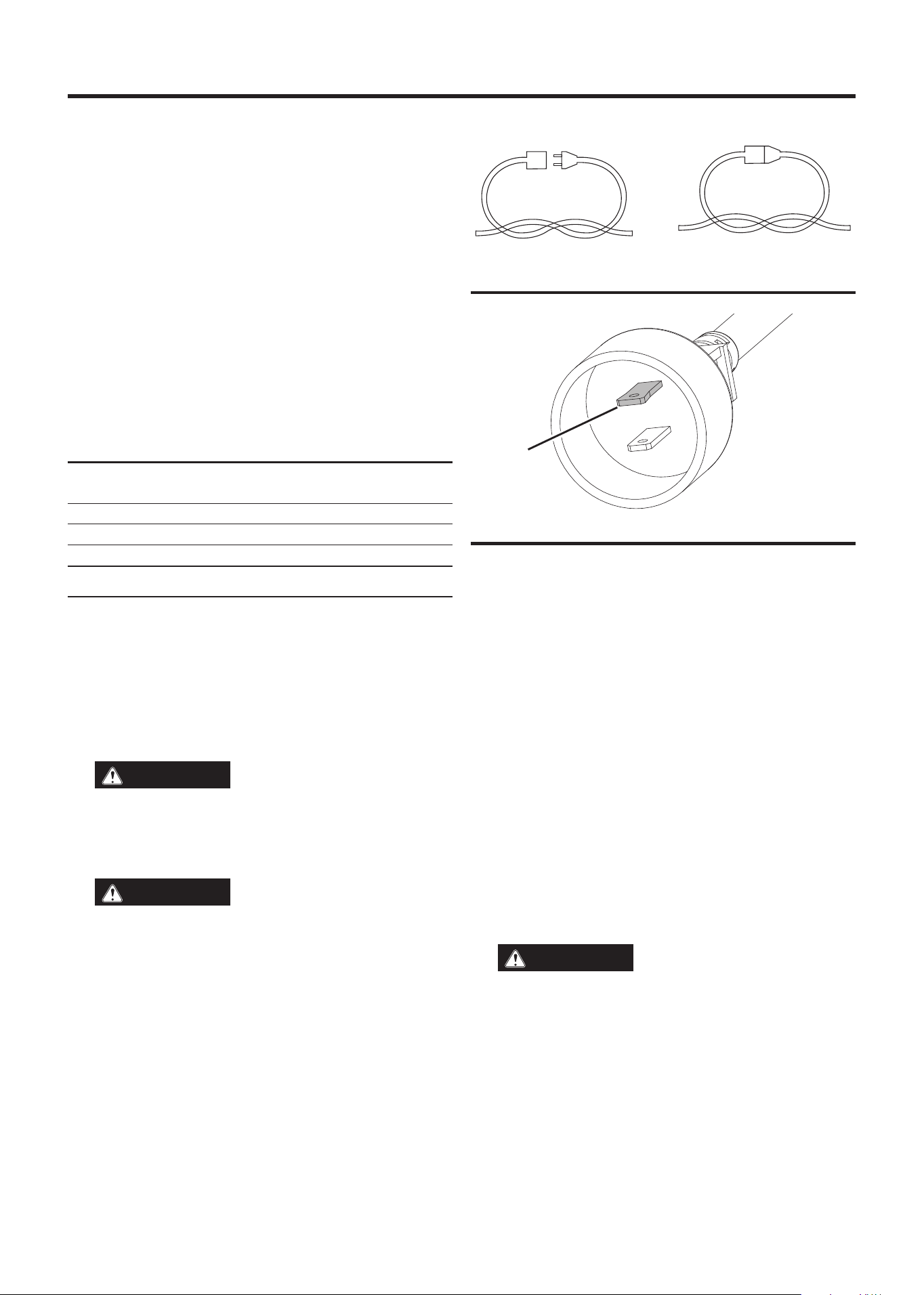

FIG. 1
FIG. 2
TIE CORDS AS SHOWN
A - Extension cord
B - Appliance cord
A B A B
A - Polarized blade
A
8
|
English
COMPONENTS
UNDERSTANDING YOUR SNOW BLOWER
See Figure 3.
To reduce the risk of personal injury and product failure,
read and understand the information in this user’s manual
as well as the information on the product labeling.
AUGER
The large auger on this product allows it to take a big bite
of snow up to 9 inches in depth. It also features an 18-inch
clearing width.
CHUTE ROTATION HANDLE
The chute rotation handle allows for the easy adjustment of
the discharge chute for directing the discharge of the snow.
POWER CORD RETAINER
The power cord retainer helps control the safe positioning
of the attached power cord. It may also help prevent the
accidental disconnection of the attached power cord.

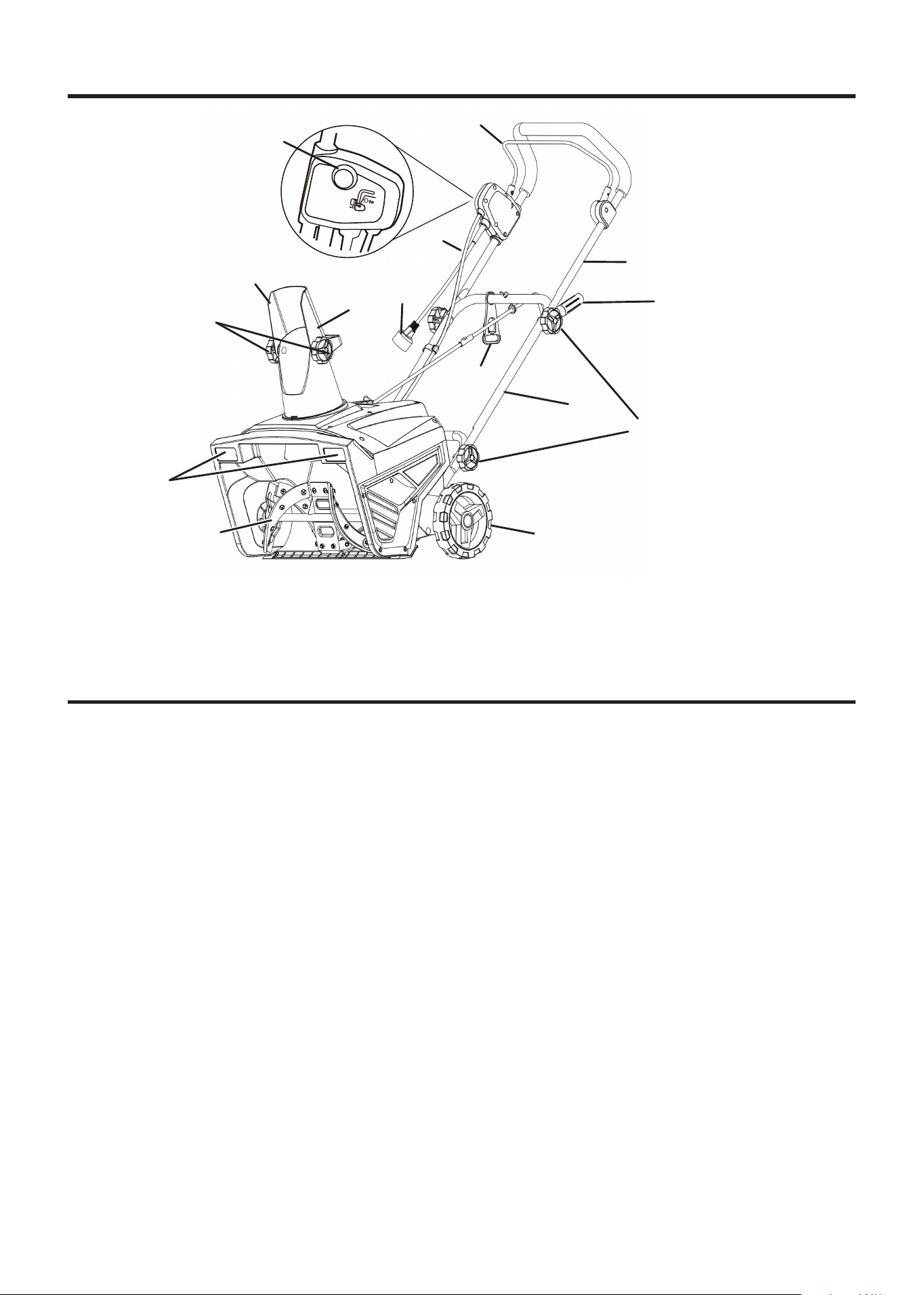

A - Start button
B - Upper handle
C - Power cord retainer
D - Lower handle
E - Wheel
F - Power cable
G - Chute rotation handle
H - Switch lever
I - Chute deflector
J - Chute deflector adjustment knobs
K - Adjustable discharge chute
L - Headlights
M - Handle locking knobs
N - AC plug
O - Auger
A
B
D
F
E
G
H
J
I
L
M
O
N
C
K
English
|
9
ASSEMBLY
FIG. 4
REMOVING CARTON CONTENTS
WARNING
This product requires assembly.
Do not attempt to operate this product if any items in
the INCLUDED LIST are already assembled when
you remove the carton contents. These items are not
assembled by the manufacturer and should require
customer assembly. Using an improperly assembled
product can be hazardous and could result in serious
personal injury.
z Carefully open the carton.
z Remove and inspect the carton contents. Verify that all the
items in the INCLUDED LIST are present and undamaged.
z Recycle or dispose of the packaging materials properly.

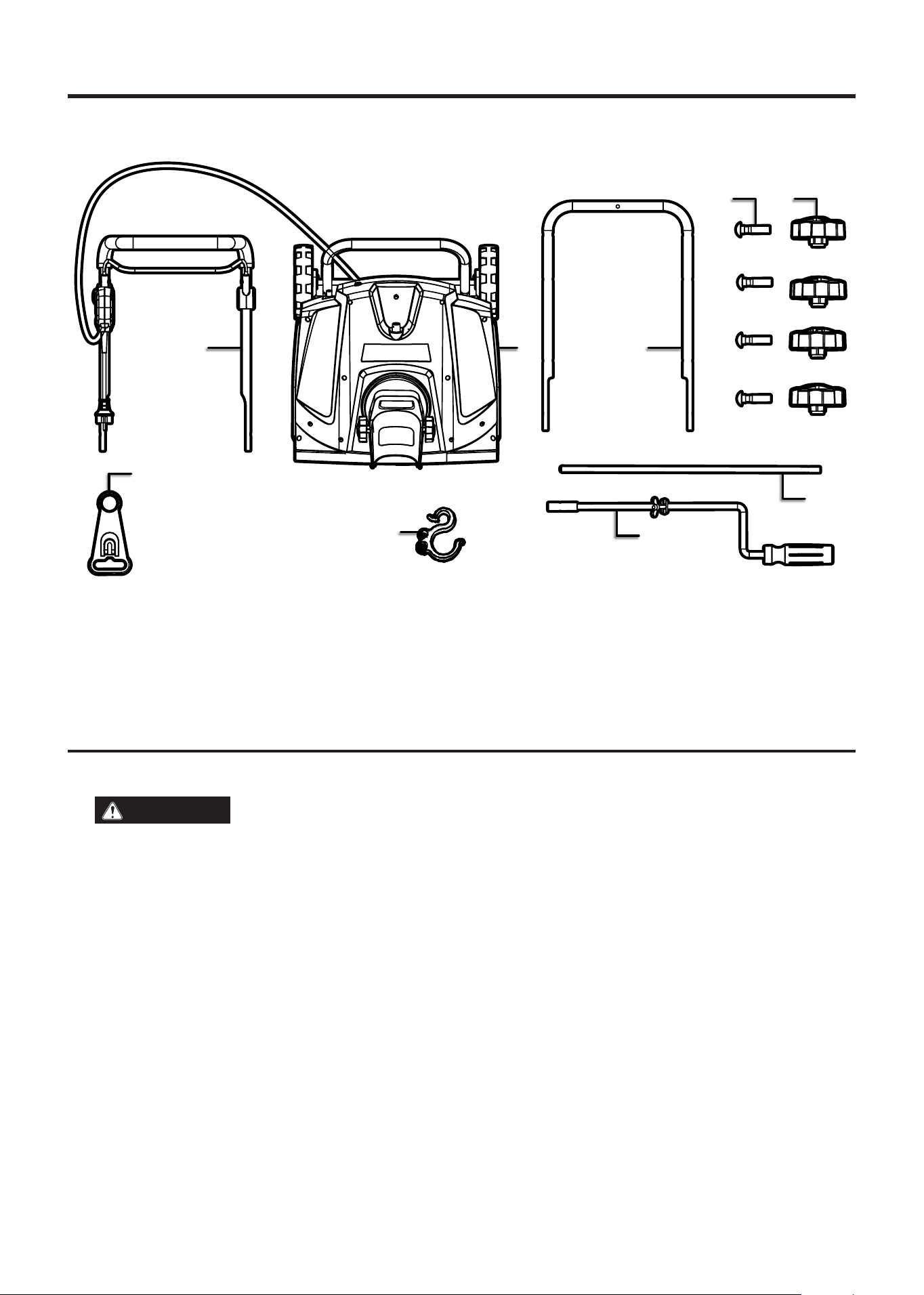

1 - Upper Handle (1)
2 - Main Unit (1)
3. Middle Handle (1)
4. M8x50 Screw (4)
5. Handle Locking Knob (4)
6. Chute Adjustment Rod (1)
7. Chute Adjustment Handle (1)
8. Cable Clip (1)
9. Cable Strain Relief (1)
INCLUDED LIST
See Figure 4.
Upper handle (1), main unit (1) with cotter pin on back (1),
middle handle (1), M8x50 Screw (4), handle locking knob (4),
chute adjustment rod (1) with M4x14 screw (1), chute ad-
justment handle (1), cable clip (1), and cable strain relief (1).
If any parts are missing, contact our service team at
[email protected] or call 1-855-944-3571.
1 2 3
4 5
6
7
8910
11
9
10
|
English
FIG. 5
WARNING
Do not alter or modify this prod-
uct unless instructed otherwise in this manual or by the
manufacturer. Do not use attachments or accessories
that are not recommended for use with this product.
Making unauthorized modifications and using incom-
patible accessories can damage the unit and may void
your warranty.
WARNING
Do not connect to power supply
until assembly is complete. Failure to comply could re-
sult in accidental starting and possible serious person-
al injury.

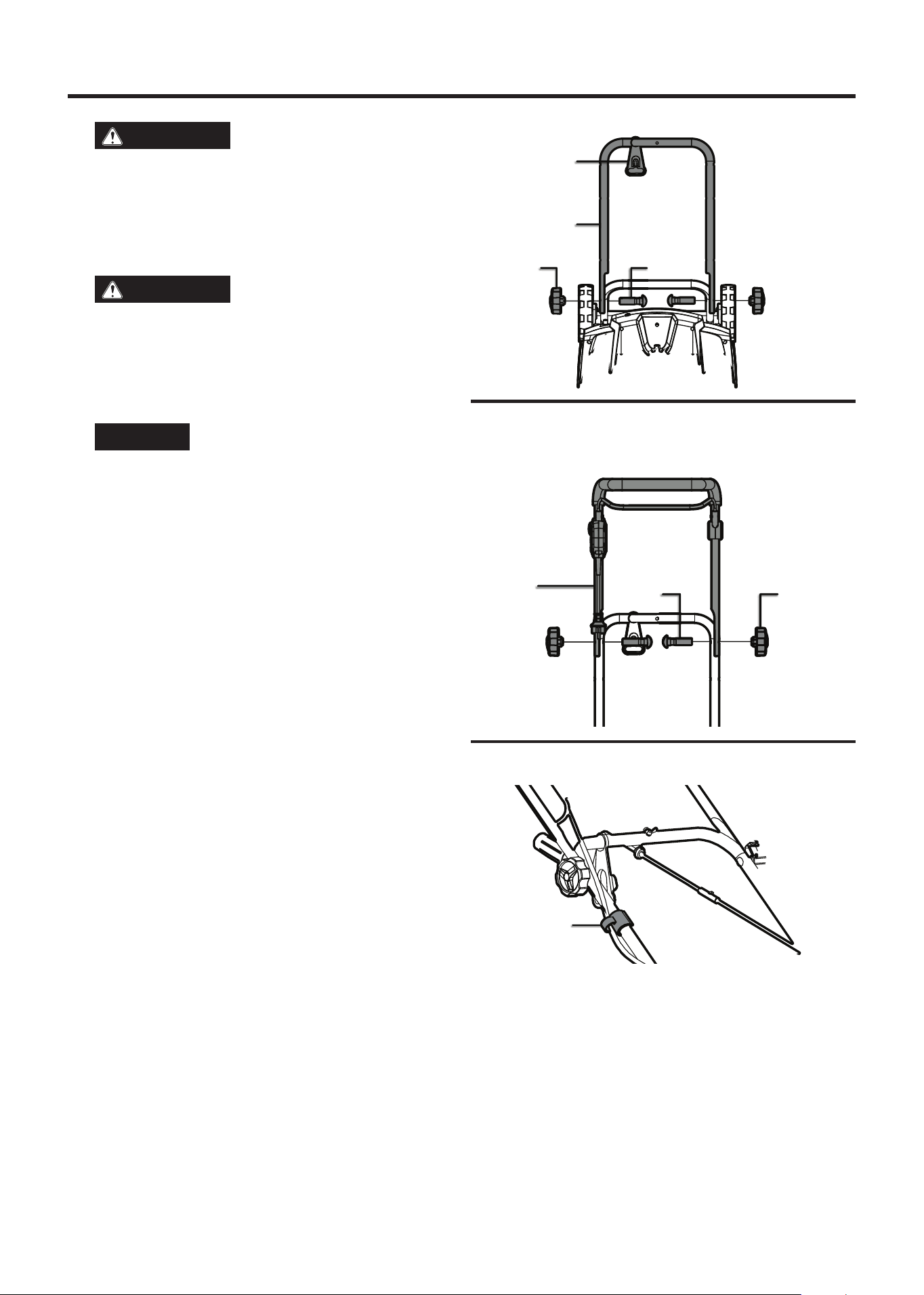

INSTALLING LOWER HANDLE
See Figure 5.
NOTICE
Do not allow the starter cable to be-
come pinched or trapped when aligning the handles.
z Slide the cable strain relief (1) onto the middle handle (2).
z Attach the middle handle (2) to the snow thrower body using
two handle locking knobs (3) and two M8x50 screws (4).
z The middle handle should be installed on the outside of
the snow thrower body as shown in Fig. 5.
INSTALLING UPPER HANDLE
See Figure 6.
z Install the upper handle (1) onto the middle handle using
two handle locking knobs (2) and two M8x50 screws (3).
z The upper handle should be installed on the outside of
the middle handle as shown in Fig. 6.
INSTALLING POWER CORD RETAINER
See Figure 7.
z Slip the power cord through the cable clip (1) and secure
the cable clip to the middle handle on the same side as
the safety lock button as shown in Fig. 7.
ASSEMBLY
FIG. 6
FIG. 7
3 4
1
2
1
3 2
1
English
|
11

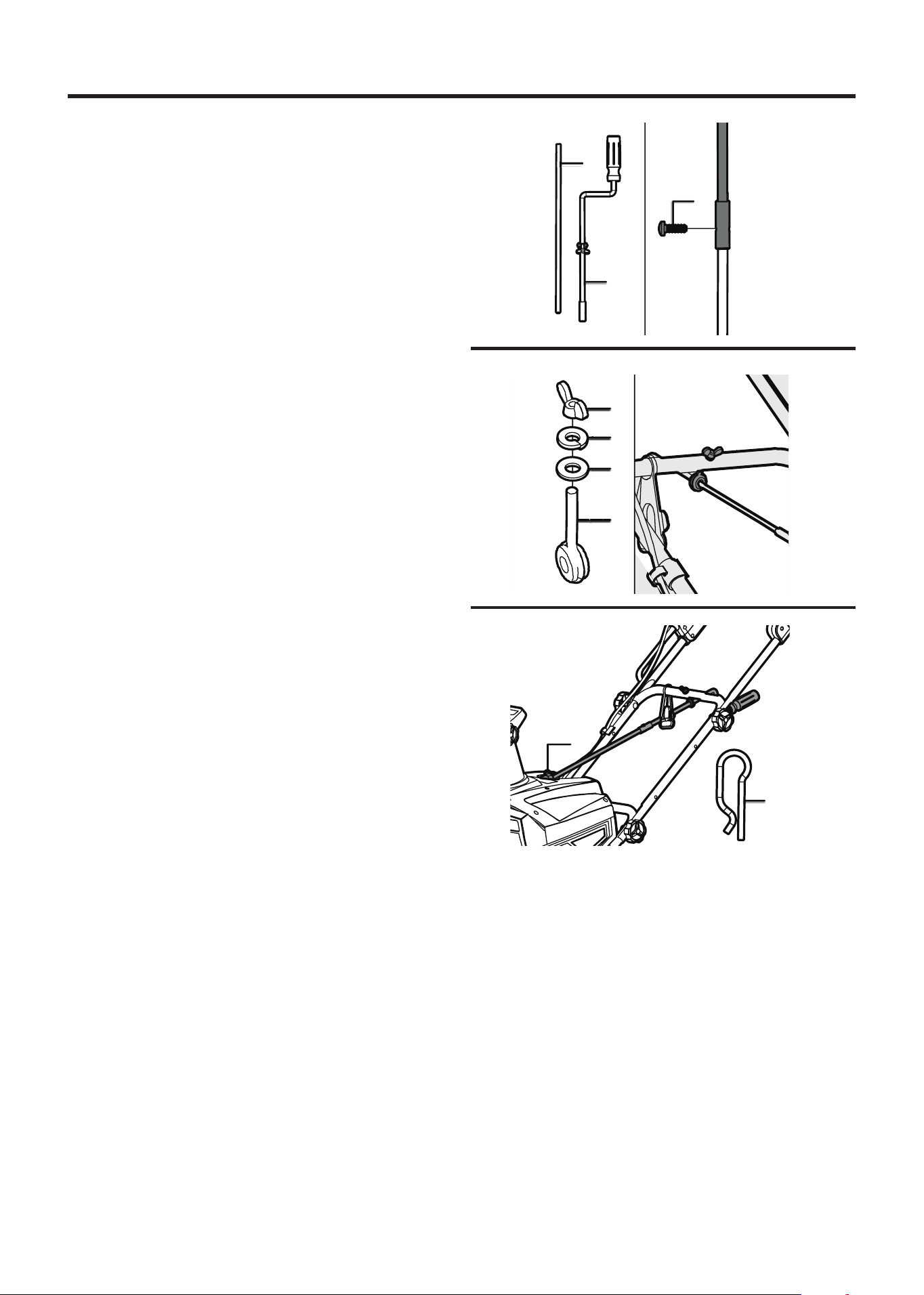

CONNECTING CHUTE ROTATION HANDLE
See Figure 8.
z Attach the chute adjustment rod (1) to the chute adjustment
handle (2) using the included M4x14 screw (3).
INSTALLING CHUTE ROTATION HANDLE TO
FRAME
See Figure 9.
z Unscrew the thumb screw (1), lock washer (2), and washer
(3) from the bolt (4) that came pre-installed on the chute
adjustment handle.
z Fit the bolt through the hole in the center of the middle
handle and secure it using the thumb screw, lock washer,
and washer as shown in Fig. 9.
INSTALLING CHUTE ROTATION HANDLE TO
MOUNTING BRACKET
See Figure 10.
z Fit the opposite end of the chute adjustment rod into the
mounting bracket (1) on the back of the snow blower body.
Make sure that the hole in the chute adjustment rod aligns
with the holes in the mounting bracket. Secure together
using the included cotter pin (2).
z Turn the chute adjustment handle clockwise and coun-
terclockwise to make sure that the chute moves in the
same direction.
ASSEMBLY
FIG. 8
1
2
1
2
3
1
2
1
2
3
1
2
3
4
FIG. 10
FIG. 9
12
|
English
ASSEMBLY
OPERATION
WARNING
Do not allow familiarity with prod-
ucts to make you careless. Remember that a careless
fraction of a second is sufficient to inflict serious injury.
WARNING
Always wear eye protection with
side shields marked to comply with ANSI Z87.1. Fail-
ure to do so could result in objects being thrown into
your eyes resulting in possible serious injury.
WARNING
Do not use any attachments or
accessories not recommended by the manufacturer of
this product. The use of attachments or accessories
not recommended can result in serious personal injury.
NOTICE
Before each use, inspect the entire
product for damaged, missing, or loose parts such as
screws, nuts, bolts, caps, etc. Tighten securely all fas-
teners and caps and do not operate this product un-
til all missing or damaged parts are replaced. Please
contact customer service or a qualified service center
for assistance.
WARNING
Always disconnect snow blower
from power supply when you are assembling parts,
making adjustments, cleaning, or when not in use.
This will prevent accidental starting that could cause
serious personal injury.
1
2
ADJUSTING THE CHUTE DEFLECTOR
See Figure 11.
WARNING
Never adjust the chute deflector
when the auger on the snow blower is running.
z To adjust the chute deflector loosen the chute deflector
adjustment knobs (2).
z Tilt the discharge chute (1) to the desired angle.
z Tighten chute adjustment knobs (2).
FIG. 11
English
|
13
OPERATION
WARNING
Do not allow familiarity with prod-
ucts to make you careless. Remember that a careless
fraction of a second is sufficient to inflict serious injury.
WARNING
Always wear eye protection with
side shields marked to comply with ANSI Z87.1. Fail-
ure to do so could result in objects being thrown into
your eyes resulting in possible serious injury.
WARNING
Do not use any attachments or
accessories not recommended by the manufacturer of
this product. The use of attachments or accessories
not recommended can result in serious personal injury.
NOTICE
Before each use, inspect the entire
product for damaged, missing, or loose parts such as
screws, nuts, bolts, caps, etc. Tighten securely all fas-
teners and caps and do not operate this product un-
til all missing or damaged parts are replaced. Please
contact customer service or a qualified service center
for assistance.
WARNING
Always disconnect snow blower
from power supply when you are assembling parts,
making adjustments, cleaning, or when not in use.
This will prevent accidental starting that could cause
serious personal injury.

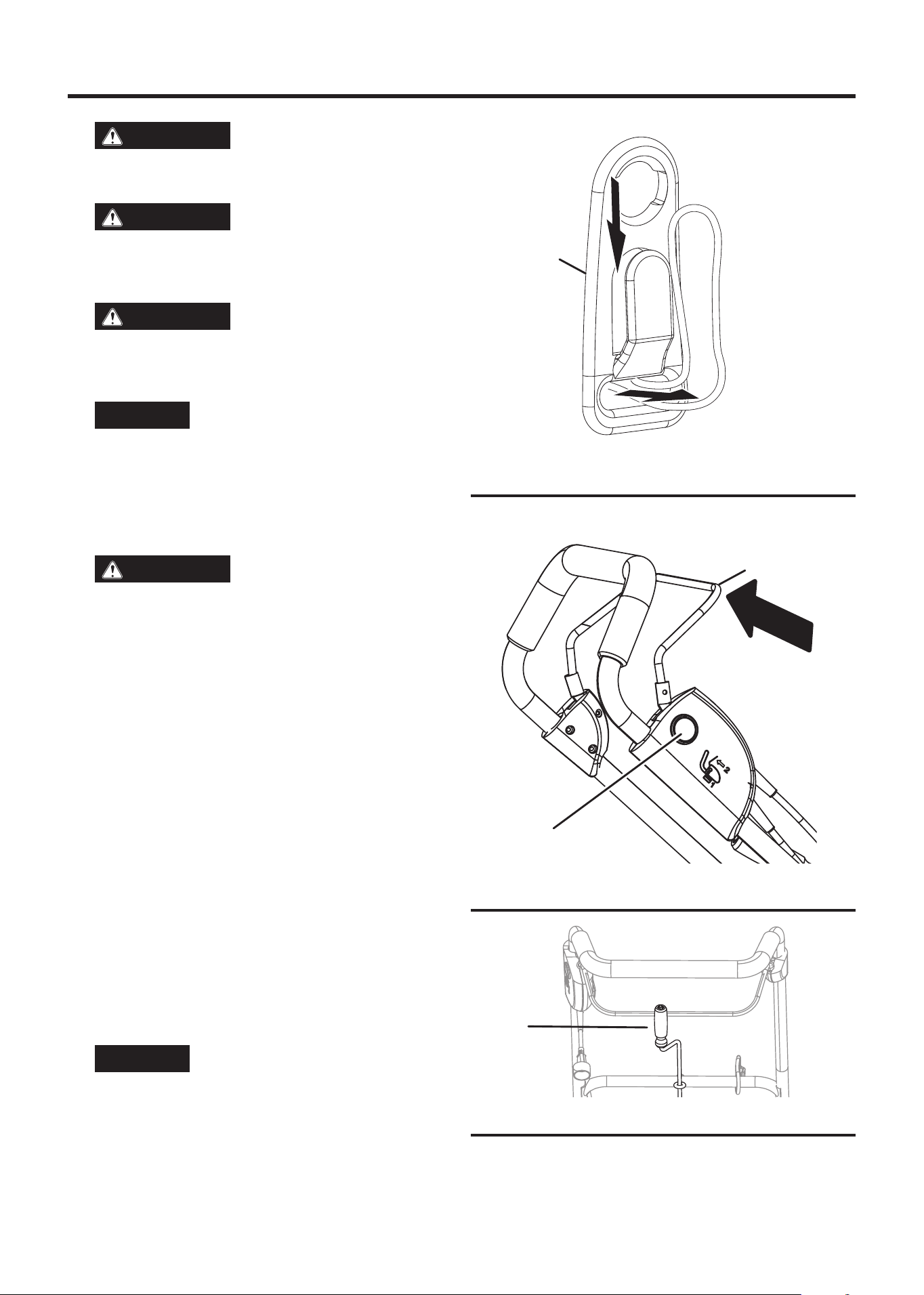

CONNECTING TO POWER SUPPLY
See Figure 12.
This product is designed with a cord retainer that prevents
the extension cord from coming loose while in use.
z Form a loop at the end of the extension cord.
z Insert the loop of the extension cord through the bottom
opening ot the power cord retainer.
z Place the loop over the hook. Lightly pull on the cord to
reduce the slack and secure it over the hook.
z Plug the snow blower into the extension cord.
NOTE: Removing all excess cord slack will prevent the
plug from loosening from the extension cord.
STARTING AND STOPPING THE SNOW
BLOWER
See Figure 13.
To start the motor:
z Connect the snow blower to power supply.
NOTICE
Always secure extension cord to the
unit by using the power cord retainer. Failure to use
the power cord retainer may result in damage to the
snow blower and/or extension cord.
z Press and hold the start button.
FIG. 12
A - Power cord retainer
B - Extension cord
B
FIG. 14
FIG. 13
A
A
A
A - Start button
B - Bail
A - Chute adjustment handle
14
|
English
z Pull and hold the bail against the handle to start the unit.
Release the button but continue holding the bail to the
handle.
To stop the motor:
z Release the bail.

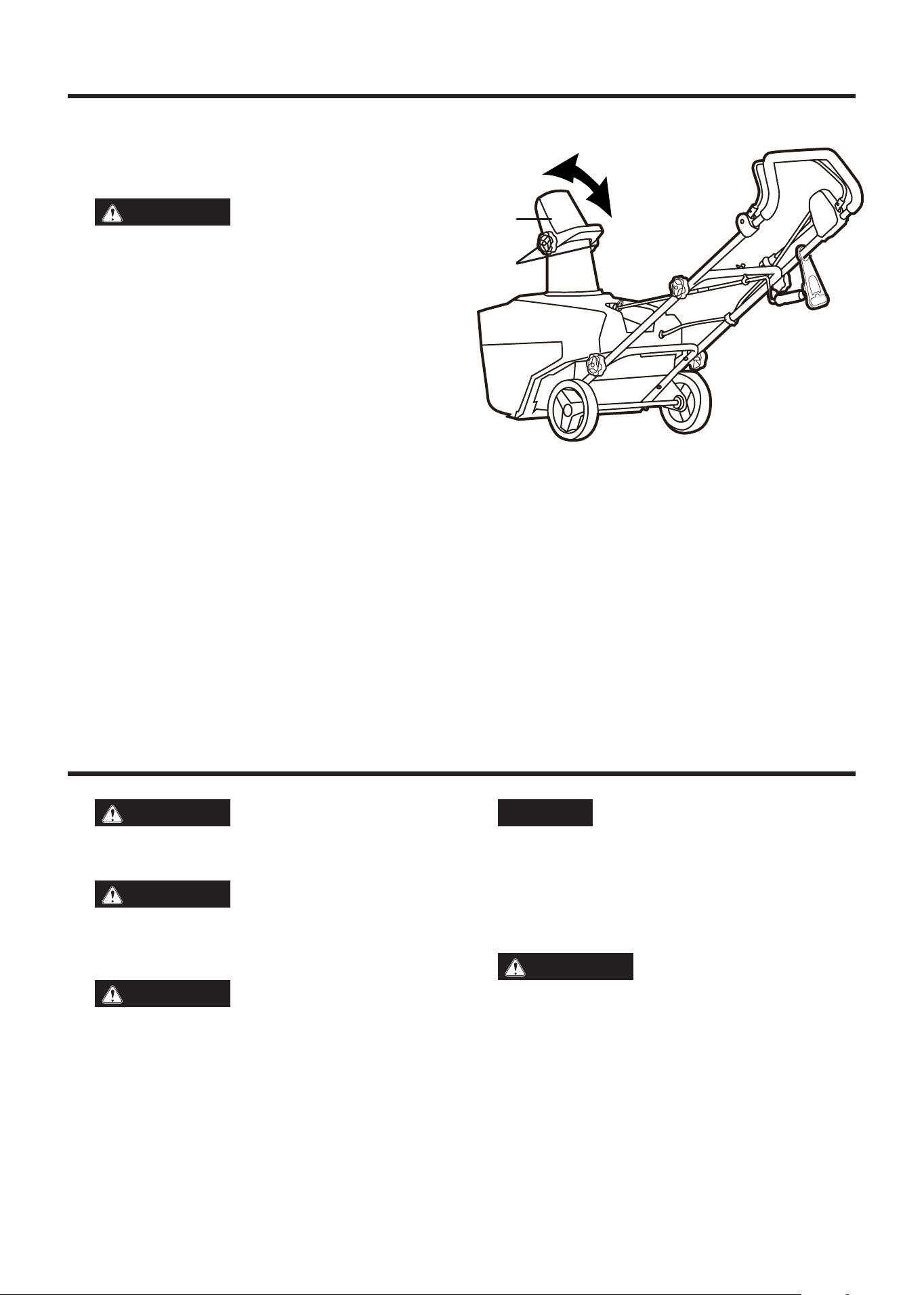

ADJUSTING THE DISCHARGE CHUTE
See Figure 14.
The chute can be adjusted from left to right to change the
direction the snow is thrown.
z Rotate the chute adjustment handle counterclockwise to
direct the snow to the left of the unit.
z Rotate the chute adjustment handle clockwise to direct
the snow to the right of the unit.
OPERATING TIPS
WARNING
Never use snow blower on frozen
lakes, rivers, or similar surfaces. Death or serious inju-
ry could occur if the ice breaks.
WARNING
Never use the snow blower on a
rooftop or other unstable surface, which can result in
death or serious personal injury
WARNING
Do not use snow blower on ice,
which can cause the operator to slip and fall, resulting
in possible serious personal injury.
WARNING
Do not wear loose clothing,
scarves, or jewelry. They can be caught in moving
parts and cause death or serious personal injury.
WARNING
Keep all snow discharge pointed
away from all electrical devices to reduce the risk of
electrocution or electric shock.
OPERATION
MAINTENANCE
WARNING
Before inspecting, cleaning or
servicing the unit, stop the motor, wait for all moving
parts to stop, and disconnect from power supply. Fail-
ure to follow these instructions can result in serious
personal injury or property damage.
WARNING
Always wear eye protection with
side shields marked to comply with ANSI Z87.1. Fail-
ure to do so could result in objects being thrown into
your eyes resulting in possible serious injury.
WARNING
When servicing, use only autho-
rized replacement parts. Use of any other parts can
create a hazard or cause product damage.
NOTICE
Periodically inspect the entire product
for damaged, missing, or loose parts such as screws,
nuts, bolts, caps, etc. Tighten securely all fasteners
and caps and do not operate this product until all
missing or damaged parts are replaced. Please con-
tact customer service or a qualified service center for
assistance.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use. Use
clean cloths to remove dirt, dust, oil, grease, etc.
WARNING
Do not at any time let brake flu-
ids, gasoline, petroleum-based products, penetrating
oils, etc., come in contact with plastic parts. Chemicals
can damage, weaken, or destroy plastic which can re-
sult in serious personal injury.
LUBRICATION
All of the bearings in this product are lubricated with a suf-
ficient amount of high grade lubricant for the life of the unit
under normal operating conditions. Therefore, no further
bearing lubrication is required.
English
|
15
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTION
Snow blower won’t
start
Snow blower is not plugged in. Connect snow blower to 120V power supply.
Be sure the snow blower plug is properly
connected to the extension cord.
The start button was not depressed. Press and hold the start button before
engaging the bale.
The motor is on but the
auger does not turn.
The drive belt may be worn or broken. Replace the drive belt.
A layer of snow
remains on the ground
after passing over it.
The auger or scraper may be worn. Have the auger or scraper replaced by an
authorized service center.
MAINTENANCE
REPLACEMENT PARTS
The following replacement parts are available by contacting Westinghouse customer service toll-free at 1 (855) 944-3571.
Auger .......................................................................................................................................................... WSnow20-068
Belt ............................................................................................................................................................. WSnow20-052
Scraper ....................................................................................................................................................... WSnow20-002
STORING THE SNOW BLOWER
CAUTION
Make sure all melted snow that
may drip from the snow blower is properly wiped up to
prevent a slip and fall hazard.
z Wipe the snow blower with a clean dry cloth.
z Check all nuts, bolts, knobs, screws, fasteners, etc., for
tightness.
z Inspect moving parts for damage, breakage, and wear.
Have repairs made on any damaged or missing parts.
z Loosen the handle knobs and lower the upper handle
assembly.
z Store snow blower indoors in a clean, dry place out of
the reach of children.
z Do not store near corrosive materials such as fertilizer
or rock salt.
16
|
English
www.WestinghouseOutdoorPower.com
Service Hotline (855) 944-3571
777 Manor Park Drive, Columbus, OH 43228
and Westinghouse are trademarks of Westinghouse Electric Corporation.
Used under license by Westinghouse Outdoor Power Equipment.
© 2024 Westinghouse Outdoor Power Equipment, All Rights Reserved.
WSnow20 062424
Rev 01
