Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 19b
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright
©
2019 by Harbor Freight Tools
®
. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly an d se rv ic e may n ot b e in cl uded.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Page 2 For technical questions, please call 1-888-866-5797. Item 64995
SaFEty OpEratiOn MaintEnancESEtup
table of contents
Safety ........................................................................2
Specifications ............................................................5
Setup .........................................................................7
Operation ..................................................................10
Maintenance .............................................................12

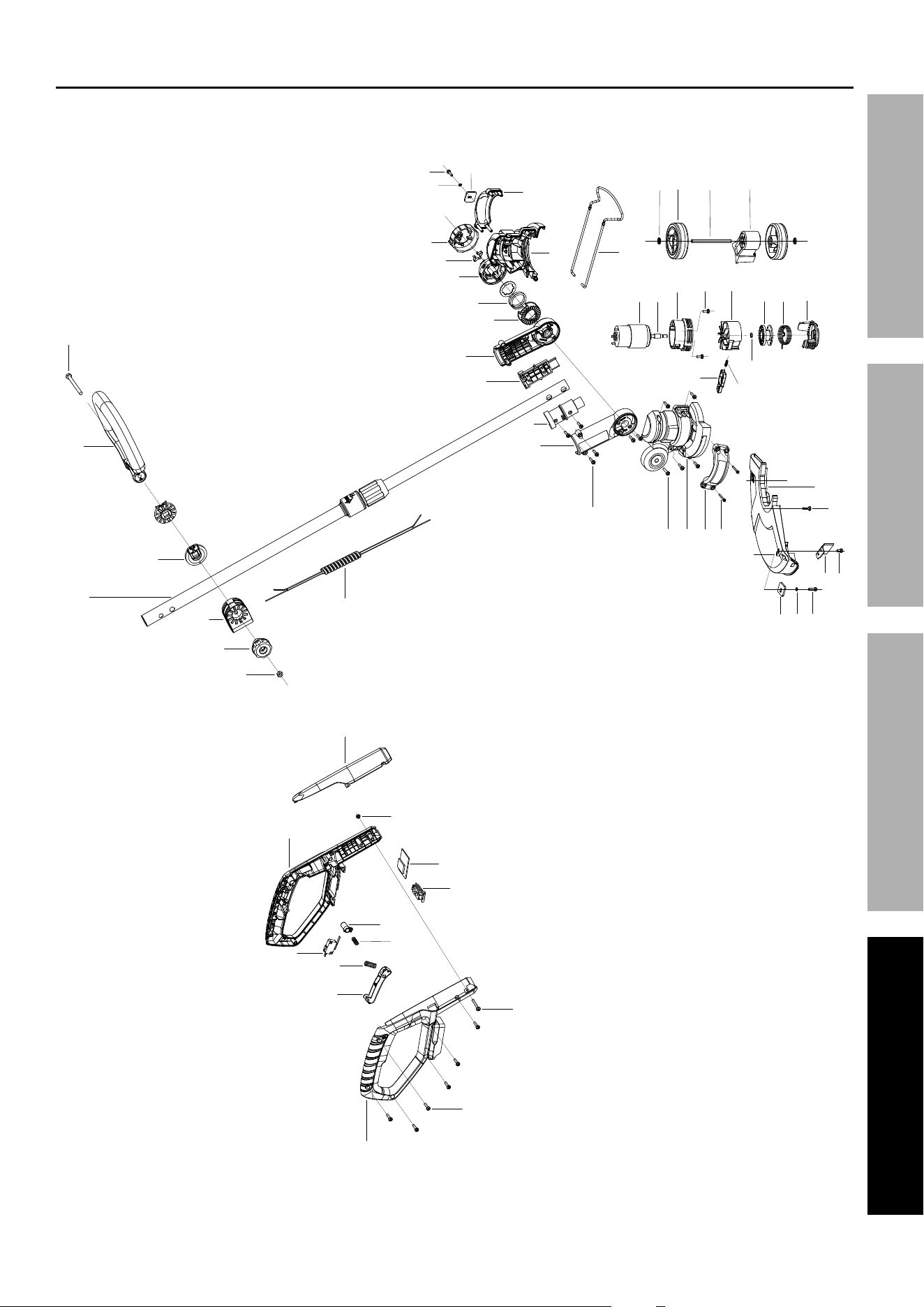

Parts List and Diagram .............................................14
Warranty ...................................................................16

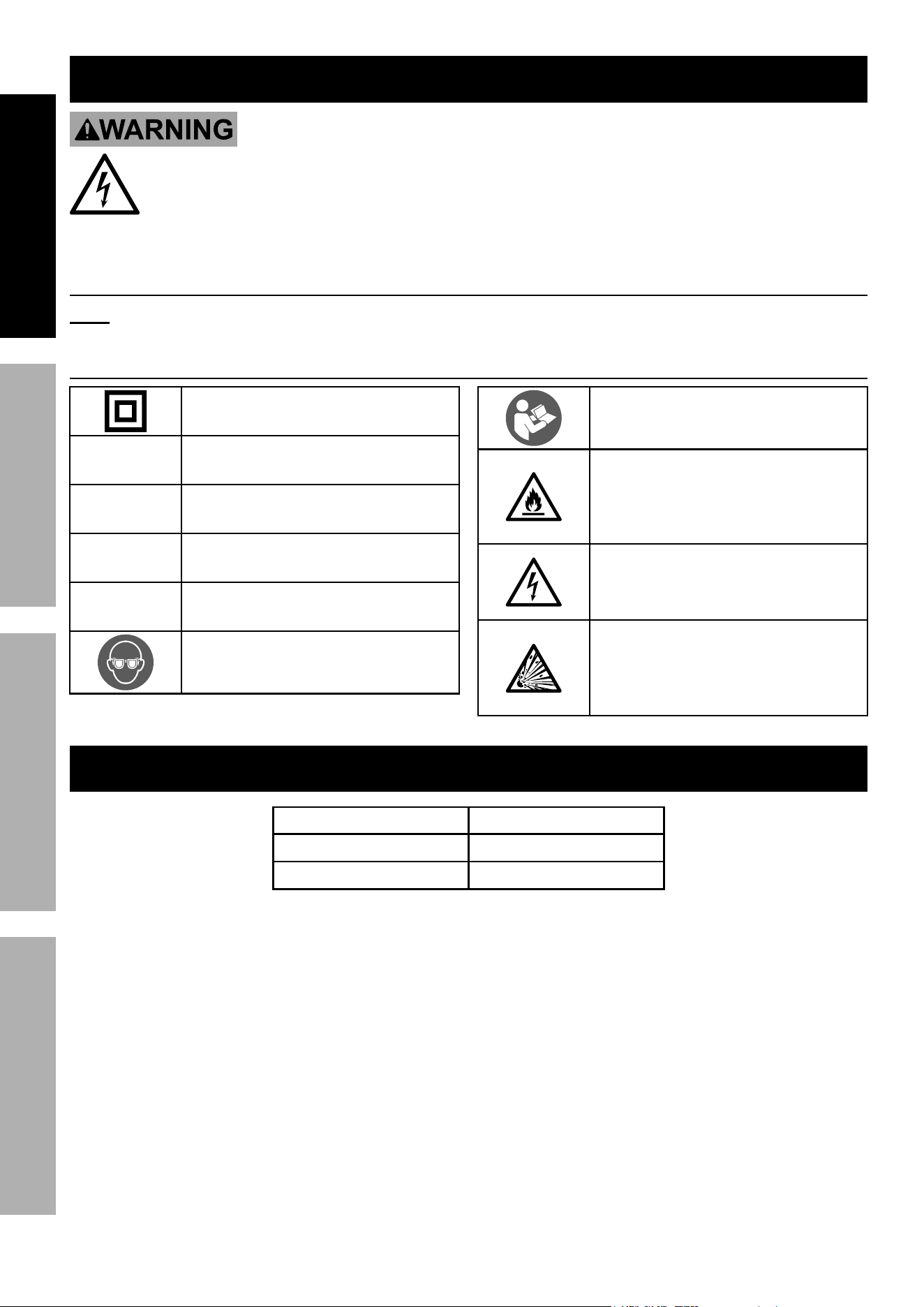

WarninG SyMBOLS anD DEFinitiOnS
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
iMpOrtant SaFEty inFOrMatiOn
General power tool Safety Warnings
read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term ″power tool″ in the warnings refers to your battery-operated (cordless) power tool.
Work area Safety
1. Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
2. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
3. Keep children and bystanders
away while operating a power tool.
Distractions can cause you to lose control.
Electrical Safety
Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric shock.
Page 3For technical questions, please call 1-888-866-5797.Item 64995
SaFEtyOpEratiOnMaintEnancE SEtup
personal Safety
1. Stay alert, watch what you are doing
and use common sense when operating
a power tool. Do not use a power
tool while you are tired or under the
influence of drugs, alcohol or medication.
A moment of inattention while operating power
tools may result in serious personal injury.
2. use personal protective equipment.
always wear eye protection. Protective
equipment such as dust mask, non-skid safety
shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
3. prevent unintentional starting.
Ensure the trigger is in the off-position before
connecting to power source, picking up or
carrying the tool.
Carrying power tools with your finger on
the Trigger or energizing power tools that
have the Trigger on invites accidents.
4. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
5. Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewelry
or long hair can be caught in moving parts.
6. if devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
7. Only use safety equipment that has been
approved by an appropriate standards agency.
Unapproved safety equipment may not provide
adequate protection. Eye protection must be
ANSI-approved and breathing protection
must be NIOSH-approved for the
specific hazards in the work area.
power tool use and care
1. Do not force the power tool. use the
correct power tool for your application.
The correct power tool will do the job better and
safer at the rate for which it was designed.
2. Do not use the power tool if the trigger
does not turn it on and off.
Any power tool that cannot be controlled with the
Trigger is dangerous and must be repaired.
3. Disconnect the battery pack from the
power tool before making any adjustments,
changing accessories, or storing power
tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
5. Maintain power tools. check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. if damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the
power tool for operations different from those
intended could result in a hazardous situation.
Battery tool use and care
1. recharge only with the charger specified by
the manufacturer. A charger that is suitable
for one type of battery pack may create a risk
of fire when used with another battery pack.
2. use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury and fire.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from
one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
4. under abusive conditions, liquid may be
ejected from the battery; avoid contact.
if contact accidentally occurs, flush with water.
if liquid contacts eyes, additionally seek
medical help. Liquid ejected from the
battery may cause irritation or burns.
Page 4 For technical questions, please call 1-888-866-5797. Item 64995
SaFEty OpEratiOn MaintEnancESEtup
Service
Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
String trimmer Safety
1. use both hands when operating the String
trimmer. using one hand could cause loss of
control and result in serious personal injury.
2. Do not expose to rain.
3. Dress Properly. Do not wear loose clothing or
jewelry. They can be caught in moving parts.
Use of rubber gloves and substantial footwear
is recommended when working outdoors.
Wear protective hair covering to contain long hair.
4. Wear ANSI-approved safety goggles and
heavy-duty work gloves. Use face or
dust mask if operation is dusty.
5. Do not leave the tool unattended when the
Battery Pack is connected. Turn off the tool,
and remove the Battery Pack before leaving.
6. Carefully inspect the spool housing and guard
before inserting Battery Pack in the Trimmer. Do
not use Trimmer if any part is cracked or damaged.
7. The Trigger and Safety Switch are important
safety devices. Do not disable or tie
down either Trigger or Safety Switch.
8. Do not use in rain, snow, sprinklers, or wet grass.
Do not rinse off the Trimmer.
9. Use only during daylight hours.
10. The spool will continue to rotate for a few seconds
after use. Allow it to stop completely and remove
Battery Pack before putting the tool down,
making any adjustments, or servicing the tool.
11. Do not overreach. Keep proper
footing and balance at all times.
12. Stay Alert. Watch what you are doing. Use common
sense. Do not operate tool when you are tired.
13. Avoid unintentional starting.
Prepare to begin work before turning on the tool.
14. The battery Charger gets hot during use.
The Charger’s heat can build up to
unsafe levels and create a fire hazard if it
does not receive adequate ventilation,
due to an electrical fault, or if it is used in a
hot environment.
Do not place the Charger on a flammable surface.
Do not obstruct any vents on the Charger.
Especially avoid placing the charger on carpets
and rugs; they are not only flammable, but they
also obstruct vents under the charger.
Place the Charger on a stable, solid, nonflammable
surface (such as a stable metal workbench or
concrete floor) at least 1 foot away from all
flammable objects, such as drapes or walls. Keep a
fire extinguisher and a smoke detector in the area.
Frequently monitor the Charger and
Battery Pack while charging.
15. This product is not a toy.
Keep it out of reach of children.
16. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in
close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure.
17. Maintain labels and nameplates on the
tool. These carry important safety
information. If unreadable or missing, contact
Harbor Freight Tools for a replacement.
18. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.
Page 5For technical questions, please call 1-888-866-5797.Item 64995
SaFEtyOpEratiOnMaintEnancE SEtup
Lithium Battery Safety Warnings
LitHiuM BattEriES StOrE
a LarGE aMOunt OF EnErGy anD
WiLL VEnt FirE Or EXpLODE iF MiStrEatED:
1. Keep
Battery pack dry.
2. DO nOt DO any OF tHE FOLLOWinG
tO tHE BattEry pacK:
a. Open,
b. Drop,
c. Short-circuit,
d. puncture,
e. incinerate, or
f. Expose to temperatures greater than 104°F.
3. Charge Battery Pack only according
to its Charger’s instructions.
4. Inspect Battery Pack before every use;
do not use or charge if damaged.
Battery charger Safety
1. SAVE THESE INSTRUCTIONS –This manual
contains important safety and operating
instruction for Battery Charger Model 64995.
2. Before using Battery Charger, read all
instructions and cautionary markings on Battery
Charger, Battery, and product using Battery.
3. CAUTION - To reduce risk of injury,
charge only li-ion Bauer-type rechargeable
batteries. Other types of batteries may burst
causing personal injury and damage.
4. Do not charge or use tool in rain, or in wet locations
5. Do not use battery-operated tool in rain.
6. Remove or disconnect battery after
use, before servicing, cleaning or
removing material from the tool.
7. Do not dispose of battery in a fire. The
cell may explode. Check with local codes
for possible disposal instructions.
8. Do not open or mutilate the battery. Released
electrolyte is corrosive and may cause damage to
the eyes or skin. It may be toxic if swallowed.
9. Exercise care in handling batteries in order not
to short the battery with conducting materials
such as rings, bracelets, and keys. The battery
or conductor may overheat and cause burns.
Vibration Hazard
This tool vibrates during use. Repeated or long-term
exposure to vibration may cause temporary
or permanent physical injury, particularly to
the hands, arms and shoulders. To reduce
the risk of vibration-related injury:
1. Anyone using vibrating appliances regularly or for
an extended period should first be examined by a
doctor and then have regular medical check-ups to
ensure medical problems are not being caused or
worsened from use. Pregnant women or people
who have impaired blood circulation to the hand,
past hand injuries, nervous system disorders,
diabetes, or Raynaud’s Disease should not use this
tool. If you feel any symptoms related to vibration
(such as tingling, numbness, and white or blue
fingers), seek medical advice as soon as possible.
2. Do not smoke during use. Nicotine reduces
the blood supply to the hands and fingers,
increasing the risk of vibration-related injury.
3. Wear suitable gloves to reduce the
vibration effects on the user.
4. Use appliances with the lowest vibration when
there is a choice between different processes.
5. Include vibration-free periods each day of work.
6. Grip tool as lightly as possible (while still keeping
safe control of it). Let the tool do the work.
7. To reduce vibration, maintain the tool as
explained in this manual. If any abnormal
vibration occurs, stop use immediately.
SaVE tHESE inStructiOnS.
Page 6 For technical questions, please call 1-888-866-5797. Item 64995
SaFEty OpEratiOn MaintEnancESEtup
Grounding
tO prEVEnt ELEctric SHOcK anD DEatH FrOM incOrrEct GrOunDinG:
check with a qualified electrician if you are in doubt as to whether the outlet is properly
grounded. Do not modify the power cord plug provided with the charger. Do not use the charger
if the power cord or plug is damaged. if damaged, have it repaired by a service facility before
use. if the plug will not fit the outlet, have a proper outlet installed by a qualified electrician.
Extension cords
note: Extension cords must not be used with this item’s Charger.
Symbology
Double Insulated
V
Volts
~
Alternating Current
a
Amperes
n
0
xxxx/min.
No Load Revolutions per Minute (RPM)
WARNING marking concerning Risk
of Eye Injury. Wear ANSI-approved
safety goggles with side shields.
Read the manual before
set-up and/or use.
WARNING marking
concerning Risk of Fire.
Do not cover Charger
ventilation ducts.
Charge on fireproof surface only.
WARNING marking concerning
Risk of Electric Shock.
Properly connect Charger’s power
cord to appropriate outlet.
WARNING marking concerning
Risk of Explosion.
Do not puncture, short, or open
battery packs and do not charge
damaged battery packs.
Specifications
Battery Type 20V Bauer Li-Ion
No Load Speed 8100 RPM
Replacement Line Type 0.065" Nylon
Page 7For technical questions, please call 1-888-866-5797.Item 64995
SaFEtyOpEratiOnMaintEnancE SEtup
Setup - Before use:
read the EntirE iMpOrtant SaFEty inFOrMatiOn section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.

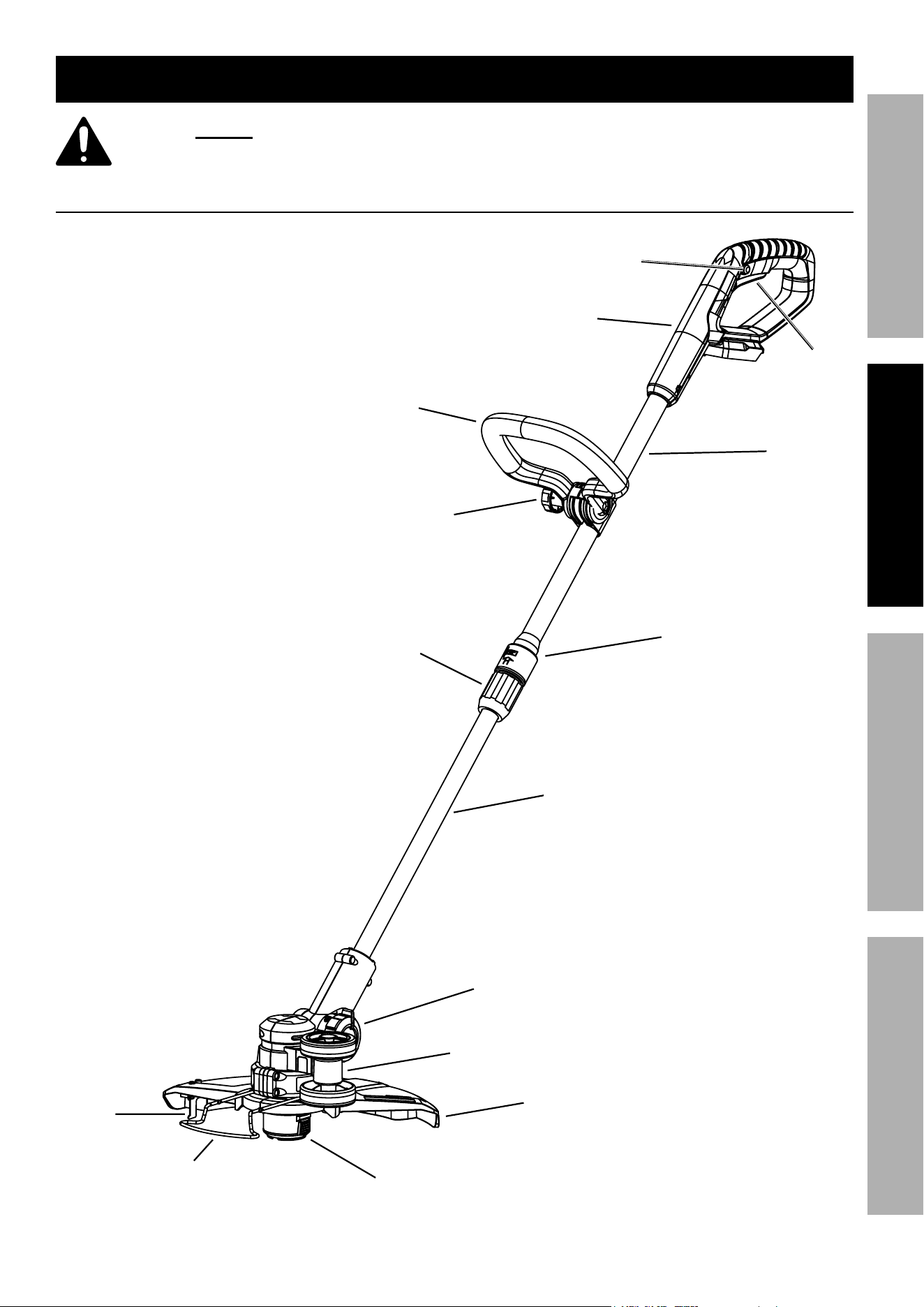

Functions
auxiliary
Handle
auxiliary
Handle
Lock Knob
Handle
trigger
trigger
Safety Lock
Head angle
Knob
angle
Lock
Line
cutter
Edge
Guide
Spool
Housing
Wheel
assembly
Guard
Extension
Lock
Extension
tube
upper
Shaft
Page 8 For technical questions, please call 1-888-866-5797. Item 64995
SaFEty OpEratiOn MaintEnancESEtup
assembly
tO prEVEnt SEriOuS inJury FrOM acciDEntaL OpEratiOn: Make sure that the trigger is in
the off-position and remove the Battery pack before performing any procedure in this section.
note: For additional information regarding the parts listed in the following pages,
refer to the Assembly Diagram near the end of this manual.

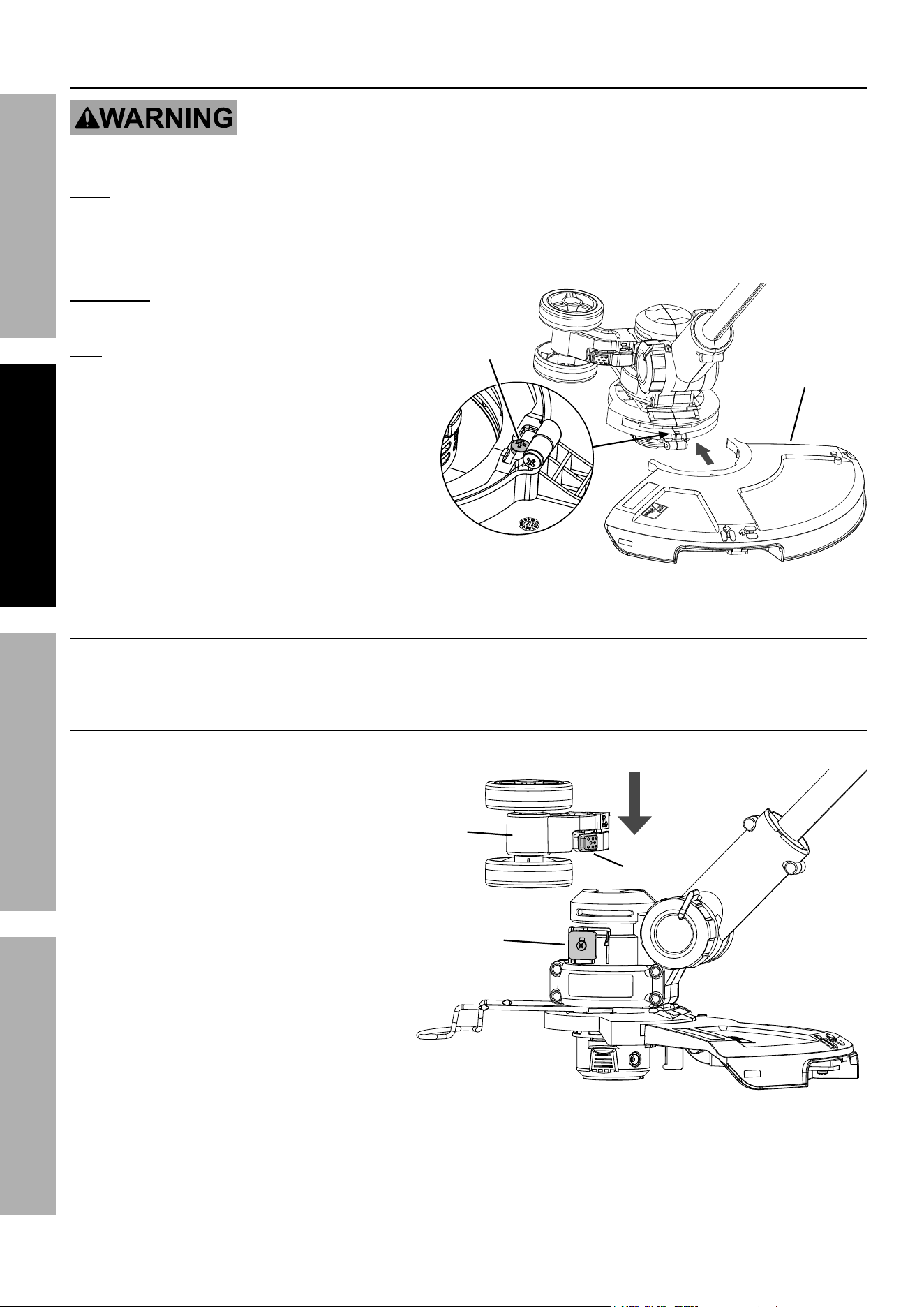

installing Guard
WarninG! tO prEVEnt SEriOuS inJury
FrOM FLyinG DEBriS anD piEcES OF
triMMinG LinE: install the guard
only in the orientation shown.
1. Align the Guard with the bottom of the
Trimmer Head as shown in Figure A. Slide
the tabs on the Guard into the slots on
the bottom of the Trimmer Head.
2. Turn the Trimmer upside down and secure
the Guard to the Trimmer Head using the
Attachment Screw provided. Do not overtighten.
Guard
attachment
Screw
View from
underside
Figure a
installing Wheel assembly
The Wheel Assembly may be installed in one of three optional positions to use the tool
for forward and reverse trimming, side to side trimming, or edging procedures.
Edger Wheel Setup
1. Slide the Wheel Assembly down
onto the Metal Plate located on the
side of the Trimmer Head. Make
sure the Wheel Assembly locks onto
the Plate – it will click into place
when properly installed.
2. Remove the Wheel Assembly
by pushing in on the Tab and
pulling up on the Wheels.
Wheel
assembly
Metal
plate
tab
Figure B
Page 9For technical questions, please call 1-888-866-5797.Item 64995
SaFEtyOpEratiOnMaintEnancE SEtup

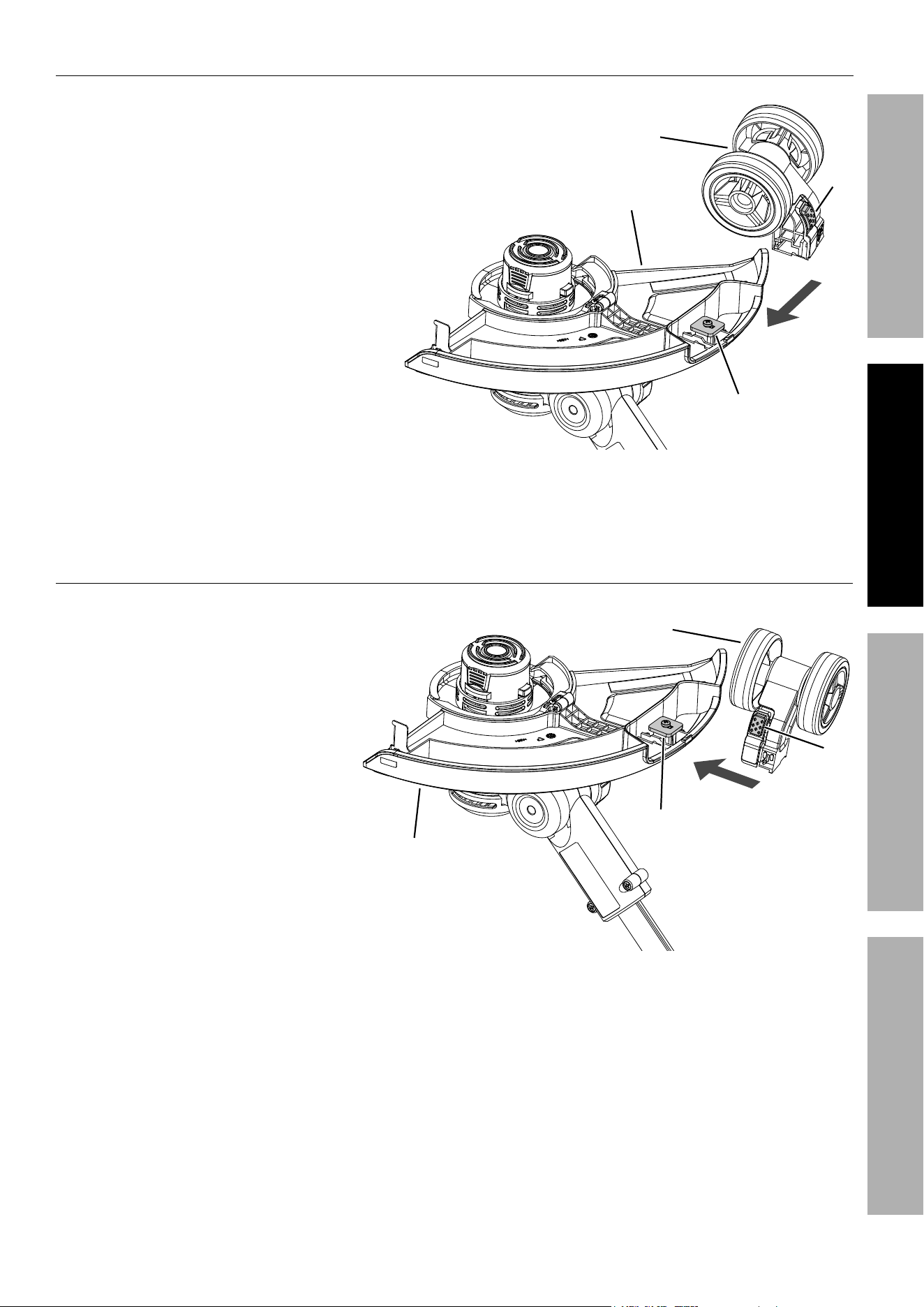

Forward and reverse trimming Wheel Setup
1. Turn the Trimmer upside down. Slide the
Wheel Assembly horizontally with wheels
facing forward onto the Metal Plate
located on the underside of the Guard.
Make sure the Wheel Assembly locks
onto the Plate – it will click into place
when properly installed.
2. Remove the Wheel Assembly by
pushing in on the Tab and pulling
Wheels away from the Metal Plate.
Side to Side trimming Wheel Setup
1. Turn the Trimmer upside down.
Slide the Wheel Assembly vertically
with wheels facing sideways onto
the Metal Plate located on the
underside of the Guard. Make sure
the Wheel Assembly locks onto the
Plate – it will click into place when
properly installed.
2. Remove the Wheel Assembly by
pushing in on the Tab and pulling
Wheels away from the Metal Plate.
Wheel
assembly
Metal
plate
tab
Figure c
Guard
Wheel assembly
Metal
plate
tab
Guard
Figure D
Page 10 For technical questions, please call 1-888-866-5797. Item 64995
SaFEty OpEratiOn MaintEnancESEtup
Operating instructions
read the EntirE iMpOrtant SaFEty inFOrMatiOn section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
tO prEVEnt SEriOuS inJury:
Before operating the tool, put on safety goggles, closed-toe work boots, long pants,
and other safety gear.
tO prEVEnt SEriOuS inJury anD prOpErty DaMaGE:
inspect the area before using the String trimmer. remove all hard objects from work area.
use both hands when operating trimmer.
tO prEVEnt SEriOuS inJury FrOM acciDEntaL OpEratiOn:
Make sure that the trigger is in the off-position and remove
Battery pack before setting up the tool.
charging Battery pack
Charge Battery Pack according to the instructions included with the
20 V Bauer Battery Charger (both sold separately).
automatic Line Feeder
nOticE: to prevent damage to trimmer,
DO nOt BuMp SpOOL HOuSinG On GrOunD.
this string trimmer feeds Line automatically
when stopping and restarting.
1. With Trimmer running, release Trigger and allow
Trimmer to stop fully, then press Trigger Safety
Lock and Trigger to restart. Line will be fed
out and cut to proper length by Line Cutter.
2. If Trimmer is not cutting correctly, Spool may
be tangled. Remove Spool and rewind Line.
3. To advance Line by hand, push Line Outlet Button
on Spool Housing and pull out Line at the
same time. Approximately 1/4" of Line can be
pulled out each time the button is pushed.
trimmer Operation
1. Remove Battery Pack.
2. Adjust Auxiliary Handle as necessary.
Loosen Auxiliary Handle Lock Knob and
move Handle to desired position. Tighten
Lock Knob securely after adjustment.
3. Adjust length as necessary by turning
Extension Lock clockwise, pulling Extension
Tube out to desired length, then turning
Extension Lock counterclockwise securely.
4. Adjust head angle by rotating the Head Angle
Knob to the unlock position, moving head
until desired angle is achieved, then rotating
Head Angle Knob back to the lock position.
5. Pull Edge Guide out until it locks into place.
6. If using Wheel Assembly for trimming refer to
Installing Wheel Assembly on page 8.
7. Install fully charged Battery Pack.
8. Put on safety goggles.
nOticE: to prevent damage to tool or property,
avoid contact with fences, trees, shrubs and the like.
9. Holding Trimmer with both hands, press
Trigger Safety Lock, then press Trigger.
10. DO nOt rESt triMMEr On GrOunD.
11. Do not force the Trimmer. Use the
tip of the Line to do the cutting.
12. Release Trigger when done.
13. When finished, to prevent accidents:
• Remove Battery Pack.
• Wipe external surfaces of the tool
with clean cloth. Store in a dry, indoor
area out of reach of children.
Page 11For technical questions, please call 1-888-866-5797.Item 64995
SaFEtyOpEratiOnMaintEnancE SEtup
Edger Operation
1. Remove Battery Pack.
2. Place the Wheel Assembly in the proper
position for edging operation. Refer to
Edger Wheel Setup on page 8.
3. Pull up on the Angle Lock, rotate Handle/
Upper Shaft clockwise 90 º and release Angle
Lock. The Upper Shaft will click into place.
4. Adjust Auxiliary Handle as necessary.
Loosen Auxiliary Handle Lock Knob and
move Handle to desired position. Tighten
Lock Knob securely after adjustment.
5. Adjust length as necessary by turning
Extension Lock clockwise, pulling Extension
Tube out to desired length, then turning
Extension Lock counterclockwise securely.
6. Adjust head angle by rotating the Head Angle
Knob to the unlock position, moving head
until desired angle is achieved, then rotating
Head Angle Knob back to the lock position.
7. Install fully charged Battery Pack.
8. Put on safety goggles.
nOticE: to prevent damage to tool or property,
avoid contact with fences, trees, shrubs and the like.
9. Rest Trimmer on Wheel Assembly.
10. Holding Trimmer with both hands, press
Trigger Safety Lock, then press Trigger.
11. Do not force the Trimmer. Use the
tip of the Line to do the cutting.
12. Release Trigger when done.
13. When finished, to prevent accidents:
• Remove Battery Pack.
• Wipe external surfaces of the tool
with clean cloth. Store in a dry, indoor
area out of reach of children.
Page 12 For technical questions, please call 1-888-866-5797. Item 64995
SaFEty OpEratiOn MaintEnancESEtup
Maintenance and Storage
procedures not specifically explained in this manual must
be performed only by a qualified technician.
tO prEVEnt SEriOuS inJury FrOM acciDEntaL OpEratiOn Or ELEctric SHOcK:
release the trigger and remove the Battery pack before performing
any inspection, maintenance, or cleaning procedures.
tO prEVEnt SEriOuS inJury FrOM tOOL FaiLurE:
Do not use damaged equipment. if abnormal noise or vibration
occurs, have the problem corrected before further use.
cleaning, Maintenance, and Lubrication
1. BEFOrE EacH uSE, inspect the
general condition of the tool. Check for:
• loose hardware
• misalignment or binding of moving parts
• cracked or broken parts
• damaged electrical wiring
• any other condition that may
affect its safe operation.
2. aFtEr uSE, Remove Battery Pack and wipe
external surfaces of the tool with clean cloth.
3. Li-Ion BATTERY MUST BE RECYCLED OR
DISPOSED OF PROPERLY.
Do not short, incinerate or open battery.
4. Store Battery Pack, Charger, and tool in dry, indoor
area out of reach of children and away from metal
objects (i.e., paperclips, coins) to prevent shorting.
5. All parts are permanently lubricated.
Do not use additional lubrication.
Page 13For technical questions, please call 1-888-866-5797.Item 64995
SaFEtyOpEratiOnMaintEnancE SEtup

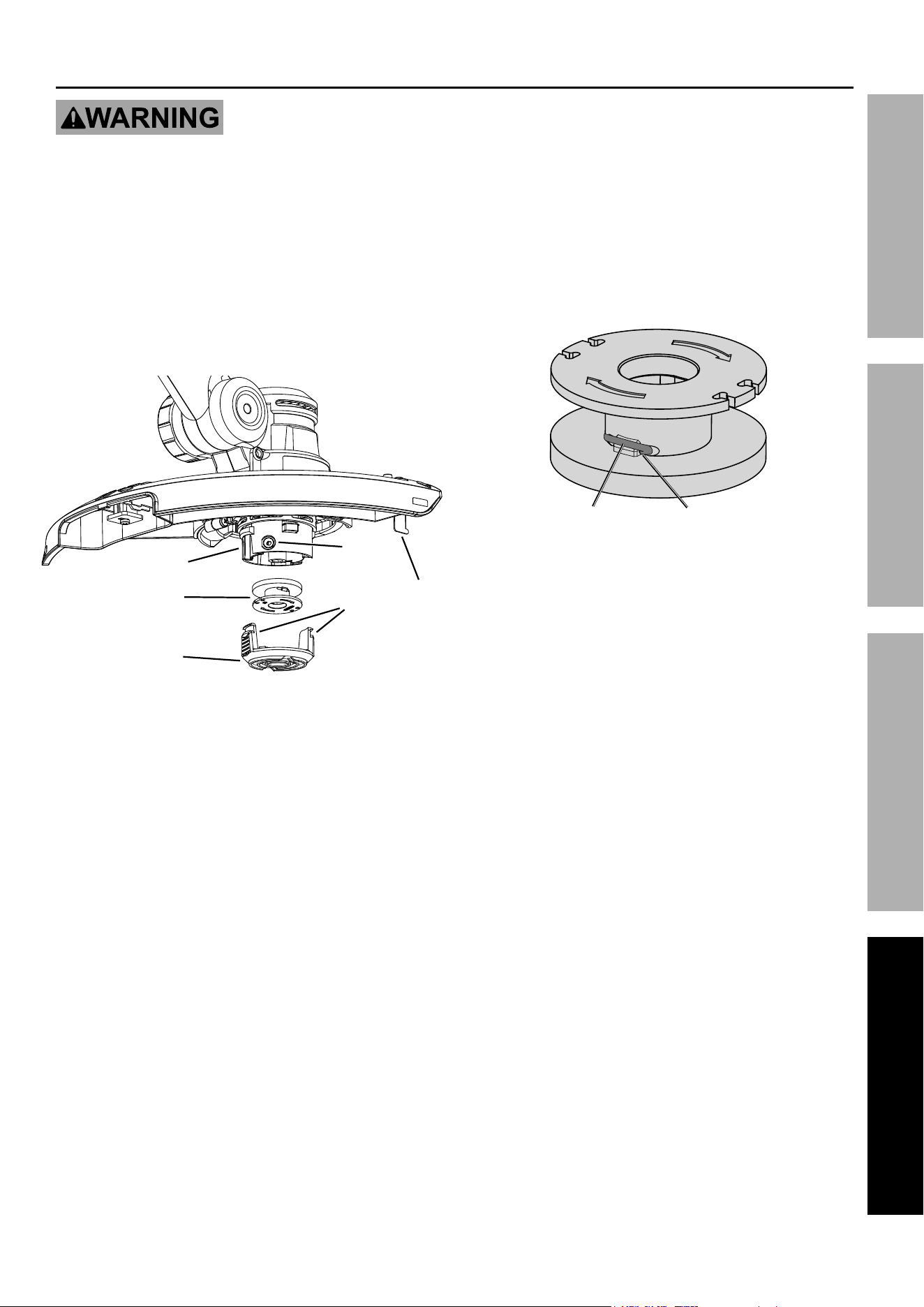

replacing nylon Line
tO prEVEnt SEriOuS inJury:
Only replace the line on this tool with the line material and diameter of line listed on
the Specifications table. Other materials, such as wire, rope, or blades can damage the
tool and be forcefully and dangerously ejected from the tool upon breaking.
1. Remove Battery Pack.
2. Press tabs on Spool Cover, remove Spool Cover,
then remove Spool from Spool Housing.
3. Remove old line from Spool.
4. Clean interior of Spool Housing with soft cloth.
tabs
Spool
Housing
Spool
Spool
cover
Line
Outlet
Line
cutter
5. Insert end of Nylon Line (up to 10 feet)
into Line Insertion Hole.
6. Wrap Line onto Spool in neat, straight rows, under
tension, following arrow direction on top of Spool.
Line insertion
Hole
nylon
Line
7. Replace Spool, insert Line through Line Outlet in
Spool Housing and pull line out past Line Cutter.
8. Replace Spool Cover.
Page 14 For technical questions, please call 1-888-866-5797. Item 64995
SaFEty OpEratiOn MaintEnancESEtup
record product’s Serial number Here:
note: If product has no serial number, record month and year of purchase instead.
note: Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.
part Description Qty
1 Left Handle 1
2 Right Handle 1
3 Trigger 1
4 Compression Spring 1
5 Switch 1
6 Compression Spring 1
7 Trigger Safety Lock 1
8 Terminal 1
9 PCM 1
10 Handle Cover 1
11 Aluminum Tube 1
12 Nut 1
13 Auxiliary Handle Lock Knob 1
14 Auxiliary Handle Bracket 1
15 Slide Gear 2
16 Auxiliary Handle 1
17 Bolt 1
18 Coiled Cable 1
19 Right Rotary Joint 1
20 Right Liner Sleeve Bushing 1
21 Left Liner Sleeve Bushing 1
22 Left Rotary Joint 1
23 Lock Ring 1
24 Compression Spring 1
25 Cover 1
26 Left Motor Housing 1
27 Spring Plate 1
28 Head Angle Knob 1
part Description Qty
29 Right Motor Housing 1
30 Right Motor Housing Cover 1
31 Self-Tapping Screw ST2.9 x 23 2
32 Left Motor Housing Cover 1
33 Clamping Plate 2
34 Spring Washer 4.1 x 0.8 x 1.2 2
35 Line Cutter 1
36 Self-Tapping Screw ST3.9 x 13 1
37 Guard 1
38 Motor 1
39 Motor Connection Shaft 1
40 Motor Base 1
41 Screw 4 x 10 2
42 Line Outlet Button 1
43 Compression Spring 1
44 Spool Housing 1
45 Nut 1
46 Line Spool 1
47 Nylon Line 1
48 Spool Cover 1
49 Retaining Ring 2
50 Edger Wheel 2
51 Cylinder Pin 1
52 Edger Wheel Bracket 1
53 Edge Guide 1
54 Self-Tapping Screw ST3.9 x 16 20
55 Self-Tapping Screw 1
56 Nut 1
parts List and Diagram
pLEaSE rEaD tHE FOLLOWinG carEFuLLy
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
parts List
Page 15For technical questions, please call 1-888-866-5797.Item 64995
SaFEtyOpEratiOnMaintEnancE SEtup
assembly Diagram
38
53
50
51
52
33
32
54
28
27
25
26
24
23
22
21
40
49
42
43
44
33
35
36
29
30
19
39
34
34
41
46
48
45
47
11
12
13
16
17
18
20
31
14
15
54
54
54
54
37
1
2
3
4
5
6
7
8
10
9
54
55
56
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
26541 agoura road • calabasas, ca 91302 • 1-888-866-5797
