For Best Results,
Use 3.0 Amp Hour Battery
(Sold Separately)
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 19f
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright
©
2019 by Harbor Freight Tools
®
. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
To ols required for assembly and se rv ic e m ay n ot b e i nc lu de d .
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Page 2 For technical questions, please call 1-888-866-5797. Item 56546
SAFEty OpERAtiOn MAintEnAncESEtUp
table of contents
Safety ......................................................... 2
Specifications ............................................. 8
Setup .......................................................... 6
Operation ................................................... 10
Maintenance ............................................... 9

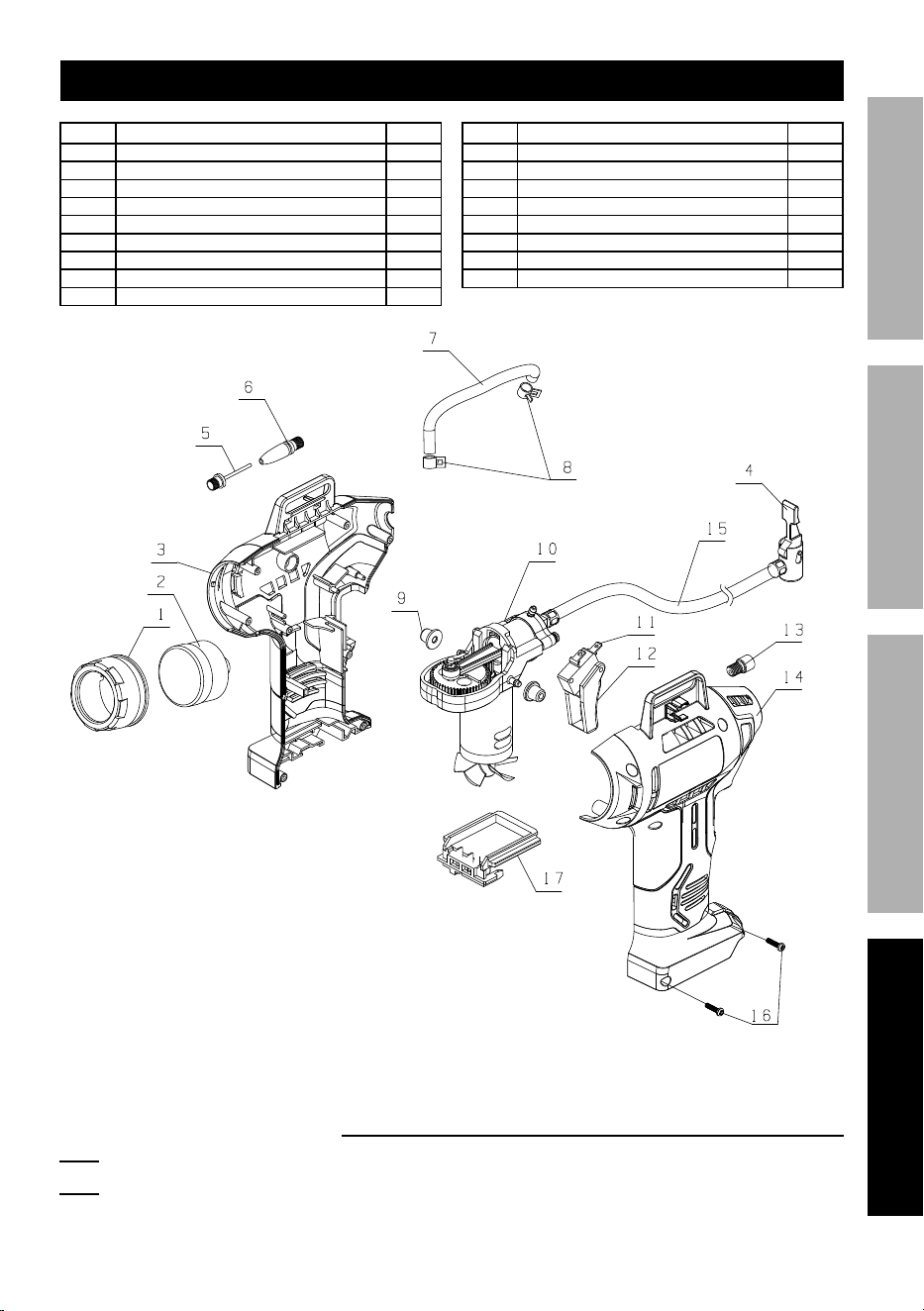

Parts List and Diagram .............................. 18
Warranty .................................................... 12
WARninG SyMBOLS AnD DEFinitiOnS
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
iMpORtAnt SAFEty inFORMAtiOn
General power tool Safety Warnings
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term ″power tool″ in the warnings refers to your battery-operated (cordless) power tool.
Page 3For technical questions, please call 1-888-866-5797.Item 56546
SAFEtyOpERAtiOnMAintEnAncE SEtUp
Air compressor Safety Warnings
1. Risk of fire or explosion - do not spray
flammable liquid in a confined area or
towards a hot surface. Spray area must be
well-ventilated. Do not smoke while spraying
or spray where spark or flame is present.
Arcing parts - keep compressor at least
20 feet away from explosive vapors, such
as when spraying with a spray gun.
2. Risk of bursting - do not adjust regulator higher
than marked maximum pressure of attachment.
3. Risk of injury - do not direct air
stream at people or animals.
4. Do not use to supply breathing air.
5. Do not leave compressor unattended for an
extended period while powered. Disconnect
power from compressor after working.
6. Keep compressor well-ventilated.
Do not cover compressor during use.
7. Do not remove the valve cover or
adjust internal components.
8. Do not use the air hose to move the compressor.
9. The use of accessories or attachments not
recommended by the manufacturer may
result in a risk of injury to persons.
10. All air line components, including hoses,
pipe, connectors, filters, etc., must be
rated for a minimum working pressure of
150 PSI, or 150% of the maximum system
pressure, whichever is greater.
11. Maintain labels and nameplates on the
compressor. These carry important safety
information. If unreadable or missing, contact
Harbor Freight Tools for a replacement.
12. This product is not a toy.
Keep it out of reach of children.
13. Wear ANSI-approved safety goggles and
heavy-duty work gloves during use.
14. Do not expose to rain or wet conditions.
15. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in
close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure.
16. Do not leave the tool unattended when the
Battery Pack is connected. Turn off the tool,
and remove the Battery Pack before leaving.
17. The battery Charger gets hot during
use. The Charger’s heat can build up to
unsafe levels and create a fire hazard if
it does not receive adequate ventilation,
due to an electrical fault, or if it is used in a
hot environment.
Do not place the Charger on a flammable surface.
Do not obstruct any vents on the Charger.
Especially avoid placing the charger on carpets
and rugs; they are not only flammable, but they
also obstruct vents under the charger.
Place the Charger on a stable, solid, nonflammable
surface (such as a stable metal workbench or
concrete floor) at least 1 foot away from all
flammable objects, such as drapes or walls. Keep a
fire extinguisher and a smoke detector in the area.
Frequently monitor the Charger and
Battery Pack while charging.
18. The warnings, precautions, and instructions
discussed in this instruction manual cannot cover all
possible conditions and situations that may occur.
It must be understood by the operator that
common sense and caution are factors
which cannot be built into this product,
but must be supplied by the operator.
Page 4 For technical questions, please call 1-888-866-5797. Item 56546
SAFEty OpERAtiOn MAintEnAncESEtUp
Battery tool use and care
1. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to battery pack, picking up or carrying the
power tool. Carrying the power tool with your
finger on the switch or energizing power tool
that have the switch on invites accidents.
2. Disconnect the battery pack from the power
tool before making any adjustments, changing
accessories, or storing power tool. Such
preventive safety measures reduce the risk
of starting the power tool accidentally.
3. Recharge only with the charger specified by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of
fire when used with another battery pack.
4. Use power tools only with specifically designated
battery packs. Use of any other battery
packs may create a risk of injury and fire.
5. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from
one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
6. Under abusive conditions, liquid may be
ejected from the battery; avoid contact.
If contact accidentally occurs, flush with
water. If liquid contacts eyes, additionally
seek medical help. Liquid ejected from the
battery may cause irritation or burns.
7. Do not use a battery pack or power tool that is
damaged or modified. Damaged or modified
batteries may exhibit unpredictable behavior
resulting in fire, explosion or risk of injury.
8. Do not expose a battery pack or power tool to
fire or excessive temperature. Exposure to fire or
temperature above 265°F may cause explosion.
9. Follow all charging instructions and do not charge
the battery pack or power tool outside of the
temperature range specified in the instructions.
Charging improperly or at temperatures
outside of the specified range may damage
the battery and increase the risk of fire.
10. Have servicing performed by a qualified
repair person using only identical
replacement parts. This will ensure that
the safety of the product is maintained.
11. Do not modify or attempt to repair the power
tool or the battery pack except as indicated
in the instructions for use and care.
Lithium Battery Safety Warnings
LitHiUM BAttERiES StORE
A LARGE AMOUnt OF EnERGy AnD
WiLL VEnt FiRE OR EXpLODE iF MiStREAtED:
1. Keep Battery pack dry.
2. DO nOt DO Any OF tHE FOLLOWinG
tO tHE BAttERy pAcK:
a. Open,
b. Drop,
c. Short-circuit,
d. puncture,
e. incinerate, or
f. Expose to temperatures greater than 265°F.
3. Charge Battery Pack only according
to its Charger’s instructions.
4. Inspect Battery Pack before every use;
do not use or charge if damaged.
5. Li-ion BAttERy MUSt BE REcycLED
OR DiSpOSED OF pROpERLy.
SAVE tHESE inStRUctiOnS.
Page 5For technical questions, please call 1-888-866-5797.Item 56546
SAFEtyOpERAtiOnMAintEnAncE SEtUp
Grounding
tO pREVEnt ELEctRic SHOcK AnD DEAtH FROM incORREct GROUnDinG:
check with a qualified electrician if you are in doubt as to whether the outlet is properly
grounded. Do not modify the power cord plug provided with the charger. Do not use the
charger if the power cord or plug is damaged. if damaged, have it repaired by a service facility
before use. if the plug will not fit the outlet, have a proper outlet installed by a qualified electrician.
Extension cords
note: Extension cords must not be used with this item’s Charger.
Symbology
pSi
Pounds per square inch of pressure
BAR
Measure of atmospheric
pressure on Earth at sea level
kpa
Kilopascal is a unit of
pressure measurement
cFM
Cubic Feet per Minute flow
ScFM
Cubic Feet per Minute flow
at standard conditions
npt
National pipe thread, tapered
npS
National pipe thread, straight
Double Insulated
V
Volts
~
Alternating Current
A
Amperes
WARNING marking concerning
Risk of Explosion.
Do not puncture, short, or open
battery packs and do not charge
damaged battery packs.
WARNING marking concerning
Risk of Fire. Do not cover
Charger ventilation ducts. Charge
on fireproof surface only.
Specifications
Charger Input Rating 120VAC / 60Hz
Battery Type Bauer 20V Li-Ion (sold separately)
Air Pressure 160 PSI (max)
Page 6 For technical questions, please call 1-888-866-5797. Item 56546
SAFEty OpERAtiOn MAintEnAncESEtUp
Setup - Before Use:
Read the EntiRE iMpORtAnt SAFEty inFORMAtiOn section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
note: For additional information regarding the parts listed in the
following pages, refer to Parts List and Diagram on page 11.

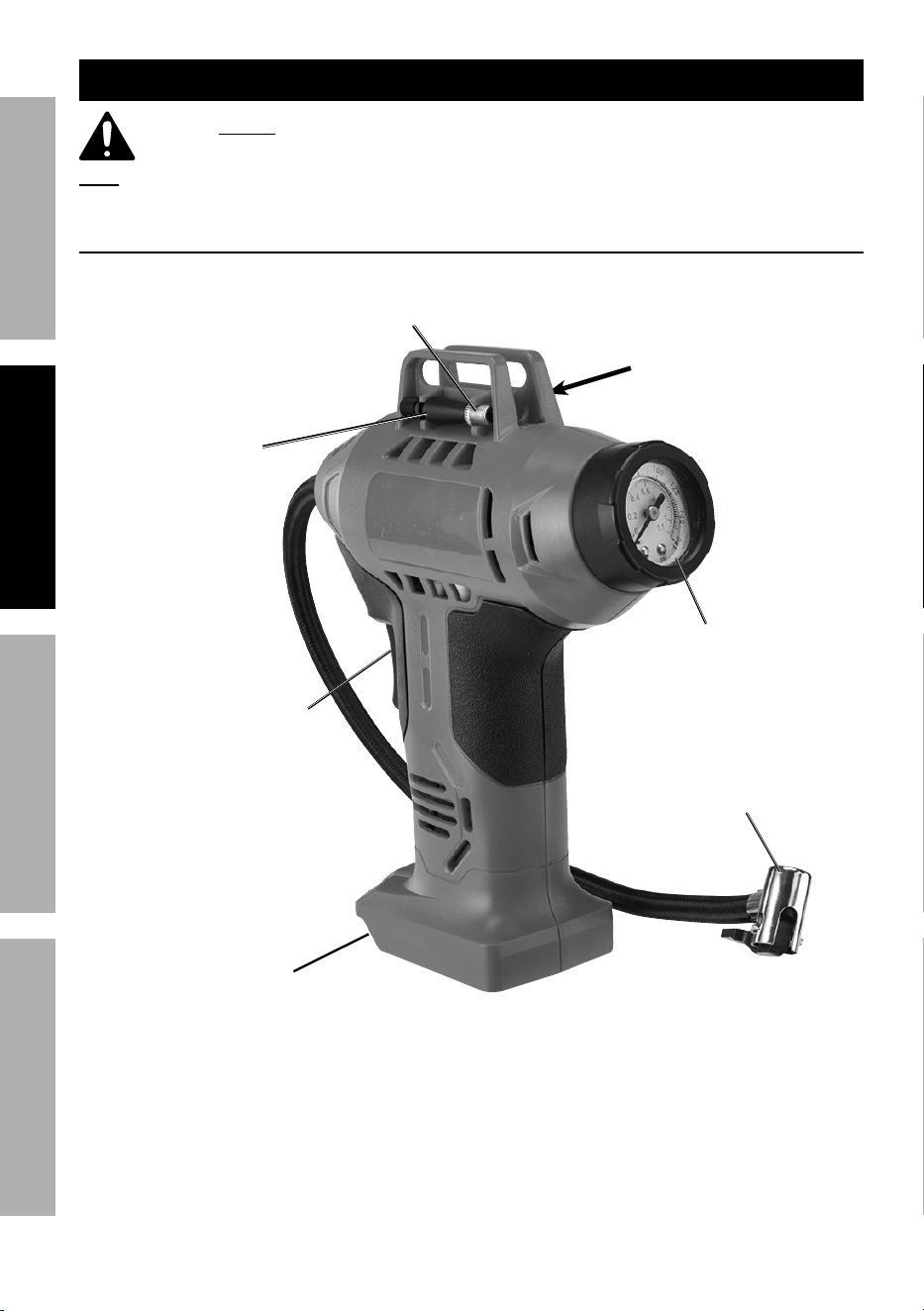

Functions
Battery
Receptacle
pressure
Gauge
tire inflator
trigger
Ball needle Adapter
(inside tapered Adapter)
tapered Adapter
presta
Bicycle tire Adapter
(other side)
Page 7For technical questions, please call 1-888-866-5797.Item 56546
SAFEtyOpERAtiOnMAintEnAncE SEtUp

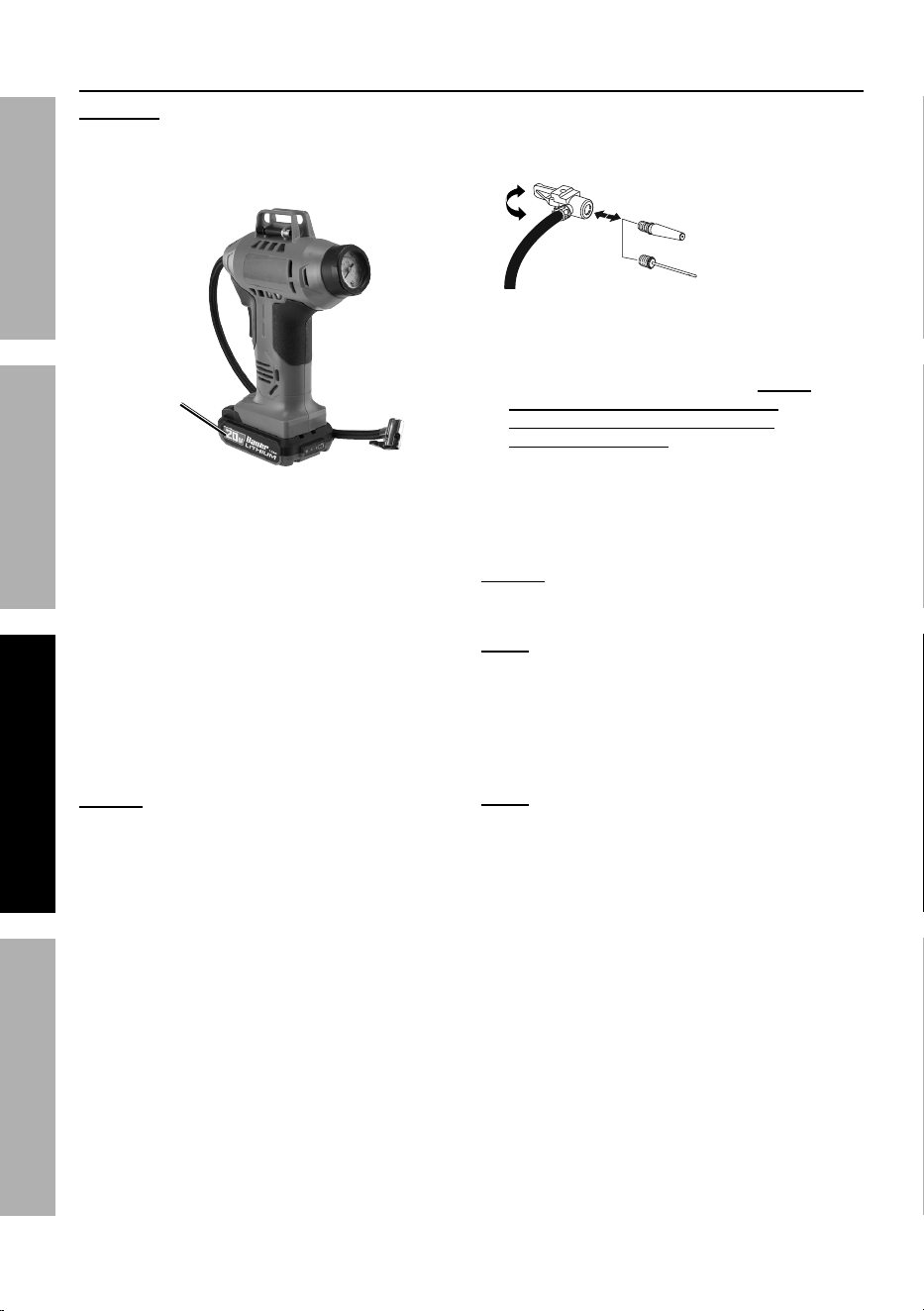

Operating instructions
Read the EntiRE iMpORtAnt SAFEty inFORMAtiOn section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
tool Set Up
Battery charging
Charge battery after unpacking and before using this tool. Follow
instructions included with battery charger (sold separately).
Work Area Set Up
1. Designate a work area that is clean and well lit.
The work area must not allow access by children
or pets to prevent distraction and injury.
2. There must not be objects, such as utility lines,
nearby that will present a hazard while working.
Page 8 For technical questions, please call 1-888-866-5797. Item 56546
SAFEty OpERAtiOn MAintEnAncESEtUp
General Operation
WARninG! tO pREVEnt inJURy AnD BLinDnESS,
wear AnSi-approved eye protection during use.
1. Insert a fully charged Battery Pack,
making sure it clicks into place.
Battery
pack
2. Inflating car tires: Remove the tire’s valve
cap. Move the Tire Inflator’s Lever straight
up and push it over tire’s valve stem. Move
the Lever to the locked position.
3. Inflating Bicycle tires:
a. Schrader Valve - Remove tire’s valve
cap. Move Tire Inflator’s Lever straight
up and push it over the tire’s valve stem.
Move the Lever to the locked position.
b. presta Valve - Remove tire’s valve cap. Open
the valve tip. Thread Presta Valve Adapter
on to valve stem. Move Tire Inflator’s Lever
straight up and push it over the Presta Valve
Adapter. Move the Lever to the locked position.
nOticE: Lock tire inflator firmly in
place before turning on the inflator.
4. Inflating Small inflatables:
a. Move Tire Inflator’s Lever straight up and insert
adapter. Move the Lever to the locked position.
tapered Adapter
Ball needle Adapter
b. Connect adapter to item to be inflated.
5. WARninG! tO pREVEnt SERiOUS inJURy
AnD DEAtH FROM EXpLOSiOn: Before
inflating, check item manufacturer’s
recommended air pressure. Do not
exceed that pressure. Over inflation
may result in an explosion.
6. To start inflating, squeeze the Trigger.
7. Stop inflating briefly and use the built-in
pressure Gauge to measure air pressure.
nOticE: the inflator can become hot during
use. Allow the inflator/Deflator to cool for 15
minutes after 10 minutes of continued use.
nOtE: When inflating items to 10 PSI or less, inflate in
short bursts and check item’s pressure after each burst.
8. To stop inflating, release the Trigger.
9. Disconnect inflatable and remove Battery
Pack after use. Clean, then store the
unit indoors out of children’s reach.
nOtE: Allow Inflator to cool 30
minutes before storing away.
Page 9For technical questions, please call 1-888-866-5797.Item 56546
SAFEtyOpERAtiOnMAintEnAncE SEtUp
Maintenance and Servicing
procedures not specifically explained in this manual must
be performed only by a qualified technician.
tO pREVEnt SERiOUS inJURy FROM AcciDEntAL OpERAtiOn:
Make sure that the trigger is in the off-position and remove its Battery
pack before performing any procedure in this section.
tO pREVEnt SERiOUS inJURy FROM tOOL FAiLURE:
Do not use damaged equipment. if abnormal noise or vibration
occurs, have the problem corrected before further use.
cleaning, Maintenance, and Lubrication
1. BEFORE EAcH USE, inspect the general
condition of the tool. Check for:
• leaking, swollen, or cracked battery pack,
• loose hardware,
• misalignment or binding of moving parts,
• cracked or broken parts, and
• any other condition that may
affect its safe operation.
2. AFtER USE, wipe external surfaces
of the tool with clean cloth.
3. Using vacuum, clean debris from
the external air vents.
4. Li-ion BAttERy MUSt BE REcycLED OR
DiSpOSED OF pROpERLy.
Do not open crush, heat above
140° F or incinerate.
5. Disconnect battery pack and store battery pack,
charger, and tool in dry, indoor area out of
reach of children and away from metal objects
(i.e., paperclips, coins) to prevent shorting.
Page 10 For technical questions, please call 1-888-866-5797. Item 56546
SAFEty OpERAtiOn MAintEnAncESEtUp
troubleshooting
problem possible causes Likely Solutions
Tool will not start. 1. Battery Pack not properly
connected.
2. Battery Pack not properly
charged.
3. Battery Pack burnt-out.
4. Internal damage or wear.
1. Remove Battery Pack, make sure there are no
obstructions, reinsert the Battery Pack according
to its shape (it should only fit one way), and press
firmly until the Battery Pack locks in place.
2. Make sure Charger is connected and
operating properly. Give enough time for
Battery Pack to recharge properly.
3. Dispose of old Battery Pack
properly or recycle. Replace Battery Pack.
4. Have technician service tool.
Tool operates slowly. 1. Forcing tool to work too fast.
2. Battery Pack wearing out.
1. Allow tool to work at its own rate.
2. Dispose of old Battery Pack
properly or recycle. Replace Battery Pack.
Excessive noise
or rattling.
Internal damage or wear. Have technician service tool.
Overheating. 1. Forcing tool to work too fast.
2. Blocked motor housing vents.
1. Allow tool to work at its own rate.
2. Using vacuum, clean debris from Air Intake vents.
Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect Battery pack and charger power supply before service.
pLEASE READ tHE FOLLOWinG cAREFULLy
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Page 11For technical questions, please call 1-888-866-5797.Item 56546
SAFEtyOpERAtiOnMAintEnAncE SEtUp
parts List and Diagram
part Description Qty
1 Pressure Gauge Cover 1
2 Pressure Gauge 1
3 Left Housing 1
4 Tire Inflator 1
5 Ball Needle Adapter 1
6 Tapered Adapter 1
7 Tube 1
8 Hose Clamp 2
9 Rubber Foot 2
part Description Qty
10 Pump Assembly 1
11 Switch 1
12 Trigger 1
13 Presta Adapter 1
14 Right Housing 1
15 Hose 1
16 Self-Tapping Screw 2
17 Protector Panel 1
Record product’s Serial number Here:
note: if product has no serial number, record month and year of purchase instead.
note: Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.
26541 Agoura Road • calabasas, cA 91302 • 1-888-866-5797
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability
standards, and warrants to the original purchaser that this product is free from defects in materials
and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to
damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside
our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance.
We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent,
special or consequential damages arising from the use of our product. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation of exclusion
may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
