Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back
of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep
this manual and the receipt in a safe and dry place for future reference. 19b
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright
©
2018 by Harbor Freight Tools
®
. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
To ols required for assembly and serv ic e ma y n ot b e i nc lu de d.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Page 2 For technical questions, please call 1-888-866-5797. Item 64825
SAFEty OpERAtiOn MAintEnAncESEtUp
table of contents
Safety ......................................................... 2
Specifications ............................................. 7
Setup .......................................................... 7
Operation .................................................... 9
Maintenance .............................................. 11
Warranty .................................................... 12
WARninG SyMBOLS AnD DEFinitiOnS
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
iMpORtAnt SAFEty inFORMAtiOn
General power tool Safety Warnings
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term ″power tool″ in the warnings refers to your battery-operated (cordless) power tool.
Work Area Safety
1. Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
2. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
3. Keep children and bystanders
away while operating a power tool.
Distractions can cause you to lose control.
Page 3For technical questions, please call 1-888-866-5797.Item 64825
SAFEtyOpERAtiOnMAintEnAncE SEtUp
Electrical Safety
Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric shock.
personal Safety
Stay alert, watch what you are doing and use common sense when operating a power tool. Do not
use a power tool while you are tired or under the influence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result in serious personal injury.
power tool Use and care
1. Do not use the power tool if the Switch
does not turn it on and off.
Any power tool that cannot be controlled with the
Switch is dangerous and must be repaired.
2. Disconnect the battery pack from the
power tool before making any adjustments,
changing accessories, or storing power
tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
3. Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
4. Maintain power tools. check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. if damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
5. Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the
power tool for operations different from those
intended could result in a hazardous situation.
Page 4 For technical questions, please call 1-888-866-5797. Item 64825
SAFEty OpERAtiOn MAintEnAncESEtUp
Battery tool use and care
1. Recharge only with the charger specified by
the manufacturer. A charger that is suitable
for one type of battery pack may create a risk
of fire when used with another battery pack.
2. Use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury and fire.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from
one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
4. Under abusive conditions, liquid may be
ejected from the battery; avoid contact.
if contact accidentally occurs, flush with water.
if liquid contacts eyes, additionally seek
medical help. Liquid ejected from the
battery may cause irritation or burns.
Service
Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
Additional Safety Warnings
1. Maintain labels and nameplates on the tool.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
2. Avoid unintentional starting.
Prepare to begin work before turning on the tool.
3. Do not leave the tool unattended when the
Battery Pack is connected. Turn off the tool,
and remove the Battery Pack before leaving.
4. The battery Charger gets hot during
use. The Charger’s heat can build up to
unsafe levels and create a fire hazard if
it does not receive adequate ventilation,
due to an electrical fault, or if it is used in a hot
environment. Do not place the Charger on a
flammable surface. Do not obstruct any vents on
the Charger. Especially avoid placing the
charger on carpets and rugs; they are not only
flammable, but they also obstruct vents under
the charger.
Place the Charger on a stable, solid, nonflammable
surface (such as a stable metal workbench or
concrete floor) at least 1 foot away from all
flammable objects, such as drapes or walls. Keep
a fire extinguisher and a smoke detector in the
area. Frequently monitor the Charger and
Battery Pack while charging.
5. This product is not a toy.
Keep it out of reach of children.
6. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in
close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure.
7. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.
Page 5For technical questions, please call 1-888-866-5797.Item 64825
SAFEtyOpERAtiOnMAintEnAncE SEtUp
Lithium Battery Safety Warnings
LitHiUM BAttERiES StORE
A LARGE AMOUnt OF EnERGy AnD
WiLL VEnt FiRE OR EXpLODE iF MiStREAtED:
1. Keep Battery pack dry.
2. DO nOt DO Any OF tHE FOLLOWinG
tO tHE BAttERy pAcK:
a. Open,
b. Drop,
c. Short-circuit,
d. puncture,
e. incinerate, or
f. Expose to temperatures greater than 140°F.
3. Charge Battery Pack only according
to its Charger’s instructions.
4. Inspect Battery Pack before every use;
do not use or charge if damaged.
5. Li-ion BAttERy MUSt BE REcycLED
OR DiSpOSED OF pROpERLy.
SAVE tHESE inStRUctiOnS.
Page 6 For technical questions, please call 1-888-866-5797. Item 64825
SAFEty OpERAtiOn MAintEnAncESEtUp
Grounding
tO pREVEnt ELEctRic SHOcK AnD DEAtH FROM incORREct GROUnDinG:
check with a qualified electrician if you are in doubt as to whether the outlet is properly
grounded. Do not modify the power cord plug provided with the charger. Do not use the charger
if the power cord or plug is damaged. if damaged, have it repaired by a service facility before
use. if the plug will not fit the outlet, have a proper outlet installed by a qualified electrician.
Extension cords
note: Extension cords must not be used with this item’s Charger.
Symbology
Double Insulated
V
Volts
~
Alternating Current
A
Amperes
WARNING marking concerning Risk
of Eye Injury. Wear ANSI-approved
safety goggles with side shields.
Read the manual before
set-up and/or use.
WARNING marking concerning
Risk of Hearing Loss.
Wear hearing protection.
WARNING marking
concerning Risk of Fire.
Do not cover Charger
ventilation ducts.
Charge on fireproof surface only.
WARNING marking concerning
Risk of Electric Shock.
Properly connect Charger’s power
cord to appropriate outlet.
WARNING marking concerning
Risk of Explosion.
Do not puncture, short, or open
battery packs and do not charge
damaged battery packs.
Page 7For technical questions, please call 1-888-866-5797.Item 64825
SAFEtyOpERAtiOnMAintEnAncE SEtUp
Specifications
Battery Type 20V Bauer Li-Ion (sold separately)
Radio Bandwidth
AM: 522 - 1620 kHz
FM: 87.5 - 108 MHz
USB Output 5 VDC, 2.1A (max)
Setup - Before Use:
Read the EntiRE iMpORtAnt SAFEty inFORMAtiOn section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.

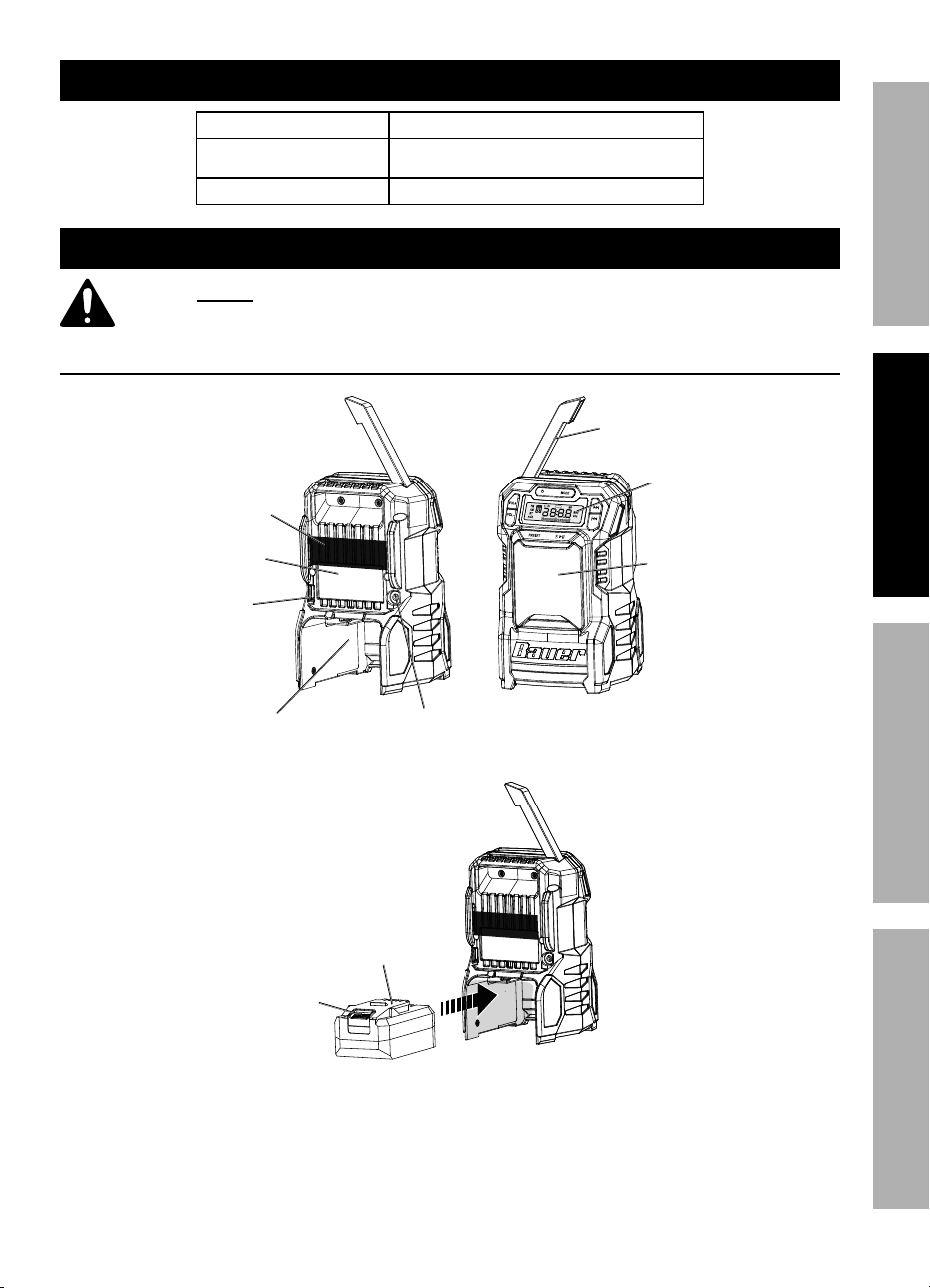

Functions
USB 5V
VOLUME
pRESEt
Antenna
Display
USB
connector
Battery
Receptacle
Auxiliary Stereo
Jack
Mp3 player
Storage
Strap
Speaker
Battery
(sold separately)
Latch
For Best Results Use 3.0
Amp Hour Battery
Page 8 For technical questions, please call 1-888-866-5797. Item 64825
SAFEty OpERAtiOn MAintEnAncESEtUp

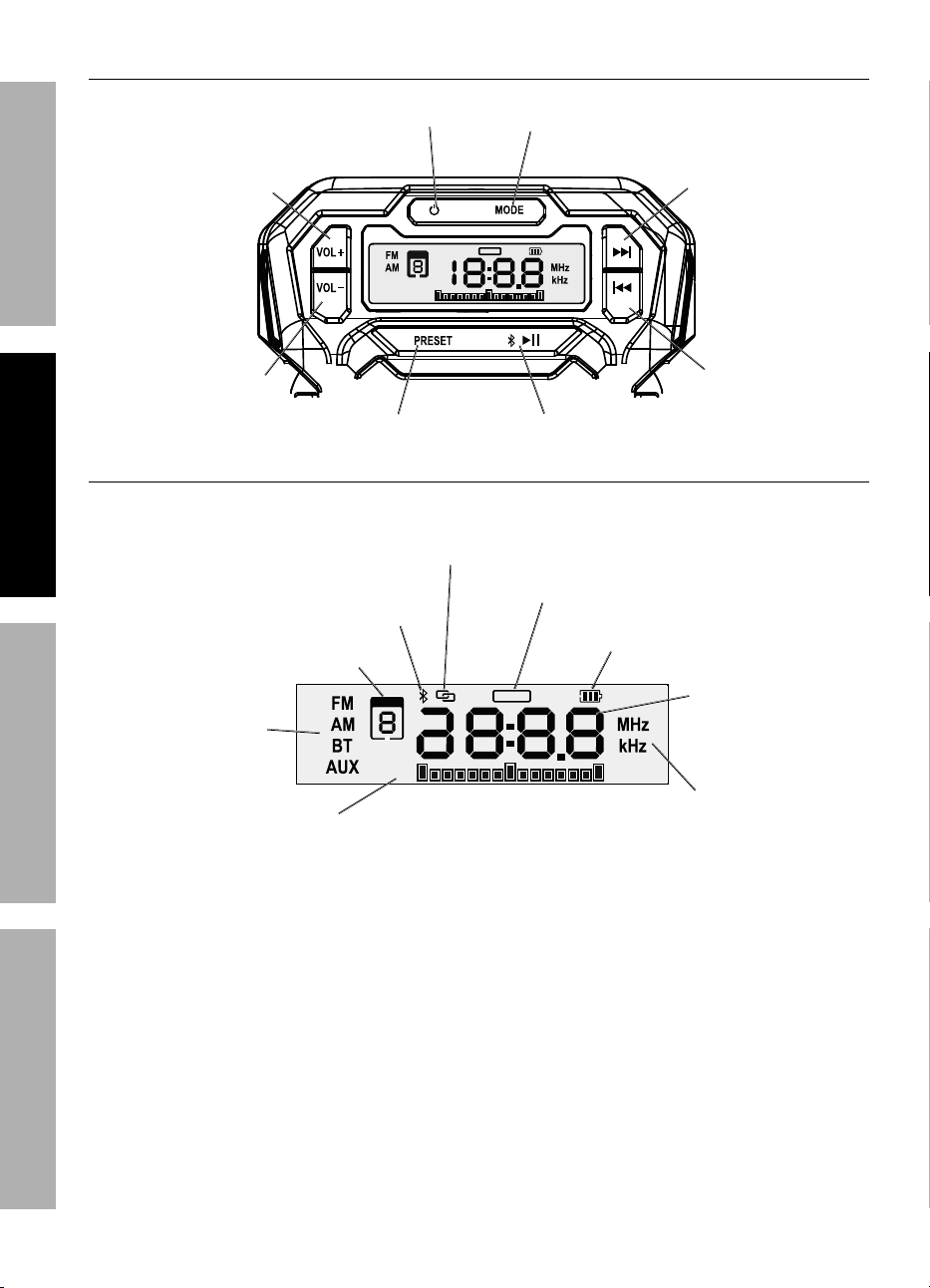

Front panel control Buttons
USB 5V
VOLUME
pRESEt
power
Mode
Search
Forward
Search
Backward
Bluetoothpreset
Volume
Up
Volume
Down
Display
Q-Radio station memory number.
USB 5V
VOLUME
pRESEt
Radio Station
Memory
Bluetooth
Activated
Bluetooth
connected
(synced) to Device
Remaining
Battery power
Level
USB power
Output
Radio
Bandwidth
Volume
Level
Frequency
Selected
Mode
Selections
Page 9For technical questions, please call 1-888-866-5797.Item 64825
SAFEtyOpERAtiOnMAintEnAncE SEtUp
Operating instructions
Read the EntiRE iMpORtAnt SAFEty inFORMAtiOn section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
Battery charging and connection to Radio
Charge battery after unpacking and before using this tool. Follow instructions included
with battery charger. Battery pack and charger sold separately.
Attach the Battery Pack to the Radio by sliding it into the Radio’s Battery Receptacle.
Remove the Battery by pressing its Latch and pulling the Battery out.

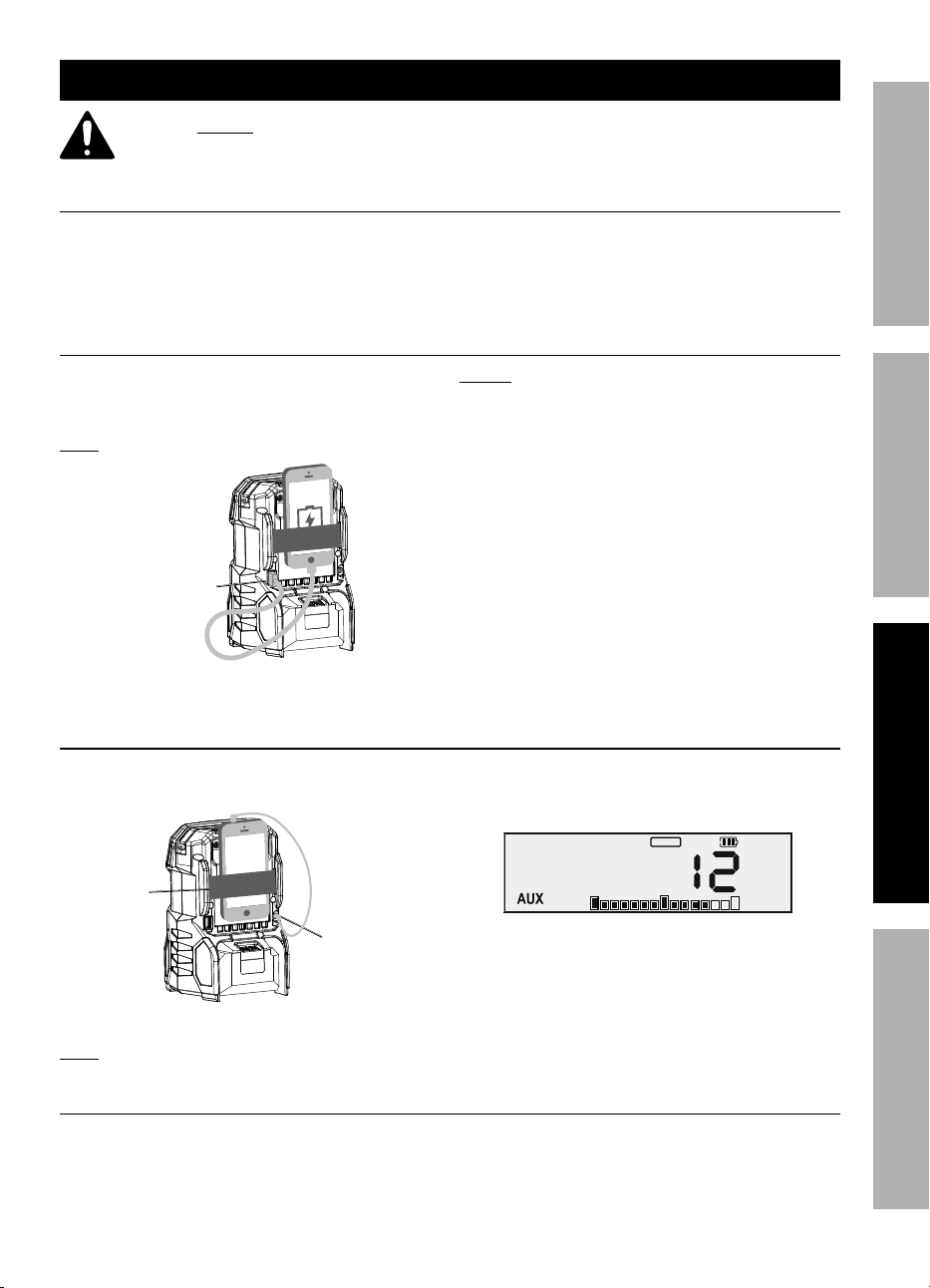

charging Auxiliary Device
1. To charge a MP3 player, or similar device that
uses 2.1A or less at 5 VDC, connect its USB cable
to the Radio’s USB connector. See Figure A.
note: USB cable not included.
USB
connector
Figure A: USB power connection
notice: If the player/device uses more than 2.1A,
the Radio’s self-resetting overload protection
will be tripped and temporarily disable the
output. Disconnect the device and, after a few
minutes, the output will be active again.
2. To prevent accidents, turn off the tool and
remove its Battery Pack after use. Clean, then
store the tool indoors out of children’s reach.
connecting Audio cable
1. Connect an Auxiliary device (Ex: MP3 player)
to the Auxiliary Stereo Jack. See Figure B.
Auxiliary
Stereo
Jack
Strap
Figure B: Audio Output connection
note: The player and cables are not included.
2. Once the Auxiliary device is connected, power on
the Radio and press the MODE button several times
until AUX is seen on the Display. See Figure C.
USB 5V
VOLUME
Figure c: Auxiliary mode
3. The strap on the Radio’s back panel can be used
to secure a MP3 player to the MP3 Storage Area.
4. To prevent accidents, turn off the tool and
remove its Battery Pack after use. Clean, then
store the tool indoors out of children’s reach.

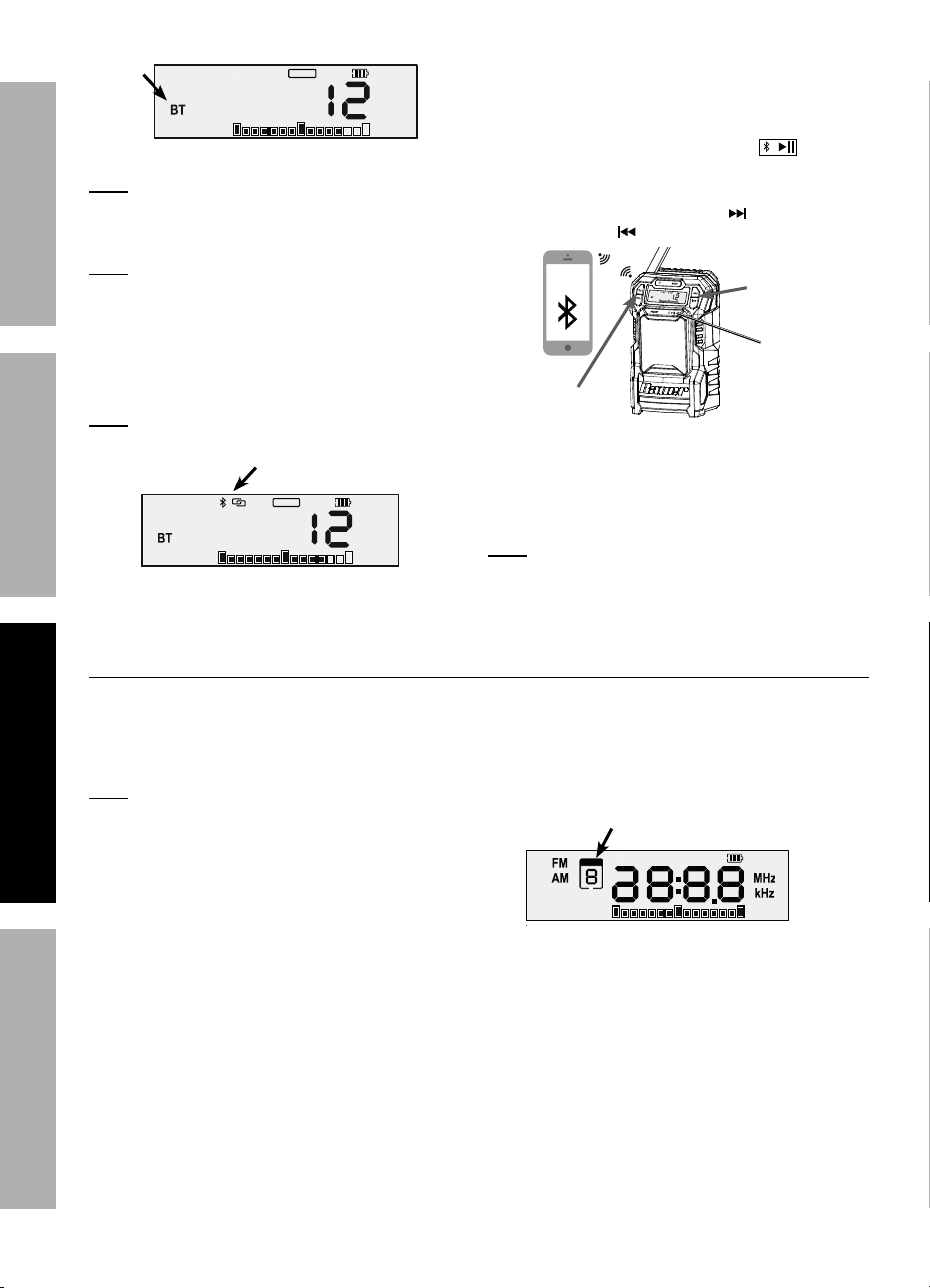

connecting Bluetooth (audio file playback)
1. Power on the Radio and press the MODE
button several times until BT is seen
on the Display. See Figure D.
Page 10 For technical questions, please call 1-888-866-5797. Item 64825
SAFEty OpERAtiOn MAintEnAncESEtUp
USB 5V
VOLUME
Figure D: Enabling Bluetooth Mode
note: The Radio will beep when BT Mode is selected.
2. Activate your mobile device’s (ex: MP3
player, Smartphone) Bluetooth feature.
note: Mobile device not included.
3. If the device has detected the Radio, the word
“BAUER” will be seen on its screen, select it.
4. Successful connection (sync) is indicated when
the Bluetooth symbols are seen on the Radio’s
Display and the Radio will beep. See Figure E.
note: Several connection attempts may be
necessary to achieve a successful sync.
USB 5V
VOLUME
Bluetooth Symbols
Figure E: Bluetooth connection
5. When synced, the Radio can control playback
of audio files on the device (see Figure F):
• The first audio file listed on the device will
start playing through the Radio once sync is
achieved. Press the Bluetooth button
to pause playback and again to resume.
• Control volume by pressing the VOL +/- buttons.
• Press the Search Forward and
Backward buttons to select other audio files.
SCAN
U
S
B 5
V
VOLUME
Volume
track
Selection
Bluetooth
Button
Figure F: Bluetooth controls
6. Disconnect the Radio from the device by
press and holding the Bluetooth button
for more than 2 seconds, or deactivate
the Bluetooth feature on the device.
note: The Radio will beep if the Bluetooth sync
connection is lost or Mode is changed.
7. To prevent accidents, turn off the tool and
remove its Battery Pack after use. Clean, then
store the tool indoors out of children’s reach.
Radio Operation
1. Pull up the Antenna if folded down.
2. Turn the Radio ON by pressing the
POWER button. The Display will illuminate
when the Radio is powered ON.
note: The Display will dim after approximately
30 seconds of no button being touched.
3. Volume is increased by pressing the VOL+ button
and decreased by pressing the VOL– button.
4. Press the MODE button to scroll and select the
Mode desired: AM or FM radio, BT (Bluetooth),
or Aux (external device, Ex: MP3 player).
5. to play a radio station:
a. Press the MODE button to select AM or FM.
b. Press the Search Forward or Backward
buttons to scroll through stations. The
current frequency is shown on the Display.
c. To jump to the next radio station with high
signal strength, press and briefly hold
Search Forward or Backward button.
6. to store a radio station:
a. Tune in the station desired by pressing the
Selection Forward or Backward buttons.
b. Press and hold the PRESET button
until the Radio Station Memory
symbol blinks (see Figure G).
VOLUME
pRESEt
Radio Station Memory Symbol
Figure G: Radio
c. Store the station by pressing and
releasing the PRESET button.
d. Press either Search Forward or Backward
button to escape the Preset Mode.
7. to listen to a stored radio station, press
the PRESET button to scroll through the
stored stations. Stop when the desired
station’s frequency is displayed.
8. To prevent accidents, turn off the tool and
remove its Battery Pack after use. Clean, then
store the tool indoors out of children’s reach.
Page 11For technical questions, please call 1-888-866-5797.Item 64825
SAFEtyOpERAtiOnMAintEnAncE SEtUp
Maintenance and Servicing
procedures not specifically explained in this manual must
be performed only by a qualified technician.
tO pREVEnt SERiOUS inJURy FROM AcciDEntAL OpERAtiOn:
Make sure that the Switch is in the off-position and remove the Battery
pack before performing any procedure in this section.
tO pREVEnt SERiOUS inJURy FROM tOOL FAiLURE:
Do not use damaged equipment. if abnormal noise or vibration
occurs, have the problem corrected before further use.
cleaning, Maintenance, and Lubrication
1. BEFORE EAcH USE, inspect the general
condition of the tool. Check for:
• leaking, swollen, or cracked battery pack
• loose hardware
• misalignment or binding of moving parts
• cracked or broken parts
• any other condition that may
affect its safe operation.
2. AFtER USE, wipe external surfaces
of the tool with clean cloth.
3. Disconnect battery pack and store battery pack,
charger, and tool in dry, indoor area out of
reach of children and away from metal objects
(i.e., paperclips, coins) to prevent shorting.
4. Li-Ion BATTERY MUST BE RECYCLED OR
DISPOSED OF PROPERLY. Do not open,
crush, heat above 140° F or incinerate.
26541 Agoura Road • calabasas, cA 91302 • 1-888-866-5797
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability
standards, and warrants to the original purchaser that this product is free from defects in materials
and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to
damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside
our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance.
We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent,
special or consequential damages arising from the use of our product. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation of exclusion
may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
Record product’s Serial number Here:
note: if product has no serial number, record month and year of purchase instead.
note: there are no serviceable parts for this item.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
