Item #434-940, 526-012, 1001 223 284
Model #52869, 52860, 26829
USE AND CARE GUIDE
INDUSTRIAL 60-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store call
Hampton Bay Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday.
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and condence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
2
Table of Contents ................................................................2
Safety Information ...............................................................2
Warranty ............................................................................... 3
Pre-Installation ....................................................................3
Installation ............................................................................6
Assembly ..............................................................................7
Operation ...........................................................................12
Care and Cleaning ............................................................. 13
Troubleshooting .................................................................13
1. All wiring must be in accordance with the National Electrical
Code ANSI/NFPA 70-1999 and local electrical codes. Electrical
installation should be performed by a qualified licensed
electrician.
2. The outlet box and support structure must be securely mounted
and capable of reliably supporting 35 lbs. (15.9kg). Use only UL
Listed outlet boxes marked “Acceptable for Fan Support of 35
lbs. (15.9kg) or less.””
3. The fan must be mounted with a minimum of 10 ft (3 m)
clearance from the trailing edge of the blades to the oor.
4. Do not operate the reversing switch while the fan blades are
in motion. You must turn the fan off and stop the blades before
you reverse the blade direction.
5. Do not place objects in the path of the blades.
6. Electrical diagrams are for reference only.
7. After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
outlet box.
8. All set screws must be checked and retightened where
necessary before installation.
WARNING: To reduce the risk of personal injury,
do not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do not
insert objects in the path of the blades.
WARNING: To reduce the risk of re or electric
shock, do not use this fan with any solid-state speed
control device.
WARNING: To avoid possible electrical shock,
turn the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
WARNING: To reduce the risk of shock, this fan must
be installed with a wall-control/switch.
WARNING: To reduce the risk of re, electric shock or
personal injury, wire only a single wall-control panel/
switch and ceiling fan unit together. Wiring two or
more ceiling fans to any wall-control panel/switch
may cause the circuitry to fail by overheating. Please
do not attempt to defeat this feature of the ceiling
fan system as doing so will void the warranty, both
explicit and implicit stipulations thereof.
Safety Information
Table of Contents
CAUTION: To reduce the risk of personal injury,
use only the screws provided with the outlet box.
CAUTION: To avoid personal injury or damage to the fan
and other items, use caution when working around or
cleaning the fan.
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“Acceptable for fan support of 35lbs. (15.9kg) or
less”, and use screws provided with the outlet box.
3
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Pre-Installation
Warranty
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a life-
time after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic blades,
to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date of purchase
by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior model if the
product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling
the product are your responsibility. Damage to any part such as by accident or misuse or improper installation or by afxing any accessories, is
not covered by this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish, including rusting,
pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying weather conditions.
A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the
warranty invalid. There is no other express warranty. Hampton Bay hereby disclaims any and all warranties, including but not limited to those
of merchantability and tness for a particular purpose to the extent permitted by law. The duration of any implied warranty which cannot be
disclaimed is limited to the time period as specied in the express warranty. Some states do not allow a limitation on how long an implied war-
ranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental, consequential, or special damages arising
out of or in connection with product use or performance except as may otherwise be accorded by law. Some states do not allow the exclusion of
incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you
may also have other rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product
as part of a claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.HamptonBay.com

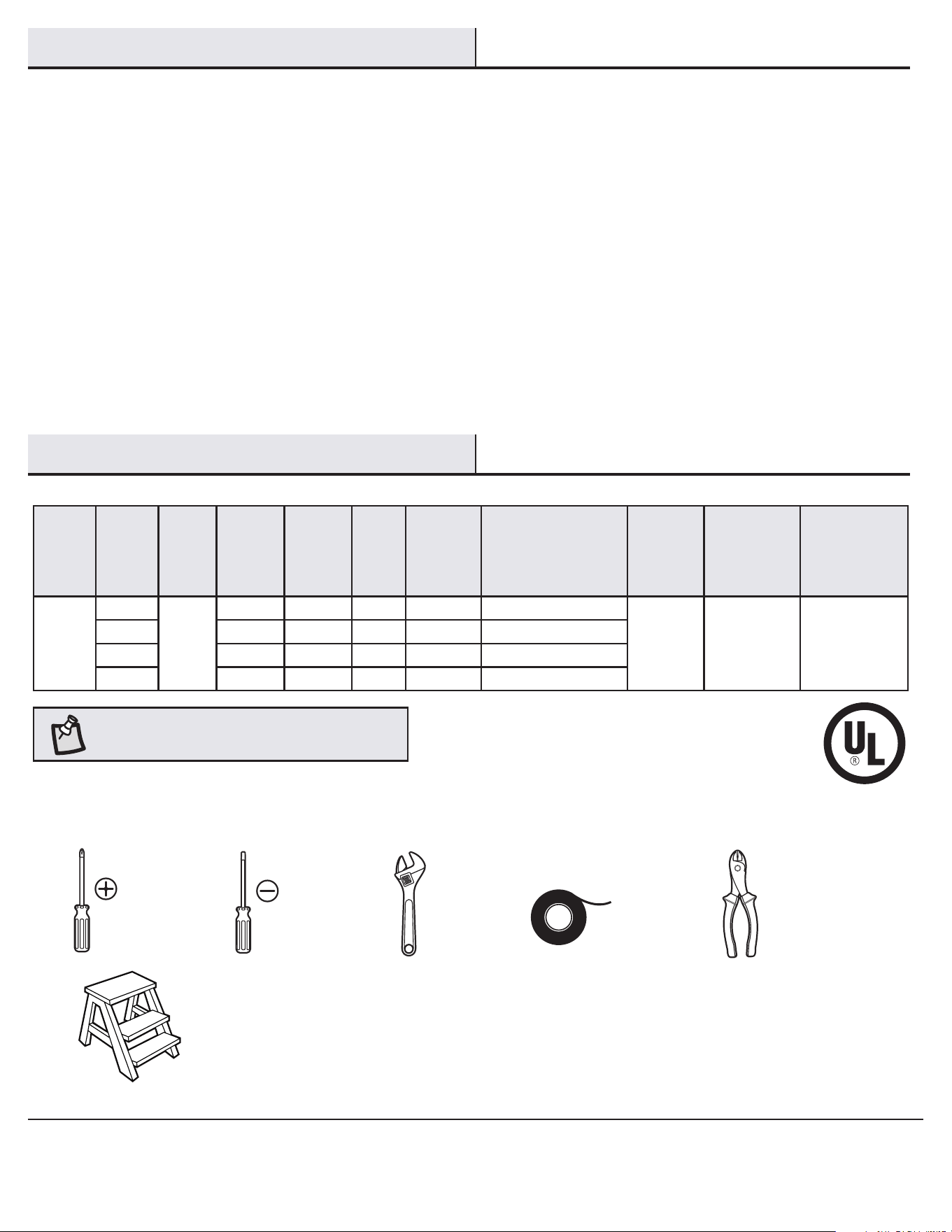

SPECIFICATIONS
TOOLS REQUIRED
NOTE: Measured according to Energy STAR
®
approved
Solid State test method.
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter
Step ladder
Size Speed Volts Amps
Power
Use
(WATT)
RPM
Airow
CFM
Airow Efciency
(Higher Is Better)
CFM/WATT
Net
Weight
Gross
Weight
Cube Feet
60 in.
Low
120
0.41 17 64 3709 218
17.64 lbs
(8 kgs)
19.4 lbs
(8.8 kgs)
1.43’
Medium 0.59 34 111 5570 164
High 1 0.89 81 161 8702 107
High 2 1.04 118 194 9999 84
4
Part Description Quantity
AA J wood screw 1
BB Canopy mounting screw 4
CC Canopy mounting lock washer 4
DD Plastic wire connector 6
EE Hanger bolt 1
FF Flat washer 1
GG Hexagonal nut 1
HH Lockwasher 1
Part Description Quantity
II Control mounting screw 2
JJ Control mounting screw 2
KK Lockwasher 6
LL Flat washer 6
MM Screw 6
NN Split pin 1
Pre-Installation (continued)

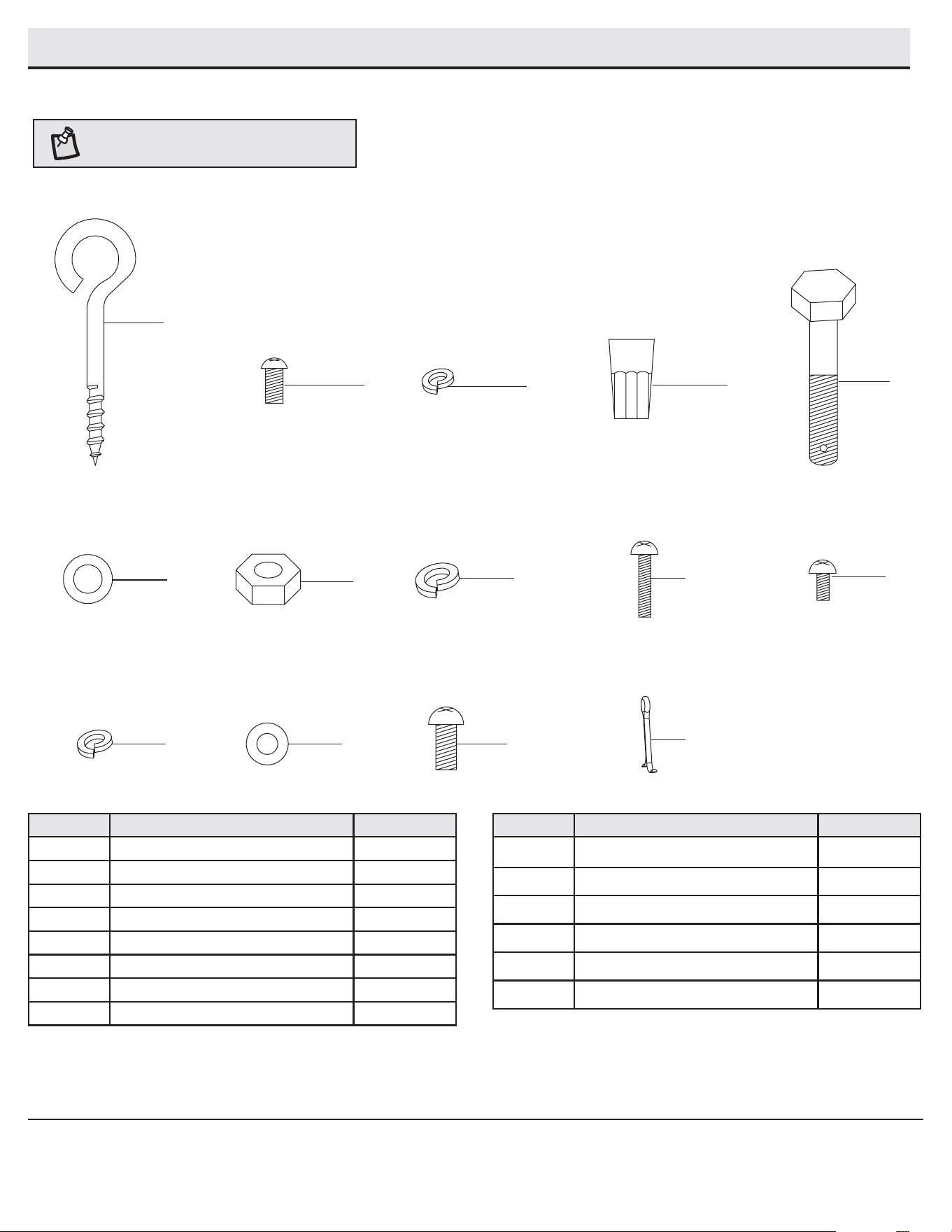

HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
AA
BB
FF
KK LL MM
NN
GG
HH II
JJ
CC
DD
EE
5
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Part Description Quantity
A Mounting bracket 1
B Ball/downrod assembly 1
C Canopy 1
D Coupler cover 1
Part Description Quantity
E Blade 3
F Wall control 1
G Motor 1
IMPORTANT: This product and/or components are
governed by one or more of the following U.S. Patents:
5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117
and other patents pending.
Pre-Installation (continued)

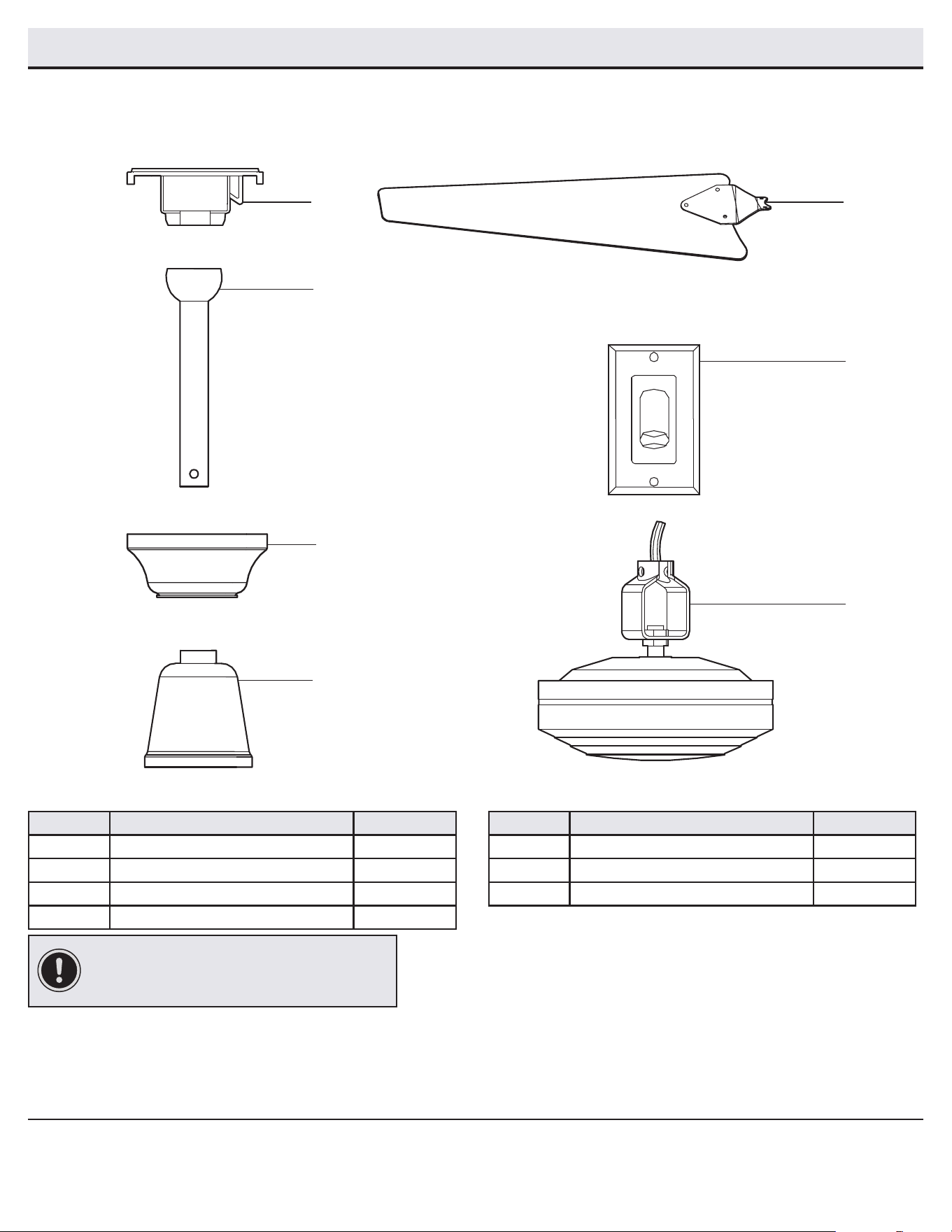

PACKAGE CONTENTS
A
B
C
D
E
F
G
6
Installation
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“Acceptable for fan support of 35lbs. (15.9kg) or less”,
and use screws provided with the outlet box. An outlet
box commonly used for the support of lighting xtures
may not be acceptable for fan support and may need to
be replaced. If in doubt, consult a qualied electrician.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□ Disconnect the power by removing the fuses or turning off
the circuit breakers.
□ Secure the outlet box directly to the building structure.
Use the appropriate fasteners and materials. The outlet
box and support structure must be securely mounted and
capable of reliably supporting 35 lbs. (15.9kg). Use only UL
Listed outlet boxes marked “Acceptable for Fan Support of
35 lbs. (15.9kg) or less.”. Do not use a plastic outlet box.

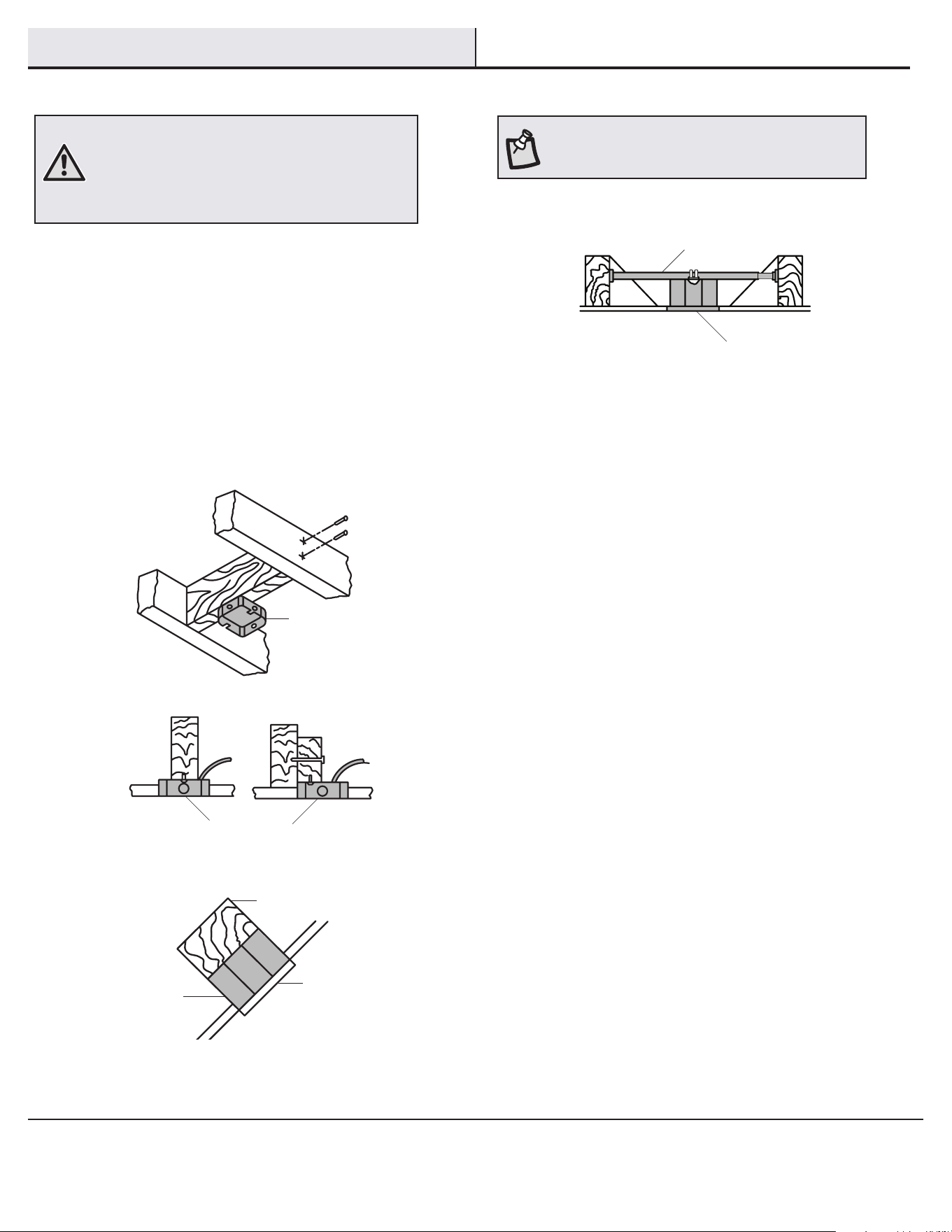

The illustrations below show three different ways to mount the
outlet box.
If the canopy touches the downrod, then remove the decorative canopy
bottom cover, and turn the canopy 180° before attaching the canopy to
the mounting plate.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown above
(available at any Home Depot store).
NOTE: You may need a longer downrod to maintain
proper blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 30° away from
horizontal.
Outlet Box
Outlet Box
Recessed
Outlet
Box
Provide Strong
Support
Ceiling
Mounting
Plate
Outlet Box
Hanger Bar
7
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly

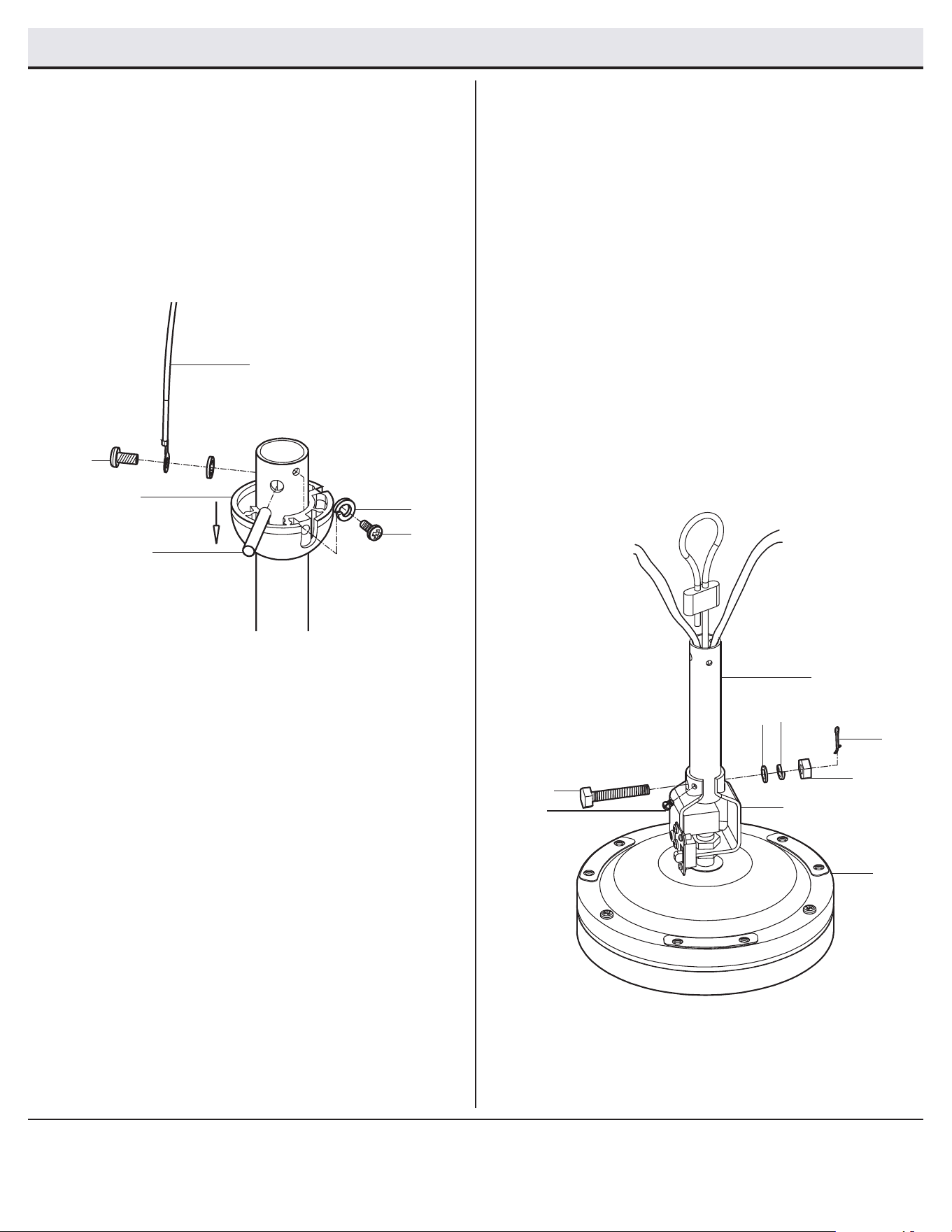

Installing the downrod
□ Route the wires exiting the top of the motor housing (G)
through the downrod (B).
□ Loosen the set screw (ZZ) from the coupler (J).
□ Insert the downrod (B) into the coupler (J) on the top of the
motor housing (G).
□ Align the holes at the bottom of the downrod (B) with the holes
in the coupler (J) and insert the hanger bolt (EE).
□ Secure the hanger bolt (EE) using the at washer (FF),
lockwasher (HH), and the hexagonal nut (GG).
□ Insert the split pin (NN) into the end of the hanger bolt (EE) and
split the ends of the split pin (NN) apart to secure the hanger
bolt (EE).
□ Tighten the set screw (ZZ) rmly.
2
B
NN
G
GG
FF
HH
J
EE
ZZ
Dismantling the ball/downrod
assembly
□ Loosen the hanger ball (H) by removing the set screw
(PP) and lockwasher (QQ) at the top of the downrod (B)
which holds the hanger ball to the downrod.
□ Slide the hanger ball (H) down the downrod (B) and
remove the support pin (RR).
□ Unscrew the green groundwire (I) located at the top of
the downrod (B) by unscrewing the screw (SS) on the
downrod (B).
1
I
PP
QQ
H
SS
RR
8

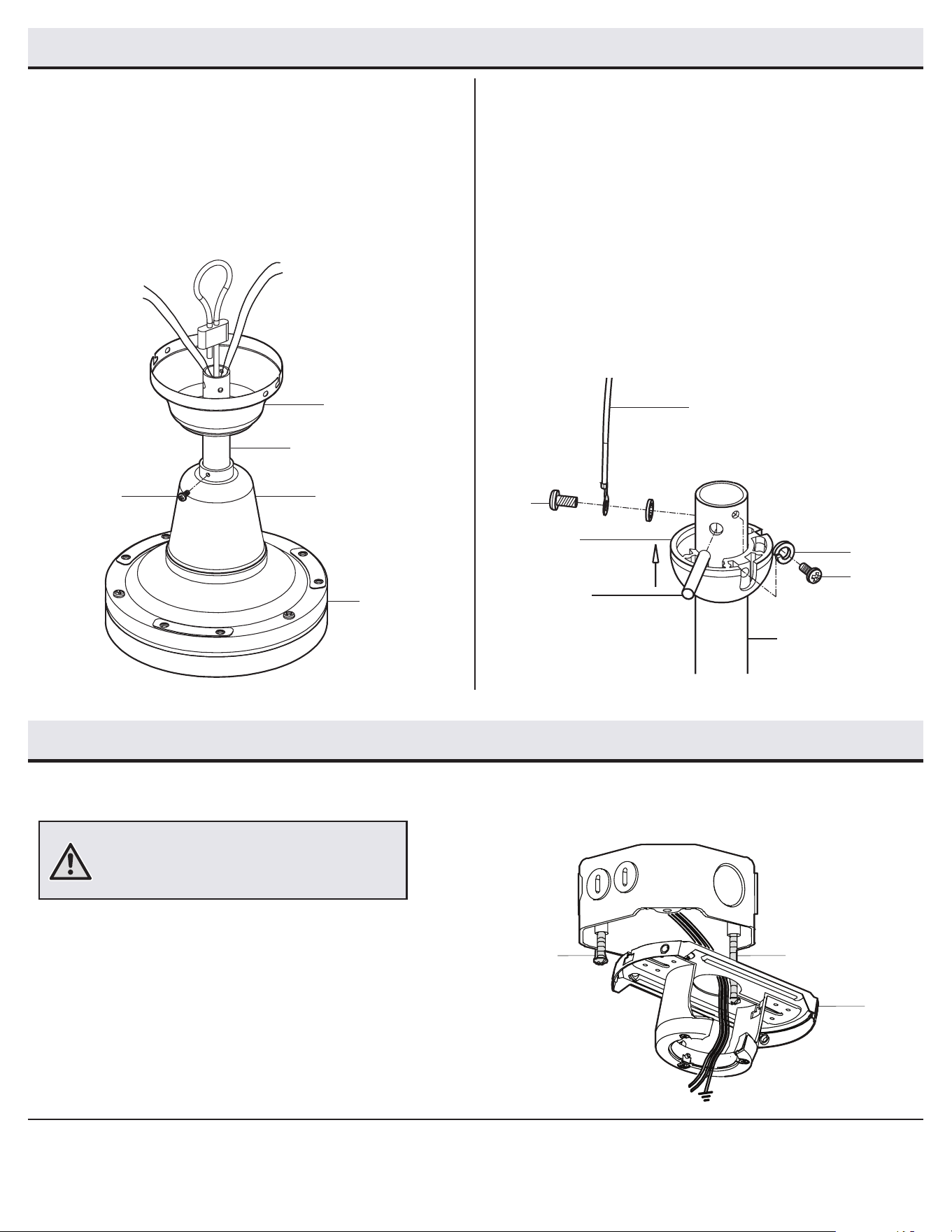

Assembly (continued)
Assembly - Hanging the Fan
Installing the coupler cover and
canopy
□ Slide the coupler cover (D) onto the downrod (B) and push the
coupler cover (D) until it rests on the top of the motor housing
(G).
□ Tighten the set screw (ZZ) to secure the coupler cover (D) onto
the downrod (B).
□ Slide the canopy (C) onto the downrod (B).
3
D
B
ZZ
G
C
Installing the ball on the downrod
Installing the mounting bracket
□ Pass the 120-Volt supply wires through the center hole in the
mounting bracket (A).
□ Install the ceiling mounting plate on the outlet box by sliding the
mounting bracket (A) over the two screws (TT) provided with the
outlet box. If necessary, use leveling washers (not included) be-
tween the mounting bracket (A) and the outlet box. Note that the
at side of the mounting bracket (A) is toward the outlet box.
□ Securely tighten the two mounting screws (TT).
4
5
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“Acceptable for fan support of 35lbs. (15.9kg) or
less”, and use screws provided with the outlet box.
TT
A
TT
□ Slide the hanger ball (H) onto the top of the downrod (B)
past the holes in the downrod (B).
□ Re-attach the green ground wire (I) to the downrod using
the screw (SS) and washer that were removed in step 1.
□ Slide the ball (H) up and align the holes in the ball (H) and
downrod (B). Make sure the support pin (RR) aligns in the
slot of the ball (H).
□ Replace the support pin (RR) into the holes located at the
top of the downrod (B).
□ Screw the set screw (PP) and lockwasher (QQ) into the hole
in the ball (H) and downrod (B) to secure the ball.
I
PP
B
QQ
H
SS
RR
9
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly - Hanging the Fan (continued)

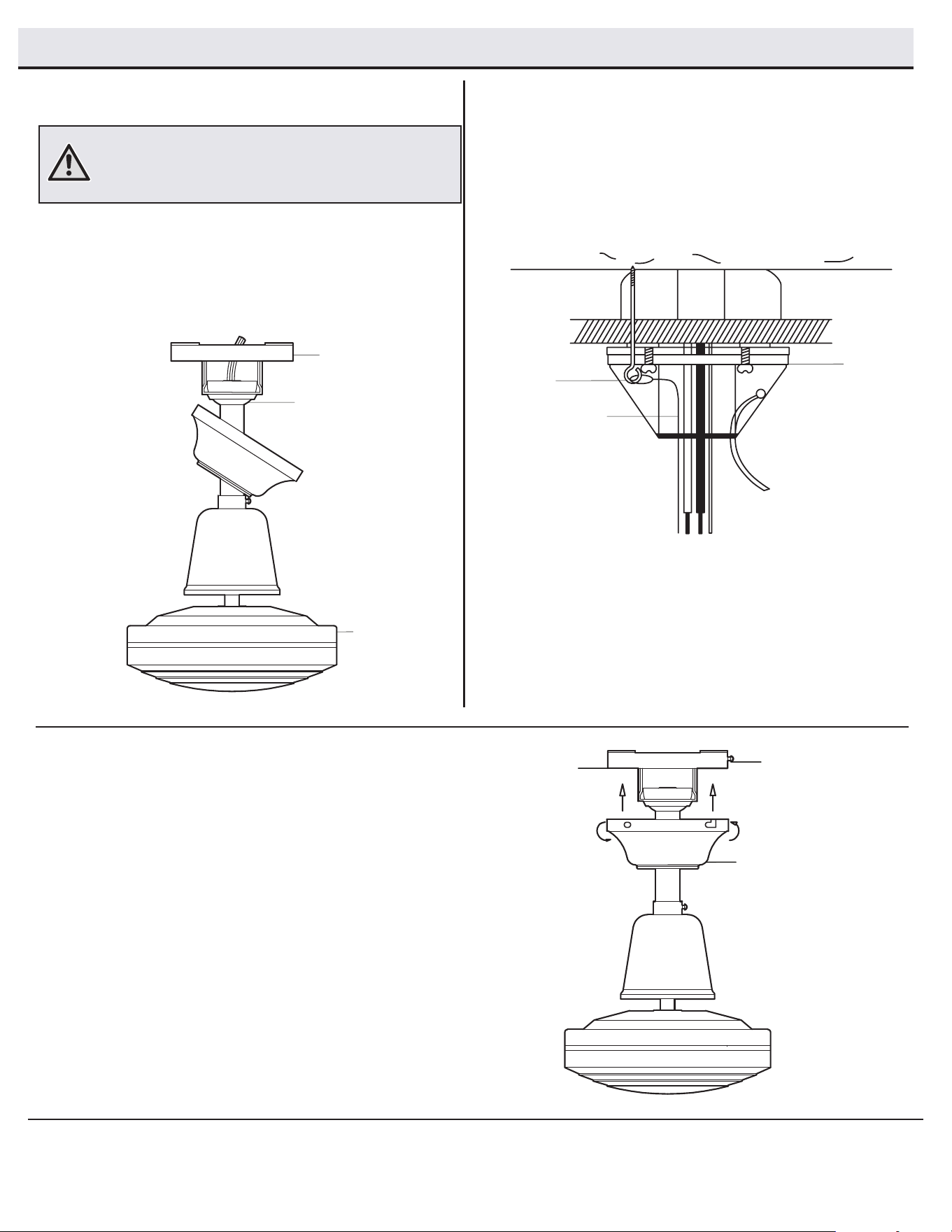

Connecting the safety cable
□ Turn the wood screw (AA) into the ceiling.
□ Place the looped end of the safety cable (K) onto the wood
screw (AA) and then tighten the screw rmly, or connect the
safety cable directly to the outer joist or mounting bracket (A).
7
AA
K
A
Hanging the fan
□ Carefully lift the fan motor assembly (G) up to the mounting
bracket (A).
□ Seat the hanger ball portion of the ball/downrod assembly (B)
in the mounting bracket socket. Ensure that the tab on the
mounting bracket (A) socket is properly seated in the groove
in the hanger ball (B).
6
A
B
G
Attaching the canopy
□ Align the locking slots of the ceiling canopy (C) with the two
screws in the mounting bracket (A). Push up to engage the
slots, and turn clockwise to lock the canopy (C) in place.
□ Firmly tighten the two mounting screws (BB) with lock washer
(CC).
□ Install the remaining two mounting screws (BB) into the holes
in the canopy (C) and tighten rmly.
8
WARNING: When using the standard ball/downrod mounting, the
tab in the ring at the bottom of the mounting bracket must rest in
the groove of the hanger ball. Failure to properly seat the tab in
the groove could cause damage to the wiring.
C
BB
A
10
UU
VV
WW
WW
WW
XX
UU
VV
Assembly - Hanging the Fan (continued)

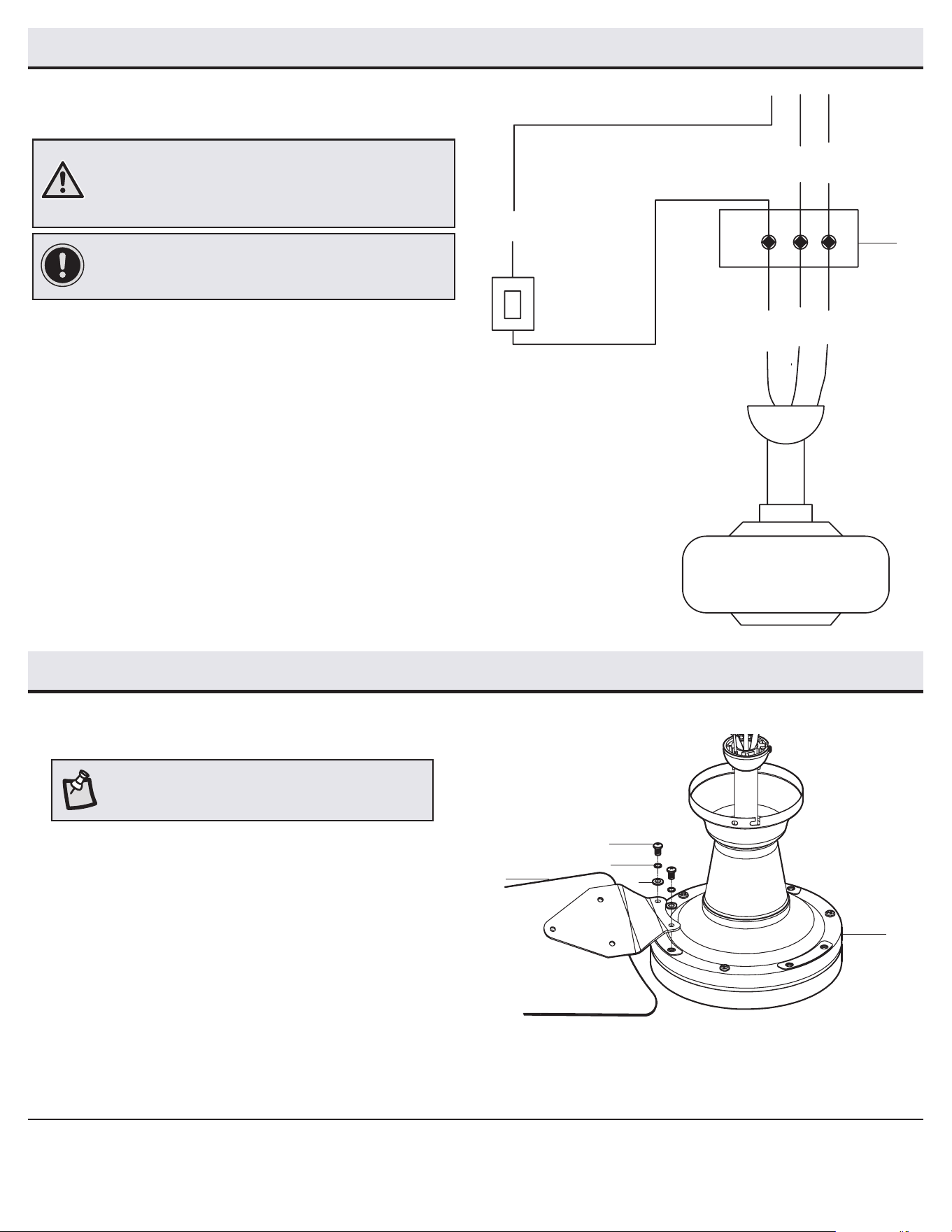

Making the electrical connection
□ Connect the ground conductor of the 120-Volt supply (this
may be a bare wire or a wire with green colored insulation) to
the green ground lead(s) (UU) of the fan.
□ Connect the fan motor white wire (VV) to the supply white wire
(VV) using a wire connecting nut (DD).
□ Connect the fan motor black wire (WW) to the supply black
wire (WW) using a wire connecting nut (DD).
□ After connecting the wires, spread them apart so that the
green (UU) and white wires (VV) are one side of the outlet box
(XX) and the black wire (WW) is on the other side.
□ Turn the wire connecting nuts upward, and carefully push the
wiring into the outlet box (XX).
9
IMPORTANT: Use the wire connecting nuts (DD) supplied with
your fan. Secure the connectors with electrical tape and ensure
there are no loose strands or connections.
WARNING: Each wire not supplied with this fan is designed to
accept up to one 12-gauge house wire and two wires from the
fan. If you have larger than 12-gauge house wiring or more
than one house wire to connect to the fan wiring, consult an
electrician for the proper size wire nuts to use.
Assembly (continued)
Attaching the fan blades
10
□ Position the blade assembly (E) on the motor so the
mounting screw holes align with the threaded holes.
□ Turn the screw (MM), spring washer (KK), and at washer
(LL) into the hole but do not completely tighten. Make sure
the second hole in the blade assembly aligns with a hole in
the motor housing (G).
□ Install a second screw (MM), spring washer (KK) and at
washer (LL) in the blade assembly in the same manner.
□ Repeat for the remaining blades.
□ Tighten all screws.
G
E
MM
KK
LL
NOTE: The blade and blade arms are pre-assembled
together at the factory. The blades feature new technology
for higher efciency. The blades are not reversible.
11
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

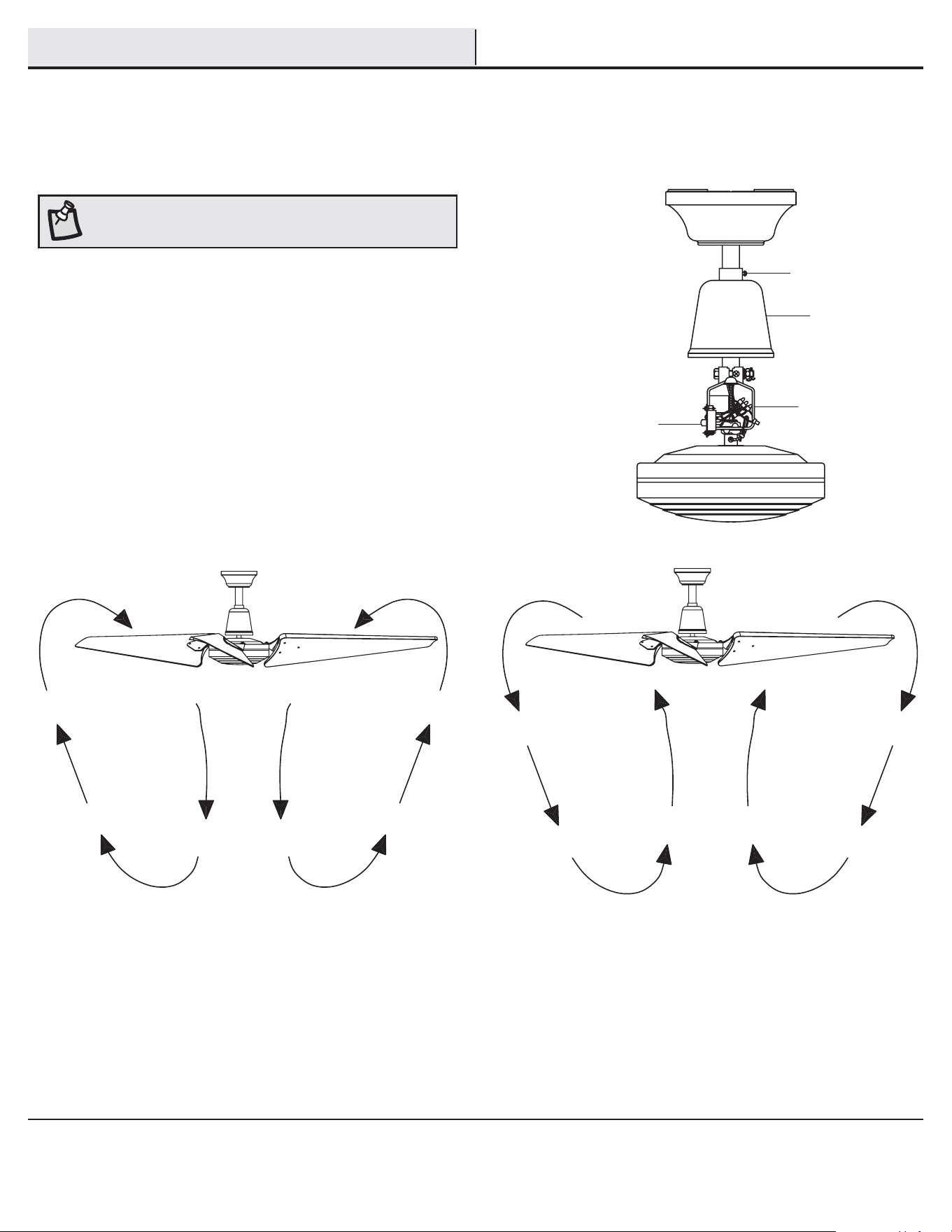

Operation
Install 4-speed wall control
Operating your fan
The reverse switch is located on the coupler (J).
To switch the direction of the blade rotation, follow the instructions
below.
□ Loosen the set screw (ZZ) on the coupler cover (D).
□ Slide coupler cover (D) up to reveal the coupler (J) and reverse
switch (YY).
□ Set reverse switch (YY) in desired direction:
For warm weather, set switch in down position.
For cool weather, set switch in up position.
See the instructions enclosed with the wall control package.
Warm weather - (Forward) A downward airow creates a cooling ef-
fect. This allows you to set your air conditioner on a warmer setting
without affecting your comfort.
Cool weather - (Reverse) An upward airow moves warm air off of
the ceiling. This allows you to set your heating unit on a cooler set-
ting without affecting your comfort.
NOTE: Wait for the fan to completely stop before setting the slide
switch to reverse the direction of blade rotation.
D
J
YY
ZZ
12
Troubleshooting
Problem Solution
The fan will not start □ Check the main and branch circuit fuses or breakers.
□ Check the line wire connections to the fan and switch wire connections in the switch housing.
The fan is noisy □ Ensure all motor housing screws are snug.
□ Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□ Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□ Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□ If you are using the Ceiling Fan light kit, ensure the screws securing the glassware are tight. Check that the light
bulbs are also secure.
□ Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
□ Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles □ Check that all blade and blade arm screws are secure.
□ Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on
the ceiling above the tip of one of the blades. Measure from a point on the center of the blade to the point on the
ceiling. Rotate the fan until the next blade is positioned for measurement, and measure from the same point on
each blade to the ceiling. Repeat for each blade. Any measurement deviation should be within 1/8 in. Run the fan
for ten minutes. If the fan continues to wobble please contact Customer Service and a balancing kit will be sent
to you at no charge.
□ Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
□ Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage
the motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish. The
plating is sealed with a lacquer to minimize discoloration or tarnishing.
□ You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a
light application of shoe polish.
□ You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning
Questions, problems, missing parts? Before returning to the store call
Hampton Bay Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
