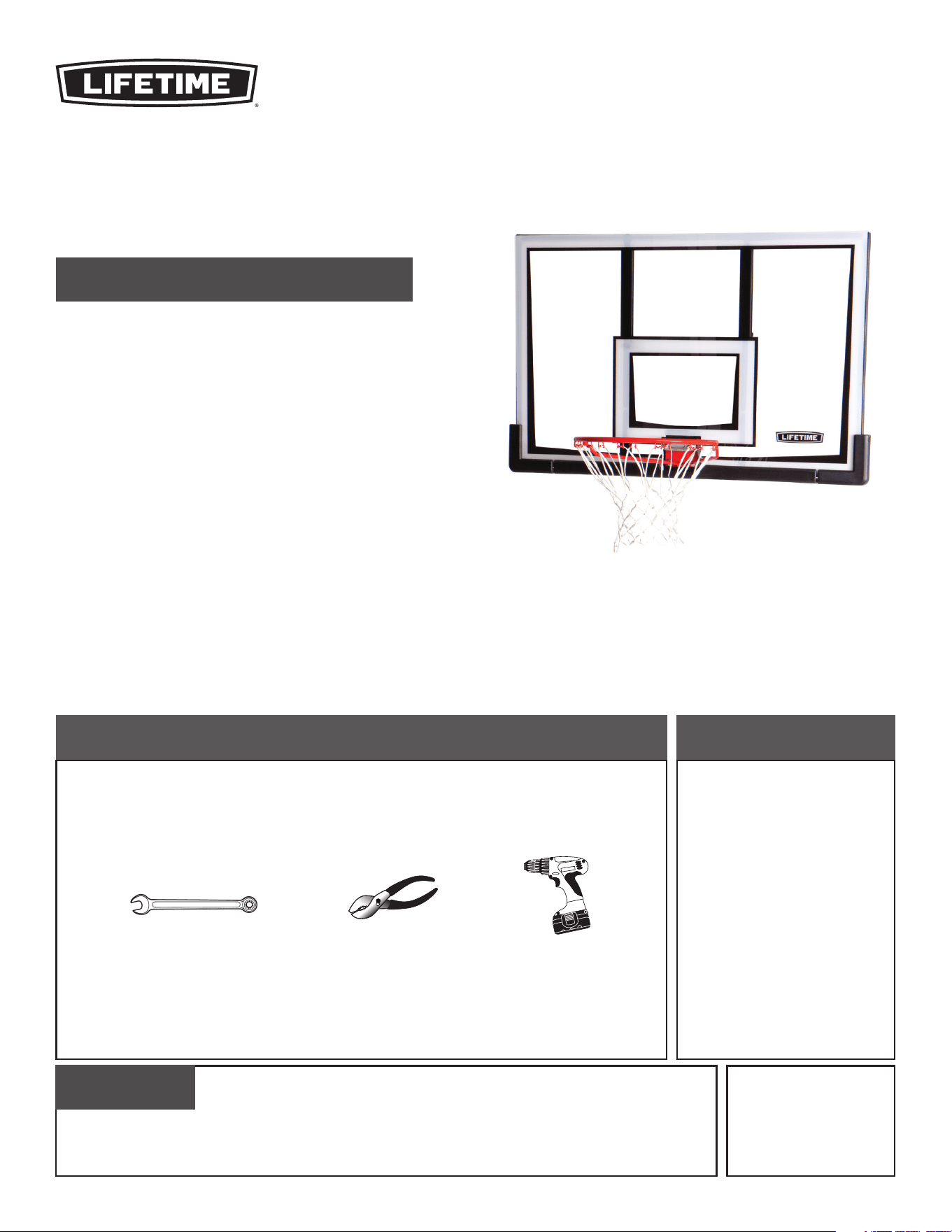

ASSEMBLY INSTRUCTIONS
MODEL #60091
MODEL 90087
Save this instruction in the event that the manufacturer has
to be contacted for replacement parts.
BEFORE ASSEMBLY:
CONTACT LIFETIME
®
CUSTOMER SERVICE:
Call: 1-800-225-3865
7:00 am–5:00 pm (Monday–Friday) MST
and 9:00 am–1:00 pm Saturday MST
QUESTIONS?
MODEL# AND PRODUCT ID
(you will need both when contacting us)
Model Number: 90087
Product ID:
For Customer Service in Mainland
Europe and the United Kingdom,
E-mail: [email protected]
Live Chat: www.lifetime.com
(click on “Ask An Expert” tab)
Video Instructions:
www.youtube.com/lifetimeproducts
SLAM-IT RIM
®
COMBO
BASKETBALL SYSTEM
(2)
1/2" (13 mm)
Icon Legend................................2
Notices....................................3
Backboard to Rim Assembly.......4
Maintenance Instructions..........10
Registration........................10
Warranty................................11
(1)
(1)
2
• Indicates the parts to be used for a section.
• Indicates special heed should be taken when reading.
• Indicates the hardware to be used for a section.
• Indicates the tools to be used for a section.
• Indicates no hardware required for a specifi c page.
• Indicates no parts required for a specifi c section.
• Indicates to use/not to use an electric drill for a specifi c step.

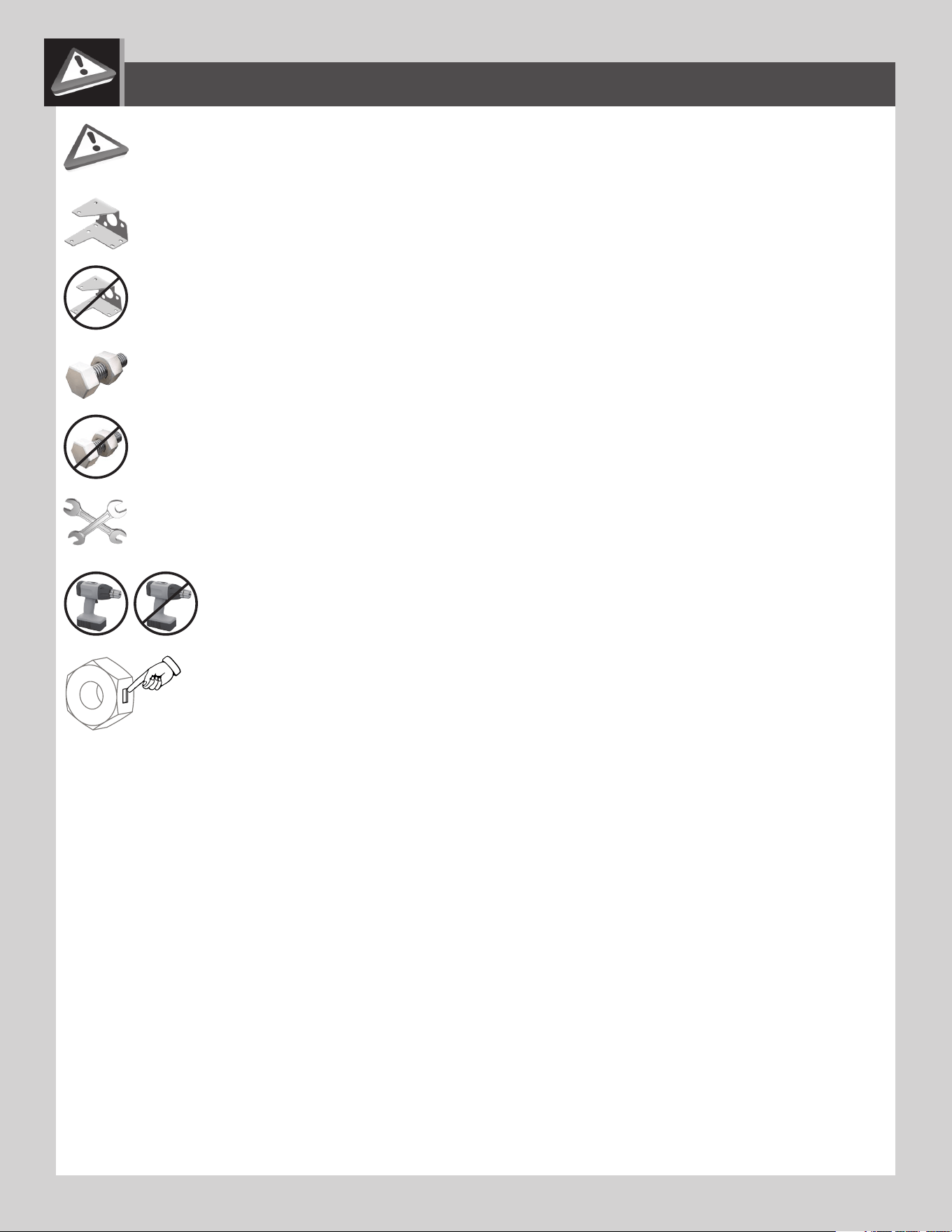

ICON LEGEND
• Indicates the use of a centerlock nut. A nut with this marking will require some effort to tighten.
This hardware was designed with this feature in order to prevent loosening later.
1182308 D
7/31/2019
3
WARNINGS & NOTICES / AVERTISSEMENTS ET AVIS / ADVERTENCIAS Y AVISOS
Most injuries are caused by misuse and/or not following instructions. Use caution when using this product.
To ensure safety, do not attempt to assemble this product without following the instructions carefully. Check entire box and inside all packing
material for parts and/or additional instruction material. Before beginning assembly, read the instructions and identify parts using the hardware
identifi er and parts list in this document. Proper and complete assembly, use and supervision are essential for proper operation and to reduce the
risk of accident or injury. A high probability of serious injury exists if this product is not installed, maintained, and operated properly.
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE AND WILL VOID WARRANTY.
Owner must ensure that all players know and follow these rules for safe operation of the system.
• If using a ladder during assembly, use extreme caution.
• Three capable adults are recommended for this operation.
• Check base daily for leakage. Leaks will cause system to fall.
• Assemble the pole sections properly. Failure to do so could cause the pole sections to separate during play or transport.
• Minimum operational height is 6 ft 6 in (1.98m) to the bottom of the backboard.
SAFETY INSTRUCTIONS
La mayoría de las lesiones son causadas por el abuso y/o por el no seguir las instrucciones. Sea cauteloso al usar este producto.
Para su seguridad, no intente ensamblar este producto sin leer y seguir todas las instrucciones cuidadosamente. Revise la caja entera y todos los
materiales de embalaje en busca de piezas y / o material de instrucciones adicional. Antes de comenzar el ensamble, identifi que todas las piezas y el
equipo usando las listas de partes y equipo así como los identifi cadores en este documento. El ensamble correcto y completo, el uso y la supervisión
son esenciales para una orientación apropiada y para reducir el riesgo de un accidente o lesión. Existe una alta probabilidad de sufrir lesiones graves
si este producto no es instalado, mantenido y / o operado correctamente.
EL INCUMPLIMIENTO DE SEGUIR ESTAS ADVERTENCIAS PUEDE OCASIONAR EN LESIONES GRAVES Y/O DAÑO A LA PROPIEDAD Y ANULARÁ LA GARANTÍA.
El propietario debe asegurarse de que todos los jugadores conocen y seguir estas reglas para la operación segura del sistema.
• Si utiliza una escalera durante el ensamble, tenga mucho cuidado.
• Tres adultos competentes son requeridos para ensamblar el producto.
• Compruebe si hay fugas en la base. Las fugas pueden causar que el producto caiga.
• Ensamble las secciones del poste correctamente. De lo contrario, podría provocar que las secciones del poste se separaran
durante el juego o el transporte.
• Altura mínima de operación es 1,98m (6 ft 6 in) a la parte inferior del tablero.
INSTRUCCIONES DE SEGURIDAD
La majorité des accidents résultent d’une mauvaise utilisation et/ou du fait de n’avoir pas suivi les consignes. Observez toutes précautions utiles pendant
l’utilisation de ce produit.
Pour assurer votre sécurité, ne tentez pas d’assembler cet article sans avoir lu et suivi toutes les consignes attentivement. Vérifi ez la totalité de la
boîte et l’intérieur de tous les matériaux d’emballage pour trouver toutes les pièces et/ou matériau contenant des consignes supplémentaires. Avant
de commencer le montage, identifi ez toutes les pièces et tous les accessoires et faites-en l’inventaire en les comparant aux listes et identifi cateurs
de pièces et accessoires contenus dans ce document. Un assemblage correct et complet, ainsi que l’utilisation et la supervision correctes sont des
conditions essentielles à la bonne direction et diminuent les risques d’accident ou de blessure. Une haute probabilité d’accident grave résulte de
mauvaises conditions d’installation, maintenance et/ou utilisation.
LA NON-RESPECT DE CES AVERTISSEMENTS PEUT RÉSULTER EN ACCIDENTS GRAVES OU DOMMAGES MATÉRIELS ET ANNULER LA GARANTIE.
Le propriétaire doit veiller à ce que tous les joueurs connaissent et suivent ces règles pour une exploitation sûre du système.
• Agissez avec la plus grande prudence si vous employez une échelle pour l’assemblage.
• Trois adultes en bonne condition physique sont requis pour assembler ce produit.
• Vérifi ez quotidiennement la base au niveau de fuites. Les fuites peuvent causer la chute du système.
• Assemblez les sections de poteau correctement. La non-observation de cette consigne peut amener les sections de poteau à se séparer
pendant le jeu ou le déplacement.
• La hauteur minimale est 1,98 m (6 pi 6 po) au bas de la planche.
CONSIGNES DE SÉCURITÉ
4
BCS
Metal Parts
Hardware Bag

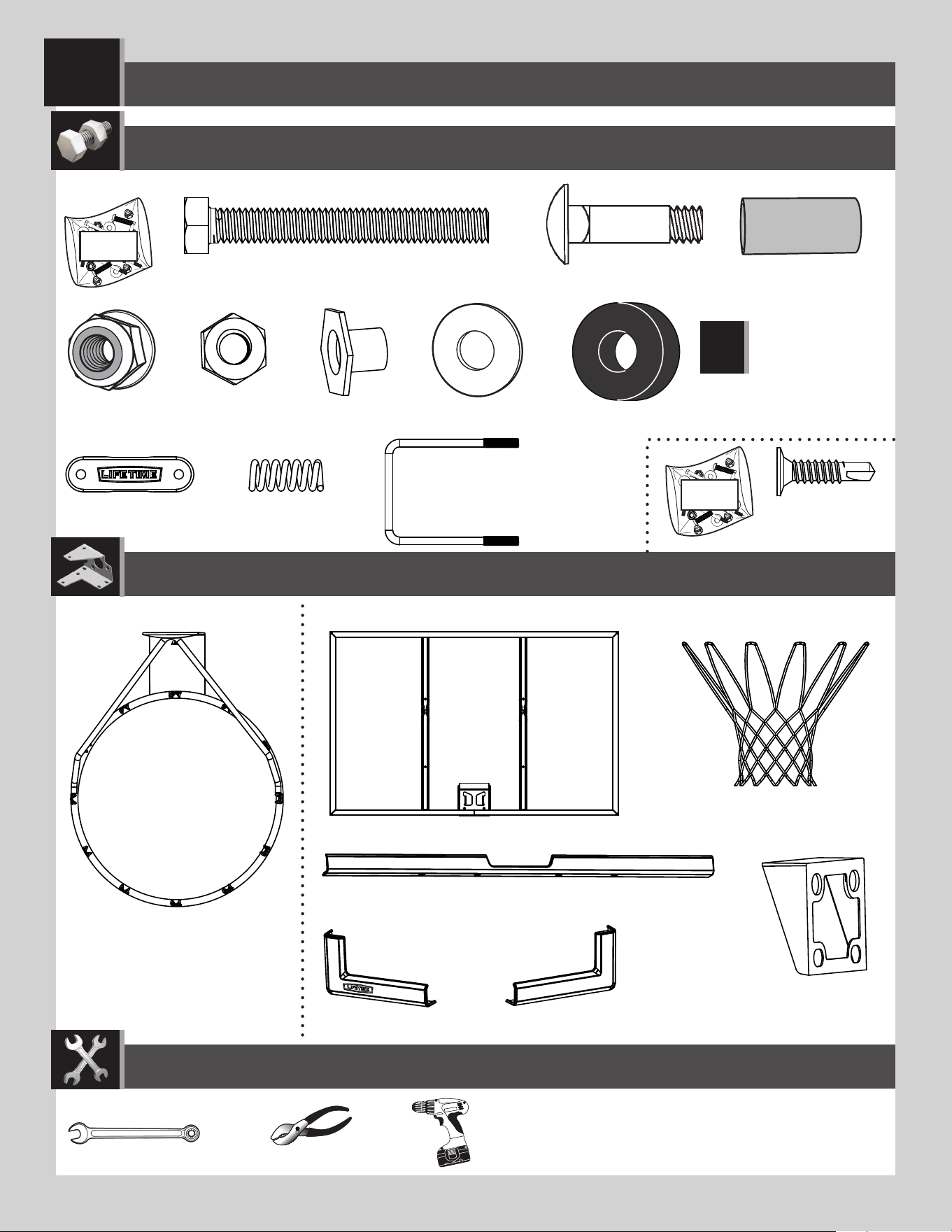

PARTS REQUIRED
HARDWARE REQUIRED
Plastic Parts
TOOLS REQUIRED
(2) (1)
(1)
1/2" (13 mm)
BACKBOARD TO RIM ASSEMBLY
1
ABC (x2)*
ACS (x2)
AAJ (x2)
ABD (x2)
ABF (x2)
ABG (x2)
ABK (x6)*
AJW (x2)
BNP (x1)
AOW (x1)
AAV (x2)
ADP (x10)
AJI (x1)
ALX (x1)
ALD (x1)
AKZ (x1)
BAA (x1)
AJQ (x1)
BAB (x1)
BCS
* Hardware Bag BCS
contains hardware that
may not be used.
!
5
TOOLS AND HARDWARE REQUIRED
SECTION 1 (CONTINUED)
1.1
1.2

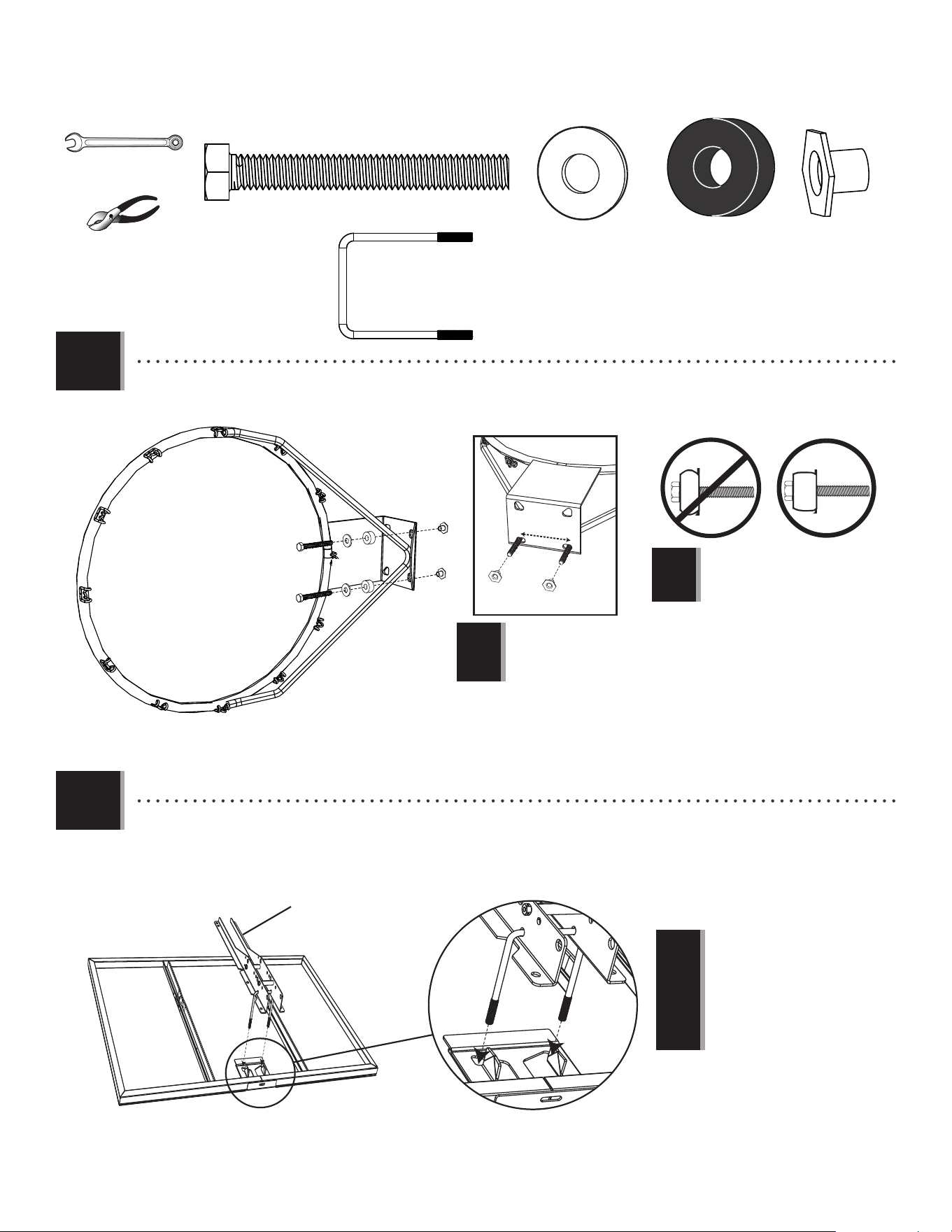

• Insert two Tap Bolts (ABG) with the Washers (ABD) and the Rubber Washers (ABF) through the bottom holes in the back of the Rim
(ALX) as shown, and secure the hardware with two T-Nuts (AAJ).
• Insert the U-Bolt (BNP) through the upper part of the opening on the backside of the Backboard (AJI) as shown.
• Make sure that the Tap
Bolts (ABG) are positioned
on the outside edge of the
holes as shown.
• Do not overtighten the hardware
so much that the Rubber Washers
bulge outward as shown.
!
!
1/2" (13 mm) (x2)
ABD (x2)
ABF (x2)
ABF
ABF
AAJ (x2)
AAJ
ABG
ABD
ABF
ALX
ABG
ABG
AAJ
AAJ
ALX
ABG (x2)
BNP (x1)
• The Backboard Brackets shown
here are provided with the
Mounting Kit (sold seperately)
or with your original unit. The
actual Brackets may vary, but
the assembly steps still apply.
See page 10 for more details.
!
BNP
AJI
• Before performing this step, assemble the U-Bolt (BNP) to the Backboard Brackets (not included) as instructed by using the hardware and the
assembly manual of the Mounting Kit (sold seperately) or your original unit.
Backboard Bracket
6
TOOLS AND HARDWARE REQUIRED
SECTION 1 (CONTINUED)
1/2" (13 mm) (x2)
1.4

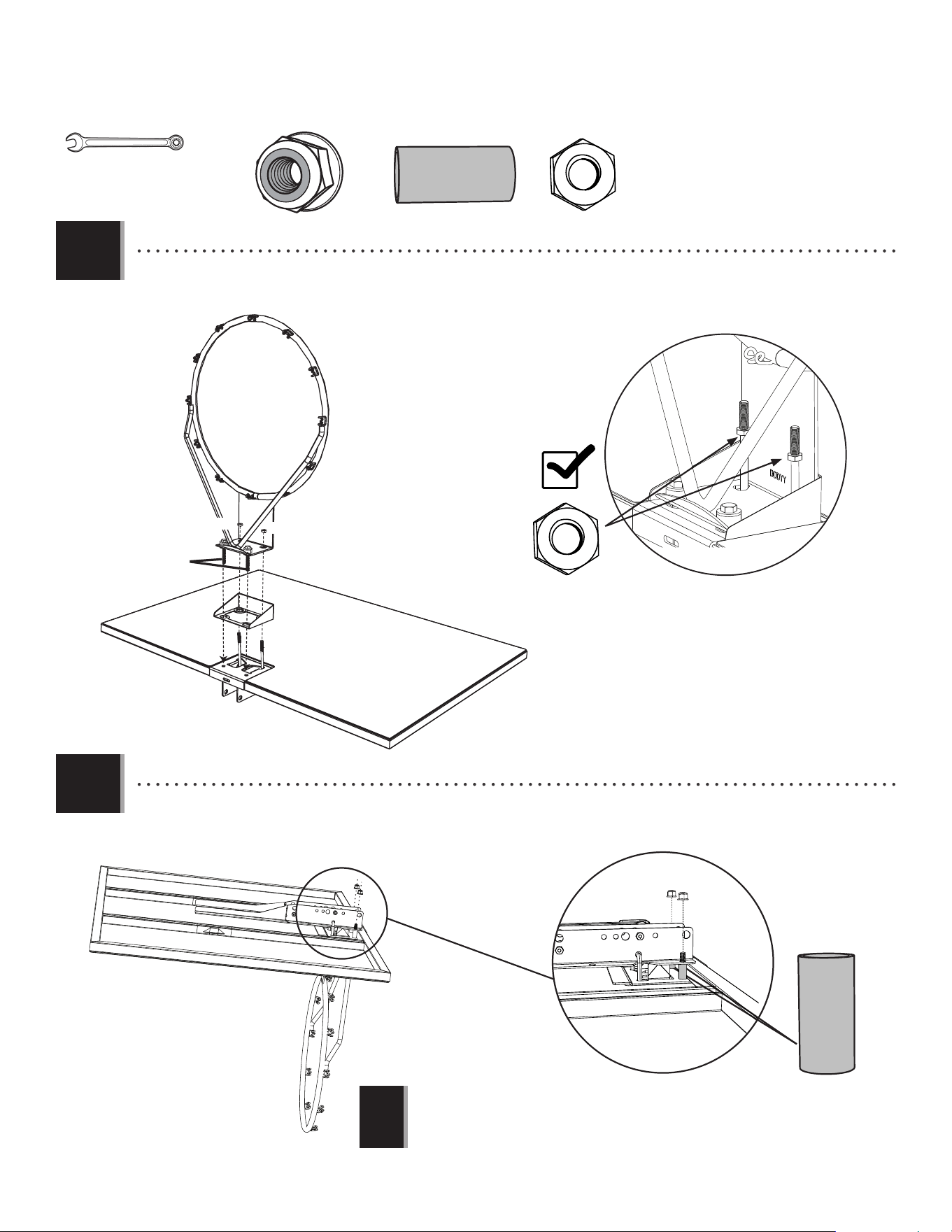

• On the underside of the Backboard, place Steel Spacers (ACS) onto the Tap Bolts (ABG), and secure the Nylock Flange Nuts
(ABK) onto the Tap Bolts.
ACS (x2)
AAV (x2)
ALD
AAV
AAV
ALX
AJI
ABG
1.3
• Connect the Rim (ALX) and Plastic Guard (ALD) to the Backboard (AJI) with the hardware shown. Thread the Jam Nuts (AAV) all
the way down on the U-Bolt (BNP).
AAV (x2)
ABK
ABK
ACS
ABG
• The Backboard Brackets
shown here are not included
with this system. See page 10
for more details.
!
ABK (x2)
7
TOOLS AND HARDWARE REQUIRED
SECTION 1 (CONTINUED)
1.5

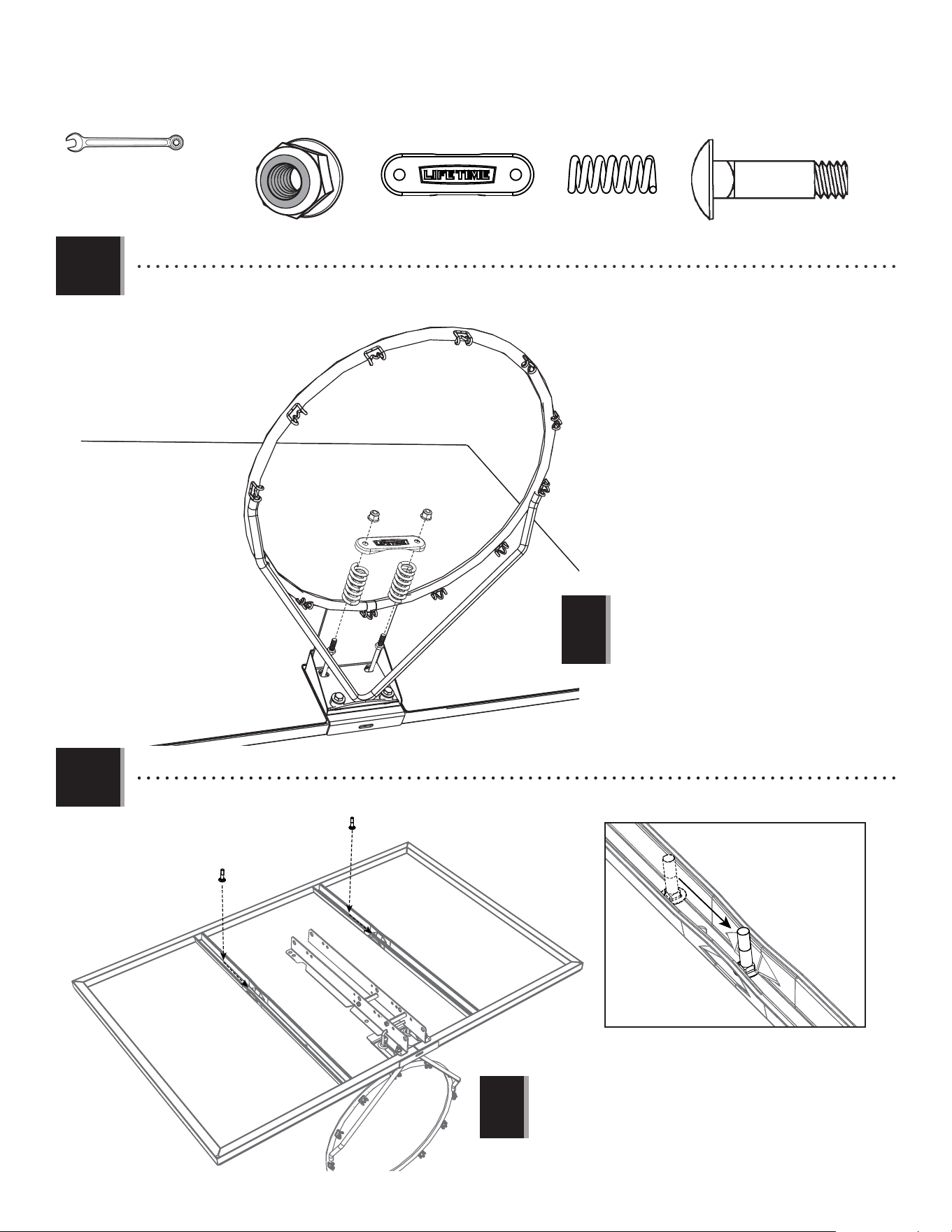

• Slide the Compression Springs (AJW) onto the U-Bolt (BNP), and place the Spring Retainer Plate (AOW) over the
Compression Springs. Tighten the Nylock Flange Nuts (ABK) until the Rim (ALX) does not wobble to complete this
step.
ABK
AOW
AJW
BNP
ALX
• DO NOT COMPLETELY TIGHTEN THE NYLOCK FLANGE
NUTS IN THIS STEP! Only tighten the Nuts until the
Rim does not wobble. Tightening the Nuts will adjust
the Rim tension.
!
ABK (x2)
AJW (x2)
AOW (x1)
1/2" (13 mm) (x2)
• Slide the Carriage Bolts (ABC) into place on the backboard as shown.
1.6
ABC (x2)
ABC
ABC
• The Backboard Brackets
shown here are not included
with this system. See page 10
for more details.
!
8
TOOLS AND HARDWARE REQUIRED
SECTION 1 (CONTINUED)
1.7

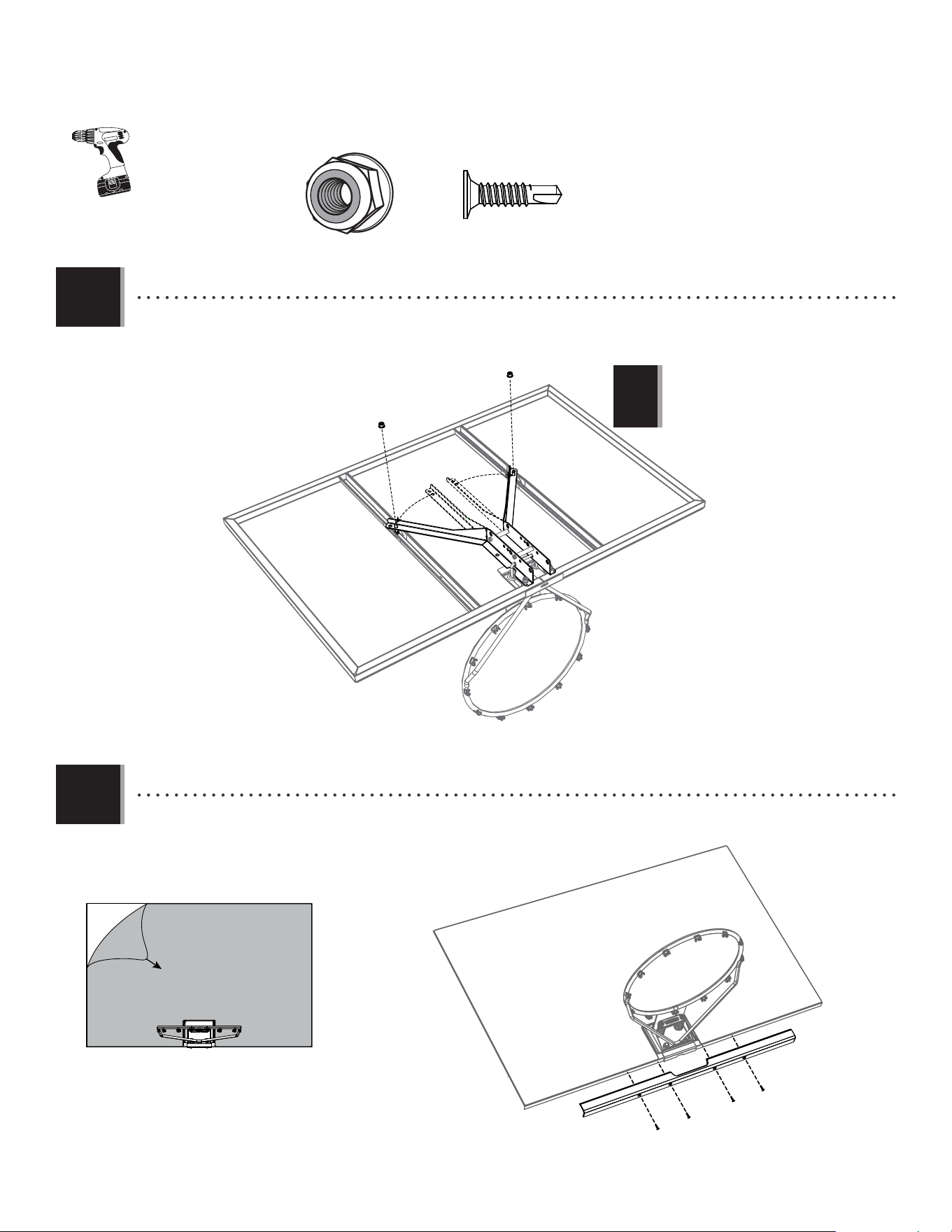

• Bend the Backboard Brackets by hand. Secure the Brackets to the Carriage Bolts through the lower of the two
holes in the Bracket.
ADP (x4)
ABK (x2)
AJI
ADP
ADP
ADP
ADP
AJQ
1.8
• Remove the plastic fi lm from the Backboard (AJI), and attach the Center Frame Pad (AJQ) to the Backboard in the location
shown with the hardware indicated. Make sure that the Center Frame Pad is oriented and centered on the metal piece of
the Backboard.
ABK
ABK
• The Backboard Brackets
shown here are not included
with this system. See page 10
for more details.
!
9
TOOLS AND HARDWARE REQUIRED
SECTION 1 (CONTINUED)

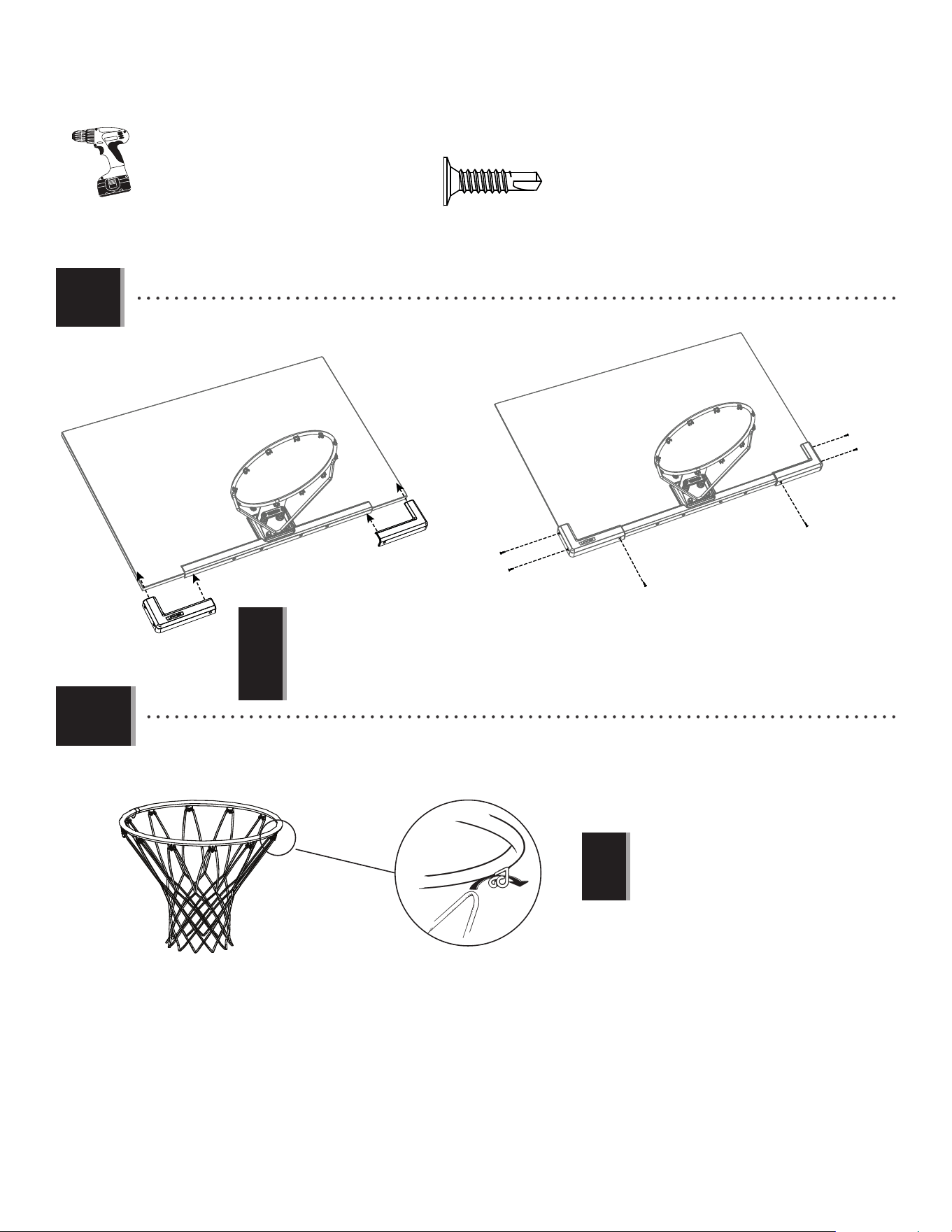

1.10
• Attach the Net (ALX) to the Rim.
AKZ
ALX
• If a replacement Net is needed, please call
our Customer Service Department. Our Nets
are shorter than average to reduce the risk of
entanglement.
!
1.9
BAA
BAB
ADP
ADP
ADP
ADP
ADP
ADP
• Attach the Corner Frame Pads (BAA and BAB) to the Backboard in the locations indicated with the hardware indicated.
ADP (x6)
!
• The Corner Frame Pads (BAA and BAB) will overlap
the Center Frame Pad (AJQ).
• Les protections angulaires (BAA et BAB)
chevaucheront la protection centrale (AJQ).
• Las almohadillas angulares (BAA y BAB) se
solaparán con las almohadilla central (AJQ).
10

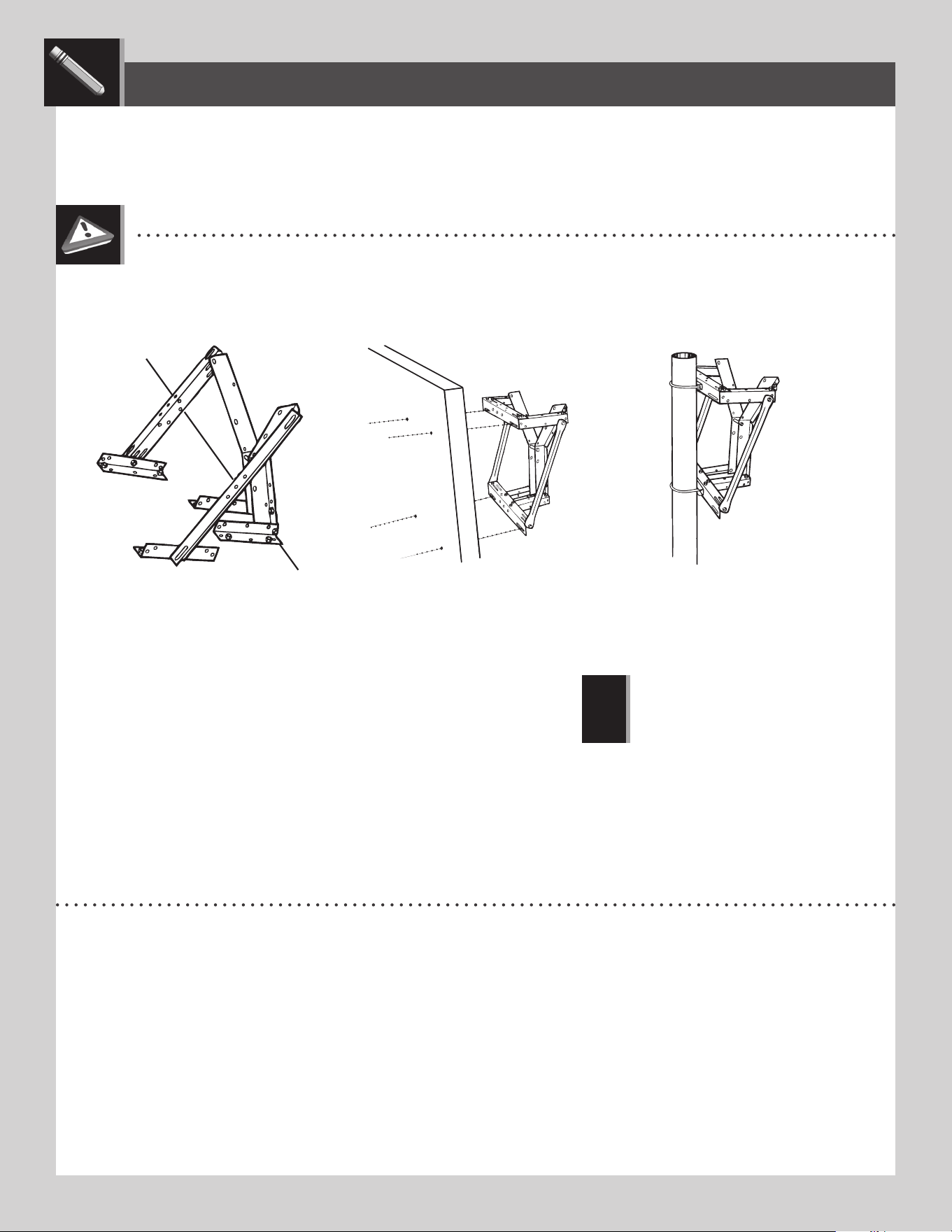

FIG. A, ROOF MOUNT FIG. B, WALL MOUNT
MOUNTING KIT SOLD SEPERATELY
See details below.
FIG. C, EXISTING POLE MOUNT
MOUNTING THE SYSTEM
LIFETIME
©
• For mounting the Backboard & Rim Combo to a roof, wall, or existing pole mount that does not provide an extension,
you must use a Mounting Kit designed for this purpose. Lifetime Products offers a Universal Mounting Kit, Model #9594,
through our Customer Service Department. Figures A, B, and C show the Universal Extension Bracket mounted to a
roof, a wall, and an existing pole. Please information at the bottom of this page for ordering information.
PRODUCT DESCRIPTION MODEL #
Universal Mounting Kit 9594
Call our Customer Service Department at 1.800.424.3865 for prices and shipping costs.
To place orders, use a Master Card or Visa and call our Customer Service Department, or send check or money
order to:
LIFETIME PRODUCTS, INC.
P.O. BOX 160010
BLDG. D-11, FREEPORT CENTER
CLEARFIELD, UT 84016-0010
• The Universal Mounting Kit is not included
with this basketball system. See details
below to order the kit from our Customer
Service Department.
!
11
The life of your basketball system depends on many variables. The climate, exposure to corrosives such as salt, pesticides, or herbicides,
and excessive use or misuse can all contribute to Pole failure, which may cause property damage or personal injury.
Check your basketball system frequently for loose hardware, excessive wear, and signs of corrosion. For safety reasons, and to
prolong the life of your basketball system, you must take the following preventive measures.
a. Check all Nuts and Bolts. If any are loose, tighten them.
b. Check all parts for excessive wear and tear. If necessary, replace any parts that have been worn or damaged through usage.
Contact our Customer Service Department for replacement parts.
c. Inspect the Warning Sticker on the Pole. If it is ripped, faded, or illegible, call our Customer Service Department to request
a replacement Sticker.
d. Check all Pole sections for visible rust or chipped or cracked paint. If either are present, do the following:
1. Use an emery cloth to completely remove any rust or chipped paint.
2. Clean the area with a damp cloth and allow it to dry.
3. Apply two coats of a rust preventative, high gloss enamel paint to the area. Allow the paint to dry between coats.
IF RUST HAS PENETRATED THROUGH THE POLE ANYWHERE, REPLACE IT IMMEDIATELY!
MAINTENANCE / ENTRETIEN / MANTENIMIENTO
LIFETIME’S PROMISE TO YOU:
We invite you to read our privacy policy at www.lifetime.com
REGISTER today!
At Lifetime
®
, we are committed to providing innovative and quality products. While registering, you will have the opportunity to give us your feedback. Your input is
valuable to us.
• You can also opt in to receive new product notifications or promotions.
• In the unlikely event of a product recall or safety modification, your registration provides the information we need to notify you directly.
• Registration is fast, easy, and completely voluntary.
Maintaining your privacy is our long-standing policy at Lifetime
®
. And you can rest assured that Lifetime
®
will not sell or provide your
personal data to other third parties, or allow them to use your personal data for their own purposes.
REGISTER YOUR PRODUCT / ENREGISTREZ VOTRE PRODUIT / REGISTRE SU PRODUCTO
12
NOTES
13
NOTES
14
NOTES
15
THE MANUFACTURER RESERVES THE RIGHT TO MAKE SUBSTITUTIONS TO WARRANTY CLAIMS IF PARTS ARE UNAVAILABLE OR OBSOLETE.
1. Lifetime basketball systems are warranted to the original purchaser to be free from defects in material or workmanship
for a period of fi ve years from the date of original retail purchase. The word “defects” is defi ned as imperfections that
impair the use of the product. Defects resulting from misuse, abuse or negligence will void this warranty. This warranty
does not cover defects due to improper installation, alteration or accident. This warranty does not cover damage caused
by vandalism, rusting, “acts of nature” or any other event beyond the control of the manufacturer.
2. This warranty is nontransferable and is expressly limited to the repair or replacement of defective product. If the product
is defective within the terms of this warranty, Lifetime Products, Inc. will repair or replace defective parts at no cost to
the purchaser. Shipping charges to and from the factory or distribution center are not covered and are the responsibility
of the purchaser. Labor charges and related expenses for removal, installation or replacement of the basketball system
or its components are not covered under this warranty.
3. This warranty does not cover scratching or scuffi ng of the product that may result from normal usage. In addition,
defects resulting from intentional damage, negligence, unreasonable use or hanging from the rim will void this warranty.
4. Liability for incidental or consequential damages is excluded to the extent permitted by law. While every attempt is made
to embody the highest degree of safety in all equipment, freedom from injury cannot be guaranteed. The user assumes
all risk of injury resulting from the use of this product. All merchandise is sold on this condition, and no representative
of the company may waive or change this policy.
5. This product is not intended for institutional or commercial use; Lifetime Products, Inc. does not assume any liability for
such use. Institutional or commercial use will void the warranty.
6. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
7. This warranty is expressly in lieu of all other warranties, expressed or implied, including warranties of merchantability
or fi tness for use to extent permitted by Federal and state law. Neither Lifetime Products, Inc., nor any representative
assumes any other liability in connection with this product. This warranty gives you specifi c legal rights, and you may
also have other rights which vary from state to state.
www.lifetime.com
PLEASE INCLUDE YOUR DATED SALES RECEIPT AND PHOTOGRAPHS OF DAMAGED PARTS.
REPORT PRODUCT DEFECTS IN WRITING TO:
Lifetime Products, Inc., PO Box 160010 Clearfi eld, UT 84016-0010
or call 1-800-225-3865 M-F 7 a.m. to 5 p.m. MST.
REGISTER YOUR PRODUCT FOR QUICKER CUSTOMER SERVICE.
Visit www.lifetime.com or call 1-800-225-3865 to register your product today.
FOR INTERNATIONAL WARRANTY CLAIMS:
All warranty claims must be accompanied by a sales receipt. Report all warranty claims in writing to your regional sales
support representative. Please include your dated sales receipt and photographs of damaged parts.
To Identify the representative for your region, please visit: www.lifetime.com/international
5-YEAR LIMITED FACTORY WARRANTY
W
A
R
R
A
N
T
Y
W
A
R
R
A
N
T
Y
WARRANTY
16
www.lifetime.com
Or call: 1-800-424-3865
7:00 am–5:00 pm (M–F) MST and 9:00 am–1:00 pm Saturday MST
To purchase accessories or other Lifetime
®
products, visit us at:
www.lifetime.com
O marcar al: 1-800-424-3865
De lunes hasta viernes 7:00 h–17:00 h Horario Éstandar de la Montaña (MST) y sábados 9:00 h–13:00 h (MST)
Para comprar accesorios u otros productos de Lifetime
®
, visitarnos en:
www.lifetime.com
(solo inglés)
ENHANCE YOUR LIFETIME
®
PURCHASE BY ADDING ACCESSORIES OR OTHER GREAT PRODUCTS
MEJORAR LA COMPRA DE LIFETIME
®
AGREGANDO ACCESORIOS U OTROS MARAVILLOSOS PRODUCTOS
Ou composer le 1-800-424-3865
Du lundi au vendredi de 7 h à 17 h, HR et le samedi de 9 h à 13 h, HR
Pour acheter des accessoires ou des autres produits Lifetime
®
, visiter le :
www.lifetime.com
(Anglais seulement)
AMÉLIORER L’ACHAT LIFETIME
®
EN AJOUTANT DES ACCESSOIRES OU D’AUTRES PRODUITS
Made in the U.S.A. / Fabriqué aux États-Unis / Hecho en los EUA
