Technical Support and E-Warranty Certificate www.vevor.com/support
DIGITAL TURBO CONVEVTION
TOASTER OVEN
MODEL NUMBER: TE283-C
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL: IMN1000-UL
TE283-C
Have product questions? Need technical support? Please feel free to
contact us:
CustomerService@vevor.com
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions carefully before
operating. VEVOR reserves clear interpretation of our user manual. The
appearance of the product shall be subject to the product you received. Please
forgive us that we won't inform you again if there is any technology or software
updates on our product.
DIGITAL TURBO
CONVEVTION TOASTER
OVEN
- 2 -
Thank you for purchasing the Digital Turbo Convection Toaster Oven. Please read
the User Manual carefully before use and keep it in a convenient place for future
reference.
SPECIFICATION
1.MODEL NO.: TE283-C
2.POWER: 120VAC 60Hz 1800W
3.PRODUCT SIZE: 500x390x305mm
4.TEMPERATURE RANGE: 130°F-450°F
5.TIME RANGE: 1 Min ~ 12 Hour
IMPORTANT SAFEGUARDS
Fire and electric shock are present in all electrical appliances and may cause
personal Injury. Read this manual and follow the safety precautions below.
1. Check whether the voltage you use is in line with the product's rated voltage.
2. Do not touch hot surfaces, usually using heat-resistant pads or other supports
until the appliance cools.
3. Please do not use components from non-designated manufacturers. This will
cause harm to the user or pose a potential hazard.
4. Do not immerse the main unit or power cord or plug in water or other liquids to
prevent electric shock.
5. When cleaning and not using, please unplug the plug. Before installing
disassembling parts and cleaning utensils, make sure that the utensils are
completely cooled.
6. If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent, or a similarly qualified person to avoid a hazard.
7. During the operation of the appliance, certain components are very hot and
should not be in direct contact. Limited to contact handles or knobs.
8. When removing the plug, grasp the plug, pull out the power cord, and do not pull
the cord.
9. Don't let the power cord hang on the table or place it on a hot surface.
- 3 -
10. Do not approach inflammable gases or electric furnaces or put them in a hot
oven.
11. Do not use a metal cleaning brush to clean.
12. Take good care of this appliance, do not allow a child under 8 years of age to
take it and its power cord.
13. Do not move the appliance when there is hot oil or other hot liquids in the
appliance.
14. Do not use it outdoors. Do not use appliances for other purposes.
15. Do not cover appliances with towels or other articles to ensure the flow of heat
and steam. When appliances are covered or in contact with flammable materials,
they are prone to fire.
16. Appliances can not be used by persons with reduced physical, sensory, or
mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning the use of the appliance in a safe way.
17. This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
18. In the absence of supervision, the child should not do the cleaning and
maintenance work.
19. The main machine of utensils should not be washed in water. When using the
cloth to clean, attention should be paid to preventing water from entering the main
machine to avoid the danger of short circuits, damage, or leakage in the second
use.
20. Pay attention to hot steam. When the appliance is in operation, it generates
heat and emits steam. Take appropriate measures to prevent injury and burns.
21. The appliance cannot be operated in the form of an external timer or a
separate remote control system.
22. This appliance is suitable for household and similar purposes.
23. The use of accessory attachments not recommended by the appliance
manufacturer may cause injuries.
- 4 -
24. Always attach the plug to the appliance first, then plug the cord into the wall
outlet. To disconnect, rum any control to “off,” then remove the plug from the wall
outlet.
25. This appliance has a polarized plug (one blade is wider than the other). This
plug is intended to fit into a polarized outlet in only one way to reduce the risk of
electric shock. If the plug does not fit fully into the outlet, reverse the plug. If it still
does not work, contact a qualified electrician. Do not attempt to modify the plug in
any way.
26. A short power-supply cord is provided to reduce the risk of entering or tripping
over a longer cord. Extension cords are available and may be used if care is
exercised in their use. If an extension cord is used: The marked electrical rating of
the extension cord should be at least as great as the electrical rating of the
appliance;
The cord should be arranged so that it will not drape over the countertop or
tabletop where it can be pulled on by children or tripped over unintentionally.
PLEASE SAVE THE INSTRUCTIONS
- 5 -

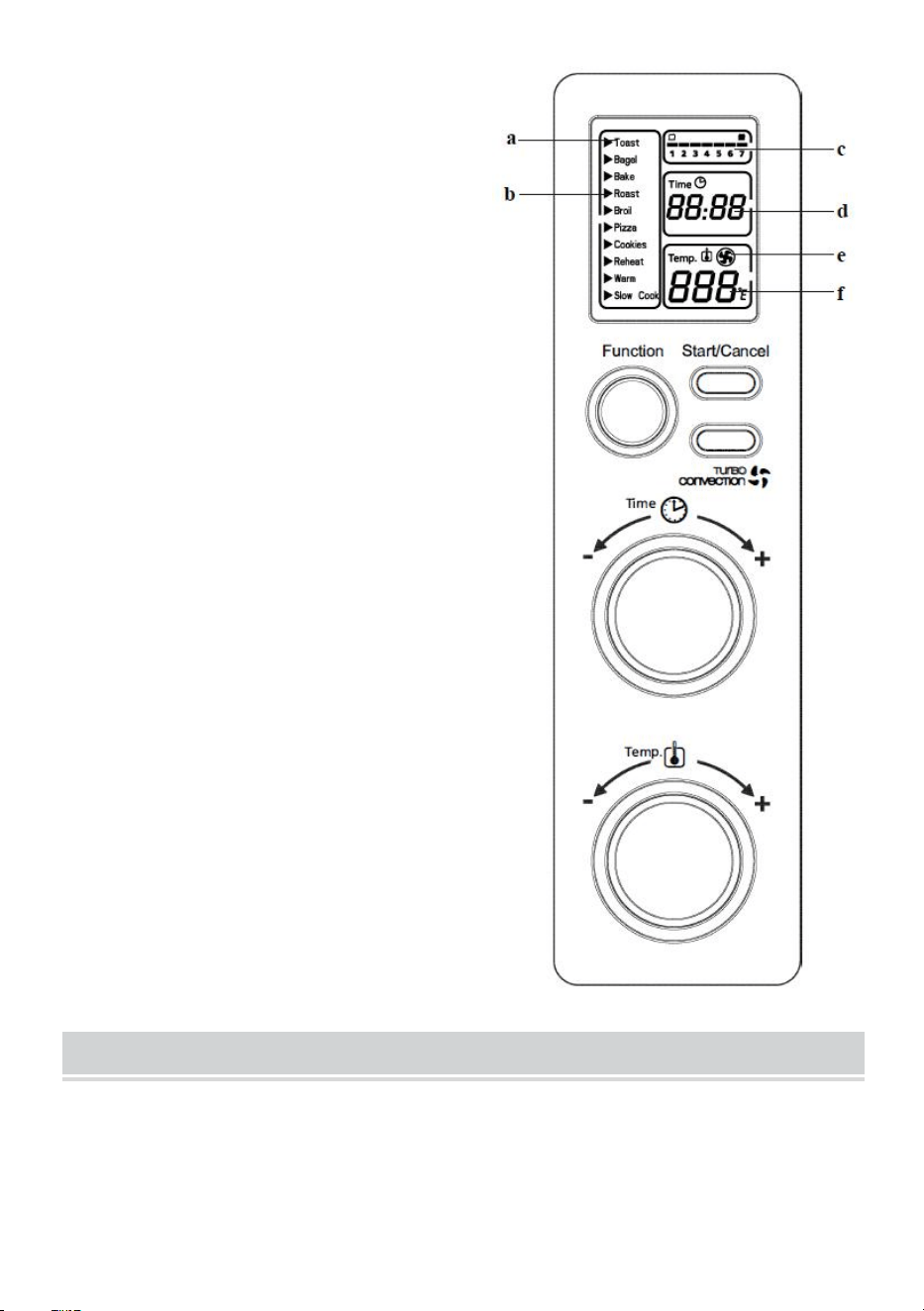

LCD Display
a. Functions Indicator - Toast, Bagel, Bake, Roast(Rotisserie), Broil,
Pizza, Cookies, Reheat, Warm, Slow Cook
b. Function Indicator Arrow
c. 1-7 color shade setting indicator for Toast and Bagel mode
d. Time Indicator
e. Turbo Convection Heat Icon
f. Temperature Indicator
OPERATION INSTRUCTIONS
Plug the unit in. The unit will emit two. long “beeps” and the LCD screen will
illuminate. The function option will appear with an indicator on the preset TOAST
function. The LCD and the Start/Cancel button light will be illuminated for 30
seconds and then go out if no other buttons or knobs are pressed or moved.
PLEASE NOTE: once the blue LCD display goes out - you can press or move any
button or knob to "wake up" the display and operate it normally.
Step 1. Select Function:
a.Turn the Function Knob to choose one of the following 10 options from the menu:
Toast, Bagel, Bake, Roast(Rotisserie), Broil, Pizza, Cookies, Reheat, Warm and
Slow Cook. The indicator arrow will move from function to function as the knob is
turned.
NOTE: If the cooking process is not started, no other button is pressed, or the
knob is turned within 30 seconds, the blue backlight and the Start/Cancel Button
Light will turn off.
Step 2. Time:
Turn the time knob to increase or decrease the cooking time.
The maximum time setting is 60 minutes.
Step 3. Temperature:
- 6 -
Turn the temperature knob to increase or
decrease the temperature setting.
FIRST USE
1.When using this product for the first time, the product may have a little smoke or
flavor. This is a normal phenomenon and will disappear soon. Make sure the
product has good ventilation.
- 7 -
2.Please check that all parts and accessories of the product are intact and
undamaged.
3.Clean all parts of the product according to the "Cleaning and Maintenance"
section.
4.Dry the parts thoroughly and assemble them into the inside of the product. Then,
the product can be put into use.
Cooking Functions Quick Reference Table:
Function
Default
Temperature
Default Time
Default Turbo
Toast
Fixed
4 color shade
setting
N/A
Bagel
Fixed
4 color shade
setting
N/A
Bake
350℉
30 minutes
Off
Roast
(Rotisserie)
350℉
60 minutes
Off
Broil
450℉
10 minutes
Off
Pizza
400℉
17 minutes
Off
Cookies
350℉
11 minutes
Off
Reheat
325℉
15 minutes
Off
Warm
150℉
60 minutes
Off
Slow Cook
225℉
240 minutes
Off
Notes:
1.The above data of different food temperatures and times are for reference only.
2.Please notice that the temperatures and time should also be adjusted
appropriately according to each person's taste preference and the size and
thickness of the food.
3.To better lock the nutrition of the food and evenly heat them, it is recommended
that food be padded or wrapped with tinfoil before cooking to pursue a better taste.

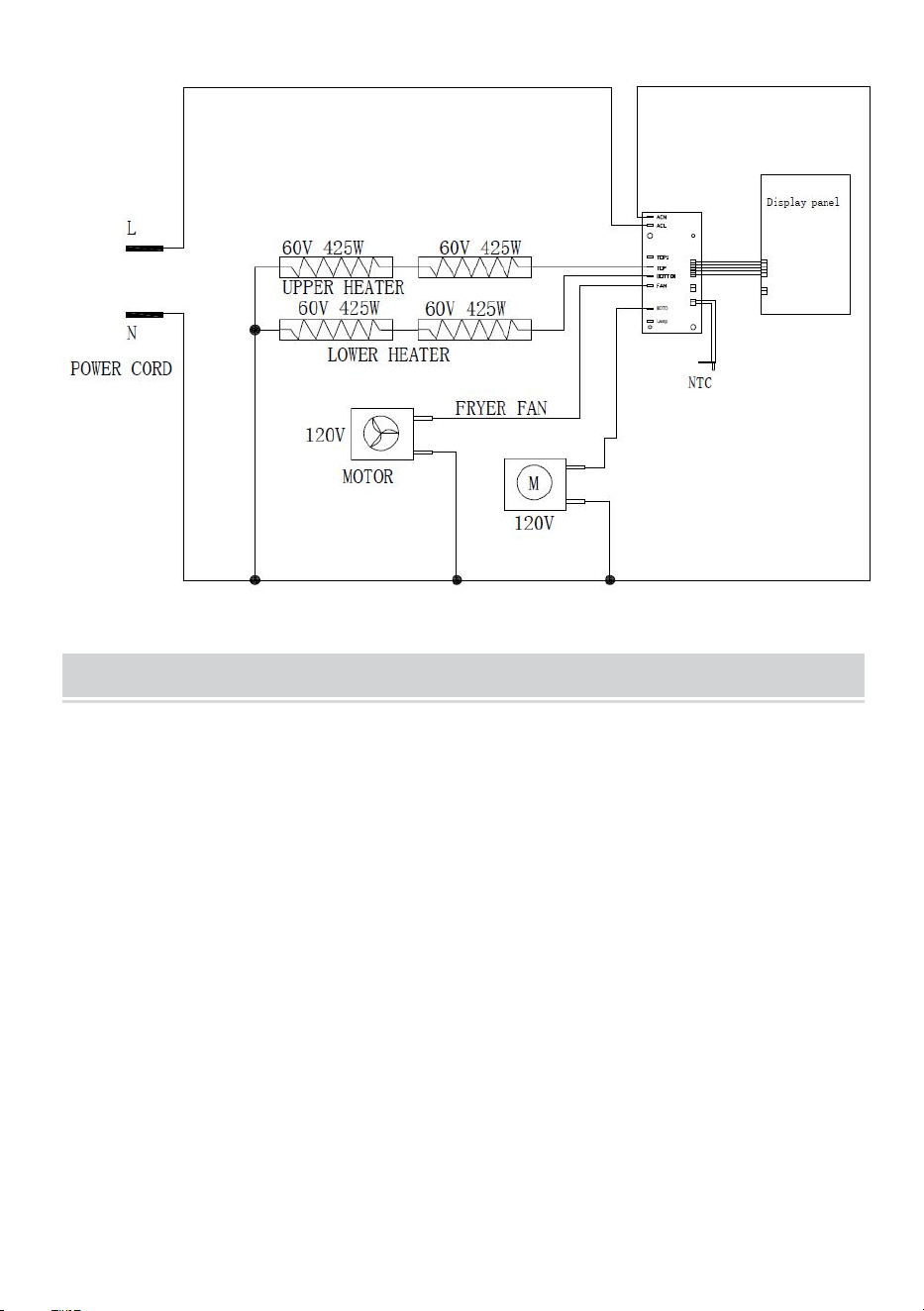

Wiring Diagram
- 8 -
CLEANING AND MAINTENANCE
1.The product must be disconnected from the power supply and cooled thoroughly
before cleaning.
2.Please use a soft dry cloth to wipe the inner cavity of the product. Do not use
sharp or frictional materials to wipe the product's internal cavity to protect the inner
cavity's metal coating.
3.The plate can be washed with water directly, and the water traces are dried with
a dry cloth. Do not soak with detergent or similar detergent.
4.Before packing and storing products, make sure that the products are completely
cooled, clean, and dry.
ATTENTION ENVIRONMENT PROTECTION
Attention Environment Protection
Please obey local law: put wasted electrical products and devices into a proper
recycling station.
