A18HV
Original instructions
Battery pack
Handle,
Insulated gripping surface
On/O switch
Release button
Dust bowl
Extension tube
Crevice nozzle
Floor nozzle
p. 4
p. 5
p. 5
p. 6
Important!
It is essential that you read the instructions in this manual before
assembling, operating and maintaining the product.
Subject to technical modications.
Battery pack
Handle,
Insulated gripping surface
On/O switch
Release button
Dust bowl
Extension tube
Crevice nozzle
Floor nozzle
p. 4
p. 5
p. 5
p. 6
4
75-100 %
50-75 %
25-50 %
0-25 %
1
2
Remove the battery pack before
starting any work on the product.
2
ON
OFF
5
75-100 %
50-75 %
25-50 %
0-25 %
1
2
2
ON
OFF

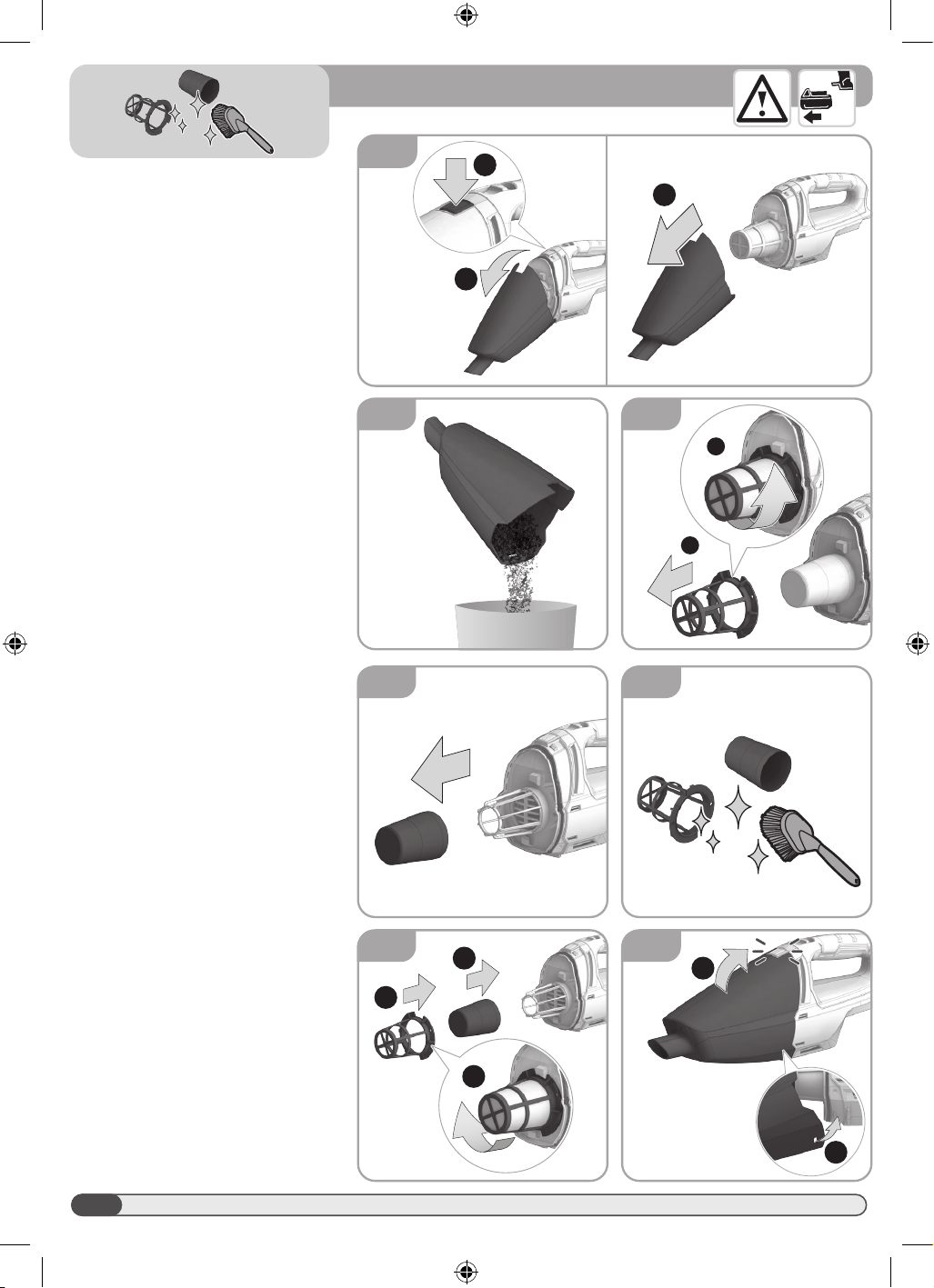

6
2
1
6
3
2
1
3
7
1
4 5
1
2
2 3
1
2
7
2
1
6
3
2
1
3
7
1
4 5
1
2
2 3
1
2
TECHNICAL DATA A18HV
Type Dust extractor
Rated voltage 18 V
Air ow rate 1132.7 L/min
Suction 6.2 kPa
Dust storage capacity 860 ml
Weight without battery pack 1.23 kg
COMPATIBLE BATTERY PACKS (NOT INCLUDED)
L1820R
L1820S
A18FB2
L1825R
L1830R-X5
A18B4
L1840R
A18FB4
L1850R
A18FB5
L1860R
L1860R-X5
L1890R
Use AEG 18V battery and charger only
WARNING! Read all safety warnings, instructions,
illustrations and specications provided with this product.
Failure to follow all instructions listed below may result in electric
shock, re, and/or serious injury. Save all warnings and instruction
for future reference.
DUST EXTRACTOR SAFETY WARNINGS
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play with
the appliance.
Never vacuum materials such as hot coals, cigarette butts, and
matches.
Do not use the product without a dust bowl or lter in place.
Use extra care when using the product on stairs.
Do not use the product to pick up hard objects, such as nails,
screws, and coins. Picking up hard objects can result in product
damage or personal injury.
Remove the battery pack before starting any work on the product.
Remove the rechargeable batteries from the product before
recharging them.
Do not recharge non-rechargeable batteries.
Remove exhausted batteries from the product and safely dispose
of them.
If the appliance is to be stored unused for a long period, remove the
battery.
Do not short circuit the supply terminals of the batteries.
ADDITIONAL BATTERY SAFETY WARNINGS
WARNING! To reduce the risk of re, personal injury, and
product damage due to a short circuit, never immerse your tool,
battery pack, or charger in uid or allow a uid to ow inside them.
Corrosive or conductive uids, such as seawater, certain industrial
chemicals, and bleach or bleach containing products, etc., can
cause a short circuit.
Do not dispose of used battery packs in the household refuse or
by burning them. AEG Distributors offer to retrieve old batteries to
protect our environment.
Do not store the battery pack together with metal objects (short
circuit risk).
Use only System AEG chargers for charging System AEG battery
packs. Do not use battery packs from other systems.
No metal parts must be allowed to enter the battery section of the
charger (short circuit risk).
Never break open battery packs and chargers and store only in dry
rooms. Keep dry at all times.
Battery acid may leak from damaged batteries under extreme load
or extreme temperatures. In case of contact with battery acid wash
it off immediately with soap and water. In case of eye contact rinse
thoroughly for at least 10 minutes and immediately seek medical
attention.
SPECIFIED CONDITIONS OF USE
The product is intended for household use only.
The product can be used for light-duty vacuuming of non-toxic dust
on dry surfaces.
The product is not suitable for suction of any liquid.
Do not use the product for any other purpose.
BATTERIES
Battery packs which have not been used for some time should be
recharged before use.
Temperatures in excess of 50°C (122°F) reduce the performance of
the battery pack. Avoid extended exposure to heat or sunshine (risk
of overheating).
The contacts of chargers and battery packs must be kept clean.
For an optimum life-time, the battery packs have to be fully charged,
after used.
To obtain the longest possible battery life remove the battery pack
from the charger once it is fully charged.
For battery pack storage longer than 30 days:
• Store the battery pack where the temperature is below 27°C and
away from moisture.
• Store the battery packs in a 30% - 50% charged condition.
• Every six months of storage, charge the pack as normal.
TRANSPORTING LITHIUM BATTERIES
Lithium-ion batteries are subject to the Dangerous Goods
Legislation requirements.
Transportation of those batteries has to be done in accordance with
local, national and international provisions and regulations.
• The user can transport the batteries by road without further
requirements.
• Commercial transport of Lithium-Ion batteries by third parties is
subject to Dangerous Goods regulations. Transport preparation
and transport are exclusively to be carried out by appropriately
trained persons and the process has to be accompanied by
corresponding experts.
When transporting batteries:
• Ensure that battery contact terminals are protected and insulated
to prevent short circuit.
• Ensure that battery pack is secured against movement within
packaging.
• Do not transport batteries that are cracked or leak.
Check with forwarding company for further advice.
BATTERY PACK PROTECTION LI-ION BATTERY
The battery pack has overload protection that protects it from being
overloaded and helps to ensure long life. Under extreme stress the
battery electronics switch off the machine automatically. To restart,
switch the machine off and then on again. If the machine does not
start up again, the battery pack may have discharged completely. In
this case it must be recharged in the battery charger.
8
MAINTENANCE
The ventilation slots of the machine must be kept clear at all times.
Use only AEG accessories and AEG spare parts. Should
components need to be replaced which have not been described,
please contact one of our AEG service agents (see our list of
guarantee/service addresses).
If needed, an exploded view of the tool can be ordered. Please state
the Article No. as well as the machine type printed on the label and
order the drawing at your local service agents or directly at:
Techtronic Industries Australia Pty Ltd
PO Box 1065
Mount Waverley VIC 3149
Tel. no. 1300 234 797
Australia
Techtronic Industries N.Z. Limited
PO Box 12-806
Penrose AUCKLAND 1642
Tel. no. 0800 234 797(0800 AEGPWR)
New Zealand
MAINTENANCE
Use only AEG accessories and spare parts. Should components
that have not been described need to be replaced, contact one
of our AEG service agents (see our list of guarantee/service
addresses).
If needed, an exploded view of the product can be ordered. State
the product type and the serial number printed on the label,
and order the drawing at your local service agents or directly
at: Techtronic Industries GmbH, Max-Eyth-Straße 10, 71364
Winnenden, Germany.
SYMBOLS
Read the instructions carefully before starting the
product.
CAUTION! WARNING! DANGER!
Remove the battery pack before starting any work on
the product.
For indoor use only
V
Volts
Direct current
Regulatory Compliance Mark (RCM). Product
meets applicable regulatory requirements.
Do not dispose of waste batteries, waste electrical and
electronic equipment as unsorted municipal waste.
Waste batteries and waste electrical and electronic
equipment must be collected separately.
Waste batteries, waste accumulators, and light sources
have to be removed from the equipment.
Check with your local authority or retailer for recycling
advice and collection point.
According to local regulations, retailers may have an
obligation to take back waste batteries and waste
electrical and electronic equipment free of charge.
Your contribution to the reuse and recycling of waste
batteries and waste electrical and electronic equipment
helps to reduce the demand of raw materials.
Waste batteries, in particular containing lithium, and
waste electrical and electronic equipment contain
valuable and recyclable materials, which can adversely
impact the environment and the human health if not
disposed of in an environmentally compatible manner.
Delete personal data from waste equipment, if any.
