I
mportant!
It is essential that you read the instructions in this manual
before assembling, operating, and maintaining the product.
Subject to technical modifications.
3
3
5
2
3
4
1
1
3
5
4
8
11
9
10
6
7
2

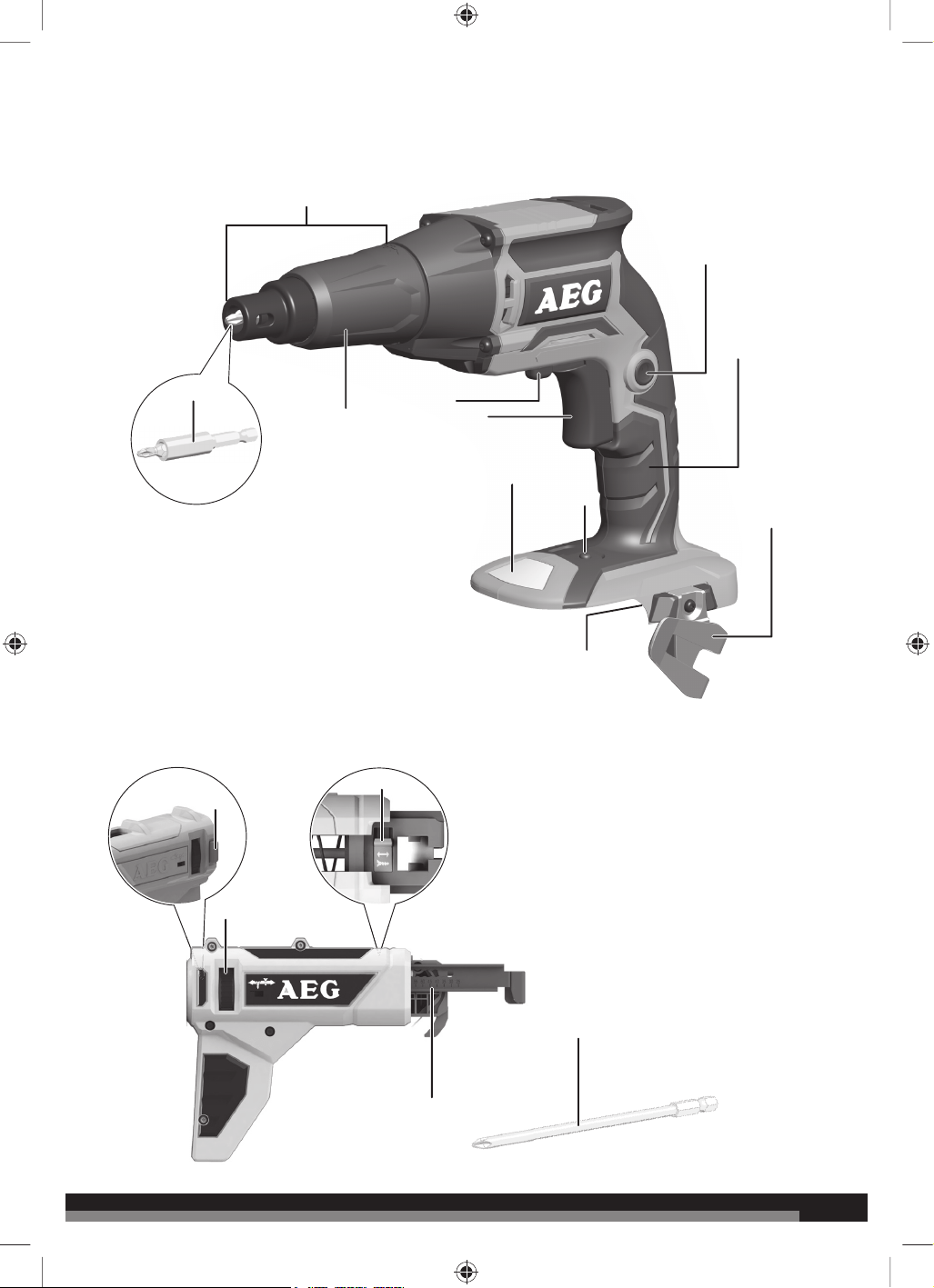

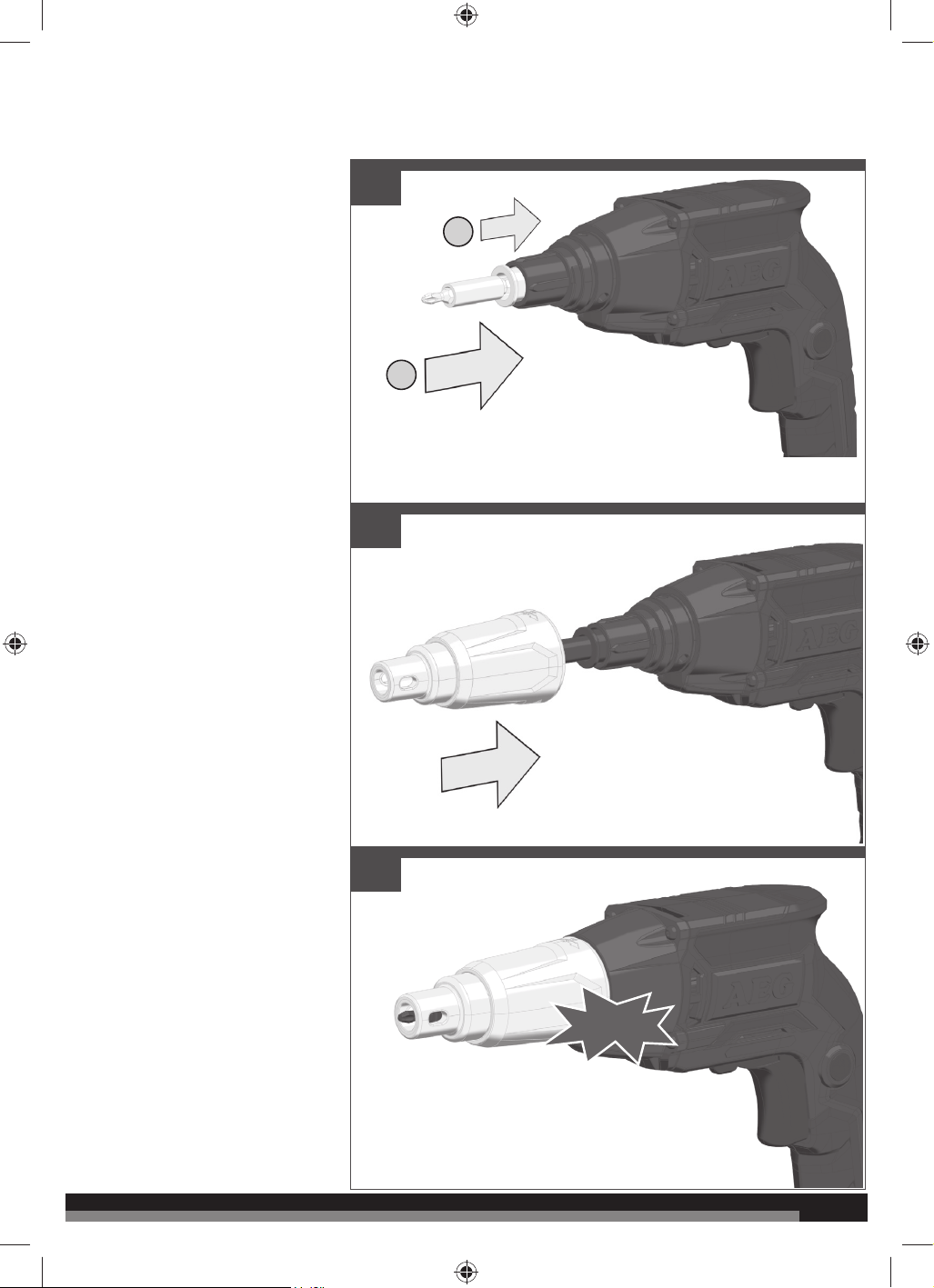

1. Nose cone

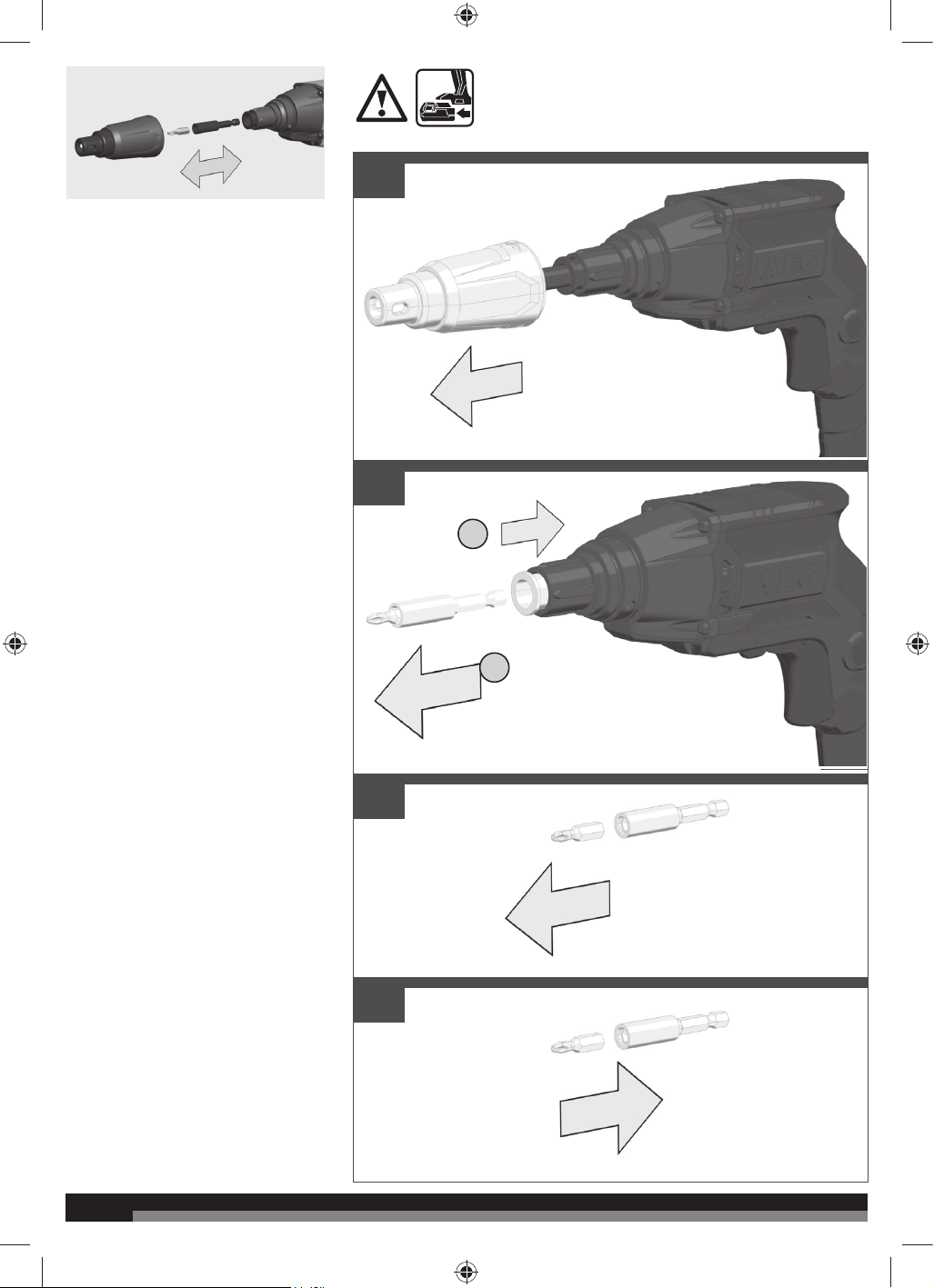

2. Standard 6.35 mm bit holder with PH2 bit

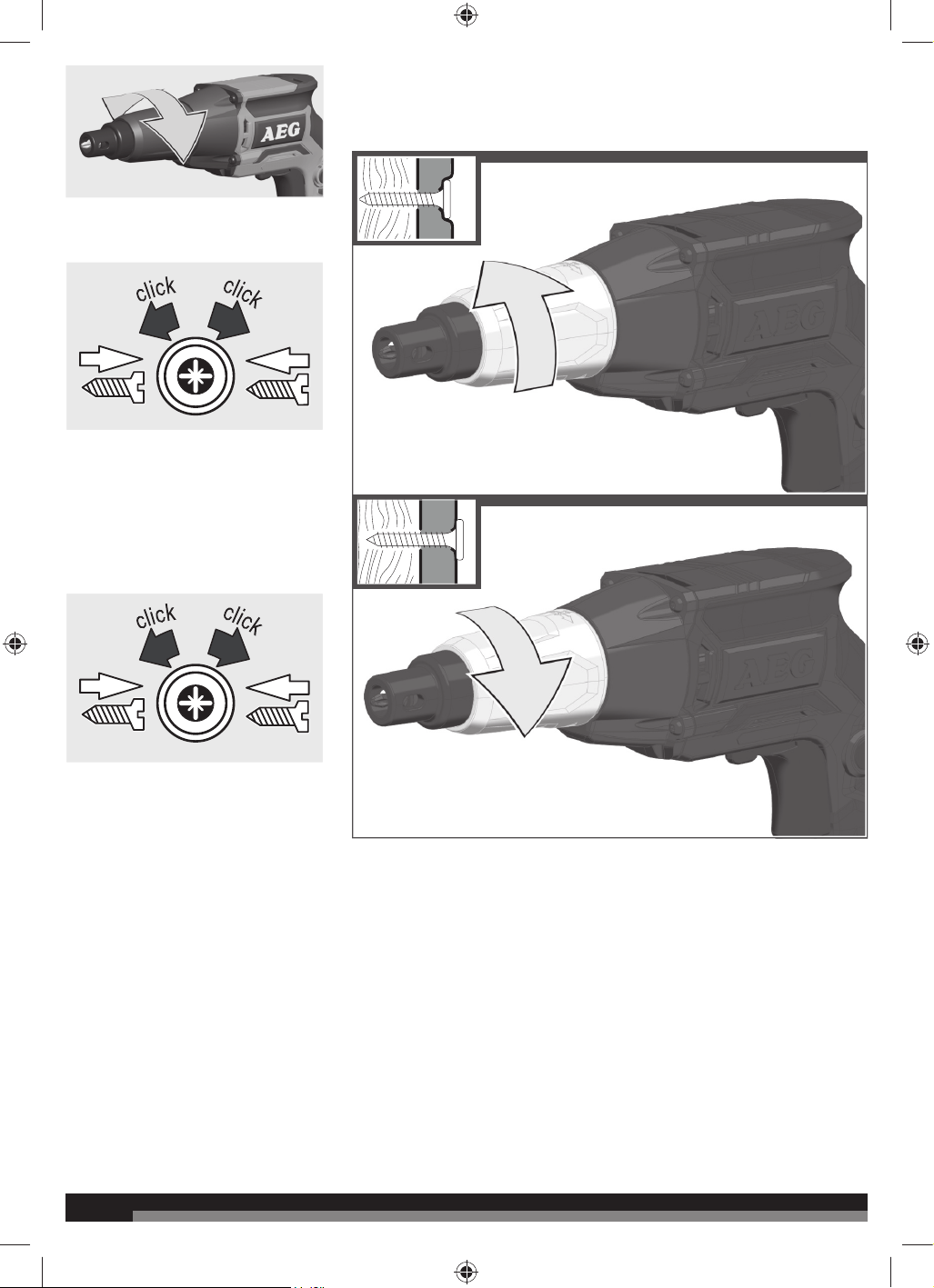

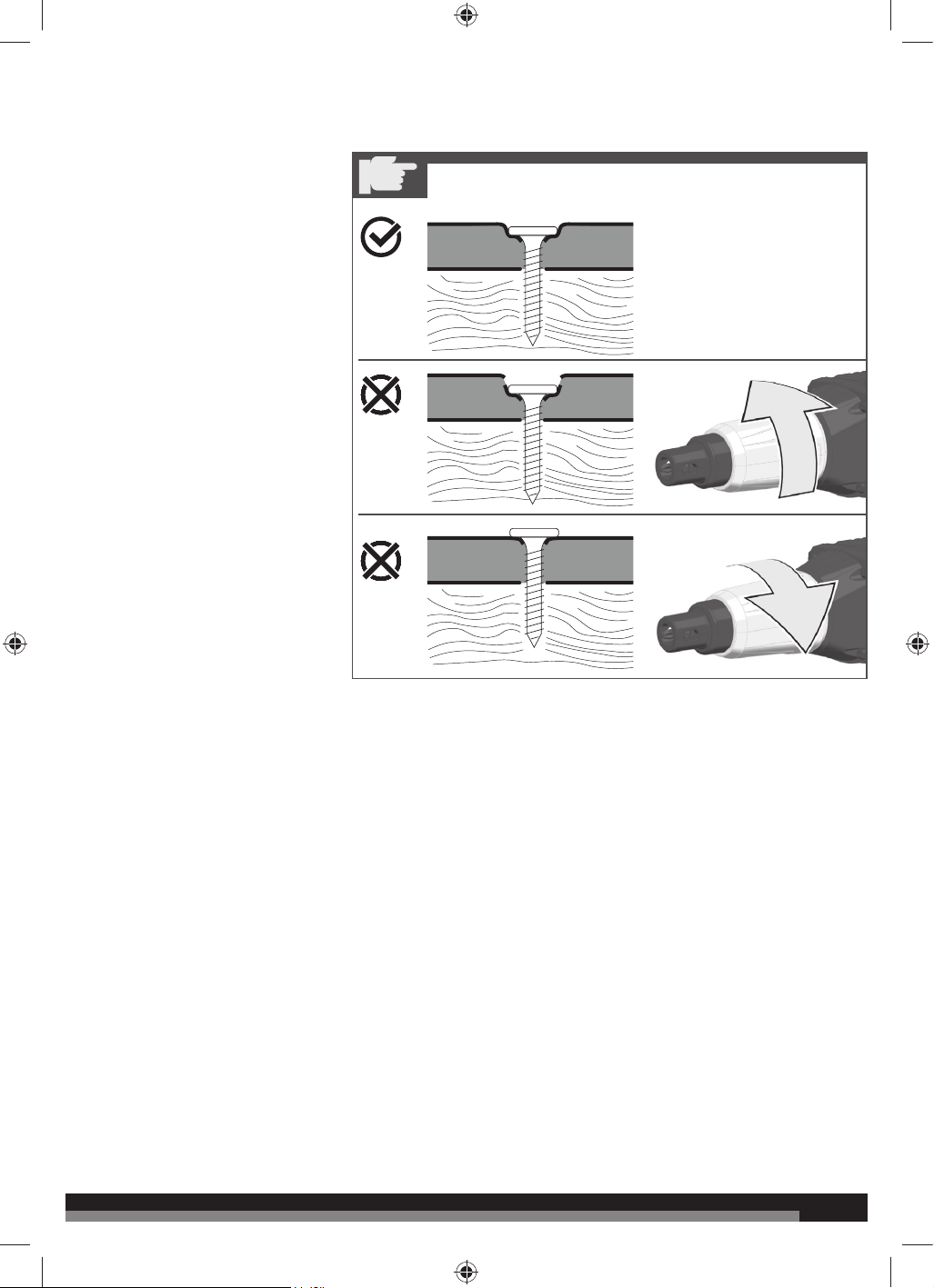

3. Depth adjusting collar

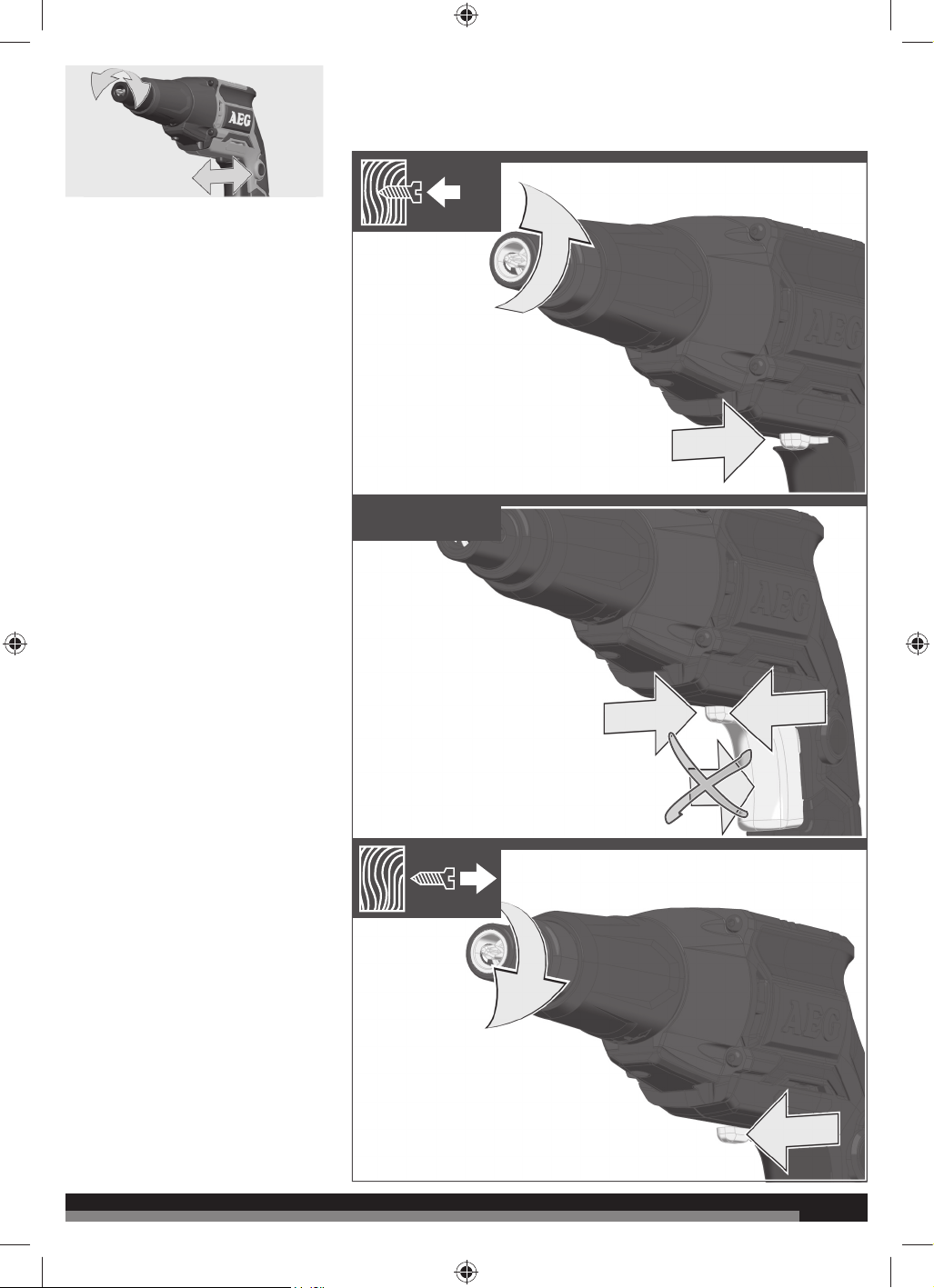

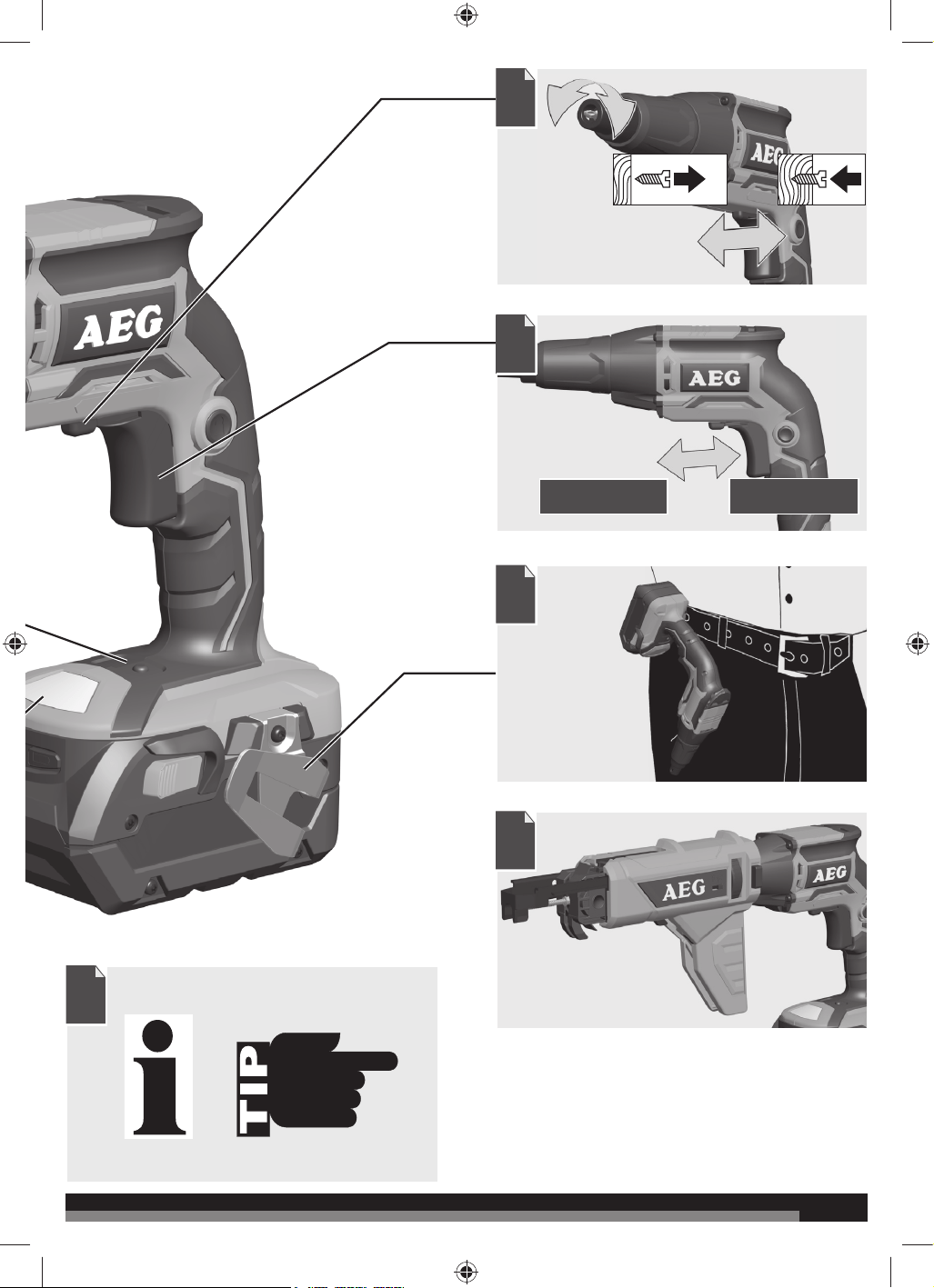

4. Direction of rotation selector
5. Trigger switch
6. LED
7. AUTO DRIVE button
8. Battery port
9. Lock on button
10. Handle (insulated gripping surface)

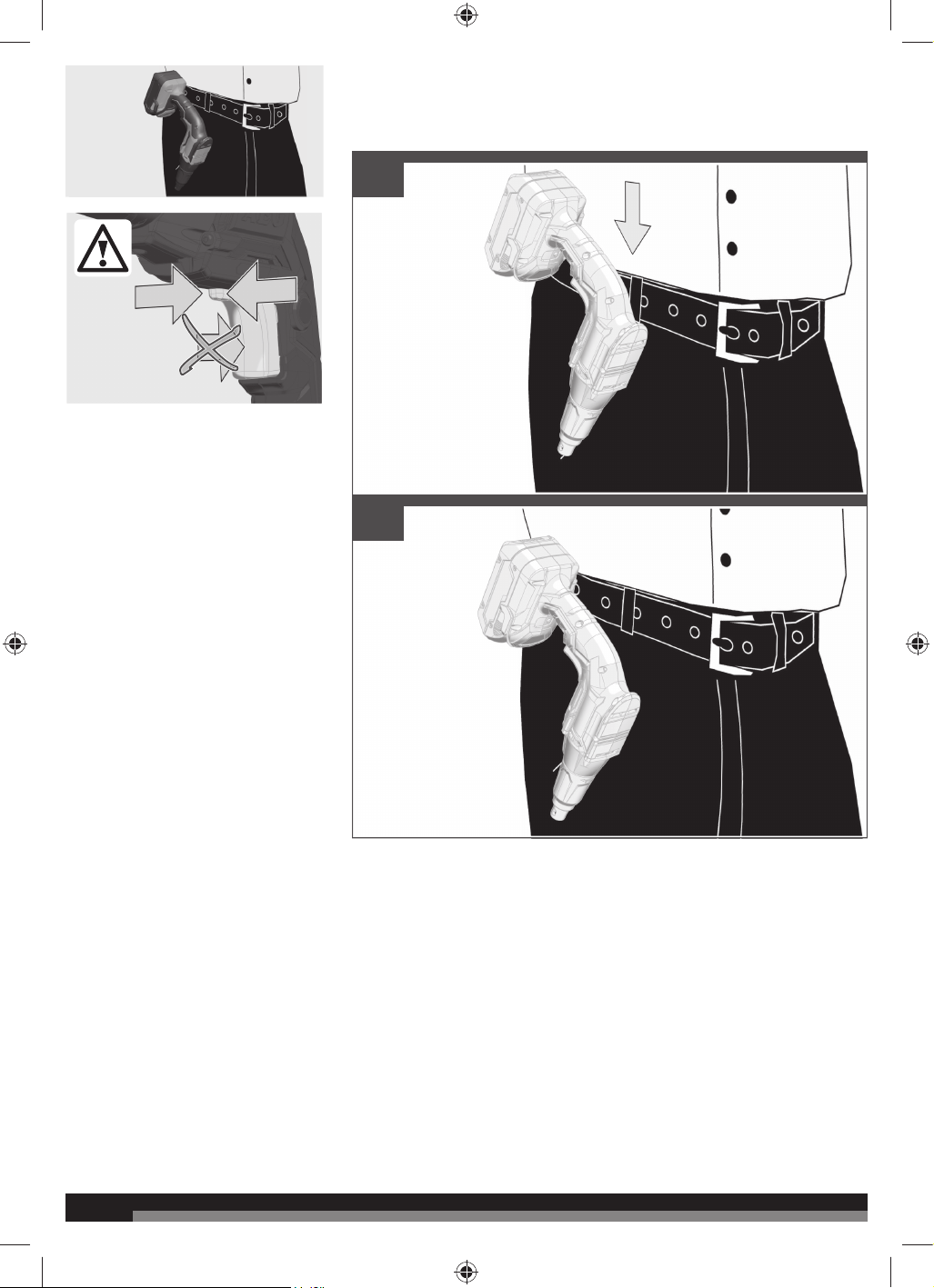

11. Belt clip
SCREWDRIVER

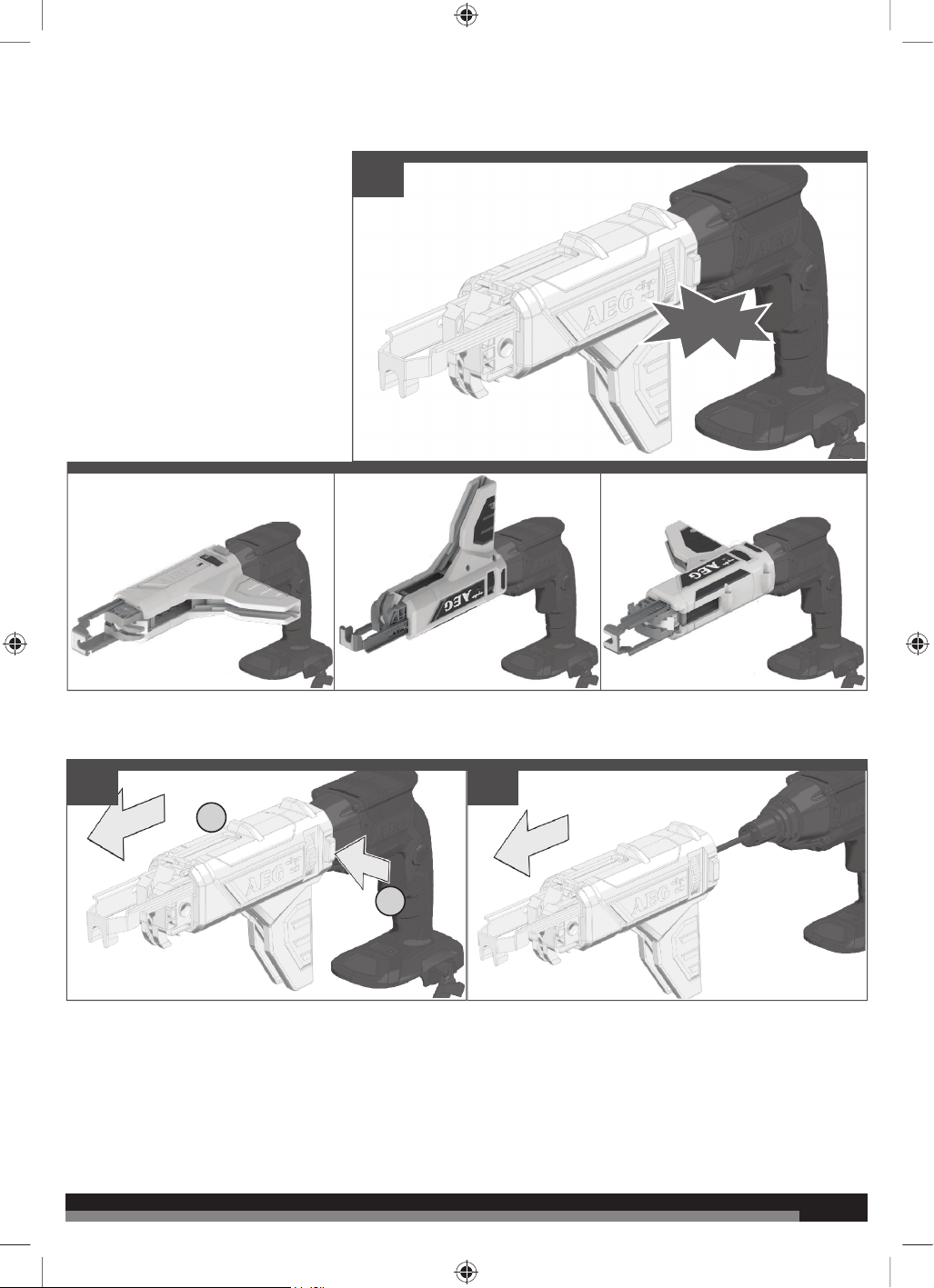

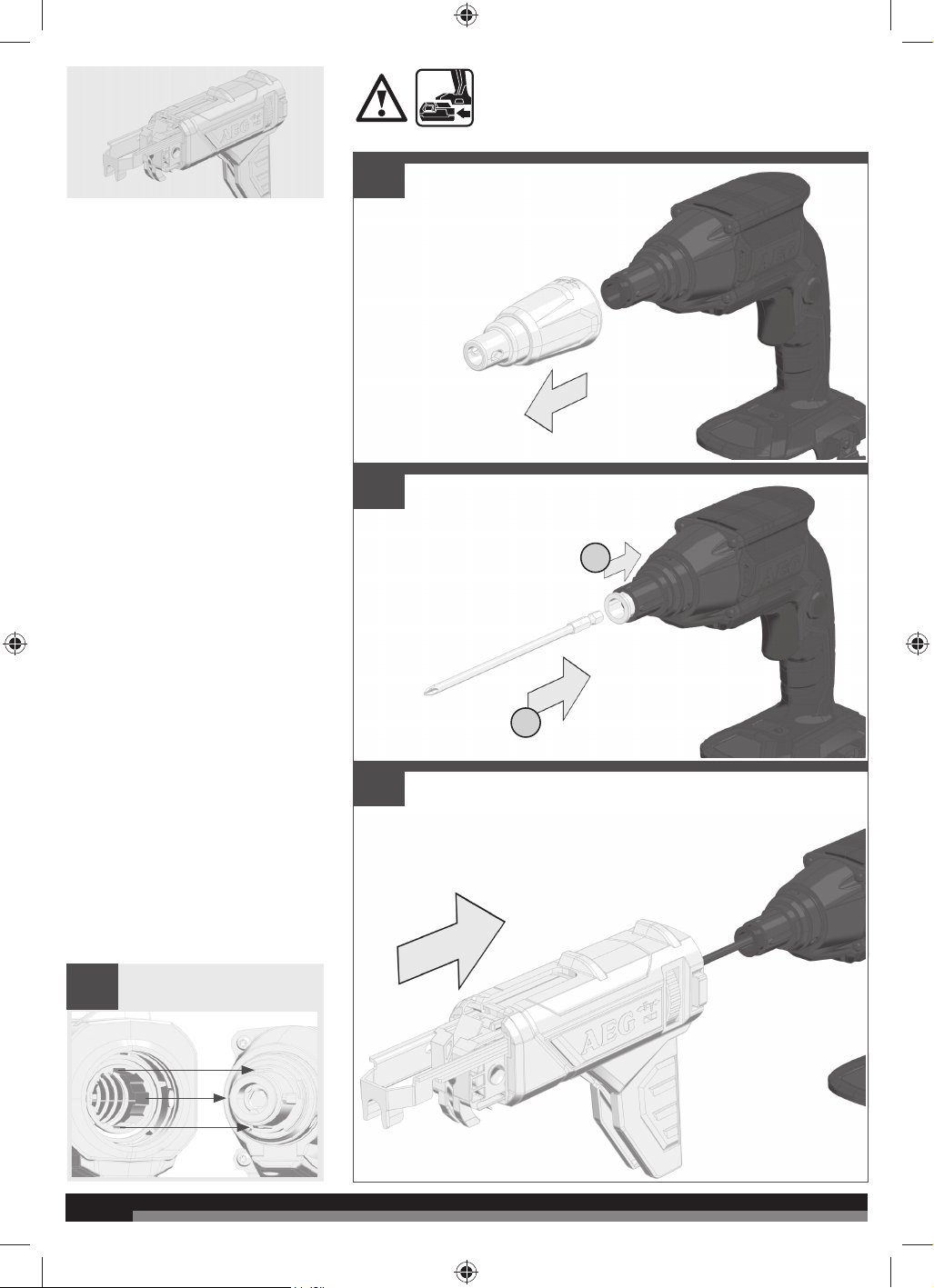

COLLATED ATTACHMENT
1. Quick release Button
2. Countersink adjustment Dial
3. Screw length adjustment slide
4. Screw Length Gauge
5. Long 148mm PH2 Bit (Sold separately in store 2pcs – P/N 4932459716)

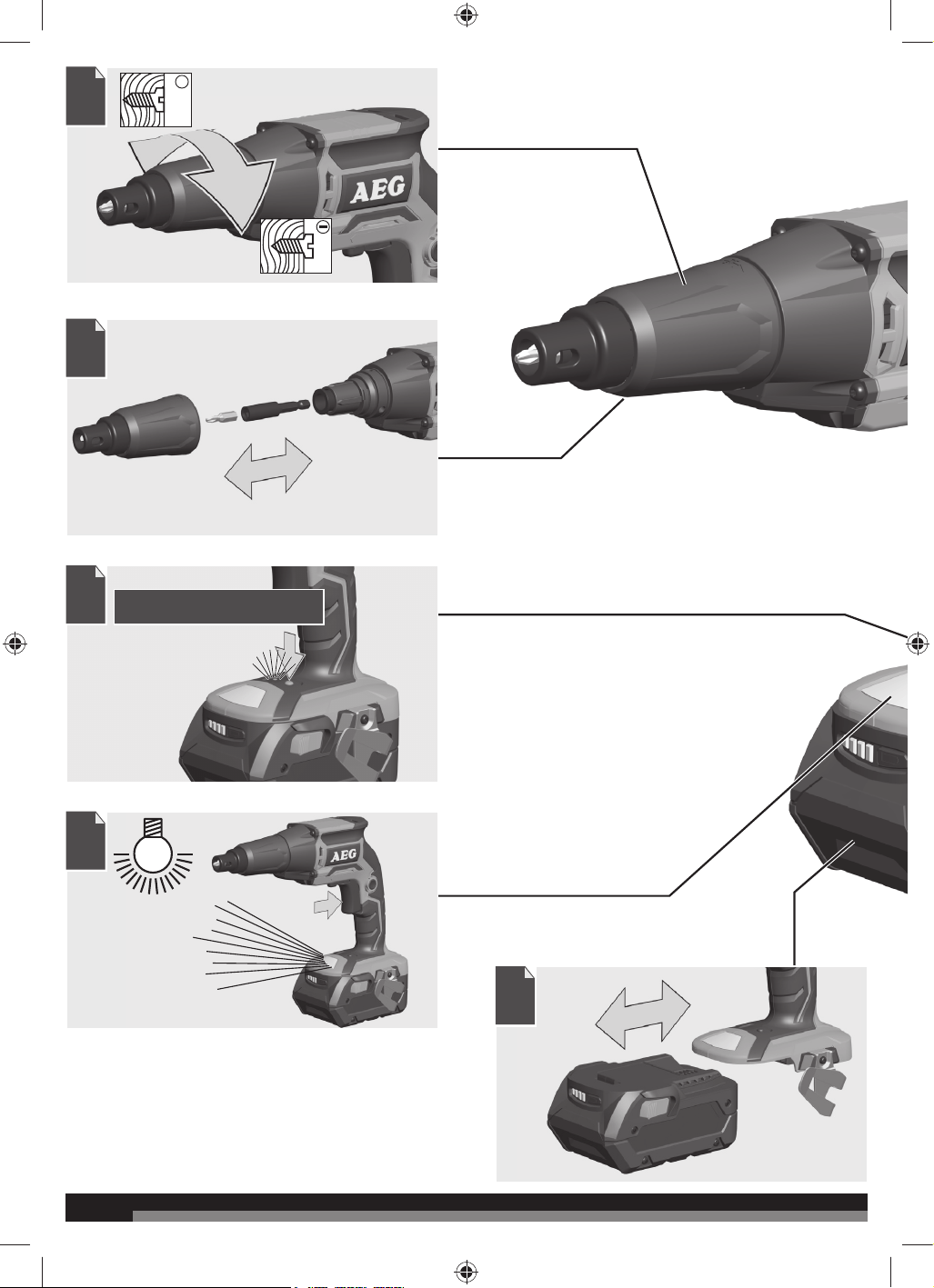

4
4
AUTO DRIVE
8
11
12
6
19
+
5
5
00
10
13
20
14
START
STOP
16
6
6
1
1
2
2
click

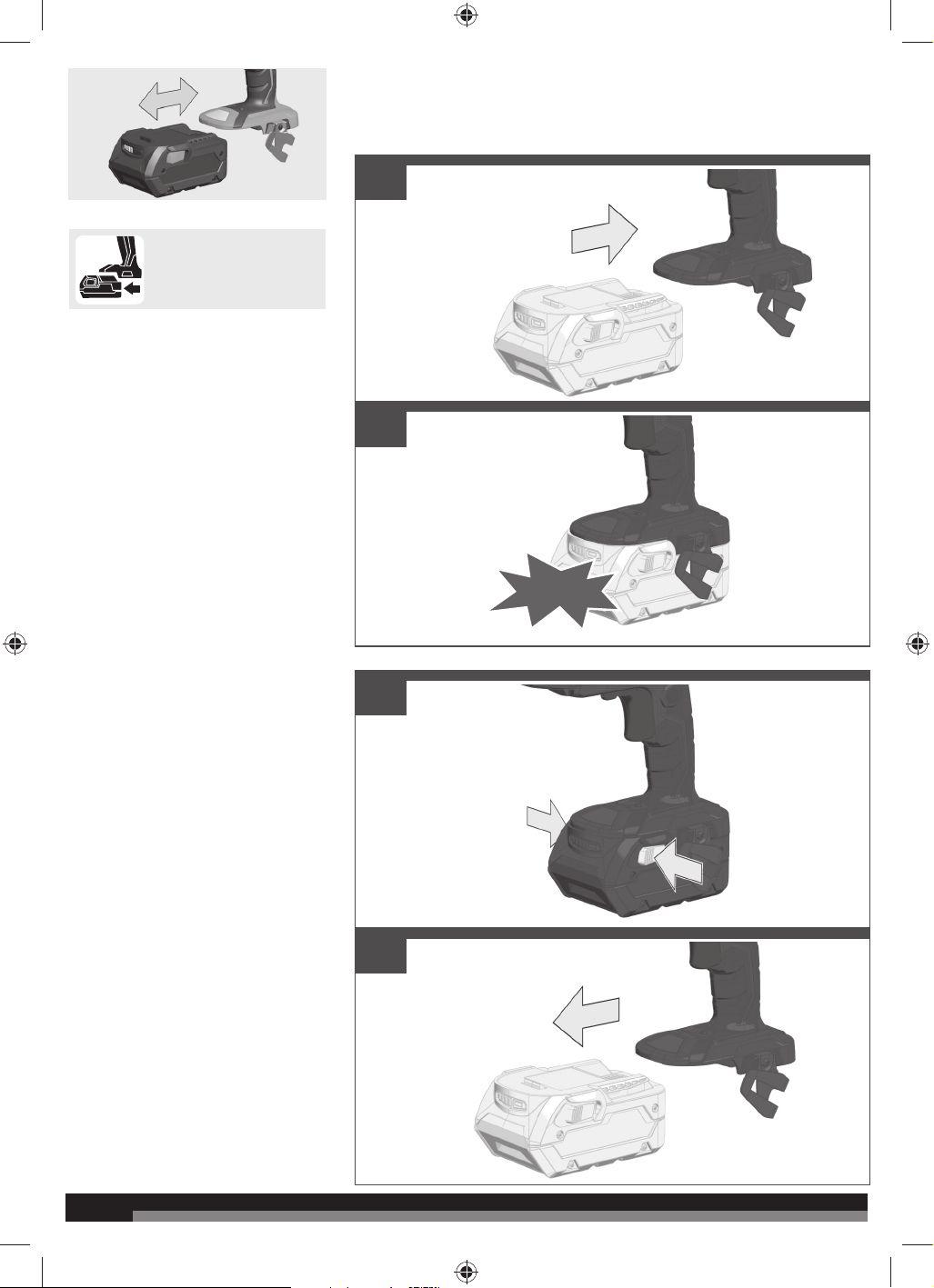

Remove the battery pack
before starting any work on
the machine.
7
7

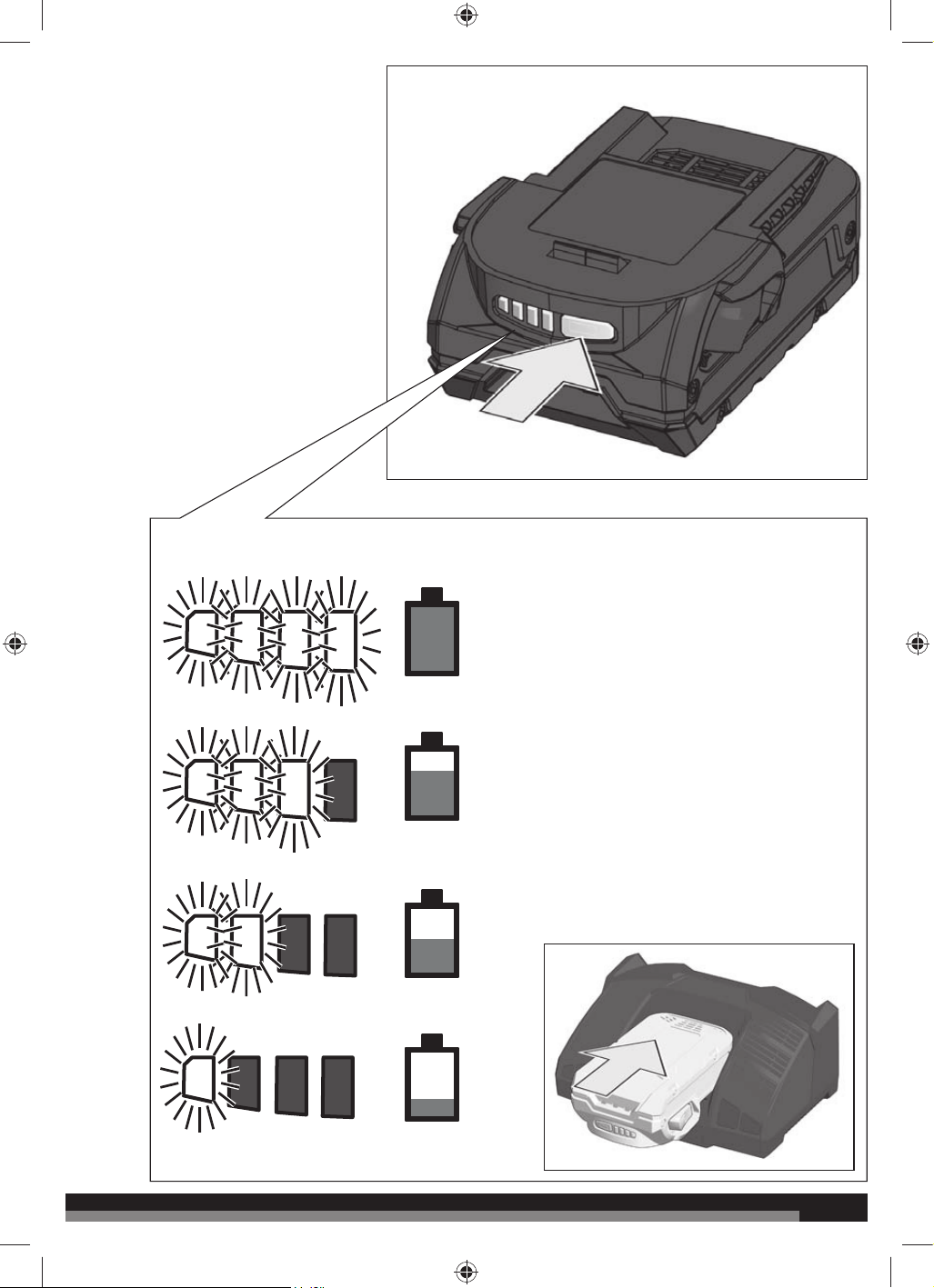

75-100 %
50-75 %
25-50 %
0-25 %
8
8
1
2
3
4
1
2
9
9
5
6
7
click
1
2
10
10
START
STOP
11
11

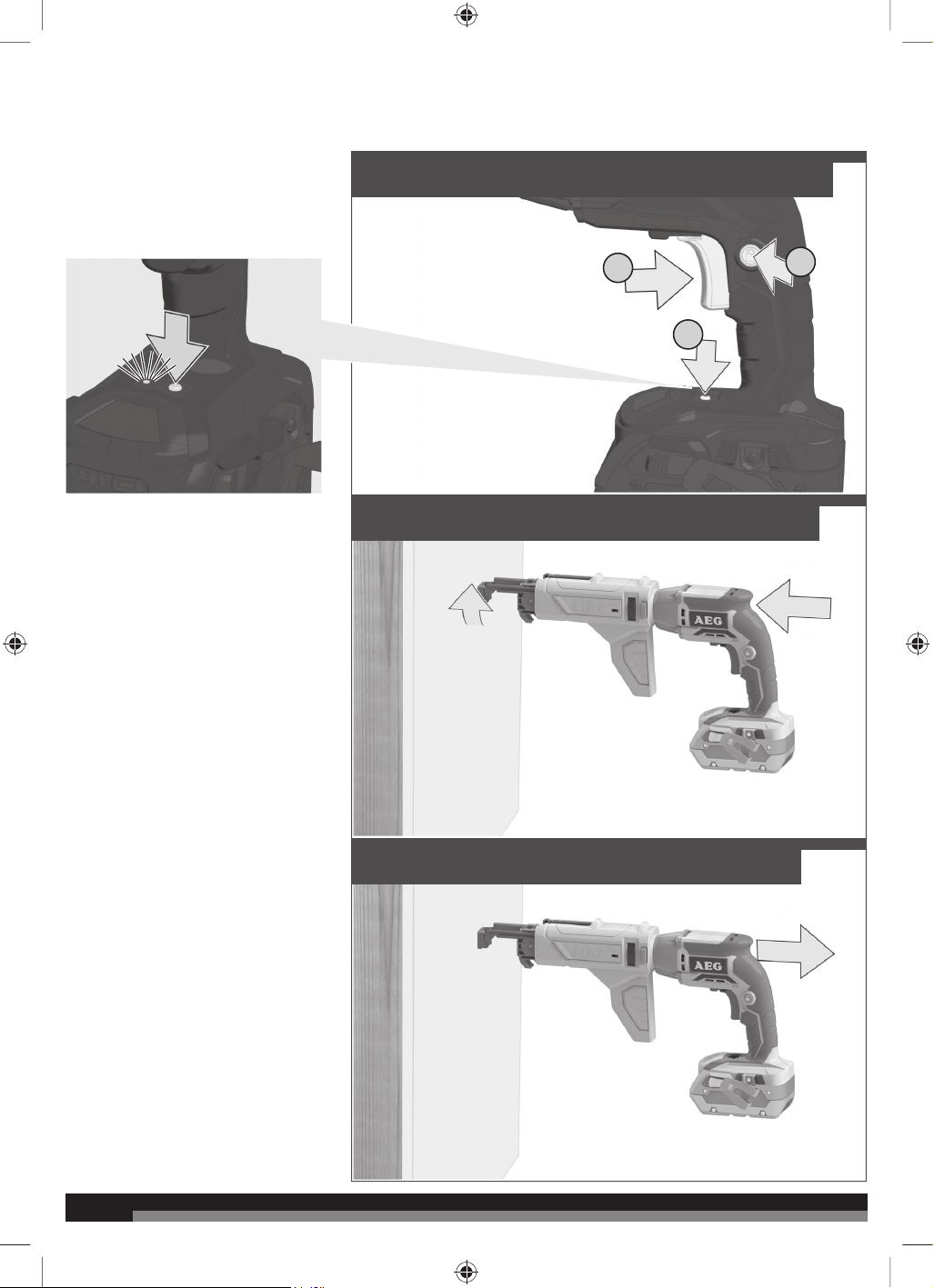

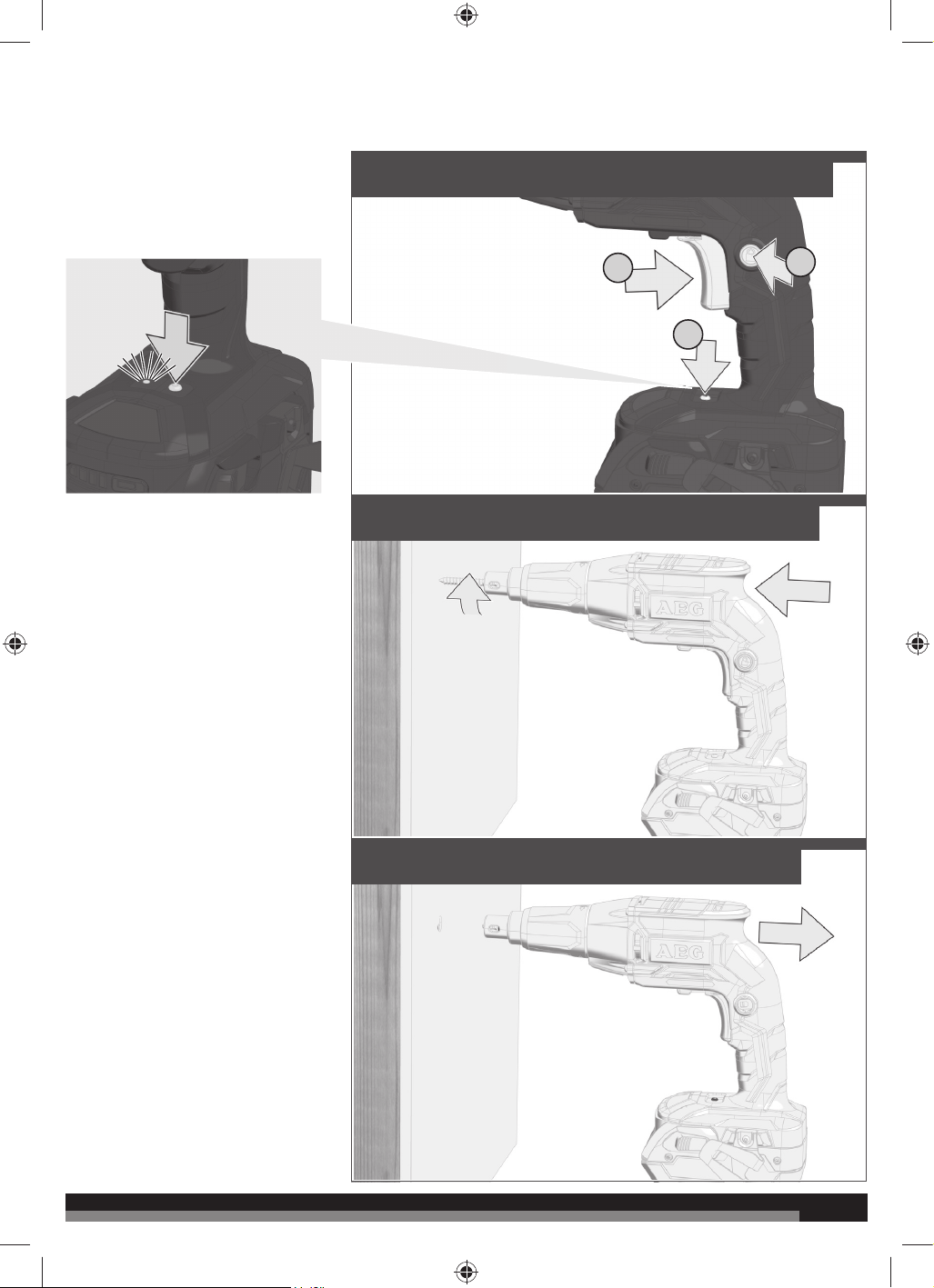

TO START AUTO DRIVE
AUTO DRIVE FUNCTION
TO STOP AUTO DRIVE
1
2
3
12
12

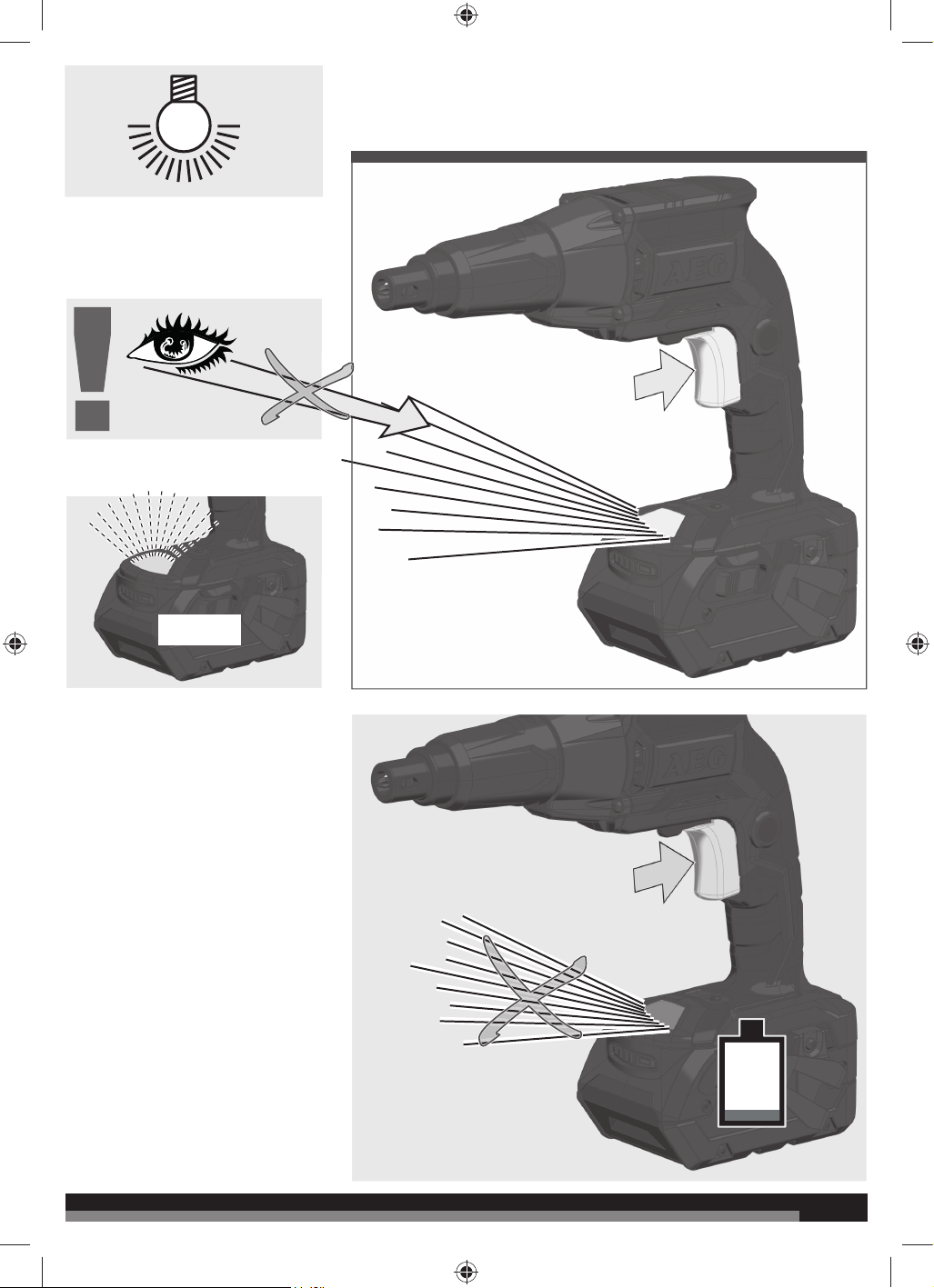

13
13
LOCK
14
14
3
1
2
4
10
11

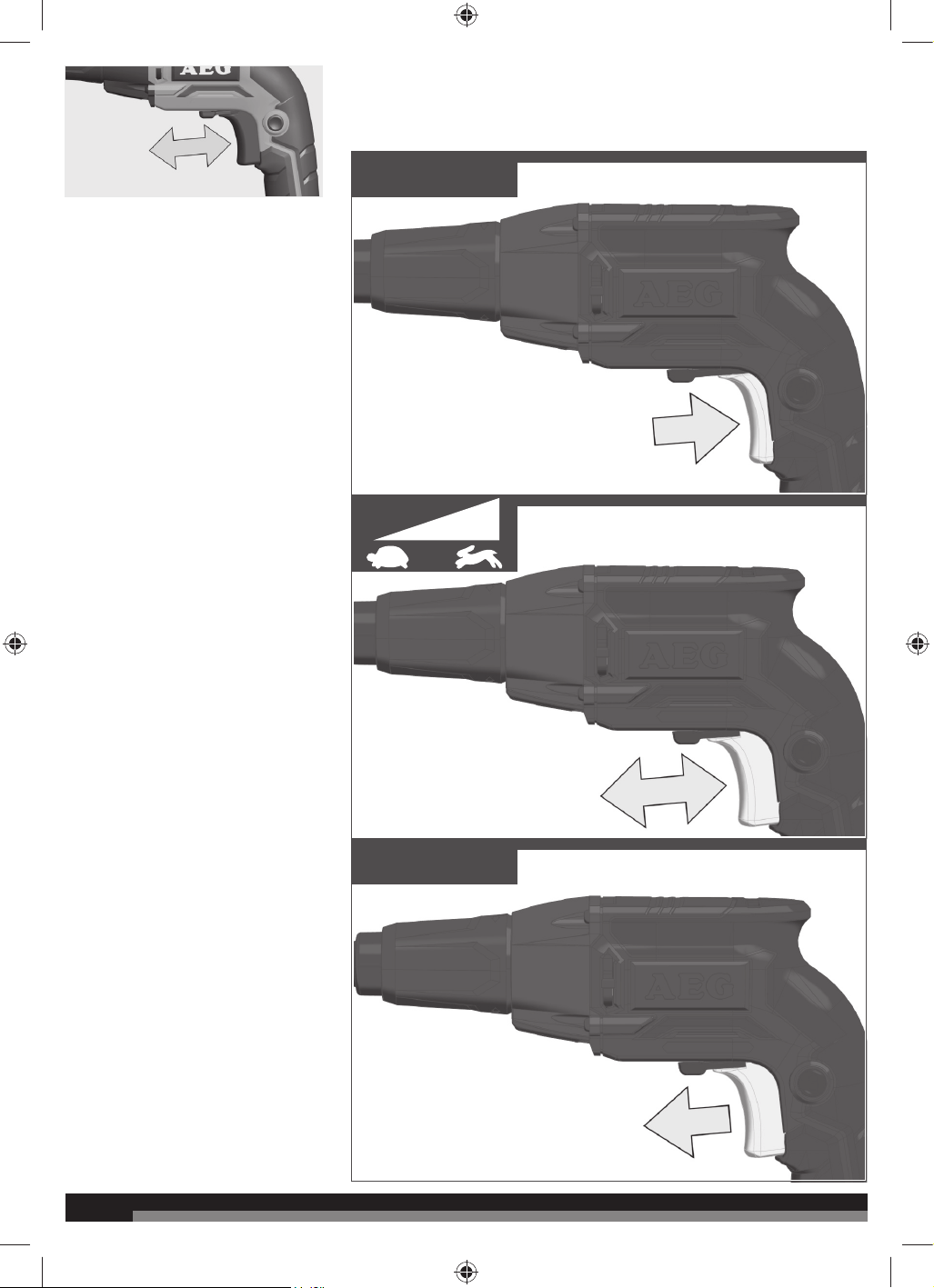

NORMAL START
INSTRUCTIONS
AUTO DRIVE
INSTRUCTIONS
15
15
16
16
1
2
3
1
2
!
17
17
4
click
1
1
2
2
18
18
TO START AUTO DRIVE
AUTO DRIVE FUNCTION
TO STOP AUTO DRIVE
1
2
3
19
19
> 80°C
<10%
20
20
1
2

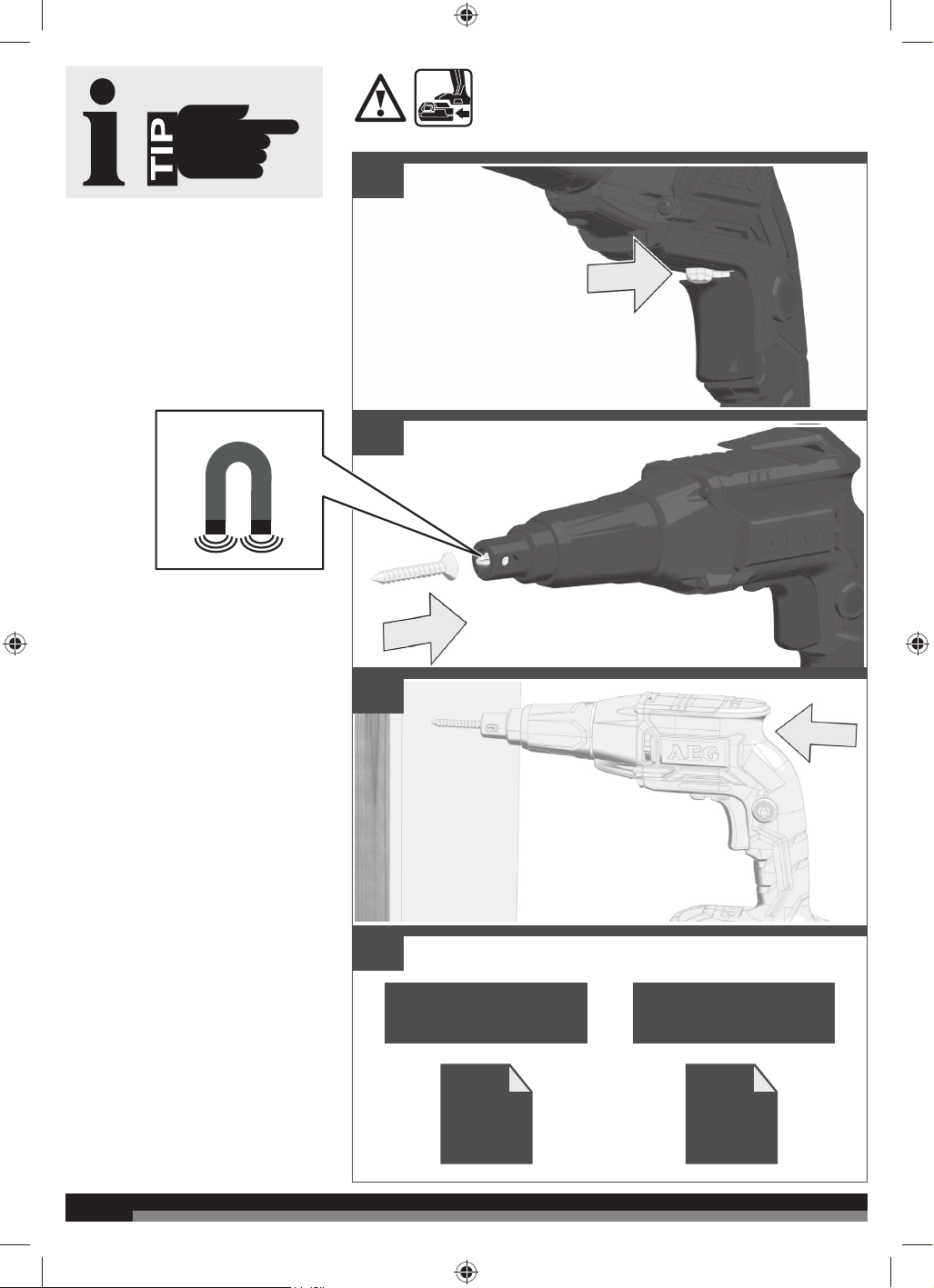

21
21
WARNING!
Read all safety warnings and all instructions. Failure to follow
WKHZDUQLQJVDQGLQVWUXFWLRQVPD\UHVXOWLQHOHFWULFVKRFN¿UHDQG
or serious injury.
Save all warnings and instructions for future reference.
SCREWDRIVER SAFETY WARNINGS
Hold the power tool by insulated gripping surfaces, when
performing an operation where the fastener may contact
hidden wiring. Fasteners contacting a “live” wire may make
exposed metal parts of the power tool “live” and could give the
operator an electric shock.
ADDITIONAL SAFETY AND WORKING INSTRUCTIONS
Use protective equipment. Always wear safety glasses when
working with the machine. The use of protective clothing is
recommended, such as dust mask, protective gloves, sturdy non-
slip footwear, helmet and ear defenders.
The dust produced when using this tool may be harmful to health.
Do not inhale the dust. Wear a suitable dust protection mask.
Do not machine any materials that present a danger to health (e.g.,
asbestos).
Switch the device off immediately if the insertion tool stalls! Do not
switch the device on again while the insertion tool is stalled, as
doing so could trigger a sudden recoil with a high reactive force.
Determine why the insertion tool stalled and rectify this, paying
heed to the safety instructions.
The possible causes may be:
Ɣ it is tilted in the workpiece to be machined
Ɣ it has pierced through the material to be machined
Ɣ the power tool is overloaded
Do not reach into the machine while it is running.
The insertion tool may become hot during use.
Ɣ when changing tools
Ɣ when setting the device down
Sawdust and splinters must not be removed while the machine is
running.
:KHQZRUNLQJLQZDOOVFHLOLQJRUÀRRUWDNHFDUHWRDYRLGHOHFWULF
cables and gas or waterpipes.
Clamp your workpiece with a clamping device. Unclamped
workpieces can cause severe injury and damage.
Remove the battery pack before starting any work on the machine.
Do not dispose of used battery packs in the household refuse or
by burning them. AEG Distributors offer to retrieve old batteries to
protect our environment.
Do not store the battery pack together with metal objects (short
circuit risk).
Use only System PCLS chargers for charging System PCLS battery
packs. Do not use battery packs from other systems.
Never break open battery packs and chargers and store only in dry
rooms. Keep dry at all times.
Battery acid may leak from damaged batteries under extreme load
or extreme temperatures. In case of contact with battery acid wash
it off immediately with soap and water. In case of eye contact rinse
thoroughly for at least 10 minutes and immediately seek medical
attention.
Do not insert the bit on tool when the tool is running, and switch is
lock on status, the bit will be run and may hurt the user.
ADDITIONAL BATTERY SAFETY WARNINGS
WARNING!
7RUHGXFHWKHULVNRI¿UHSHUVRQDOLQMXU\DQGSURGXFWGDPDJHGXH
TECHNICAL DATA SCREWDRIVER
BTS18BL
Rated voltage 18 V
No-load speed 0 - 5000 min
-1
Screw diameter max 4.2 mm
Screw lengths 25 - 55 mm
Setting range of depth gauge ± 5 mm
Setting range of depth gauge for auto feed attachment ± 3 mm
Torque max 5 Nm
Universal reception 1/4 “HEX (6.35mm)
Weight - product with autofeed attachment 1.39 kg
Weight - product with nose cone 0.97 kg
BATTERY AND CHARGER
Compatible battery pack
(not included)
Compatible charger
(not included)
L1815R
L1820R
L1825R
L1830R
L1840R
L1850R
L1860R
L1860B
AL1218G
BL1218
BLK1218
BL18DP-X5
Use AEG 18V battery and charger only
22
22
to a short circuit, never immerse your tool, battery pack or charger
LQÀXLGRUDOORZDÀXLGWRÀRZLQVLGHWKHP&RUURVLYHRUFRQGXFWLYH
ÀXLGVVXFKDVVHDZDWHUFHUWDLQLQGXVWULDOFKHPLFDOVDQGEOHDFKRU
bleach containing products, etc., can cause a short circuit.
SPECIFIED CONDITIONS OF USE
7KH VFUHZGULYHU LV VXLWHG IRU VHWWLQJ GU\ ZDOO VFUHZV ZKHQ ¿[LQJ
gypsum plaster boards to wood furring or metal furring.
Do not use the product in any way other than those stated for
intended use.
BATTERIES
New battery packs reach full loading capacity after 4 - 5 chargings
and dischargings. Battery packs which have not been used for
some time should be recharged before use.
Temperatures in excess of 50°C (122°F) reduce the performance
of the battery pack. Avoid extended exposure to heat or sunshine
(risk of overheating).
The contacts of chargers and battery packs must be kept clean.
For an optimum life-time, the battery packs have to be fully charged,
after use.
To obtain the longest possible battery life remove the battery pack
from the charger once it is fully charged.
For battery pack storage longer than 30 days:
Store the battery pack where the temperature is below 27°C
and away from moisture.
Store the battery packs in a 30% - 50% charged condition.
Every six months of storage, charge the pack as normal.
BATTERY PACK PROTECTION
The battery pack has overload protection that protects it from being
overloaded and helps to ensure long life. Under extreme stress the
battery electronics switch off the product automatically. To restart,
switch the product off and then on again. If the product does not
start up again, the battery pack may have discharged completely. In
this case it must be recharged in the battery charger.
TRANSPORTING LITHIUM BATTERIES
Lithium-ion batteries are subject to the Dangerous Goods
Legislation requirements.
Transportation of those batteries has to be done in accordance with
local, national and international provisions and regulations.
Ŷ The user can transport the batteries by road without further
requirements.
Ŷ Commercial transport of Lithium-Ion batteries by third parties is
subject to Dangerous Goods regulations. Transport preparation
and transport are exclusively to be carried out by appropriately.
Trained persons and the process has to be accompanied by
corresponding experts.
When transporting batteries:
Ŷ Ensure that battery contact terminals are protected and
insulated to prevent short circuit.
Ŷ Ensure that battery pack is secured against movement within
packaging.
Ŷ Do not transport batteries that are cracked or leak.
Check with forwarding company for further advice.
MAINTENANCE
Remove the battery pack before starting any work on the product.
The ventilation slots of the machine must be kept clear at all times.
Use only AEG accessories and AEG spare parts. Should
components need to be replaced which have not been described,
please contact one of our AEG service agents (see our list of
guarantee/service addresses).
If needed, an exploded view of the tool can be ordered. Please state
the Article No. as well as the machine type printed on the label and
order the drawing at your local service agents or directly at:
Techtronic Industries Australia Pty Ltd
PO Box 1065
Mount Waverley VIC 3149
Tel. no. 1300 234 797
Australia
Techtronic Industries N.Z. Limited
PO Box 12-806
Penrose AUCKLAND 1642
Tel. no. 0800 234 797
New Zealand
SYMBOLS
Safety alert
No-load speed
V
Volts
Direct current
Regulatory Compliance Mark (RCM). Product
meets applicable regulatory requirements.
Please read the instructions carefully before
starting the machine.
Do not dispose of electric tools together with
household waste material. Electric tools and
electronic equipment that have reached the end of
their life must be collected separately and returned
to an environmentally compatible recycling facility.
Techtronic Industries Australia Pty Ltd
31 Gilby Road, Mount Waverley, VIC 3149
Melbourne, Australia
Techtronic Industries N.Z. Limited
2 Landing Drive, Mangere
Auckland, 2022, New Zealand
961096307-01A
