Please read this manual before switching the unit on.
Important safety information inside.
IRTC550
IRTC550
Pocket Thermal Imager
3
Pocket Thermal Imager
Page
4
4
6
7
9
9
9
10
10
12
12
13
14
14
15
15
16
18
20
21
22
25
32
34
35
35
36
36
36
40
40
40
41
41
42
Content
1.Introduction.................................................................................
2.Safety Information........................................................................
3.Structure Description...................................................................
4.Specifications..............................................................................
5.Before You Start...........................................................................
5-1.How to Charge the Battery.......................................................
5-2.Power ON................................................................................
5-3.Power OFF...............................................................................
5-4.Desktop..................................................................................
5-5.LED light.................................................................................
5-6.Temperature Measurement......................................................
5-7.Emissivity Adjustment.............................................................
5-8.Reflected Temperature............................................................
5-9.Thermal Imager Reporter Software..........................................

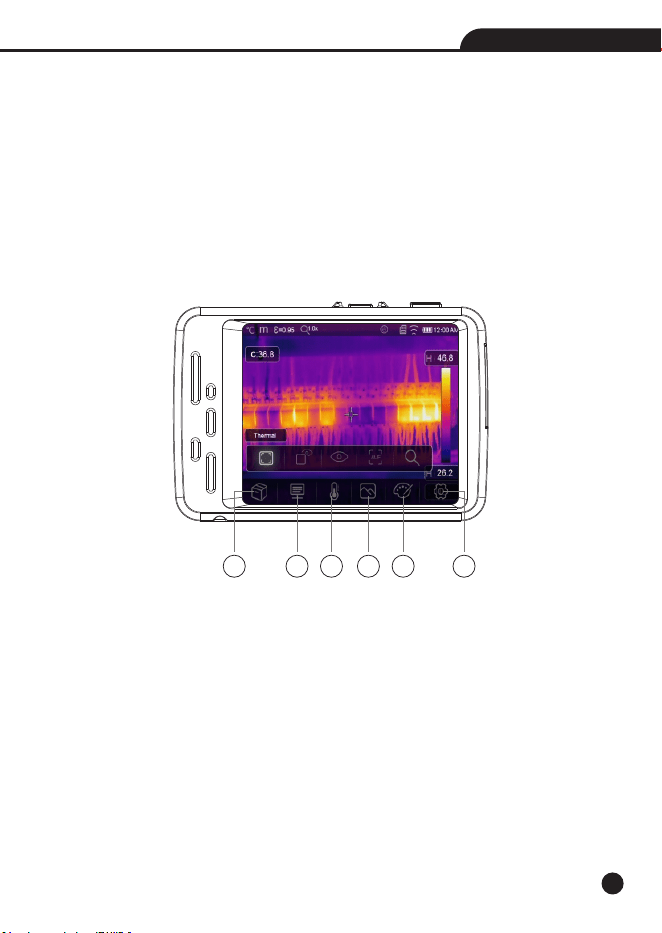

6.Menu...........................................................................................
6-1.Main Menu..............................................................................
6-2.Image Mode............................................................................

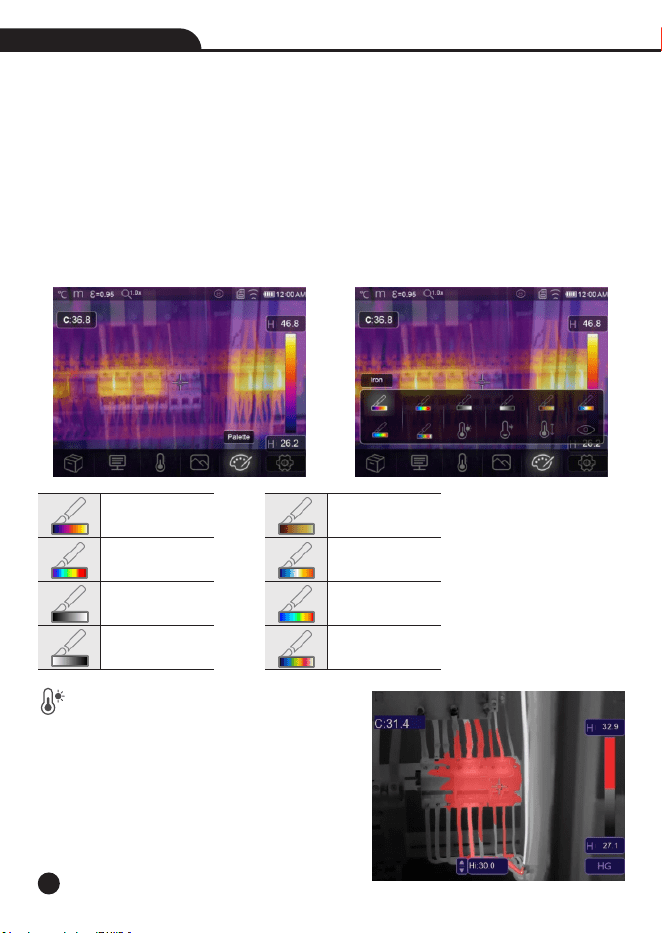

6-3.Image Palette..........................................................................
6-4.Image Adjustment...................................................................
6-5.Measurement Menu.................................................................

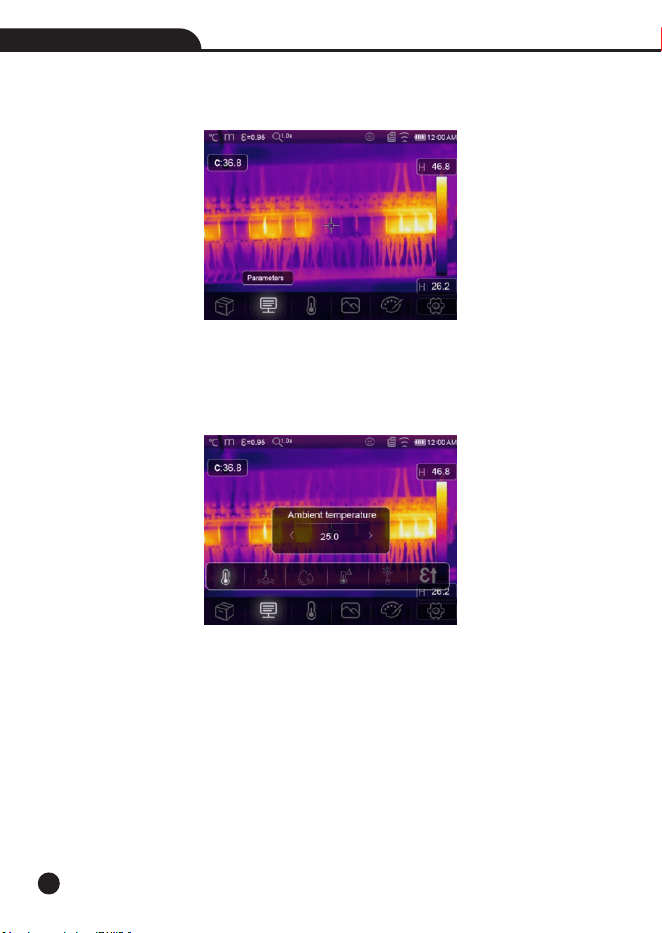

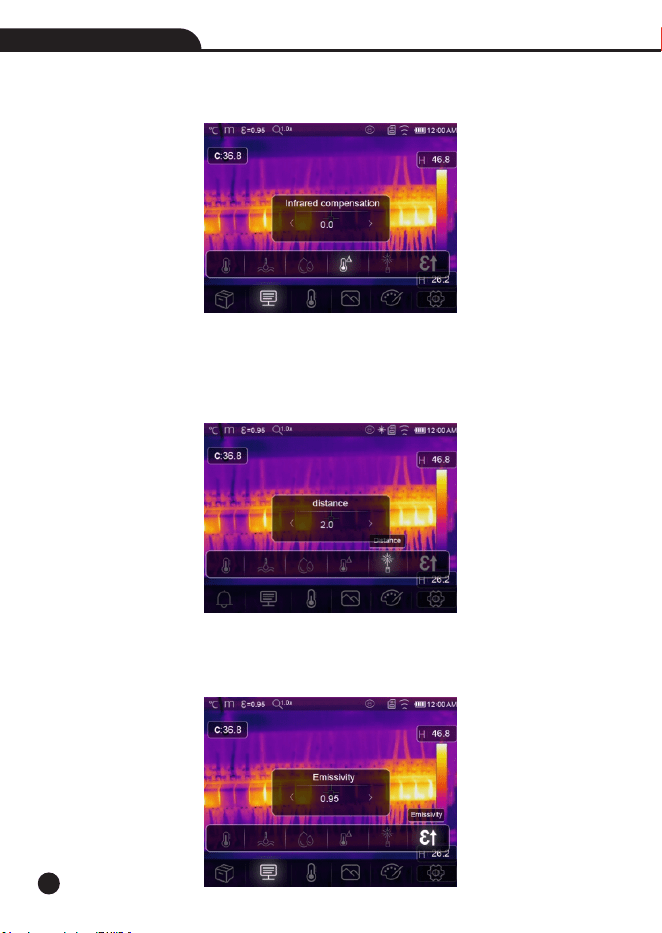

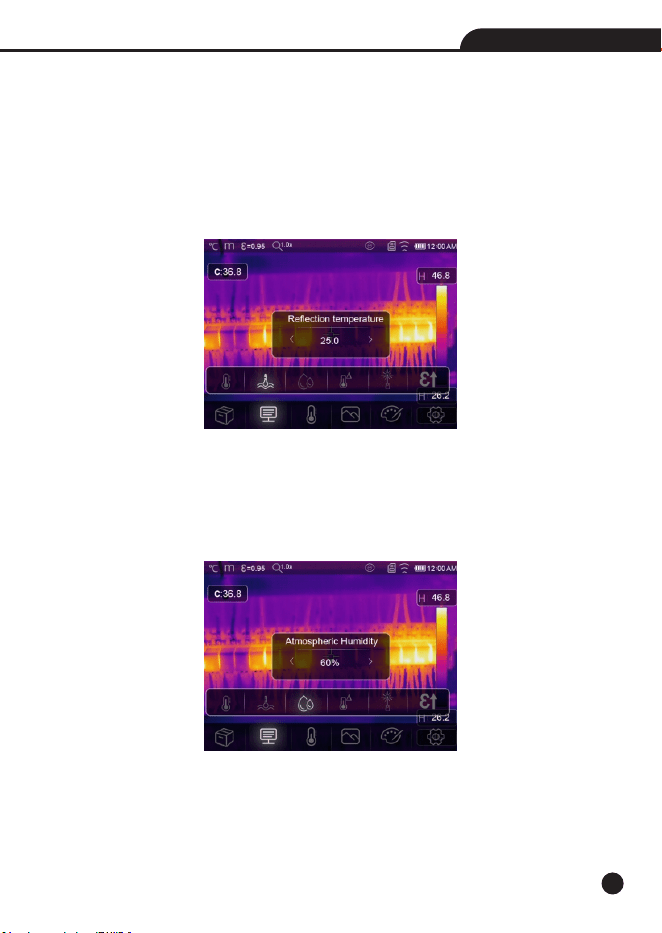

6-6.Parameter Menu......................................................................

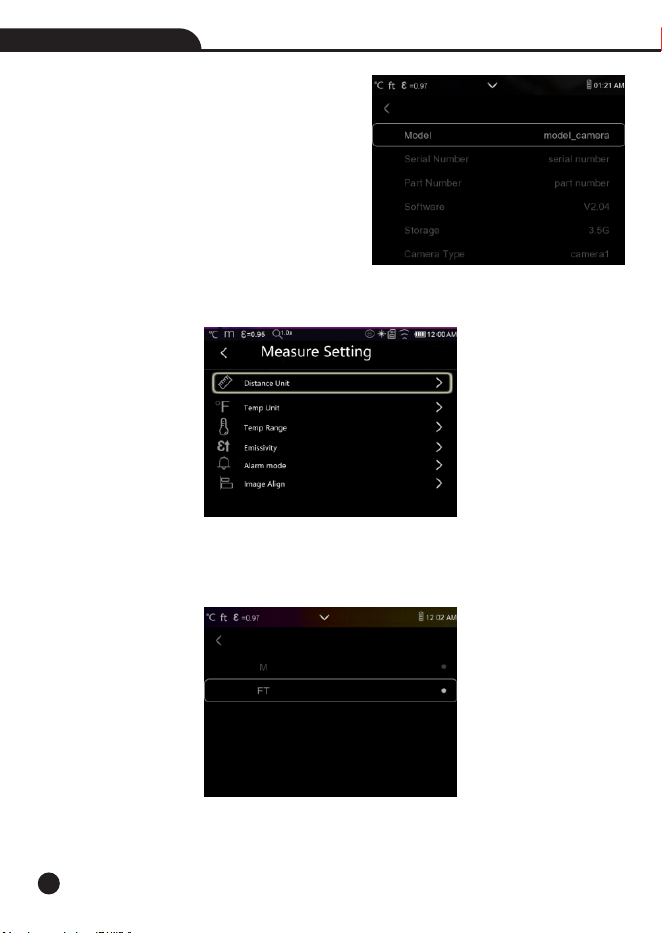

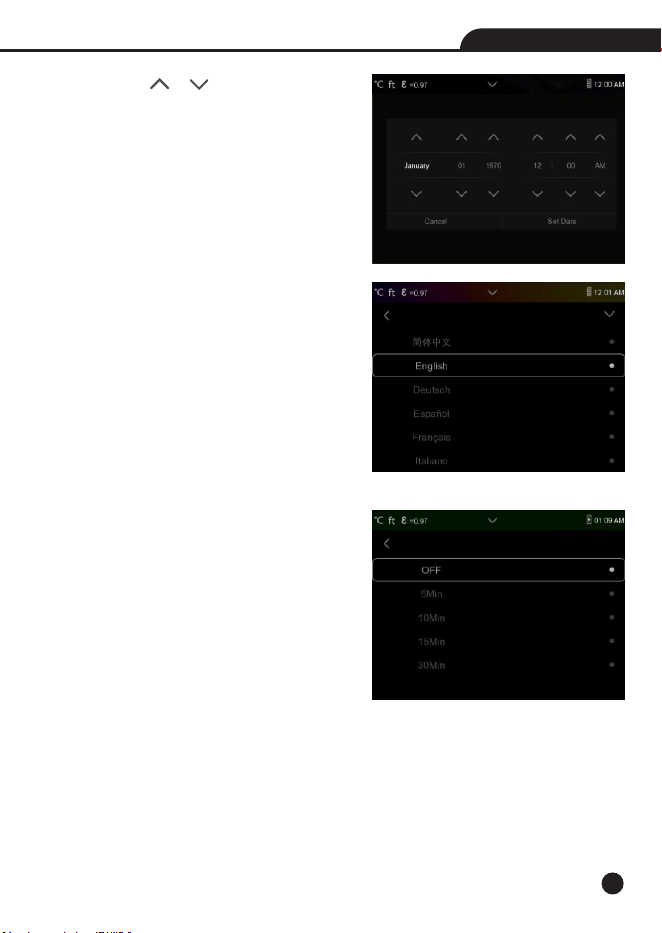

6-7.Settings Menu.........................................................................
6-8.Camera Menu..........................................................................
6-9.Video Menu.............................................................................

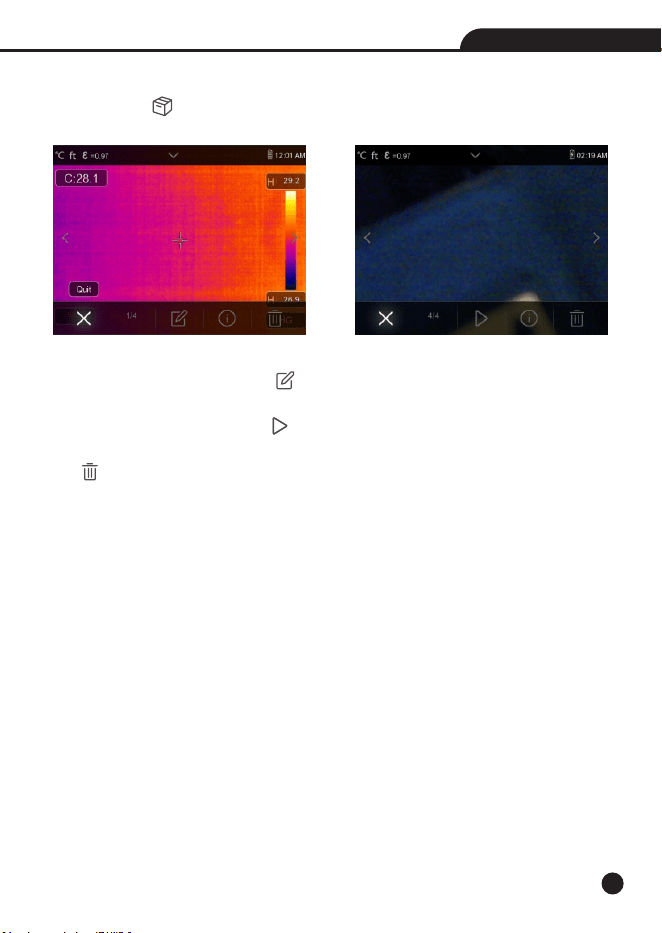

6-10.Files Browser........................................................................
6-11.USB Mode.............................................................................

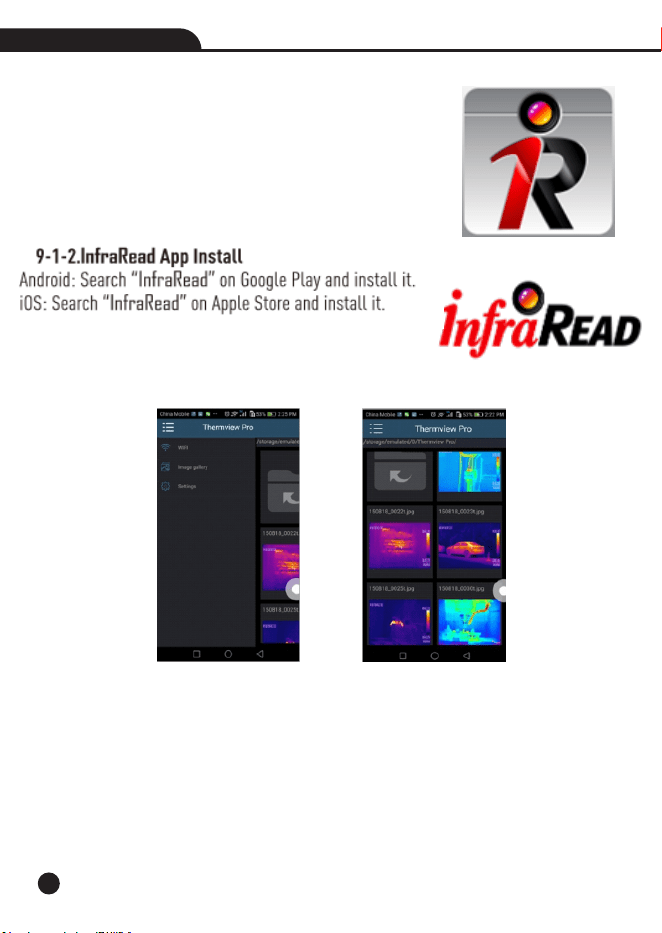

7.Android/iOS APP InfraRead....................................................
7-1.Software Install and Uninstall.................................................

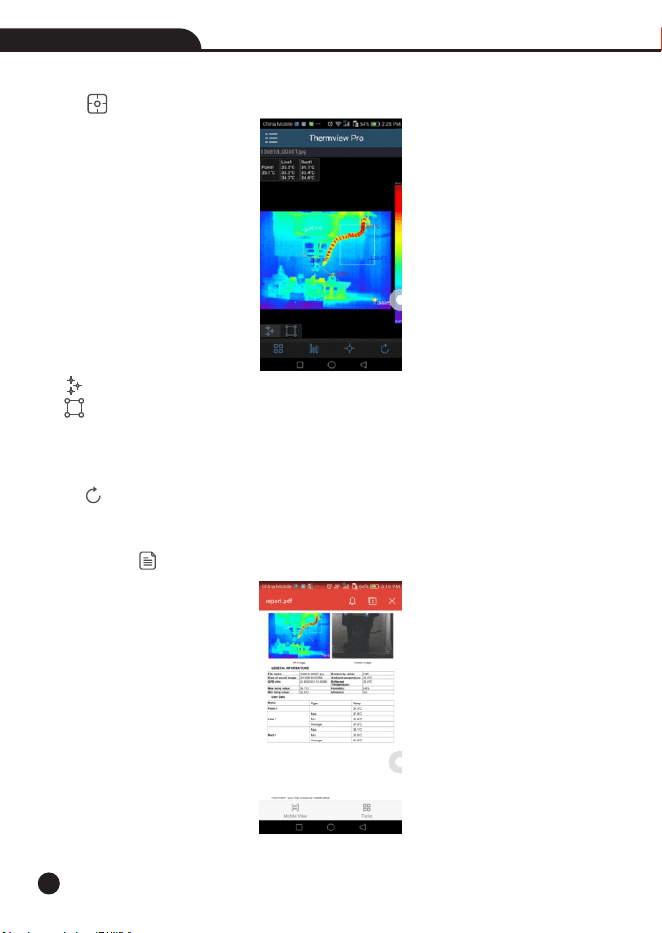

7-2.InfraRead Function..........................................................
8.PC Software.................................................................................
8-1.System Required ....................................................................
8-2.InfraRead Install..............................................................
8-3.Running..................................................................................
8-4.Uninstall.................................................................................
9.Fault Diagnosis and Exclusion.......................................................
4
Pocket Thermal Imager
1.Introduction
• The Thermal Imager is handheld imaging camera used for predictive maintenance, equipment
troubleshooting and verification.
• Focus the len to the object, then the thermal and visual images are displayed on the LCD and
can be saved to a Micro SD Memory card.
•
Transferring images to a PC is accomplished by removing the SD memory card and connecting it
to a PC through the included card reader, or transfer the images and video stream to the smart
device with “Triplett InfraRead
"app installed.
In addition to the features mentioned above, the Thermal Imager provide video recording with
audio and play back.
2.Safety Information
• Do not disassemble or do a modification to the Thermal Imager.
• Do not point the Thermal Imager (with or without the lens cover) at intensive energy sources, for
example devices that emit laser radiation or the sun, this can have an unwanted effect on the
accuracy of the camera, it can also cause damage to the detector in the Thermal Imager.
• Do not use the Thermal Imager in a temperature higher than 50°C (122°F), lower than -20°C (-4°F),
High temperature or low temperature can cause damage to the Thermal Imager.
• Only use the correct equipment to discharge the battery, if you do not use the correct equipment,
you can decrease the performance or the life cycle of the battery, if you do not use the correct
equipment, an incorrect flow of current to the battery can occur, this can cause the battery to
become hot, or cause an explosion and injury to persons.
• Do not pull out the battery when the thermal imager is working, if you pull out the battery when
the thermal imager is working, it may cause the thermal imager work unnormal.
• Do not disassemble or do a modification to the battery, the battery contains safety and protection
devices which, if they become damaged, can cause the battery to become hot, or cause an
explosion or an ignition.
• If there is a leak from the battery and the fluid gets into your eyes, do not rub your eyes, flush
well with water and immediately get medical care.
• Do not make holes in the battery with objects; Do not hit the battery with a hammer; Do not step
on the battery, or apply strong impacts or shocks to it; Do not put the battery in or near a fire, or
in direct sunlight, or other high-temperature locations; Do not solder directly onto the battery.
5
Pocket Thermal Imager
• Always charge the battery in the special temperature rang, the temperature range through which
you can charge the battery is 0 to 50°C (32 to 122°F), if you charge the battery at temperatures
out of this range, it can cause the battery to become hot or to break, it can also decrease the
performance or the life cycle of the battery.
• Do not get water or salt water on the battery, or permit the battery to get wet.
• Clean the case with a damp cloth and a weak soap solution, do not use abrasives, isopropyl
alcohol, or solvents to clean the case or lens/screen.
• Be careful when you clean the infrared lens, do not clean the infrared lens too vigorously, this
can damage the anti-reflective coating.
• Avoid condensation: Take the Thermal Imager from cold to hot, it will appear condensation
in
thermal Imager, to protect the Thermal Imager, you should power of the Thermal Imager, wait
until the Thermal Imager has become war enough for the condensation to evaporate.
• Storage: If you do not use the Thermal Imager, put the Thermal Imager in cool and dry environment,
if you store Thermal Imager equipped with the battery, the power of the battery will be exhausted.
6
Pocket Thermal Imager

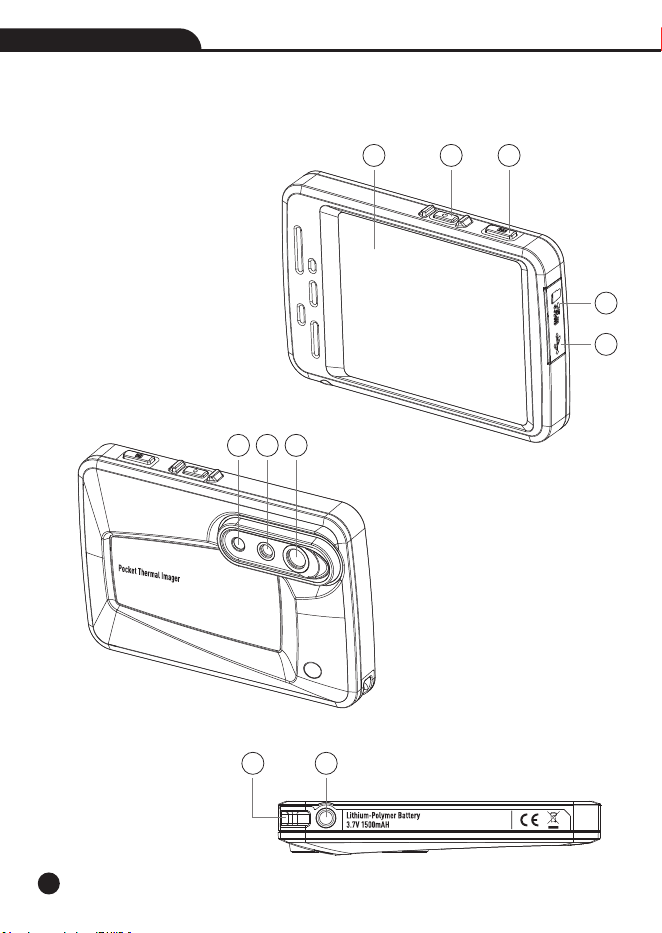

3.Structure Description
1-LCD Display and Touch Screen
2-Power/Calibrate Button
3-Photo/Video Capture Button
4-Micro SD Card Slot
5-Type C USB/Charge
6-LED Light
7-Visual Camera
8-Infrared Camera Lens
9-Lanyard Hole
10-Hole for Tripod Insertion
1
2
3
4
5
109
160 x 120
Pixels
6 87
7
Pocket Thermal Imager
4.Specifications
Imaging and Optical Data
Field of View (FOV)/Minimum Focus Distance
Thermal Sensitivity/NETD
Image Frequency
Focus Mode
Zoom
Focal Plane Array (FPA)/Spectral Range
IR Resolution
Image Presentation
Display
Image Modes
Color Palette
Measurement
Object Temperature Range
Accuracy
Measurement Analysis
Spot
Automatic Hot /Cold Detection
Area
Line
Measurement Corrections
Storage of Videos
Storage Media
Video Storage Format
Video Storage Mode
42°x32°/0.5m
<0.04°C at 30°C (86°F)/40mK
9 Hz
Forcus free
1-32x continuous, digital zoom
Uncooled microbolometer/8-14µm
160x120 Pixels
3.5 in. LCD, 640x480 Pixels, Touch screen
IR image, Visual image, Picture in picture, Auto fusion
IRON, Rainbow, Grey, Grey Inverted, Brown, Blue-red,
Hot-cold, Feather, Above alarm, Below alarm, Zone
alarm, Vision zone
-20 to 150°C (-4 to 302°F)
0 to 550°C (32 to 1022°F)
±2°C (3.6°F) or ±2% of reading (Environment
temperature 10-35°C; Object temperature >0°C)
Center Spot, Three Manual Spots
Auto hot or cold markers
Three areas analyse
Two line analyse
Emissivity, Reflected temperature, Ambient
temperature, Atmospheric humidity, Infrared
compensation, Distance compensation.
8Gbytes Micro SD card and 3.4GB internal EMMC
Standard MPEG-4 encode, 640x480 at 30fps,
on memory card >60 minutes
IR/visual images; simultaneous storage of IR and
visual images
8
Pocket Thermal Imager
Storage of Images
Image Storage Format
Image Storage Mode
Image Analyse
Set-Up
Set-Up Commands
Languages
Digital Camera
Built-in Digital Camera
Built-in Digital Lens Data
Data Communication Interfaces
Interfaces
USB
Wifi
Power System
Battery
Input Voltage
Charging System
Power Management
Environmental Data
Operating Temperature Range
Storage Temperature Range
Humidity (Operating and Storage)
Drop Test
Bump
Vibration
Physical Data
Camera Weight, Incl. Battery
Camera Size (LxWxH)
Standard JPEG or HIR files including measurement
data, on memory card >6000 pictures
IR/visual images; simultaneous storage of IR and
visual images
Internal image analyse tools, Complete function.
Local adaptation of units, language, date and time
formats, information of camera
Multinational
2 Megapixels
FOV 59°
USB-TypeC
Data transform between camera and PC
Live video between camera and PC
802.11, transfer images and real-time video
stream
Li-ion battery, 4 hours operating time
DC 5V
In camera
Automatic shutdown
-15 to 50°C (5 to 122°F)
-40 to 70°C (-40 to 158°F)
10%~90%
2m
25g (IEC60068-2-29)
2g (IEC60068-2-6)
<500g
133x87x24mm
9
Pocket Thermal Imager
5.Before You Start
5-1.How to Charge the Battery
• Before you use the Thermal Imager for the first time, charge the battery for three and three-half
hours.
• The battery status shows on the six-segment charge indicator.
• To charge the battery, use follow before:
1.Connect the ac power adapter into an ac wall outlet and connect the dc output to the Thermal
Imager’s ac power socket, the charge light is on, the battery indicator becomes “
”, while the battery charges with the ac power adapter.
2.Charge until the charge indicator becomes “ ”, the charge icon not changed .
3.Disconnect ac power adapter when the battery is full charged.
Note: Make sure that the Thermal Imager is near room temperature before you connect it to the
charger. Do not charge in hot or cold areas. When you charge in extreme temperature, battery
capacity may be decreased.

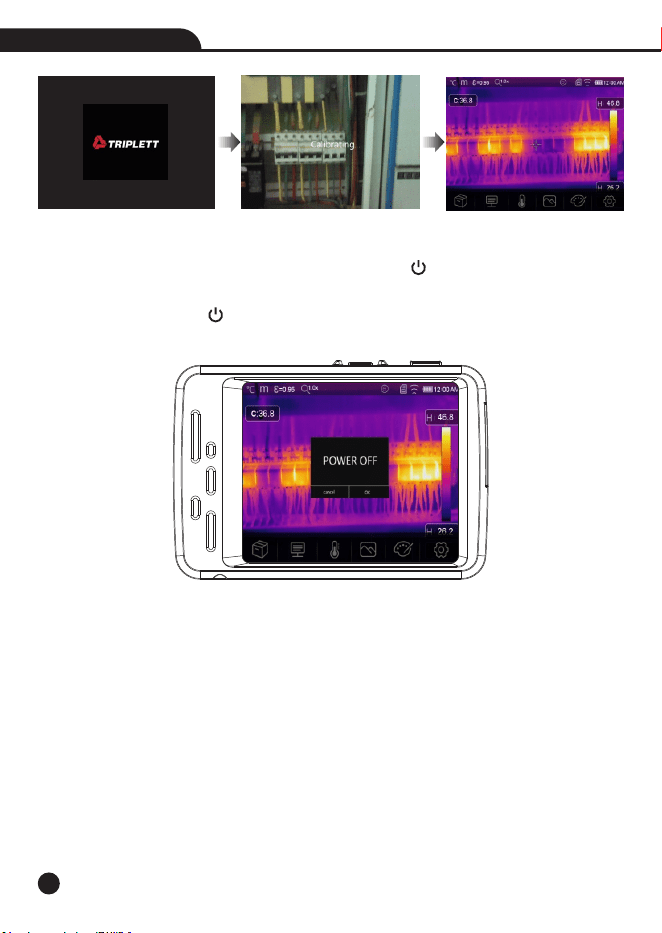

5-2.Power ON
To turn the Thermal Imager on, push the Power Button.
Note: After power on the device, The thermal Imager needs sufficient warm-up time for the most
accurate temperature measurements and best image quality. So the visible image will first appear,
and the thermal sensor will calibrate internal for sevearal seconds. After that the thermal image
will be displayed on the screen.
10
Pocket Thermal Imager
5-3.Power OFF
• When Thermal Imagers power on, push and hold the Power Button for two seconds, then
popup the power off menu, press “OK” to power off the device.
• Push and hold the Power Button for twelve seconds, the device will be forced power off
directly.

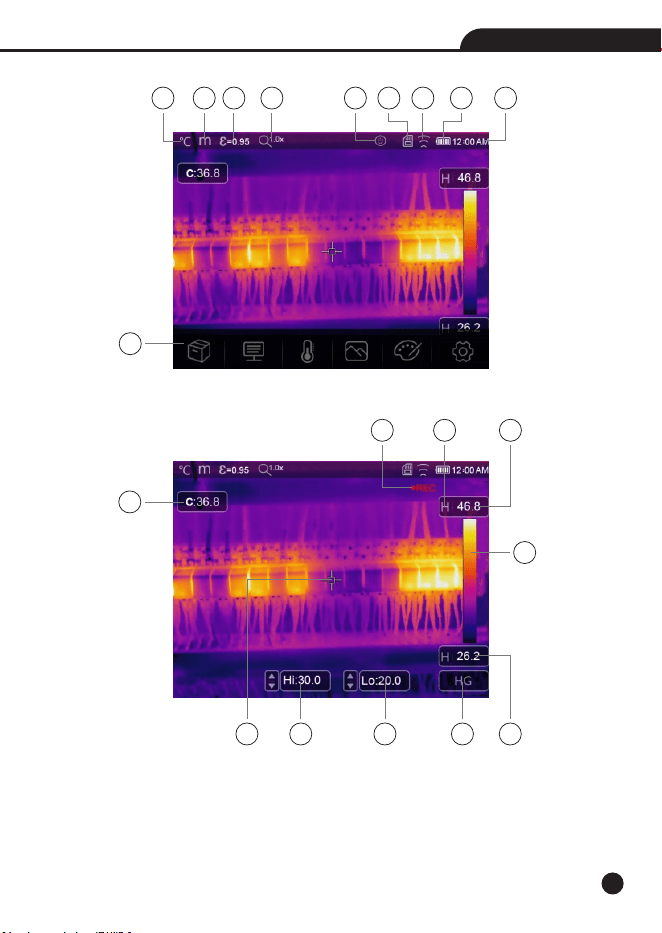

5-4.Desktop
1-Temperature unit
2-Distance unit
3-Emissivity
4-Zoom Quick menu entrance
5-Flashlight ON status
6-SD card
7-Wifi on status
8-Battery capacity status
9-Time
10-Main menu
11-Centre point temperature readings
12-Video record status Image display area
13-AGC mode
14-Max temperature of current scene
15-Image display area
16-Manual adjust Max temperature of current scene
17-Manual adjust Min temperature of current scene
18-AGC mode select button
19-Min temperature of current scene
20-Color bar
11
Pocket Thermal Imager
11
12 1413
1615 17 18 19
20
1 2 3 4 5 6 7 98
10
12
Pocket Thermal Imager
5-5.LED light

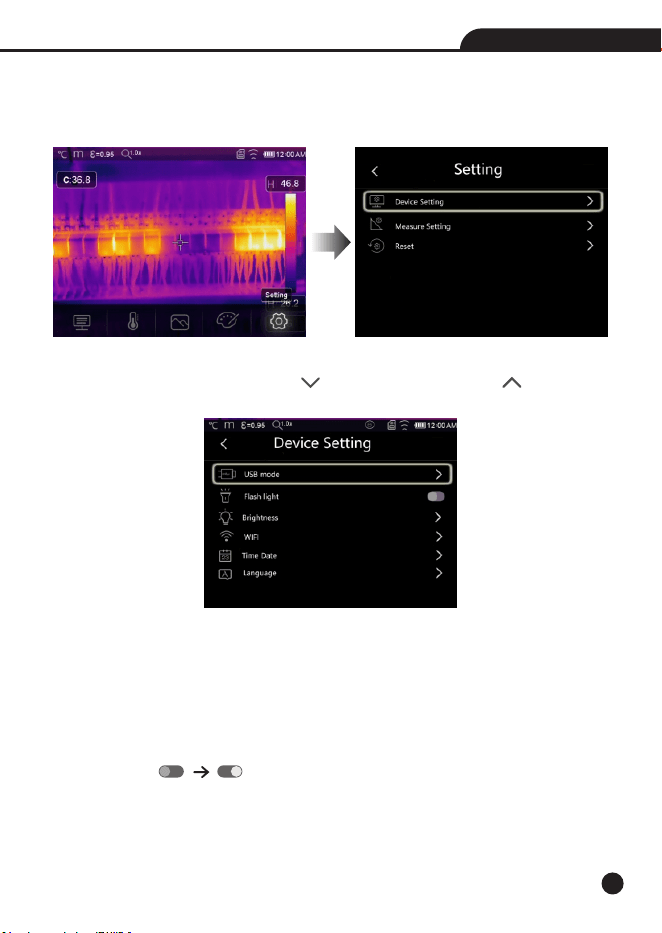

In device setting menu, press the flash light button, the LED light will be on or off.
5-6.Temperature Measurement
• All objects radiate infrared energy, the quantity of energy radiated is base on the actual surface
temperature and the surface emissivity of the object, the Thermal Imager senses the infrared
energy from the surface of the object and uses this data to calculate an estimated temperature
value.
• Many common objects and materials such as painted metal, wood, water, skin, and cloth are
very good at radiating energy and it is easy to get relatively accurate measurements.
• For surfaces that are good at radiating energy (high emissivity), the emissivity factor is >=0.90,
this simplification does not work on shiny surfaces or unpainted metals as they have an emissivity
of <0.6, these materials are not good at radiating energy and are classified as low emissivity.
• To more accurately measure materials with a low emissivity, an emissivity correction is necessary.
• Adjustment to the emissivity setting will usually allow the Thermal Imager to calculate a more
accurate estimate of the actual temperature.
• More information please see “Emissivity Adjustment” to get the most accurate temperature
measurements.
13
Pocket Thermal Imager
5-7.Emissivity Adjustment
• The correct emissivity value is important to make the most accurate temperature measurement,
Emissivity of a surface can have a large effect on the apparent temperatures that the Thermal
Imager observes, understanding the emissivity of the surface, but may not always, allow you to
obtain more accurate temperature measurements.
Note: Surfaces with an emissivity of <0.60 make reliable and consistent determination of actual
temperature problematic. The lower the emissivity, the more potential error is associated with the
Imager’s temperature measurement calculations. This is also true even when adjustments to the
emissivity and reflected background adjustments are performed properly.
• Emissivity is set directly as a value or from a list of emissivity values for some common materials,
the global emissivity displays in LCD Screen as E=x.xx.
• The following table gives typical emissivity of important materials.
Material
Water
Stainless Steel
Aluminum Plate
Asphalt
Concrete
Cast Iron
Rubber
Wood
Brick
Tape
Brass Plate
Human Skin
Pvc Plastic
Polycarbonate
Oxidized Copper
Rust
Paint
Soil
Emissivity
0.96
0.14
0.09
0.96
0.97
0.81
0.95
0.85
0.75
0.96
0.06
0.98
0.93
0.80
0.78
0.80
0.90
0.93
14
Pocket Thermal Imager
5-8.Reflected Temperature
• Using the offset factor, the reflection is calculated out due to the low emissivity and the accuracy
of the temperature measurement with infrared instruments is improved.
• In most cases, the reflected temperature is identical to the ambient air temperature, only when
objects with strong emissions with much higher temperature are in the proximity of the object
being measured should be determined and used.
• The reflected temperature has only little effect on objects with high emissivity.
• The reflected temperature can be set individually, follow these steps to get the right value for
the reflected temperature.
1.Set the emissivity to 1.0.
2.Adjust the optical lens to near focus.
3.Looking in the opposite direction away from the object, take a measurement and freeze the image.
4.Determine the average value of the image and use that value for your input of reflected temperature.
5-9.Thermal Imager Reporter Software
• Thermal Imager Reporter software is supplied with the Thermal Imager.
• This Software is intended for Thermal Imager and contains feature to analyze images, organize
data and information, and make professional reports.
• Thermal Imager Reporter software allows audio annotations and commentary to be reviewed on
a PC.
6.Menu
The menus, together with buttons, are access for Image, Measurement, Emiss, Palette, Temperature
measurement range, take photo and video, review, and settings.
6-1.Main Menu
• Touch the screen, the main menu will be poped up, Main Menu is the main interface of the
Thermal Imager’s menus.
• It contains six items such as Measure parameters, Measure tools, Image mode, Palette, System
Settings.
1-Image Browser: Enter into the image view.
2-Paramters: Parameters set for the calculation temperature.
3-Measure Tools: Set for the calculation and display of radiometric temperature measurement
data related to the thermal images.
4-Image Mode: Set image source for the display on the Thermal Imager’s LCD, it contains five
items such as infrared image, visual image and fusion.
5-Palette: Set the type of color bar.
6-Settings: Set for the user preferences such as Language, Unit of temperature measurement,
Date, Time, Restore factory setting and Display product information.
1 2 3 4 5 6
15
Pocket Thermal Imager
16
Pocket Thermal Imager
6-2.Image Mode
• In Main Menu, press “Image Mode” icon button, highlight “Image Mode”, popup Image submenu
which contains five image modes.
• Thermal Imager has 5 kinds of image modes for display: IR, Camera, Fusion, AUF mode, Zoom
mode.
IR: Displays only infrared image.
Camera: Displays only visible image.
17
Pocket Thermal Imager

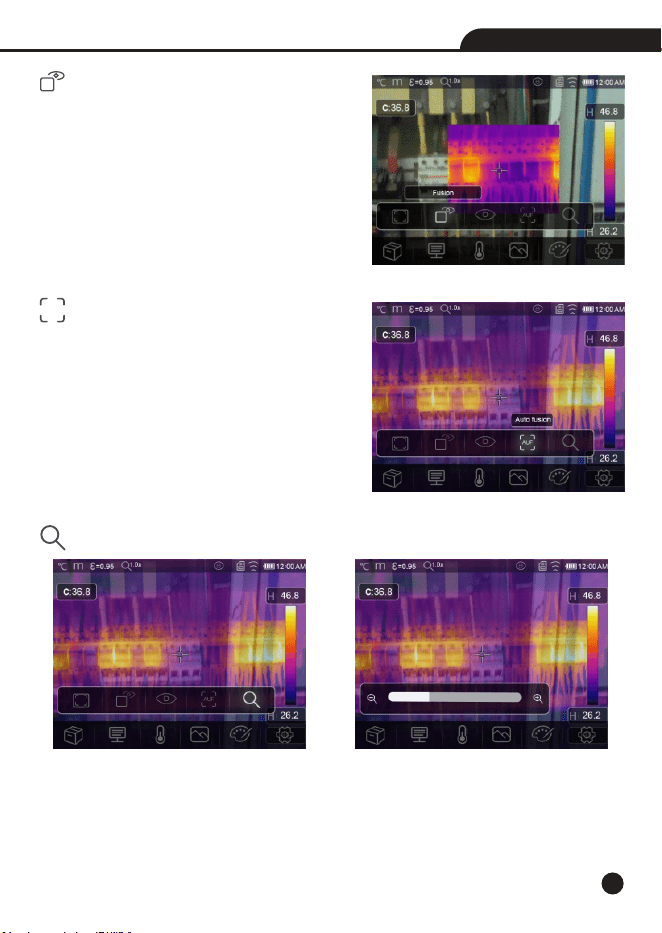

Fusion: Display fusion image of infrared and
visible images.
AUF: Auto Fusion mode, compare the centre
area temperature with full screen, the machine
will calculate the mix ratio of infrared and visible
images automaticly.
Zoom Mode: Set the image zoom in or zoom out.
AUF
18
Pocket Thermal Imager

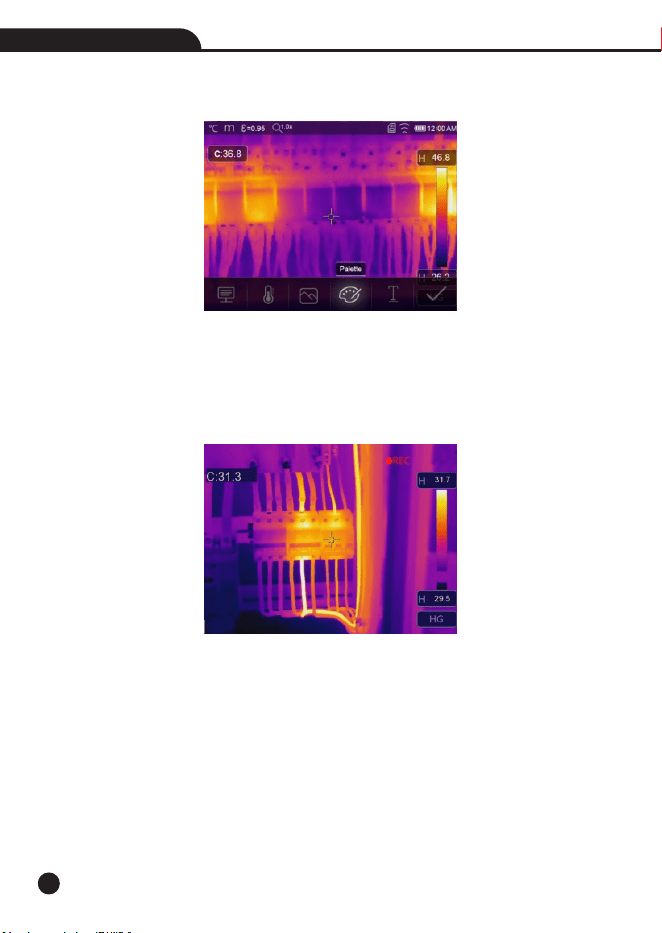

6-3.Image Palette
• The Image Palette lets you change the false-color presentation of the infrared images on display
or captured.
• A variety of palettes are available for specific applications.
• The standard palettes offer an equal, linear presentation of colors that allow for best presentation
of detail.
Standard Palette
• In main menu, press “Palette” icon button, highlight “Palette”.
• Popup Image submenu which contains 8 kinds of color palettes and 4 kinds of special palettes.
High Alarm: The temperature higher than the
high alarm set value will be colored to red,
Press the Hi: 30.0 value button to adjust the
above temperature.
Iron
Rainbow
Grey
Grey Invert
Brown Hot
Blue Red
Hot Cold
Feather
19
Pocket Thermal Imager

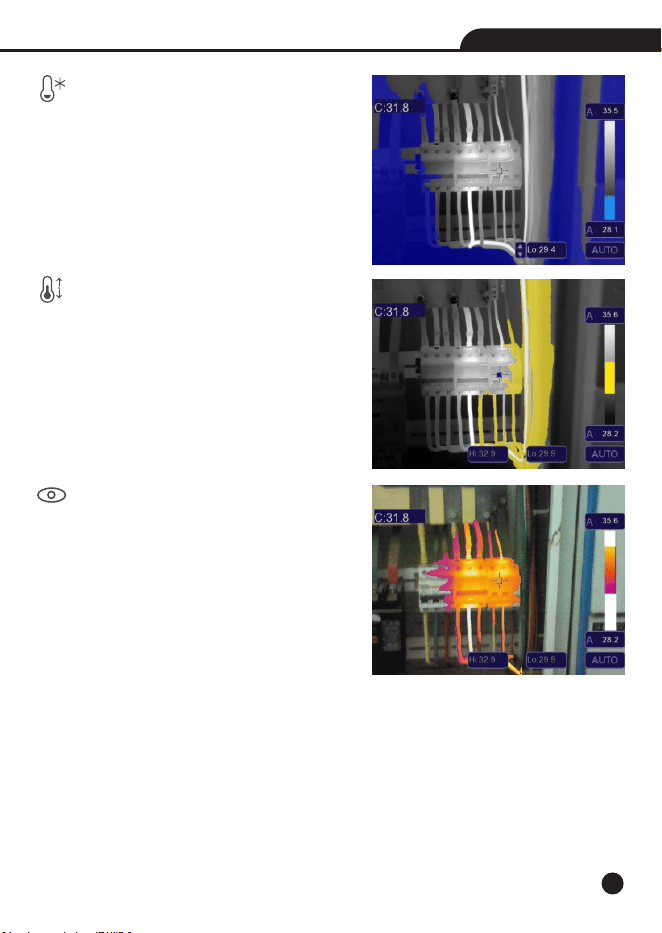

Low Alarm: The temperature lower than the
low alarm set value will be colored to blue,
Press the Lo: 29.4 value button to adjust the
below temperature.
Zone Alarm: The temperature between the
high alarm and the low alarm set value will
be colored to orange.
Visible Zone: The temperature between the
high alarm and the low alarm set value will be
colored to the palette, other part of the image
will displayed as visible image.
20
Pocket Thermal Imager

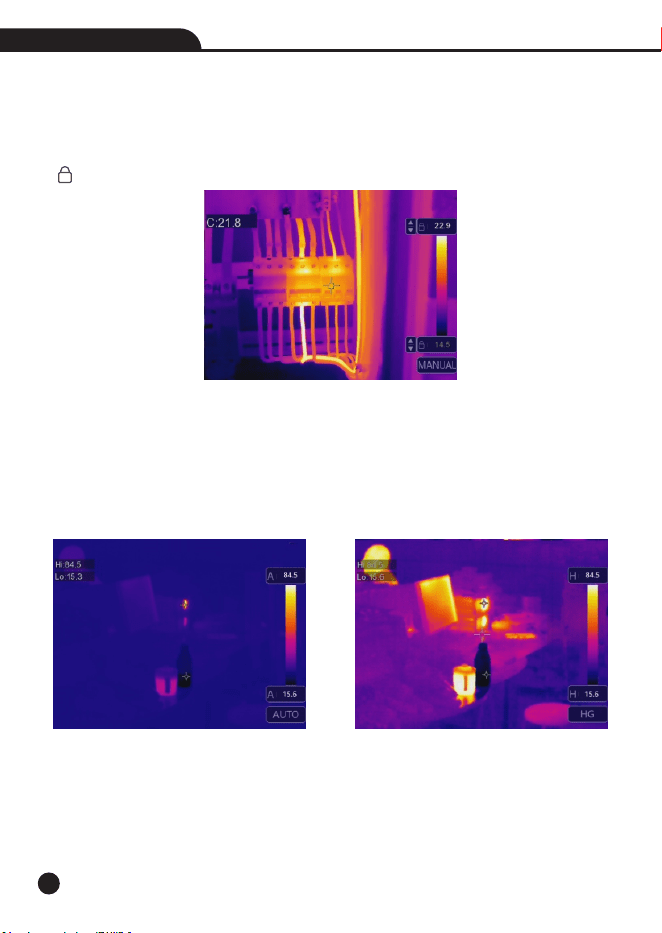

6-4.Image Adjustment
There are three kinds of mode for image adjustment: Hisgram, Auto and Manual.
6-4-1.Lock Operation
• Touch the AGC Mode Button to switch to Manual mode, lock the current scene temperature range.
• “ ” means Manual, touch the lock temperature value button to adjust the lock value.
6-4-2.Histgram Mode and Auto Mode
• Auto Mode: level and span are decided by the thermal image of minimum temperature and
maximum temperature, the relationship between temperature and color is linear.
• Histgram Mode: the thermal image is enhanced by histogram algorithm, the relationship
between temperature and color is not linear, some part of the image is enhanced.
• Touch the icon HG or AUTO below the color bar to change the
mode.
21
Pocket Thermal Imager

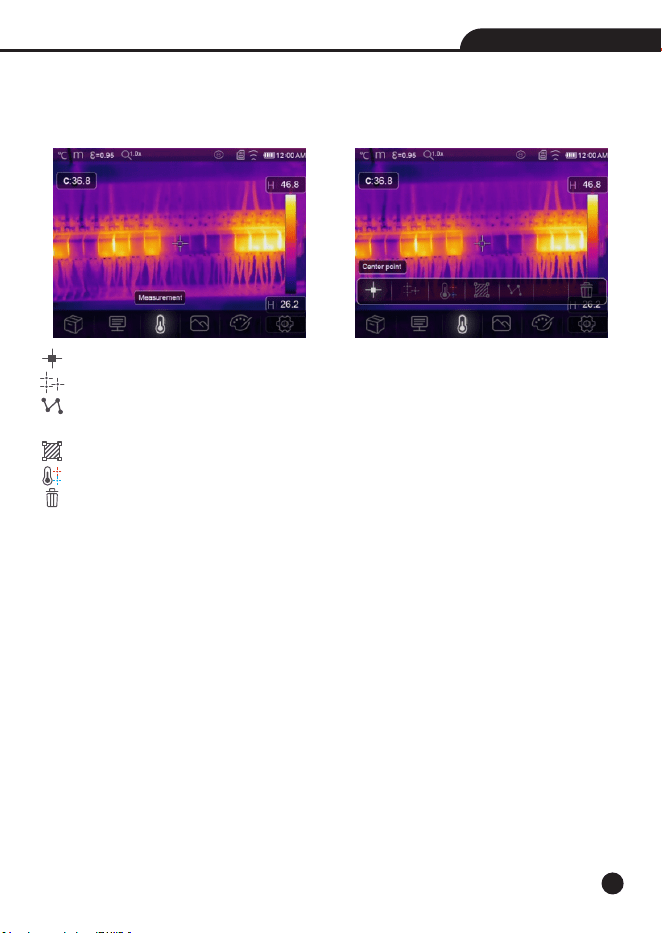

6-5.Measurement Menu
• In main menu, press “Measurement” icon button, highlight “Measurement”.
• Popup Image submenu which contains 5 kinds of Measurement tools.
Center Spot: Measure the center point temperature.
Manual Spot: Measure the manual point temperature, there are three manual analysis
points.
Line Anaylsis: Measure the line temperature, there are two analysis lines, one for
horizontal, the other is vertical line.
Area Analysis: Measure the area temperature, there are three analysis areas.
Hi/Lo Spot Analysis: capture max/minimum temperature.
Delete all Analysis: Delete all analysis tools.
22
Pocket Thermal Imager
6-6.Parameter Menu
In main menu, touch “Parameters” button, highlight “Emiss” to adjust emiss value.
6-6-1.Ambient Temperature C
ompensation
Ambient temperature will affect the measurement of the thermal imager, it can be composite from
0 degree to 50 degree.
23
Pocket Thermal Imager
6-6-2.Reflective Temperature
• The reflective temperature is important for radiometric temperature measurement, thermal
Imager has temperature compensation for reflective temperature.
• To get more accurate temperature measurement, accurately set the reflective temperature.
• In most cases, the reflected temperature is identical to the ambient temperature, only when
objects with strong emissions with much higher temperature are in the proximity of the object
being measured, the reflected temperature must set.
6-6-3.Atmospheric Humidity
• Water droplets in the air can absorb infrared rays, the wet air can affect the measurement of the
temperature’s accurate.
• The compensation humidity can be set from 10%~100%.
24
Pocket Thermal Imager
6-6-4.Delta Temperature Com
pensation
In delta temperature,the value of the delta temperature will affect the measurment directly.
6-6-5.Distance
•
There are many substances in the air that can absorb infrared rays, so the infrared ray of
the
object will decrease as the distance incr
ease.
• The distance can be set from 2meter to 1000meters.
6-6-6.Emissivity
“Emiss” sets object emissivity, the value range is 0.01~1.00.
25
Pocket Thermal Imager
6-7.Settings Menu
1.In main menu, touch “Settings” icon button, highlight “Settings”.
2.The Settings menu will display.
6-7-1.Device setting
There are multipages in Device setting, use icon to go to next page, or use to go to previous
page.
USB Mode:
• PC Connection: Set the device as Mass storage mode, if connect the device to the PC with USB
cable, there will be a Mass storage device on the PC.
• PC Camera: Set the device as UVC camera mode, if connect the device to the PC with USB cable,
there will be a UVC camera device on the PC.
Flashlight: Press “ ” “ ” to turn on the flash light.
26
Pocket Thermal Imager
Brightness: Drag the slider bar to adjust the LCD
brightness.
WIFI:
• Press “ ” “ ” to turn on the wifi, the wifi
model worked on access mode, so it is need to set
the SSID and Password to allow other device connect
to it.
• The default SSID is “T-50F”, the default password
is “12345678”.
Brightness
27
Pocket Thermal Imager
Time Date: Press or to change time/date,
then press “Set Date” to save the change, or press
“Cancel” to quit.
Language: Press the language you want.
Auto Power Off:
• Thera are four options in auto power off menu, as
follows: “OFF”, “5Min”, “10Min”, “15Min”, “30Min”.
• When press the touch screen or keyboard, the timer
of Auo Power Off will be cleared and re-timed.
28
Pocket Thermal Imager
Info: The info menu contains all of the product
information, such as: software version, serial
number and so on.
6-7-2.Measure Setting
Thera are four options in Measure setting menu, as follow picture.
Distance Unit:
• Change the distance unit between “m” and “ft”, “m” means meter, ft means Foot.
• 1(ft)=0.3048(m); 1(m)=3.2808399(ft)
29
Pocket Thermal Imager

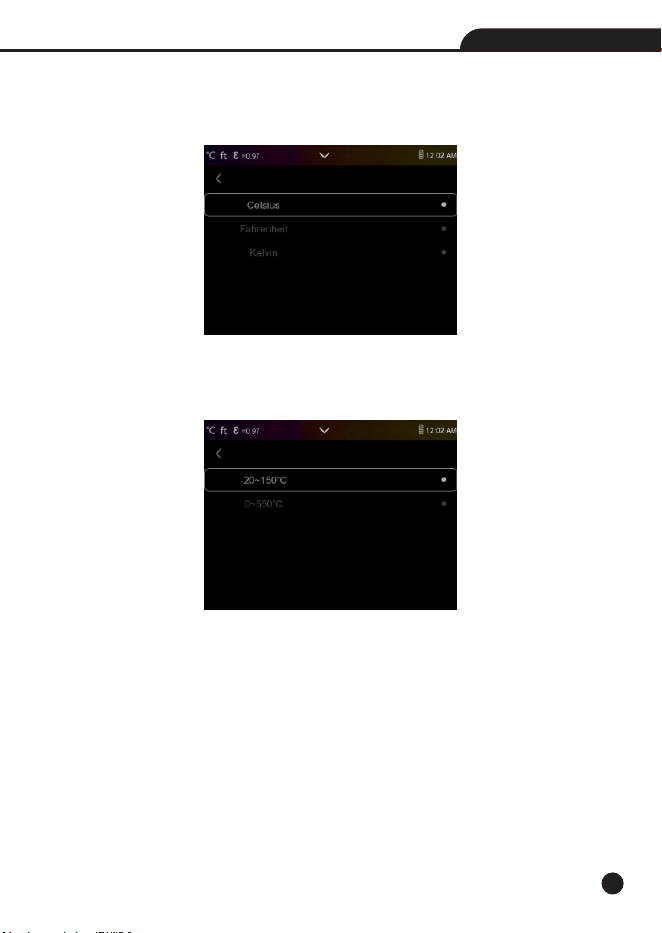

Temperature Unit:
• Temperature Unit have three types to choose: °C, °F and K.
• Conversion relationship: °F=1.8x°C+32, K=273.15+°C.
Temperature Range:
• The temperature measurement ranges have “-20~150°C” and “0~550°C” to choose.
• The overlap temperature of the two ranges is more accurate to choose “-20~150°C”.
Emissivity:
Quick set the emissivity from the table below:
Material
Water
Stainless Steel
Aluminum Plate
Asphalt
Concrete
Cast Iron
Rubber
Wood
Brick
Emissivity
0.96
0.14
0.09
0.96
0.97
0.81
0.95
0.85
0.75
Material
Tape
Brass Plate
Human Skin
PVC Plastic
Polycarbonate
Oxidized Copper
Rust
Paint
Soil
Emissivity
0.96
0.06
0.98
0.93
0.80
0.78
0.80
0.90
0.93
30
Pocket Thermal Imager

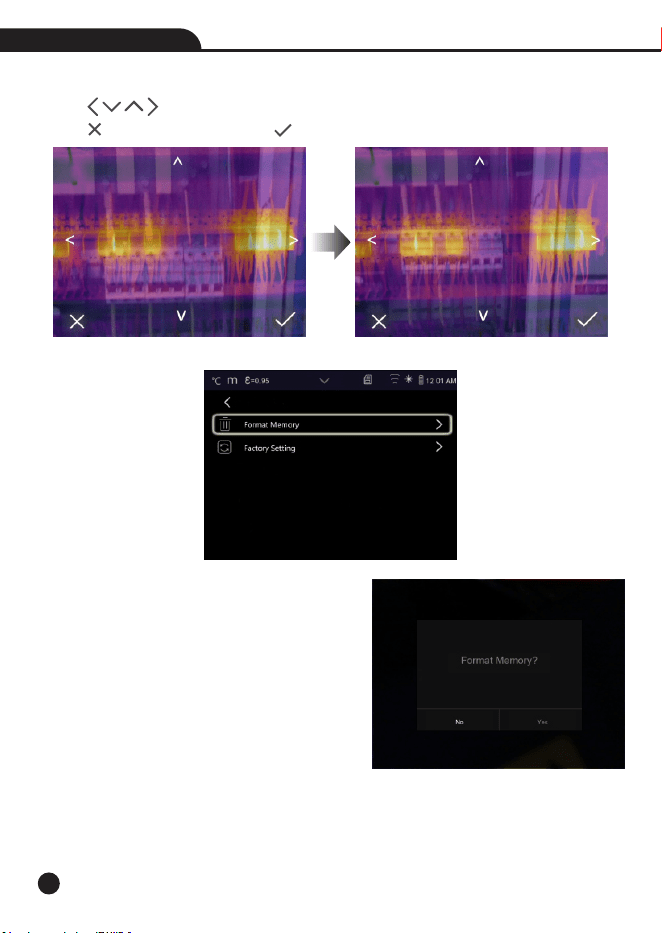

Image Align:
• Press to adjust the vision’s position to align the vision and infrared.
• Press to cancel the setting, press to save the aligment setting.
6-7-3.Reset
Format Memory: Format Memory operation will
format all the Picture Gallery, the device setting is
not affected.
31
Pocket Thermal Imager

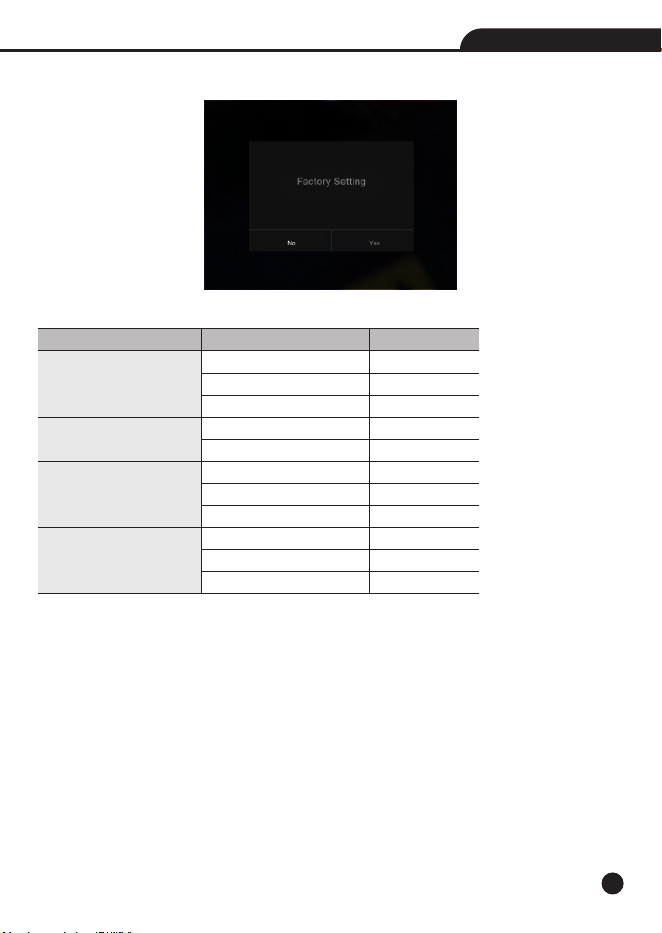

Factory Settings:
Factory Settings of the Thermal Imager is as follow:
Parameter
Center Spot Measurement
Hot Spot Measurement
Cold Spot Measurement
Emissivity
Reflective temperature
Mode
Palette
Adjustment
Language
HDMI Output
Lamp
Value
OFF
OFF
OFF
0.95
25°C
Infrared
Iron
Auto
English
OFF
OFF
Item
Measurement
Measurement Parameters
System Setting
32
Pocket Thermal Imager
6-8.Camera Menu
• Thermal Imager has photo and video functions.
• In photo function, the Imager can save thousands of images, every image resolution is 1280x960,
format is “.jpg”, and stores infrared data and visible data in an image.
• In video function, the Imager has mp4 video capture for hours, and save infrared data in “.mp4”
format.
Note: Images and video files are stored in SD Memory Card. Images can easily be read and second
analyzed within Thermal Imager PC software.
6-8-1.Save Image
1.In desktop, press Photo button, freeze an image, the save menu will display.
2.Touch button save image, and the image will flash for a second, after the image is saved, the
image will be unfreezed.

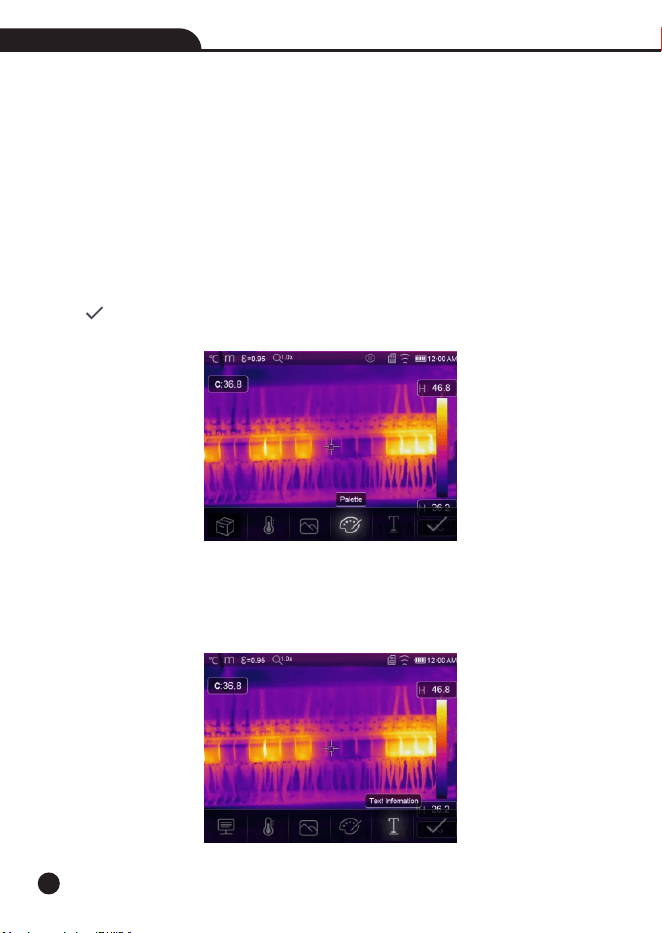

6-8-2.Add Text Note
• Touch the “Text Information” icon, it can add some text information into the
picture.
• Next time if the saved picture opened in gallery or PC softwar e, the text info will displayed
with the picture.
33
Pocket Thermal Imager

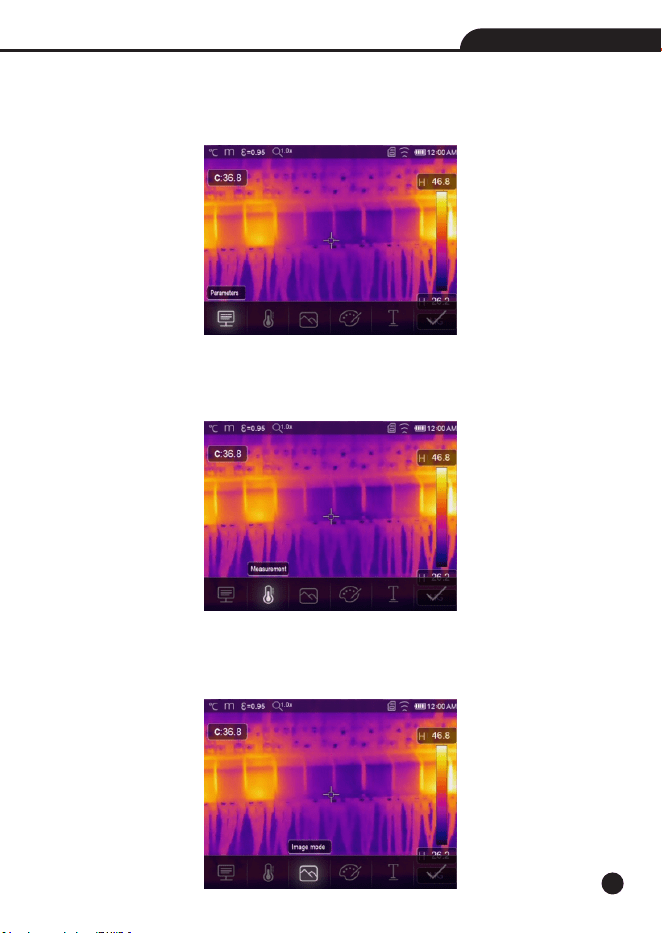

6-8-3.Change Measure Parameters
Touch the “Parameters” icon, it can change the image’s measure parameters: Emissivity, Ambient
temperature, Humidity, Reflect temperature, Infrared compensation, Distance.
6-8-4.Add Analysis Tools
Touch the “Measurement” icon, it can add or change the analysis tools in the image:
Point analyse, Area analyse, Line analyse.
6-8-5.Change Image Mode
Touch the “Image Mode” icon, it can change the image mode: Thermal, Visible, Picture in picture,
Auto fusion, Zoom.
34
Pocket Thermal Imager
6-8-6.Change Color
Touch the “Pallete” icon, it can change the image color.
6-9.Video Menu
The Thermal Imager has .mp4 video capture.
1.In desktop, press the Photo Button and hold for about 2 seconds, start video capture with voice.
2.To stop video capture, press the Photo Button again.
3.The video saved in the video file.
35
Pocket Thermal Imager
6-10.Files Browser
In desktop, touch button, popup files Browser, which displays images and videos saved in SD
Memory Card.
Analyze an Image
When current file type is image, press “ ” to enter image analysis mode.
Play a Video
When current file type is video, press “ ” to play video.
Delete a File
press “ ” to delete the current file.
6-11.USB Mode
• PC Connection: Set the device as Mass storage mode, if connect the device to the PC with USB
cable, there will be a Mass storage device on the PC.
• PC Camera: Set the device as UVC camera mode, if connect the device to the PC with USB cable,
there will be a UVC camera device on the PC.
366
Pocket Thermal Imager
7.Android/iOS APP
InfraRead
7-1.Software Install and Uninstall
7-1-1.System Required
Android mobile phone: Android 4.0 above, with USB OTG Support
iOS: iPhone4 above
7-1-2.InfraRead App Install
7-2-1.Import Pictures
1. Use WiFi connect to IR meter.
2. Show IR picture in the phone.
37
Pocket Thermal Imager

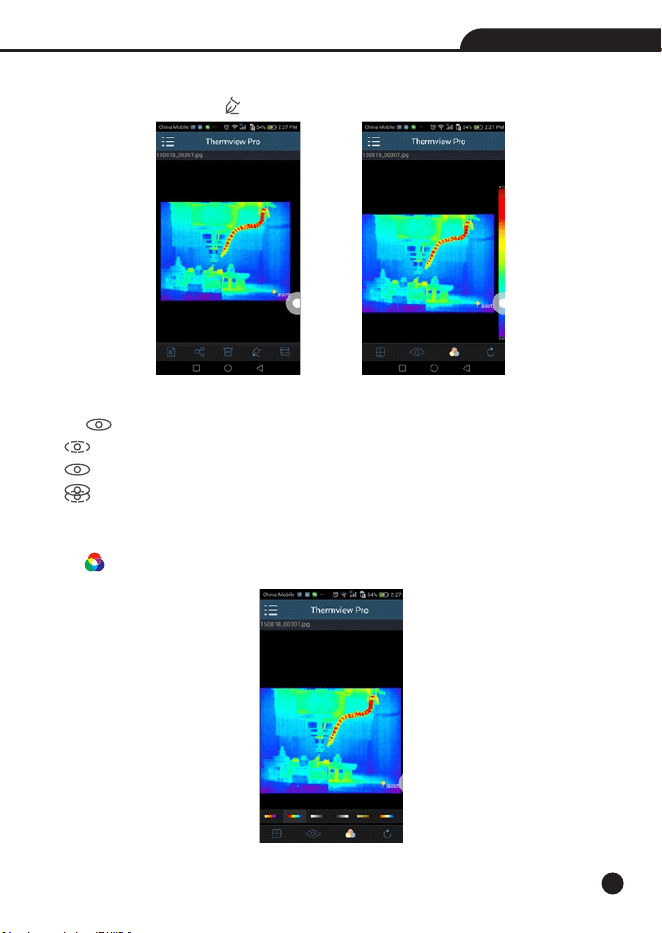

7-2-2.Analyze
Select a IR Picture and click “ ” icon to analyse it.
1.Image Mode
Click “ ” icon to select image mode, there are four mode for you to select.
(1) IR Mode: Only infrared picture displayed.
(2) Visible Mode: Only visible picture displayed.
(3) Fusion Mode: The infrared picture is fusioned with visible picture.
2.Colorbar Select
Click “ ” icon to select colorbar, there are eight colorbar for you choice.
38
Pocket Thermal Imager
3. Analyze
Click “ ” icon to analyze the IR pictures, there are three analysis
tools:
(1)
Point Analyze: Add a point to the picture, it will display the temperature of the
point.
(2) Area
Analyze: Add a rectangle to the picture, it will display the highest, lowest
and average
temper
atur
e of the r
ectangle.
4.Save and Exit
Click “ ” to save and return to the main page of the APP.
7-2-3.Report and Share
1.Report: Click “ ” icon to report as a “.pdf” file.
39
Pocket Thermal Imager

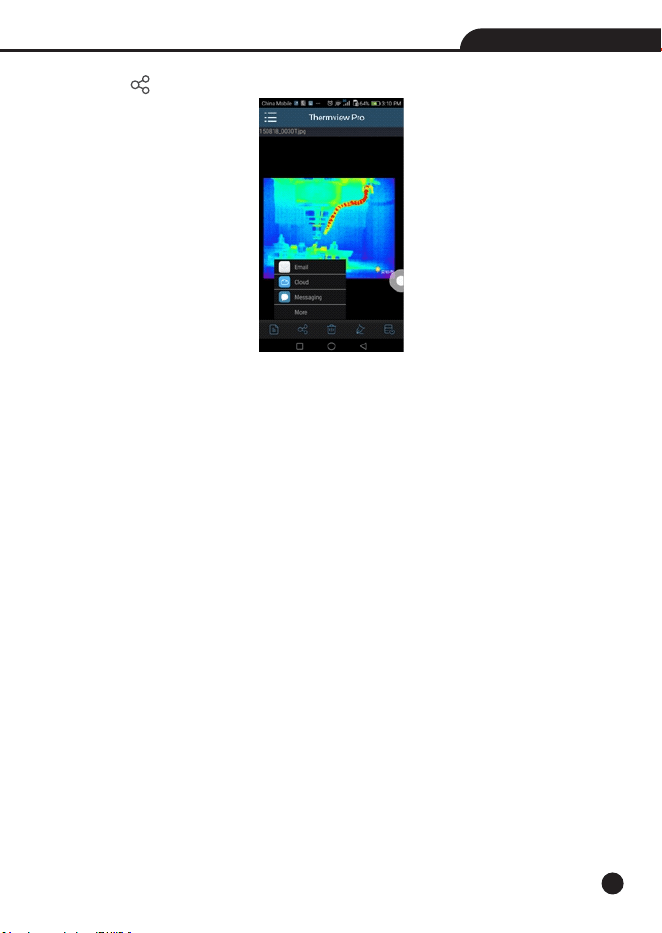

2.Share: Click “ ” icon to share the Infrared picture with Email, Cloud or Message and so on.
40
Pocket Thermal Imager
8.PC Software
8-1.System Required
• Window 10 or higher version of Windows system.
• Please make sure you have installed Net Framework 4.6 when you install Thermview Pro software.
• If not, please find and install our Microsoft. NET_Framework_v4.6.exe that provided to you .
• Ppen the net framework 4.6, Follow all tips to install Net Framework 4.6 till it finishes.
• If your system already have installed Net Framework 4.6, then no need to install again.
8-2
InfraRead
Install
• You can insert your installation CD to install directly if you have one, or you can run “setup.exe”
to install it as follow.
• Click “Next” to install, till finish installation.
• Installation Successful after click “Finish” like above.
41
Pocket Thermal Imager

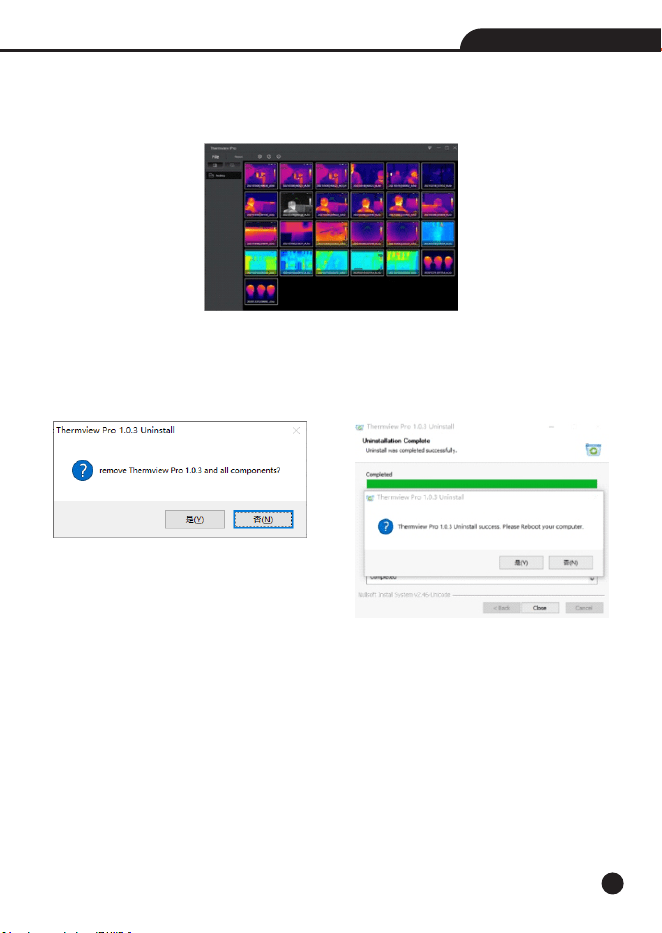

8-3.Running
After ensuring InfraRead software has been installed, click shortcuts on the desktop to run the
software.
8-4.Uninstall
• Uninstall InfraRead in the Installation dir
ectory as follow.
• Run “uninst.exe” and then click “YES” to start to uninstall, and finally choose whether to reboot
the computer.
42
Pocket Thermal Imager
9.Fault Diagnosis and Exclusion
• If you encounter any problems while using the thermal imager, overhaul according to the following
table.
• If the problem persists, disconnect the power and contact with the company’s technical support
department.
Phenomenon of the fault
Thermal imager cannot start
Thermal imager shut down
No Thermal image
Cause of the fault
No battery
No power
No power
The lens cap cover
Solution
Inserting the battery
Replace the battery or charge it
Replace the battery or charge it
Opened the lens cap
