Portable Mini
Electric Guitar Amp
USER GUIDE
www.PyleUSA.com
2
ELECTRIC GUITAR AMP SAFETY INSTRUCTIONS
Location
• Using the unit in the following locations can result in a malfunction:
• Locations of extreme temperature or humidity
• Excessively dusty or dirty locations
• Locations of excessive vibration
• Close to magnetic elds
Power Supply
This product has a built-in lithium battery. When the product is not used for a long period, please charge the product
every six months in order to extend the built-in battery's cycling life. To make full use of the performance of the lithium
battery, please ensure that the external temperature is between 14°F to 140°F (-10°C to 60°C).
Interference with Other Electrical Devices
Radios and televisions placed nearby may experience reception interference.
Operate this unit at a suitable distance from radios and televisions.
Handling
To avoid breakage, do not apply excessive force to the switches or controls.
Care
If the exterior becomes dirty, wipe it with a clean, dry cloth. Do not use liquid cleaners such as benzene or thinner,
or cleaning compounds or ammable polishes.
www.PyleUSA.com
3
Keeping Foreign Matter Out of Your Equipment
Never set any container with liquid in it near this equipment. If liquid gets into the equipment, it could cause a breakdown,
re, or electrical shock. Be careful not to let metal objects get into the equipment.
Keep This Manual: After reading this manual, please keep it for later reference.
MAIN FEATURES

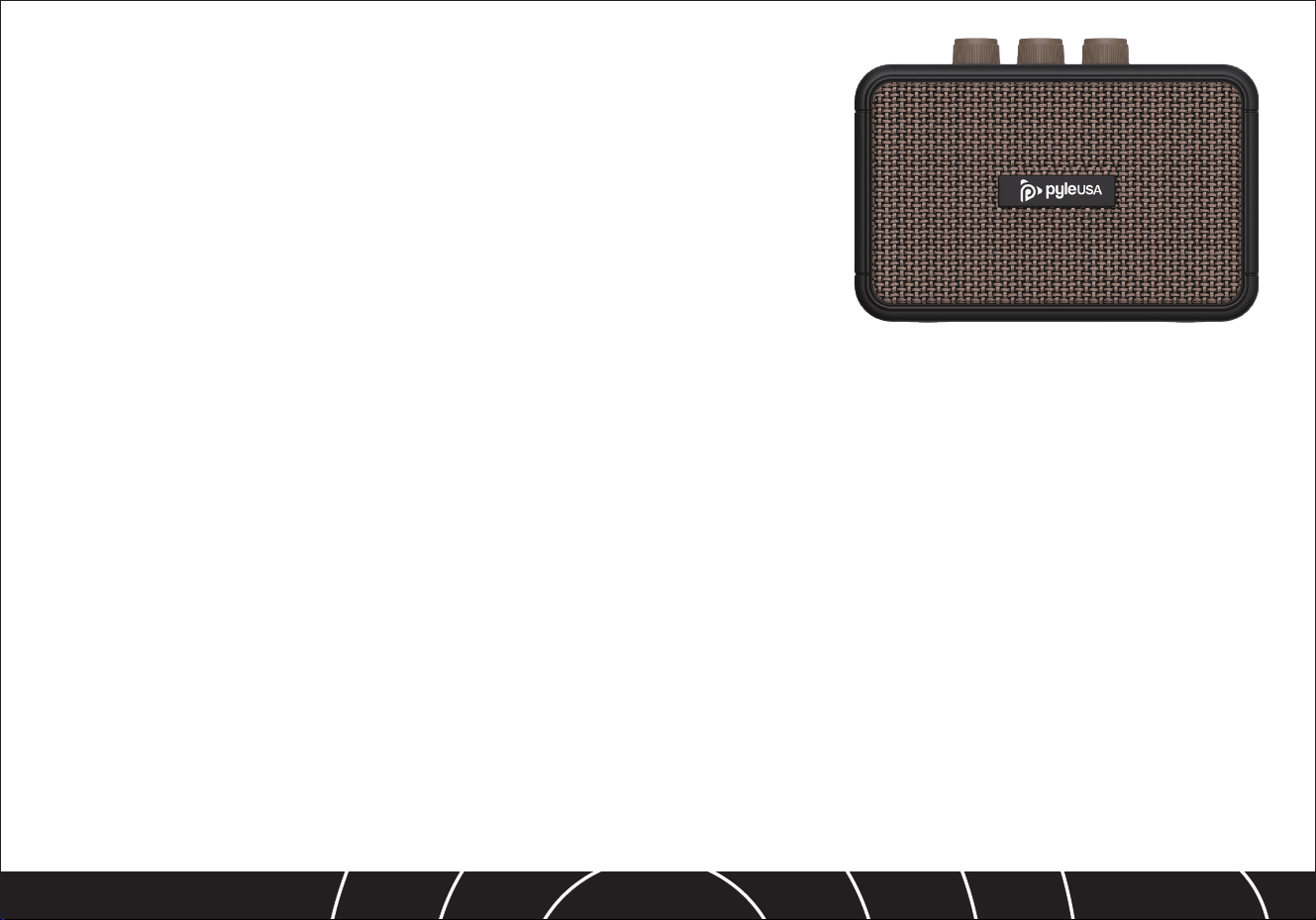

The AMP is a rechargeable mini amplier for electric guitars, featuring a simple and compact design that is easy to
carry and use. It is easy to turn on the overdrive eect and oers the best quality for a BT speaker.
• Powered by a high-capacity rechargeable lithium battery
• Uses a Type-C USB cable to recharge
• 5-watt dual speaker, analog amplier
• High-quality eects such as clean and overdrive
• Use BT to play music from your phone
HOW TO USE
Follow these simple steps to connect and start enjoying music play:
1. Turn down the main volume (VOLUME) to the minimum.
2. Connect your guitar to the input (INPUT) jack on the side panel.
3. Press and hold the power button (POWER) to turn it on.
4. Turn the volume knob clockwise to the appropriate position, adjust the gain and tone, and obtain the sound you desire.
www.PyleUSA.com
4
PANEL FUNCTION
7. Power/BT button: Press and hold to power on/o. When the amplier is powered on, press to enable/disable BT.
8. Charge indicator: The indicator light will be red when you charge the amp, when the battery is fully charged, the
indicator light will turn green.
9. Charging port: To charge, please use the Type-C USB charging cable to connect the USB adapter(or power bank,
computer USB port), Power requirementis5V 2A. Note: Please purchase a certied power adapter for safety.
10. Input jack: 6.35mm jack for connecting an electric guitar input signal.
8
9 10
VOLUME
1 2 3 4 6
5
7
BT
1. CLEAN/OD: The button to switch the overdrive
and the clean channel.
2. Gain knob: This knob adjusts the gain output.
3. Tone knob: This knob adjusts the tone.
4. Volume knob: This knob controls the master
volume.
5. Headphone interface: Connect headphone for
silent practice.
Note: Please use a stereo audio jack of 3.5mm.
When connected to this port, the speaker will
mute.
6. Power indicator light/BT: The indicator light
stays on when the amp is powered on. When the
battery is low, the indicator light will ash rapidly
and with a repeated beeping sound that warns
you to charge the amp. When BT is enabled, the
indicator will icker with a prompt sound.
www.PyleUSA.com
5
BT FUNCTION
Connect BT, press button "BT" when the BT is enabled, the blue LED light will ash twice accompanied by a sound alert.
The amplier name is "pyleUSA". A beep sound "Di" will be gendered when BT connection succeed.
FCC Statement
Changes or modications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
