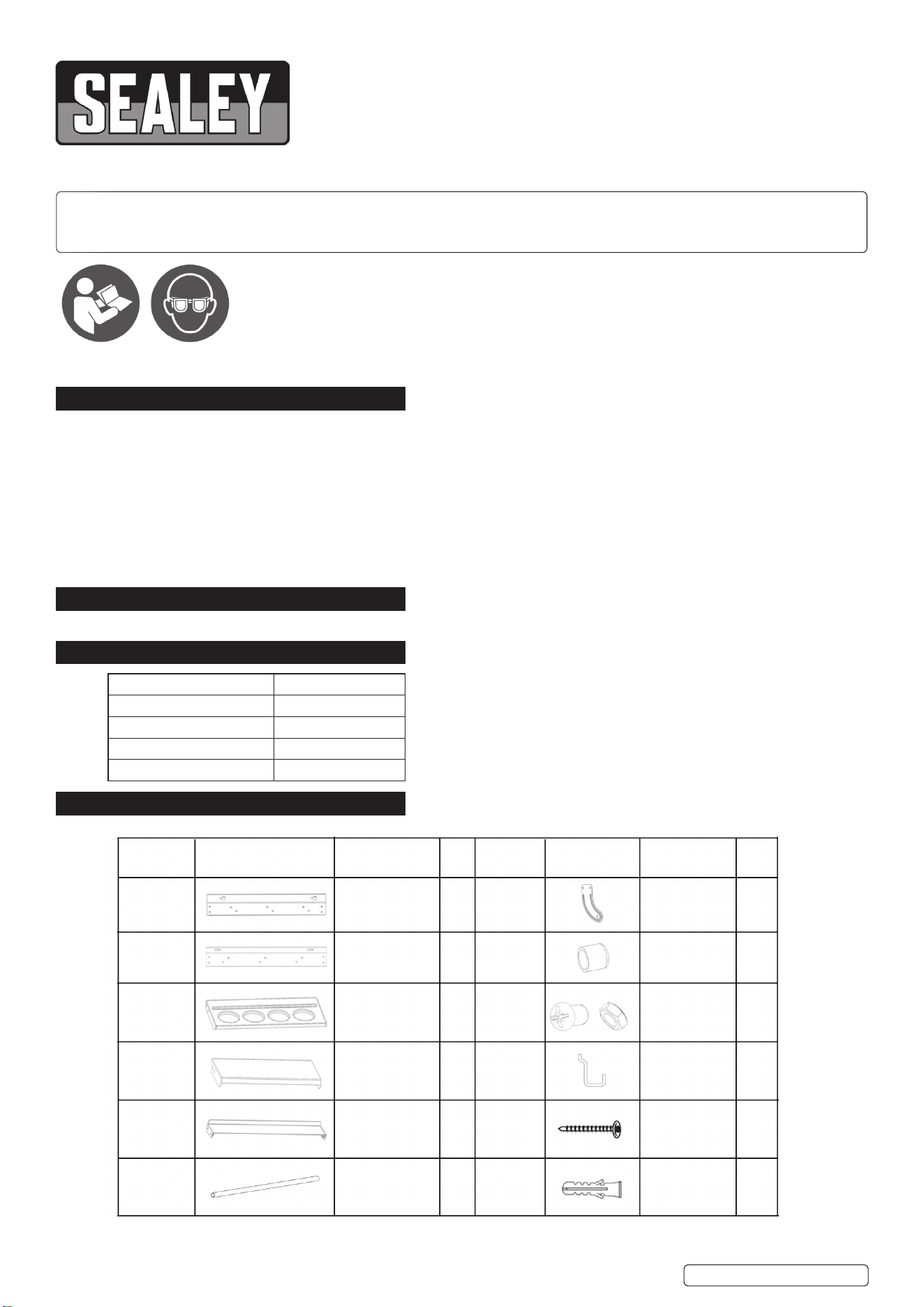

Part Code
A
B
C
D
E
F
Part Shape Descriptions Qty
1
1
2
2
1
1
2
2
20
4
4
4
Part Shape Descriptions QtyPart Code
Left stud
Right stud
Bottle holder
Shelf
Support plate
Paper towel
holder tube
G
H
I
J
K
L Plastic Anchor
Connecting
piece
Plastic cap
M6 Bolt & Nut
Mini hook
M4.8*50.8mm
Mounting
screw
1. SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this product.
9 Locate product in a suitable working area.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
9 Keep the product clean and tidy in accordance with good workshop practice.
9 Keep children and unauthorised persons away from the working area.
8 DO NOT use the product for any purpose other than that for which it is designed.
8 DO NOT exceed maximum capacity of product.
8 DO NOT use the product out of doors.
8 DO NOT get the product wet or use in damp or wet locations or areas where there is condensation.
8 DO NOT clean the product with any solvents which may damage the paint surface or the protective coating.
2. INTRODUCTION
Wall mounting rack specically designed for spray can storage. Shelf space for larger products and also a paper towel dispenser bar.
3. SPECIFICATION
4. CONTENTS
SPRAY CAN STORAGE RACK WITH 8 CAN
HOLDERS
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
APSCR8 Issue 1 04/10/24
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear eye
protection
Model no: APSCR8
Can Holder Diameter: Ø70mm
Can Holders: 8
Nett Weight: 3.85kg
Paper Towel Holder Width: 375mm
MODEL NO: APSCR8
Left stud Right stud
This side up This side up
*For the convenience of assembly, please
remove the end cap at both ends of the stud
before assembly.

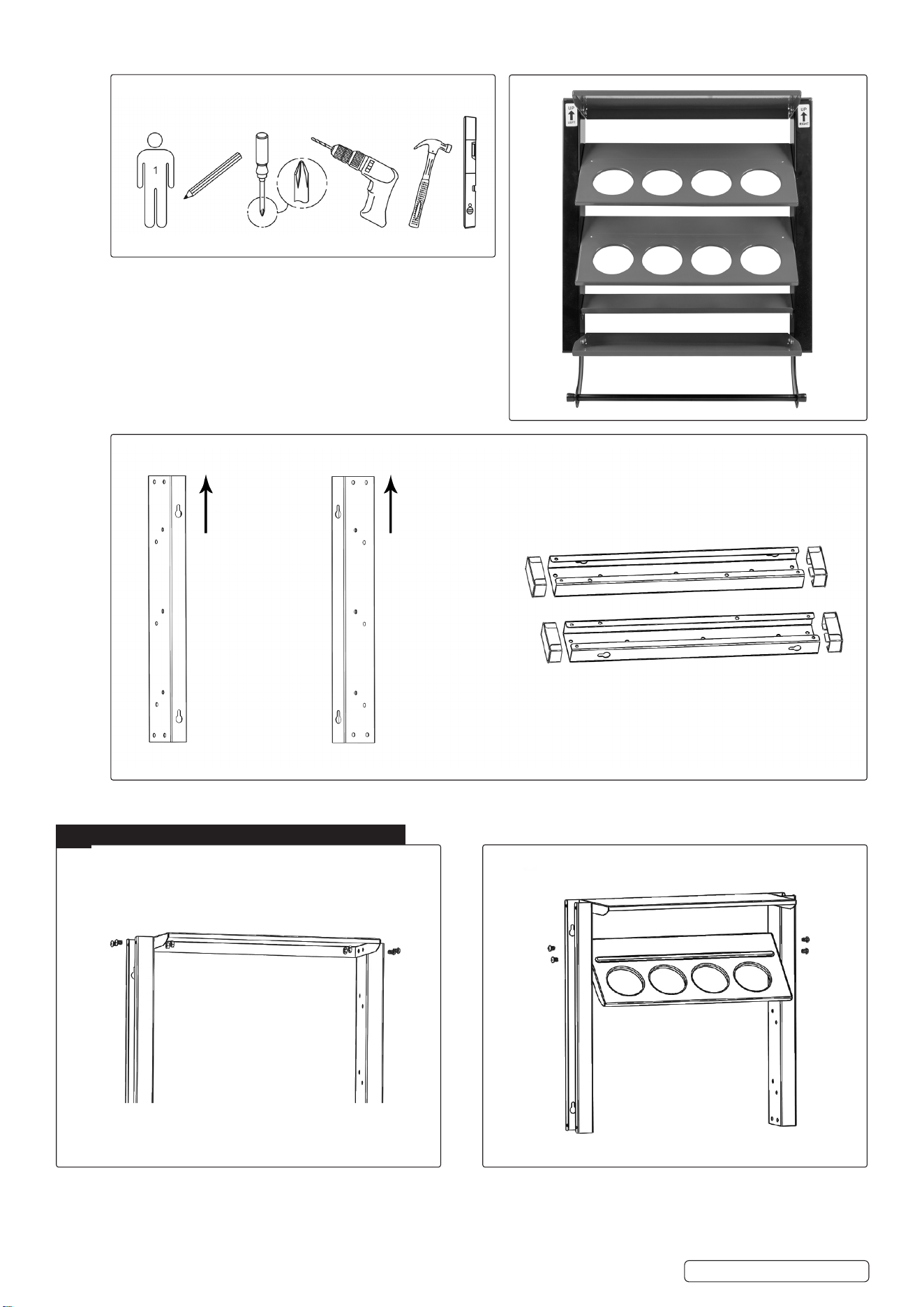

4.1. TOOLS REQUIRED
NOTE: Ensure correct xings are used for the wall type, and is
capable of withstanding the load of rack and paint cans, and make
sure the mounting bar is in correct facing and up-down orientation
before installation.
5. ASSEMBLY
Step 1. Attach shelf to the left and right stud using the M6 nuts and
bolts.
Step 2. Attach the top bottle holder to the left and right stud using
the M6 nuts and bolts.
APSCR8 Issue 1 04/10/24
Original Language Version
© Jack Sealey Limited
6. ASSEMBLY
APSCR8 Issue 1 04/10/24
Original Language Version
© Jack Sealey Limited

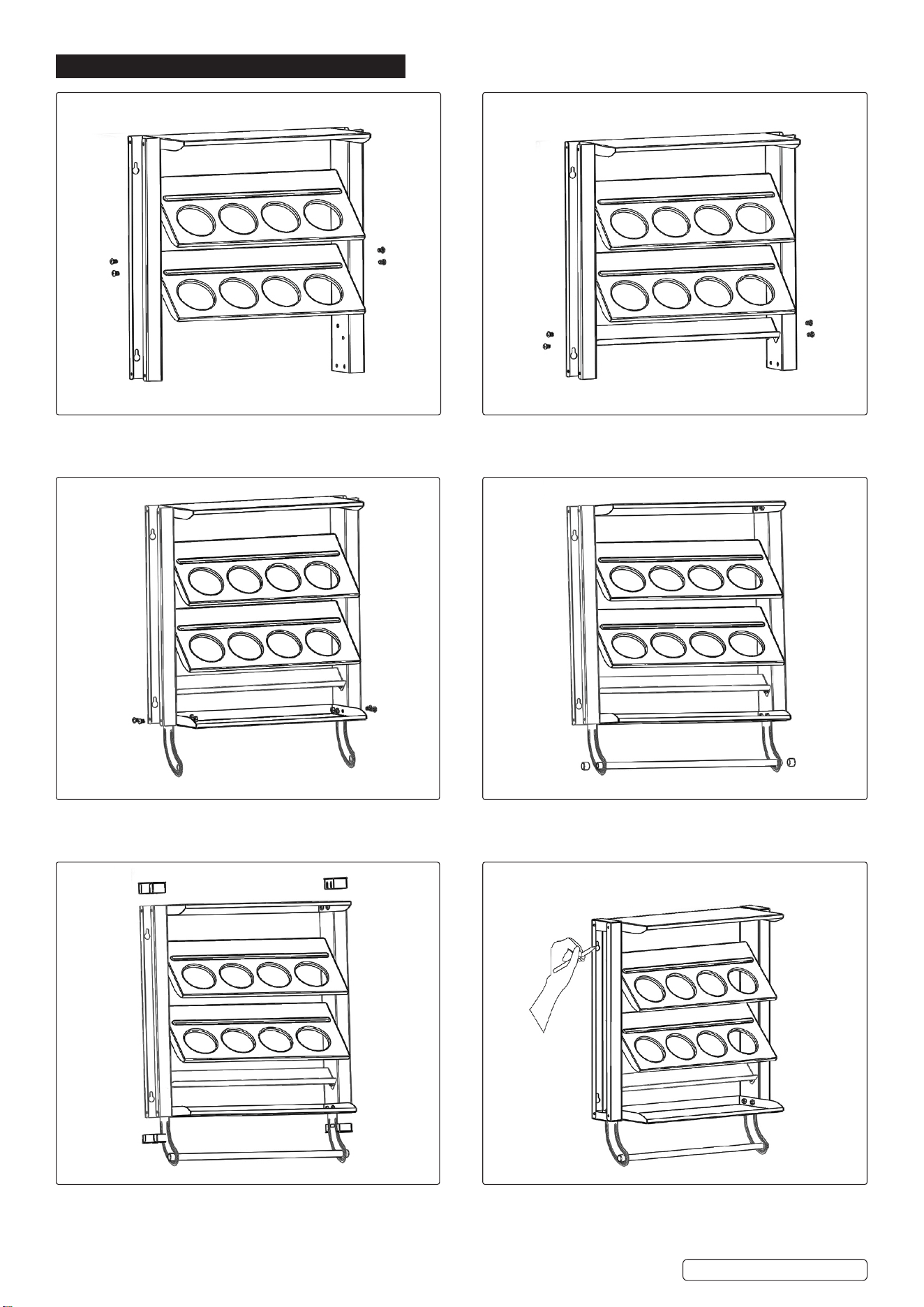

Step 3. Attach the bottom bottle holder to the left and right stud
using the M6 nuts and bolts.
Step 4. Attach the support plate to the left and right stud using the
M6 nuts and bolts.
Step 5. Attach shelf and the connecting piece to the left and right
stud using the M6 nuts and bolts.
Step 6. Slide the paper towel holder through the connecting piece,
then push the plastic end caps on to each end as shown in the
illustration.
Step 8. Place spray can storage rack up against the wall. Use a
spirit level to ensure it is level, using a pencil mark the wall as
shown in the illustration.
Step 7. Attach the four end caps to each stud as shown in the
illustration.
APSCR8 Issue 1 04/10/24
Original Language Version
© Jack Sealey Limited

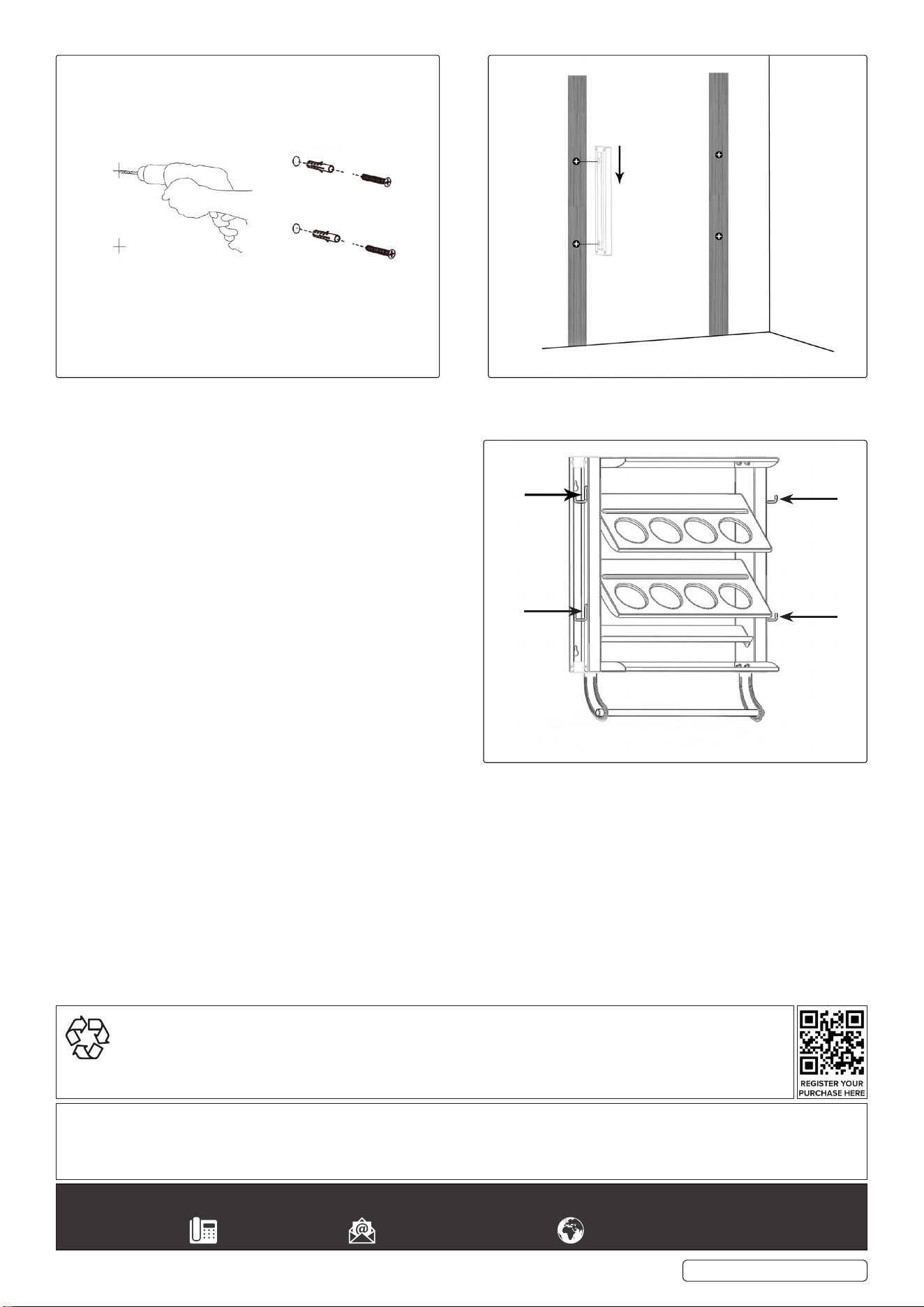

Step 9. Drill the concrete or brick wall with an 8mm drill bit, insert
the plastic anchor (wall plugs) into the drilled holes. Screw the M4.8*
50.8mm mounting screws leaving a 5mm gap for hanging the spray
can storage rack.
Step 10. Place the spray can storage rack onto the M4.8* 50.8mm
mounting screws, see above illustration. (Weight capacity 100Ibs).
Step 11. Attach the mini hooks to either side as shown.
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specications and component parts
without prior notice.
IMPORTANT: No Liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which is required for any claim.
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be
sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment. When
the product becomes completely unserviceable and requires disposal, drain any uids (if applicable) into approved
containers and dispose of the product and uids according to local regulations.
