OVERVIEW
Designed to integrate seamlessly into smaller spaces, this 269L
Refrigerator Freezer oers generous storage, adjustable door
panels and a reversible hinge. ActiveSmart™ technology
maintains the ideal temperature to keep food fresher for longer,
while the Variable Temperature Drawer can be adjusted to store
beverages, meat and seafood or fruit and vegetables.
PRODUCT
RB6018BRV
60cm Series 5, Integrated Refrigerator Freezer
ACCESSORIES
Handles
Handles are available in Contemporary, Professional, and Classic
styles. Options include brushed aluminium, black, and stainless
steel finishes. For a full range of handle options visit our website
fisherpaykel.com
FEATURES
1 Perfect for smaller spaces, with a generous 269L capacity
that doesn't compromise on storage
2 Designed for minimal gaps with adjustable door panels, our
integrated products are easy to install
3 By cooling and defrosting only when necessary, this
refrigerator uses only the energy it needs and doesn't
compromise on food care
4 Reversible hinge offers flexible installation to create kitchen
perfection
5 Variable Temperature Drawer can be set to Fruit & Veg,
Beverage or Meat & Seafood mode
6 ActiveSmart™ technology maintains the ideal temperature
for fresher food
7 Eco Mode adjusts each compartment to the ideal settings to
balance food care and energy efficiency
8 Bright LEDs illuminate ceiling, shelves, bins, and tray
9 Intuitive, easy-to-use interface for activating features like
Fast Freeze and Max Cool
"0 Connected capability via Wi-Fi and the SmartHQ™ app gives
control & visibility from anywhere at any time
PRODUCT FEATURES | 60Cm SERIES 5 INTEGRATED REFRIGERATOR FREEzER
RB6018BRV
<< CONTENTS<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 590005022B PLANNING GUIDE 60CM SERIES 5 INTEGRATED REFRIGERAToR FREEzER VERSIoN B - SEPTEMBER 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

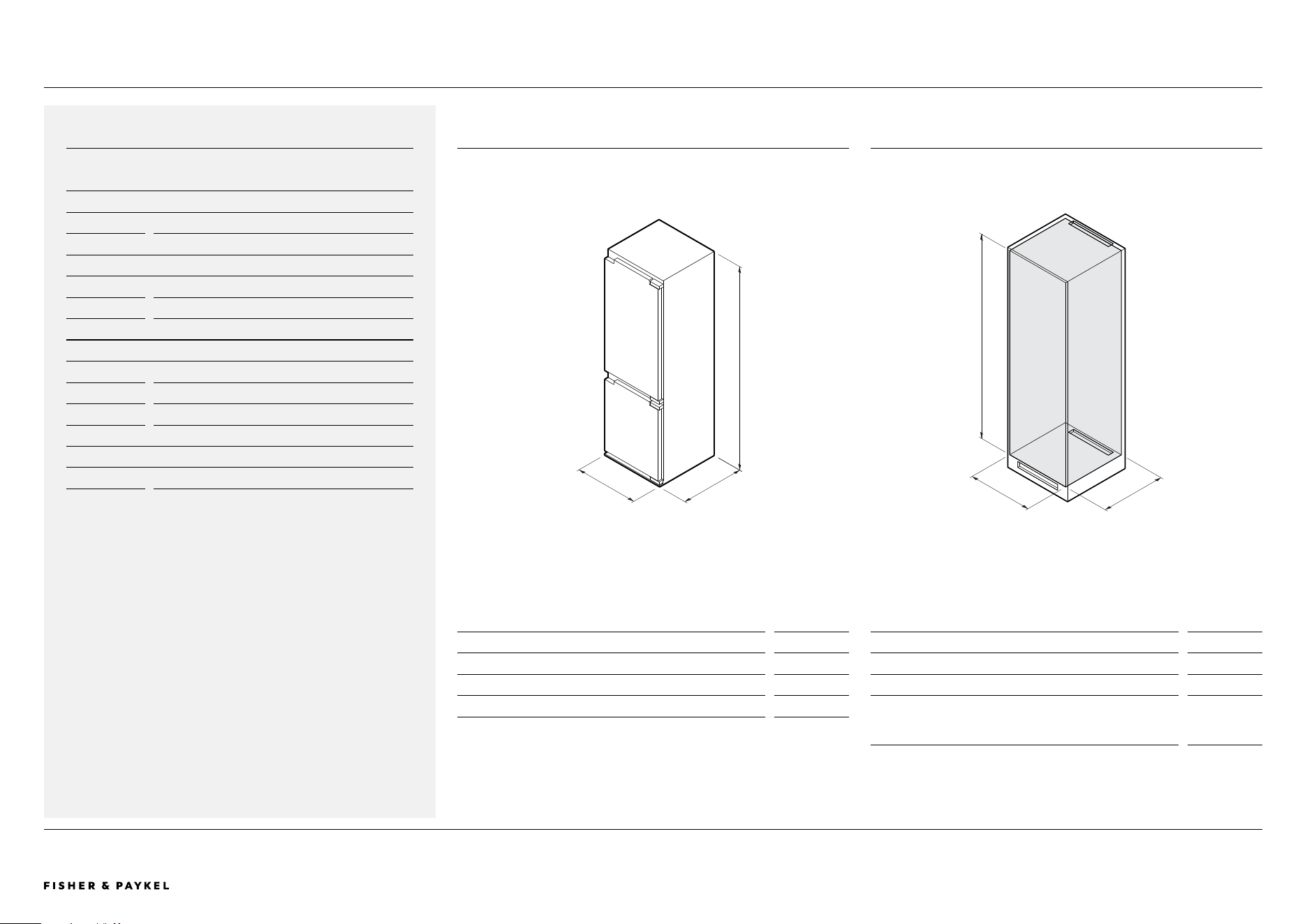

PRODUCT DImENSIONS
Product Dimensions mm
A Overall height of product 1772
B Overall width of product 550
C Overall depth of product excluding front panels 550
CAVITY DImENSIONS
Cavity Dimensions mm
A Height of cavity 1778 - 1782
B Width of cavity 560 - 568
C Depth of cavity
- minimum
- recommended
560
580
RB6018BRVPRODUCT SPECIFICATIONS | 60Cm SERIES 5 INTEGRATED REFRIGERATOR FREEzER
ISOmETRIC VIEW
EXPLODED
a
b
c
SPECIFICATIONS
model Number
RB6018BRV 60cm Series 5, Integrated Refrigerator Freezer
Weight
Packaged 87 kg
Unpackaged 81 kg
Electrical *
Supply 230 V, 50 Hz
Service 10 A
Connection 2.3m flex cord with plug
Plumbing
Connection no connection required
b
a
c
ISOmETRIC VIEW
<< CONTENTS<< CONTENTS
PAGE 6© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE 60CM SERIES 5 INTEGRATED REFRIGERAToR FREEzER VERSIoN B - SEPTEMBER 202590005022B
DATA SHEET
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 790005022B PLANNING GUIDE 60CM SERIES 5 INTEGRATED REFRIGERAToR FREEzER VERSIoN B - SEPTEMBER 2025
INDICATES CABINETRY / PRODUCT DATUM
INDICATES CABINETRY CLEARANCES
INDICATES CUTOUT
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16''). Please
read the installation manual for detailed information on installing the product. For full
installation instructions & specifications visit fisherpaykel.com
model no:
RB6018BRV 60cm Series 5, Integrated Refrigerator Freezer
NOTE: Left hand hinge is a mirrored version of the image
shown. Left hand hinge can be achieved using supplied
parts. Please refer to Installation Guide for details.
Product Dimensions mm
A Overall height of product
1772
B Overall width of product
550
C Overall depth of product (excluding custom panels and handle)
550
D Height from base of product/cavity to lower adjustable break line
694
E Height from base of product/cavity to upper adjustable break line
713
F Height between adjustable break lines
19
G Depth of inner door open at 90° (from front of carcass, excludes
custom panels and handle)
574
H Width of Inner door open at 113° (from side of product, allows full
internal access, excludes custom panels and handle)
213
I Minimum height from base of product to top of upper custom
door panel*
1768
* at minimum cavity height
Custom Panel Dimensions mm
J Depth of custom door panels
16 - 22
K Minimum gap between upper and lower custom door panels
4
L Minimum cabinetry gap from side of door panels
16 - 19mm custom door panel
20 - 22mm custom door panel
4
5
Maximum weight of an individual door panel including handle
15kg
Cavity Dimensions mm
Height of cavity
1778 - 1782
Width of cavity
560 - 568
Depth of cavity
- recommended
- minimum
580
560
Ventilation Requirements cm²
Minimum inlet and outlet ventilation
200

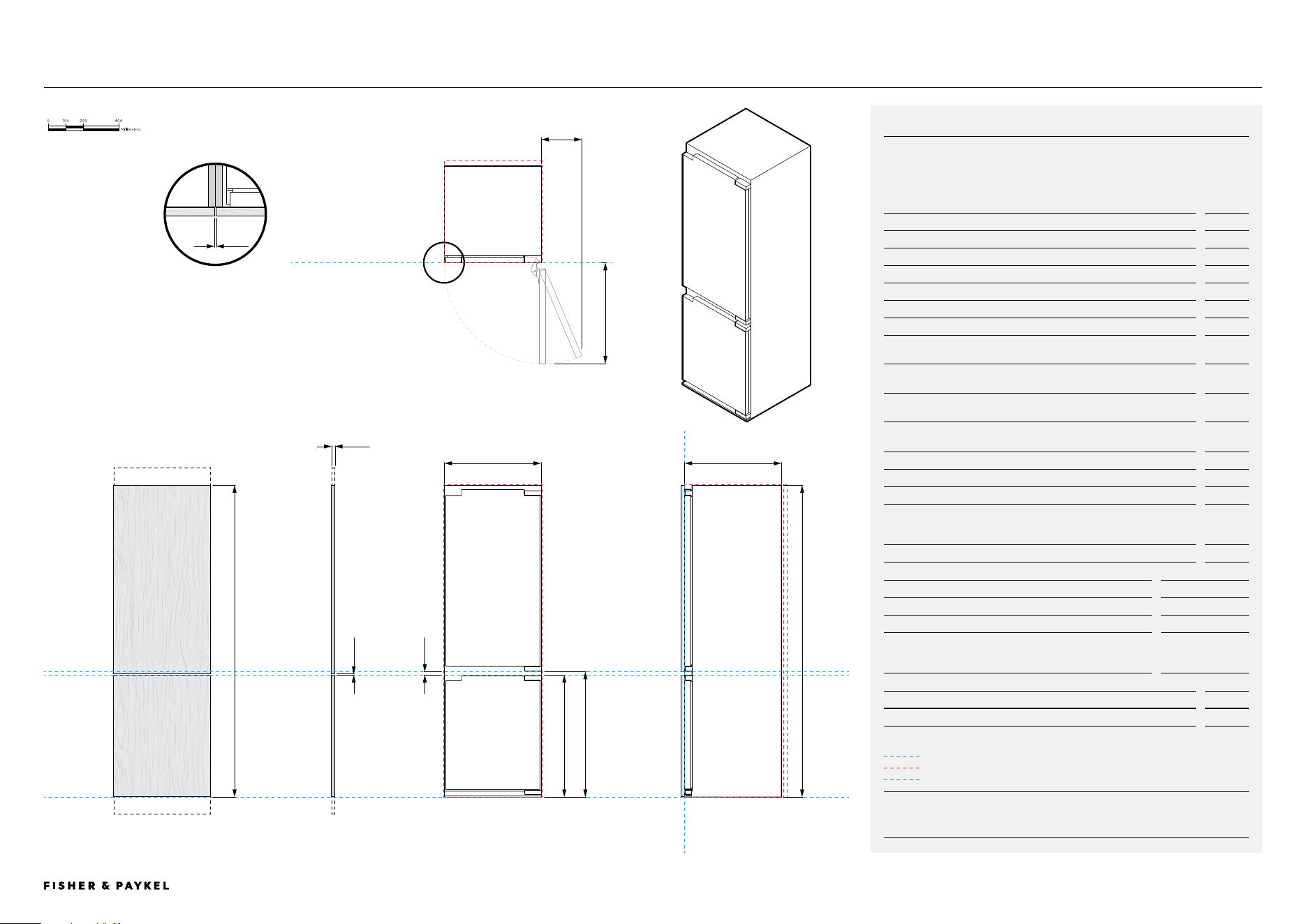

PROFILE VIEW
PRODUCT
FRONT VIEW
PRODUCT
PLAN VIEW
PRODUCT
j
k
g
d
DATUM: UPPER
ADJUSTABLE
BREAKLINE
PROFILE VIEW
CUSTOM PANELS
FRONT VIEW
CUSTOM PANELS
A
1772
b
550
c
550
e
RB6018BRVDATA SHEET | 60Cm SERIES 5 INTEGRATED REFRIGERATOR FREEzER
h
DATUM: LOWER
ADJUSTABLE
BREAKLINE
DAT U M:
FRONT OF CHASSIS /
CABINETRY CARCASS
l
PLAN VIEW DETAIL
PRODUCT WITH
CABINETRY
i
f
DATUM: BASE OF
PRODUCT /
CAVITY
DAT U M:
FRONT OF CHASSIS /
CABINETRY CARCASS
<< CONTENTS<< CONTENTS
PAGE 8© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE 60CM SERIES 5 INTEGRATED REFRIGERAToR FREEzER VERSIoN B - SEPTEMBER 202590005022B
DESIGN PLANNING
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 990005022B PLANNING GUIDE 60CM SERIES 5 INTEGRATED REFRIGERAToR FREEzER VERSIoN B - SEPTEMBER 2025
CABINETRY OVERVIEWDESIGN PLANNING | 60Cm SERIES 5 INTEGRATED REFRIGERATOR FREEzER
A
B
D
C
e
f
g
CAVITY DImENSIONS mm
A Height of cavity 1778 - 1782
B Width of cavity 560 - 568
C Recommended depth of cavity 580
D Minimum depth of cavity 560
CABINETRY DImENSIONS mm
E Recommend cabinet carcass width 600
F Thickness of carcass panels* 16 - 20
G Width of custom panel** 596
*to achieve cavity width requirements for recommended cabinet width
**shared 4mm gap to adjacent cabinetry front panels

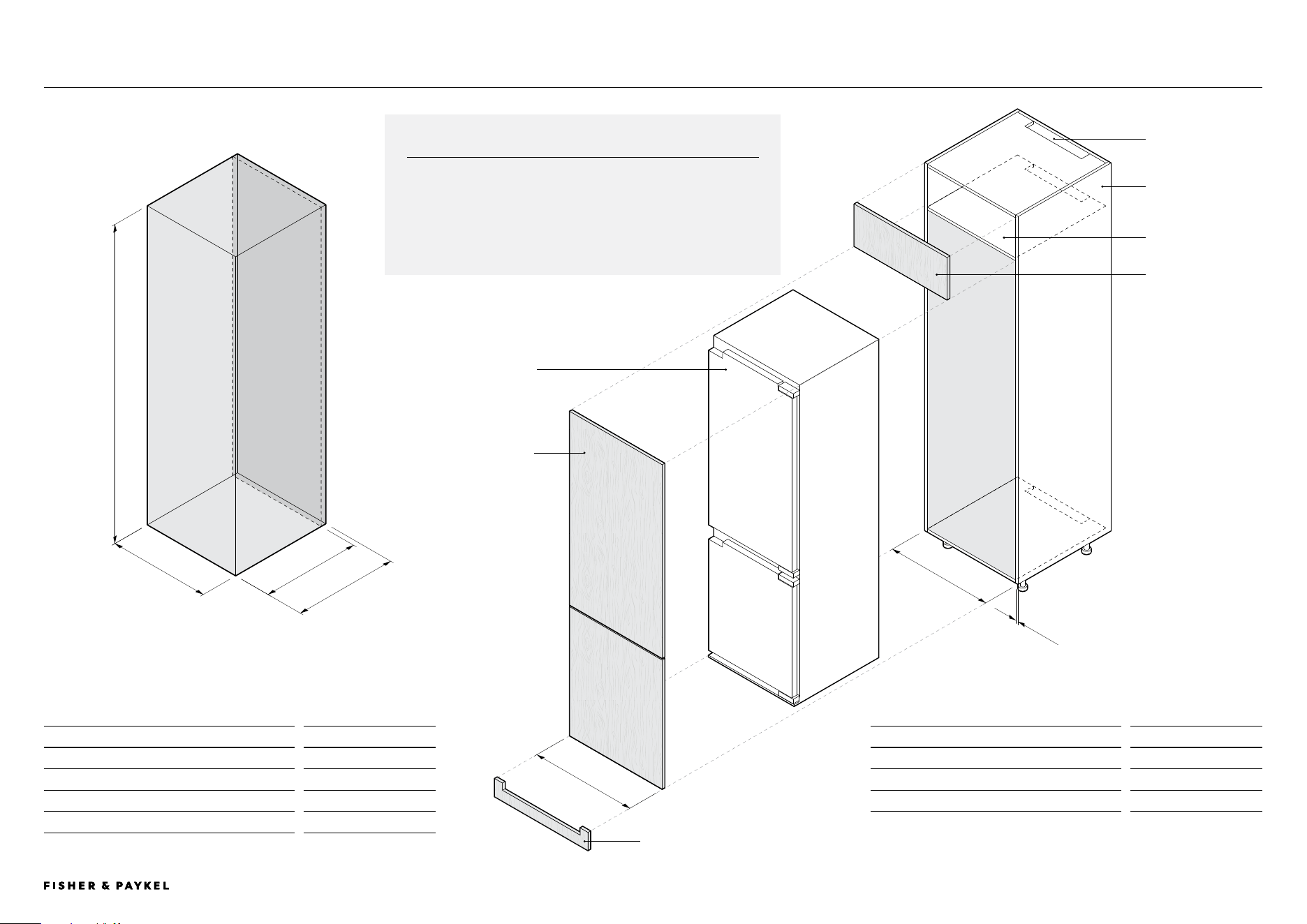

ISOmETRIC VIEW
CAVITY
EXPLODED ISOmETRIC VIEW
CABINETRY AND PRODUCT
60cm cabinet
Shelf to create appliance
cavity (if required)
Filler front panel (if
required)
Refrigerator
Freezer
Appliance
front panels
200cm
2
vents required
throughout cabinet
Toe kick panel with 200cm
2
vent
CABINETRY REQUIREmENTS
This is an overview of a typical installation of the product.
Cavity and panel clearances must be met. Cabinetry carcass and
front panel dimensions are recommendations. Further details can
be found throughout this Planning Guide.
For details on wider cabinetry requirements please contact the
Design Support Team.
<< CONTENTS<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1090005022B PLANNING GUIDE 60CM SERIES 5 INTEGRATED REFRIGERAToR FREEzER VERSIoN B - SEPTEMBER 2025
CUSTOM PANELSDESIGN PLANNING | 60Cm SERIES 5 INTEGRATED REFRIGERATOR FREEzER
e
D
D
e
B
c

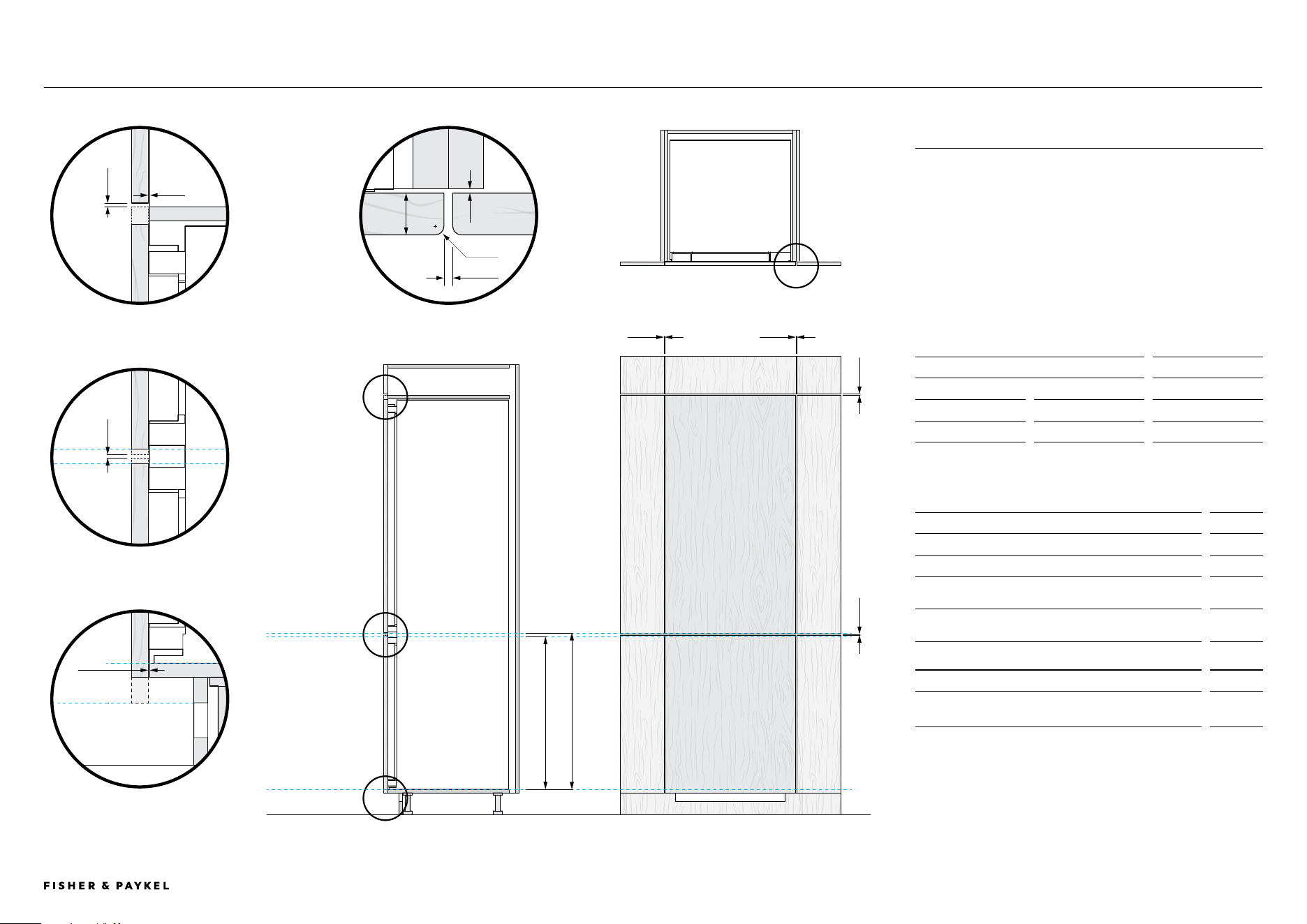

DETAIL 1
SIDE VIEW
DETAIL 2
SIDE VIEW
DETAIL 3
SIDE VIEW
3
2
1
DETAIL 4
TOP VIEW
SIDE VIEW
TOP VIEW
FRONT VIEW
D
D
c
4
DAT U M:
UPPER ADJUSTABLE
BREAKLINE
DAT U M:
LOWER ADJUSTABLE
BREAKLINE
DAT U M:
BASE OF PRODUCT /
CAVITY
g
f
DAT U M:
TOP OF VENT
e
a
c
CUSTOm PANELS
Custom panel specifications and clearances must be applied to
specific cabinetry design and construction requirements.
The gap between upper and lower panels can be placed at any
height within the adjustable break lines.
The base of lower door must be in line with or above the top of
vent to ensure ventilation gap of 200cm
2
or greater.
For attachment details between custom panels and product refer
to Installation Guide.
CUSTOm PANEL DImENSIONS mm
A Panel thickness B Corner radius C Gap to side
16 - 19 2 4
20 - 22* 2 5
*Panels with a thickness of 20-22mm are considered special case.
For further details please contact the Design Support Team.
CUSTOm PANEL CLEARANCES mm
D Gap to adjacent panels above and below 4
E Gap between front panel and cabinetry carcass 2
F Height from base of product/cavity to lower
adjustable break line
694
G Height from base of product/cavity to upper
adjustable break line
713
CUSTOm PANEL WEIGHT kg
Maximum weight of each custom panel including
handle
15
HINGE
<< CONTENTS<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1190005022B PLANNING GUIDE 60CM SERIES 5 INTEGRATED REFRIGERAToR FREEzER VERSIoN B - SEPTEMBER 2025
VENTILATIONDESIGN PLANNING | 60Cm SERIES 5 INTEGRATED REFRIGERATOR FREEzER
VENTILATION OVERVIEW
An unrestricted flow of cool air is required at the back of the
product.
Vents of at least 200cm
2
are required throughout the cabinet to
ensure adequate airflow. If a grille is used, the combined hole
area must be equal to or greater than 200cm
2
.
Avoid venting directly into adjacent cabinetry.
Cabinetry examples can be adjusted to suit specific cabinetry
design and construction requirements whilst ensuring ventilation
requirements.

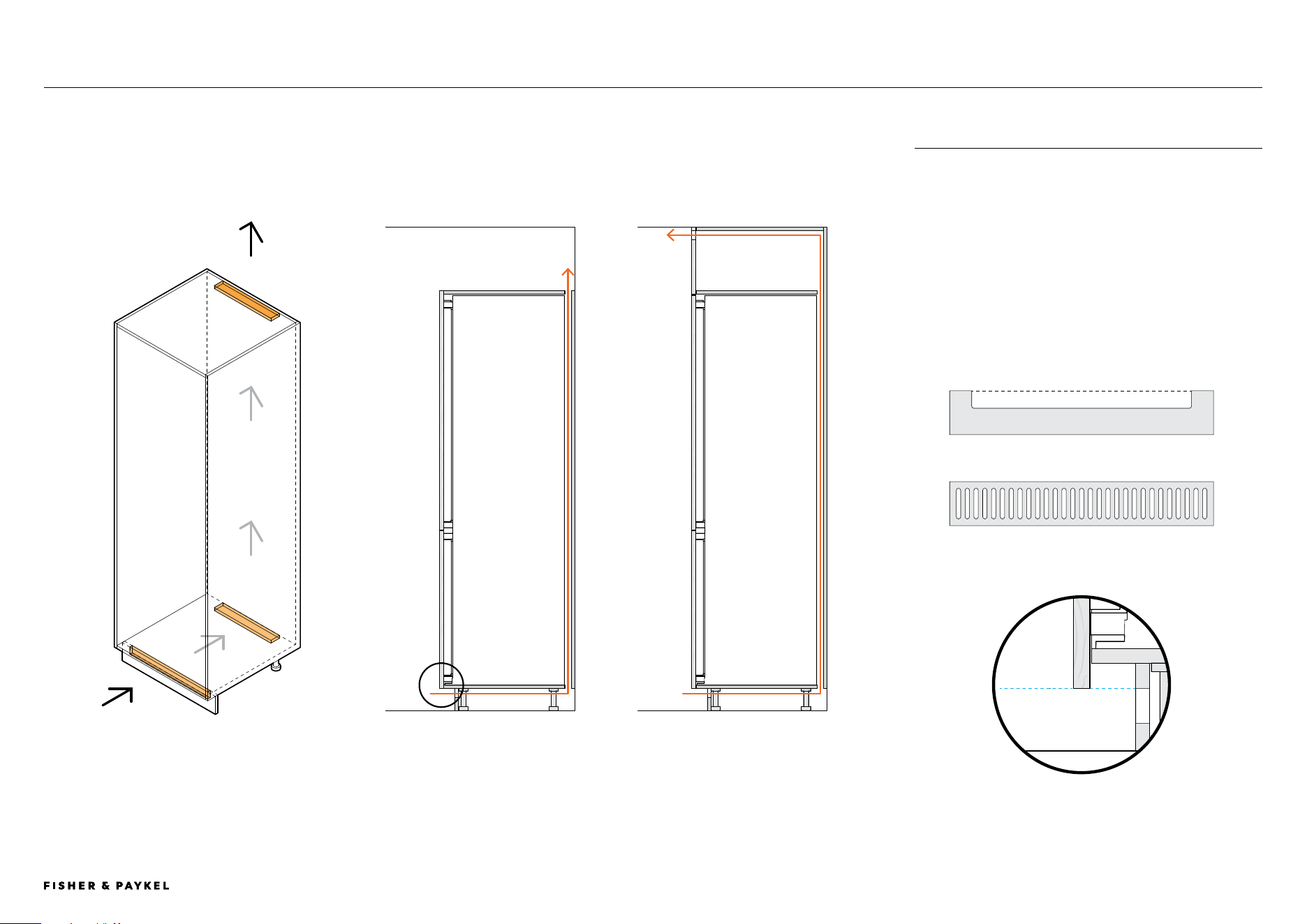

FRONT VIEW
SINGLE CUTOUT VENT EXAMPLE
ISOmETRIC VIEW
CABINET VENTILATION
SIDE VIEW
VENTILATION EXAMPLE 1
SIDE VIEW
VENTILATION EXAMPLE 2
FRONT VIEW
GRILLE VENT EXAMPLE
DAT U M:
TOP OF VENT
DETAIL A
BASE OF DOOR MUST BE IN LINE
WITH OR ABOVE TOP OF VENT
A
<< CONTENTS<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1290005022B PLANNING GUIDE 60CM SERIES 5 INTEGRATED REFRIGERAToR FREEzER VERSIoN B - SEPTEMBER 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
SERVICESDESIGN PLANNING | 60Cm SERIES 5 INTEGRATED REFRIGERATOR FREEzER
SERVICE CONNECTIONS
Connections must be made above and outside the product
cavity, either inside or outside the cabinet. The electrical socket
must be accessible once the product is installed.

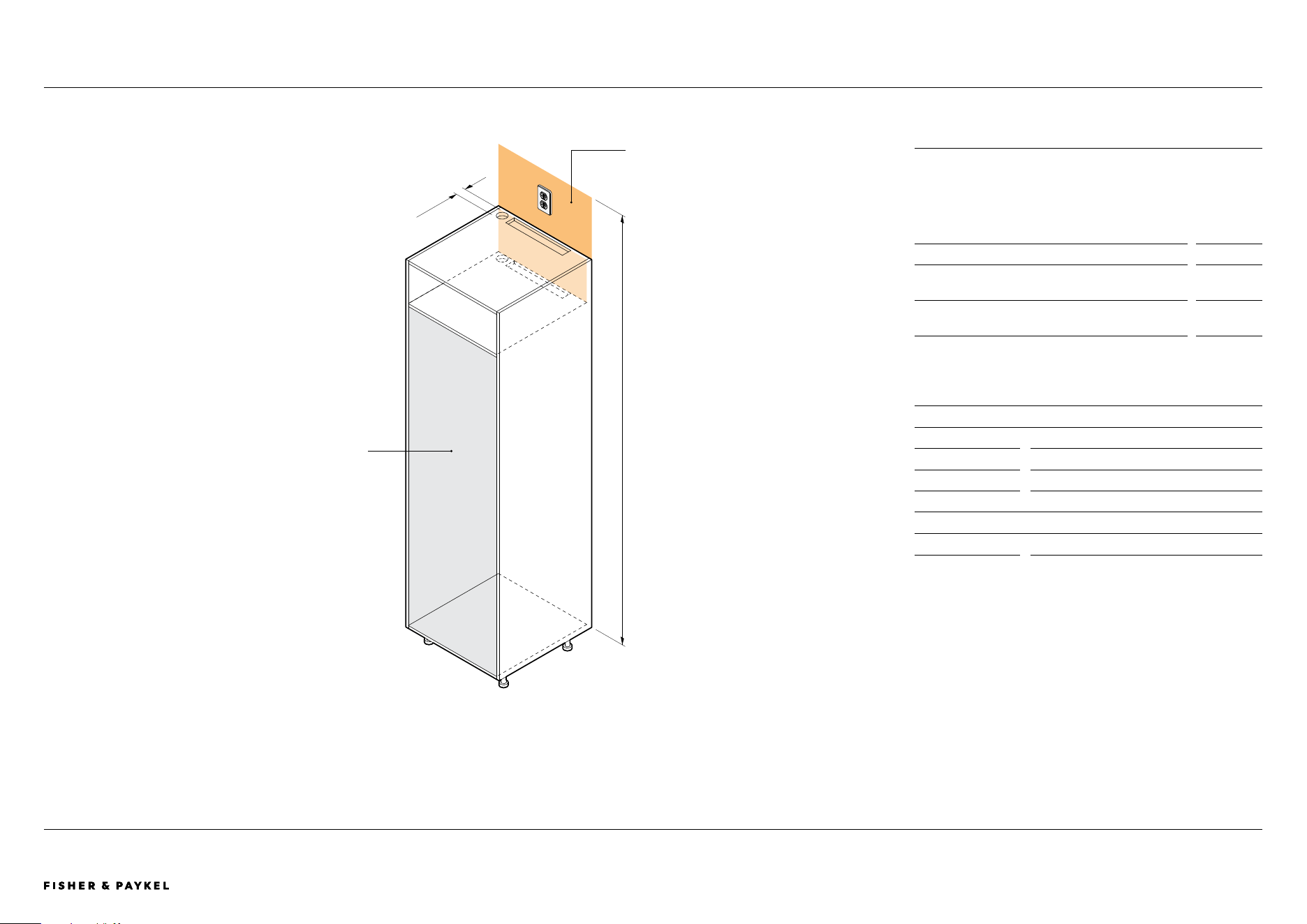

ISOmETRIC VIEW
CABINETRY
Electrical Supply Dimensions mm
A Maximum height between base of product and
power connection
2200
B Minimum diameter of hole for services for be
routed through*
55
* alternatively can be routed through ventilation gap with same
depth requirements.
Electrical
Supply 230 V, 50 Hz
Service 10 A
Connection 2.3m flex cord with plug
Plumbing
Connection no connection required
a
b
No connections inside
product cavity
Connections above product cavity,
inside or outside cabinet
<< CONTENTS<< CONTENTS
