Technical Support and E-Warranty Certificate
www.vevor.com/support
FISHING CART
MODEL: YK-200
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL: YK-200
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
FISHING CART
- 2 -
SAFETY INSTRUCTIONS
1. Please confirm that the cart is intact and the tire pressure is
normal before each use. Please inflate a little before using the wheels,
and be careful not to over-inflate!
2. It is forbidden to carry people under any condition.
3. It is forbidden to load articles on uneven and hilly terrains.
4. Overload is strictly prohibited.
5. Don't move too fast when passing pothole areas.
MODEL AND PARAMETERS
Model
YK-200
Max. Load
200lbs
Wheels
11inch,inflatable,rubber wheels*2
Fishing Rod Barrel
7
Frame Size (inside)
34 x 14.5 x 7inch
Material
Steel
Color
Black
STRUCTURE DIAGRAM
Handrail
Fishing Rod Barrel
Wheels
Supporting member
- 3 -
INSTALLATION
Frame Part x1(Each for one)
Connection Block x12
wheels x2
Washer x2
Axle x2
O-pin x2
Axle Spacer x2
Fishing Rod Barrel x7
Wrench x1
3mm Hex Wrench x1
4mm Hex Wrench x2
M5x35 Bolts x14
(Need thirteen, one more)
M5x16 Bolts x15
(Need fourteen, one more)
- 4 -
M6x25 Bolts x3
(Need two, one more)
M6x50 Bolts x3
(Need two, one more)
User Manual x1

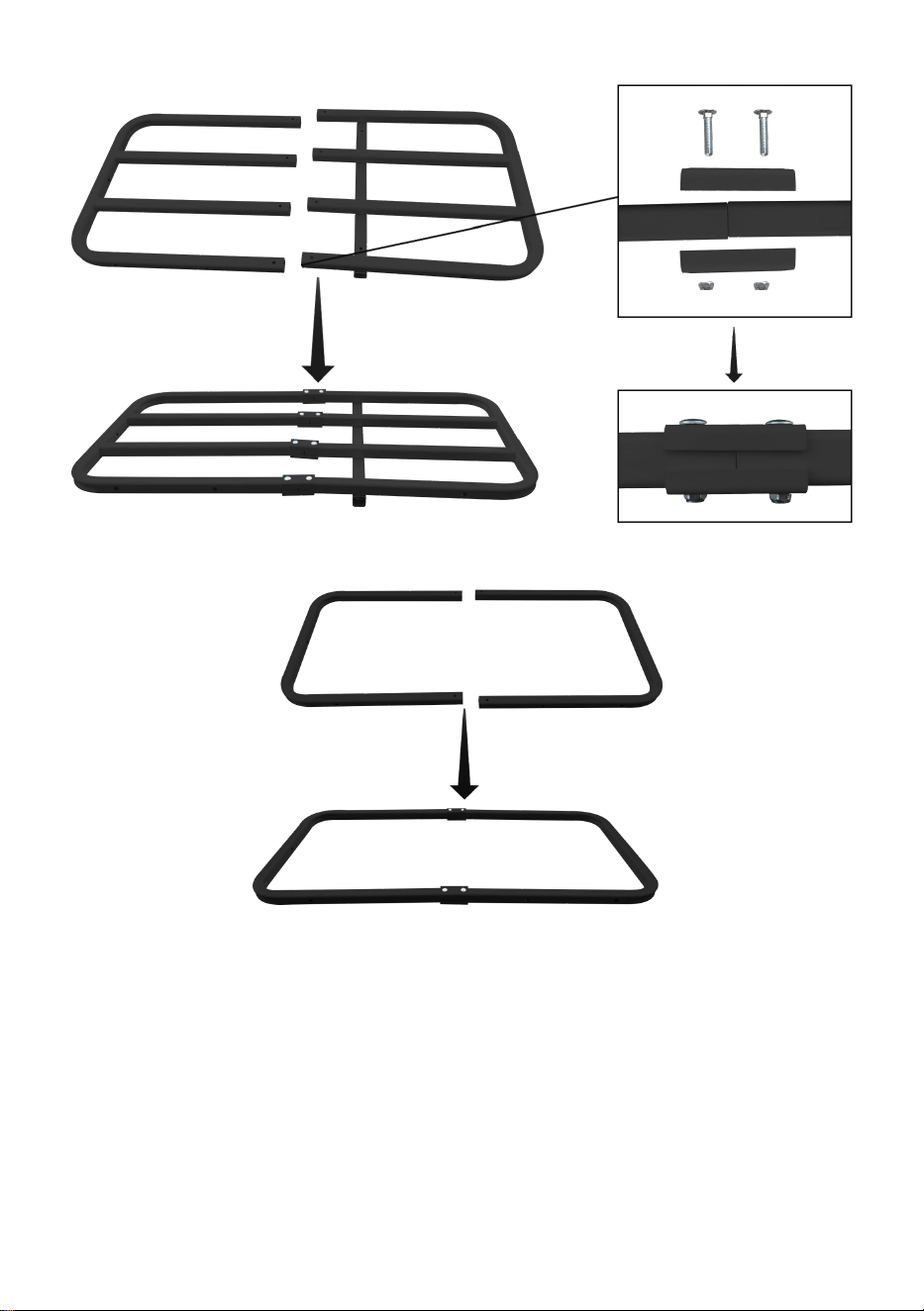

Step 1: Connect the two lower frames together using the M5x35 bolts and the
connection block.
Step 2: Attach the upper frame in the same manner.
M5x35
Bottom
Beam at the bottom.
Bottom
M5x35
- 5 -
Step 3: Mounting the frame.
NOTE: The frames have pre-drilled holes for mounting the fishing barrels. The number of
pre-drilled holes on the upper and lower frames on the same side should be the same.
M6x25
M6x50
M6x50
M5x16
Pay attention to the location
of the fishing rod barrel.
- 6 -

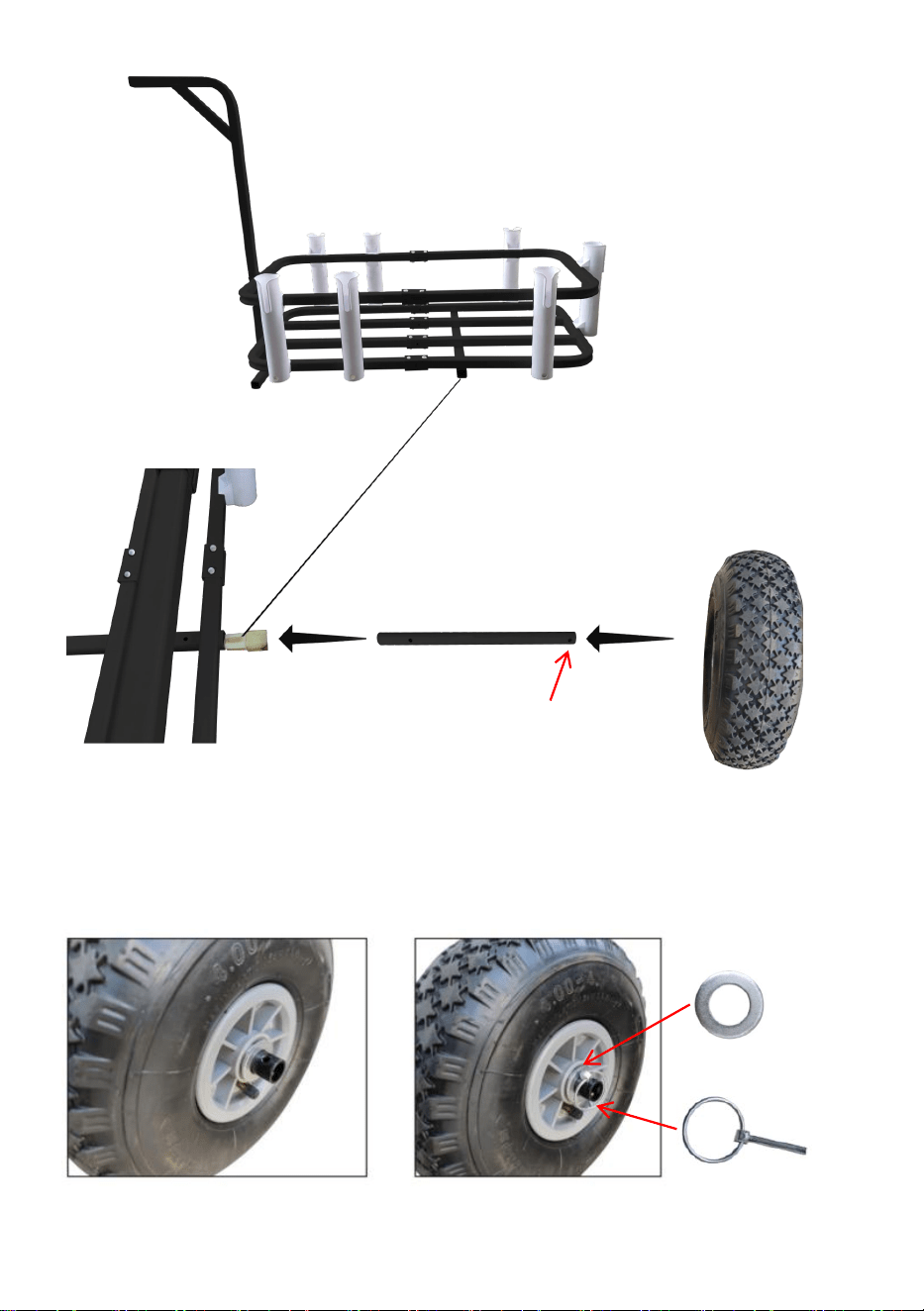

Step 4: Install all rod barrels, then wheels.
NOTE: Insert the plastic parts of the wheel axle into the ends of the bottom cross member
of the frame, then insert the wheel axle, and finally install the wheel on it.
Step 5: Put in the washer first, then insert the O-pin.
O-pin mounting hole
- 7 -
Step 6: Installation complete and pump up the tire before use.
MAINTENANCE
1. Clean the surface after each use.
2. Please confirm that the cart is intact and the tire pressure is
normal before each use.
3. Check that the bolts are tight.
M5x35
- 8 -
Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi
Shanghai
Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD
NSW 2122 Australia
Imported to USA: Sanven Technology Ltd, Suite 250, 9166 Anaheim
Place, Rancho Cucamonga, CA 91730
REP
EC
SHUNSHUN GmbH
Römeräcker 9 Z2021, 76351
Linkenheim-Hochstetten, Germany
REP
UK
Pooledas Group Ltd
Unit 5 Albert Edward House, The
Pavilions Preston, United Kingdom
Made In China
Assistance technique et certificat de garantie électronique
www.vevor.com/support
CHARIOT DE PÊCHE
MODÈLE : YK-200
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODÈLE : YK-200
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
FISHING CART
- 2 -
SAFETY INSTRUCTIONS
1. Veuillez confirmer que le chariot est intact et que la pression des pneus
est
normal avant chaque utilisation. Merci de gonfler un peu avant d'utiliser les
roues, et attention à ne pas trop gonfler !
2. Il est interdit de transporter des personnes sous quelque condition que
ce soit.
3. Il est interdit de charger des articles sur des terrains irréguliers et
vallonnés.
4. La surcharge est strictement interdite.
5. Ne vous déplacez pas trop vite lorsque vous passez des zones de
nids-de-poule.
MODEL AND PARAMETERS
Modèle
YK -200
Max. Charger
200 livres
roues
11 pouces, gonflables, roues en
Baril de canne à
pêche
7
du cadre (intérieur)
34 x 14,5 x 7 pouces
Matériel
Acier
Couleur
Noir
STRUCTURE DIAGRAM
- 3 -
INSTALLATION
Pièce de cadre x1 (chacun pour un)
Connexion B lock x12
roues x2
Rondelle x2
Un essieu x 2
O- pin x2
Entretoise d'essieu x2
Handrail
Fishing Rod Barrel
Wheels
Supporting member
- 4 -
Baril de canne à pêche x
7
Clé _ x1 _
Clé hexagonale de 3
mm x 1
Clé hexagonale de 4 mm
x 2
Boulons M5x35 x14
(Il en faut treize, un de
plus)
Boulons M5x16 x15
(Il en faut quatorze, un de
plus)
Boulons M6x25 x3
(Il en faut deux, un de
plus)
Boulons M6x50 x3
(Il en faut deux, un de
plus)
Manuel d'utilisation x1
Étape 1: Reliez les deux cadres inférieurs ensemble à l'aide des boulons M5x35
et du bloc de connexion.
- 5 -
Étape 2: Fixez le cadre supérieur de la même manière.
Étape 3: Montage du cadre .
REMARQUE : Les cadres comportent des trous pré-percés pour le montage des barils de
pêche. Le nombre de trous pré-percés sur les cadres supérieur et inférieur du même côté
doit être le même.
M5x35
Bottom
Beam at the bottom.
Bottom
M5x35
- 6 -
Étape 4: Installez tous les barillets de tige, puis les roues .
M6x25
M6x50
M6x50
M5x16
Pay attention to the location
of the fishing rod barrel.
- 7 -
REMARQUE : Insérez les pièces en plastique de l'axe de roue dans les extrémités de la
traverse inférieure du cadre, puis insérez l'axe de roue et enfin installez la roue dessus.
Étape 5 : Mettez d'abord la rondelle , puis insérez la goupille O.
O-pin mounting hole
- 8 -
Étape 6 : Installation terminée et gonflez le pneu avant utilisation.
MAINTENANCE
1. Nettoyez la surface après chaque utilisation.
2. Veuillez confirmer que le chariot est intact et que la pression des pneus
est
normal avant chaque utilisation.
3. Vérifiez que les boulons sont bien serrés.
M5x35
- 9 -
Adresse : Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi
Shanghai
Importé en Australie : SIHAO PTY LTD, 1 ROKEVA STREETASTWOOD
NSW 2122 Australie
Importé aux États-Unis : Sanven Technology Ltd, Suite 250, 9166
Anaheim Place, Rancho Cucamonga, CA 91730
REP
EC
SHUNSHUN GmbH
Römeräcker 9 Z2021, 76351
Linkenheim-Hochstetten, Germany
REP
UK
Pooledas Group Ltd
Unit 5 Albert Edward House, The
Pavilions Preston, United Kingdom
Fabriqué en Chine
