Microwave
Convection Oven
Instruction
AC028A2CA
Welcome to the world of
TOSHIBA
BEFORE OPERATING THIS PRODUCT,
READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.
BE SURE TO SAVE THIS BOOKLIST FOR FUTURE REFERENCE
CONTENTS
OPERATION
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE
ENERGY
IMPORTANT SAFETY INSTRUCTIONS
GROUNDING INSTRUCTIONS
UTENSILS
SETTING UP YOUR OVEN
MAINTENANCE
Do not attempt to operate this oven with the door open since this can result
in harmful exposure to microwave energy. It is important not to
defeat or tamper with the safety interlocks.
120V~ 60Hz
1000W
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
Specifications
a. DOOR (bent)
b. HINGES AND LATCHES (broken or loosened)
c. DOOR SEALS AND SEALING SURFACE
The oven should not be adjusted or reparied by anyone except properly
qualified service personnel.
Do not place any object between the oven front face and the door or allow
soil or cleaner residue to accumulate on sealing surfaces.
Do not operate the oven if it is damaged. It is particularly important
that the oven door closes properly and that there is no damage to the:
Model:
12.4 inch
1.0 cu.ft.
Rated Input Power(Convection):
1500
W
1800W
20.47X20X12.83 inch
Approx. 40.78 Lbs
1.
2.
3.
4.
PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
EN-2
AC028A2CA
To reduce the risk of burns, electric shock, fire, injury to persons or
exposure to excessive microwave oven energy when using your
appliance, follow basic safety precautions, including the following:
IMPORTANT SAFETY
INSTRUCTIONS WARNING
1. Read all instructions before using the
appliance.
2. Read and follow the specific:
EXCESSIVE MICROWAVE ENERGY"
found on page 2.
only to properly grounded outlet. See
found on page
accordance with the provided installation
instructions.
3. This appliance must be grounded. Connect
"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
"GROUNDING INSTRUCTIONS"
4. Install or locate this appliance only in
5. Some products such as whole eggs and sealed containers - for example, closed glass
jars - are able to explode and should not be heated in this oven.
6. Use this appliance only for its intended use as described in the manual. Do not use
corrosive chemicals or vapors in this appliance. This type of oven is specifically
designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
supervision is necessary when used
by children.
7. As with any appliance, close
damaged cord or plug, if it is not
working
properly, or if it has been
damaged or dropped.
8. Do not operate this appliance if it has a
4.
by qualified service personnel.
Contact nearest
authorized service
facility for examination, repair, or
adjustment.
9. This appliance should be serviced only
10. Do not cover or block any openings on the appliance.
11. Do not store this appliance outdoors.
Do not use this product near water - for
example,
near a kitchen sink, in a wet
basement, near a swimming pool, or
similar location.
1 . Do not immerse cord or plug in water.2
1 . Keep cord away from heated surface.
14. Do not let cord hang over edge of
table or counter.
3
15. When cleaning surfaces of door and oven that comes together on closing the door,
use only mild, nonabrasive soaps, or detergent applied with a sponge or soft cloth.
EN-3
IMPORTANT SAFETY
INSTRUCTIONS WARNING
combustible materials are placed
inside the oven to facilitate cooking.
16. To reduce the risk of fire in the oven cavity:
1). Do not overcook food. Carefully attend appliance when paper, plastic, or other
2). Remove wire twist-ties from paper or plastic bag before placing bag in oven.
3). If material inside of the oven ignite, keep oven door closed, turn oven off, and
disconnect the power cord, shut off power at the fuse or circuit breaker panel.
4). Do not use the cavity for storage purposes. Do not leave paper products, cooking
utensils, or food in the cavity when not in use.
or
point without appearing to be boiling. Visible bubbling or boiling when the container is
removed from the microwave oven is not always present.
17. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling
stand in the microwave oven for a short time
before removing the container.
spoon or other utensil into the container.
THIS COULD RESULT IN VERY HOT LIQUID SUDDENLY BOILING OVER WHEN
THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED
INTO THE LIQUID.
To reduce the risk of injury to persons:
1) Do not overheat the liquid.
2) Stir the liquid both before and halfway through heating it.
3) Do not use straight-sided containers with narrow necks.
4) After heating, allow the container to
5) Use extreme care when inserting a
EN-4
IMPORTANT SAFETY
INSTRUCTIONS WARNING
SAVE THESE INSTRUCTIONS
18. Oversized food or oversized metal utensils should not be inserted in a microwave/
toaster oven as they may create a fire or risk of electric shock.
19. Do not clean with metal scouring pads. Pieces can burn off the pad and touch
electrical
parts
involving
a
risk
of
electric
shock.
20. Do not use paper products when appliance is operated in the toaster mode.
21. Do not store any materials, other than manufacturer's recommended accessories, in
this oven when not in use.
22. Do not cover racks or any other part of the oven with metal foil. This will cause over-
heating of the oven.
EN-5
CAUTION:
Do not insert your fingers into any gaps or holes; it may cause injuries.
DANGER
WARNING
This appliance must be grounded. In the event of an electrical short circuit, grounding
reduces the risk of electric shock by providing an escape wire for the electric current. To
protect against electrical shock, this appliance is equipped with a cord having a 3 prong
grounding-type plug for insertion into a proper grounding-type receptacle. DO NOT alter
the plug for use in a 2-prong receptacle. If the plug will not fit into a receptacle, have the
proper receptacle installed by a qualified electrician.
Touching some of the internal components can cause serious personal injury or death.
Do not disassemble this appliance.
Electric Shock Hazard
Improper use of the grounding can result
in a risk of electric shock
.
GROUNDING INSTRUCTIONS
EN-6
EN-8
A short power-supply cord is provided to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
Longer cord sets or extension cords are available and may be used if care is
exercised in their use.
If a long cord sets or extension cord is used:
a.
b.
c.
The extension cord must be a grounding -type 3-wire cord.
The longer cord should be arranged so that it will not drape over the countertop or
tabletop where it can be pulled on by children or tripped over unintentionally.
Consult a qualified electrician or serviceman if the grounding instructions are not
completely understood or if doubt exists as to whether the appliance is properly
grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord
that has a 3-pronged grounding plug , and a 3-slot receptacle that will accept the plug on
the appliance.The marked rating of the extension cord shall be equal to or greater than
the electrical rating of the appliance.
1.
2.
3.
GROUNDING INSTRUCTIONS
The marked electrical rating of the cord set or extension cord should be at least
as great as the electrical rating of the appliance.
EN-7
GROUNDING INSTRUCTIONS
Operation of the microwave oven may cause interference to your radio, TV or similar
equipment.
When there is interference, it may be reduced or eliminated by taking the following
measures:
a.
b.
c.
d.
e.
Clean door and sealing surface of the oven.
Reorient the receiving antenna of radio or television.
Relocate the microwave oven with respect to the receiver.
Move the microwave oven away from the receiver.
Plug the microwave oven into a different outlet so that microwave oven and
receiver are on different branch circuits.
RADIO INTERFERENCE
EN-8
UTENSILS
See the instructions on "Materials you can use in microwave oven or to be avoided in
microwave oven." There may be certain non-metallic utensils that are not safe to use for
microwaving. If in doubt, you can test the utensil in question following the procedure
below.
Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil
in question.
Cook on maximum power for 1 minute.
Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave
cooking.
Do not exceed 1 minute cooking time.
1.
2.
3.
4.
Tightly-closed utensils could explode. Closed containers should be opened and plastic
pouches should be pierced before cooking.
UTENSIL TEST:
CAUTION
Electric Shock Hazard
GROUNDING INSTRUCTIONS
HOUSEHOLD INDOOR USE ONLY
SAVE THESE INSTRUCTIONS
EN-9
MATERIALS YOU CAN USE IN MICROWAVE OVEN
UTENSILS REMARKS
Follow manufacturer’s instructions.The bottom of browning dish
must be at least 3/16 inch (5mm) above the turntable. Incorrect
usage may cause the turntable to break.
Browning dish
Microwave-safe only. Follow manufacturer’s instructions. Do not
use cracked or chipped dishes.
Dinnerware
Always remove lid. Use only to heat food until just warm. Most
glass jars are not heat resistant and may break.
Glass jars
Heat-resistant oven glassware only. Make sure there is no metallic
trim. Do not use cracked or chipped dishes.
Glassware
Follow manufacturer’s instructions. Do not close with metal tie.
Make slits to allow steam to escape.
Oven cooking bags
Use for short–term cooking/warming only. Do not leave oven
unattended while cooking.
Paper plates and cups
Use to cover food for reheating and absorbing fat. Use with
supervision for a short-term cooking only.
Paper towels
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Microwave-safe only ( meat and candy thermometers).
Use as a cover to prevent splattering and retain moisture.
Parchment paper
Microwave-safe only. Follow the manufacturer’s instructions.
Should be labeled "Microwave Safe". Some plastic cont ainers
soften, as the food inside gets hot. "Boiling bags" and tightly closed
plastic bags should be slit, pierced or vented as directed by
package.
Plastic
Wax paper
Thermometers
Plastic wrap
EN-10
UTENSILS REMARKS
MATERIALS TO BE AVOIDED IN MICROWAVE OVEN
May cause arcing. Transfer food into microwave-safe dish.
Aluminum tray
Metal twist ties
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
Food carton with
metal handle
Paper bags
May cause a fire in the oven.
Plastic foam
Wood
Plastic foam may melt or contaminate the liquid inside when
exposed to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
EN-11
SETTING UP YOUR OVEN

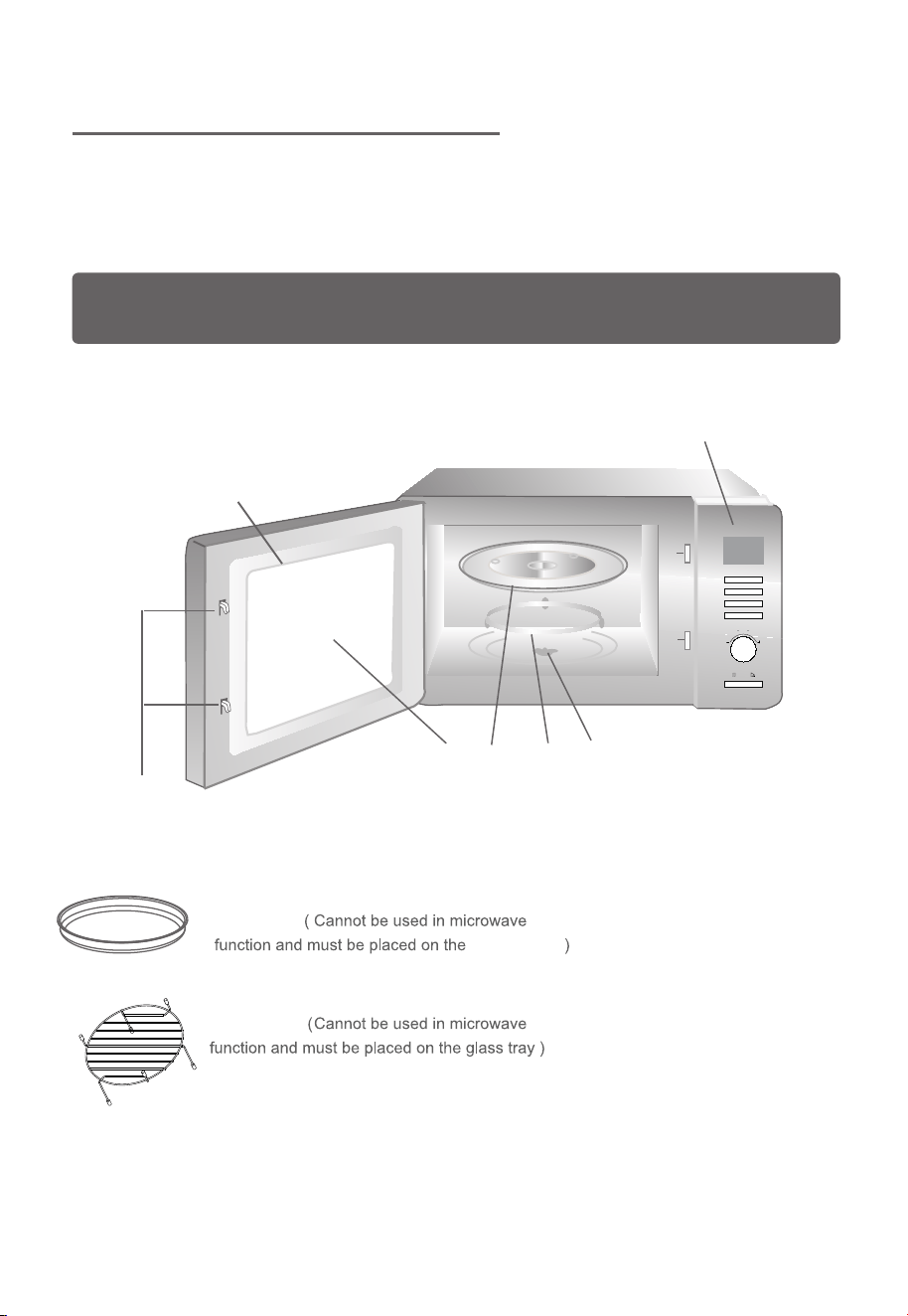

NAMES OF OVEN PARTS AND ACCESSORIES

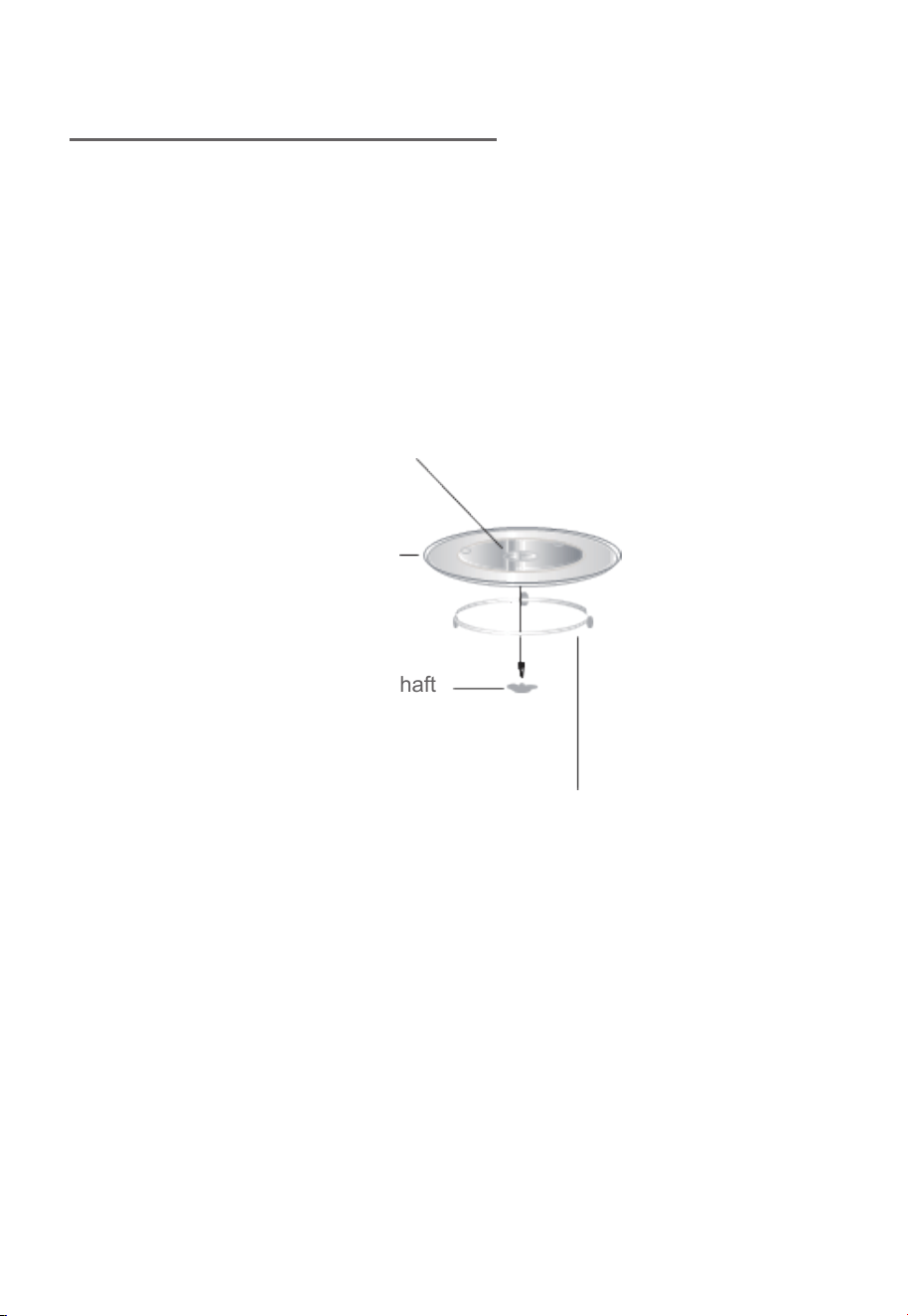

Glass tra 1y
Turntable ring
1
Instruction Manual 1
Control panel
Turntable shaft
Turntable ring
Glass tray
Observation window
Oven Door
Safety interlock system
A.
B.
C.
D.
E.
F.
G.
F
G
A
C B
E
D
Remove the oven and all materials from the carton and oven cavity. Your
oven comes with the following accessories:
EN-12

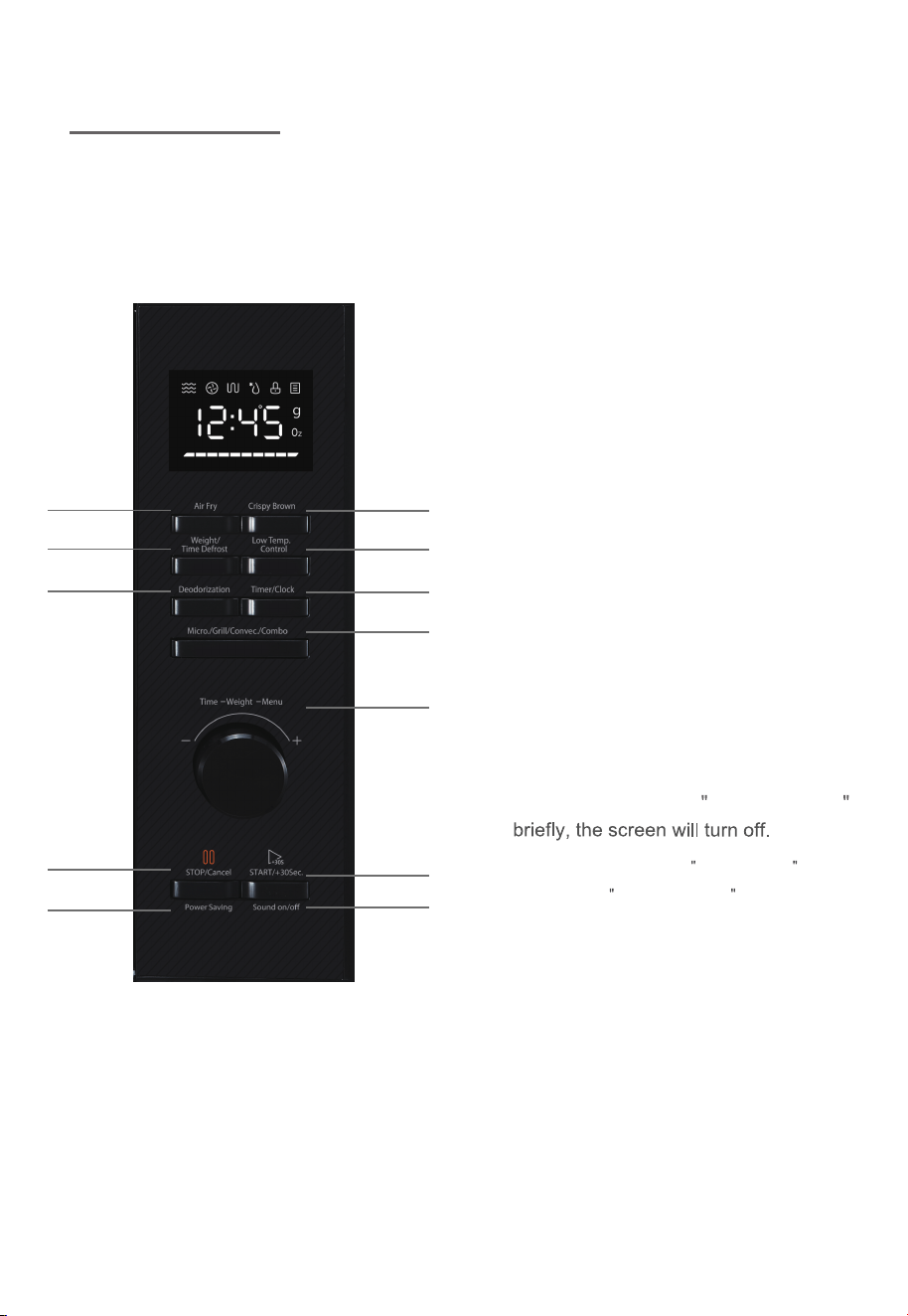

Air Fry Crispy Brown
Weight/
Time Defrost
Low Temp.
Deodorization Timer/Clock
Micro./Grill/Convec./Combo
Control
Time Weight Menu
STOP/Cancel START/+30Sec.
PowerSaving Sound on/o
rilling rack
Grilling pan
G
grilling rack
SETTING UP YOUR OVEN
TURNTABLE INSTALLATION
a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
Turntable ring
Turntable shaft
Hub (underside)
Glass tray
EN-13
SETTING UP YOUR OVEN
COUNTERTOP INSTALLATION
INSTALLATION
1.
Remove all packing material and accessories. Examine the oven for any damage such as dents or
broken door. Do not install if oven is damaged.
Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove
the light brown Mica cover that is attached to the oven cavity to protect the magnetron.
Select a level surface that provide enough open space for the intake and/or
outlet vents.
A minimum clearance of 3.0 inches (7.5cm) is required between the oven and any adjacent walls. One
side must be open.
(1)
(2)
(3)
(4)
Leave a minimum clearance of 12 inches (30cm) above the oven.
Do not remove the legs from the bottom of the oven.
Blocking the intake and/or outlet openings can damage the oven.
Place the oven as far away from radios and TV a s possible.
Operation of microwave oven may cause interference to your radio or TV reception.
OPEN
12 inches(30cm )
3.0 inches( 7.5cm )
3.0 inches(
7.5cm)
EN-14
SETTING UP YOUR OVEN
INSTALLATION
2.
Plug your oven into a standard household outlet. Be sure the voltage and the
WARNING
Do not install oven over a range cooktop or other heat-producing appliance. If
installed near or over a heat source, the oven could be damaged and the
warranty would be avoided.
The accessible surface may
be hot during operation
frequency is the same as the voltage and the frenquency on the
rating label.
EN-15
DESCRIPTION OF DISPLAY ICONS
Microwave Function Convection Function
Grill Function
Defrost
Child Lock Auto Menu
Weight Temperature Progress Bar
Description Description ICON ICON
EN-16
Oz
OPERATION
CONTROL PANEL AND FEATURES
EN-17
2
4
6
Air Fry
Crispy Brown
Weight/
Lo
w Temp.
Deodorization
Timer/Clock
Micro./Grill/Convec./Combo
Control
7
8
9
1.
2.
3.
4.
5.
6.
7.
Time Defrost
START/+30SEC. (Begin cooking time or
add time to cooking)
STOP/Cancel
(Before cooking starts,
press to clear all previous settings; during
cooking, press once to stop oven; press
twice to stop oven and clear all settings.)
TIMER-WEIGHT -MENU
or
time
.
)
(Rotate the
knob to choose
weight
1
3
5
10
8.
9.
10.
menu
9
11
12
START
/+30Sec.
STOP
/Cancel
to make
the product enter
and hold,
within 3
seconds
then press
12.
Press
Sound on/off
(
)
into mute mode.
11.
Power Saving
STOP
/Cancel
)
(
Press
,

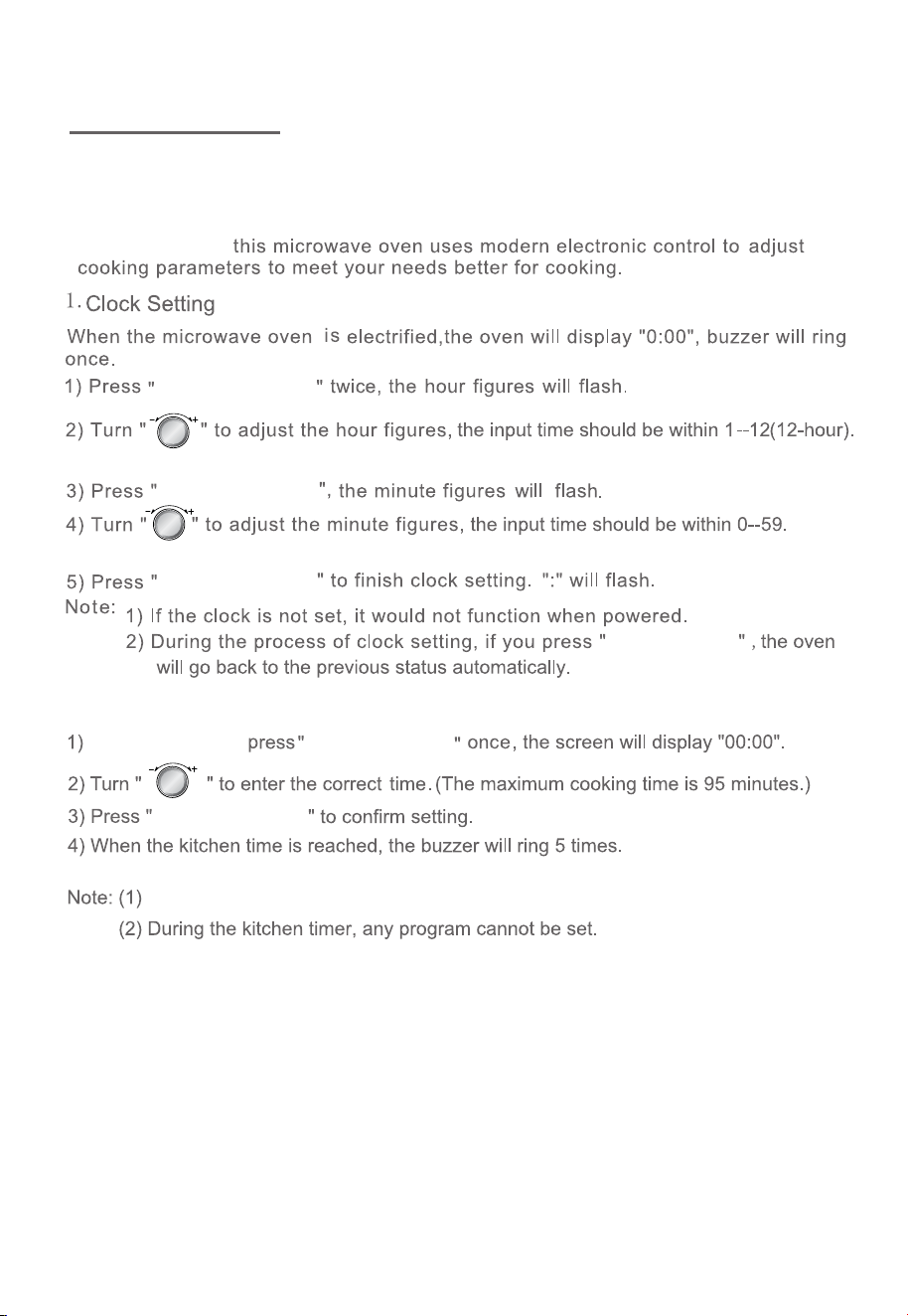

1.CLOCK SETTING
OPERATION
2.KITCHEN TIMER
TIMER/CLOCK
TIMER/CLOCK
TIMER/CLOCK
STOP
/Cancel
TIMER/CLOCK
START
/+30Sec.
In standby mode,
For example, time is 10:12 now, input “10” at this step.
For example, time is 10:12 now, input “12” at this step.
In standby mode,
The kitchen timer is not a clock, it is a counting down timer.
EN-18
OPERATION
MICRO./GRILL/CONVEC./COMBO
MICRO./GRILL/CONVEC./COMBO
START
/+30Sec.
START
/+30Sec.
START
/+30Sec.

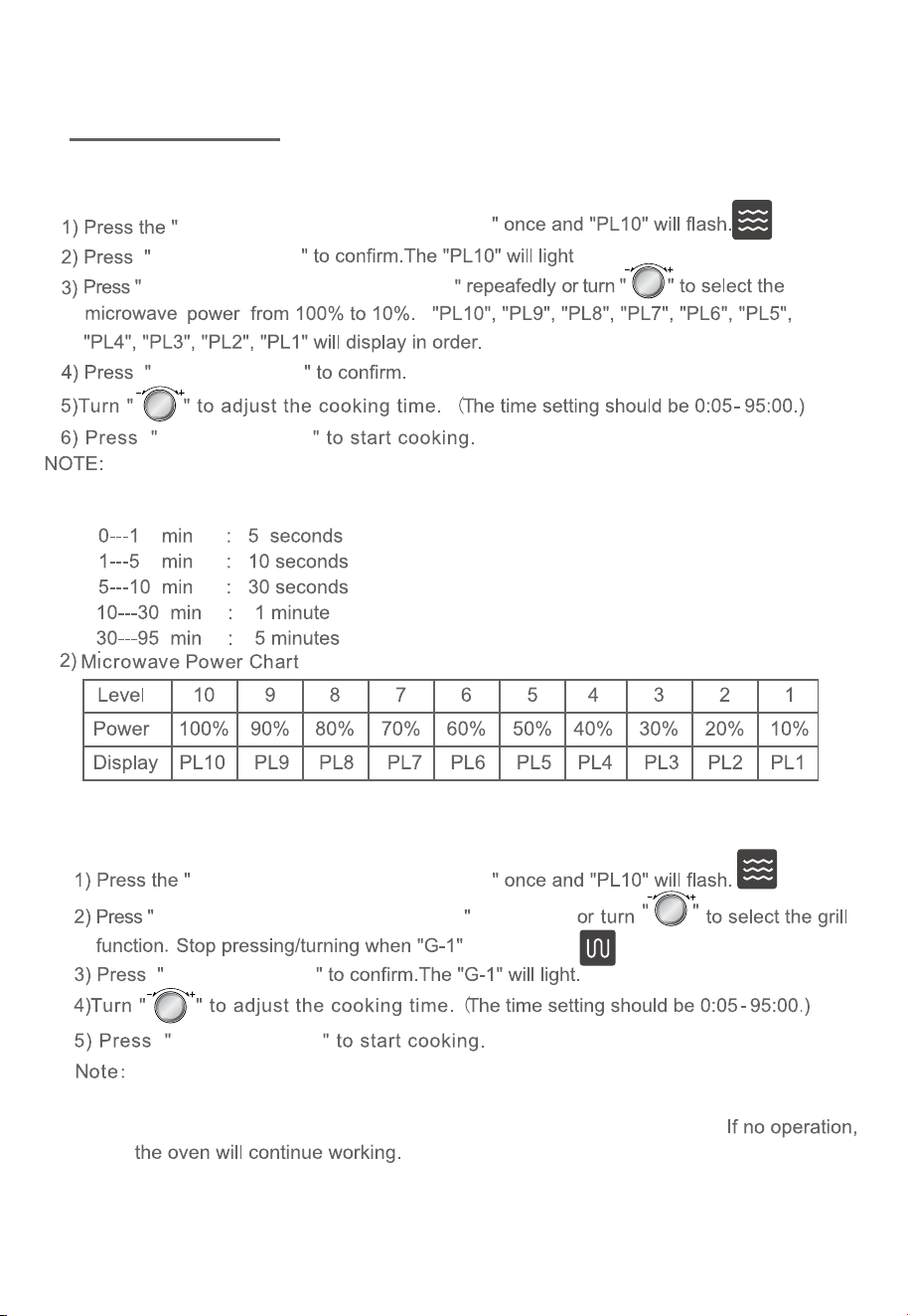

3.MICROWAVE COOKING
will light.
1)When turning knob to adjust the cooking time, time increments for different
time zones
are as follows:
When half cooking time passes, the oven will sound twice to remind you to
turn over the food to have the food better cooked. You should turn over the
food, close the door and press “Start/+30Sec.” to continue cooking.
EN-19
MICRO./GRILL/CONVEC./COMBO
MICRO./GRILL/CONVEC./COMBO
START
/+30Sec.
START
/+30Sec.
4.GRILL COOKING
3)Grilling rack and grilling pan can’t be used in microwave cooking mode.
will light.
flashes and lights.
When half cooking time passes, the oven will beep twice to remind you to
turn over the food to have the food better cooked. You should turn over the
food, close the door and press “Start/+30Sec.” to continue cooking.
repeatedly
OPERATION
MICRO./GRILL/CONVEC./COMBO
MICRO./GRILL/CONVEC./COMBO
START
/+30Sec.
START
/+30Sec.
START
/+30Sec.
START
/+30Sec.

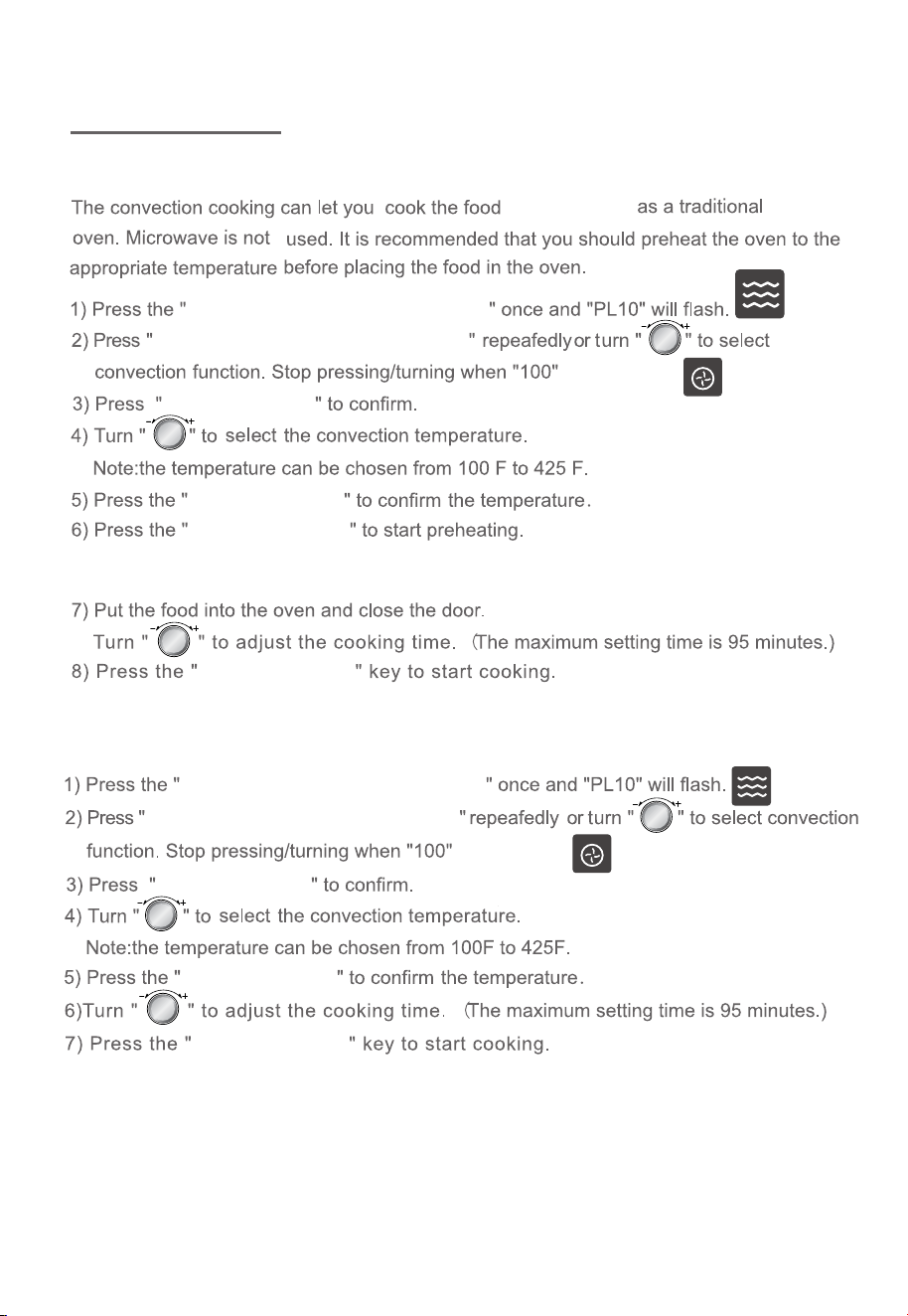

5.CONVECTION COOKING(With preheating function)
will light.
flashes and lights.
When reaching the set preheating
temperature, the buzzer will beep twice
to remind you to put the food into the oven,
the preheated
temperature is displayed and flashes.
MICRO./GRILL/CONVEC./COMBO
MICRO./GRILL/CONVEC./COMBO
START
/+30Sec.
START
/+30Sec.
START
/+30Sec.
6.CONVECTION COOKING(Without pre-heating function)
will light.
flashes and lights.
as you do with
EN-20
Press Timer/Clock once, "00:00" and "Timer" will appear in the display.
Press the number pads to enter the time amount. The maximum amount of time that
can be entered is 99 minutes, 99 seconds.
Press to confirm setting, the timer indicator will flash, and the timer will start
to count down.
When the time amount elapses, timer indicator will disappear. The oven will beep 5
times. "End" will display. The time of day will display by opening the door or pressing
.
OPERATION
MICRO./GRILL/CONVEC./COMBO
START
/+30Sec.
START
/+30Sec.
WEIGHT/
TIME DEFROST
START
/+30Sec.
8.MULTI-STAGE COOKING
MICRO./GRILL/CONVEC./COMBO
MICRO./GRILL/CONVEC./COMBO
START
/+30Sec.
START
/+30Sec.

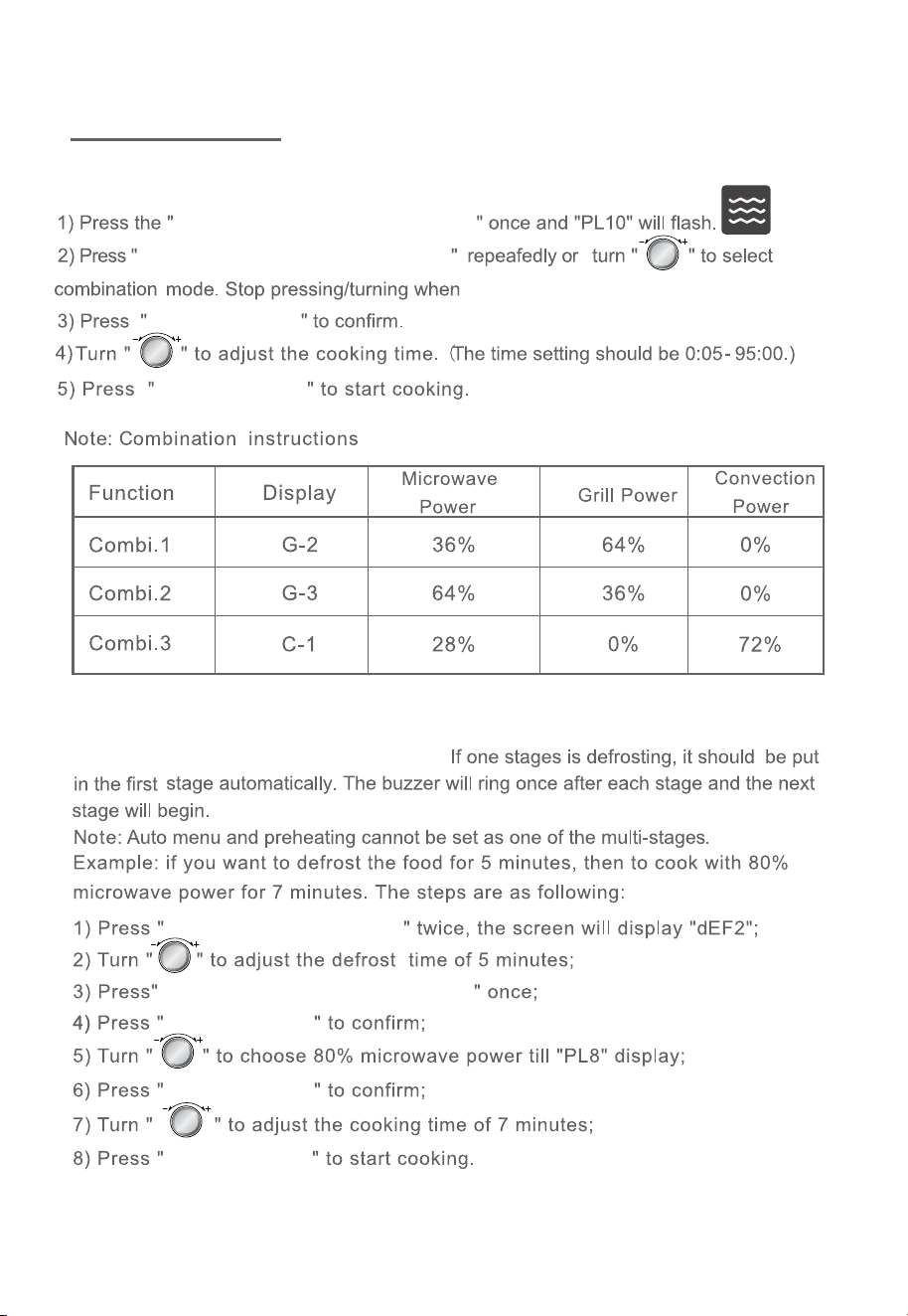

7.COMBINATION COOKING
will light.
“G-2” or “G-3” or “C-1” is displayed.
EN-21
Two stages can be set at maximum levels.
OPERATION
START
/+30Sec.
START
/+30Sec.
START
/+30Sec.
START
/+30Sec.

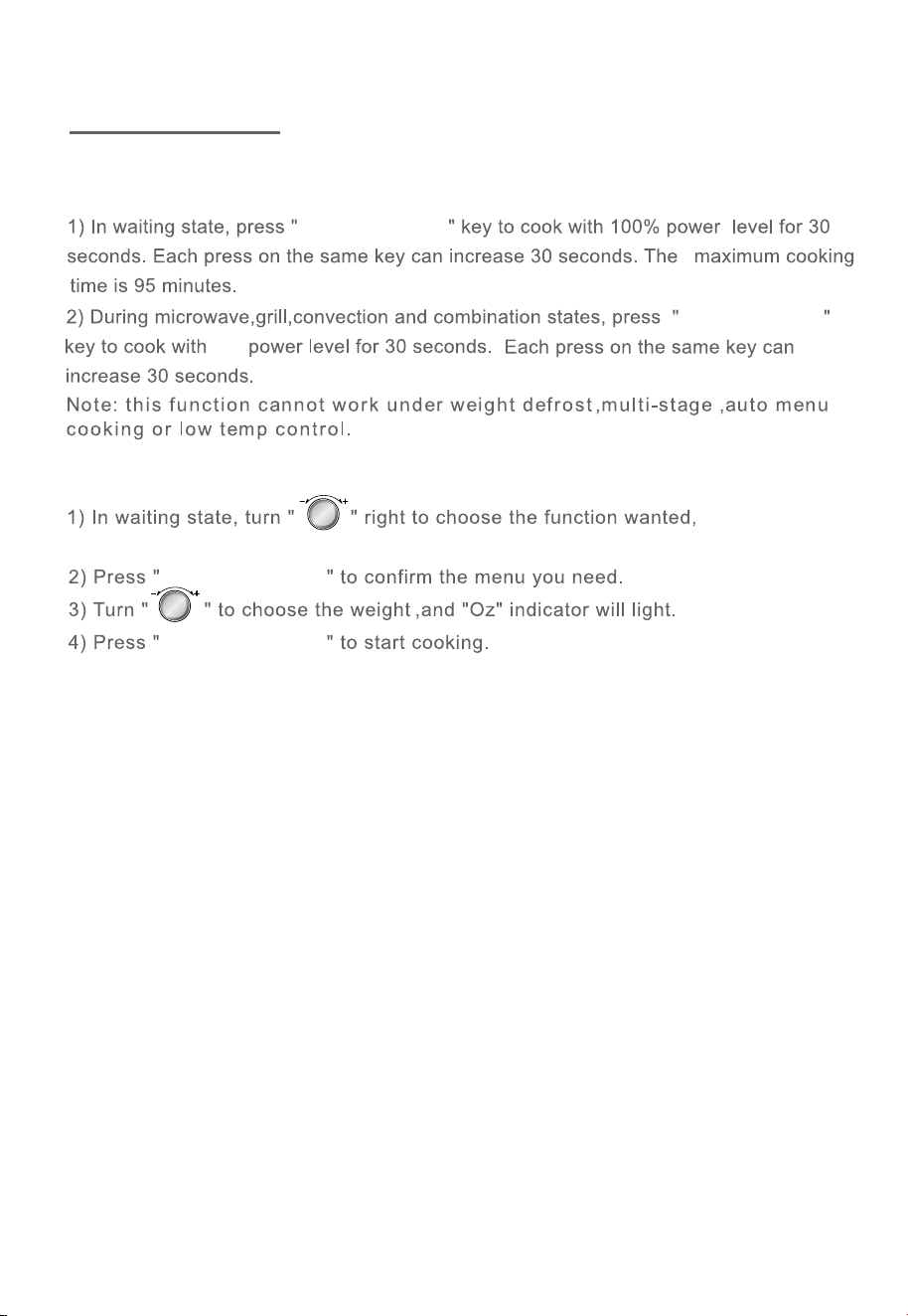

9.SPEEDY COOKING

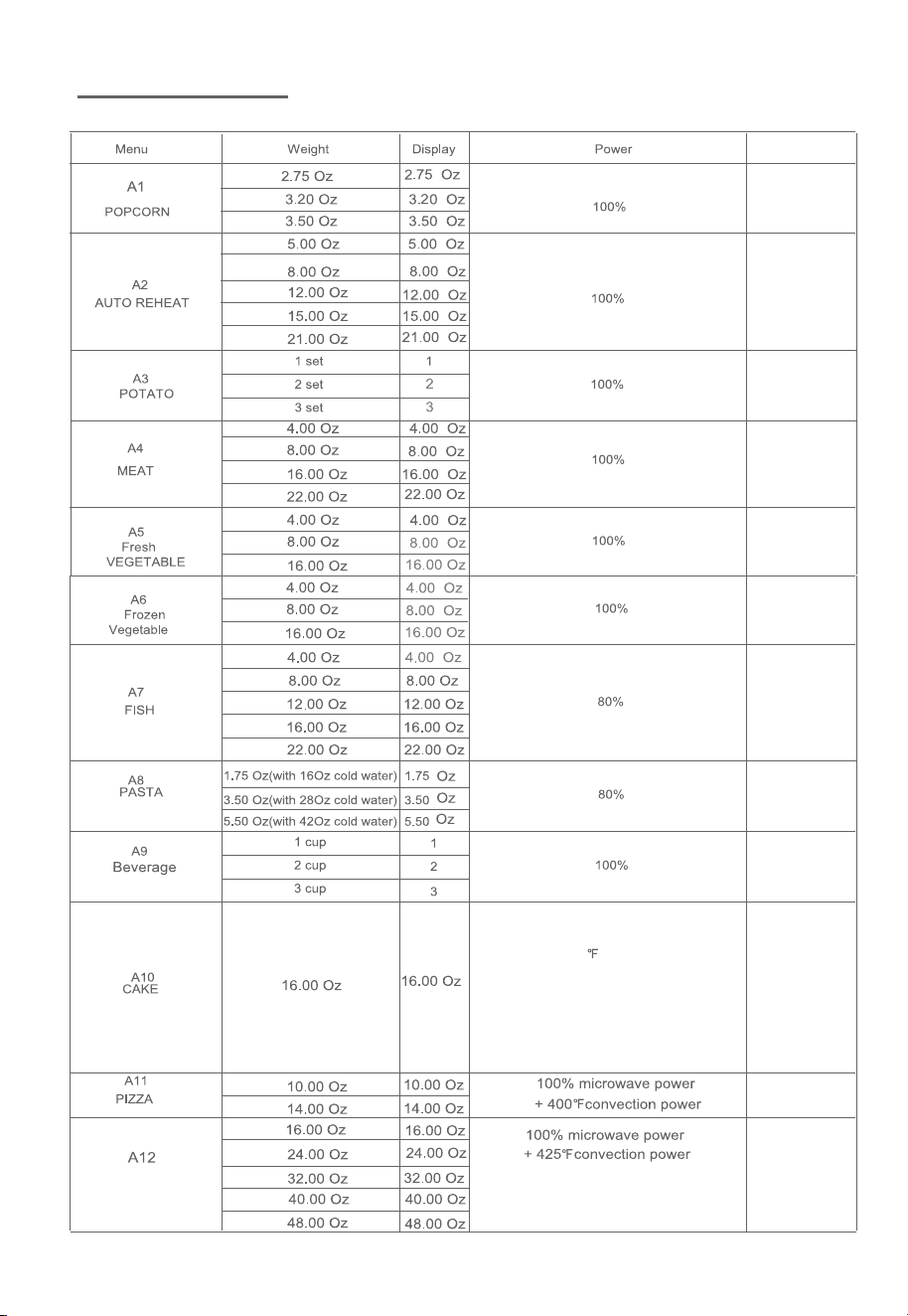

10.AUTO MENU
“A1”, “A2” , “A3” ,
“A4” ,“A5” , “A6” , “A7” , “A8” , “A9” , “A10” will be
displayed in turn.
EN-22
set
,“A11”, “A12”
Please do not put the cake into the oven
at the beginning. The oven needs to be
preheated to 375 first. After several
minutes, the buzzer beeps twice to
remind you to put the cake into the oven.
After putting the cake in the oven,
please press start again. The timer will
count down, and the cake will be cooked
perfectly.
Roast Chicken
During
the cooking process,
the oven beep twice
to remind
you to turn the food over.
OPERATION
Accessories
No use of
grilling
rack
and grilling pan
EN-23
Use grilling
rack, grilling
rack
height
1.5 inch
No use of
grilling
rack
and grilling pan
No use of
grilling
rack
and grilling pan
No use of
grilling
rack
and grilling pan
No use of
grilling
rack
and grilling pan
No use of
grilling
rack
and grilling pan
No use of
grilling
rack
and grilling pan
No use of
grilling
rack
and grilling pan
No use of
grilling
rack
and grilling pan
No use of
grilling
rack
and grilling pan
is
Use grilling
rack,
grilling rack
height
1.5 inch
is
OPERATION
START
/+30Sec.
START
/+30Sec.
START
/+30Sec.
WEIGHT/
TIME DEFROST
WEIGHT/
TIME DEFROST
AIR FRY

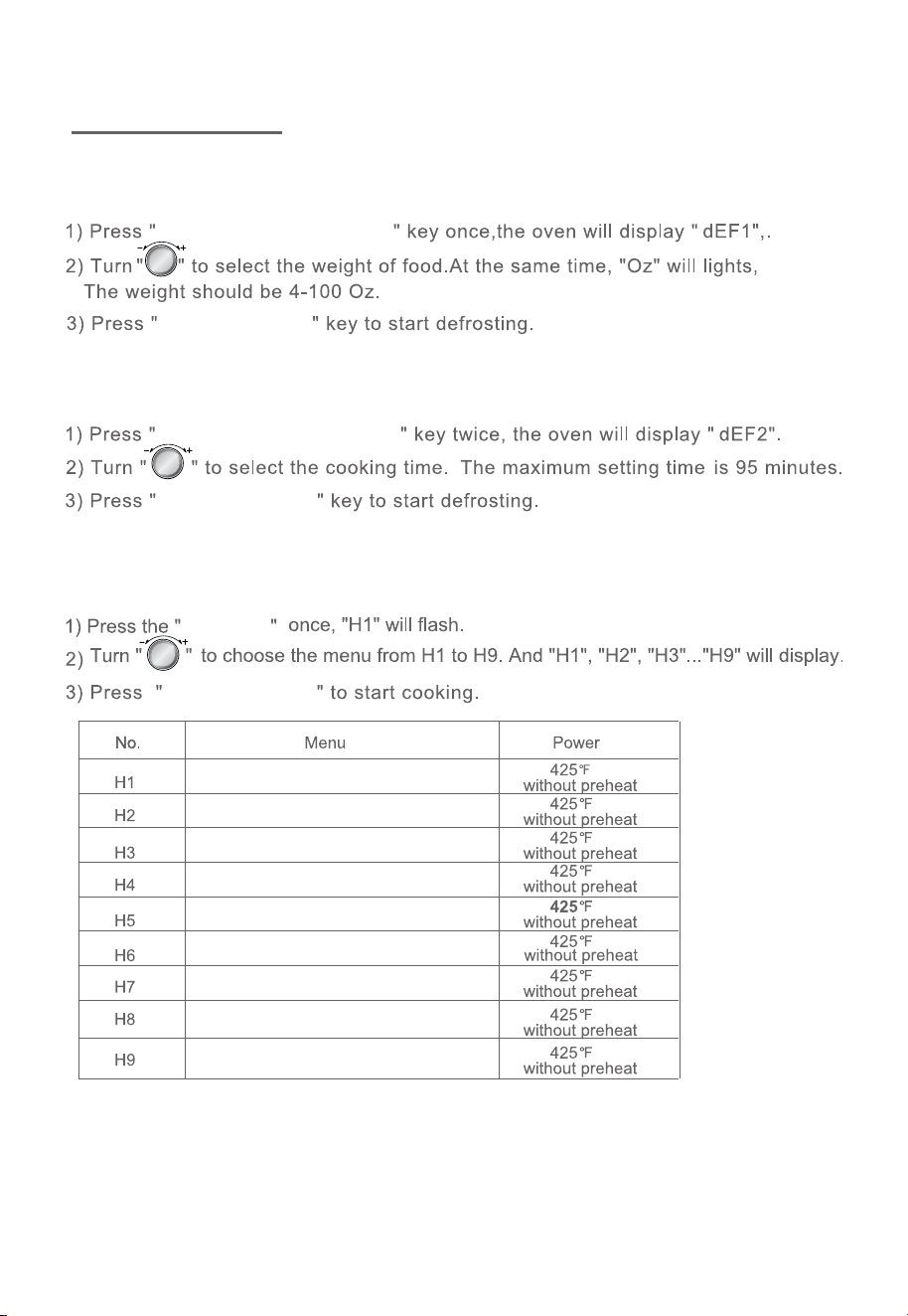

11.DEFROST BY WEIGHT/TIME
12.DEFROST BY TIME
13.AIR FRY
Note：
1) Use the accessory grilling pan and grilling rack. Lay the food into grilling pan and put the
grilling pan
on
grilling rack. Use the lower grilling rack of 1.5 inch height to cook.
2）Food can not be piled up in the grilling pan.
3）Oven will beep during cooking to remind you to turn over the food.
EN-24
Frozen Chicken Nuggets
Frozen Onion Rings
Frozen Seafood
Frozen Potato Croquettes
Frozen French Fries
Chicken Wings
Vegetables
Shrimp
Breaded Meat
Food
Beef
Whole Chicken
Turkey Breasts
Pork
Weight/Portion
2.0-4.0 Lbs
2.5-6.0 Lbs
3.0-6.0 Lbs
2.0-4.0 Lbs
OPERATION
START
/+30Sec.
START
/+30Sec.
CRISPY BROWN
CRISPY BROWN

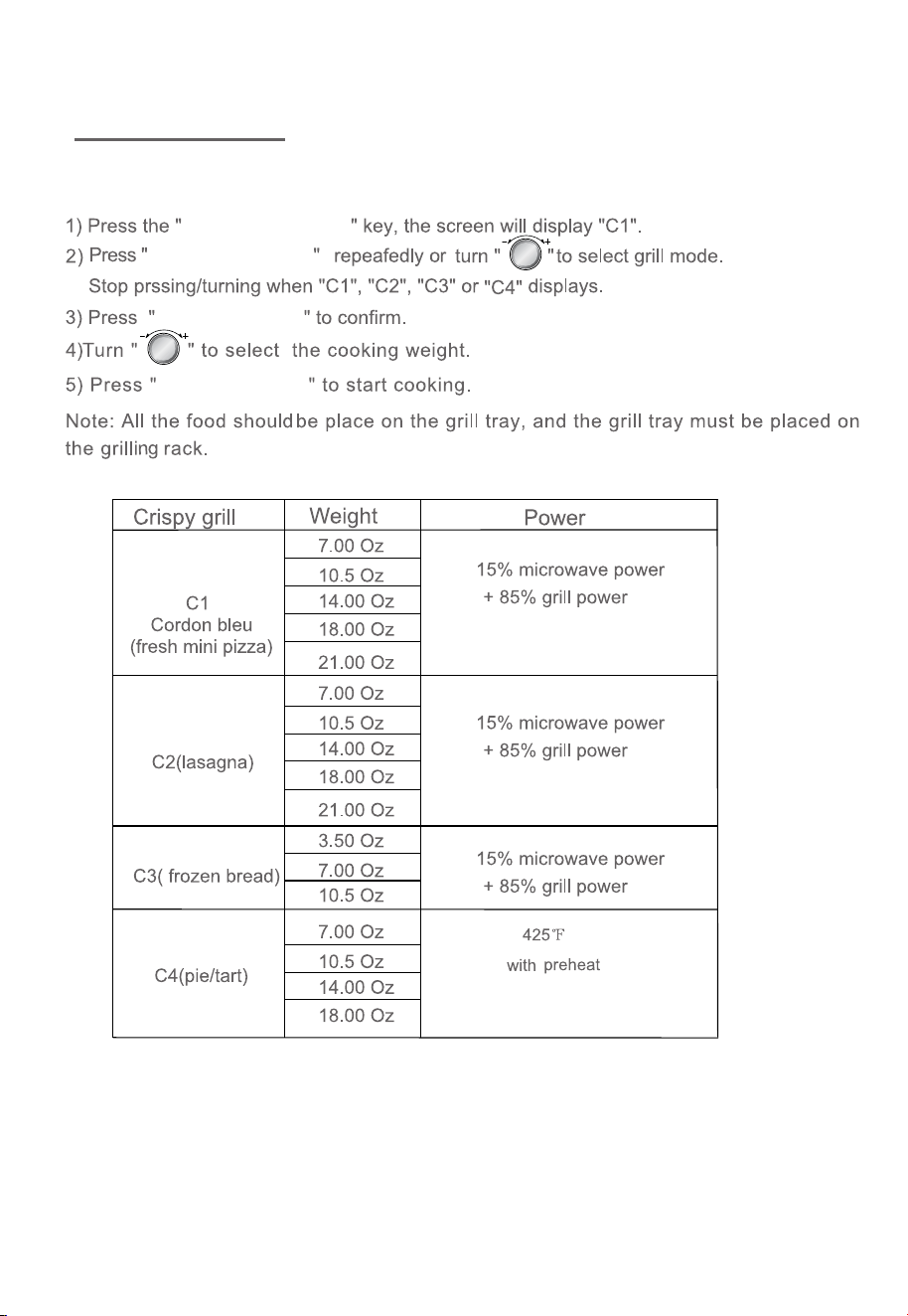

14.CRISPY BROWN
EN-25
OPERATION
START
/+30Sec.
START
/+30Sec.
START
/+30Sec.
START
/+30Sec.
LOW TEMP
CONTROL
LOW TEMP
CONTROL
DEODORIZATION

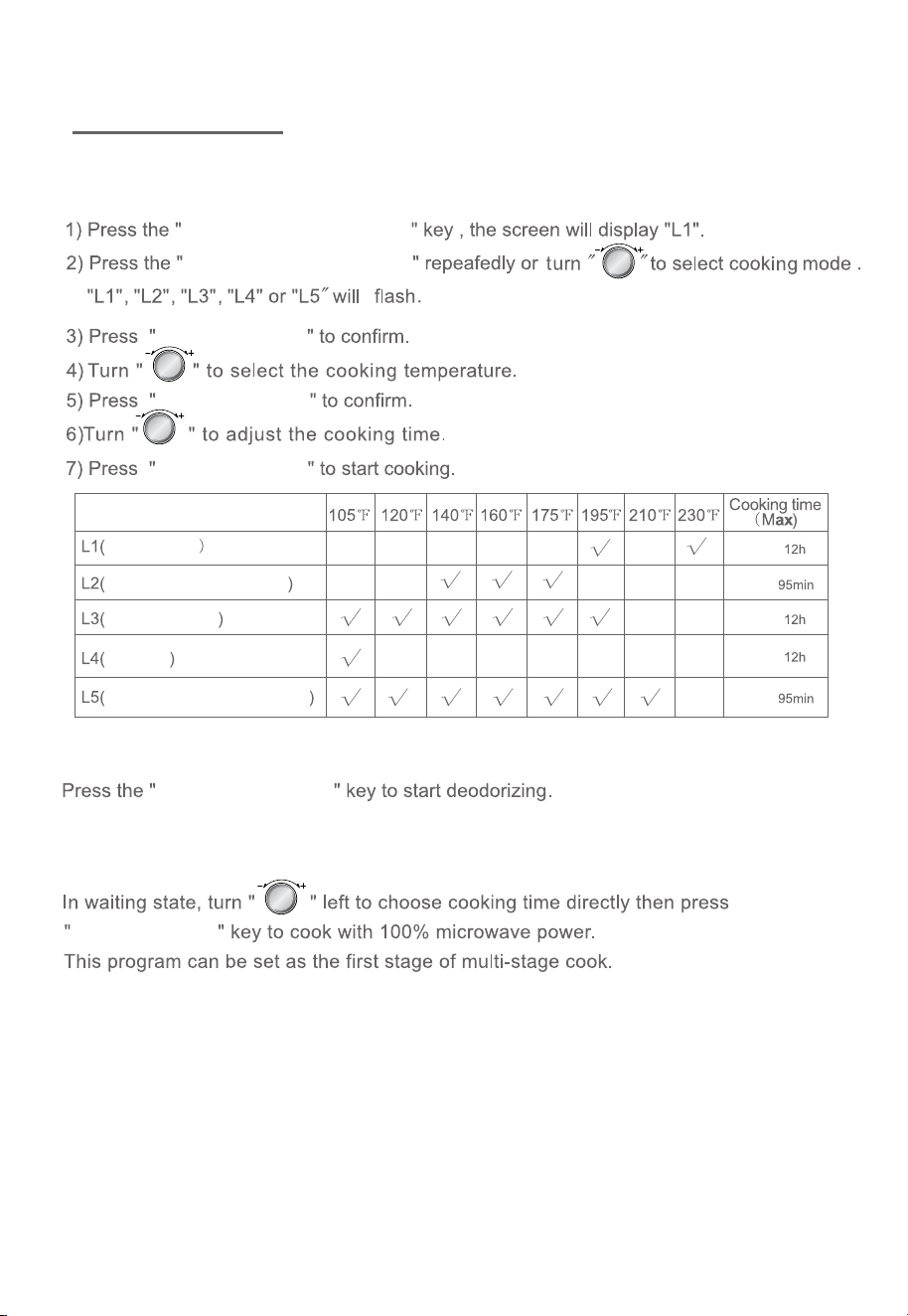

15.LOW TEMP CONTROL
16.DEODORIZATION
17.SPEEDY MICROWAVE COOKING
Oven fan will work for 5minutes to
vent the smell out from cavity.
T
his function helps
to keep the oven clean.
EN-26
keep warm for food
Yogurt
Warmer Compartment
Dehydration
Slow cook
Display
OPERATION
STOP
/Cancel
STOP
/Cancel
MICRO./GRILL/CONVEC./COMBO
START
/+30Sec.
START
/+30Sec.
START
/+30Sec.
START
/+30Sec.
STOP
/Cancel
STOP
/Cancel
STOP
/Cancel
TIMER/CLOCK

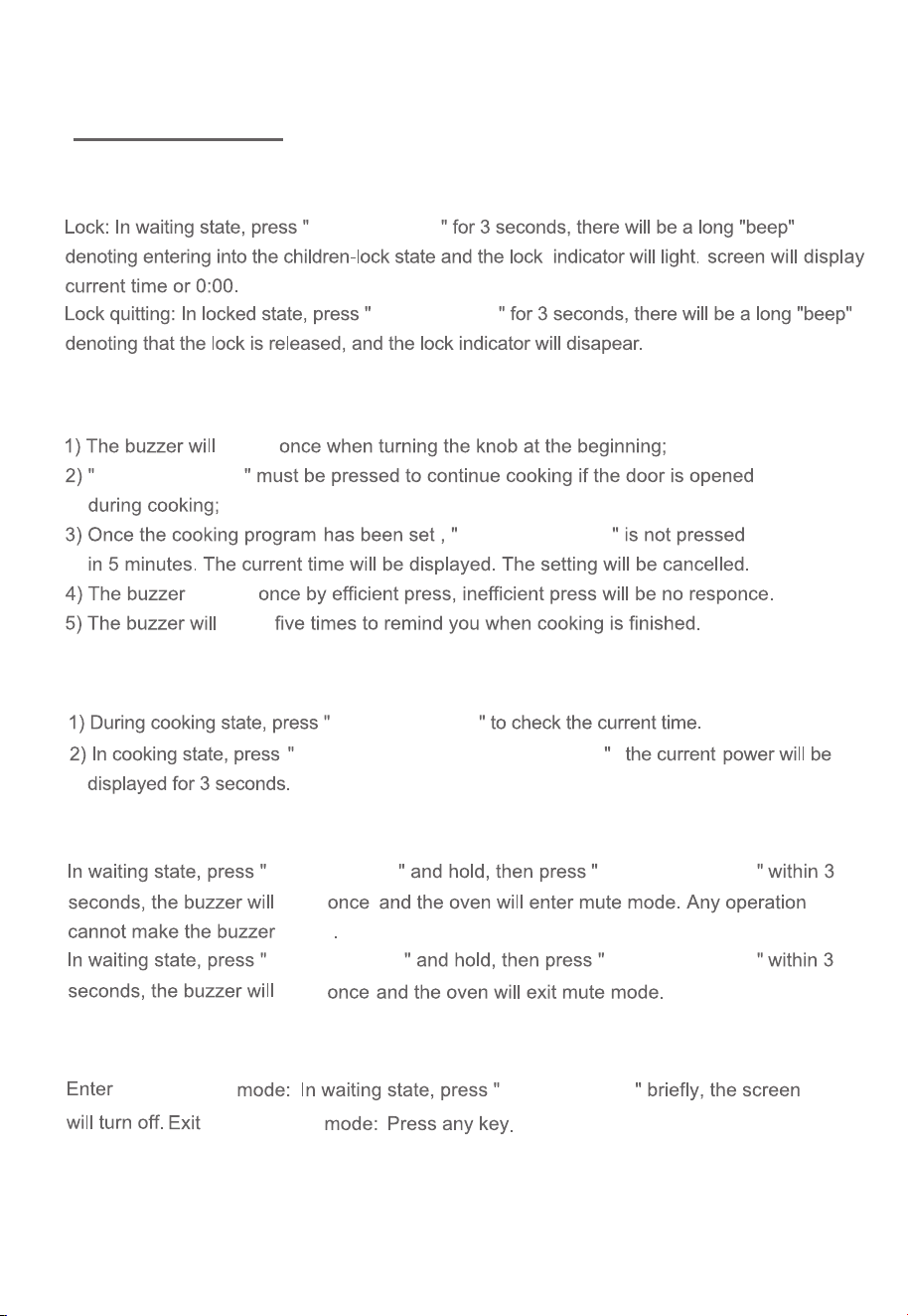

18.LOCK-OUT FUNCTION FOR CHILDREN
19.SPECIFICATION
22.POWER SAVING FUNCTION
21.SOUND ON/OFF
20.INQUIRING FUNCTION
power saving
EN-27
power saving
beep
beeps
beep
beep
beep
beep
MAINTENANCE

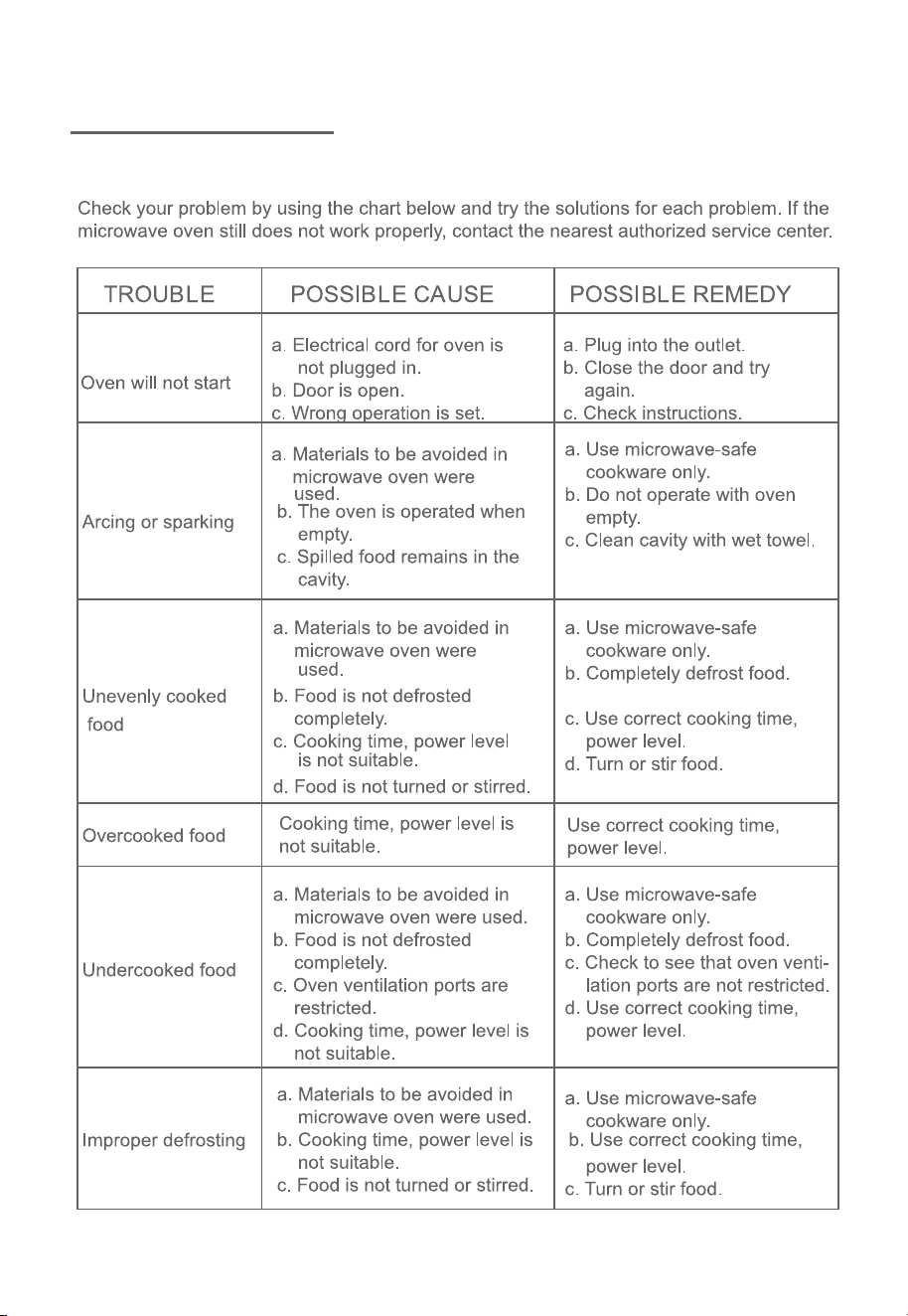

TROUBLESHOOTING
EN-28
ONE YEAR LIMITED WARRANTY
This product carries a warranty stating that it will be free from defects in material and
workmanship for a period of one year from the date of purchase. This warranty is valid
for the original retail purchaser from the date of initial retail purchase and is not
transferable. Keep your original sales receipt.
IMPORTANT:
1. This warranty does not cover damages resulting from accident, misuse or abuse,
lack of reasonable care, the affixing of any attachments not provided with the
product, loss of parts, or subjecting the appliance to any but the specified
voltage. ( Read directions carefully. )
2. This warranty is void if this product is ever used for other than private household
h rranty is void if this product is ever used outside of United State .
s
If service is required during the warranty period, properly pack your unit. We
If additional assistance is needed, please contact
recommend using the original carton and packing materials.
customer assistance at:
Some states do not allow this exclusion
quential losses so the foregoing disclaimer may not
rights which may vary from state to state.
SAVE THIS FOR YOUR RECORDS
Made in China
apply to you. This warranty gives you specific legal rights, and you may also have other
expressly disclaims all responsibility for consequential damages or Midea America Corp
incidental losses caused by use of the appliance.
or limitation of incidental or conse
The serial number can be found on the back cabinet. We suggest that you record the
serial number of your unit in the space below for future reference
Model Number:_______________________
Serial Number:________________________
Midea Am erica Corp
.
5 Sylvan Way,
Parsippany, NJ 07054
855-204-5313
EN-29
Midea America Corp
5 Sylvan Way, Parsippany, NJ 07054
Customer Assistance: 855- -533 13204
PN.:16170000A72877
