A2 Inverter (0.75-30kW)
Preface
Version：1.78
Thank you very much for choosing high quality,
multifunction, low level noise and energy cost product by
Isacon Power Control Tech. Co., Ltd --A2 series inverters.
This manual contains the user setup, parameter setting,
fault diagnosis, daily maintenance and safety precautions.
Please read this manual carefully before installing and operating
the products. This manual is contained in the accessories of the
productions. Please keep it safe for further referencing.
If there is any problem which isn’t listed in this manual,
please contact the local dealer or Isacon’s custom service center.
Phone：057687161633(10 Line)-Department of Technology
Fax.：057687161633-8005
A2 Inverter (0.75-30kW)
Contents
Chapter 1. Safety Precautions 2
Chapter 2. User Setup 4
Chapter 3. Control Panel 7
Chapter 4. Parameter Set Method 8
Chapter 5. Table of Configure Parameters 9
Chapter 6. Description of Control Ports 11
Chapter 7. Description of Configure Parameters 12
Chapter 8. Operation Examples 17
Chapter 9. Error Message and Fault Diagnosis 18
Chapter 10. Maintenance and Repair 20
Chapter 11. Type Description 23
1
A2 Inverter (0.75-30kW)
Chapter 1 Safety Precautions
1.1 Safety precautions
Environment cannot contain any explosive gas.
It must be wired by professional wiring staff. Otherwise, it
may cause electronic shock.
Cut off the power supply before wring. Otherwise, it may
cause electronic shock.
Do not touch any control port, internal boards and their
electronic components while the electricity is turned on.
Otherwise, it may cause electronic shock.
Please make sure that the product’s ground wiring port is
correctly connected according to national electricity safety
standards or other related standards.
Do not touch any internal board or component until 10
minutes after power shutdown. Please do electricity check
before internal board maintenance. Otherwise, it may cause
electronic shock.
It is forbidden to connect AC power to product’s output port
(U,V,W) or other control ports except Lk,Lb,Lz. Otherwise, it
may cause damage to the inverter.
Since internal IC can be destroyed by electrostatic, please do
not touch any PCB, IC or IGBT components without any
protection. Otherwise, it may cause unknown fault.
Make sure that any unexpected conductor such as screws,
gasket, etc., is not left inside the inverter during maintenance.
Otherwise, it may cause damage to the inverter or even fire.
If overcurrent happens during starting up, please check the
wiring and start up again.
Do not stop machine by cut off power. Power can be cut off
after the motor stops.
Do not leave inverter in the sunshine. Otherwise, it may cause
damage to the inverter.
2
A2 Inverter (0.75-30kW)
1.2 Package inspection
A2 series inverter production undergoes strictly qualification test.
Please check the damage caused by delivery and the type
specification during package inspection.
Accessories: 1 Inverter, 1 user manual.
If anything is missing, please contact
local dealer or
Isacon’s custom service center.
3
A2 Inverter (0.75-30kW)
Chapter 2 User Setup
2.1 Environment requirement
No corrosive gas, vapour and oily dust. Without direct sunshine.
No floating dust or mental particle.
Air moisture 20%~90%.
Vibration < 5.8m/s2(0.6g).
No electromagnetic interference.
Temperature:-10℃~50℃, make sure proper ventilation if the
temperature is greater than 40℃.
Without any inflammable or explosive gas, liquid and solid.
Please use electric cabinet or remote operation in non-standard
environment. Make sure proper ventilation.

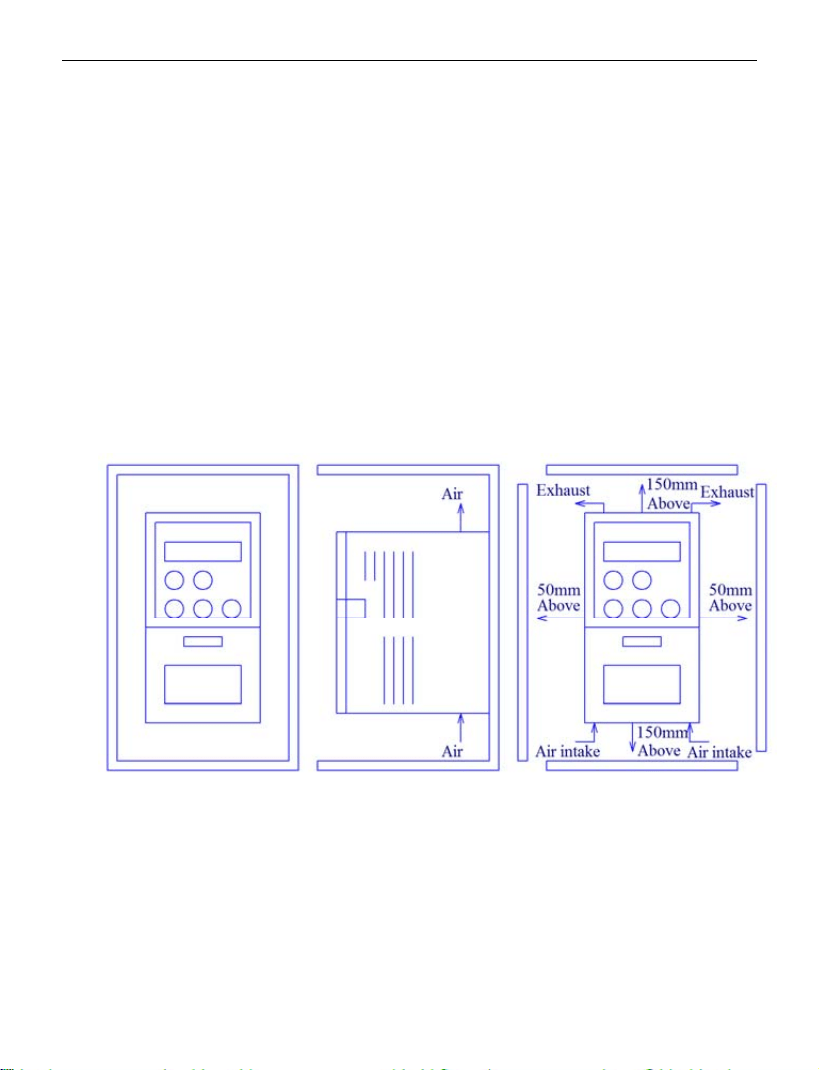

2.2 Install space
2.3
Basic wiring
There are two wiring part: main-loop and control-loop. Please do
wiring correctly according to the following two figures.
4
A2 Inverter (0.75-30kW)
Wiring figure (single phase)
main-loop port
control-loop port
Port name Description
L N
Single phase power input。
U V W Three phase AC output ports can only connect to pure
resistance or inductance load such as motors or electric
heater.
5
L
N
U
V
W
IMSingle phase input
0.1u F
FW D/ ST OP
REV/STOP
RESET
Multi speed D0 /
Multi speed D1 /
Multi speed D2 /
FW D
REV
RST
D0/+
D1/-
D2/JOG
GND
Common control signal
GND
5V_IN
10V_ IN
0-20mA_IN
The external analog signal given
0-5V,0-10V,0-20mA
13
2
1-5K
GND
5V_IN
5V_OUT
external
No
N
rmally clo sed Lb
ormally open Lk
Middle Lz
Relay output
5V Fout
5V Fre que ncy
GND
12V
OUT
5V
OUT
200mA Power
For external
Norm ally
No
rm ally
Comm on port
5k14148
12V
5k1
D
DG
External point mo ving enable
Digital frequency up
Digital frequency do wn
po ten tiometer
s
igna l output
po te ntiometer power
output
close d output
open output
A2 Inverter (0.75-30kW)
Wiring figure (three phase)
main-loop port
control-loop port
Port name Description
R S T Single phase 220V power connect R and T.
Three phase 220V power connect R , S , T .
Voltage specifications: 8xxx, single phase 220 input
connection R and T
U V W Three phase AC output ports can only connect to pure
resistance or inductance load such as motors or electric
heater.
S
T
U
V
W
IM
RUN
REV
RST
D0/+
D1/-
D2/JOG
GND
three-phase input
5V Fout
6
GND
0-
20mA_IN
0-5V,0-10V,0-20mA
5V_IN
10V_ IN
5k 1
0.1u F
41 48
12V
5k1
D
DG
R
FW D/STOP
REV/STOP
RESET
Multi speed D0 /
Multi speed D1 /
Multi speed D2 /
Commo n control signal
The external analog signal given
Normally clo sed Lb
Normally open Lk
Middle Lz
Relay output
No
rm ally
Normally
Comm on port
External point mo ving enab le
Digital frequency up
Digital frequency down
close d output
open output
GN
D
12V
OUT
5V
OUT
1
GND
5V_IN
5V_OUT
2
1-5K
3
ex
ternal
5V Frequency
2
00mA Power
For external
po
ten tiometer
s
igna l output
po te ntiometer po wer
output
PB
R
A2 Inverter (0.75-30kW)

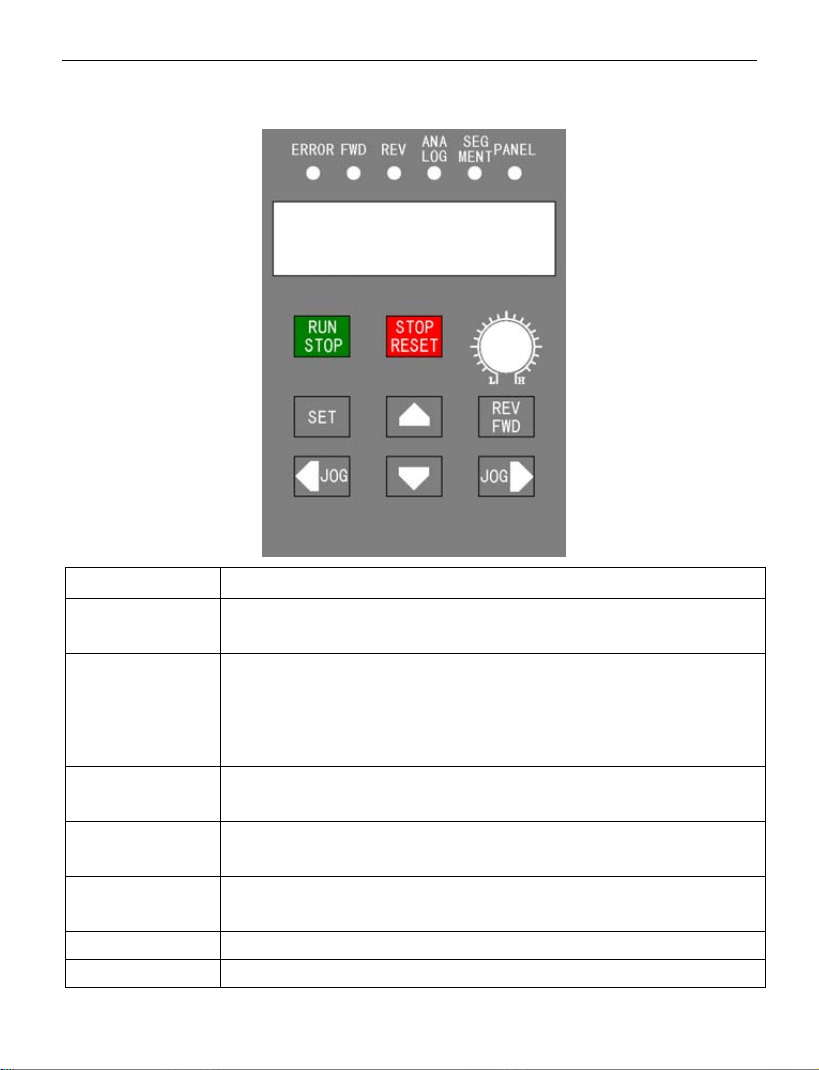

Chapter 3 Control Panel
Button Description
RUN
STOP
Switch between run and stop state by single press.
STOP
RESET
It has different meanings to push this button during
different modes: 1.if the inverter is running, it would
stop; 2. If a fault happens, the inverter would be reset;
3. If it is operated on menus, it returns to parent menu.
REV Change the inverter’s direction. It also works during
the runtime.
SET Enter menu mode. If it is on item, the data would be
saved and lower level menu would be displayed.
▲▼
Change items in the menu or modify the parameter
data.
◄► Modify the menu content and point move in panel.
Potentiometer Change runtime frequency.
7
A2 Inverter (0.75-30kW)
Content Description
ERROR Fault indicator.
FWD Clockwise rotation indicator.
REV Anticlockwise rotation indicator.
ANALOG Analog input frequency indicator.
SEGMENT Segment input frequency indicator.
PANEL Panel input frequency indicator.
Digital
tube
Inverter runtime frequency. If inverter stops, it flashes.
The display data is given by “Pn01” data.
Chapter 4 Parameter Set Method
4.1 Parameter set and modification
Set parameter when inverter is stopped and the parameter is not
locked (Pn32=1). First, enter parameter set menu by push button
“SET”. Second, push button ▲/▼ to choose the certain item. Third,
push button “SET” again to enter the item. Fourth, push button ◄/►
to choose certain bit and push ▲/▼ to modify the value. Finally,
push button “SET” to save the new parameter or push button “STOP”
to parent menu without any saving.
Push button “SET” to save the new
parameter or push
button “STOP” to parent menu without any saving.
4.2 Button notice
When modify parameters, long push ▲/▼ to rolling number
of current bit between 0-9.
8
A2 Inverter (0.75-30kW)
Chapter 5 Table of Configure Parameters
Default Value Item Description
Modify by button
▲ or ▼
Range
Modify by
button ▲ or ▼
Default
(3)
Default
(6)
Pn 01
Default display content 1—30000
1 1
Pn 02
Initial start up frequency by
panel or other method
0.01－400.00.00
400Hz 50
Pn 03
Source of runtime frequency
1－7
2 1
Pn 04
Source of runtime command
1－2
1 1
Pn 05
clockwise / anticlockwise
disable
1－3
3 3
Pn 06
Method to stop inverter
1－2
2 2
Pn 07
Start again by external
signal
1－2
1 1
Pn 08
Acceleration time
000.01S－650.00S
50S 10S
Pn 09
Deceleration time
000.01S－650.00S
50S 10S
Pn 10
Maximum runtime
frequency
000.10Hz－400.00Hz
400Hz 50Hz
Pn 11
Minimum runtime
frequency
000.10Hz－400.00Hz
1.5Hz 1.5Hz
Pn 12
Motor rating frequency
010.00Hz－400.00Hz
400Hz 50Hz
Pn 13
Torque compensation 0.0—4.0
0.0 0.0
Pn 14
Torque compensation
frequency
0.01Hz—600.00Hz
500Hz 80Hz
Pn 15
Startup DC braking voltage 1V—100V
30V 30V
Pn 16
Startup DC braking time 000.00S—650.00S
0S 0S
Pn 17
Stop DC braking voltage 1V—100V
30V 30V
Pn 18
Stop DC braking time 000.00S—650.00S
0S 0S
Pn 19
Source of multi-segment
speed 0
1—5
1 1
Pn 20
Multi-segment speed 1
frequency
000.10 Hz—400.00Hz
10 10
Pn 21
Multi-segment speed 2
frequency
000.10 Hz—400.00Hz
20 20
Pn 22
Multi-segment speed 3
frequency
000.10 Hz—400.00Hz
30 30
Pn 23
Multi-segment speed 4
frequency
000.10 Hz—400.00Hz
40 40
9
A2 Inverter (0.75-30kW)
Default Value Item Description
Modify by button
▲ or ▼
Range
Modify by
button ▲ or ▼
Default
(3)
Default
(6)
Pn 24 Multi-segment speed 5
frequency
000.10 Hz—
400.00Hz
50 50
Pn 25 Multi-segment speed 6
frequency
000.10 Hz—
400.00Hz
60 60
Pn 26 Multi-segment speed 7
frequency
000.10 Hz—
400.00Hz
70 70
Pn 27 Point move frequency 000.10 Hz—
400.00Hz
10Hz 10Hz
Pn 28 Choice of relay output 1—6 3 3
Pn 29 2rd acceleration time 000.01S—650.00S 2S 2S
Pn 30 2rd deceleration time 000.01S—650.00S 2S 2S
Pn 31 2rd deceleration stop
frequency
000.01Hz—
400.00Hz
1Hz 1Hz
Pn 32 Parameter management 1—6 1 1
Pn 33 Software version 32029 ***** *****
Pn 34 Auto recover while lost
power suddenly
0－99Hz
0 0
Pn 35 Production date * ***** *****
Please refer Chapter 7 for detail description of each item
Remark：If over-voltage happens during deceleration, it will stop.
Note：
If over-voltage happens during deceleration, inverter will stop
deceleration until the voltage goes back to normal level. If better
deceleration is needed, please switch to inverter with braking.
10
A2 Inverter (0.75-30kW)

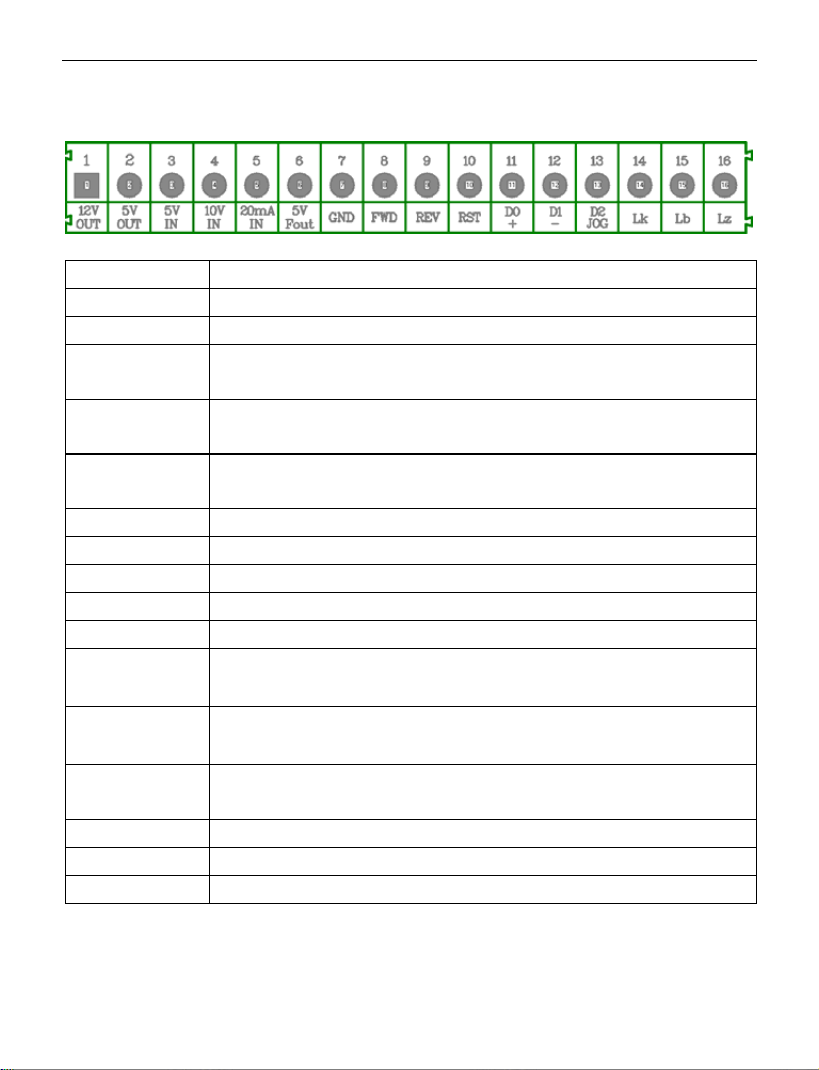

Chapter 6 Description of Control Ports
Port name Port Description
12V OUT 12V output, with maximum currency 200mA.
5V OUT 5V output, with maximum currency 50mA.
5V IN 5V input, analog input, with maximum effective
voltage 5V, no more than 6V
10V IN 10V input, analog input, with maximum effective
voltage 10V, no more than 12V
20mA IN 20mA input, analog input, with maximum effective
currency 20mA, no more than 25mA
5V Fout Frequency signal output, maximum output voltage 5V
GND Power source ground 0V.
FWD External clockwise rotation input
REV External anticlockwise rotation input
RST External reset signal
D0 +
Multi-segment speed D0 input，external “+” signal
means clockwise point move input
D1 -
Multi-segment speed D1 input，external “-” signal
means anticlockwise point move input
D2 JOG Multi-segment speed D2 input, external enable signal
input
Lk Relay ON
Lb Relay OFF
Lz Relay ON/OFF
11
A2 Inverter (0.75-30kW)
Chapter 7 Description of Configure Parameters
Pn 01 Default display content：1——30000
RUN： 1 means it will display runtime frequency
Otherwise, it displays motor’s synchronization speed.
2——30000 is motor synchronization speed
STOP：it will display frequency given by external signal.
Pn 02 Initial startup frequency by panel or other method
Range：000.01Hz－400.00Hz，the initial panel data and
external signal frequency during startup
.
Pn 03 Source of runtime frequency with range：1—7
1 Potentiometer 2 Panel button
3 External 0-5V signal 4 External 0-10V signal
5 External 0-20mA signal 6 External digital signal
7 Multi-segment signal
Pn 04 Source of runtime command with range
：1—2
1 Panel button control 2 External signal control
Pn 05 clockwise / anticlockwise disable with range：1—3
1 clockwise enable only 2 anticlockwise enable only
3 clockwise / anticlockwise enable
Pn 06 Method to stop inverter with range
：1—2
1 stop by itself 2 stop by deceleration
Pn 07 Start again by external signal with range
：1—2
1 disable 2 enable
Description: when the power on the external operation of
the signal is allowed to start effectively.
Pn 08 Acceleration time with range
：000.01S－650.00S
Accelerate time (from 0Hz to Pn10).
12
A2 Inverter (0.75-30kW)
Pn 09 Deceleration time with range：000.01S－650.00S
Decelerate time (from Pn10 to 0Hz).
Pn 10 Maximum runtime frequency with range
：000.10Hz－400.00Hz
Maximum output frequency by inverter.
Pn 11 Minimum runtime frequency
with range：000.10Hz－400.00Hz
If the frequency from command below this value, inverter
will stop. It wouldn’t recover until command frequency up
this value.
Pn 12 Motor rating frequency with range
：010.00Hz－400.00Hz
It is used for modify the V/Fcurve.
Pn 13 Torque compensation with range
：0.0—4.0
Large parameter may cause damage to the motor.
Pn14 Torque compensation frequency
：0.01Hz—400.00.00Hz
Inverter doesn’t provide torque compensation if runtime
frequency is larger than this value.
13
A2 Inverter (0.75-30kW)
Pn 15 Startup DC braking voltage：1V—100V
By proper tuning of this parameter, motor can start
normally from fully stop state without any difficult caused
by motor’s free motion and rotate direction.
Pn 16 Startup DC braking time
：000.00S—650.00S
DC braking time before motor startup to ensure that motor
is started from fully stop state.
Pn 17 Stop DC braking voltage
：1V—100V
Braking voltage during DC braking period to ensure that
motor is fully stopped in brake time.
Pn 18 Stop DC braking time
：000.00S—650.00S
DC braking time to prevent the slide move after stopping.
Pn 19 Source of multi-segment speed 0
：1—5
Multi-segment speed mode 0-segment frequency source：
1 Potentiometer 2 Panel button
3 External 0-5V signal 4 External 0-10V signal
5 External 0-20mA signal
Pn 20 Multi-segment speed 1 frequency
：000.10 Hz—400.00Hz
Multi-segment speed mode 1-segment frequency
Pn 21 Multi-segment speed 2 frequency：000.10 Hz—400.00Hz
Multi-segment speed mode 2-segment frequency
Pn 22 Multi-segment speed 3 frequency：000.10 Hz—400.00Hz
Multi-segment speed mode 3-segment frequency
14
A2 Inverter (0.75-30kW)
Pn 23 Multi-segment speed 4 frequency：000.10 Hz—400.00Hz
Multi-segment speed mode 4-segment frequency
Pn 24 Multi-segment speed 5 frequency：000.10 Hz—400.00Hz
Multi-segment speed mode 5-segment frequency
Pn 25 Multi-segment speed 6 frequency
：000.10 Hz—400.00Hz
Multi-segment speed mode 6-segment frequency
Pn 26 Multi-segment speed 7 frequency：000.10 Hz—400.00Hz
Multi-segment speed mode 7-segment frequency
Pn 27 Point move frequency：000.10 Hz—400.00Hz
Point move frequency
Pn 28 Choice of relay output
：1—6
1 Stop inverter 2 Run inverter
3 Inverter fault 4 Frequency increasing
5 Frequency decreasing 6 Frequency reached
If output condition is satisfied, ON/OFF states reverse.
Pn 29 2rd acceleration time
：000.01S－650.00S
2rd acceleration time
Pn 30 2rd deceleration time
：000.01S－650.00S
2rd deceleration time
Pn 31 2rd deceleration stop frequency
：000.10 Hz—400.00Hz
When runtime frequency is larger than this value,
acceleration/deceleration time is defined by Pn08,Pn09
When runtime frequency is smaller than this value,
acceleration/deceleration time is defined by Pn29,Pn30
As shown in Figure:
15
A2 Inverter (0.75-30kW)
Pn 32 Parameter management
：1—3
1 modification enable 2 modification disable
3 initialization for 400Hz parameters
4 read OEM initialization parameter
5 write OEM initialization parameter
6 initialization for 50Hz parameters
Note: the password for the OEM parameter is: 61633
Pn 33 Software version
Pn 34 Auto recover while lost power suddenly
0 disable this function
99 means do auto recover in infinite time, starting from
low frequency
Other value：
If indicator displays LU-X(any code) during runtime
and power source recovers in 2 seconds, inverter
would start up again and reduce runtime frequency
with magnitude of under voltage time(s) multiply
frequency of this component(Hz).
The maximum power lost time is 2.5s. Beyond this time,
it would be seen as over voltage without any auto recover.
Pn 35 Production date
16
A2 Inverter (0.75-30kW)
Chapter 8 Operation Examples
8.1 Operation by panel
Pn 04 = 1(Command from panel)，Pn 03 = 1(Frequency from potentiometer)。
Push button “RUN” on the panel, inverter starts up and running indicator is on.
Push the button again, inverter would stop.
8.2 Operation by external signal
Pn 04=2 (command from port “FWD/REV”)
Pn 03=3 (frequency from port “5V”)
8.3 Multi-segment speed
Pn 04=2(command from port “FWD/REV”)
Pn 03=7(frequency from multi-segment 0-7)
8.4 Point move by panel
Command（Pn 04）must come from panel（=1）. Frequency（Pn 03）must be
specified by button（=2）.After inverter stops, push button “←” to clockwise
point move and “→” to anticlockwise point move.
8.5 Point move by external signal
Command（Pn 04）must come from port “FWD/REV”（=2）. Frequency
（Pn 03）must come from external digital port（=6）. After inverter stops,
connect “D0” and “JOG” to “GND” to point move clockwise, connect “D1” and
“JOG” to “GND” to point move anticlockwise.
17
A2 Inverter (0.75-30kW)
Chapter 9 Error Message and Fault Diagnosis
9.1 Fault table
Display Meaning Cause Diagnosis
OU –o Overvoltage Overvoltage of
power source
Check voltage of power
source
OU –u Acceleration
overvoltage
Overvoltage of
power source
Check voltage of power
source
OU –d Deceleration
overvoltage
Overvoltage of
power source or
large inertia
Overvoltage of power
source, increase
deceleration time, add
brake components
OU –r Steady state
Overvoltage
Overvoltage of
power source
Check voltage of power
source
LU –o Stop state
undervoltage
Undervoltage of
power source
Check voltage of power
source
LU–u Acceleration
undervoltage
Undervoltage of
power source,
small
acceleration time
Check voltage of power
source, increase
acceleration time
LU –d Deceleration
undervoltage
Undervoltage of
power source
Check voltage of power
source
LU –r Steady state
undervoltage
Undervoltage of
power source or
large inertia
Check voltage of power
source, decrease load
OC –o Stop state
overcurrency
Component fail,
interference
Push “RESET”.
Component fail if it
happens again.
18
A2 Inverter (0.75-30kW)
Display Meaning Cause Diagnosis
OC –u Acceleration
overcurrency
Small acceleration
time or component
fail
Increase acceleration
time
OC –d Deceleration
overcurrency
Small deceleration
time or component
fail
Increase deceleration
time
OC –r Steady state
overcurrency
overload or
component fail
Check motor load
OT –o Overheat
while stop
High environment
temperature or fail
temperature sensor
Check whether air
temperature is over 50,
check CZ55 connection
OT –u Overheat
while
acceleration
High environment
temperature, small
acceleration time
Check whether air
temperature is over 50,
increase acceleration
time
OT –d Overheat
while
deceleration
High environment
temperature, small
deceleration time
Check whether air
temperature is over 50,
increase deceleration
time
OT –r Overheat in
steady state
High environment
temperature,
overload
Check whether air
temperature is over 50,
check overload
9.2 Other unexpected fault
1、Inverter is in normal condition but without any output
1. Internal fuse fail
2. Internal drive module fail
19
A2 Inverter (0.75-30kW)
Chapter 10 Maintenance and Repair
Due to the environment influence such as temperature, humidity,
dust and vibration etc., and aging component, inverter may be fail at
some time. So it needs periodic maintenance and repair.
Notice: please check following items before maintenance
and repair. Otherwise, it may cause electronic shock.
1. Power source is cut off.
2. Indicator on panel is OFF.
3. Maintenance is performed by professionals.
10.1 Daily maintenance and repair
Inverter must be install in the standard environment according
this manual. There may be some unexpected situation during
runtime. Please do daily maintenance work according following
table. Keep good runtime environment, log daily data and detect
fault cause in an early time. It can extend the life of inverter.
Check
Item
Content Period Method
Criterion
environment
(1) temperature,
humidity
(2) dust, water
(3) corrosive
gas
anytime
(1)thermometer,
hygrometer
(2)watch
(3)smell
(1)temperature
range -10℃
~+40℃
(2)any mark of
water
(3)odor
inverter
(1)heat,
vibration
(2)noise
anytime (1)touch shell
(2)sound
(1) steady
vibration, normal
temperature
(2)abnormal
sound
motor
(1)heat
(2)noise
anytime (1)touch
(2)sound
(1)abnormal
heating
(2)abnormal
sound
20
A2 Inverter (0.75-30kW)
10.2 Periodic maintenance
Inverter needs periodic maintenance every 1 or 3 month which
depends on the runtime environment.
Notice: Machine maintenance or components replace must be
performed by professionals. If any metal objects such
screws or washer are left inside the machine, it would
cause fatal damage to the inverter！
Check itmes：
1、 Whether the control port screws are loose or not;
2、 Whether the main loop port are loose or not. Or is there
any sign of overheated in the line of main loop;
3、 Is there any trauma in power and control cable. Especially,
check the robber skin in the contact with other metal;
4、 Is the insulation bandage of power cable loose;
5、 Use vacuum cleaner to clean dust on board and ventilation
channel;
6、 If the motor needs examination, please disconnect the
motor wire from inverter’s U,V,W port. Otherwise, it may
cause fatal damage to inverter.
Notice: Inverter has already passed the pressure test. Any
improper test may cause fatal damage to inverter！
10.3 Replace the wearing parts
The wearing parts contain cooling fan and filter electrolytic
capacitor whose lifetime depends on environment and load. When
the temperature is 25℃, the lifetime of cooling fan is 20~40Kh
and that of capacitor is 30~50Kh. User can decide when to replace
these components.
1. Cooling fan
Cause of damage: wear bearing, aging fan, heavy dust
environment.
Criterion: rip in fans, abnormal vibration during
runtime.
21
A2 Inverter (0.75-30kW)
２. filter electrolytic capacitor
Cause of damage: high environment temperature,
frequently load change, long-time
fully load.
Criterion: liquid leak, wrong position of safety valve,
capacity measurement.
10.4 Store of inverter
Precautions for storing inverter:
1. It cannot be stored in high temperature, moist, dusty,
metal dust, corrosive gas places.
2. It will speed up the capacitor aging during long-time store.
Make sure that turn on inverter once every year. The operation time
cannot below 8 hours. And the input voltage increases slowly to the
rating value.
10.5 Warranty
Range: inverter itself;
If any following situation happens, Isacon will provide warranty:
Any fault or damage happens during the standard use in 18
months. Beyond 18 months, Isacon will charge for the maintenance
and repair;
If any following situation happens, even in 18 months, Isacon still
can charge for maintenance and repair:
ａ、damage caused by wrong operation；
ｂ、damage caused by voltage abnormal and nature disaster
such fire and floods etc.;
ｃ、apply inverter in non-standard user case.
Costs can be counted as listed on contract or actual cost.
22
A2 Inverter (0.75-30kW)
Chapter 11 Type Description
11.1 Type description
A2-xxxxB
A2 is the vfd series，
xxxx For power and voltage levels.
B is Brake unit
11.2 Power description
1XXX 1: input 3phase 220V, output 3phase 220V
2XXX 2: input 1phase 220V, output 3phase 220V
3XXX 3: input 3phase 380V, output 3phase 380V
5XXX 5: input 1phase 220V, output 3phase 380V
6XXX 6: input 1phase 380V, output 3phase 380V
Note: three phase input can also be.
8XXX 8: input 1-3phase 220V,output 3phase 220V
XXX Power specification：
007 0.75kW
015 1.5kW
300 30kW
11.3 model examples
A2-2022
single phase 220 input, three-phase 220 output, 2.2kw
A2-2022B single phase 220 input, three-phase 220 output, 2.2kW,
with braking unit.
A2-3075
three phase 380 input, three-phase 380 output, 7.5kw
A2-3075B
three-phase 380 input, three-phase 380 output, 7.5kW,
with braking unit.
23
