ROBOTIC POOL FLOOR CLEANER
USER MANUAL
CONTENTS
LIMITED WARRANTY....................................................................................................... 4
IMPORTANT SAFETY INSTRUCTIONS...............................................................................2
1. Introduction................................................................................................................ 3
2. Packing List..................................................................................................................3
3. Product Diagram......................................................................................................... 3
4. Specifications.............................................................................................................. 4
5. Operation Instructions................................................................................................5
5.1 Assembly before use...........................................................................................5
5.2 To use the robotic cleaner...................................................................................6
5.3 Clean after use.................................................................................................... 8
5.4 To adjust the running pattern.............................................................................9
6. Buzzer Note...............................................................................................................10
7. Trouble Shootings..................................................................................................... 10
LIMITED WARRANTY
WYBOT, owned by WYBOTICS CO LTD, makes products at the best quality we can offer. All
WYBOT products have been inspected against defects in materials and workmanship prior to
leaving factory. WYBOT is happy to offer warranty for the repair or replacement of pool products
for two (2) year, only covering battery, motor and PCB from the date of purchase. The provisions of
this Limited Warranty only apply to the original purchaser. Please keep your original sales receipt,
as this proof of purchase will be required and must accompany warranty claims to WYBOT or its
designated agents. This Limited Warranty does not apply without proof of purchase; or should the
purchaser modify or repair the product themselves or by unauthorized people; use non-WYBOT
parts or accessories with the product; use the product in contravention of the manufacturer’s
instructions; use improper voltage; abuse the product in any way; or through accident or
negligence. This Limited Warranty will not cover consequential damages, including claims for
normal wear-and-tea or any Act of God outside the control of WYBOT. Non-manufacturing defects,
such as grasses that may grow through the ground cloth and/or pool liner are examples of which
WYBOT cannot hold responsible for.
IN NO EVENT SHALL WYBOT, ITS AUTHORIZED AGENTS, RELATED ENTITIES, OR EMPLOYEES BE
LIABLE TO THE BUYER OR ANY OTHER PARTY FOR DIRECT OR CONSEQUENTIAL DAMAGES. Some
states or countries, or other jurisdictions, do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you.
This Limited Warranty is not extended to close-outs, factory seconds, or resold products (i.e.,
garage sales, online auctions, or online retailers not purchased directly from WYBOT). Any issue
with items purchased from these types of vendors/sellers will need to be addressed through these
stores.
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
1. Read the manual carefully, and use the cleaner according to the manual. We are not liable for
any loss or injury caused by improper use.
2. Only use the accessories recommended or sold by the manufacturer.
3. This model only applies to swimming pools with a flat floor.
4. Do not allow children to ride on the cleaner or play with it as a toy.
5. Use the original and authorized charging adapter only.
6. The adapter cord should only be repaired or replaced by a qualified electrician.
7. Do not turn on the cleaner when it is out of water.
8. The charging adapter must be connected to a leakage protected and earthed socket when
charging.
9. Do not operate the cleaner when there are people in the pool.
10. Always clean and wash the filter tray after use.
11. Turn off the cleaner when maintaining, cleaning or when it is not in use.
12. The cleaner should be stored in a cool and ventilated place, away from direct sunshine.
13. While charging, the cleaner should be kept in a cool place, and not be covered with anything
to prevent the damage of internal electrical components caused by overheating.
14. Only certified professionals can disassemble the sealed driving kit of the cleaner.
15. Do not operate the cleaner while pool filter is running.
16. Oil seals for motor contain grease, which may cause water pollution if grease leaks occur.
17. Due to the limitation of battery capacity, the cleaner is only suitable for swimming pools with
size up to 861 ft² (80m²), otherwise the cleaning effect will be affected.
18. When the cleaner is stored for a long period of time, it should be charged every six months to
maintain battery life. Please use the original and authorized charging adapter only.
If the cleaner is not charged for a long time, the battery voltage will be lower than the over-
discharge protection voltage due to the self-discharge of the battery, which may cause fatal
damage.
19. Do not use or store the cleaner near any heat source.
20. Do not pierce the shell of the cleaner with nails or other sharp objects. Do not hammer, impact,
or throw the cleaner.
21. Make sure the charging socket is dry before charging.
SAVE THESE INSTRUCTIONS
2
1. Introduction
The environmentally-friendly robotic pool cleaner Osprey 200 Max is a new type of rechargeable
automatic cleaner that filters the pool water and gets rid of particles without replacing the pool
water.
2. Packing List
Item
Name
Cleaner
QTY (pc/pcs)
Remark
In carton
1
2
3
4
5
6
7
8
1
1
1
1
2
2
1
1
Charger
In carton
Flipper
In carton
Retrieving Hook
Screw
In carton
In plastic bag
In plastic bag
In plastic bag
In carton
Scraper
User Manual
Quick Guide

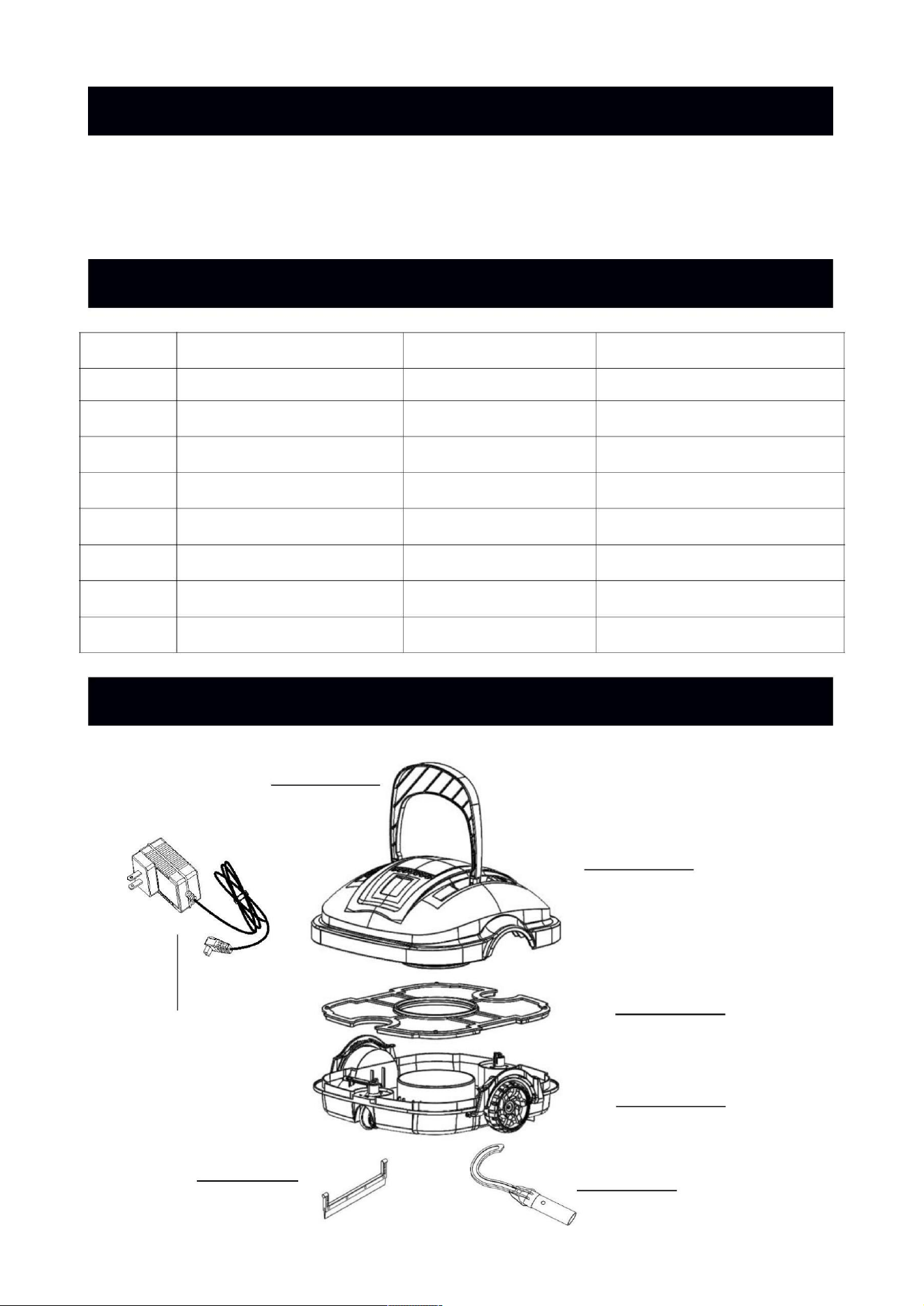

3. Product Diagram
Flipper
Top Cover
Filter Screen
Charger
Chassis
Scraper
Retrieving Hook
3
4. Specifications
Product Name
WYBOT Robotic Pool Cleaner
Model
Osprey 200 Max
11.1V
Rated Working Voltage
Power
approx. 30W
Working Cycle
max. 100min
Rated Input Voltage of Adapter
Rated Input Frequency of Adapter
Rated Output Voltage of Adapter
Rated Output Current of Adapter
Battery Capacity
100Vac-240Vac
47Hz-63Hz
12.6Vdc
1.8A
5200mAh
Charging Time
3.5-4 H
Cleaning Surface
max. 861ft² / 80m²
approx. 32gal/min (120L/min)
180μm
Filter Capability
Filter Density
Moving Speed
approx. 52.5 ft/min (16m/min)
max. 8.2ft / 2.5m
IPX8
Water Depth
IP Grade
Pool Water Temperature
Charging Environment Temperature
Storage Temperature
Product Weight
50°F-95°F / 10°C-35°C
41°F-95°F / 5°C-35°C
41°F-95°F / 5°C-35°C
8.8 lbs / 4kg
13.4 (L) * 13.8 (W) * 13.0 (H) in /
340 (L) * 350 (W) * 330 (H) mm
Product Size
4
5. Operation Instructions
5.1 Assembly before use

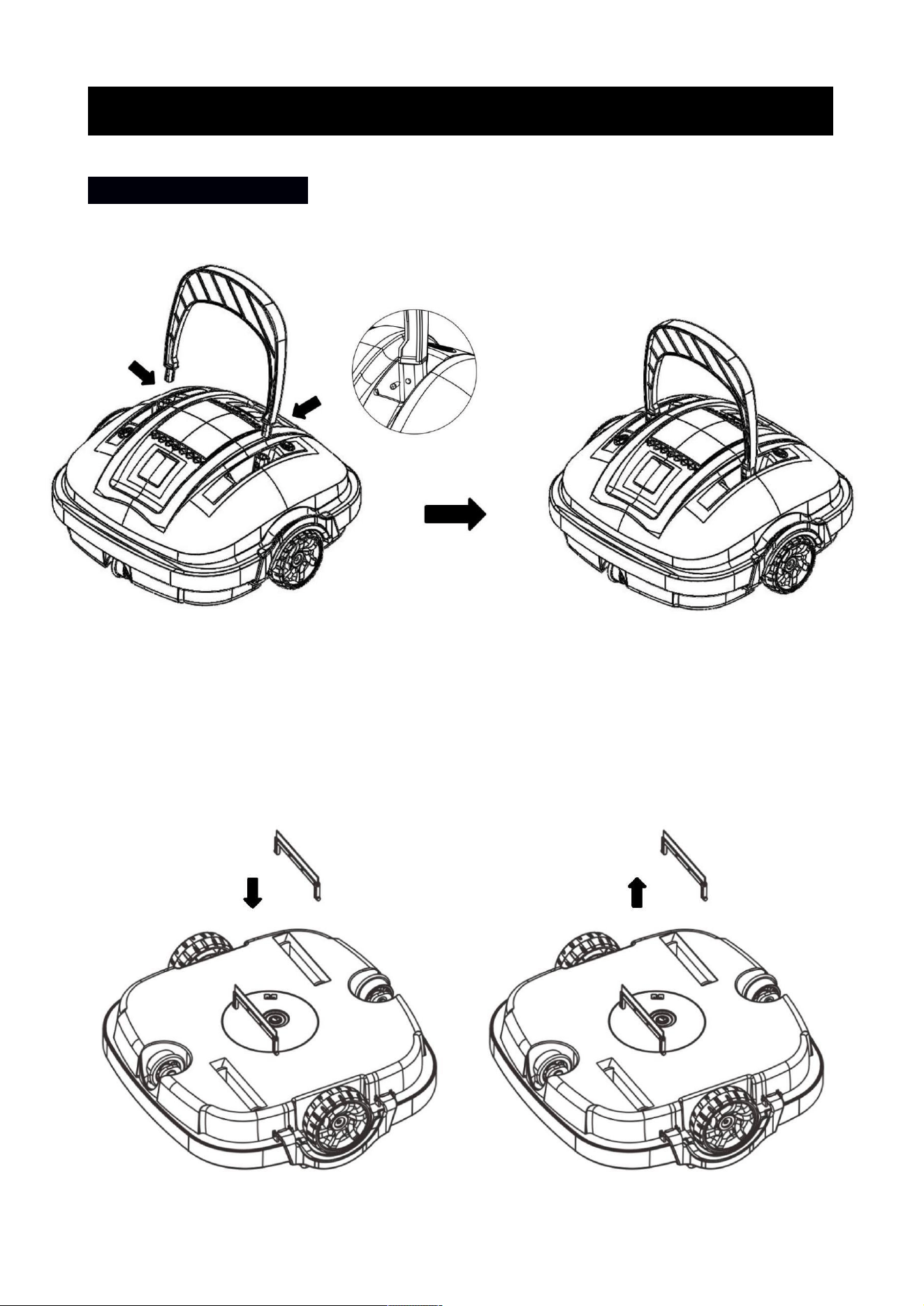

1. Attach the flipper and fix it with the screws provided.
Note: The installation direction of 2 screws is opposite.
2. Install the scrapers to enhance suction effect if the pool floor is full of debris or particles. It is
not recommended to install the scrapers if the pool bottom is uneven or full of pits, which avoids
the cleaner from getting stuck by the rough floor.
Note: If the dirt is too small to collect in the machine, you can add some cotton balls in the chassis.
5
3. Attach the retrieving hook to a standard pool pole (not included).
5.2 To use the robotic cleaner
1. Charge the battery
Fully charge the cleaner before each use. Attach the charging connector to the charging socket
at the bottom of the cleaner. Place the cleaner in its upright position and, then plug the charger
into the main electrical outlet. The indicator lamp on the charger shall turn red when charging. It
should turn green once fully charged.
NOTE: The robotic cleaner must be charged indoor.
NOTE: It is strictly forbidden to face the bottom up to prevent the swing plate from being
crushed when charging.
NOTE: Clean and dry the charging socket before charging.

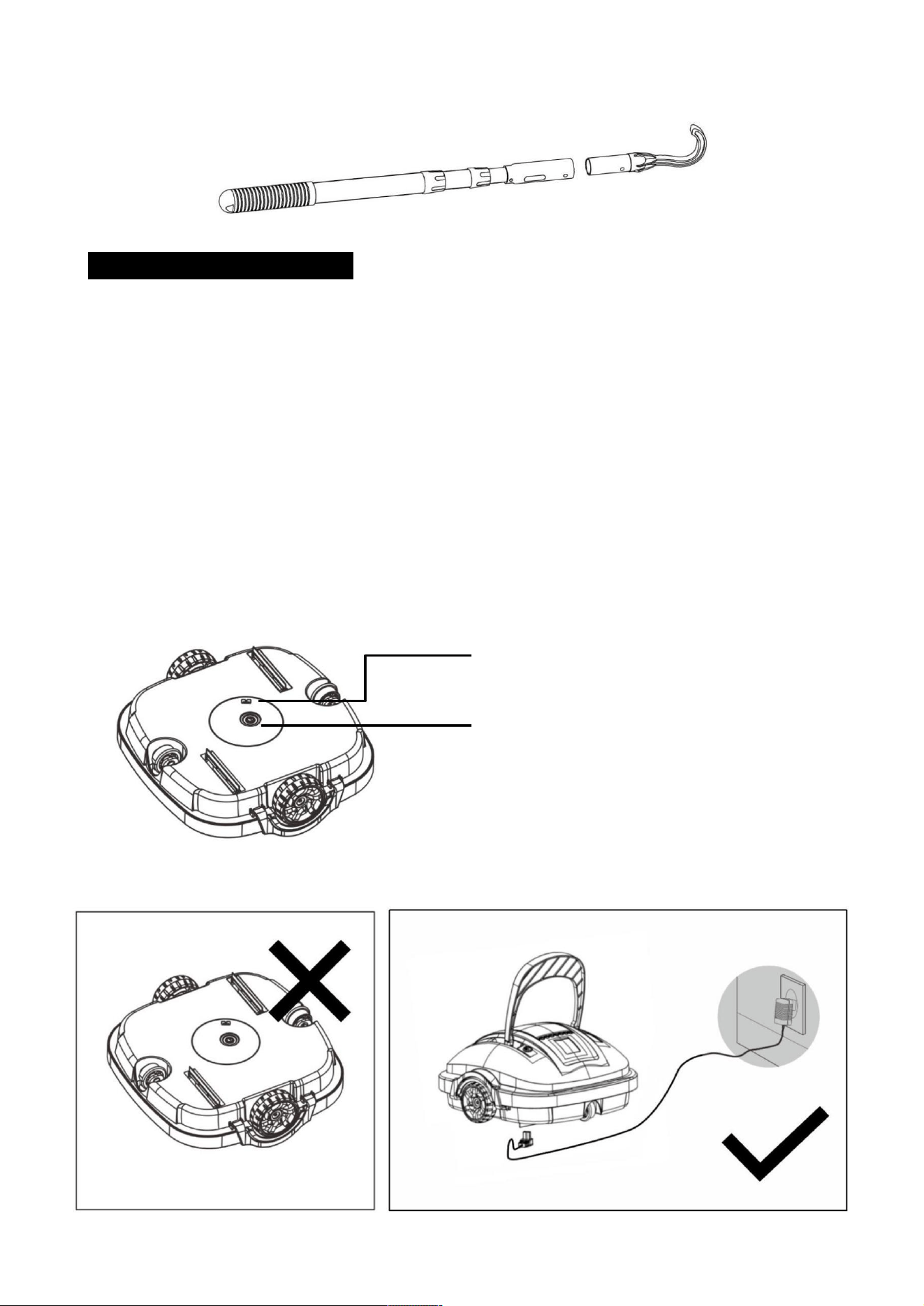

Charging Socket
Power Button
6

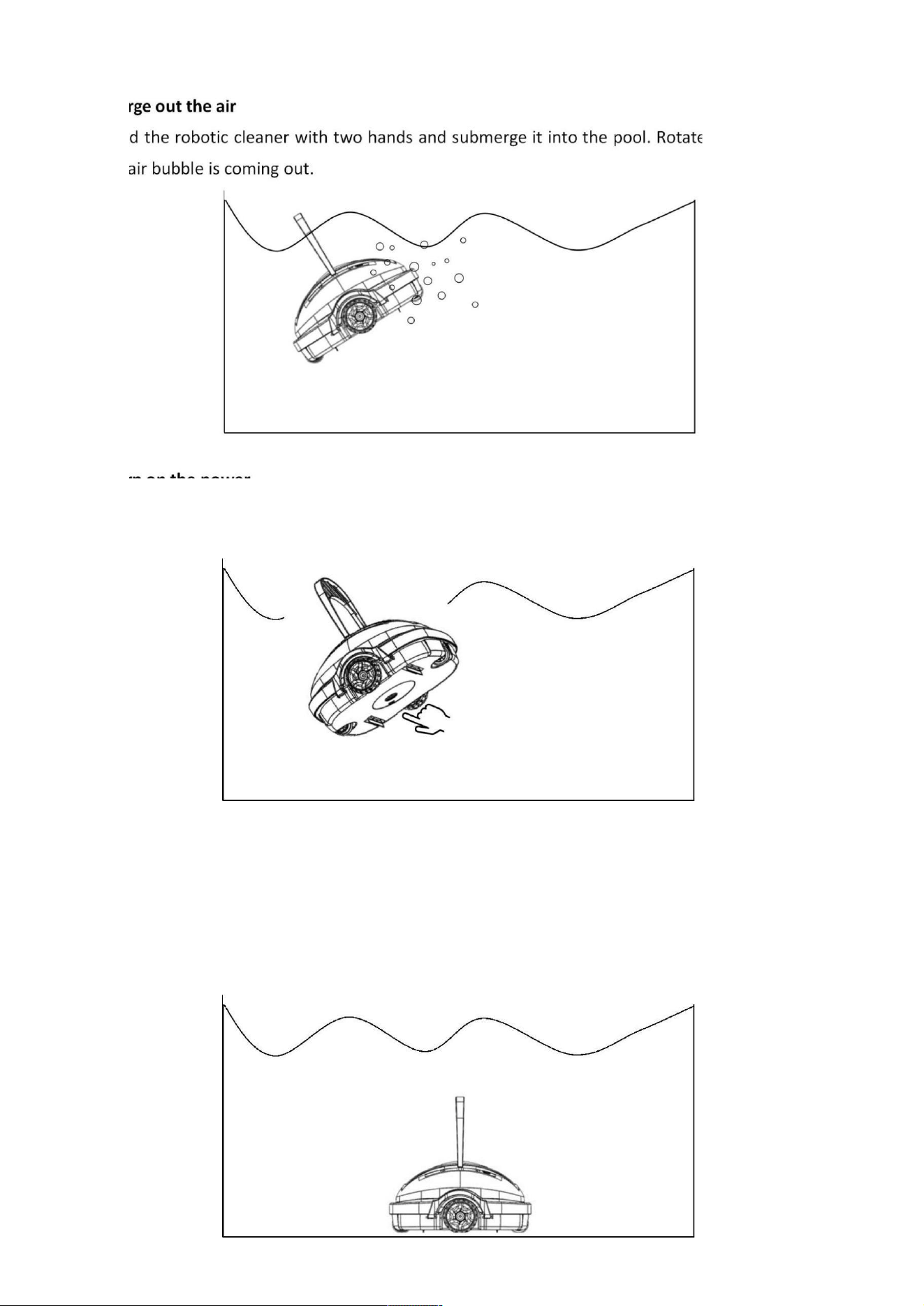

2. Purge out the air
Hold the robotic cleaner with two hands and submerge it into the pool. Rotate the cleaner until
no air bubble is coming out.
3. Turn on the power
While keeping the entire robotic cleaner underwater, switch on the product by pressing the
power button located at the bottom. Water will begin to flow out from the nozzle after 5
seconds.
4. Release the cleaner
Hold the robotic cleaner in its upright position and slowly release the product. The product shall
slowly sink to the pool floor. In case the cleaner is flipped upside down, use the floating handle
to correct its orientation.
7
5. Let it clean
The robotic cleaner shall run around the pool floor and vacuum the debris automatically for max.
100 minutes. It will automatically reverse when it touches the wall. The cleaner will move to the
pool wall automatically and stop running when it runs out of battery.
6. Retrieve the cleaner
To retrieve the robot, grasp the flipper and pull it out of the water and away from the pool.
Power off the robot. Use the retrieving hook if needed.
5.3 Clean after use

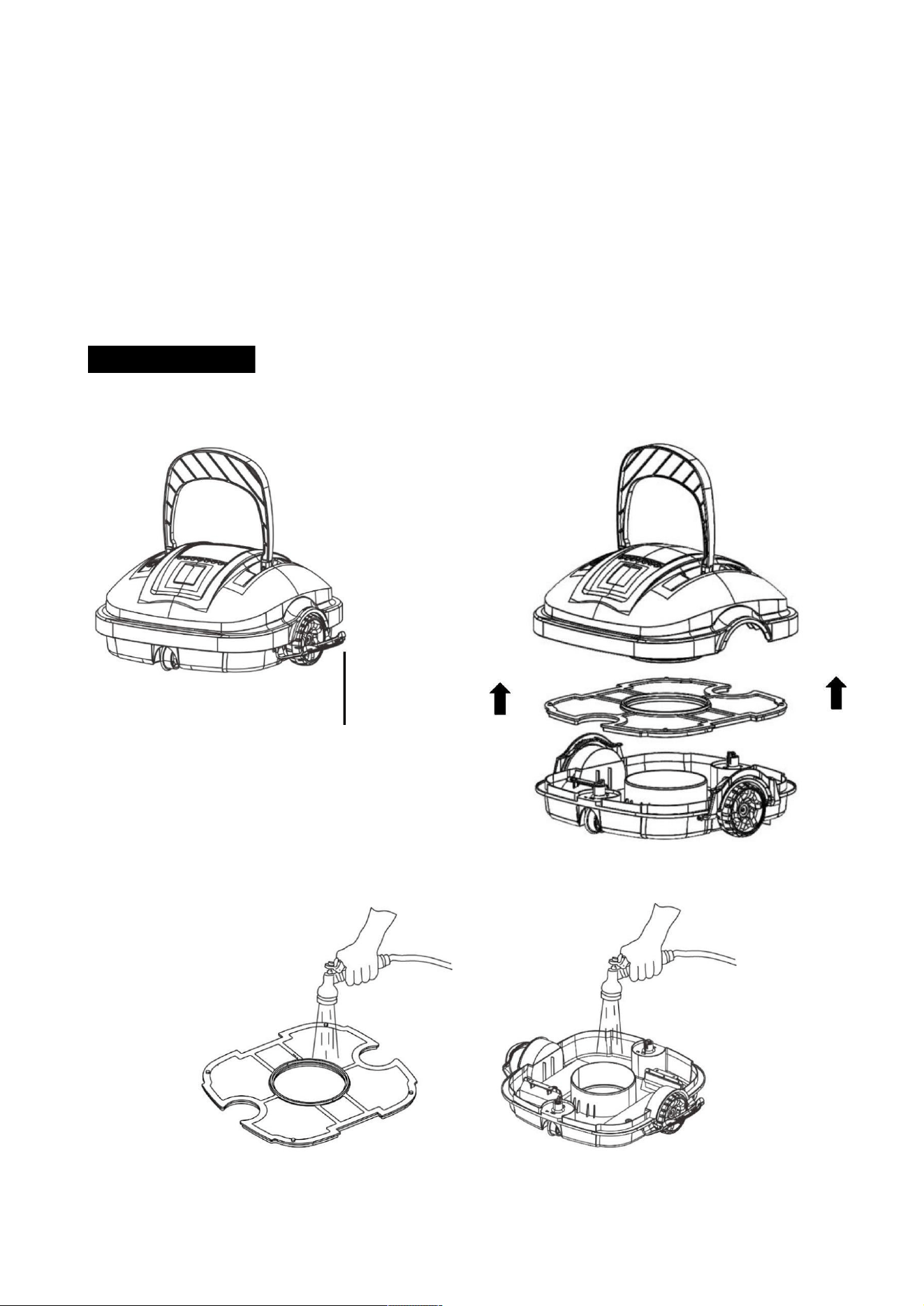

1. Open all lock buckles, detach the top cover, and remove the filter screen.
Lock Buckle
2. Rinse off all the dirt and debris with running water.
3. Wipe the robotic cleaner with a clean cloth and let it air dry.
8

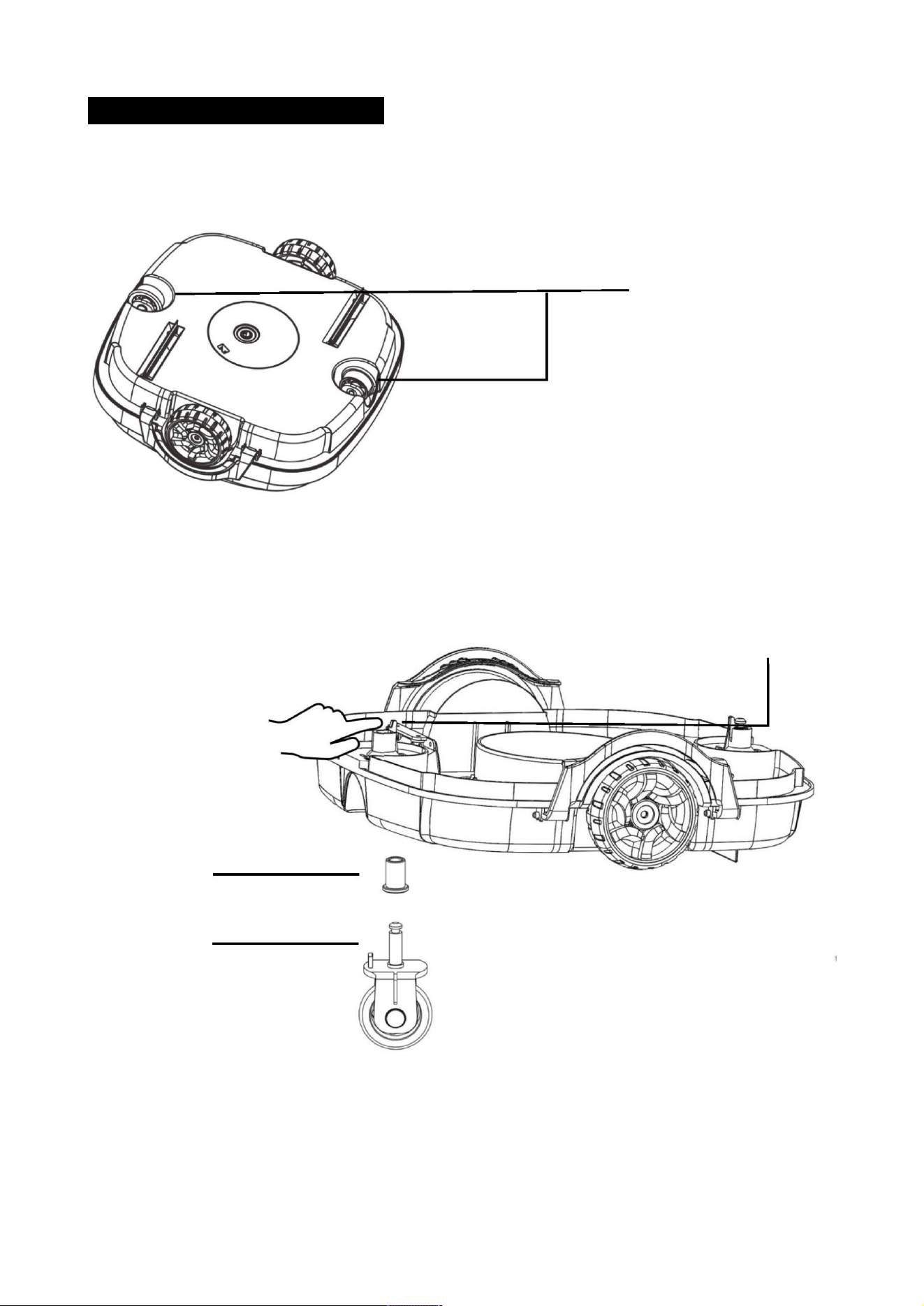

5.4 To adjust the running pattern
1. This robotic cleaner comes with 2 adjustable wheels. By modifying the combination of these 2
adjustable wheels, it will change the running pattern of the cleaner.
Adjustable Wheels
2. To adjust the wheel, open the lock buckles and remove the top cover. Locate the 2 adjustable
wheels. Detach the wheel by pushing the wheel stem catch. Select the correct combination and
insert the wheel until the catch clicks.
Wheel Stem Catch
Sleeve
Wheel Stem

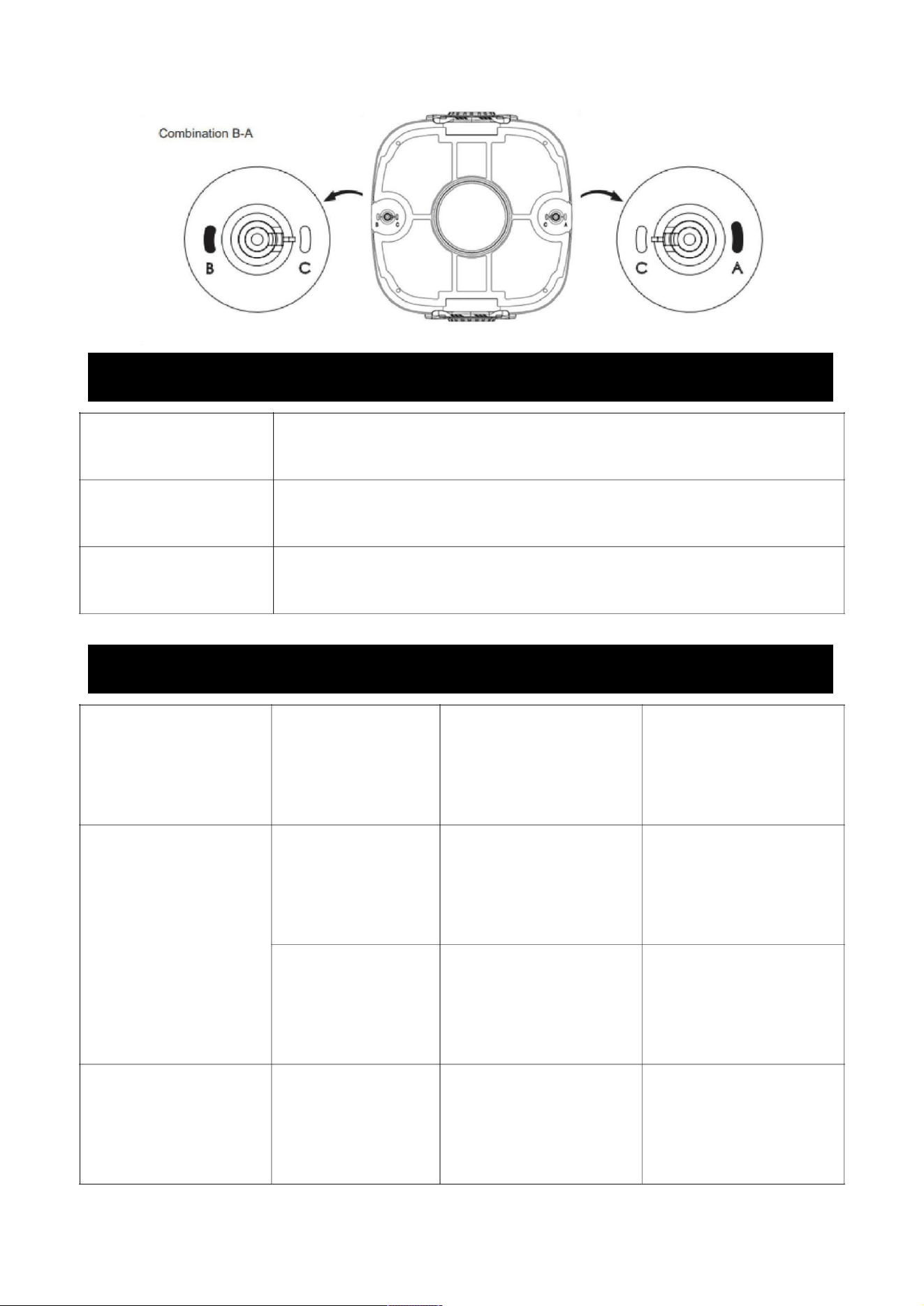

3. Combinations:
A – C for most types of pool (factory setting)
B – C Smaller rebounding angle than A – C
C – C Minimum maneuvering (For rectangular or longer pool)
A – B For round pools
9
6. Buzzer Note
Status
Description
Beep before not fully immersed in the water; Stop beeping after fully
immersed in the water
Power on
Power off
Stop beeping
7. Trouble Shootings
Issue
Scenario
--------
Possible reason
Battery level is low.
Internal fault
Solution
Recharge the battery.
Call customer service
Call customer service
The buzzer does not
beep, or the impeller
does not work when
the cleaner is out of
water.
--------
The buzzer still beeps,
or the impeller does
not work when the
Internal fault
Internal fault
cleaner is in the water.
10
The flipper does
not flip forward
when approaching
the pool wall
Hose off the dirt around
the hinge of the flipper.
Make sure the flipper
turns freely.
The cleaner does not
change direction when
hitting the pool wall.
The flipper is stuck and
does not turn freely.
The LED indicator does
not light up when the
charger is plugged in.
Call customer service
and request for a
--------
Faulty charger
replacement charger.
Improper running
pattern setting
The cleaner keeps
bouncing at the
same direction,
some areas are
always missed.
Try different running
patterns. Refer to the
“To adjust the running
pattern” section of the
manual.
The cleaner does not
vacuum the entire
pool floor.
Irregular pool shape
Water current inside the Turn off the pool’s filter
The pool filter is on. pool affects the running pump when using this
of the cleaner. product.
11
