Manuals IPL. UV POND FILTER F 16000, 7912, until 2012

This is the main product document for model 970746801. Additionally, the document applies to other Gardena models: 4066407504103

The file format is pdf, 4 pages, you can download this manual here .

background
UV POND FILTER F 16000, 7912, until 2012
background

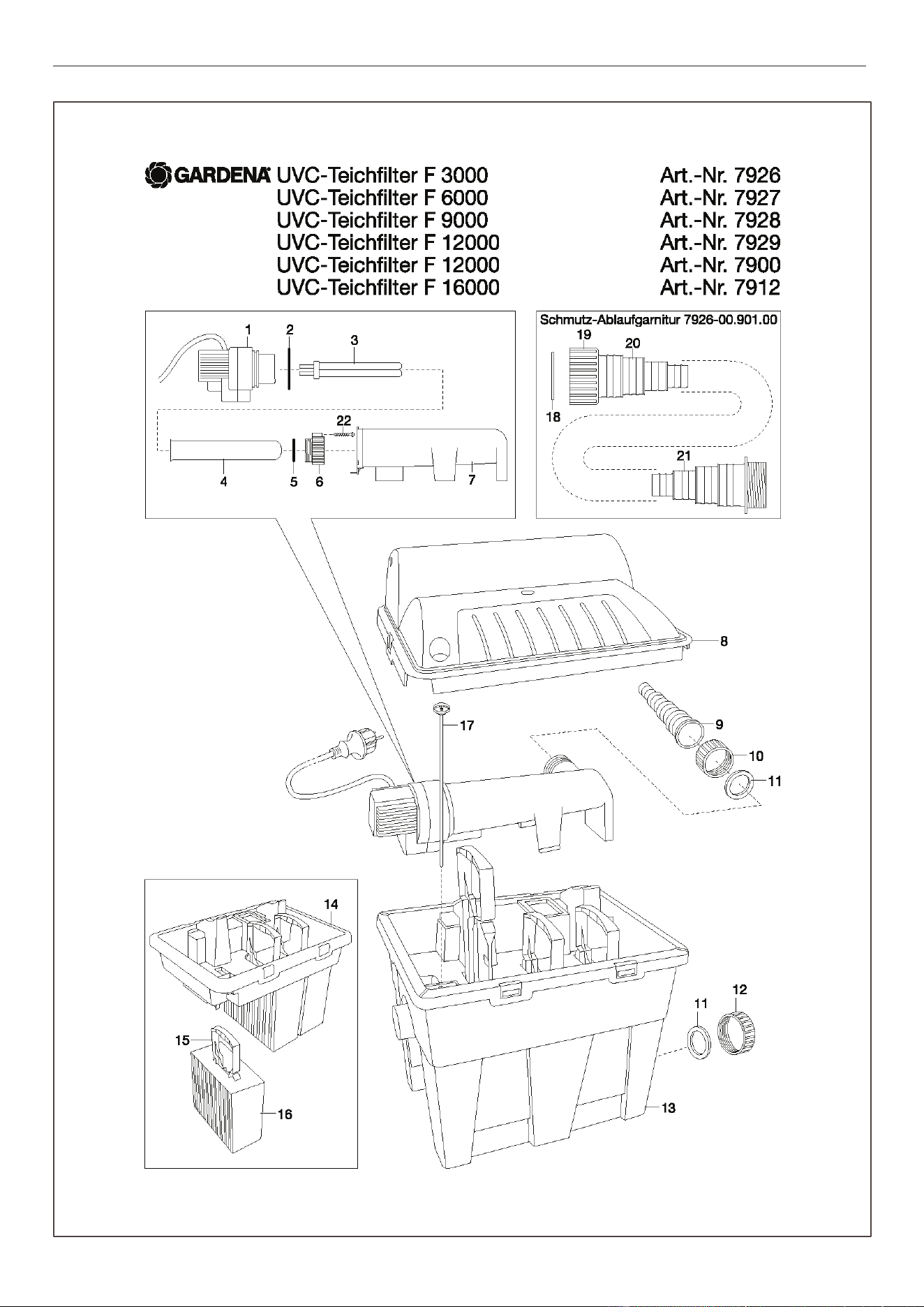

SPARE PARTS LIST
background
background
REF. PART NO. DESCRIPTION REMARK QTY. KIT
1 520580501 CONTROL 7926-00.900.01 1
2 525621501 O-RING 60X2.5 7863-00.900.02 1
4 520578401 GLASS TUBE 7905-00.900.04 1
5 520578301 O-RING 7905-00.900.03 1
6 520577401 LOCK SCREW 7903-00.900.06 1
7 520580801 CASE 7926-00.900.04 1
9,10,11 520581401 POLY BAG. CPL. 7926-00.902.00 1
9,20 520583101 CONNECTOR 7937-00.900.03 1
11,18 520585601 WASHER 1 1/2”. WHITE 7940-00.900.01 1
12 520575601 SEALING CAP 7901-00.900.01 1
15 520581001 FOAM HOLDER 7926-00.900.06 1
16 520575301 FOAMING FILTER BLACK 7900-00.900.03 1
16 520575401 FOAMING FILTER BLUE 7900-00.900.04 1
18,19,20,21 520581301 SET FOR EXPIRATION OF DIRT 7926-00.901.00 1
21 520577701 CONNECTING PIECE 7904-00.900.11 1
22 520344501 SCREW 1210-00.600.62 1
