A18SBSBL63
Original instructions
2
Battery pack
Handle, insulated
gripping surface
Switch lock
Speed control
Hex key
Switch trigger
Blade tracking
adjustment screws
LED light
Blade cover
Handle
Blade

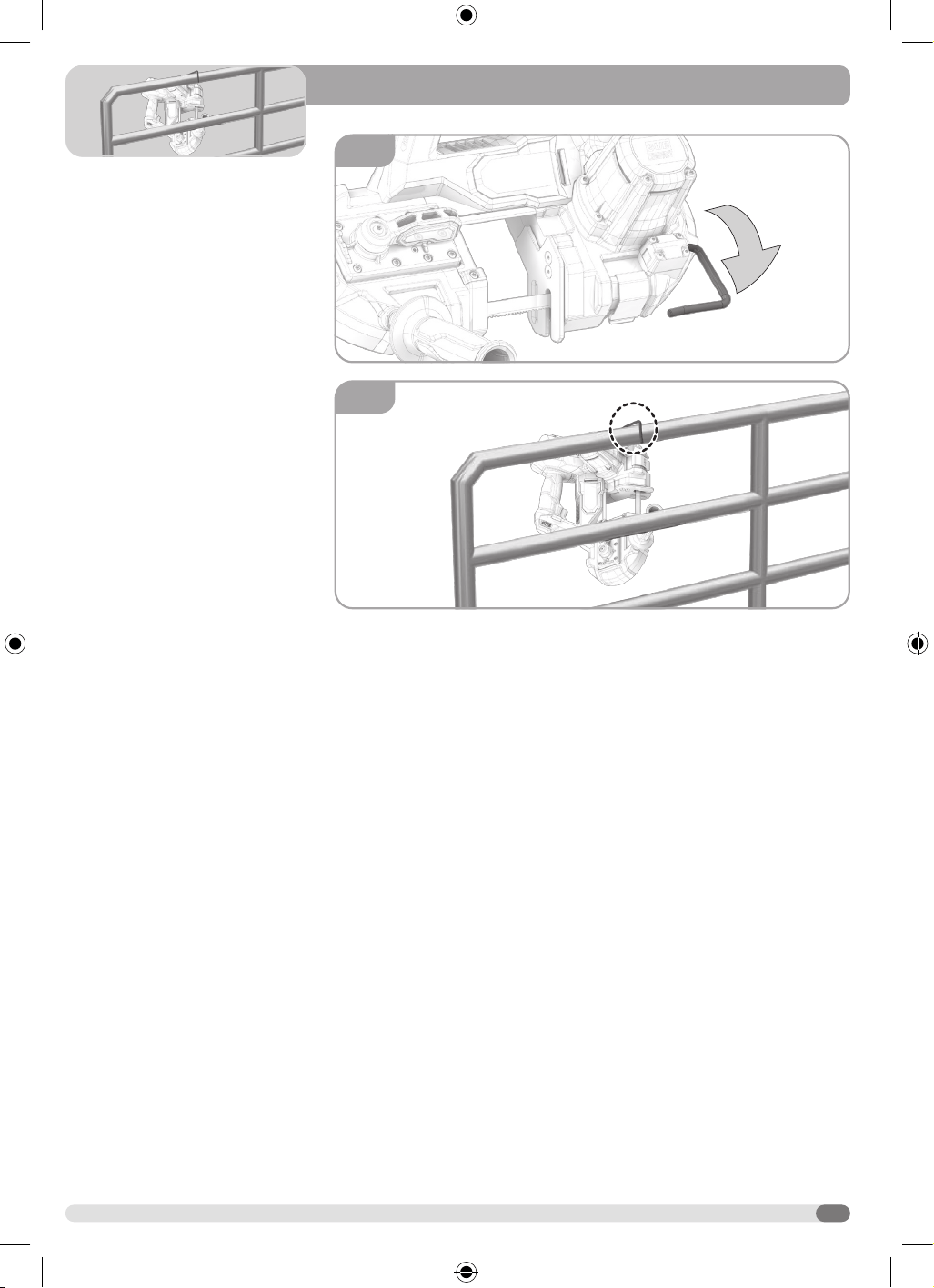

Rafter hook
Work rest
Blade tension release lever
Latch, blade cover
p. 7 p. 7p. 6
START
STOP
p. 9
p. 3 p. 4
p. 8
p. 6
3
Remove the battery pack before starting any
work on the product.
1
2
75-100 %
50-75 %
25-50 %
0-25 %
4
1
2
3
1
1
2
2
2
3
1
4
1
2
3
5
1
2
3
1
1
2
2
2
3
1
3
6
2
1
1
1
2
2
2
1
7
START
STOP
1...2...3 ...4 ...5...6
2
1
8
9
1
2
10
TECHNICAL DATA A18SBSBL63
Type Band saw
Battery voltage 18 V
No-load speed
Speed 1 310 SFPM
Speed 2
360 SFPM
Speed 3 430 SFPM
Speed 4 490 SFPM
Speed 5 540 SFPM
Speed 6 580 SFPM
Blade size
776 x 0.5 x 12.7 mm
Cutting capacity
Rectangular stock 63 x 63 mm
Pipe ø 63 mm
Weight without battery pack
3 kg
Noise Information
Measured values determined according to EN 60745. Typically, the A-weighted noise
levels of the tool are:
Sound pressure level / Uncertainty
Sound power level / Uncertainty
Wear ear protection!
L
pA
=77 dB (A) / K
pA
=3.0 dB(A)
L
WA
=88 dB (A) / K
WA
=3.0 dB(A)
Vibration Information
Vibration total values (triaxial vector sum) determined according to EN 60745.
Vibration emission value / Uncertainty
Sawing of metal a
h,CM
< 2.5 m/s
2
/ K=1.5 m/s
2
Sawing of wood a
h,CW
< 2.5 m/s
2
/ K=1.5 m/s
2
WARNING!
The declared vibration total values and the declared noise emission values given in this instruction manual have been measured in
accordance with a standardised test and may be used to compare one tool with another. They may be used for a preliminary assessment
of exposure.
The declared vibration and noise emission values represent the main applications of the tool. However, if the tool is used for dierent
applications, used with dierent accessories, or poorly maintained, the vibration and noise emission may dier. These conditions may
signicantly increase the exposure levels over the total working period.
An estimation of the level of exposure to vibration and noise should take into account the times when the tool is turned o or when it is
running idle. These conditions may signicantly reduce the exposure level over the total working period.
Identify additional safety measures to protect the operator from the eects of vibration and noise, such as maintaining the tool and the
accessories, keeping the hands warm (in case of vibration), and organising work patterns.
COMPATIBLE BATTERY PACKS (NOT INCLUDED)
L1820R
L1820S
A18FB2
L1825R
L1830R-X5
A18B4
L1840R
A18FB4
L1850R
A18FB5
A18OB6
L1860R
L1860R-X5
L1890R
Use AEG 18V battery and charger only
WARNING! Read all safety warnings, instructions,
illustrations and specications provided with this power tool.
Failure to follow all instructions listed below may result in electric
shock, re and/or serious injury.
Save all warnings and instructions for future reference.
BAND SAW SAFETY WARNINGS
Hold power tool by insulated gripping surfaces, when
performing an operation where the cutting accessory may
contact hidden wiring. Cutting accessories contacting a “live” wire
may make exposed metal parts of the power tool “live” and could give
the operator an electric shock.
ADDITIONAL SAFETY AND WORKING INSTRUCTIONS

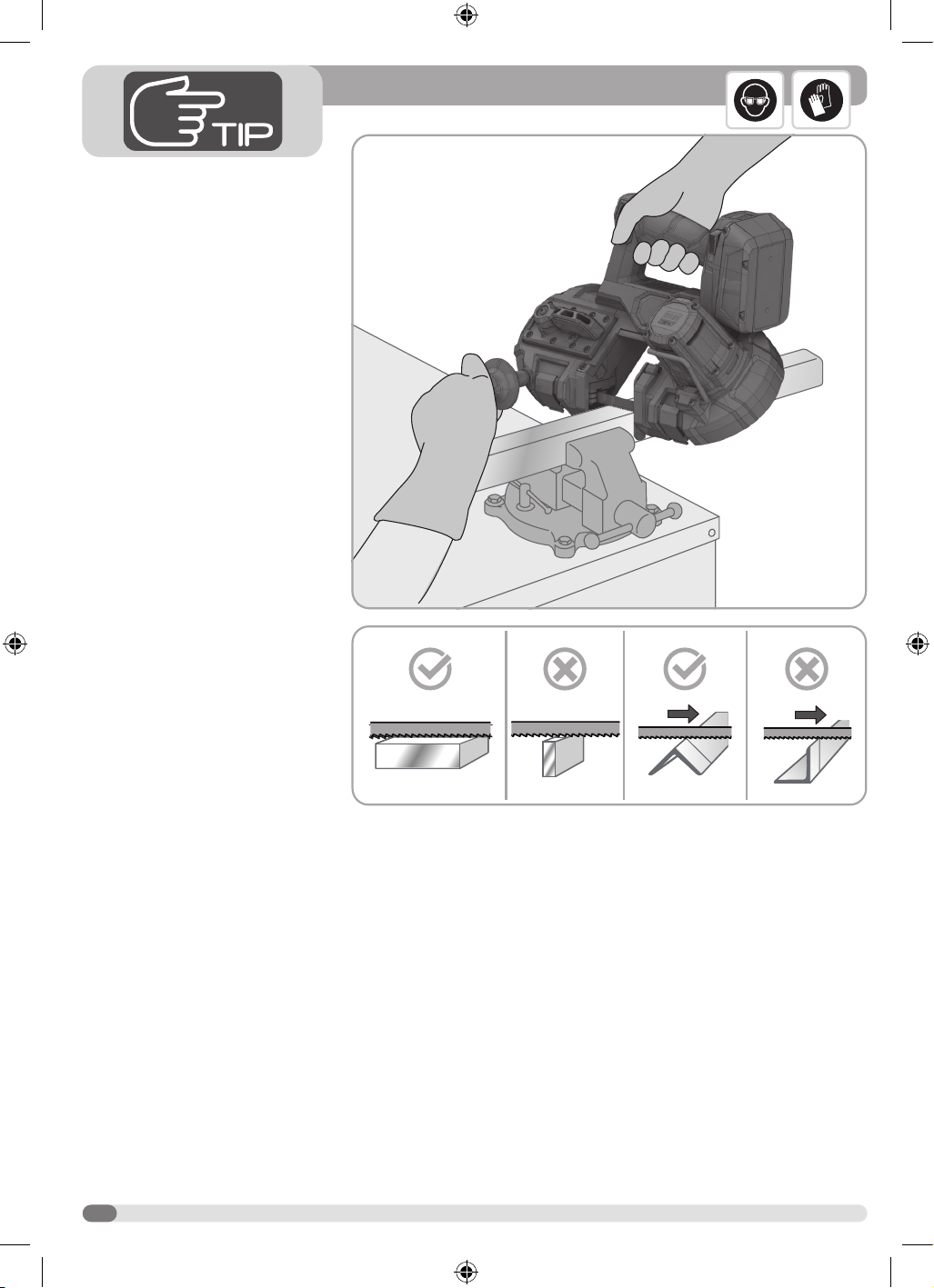

Clamp the workpiece with a clamping device. Unclamped workpieces
can cause severe injury and damage.
Turn o the product immediately if it stalls. Do not turn on the
product again while it is still stalled, as doing so could trigger a
sudden recoil with a high reactive force. Determine why the product
stalled and rectify this, paying heed to the safety instructions.
The dust produced when using the product may be harmful to
health. Do not inhale the dust. Wear a suitable dust protection
mask.
Remove the battery pack before starting any work on the product.
SPECIFIED CONDITIONS OF USE
The band saw is intended for straight line cutting operations on
metal pipes, reinforcing bars, conduits, posts, plastics, and wood.
The product is designed for handheld use.
Do not use the product for any other purpose.
ADDITIONAL BATTERY SAFETY WARNINGS
WARNING! To reduce the risk of re, personal injury, and
product damage due to a short circuit, never immerse your tool,
battery pack, or charger in uid or allow uid to ow inside them.
Corrosive or conductive uids, such as seawater, certain industrial
chemicals, and bleach or bleach containing products, etc., can
cause a short circuit.
Do not dispose of used battery packs in the household refuse or
by burning them. AEG distributors oer to retrieve old batteries to
protect our environment.
11
Battery packs that have not been used for some time should be
recharged before use.
For an optimum lifetime, the battery packs have to be fully charged
after use.
For battery pack storage longer than 30 days:
• Store the battery pack where the temperature is below 27°C and
away from moisture.
• Store the battery packs in a 30% - 50% charged condition.
• Every six months of storage, charge the pack as normal.
Battery pack protection
The battery pack has overload protection that protects it from being
overloaded and helps to ensure long life.
Under extreme stress, the battery electronics turn o the product
automatically. To restart, turn the product o and then on again.
If the product does not start up again, the battery pack may have
discharged completely. Recharge the battery pack.
Transporting lithium batteries
Lithium-ion batteries are subject to the Dangerous Goods
Legislation requirements.
Transportation of those batteries has to be done in accordance with
local, national, and international provisions and regulations.
• Batteries can be transported by road without further requirement.
• Commercial transport of lithium-ion batteries by third parties is
subject to Dangerous Goods regulations. Transport preparation
and transport are exclusively to be carried out by appropriately
trained persons and the process has to be accompanied by
corresponding experts.
When transporting batteries:
• Ensure that the battery contact terminals are protected and
insulated to prevent short circuit.
• Ensure that the battery pack is secured against movement within
the packaging.
• Do not transport batteries that are cracked or leaking.
• Check with the forwarding company for further advice.
MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most plastics
are susceptible to various types of commercial solvents and may
be damaged by their use. Use clean cloths to remove dirt, carbon
dust, etc.
Use only AEG accessories and spare parts. Should components
that have not been described need to be replaced, contact one
of our AEG service agents (see our list of guarantee/service
addresses).
If needed, an exploded view of the product can be ordered. State
the product type and the serial number printed on the label, and
order the drawing at your local service agents or directly at:
Techtronic Industries Australia Pty Ltd
PO Box 1065
Mount Waverley VIC 3149
Tel. no. 1300 234 797
Australia
Techtronic Industries N.Z. Limited
PO Box 12-806
Penrose AUCKLAND 1642
Tel. no. 0800 234 797(0800 AEGPWR)
New Zealand
SYMBOLS
Read the instructions carefully before starting the
product.
CAUTION! WARNING! DANGER!
Remove the battery pack before starting any work on
the product.
Wear protective gloves.
Wear eye protectors.
No-load speed
V
Volts
Direct current
Regulatory Compliance Mark (RCM). Product meets
applicable regulatory requirements.
Do not dispose of waste batteries, waste electrical and
electronic equipment as unsorted municipal waste.
Waste batteries and waste electrical and electronic
equipment must be collected separately.
Waste batteries, waste accumulators, and light sources
have to be removed from the equipment.
Check with your local authority or retailer for recycling
advice and collection point.
According to local regulations, retailers may have an
obligation to take back waste batteries and waste
electrical and electronic equipment free of charge.
Your contribution to the reuse and recycling of waste
batteries and waste electrical and electronic equipment
helps to reduce the demand of raw materials.
Waste batteries, in particular containing lithium, and
waste electrical and electronic equipment contain
valuable and recyclable materials, which can adversely
impact the environment and the human health if not
disposed of in an environmentally compatible manner.
Delete personal data from waste equipment, if any.
Techtronic Industries Australia Pty Ltd
31 Gilby Road, Mount Waverley,
VIC, 3149, Australia
Techtronic Industries N.Z. Limited
Unit C, 70 Business Parade South,
Highbrook, Auckland 2013, New Zealand
