Fanttik
LightweightTripod
Model: DTI

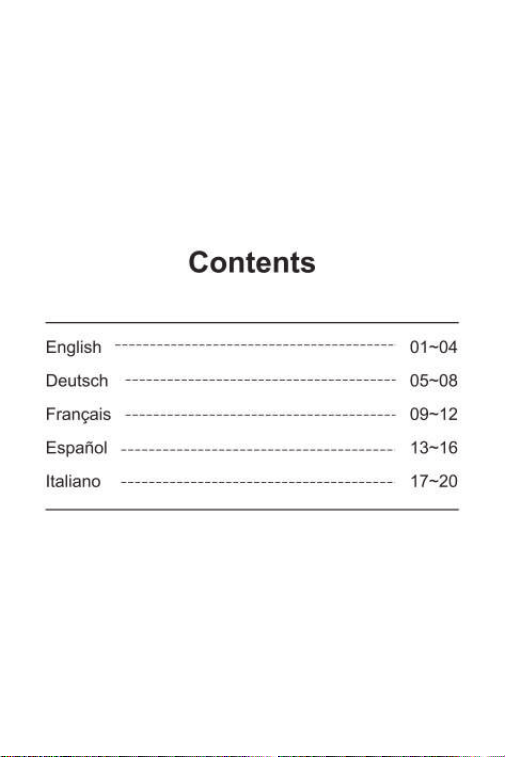

Contents
English
01 —04

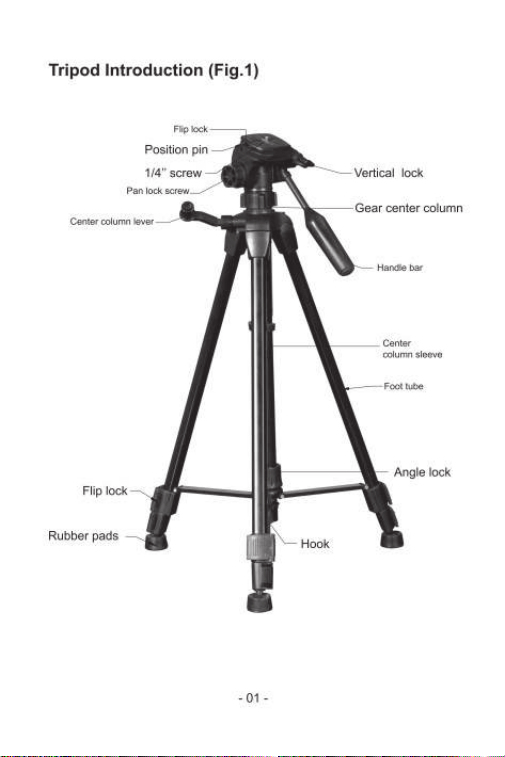

Tripod Introduction (Fig.l)
Fug kkk
position pin
1/4" screw —
Pan lock
Ceter column
Flip lock
Rubber pads
-01-
Vertical lock
Gear center column
- Angle lock
Hook

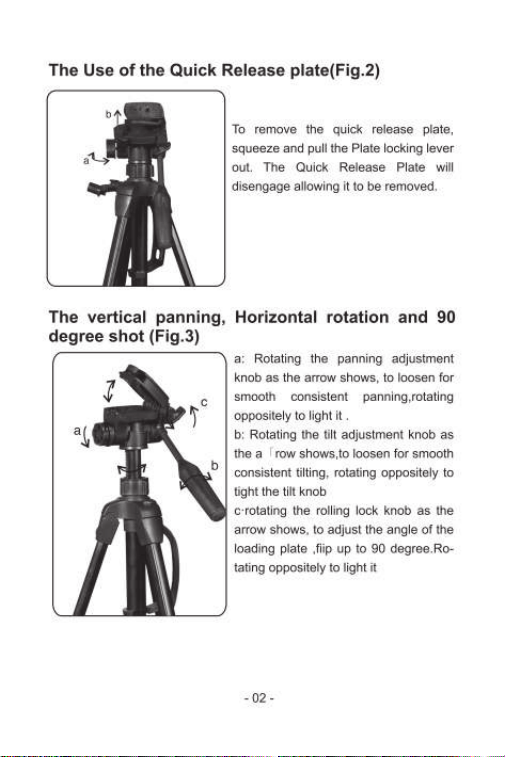

The Use of the Quick Release plate(Fig.2)
The vertical panning,
degree shot (Fig.3)
b
To remove the quick release plate,
squeeze and pull the Plate locking lever
out. The Quick Release Plate will
disengage allowing it to be removed.
Horizontal rotation and 90
a: Rotating the panning adjustment
knob as the arrow shows. to loosen for
smooth consistent panning,rotating
oppositely to light it .
b: Rotating the tilt adjustment knob as
the a i row shows,to loosen for smooth
consistent tilting, rotating oppositely to
tight the tilt knob
c•rotating the rolling lock knob as the
arrow shows, to adjust the angle of the
loading plate .fiip up to 90 degree.Ro-
tating oppositely to light it
-02-

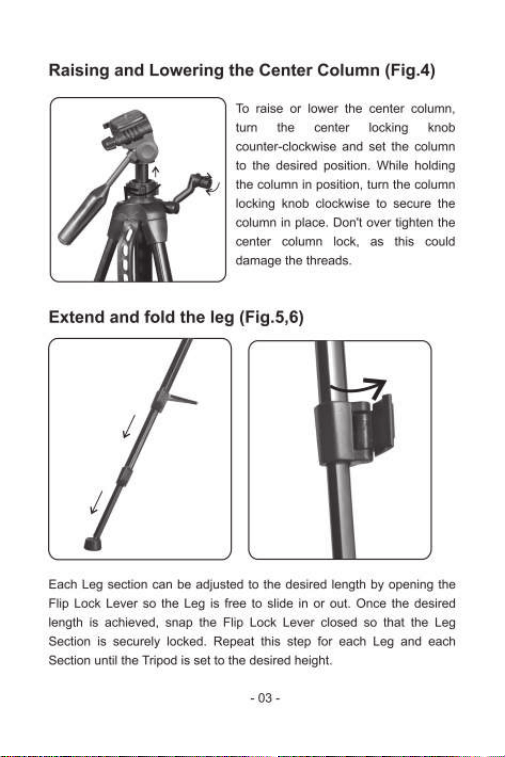

Raising and Lowering the Center Column (Fig.4)
TO raise or lower the center column.
turn the center locking knob
counter-clockwise and set the column
to the desired position. While holding
the column in position, turn the column
locking knob Clockwise to Secure the
column in place, Don't over tighten the
center column lock, as this could
damage the threads.
Extend and fold the leg (Fig.5,6)
Each Leg section can be adjusted to the desired length by opening the
Flip Lock Lever so the Leg is free to slide in or Out. Once the desired
length is achieved. snap the Flip Lock Lever closed so that the Leg
Section is securely locked. Repeat this step for each Leg and each
Section until the Tripod is set to the desired height.
- 03 -

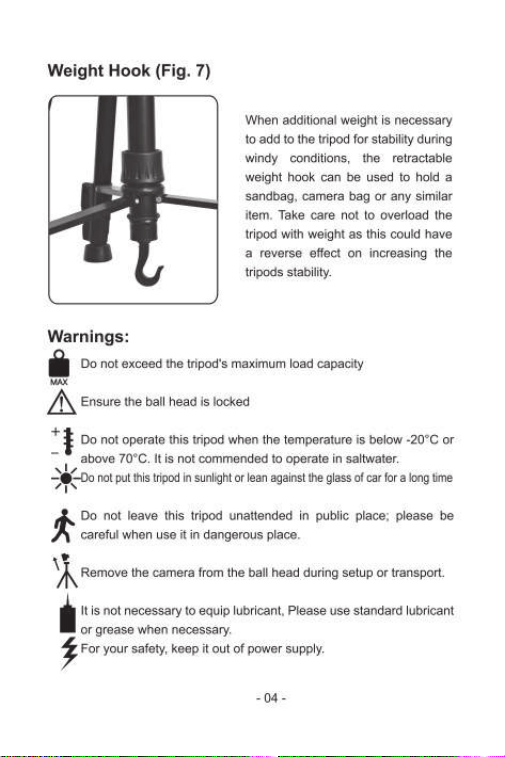

Weight Hook (Fig. 7)
When additional weight is necessary
to add to the tripod for stability during
windy conditions, the retractable
weight hook can be used to hold a
Sandbag, camera bag Or any Similar
item. Take care not to Overload the
tripod with weight as this could have
a reverse effect on increasing the
tripods stability.
Warnings:
DO not exceed the tripod's maximum load capacity
Ensure the ball head is locked
Do not operate this tripod when the temperature is below -200C or
above 700C. It is not commended to operate in saltwater.
—00notputthis tripodin sunlightor leanagainstthe glassofcar fora bng tune
Do not leave this tripod unattended in public place: please be
careful when use it in dangerous place.
Remove the camera from the ball head during setup or transport
It is not necessary to equip lubricant. Please use standard lubricant
or grease when necessary.
For your safety, keep it out of power supply.
-04-
