L1 PROJECTOR
EN
CONTENS
YABER Lifetime Professional Support -------------------------2
Tips -----------------------------------------------2
Package List -----------------------------------------3
Projector Specifications----------------------------------4
Projector Overview -------------------------------------5
Remote Contol ---------------------------------------- 7
Installation ------------------------------------------8
1. Installation Method------------------------------------------- 8
2. Install on the Ceiling ------------------------------------------ 9
Starting Projector------------------------------------- 10
Image Adjustment ------------------------------------ 10
1. Focus Adjustment--------------------------------------------10
2. Digital 4D Keystone Correction ----------------------------------- 11
Setting Up The Projector ---------------------------------11
1. Select The Insert Signal Source ----------------------------------- 11
2. USB Disk Input Mode ----------------------------------------- 11
2.1 Play Video/Audio/Image/Office in the USB Disk Input Mode --------------- 11
2.2 Play Interface -------------------------------------------- 12
2.3 Music Play Interface ---------------------------------------- 14
2.4 Picture Play Interface --------------------------------------- 15
3. WiFi Setting ----------------------------------------------- 16
3.1 iOS Cast (for iOS Devices) ------------------------------------- 16
3.2 MaxhubShare (for Android Devices) ------------------------------ 17
4. Bluetooth Setting -------------------------------------------18
5. Projector Image Setting ---------------------------------------19

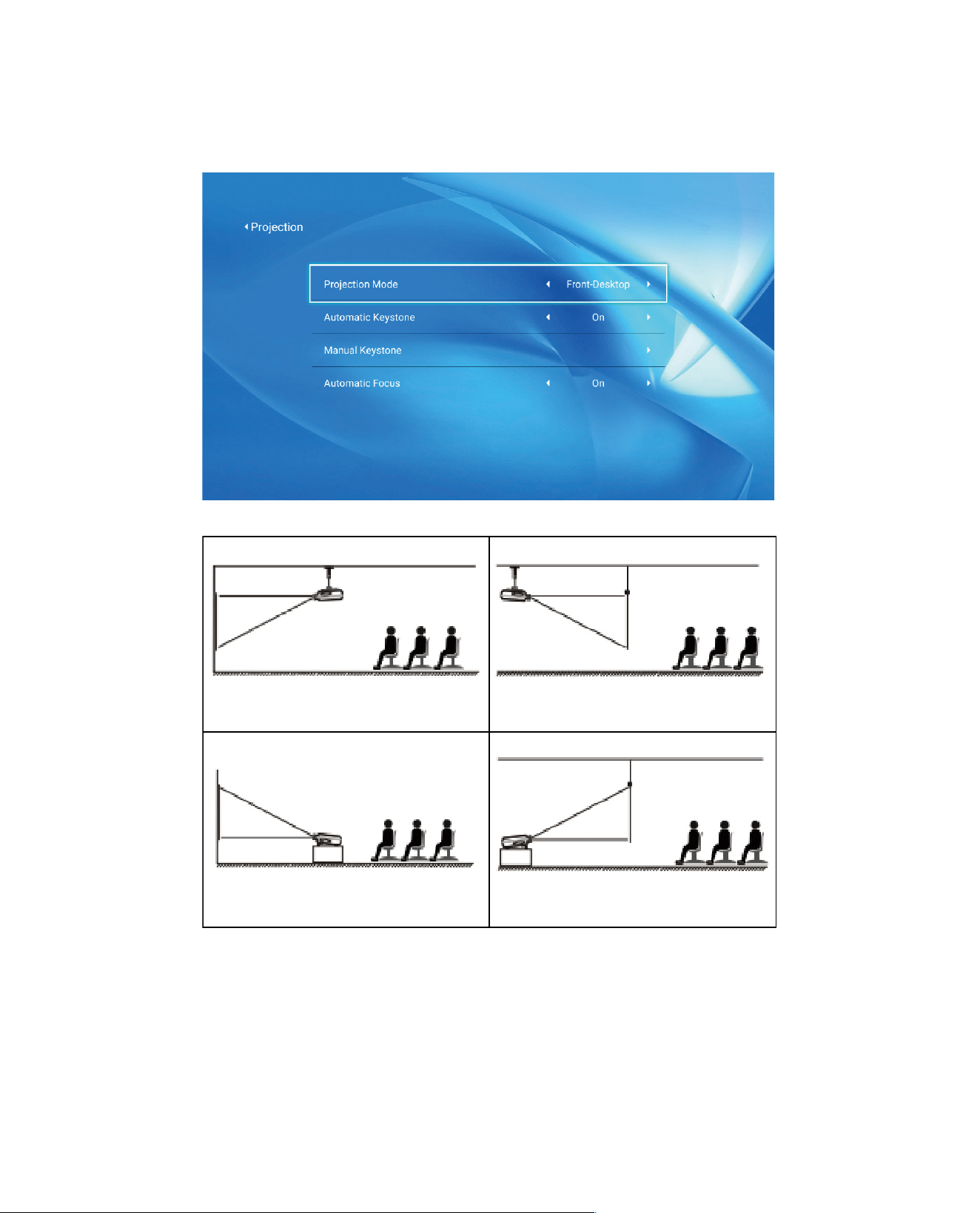

5.1 Projection Mode ------------------------------------------ 19
5.2 Horizontal & Vertical Keystone Correction --------------------------20
5.3 Digital Zoom -------------------------------------------- 21
6. System Update --------------------------------------------- 21
7. Common -------------------------------------------------22
Signal Lines Connection --------------------------------- 23
1. Connect the Devices via the HDMI port ------------------------------23
2. Connect to the DVD Player -------------------------------------23
3. Connect to the Sound bar/Speaker --------------------------------24
Safe Shutdown--------------------------------------- 24
Warranty------------------------------------------- 24
EN 2
YABER Lifetime Professional Support
Tips
Dear customer,
Thank you very much for supporting YABER!
Please read this manual thoroughly before using the projector. If you have any issues, email
your order number and the problem to aftersales@yaber.com We will provide a fast solution
in 24 hours.
Actually, many problems can be easily solved by setting, such as no signal, no sound,
bluetooth connection failed, WiFi connection failed, dark spots, choppy animation etc. We
promise all the projectors have been 100% carefully checked and packaged before shipping.
If you have any questions, could you please contact us so that the problem can been solved.
And give us an opportunity to improve. We guarantee we will provide you a satisfactory
solution.
Thanks for your understanding!
YABER Service Team
1. Do not place projector in too warm or too cold room, because the high temperature or
low temperature will shorten lifespan of the device. The working environment would be
5
℃
~35
℃
better.
2. If there are black spots on the projection screen, please don't worry,please contact
aftersales@yaber.com via email, we can send you a video about how to remove the dust.
3. The projector shall be strictly protected from strong impact, extrusion and vibration. Do
not try to move and on strong impact, extrusion and vibration. Do not try to move and the
internal circuit faults.
4. Lens, as the core component of the projector, is directly related to the picture definition
and effect. The excessive dust thereon will affect image quality. The dirty lens shall be
wiped with soft cotton cloth for the glass lens surface. Hard cloth or abrasives shall not be
used.
EN 3
Package List

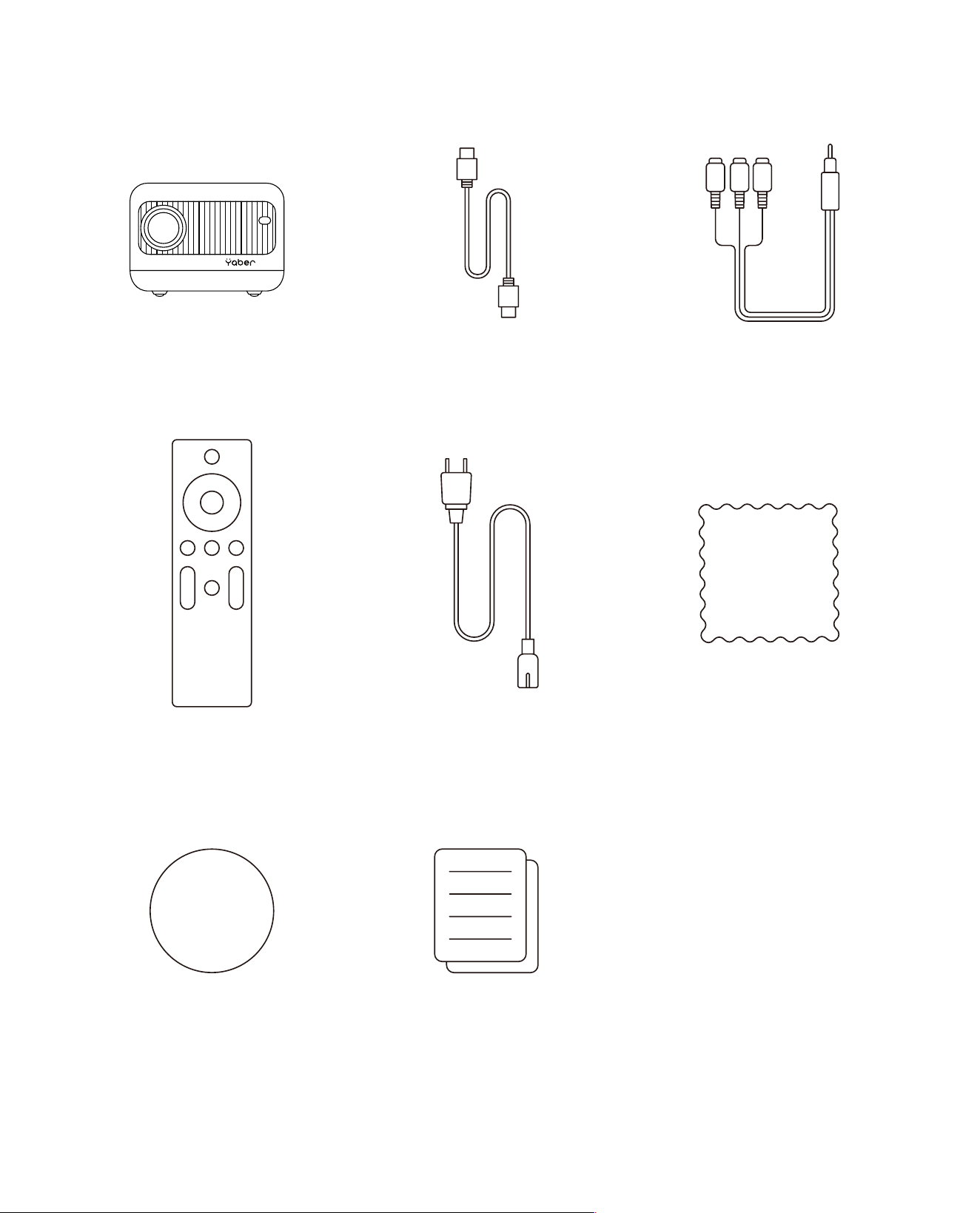

L1 Projector HDMI Cable 3-in-1 AV Cable
Remote Control Power Cord Cleaning Cloth
Lens Cover Quick Start Guide
EN 4
Projector Specifications
Model No. L1
Native Resolution 1080*720P Keystone Correction Manual Vertical
Display Technology LCD Light Source LED
Color Gamut 45% NTSC Aspect Ratio 4:3/16:9
Recommended
Projection Distance
2.62-16.4ft
Minimum Projection
Distance
2.62ft
Power Voltage AC100-240V Projector Weight 8.6lb
Picture File JPG/JPEG/ BMP/PNG Interfaces
HDMI*1/USB*1/
Headphone*1/AV*1
Projection Method Front/Rear on Desk, Front/ Rear on Ceiling
Video File MP4/MKV/WMV/3GP/MPG/VOB/TP/TS/DAT/MOV/FLV
Audio File MP3/AAC/WAV/WMA/M4A/AAC/OGG/FLAC
EN 5

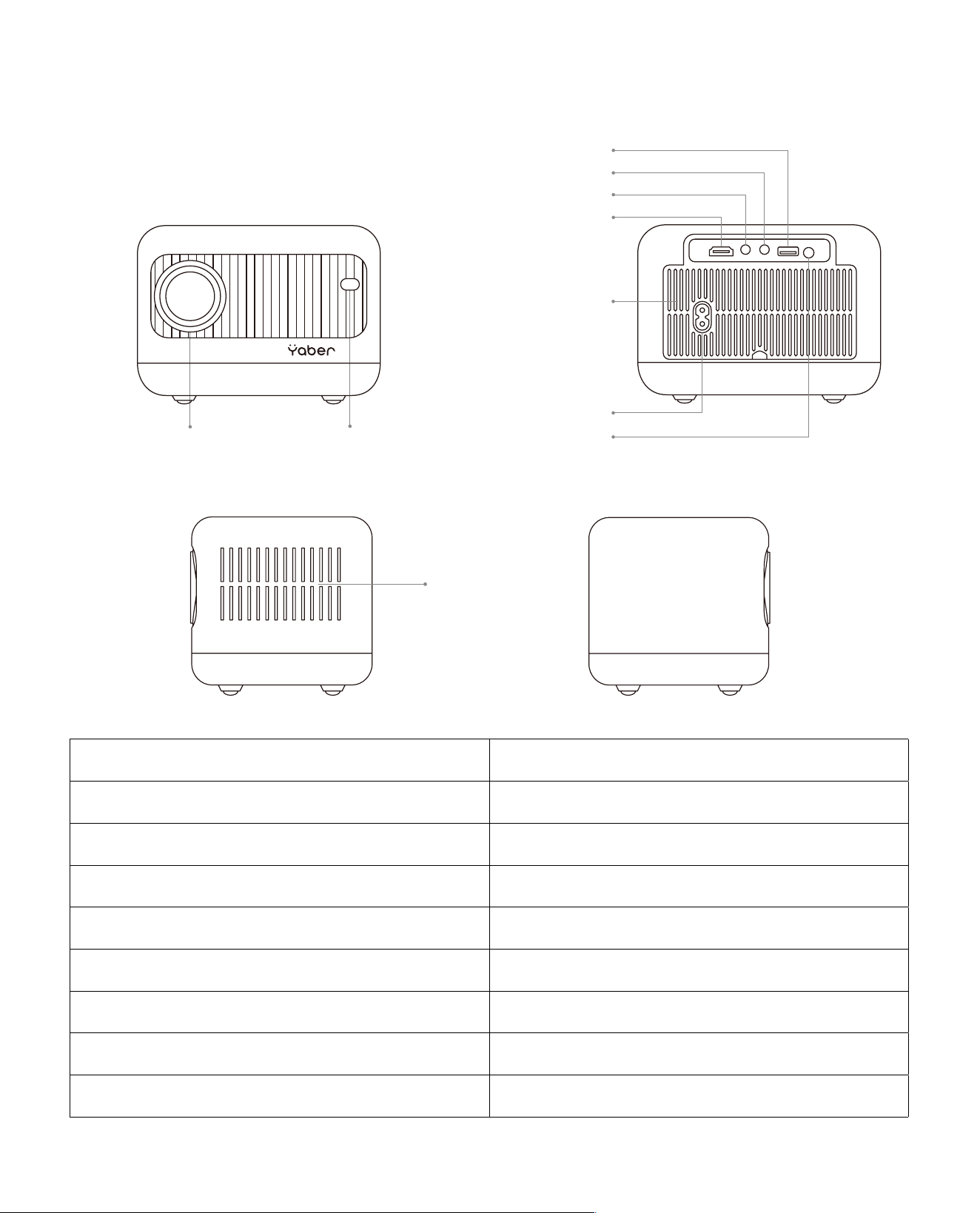

Projector Overview
USB Port
AV Port
Headphone Port
HDMI Port
Air Inlet
Power Port
Projector Lens IR Window
Air Outlet
IR
IR Window Infrared signal receiver
Projector lens Optical coated glass lens
Power Cord Port Power Cord Port
Headphone Jack 3.5mm Headphone Output
HDMI Port HDMI input
USB Port USB port
AV Port Audio input
Air Inlet Prevent the projector from overheating
Air Outlet Prevent the projector from overheating
EN 6
Power Turn on/off the power
Focus + Adjust to clear image
Focus - Adjust to clear image
Buttom Lable Focus - Focus +
Power
Mount Hole
EN 7

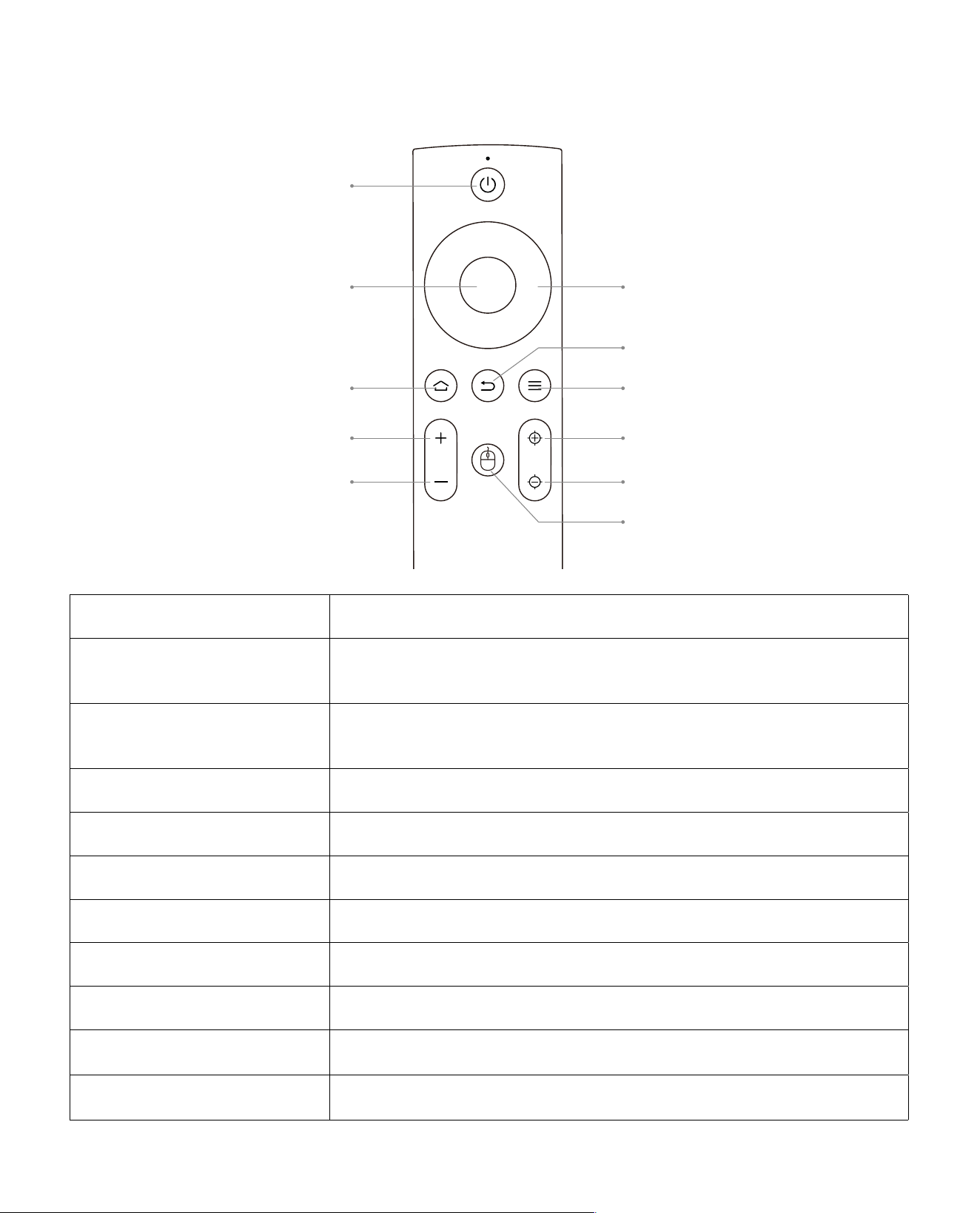

Power
Confirmation key
Back
Mouse Control
Focus -
Focus +
Arrow keys
Menu
Home Page
Volume +
Volume -
Remote Contol
Power Turn on/off the power
Arrow keys
Used to adjust the parameter of the projector in the menu
mode
Menu
Press once: Operate picture and sound settings in AV or HDMI
Mode Press twice in succession: select 16:9/4:3 projection
Home Page Enter the home page
Volume + Volume up
Volume - Volume down
Focus + Adjust to clear image
Focus - Adjust to clear image
Confirmation key Confirm the option/Play or pause the video
Back Return to the previous menu
Mouse Control Active Mouse for Netflix
EN 8
Note:
1. Install 2 pieces of AAA batteries into the remote controller before using it. Do not combine
new batteries with old ones in remote controller, which can cause operation failure due to
insufficient power supply.
2. When using the remote controller, please make sure that the signal transmitter of the
remote controller aims at infrared signal receiver of the projector.
3. If you are not using the remote controller for an extended period, please take out batteries
to prevent batteries leakage.
The projector can be hanged on the ceiling with special hanger frame, and placed on the
stable desk to project the image according to the operating environment and requirements.
In addition, the projector can be installed with following methods:
Keep the projector at a height where its lens is axial symmetry to the screen. If this is not
possible, use the keystone correction function to adjust the projection image. If you want to
get a free projection screen, please contact us via aftersales@yaber.com.
Installation
1. Installation Method

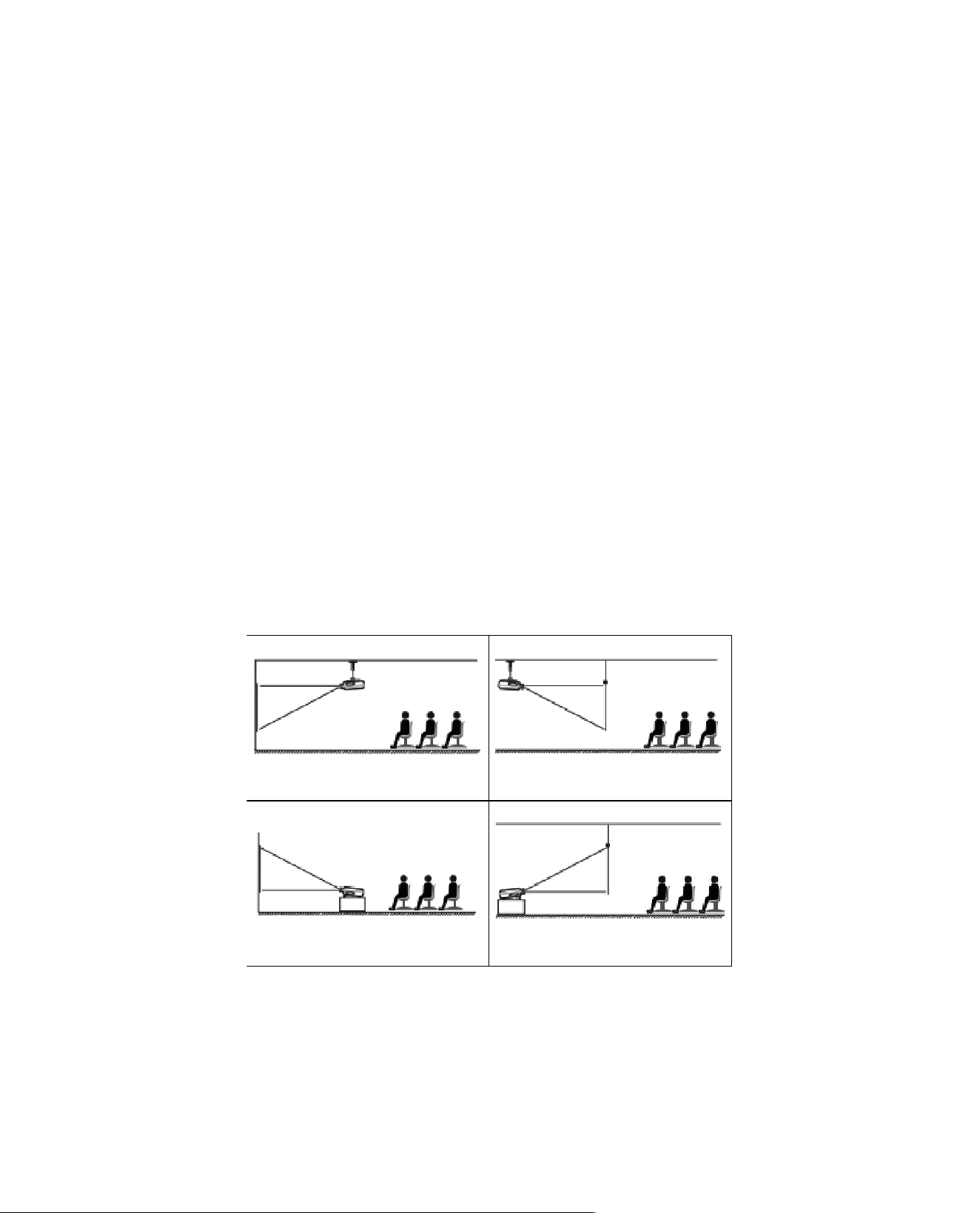

1. Front projection Ceiling mount 2. Rear projection Ceiling mount
3. Front projection Desk mount 4. Rear projection Desk mount
EN 9
The recommended projection distance is about 7.5ft, the shortest projection distance is 4.4ft.
The image size depends on the distance between projector and screen, there may be 3%
deviation among above listed data. Different settings cause various distances.
The projector can be hanged on the ceiling with special hanger frame, and placed on the
stable desk to project the image according to the operating environment and requirements.
In addition, the projector can be installed with following methods:

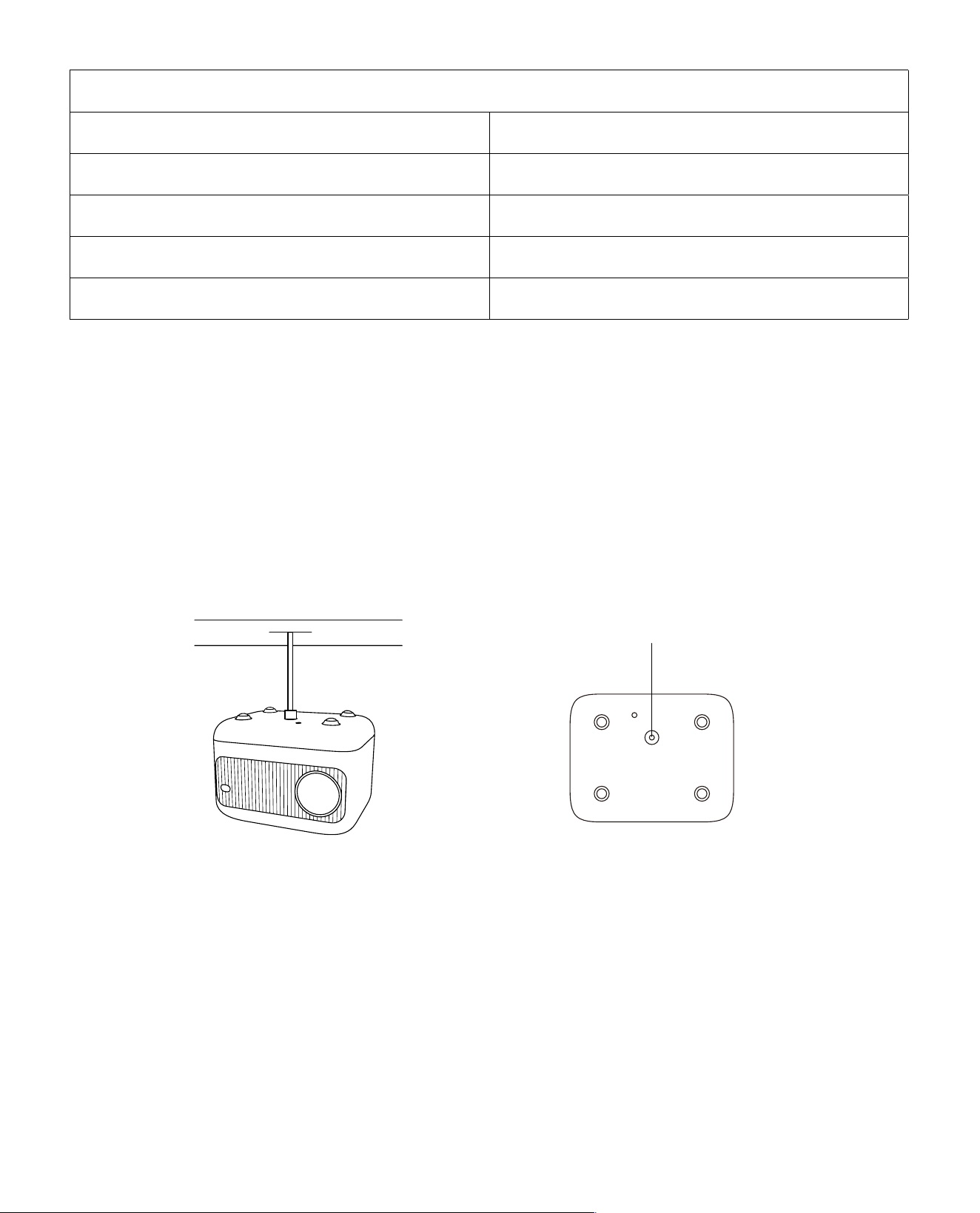

1. Please purchase an universal projector ceiling mount;
2. In the central of the bottom of the projector, you will see the screw holes and use the
M5*11mm screws for installing the ceiling, and then install it.
2. Install on the Ceiling
Aspect Ratio: 16:9
Distance (ft.) Screen Size
4.4 45"
5.9 60"
7.5 80"
9.8 100"
Screw holes
EN 10
Starting Projector
1. Press the power key on the remote controller or projector, the indicator light will turn blue.
2. Use the focus function of the projector to get the best image performance. (If it is still
blurry, please try to adjust the projection distance.)
3. Use the keystone function of the projector to get a rectangle projection screen.
4. Connect the external device (Smart phone, iPad, Fire TV, TV box, DVD player, Computer,
etc.) in the corresponding interfaces of the projector, please be sure to select the
corresponding source. If you do not select the correct source, the projector will not be
able to detect the signal.
5. Select the " " menu, enter the [ Common ], then you can select the option [ Language ]
to set your preferred language.
Image Adjustment
When using the projector for the first time, it normally displays an unclear image. This is due
to the lens being out of focus or the incorrect trapezoid setting.
Please follow the below steps to correct:
1. Focus Adjustment
If the image is not clear. You can use the manual focus function, and press the focus buttons
"F+" and "F-" on the remote control to adjust the focus of the lens, until the image is clear.
Note: If it is still blurry, please try to adjust the projection distance.
FOCUS
HOME
Focus Ring
EN 11
Setting Up The Projector

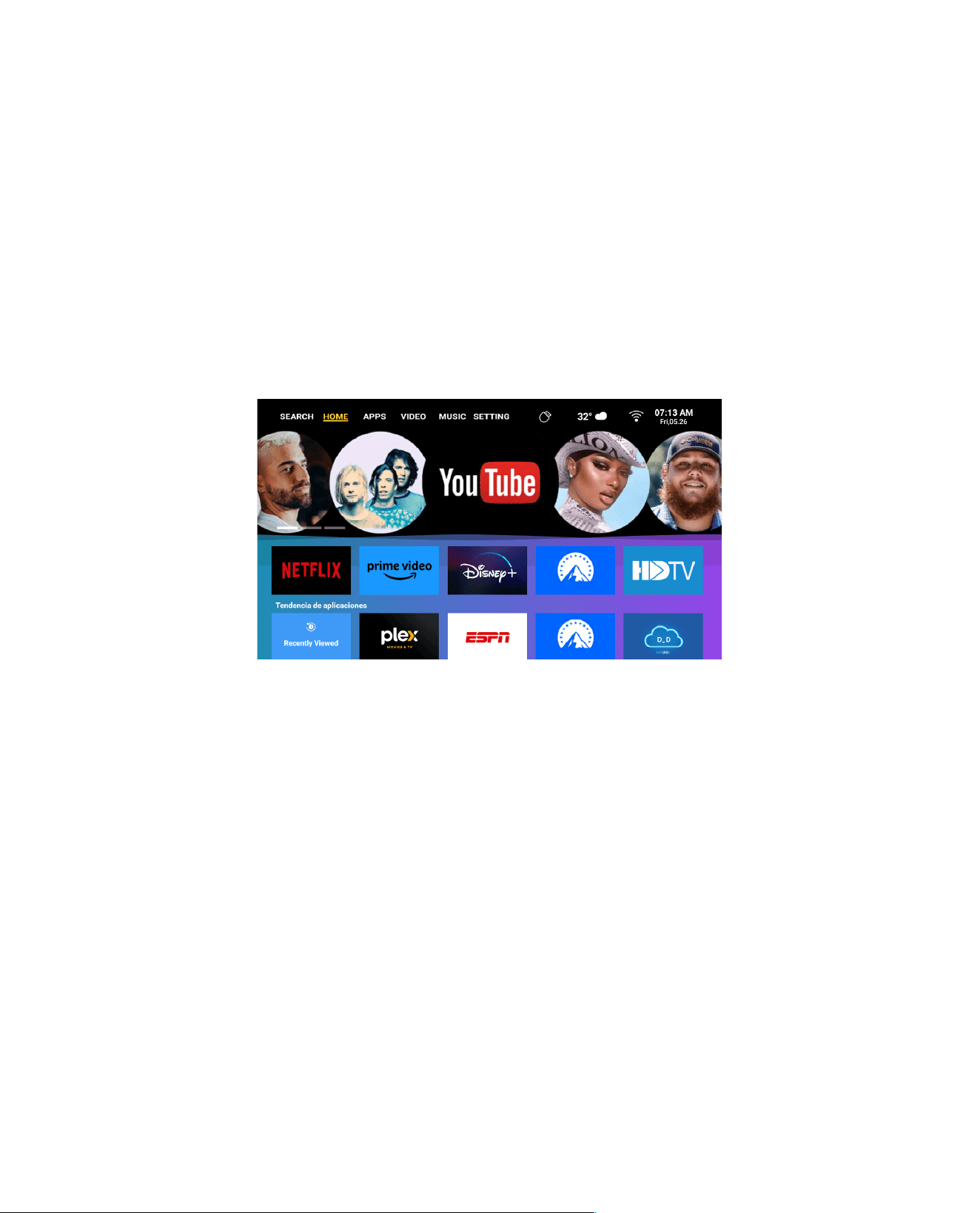

The projector's home page is as follow.
Select the desired insert signal source (HDMI/AV) on the home-page.
Use the digital 4D keystone correction of the projector to change the image to be rectangle
(vertical and horizontal). Detail please refer the page 16 of this manual.
1. Select The Insert Signal Source
2. Digital 4D Keystone Correction
2.1 Play Video/Audio/Image/Office in the USB Disk Input Mode
2. USB Disk Input Mode

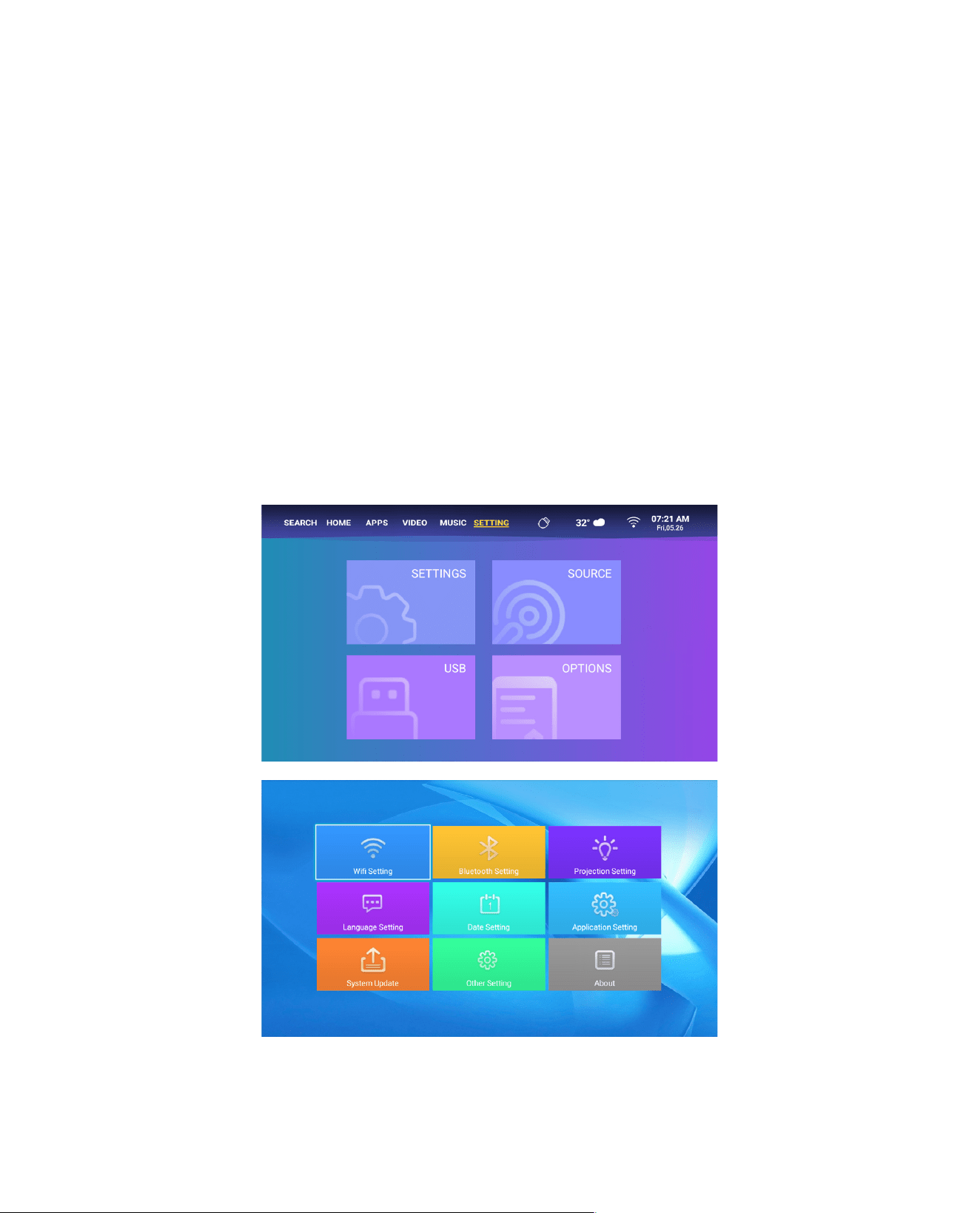

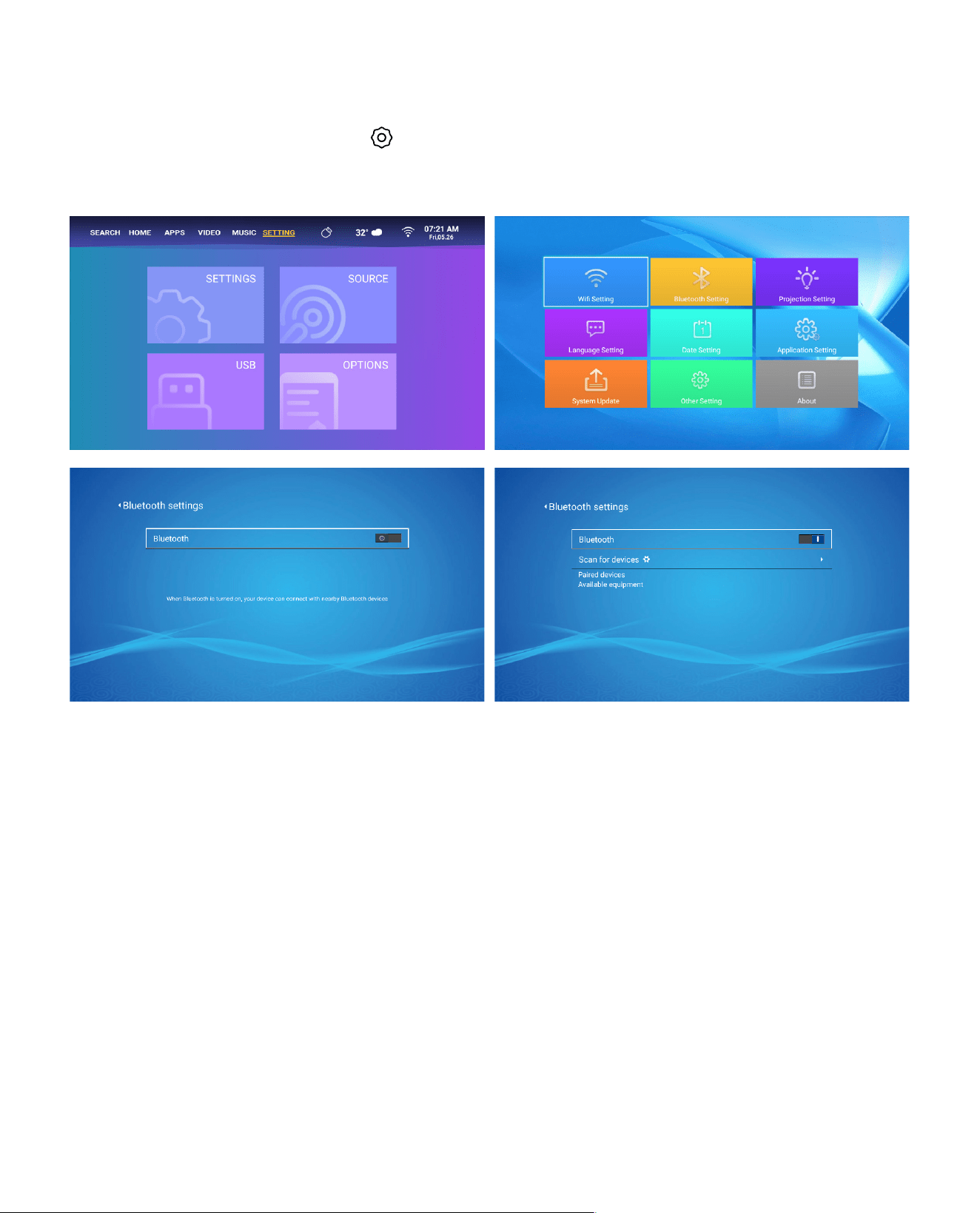

1. Insert the USB Disk, Select the icon [USB] on the Settings Page.
2. Selec the option [All/Video/Audio/Image].
3. Select the desired file (or folder to enter the subfolder) in the USB disk, then press the [ OK ]
button to play it.
EN 12

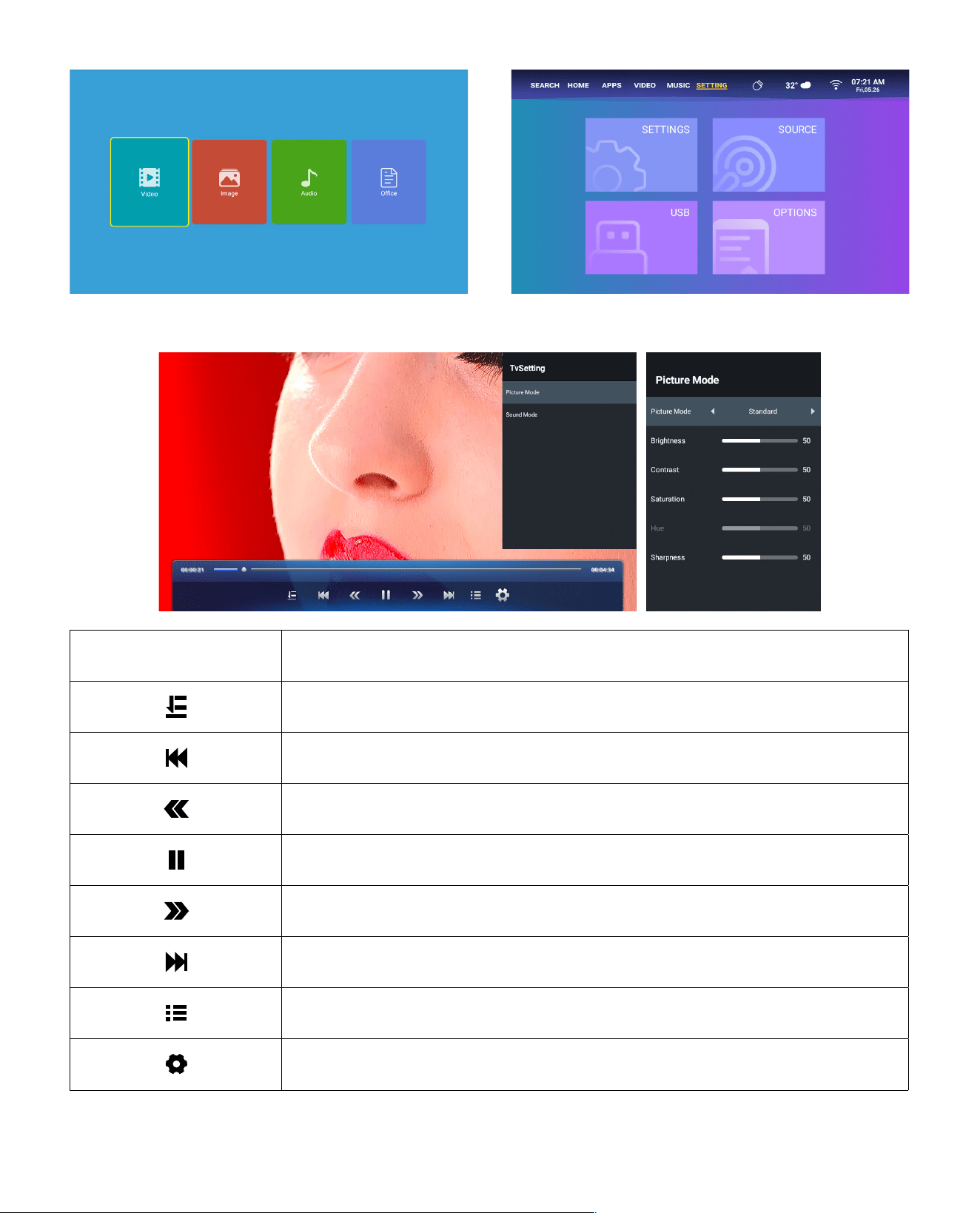

2.2 Play Interface

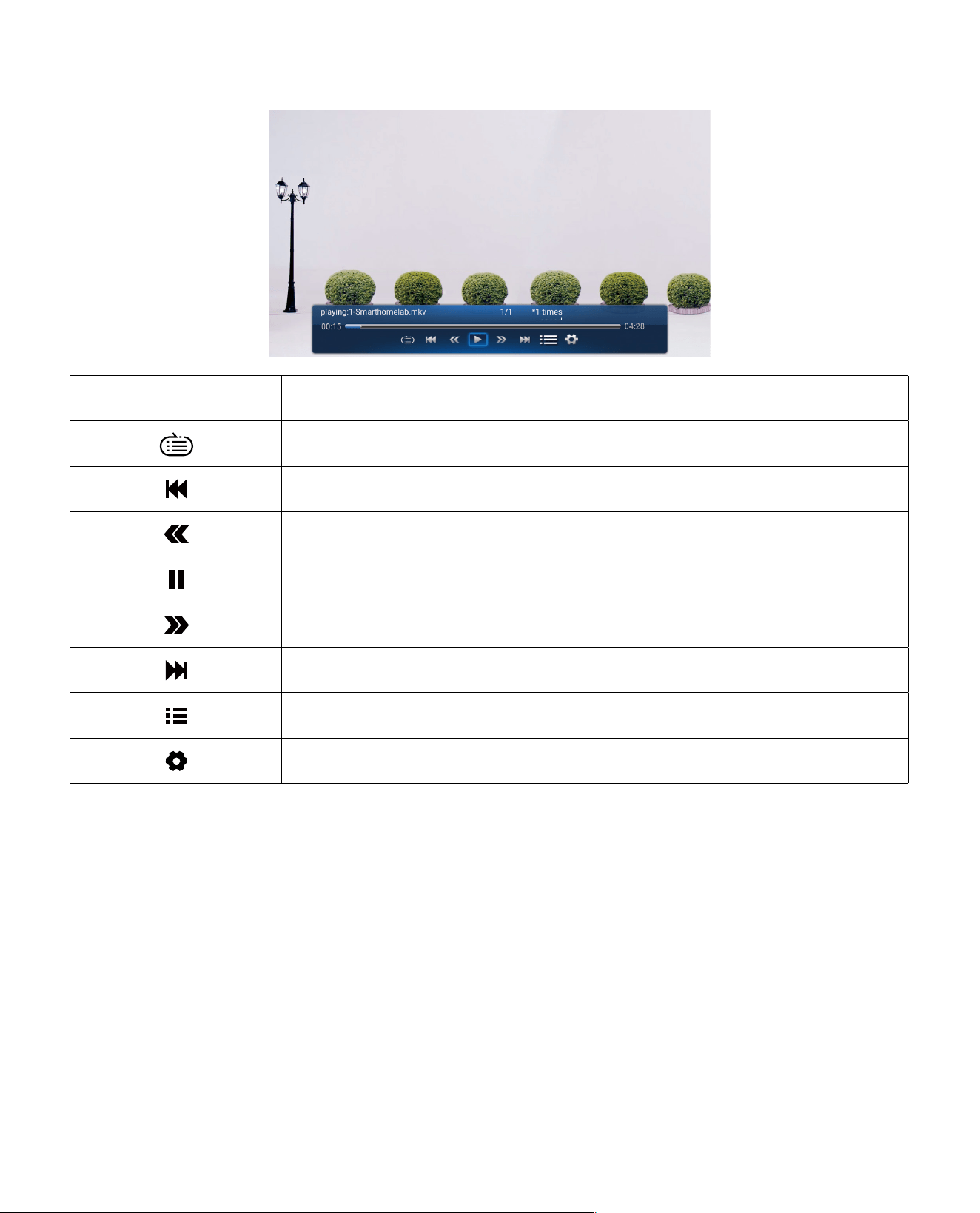

Menu Function
Select play mode (directory play/single cycle/directory loop)
Switch to the previous video
Fast Backward,rewinds the video back quickly while playing it. The
rewinding speed ranges from 2X to 32X
Play or pause the current video
Fast Forward, pushes the video to move forward quickly while playing it.
The forward speed ranges from 2X to 32X
Switch to the next video
Select all playlists in the current folder
Playing settings
EN 13
Playing settings Include Function
Video subtitle close, inner, external
Set multiple modes of video sub-
titles
Breakpoint play close, open
You can set the video continue to
play from the point where it was
stopped
Audio track Audio track You can see the audio information
Display mode 16:9, full, over, auto, 4:3 You can set the video aspect ratio
Picture settings
Picture Mode, Color Temperature,
Reset to Default
You can set the picture information
Sound settings
Sound Style, Equalizer Detail, Reset
to Default
You can set the sound information
Menu Content Mode Function
Picture Mode
Standard/Vivid/Soft/
Pc Mode/User
Brightness
Modify the picture
parameters in the
range 0-100
Contrast
Saturation
Hue
Sharpness
Sound Mode
User/Standard/News/
Music/Movie/Sports
120Hz
Modify the sound
parameters in the
range 0-100
500Hz
1.5KHz
5KHz
10KHz
EN 14
2.3 Music Play Interface
Menu Function
Select play mode (directory play/single cycle/directory loop)
Switch to the previous video
Fast Backward, rewinds the video back quickly while playing it. The
rewinding speed ranges from 2X to 32X
Play or pause the current video
Fast Forward, pushes the video to move forward quickly while playing it.
The forward speed ranges from 2X to 32X
Switch to the next video
Select all playlists in the current folder
Playing settings
EN 15

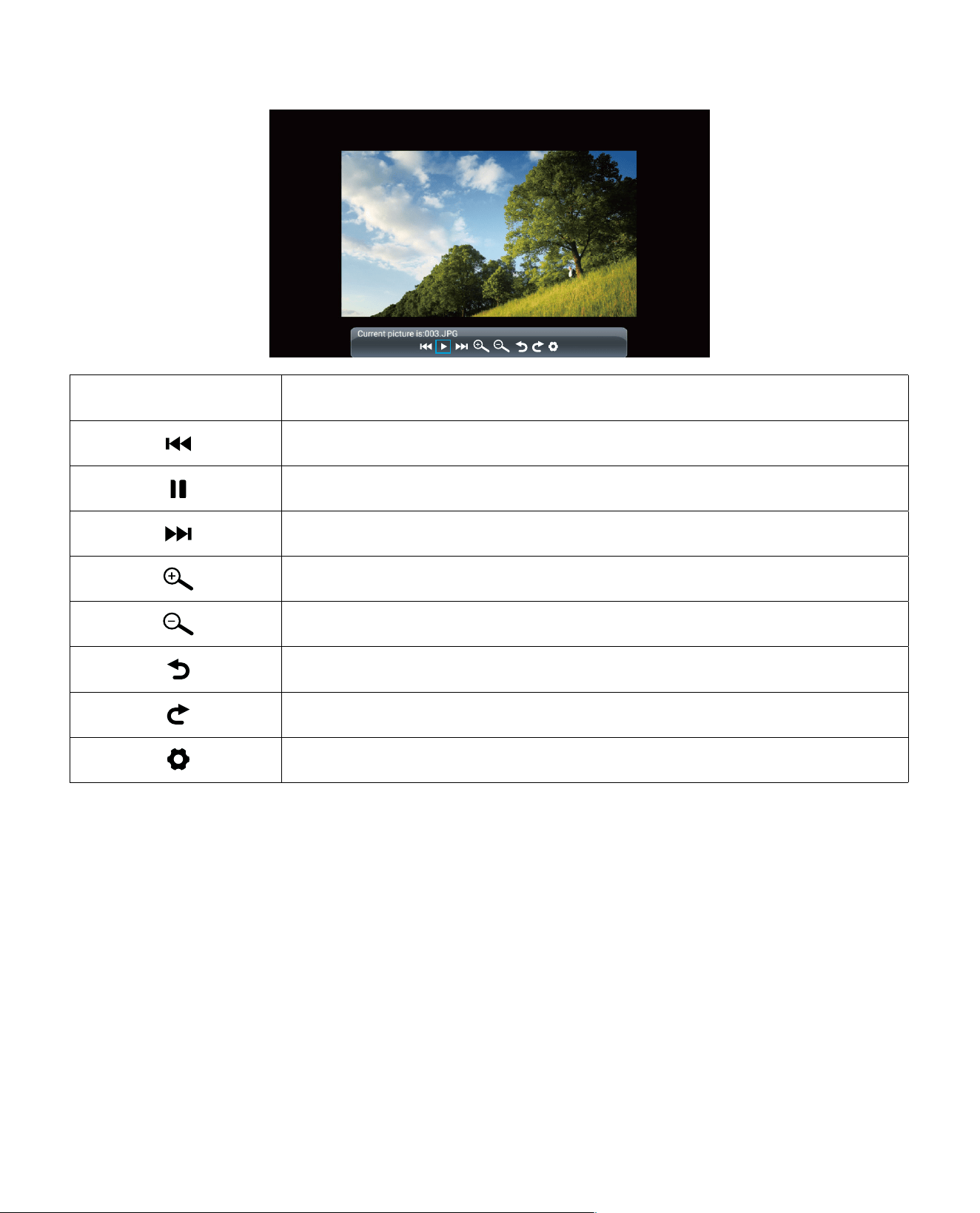

2.4 Picture Play Interface
Menu Function
Switch to the previous picture
Play or pause the current picture
Switch to the next picture
Zoom in image
Zoom out image
Flip picture 90°to the left
Flip picture 90°to the right
Set the picture information
EN 16
Wireless Connection
Warming Tips:
1. The fluency of screen mirroring with wireless connection will be affected by the network
environment. A bandwidth of 100Mbit or more is recommendedwhen using screen
mirroring.
2. Make sure your mobile device is close to the projector when using wireless connection. A
distance within 1 meter is recommended.
3. Some mobile devices may not support screen mirroring due to the compati- bility.
4. Any questions, please feel free to email YABER via aftersales@yaber.com.
1. Go to Settings page - Select [ SETTINGS ] - Select [ Wifi Setting ]- Connect to your home
WiFi from the list.
2. Select the [ SETTINGS ] menu on your iOS device - Turn on the [ Wi-Fi ] function - Connect
your iOS device to the same home network as the projector.
3.1 iOS Cast (for iOS Devices)
3. WiFi Setting
EN 17
3.2 MaxhubShare (for Android Devices)
3. Open the [ Control Center ] on your iOS device - Select the [ Screen Mirroring ] function -
Select and connect the iOS Cast receiver named [ L1-XXXX ] - your iOS device screen will
be displayed on the projection screen after 3 seconds.
1. Go to “APPS” page - Select "My Apps" row - Find [ iOS Cast ] App - Press the OK button to
enter the [ iOS Cast ] menu.
3. On your Android device, tap [ Settings ] - [ WLAN Display ] - Turn [ Wi-Fi ] ON, Connect your
home WiFi.
Note:
1. Different brands of Android phones have different operations for select Screen Mirroring
Display, please refer to your phone’s manual. [ Multiscreen/Wireless display/WLAN display/
Screen mirroring/Wireless projection/Smart view etc. ]
2. Not all Android phones support this function. Please make sure it is supported before use.
2. Select the [ Settings ] menu on your Android device -- Select the [ Screen mirroring ]
function -- Select your Miracast receiver named [ L1-AnCast-XXXX ]-- your Android device
screen will be displayed on the projection screen after 3 seconds.
Wireless Projection
Available devices
t-XXXX
HELPC ANCEL
L1-Cas
Wireless Projection
Available devices
Connected
L1-Cast-XXXX
CANCELDI SCONNECT
EN 18
Go to setting page -- Select the [ ] -- Select the [ Bluetooth ] Option -- Open the Bluetooth
function and your Bluetooth device -- Scan the Bluetooth devices nearby automatically --
Choose the Bluetooth device desired -- it will be paired and connected automatically.
4. Bluetooth Setting
Note:
1. The L1 projector is compatible with the Bluetooth headsets, Bluetooth speakers and
Airpods, but not the Bluetooth keyboards or Bluetooth phones.
2. If you have any question, please feel free to email YABER via: aftersale[email protected]om
EN 19
5. Projector Image Setting
5.1 Projection Mode
1. Front projection Ceiling mount 2. Rear projection Ceiling mount
3. Front projection Desk mount 4. Rear projection Desk mount
EN 20
OK Pick point : Press the OK button on the remote controller or projector to enter the
adjustment interface.
Adjustment : Press the arrow keys on the remote controller or projector to adjust the
horizontal or vertical parameters.
Back : Press the key on the remote controller to back to previous page.
Reset : Press the key on the remote controller to restore the original parameters.

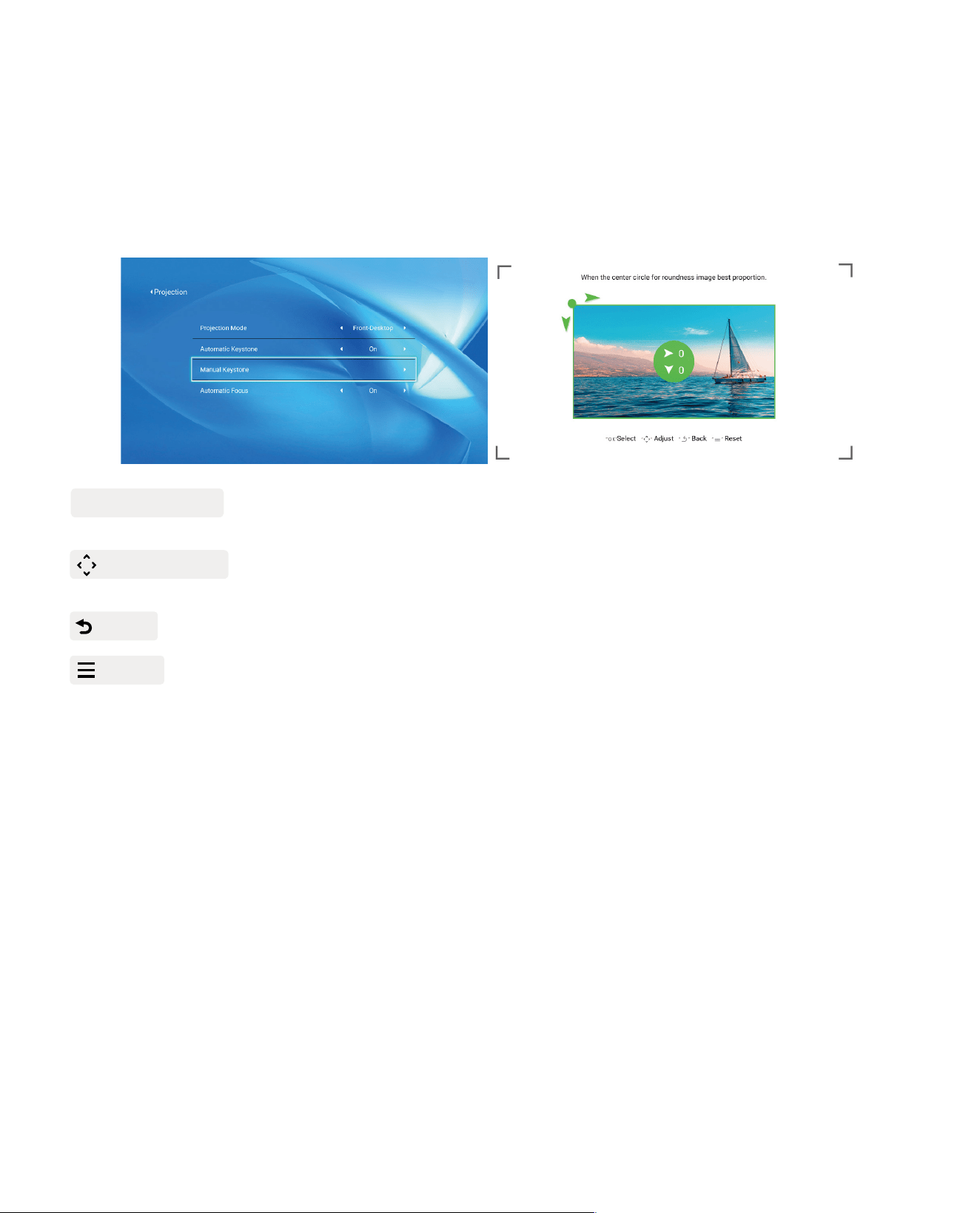

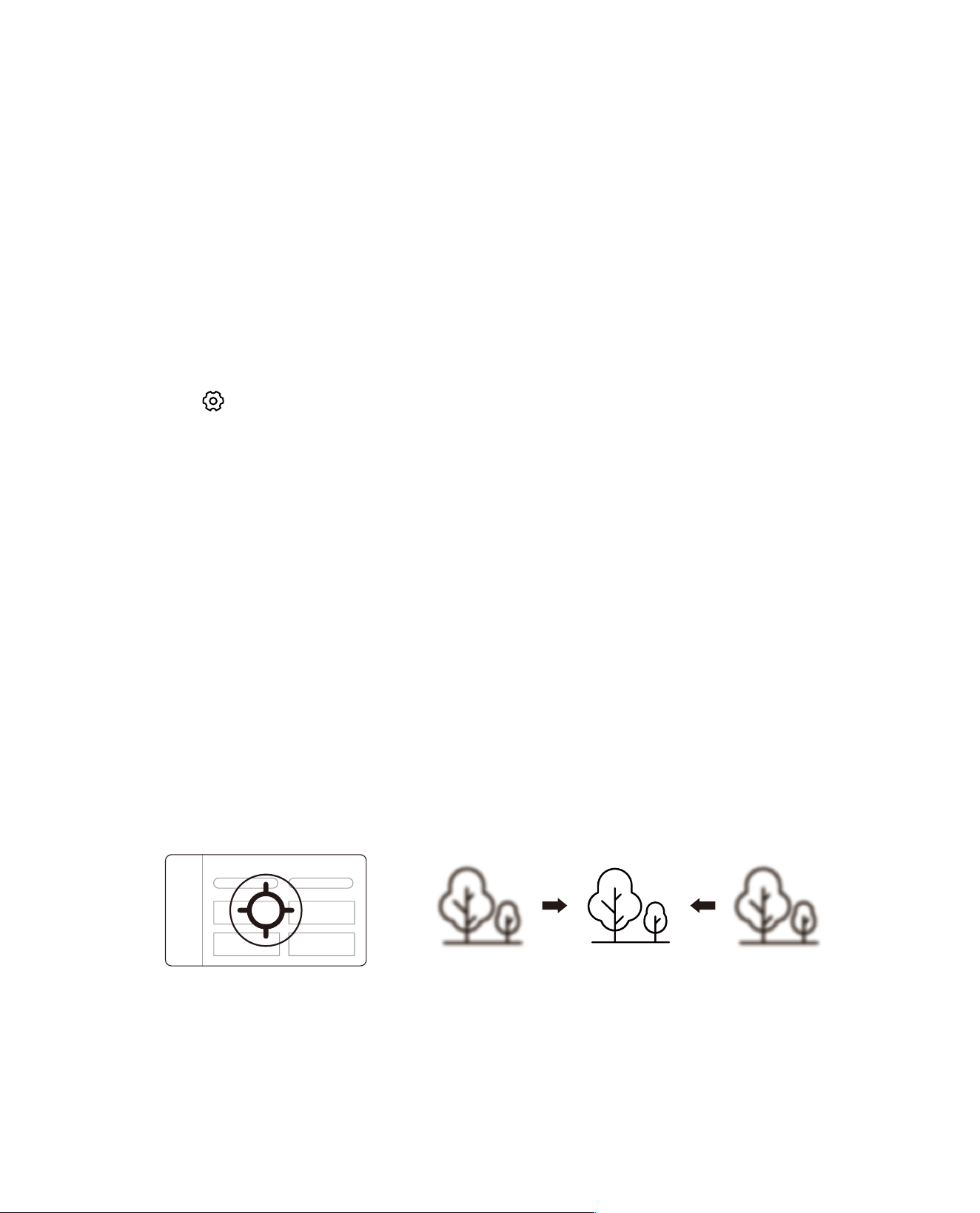

5.2 Horizontal & Vertical Keystone Correction
When the projection screen is not rectangular, it can be adjusted by 4-point keystone correction.
Step 1: Go to "SETTING" page - Select the [ SETTINGS ] menu - Select the [Projection Mode] option.
Step 2: Press the arrow keys on the remote controller or projector to adjust the horizontal or
vertical parameters, until the projection screen becomes the desired rectangle.
EN 21

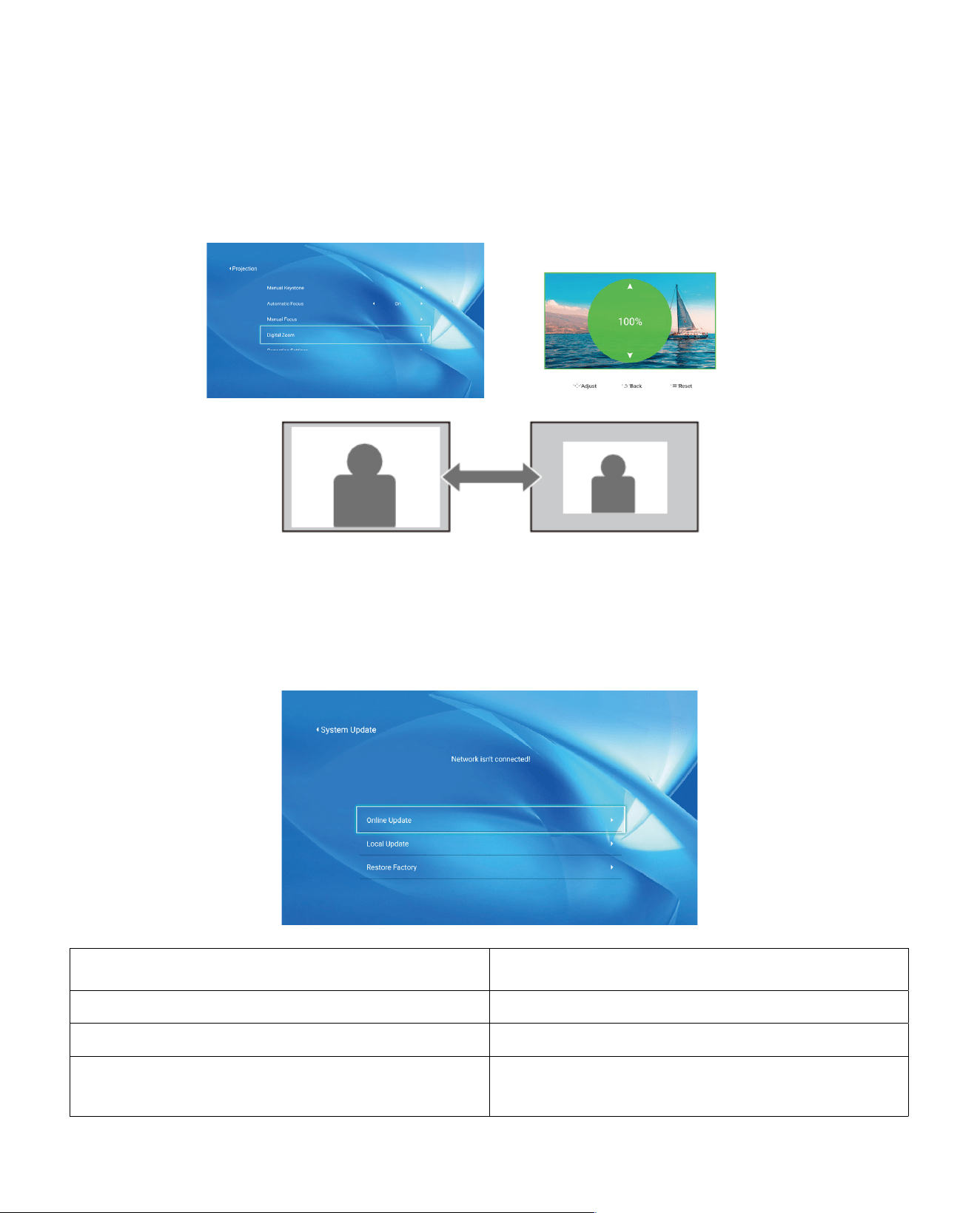

5.3 Digital Zoom
6. System Update
Step 1: Select the [ Digital Zoom ] option and press the OK button on the remote controller or
projector to enter the submenu.
Step 2: By pressing the button on the remote controller or projector, you can reduce the
height and width of projection size up to 50%.
Menu Function
Online Update Online update
Local Update Local update
Restore Factory
Restore user operation application configuration
and system setting
EN 22

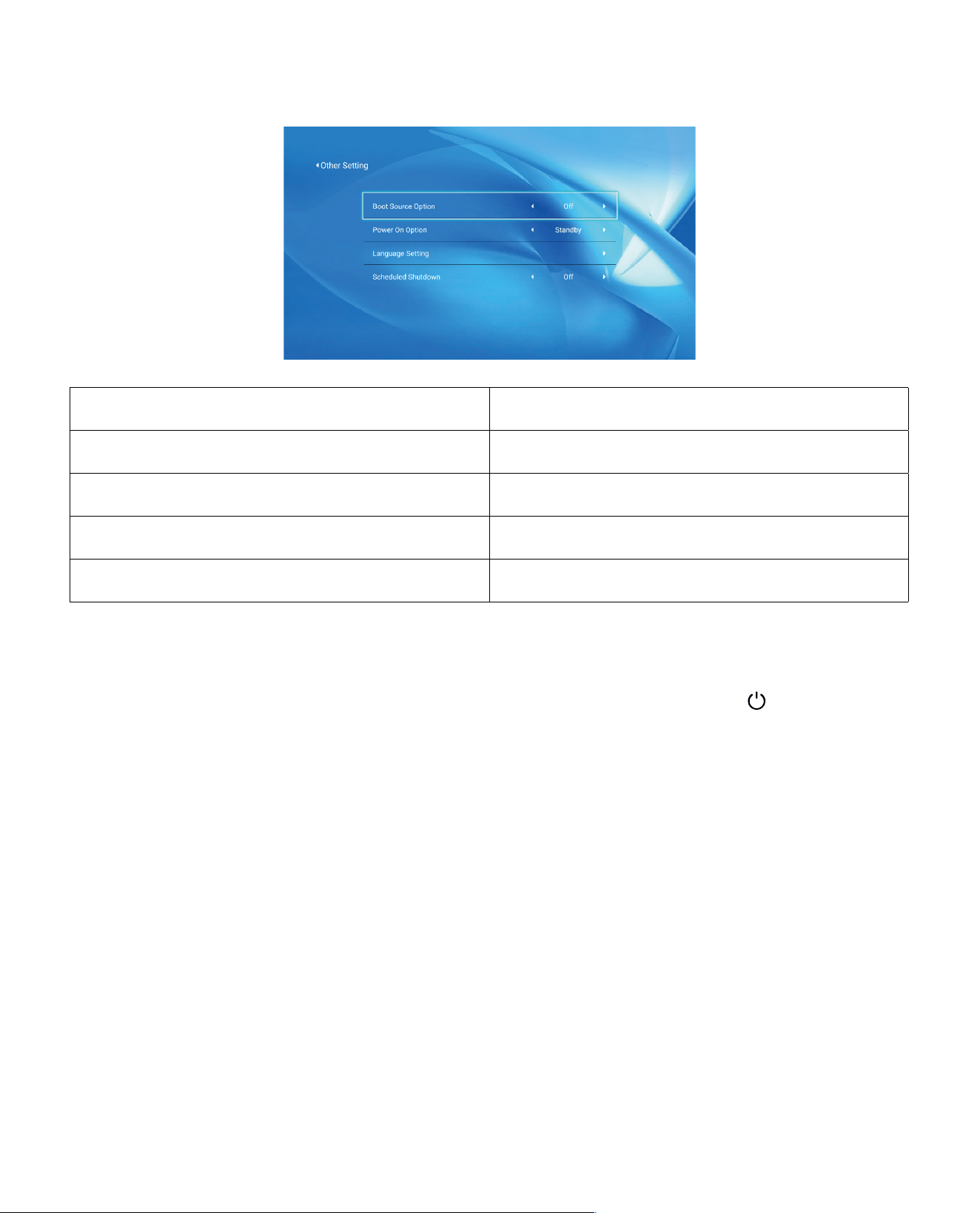

7. Common
Menu Function
Boot Source Option Off/HDMI/AV
Power On Option Direct/Standby
Language Setting Set up the language
Scheduled Shutdown Off/10min/20min/30min/60min/120min
About the Direct/Standby Power On Option
Direct Mode: When the projector is powered on, the projector will be automatically turned on.
Standby Mode: When the projector is powered on, you need to press the [ ] button on the
remote controller or projector to turn on the projector.
EN 23
Signal Lines Connection

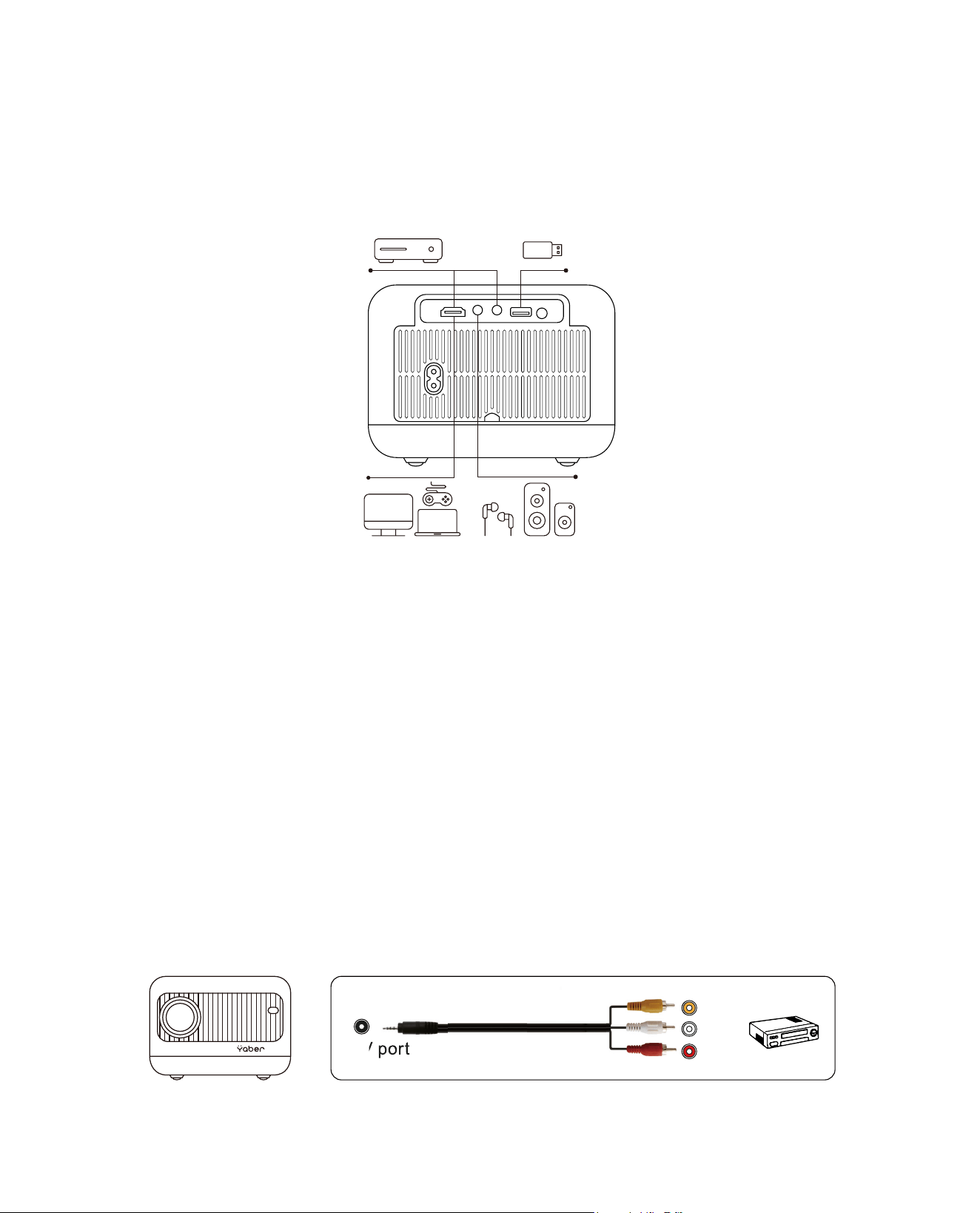

YABER L1 projector has 4 interfaces, HDMI port/ USB port/ 3.5mm headphone output/ AV
in. Please select the correct connecting port to connect your device (PC, Phone, DVD Player,
Sound bar, USB, PS4 etc.)
1. Connect your TV stick or laptop to HDMI port of the projector.
2. Enter the home page to select the corresponding HDMI as the signal source.
Use the 3-in -1 AV cable in the package
1. Connect your TV stick or laptop to HDMI port of the projector.
2. Connect the colorful female connectors to your DVD player's RCA cable with the 3-in-1 AV
cable in the package.
3. Connect the black connector to the AV port of the projector, enter the home page to
select [ AV ] as the signal source.
1. Connect the Devices via the HDMI port
2. Connect to the DVD Player
Video
Left
AV port
Right
Or connect to the DVD Player with the HDMI cable in the package.
DVD
EN 24
If your speaker has AUX port, please use your 3.5mm audio cable connect the projector and
your speaker as the picture shows, enter the home page to select [ AV ] as the signal source.
1. Press the [ ] button on the projector or remote controller, then press OK key to power off
the projector.
2. Unplug the power cord of the projector.
3. Cover the lens and store the projector in a cool and dry place.
Thank you so much for your purchase and support! We provide 3-year warranty for Pro U6
projector. If you have any questions, please feel free to contact us via
purchased from Amazon: support@yabertech.com
purchased from others: aftersales@yaber.com
3. Connect to the Sound bar/Speaker
Audio
out
AUX
port
Safe Shutdown
Warranty
Declaration of Conformity
We (EU based importer is responsible for this declaration)
Prolinx GmbH
(Company name)
Brehmstr.56, 40239 Duesseldorf, Germany
(Company address)
declare under our sole responsibility that the product
Trade name: Yaber
Equipment: Entertainment Projector
Model No. : L1
to which this declaration relates is in conformity with the essential requirement set out in the
Council Directive on the Approximation of the laws of the Member States relating to RED
Directive(2014/53/EU) & RoHS(2011/65/EU) product is responsible to affix CE marking, the
following standards were applied:
EN 62368-1:2014+A11:2017
EN IEC 62311:2020
ETSI EN 301 489-1 V2.2.3(2019-11)
ETSI EN 301 489-17 V3.2.4(2020-09)
ETSI EN 301 489-3 V2.1.1(2019-03)
EN 55032:2015+A11:2020
EN 55035:2017 +A11:2020
EN IEC 61000-3-2:2019
EN 61000-3-3:2013+A1:2019
ETSI EN 300 328 V2.2.2(2019-07)
ETSI EN 301 893 V2.1.1(2017-05)
ETSI EN 300 440 V2.2.1(2018-07)
IEC62321-3-1:2013
IEC62321-4:2013
IEC62321-5:2013
IEC62321-6:2015
IEC62321-7-1:2015
IEC62321-7-2:2017
IEC62321-8:2017
Full Name: George.wang Position: Approbation Manager
Signature: Place/Date: Shenzhen,China/Mar.22-2022
Scan and download the PDF User Manual
Where to Get More Help
Support@yabertech.com aftersales@yaber.com www.yaber.com
@Yaber Entertainment Projector @Yaber Entertainment Projector
