Item #1005 806 011
Model #52192
UL Model #EF200F-44
USE AND CARE GUIDE
CASTLEGATE 44-INCH CEILING FAN
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
right corner of the cover of this instruction manual, in the search eld.
2. Click on your product from the list of search results and click on the video link in the
“Product Overview” section.
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and condence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
2
Table of Contents ................................................................ 2
Safety Information ...............................................................2
Warranty ............................................................................... 3
Pre-Installation ....................................................................3
Installation ............................................................................6
Assembly ..............................................................................7
Operation ...........................................................................14
Care and Cleaning ............................................................. 15
Troubleshooting .................................................................15
1. To reduce the risk of electric shock, ensure the electricity has been
turned off at the circuit breaker or fuse box before you begin.
2. All wiring must be in accordance with the National Electrical Code
ANSI/NFPA 70 and local electrical codes. Electrical installation
should be performed by a qualified licensed electrician.
3. The outlet box and support structure must be securely mounted
and capable of reliably supporting 35 lbs (15.9 kg). Use only UL
Listed outlet boxes marked “Acceptable for Fan Support of 35 lbs
(15.9 kg) or less”.
4. CAUTION: The fan must be mounted with a minimum of 7 ft (2.1 m)
clearance from the trailing edge of the blades to the oor.
5. Do not operate the reversing switch while the fan blades are in
motion. You must turn the fan off and stop the blades before you
reverse the blade direction.
6. Do not place objects in the path of the blades.
7. To avoid personal injury or damage to the fan and other items, use
caution when working around or cleaning the fan.
8. Electrical diagrams are for reference only. Light kits that are not
packed with the fan must be UL-listed and marked suitable for use
with the model fan you are installing. Switches must be UL General
Use Switches. Refer to the instructions packaged with the light kits
and switches for proper assembly.
9. After making electrical connections, spliced conductors should be
turned upward and pushed carefully up into the outlet box. The
wires should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box and
the ungrounded conductor on the other side of the outlet box.
10. All setscrews must be checked and retightened where
necessary before installation.
WARNING: To reduce the risk of personal injury, do
not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do
not insert objects in the path of the blades.
WARNING: To avoid possible electrical shock, turn
the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
WARNING: Electrical diagrams are for reference
only. Optional use of any light kit shall be UL-listed
and marked suitable for use with this fan.
Safety Information
Table of Contents
CAUTION: To reduce the risk of personal injury, use
only the screws provided with the outlet box.
READ AND SAVE THESE INSTRUCTIONS.
CAUTION: Changes or modications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
CAUTION: Do NOT use this fan with a dimmer
switch or wall control. Using a dimmer switch or
wall control will damage the fan.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
WARNING: To reduce the risk of re or electric
shock, do not use this fan with any other solid-
state speed control device.
3
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Pre-Installation
Warranty

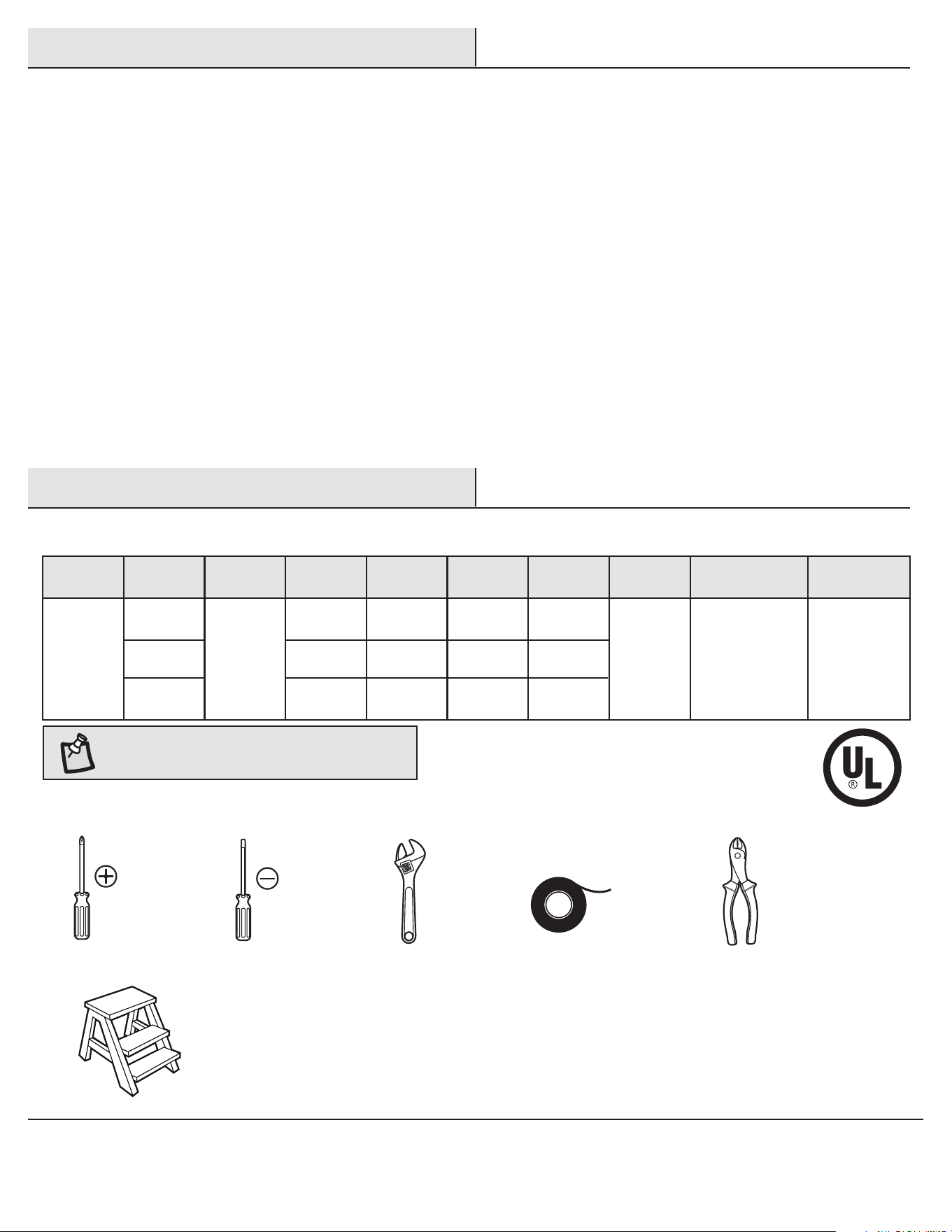

SPECIFICATIONS
TOOLS REQUIRED
NOTE: These are approximate measures. They do not
include the Amps and Wattage used by the light kit.
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter
Step ladder
Size Speed Volts Watts Amps RPM CFM
Net
Weight
Gross
Weight
Cubic Feet
44 in.
Low
Medium
High
120
15.16
29.16
50.80
0.25
0.34
0.43
107
149
193
2698
3337
4278
12.30 lbs
(5.60 kgs)
16.10 lbs
(7.30 kgs)
1.30 cu.ft.
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a
lifetime after the date of purchase by the original purchaser. The supplier warrants that the light kit, excluding any glass, to be free from defects in
workmanship and material at the time of shipment from the factory for a period of three years after the date of purchase by the original purchaser.
The supplier also warrants that other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the
time of shipment from the factory for a period of one year after the date of purchase by the original purchaser. We agree to correct such defects
without charge or at our option replace with a comparable or superior model if the product is returned. To obtain warranty service, you must present
a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product are your responsibility. Damage to any part, such as by
accident, misuse, improper installation, or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this
warranty does not cover any changes in brass nish, including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their
longest useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.
Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Hampton Bay hereby disclaims
any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law. The
duration of any implied warranty, which cannot be disclaimed, is limited to the time period as specied in the express warranty. Some states do not
allow a limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental,
consequential, or special damages arising out of or in connection with product use or performance except as may otherwise be accorded by law.
Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This
warranty gives specic legal rights, and you may also have other rights that vary from state to state. This warranty supersedes all prior warranties.
Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.HamptonBay.com.
4
Pre-Installation (continued)
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
Part Description Quantity
AA Leadwire 1
BB Plastic wire connector 3
CC Hanger pin 1
DD Locking pin 1
EE Blade attachment screws 9
FF Wall mount screws 2
GG Wall anchor 2
AA
BB
CC
DD
EE
FF
GG
5
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Pre-Installation (continued)

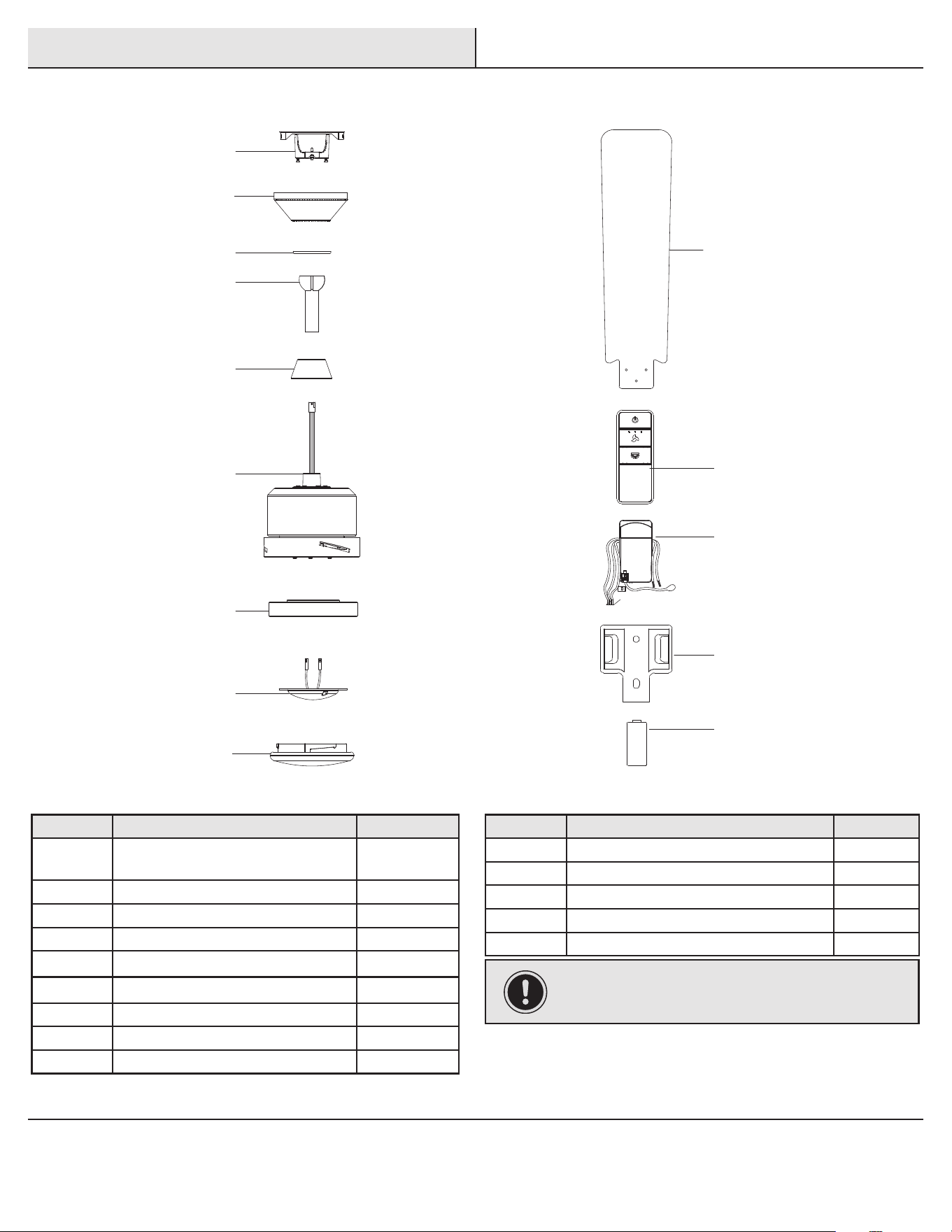

PACKAGE CONTENTS
Part Description Quantity
A Slide-on mounting bracket
(inside canopy)
1
B Canopy 1
C Canopy bottom cover 1
D Ball/downrod assembly 1
E Coupler cover 1
F Fan-motor assembly 1
G Light kit pan 1
H Light kit tter assembly 1
I Glass shade 1
Part Description Quantity
J Blade 3
K Remote control 1
L Receiver 1
M Wall bracket 1
N Battery 1
IMPORTANT: This product and/or components are governed by
one or more of the following U.S. Patents: 5,947,436; 5,988,580;
6,010,110; 6,046,416, 6,210,117 and other patents pending.
A
I
J
K
L
M
N
B
C
D
E
F
G
H
6

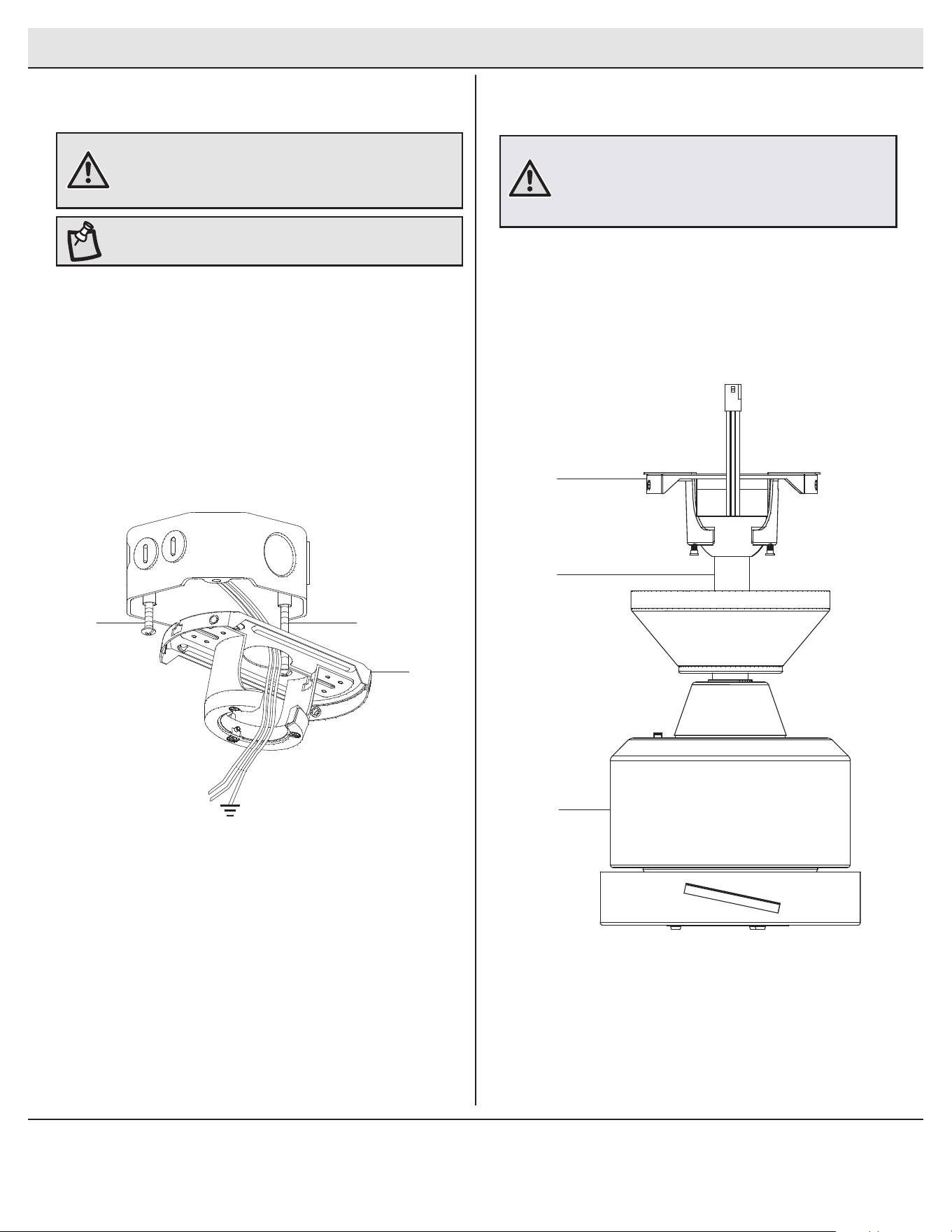

Installation
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock,
or personal injury, mount the fan to an outlet box
marked “Acceptable for fan support of 35 lbs (15.9
kg) or less” and use the screws provided with the
outlet box. An outlet box commonly used for the
support of lighting xtures may not be acceptable for
fan support and may need to be replaced. If in doubt,
consult a qualied electrician.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□ Disconnect the power by removing the fuses or turning off
the circuit breakers.
□ Secure the outlet box directly to the building structure.
Use the appropriate fasteners and materials. The outlet box
and its bracing must be able to fully support the weight of
the moving fan (at least 35 lbs). Do not use a plastic outlet
box.
The illustrations below show three different ways to mount the
outlet box.
If the canopy (B) touches the ball/downrod assembly (D), then remove
the decorative canopy bottom cover (C) and turn the canopy (B) 180°
before attaching the canopy (B) to the mounting plate.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown above
(available at any Home Depot store).
NOTE: You may need a longer downrod to maintain
proper blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 20° away from
horizontal.
Outlet Box
Outlet Box
Recessed
Outlet
Box
Provide Strong
Support
Ceiling
Mounting
Plate
Outlet Box
Hanger Bar
7
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

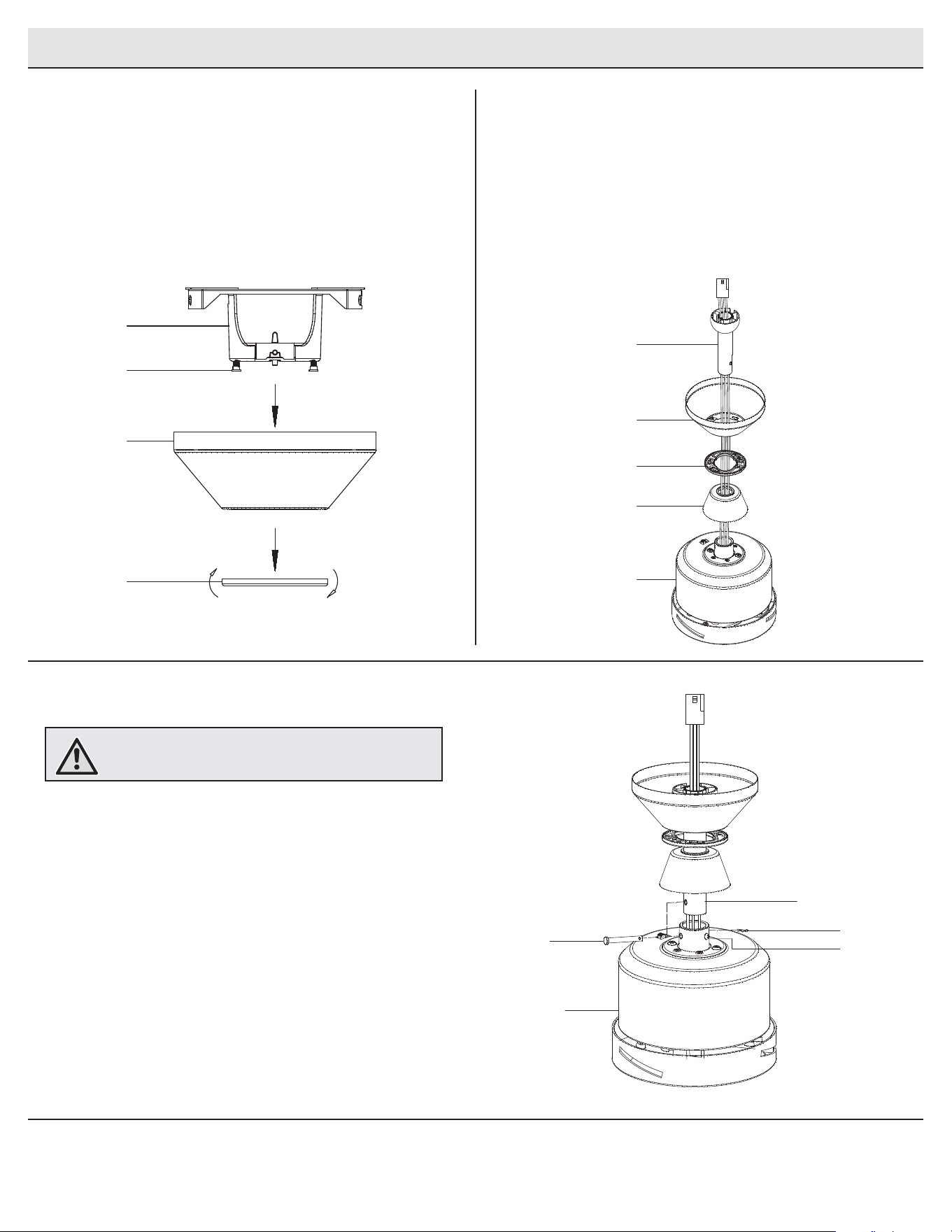

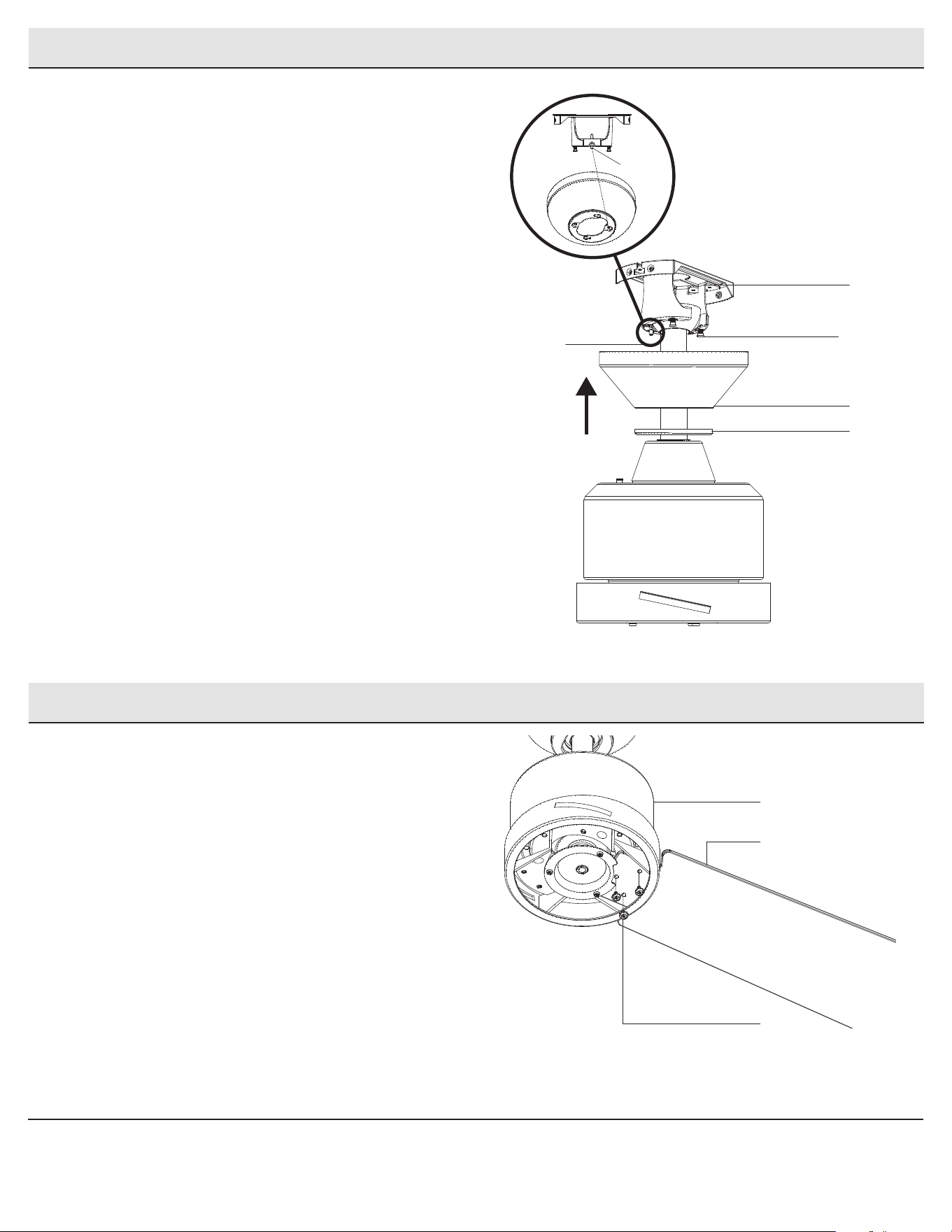

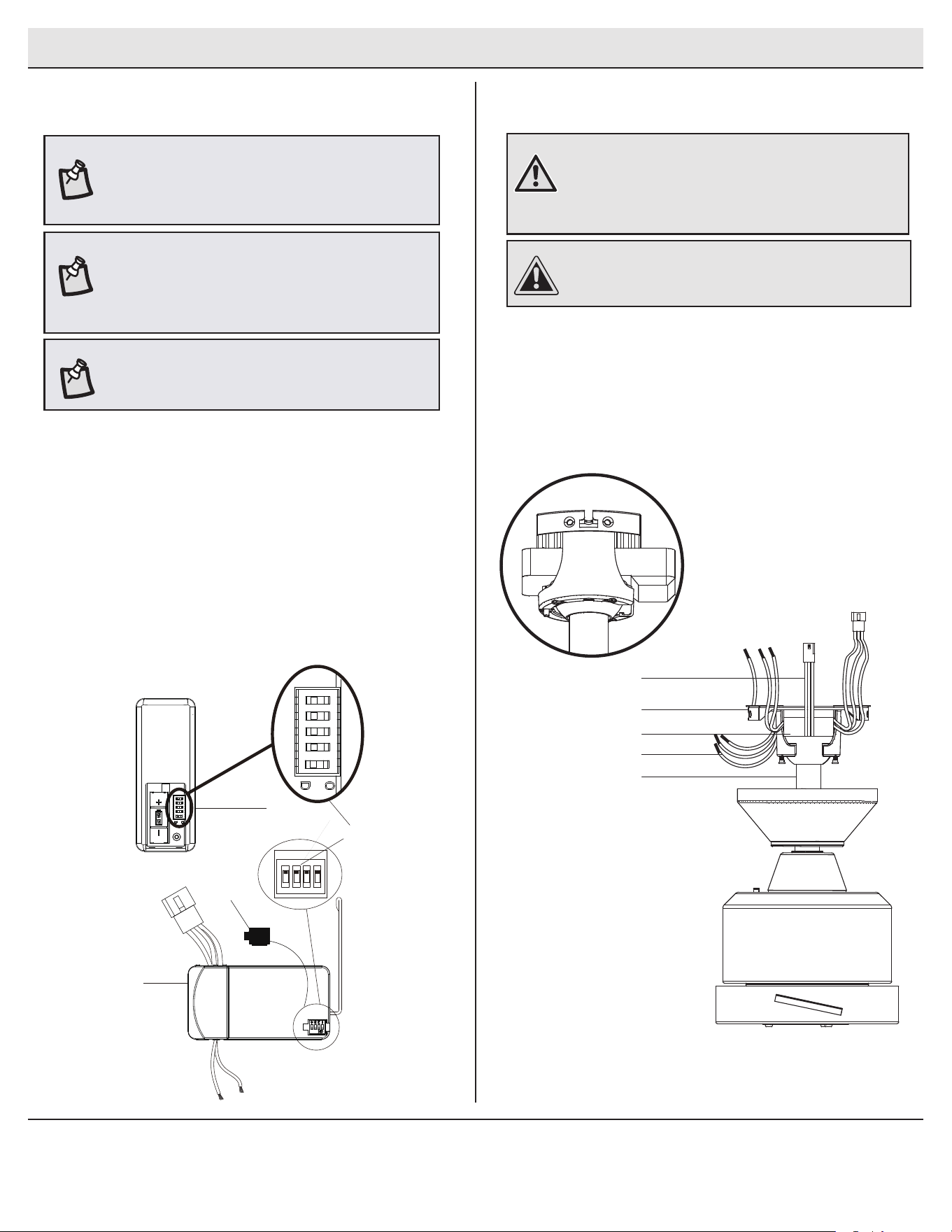

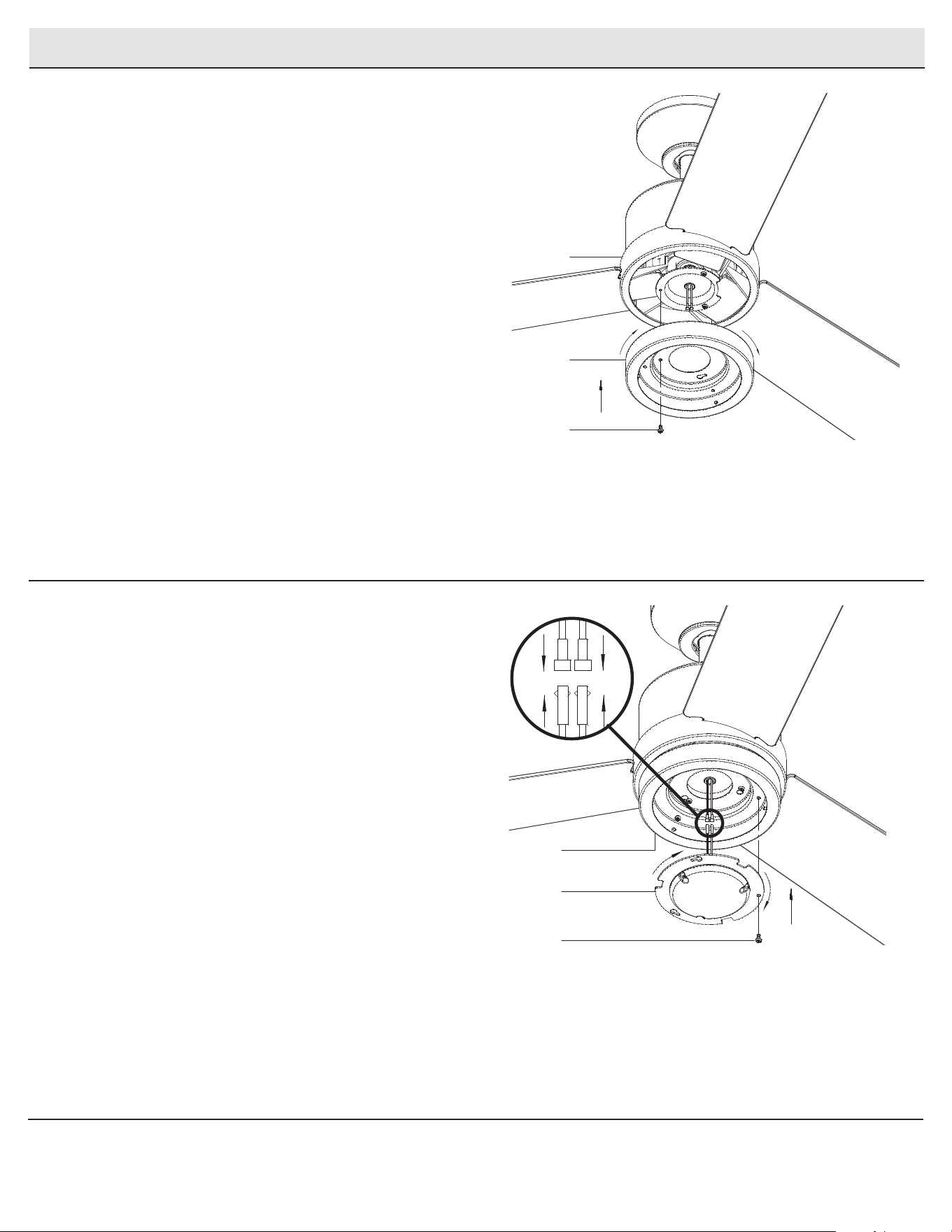

Assembly - Standard Ceiling Mount
Routing the wiresPreparation for standard mounting
□ Route the wires exiting the top of the fan motor assembly (F)
through the center of the canopy bottom cover (C).
□ Make sure the opening of the canopy (B) is on top and insert
the ball/downrod (D) through the canopy (B).
□ Route the wires exiting the top of the fan motor assembly (F)
through the downrod as shown.
21
□ Remove the canopy bottom cover (C) from the canopy (B) by
turning the bottom cover counterclockwise until it unlocks.
□ Loosen the two canopy screws (PP) located in the bottom of the
mounting bracket (A), and turn the canopy counterclockwise to
remove the mounting bracket (A) from the canopy (B).
Assembling the fan
□ Loosen, but do not remove, the two setscrews (ZZ) on the
collar on top of the motor housing (F).
□ Align the holes at the bottom of the downrod (D) with the
holes in the collar on top of the motor housing (F).
□ Carefully insert the hanger pin (CC) through the holes in the
collar and downrod (D). Be careful not to jam the hanger pin
(CC) against the wiring inside the downrod (D).
□ Insert the locking pin (DD) through the hole near the end of
the hanger pin (CC) until it snaps into its locked position.
□ Re-tighten the two setscrews (ZZ) on the collar on top of the
motor housing (F).
3
A
PP
B
C
WARNING: Failure to properly install the locking pin could
result in the fan becoming loose and possibly falling.
D
B
C
E
F
CC
DD
ZZ
F
D
8
Assembly - Hanging the Fan
Attaching the fan to the electrical
box
Hanging the fan
□ Pass the 120-Volt supply wires through the center hole in the
slide-on mounting bracket (A).
□ Install the ceiling slide-on mounting bracket (A) on the outlet
box by sliding the slide-on mounting bracket (A) over the two
screws (JJ) provided with the outlet box. If necessary, use leveling
washers (not included) between the slide-on mounting bracket
(A) and the outlet box. Note that the at side of the slide-on
mounting bracket (A) is toward the outlet box.
□ Securely tighten the two mounting screws (JJ).
□ Carefully lift the fan-motor assembly (F) up to the slide-on
mounting bracket (A).
□ Seat the hanger ball portion of the ball/downrod assembly (D)
in the mounting bracket socket. Ensure that the tab on the
slide-on mounting bracket (A) socket is properly seated in the
groove in the hanger ball.
1 2
WARNING: To reduce the risk of re, electric shock, or other
personal injury, mount the fan to an outlet box marked
“Acceptable for fan support of 35 lbs (15.9 kg) or less” and
use the mounting screws provided with the outlet box.
NOTE: The mounting bracket (A) is designed to slide into place
on an outlet box with the outlet box screws (JJ).
WARNING: When using the standard ball/downrod mounting,
the tab in the ring at the bottom of the mounting bracket
must rest in the groove of the hanger ball. Failure to properly
seat the tab in the groove may result in fan wobble issues
and potentially damage the wiring.
A
D
F
A
JJ
JJ
9
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly - Hanging the Fan (continued)
4
Installing the receiver
□ Position the house supply wires (AAA) to one side of the
slide-on mounting bracket (A); position the fan wires (BBB)
to the opposite side.
□ Insert the narrow end of the receiver (L) (as shown, at side
towards the ceiling) into the slide-on mounting bracket (A)
until it rests on top of the ball/downrod assembly (D).
WARNING: To reduce the risk of re or electric shock,
remember to disconnect power. The electrical wiring must
meet all local and national electrical code requirements.
The electrical source and fan must be 110/120 volt, 60Hz.
Do not use this product in conjunction with any variable wall
control. Incorrect wire connection can damage this receiver.
CAUTION: Do not immerse in water. Do not pull on or cut the
receiver leads shorter. Do not drop or bump the unit.
BBB
A
L
D
AAA
Setting the code on the remote
control and receiver
3
NOTE: The frequencies on your receiver and hand unit have
been preset at the factory. Before installing the receiver,
make sure the dip switches on the receiver and hand unit
are set to the same frequency. The dip switches on the hand
unit are located inside the battery compartment.
NOTE: The switch marked “O/D” controls the dimming
function of the lights. If you are using non-dimmable bulbs,
use a ballpoint pen or small screwdriver to set the switch
to “O” to disable the dimming function. If you are using
dimmable bulbs, set the switch to “D” to enable the dimming
function.
NOTE: The battery will weaken with age and should be
replaced before leaking takes place, as battery leakage
damages the hand unit. Dispose of the used battery properly
and keep the battery out of the reach of children.
□ Remove the remote control (L) battery cover by pressing rmly
on the arrow and sliding the cover off.
□ Slide the dip switches (ZZ) to your choice of either up or down.
The factory setting is up.
□ Slide the dip switches (ZZ) on the receiver (K) to the same
position as set on the remote control (L).
□ Install the 23A 12V battery (included).
□ Replace the battery cover on the remote control (L).
□ Insert the silicone rubber stopper (OO) into the hole on the
receiver (K) to cover the dip switches.
L
K
ZZ
1 2 3 4
ON
OO
1 2
3
4
ON 0
1 2
3
4
ON
D
D
0
10
Assembly - Hanging the Fan (continued)
6

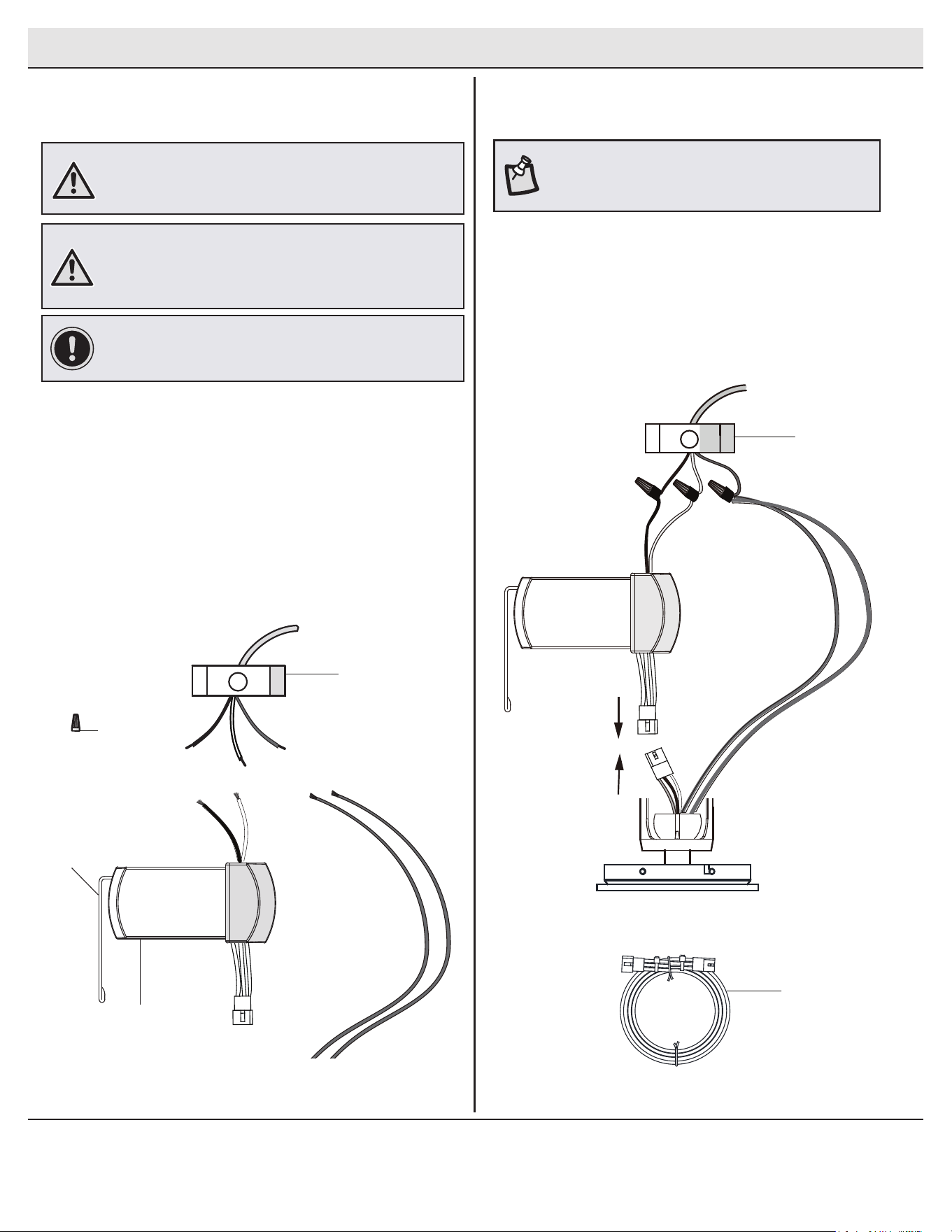

Wiring the fan to the receiver
□ If using the 4.5 in. ball downrod assembly (D) provided,
wire the receiver to the fan wires by connecting the molded
adaptor plug from the receiver (L) with the molded adaptor
of the fan motor assembly (E) together.
□ If you wish to use longer downrod, you can use the
extension lead wire (18 in.) (AA) provided by connecting the
molded adaptor together.
NOTE: The fan comes with 12 in. lead wires for use with
the provided 4.5 in. ball downrod assembly (D). If you
wish to use longer downrod, you can use the extension
lead wire (18 in.) (AA) provided.
Outlet box
in the ceiling
(NN)
Green
AA
5
Wiring the receiver to the
household wiring
IMPORTANT: Use the wire connecting nuts (BB) supplied with
your fan. Secure the connectors with electrical tape and ensure
there are no loose strands or connections.
WARNING: Each wire nut supplied with this fan is designed to
accept up to one 12-gauge house wire and two wires from the
fan. If you have larger than 12-gauge house wiring or more
than one house wire to connect to the fan wiring, consult an
electrician for the proper size wire nuts to use.
□ Spread the wires apart so that the green and white wires
are on one side of the outlet box and the black wire is on the
other side.
□ Connect the green fan wires to the household ground wire
(this may be a green or bare wire) using a wire connecting
nut (BB).
□ Connect the receiver (L) black wire to the household black
(hot) wire using a wire connecting nut (BB).
□ Connect the receiver (L) white wire to the household white
wire (neutral) using a wire connecting nut (BB).
□ Secure each wire connecting nut using electrical tape.
WARNING: To avoid possible electrical shock, turn the
electricity off at the main fuse box before wiring. If you
feel you do not have enough electrical wiring knowledge or
experience, contact a licensed electrician.
Black
Black
Green (or Bare)
Green
Outlet Box
Receiver
Antenna
White
Receiver (L)
BB (x3)
11
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly - Attaching the Blades
1
Attaching the canopy
□ Align the locking slots of the canopy (B) with the two screws
(PP) and alignment post (RR) in the mounting bracket (A).
□ Push up the canopy (B) and turn clockwise until the alignment
post (RR) engages to the round hole and the screws (PP)
engage to the key slots.
□ Firmly tighten the two mounting screws (PP).
□ Install the decorative bottom cover (C) by aligning the cover
slots with screws in the bottom of the canopy (B). Rotate the
bottom cover (C) clockwise to lock in place.
7
Attaching the fan blades
□ Attach a blade (J) to the fan motor assembly (F) by inserting
the blade (J) into the slot on the side of the fan motor
assembly (F).
□ Align the blade (J) holes to the holes on the fan motor
assembly (F) and insert the screw (EE) into the blade. Repeat
for the two remaining screws.
□ Tighten each screw (EE) securely.
□ Repeat these steps for the remaining blades (J).
F
J
EE
A
B
C
RR
D
PP
Assembly - Hanging the Fan (continued)
12
Attaching the light kit tter assembly
2
□ Remove one screw (TT) from the light kit pan (G), and loosen,
but do not remove the other two screws.
□ Connect the wires from the light kit tter assembly (H) to
the wires from the fan motor assembly (F) by connecting the
molded adaptor plugs together. Carefully tuck all wires and
splices into the light kit pan (G).
□ Push the light kit tter assembly (H) up to the light kit pan (G)
so that the two loosened screw heads t into the keyhole slots.
Turn the light kit tter assembly (H) clockwise to secure.
□ Re-install the screw (TT) that was removed in the rst step.
□ Make sure all the screws are rmly tightened.
G
H
TT
Assembly - Attaching the Light Kit
Installing the light kit pan
1
□ Remove one screw (QQ) from the black bracket below the fan
motor assembly (F), and loosen but do not remove the other
two screws.
□ Push the light kit pan (G) up to the fan motor assembly (F) so
that the two loosened screw heads t into the keyhole slots.
Turn the light kit pan (G) clockwise.
□ Re-install the screw (QQ) that was removed in the rst step.
□ Make sure all the screws are rmly tightened.
F
G
QQ
13
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly - Attaching the Wall Bracket (optional)
Mounting the remote control holder
□ Slide the screw cover plate up to remove it from the wall
cradle (M).
□ Position the wall cradle (M) in the desired position and attach
it to the wall using the included wall mount screws (FF).
□ Slide the screw cover plate back onto the wall cradle (M) to
conceal the screws.
NOTE: Screw wall anchors (GG) are included for extra support.
The included screws are designed to screw easily into the wall. If
you would like a more permanent or secure hold, install the wall
anchors (GG) prior to attaching the wall cradle (M) to the wall.
Sc
rew cover plate
M
FF

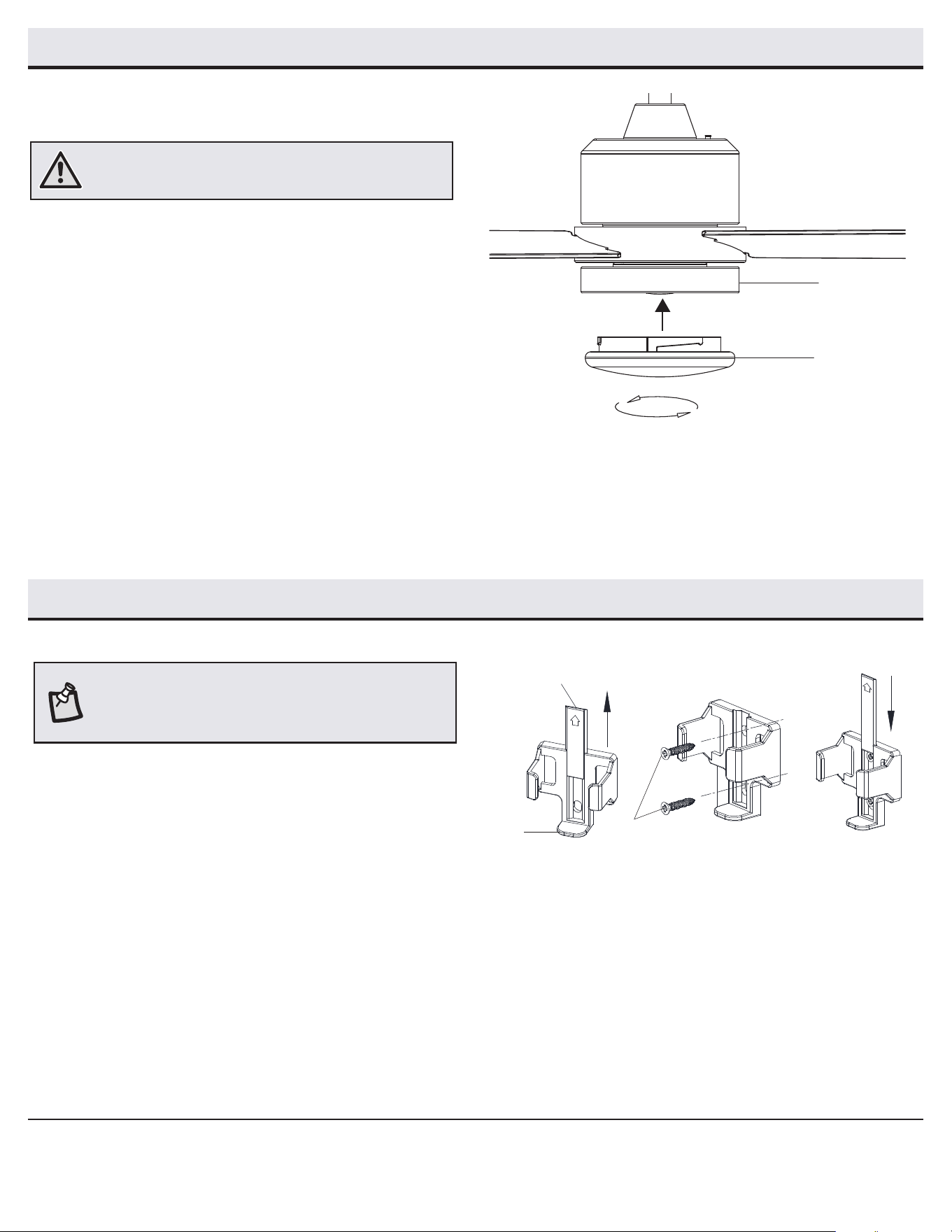

Installing the glass shade
3
□ Place the glass shade (I) into the light kit pan (G), aligning the
three at areas on the top of the ange of the glass shade (I)
with the three raised dimples in the light kit pan (G). Turn the
shade clockwise until it stops.
WARNING: Do not overtighten when installing the glass shade
into the light kit. Allow the glass shade to cool completely before
removing.
I
G
Assembly - Attaching the Light Kit (continued)
14

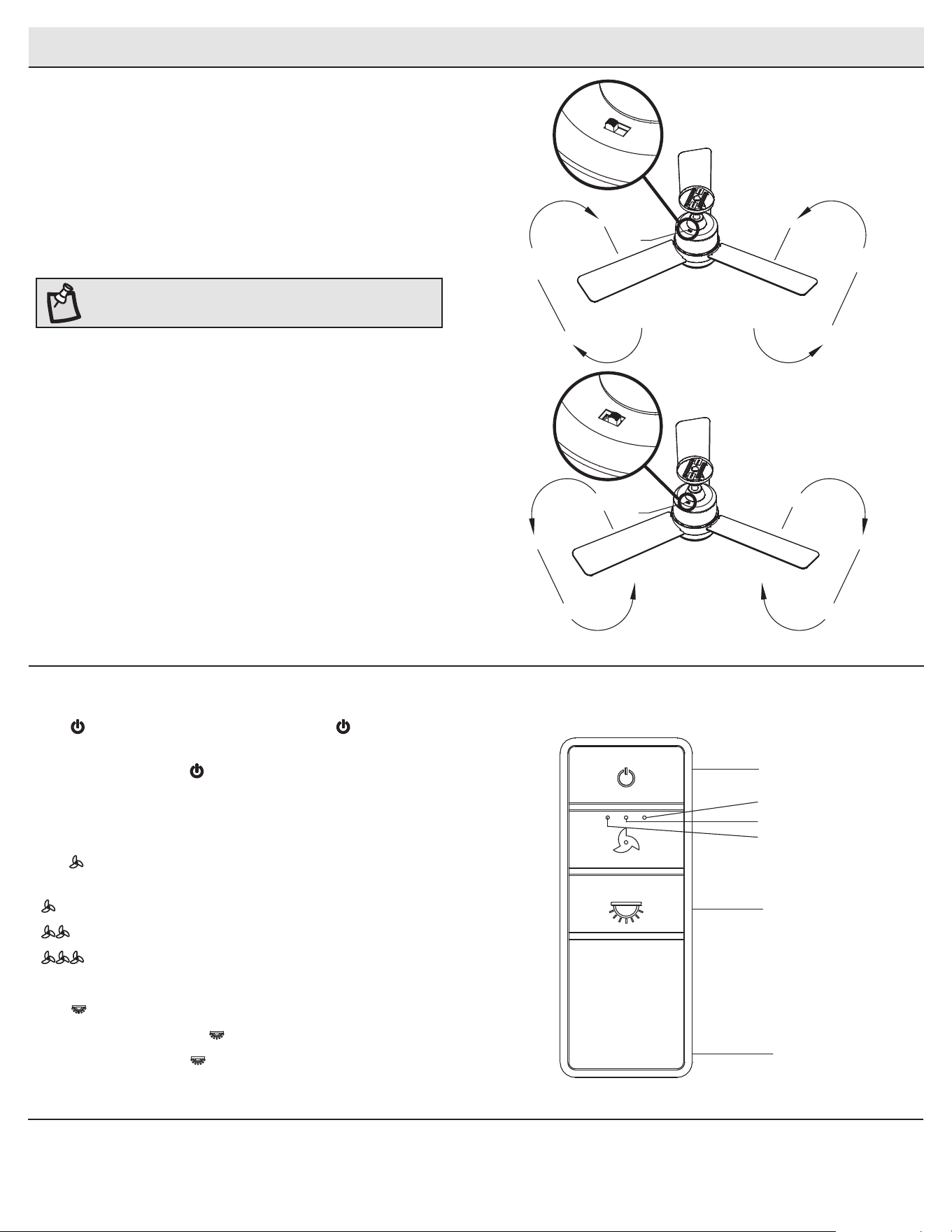

Operating Your Fan
Your fan is equipped with a remote control to operate the fan speed
and lights of your new ceiling fan.
The appropriate speed settings for warm or cool weather depends on
factors such as the room size, ceiling height, and number of fans.
The fan is shipped from the factory with the reversing switch
positioned to circulate air downward. If airow is desired in the
opposite direction, turn your fan off and wait for the blades to stop
turning, then slide the reversing switch (XX) (located in motor housing)
to the opposite position, and turn the fan on again. The fan blades will
turn in the opposite direction and reverse airow.
Warm weather - (Forward) A downward airow creates a cooling effect.
This allows you to set your air conditioner on a warmer setting without
affecting your comfort.
Cool weather - (Reverse) An upward airow moves warm air off of the
ceiling. This allows you to set your heating unit on a lower setting
without affecting your comfort.
A. Warm weather
B. Cool weather
NOTE: Wait for the fan to stop before reversing the direction of
the blade rotation.
USING THE REMOTE CONTROL
1. Power ON/OFF. - Press and release the button to turn the
fan and light on or off.
□ Press and hold the button for 5 seconds to use the “walk
away time delay”; this will activate the light for 30 seconds (the
light will be activated at 50% brightness).
2. Fan Speed - LEDs on the fan speed button will illuminate to
the corresponding speed.
- Press and release 1 time - turns the fan on high speed.
- Press and release 2 times - turns the fan on medium speed.
- Press and release 3 times - turns the fan on low speed.
3. Light ON/OFF
□ Press and release the button to turn the light on or off.
□ Press and hold the button to activate the dimmer function
(as long as you have NOT previously set O/D dip switch in your
remote to the “ON” position).
K
Power OFF
On/Low
Light ON/OFF
& dimmer function
On/Medium
On/High
xx
xx
15
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Troubleshooting
Problem Solution
The fan will not start. □ Check the main and branch circuit fuses or breakers.
□ Check to make sure the wall switch is in the on position if applicable.
□ Check the line wire connections to the fan and switch wire connections in the switch housing.
□ Check the battery in the transmitter.
□ Ensure you are in the normal range of 10-20 feet.
The fan is noisy. □ Ensure all motor housing screws are snug.
□ Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□ Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□ Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□ If you are using the ceiling fan light kit, ensure the screws securing the glassware are tight. Check that the light
bulbs are also secure.
□ Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
The fan wobbles. □ Check that all blade and blade arm screws are secure.
□ Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on
the ceiling above the tip of one of the blades. Measure from a point on the center of each blade to the point
on the ceiling. Rotate the fan until the next blade is positioned for measurement. Repeat for each blade. Any
measurement deviation should be within 1/8 in. Run the fan for ten minutes. If the fan continues to wobble
please contact Customer Service and a balancing kit will be sent to you at no charge.
□ Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
□ Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage
the motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish. The
plating is sealed with a lacquer to minimize discoloration or tarnishing.
□ You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a
light application of shoe polish.
□ You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
