User
Manual
Products:
WC34BX6250
DO NOT RETURN THIS PRODUCT TO THE STORE
If you have questions or need assistance, please call
customer service at (800) 701-0680.
3

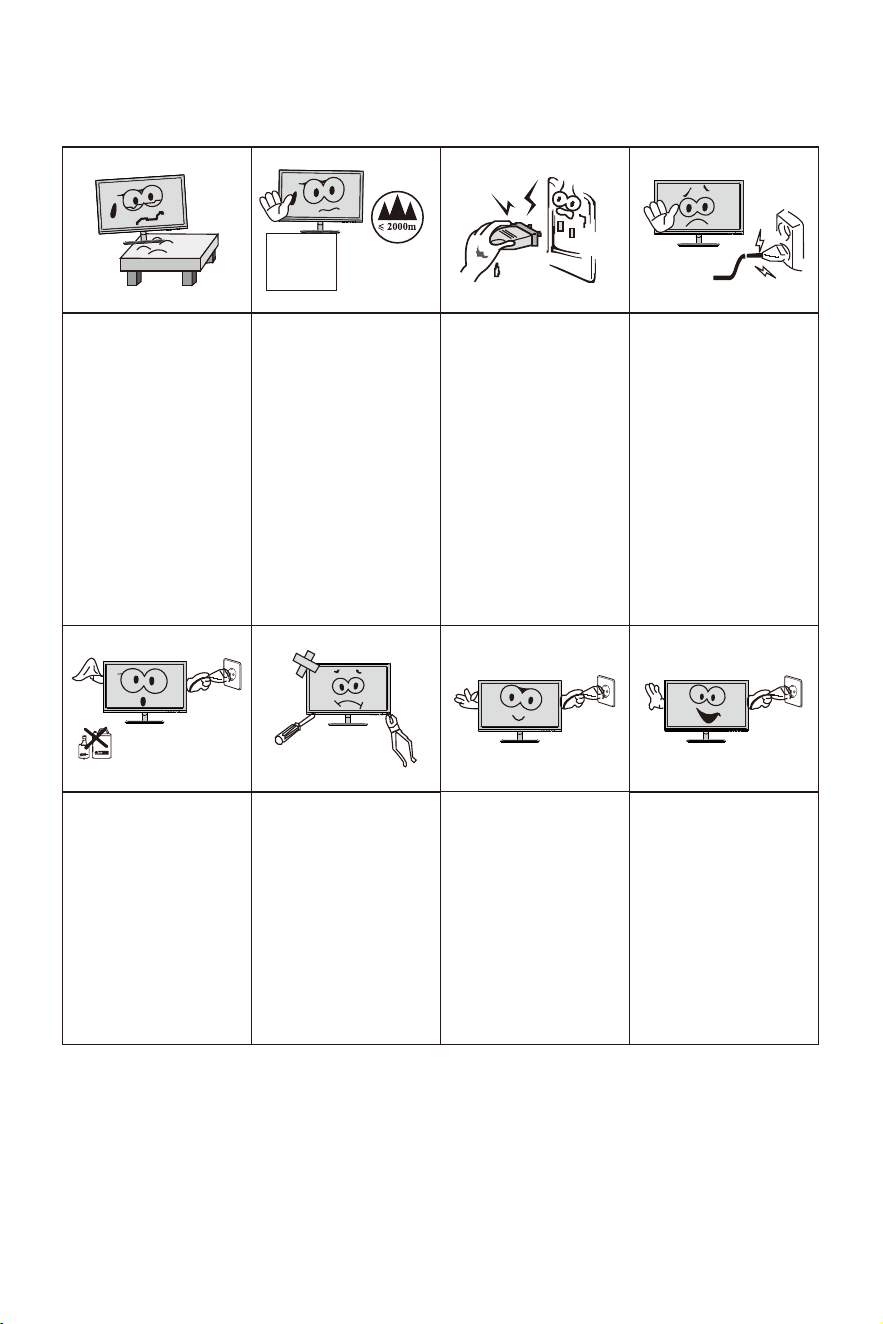

Please always place
this device on a stable
surface; otherwise,
it may fall and be
damaged.
The altitude and the
tropical environment
the adapter fits depend
on which adapter is
used for the device.
The rating plate on
the back of the device
with the above warning
sign indicates that
t h i s p r o d u c t i s
ap pli cable fo r t he
safe use of the region
w i t h a l t i t u d e o f
2,000m and below.
Do not hold the plug
w i t h w e t h a n d ;
otherwise, electric
shock
m a y o c c u r.
Make sure the plug
has a good touch
because poor touch
may cause fire.
Do not use a broken
power plug nor keep
a power cord near heat
source; otherwise,
e l e ct r i c s h oc k o r
fire may occur.
When cleaning the
device, be sure to
remove the power
plug, use a piece
of soft cloth rather
t h a n i n d u s t r i a l
ch emi cal t o cle an
the device, be sure
not to let water enter
the device.
Do not disassemble
this device without
permission. In case
of failure, be sure to
contact a professional
servicing person to fix
it. The unauthorized
disassembly of this
device may result
in electric shock or
fire.
In case of rare smell
or noise out of t
his
device, be sure to
immediately cut off
the power supply and
ask a professional
servicing person to
fix the problem.
When this device
is idle for long time,
be sure to power it
off; otherwise, electric
shock or fire may
occur.

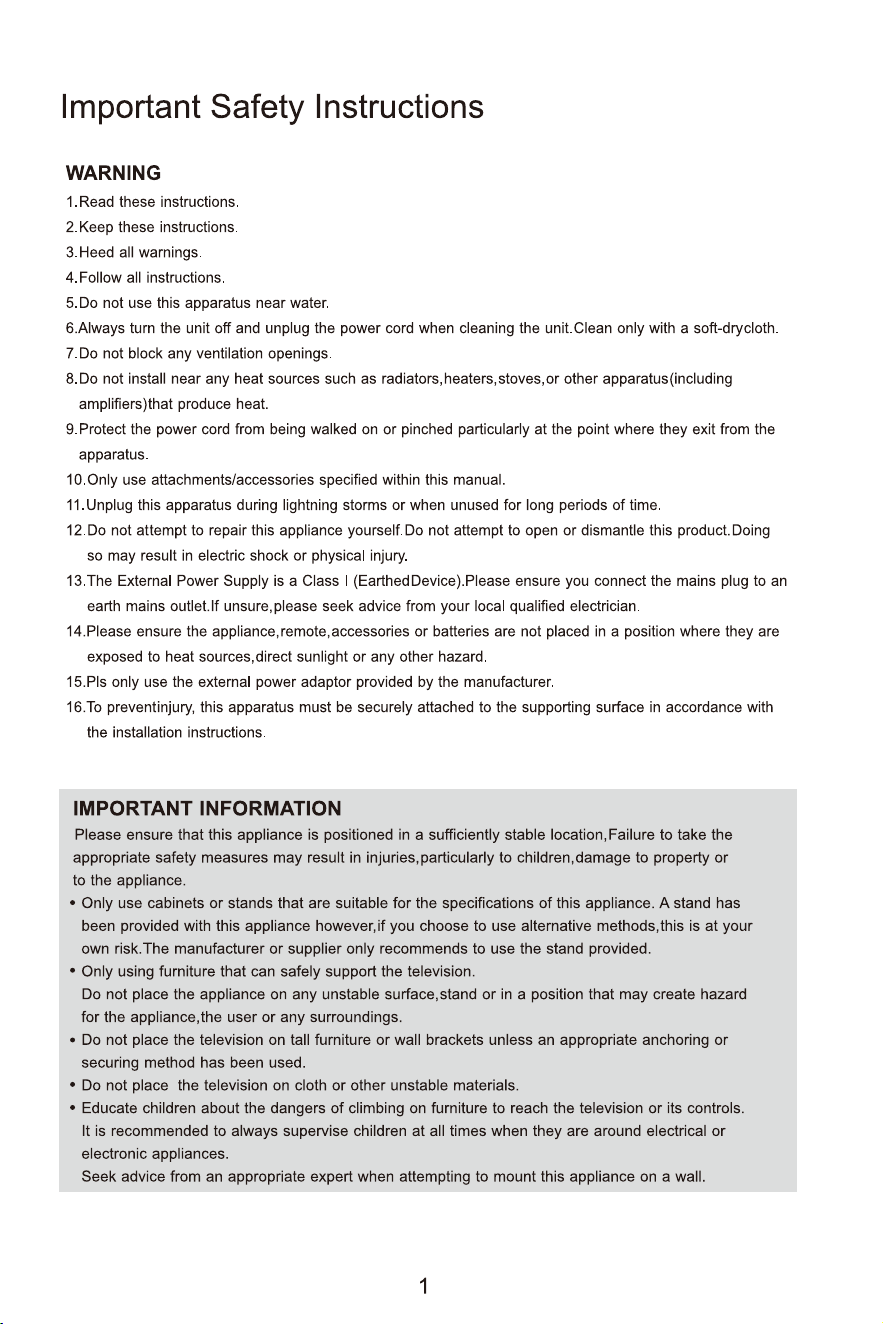

I. Safety Prevention Measures
Note:
The device with AC switch may use such AC switch as cut-off component.
The device without AC switch may use power plug or coupler as cut-off component.
ln case of the normal use of the equipment, make sure the cut-off component can be accessed
easily.
2. Product introduction

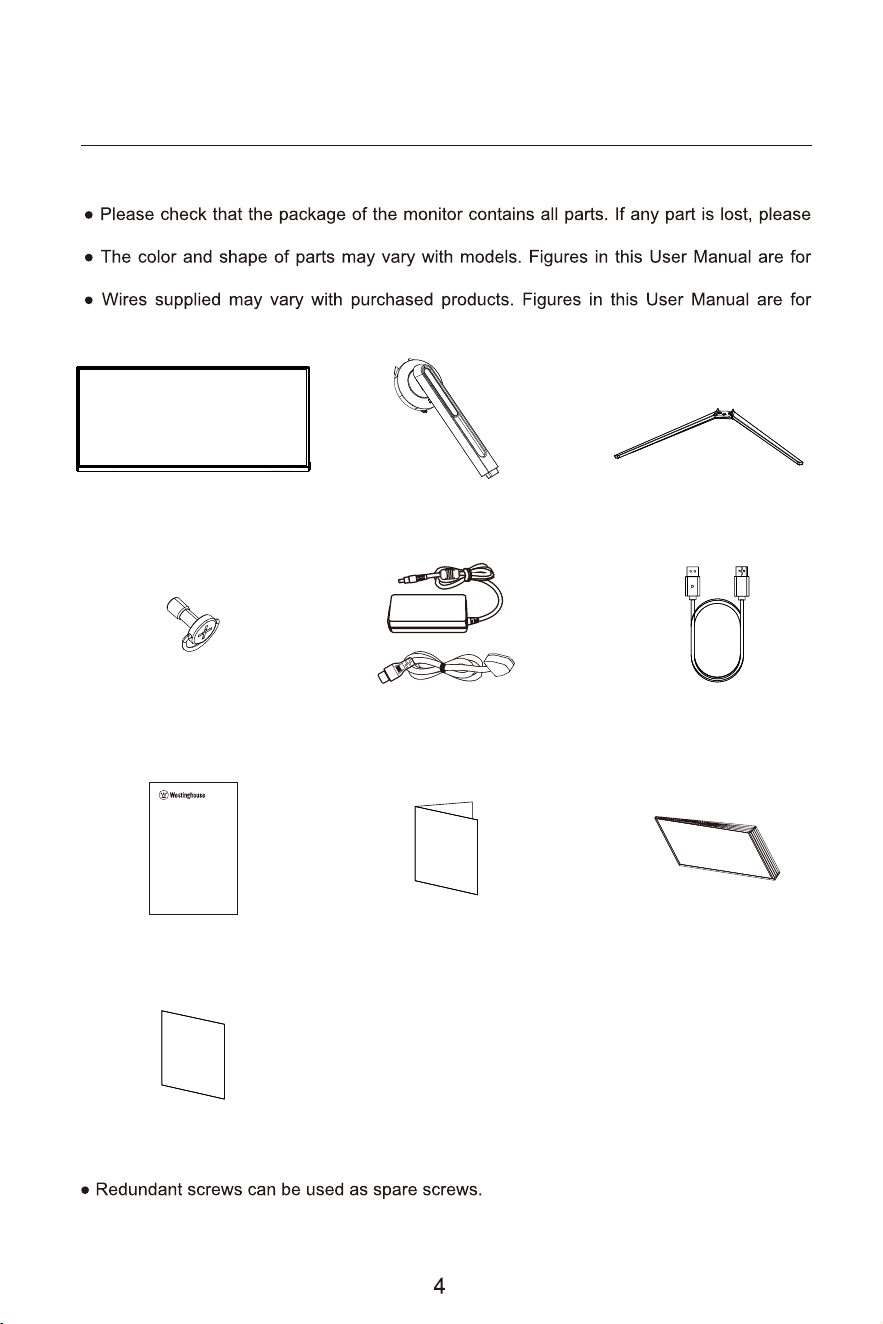

Packing list
(The above pictures are for illustration only and the physical accessories shall govern.)
contact the distributor.
reference only.
reference only.
Monitor Stand BaseStand Pole
Power Cord/Adapter
DP Signal Cable
Warranty Card
Tech Support Card
Quick Start GuideUser Manual
User
Manual
Products:
WC34BX6250
DO NOT RETURN THIS PRODUCT TO THE STORE
If you have questions or need assistance, please call
customer service at（800）701-0680.
Screw x1pcs
Screws

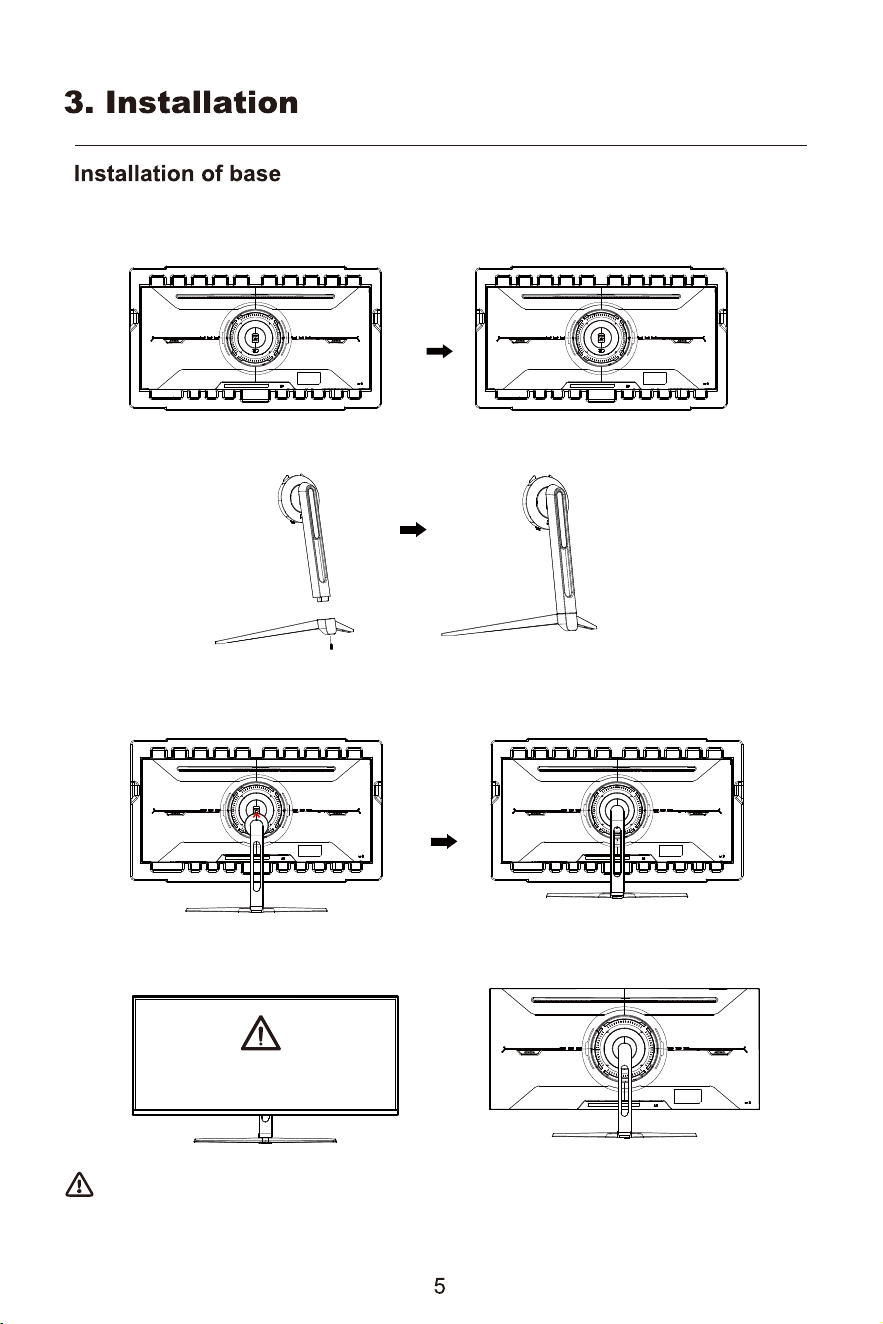

1. First open the carton, take out the foam and align the table top, after taking out the inner packaging, put
the monitor on the foam. Remove the spindle assembly above the monitor from the monitor.
2. Use 1 screws to lock the shaft assembly and bracket.
3. Align the stand stem's bracket with the opening on the back ofthe monitor. and carefully insert bracket,
t the stand assembly and display together.
4. After assembly, simply hold the stand with hand to stand the monitor upright.
Note: During standing of the whole monitor, do not press the liquid crystal screen with hand to avoid
damage to the screen.
Do not press the LCD
Installation of mount

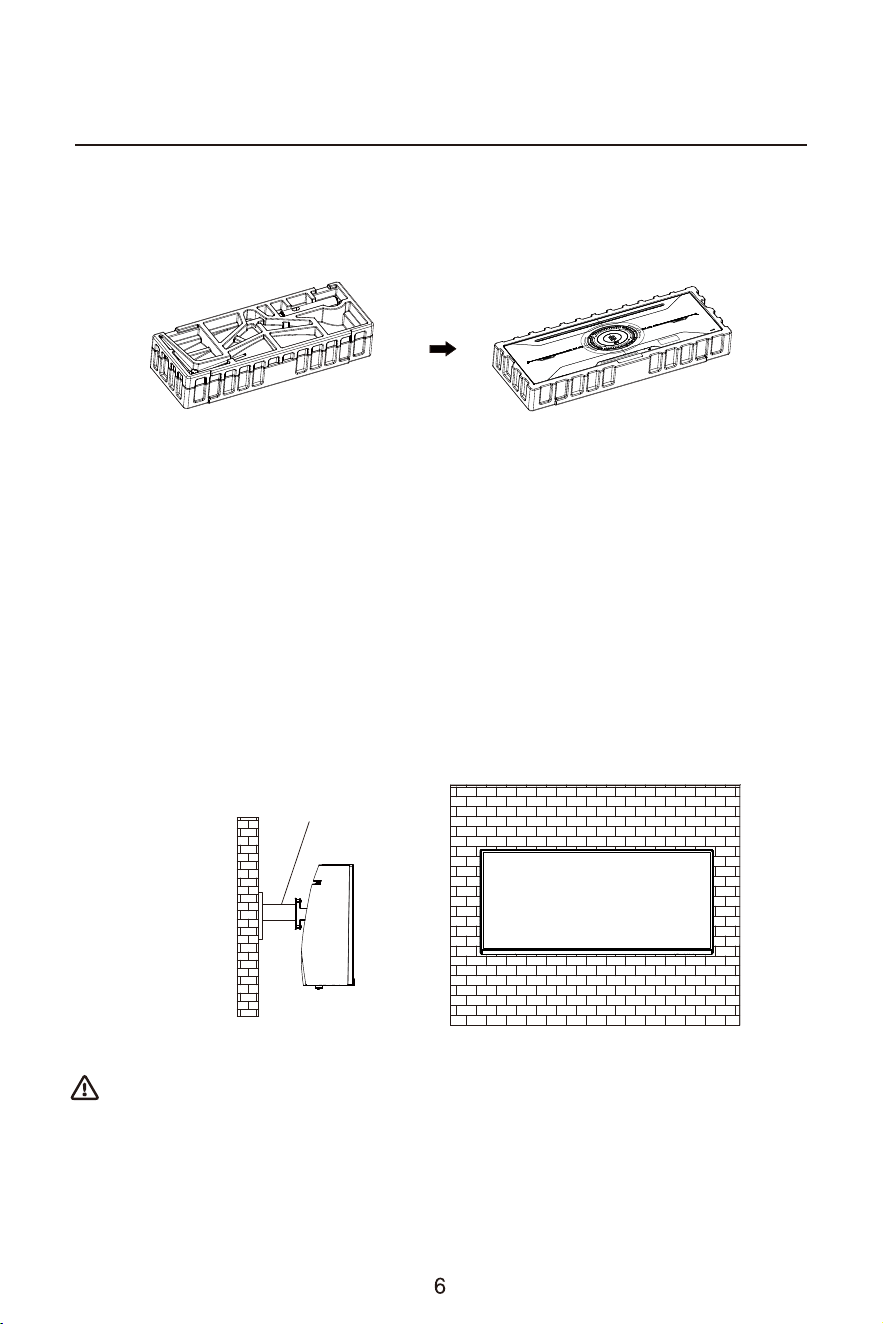

2. Hang the assembled product on a hard wall. Do not pinch the screen with your hands during the hanging
process to avoid damaging the screen.
Mount (not supplied)
Note: In order to prevent the monitor from falling when it is used on the wall, please install it properly
and do safety protection. Do not place or hang any objects on the wall bracket, and the wall height
should be within 2 meters.
1. Open the package to take out foams and put them on a at tabletop. Remove the extra parts and the
foam covering the monitor , take out the monitor lm bag and put the monitor in the lower foam cover.
Tilting angle
-5° ~ +15°
15°
5°
7
5. Usage
Description of buttons
8
Exit
Power off
Upwards
Adjust parameters upwards in the menu / FPS shortcut keys
Downwards
Adjust parameters downwards in the menu / Shortcut of Brightness adjustment
Return or Exit the menu / Contrast Adjustment Shortcut
Press and hold the 3S button to switch the monitor on/off
Menu / Confirm Pop up the OSD Menu or confirm the setting
E
Explanation of indicators
Indicator
Indicator light: Steady blue indicates that the power supply is normal and the display is running normally. In
addition, a steady red liaht indicates that there is no video source, no horizontal orvertical signal or low voltage is
detected. lf no indicator is displayed, the server is o. Make sure your computer is turned on and all video cables are
fully plugged in or connected.

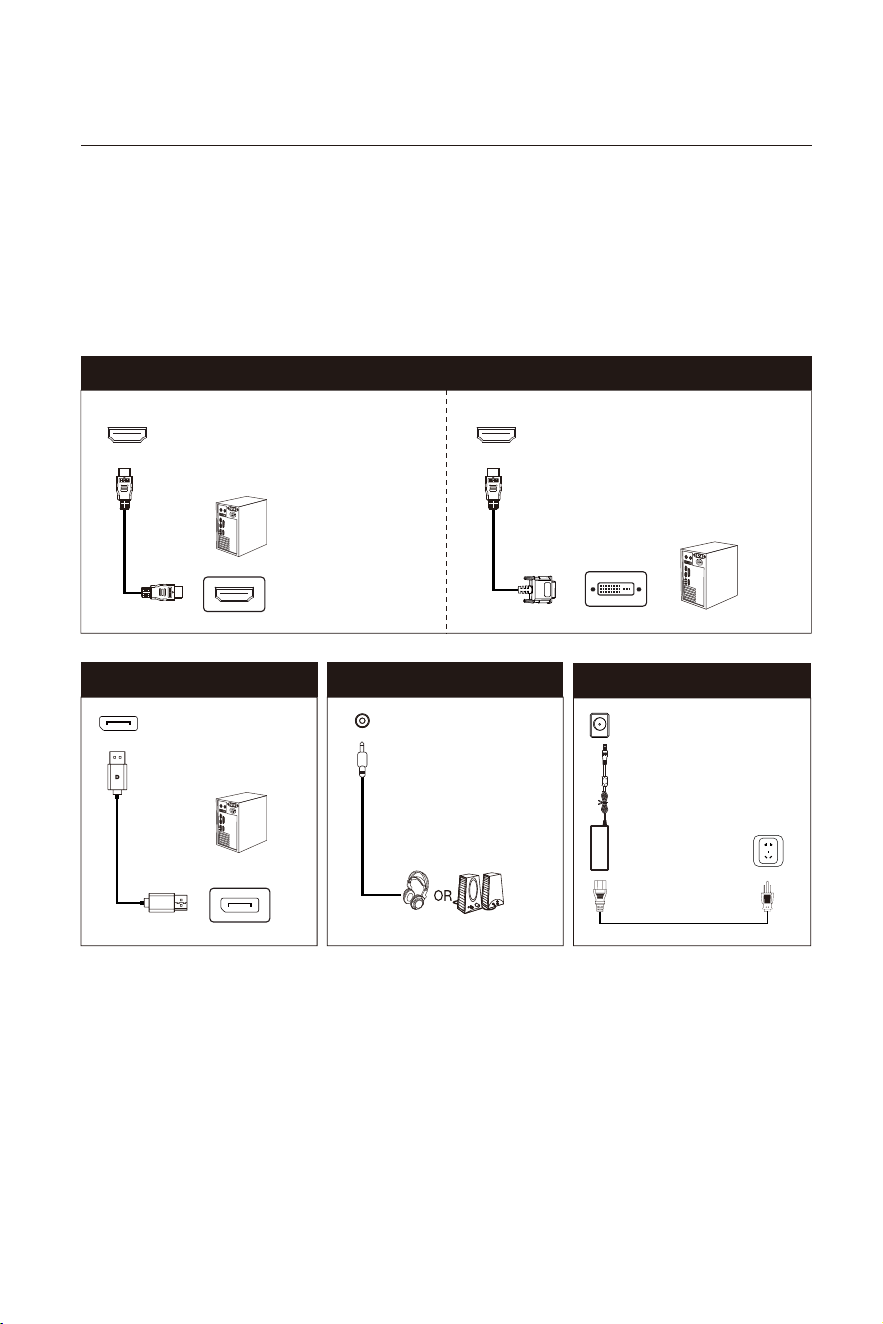

Cable connection
*The bottom interface conguration at the back of the monitor varies with products.The actual
product received shall prevail.
*Note: lf the power adapter or signal cable is damaged,you must replace it with special soft cables
or special you must replace it with special soft cables or special components purchased from the
manufacture or maintenance department.
Connect audio outputting
devices such as earphones
to the Audio out interface.
Use the DP cable to
connect the DP IN port of
the productto the DP OUT
port of a PC.
Use the HDMl cable to connect the HDMI
IN interface of the product to the HDMI
OUT interface of a PC.
Use the HDMI-DVl cable (not included) to
connect the HDMl IN port of the product to
the DVI OUTport of a PC. (In general, PCs
do not transfer video signals to the monitor
through the DVI OUT interface , and it is
necessary to connect a loudspeaker box
additionally to play sounds of PCs.)
AUDIO OUT
HDMI interface
DP interface
DC interface
9
Please connect the power
adapter plug to the
corresponding power port
of the monitor, and then
connect the power cable
to a properly grounded
power outlet.

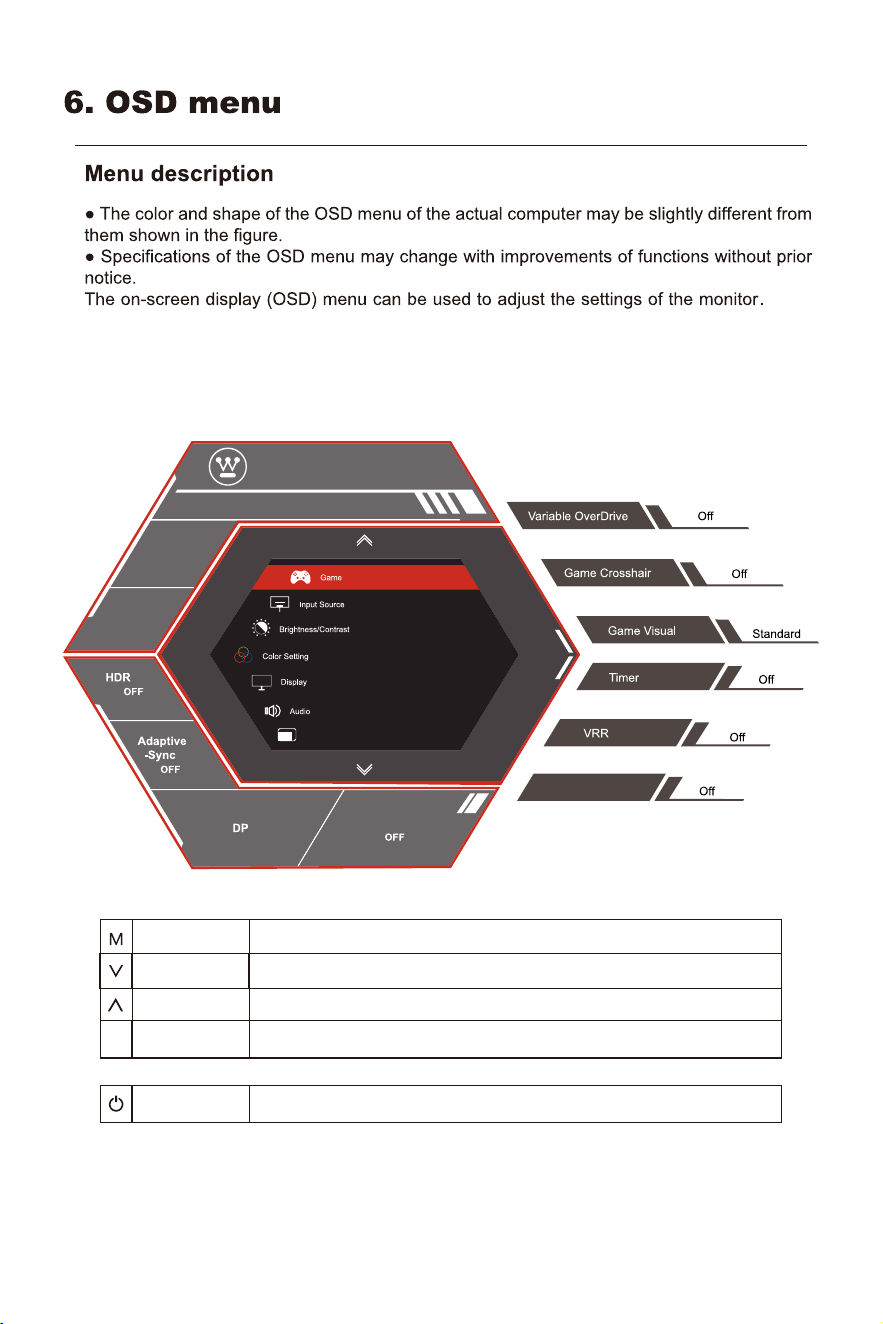

1. Press the buttons (M) to enter the OSD screen.
10
Exit
Power off
Upwards
Adjust parameters upwards in the menu / FPS shortcut keys
Downwards
Adjust parameters downwards in the menu / Shortcut of Brightness adjustment
Return or Exit the menu / Contrast Adjustment Shortcut
Press and hold the 3S button to switch the monitor on/off
Menu / Confirm Pop up the OSD Menu or confirm the setting
E
VRR
WC34BX6250
3440X1440
180HZ
Multi-Window
FPS Counter
+
11
DP2
DP1
HDMI 2
HDMI 1
FreeSync On(G-Sync Compatible)/O
On/O
On/O
On/O
On/O
On/O
O/PIP Mode/PBP 2win
HDMI/DP
Large/Medium/Small
TopRight/TopLeft/BottomRight/BottomLeft
1.8/2.0/2.2/2.4/2.6
Normal/Warm/Cool/User
O/High/Medium/Low
O/Mode 1/Mode 2/Mode 3
Standard/Movie/RTS/RPG/FPS/MOBA/sRGB/Reader
O/30/50/60/90
Variable OverDrive
Game Crosshair
Game Visual
Timer
VRR
Game Ligh t
FPS Counter
Brightness
Contrast
DCR
Black Equalizer
Gamma
0-100
0-100
0-100
0-100
0-100
wide screen/4:3/1:1
0-100
0-100
0-100
Volume
Mute
Color Temperature
Sharp pixel
Aspect Ratio
Low Blue Light
Hue
Saturation
Game+
Input Source
Brightness/Contrast
Color Setting
Display
Audio
Multi-Window
Multi-Window
Sub Win 2 Input
PIP Size
PIP Position
Swap
English/Français /Deutsch /Lengua española/
Português /Nederlands /Türkçe/العربية
OSD Time Out 5-100
OSD H-Position 0-100
OSD V-Position 0-100
0-100OSD Transparency
Language
OSD Settings
On/O
Auto/On/O
O/On
O/On
No/Yes
HDR
ECO Mode
Power Indicator
O/OnEyeshield Remind
MPRT
Input Source/Resolution/Mode/HDR VerReset
FreeSync
Other Settings
12
7. Basic Troubleshooting
Phenomenon Troubleshooting
light is off
2. Image blurring,
over-large, over-small, etc.
Check whether the display and the socket are well connected to
power, and whether the display is in the shutdown mode.
Enter the menu“ Image Setting” and select“ Auto Image Adjust”
Enter the menu“ Brightness and Contrast” to adjust the
brightness and contrast of the display.
and do not place articles on the display.
Check computer setting, select the correct resolution and re-adjust
the refresh frequency.
It is a normal phenomenon caused by display discharging in the
process of powering off.
This is a normal phenomenon. It is due to the backlight illuminates
unevenly at the initial phase of powering on caused by temperature
difference. The backlight can illuminates normally after 20 minutes,
and then the dark/light spots will be corrected.
5. Dark/ light spots when
powering on
6. Image distortion, blinking,
shaking
3. Image over dark
4. Display over heat
7. Power off noise
13
8. Basic parameters
(The actual application of the above parameters shall be subject to the specific model.)
Product model
WC34BX6250
Screen Size
Viewing Angle
34"
178°(H) / 178°(V)
Pixel pitch 0.23175(H)×0.23175(V)mm
Contrast ratio 3000:1（TYP）
16.7M
Colors
21:9
3440×1440
Product
Dimensions
Without base
Action
Storage
809 x 362 x 128mm
809 x 446 x 212mm
With base
2 x 2W
Tilting angle
speaker
Environmental
conditions
Power Input
Maximum refresh rate 180Hz
Product Name
34" CURVED GAMING MONITOR
Forward titling: -5°±3° ;Backward tilting: 15°±3°
Temperature: 0°C~ 40°C (32°F ~ 104°F)
Humidity: 10%~90% RH (non-condensing)
Temperature: -20°~ 60° (-4°F ~ 140°F)
Humidity: 5%~95% RH (non-condensing)
14
DC 24V 3A
