User
Manual
Products:
WC49BX6230
DO NOT RETURN THIS PRODUCT TO THE STORE
If you have questions or need assistance, please call
customer service at (800) 701-0680.
3

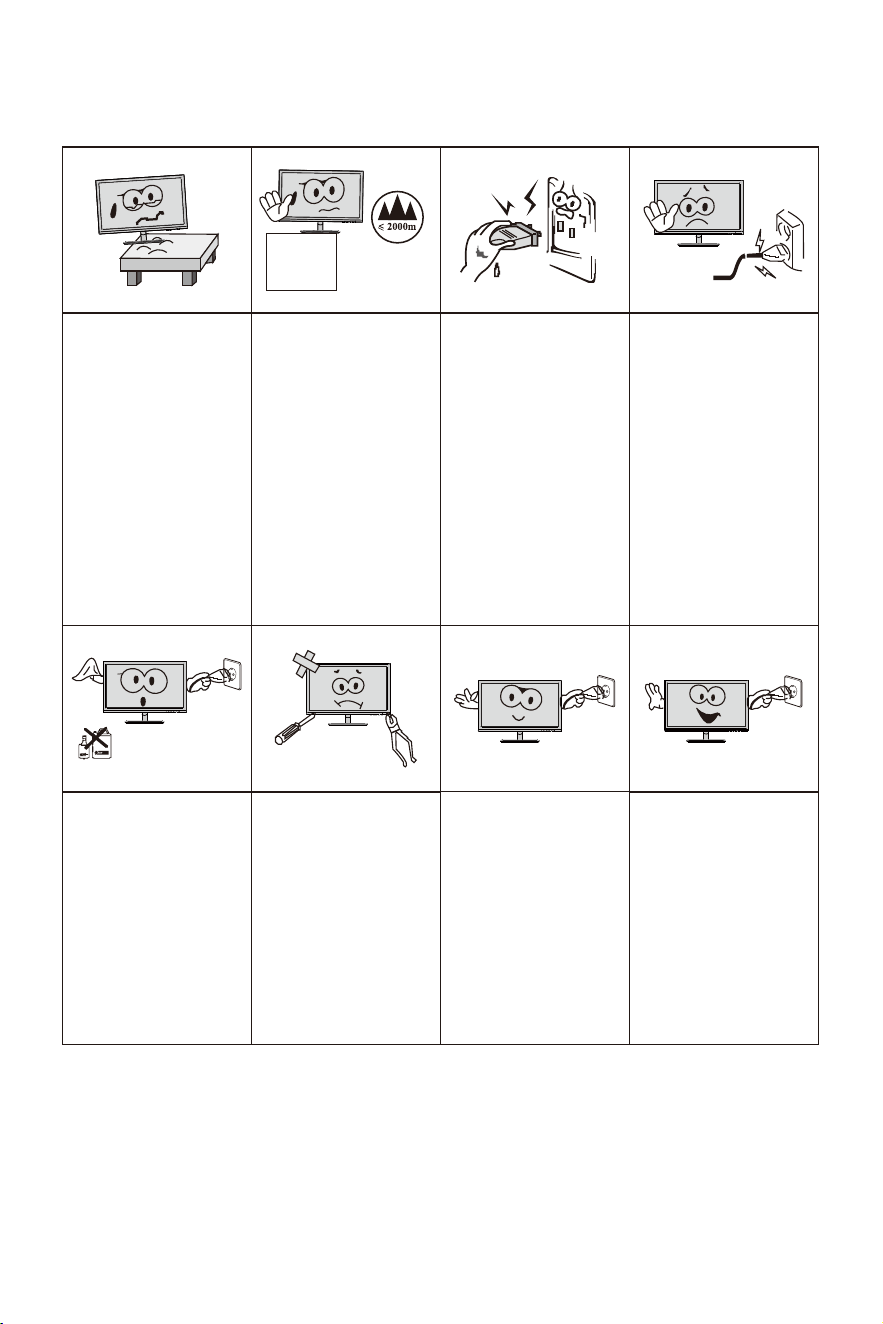

Please always place
this device on a stable
surface; otherwise,
it may fall and be
damaged.
The altitude and the
tropical environment
the adapter fits depend
on which adapter is
used for the device.
The rating plate on
the back of the device
with the above warning
sign indicates that
t h i s p r o d u c t i s
ap pli cable fo r t he
safe use of the region
w i t h a l t i t u d e o f
2,000m and below.
Do not hold the plug
w i t h w e t h a n d ;
otherwise, electric
shock
m a y o c c u r.
Make sure the plug
has a good touch
because poor touch
may cause fire.
Do not use a broken
power plug nor keep
a power cord near heat
source; otherwise,
e l e ct r i c s h oc k o r
fire may occur.
When cleaning the
device, be sure to
remove the power
plug, use a piece
of soft cloth rather
t h a n i n d u s t r i a l
ch emi cal t o cle an
the device, be sure
not to let water enter
the device.
Do not disassemble
this device without
permission. In case
of failure, be sure to
contact a professional
servicing person to fix
it. The unauthorized
disassembly of this
device may result
in electric shock or
fire.
In case of rare smell
or noise out of t
his
device, be sure to
immediately cut off
the power supply and
ask a professional
servicing person to
fix the problem.
When this device
is idle for long time,
be sure to power it
off; otherwise, electric
shock or fire may
occur.

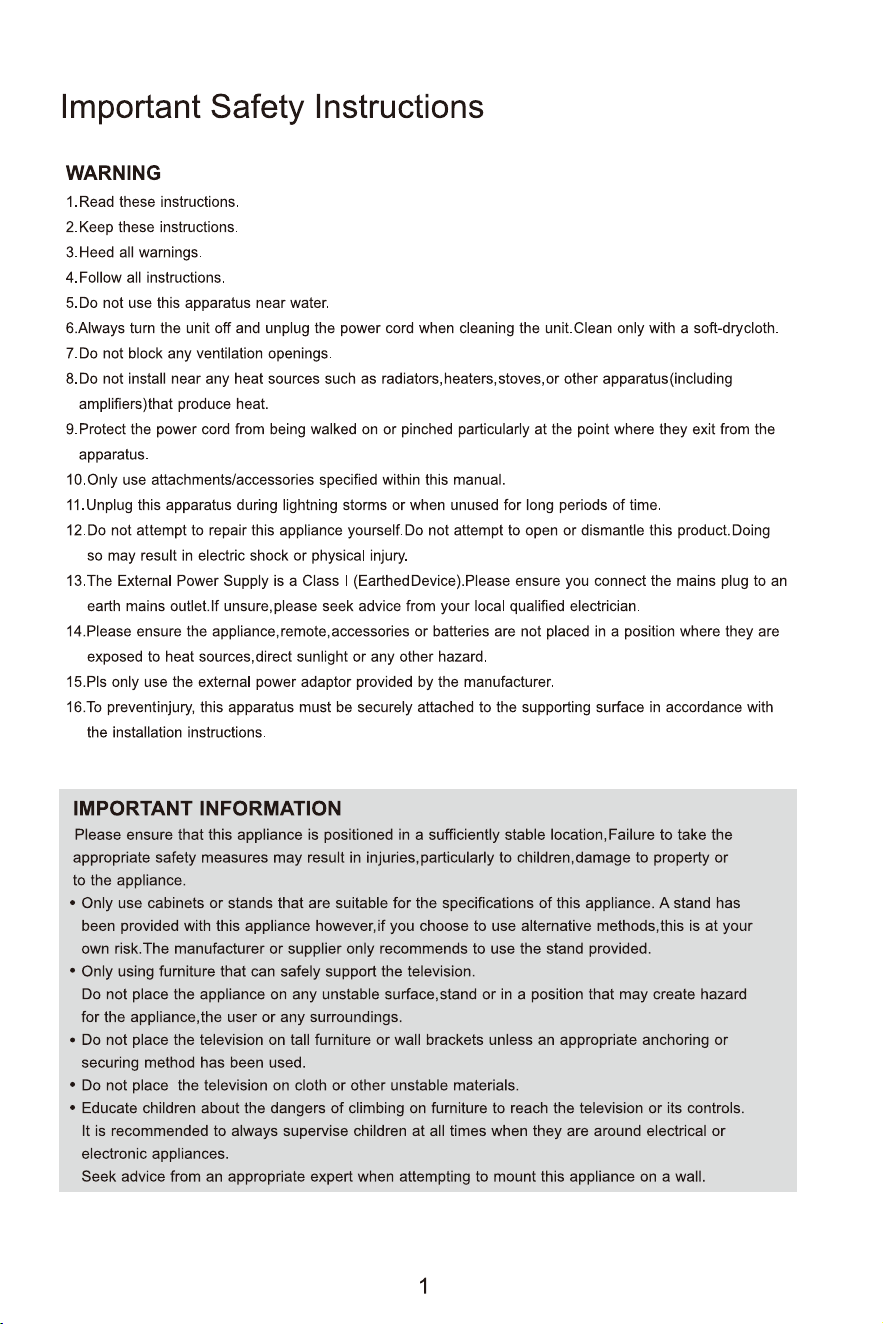

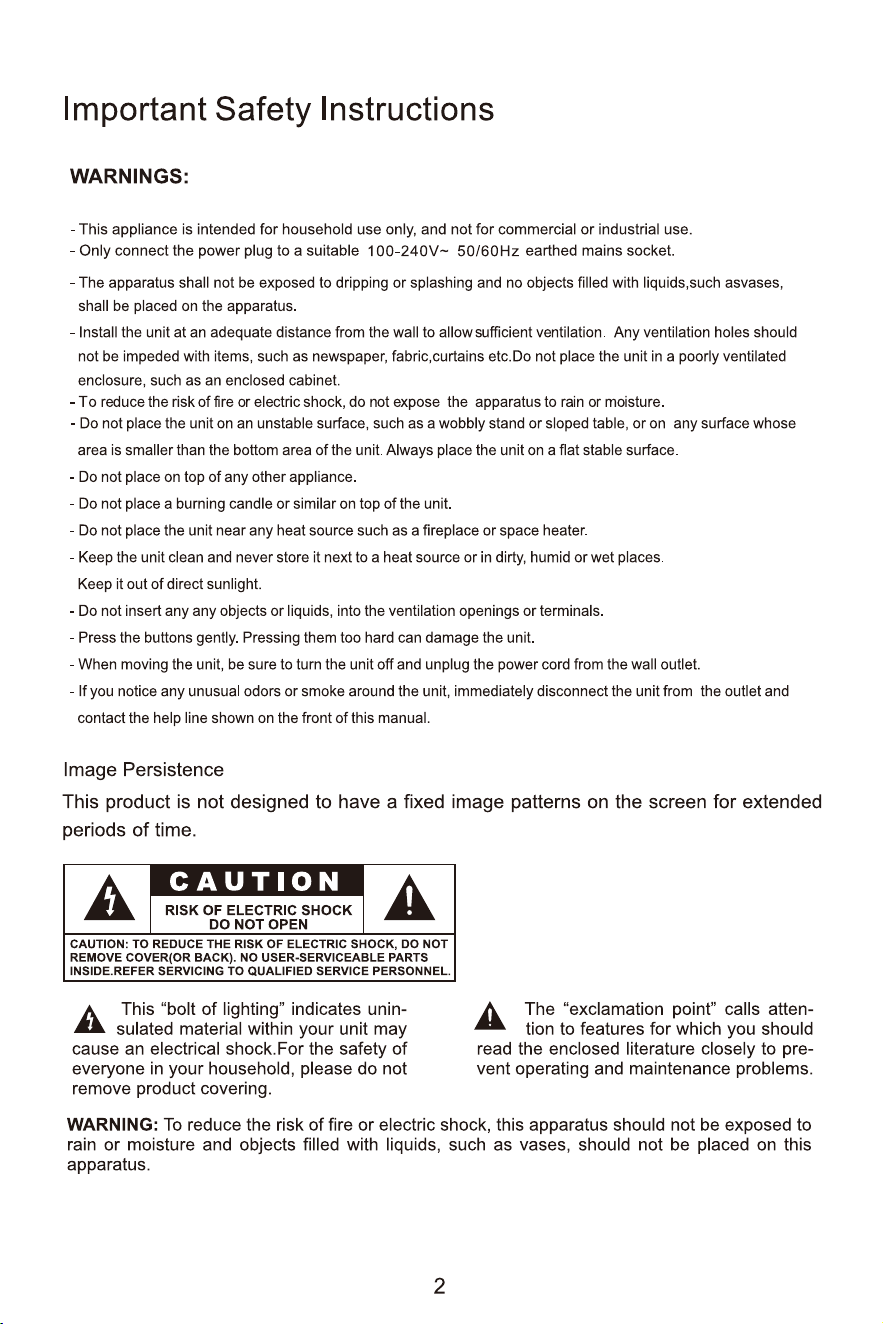

I. Safety Prevention Measures
Note:
The device with AC switch may use such AC switch as cut-off component.
The device without AC switch may use power plug or coupler as cut-off component.
ln case of the normal use of the equipment, make sure the cut-off component can be accessed
easily.
2. Product introduction

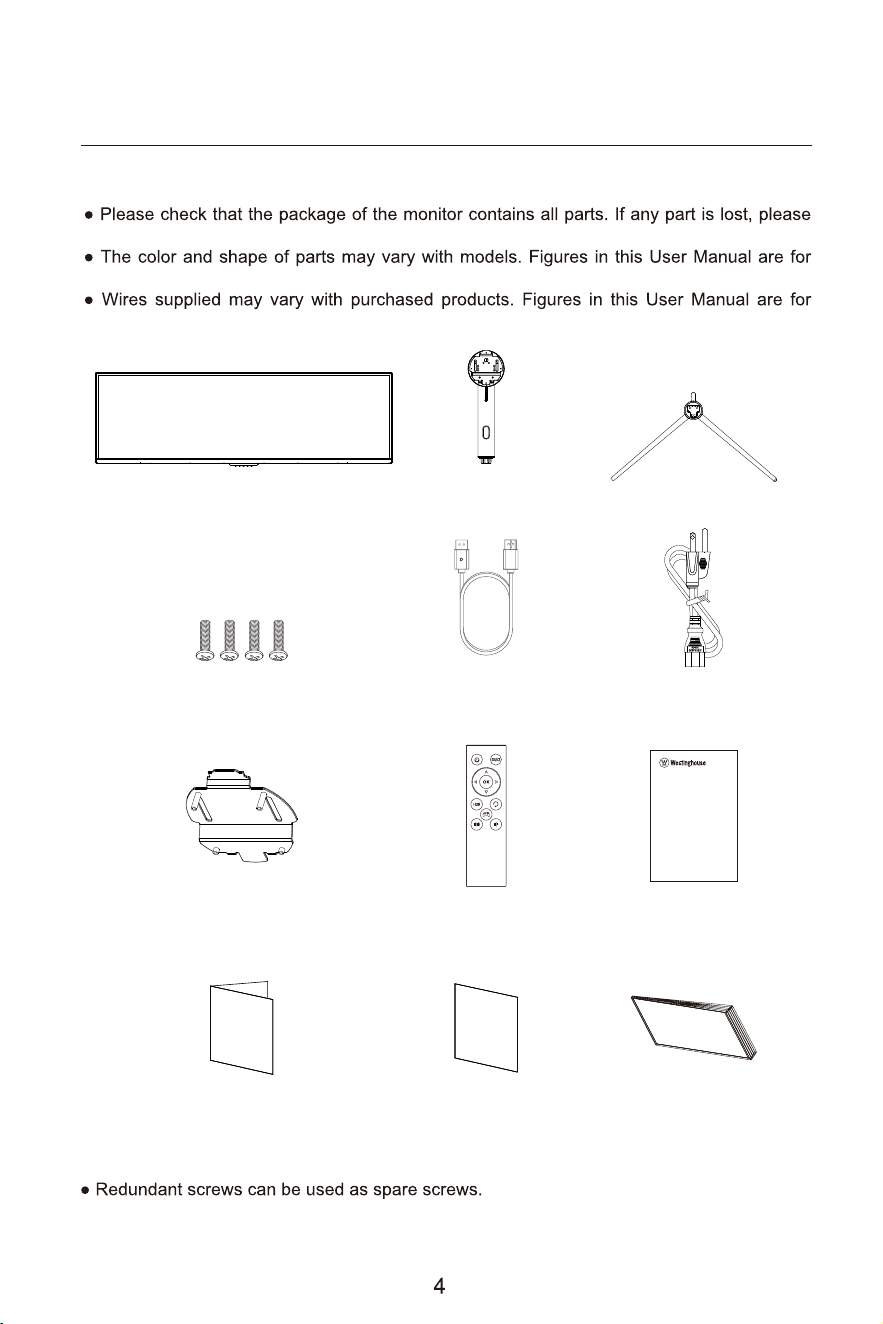

Packing list
(The above pictures are for illustration only and the physical accessories shall govern.)
contact the distributor.
reference only.
reference only.
Monitor Stand BaseStand Stem
DP Signal Cable
Remote ControlWall Mounting Adapter
Power Cable
User Manual
Screws x 4
Warranty CardTech Support CardQuick Start Guide
User
Manual
Products:
WC49BX6230
DO NOT RETURN THIS PRODUCT TO THE STORE
If you have questions or need assistance, please call
customer service at（800）701-0680.

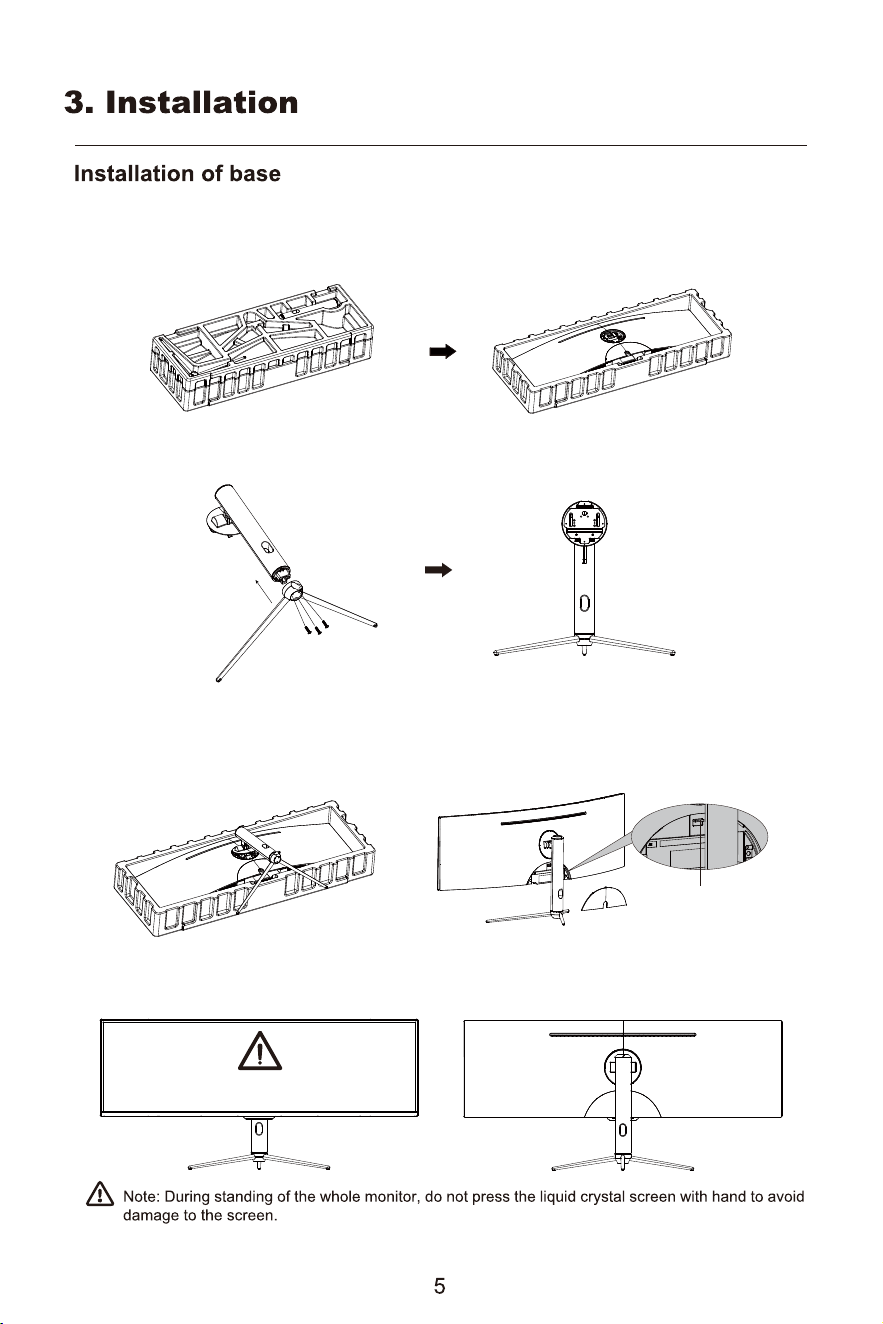

2. Take out the stand stem and base, insert the base into the support and lock attached 3 screws;
4. Simply hold the stand with hand to stand the monitor upright.
3. Align the stand stem’s bracket with the opening on the back of the monitor, and carefully insert bracket,
fit the stand assembly and display together.When remove the base, take off the decorative cover of the
back shell and pull downthe quick remove button to remove the base.
Screws x 3
(Fixed Base)
Button
Do not press the LCD
1. Open the package to take out foams and put them on a flat tabletop. Remove the extra parts and the
foam covering the monitor , take out the monitor film bag and put the monitor in the lower foam cover.

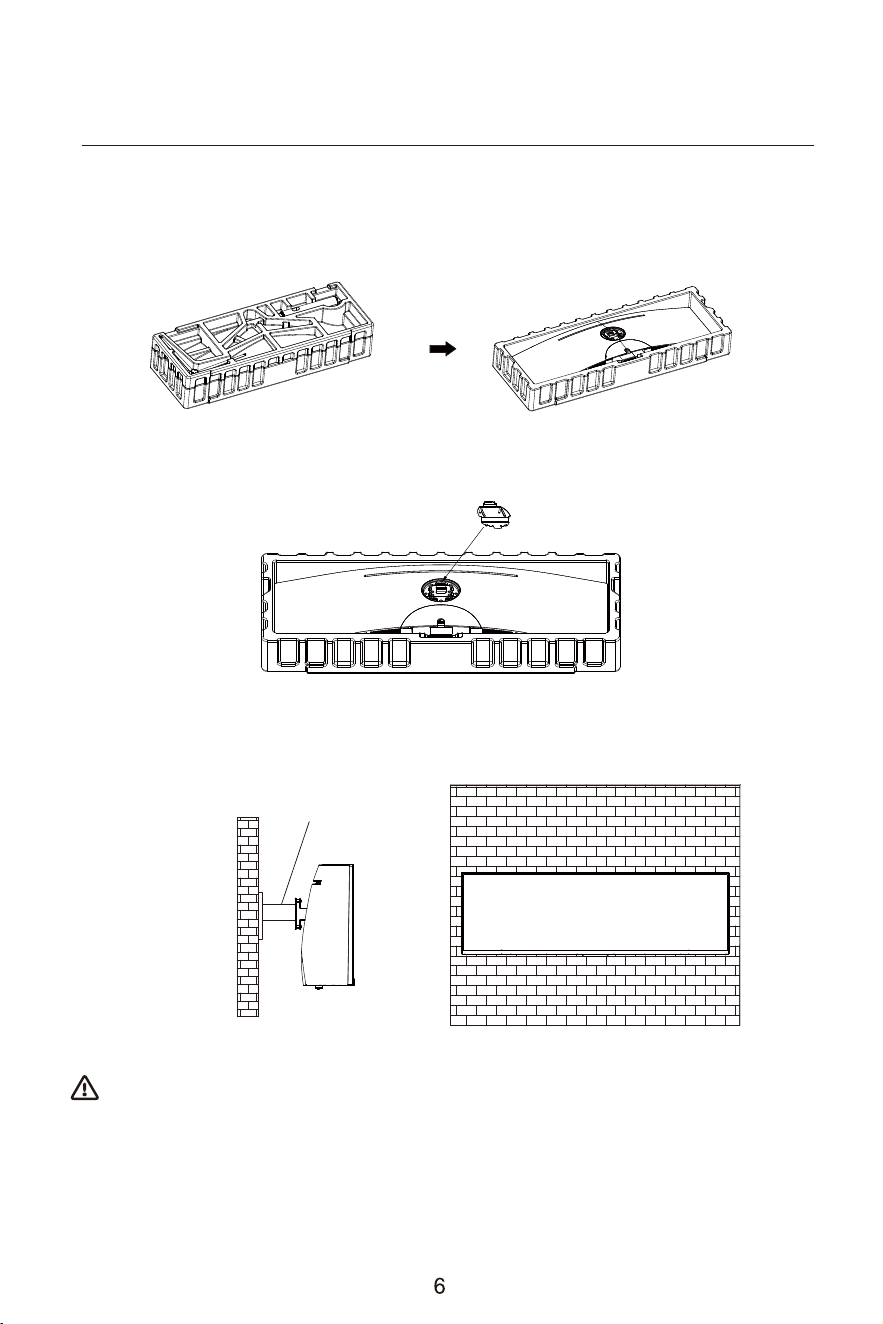

Installation of mount
2. Take the wall mounting adapter out of the accessory bag, and install the wall mounting adapter on the
rear shell according to the figure.
3. Hang the assembled product on a hard wall. Do not pinch the screen with your hands during the hanging
process to avoid damaging the screen.
Mount (not supplied)
Note: In order to prevent the monitor from falling when it is used on the wall, please install it properly
and do safety protection. Do not place or hang any objects on the wall bracket, and the wall height
should be within 2 meters.
1. Open the package to take out foams and put them on a flat tabletop. Remove the extra parts and the
foam covering the monitor , take out the monitor film bag and put the monitor in the lower foam cover.
7

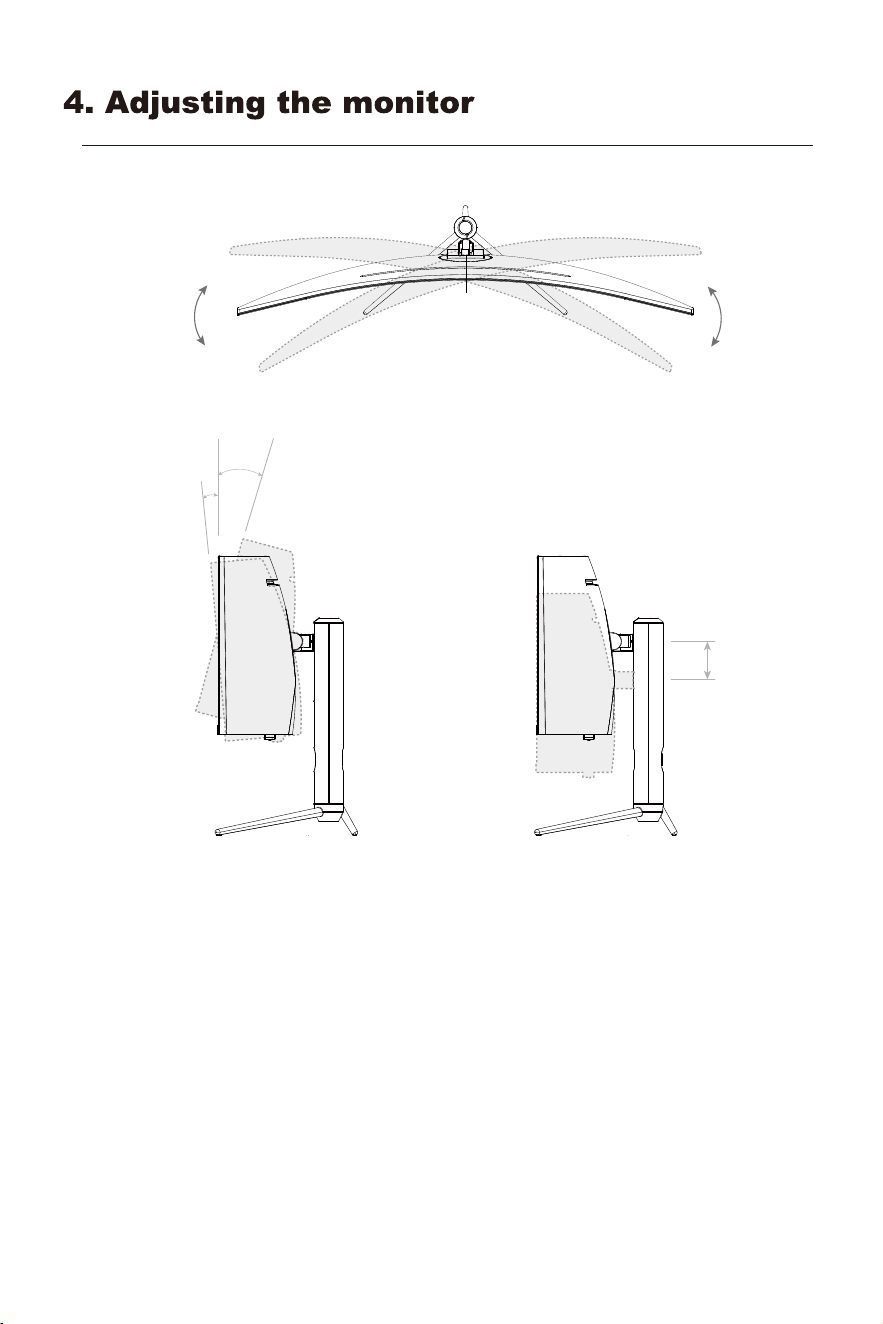

Rotation angle
-15.0°(±2.0°)- +15°(±2.0°)
Height
adjustment
range
95±5mm
Tilting angle
-5.0°- +15°
+15°
-5.0°
95mm
8
5. Usage

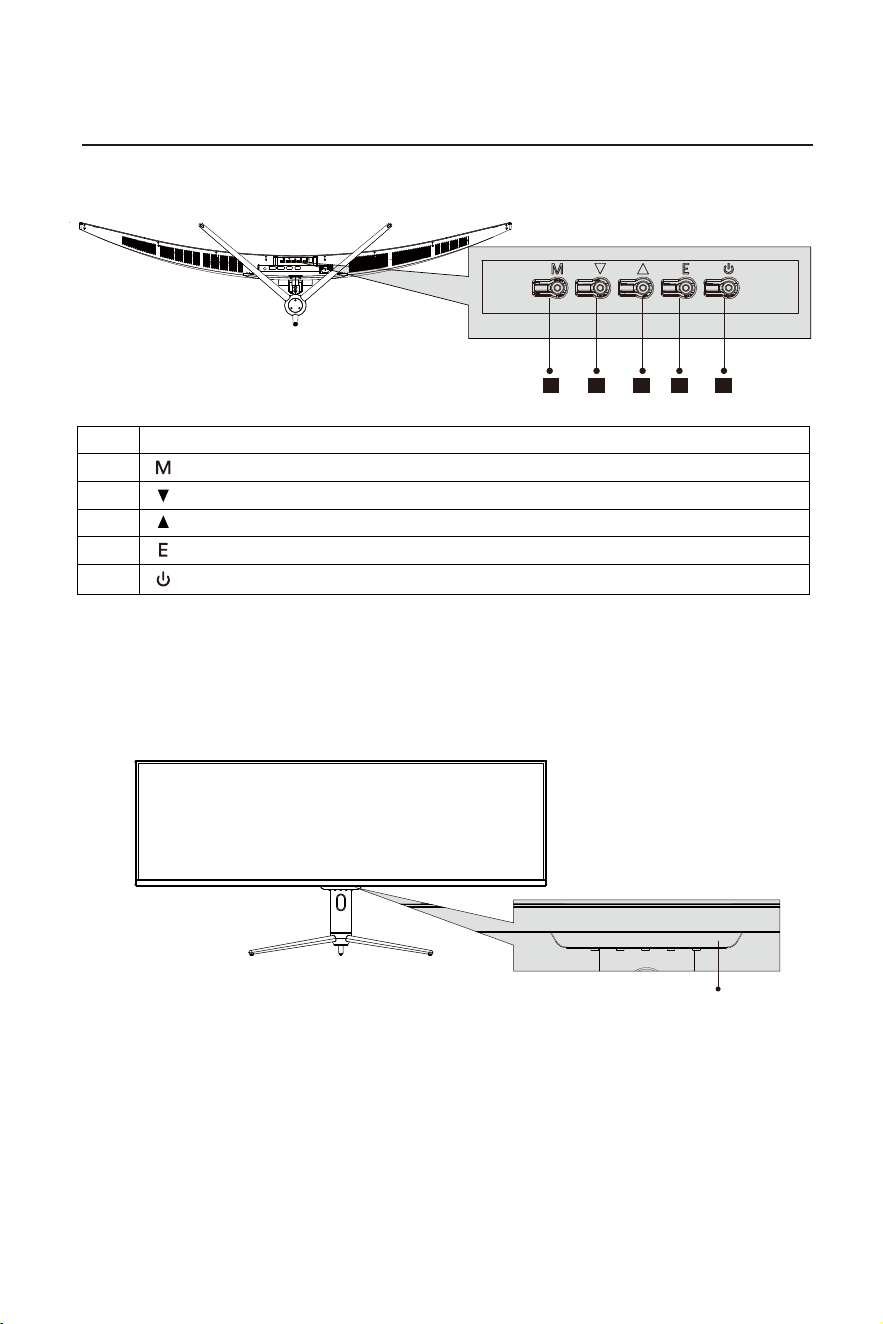

Description of buttons
Explanation of indicators
1 2 3 4 5
Menu button: Press to display the OSD menu or enter sub-menus.
Up button: Press to move up in the menu.
Exit/hot key: Press to exit.
Down button: Press to move down in the menu.
Power button: Press to turn on/off the monitor.
Button Function
1
2
3
4
5
Indicator
Indicator: Solid blue light indicates power is on and the monitor is operating normally. Flashing blue light indicates
no video source has been detected. Please ensure your computer is on and all video cables are fully inserted and or
Connected.
9

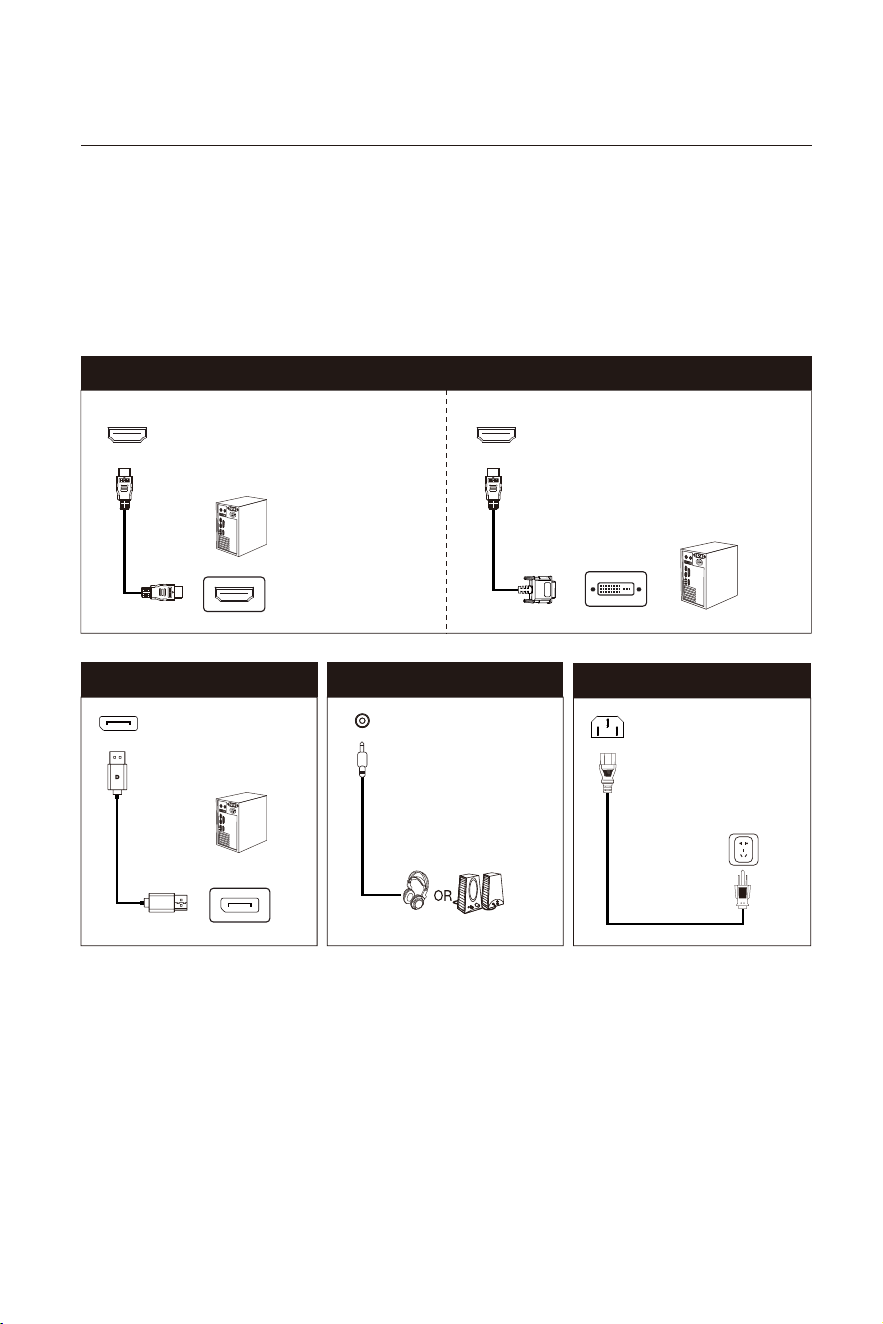

Cable connection
*The bottom interface configuration at the back of the monitor varies with products.The actual
product received shall prevail.
*Note: lf the power adapter or signal cable is damaged,you must replace it with special soft cables
or special you must replace it with special soft cables or special components purchased from the
manufacture or maintenance department.
Connect audio outputting
devices such as earphones
to the Audio out interface.
Use the DP cable to
connect the DP IN port of
the productto the DP OUT
port of a PC.
Use the HDMl cable to connect the HDMI
IN interface of the product to the HDMI
OUT interface of a PC.
Use the HDMI-DVl cable (not included) to
connect the HDMl IN port of the product to
the DVI OUTport of a PC. (In general, PCs
do not transfer video signals to the monitor
through the DVI OUT interface , and it is
necessary to connect a loudspeaker box
additionally to play sounds of PCs.)
AUDIO OUT
HDMI interface
DP interface
Please connect the power
cable plug to the
corresponding portof the
monitor, and connect
theother end to a properly
grounded power outlet.
AC IN interface

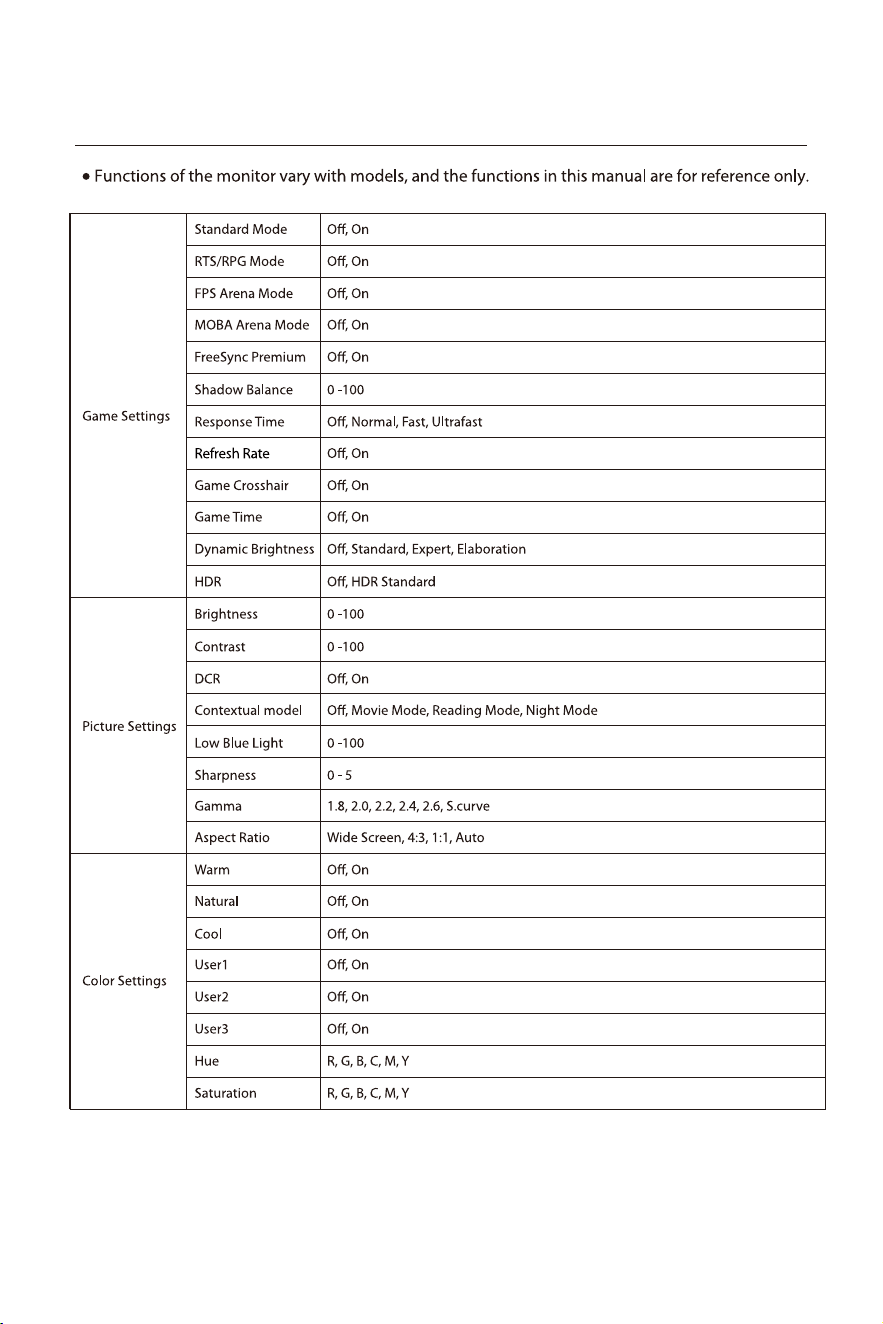

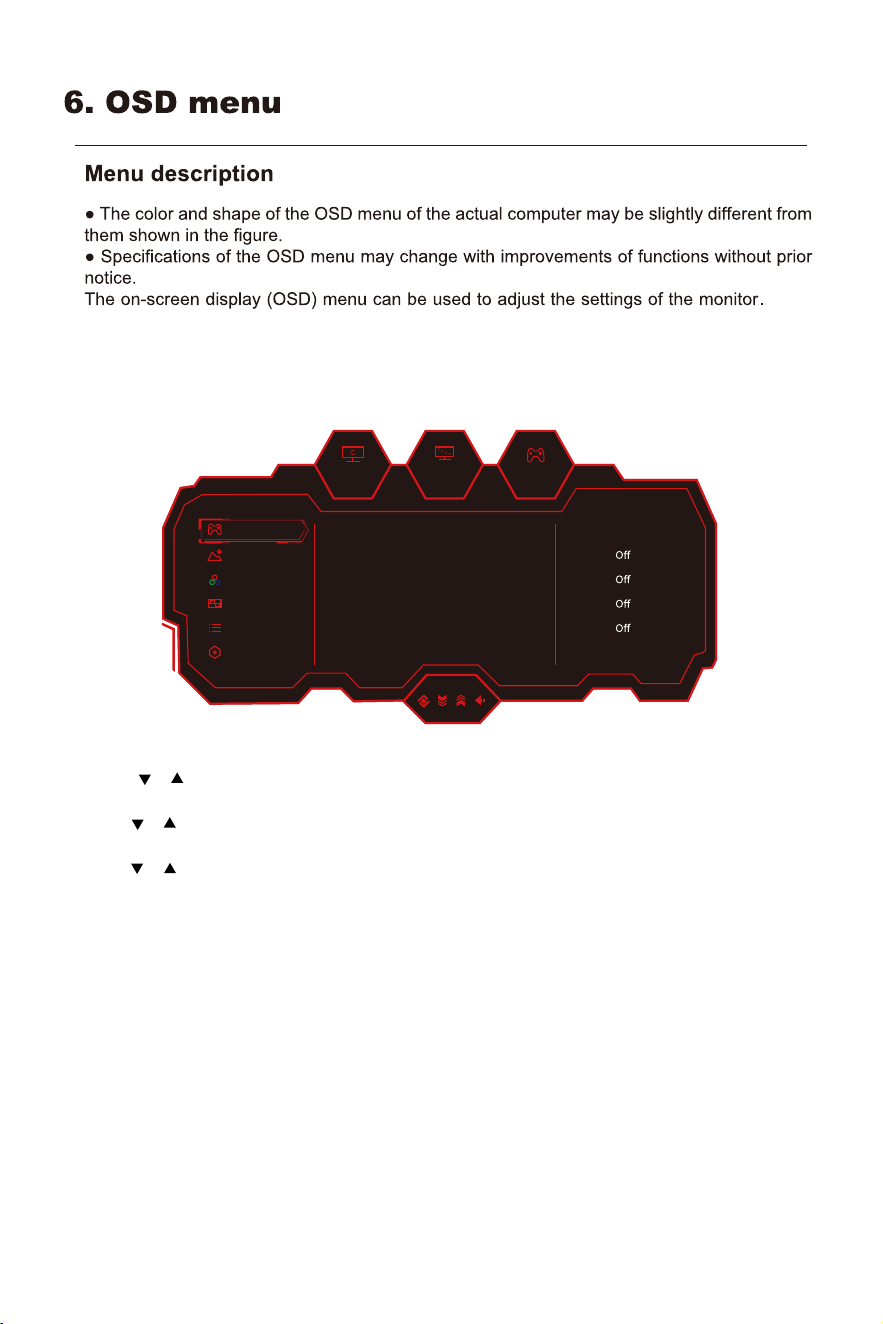

1. Press the buttons (M) to enter the OSD screen.
10
2. Press or to browse through the functions.
-Select the desired function, then press the M button to enter the submenu.
-Press or to browse the sub-menus, and then press the M key to confirm the selection of the
desired function.
-Press or to select an option, then press M to confirm the setting and exit the current menu.
3. Press E to exit the menu interface。
144hz
3840
x
1080
OFF

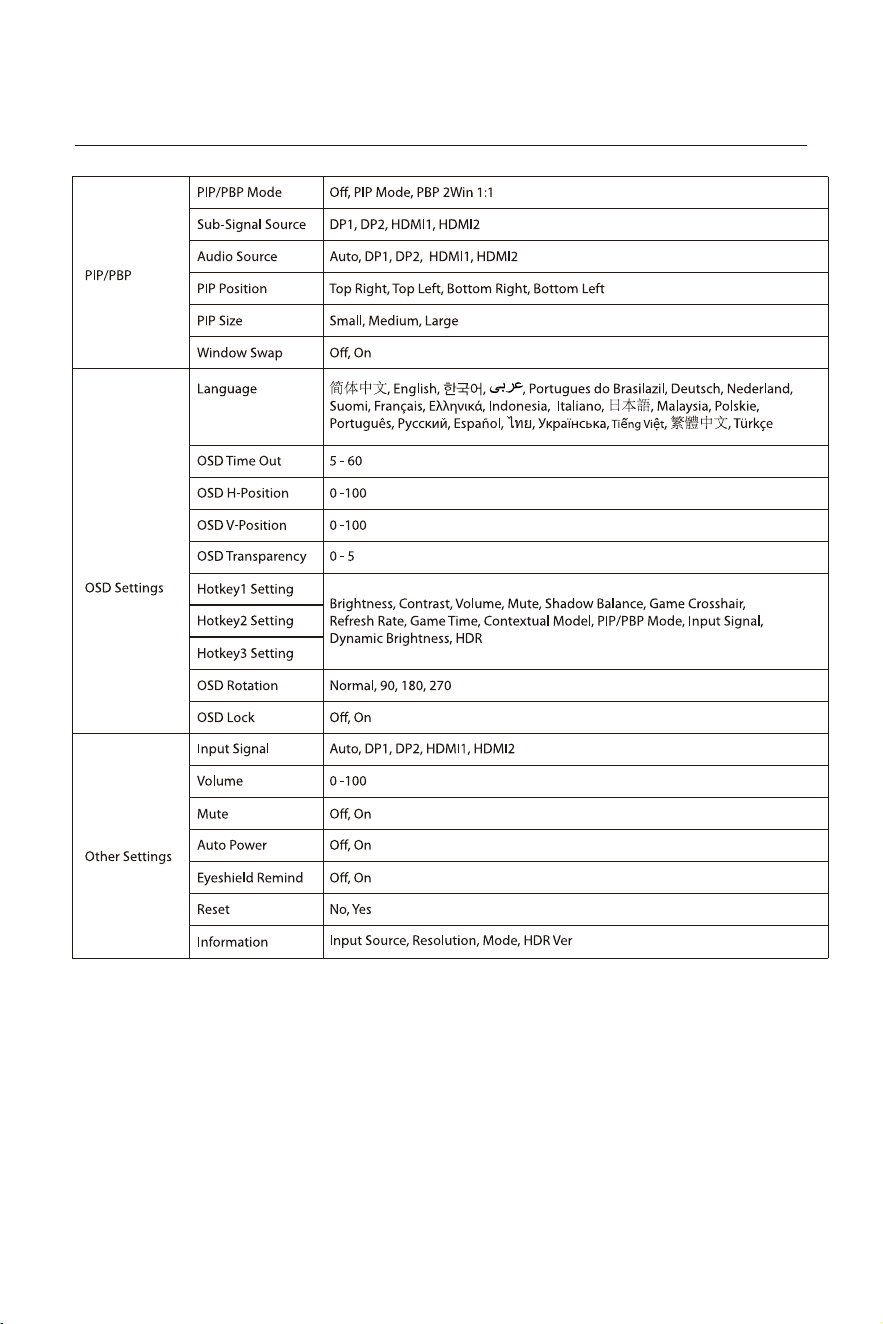

Other Settings
Game Settings
OSD Settings
Color Settings
PIP/PBP
Picture Settings
Standard Mode On
50
RTS/RPG Mode
FPS Arena Mode
MOBA Arena Mode
FreeSync Premium
Shadow Balance
11
12
7. Basic Troubleshooting
13
Phenomenon Troubleshooting
light is off
2. Image blurring,
over-large, over-small, etc.
Check whether the display and the socket are well connected to
power, and whether the display is in the shutdown mode.
Enter the menu“ Image Setting” and select“ Auto Image Adjust”
Enter the menu“ Brightness and Contrast” to adjust the
brightness and contrast of the display.
and do not place articles on the display.
Check computer setting, select the correct resolution and re-adjust
the refresh frequency.
It is a normal phenomenon caused by display discharging in the
process of powering off.
This is a normal phenomenon. It is due to the backlight illuminates
unevenly at the initial phase of powering on caused by temperature
difference. The backlight can illuminates normally after 20 minutes,
and then the dark/light spots will be corrected.
5. Dark/ light spots when
powering on
6. Image distortion, blinking,
shaking
3. Image over dark
4. Display over heat
7. Power off noise
8. Basic parameters
14
(The actual application of the above parameters shall be subject to the specific model.)
Product model
WC49BX6230
Screen Size
Viewing Angle
49"
178°(H) / 178°(V)
Pixel pitch 0.1038(H)×0.3114(V)mm
Contrast ratio 3000:1（TYP）
16.7M
Colors
32:9
3840×1080
Product
Dimensions
Without base
Action
Storage
1198.5 x 375.6 x 160.2mm
1198.5 x 566.3 x 286.8mm
With base
2 x2watt
Tilting angle
speaker
Environmental
conditions
Power Input
Maximum refresh rate
144Hz
Product Name
49" CURVED GAMING MONITOR
100-240V~ 50/60Hz, 2.0A
Forward titling: -5°±2° ;Backward tilting: 15°±2°
Temperature: 0°C~ 40°C (32°F ~ 104°F)
Humidity: 10%~90% RH (non-condensing)
Temperature: -20°~ 60° (-4°F ~ 140°F)
Humidity: 5%~95% RH (non-condensing)
