2.1M HIGH INTEGRATED REFRIGERATION
PLANNING GUIDE
SERIES 11 | INTEGRATED FRENCH DOOR RS9121AUVE1
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 290005378A PLANNING GUIDE REFRIGERATION VERSION A - SEPTEMBER 2025
RS9121AUVE1
CONCEPT DESIGN PAGE
DEVELOPED AND DETAILED DESIGN PAGE DEVELOPED AND DETAILED DESIGN PAGE
DESIGN CHOICE
2.1M Integrated refrigeration 4
SPECIFICATION GUIDE
French door refrigerator freezer 6
Product and cavity dimensions 7
DOOR SWING
Door swing clearances 9
SUPPORT
For additional design planning and installation support please
contact the Fisher & Paykel design support team.
designsupport@fisherpaykel.com
CONTENTS | REFRIGERATION
CONTENTS
INTRODUCTION
This comprehensive planning guide provides you with the
framework and tools to achieve your desired design outcome
with Fisher & Paykel appliances. In this guide, you will find a
range of conceptual, detailed, and dimensional product
information to bring your ideas to life and create spaces that
truly reflect your vision.
NOTES
The models shown in this Planning Guide may not be available
in all markets and are subject to change at any time. Refer to to
our website fisherpaykel.com for the latest document version.
Product specifications may vary from those shown.
This Planning Guide should not be used as installation guidance
for any product. Specific installation guidance will be available
with the product on delivery and on our website.
<< CONTENTS
PAGE 3© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE REFRIGERATION VERSION A - SEPTEMBER 202590005378A
DESIGN CHOICE
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 490005378A PLANNING GUIDE REFRIGERATION VERSION A - SEPTEMBER 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
2.1M CAVITY HEIGHT MODELSDESIGN CHOICES | REFRIGERATION
REFRIGERATION
1
2
3 4
PRODUCT
MODEL
1 61cm Wine Cabinet
91 bottle capacity, optional display
capability. Two independent temperature
zones, four wine modes.
RS6121VL2K1, RS6121VR2K1
2 61cm Integrated Refrigerator
Custom panel ready, 351L capacity with
internal water dispenser.
RS6121SRHE1, RS6121SLHE1
3 76cm Integrated Refrigerator with water
Custom panel ready, 463L capacity with
internal water dispenser.
RS7621SRHE1, RS7621SLHE1
PRODUCT
MODEL
4 61cm Integrated Refrigerator-Freezer
Custom panel ready, 342L capacity,
internal ice maker and water dispenser.
RS6121WRUE1, RS6121WLUE1
5 76cm Integrated Refrigerator-Freezer
Custom panel ready, 449L capacity,
internal ice maker and water dispenser.
RS7621WRUE1, RS7621WLUE1
6 91cm Integrated Refrigerator-Freezer
Custom panel ready, 555L capacity,
internal ice maker and water dispenser.
RS9121WRUVE1, RS9121WLUVE1
7 91cm Integrated Refrigerator-Freezer,
French Door
Custom panel ready, 555L capacity,
internal ice maker and water dispenser.
RS9121AUVE1
PRODUCT
MODEL
8
46cm Freezer with Ice
Custom panel ready, 220L, and internal
ice maker. zones, four wine modes.
RS4621FRJE1, RS4621FLJE1
9
61cm Integrated Freezer with ice
Custom panel ready, 336L capacity and
internal ice maker and water dispenser.
RS6121FRJE1, RS6121FLJE1
!0
76cm Integrated Refrigerator
Custom panel ready, 442L capacity with
internal water dispenser.
RS7621FRJE1, RS7621FLJE1
REFRIGERATOR FREEZER FREEZER
5
6 7 8 9
!0
<< CONTENTS
PAGE 5© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE REFRIGERATION VERSION A - SEPTEMBER 202590005378A
SPECIFICATION GUIDE
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 6PLANNING GUIDE REFRIGERATION - VERSION A - SEPTEMBER 202590005378A © FISHER & PAYKEL LIMITED 2025
SPECIFICATION GUIDE | 2.1m High Integrated French Door Refrigeration
OVERVIEW
Experience the pinnacle of refrigeration design with our
most advanced model. Featuring an elegant interior, this
refrigerator embodies premium functionality and style.
Designed to optimise energy eciency, it comes complete
with an ice maker and internal water dispenser.
PRODUCT OVERVIEW
RS9121AUVE1
Integrated French Door Refrigerator Freezer, 91cm, Ice &
Water
FEATURES
1 Space-saving French Door design, ideal for island or galley
style kitchens
2 Designed for optimal energy performance and maximum
efficiency
3 Enjoy convenient access to fresh, chilled water and ice
with the internal water dispenser and ice maker
4 Seamless fit with only 3mm gaps, featuring no visible
hinges or grilles
5 Customize with kitchen cabinetry or a stainless steel door
panel accessory
6 Variable Temperature Drawer with Chill, Fridge, and Pantry
modes for optimal food care
7 Intuitive, easy-to-use touchscreen interface with Wi-Fi
compatibility
8 The premium design and finish include a steel interior
lining, full-extension metal shelf runners for easy access,
robust glass shelving, and drawers with quality hinges
designed for daily use
!0 ActiveSmart™ technology maintains ideal temperature for
fresher food
ACCESSORIES
Handles
1 Contemporary Silver AHD7RD9121AX
2 Minimal Black AHM1RD9121AB
3 Professional Round AHP3RD9121A
Door panels
4 Stainless Steel Door Panels RD9121AD
RS9121AUVE1
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 790005378A PLANNING GUIDE REFRIGERATION VERSION A - SEPTEMBER 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
RS9121AUVE1SPECIFICATION GUIDE | 2.1M FRENCH DOOR INTEGRATED REFRIGERATION

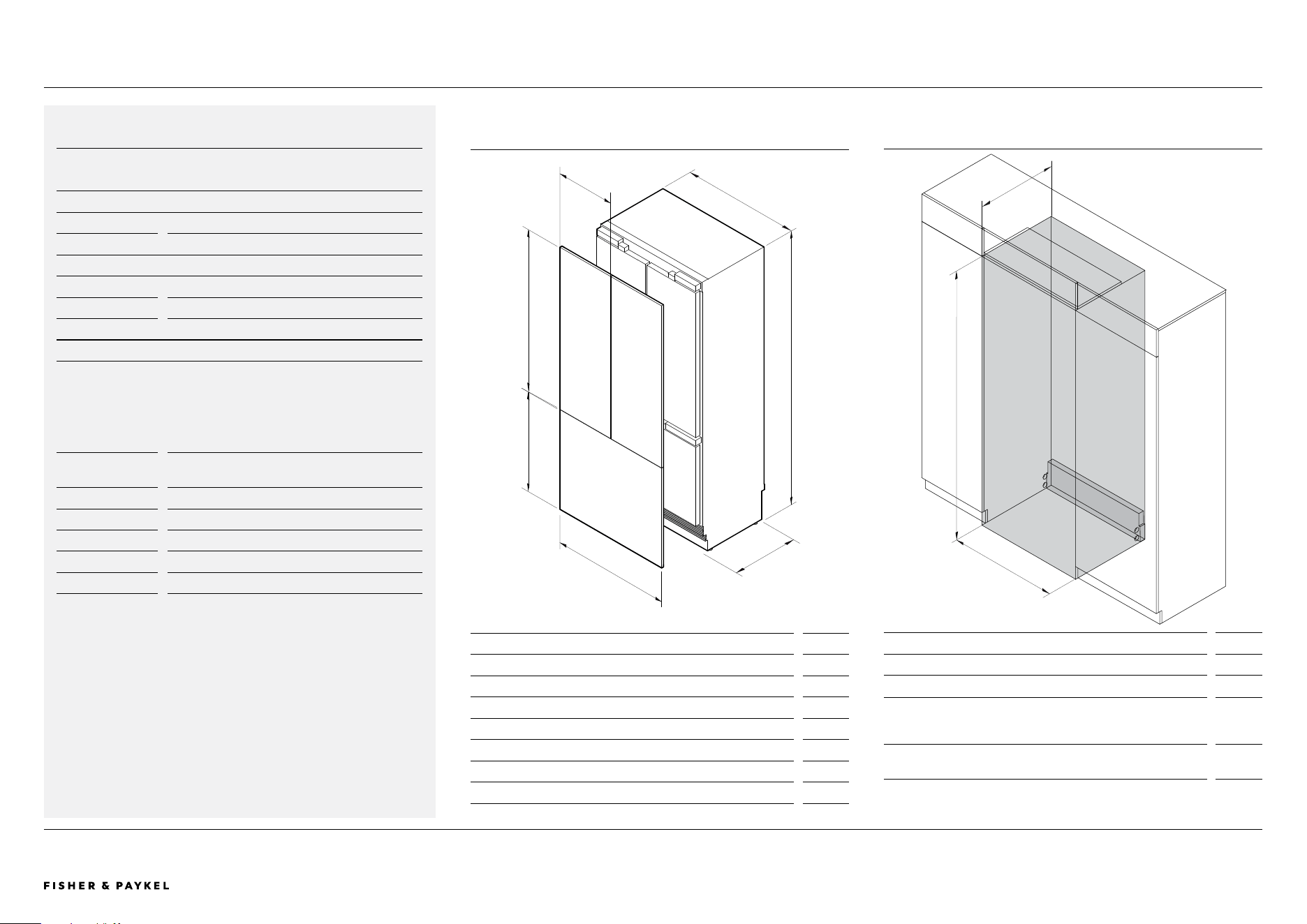

PRODUCT DIMENSIONS
Product Dimensions mm
A Chassis height 2134
B Chassis width 908
C Chassis depth* 610
D Door panel height 1254
E Door panel width (single install) 452
F Drawer panel height 771
G Drawer panel width 908
*Excludes panels.
b
a
c
d
a
b
SPECIFICATIONS
Model Number
RS9121AUVE1 French door integrated refrigeration
Electrical
Supply 230 V, 50 Hz
Service 10 A circuit
Plumbing
Supply AU/NZ 1/2" (12.7mm) comp. stainless steel
braided
with hose adopter
GB/EU/CN 3/4" (19mm) comp. stainless steel
braided
with hose adopter
Pressure
min 150 kPa (22 psi)
max 827 kPa (120 psi) @ 20°C (68°F)
Weight 242kg
e
f
CAVITY DIMENSIONS
Cavity Dimensions mm
A Cavity height 2134
B Cavity width
914
C Cavity depth
Services located outside of cavity
Services located at rear of cavity
635
650
Minimum cabinetry gap clearance from edge of door
panels
3
C
G
<< CONTENTS
PAGE 8© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE REFRIGERATION VERSION A - SEPTEMBER 202590005378A
DOOR SWING
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 990005378A PLANNING GUIDE REFRIGERATION VERSION A - SEPTEMBER 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

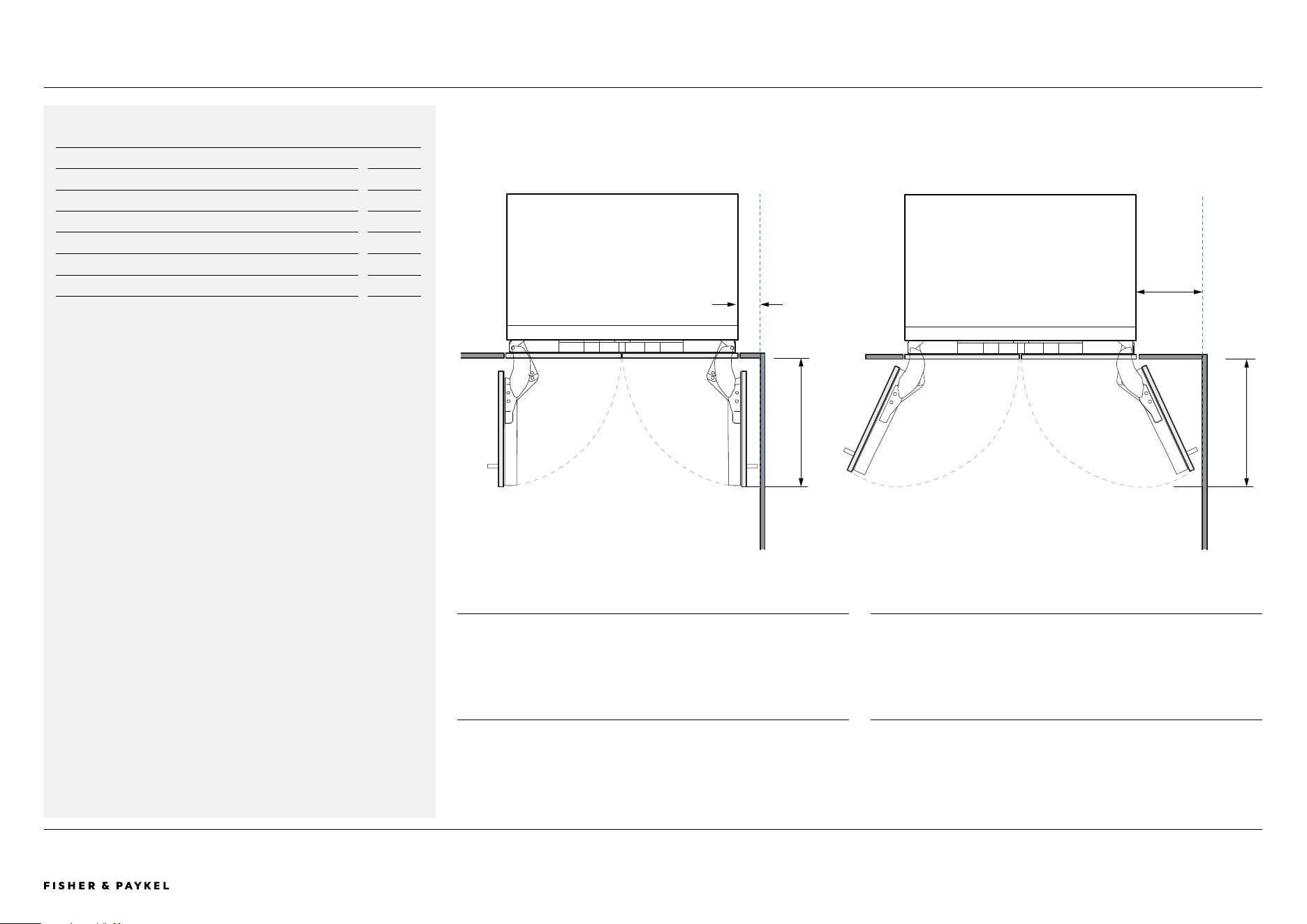

RS9121AUVE1SPECIFICATION GUIDE | DOOR SWING CLEARANCES
A
B
C
D
90° INTERNAL ACCESS
A hinge limiting pin can be installed to restrict door opening to
90° where necessary.
Minimum dimensions shown are for a 41mm handle depth.
Custom door panel and handle details need to be taken into
account.
115° INTERNAL ACCESS
115° door opening - full internal access.
Minimum dimensions shown are for a 41mm handle depth.
Custom door panel and handle details need to be taken into
account.
DOOR CLEARANCES
90° Opening Door clearances mm
A Minimum door clearance to adjacent wall
110
B Maximum door opening depth
575
115° Opening Door clearances
C Minimum door clearance to adjacent wall
315
D Maximum door opening depth
575
<< CONTENTS
