Manual v1.0
Freestanding FlipShelf™ Wine and
Beverage Fridge
AB-1200FLS
fd
OWNER’S MANUAL
Read and save these instructions.
www.newair.com 2
A Name You Can Trust
Trust should be earned and we will earn yours. Customer happiness is the focus
of our business.
From the factory to the warehouse, from the sales floor to your home, the
whole NewAir family promises to provide you with innovative products,
exceptional service, and support when you need it the most.
Count on NewAir.
As a proud NewAir owner, welcome to our family. There are no robots here,
real people shipped your product and real people are here to help you.
Contact Us:
For questions regarding your product, please contact us at:
Call:
1-855-963-9247
Email:
Online:
www.newair.com
Connect with Us:
Facebook.com/newairusa
Instagram.com/newairusa
YouTube.com/newairusa
Twitter.com/newairusa
www.newair.com 3
READ AND SAVE THESE INSTRUCTIONS
TABLE OF CONTENTS
Table Of Contents ................................................................................................ 3
Specifications ............................................................................................... 3
Register Your Product Online ............................................................................... 4
Safety Information & Warnings ........................................................................... 5
Parts Diagram ....................................................................................................... 8
Assembly & Installation ....................................................................................... 9
Installation ................................................................................................. 10
Electrical Connection ................................................................................. 11
Operating Instructions ....................................................................................... 12
Setting The Temperature ........................................................................... 12
How To Use The Flipshelf™ Shelves ................................................. 13
Optimizing Performance ............................................................................ 14
Fridge Noises .............................................................................................. 14
Cleaning & Maintenance .................................................................................... 15
Defrosting Your Fridge ............................................................................... 15
Cleaning Your Fridge .................................................................................. 15
Moving Your Fridge .................................................................................... 15
Preparing For Long-Term Storage .............................................................. 16
Wine Storage Guide ........................................................................................... 17
Troubleshooting ................................................................................................. 18
Limited Manufacturer’s Warranty ..................................................................... 20
SPECIFICATIONS
MODEL NO.
AB-1200FLS
VOLTAGE/FREQUENCY:
110-120V/60Hz
CURRENT:
1.3A
POWER CONSUMPTION:
85W
BOTTLE CAPACITY:
72 cans (19.2oz)/126 cans (12oz)/28 bottles
STORAGE CAPACITY:
3.4 cu. ft.
TEMPERATURE RANGE:
37°F - 68°F
REFRIGERANT:
R600a (1.058 oz)
NET WEIGHT
58.9 lbs.
UNIT DIMENSIONS
18.4"D x 18.9"W x 33.2"H
www.newair.com 4
REGISTER YOUR PRODUCT ONLINE
Register Your Newair Product Online Today!
Take advantage of all the benefits product registration has to offer:
Service and Support
Diagnose troubleshooting and service issues faster and more accurately
Recall Notifications
Stay up to date for safety, system updates and recall notifications
Special Promotions
Opt-in for NewAir promotions and offers
Registering your product information online is safe & secure and takes less than
2 minutes to complete:
Alternatively, we recommend you attach a copy of your sales receipt below and
record the following information, located on the manufacturer’s nameplate on
the rear of the unit. You will need this information if it becomes necessary to
contact the manufacturer for service inquiries.
Date of Purchase: ___________________________________________
Serial Number: ____________________________________________
Model Number: ____________________________________________
newair.com/register
www.newair.com 5
SAFETY INFORMATION & WARNINGS
Your safety and the safety of others are very important to us.
To reduce the risk of fire, electrical shock, or injury when using your NewAir
appliance, follow these basic precautions
This is the Safety Alert Symbol. This symbol alerts you to
potential hazards that may result in serious injury. All safety
messages will follow the Safety
Alert Symbol and either the words "DANGER" or "WARNING."
DANGER: Danger means that failure to heed this safety statement may result in
severe injury or death.
WARNING: Warning means that failure to heed this safety statement may result
in extensive product damage, serious injury, or death.
CAUTION: Caution means that failure to heed this safety statement may result
in minor or moderate injury, or property or equipment damage.
DANGER - RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED.
TO BE REPAIRED ONLY BY TRAINED SERVICE PERSONNEL. DO NOT PUNCTURE
REFRIGERANT TUBING.
All safety messages will alert you to what the potential hazard is, tell you how to
reduce the chance of injury, and let you know what can happen if the instructions
are not followed.
IMPORTANT SAFETY INSTRUCTIONS
Before this fridge is used, it must be properly positioned and installed as
described in this manual. Please read this manual carefully. To reduce the risk of
fire, electrical shock or injury when using the appliance, follow basic precautions,
including the following:
• Always plug into a grounded 3-prong outlet. Do not remove grounding prong,
do not use an adapter, and do not use an extension cord.
• Do not use if the power supply cord is damaged. If damaged, do not use the
appliance. Contact customer service immediately.
• It is recommended that a separate circuit (serving only your appliance) be
used for this fridge. Use receptacles that cannot be turned off by a switch or
pull chain.
www.newair.com 6
• Never clean appliance parts with flammable fluids or harsh chemicals. These
fumes can create a fire hazard or explosion.
• Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this fridge or any other appliance.
• Before proceeding with cleaning and maintenance operations, make sure to
unplug the appliance.
• Do not connect or disconnect the power cord with wet hands.
• Do not attempt to repair or replace any part of your appliance unless it is
specifically recommended in this manual. All other services should only be
recommended by NewAir. Contact customer service if you have any issues
with your fridge.
FOLLOW WARNING CALL OUTS BELOW ONLY WHEN
APPLICABLE TO YOUR MODEL
• Use two or more people to move and install the fridge. Failure to do so can
result in injury.
• To ensure proper ventilation for your fridge, the front must be completely
unobstructed. Choose a well-ventilated area with temperatures above 60°F
(16°C) and below 90°F (32°C). This fridge must be installed in an area
protected from wind, rain, or water spray of any kind.
• This fridge should not be placed next to ovens, grills or similar sources of heat.
• This fridge must be installed with all electrical connections in accordance with
state and local codes.
• The fuse (or circuit breaker) size should be 15 amperes.
• It is important for the fridge to be leveled in order to work properly. For a
stable installation, make sure the appliance is placed on a flat, level, and solid
surface.
• Ensure that the surface on which the appliance is placed is strong enough to
hold the combined weight of the fridge and the items stored inside.
• This fridge is not intended for use by This appliance is not intended for use by
persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person
responsible for their safety.
• Young children must be supervised to ensure safety around this fridge or any
electrical appliance.
• Do not use solvent-based cleaning agents or abrasives on the interior. These
cleaners may damage or discolor the interior.
www.newair.com 7
• Keep your fingers out of the "pinch point" areas. The clearance between the
door and body of the fridge are intentionally small. Be careful of closing doors
when children are around.
• The temperature range for this beverage refrigerator is optimized for
beverage storage. Perishable food items may require a different storage
environment.
• Do not place hot food or beverages into the appliance.
• Close the fridge door immediately after putting in any items to keep the
internal temperature relatively constant.
• Avoid placing any objects on top of the appliance.
• This is an electrical appliance. To avoid injury from electrical shock, do not
operate the unit with wet hands, while standing on a wet surface, or while
standing in water. Do not use it outdoors or in wet conditions.
• When positioning or moving the appliance, ensure that it is not turned upside
down, or tilted more than 45°
• Never pull the power cord to disconnect it from the outlet. Grasp the plug and
pull it from the outlet.
• Never lift, carry or drag the appliance by the power cord.
• This appliance is designed for household, non-commercial use only. Any other
use will void the warranty.
• Do not plug into the power outlet before set-up is completed.
• Do not move this appliance without emptying it and securing the door in a
closed position.
www.newair.com 8

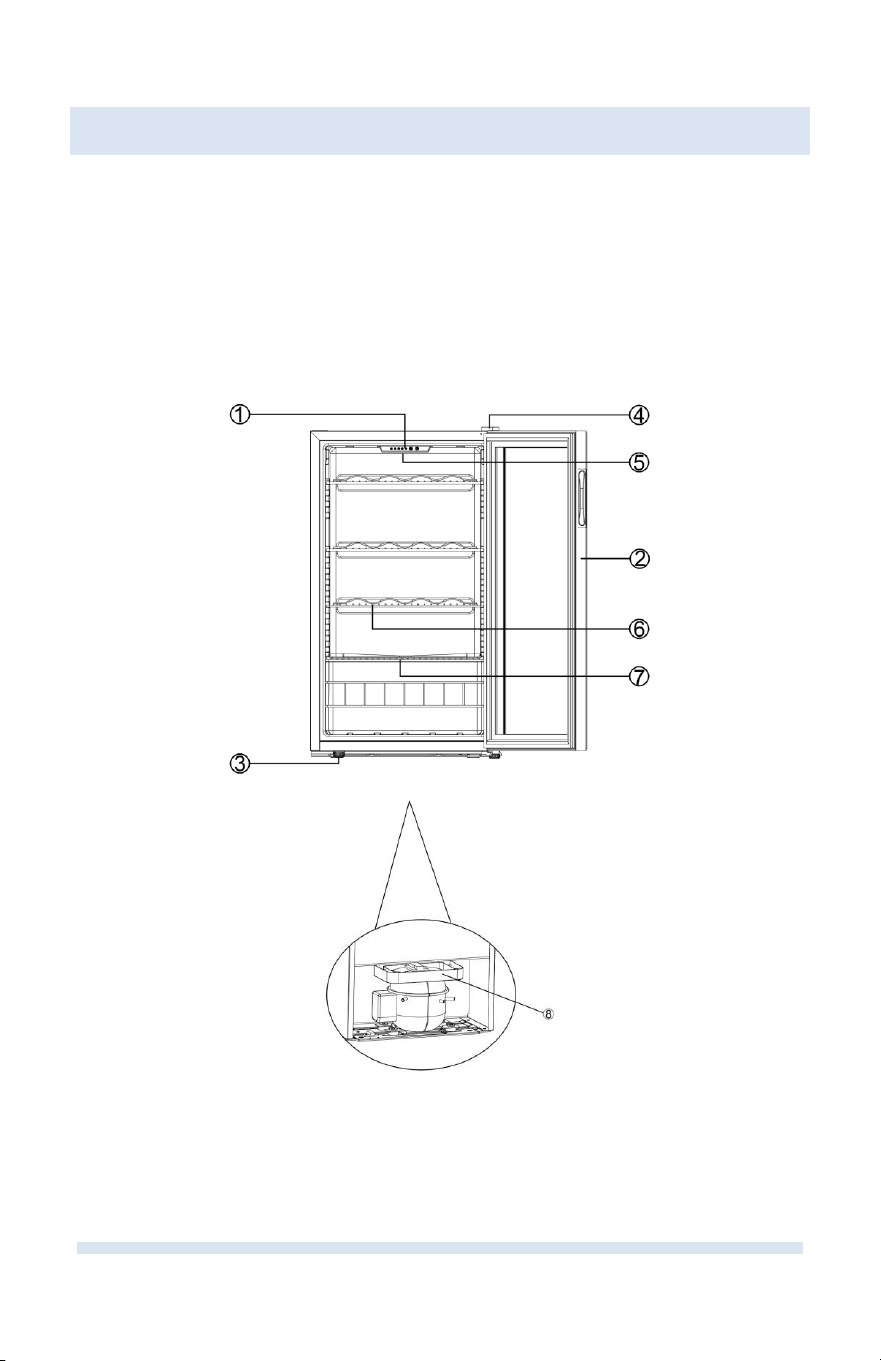

PARTS DIAGRAM
When you receive your unit, carefully remove the exterior and interior
packaging. It is recommended that you retain the packaging for future use.
Check to make sure the following parts are included:
• 3 FlipShelf
TM
Shelves
• 1 Half Shelf
• 1 instruction manual
1. Temperature Control Panel
2. Door
3. Adjustable Foot
4. Door Hinge
5. Interior LED light
6. FlipShelf™
7. Half Shelf
8. Condensation Drip Tray
www.newair.com 9
ASSEMBLY & INSTALLATION
To reduce the risk of fire, electrical shock, or injury when using your
appliance, follow these basic precautions.
Read all instructions before using the appliance.
WARNING: An empty beverage refrigerator can be hazardous for children or
small pets. If disposing of the beverage refrigerator, remove gasket seals,
latches, lids, and the entire door from your unused fridge, or take other action
to ensure the beverage refrigerator is harmless.
Never allow children to operate, play with, or crawl inside the appliance.
Never clean appliance parts with flammable fluids or harsh chemicals. The fumes
can create a fire hazard or explosion.
Do not store or use gasoline or any other flammable vapors and liquids in the
vicinity of this or any other appliance. The fumes can create a fire hazard or
explosion.
Before First Use
• Remove the exterior and interior packing.
• Before connecting the fridge to a power outlet, let it stand upright for
approximately 8 hours. This will reduce the possibility of a malfunction in
the cooling system due to handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.
www.newair.com 10
INSTALLATION
• This fridge is designed for freestanding installation in a dry, well-ventilated
room.
• WARNING: placing beverages up against the back panel of the fridge could
cause cans or bottles to rupture due to excessively low temperatures.
Always allow room for air circulation between the back panel and any
drinks.
• WARNING: Do not store or install the appliance outdoors.
• CAUTION: This appliance is designed for storing and cooling beverages or
wines. Do not store perishable food, medicine or other medical products.
Do not overcrowd the inside of the fridge.
• Place your appliance on a hard and level floor that is strong enough to
support it when it is fully loaded.
• To level your appliance, adjust the leveling legs at the bottom of the
appliance if needed.
• Allow at least 5 inches (127mm) of space between the back and sides of the
appliance, for proper air circulation to cool the compressor and condenser.
• Do not install the appliance on carpet.
• Do not install the appliance near an oven or other heating source. Direct
sunlight may affect the acrylic coating, and heat sources may increase
electrical consumption. For best performance, do not install the appliance
behind a cabinet door or under a countertop.
• Avoid extremely hot or cold ambient temperatures, as they may cause the
fridge to perform poorly. Install only in areas with ambient temperatures
between 60°F and 90°F
• Avoid placing the fridge in an area where it may be exposed to water or
excess moisture.
• Plug the fridge into its own grounded wall outlet. Do not, under any
circumstances, cut or remove the third (ground) prong from the power cord.
Any questions concerning power and/or grounding should be directed
toward a qualified electrician or customer service.
www.newair.com 11
ELECTRICAL CONNECTION
WARNING: Improper use of the grounded plug can result in the risk of electrical
shock. If the power cord is damaged, do not use the appliance. Contact NewAir
customer service immediately.
• This fridge requires a standard 115/120 Volt AC ~/60Hz electrical
ground outlet with a three-prong power plug.
• Have the wall outlet and circuit checked by a qualified electrician to
ensure the outlet is properly grounded. The cord should be secured
behind the appliance and not left exposed or dangling to prevent
accidental injury.
• The fridge should always be plugged into its own individual electrical
outlet which has a voltage rating that matches the rating label on the
appliance. This provides the best performance, and it also prevents
overloading house wiring circuits that could cause a fire hazard from
being overheated.
• Never unplug the appliance by pulling the power cord. Always grip the
plug firmly and pull straight out from the receptacle.
• Do not use this fridge via an extension cord.
www.newair.com 12
OPERATING INSTRUCTIONS
It is recommended you install the appliance in a place where the ambient
temperature is above 60°F (16°C) and below 90°F (32°C). If the ambient
temperature is above or below recommended temperatures, the fridge may not
run well.
SETTING THE TEMPERATURE
Use the Temperature Control Panel to control the interior lighting and set the
temperature of the beverage fridge.
Press the LIGHT button to turn the interior LED lighting On and Off
Press the Snowflake button to cycle through 5 different temperature
settings:
Set Temperature to around 68°F (± 4°F)
Set Temperature to around 59°F (± 4°F)
Set Temperature to around 52°F (± 4°F)
Set Temperature to around 45°F (± 4°F)
Set Temperature to around 37°F (± 4°F)
www.newair.com 13
HOW TO USE THE FLIPSHELF™ SHELVES
This beverage fridge comes with 3 adjustable flip shelves that allow you to
optimally store all types of beverages. The shelves come with two sides: a flat
side for beer or beverages and a wine side for standard and large wine or
champagne bottles. To flip a shelf, follow these instructions:
1. Press down on the front of a shelf until the back of the shelf releases
from the security nook and raises upwards, then pull the shelf out.
2. Flip the shelf.
3. Slide the shelf back into place.
Flat side
Use the flat side to stand beverages, beer cans or bottles, or growlers upright.
The sturdy surface keeps cans and bottles from tipping over.
Wine side
Use the wine side to securely hold bottles in place. The grooves keep the
bottles from rolling around and knocking over the other beverages in your
beverage fridge.
www.newair.com 14
OPTIMIZING PERFORMANCE
• To ensure maximum performance and efficiency, be sure to place your
beverage cooler in an area where there is proper air circulation. (See
installation instructions above for proper clearances.)
• For proper internal air circulation, do not overfill your beverage cooler.
When storing beverages, keep them away from the rear wall. To allow free
circulation of cold air, don’t pack beverages too tightly on the shelves.
• Do not place the unit in direct sunlight.
• Do not place heated beverages or food in your cooler.
• Do not store perishable food in your beverage cooler. The unit’s interior
temperature may not be low enough to prevent spoilage.
• Do not place heavy objects on top of the beverage cooler.
• Allow at least 5 inches (127mm) of space between the back and sides of the
appliance, for proper air circulation to cool the compressor and condenser.
FRIDGE NOISES
The following noises are normal and occur from time to time:
• Gurgling sound, caused by the refrigerant flowing through the appliance's
coils.
• Humming noise made by the compressor. This noise can get louder for brief
periods when the motor is switching on
• Cracking/popping sounds, resulting from the materials contraction and
expansion due to temperature variations
• Internal fan rotation, to circulate the air within the refrigerator cabinet
If you are hearing a noise that doesn’t seem to fall under the list above, or
seems abnormal, your unit may be installed improperly, or may be faulty.
Contact customer service immediately if you hear any noises that cause you
concern.
www.newair.com 15
CLEANING & MAINTENANCE
DEFROSTING YOUR FRIDGE
In cold ambient temperatures and/or high humidity, frost may accumulate inside
the beverage fridge. Excessive frost might reduce the efficiency of the fridge.
Take steps below to defrost your refrigerator:
1. Unplug the beverage fridge.
2. Allow the frost inside the cooler to melt. If needed, use a plastic utensil
to scrape ice from the interior surface.
3. Remove the Drip Tray that is on top of the compressor and pour out any
water that is in the Drip Tray.
4. Dry thoroughly before plugging it in again.
CLEANING YOUR FRIDGE
• Unplug from power and remove all items, including shelves.
• Wipe the interior with warm water and baking soda solution. The solution
should be about 2 tablespoons of baking soda to one quart of water.
• Wipe down the shelves with a mild detergent solution.
• Wipe down the outside of the fridge with warm water and mild liquid
detergent.
• Do not use steel wool or a steel brush on stainless steel. These will erode
the stainless steel and cause it to rust.
CAUTION: Failure to unplug the appliance before cleaning could result in electric
shock or personal injury.
MOVING YOUR FRIDGE
• Remove all items from inside the appliance.
• Leave the door open until the unit is completely dry inside. Place a towel at
the bottom of the inside of the unit to prevent leakage onto the floor.
• Securely tape down shelves inside the unit, and tape the door shut.
• Turn the adjustable legs up into the base to avoid damaging them.
• Keep it upright throughout all transportation.
www.newair.com 16
PREPARING FOR LONG-TERM STORAGE
If the fridge will not be used for a long time, it will be necessary to defrost the
unit and completely dry the interior.
1. Disconnect the fridge from the power supply by removing the plug from the
wall socket.
WARNING: Do not touch the plug when your hands are wet. Never unplug
the unit by pulling the cord.
2. Leave the door open until the unit is completely dry inside. Place a towel at
the bottom of the inside of the unit to prevent leakage onto the floor.
CAUTION: Store the unit out of the reach of children. If you have children,
you may want to take additional precautions such as removing the door.
www.newair.com 17
WINE STORAGE GUIDE
• The ideal temperature for storing red or white wines is 55°F, with humidity
between 60% and 75% RH.
• Store corked bottles on their sides, to keep the cork from drying out and
allowing air into the bottle.
• UV rays make wine age faster, so keep bottles out of direct sunlight.
• Avoid heavy vibrations from motors, etc.
• Store wine separately from strong odors that might contaminate the flavor
of the wine.
How long should I store my wine?
While most wines today are meant to be drunk “young” (within a few years of
production) some fine wines are best served by proper aging. But aging too
long can decrease the flavor of the wine. Generally speaking, red wines can age
longer than white wines, but here is a storage guide for some popular vintages.
Cabernet Sauvignon
7-10 years
Pinot Noir
5 years
Merlot
3-5 years
Zinfandel
2-5 years
Beaujolais
Ready to drink
Chardonnay
2-3 years
Riesling
3-5 years
Sauvignon Blanc
18 months – 2 years
Pinot Gris
1-2 years
Champagne
Ready to drink
www.newair.com 18
TROUBLESHOOTING
Problem
Possible Causes
Solution
The fridge isn’t
running
• There is a power failure
• The fridge is not plugged in
• A house fuse has blown, or
the circuit breaker is tripped
• Ensure the fridge is plugged
in and that the power outlet
is functional
• Replace the broken fuse or
reset the breaker
The fridge isn’t
cold enough
• The fridge is placed too close
to a heat source
• The door is being opened too
often
• The door is not closed
completely
• The door gasket does not
seal properly
• Adjust the temperature
• Keep the fridge away from
sunshine or other heat
sources
• Close the door tightly and
do not open the door too
frequently or for a long
period of time
• Ensure the door gasket is
not loose
The fridge turns
itself on and off
frequently
• The ambient temperature is
too low or high
• The inside of the fridge is
overcrowded with items
• The door is opened too often
• The door is not closed
completely
• The door gasket does not
seal properly
• Decrease or increase the
ambient temperature
• Do not overcrowd the inside
of the fridge
• Close the door tightly and
do not open the door too
frequently or for a long
period of time
• Ensure the door gasket is
not loose
• It is normal for the fan to
turn on and off to circulate
the air inside of the unit for
even temperature
distribution and to save
energy
www.newair.com 19
Problem
Possible Causes
Solution
The fridge makes
too much noise
• The noises are part of
normal operation (see
above)
• The unit is not installed
properly
• The unit is malfunctioning
• It is normal that as each
cooling cycle ends, you may
hear rattling or gurgling
sounds caused by the flow
of refrigerant in the
appliance. The high-
efficiency compressor may
make a pulsating or high-
pitched sound
• Some popping or cracking
noises are normal. They are
caused by expansion and
contraction of the inside
walls due to temperature
changes
• Make sure the fridge is on a
hard and level surface. Do
not place the fridge on
carpet
The door does not
close properly
• The fridge is not level
• The door was reversed and
not properly installed
• The shelves are out of
position
• Make sure the fridge is on a
hard and level surface.
Avoid placing the fridge on
a soft or carpeted surface
• Reinstall the door
• Correctly install the shelves
Condensation
builds up on the
glass door
• Ambient temperature or
humidity is too high.
• Lower the room
humidity/temperature by
using a dehumidifier or air
conditioner.
The fridge is
frosting often
• The door was not closed
completely
• The door gasket is not
sealing
• Use a screwdriver to loosen
the screws to reposition the
door/hinge and tighten the
screws
• Ambient temperature or
humidity is too high
• Close the door tightly and
do not open the door too
frequently or for a long
period of time
• Reinstall the door
• Ensure the door gasket is
not loose
• Lower the room
humidity/temperature with
a dehumidifier or air
conditioner.
www.newair.com 20
LIMITED MANUFACTURER’S WARRANTY
This appliance is covered by a limited manufacturer’s warranty. For one year
from the original date of purchase, the manufacturer will repair or replace any
parts of this appliance that prove to be defective in materials and
workmanship, provided the appliance has been used under normal operating
conditions as intended by the manufacturer.
Warranty Terms:
During the first year, any components of this appliance found to be defective
due to materials or workmanship will be repaired or replaced, at the
manufacturer’s discretion, at no charge to the original purchaser. The
purchaser will be responsible for any removal or transportation costs.
Warranty Exclusions:
The warranty will not apply if damage is caused by any of the following:
• Power failure
• Damage in transit or when moving the appliance
• Improper power supply such as low voltage, defective household
wiring or inadequate fuses
• Accident, alteration, misuse or abuse of the appliance such as using
non-approved accessories, inadequate air circulation in the room or
abnormal operating conditions (extreme temperatures)
• Use in commercial or industrial applications
• Fire, water damage, theft, war, riot, hostility or acts of God such as
hurricanes, floods, etc.
• Use of force or damage caused by external influences
• Partially or completely dismantled appliances
• Excess wear and tear by the user
Obtaining Service:
When making a warranty claim, please have the original bill of purchase with
the purchase date available. Once confirmed that your appliance is eligible for
warranty service, all repairs will be performed by a NewAir™ authorized repair
facility. The purchaser will be responsible for any removal or transportation
costs. Replacement parts and/or units will be new, re-manufactured or
refurbished and is subject to the manufacturer’s discretion. For technical
support and warranty service, please email supp[email protected]
