User Manual
VWD820SAP-X
vintec.com
2
User Manual
3
4
6
7
9
10
11
WARNING
.....................................................
Table of Contents
INSTALLATION
.....................................................
STORAGE
.....................................................
OPERATION
.....................................................
WINE SERVING & DEFROSTING
.....................................................
ADJUSTABLE SHELVES
&
DOOR REVERSAL
& CHARCOAL FILTER
.....................................................
BRACKET & INSTALL THE FURNITURE DOOR
.....................................................
Important Informa�on that may impact your Manufacturer’s Warranty
Adherence to the direc�ons for use in this manual is extremely important for health and safety. Failure to strictly
adhere to the requirements in this manual may result in personal injury, property damage and affect your ability to
make a claim under the Vintec manufacturer’s warranty provided with your product. Products must be used,
installed and operated in accordance with this manual. You may not be able to claim on the Vintec manufacturer’s
warranty in the event that your product fault is due to failure to adhere to this manual.
12
13
.....................................................

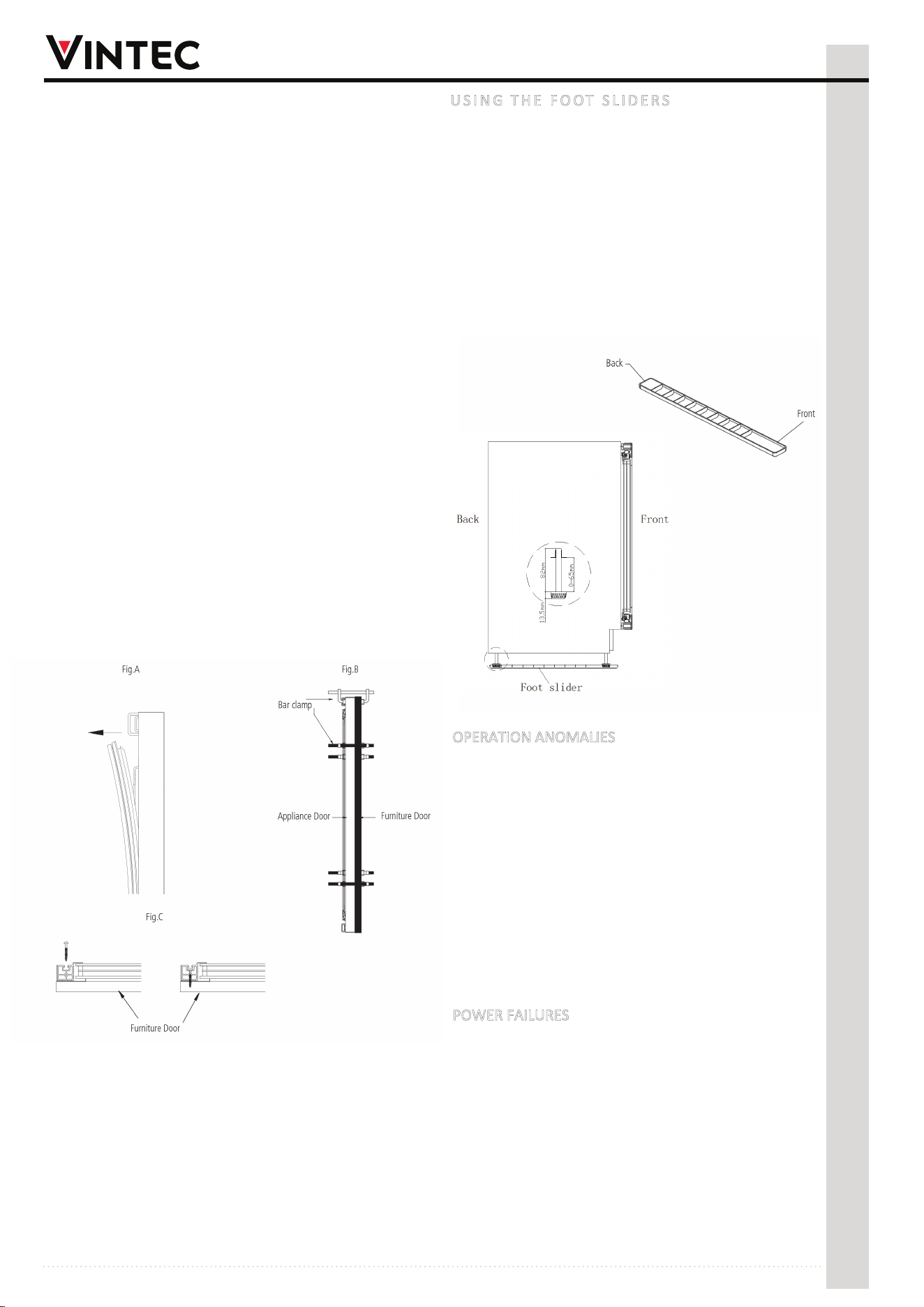

USING THE FOOT SLIDERS
.....................................................
TROUBLESHOOTING & DATA
14
.....................................................

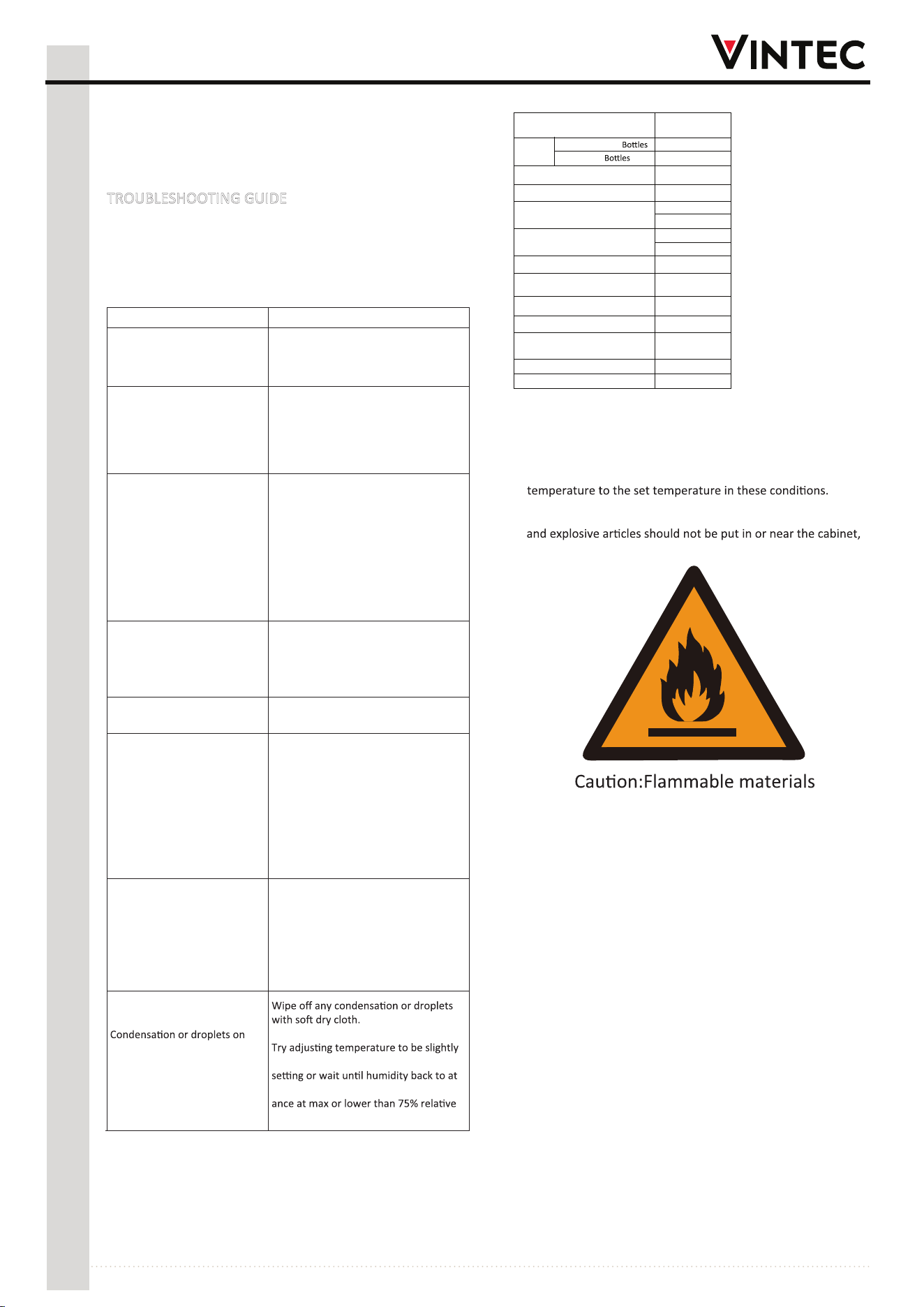

TROUBLESHOOTING
– WARNING: Do not use electrical appliances inside the
compartments.
– WARNING: Do not store explosive substances such as
aerosol cans with a flammable propellant in this
appliance.
– WARNING: This appliance is intended to be used in
household and similar applica�ons such as:
- Staff kitchen areas in shops, offices and other working
environments;
- Farm houses and by clients in hotels, motels and other
residen�al type environments;
- Bed and breakfast type environments;
- Catering and similar non-retail applica�ons
– WARNING: Do not use electrical appliances inside the
food storage compartments of the appliance, unless
they are the type recommended by the manufacturer.
– WARNING: If the power cord is damaged, it must be
replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
– WARNING: When posi�oning the appliance ensure the
supply cord is not trapped or damaged.
WARNING: Do not locate mul�ple portable socket-
outlets or portable power supplies at the rear of the
appliance.
– WARNING: Your appliance is fi�ed with long life LED
ligh�ng. In the unlikely event the LED lights should fail,
then the LED lights should be serviced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
– WARNING: In Queensland Australia, the authorised
pers on must hold a Gas Work Authorisa�on for
hydrocarbon refrigerants, before carrying out servicing
or repairs which involve the removal of covers.
The environment and personal safety must be
considered when disposing of this appliance.
Please ensure the appliance is taken to a recycle centre
for safe recycling.
This appliance contains insula�on formed with
flammable blowing gases and flammable refrigerant.
Avoid safety hazards by carefully disposing of this
appliance.
It is hazardous for anyone other than an Authorised
Service Person to carry out servicing or repairs to this
appliance.
– WARNING: Keep ven�la�on openings in the appliance
enclosure or in the slot-in structure clear of
obstruc�on.
– WARNING: Do not use mechanical devices or other
means to accelerate the defros�ng process, other than
those recommended by the manufacturer.
– WARNING: Do not damage the refrigerant circuit.
3
User Manual
- The room for installing the appliance must be at least 1
cubic metre per 8 grams of refrigerant. The refrigerant
quan�ty contained in this appliance is listed above in
grams; it is also noted on the Ra�ng Plate of the
appliance.
The informa�on in this document is subject to
modifica�on without any prior no�ce.
Some models are available in dedicated countries only.
VINTEC offers no guarantee for our Wine Cellar if it is being
used for any purpose other than that for which it was
specifically designed.
VINTEC cannot be held responsible for any error in this
manual.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabili�es, or lack of experience and knowledge,
unless they have been given supervision or instruc�on
concerning use of the appliance by a person responsible
for their safety.
Children should be supervised to ensure they do not play
with the appliance (AU & NZ).
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabili�es or lack of experience and knowledge
if they have been given supervision or instruc�on
concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
This appliance uses flammable refrigerant, please
secure the cooling pipe during the delivery process.
Posi�on the wine cellar away from direct sunlight and
sources of heat (stove, heater, radiator, etc.). Never
clean appliance parts with flammable fluids. The fumes
can create a fire hazard or explosion. When disposing
your appliance, please choose an authorized disposal site.
Children should be supervised to ensure that they do
not play with the appliance.
R600A WARNINGS
The following model use small quan�ty of R600A
(iso-butane) flammable refrigerant:
VWD820SAP-X: –35g
For your safety please observe the following
recommenda�ons :
- This appliance contains a small quan�ty of R600A
refrigerant which is flammable. Avoid safety hazards
by carefully installing, handling, servicing and disposing
of this appliance.
- During transporta�on and installa�on, ensure that the
tubing of the refrigerant circuit is not damaged.
- Avoid using or manipula�ng sharp objects near the
appliances.
- Leaking refrigerant can ignite and may damage the eyes.
- In the event any damage does occur, avoid exposure to
open fires and any device which creates a spark.
Disconnect the appliance from the mains power.
- Thoroughly ven�late the room in which the appliance is
located for several minutes.
- No�fy Customer Service for necessary ac�on and advice.
WARNING
Improper use of the grounding plug can result in the risk
of electric shock. Consult a qualified electrician or
service person if the grounding instruc�ons are not
completely understood. If the supply cord is damaged,
it must be replaced by a qualified person in order to
avoid electrical hazard.
INSTALLATION
Unpack and remove all of the protec�on and adhesive
strips from the packaging around and inside the Wine
socket to country standards, linked to the ground)．It is
NOT recommended to use a mul�-socket or extension
lead;
- have a surge protector fi�ed to the electrical outlet;
- away from the microwave oven. Certain microwave
ovens do not have wave interference shield.When
placed within 1 meter vicinity of the wine cellar, they
may affect the opera�on of the wine cabinet.
Notes:

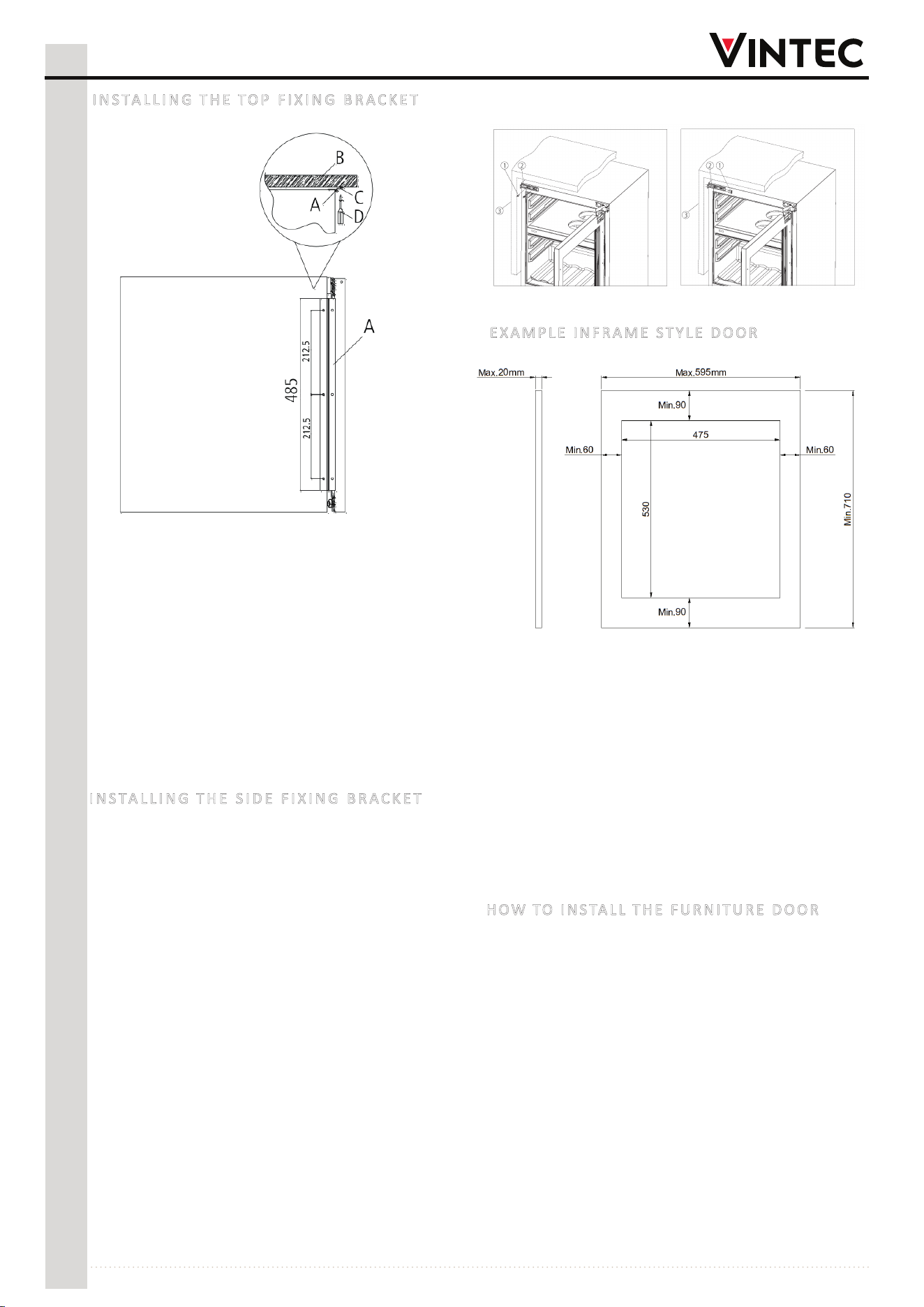

- VWD820SAP-X model is slot-in type as per the drawings
in the installa�on sec�on(page 5).
The Wine Cellar should be placed where declares climate
class.
If the ambient temperature is above or below this range,
the performance of the unit may be affected. Placing
your unit in extreme cold or hot condi�ons may cause
interior temperatures to fluctuate.The ideal range of
temperature may not be reached. (See Climate Class
at the end of this manual).
Grounding instrucons
The Wine Cellar must be grounded in case of an electrical
short circuit. Grounding reduces the risk of electrical shock.
The Wine Cellar is equipped with a power cord having a
grounding wire and plug. The Wine Cellar plug must be
plugged into a properly affixed and grounded electrical
outlet.
Note: In loca�ons where there is frequent lightning, it is
advisable to use surge protectors.
- not be too damp (laundry, pantry, bathroom etc.);
- have a flat floor;
- have a standard and reliable electricity supply (standard
- be unencumbered and well ven�lated;
- be well away from any heat source and direct sunlight;
Allow 24 hours before switching on the Wine Cellar .
During this me we recommend that you leave the door
open to clear any residual odours.
BEFORE LOADING & PLUGGING IN THE WINE CELLAR.
Important: All models without front venng (air opening)
are strictly for free standing only.
Recommendaons:
The loca�on you have selected for your Wine Cellar should:
Cellar.The Wine Cellar must be posi�oned such that
the plug is accessible.Release the power cord.
Move your Wine Cellar to its final loca�on.The Wine
Cellar should be installed in a suitable place where
the compressor will not be subject to physical contact.
- WARNING: Ensure the plug is accessible when the
appliance is in posi�on,or a switch is incorporated in
fixed wiring according to the wiring rules.
(See licensed electrician for further advice).
Levelling your Wine Cellar : Wine Cellar must be
leveled BEFORE loading your wines.Your Vintec Wine
Cellar is equipped with 4 adjustable feet to facilitate
easy leveling.
VINTEC recommends that you �ghten the back feet to
the maximum and adjust the front feet to level of the
Wine Cellar.

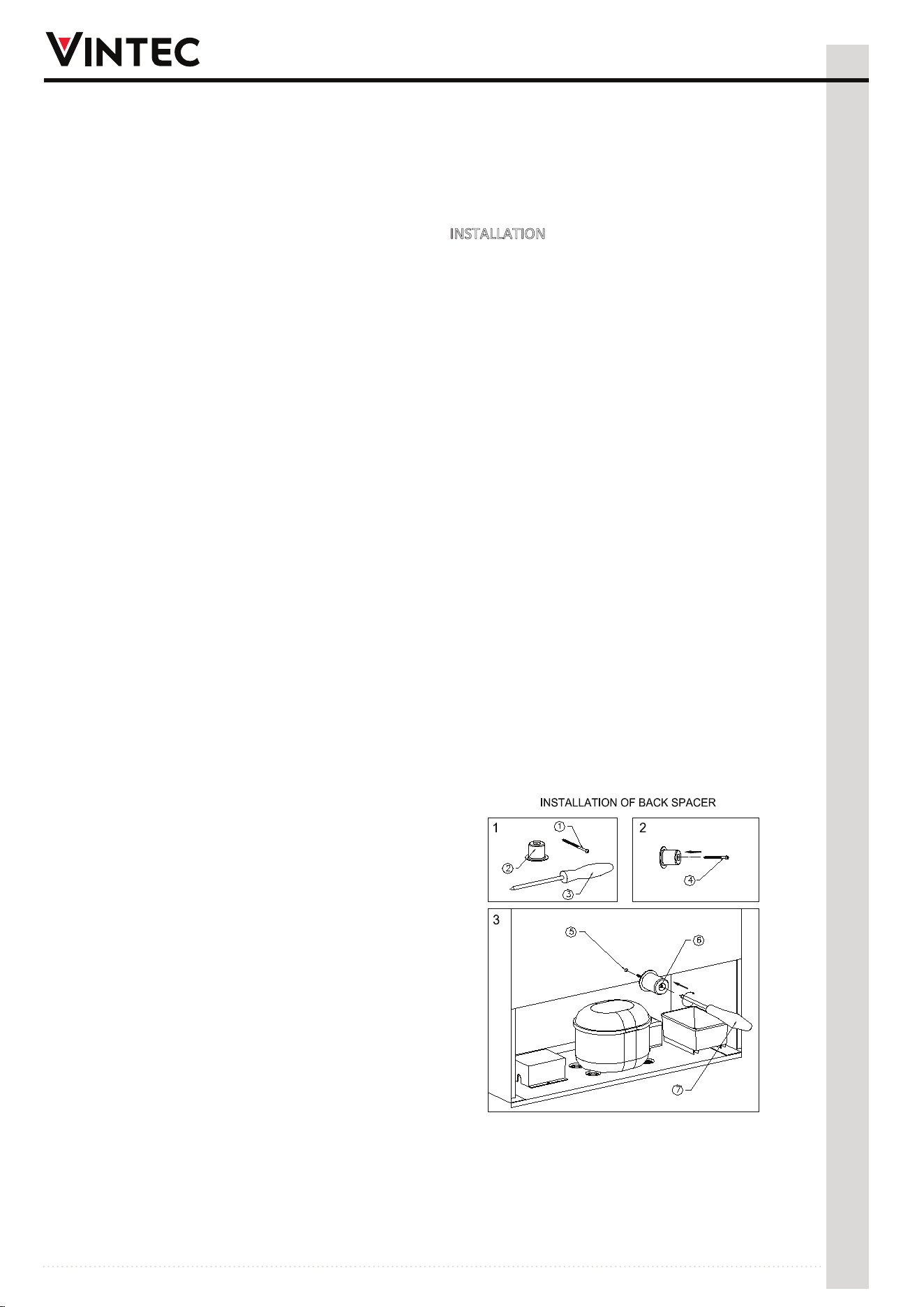

Fixing the Back spacer:
Compressor run appliances require good ven�la�on
for effec�ve and longer usage.Your Vintec Wine Cellar
is supplied with a back spacer.
Affix the back spacer at the back of the cellar for air
circula�on and heat evacua�on.
INSTALLATION
The Wine Cellar should be placed on a level surface in a
dry, well ven�lated room (max.75% rela�ve air humidity).
In hot humid climate areas and par�cularly on hot rainy
days, humidity in the ambient air can condense on the
cold external surfaces, glass door or door sealing gasket
strip. Especially when appliance is set at the coldest
temperature se�ng in a long period of �me during high
humid days which is a natural phenomenon.During mon-
soon season or high humidity days, we recommend se�ng
the temperature at warmer or at cellaring temperature
mode. Or you can simply wipe off any moisture or water
droplets with so� dry cloth.Condensa�on will disappear
when humidity level drops or temperature set to a warmer
se�ng.
4
User Manual
IMPORTANT - THIS SPACER MUST BE ATTACHED TO
THE UNIT BEFORE THE INSTALLATION, FOR
VENTILATION PURPOSE.
FAILURE TO DO WILL VOID THE WARRANTY

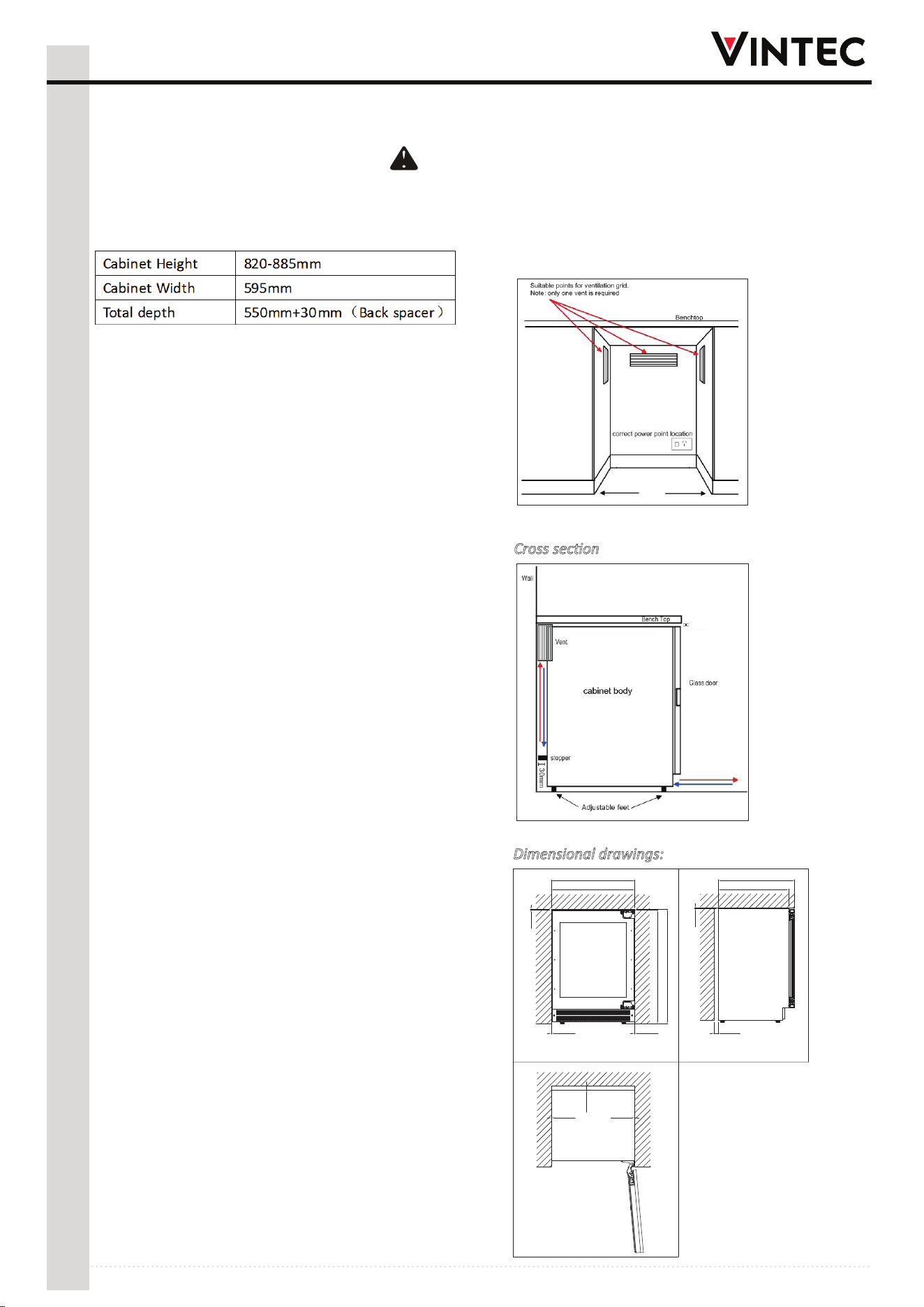

UNDER-BENCH INSTALLATION INSTRUCTIONS
INSTALLATION
Cross secon
Dimensional drawings:
5
User Manual
Front View (VWD820SAP-X)
DIMENSIONS:
VWD820SAP-X
This Vintec Wine Cellar is not designed to be fully integrated
behind a joinery door.
Please note that:
For VWD820SAP-X
a minimum cut out width of 600 mm is required to
facilitate installa�on, removal and servicing.
1. Vintec “Slot-in” Wine Cellar are front ven�ng but are not
designed to be fully integrated behind a joinery door.
2. Vintec “Slot-in” Wine Cellar require 2.5mm clearance on
both sides and 5mm on top, 30mm clearance at the rear
(Back spacer is provided), to facilitate installa�on, removal,
servicing and ven�la�on.
3. Vintec “Slot-in” Wine Cellar draw air from the rear and
expels it through the metal grid under the door at the front.
If a kick board is to be placed in front of the Wine Cellar
grid another one must be fi�ed into the kick board with
a minimum air flow allowance of 150cm².
4. Vintec “Slot-in” Wine Cellar have a power switch located
on the control panel so power point loca�on is not cri�cal.
5. The Wine Cellar requires a standard 240 volt/10 amp
power point. (Or according to different countries specific-
a�ons).
6. The power cord is min 1.8m in length and is fixed on the
right side at the back when looking from front of cabinet.
7. As with most appliances of today, the Wine Cellar has
sensi�ve electronic components which are suscep�ble to
damage through lightning and electricity supply faults.
It is therefore advised to use a power surge protector to
avoid problems of this nature.
8. Air vent within the joinery must be provided for Vintec
“Slot-in” Wine Cellar (Front venng)
In Hot climate zone, an air vent or grid, with a minimum
ven�la�on size of 200mm x 40mm MUST be cut out at the
rear top of the back par��oning or at the top of either side
of the par��oning, allowing cool fresh air full access to flow
into the 30mm gap located at the rear of the cabinet.
INSTALLATION DRAWINGS FOR fornt ven�ng under
bench Wine Cellars:
This air vent or grid must not be opened on the same
side as other appliances such as ovens or an area that
is sealed and without access to fresh cool air. Failing
to comply with the above specifica�ons could result in
WARRANTY void.
600mm
5mm
2.5 mm
2.5 mm
5mm
006 mm
30mm
2.5 mm
2.5 mm
055 mm
705 mm
825mm
595 mm
03 mm
820mm
5mm
Front Vi we
Side Vi we
Top Vi we
Model
Se�ng
Temperature
diva�on
Upper compartment: 6℃
Lower compartment: 12℃
Factory preset chart
TURNING ON YOUR WINE CELLAR
Plug in and switch on the cellar by pressing on the power
bu�on for a few seconds.
When you use the Wine Cellar for the first �me (or restart
the Wine Cellar a�er having it shut off for a long �me),
there will be a few degrees variance between the
temperature.
You have selected and the one indicated on the LED
readout. This is normal and it is due to the length of the
ac�va�on �me. Once the Wine Cellar is running for a
few hours everything will stabilise.
OPERATING NOISES
To reach the desired temperature se�ngs, VINTEC
Wine Cellar, like all Wine Cellar and may produce the
following types of noises. These noises are normal and
may occur as follows:
- Gurgling sound - caused by the refrigerant flowing
through the appliance’s coils.
- Cracking/popping sounds - resul�ng from the
contrac�on and expansion of the refrigerant gas to
produce cold.
- Fan opera�ng sound - to circulate the air within the
Wine Cellar.
An individual’s percep�on of noise is directly linked to
the environment in which the Wine Cellar is located,
as well the specific type of models.
VINTEC Wine Cellar are in line with interna�onal standards
for such appliances.
VINTEC will always do its utmost to sa�sfy its customers
but will not retake possession of the goods due to
complaints based on normal opera�ng noise occurrences.
LOADING YOUR WINE CELLAR
You may load your wine bo�les in single or double rows
while taking note of the following: if you do not have
enough bo�les to fill your Wine Cellar, it is be�er to
distribute the load throughout the Wine Cellar so as to
avoid all on top or all below type loads.
5
STORAGE
TEMPERATURE STABILITY AND WINE STORAGE
Please note that depending on the loading and
se�ngs chosen it takes about 24 hours for the Wine
Cellar to see the temperature stabilising.
During this �me the LED seems to move erra�cally in
par�cular for dual zone models. It is normal and this
process occurs whenever the se�ng is modified
and/or whenever a large amount of bo�les are
added to the cellar. Designed to store and mature
all wines: red, white and sparkling. These Wine Cellar
reproduce the ideal condi�ons for wine storage, at a
constant recommended temperature of 12°C.
They can also be set to provide ideal serving
temperature for full enjoyment of the wine’s quali�es.
Unless stated by the wine maker on the bo�le,
VINTEC recommends 7°C for your champagne,
12°C for whites and 18°C for reds. (Refer to Wine
Service Temperature recommenda�on chart).
Designed to store wines at the correct temperature
for best enjoyment. The upper chamber can hold 10
bo�les, depending on the models, at a temperature
of 6°C to 10°C dedicated mainly to white, sparkling
wines and champagnes. The lower chamber accomm-
odates 21 bo�les depending on the models, mainly
for red wines, which could be stored either at room
temperature (18°C-20°C) for consump�on or at 12°C
for a longer �me of storage.
TEMPERATURE SETTINGS
This appliance memorizes and saves its set
temperature. In case of a power outage, the unit
adjusts to its previous temperature se�ng when
power resumes.
6
User Manual
VWD820SAP-X
+/-2.5℃
+/-2.5℃
- Do remove or relocate adjustable wooden shelves to
accommodate larger type of bo�les or increase the
capacity of the cellar by stacking the bo�les up when

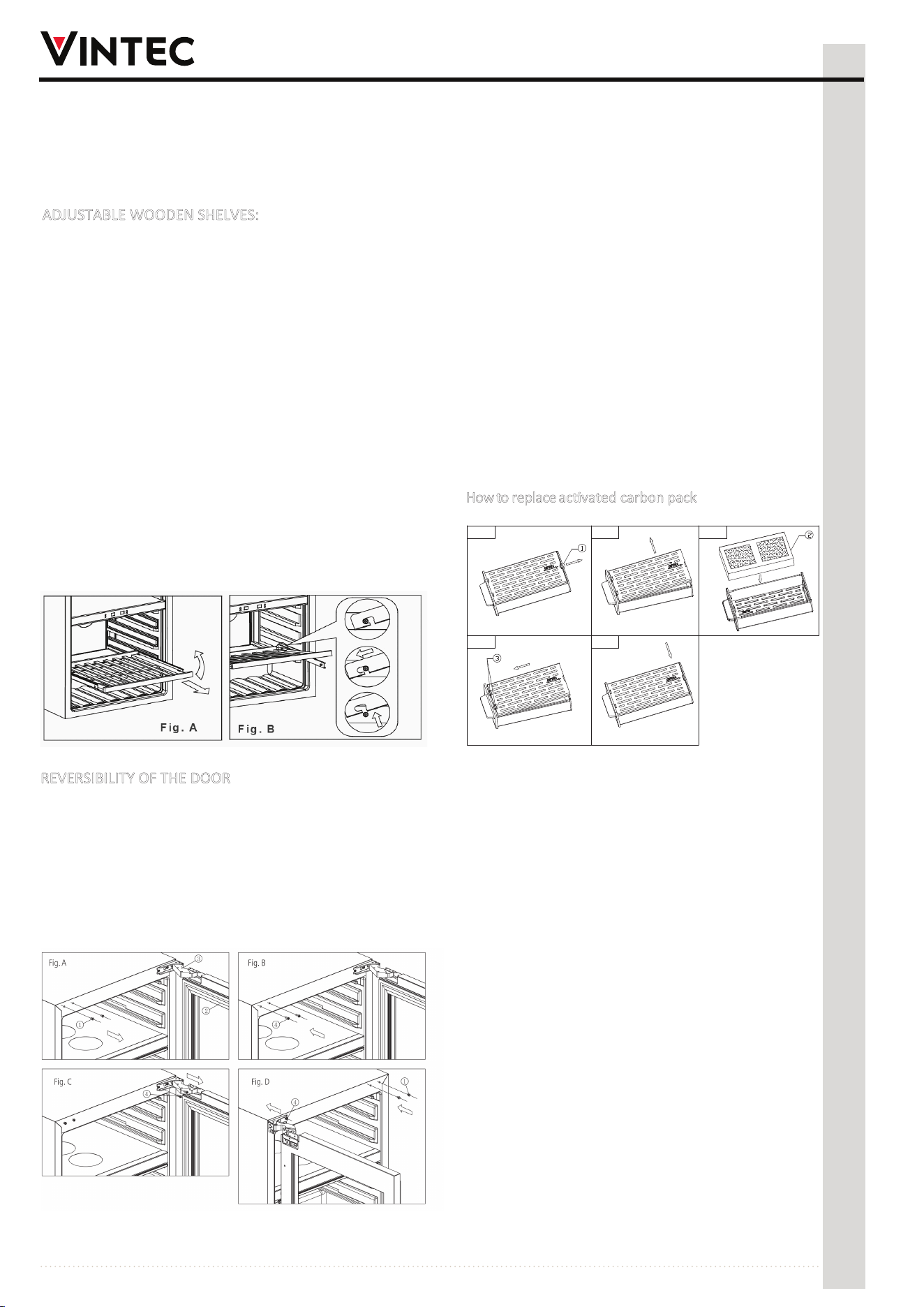

necessary. (See removing shelves).
- Keep smalls gap between the walls and the bo�les to
allow air circula�on. Like an underground cellar air
circula�on is important to prevent mould and for a
be�er homogeneous temperature within the cellar.
- Do not over load your Wine Cellar to facilitate air
circula�on.
- Do not stack more than 1.5 rows of standard 0.75L
bo�les per shelves to facilitate air circula�on.
- Avoid obstruc�ng the internal fans (Located inside
on the back panel of the Wine Cellar).
- Do not slide the shelves outwards beyond the
fixed posi�on to prevent the bo�les from falling.
- Do not pull out more than one loaded shelf at a
�me as this may cause the Wine Cellar to �lt
forward.
- Do not cover the wooden shelves with alloy foil or
other materials, as it will obstruct air circula�on.
- Do not move your Wine Cellar while it is loaded
with wines. This might distort the body of the
Wine Cellar and cause back injury.
FOR VWD820SAP-X,Total: 31bo�les

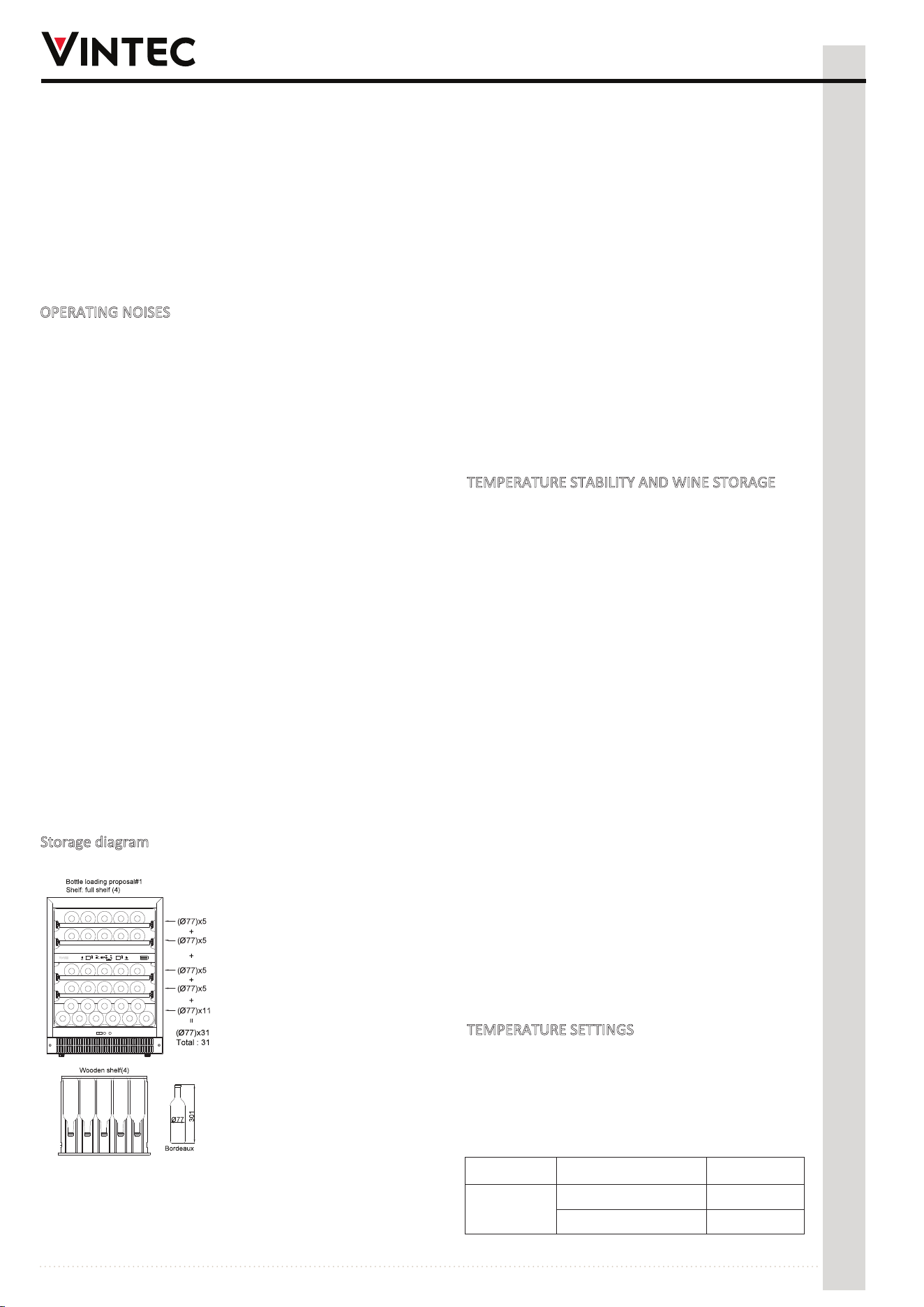

Storage diagram
It is important to understand that there is a difference
between the air temperature inside the Wine Cellar
and the actual temperature of the wine: You will need
to wait approximately 12 hours before no�cing the
effects of temperature
adjustment due to the cri�cal
mass within a full Wine Cellar.
Once the temperature is set, it is strongly advised not
to toy with it or adjust frequently. The thermostat
will maintain the temperature inside the Wine Cellar
within a +/- 2.5°C range.
But the thermal iner�a of the wine and the glass is
such that within this temperature range, the actual
temperature of the wine will only fluctuate 0.5°C
to 1°C.

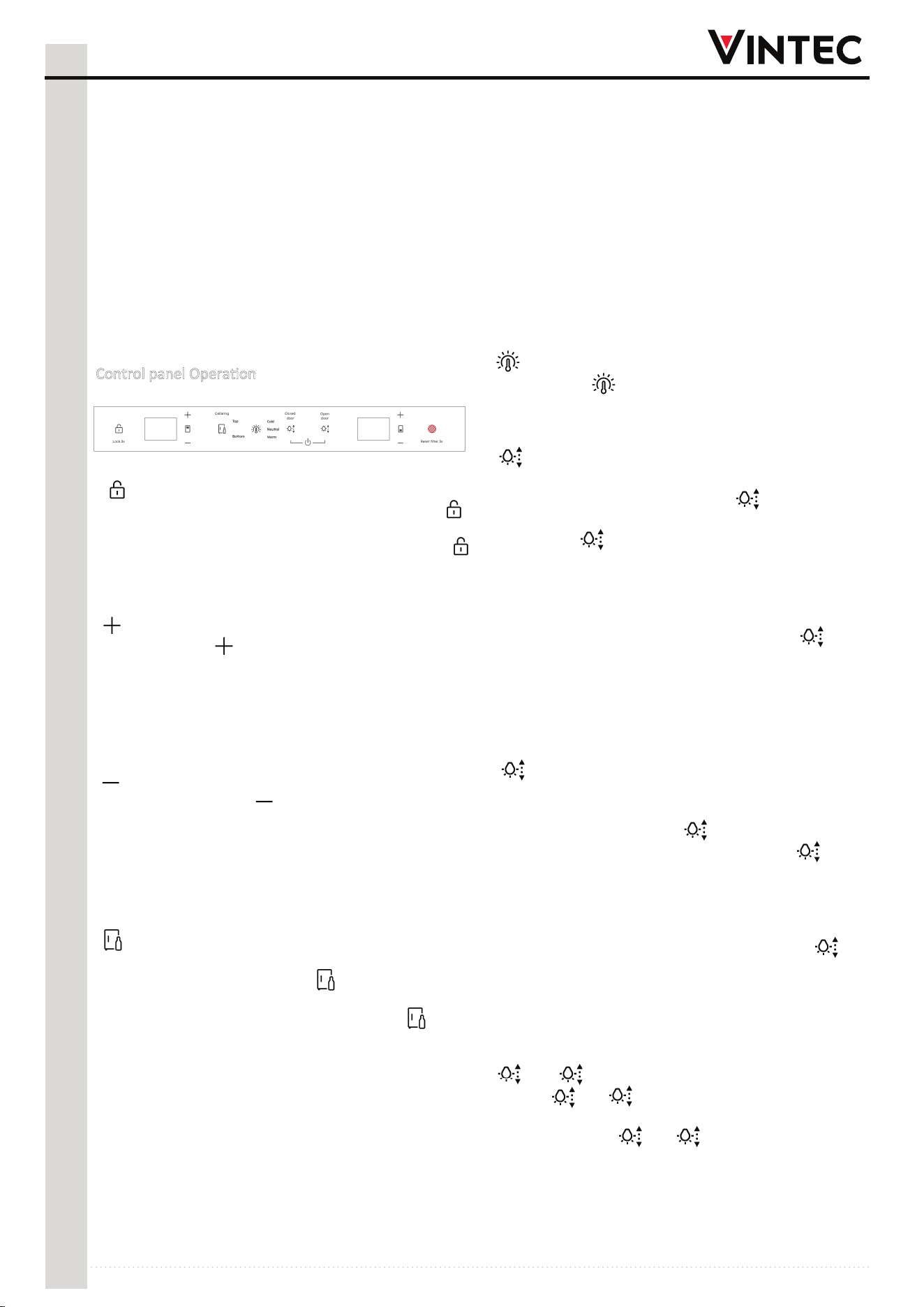

Control panel Opera�on
OPERATION
7
User Manual
“ ” bu�on (light color switch):
Each �me the “ ” bu�on is pressed, a beep sounds
and the light color switches between COLD/ NEUTRAL/
WARM.
“ ” bu�on (light brightness control in closing state):
Short press ac�on (to control internal light ON or OFF in
the door closing state): lightly press “ ” bu�on once,
will have a beeping sound, then internal light will keep on;
lightly press “ ” bu�on once, will have a beeping
sound, then in the closing state, the internal light remains
off. Such a cycle.
Long press ac�on (adjust the brightness level of the inte-
rnal light in the door closing state): long press “ ”
bu�on for 3 seconds, beep once, the brightness of the
light begins to gradually dim, about 6 seconds to the
darkest. In this process, when the bu�on is released,
the brightness level of the light is selected and remem-
bered a�er closing the door.
“ ” bu�on (light brightness adjustment in
open door state):
Short press ac�on (to control internal light ON or OFF in
the door open state): press “ ” bu�on once lightly,
BP a sound,then keep interior light off; press “ ”
bu�on once lightly, will have a beeping sound, then in
the opening state, the internal light will keep on.
Such a cycle.
Long press ac�on (adjust the brightness level of the
internal light in the door open state): long press“ ”
key for 3 seconds, beep once, the brightness of the light
begins to gradually dim, about 6 seconds to the darkest.
In this process, if the bu�on is released, the brightness
level of the light will be selected and remembered a�er
opening the door.
“ ”bu�on (child lock):
The system default control panel is unlocked. Press “ ”
for 3 seconds, beep once to ac�vate the child lock.
No response when touching the control panel; press “ ”
again for 3 seconds, beep once to exit the child lock,
the control panel resumes ac�on response.
“ ”bu�on (Temperature Up upper bu�on):
Power on, press “ ” bu�on, BP, the set temperature
value rises by 1°C (or 1°F). When the set temperature
reaches the upper limit (such as 12°C/54°F or 18°C/ 64°F),
press the bu�on again to sound the "invalid" prompt.
The set value flashes 5S, and then the set temperature
value is displayed normally.
“ ” bu�on (temperature set down bu�on):
Power on, every press “ ”bu�on, BP a sound, the set
temperature value drops 1°C (or 1°F), when the set tem-
perature reaches the lower limit (such as 6°C/43°F or
10°C/50°F), press the bu�on again to sound the "invalid"
prompt, the set value flashes 5S, and then display the set
temperature value normally.
“ ” bu�on (opera�on mode switch):
A�er power-on, the system runs in the "standard" mode
by default. Every �me you press “ ”, the upper/lower/
upper and lower compartment of the system switches to
the "wine cellar" mode (cerllaring). Press the “ ” key
again, and the system will return to the "standard" mode.
then cycle... .
1)Upper compartment (Top) In the cellar mode, the le�
digital tube displays "CE", and the temperature cannot
be adjusted. When touching any temperature bu�on, the
le� digital tube temporarily displays the temperature value
(11°C), blinked for 5 �mes, and returned to display "CE".
2)lower compartment (Bo�om) In the cellar mode, the
“ ” + “ ”bu�on combina�on shutdown:
hold the “ ” + “ ” bu�on at the same �me for 3
seconds, will have a beeping sound, wine cooler power
off. Then hold the “ ” + “ ” bu�on for 3 , will
have a beeping sound, wine cooler power on.
digital tube temporarily displays the temperature value
(13°C). A�er blinking for 5 �mes, the display"CE" is
returned.
right digital tube displays "CE", and the temperature
cannot be adjusted. When touching any temperature
bu�on, the right digital tube temporarily displays the
temperature value (13°C). A�er blinking for 5 �mes,
the display "CE" is returned.
3)upper and lower compartment (Top&Bo�om)In the
cellar mode, the le� and right digital tubes display "CE",
and the temperature cannot be adjusted. When touching
any temperature bu�on, the le� digital tube temporarily
displays the temperature value (11°C), and the right
socket to country standards, linked to the ground)．It is
NOT recommended to use a mul�-socket or extension
lead;
- have a surge protector fi�ed to the electrical outlet;
- away from the microwave oven. Certain microwave
ovens do not have wave interference shield.When
placed within 1 meter vicinity of the wine cellar, they
may affect the opera�on of the wine cabinet.
Notes:
- VWD820SAP-X model is slot-in type as per the drawings
in the installa�on sec�on(page 5).
The Wine Cellar should be placed where declares climate
class.
If the ambient temperature is above or below this range,
the performance of the unit may be affected. Placing
your unit in extreme cold or hot condi�ons may cause
interior temperatures to fluctuate.The ideal range of
temperature may not be reached. (See Climate Class
at the end of this manual).
Grounding instrucons
The Wine Cellar must be grounded in case of an electrical
short circuit. Grounding reduces the risk of electrical shock.
The Wine Cellar is equipped with a power cord having a
grounding wire and plug. The Wine Cellar plug must be
plugged into a properly affixed and grounded electrical
outlet.
Note: In loca�ons where there is frequent lightning, it is
advisable to use surge protectors.
User Manual
OPERATION
This can lead to accidental storage of wines at non-
op�mal temperatures, affec�ng their quality.
－User Error Preven�on: By preven�ng close temper-
ature se�ngs, users are less likely to mistakenly set
both zones to similar temperatures, which can negate
the benefits of having a dual-zone fridge.
Clear and dis�nct se�ngs help users easily organize
their wines and ensure each type is stored correctly.
3.Op�mize Energy Efficiency
: Maintaining dis�nct
temperature ranges for each zone allows the fridge
to operate more efficiently, ensuring consistent
performance and longevity.
“ ”bu�on (Filter replacement reminder):
The wine cooler lights up this icon every 6 months to
remind you to replace the filter. When the filter is repla-
ced, press “ ” for 3 seconds and the icon light goes
off.
- Celsius and Fahrenheit temperature display switching
func�ons:
Press the “ ” + “ ” bu�on at the same �me for 3
seconds can switch between Celsius and Fahrenheit.
When the temperature is set to Celsius, the "°C" symbol
lights up, and when the temperature is set to Fahrenheit,
the "°F" symbol lights up.
- The temperature se�ng is range as below:
Upper compartment:6-12°C
Lower compartment: 10-18°C
- If you want to know the actual temperature , please
press
“ ” or “ ” for 3 seconds, display panel
will show actual temperature. A�er 5 seconds, it will
show the set temperature.
Statements for User Instruc�on Manual for Dual-Zone
temperature se�ngs;
Temperature Ranges and Se�ngs and Understanding
Your Dual-Zone Wine Fridge.
To ensure op�mal storage condi�ons for your wine
collec�on, your dual-zone wine fridge allows you to
set each zone to specific temperature ranges:
- Top Zone: 6-12°C (43-54°F)
- Bo�om Zone: 10-18°C (50-64°F)
These ranges are designed to provide the ideal envir-
onment for different types of wines. The top zone is
perfect for sparkling and white wines, which benefit from
cooler temperatures, while the bo�om zone is tailored
for red wines, which require slightly warmer storage.
Exclusion of Specific Close Temperature Set Points
Sec�on: Temperature Se�ngs Guidelines
In order to maintain the highest quality of wine storage
and to maximize the benefits of the dual-zone feature,
certain close temperature set points are not available for
selec�on.
Specifically, the following combina�ons of Top Zone and
Bo�om Zone temperature set points are excluded:
12°C & 10°C (54°F & 50°F)
12°C & 11°C (54°F & 52°F)
11°C & 10°C (52°F & 50°F)
This exclusion helps to ensure that your wines are stored
at their op�mal temperatures and that the dis�nct advan-
tages of a dual-zone fridge are fully realized.
Benefits of Op�mal Temperature Differen�a�on Why We
Exclude Certain Temperature Combina�ons
Our dual-zone wine fridge is designed to offer precise
temperature control to suit the diverse needs of your
wine collec�on. By excluding the close temperature set
points,
we:
1.Enhance Wine Quality: Different types of wine have
specific temperature requirements for ideal storage. By
maintaining dis�nct temperature zones, we ensure that
each type of wine can age and be enjoyed at its best.
Example:
－Sparkling Wines: Sparkling wines, such as Champagne,
are best stored at cooler temperatures around 6-8°C.
This helps preserve their carbona�on and delicate
flavors.
If the temperature is set too high (e.g., 10-12°C), it can
affect the effervescence and freshness.
－Red Wines: Red wines, such as Cabernet Sauvignon or
Merlot, require storage temperatures between 12-18°C
to develop their full-bodied flavors and complex aromas.
If stored too cold (e.g., at 10°C), the aging process slows
down, and the wine may not reach its op�mal taste
profile.
By ensuring a clear temperature difference between the
zones, you can store sparkling wines in the top zone at
6-8°C and red wines in the bo�om zone at 12-18°C, thus
preserving the quality and character of each type of
wine.
2.Simplify Temperature Management:
Clear differen�a-
�on between the zones simplifies the management of
your wine collec�on, reducing the risk of accidental
subop�mal storage.
Example:
－White and Red Wines: White wines, such as Sauvignon
Blanc, are best stored at 8-12°C, while red wines like
Pinot Noir prefer 12-18°C. If the temperature se�ngs
are too close (e.g., 12°C and 11°C), it becomes challeng-
ing to manage and remember which wines are stored
where.
8
9
User Manual
DIMENSIONS:
VWD820SAP-X
This Vintec Wine Cellar is not designed to be fully integrated
behind a joinery door.
Please note that:
For VWD820SAP-X
a minimum cut out width of 600 mm is required to
facilitate installa�on, removal and servicing.
1. Vintec “Slot-in” Wine Cellar are front ven�ng but are not
designed to be fully integrated behind a joinery door.
2. Vintec “Slot-in” Wine Cellar require 2.5mm clearance on
both sides and 5mm on top, 30mm clearance at the rear
(Back spacer is provided), to facilitate installa�on, removal,
servicing and ven�la�on.
3. Vintec “Slot-in” Wine Cellar draw air from the rear and
expels it through the metal grid under the door at the front.
If a kick board is to be placed in front of the Wine Cellar
grid another one must be fi�ed into the kick board with
a minimum air flow allowance of 150cm².
4. Vintec “Slot-in” Wine Cellar have a power switch located
on the control panel so power point loca�on is not cri�cal.
5. The Wine Cellar requires a standard 240 volt/10 amp
power point. (Or according to different countries specific-
a�ons).
6. The power cord is min 1.8m in length and is fixed on the
right side at the back when looking from front of cabinet.
7. As with most appliances of today, the Wine Cellar has
sensi�ve electronic components which are suscep�ble to
damage through lightning and electricity supply faults.
It is therefore advised to use a power surge protector to
avoid problems of this nature.
8. Air vent within the joinery must be provided for Vintec
“Slot-in” Wine Cellar (Front venng)
In Hot climate zone, an air vent or grid, with a minimum
ven�la�on size of 200mm x 40mm MUST be cut out at the
rear top of the back par��oning or at the top of either side
of the par��oning, allowing cool fresh air full access to flow
into the 30mm gap located at the rear of the cabinet.
WINE SERVING & DEFROSTING
Example:
－Energy Consump�on: When the temperature difference
between zones is too small (e.g., 12°C& 11°C), the fridge’s
compressor has to work harder to maintain these slight
differences, leading to increased energy consump�on and
wear on the appliance. By se�ng more dis�nct tempera-
ture ranges, the fridge operates more efficiently, reducing
energy use and extending the lifespan of the compressor.
－
Consistent Cooling: A larger temperature difference
between zones allows the fridge to maintain each zone's
temperature more consistently. This consistency is crucial
for the long-term storage of wines, ensuring they are kept
at their op�mal temperature without fluctua�ons that
could affect their aging process.
Prac�cal Tips for Using Your Wine Fridge for Dual
zone temperatures
1.Top Zone: 6-12°C (43-54°F):
- Ideal for sparkling wines and champagnes (6-8°C).
- Perfect for most white wines (8-12°C).
- Ideal for lighter red wines like Pinot Noir and
Beaujolais, which can benefit from the lower end
of the red wine storage temperature spectrum (12°C).
2.Bo�om Zone
: 10-18°C (50-64°F):
- Best for red wines (10-18°C).
- Suitable for some fuller-bodied white wines if pre-
ferred closer to 12°C.
By following these guidelines of temperature chart
and u�lizing the dual-zone feature effec�vely, you
can ensure that every bo�le in your collec�on is
stored under the best possible condi�ons, preserving
its flavor and quality for your enjoyment.
WINE SERVING TEMPERATURE CHART
All wines mature at the same temperature, which is a
constant temperature set between 12℃ to 14℃.
The below chart is an indica�ve temperature chart to
indicate the best temperature for drinking purposes.
Champagne NV, Sparkling, Spumante, 6℃
Dry White Semillon, Sauvignon Blanc, 8℃
Champagne Vintage, 10℃
Dry White Chardonnay, 10℃
Dry White Gewürztraminer, Riesling, Pinot grigio,
Sweet White Sauternes, Barsac, Montbazillac, Ice 10℃
Wine, Late Harvest , 10℃
Beaujolais, 13℃
Sweet White Vintage: Sauternes, 14℃
White Vintage Chardonnay , 14℃
Red Pinot Noir, 16℃
Red Grenache, Syrah , 16℃
Red Vintage Pinot Noir, 18℃
Cabernet & Merlot: French, Australian, New Zealand,
18℃
Chilean, Italian, Spanish, Californian, Argen�nean,
Vintage Bordeaux . 18℃
IMPORTANT INFORMATION ABOUT TEMPERATURE
Your VINTEC Wine Cellar has been designed to
guarantee op�mum condi�ons for storing and/or
serving your wines.
Fine wines require long and gentle developments and
need specific condi�ons in which to reach their full
poten�al.
All wines mature at the same temperature, which is a
constant temperature set between 12
℃ to 14℃. Only
the temperature of degusta�on (wine apprecia�on)
varies according to the type of wines (see Wine Serving
Temperature Chart above). This being said and as it is
for natural cellars used by wine producers for long
periods of storage, it is not the exact temperature that
is important, but its consistency. In other words, as
long as the temperature of your Wine Cellar is constant
(between 12
℃ to 14℃) your wines will be stored in
perfect condi�ons.
Not all wines will improve over the years. Some should
be consumed at an early stage (2 to 3 years) while
others have tremendous ageing capability (50 and
over). All wines have a peak in maturity. Do check with
your wine merchant to get the relevant informa�on.
DEFROSTING/CONDENSATION/ HYGROMETRY/
VENTILATION
Your Wine Cellar is designed with Auto-cycle defrost
system. During Off-cycle the refrigerated surfaces of
the Wine Cellar defrost automa�cally.
Defrost water from the Wine Cellar storage compart-
ment drains automa�cally and part of it goes into a
drainage container, which is located at the back of the
Wine Cellar next to the compressor.The heat is transf-
erred from the compressor and evaporates any on
that has collected in the pan. Part of the remaining
water is collected within the Wine Cellar for humidity
purposes.
This system enables the crea�on of the correct humid-
ity level inside your Wine Cellar required by the natural
cork to maintain a long las�ng seal.
Notes: The water collected by condensa�on, is there-
fore recycled.
All units are equipped with a double glazed glass door
that has a LOW-E layer to minimise condensa�on on the
glass door.
The Wine Cellar is not totally sealed;
Some fresh air is allowed through the drainpipe.
10
User Manual
Air is circulated through the cellar by means of a fan/fans
and the hollow shelves.
Notes: During the refrigera�ng cycle, heat is given off which
disperses through the external surfaces of the Wine Cellar.
Avoid touching the surfaces during those cycles.
ADJUSTABLE WOODEN SHELVES:
ADJUSTING/REMOVING THE SHELVES
- For easy access to the storage content, you must pull the
shelves approximately 1/3 of its depth out of the rail com-
partment. These wine cabinets, however, are designed
with a notch on each side of the shelf tracks to prevent
bo�les from falling.
- To prevent damaging the door gasket, make sure to
have the door all the way opened when pulling shelves
out of the rail compartment.
- To prevent damaging the door gasket, make sure
to have the door all the way opened when pulling
shelves out of the rail compartment.
- To Remove Shelves:
1. Fully extend the shelf you wish to remove(Fig. A)
2. Li� the front of the shelf up (Fig. A)
3. Holding the shelf track, push the shelf in, then
up to release from the rear dampers(Fig. B)
REVERSIBILITY OF THE DOOR
WARNING: To avoid accidents during the process of
changing the door, we recommend that you get assistance.
The glass door is heavy and may cause injury if dropped.
This appliance has reversible doors but is delivered with a
right hand hinged door.
Should wish to reverse the hinge on your unit, follow the
direc�ons below:
1. Decora�ve
2. Door
3. Hinge
4. Screws
1.Open the door and remove the decora�ve covers
(1) on the le� hand side as shown in(Fig. A).
2.Fix the screws into these posi�ons a per Fig.B, but
do not fasten the screws.
3.Remove all screws from both the upper and lower
hinge, and then remove the door.
4.Rotate the door 180 degrees, and place the hinges
into the screws fixed in Fig.B. Once slo�ed onto
these screws, �ghten the screws to secure the hinges
(Fig. D).
5.Placed the decora�ve covers in the right hand side
and screw holes as shown in (Fig. D).
How to replace ac�vated carbon pack
ADJUSTABLE SHELVES
&
DOOR REVERSAL
& CHARCOAL FILTER
Fig.1
Fig.2
Fig.4
Fig.5
Fig.3
1. Pull back the back clip of the box with your finger-
nail first, so that the clip is free from the slot of the
lid, and then the lid can be removed (Fig.1.2).
2. Then take out the ac�vated carbon pack ② from
the manual bag, tear off the sealed bag, and put it
into the ac�vated carbon box (Fig.3).
3. Push the card slot at the front of the cover to the
card slot (4), and press down the back of the cover
so that the card slot is inserted into the card slot
(Fig.5).
Then reset filter reminder light on your wine cellar
cabinet's UI control panel.
You can purchase a new air filter in this website :
www.shop.vintecclub.com
11
User Manual
BRACKET & INSTALL THE FURNITURE DOOR
I N S TALLING T H E T O P F I X I N G B R A C K ET
This bracket will keep the product secure and help
prevent it moving when in use.
A�er installing the wine cabinet, please open the
door, adjust the fixing bracket and fix this into the
work surface with three screws using a screwdriver.
A. Top Fixing Bracket
B. Work Surface
C. Screw
D. Screwdriver
I N S TALLING T H E S I D E F I X I N G B R A C K E T
This bracket will keep the product secure and help
prevent it moving when in use.
1.
Screw
2.
Fixing bracket
3.
Kitchen cabinet
As per Fig A, line the fixing bracket (2) with the two
holes at the top of the wine cabinet. Use the screws
(1) to secure into posi�on.
As per Fig B, use the screws (1) to secure the bracket
to the side of the kitchen cabinet (3).
Fig A
Fig B
* The height of the furniture door will need to be adjusted
to ensure it lines up with the other kitchen cabinet doors,
therefore these dimensions will vary.
The minimum overall height of the furniture door must
be at least 710mm.
NOT E:
The furniture door can extend beyond the appliance door,
however you must ensure a gap of at least 75mm is le�
between the bo�om of the furniture door and the floor
to allow for sufficient ven�la�on.
E
X A M P LE I NFRAME S TYLE DO OR
HOW TO INS TALL THE F U R N I T U R E DOO R
NOT E:
If a handle is required, please ensure this is installed in
an appropriate posi�on before the furniture door is insta-
lled.
1. Fully open door.
2.
Star�ng at the corner, pull the gasket away from the
door. As per Fig A.
3.
Con�nue to pull the gasket free from the gasket
channel.
4.
Upon removal, lay gasket down on a flat surface.
5.
Secure the furniture door panel to the appliance door
using clamps (see Fig. B).
OPERATION ANOMALIES
Ensure that there is power to the electrical supply plug
by connec�ng another electrical appliance to it. Check
fuse, if any. Make sure that the door is closed properly.
POWER FAILURES
This appliance memorizes and saves its set
temperature. In case of a power outage, the unit
adjusts to its previous temperature se�ng when
power resumes.
To avoid sudden change of temperature while the
power is off, you should avoid opening the door.
For longer periods of power failure, do take steps
to protect your wine.
Irrespec�ve of the cause, if you no�ce either abnormal
temperature or humidity levels inside your Wine Cellar,
12
User Manual
USING THE FOOT SLIDERS
If your Wine Cellar appears to be malfunc�oning,
unplug it and contact your VINTEC’s a�er sales service.
Any interven�on on the cold circuit should be perform-
ed by a refrigera�on technician who should carry out
an inspec�on of the circuit sealing system. Similarly,
any interven�on on the electrical circuit shouldbe
performed bya qualified electrician.
Notes : Any interven�on performed by a non- authori-
sed technician by Vintec will lead to the warranty being
considered as null and void.
6. Using a 3 mm drill bit, drill 6 pilot holes into the wood
panel 12 mm deep using the holes in the door frame as
a guide.
NOT E:
It is important to ensure that all drilled holes are drilled
to the correct depth in order to avoid
splits in the wood when hardwood is installed. You must
also take care not to drill all the way through the door.
7. Locate 6 of the ST4*35mm screws provided with your
unit.
8. Using a Phillips screwdriver, place one screw into each
of the 6 pilot holes and screw into the door, as per Fig C.
Be careful not to over �ghten screws. Ensure the
screws sit flush against the bo�om of the channel.
Remove clamps from door. Note: If panel requires
addi�onal adjustment a�er removing clamps, slightly
loosen each screw and a
djust panel as necessary.
Tighten screws upon comple�on.
9.
Star�ng at the corners, re-install the gasket into the
gasket channel in the frame, by pushing firmly into place.
Make sure the gasket is fully seated into the channel.
NOT E:
If the gasket is not fully seated into the channel, the door
will not close properly. This can prevent the door switch
from ac�va�ng and will stop the wine cabinet from
cooling.
U
S I N G T H E F O OT S L I D E R S
If you want to adjust the height over 820mm, please
install the product using the foot sliders provided.
These are provided to help prevent the feet catching
on the floor when sliding the appliance into the
aperture. Place the back foot in the loca�on marked
‘Back’ below and the front foot in the loca�on marked
‘Front’. Once fi�ed to both sides of the wine cabinet
the appliance can be gently posi�oned into the
aperture, taking care not to place excess pressure on
the feet when loca�ng the cabinet.
TROUBLESHOOTING & DATA
13
User Manual
Technical Data:
Models
750ml
Gas charge(g)
Net capacity
Preset Temperature (°C)
A
djustable t
e
m
p
in
degrees
Heater
(
1)
bordeaux
375ml
Beer
-
10 upper/21 lower
35g
113L
upper 6°C
lower 12°C
upper 6-12°C
lower 10-18°C
Yes
Net weight
Gross weig
Number of shelves:
Dimensions (mm) (WxDxH)
ht
4
Packaged Dimensions
(mm) (WxDxH)
595x550x820
650x665x885
Capacity
(1)
Freestanding or Slot-in
Both
1. Models with a heater will raise their temperature to the set
temperature if the ambient temperature is below the set
temperature. Models without a heater will not raise the
If the refrigerant of these appliances are R600a , Flammable
to avoid the fire or explode caused.
VWD820SAP-X
50kg
54kg
Risk of Fire
TROUBLESHOOTING GUIDE
Common problems may easily be solved, saving you
the cost of a possible service call.
Please read carefully the instruc�on manual and refer
to the troubleshoo�ng guide chart.
PROBLEM
POSSIBLE CAUSE
Wine Cellar does not operate.
Wine Cellar is not cold enough.
Turns on and off frequently.
The light does not work.
Not plugged in.
The appliance is turned off.
The circuit breaker tripped or the fuse is
broken.
Check the temperature control se�ng.
External environment may require a
higher se�ng.
The door is opened too o�en.
The door is not closed completely.
The door gasket does not seal properly.
The room temperature is higher than
normal.
A large amount of contents has been
added to the Wine Cellar.
The door is opened too o�en.
The door is not closed completely.
The temperature control is not set
correctly.
The door gasket does not seal properly.
Not plugged in.
The circuit breaker tripped or a blown
fuse.
The bulb is out of order.
The light bu�on is “OFF”.
Check to assure that the Wine Cellar
is level.
Vibra�ons.
The door will not close properly.
The Wine Cellar is not level.
The door was reversed and not properly
installed.
The gasket is faulty. (Magnet or rubber
is spoiled).
The shelves are out of posi�on.
The Wine Cellar seems to make
too much noise.
A Gurgling noise may come from the low
side of the refrigerant system, which is
normal as each cycle ends in your Wine
Cellar.
Contrac�on and expansion of the inside
walls may cause popping and crackling
noises.
The Wine Cellar is not level.
Place appliance in a lower humidity area.
warmer above the coldest temperature
lower levels (recommended place appli-
air humidity area)
exterior surfaces, glass door,
sealing gasket strip.
This is a natural phenomenon
be reassured that only long and frequent exposure to
these abnormal condi�ons can cause a detrimental effect
on your wines.
5
TROUBLESHOOTING
14
User Manual

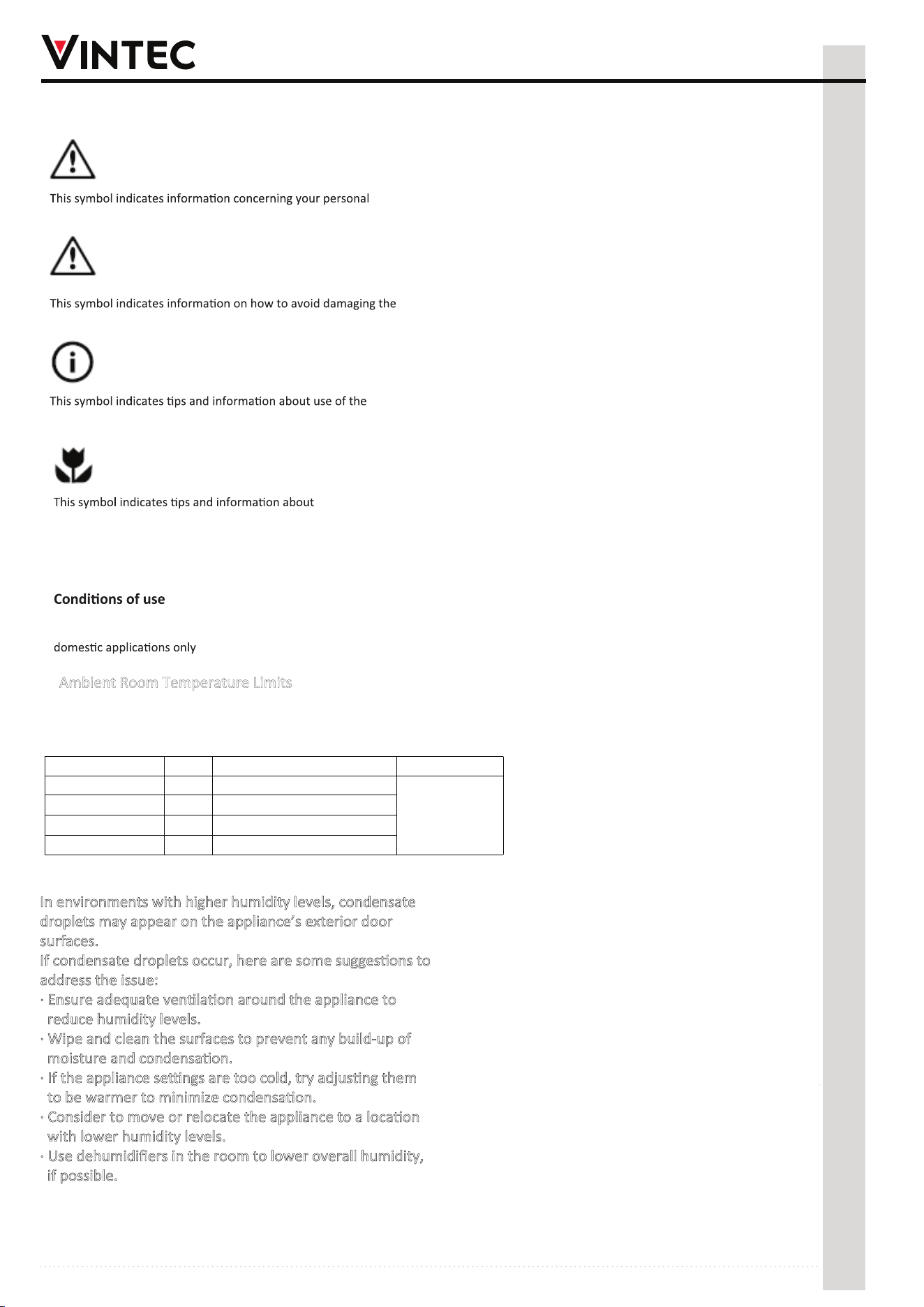

The symbols you will see in this booklet have these meanings:
safety.
WARNING
CAUTION
IMPORTANT
refrigerator.
economical and ecological use of the refrigerator.
This refrigerator is designed and intended to be used in normal
ENVIRONMENT
refrigerator.
.
Ambient Room Temperature Limits
This appliance is designed to operate in ambient
temperatures specified by its temperature class
marked on the ra�ng plate.
Class
Tropical
Extended Temperate
Temperate
Subtropical
Symbol
SN
N
ST
T
Ambient Temperatures range(℃
﹢10 to﹢32
﹢16 to﹢32
﹢16 to﹢38
﹢16 to﹢43
)
In environments with higher humidity levels, condensate
droplets may appear on the appliance’s exterior door
surfaces.
If condensate droplets occur, here are some sugges�ons to
address the issue:
· Ensure adequate ven�la�on around the appliance to
reduce humidity levels.
· Wipe and clean the surfaces to prevent any build-up of
moisture and condensa�on.
· If the appliance se�ngs are too cold, try adjus�ng them
to be warmer to minimize condensa�on.
· Consider to move or relocate the appliance to a loca�on
with lower humidity levels.
· Use dehumidifiers in the room to lower overall humidity,
if possible.
Rela�ve Humidity
≦75%
This document sets out the terms and conditions of the product
warranties for Vintec Appliances. It is an important document.
Please keep it with your proof of purchase documents in a safe place
for future reference should there be a manufacturing defect in your
Appliance. This warranty is in addition to other rights you may have
under the Australian Consumer Law.
1. In this warranty:
(a) ‘ACL’ or ‘Australian Consumer Law’ means Schedule 2 to the
Competition and Consumer Act 2010;
(b) ‘Appliance’ means any Electrolux product purchased by you and
accompanied by this document;
(c) ‘ASC’ means Electrolux’s authorised serviced centres;
(d) ‘Vintec’ is the brand controlled by Electrolux Home Products Pty Ltd
of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004 762 341
in
respect of Appliances purchased in Australia and Electrolux (NZ) Limited
(collectively “Electrolux”) of 3-5 Niall Burgess Road, Mount Wellington, in
respect of Appliances purchased in New Zealand;
(e)
‘Warranty
Period’ means the period
in clause 3 of this
warranty;
(f) ‘you’ means the purchaser of the Appliance not having purchased
the Appliance for re-sale, and ‘your’ has a corresponding meaning.
2. Application: This warranty only applies to new Appliances, purchased
and used in Australia or New Zealand and is in addition to (and does not
exclude, restrict, or modify in any way) other rights and remedies under
a law to which the Appliances or services relate, including any non-
3.
4. Repair or replace warranty: During the Warranty Period, Electrolux
or its ASC will, at no extra charge if your Appliance is readily accessible
for service, without special equipment and subject to these te
rms and
conditions, repair or replace any parts which it considers to be defective.
Electrolux may, in its absolute discretion, choose whether the remedy
for a valid warranty claim is repair or replacement. Electrolux
or
its
ASC may use refurbished parts to repair your Appliance. You agree that
any replaced Appliances or parts become the property of Electrolux.
5. Travel and transportation costs: Subject to clause 7, Electrolux will
bear the reasonable cost of transportation, travel and delivery of the
Appliance to and from Electrolux or its ASC. Travel and transportation will
be arranged by Electrolux as part of any valid warranty claim.
6. Proof of purchase is required before you can make a claim under this
warranty.
7. Exclusions: You may not make a claim under this warranty unless the
defect claimed is due to faulty or de
fective parts or workmanship. This
warranty does not cover:
(c)
cosmetic
damage which does not
the operation of the
Appliance;
(d) damage to the Appliance caused by:
(i) negligence or accident;
(ii) misuse or abuse, including failure to properly maintain or service;
(iii) improper, negligent or faulty servicing or repair works done by
anyone other than an Electrolux authorised repairer or ASC;
(iv) normal wear and tear;
(v) power surges, electrical storm damage or incorrect power supply;
(vi) incomplete or improper installation;
(vii) incorrect, improper or inappropriate operation;
(viii) insect or vermin infestation;
(ix) failure to comply with any additional instructions supplied with
the Appliance;
In addition, Electrolux is not liable under this warranty if:
(a) the Appliance has been, or Electrolux reasonably believes that the
Appliance has been, used for purposes other than those for which
the Appliance was intended, including where the Appliance has
been used for any non-domestic purpose;
(b) the Appliance is
without authority from Electrolux in writing;
(c) the Appliance’s serial number or warranty seal has been removed
or defaced.
8.
How to claim under this warranty: To enquire about claiming under
this warranty, please follow these steps:
(a) carefully check the operating instructions, user manual and the
terms of this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.
9. Australia: For Appliances and services provided by Electrolux in
Australia: Electrolux goods come with guarantees that cannot be
excluded under the Australian Consumer Law. You are entitled to a
replac
ement or refund for a major failure and for compensation for any
other reasonably foreseeable loss or damage. You are also entitled to
have the Appliance repaired or replaced if the Appliance fails to be of
acceptable quality and the failure does not amount to a major failure.
‘Acceptable quality’ and ‘major failure’ have the same meaning as
referred to in the ACL.
10. New Zealand: For Appliances and services provided by Electrolux
in New Zealand, the Appliances come with a guarantee by Electrolux
pursuant to the provisions of the Consumer Guarantees Act, the Sale
of Goods Act and the Fair Trading Act. Where the Appliance was
purchased in New Zealand for commercial purposes the Consumer
Guarantee Act does not apply.
11.
You accept that if you make a warranty claim, Electrolux
and its agents including ASC may exchange information in relation to you
to enable Electrolux to meet its obligations under this warranty.
Warranty
FOR SALES IN AUSTRALIA AND NEW ZEALAND
APPLIANCE: VINTEC
Vintec Undercounter_Warr_Oct24
Important Notice
Before calling for service, please ensure that the steps listed in clause 8 above have been followed.
AUSTRALIA
FOR SERVICE
or to the address of your nearest
authorised service centre in Australia
PLEASE CALL 1800 666 778
For the cost of a local call
FOR ACCESSORIES
PLEASE CALL 1800 666 778
For the cost of a local call (Australia only)
or visit www.vintecclub.com
NEW ZEALAND
FOR SERVICE
or to the address of your nearest
authorised service centre in New Zealand
PLEASE CALL 0800 10 66 10
FOR ACCESSORIES
PLEASE CALL 0800 550 020
(New Zealand only)
or visit www.vintecclub.com
Warranty Period: Subject to these terms and conditions, this warranty
continues for in Australia for a period of 24 months and in new Zealand
for a period of 24 months, following the date of original purchase of the
Appliance. Specific components are warranted against manufacturing
defects in Australia and New Zealand for the periods listed below;
• Compressor - Further 3 years
(b) parts and Appliances not supplied by Electrolux;
(a) light globes, batteries,
or similar perishable parts;
vintec.com
Vintec. We are part of the
Electrolux Family. To add
a touch of professional
inspiration to your home,
visit electrolux.com.au
© 2019 Electrolux Home Products Pty Ltd. ABN 51 004 762 341
Rev00_Sep 2024
Stay in touch and share your
user experience by following us:
@vintecclub
Service and support
1800 666 778
customercare@vintec.com.au
In the rare event that your Vintec cabinet does not perform
to your satisfaction, contact our dedicated support team:
