THANK YOU
USE AND CARE GUIDE
METARIE II 24 IN. CEILING FAN
Item #1005 710 274
1005 710 280
Model #YG922B-MBK
YG922B-MWH
We appreciate the trust and condence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Hampton Bay!
1-855-HD-HAMPTON
HAMPTONBAY.COM
Questions, problems, missing parts? Before returning to the store,
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
call Hampton Bay Customer Service
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to nd
this fan and click the link of visual instruction in the product overview section.
Table of Contents ..................................
Safety Information ..................................
Warranty .........................................
Pre-installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specications ..................................
Tools Required . . . ...............................
Hardware Included ...............................
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation .......................................
Assembly . . ......................................
Hanging the Fan .................................
Attaching the Fan Blades ..........................

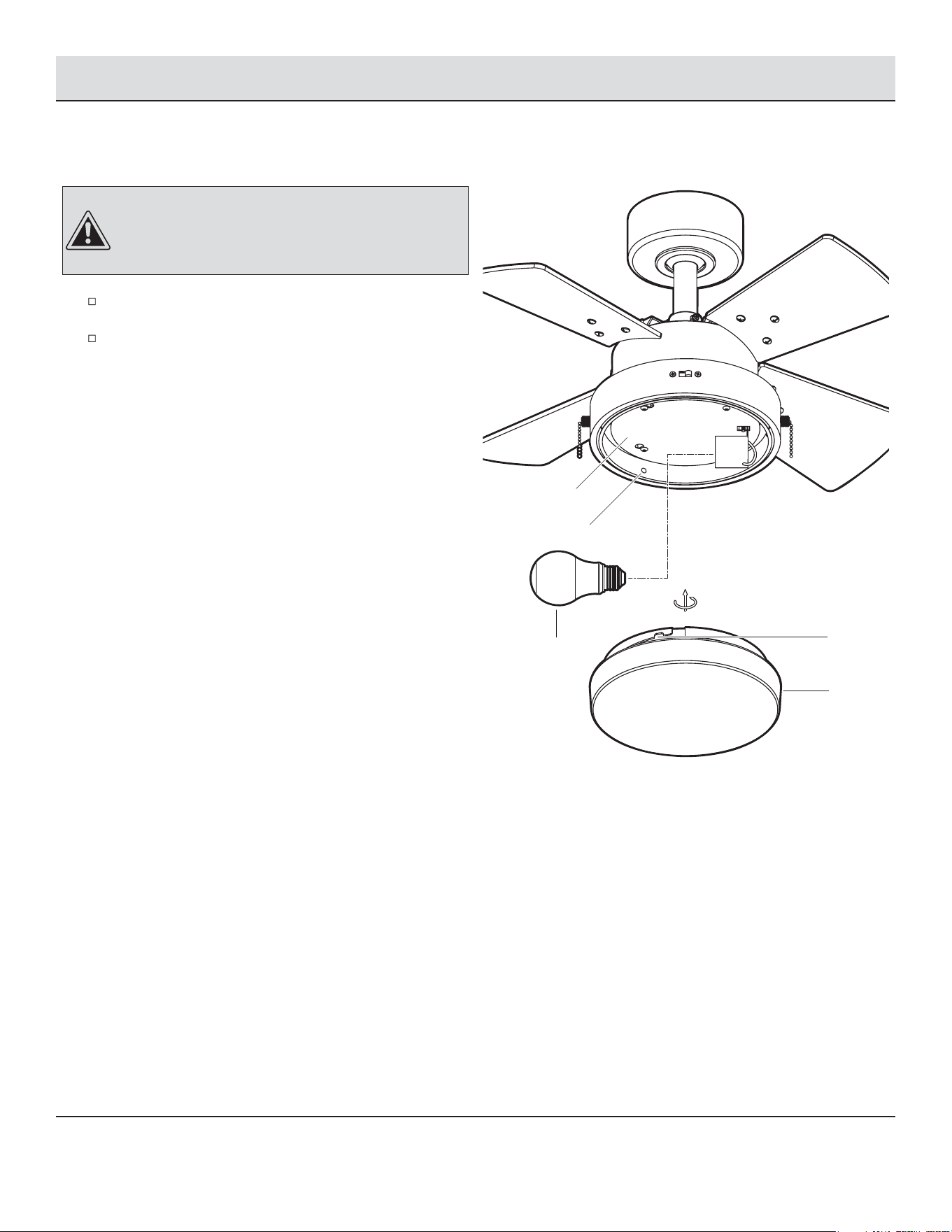

Installing the Light Kit . . . . . . . . ....................
Operation ........................................

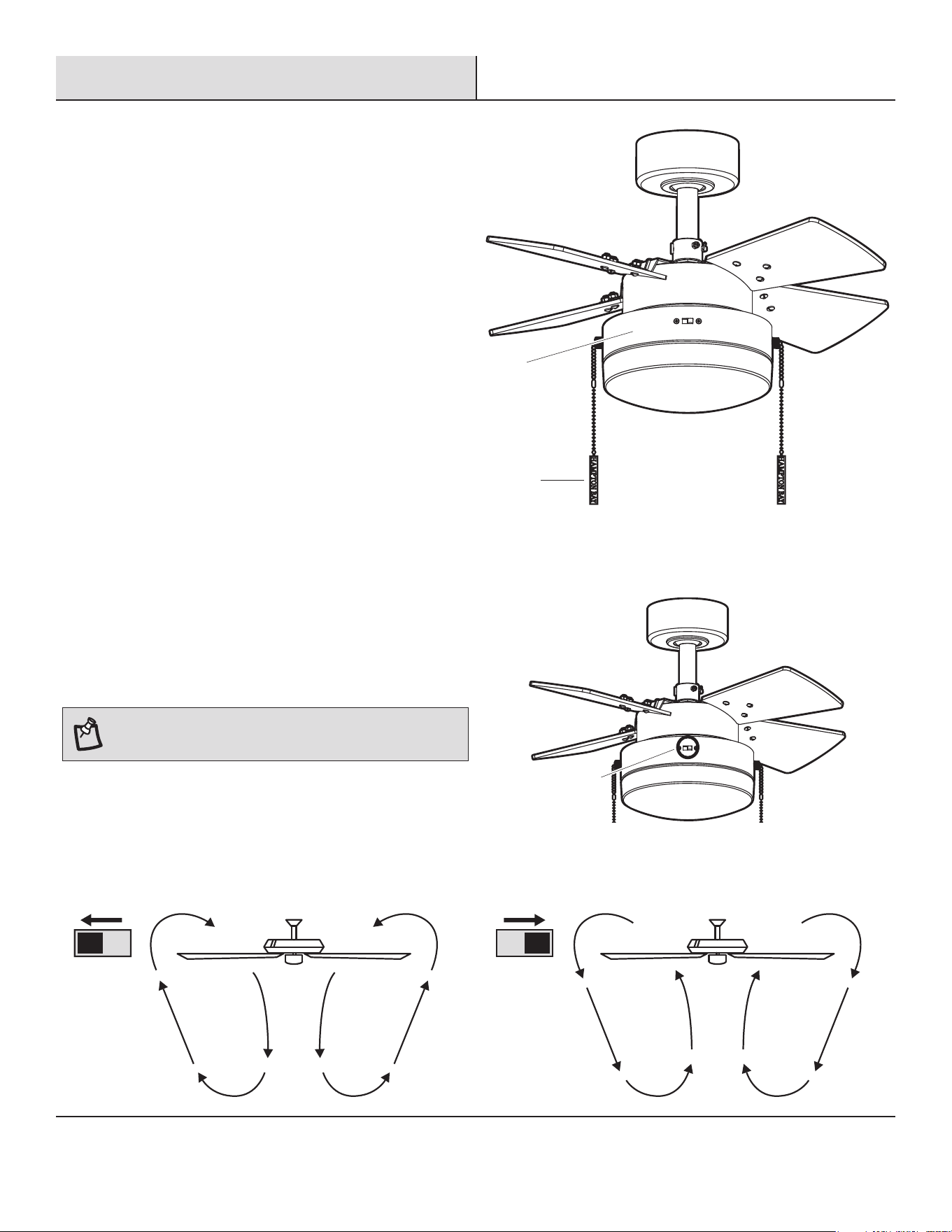

Pull Chain Operating Instructions ....................
Reverse Switch Operating Instruction . . . ..............
Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Parts . . ...................................
2
Table of Contents
2
3
4
4
4
4
5
6
7
8
9
13
14
16
16
16
17
17
19
READ AND SAVE THESE INSTRUCTIONS
3 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Safety Information
To reduce the risk of electric shock, ensure electricity has been
turned off at the circuit breaker or fuse box before beginning.
All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70-1999” and local electrical codes.
Electrical installation should be performed by a qualied
licensed electrician.
The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 35 lbs (15.9
kg) or less. Use only UL-listed outlet boxes marked “FOR FAN
SUPPORT.”
The fan must be mounted with a minimum of 7 ft. (2.1m)
clearance from the trailing edge of the blades to the oor.
Avoid placing objects in the path of the blades.
To avoid personal injury or damage to the fan and other items,
be cautious when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
outlet box and ungrounded conductor on the other side of the
outlet box.
All setscrews must be checked and retightened where
necessary before installation.
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
WARNING: Changes or modications to this unit not
expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
WARNING: To reduce the risk of electrical shock or re, do
not use this fan with any solid-state fan speed control device.
It will permanently damage the electronic circuitry.
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (also referred to as anges), when
installing the brackets, balancing the blades or cleaning the
fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of re, electric shock or
personal injury, mount the fan to the outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
Pre-Installation
SPECIFICATIONS
24 in.
Low
Medium
High
120
Fan size Watts RPM CFMSpeed Volts Amps
1.39 cu. ft.
N.W. G.W. C.F.
0.20
0.25
0.39
13.06
20
37.90
219
253
312
1172
1393
1713
4.80 kg
(10.56 lbs.)
6.77 kg
(14.9 lbs.)
4
Warranty
TOOLS REQUIRED
Phillips
screwdriver
Flat blade
screwdriver
Step
ladder
Wire
stripper
Electrical
tape
The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the
factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any
glass), to be free from defects in workmanship and material at the time of shipment from the factory for a period of three years after the
date of purchase by the original purchaser. The manufacturers also warrants that all other fan parts, excluding any glass or acrylic blades,
to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of
purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper
installation or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not
cover any changes in brass nish, including rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type give the longest
useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a
defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby
disclaim any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent
permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the
express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to
you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential
damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other
rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a
claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.hamptonbay.com.
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.
Adjustable
wrench
NOTE: Hardware not shown to actual size.
AA
BB
CC
DD
EE
FF
Plastic wire nut
Blade attachment screw
Blade attachment nut
Blade attachment lock washer
9 Watt LED bulb
Pull chain and fob
Part Description
3
13
13
13
1
2
Quantity
HARDWARE INCLUDED
5
Pre-Installation (continued)
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

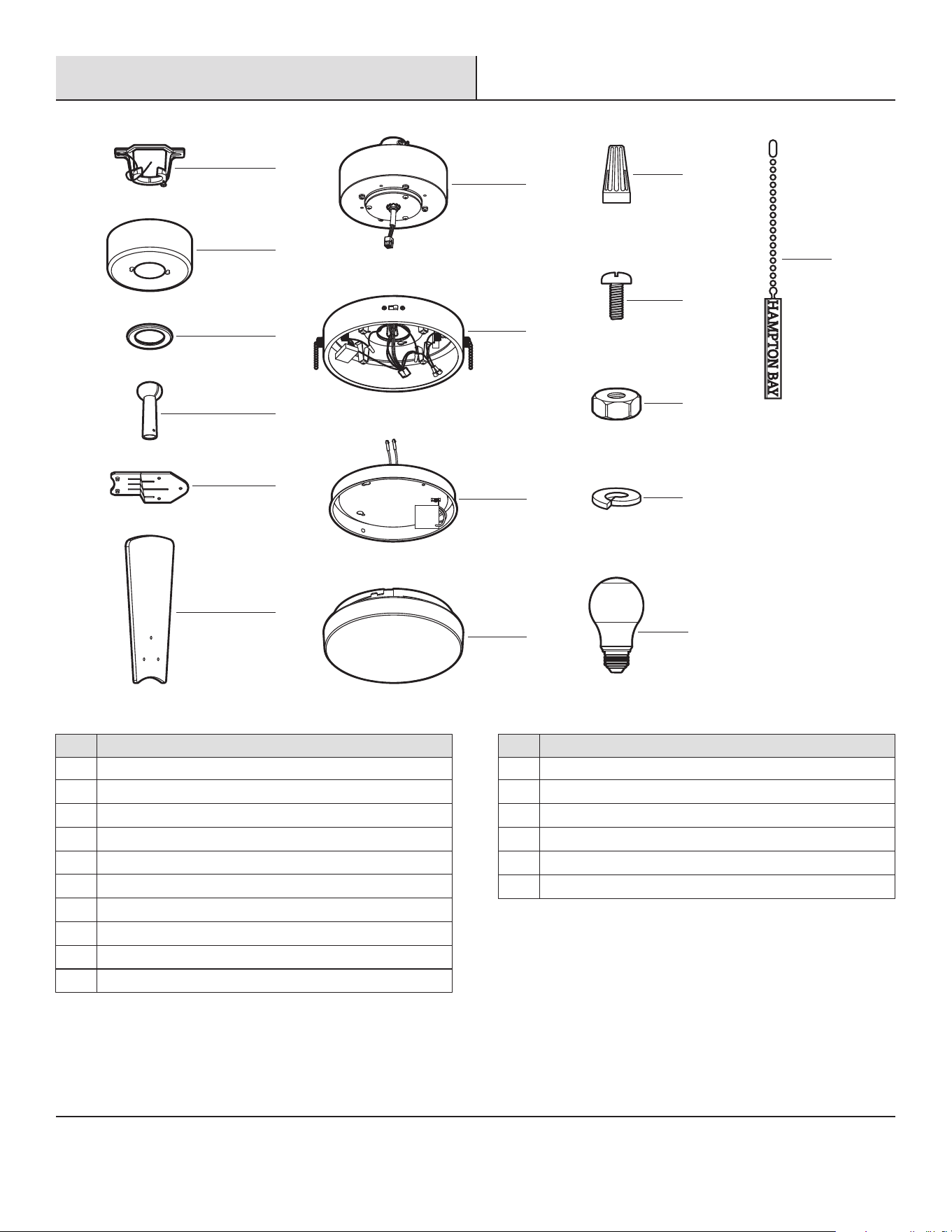

AA
EE FF
BB CC
DD
Part
F
G
H
I
J
Description
Blade arm
Blade
Switch housing
Light kit
Plastic shade
Quantity
4
4
1
1
1
Part
A
B
C
D
E
Quantity
1
1
1
1
1
Description
Mounting bracket (preassembled)
Canopy
Canopy bottom cover (preassembled)
Hanger ball/downrod assembly
Fan motor assembly
G
F
A
B
C
D
E
H
I
J

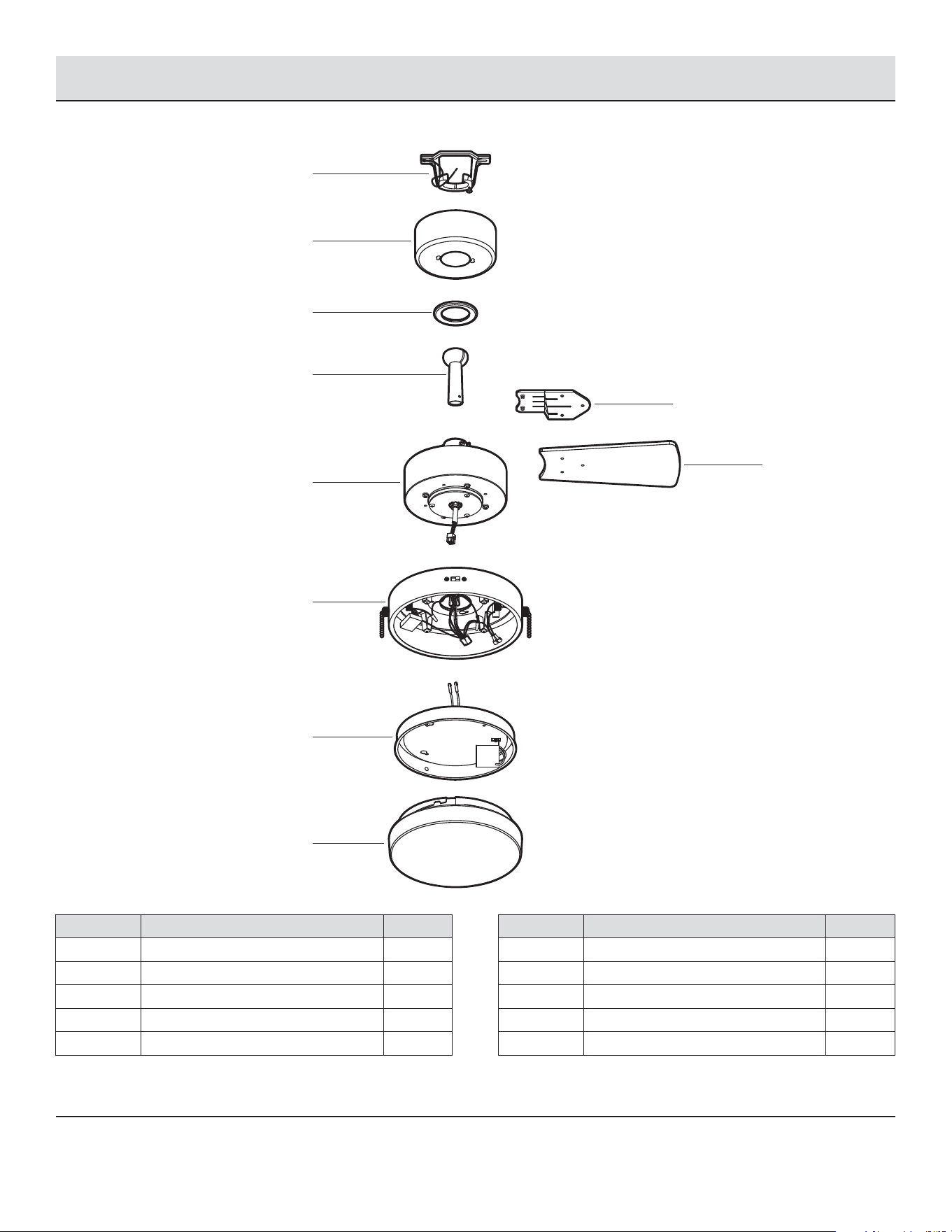

PACKAGE CONTENTS
6
Pre-Installation (continued)
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
Disconnect the power by removing the fuses or turning off
the circuit breakers.
Secure the outlet box (not included) directly to the building
structure. Use appropriate fasteners and materials (not
included). The outlet box and its bracing must be able to
fully support the weight of the moving fan (at least 35 lbs.).
Do not use a plastic outlet box.
The illustrations below show three different ways to mount the
outlet box (not included).
To hang your fan where there is an existing xture but no
ceiling joist, you may need an installation hanger bar (not
included) as shown above.
Outlet Box
Outlet Box
Hanger Bar
Outlet Box
Recessed
Outlet
Box
Ceiling
Mounting
Bracket
WARNING: To reduce the risk of re, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting xtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualied
electrician.
NOTE: You may need a longer downrod to maintain proper
blade clearance when installing on a steep, sloped ceiling.
The maximum angle allowable is 18° away from horizontal. If
the canopy (B) touches the hanger ball/downrod assembly
(D), remove the decorative canopy bottom cover (C) and turn
the canopy (B) 180° before attaching the canopy (B) to the
mounting bracket (A).
MOUNTING OPTIONS
Installation
7 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
GG
A
B
C
GG
B
C
E
D

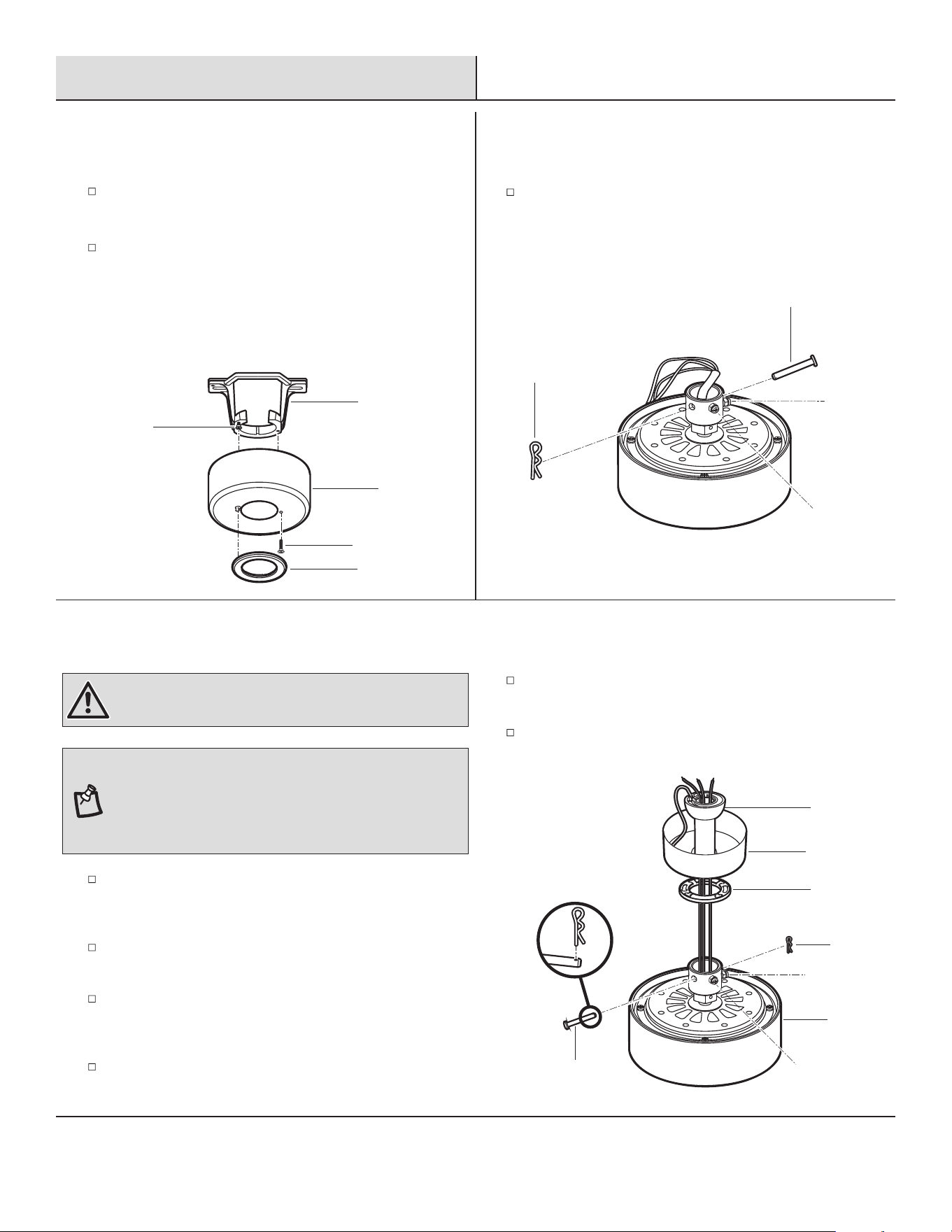

WARNING: Failure to properly install the cotter pin (HH)
could result in the fan loosening and possibly falling.
Route the wires exiting from the top of the fan motor
assembly (E) through the canopy bottom cover (C). Ensure
the slot openings are on top.
Route the wires through the canopy (B) and then through
the hanger ball/downrod assembly (D).
Align the holes at the bottom of the hanger ball/downrod
assembly (D) with the holes in the collar on top of the fan
motor assembly (E).
Carefully insert the clevis pin (II) through the holes in the
collar and the hanger ball/downrod assembly (D). Be careful
not to jam the clevis pin (II) against the wiring inside the
hanger ball/downrod assembly (D).
Insert the cotter pin (HH) through the hole near the end of
the clevis pin (II) until it snaps into the locked position.
Tighten the two collar setscrews (JJ) on top of the fan motor
assembly (E) rmly.
NOTE: If a longer downrod (not included) is needed, take out
the screw located in the hanger ball, lower the hanger ball
and remove the pin. Remove all three pieces from the
downrod and assemble them onto the new longer downrod
before proceeding to the downrod installation.

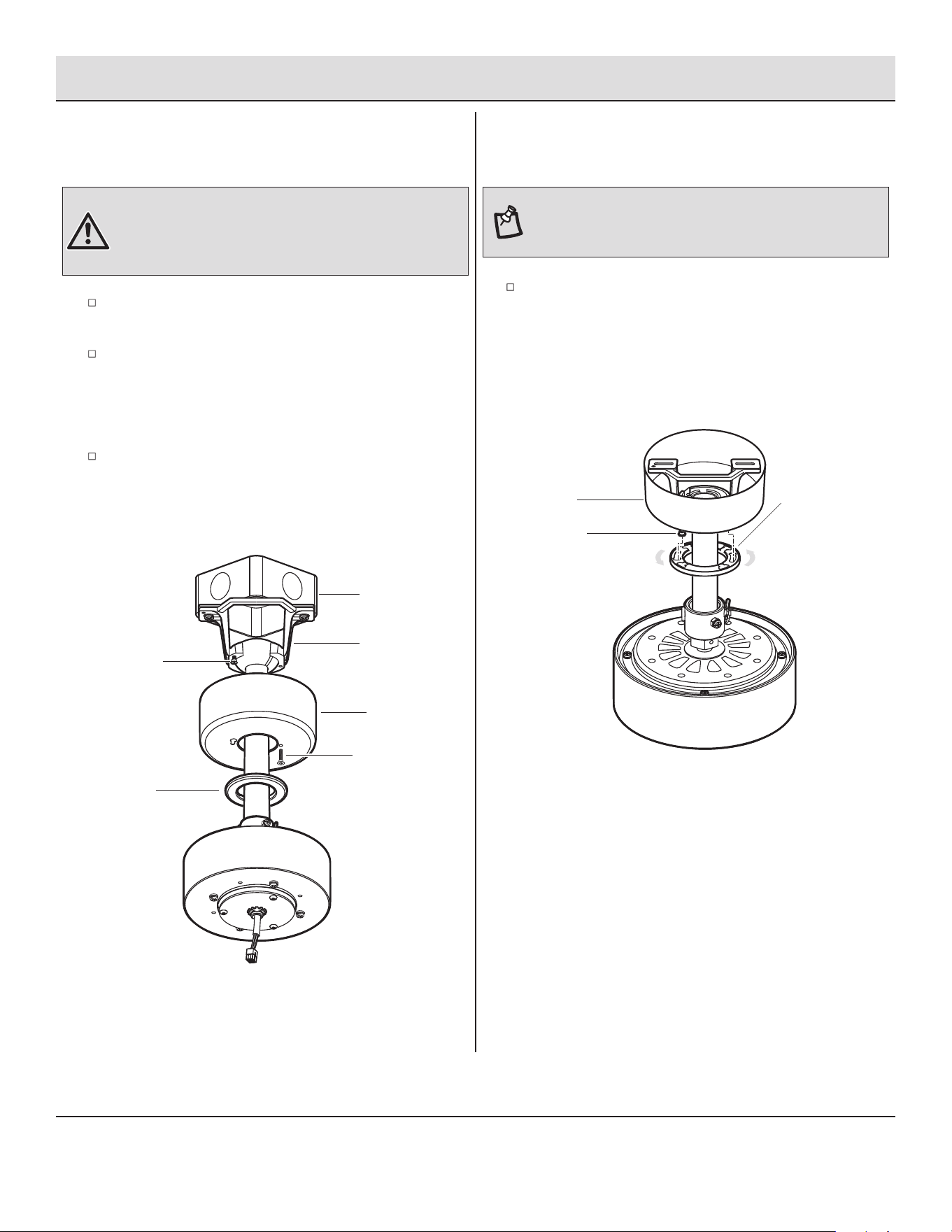

Assembly
1
Preparing the canopy Preparing the motor
2
Remove the cotter pin (HH) and clevis pin (II), and loosen the
two collar setscrews (JJ) from the motor collar.
Remove the canopy bottom cover (C) from the canopy (B) by
turning the canopy bottom cover (C) counterclockwise.
Remove the mounting bracket (A) from the canopy (B) by
removing the non-slotted canopy mounting screws (GG)
from the bottom of the canopy (B) and loosening the slotted
canopy mounting screws (GG) a half turn from the screw
head. Next, turn the canopy (B) counterclockwise to remove
the mounting bracket (A) from the canopy (B).
3
Assembling the fan
8
II
HH
JJ
JJ
HH
II
JJ
JJ
WARNING: To reduce the risk of re, electric shock or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
Assembly — Hanging the Fan
4
Installing the mounting bracket
to the electrical box
Pass the 120 volt supply wires through the center hole in
the mounting bracket (A).
Install the mounting bracket (A) to the outlet box with the
screws and washers provided with your outlet box.
Securely tighten the two mounting screws.
9
A
Outlet Box
WARNING: The tab in the ring must rest in the groove of
the hanger ball/downrod assembly (D). Failure to properly
seat the tab in the groove could cause damage to the wiring.
Hanging the fan to the mounting
bracket
5
Carefully lift the fan motor assembly (E) up to the mounting
bracket (A) and seat the hanger ball/downrod assembly (D)
in the mounting bracket (A) socket. Make sure the tab on
the mounting bracket (A) socket is properly seated in the
groove in the hanger ball/downrod assembly (D). This will
help to balance the ceiling fan.
E
A
D
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
AA
NeutralHot
Black
Ground
conductor
White
A
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts (except for the ground wire).
Assembly — Hanging the Fan (continued)
6a

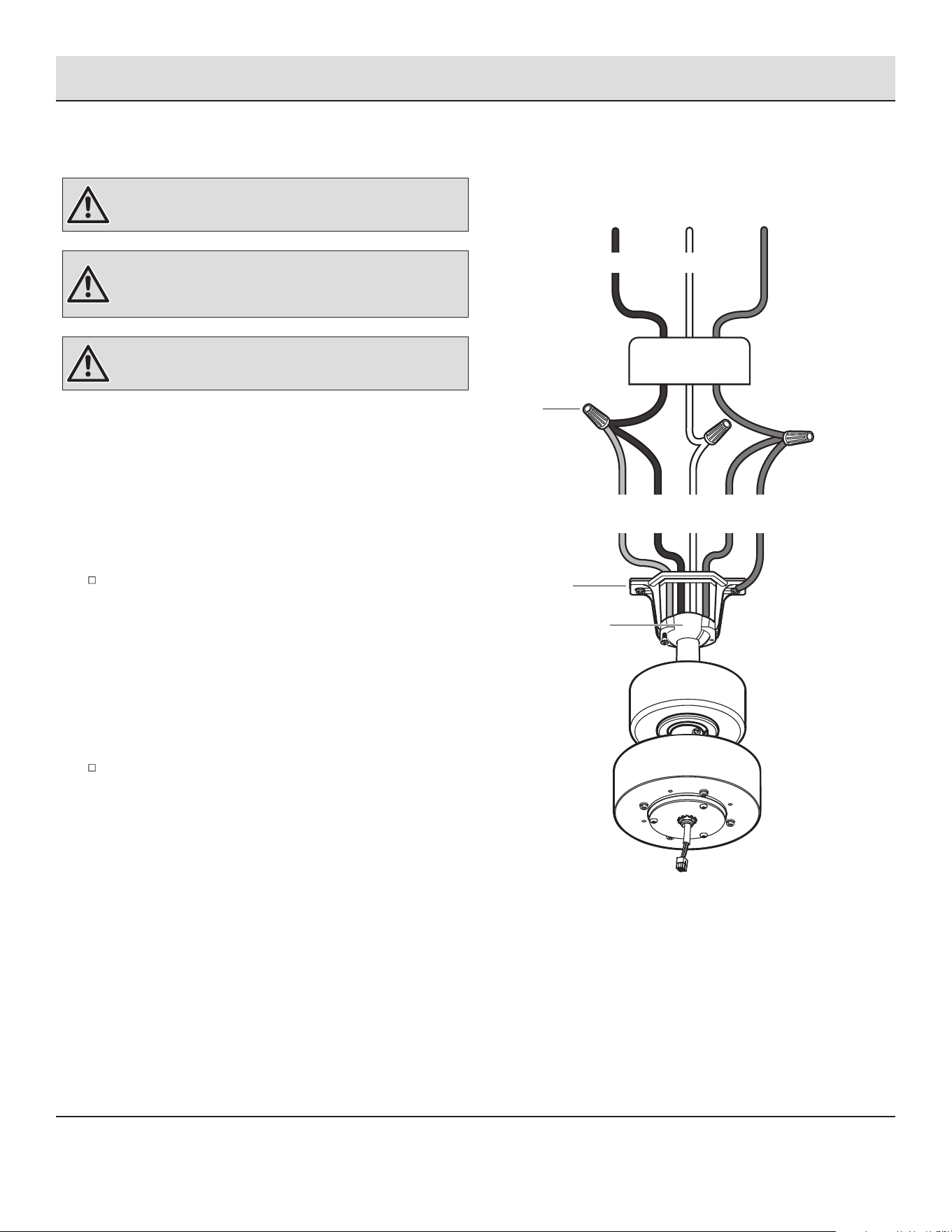

Making the electrical connections
WARNING: To reduce the risk of re or electric shock, do
not use this fan with any solid-state speed control device.
WARNING: To avoid possible electrical shock, be sure
electricity is turned off at the main fuse box before wiring.
If you feel you do not have enough electrical wiring knowledge
or experience, have your fan installed by a licensed
electrician.
Follow the steps below to connect the fan to your household
wiring. Use the plastic wire nuts (AA) with your fan. Secure the
plastic wire nuts (AA) with electrical tape. Make sure there are
no loose strands or connections.
Make wire connections as follows, using the wire nuts (AA).
From Fan To Outlet Box
Black + Blue Wires ---------- Black Wire (Hot)
White Wire ------------------- White Wire (Neutral)
Green Wires* ---------------- Green or Bare Wire (Ground)
* There are two green grounding leads: one from the mounting
bracket (A) and one from the hanger ball/downrod assembly (D).
Turn the wire nut connections upward, spreading them
apart so the green (ground) and white wires will be on one
side of the outlet box and the black and blue wires will be
on the other side. Carefully tuck the connections up into the
outlet box.
10
Blue
Black
Green
White
Green
Outlet Box
D
Assembly — Hanging the Fan (optional)
6b

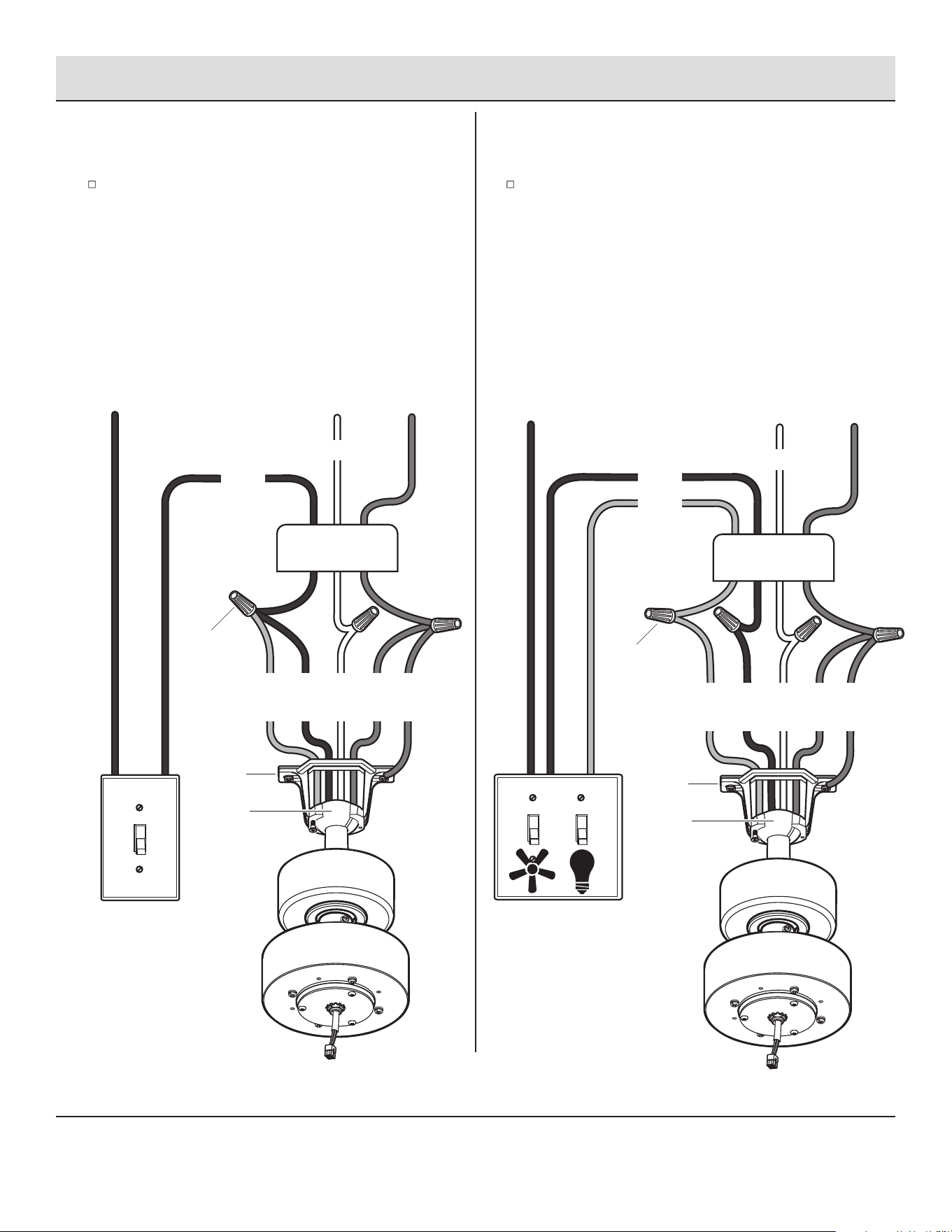

Single Switch Connections
Dual Switch Connections
6c
On a single switch the fan and light can be turned on or off
together. Make wire connections as follows, using the wire
nuts (AA). Wall switch not included.
From Fan To Outlet Box
Black + Blue Wires ---------- Black Wire (Hot)
White Wire ------------------- White Wire (Neutral)
Green Wires* ---------------- Green or Bare Wire (Ground)
AA
SINGLE SWITCH
NeutralAC IN
Black
Ground
conductor
White
AA
Neutral
Ground
conductor
White
AC IN
Black
Red
DUAL SWITCH
11 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Blue
Black
Green
White
Green
A
D
A
D
Outlet Box
Blue
Black
Green
White
Green
Outlet Box
On a dual switch the fan and light can be turned on or off
separately. Make wire connections as follows, using the
wire nuts (AA). Wall switch not included.
From Fan To Outlet Box
Black Wire (for Fan) --------- Black Wire (Hot #1)
Blue Wire (for Light) --------- Red Wire (Hot#2 but maybe
be in another color other
than black, white or green)
White Wire ------------------- White Wire (Neutral)
Green Wires* ---------------- Green or Bare Wire (Ground)
12
WARNING: Make sure the tab on the mounting bracket (A)
properly sits in the groove in the hanger ball (D) before
attaching the canopy (B) to the mounting bracket (A) by
turning the canopy housing until it drops into place.
Assembly — Hanging the Fan (continued)
7
Installing the canopy
Make sure connections are neatly tucked into the ceiling
outlet box.
Slide the canopy (B) up to the mounting bracket (A) and
place the key hole on the canopy (B) over the loose canopy
mounting screws (GG) on the mounting bracket (A). Turn the
canopy (B) clockwise until it locks in place at the narrow
section of the key holes.
Align the circular hole on the canopy (B) with the remaining
hole on the mounting bracket (A), secure the canopy
mounting screws (GG) previously removed in the hole, and
tighten the two canopy mounting screws (GG).
NOTE: Adjust the canopy mounting screws (GG) as
necessary until the canopy (B) and canopy bottom cover (C)
are snug.
Attaching the canopy bottom cover
8
Attach the canopy bottom cover (C) to the canopy mounting
screws (GG) heads on the bottom of the canopy (B) by
inserting the screw heads into the key slots in the canopy
bottom cover (C) and rotating it clockwise.
B
Outlet Box
GG
A
C
GG
B
GG
C
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (F) while installing, balancing the blades
(G), or cleaning the fan. Do not insert foreign objects between
rotating fan blades (G).
9

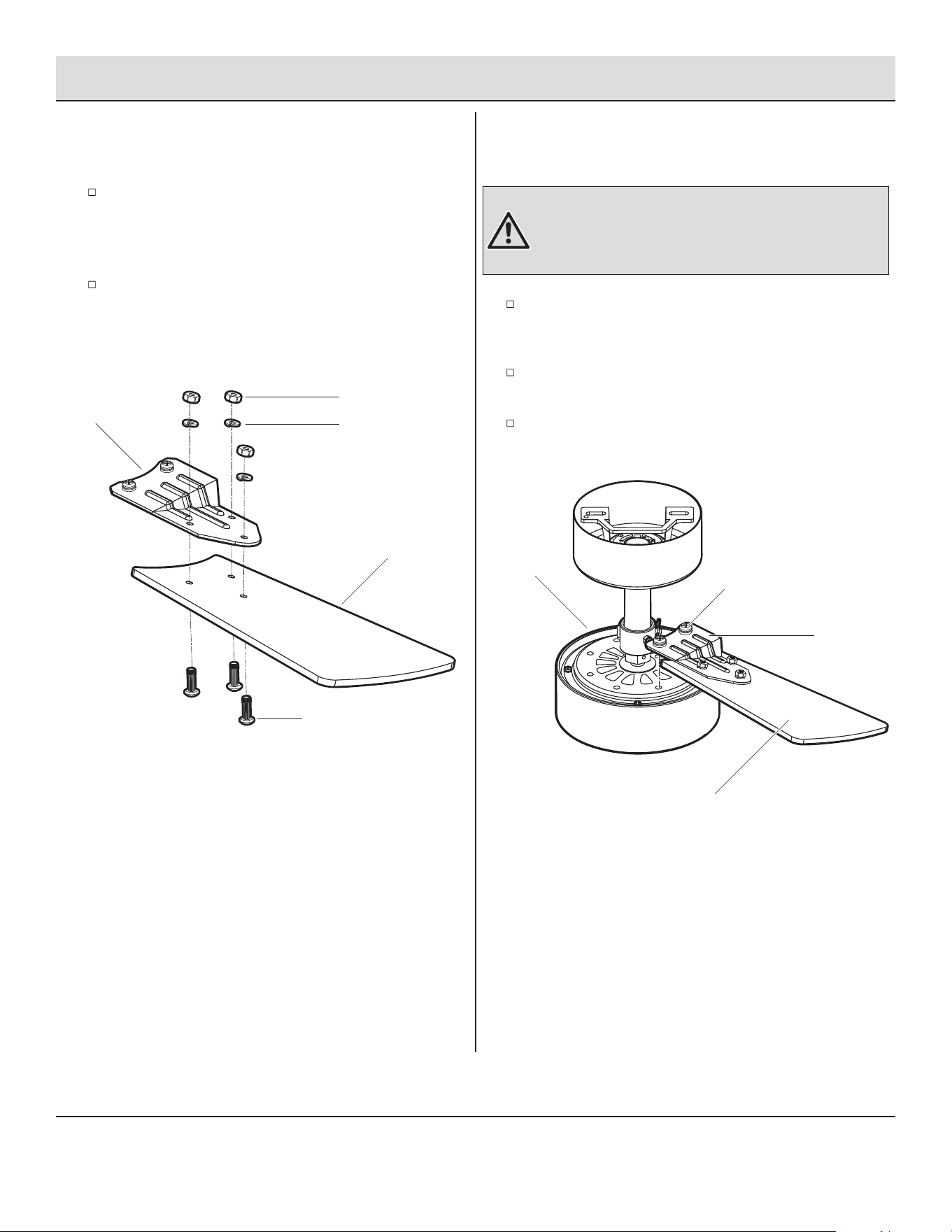

Attaching the blades to the blade
arms
Fastening the blade assemblies
to the motor
10
Attach the blades (G) to the blade arms (F) using the blade
screws (BB) , nuts (CC) , lock washers (DD). Starting a screw
into the blade arm and blade, repeat for the other 2 screws,
DO NOT tighten too much as the blades (G) may crack.
Tighten each screw (BB) securely starting with the center
screw (BB). Make sure the blade is straight.
Fasten the blade assemblies to the fan motor assembly (E)
by lining up the hole of the motor with the hole on the blade
arms (F).
Tighten the two blade arm screws with lock washers (KK)
already installed in the blade arms (F).
Repeat this procedure for the remaining blade arms (F).
13 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly — Attaching the Fan Blades
KK
F
G
E
CC
BB
G
F
DD
11

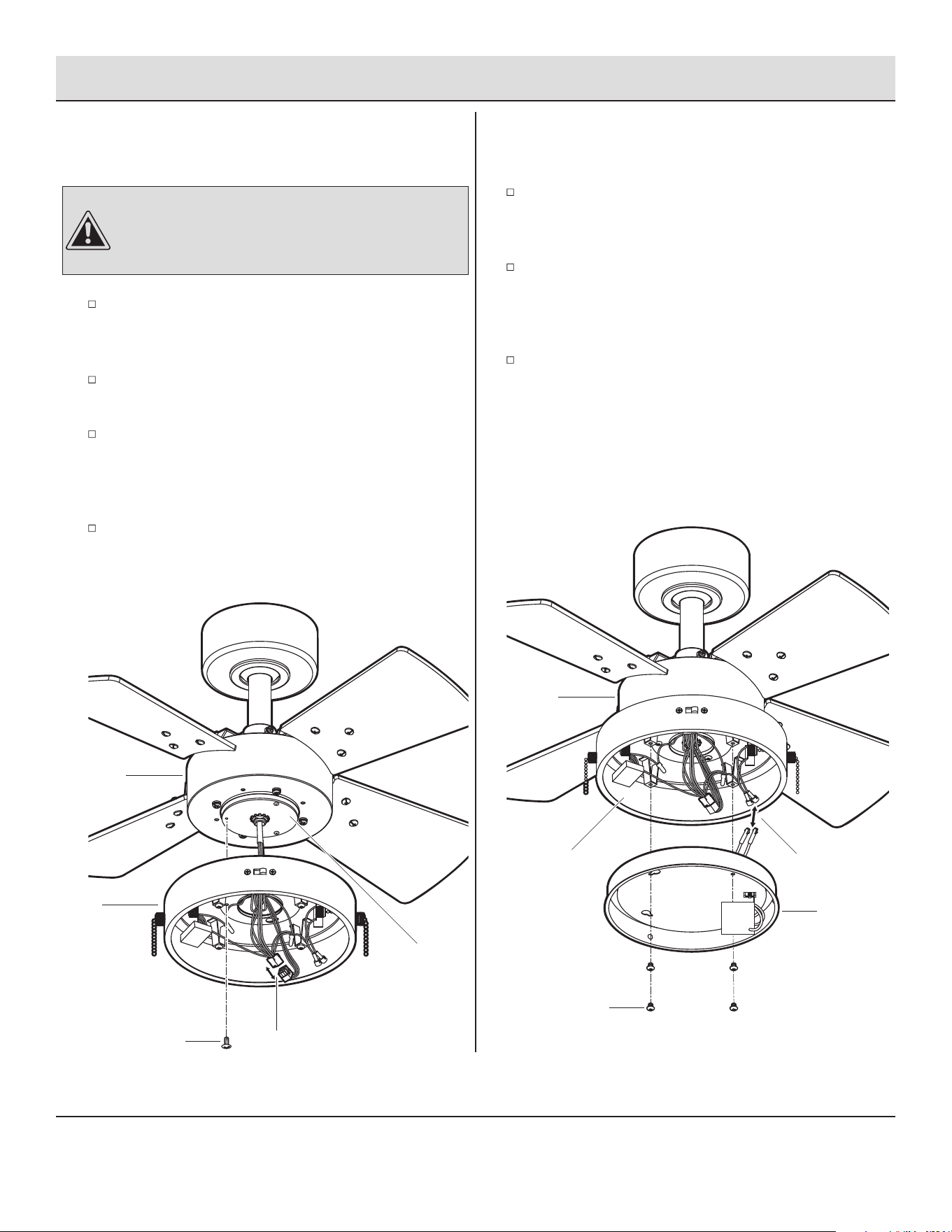

Attaching the switch housing to
the mounting ring
Attaching the light kit to the
switch housing
12
Remove one of the three switch housing mounting screws
(LL) from the mounting ring (MM) and loosen the other two
screws (LL). (Do not remove.)
While holding the switch housing (H) under the fan motor
assembly (E), snap together the wire connection plugs (NN).
Place the key holes in the switch housing (H) over the two
screws (LL) previously loosened from the mounting ring
(MM). Turn the switch housing (H) until the switch housing
(H) locks in place at the narrow section of the key holes.
Securely tighten the two switch housing mounting screws
(LL) previously loosened and the one previously removed.
Remove one of the four light kit mounting screws (OO) from
the switch housing (H) and loosen the other three screws
(OO). (Do not remove.)
While holding the LED light kit (I) under your fan motor
assembly (E), make the polarized plug connections (PP):
- White to white
- Blue to black
Carefully push all wires back into the switch housing (H).
Place the key holes in the LED light kit (I) over the three
mounting screws (OO) previously loosened from the switch
housing (H). Turn the LED light kit (I) until the LED light kit
locks in place at the narrow section of the key holes.
Secure by tightening the three light kit mounting screws
(OO) previously loosened and the one previously removed.
Assembly — Installing the Light Kit
14
LL
NN
H
E
MM
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufcient to prevent electric shock.
H
OO
I
PP
E
Assembly — Installing the Light Kit (continued)
13
Installing the light bulbs and
plastic shade
Install one 9 watt LED bulbs (EE) (included).
Position the notches (QQ) in the outer rim of the plastic
shade (J) so they line up with the tabs (RR) on the inside of
the rim on the light kit (I). Carefully lift the plastic shade (J)
up inside the light kit (I) and secure it to the fan by turning
the plastic shade (J) clockwise until snug. DO NOT
OVERTIGHTEN.
15 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufcient to prevent electric shock.
RR
I
EE
J
QQ
Operation
PULL CHAIN OPERATING INSTRUCTIONS
16
Install the pull chains and fobs (FF) onto the pull chains located in
the switch housing (H). Turn on the power and check the operation
of the fan.
The pull chain controls the fan speed as follows:
1 pull - High, 2 pulls - Medium, 3 pulls - Low, and 4 pulls - Off.
Speed settings for warm or cool weather depend on factors such
as the room size, ceiling height, and numbers of fans.
H
FF
Warm weather - (Counterclockwise Direction) A downward air ow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air ow moves
warm air off the ceiling. This allows you to set your heating unit on
a cooler setting without affecting your comfort.
REVERSE SWITCH OPERATING INSTRUCTIONS
The reverse switch is located on the surface of the switch housing.
Slide the switch to the left for warm weather operation. Slide the
switch to the right for cool weather operation.
NOTE: Wait for the fan to stop before reversing the direction
of the blade rotation.
Reverse switch
17 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure.
Because of the fan’s natural movement, some connections
may become loose over time. It is not necessary to remove
the fan from the ceiling.
Clean your fan periodically. Use only a soft brush or
lint-free cloth to avoid scratching the nish. The plating is
sealed with a lacquer to minimize discoloration or
tarnishing.
(Optional) Apply a light coat of furniture polish to the wood
blades.
(Optional) Cover small scratches with a light application of
shoe polish.
Do
Care and Cleaning
Use water when cleaning. Water could damage the motor,
or the wood, or possibly cause an electrical shock.
Apply oil to your fan or motor. The motor has
permanently-lubricated sealed ball bearings.
Do not
Troubleshooting
Problem Solution
Check the main and branch circuit fuses or breakers.
Check the line wire connections to the fan and switch wire connections in the switch housing.
The fan will not start.
The fan sounds noisy.
WARNING: Make sure the power is off at the electrical
panel box before you attempt any repairs. Refer to step 6
“Making the electrical connections” on page 10.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade to the motor hub are tight.
Make sure the wire nut connections are not rattling against each other or the interior wall of the switch
housing.
Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this time.
If using the ceiling light kit, make sure the glassware is secured tightly.
Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
Make sure your ceiling box is secure and rubber isolator pads are used between the mounting bracket
and outlet box.
18
Troubleshooting (continued)
Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by
loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan self-adjust.
If wobble occurs after running the fan for 10 minutes, verify blade level using the following process:
- Select a point on the ceiling above the tip of one of the blades, then select any fan blade and measure
from the center of the selected blade to the point on the ceiling. Rotate the fan until the next blade is
positioned and repeat the measurement using the same point from the ceiling for every blade.
Measurement deviations should be within 1/8 in..
- If all deviations are less than 1/8 in. and the fan continues to wobble, please call Customer Service
(1-855-HD-HAMPTON) to order a complimentary Blade Balancing Kit.
- If deviation is greater than 1/8 in. , please call Customer Service (1-855-HD-HAMPTON) to order
complimentary replacements of your brackets.
The fan wobbles.
Problem Solution
Part
A
B
C
D
E
F
G
H
I
J
Description
Mounting bracket (preassembled)
Canopy
Canopy bottom cover (preassembled)
Hanger ball/downrod assembly
Fan motor assembly
Blade arm
Blade
Switch housing
Light kit
Plastic shade
Part
AA
BB
CC
DD
EE
FF
Description
Plastic wire nut
Blade attachment screw
Blade attachment nut
Blade attachment lock washer
9 Watt LED bulb
Pull chain and fob
Service Parts
H
E
D
C
B
A
I
AA
EE
FF
BB
CC
DD
J
F
G
19 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
