ELECTRIC DEHYDRATOR
INSTRUCTION MANUAL
220-240V 600W WHDH01SK
600W
CONTENTS
Figures and illustrations in this User Manual are provided for
CONTENTS
Safety Instructions
Important Safety Instructions...............................................1-2
Electrical Requirements.............................................................3
Setup and Use
Installation Guide..........................................................................3
Parts and Features.......................................................................4
Operation.........................................................................................5
Cooking Guide...............................................................................6
Troubleshooting................................................................7
Warranty...............................................................................8-9
Control Panel..................................................................................5
Cleaning & Care.............................................................................3
IMPORTANT SAFETY INSTRUCTIONS
WARNING
CAUTION
IMPORTANT SAFETY INSTRUCTIONS
DANGER - Immediate hazards
which WILL result in severe
personal injury or death.
DANGER WARNING CAUTION
WARNING - Hazards or unsafe
practices which COULD result in
severe personal injury or death.
CAUTION - Hazards or unsafe
practices which COULD result in
minor personal injury.
1. Read all instructions carefully before using your new Dehydrator.
2. Always turn the power off at the power outlet before you insert or remove the
power plug. Remove by grasping the plug - do not pull on the cord.
3.
DANGER: Do not operate Dehydrator if:
i) the cord or plug is split, melted or damaged.
ii) the Dehydrator has malfunctioned.
iii) the Dehydrator has been damaged in any manner.
If any of the above incidents occur, return your Dehydrator to the nearest authorised
service center for examination, repair or adjustment.
4.
DANGER: Do not under any circumstances immerse the power cord, mains
plug or Dehydrator body in water or any other liquid.
5.
WARNING: Use handle grip only as some surfaces may become warm whilst
the Dehydrator is in use.
6.
WARNING: If the mains supply cord is damaged, it must be replaced by the
manufacturer, its service agent or a similarly person in order to avoid a
hazard.
7.
WARNING: Do not cover the Dehydrator whilst in operation as the air inlet and
outlet vents must be kept clear.
8.
WARNING: Ensure is cleaned regularly as
build-up of oils and fats may re hazard.
9.
WARNING: Exercise caution when opening the door of the Dehydrator.
10.
WARNING: The insides of the appliance will become very hot during and after
operation. Do not touch.
11.
WARNING: Do not move the Dehydrator whilst food is present in the unit, as
hot liquids may have collected in the drip tray and may leak out whilst moving.
12.
WARNING: Combustible materials such as paper, curtains, tablecloths, kitchen
towels etc. should not be placed near the Dehydrator whilst in operation.
13.
WARNING: Do not place the Dehydrator against a wall or against another
appliance. Leave at least 10cm free space on the back and sides and 10cm free
space above the Dehydrator.
14.
WARNING: Immediately unplug the Dehydrator if you see any smoke coming
from the unit. Wait for the smoke to stop before opening the door and removing
the trays.
15.
CAUTION: Close supervision is necessary when this appliance is used by or
near children.
© 2023 RVM Australia Pty Ltd. All Rights Reserved
1
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
16. CAUTION: Keep the Dehydrator and its cord out of reach of children less than 8
years old.
17.
CAUTION: Wait for the Dehydrator to cool before moving. Carry only by the
outer side panels.
18.
CAUTION: During operation, hot air is released through the air vent
openings. Keep your hands and other body parts at a safe distance from the air
vent openings.
19.
CAUTION: Allow 30 minutes to cool down after cooking before handling or
cleaning.
20.
separate remote-control system.
21.
examined by an authorised service center.
22. Do not permit the mains supply cord or plug to touch hot objects or allow the
power cord to lay across the Dehydrator.
23. This appliance is deemed for use indoors only.
24. Do not use harsh or abrasive cleaning agents. The outside surface may be
wiped clean with a soft, damp cloth and dried thoroughly. If necessary, a mild
dishwashing detergent may be applied to the cloth but not directly applied to the
Dehydrator.
26.
27. Your Dehydrator should not be unattended while in use.
29. Always use this Dehydrator with a power outlet of the voltage (A.C. only) marked
on the back of the Dehydrator.
30.
31.
oven or any hot surface.
32. Do not place the Dehydrator on top of any other appliance.
33. Do not allow the power cord of this Dehydrator to hang over the edge of a table or
bench top.
34. Keep liquids
away from the Dehydrator.
35. Do not place anything on top of the Dehydrator.
36. Ensure the appliance in placed on a horizontal, even and stable surface.
25. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or metal capabilities or lack of experience and knowledge
unless they have been given supervision or instruction concerning use of the
dehydrator in a safe way by the person responsible for their safety, and understand
the hazards involved.
This appliance is intended to be used in household and similar applications such
and breakfast type environments.
28.
Children should not play with the Dehydrator.
This Dehydrator is not intended to be operated by means of an external timer or
Any appliance that has been dropped or damaged should not be used until
Do not use the Dehydrator for any purpose other than its intended use.
Do not place your Dehydrator on or near a hot gas e, electric element, heated
2
WARNING: Do not soak or immerse the main body in water or any other liquid.
ELECTRICAL REQUIREMENTS
POWER SUPPLY CORD
1. Do not attempt to modify the power cord or plug in any way.
2. A short power supply cord is provided to reduce the risk of becoming entangled
in or tripping over a longer cord.
3. If the power supply cord is too short, do not use an extension cord. Have a
ceman install an outlet near the appliance.
NOTE: Neither Westinghouse nor the retailer can accept any liability for damage
to the product or personal injury resulting due to failure to observe the electrical
connection procedures.
INSTALLATION GUIDE
1. Carefully unpack your Dehydrator.
2. Carefully remove packaging around the Dehydrator and power cord. Do not remove
warning labels.
3. Wash all trays/accessories before use.
DANGER: Do not under any circumstances immerse the Dehydrator, mains cord or
mains plug in water or any other liquid.
NOTE: Westinghouse recommends the use of a resiual current device (RCD) with
a tripping current that does not exceed 30mA in the electrical circuit supplying
power to all appliances.
CLEANING & CARE
1. After use, unplug the unit from the power outlet and remove all trays, drip tray
and mesh sheet if used.
2. Wash the trays, drip tray and mesh sheet with warm water and a mild dishwashing
detergent. Do not use harsh or abrasive cleaning agents.
3. Ensure the trays, drip tray and mesh sheet are completely dried after cleaning
before placing back into the unit.
© 2023 RVM Australia Pty Ltd. All Rights Reserved
3
)
2)
3)
1
Glass Door
Control Panel
*Trays Insterted*
Drip Tray
Mesh Sheet
Trays
4)
5)
6)
1
2
3
4
5
6
PARTS AND FEATURES
4
OPERATION
Before st use, wash all the trays, drip tray and mesh sheet with hot water
and mild detergent, rinse with fresh water and dry thoroughly. Do not use abrasive
cleaning products or abrasive sponges when cleaning**
We recommend the unit complete a 10 minute cycle at 75°C without any food
pr
1.
2.
Press the power button to turn the Dehydrator on. Press the temperature
setting key and use the setting down and up keys to adjust the temperature
from 30°C to 75°C in 5°C increments. Press the time setting key and use the
setting down and up keys to adjust the timer from 1 hour to 24 hours in 30
minute increments.
WARNING: Use caution when opening the door as hot steam and air may expel
from the Dehydrator.
Ensure the Dehyrdator is unplugged from the power outlet and place the chosen
Ensure the door is closed before turning on the power at the power outlet.

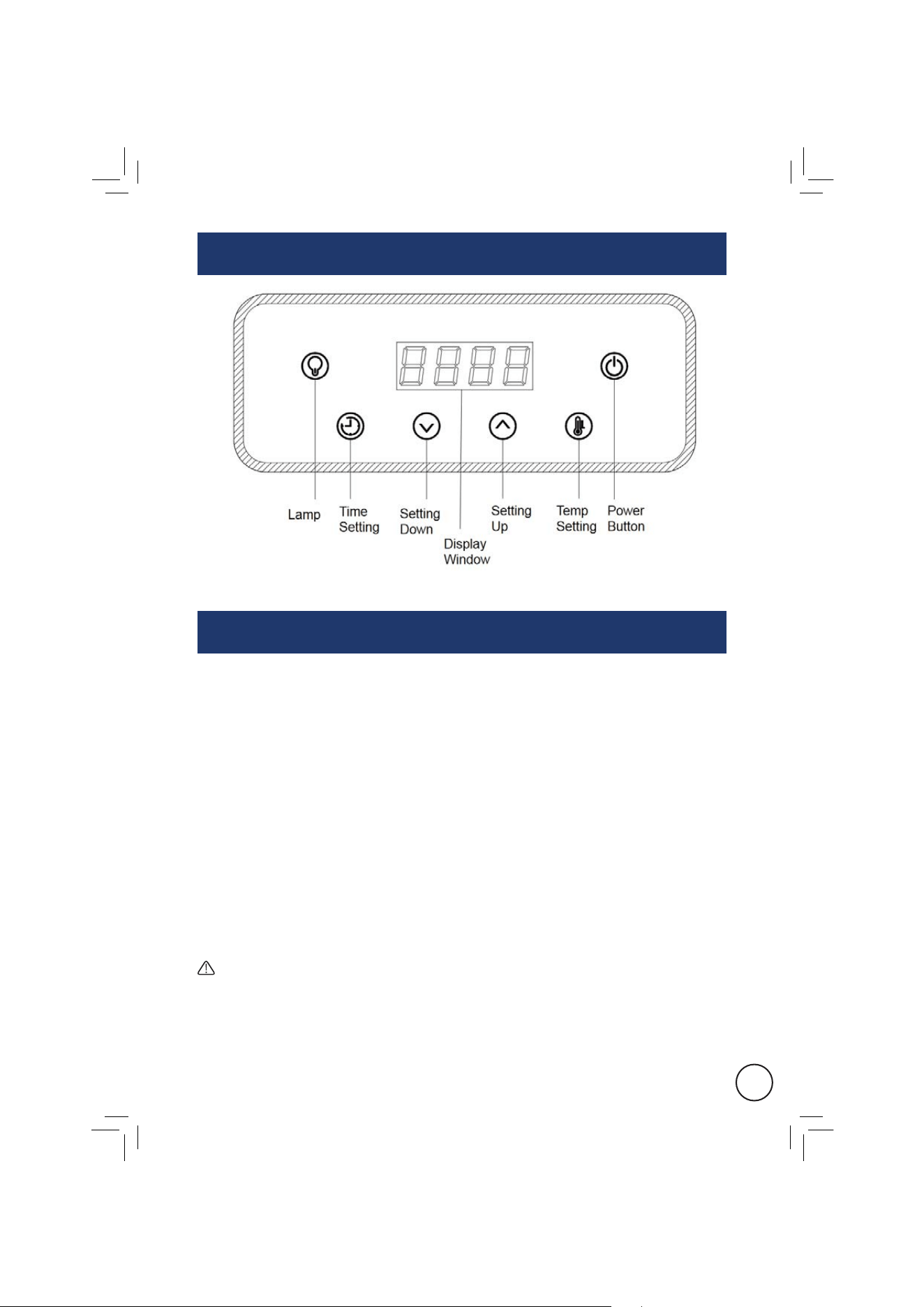

CONTROL PANEL
3.
Once the desired settings have been selected, press the power button once
more to begin operation. The Dehydrator will cease operation automatically
!
4.
© 2023 RVM Australia Pty Ltd. All Rights Reserved 5
COOKING GUIDE
Food name Ingredient Specications Temp
ႏ
D
ry state Time/hour
Apricot
Cut in half and remove the pits. Cut in
half with the dr
y
side facin
g
down
60-65
Soft 18-20
Banana Peel and cut into 3mm slices 65-70 Crispy 12-14
Fig
Wash, remove stains, and cut into
q
uarters. Dr
y
side down
60-65
Soft 18-20
Kiwi Wash and cut into 6mm slices 60-65 Soft 8-11
Peach
Wash, peel, core and cut into halves or
slices
60-65
Soft 8-17
Pear Wash, core and peel and cut into circles 60-65 Soft 4-8
Pineapple
Peel, remove the ber part, and remove
the core. Cut into 6mm slices
60-65
Soft 11-18
Rhubarb Wash and cut into a length of 25 mm 60-65 Soft 6-10
Strawberry Wash and cut into 6mm slices 60-65 Soft 7-15
Watermelon
Peel, cut into wedges, and remove
seeds. Cut into 10 mm
p
ieces.
60-65
Soft and
stick
y
8-10
Apple Wash, core and peel and cut into circles 60-65 Soft 7-15
Artichoke
Cut into 8mm strips and cook for about
10 minutes
50-55
fragile 6-14
Legume
Cut and steam until translucent and
even, s
p
read on a ne mesh dish
45-55
Hard/fragile 10-18
Brussels Leaf Pure leaves without rhizomes 50-55 Fragile 8-30
Cauliower Steamed softly, cut 50-55 Tough 6-16
Celery Cut 7mm thick slices 50-55 Fragile 6-14
Garlic Peeled and sliced 50-55 Fragile 6-16
Black pepper Whole 65-70 Fragile 8-14
Onion Sliced 50-55 Fragile 8-14
Pea Steam for 3-5 minutes 65-70 Fragile 8-14
Spinach Steamed till withered 50-55 Fragile 6-16
Asparagus After washing, cut into 25mm pieces 50-55 Crispy 4-6
Beetroot
Take out the 10mm top, preferably peel
it thoroughly, and then cut into 5mm
slicesDŽ
50-55
Soft 9-12
Broccoli
Cut open and boil soft, cut into 10mm
p
ieces
50-55
Crispy 10-14
Cabbage Wash and cut into 3 mm long strips 50-55 Crispy 8-11
Carrot
Trim the top and bottom and shave the
skin clean. Steamed softly and cut into
3mm thick slices
50-55
Flexible 7-11
Corn
Cut the corn kernels from the corncob
and s
p
read them on the mesh sheet
50-55
Crispy 7-10
Cucumber Wash and cut into 3mm slices 50-55 Flexible 4-8
Eggplant Wash and peel, cut into 6mm slices 50-55 Flexible 4-8
Mushroom Wash and cut into 8mm slices 50-55 Flexible 4-7
Chili
Wash and remove the seeds and white
p
arts. Cut into 6mm lon
g
stri
p
s or rin
g
s
50-55
Flexible 4-8
Potato
Wash and peel. Steam for about 4-6
minutes until soft. Cut into 6mm slices.
50-55
Crispy/soft 7-13
Pumpkin Wash and cut into 6mm slices 50-55 Flexible 10-14
Tomato After washing, cut into 6mm rounds 50-55 Flexible 10-14
Squash Wash and cut into 5mm slices 50-55 Crispy 7-11
Sweet potato
Wash and peel. Steam for 4-6 minutes.
Cut into 6mm slices.
50-55
Crispy/soft 7-13
Jerky
Use lean meat to remove as much fat
as possible, as fat will deteriorate over
time.
Cut into 6mm thick slices and
p
lace on
60-70
Flexible 7-8
6
Dehydrator does
not turn on.
TROUBLE
Dehydrator is not
plugged in.
POSSIBLE CAUSE
Check that Dehydrator is
plugged into a working
power outlet and turned on.
Foods have dried out
too much.
Temperature set too high
or timer not set for
correct amount of time.
Check temperature and times page
for temperature and time setting.
Set temperature and timer to
correct settings.
Dehydrator shuts
off whilst operating.
Dehydrator is
overheating due to an
obstruction in the fan.
Once cooled down, remove all trays
and check if the fan in the back of
the Dehydrator is obstructed by food
or debris. Ensure the Dehydrator is
unplugged before removing obstruction.
POSSIBLE REMEDY
TROUBLESHOOTING
BEFORE CALLING FOR SERVICE
If the dehydrator fails to operate:
1. Check to make sure the dehydrator is plugged in correctly and securely. If it is
not, remove the plug from the outlet, wait 10 seconds and plug it back in securely.
2. Check for a blown or tripped circuit breaker in your home. If these seem to be
working correctly, test another appliance in the same outlet to ensure the outlet
is working correctly.
IF NONE OF THE ABOVE SOLVES THE PROBLEM, DO NOT TRY TO ADJUST OR
REPAIR THE DEHYDRATOR YOURSELF.
CUSTOMER SERVICE
In the event you believe your dehydrator to be defective, please return it along with
your sales receipt to the place of purchase for resolution.
For any enquiries, please call our service center on: Tel: 1300 883 109
Mon-Fri 8:00am – 4:00pm WST
TROUBLESHOOTING
Troubleshoot your problem by using the chart below. If the dehydrator still does not
operate correctly, it may be defective.
© 2023 RVM Australia Pty Ltd. All Rights Reserved 7
LIMITED WARRANTY
Consumer Law. The to the Consumer under this Warranty are in addition
to the rights and remedies of the buyer under any Consumer Guarantees. The
Australian Consumer Law requires that we c
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure
and for compensation for any other reasonably foreseeable loss or damage. You
are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.
2. Subject to Clause 1, the Seller warrants that Westinghouse branded products will
be free of manufacturing defects and will perform to the Seller’s
subject to the following clauses.
3. The of this Warranty extends only to the owner of the property in which
the Products manufactured or supplied by the Seller are installed and used by the
owner for the duration of the Warranty Period.
4. The Warranty commences on the date of the purchase of the product and
continues for the of the Owner for the Warranty Period. If within the
Warranty Period a manufacturing defect is discovered in the Product, or the
Product fails to perform to the Seller’s as a result of some defect in
material or workmanship in the Product, then the Seller will at its own discr
a.) Repair or replace the Product at the cost of the Seller, including but not
limited to labour and travel costs. Goods repaired or replaced under this
Warranty will be warranted for the remaining period of the Warranty.
b.) Refund the purchase price paid by the consumer.
5. The Warranty does not apply to Product tha
a.) Has failed due to excessive wear and tear beyond what is conside
red to be
reasonable.
b.) Has been misused or neglected.
c.) Has been damaged accidentally or by acts of God including re and
d.) Has been used or operated contrary to operating or maintenance instructions.
e.) Has been damaged by the Consumer or a third party authorised to act for the
consumer in transit from the Sellers store to the Consumer.
6. In order to make a claim under the Warranty, the Owner must, where possible
return the goods to the Seller’s store at the Owner’s cost. Proof of purchase must
be supplied in all cases.
7. The seller will examine any returned Products and if the Seller determines that
there is an apparent defect through no fault of the Owner
a.) Make note of the Owner’s contact details including the Owner’s telephone
number which the owner can be contacted during business hours, postal
address and e-mail address.
8
b.) Make note of the defects reported by the Owner.
c.) Take back the defective goods from the owner and determine within a
reasonable time through dialogue with the Seller whether the goods are
defective.
d.) Advise the owner within a reasonable time frame whether it accepts or
rejects the Product claim.
e.) If the Seller accepts the return of the Product, the Seller must arrange to have
i) The Product repaired or,
ii) Replace the damaged or faulty Product or,
iii) Refund the purchase price.
8. The Seller will not accept any returned Product which has not been returned
strictly in accordance with this Warranty.
9. For the purpose of this Warr
a.) Australian Consumer Law means the law as set out in Schedule 2 of the
Competition and Consumer Act 2010 (Cth).
b.) Consumer means the Purchaser of goods from the seller.
c.) Consumer means a Consumer as that term is set out in section 3 of the
Australian Consumer Law.
d.) Consumer Guarantees means the guarantees under the Australian Consumer
La
w.
e.) Implied terms means any guarantees, conditions, warranties or other terms
implied by any Australian Commonwealth, State or Territory laws, (excluding
the Australian Consumer Law) or the law of any other jurisdiction.
f.) Owner has the meaning set out in clause 3.
g.) Warranty means this warranty.
h.) Product means the Product/s bought by the Owner from the Seller that fall
under this warranty.
i.) Warr
i) In relation to Cast Iron Cookwar 3 Year Limited Warranty.
ii) In relation to Non-Stick Cookwar 3 Year Limited Warranty
iii) In relation to Cooking Ut 3 Year Limited Warranty
iv) In relation to Knives/Knif 3 Year Limited Warranty
v) In relation to Stainless Steel Cookwar 10 Year Limited Warranty
vi) In relation to Chopping boar 1 Year Limited Warranty
vii) In relation to Small Applianc 1 Year Limited Warranty
© 2023 RVM Australia Pty Ltd. All Rights Reserved 9
12
CUSTOMER SERVICE - 1300 883 109
IMPORTED AND DISTRIBUTED BY RVM AUSTRALIA PTY LTD.
11 Tamara Drive, Cockburn Central, WA 6164
MADE IN CHINA
© 2023 RVM AUSTRALIA PTY LTD. ALL RIGHTS RESERVED.
and WESTINGHOUSE are trademarks of Westinghouse Electric Corporation.
Used under license by RVM AUSTRALIA PTY LTD. ALL RIGHTS RESERVED.
