EN Operator’s Manual
Art. 18350
AquaCount Art. 18352
Art. 18354
2 3
A
buttonbutton button button
Flow-ModeSum 1 Sum 2 Auto-Mode
Liter (l)Reset Sum 1 Reset Sum 2 US Gallone (gal)
2 sec. 2 sec. 2 sec.
1 2
3
3
4
B1
4
5
B2
CR 2032
+ 3V
4
6
C1
5
6
7
7
C2
7
5
6
8
D1
6
5
9
D2
7
5
EN GARDENA AquaCount
Art. 18350 / 18352 / 18354
Translation of the original instructions.
For water-quantity measurement of freshwater in outdoor
areas.
CAUTION! Only open the product in dry condition.

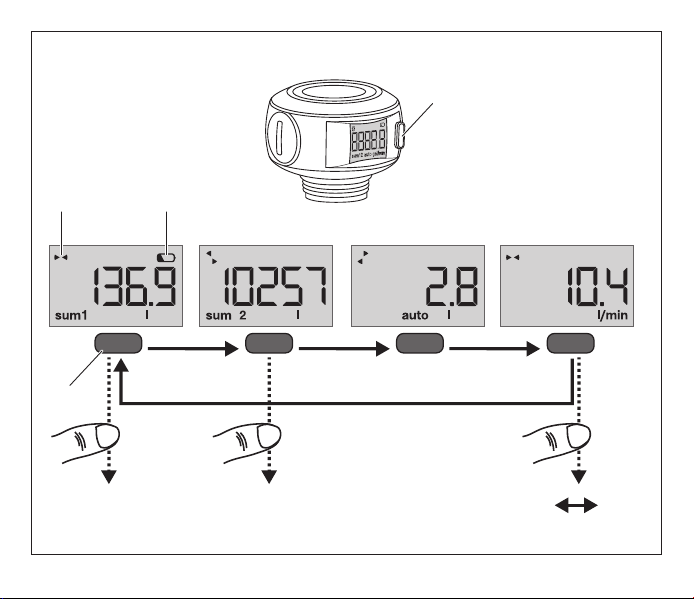

Operation (Fig. A):
v Push button
3
briefly: the display switches to the next
display mode.
– Sum 1 = Water quantity is measured up to the reset
(e. g. day consumption).
– Sum 2 = Water quantity is measured up to the reset
(e. g. season consumption).
– Auto-Mode = Water quantity is measured during
watering up to an interruption longer than
2 sec. At the next watering, the display
starts at 0 again.
– Flow-Mode = Shows the current flow in l/min or
gal/min.
– Standby = No display (longer than 1 min. without flow
or without pushing of abutton).
– Reset = Hold button
3
pressed in Sum 1
or Sum 2 Mode for 2 sec.:
The measured water quantity of
Sum 1 or Sum 2 Mode will be reset
to 0 (Reset).
– Switch = Hold button
3
pressed in Flow Mode
(l / gal) for 2 sec.: The display switches between
litre and gallons (US).
The measured water quantities will be
reset to 0 (Reset).
EN
12
Display symbols:
– Flow-Symbol
1
:
display during active measurement.
– Battery-Symbol
2
:
display at low battery.
v Change battery (CR 2032 3V)
4
(Fig. B1 / B2).
The display can be rotated and can therefore be read in
any position.

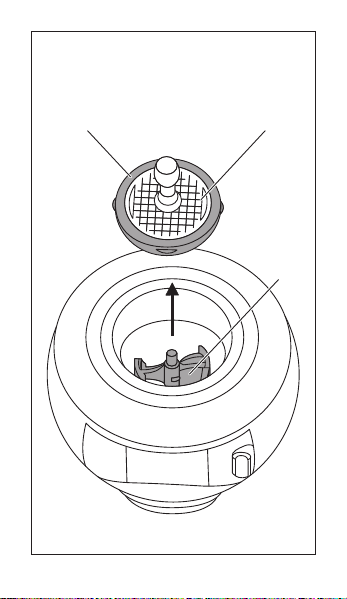

Clean turbine holder
5
and turbine
6
(Fig.C1 / C2):
v Remove turbine holder
5
with washer ring
7
and turbine
6
and clean under flowing water.
Flush AquaCount before mounting.

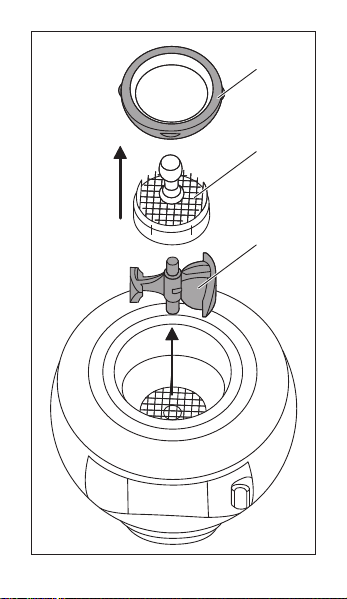

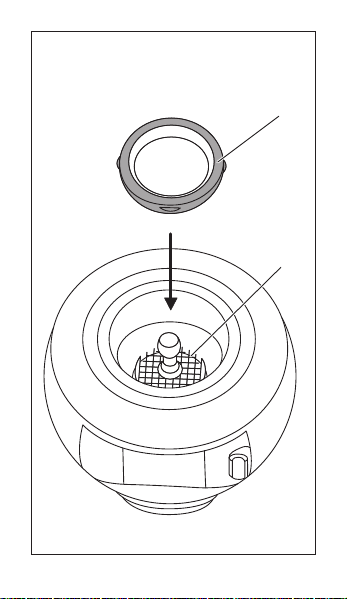

When mounting, observe the sequence (Fig. D1 / D2).
Technical data:
Water
temperature:
5 – 40 °C Flow area: 2 – 50 l/min
Ambient
temperature:
5 – 60 °C
Maximum
pressure:
12 bar
Measurement tolerance:
±
5 % (at least ± 0.5 l)
Measuring range:
Flow max. 3000 l/h
Warranty:
GARDENA offers a five-year warranty on this product
(as of date of purchase).
EN
13
EN Disposal:
(in accordance with RL2012/19/EC / S.I. 2013 No. 3113)
The product must not be disposed of to normal household
waste. It must be disposed of in line with local environ mental
regulations.
IMPORTANT! v Dispose of the product through or via your
municipal recycling collection centre.
66
EN DANGER! This product makes an electromagnetic
field while it operates. This field may under some condi-
tionsinterfere with active or passive medical implants.
To decrease the risk of conditions that can possibly injure
or kill, we recommend persons with medical implants
to speak with their physician and the medical implant
manufacturer before you operate the product.
DANGER! Small parts can be easily swallowed. There is also
a risk that the polybag can suffocate toddlers. Keep toddlers
away when you assemble the product.
72
EN Product liability
In accordance with the German Product Liability Act, we
hereby expressly declare that we accept no liability for
damage incurred from our products where said products
have not been properly repaired by a GARDENA-approved
service partner or where original GARDENA parts or
parts authorised by GARDENA were not used.
83
UKCA Declaration of Conformity (only for UK)
The manufacturer: GARDENA Germany AB, PO Box 7454,
S-103 92 Stockholm, Sweden hereby certifies, when
leaving our factory, the unit(s) indicated below is / are in
accordance with the UK Regulations, designated standards
of safety and product specific designated standards.
This certificate becomes void if the units are modified
without our approval.
Description of the product:
AquaCount
Article number:
18350
18352
18354
UK regulations:
S.I. 2016/1091
S.I. 2012/3032
Designated standards:
EN ISO 12100
Authorised Representative:
Husqvarna UK Limited
Deposited Documentation:
Preston Road,
Aycliffe,
County Durham
UK DL5 6 UP
Aycliffe, 02.11.2021
Authorized representative:
John Tompson
Director Authorised
Representative
89
