EN GARDENA Pressure Sprayer 5L EasyPump

Translation of the original instructions.

This product may be used under supervision, or if instruction regarding the

safe use of the product has been provided and the resulting dangers have

been understood, by persons with physical, sensory or mental disabilities or

a lack of experience and knowledge. Children must not play with the prod-

uct. Never operate the product when you are tired, ill or under the inﬂuence

of alcohol, drugs or medicine.

Read the operator’s manual carefully before use and keep for future

reference.

Intended use:

Please follow the manufacturer’s instructions for pesticide treatment.

The GARDENA Pressure Sprayer is intended for distributing solvent-free

liquid pesticides

, herbicides

, fertilisers

, window cleaners

, and car

wax

in domestic gardens and allotments. It must not be used in public

places, parks, sport arenas or forestry. Compliance with the speciﬁcations

in this operating manual is a requirement for the proper use of the Pressure

Sprayer.

According to the Plant Protection Law as well as the Detergents and Cleaning Agents Law, only

approved agents may be used (authorised specialist dealers).

Please note:

Due of the risk of physical injury, the GARDENA Pressure Sprayer must not

be used for spraying substances other than those speciﬁed by GARDENA.

Also, no acids, disinfectants or impregnators, aggressive and solvent-con-

taining cleaning agents, petrol or spray oil may be sprayed. Do not use

special working liquid. According to the instructions provided by the pesti-

cide manufacturer, dispose the packaging and residual liquid properly.

1. SAFETY

Notice

• Pressure container, beware of

falling.

• Wear protective clothing when

working.

• Wear protective glasses and

masks when working.

• Wear protective gloves when

working.

• Clean after work.

Electrical safety:

It must be observed that no liquid may be directed directly at electrical

devices and equipment containing electrical components. If used incorrectly

or if the batteries are damaged, ﬂammable liquid may be ejected from the

batteries. Contact with this liquid should be avoided. If contact accidentally

occurs, rinse oﬀ with water. If the liquid comes into contact with your eyes,

seek additional medical attention.

Danger of physical injuries:

Never open the Pressure Sprayer or unscrew the nozzle and the dosing cap

when the Pressure Sprayer is still pressurised. To prevent injury, never con-

nect the Pressure Sprayer to an air-compressor.

Always hold the Pressure Sprayer upright before the safety relief valve

(Fig. O1) is pulled.

When spraying insecticides, herbicides and fungicides or other liquid plant

protection products, you must comply with all special precautionary meas-

ures speciﬁed by the manufacturer of the product you are using.

Before each opening of the Pressure Sprayer, thoroughly release

pressure by pulling the safety relief valve

DANGER! Small parts can be easily swallowed. There is also a risk that the

polybag can suﬀocate toddlers. Keep toddlers away when you assemble

the product.

Operation:

CAUTION: The tank may only be filled with a maximum of 5 litres

liquid. Inspect the Pressure Sprayer visually before each use. Never leave

your Pressure Sprayer unattended or for long periods when full and pres-

surised. Keep the unit out of the reach of children. You are responsible for

the safety of others. Keep your Pressure Sprayer away from heat sources

and hot environments. Screw on the pump handle

tightly by hand (do

not use tools) and ensure that the O-ring

(Fig. O1) is positioned correctly.

The On / Oﬀ switch may only be switched to I when the pump handle is

screwed on the container.

Only charge the battery at an ambient temperature which is between 0°C

and + 40 °C. If the temperature of the battery is outside the permissible

charging temperature range, the battery cannot be charged. As soon as the

permitted temperature range is reached, the battery is charged.

Cleaning:

Release the pressure after each use, empty the container, clean it carefully

and rinse with clear water. Then leave the pressure sprayer open and allow

it to dry. Do not dispose of residual ﬂuids in the sewerage system (local

disposal systems). Always clean the Pressure Sprayer before using a dif-

ferent product to avoid chemical reactions. When using several Pressure

Sprayers, the tanks and spray nozzle may not be exchanged between

them. We recommend that you have your Pressure Sprayer thoroughly

inspected (preferably at a GARDENA Service Centre) after using it for

5years.

Storage:

Before storing, loosen the tank cap and always empty your Pressure

Sprayer completely (also after cleaning with water). Store away from frost.

If you use the permanent lock

(Fig. O3) pay attention that you work

very carefully. Never store the Pressure Sprayer using the permanent lock.

Carry the pressure sprayer by the carrying strap

or the handle

Make sure that the product is protected from direct sunlight.

The product may heat up.

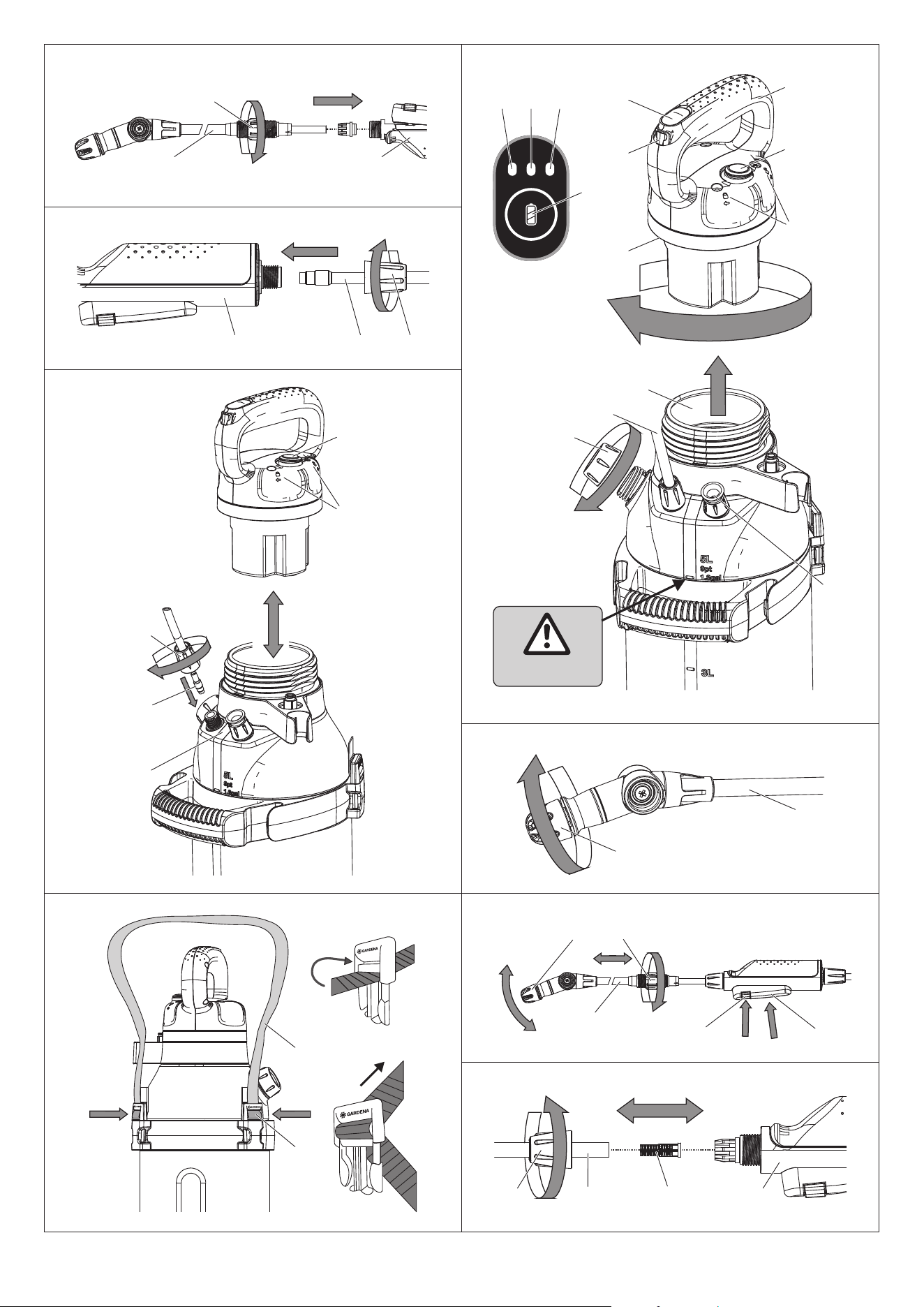

2. ASSEMBLY

1. Fig. A1: Slide the spray lance

into the hand valve

and screw on

the union nut

2. Fig. A2: Slide the spray hose

into the hand valve and screw on the

union nut

3. Fig. A3: Slide the spray hose

into the container and screw on the

union nut

4. Fig. A4: (A4.1) Pass the carrying strap

through the lower slot of

the buckle so that the GARDENA inscription is visible at the front.

(A4.2) Pass the end of the strap through the upper slot of the buckle.

Fasten the buckles to the container

. Make sure there is a firm

connection between belt – buckle and buckle – container.

3. OPERATION

To charge the battery [Fig. O1 ]:

The 5 V power supply unit with USB socket is not included. The battery is

delivered partially charged. To ensure the full performance of the battery,

fully charge the battery before the ﬁrst use.

1. Plug the supplied USB-C charging cable into the charging socket

2. Plug the charging cable into the power supply unit.

LED indicators:

illuminates 1 % – 32 % charged

and

∑

illuminate 33 % – 65 % charged

«, ∑

and

€

illuminate 66 % – 99 % charged

LEDs oﬀ fully charged

The charge status of the battery can also be called up during operation by

pushing the battery button

To spray the liquid [Fig. O1/O2/O3 ]:

Please observe the safety and proportioning instructions provided by the

manufacturer of the product you are going to spray.

1. Check the pump handle

for leaks.

2. Pull the safety relief valve

3. Unscrew the pump handle

or the dosing cap

and fill the

container

4. If necessary, fill in an additive via the dosing cap

(Scale with 10 and 20 ml).

5. Screw the pump handle

or the dosing cap

back onto the

container

6. If necessary, loosen the union nut

and adjust the lance to the desired

length.

7. Switch the On / Off switch

to position I. The pump starts and when the

pressure in the tank is built up, the pump stops.

8. Adjust the spray jet (clockwise rotation v spray mist; counterclockwise

rotation v spray jet) and the spray angle via the nozzle

9. Push the spray button

to spray the liquid. The pressure is then

released and the pump starts up again.

After use, switch the on/oﬀ switch to position 0 and pull the safety relief

valve

4. MAINTENANCE

To clean the pressure sprayer:

Always clean your Pressure Sprayer after spraying. Use the Pressure

Sprayer only with clear water (possibly with addition of dish detergent) and

spray empty. The valves, the spray lance

, the nozzle

and the ﬁlter

are cleaned. In the case of outer dirtying of cover and tank, thoroughly clean

the area thread and thread-O-ring

Check the safety relief valve

for smooth running.

5. STORAGE

To put into storage:

1. Clean the pressure sprayers (see 4. MAINTENANCE).

2. Store the pressure sprayer in a frost-free place.

6. TROUBLESHOOTING

To clean the filter [ Fig. T1 ]:

v Unscrew the spray lanze

, remove the filter

and clean it.

Problem Possible Cause Remedy

Pump does not build up

pressure

Handle

or the dosing cap

too lightly screwed on.

v Screw on handle

or the

dosing cap

tighter.

Hose connection at the

container and hand valve

is not tight.

v Tighten the hose connec-

tions at the container and

hand valve.

Permanent lock

on the

handle is locked.

v Release the permanent

lock

on the handle.

Pressure Sprayer does not

spray although there is

sufficient pressure or only

sprays with a weak spray jet

Nozzle

is blocked. v Unscrew nozzle

and

clean.

Filter

is clogged. v Remove filter

from the

spray lance and clean it.

It is difficult to open and

close the container

Container pressure too high. v Release the container

pressure completely

by means of the safety

relief valve

NOTE: For any other malfunctions please contact the GARDENA

service department.

7. TECHNICAL DATA

Max. capacity 5 l

Spray tube length 42 – 72 cm

Battery charge time approx. 3.5 h

Permissible working pressure 3 bar

Max. permissible operating temperature 40 °C

8. SERVICE / WARRANTY

Service:

Please contact the address on the back page.

Warranty statement:

The manufacturer’s warranty can be viewed at:

www.gardena.com/warranty or Phone number +49 731 490 3773

This manufacturer’s warranty is limited to replacement and repair of prod-

ucts in accordance with the abovementioned conditions. The manufactur-

er’s warranty does not constitute an entitlement to lodge other claims

against us as a manufacturer, such as for damages. This manufacturer’s

warranty does not, of course, aﬀect statutory and contractual warranty

claims against the dealer / retailer. The manufacturer’s warranty is governed

by the law of the Federal Republic of Germany.

DE Produkthaftung

Wir weisen ausdrücklich darauf hin, dass wir in Übereinstimmung mit dem Produkthaftungsgesetz nicht für Schäden haften, die durch unsere Produkte

entstehen, wenn diese unsachgemäß und nicht durch einen von uns autorisierten Servicepartner repariert wurden oder wenn keine Original GARDENA

Teile oder von uns zugelassene Teile verwendet wurden.

EN Product liability

In accordance with the German Product Liability Act, we hereby expressly declare that we accept no liability for damage incurred from our products

where said products have not been properly repaired by a GARDENA-approved service partner or where original GARDENA parts or parts authorised

by GARDENA were not used.

Produktbezeichnung:

Description of the product:

Drucksprüher

Pressure Sprayer

Produkttyp:

Product type:

5L EasyPump

Artikelnummer:

Article number:

11136

EU-Richtlinien:

EC-Directives:

2006/42/EG

2014/30/EU

2011/65/EU

Harmonisierte EN-Normen /

Harmonised EN:

EN ISO 12100

EN 60335-1

EN 60335-2-54

Hinterlegte Dokumentation:

GARDENA Technische

Dokumentation,

M. Kugler 89079 Ulm

Deposited Documentation:

GARDENA Technical

Documentation,

M. Kugler 89079 Ulm

Documentation déposée :

Documentation technique

GARDENA,

M. Kugler 89079 Ulm

Ulm, den 26.04.2021

Ulm, 26.04.2021

Der Bevollmächtigte

Authorised representative

Anbringungsjahr der CE-Kennzeichnung:

Year of CE marking:

2021

DE EU-Konformitätserklärung

Der Unterzeichnende bestätigt als Bevollmächtigte des Herstellers, der GARDENA Germany AB, PO Box 7454, S-103 92, Stockholm, Schweden,

dass das (die) nachfolgend bezeichnete(n) Gerät(e) in der von uns in Verkehr gebrachten Ausführung die Anforderungen der harmonisierten EU-Richt-

linien, EU-Sicherheitsstandards und produktspezifischen Standards erfüllt / erfüllen. Bei einer nicht mit uns abgestimmten Änderung des (der) Geräte(s)

verliert diese Erklärung ihre Gültigkeit.

EN EC Declaration of Conformity

The undersigned hereby certifies as the authorized representative of the manufacturer, GARDENA Germany AB, PO Box 7454, S-103 92, Stockholm,

Sweden, that, when leaving our factory, the unit(s) indicated below is / are in accordance with the harmonised EU guidelines, EU standards of safety and

product specific standards. This certificate becomes void if the unit(s) is / are modified without our approval.

Reinhard Pompe

Vice President

Wolfgang Engelhardt

Vice President Supply Chain

Deutschland / Germany

GARDENA Manufacturing GmbH

Central Service

Hans-Lorenser-Straße 40

D-89079 Ulm

Produktfragen:

(+49) 731 490-123

Reparaturen:

(+49) 731 490-290

Gardena 970477201 Pressure Sprayer 5 l EasyPump

Product's Documents

Manuals OM. 11136-39, 5L EasyPump

Specifications

Gardena 970477201 Questions and Answers
