BG-8K-42MA
4x2 8K UHD HDMI 2.1 Matrix Switcher
User Manual
BZBGEAR BG-8K-42MA PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-8K-42MA PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 5
Specifications 6
Operation Controls and Functions 7
IR Remote 8
Application Example 9
Tech Support 10
Limited Product Warranty Terms 10
Mission Statement 10
Copyright 10
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-8K-42MA PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-8K-42MA PRODUCT MANUAL
Introduction
The BG-8K-42MA is an 8K HDMI 4x2 matrix that can switch any of the four HDMI input
signals to either output and it can also distribute a single signal to two displays
simultaneously. With video resolutions up to 8K@60Hz 4:2:0 it also supports eARC
functionality (only for INPUT 1 port and OUTPUT 1).
Built-in EDID DIP switches support advanced EDID management. The BG-8K-42MA also
supports audio de-embedding. This multi-functional product can be used for
demonstrations, video conferencing, multimedia teaching, and other instances that require
switching multiple sources to two displays.
Features
● HDMI 2.1 and HDCP 2.3 compliant.
● Supports 48Gbps of video bandwidth.
● Video resolution up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4
10bit.
● VRR, FVA, ALLM
● HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
● HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos,
DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD.
● INPUT 1 and OUTPUT 1 ports support ARC\eARC.
● Allows HD audio up to Dolby Atmos, DTS:X over TrueHD from ANY external HDMI
source to a supported eARC/ARC sound system.
● Audio de-embedding (output through the optical and analog port).
● Built-in EDID DIP switches support advanced EDID management.
● 8K->4K, 8K/4K->2K downscaling.
● IR remote control and front panel button switching.
● Built-in Equalizer, Retiming, and Driver.
● Compact design for easy and flexible installations.
Packing List
● 1 × 8K HDMI 4x2 Matrix
● 1 × IR Remote
● 1 × 5V/2A Multinational Power Supply
● 1 × User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-8K-42MA PRODUCT MANUAL
Specifications
Technical
HDMI Compliance
HDMI 2.1
HDCP Compliance
HDCP 2.3
Video Bandwidth
48Gbps
Video Resolution
Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
Color Depth
8/10/12-bit
Color Space
RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
Audio Formats
HDMI input/output:
LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS
High Res, DTS-HD Master Audio, DSD Audio de-embedding output:
Optical: Up to LPCM/Dolby/DTS 5.1 CH
Analog: LPCM 2.0 CH
ESD Protection
Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
Input
4 × HDMI IN [Type A, 19-pin female]
Output
2 × HDMI OUT [Type A, 19-pin female] 1 × OPTICAL [S/PDIF]
1 × L/R [3.5mm Stereo Mini-jack]
Control
1 × SERVICE [Micro USB, Update port]
Mechanical
Housing
Metal Enclosure
Silk Screen Color
Black
Dimensions
7.9” x 3.3" x 0.83” [200mm (W) x 85mm (D) x 21mm (H)]
Weight
0.91 lbs [411g]
Power Supply
Input: AC100 - 240V 50/60Hz, Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified)
Power Consumption
2.05 W (Max)
Operation Temperature
32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature
-4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity
20~90% RH (non-condensing)
Recommended HDMI Cable
Video Resolution
8K
4K60
4K24
1080P
HDMI Cable Type
Ultra HDMI 2.1
HDMI 2.0
HDMI 1.4
HDMI 1.4
HDMI Cable Length
(HDMI IN / OUT)
3m/10ft
8m/26ft
12m/39ft
15m/49ft
The use of “Premium High Speed HDMI” cables is highly recommended.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-8K-42MA PRODUCT MANUAL

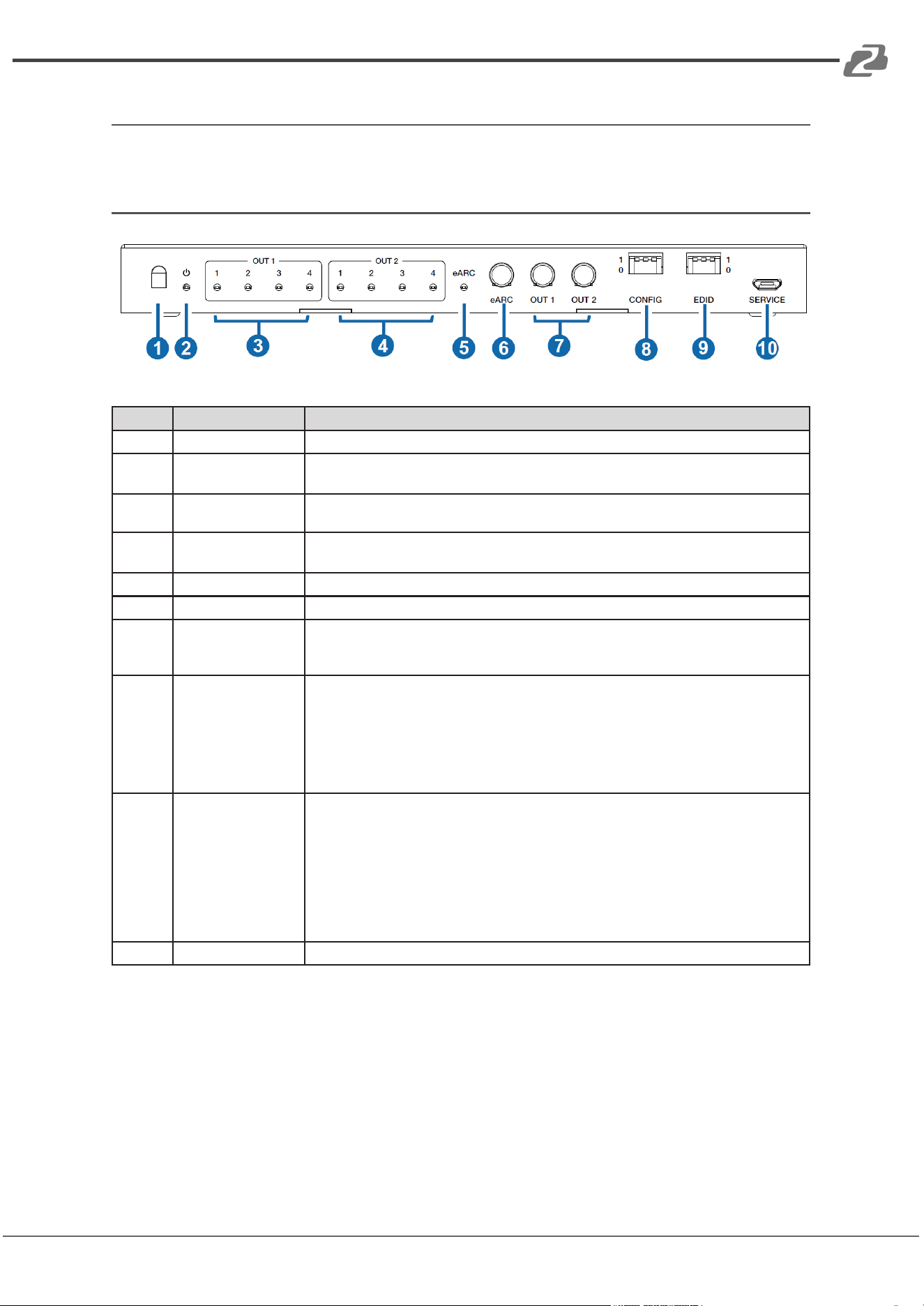

Operation Controls and Functions
Front Panel
No.
Name
Function Description
1
IR Window
IR input signal receiving window.
2
POWER LED
The power LED lights in green when the device is working, and red when the device is in
standby.
3
OUT 1 LED (1~4)
When one of the INPUTS 1/2/3/4 is selected as the signal source for the OUT 1 port,
the corresponding green LED 1/2/3/4 will be illuminated.
4
OUT 2 LED (1~4)
When one of the INPUTS 1/2/3/4 is selected as the signal source for the OUT 2 port,
the corresponding green LED 1/2/3/4 will be illuminated.
5
eARC LED
The eARC LED will be illuminated when the eARC function is enabled.
6
eARC button
Press the button to turn on/off eARC.
7
OUT 1~2 button
Used to select signal source for OUT 1/2 ports. Pressing the button OUT 1/2 will allow the
device to switch any of the four HDMI input signals and distribute it to the corresponding
output port.
8
CONFIG DIP switch
Use the DIP switch to set the working mode. (x means 1 or 0.)
1xx- Matrix mode
0xx- Splitter mode
x11- OUT 2 pass-through mode
x10- OUT 2 scaler mode 8K-4K
x01- OUT 2 scaler mode 8K/4K-1080P
x00- OUT 2 pass-through mode
9
EDID DIP switch
Use the DIP switch to set EDID.
111- Copy OUT 1 port sink EDID (as factory default)
110- HDMI 1080p@60Hz, Audio 2ch PCM
101- HDMI 4K@60Hz 4:4:4, Audio 2ch PCM
100- HDMI 4K@60Hz 4:4:4, Audio 5.1ch PCM/DTS/DOLBY
011- HDMI 4K@60Hz 4:4:4, Audio 7.1ch PCM/DTS/DOLBY/HD
010- HDMI 8K@60Hz 4:2:0+8K@30Hz 4:4:4, Audio 2ch PCM
001- HDMI 8K@60Hz 4:2:0+8K@30Hz 4:4:4, Audio 5.1ch PCM/ DTS/DOLBY
000- HDMI 8K@60Hz 4:2:0+8K@30Hz 4:4:4, Audio 7.1ch PCM/ DTS/DOLBY/HD
10
SERVICE
Firmware update and debug port.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-8K-42MA PRODUCT MANUAL

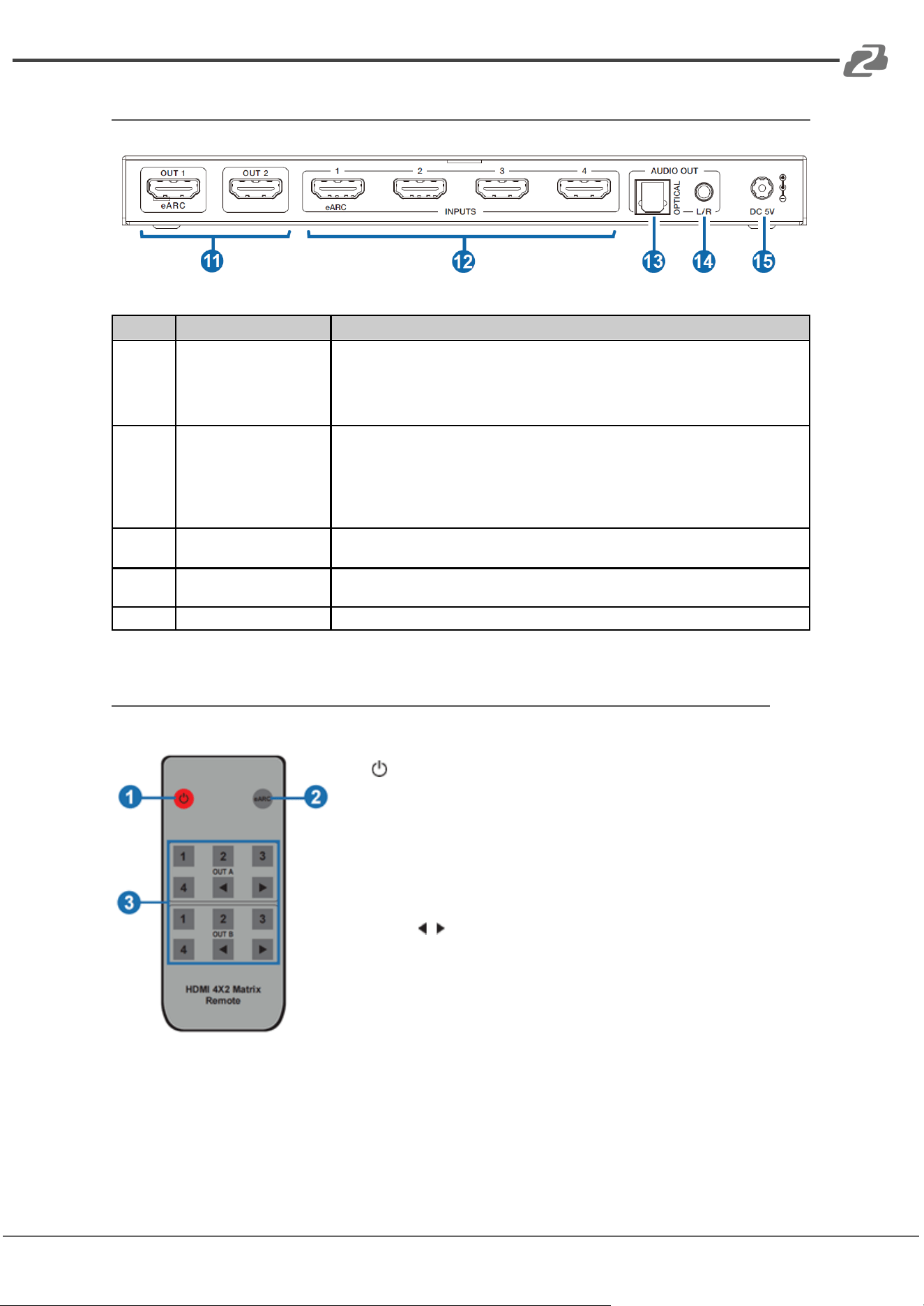

Rear Panel
No.
Name
Function Description
11
OUT (1~2) port
HDMI signal output ports, connect to an HDMI display device such as a TV or
Monitor with an HDMI cable.
Note: When the eARC function is turned off, connect the “OUT 1 (eARC)” port to
HDMI display device to work as an output port; When the eARC function is turned
on, you can connect the “OUT 1 (eARC)” port to an HDMI TV with eARC function.
12
INPUTS (1~4) port
HDMI signal input ports, connect to an HDMI source device such as Blu-ray or
PS5 with an HDMI cable.
Note: When the eARC function is turned off, connect the “INPUTS 1 (eARC)” port to
HDMI source device to work as an input port; When the eARC function is turned on,
connect the “INPUTS 1 (eARC)” port to soundbar to output the audio signal from port
“OUT 1 (eARC)” port.
13
OPTICAL
Optical fiber audio output port.
Note: When the eARC function is turned on, the port is muted.
14
L/R
Analog audio output port.
Note: When the eARC function is turned on, the port is muted.
15
DC 5V
DC 5V/2A Power input port.
IR Remote
① : Power on the device or set it to standby mode.
② eARC: Press this button to turn on/off eARC
function. When the eARC function is turned on, the
eARC LED on the front panel will be on.
③ OUT A/OUT B: Press 1/2/3/4 directly to select the
relevant input source 1/2/3/4 to OUT 1/2 display.
Or press / to select the last or next signal input source.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-8K-42MA PRODUCT MANUAL

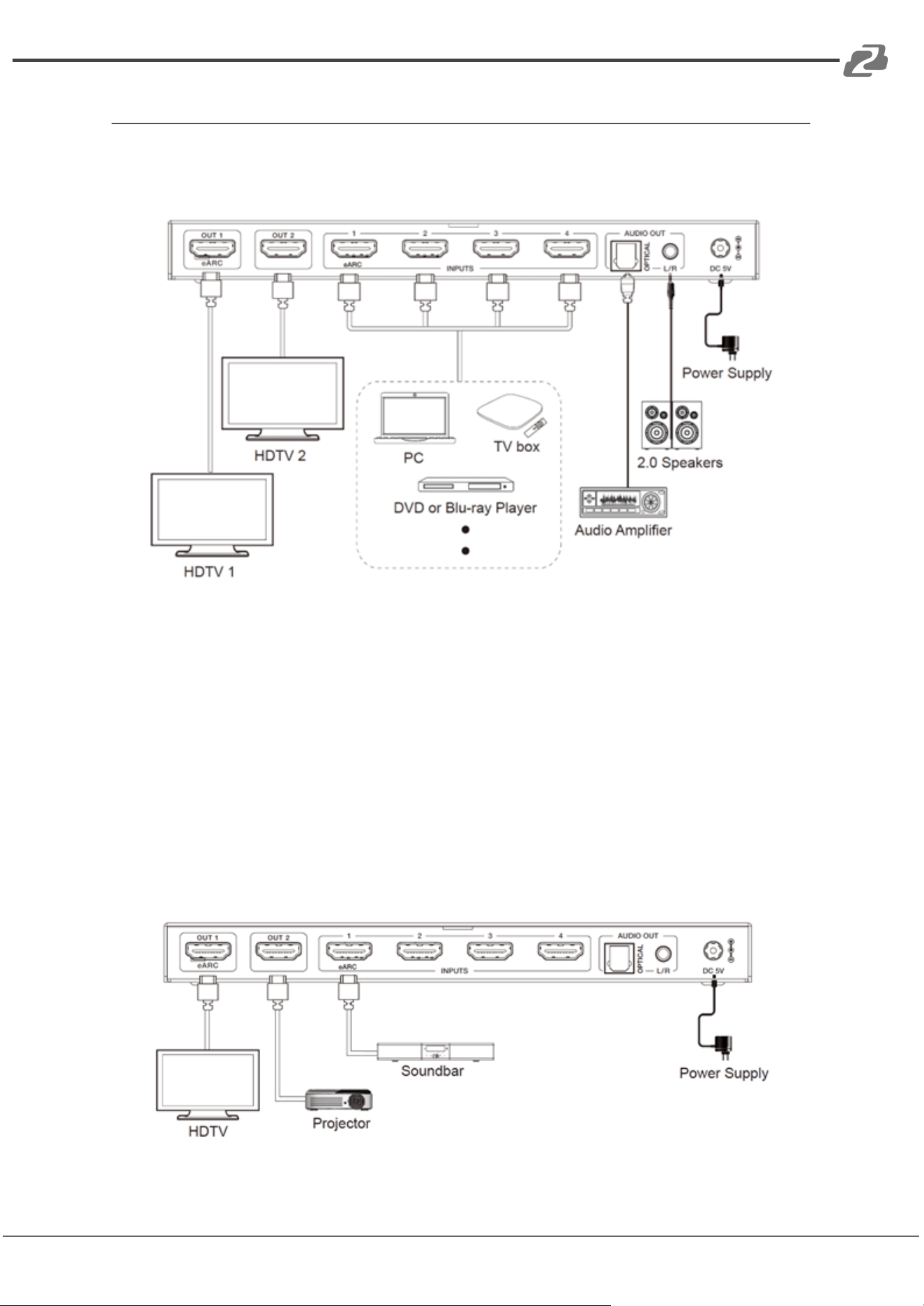

Application Example
Situation 1
When the eARC function is turned off connected devices will function as normal.
Situation 2
When the eARC function is turned on, connect the “INPUTS 1 (eARC)” port to a
Soundbar to output the audio signal returned from the “OUT 1 (eARC)” port, the
INPUTS 1 LED for OUT 1 will illuminate.
Note: If the display supports eARC/ARC but the soundbar only supports standard
ARC, turn off the eARC function on the display.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-8K-42MA PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
