Installation Guide
1

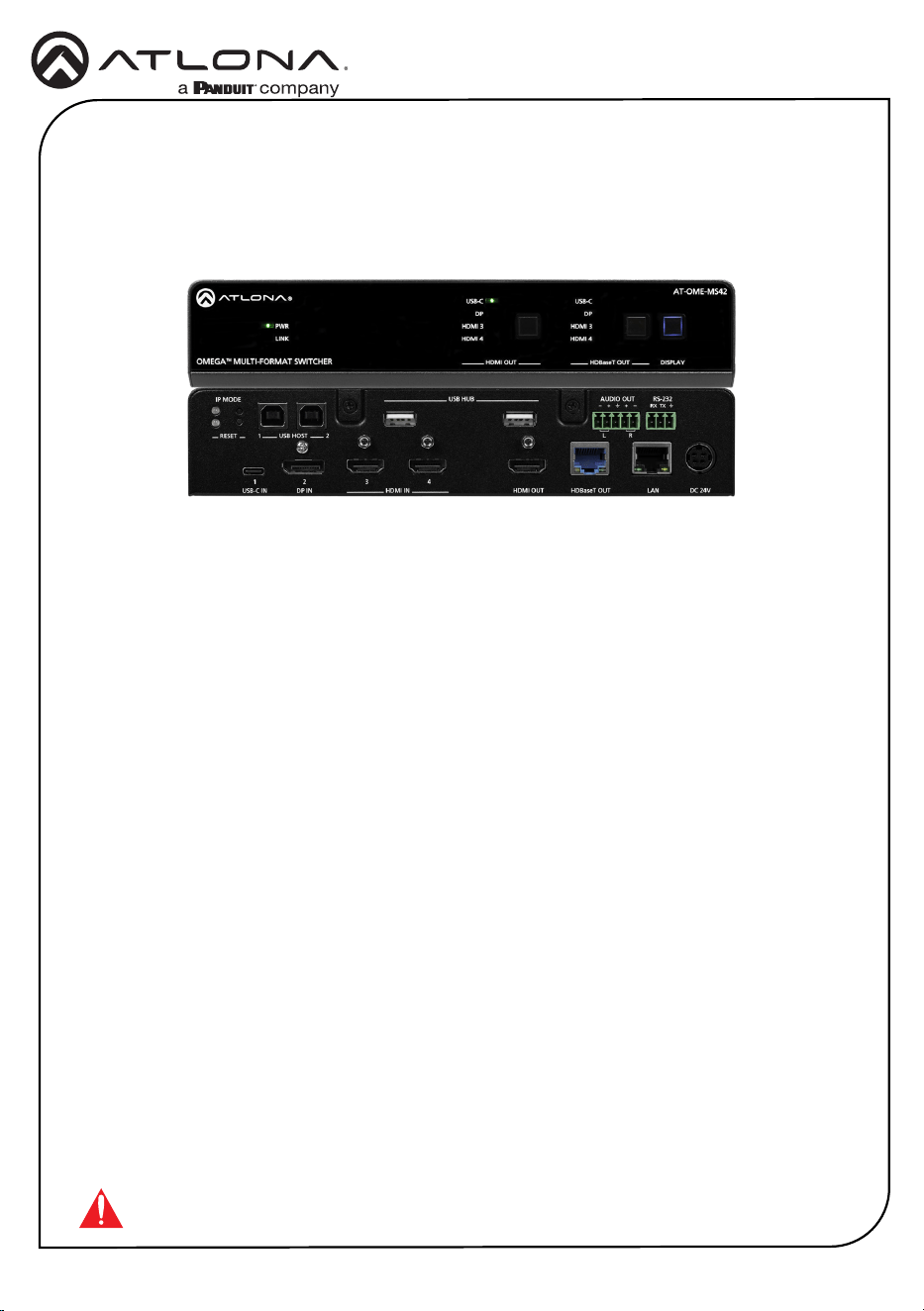

AT-OME-MS42
Omega Multi-format 4x2 matrix switcher with HDMI, USB-C,
and DisplayPort inputs, plus HDMI and HDBaseT outputs
AT-OME-MS42
1 x AT-OME-MS42
1 x Captive screw connector, 5-pin
1 x Captive screw connector, 3-pin
1 x USB-C cable
2 x Mounting plate
4 x Mounting screws
4 x Feet w/rubber grips
1 x 24V DC power supply
1 x IEC power cord
1 x Installation Guide
Package Contents
The Atlona AT-OME-MS42 is a 4x2 matrix switcher with HDMI, USB-C, and DisplayPort inputs,
plus HDMI and HDBaseT outputs. Part of the Omega™ Series of integration products for modern
AV communications and collaboration, the OME-MS42 is HDCP 2.2 compliant and features
HDBaseT extension for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and
USB over distances up to 330 feet (100 meters). All inputs and the local HDMI output support
4K HDR and 4K/60 4:4:4 at HDMI data rates up to 18 Gbps. Additionally, 4K downscaling to
1080p @ 60, 30, or 24 Hz is available for the HDMI output when connected to an HD sink. The
integrated USB extension addresses the challenge of connecting between USB devices at
remote locations, and is ideal for software video conferencing and touch or interactive displays.
The OME-MS42 includes USB 2.0 and USB-C interfaces for three host PCs, plus two peripheral
devices such as a camera, microphone, speakerphone, or keyboard and mouse. It is ideal for
video conferencing and many other 4K presentation applications with the OME-EX-RX receiver
and OME-SR21 scaling receiver.
IMPORTANT: Visit https://atlona.com/product/AT-OME-MS42 for the latest rmware
updates and User Manual.
Installation Guide
2
AT-OME-MS42

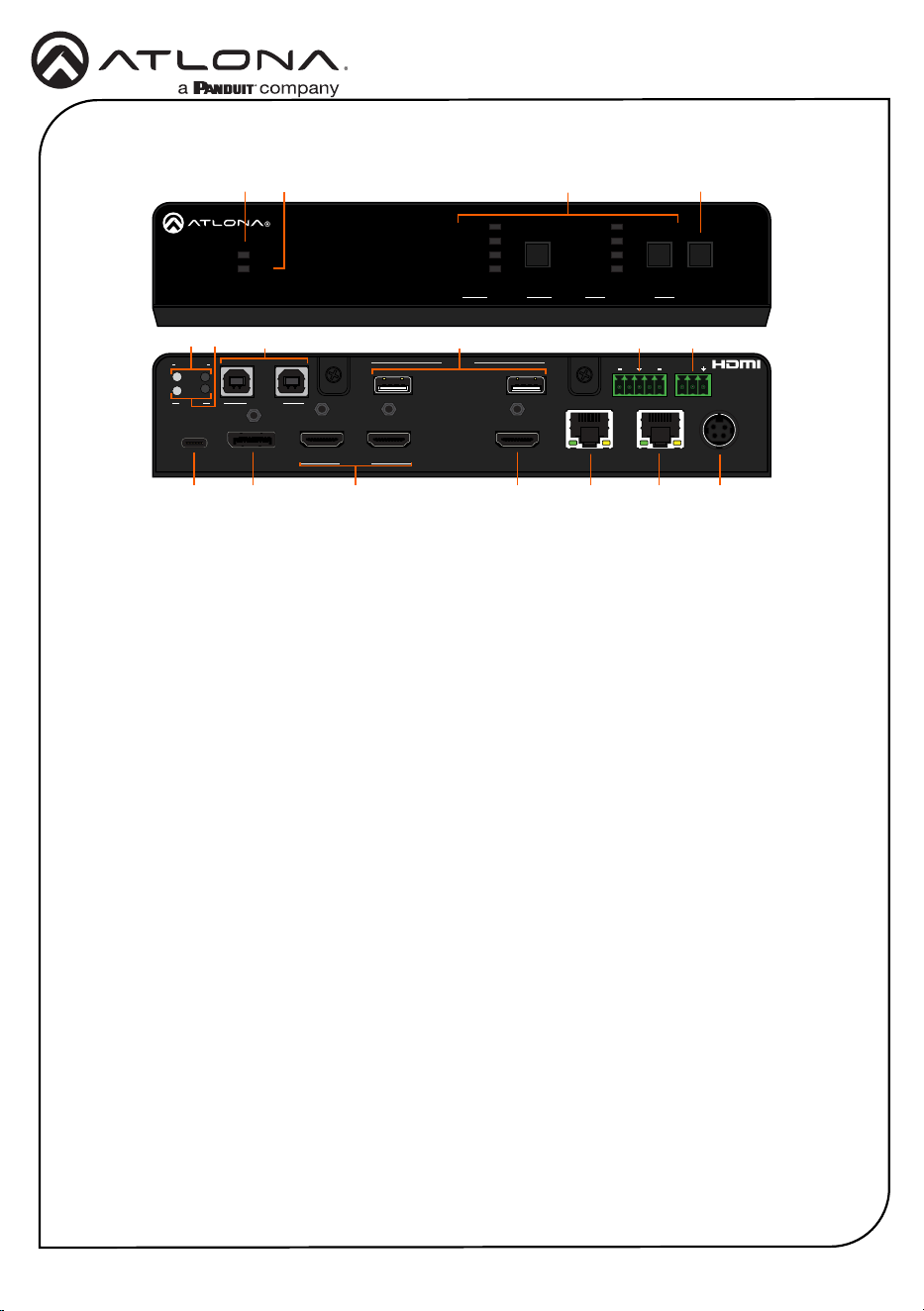

Panel Descriptions
1 PWR LED
Illuminates when the unit is receiving
power.
2 LINK LED
Lights up when connected and receiving
signal over HDBaseT.
3 HDMI OUT/HDBaseT OUT
Button - Press to manually switch
between inputs.
LEDs - Will illuminate for the currently
selected input.
4 DISPLAY
Press this button to toggle the power state
of the desired display.
5 IP MODE LED and button
Press and hold the button for 5 seconds
until the LED blinks to switch the IP mode
between DHCP and Static IP modes. The
LED will blink 4 times for DHCP and 2
times for static IP.
6 RESET LED and button
Press and hold the button for 5 seconds
until the unit resets. The LED will blink 3
times as the unit resets to factory default
settings
7 HOST USB
Connect to a computer using a USB
B to USB A cable. USB 3.0 signal will
only pass when using the local USB hub
devices.
8 USB HUB
Connect USB devices to these ports.
e.g. USB camera, mouse, etc.
9 AUDIO OUT
Connect to an audio DSP, amplier, or
other audio distribution devices.
10 RS-232
Use for device or display control.
11 USB-C IN
Connect a USB-C source to this port.
12 DP IN
Connect a DisplayPort source to this port.
13 HDMI IN
Connect HDMI cables to these ports from
HDMI sources.
14 HDMI Output
Connect an HDMI cable from here to an
HDMI display.
15 HDBaseT Output
Connect a CAT5e/6/6a/7 cable from this
port to an HDBaseT receiver.
16 LAN
Connect an Ethernet cable to this port for
control of the unit or to pass Ethernet to a
local device.
17 DC 24V
Connect the included power supply to this
port.
IP MODE
HDMI IN
1 2
1 2
3 4
DP INUSB-C IN HDMI OUT HDBaseT OUT LAN DC 24V
RESET
AUDIO OUT
USB HOST
RS-232
L R
RX TX
+
+
USBUSB
USB HUB
DP
HDMI 3
HDMI 4
PWR
LINK
USB-C
AT-OME-MS42
OMEGA
TM
MULTI-FOMAT SWITCHER
DP
HDMI 3
HDMI 4
USB-C
HDMI OUT
HDBaseT OUT DISPLAY
3
1 42
7
5
9 106 8
11
15
1412 13 16 17
Installation Guide
3
AT-OME-MS42

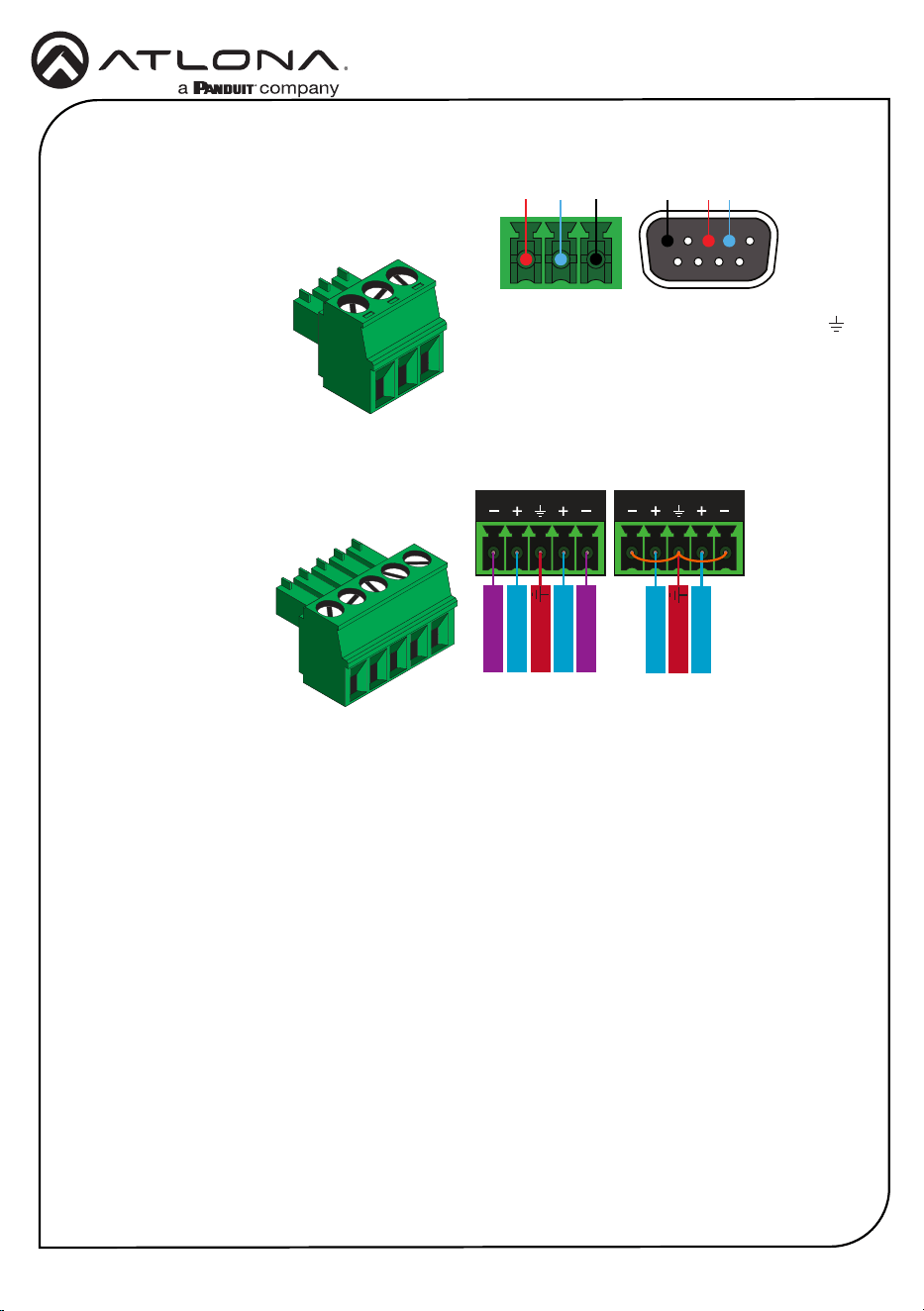

Audio
Connect to an audio DSP, amplier, or other
audio distribution devices.
RS-232
A 3-pin captive screw connector has been
included for RS-232.
Pin out will be determined by the RS-232 cable
and connect as RX (receive), TX (transmit) and
(Ground).
GND RX
TX
GNDRX TX
Use a jumper between the negative and
ground pins when using an unbalanced
connection.
Balanced
Unbalanced
ANALOG IN
L R
Negative
-
Negative
-
+
Positive
+
Positive
Ground
ANALOG IN
L R
+
Positive
+
Positive
Ground
Installation Guide
4
AT-OME-MS42

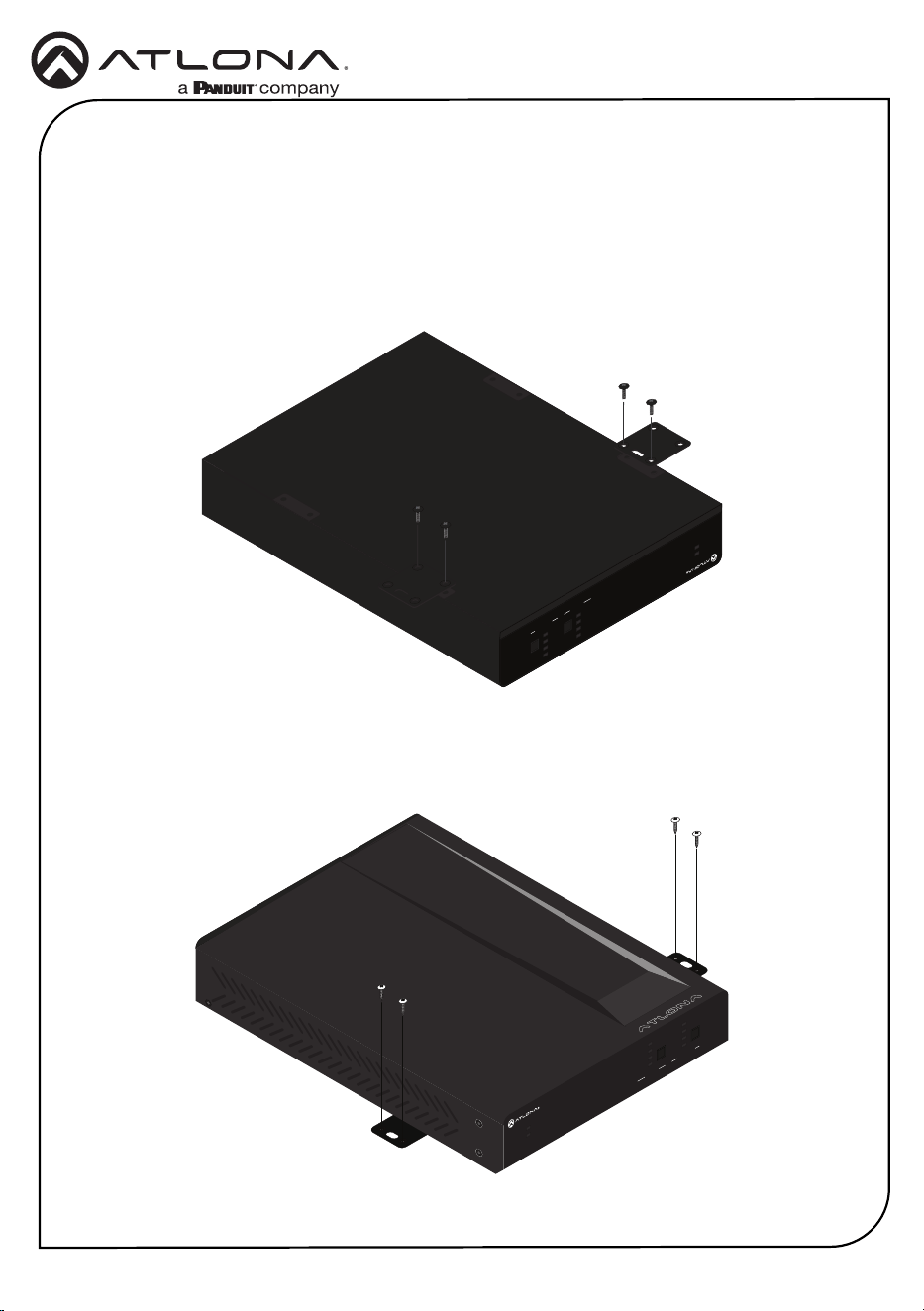

1 Turn the unit upside down on a at surface.
2 Position the included mounting plates over the pre-drilled holes on the bottom of the
enclosure. Use the included mounting screws to attach the mounting plates. When
attaching mounting plates, the countersink bevels on the mounting plates should face
upward.
PWR
VOL LEVEL
AUDIO AMPLIFIER
FWSIGNAL ANALOG IN
NET AUDIODEVICE ID
GAIN
TM
DP
HDMI 3
HDMI 4
PWR
LINK
USB-C
HDBaseT OUT
AT-OME-MS42
OMEGA
TM
MULTI-FOMAT SWITCHER
DP
HDMI 3
HDMI 4
USB-C
HDMI OUT
3 Mount the unit using the circular holes, on each mounting plate. Mounting screws are not
included.
DP
HDMI 3
HDMI 4
PWR
LINK
USB-C
HDBaseT OUT
AT-OME-MS42
OMEGA
TM
MULTI-FOMAT SWITCHER
DP
HDMI 3
HDMI 4
USB-C
HDMI OUT
Mounting Instructions
The AT-OME-MS42 can be mounted under a desk, lectern, or other at surface.
Installation Guide
5
AT-OME-MS42
1 Connect USB-C, DisplayPort, and HDMI sources to the USB-C, DP, and HDMI input ports.
2 *Optional* Connect the 2CH analog AUDIO OUT ports to an audio DSP, amplier, or other
audio distribution devices.
3 *Optional* Connect USB devices (e.g. USB camera) to the USB hub ports.
4 *Optional* Connect the HOST USB port to a computer using a USB B to USB A cable (cable
not provided).
5 *Optional* For control, connect to the 3-pin captive screw RS-232 port.
6 *Optional* Connect a network switch to the LAN port, for IP control or system conguration.
7 Connect an HDMI cable from the HDMI output port to a local display.
8 Connect a compatible HDBaseT Receiver (e.g. AT-OME-EX-RX or AT-OME-SR21) to the
HDBaseT output port.
9 Connect the included 24V DC power supply to a compatible power outlet.
Installation
Refer to the tables below for recommended cabling when using Altona products with HDBaseT.
The green bars indicate the signal quality when using each type of cable. Higher-quality signals
are represented by more bars.
Cable Recommendation Guidelines
Cable Max. Distance @ 4K Max. Distance @ 1080p
CAT5e 295 feet (90 meters) 330 feet (100 meters)
CAT6 / CAT6a / CAT7 330 feet (100 meters) 330 feet (100 meters)
IMPORTANT: Stranded or patch cables are not recommended due to
performance issues.
DHCP
By default, the AT-OME-MS42 is set to DHCP mode. In this mode, when the AT-OME-MS42 is
connected to the Local Area Network (LAN), it will automatically be assigned an IP address by
the DHCP server (if available). Press the IP MODE button to show the IP address in the top left
corner of the display connected to the HDMI output.
IP
Core Shielding CAT5e CAT6 CAT6a CAT7
Solid UTP (unshielded) N/A
STP (shielded)
*Atlona recommends TIA/EIA 568-B termination for optimal performance.
Installation Guide
6
AT-OME-MS42
Velocity
™
with Integrated AMS
For easy conguration of Atlona devices, Velocity with Integrated AMS is available from https://
atlona.com/ams for free. Two options can be used for installation: The free Linux based software
download or the easy to install server hardware (AT-AMS-HW).
Once AMS has been set up:
1 Open a browser on the same network as Velocity with Integrated AMS and go to the IP
address of Velocity with Integrated AMS. View the AMS 2.0 installation instructions on how
to nd the IP address of the software.
2. Enter the login information on the Velocity with Integrated AMS web page, then click the
Login button.
3 View the AT-OME-MS42 manual for routing and conguration information.
Accessing the webGUI
The AT-OME-MS42 includes a built-in webGUI, which allows easy remote management and
control of all features. Follow the instructions below to access the webGUI.
1 Make sure that an Ethernet cable is connected between the LAN port on the AT-OME-MS42
and the network.
2 Press the IP MODE button on the front panel to display the IP address of the unit in the top
left corner of the connected HDMI display.
3 Launch a web browser and enter the IP address in the address bar.
4 The AT-OME-MS42 Login page will be displayed.
5 Enter the following information on the Login page.
Login: admin
Password: Atlona
6 Click the Login button.
7 Refer to the user manual for detailed operation of the webGUI.
Static
If no DHCP server is available, or a static IP is required, the OME-MS42 can be set to static IP
mode using the IP mode button.
• Press and hold the IP MODE button for 5 seconds to switch to static IP mode, the LED will
blink 2 times when it goes into Static IP mode. In this mode, the AT-OME-MS42 will be set
to the following:
IP address: 192.168.1.254
Subnet mask 255.255.0.0
Gateway: 192.168.1.1
• To switch back to DHCP, press and hold the IP mode button for 5 seconds. The LED will
blink 4 times when successfully put into DHCP mode.
