Introduction
Installation
The model W1706 bandsaw comes with
3
⁄8"
eccentrics (Part # X1706129A) installed behind
the guide bearings. An additional set of
1
⁄4"
eccentrics (Part # X1706129) have been included
for easier guide bearing adjustments with
1
⁄8"
bandsaw blades.
The reduced projection of the
1
⁄4" eccentrics
provides more space for guide bearing
adjustments with
1
⁄8" blades, helping ensure
blade support bearings will not damage the
blade tooth set.
1. DISCONNECT MACHINE FROM POWER!
2. Put on heavy leather gloves and open
wheel covers. Remove blade as described
in owner's manual.
3. Remove guide-bearing cap screws and guide
bearings (see Figure 1).

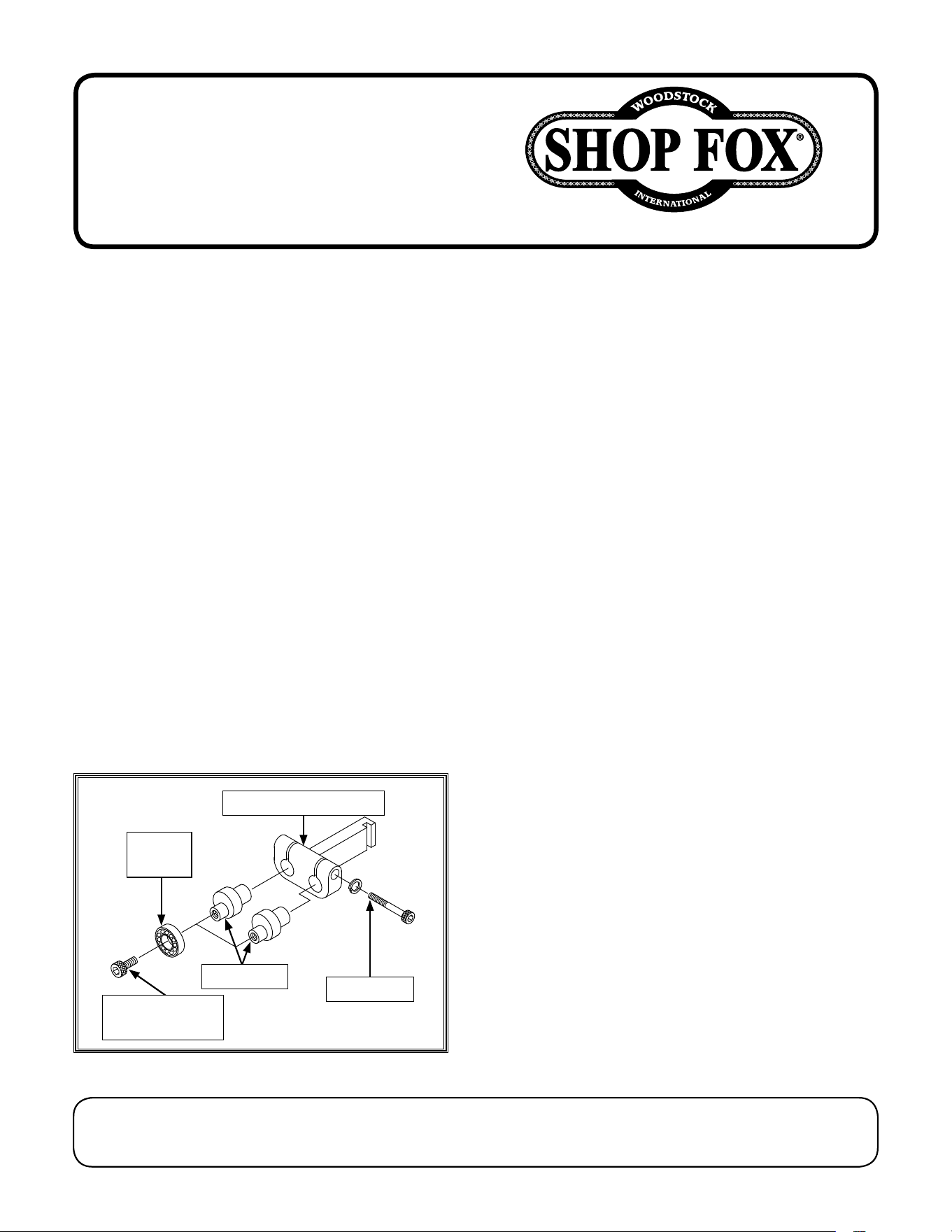

Figure 1. Blade support assembly.
Guide Shaft Bracket
Cap Screw
Eccentrics
Guide
Bearing
Guide-Bearing
Cap Screw
Model W1706
***IMPORTANT UPDATE***
Applies to Models Mfg. Since 10/13
and Owner's Manual Revised March, 2010
Phone #: (360) 734-3482 • Tech Support: tech-support@shopfox.biz • Web: www.shopfox.biz
READ THIS FIRST
4. Loosen cap screw on guide shaft bracket
1
⁄2
turn.
5. Remove
3
⁄8" eccentrics from guide shaft
bracket, and replace with
1
⁄4" eccentrics.
6. Retighten cap screw on guide shaft bracket.
7. Re-install guide bearings and guide-bearing
cap screws.
8. Install
1
⁄8" blade as described in owner's
manual.
9. Close wheel covers.
10. Adjust upper and lower guide bearings and
support bearings as decribed in owner's
manual.
OWNER'S MANUAL
(FOR MODELS MANUFACTURED SINCE 3/13)
MODEL W1706
14" BANDSAW
Phone: (360) 734-3482 • Online Technical Support: [email protected]
COPYRIGHT © JUNE, 2004 BY WOODSTOCK INTERNATIONAL, INC., REVISED APRIL, 2013 (TS)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
#6167CR Printed in Taiwan
177335
This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre-
hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property
damage from negligence, improper training, machine modifications or
misuse.
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State of
California to cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip-
ment, such as those dust masks that are specially designed to filter
out microscopic particles.
SET UPELECTRICAL MAINTENANCE
SERVICE PARTS
OPERATIONS
SAFETYINTRODUCTION
USE THE QUICK GUIDE PAGE LABELS TO SEARCH OUT INFORMATION FAST!
Contents
INTRODUCTION......................................2
Woodstock Technical Support .................. 2
Specifications ..................................... 2
SAFETY................................................4
Standard Machinery Safety Instructions ...... 4
Additional Safety for Bandsaws ................ 6
POWER.SUPPLY......................................7
Circuit Requirements ............................ 7
Grounding Requirements ........................ 8
Extension Cords .................................. 8
SETUP.................................................9
Unpacking ......................................... 9
Inventory .......................................... 9
Machine Placement ............................ 10
Cleaning Machine ............................... 10
Setup Procedures ............................... 11
Assembly ......................................... 11
Dust Collection ................................. 13
Blade Tracking .................................. 14
Power Connection .............................. 15
Test Run .......................................... 16
Additional Adjustments ....................... 16
Tensioning Blade ............................... 17
Adjusting Positive Stop ........................ 18
Aligning Table ................................... 19
Aligning Miter Gauge Body .................... 20
Adjusting Fence ................................ 21
Adjusting Blade Support Bearings ........... 22
Adjusting Blade Guide Bearings .............. 24
OPERATIONS....................................... 26
General .......................................... 26
Operation Overview ........................... 27
Disabling & Locking Switch ................... 27
Basic Controls ................................... 28
Cutting Overview ............................... 29
Workpiece Inspection .......................... 29
Basic Cutting Tips .............................. 30
Table Tilt ........................................ 31
Adjusting Guide Post .......................... 31
Ripping ........................................... 32
Crosscutting ..................................... 33
Resawing ......................................... 34
Cutting Curves .................................. 35
Stacked Cuts .................................... 35
Blade Speed ..................................... 36
Blade Information .............................. 37
Blade Changes .................................. 39
ACCESSORIES....................................... 40
Bandsaw Accessories ........................... 40
MAINTENANCE..................................... 41
General .......................................... 41
Cleaning ......................................... 41
Protecting Table ................................ 41
Lubrication ...................................... 41
SERVICE............................................. 42
General .......................................... 42
Redressing Rubber Tires ....................... 42
Belt Service ..................................... 43
Shimming Table ................................. 45
Blade Lead ...................................... 46
Aligning Wheels ................................. 47
Electrical Safety Instructions ................. 50
Wiring Diagram ................................. 51
Troubleshooting ................................. 52
PARTS............................................... 53
Cabinet Stand ................................... 53
Body .............................................. 55
Fence & Miter Gauge .......................... 57
WARRANTY......................................... 61
-2-
Model W1706 (Mfg. Since 3/13)
INTRODUCTION
Woodstock.Technical.Support
This machine has been specially designed to provide many years of trouble-free service. Close attention
to detail, ruggedly built parts and a rigid quality control program assure safe and reliable operation.
Woodstock International, Inc. is committed to customer satisfaction. Our intent with this manual is to
include the basic information for safety, setup, operation, maintenance, and service of this product.
We stand behind our machines! In the event that questions arise about your machine, please contact
Woodstock International Technical Support at (360) 734-3482 or send e-mail to: tech-sup port@shopfox.
biz. Our knowledgeable staff will help you troubleshoot problems and process warranty claims.
INTRODUCTION
If you need the latest edition of this manual, you can download it from ht tp://www.sh opfox.biz.
If you have comments about this manual, please contact us at:
Woodstock.International,.Inc.
Attn:.Technical.Documentation.Manager
P.O..Box.2309
Bellingham,.WA.98227
Email:.manuals@woodstockint.com
Specifications
. Motor Size ...............................................
1 HP, 110V/220V, 11/5.5A, Single-Phase
Motor Speed ...................................................................................
1,720 RPM
Power Transfer ........................................................... Multi-Groove Belt Drive
Max. Cutting Width ............................................................................13
1
⁄2''
Max. Cutting Height ............................................................................... 6''
Table Size ............................................................................. 14'' W x 14" D
Footprint ........................................................................... 18'' W x 15
1
⁄2" D
Overall Height.....................................................................................73"
Table Height ....................................................................................... 43"
Table Angles (Maximum) .......................................................45°right / 10°left
Blade Speeds .................................................................. 1800 and 3100 FPM
Blade Size Range ........................................................................
1
⁄8" to
3
⁄4"
Blade Length ........................................................................ 92
1
⁄2" to 93
1
⁄2"
Bearings ..................................................Permanently-Lubricated Ball Bearings
Power Control .......................................................Push Button ON/OFF Switch
Net Weight ................................................................................... 242 lbs.
-3-
Model W1706 (Mfg. Since 3/13)
INTRODUCTION

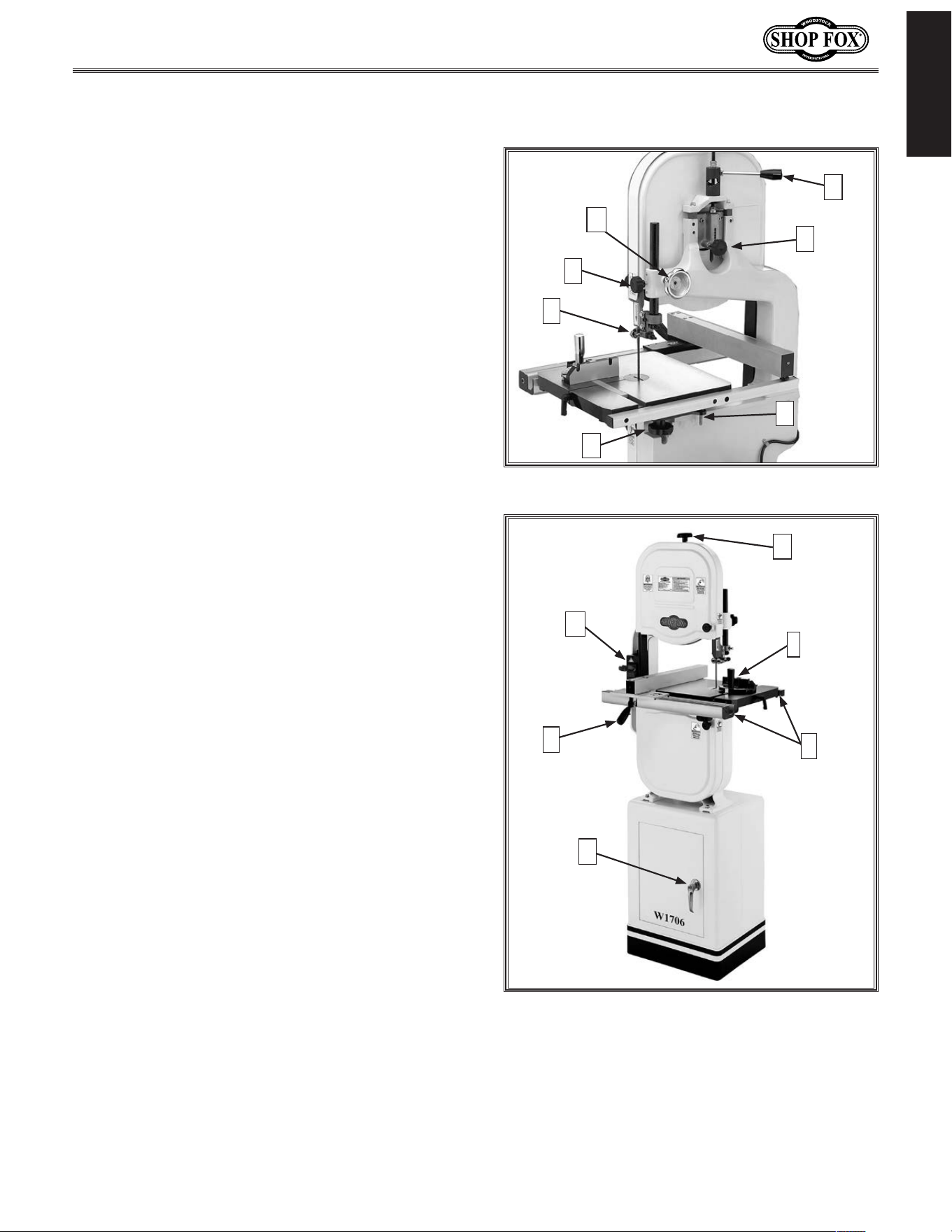

Controls.and.Featu res

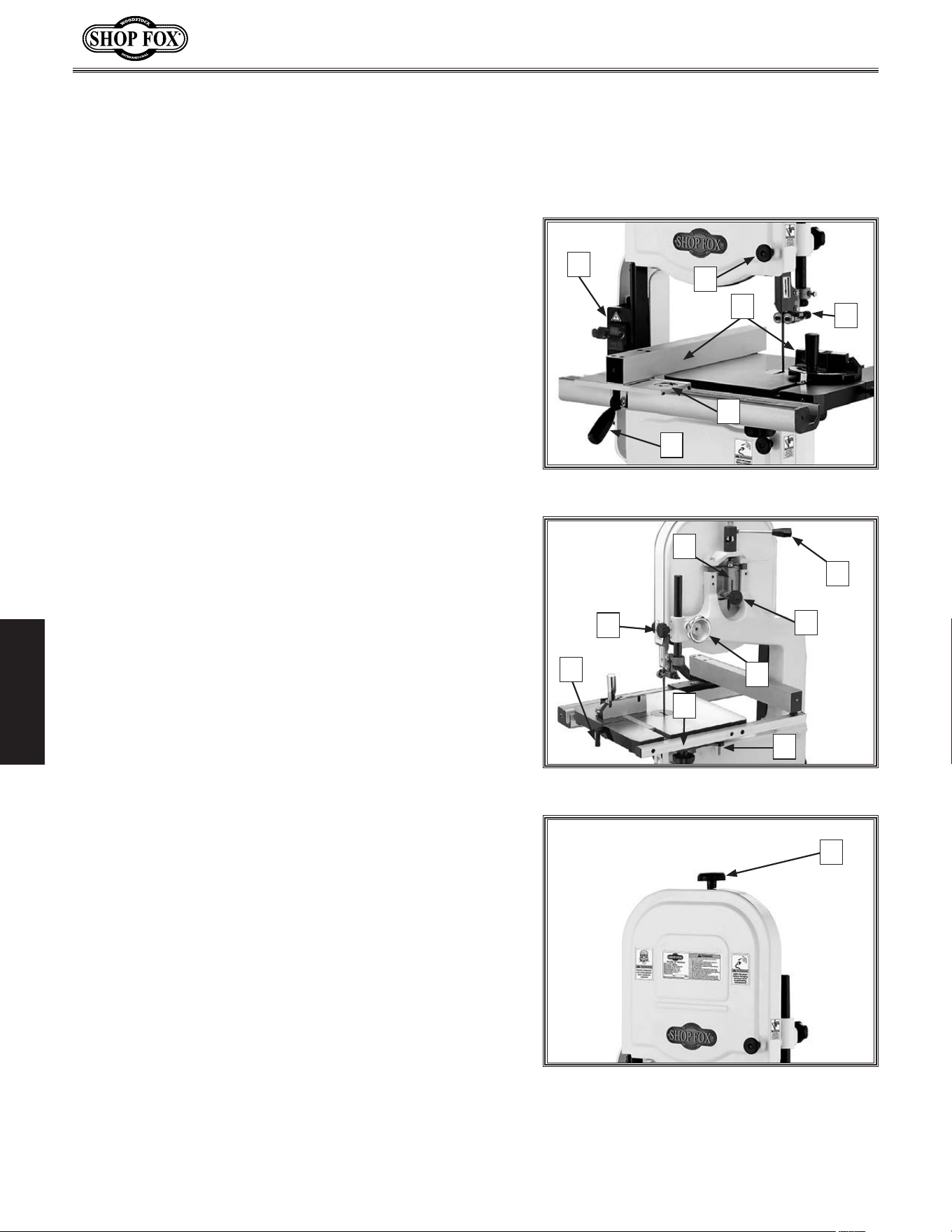

Refer to Figures .1–2.and the descriptions below to
better understand the controls and features of the
Model W1706.
A.. Blade.Quick-Release.Lever:.Quickly releases
or engages blade tension for blade changes.
B.. Blade.Tracking.Knob:.Adjusts and locks the
blade tracking.
C.. Table.Stop:.Allows for returning the table to
0° quickly and accurately.
D.. Trunnion.Lock.Knob:.Locks the table in any
tilted position from 45° right to 10° left.
E.. Upper.Blade.Guides:.Provides low-friction
support and extended blade life.
F.. Blade.Guide.Lock.Knob:.Locks the upper
blade guides in place.
G.. Guide.Post.Elevation.Handwheel:.Moves the
blade guides quickly to the desired height.
H.. Blade.Tension.Knob:.Tensions the blade in
gradual increments.
I.. Miter.Gauge:.Provides support for angle cuts.
J.. Fence.Rails: Front and rear fence rails
provide stable support for the fence.
K.. Storage.Cabinet:.Offers convenient storage
for bandsaw related items.
L.. Locking.Fence:.Provides support when
cutting long workpieces.
M.. ON/OFF.Buttons:.Toggles power ON and OFF
to the motor, and can be locked for safety.
Figure.2..Bandsaw front view.
J
K
L
I
H
M
Figure.1..Bandsaw rear view.
A
B
E
F
C
D
G
-4-
Model W1706 (Mfg. Since 3/13)
SAFETY
Indicates.a.potentially.hazardous.situation.which,.if.not.avoided,.
MAY.result.in.minor.or.moderate.injury.
Indicates.an.imminently.hazardous.situation.which,.if.not.avoided,.
WILL.result.in.death.or.serious.injury.
Indicates.a.potentially.hazardous.situation.which,.if.not.avoided,.
COULD.result.in.death.or.serious.injury.
This.symbol.is.used.to.alert.the.user.to.useful.information.about.
proper.operation.of.the.equipment.or.a.situation.that.may.cause.
damage.to.the.machinery.
NOTICE
SAFETY
OWNER’S.MANUAL..
Read and understand this
owner’s manual BEFORE using machine.
TRAINED.OPERATORS.ONLY..
Untrained operators
have a higher risk of being hurt or killed. Only
allow trained/supervised people to use this
machine. When machine is not being used,
disconnect power, remove switch keys, or
lock-out machine to prevent unauthorized
use—especially around children. Make
workshop kid proof!
DANGEROUS.ENVIRONMENTS..
Do not use
machinery in areas that are wet, cluttered,
or have poor lighting. Operating machinery
in these areas greatly increases the risk of
accidents and injury.
MENTAL.ALERTNESS.REQUIRED..
Full mental
alertness is required for safe operation of
machinery. Never operate under the influence
of drugs or alcohol, when tired, or when
distracted.
ELECTRICAL.EQUIPMENT.INJURY.RISKS..You can
be shocked, burned, or killed by touching live
electrical components or improperly grounded
machinery. To reduce this risk, only allow an
electrician or qualified service personnel to
do electrical installation or repair work, and
always disconnect power before accessing or
exposing electrical equipment.
DISCONNECT.POWER.FIRST..Always disconnect
machine from power supply BEFORE making
adjustments, changing tooling, or servicing
machine. This eliminates the risk of injury
from unintended startup or contact with live
electrical components.
EYE.PROTECTION..Always wear ANSI-approved
safety glasses or a face shield when operating
or observing machinery to reduce the risk of
eye injury or blindness from flying particles.
Everyday eyeglasses are not approved safety
glasses.
Stand ard.Machinery.Safety.Instru ctions
For.Your.Own.Safety,
Read.Manual.Before.Operating.Machine
The. purpose. of. safety. symbols. is. to. attract. your. attention. to. possible. hazardous. conditions.. This.
manual.uses.a.series.of.symbols.and.signal.words.intend ed.to.convey.the.level.of.importance. of.the.
safety.messages..The.progression.of.symbols.is.described.below..Remember.that.safety.messages.by.
themselves.do.not.eliminate.danger.and.are. not. a.substitute.for. proper. accident. prevention. mea-
sures—this.responsibility.is. ultimately.up.to.the.operator!
SAFETY
Stand ard.Machinery.Safety.Instructions
-5-
Model W1706 (Mfg. Since 3/13)
SAFETY
WEARING.PROPER.APPAREL..Do not wear
clothing, apparel, or jewelry that can become
entangled in moving parts. Always tie back
or cover long hair. Wear non-slip footwear to
avoid accidental slips, which could cause loss
of workpiece control.
HAZARDOUS
.DUST..Dust created while using
machinery may cause cancer, birth defects,
or long-term respiratory damage. Be aware of
dust hazards associated with each workpiece
material, and always wear a NIOSH-approved
respirator to reduce your risk.
HEARING.PROTECTION..
Always wear hearing
protection when operating or observing
loud machinery. Extended exposure to this
noise without hearing protection can cause
permanent hearing loss.
REMOVE.ADJUSTING.TOOLS..
Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys,
wrenches, or any other tools on machine.
Always verify removal before starting!
INTENDED.USAGE..
Only use machine for its
intended purpose—never make modifications
without prior approval from Woodstock
International. Modifying machine or using
it differently than intended will void the
warranty and may result in malfunction or
mechanical failure that leads to serious
personal injury or death!
AWKWARD.POSITIONS..
Keep proper footing and
balance at all times when operating machine.
Do not overreach! Avoid awkward hand
positions that make workpiece control difficult
or increase the risk of accidental injury.
CHILDREN.&.BYSTANDERS..
Keep children and
bystanders at a safe distance from the work
area. Stop using machine if they become a
distraction.
GUARDS.&.COVERS..
Guards and covers reduce
accidental contact with moving parts or flying
debris—make sure they are properly installed,
undamaged, and working correctly.
FORCING.MACHINERY..Do not force machine. It
will do the job safer and better at the rate for
which it was designed.
NEVER.STAND.ON.MACHINE..Serious injury may
occur if machine is tipped or if the cutting
tool is unintentionally contacted.
STABLE.MACHINE..Unexpected movement during
operation greatly increases risk of injury or
loss of control. Before starting, verify machine
is stable and mobile base (if used) is locked.
USE.RECOMMENDED.ACCESSORIES..Consult
this owner’s manual or the manufacturer for
recommended accessories. Using improper
accessories will increase risk of serious injury.
UNATTENDED.OPERATION..To reduce the risk
of accidental injury, turn machine OFF and
ensure all moving parts completely stop
before walking away. Never leave machine
running while unattended.
MAINTAIN.WITH.CARE..Follow all maintenance
instructions and lubrication schedules to
keep machine in good working condition. A
machine that is improperly maintained could
malfunction, leading to serious personal injury
or death.
CHECK.DAMAGED.PARTS..Regularly inspect
machine for any condition that may affect
safe operation. Immediately repair or replace
damaged or mis-adjusted parts before
operating machine.
MAINTAIN.POWER.CORDS..When disconnecting
cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the
cord may damage the wires inside, resulting
in a short. Do not handle cord/plug with wet
hands. Avoid cord damage by keeping it away
from heated surfaces, high traffic areas, harsh
chemicals, and wet/damp locations.
EXPERIENCING.DIFFICULTIES..If at any time
you experience difficulties performing the
intended operation, stop using the machine!
Contact Technical Support at (360) 734-3482.
-6-
Model W1706 (Mfg. Since 3/13)
SAFETY
Additional.Safety.for.Bandsaws
READ.and.understand.this.
entire.manual.before.using.
this.machine..Serious.per-
sonal. injury. may. occur.
if. safety. and. operational.
information. is. not. under-
stood. and. followed.. DO.
NOT. risk. your. safety. by.
not.reading!
BLADE.CONDITION. Do not operate with dull, cracked or badly worn blade. Dull blades require more
effort to perform the cut and increase the risk of kickback. Inspect blades for cracks and missing
teeth before each use.
HAND.PLACEMENT. Never position fingers or hands in line with the blade. If the workpiece or your
hands slip, serious personal injury could occur.
BLADE.REPLACEMENT. To avoid mishaps that could result in operator injury, make sure the blade teeth
face down toward the table and the blade is properly tensioned and tracked before operating.
SMALL.WORKPIECE.HANDLING. If your hands slip while holding small workpieces with your fingers
during a cut, serious personal injury could occur. Always support/feed the workpiece with push
sticks, jig, vise, or some type of clamping fixture.
BLADE.SPEED. Moving the workpiece against a blade that is not at full speed could cause the blade to
grab the workpiece and draw the operator's hands into the blade. Always allow the blade to come
to full speed before starting the cut.
CUTTING.TECHNIQUES. Plan your operation so the blade always cuts to the outside of the workpiece.
DO NOT back the workpiece away from the blade while the saw is running, which could cause
kickback and personal injuries. If you need to back the workpiece out, turn the bandsaw OFF and
wait for the blade to come to a complete stop. DO NOT twist or put excessive stress on the blade
that could damage it.
FEED.RATE. To avoid the risk of the workpiece slipping and causing operator injury, always feed stock
evenly and smoothly. DO NOT force or twist the blade while cutting, especially when sawing small
curves.
WORKPIECE.MATERIAL. This machine is intended for cutting natural and man-made wood products,
and laminate covered wood products. This machine is NOT designed to cut metal, glass, stone,
tile, etc.
BLADE.CONTROL. To avoid serious personal injury, DO NOT attempt to stop or slow the blade with your
hand or the workpiece. Allow the blade to stop on its own.
USE. this.and.other.machinery.with.caution.
and. respect.. Always. consider.safety. first,.
as. it. applies. to. your. individual. working.
conditions..No.list.of.safety.guidelines.can.
be. complete—every. shop. environment. is.
different..Failure.to.follow.guidelines.could.
result. in. serious. personal. injury,. damage.
to.equipment.or.poor.work.results.
-7-
Model W1706 (Mfg. Since 3/13)
ELECTRICAL
POWER.SUPPLY
The.machine.must.be.properly.set.up.
before.it.is.safe.to.o perate..DO.NOT.
connect.this.machine.to.the.power.
source. until.instructed.to.do.so.in.the.
"Test.Run" .portion.of.this.manual.
DO.NOT.work.on.your.electrical.system.
if.you.are.unsure.about.electrical.codes.
and. wiring!. Seek. assistance. from. a.
qualified. electrician.. Ignoring. this.
warning. can. cause. electrocution,. fire, .
or.machine.damage.
Circ uit.Requirements
This machine must be connected to the correct size and
type of power supply circuit, or fire or electrical damage
may occur. Read through this section to determine if
an adequate power supply circuit is available for this
machine. If a correct circuit is not available, you must
have a qualified electrician install one before you can
operate the machine.
A power supply circuit includes all electrical equipment
between the main breaker box or fuse panel in your
building and the incoming power connections at the
machine. The power supply circuit used for this machine
must be sized to safely handle the full-load current drawn
from the machine for an extended period of time.
Circuit.Requirements.for.110V.(Prewired)
This machine is prewired to operate on a 110V power
supply circuit that has a verified ground and meets the
following requirements:
Circuit.Type................ 110V/120V,.60.Hz,.Single-Phase
Circuit.Size.............................................. 15.Amps
Plug/Receptacle..................................... NEMA.5-15
Circuit.Requirements.for.220V
This machine can be converted to operate on a 220V
power supply. To do this, the motor will need to be
rewired and a new plug installed on the power cord;

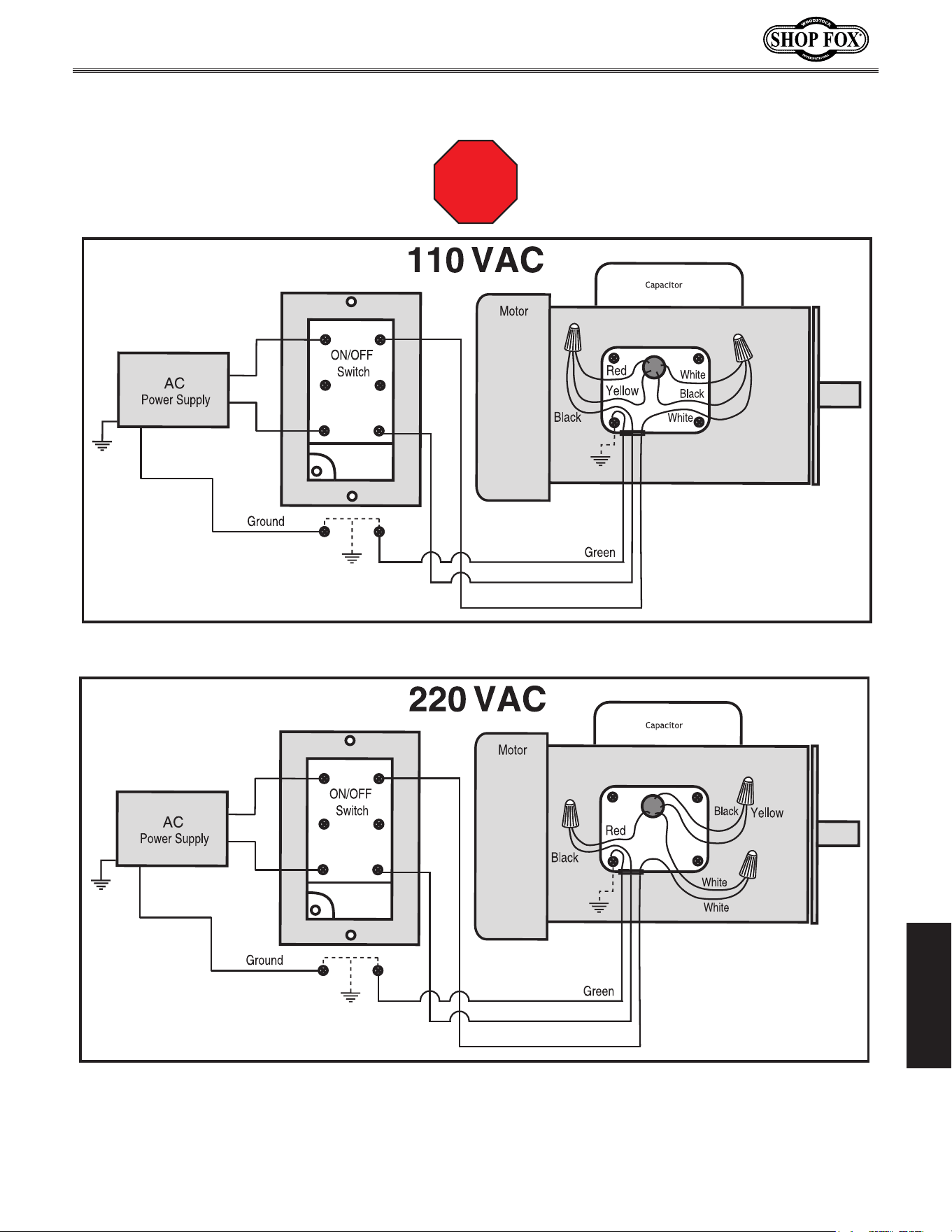

refer to the Wiring.Diagram on Page.51 for details. The
intended 220V circuit must have a verified ground and
meet the requirements that follow:
Circuit.Type................220V/240V,.60.Hz,.Single-Phase
Circuit.Size.............................................. 15.Am ps
Plug/Receptacle..................................... NEMA.6-15
Full-Load.Current.Rating
The full-load current rating is the amperage a machine
draws at 100% of the rated output power. On machines
with multiple motors, this is the amperage drawn by the
largest motor or sum of all motors and electrical devices
that might operate at one time during normal operations.
Full-Load.Current.Rating.at.110V................... 11. Amps
Full-Load.Current.Rating.at.220V.................. 5.5.Amps
For. your. own. safety. and. protection.
of. property,. consult. a. qualified.
electrician. if. you. are. unsure. about.
wiring.practices.or.electrical.codes.in.
your.area.
NOTICE
The.circuit.requirements.listed.in.this.
manual. apply. to. a. dedicated. circuit—
where. only. one. machine. will. be.
running.at.a.time..If.this.machine.will.
be.connected.to.a.shared.circuit.where.
multiple. machines. will. be. running. at.
the. same. time,. consult. a. qualified.
electrician.to.ensure.that.the.circuit.is.
properly.sized.for.safe.operation.
-8-
Model W1706 (Mfg. Since 3/13)
ELECTRICAL

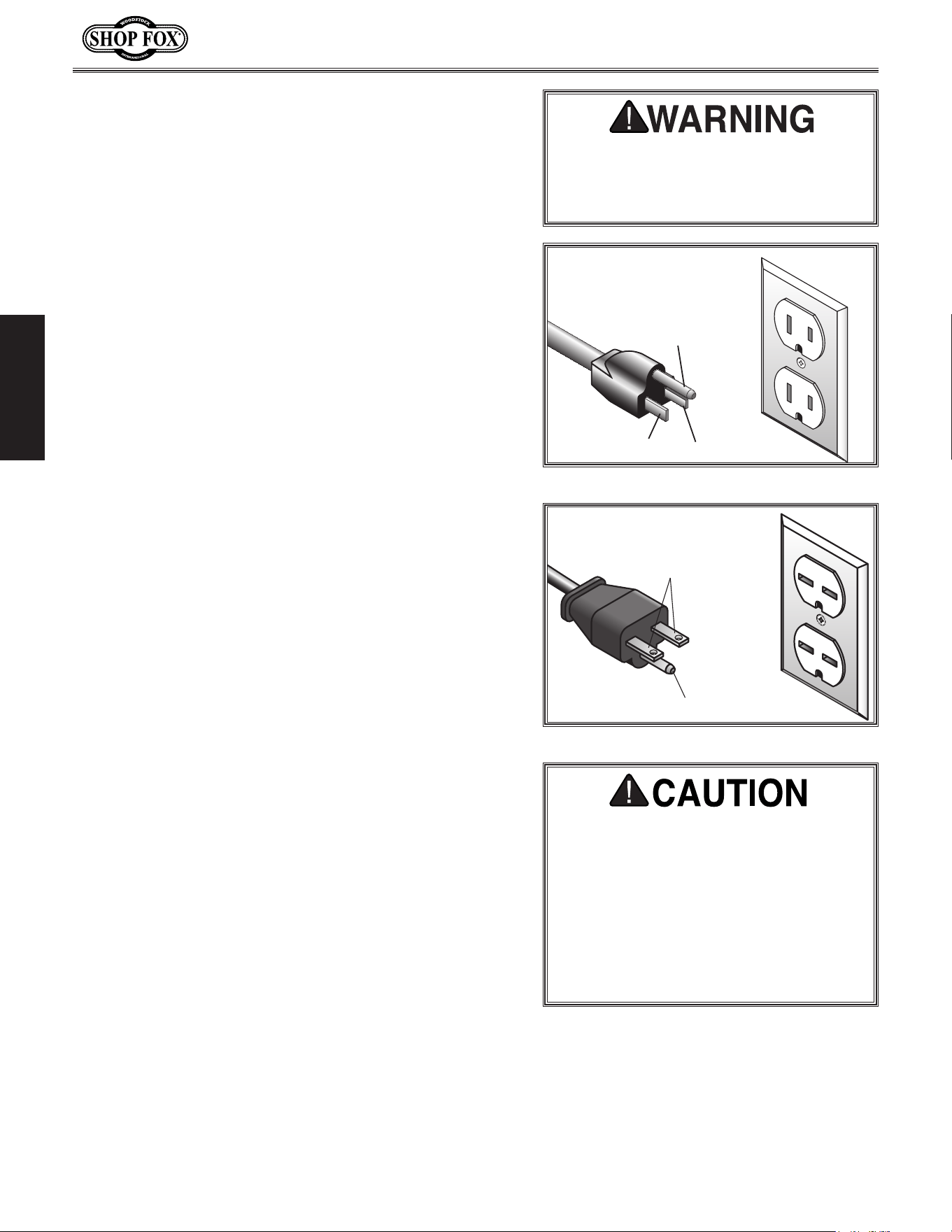

Grounding.Requirements
Exte nsion.Cords
In the event of certain types of malfunctions or
breakdowns, grounding provides a path of least resistance
for electric current to travel— in order to reduce the risk
of electric shock.
Improper connection of the equipment-grounding wire will
increase the risk of electric shock. The wire with green
insulation (with/without yellow stripes) is the equipment-
grounding wire. If repair or replacement of the power
cord or plug is necessary, do not connect the equipment-
grounding wire to a live (current carrying) terminal.
Check with a qualified electrician or service personnel
if you do not understand these grounding requirements,
or if you are in doubt about whether the tool is
properly grounded. If you ever notice that a cord or
plug is damaged or worn, disconnect it from power, and
immediately replace it with a new one.
Grounding Prong
Current Carrying Prongs
6-15 PLUG
GROUNDED
6-15 RECEPTACLE
220V
Figure.4. NEMA 6-15 plug & receptacle.
Grounding Prong
Neutral Hot
5-15 PLUG
GROUNDED
5-15 RECEPTACLE
110V
Figure.3. NEMA 5-15 plug & receptacle.
When converting this machine to 220V operation, you
must properly install a NEM A 6-15 grounding plug. The
plug must only be inserted into a matching receptacle
(see Figure.4) that is properly installed and grounded in
accordance with local codes and ordinances.
For.220V.Connection.(Must.Be.Rewired)
A NEMA 5-15 plug has a grounding prong that must be
attached to the equipment-grounding wire inside the
included power cord. The plug must only be inserted
into a matching receptacle (see Figure.3) that is properly
installed and grounded in accordance with all local codes
and ordinances.
For.110V.Connection.(Prewired)
The.machine.must.be.properly.set.up.
before. it. is. safe. to. operate.. DO. NOT.
connect. to. the. power. source. until.
instructed.to.do.so.later.this.manual.
We do not recommend using an extension cord with this
machine. Extension cords cause voltage drop, which may
damage electrical components and shorten motor life.
Voltage drop increases with longer extension cords and
the gauge smaller gauge sizes (higher gauge numbers
indicate smaller sizes).
Any extension cord used with this machine must contain a
ground wire, match the required plug and receptacle, and
meet the following requirements:
Minimum.Gauge.Size................................... 14.AWG
Maximum.Length.(Shorter.is.Better)...................50.ft.
DO. N OT. modify. the. provided. plug. or.
use.an.adapter .if.the.plug.will.not.fit.
your.receptacle..If.the.machine.must.be.
reconnected.for.use.on.a.different.type.
of. electric. circuit,. the. reconnection.
should. be. made. by. qualified. service.
personnel;. and. after. reconnection,.
the.machine.must.comply.with.all.local.
codes.and.ordinances.
-9-

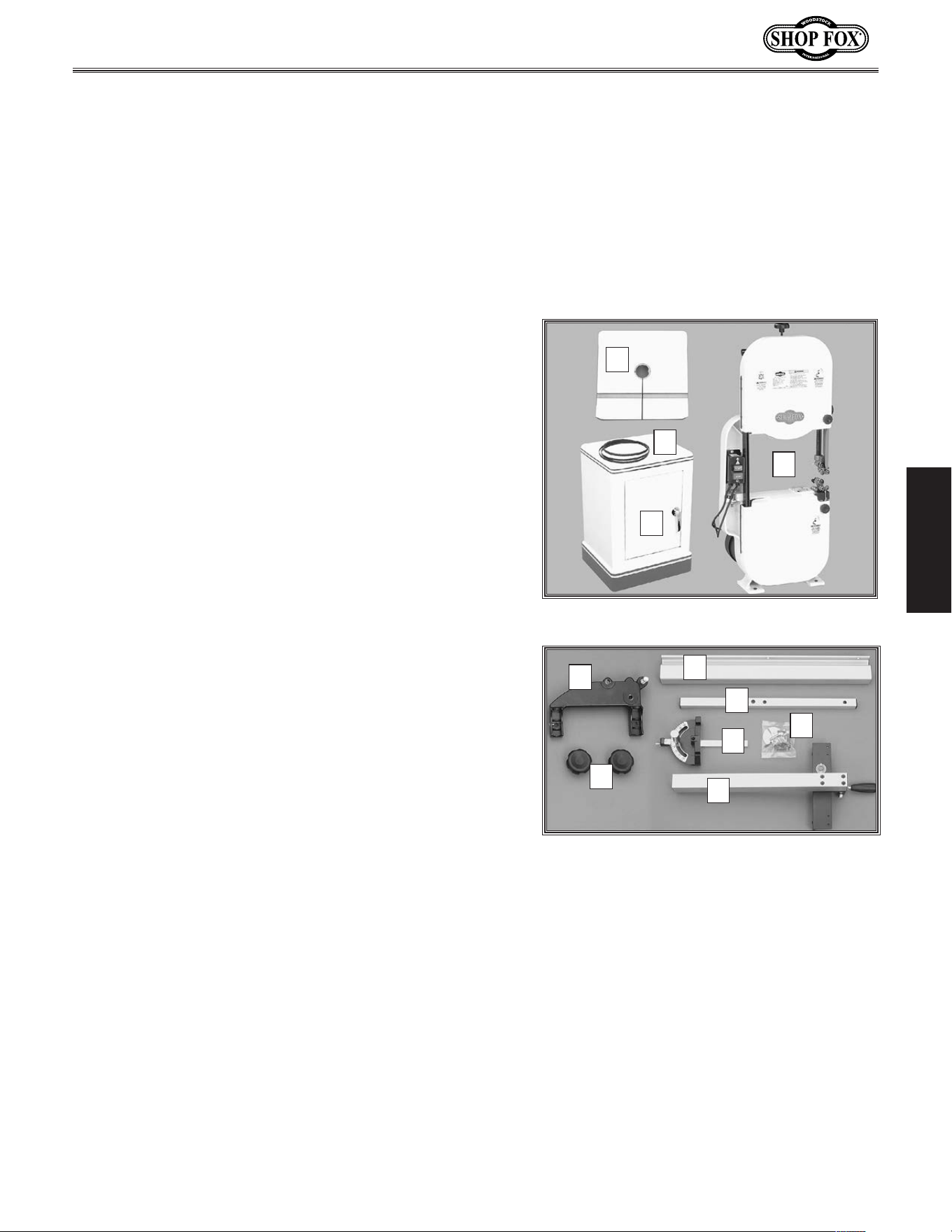

Model W1706 (Mfg. Since 3/13)
SETUP
This machine has been carefully packaged for safe
transportation. If you notice the machine has been
damaged during shipping, please contact your authorized
Shop Fox dealer immediately.
Unpacking
SETUP
The following is a description of the main components
shipped with the Model W1706. Lay the components out
to inventory them.
Note: If you can't find an item on this list, check the
mounting location on the machine or examine the
packaging materials carefully. Occasionally we pre-install
certain components for safer shipping.
Inventory.(Figures.5–6). Qty
A. Table .........................................................1
B.. Saw Blade 6TPI x
3
⁄8" x 93
1
⁄2" ...........................1
C. Cabinet Stand ..............................................1
D.. Bandsaw Body ..............................................2
E.. Trunnion Base ..............................................1
F.. Front Fence Rail ...........................................1
G. Rear Fence Rail ............................................1
H.. Hardware Bag:
— Small Table Insert .......................................1
— Large Table Insert .......................................1
— Hex Bolts
5
⁄16"-18 x 1
1
⁄2" (Bandsaw Body) ...........4
— Hex Nuts
5
⁄16"-18 (Bandsaw Body) ....................4
— Lock Washers
5
⁄16" (Bandsaw Body) ...................4
— Flat Washers
5
⁄16" (Bandsaw Body) ...................4
— Hex Bolts
5
⁄8"-18 x 1
1
⁄4" (Trunnion Base) ............2
— Lock Washers
5
⁄8" (Trunnion Base) ....................2
— Cap Screws
1
⁄4"-20 x
5
⁄8" (Fence Rail)................2
— Hex Bolts
1
⁄4"-20 x
3
⁄4" (Fence Rail) ..................2
— Flat Washers
1
⁄4" ........................................2
— Combo Wrench 10 x 12mm ............................1
— Hex Wrench 5mm .......................................1
I.. Miter Gauge Assembly ....................................1
J.. Fence Assembly ............................................1
K.. Trunnion Lock Knobs ......................................2
Inventory
Figure.5. Inventory A–D.
A
D
B
C
Figure.6. Inventory E–K.
E
F
G
I
H
J
K
-10-
Model W1706 (Mfg. Since 3/13)
SETUP
•. Floor.Load: This machine distributes a
heavy load in a small footprint. Some
residential floors may require additional
bracing to support both machine and
operator.
•. Working.Clearances: Consider existing and
anticipated needs, size of material to be
processed through the machine, and space
for auxiliary stands, work tables or other
machinery when establishing a location for
your bandsaw.
•. Lighting: Lighting should be bright enough
to eliminate shadow and prevent eye strain.
•. Electrical:.Electrical circuits must be
dedicated or large enough to handle
amperage requirements. Outlets must be
located near each machine, so power or
extension cords are clear of high-traffic
areas. Follow local electrical codes for
proper installation of new lighting, outlets,
or circuits.
MAKE. your. shop. “child.
safe.”. Ensure. that. your.
workplace. is. inaccessible.
to. children. by. closin g. and.
locking.all.entrances.when.
you.are.away..NEVER.allow.
untrained. visitors. in. your.
shop. when. assembling,.
adjusting. or. operating.
equipment..
Clea ning.Machine
The table and other unpainted parts of your
bandsaw are coated with a waxy grease that
protects them from corrosion during shipment.
Clean this grease off with a solvent cleaner or
citrus-based degreaser. DO NOT use chlorine-
based solvents such as brake parts cleaner or
acetone—if you happen to splash some onto a
painted surface, you will ruin the finish.
Machine.Placement
USE. helpers. or. power.
lifting. equipment. to. lift.
this.Bandsaw..Otherwise,.
serious. personal. injury.
may.occur..
NEVER.clean.with.gasoline.
or. other. petroleum-
based.solvents..Most.have.
low. flash. points,. which.
make. them. extremely.
flammable.. A. risk. of.
explosion. and. burning.
exists. if. these. products.
are.used..Serious.personal.
injury. may. occur. if. this.
warning.is.ignored!
ALWAYS. work. in. well-
ventilated.areas.far.from.
possible. ignition. sources.
when. using. solvents. to.
clean. machinery.. Many.
solvents. are. toxic. when.
inhaled. or.ingested.. Use.
care. when. disposing.
of. waste. rags. and.
towels. to. be. sure. they.
DO. NOT. create. fire. or.
environmental.hazards..
-11-

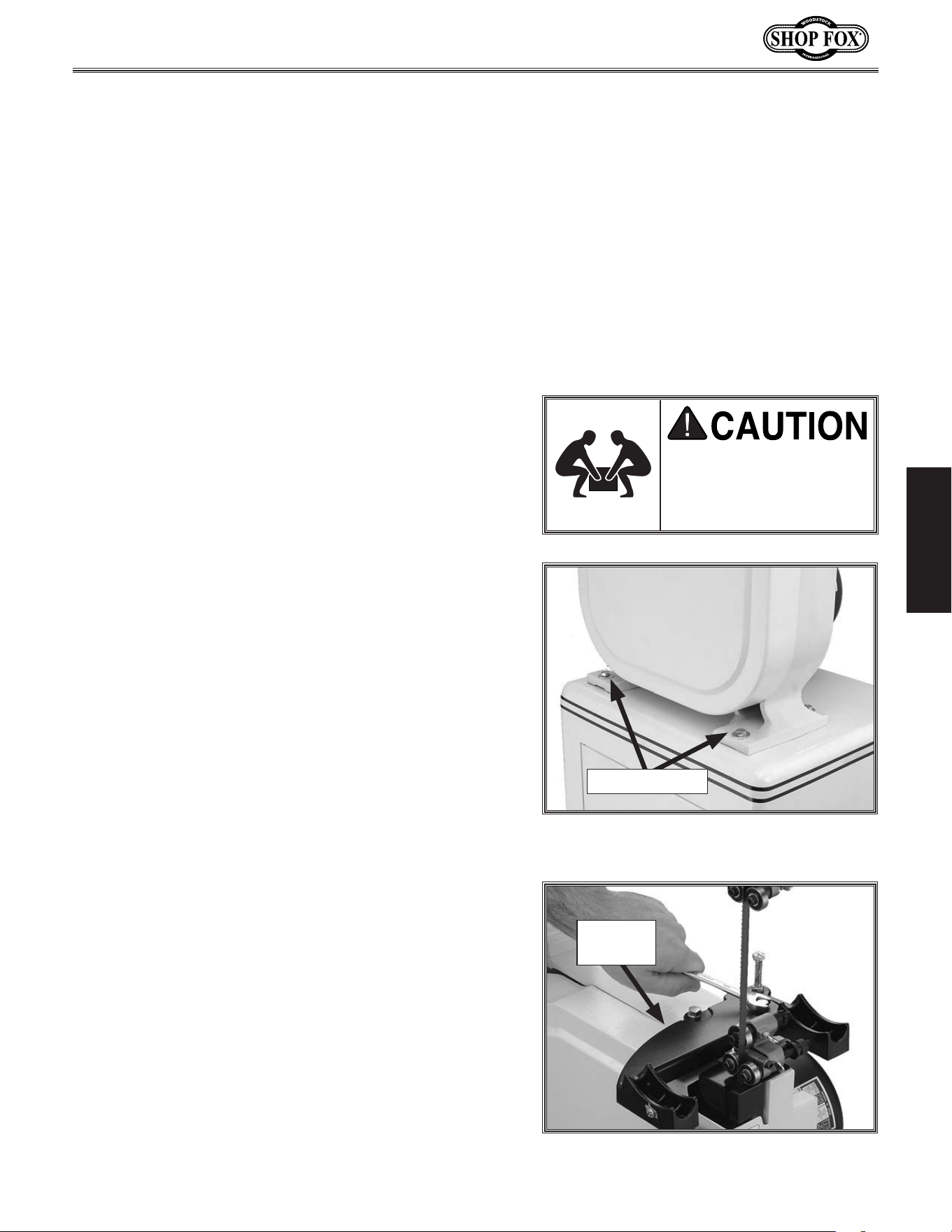

Model W1706 (Mfg. Since 3/13)
SETUP
The assembly procedure consists of attaching the bandsaw
body to the cabinet stand, installing the trunnion base
and table, and attaching the fence rails to the table.
To.assemble.the.bandsaw,.do.these.steps:
1. Place the cabinet stand in the working location.
— If you plan to mount the bandsaw on a mobile
base, put the stand on it now and secure the
mobile base so that it cannot move for the
remainder of the setup.
2. With the help of another person, carefully place the
bandsaw body on the cabinet stand and align the
mounting holes (see Figure.7).
3. Secure the bandsaw body to the cabinet with (4)
5
⁄16"-18 x 1
1
⁄2" hex bolts,
5
⁄16" lock washers,
5
⁄16" flat
washers, and
5
⁄16-18 hex nuts.
The trunnion base supports the table and enables it
to be tilted at any angle from 45° right to 10° left.
4. Position the trunnion base on the bandsaw body as
shown in Figure.8, then secure it in place with (2)
5
⁄16"-18 x 1
1
⁄4" hex bolts and
5
⁄16" lock washers.
Assembl y
The. bandsaw. is. a.
heavy. load.. Get. lifting.
assistance. before. you.
begin.this.step.
Setup.Procedure s
Before connecting your bandsaw to power for the first
time and performing the Test.Run on Page.16, you MUST
successfully complete the following tasks in the given
order per the instructions on the referenced pages:
1. Assemble the bandsaw, as instructed on this page.
2. Connect the bandsaw to an adequate dust collection
system (see Page.13).
3. Adjust the blade tracking, as instructed on Page.14.
Figure.8. Installing the trunnion base.
Trunnion
Base
Figure.7. Bandsaw body mounted on the
cabinet stand.
Mounting Bolts
-12-

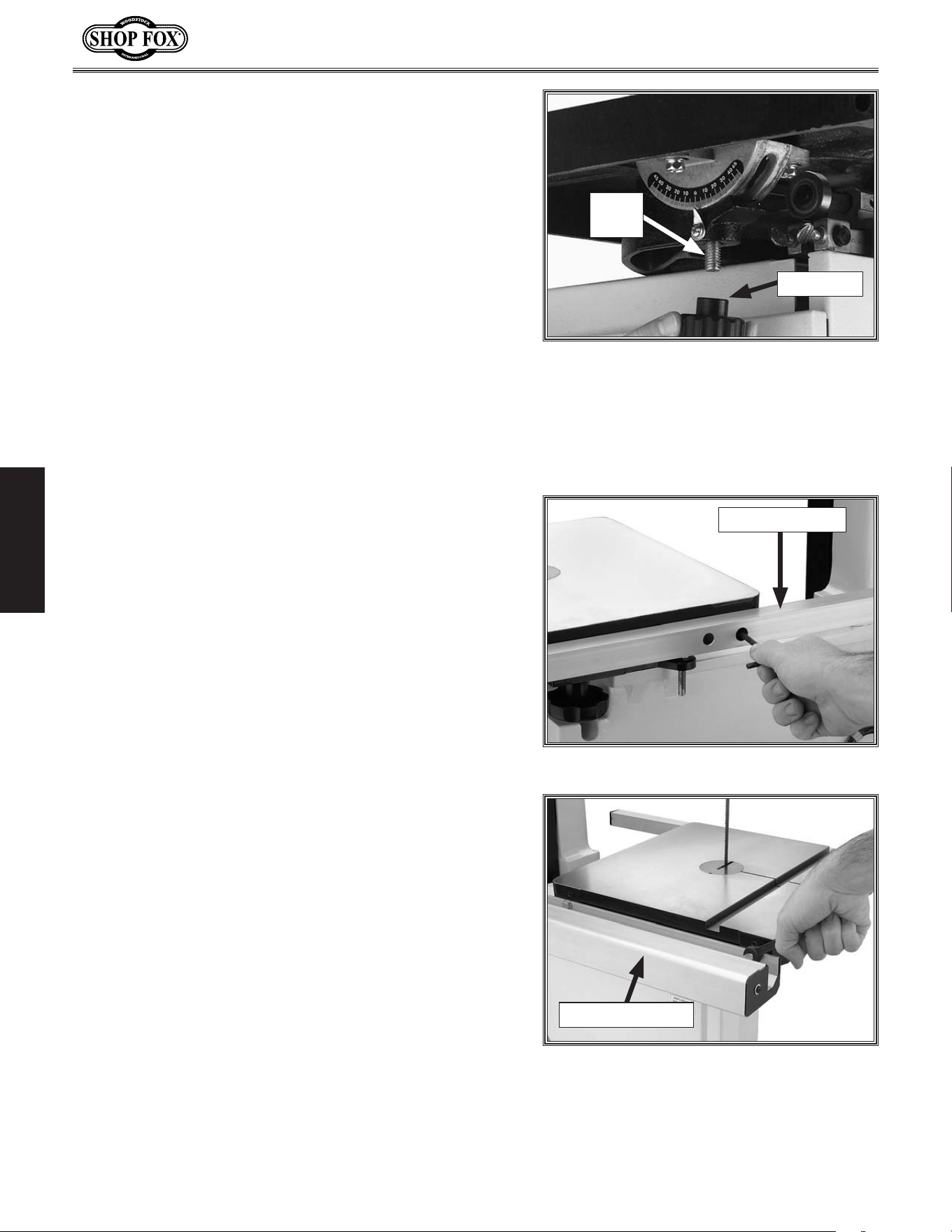

Model W1706 (Mfg. Since 3/13)
SETUP
5. Remove the insert and the table slot locking pin
from the table.
6. Line up the table slot with the blade, position the
table so that the blade is in the center cut-out.
7. Rotate the table so that the table slot faces to
the right, then insert the table bolts through the
mounting holes in the trunnion base, as shown in
Figure.9.
8. Secure the table by fully threading the two trunnion
lock knobs onto the table bolts.
9. Replace the table insert and locking pin.
Important:.Make sure you re-install the table slot
locking pin. This pin keeps the table surfaces on
either side of the slot even with the changes in
operating pressures and temperature changes.
10. Attach the smaller rear fence rail to the rear of the
table with (2) 1/4"-20 x
5
⁄8" cap screws, as shown in
Figure.10.
Figure.9. Installing the table onto the
trunnion base.
Table
Bolt
Lock Knob
Figure.10. Installing rear fence rail.
Rear Fence Rail
Figure.11. Installing front fence rail.
Front Fence Rail
11. Attach the larger front fence rail shown in Figure.
11, with (2)
1
⁄4"-20 x
3
⁄4" hex bolts and
1
⁄4" flat
washers.
-13-
Model W1706 (Mfg. Since 3/13)
SETUP
12. Place the fence assembly onto the front rail and
position it to the left of the table insert, then secure
it in place by pressing down on the lock lever (see
Figure.12).

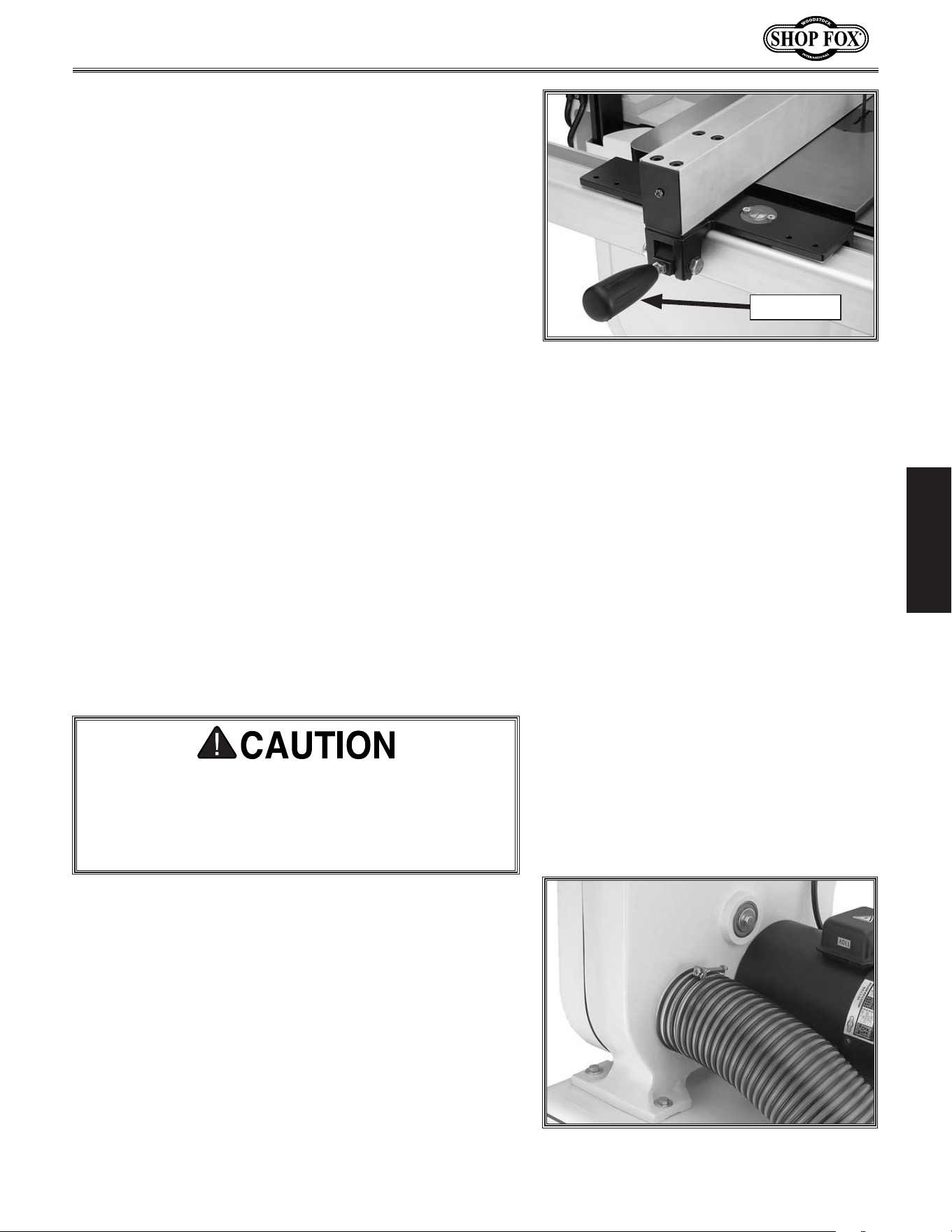

Figure.12. Fence secured in place.
Lock Lever
DO. NOT. operate. this. machine. without. an. adequate.
dust.collection.system..This.machine.creates.substan-
tial.amounts.of.wood.dust.while.operating..Failure.to.
use.a.dust.collection.system.can.result.in.short.and.
long-term.respiratory.illness.
Recommended.CFM.at.Dust.Port:................. 400.CFM
Do not confuse this CFM recommendation with the rating
of the dust collector. To determine the CFM at the
dust port, you must take into account many variables,
including the CFM rating of the dust collector, the length
of hose between the dust collector and the machine, the
amount of branches or Y's, and the amount of other open
lines throughout the system. Explaining this calculation
is beyond the scope of this manual. If you are unsure of
your system, consult an expert or purchase a good dust
collection "how-to" book.
Dust.Collection
To.connect.a.dust.collection.hose,.do.these.steps:
1. Slide a 4" dust hose over the dust port and secure it
in place with a hose clamp, as shown in Figure.13.
2. Tug on the hose to make sure it is secure.
Note:.A tight fit is necessary for proper dust
collection.
Figure.13. Dust collection hose connected
to the dust port.
-14-
Model W1706 (Mfg. Since 3/13)
SETUP
Blade.Tracking
Blade tracking is affected by the tilt of the upper wheel
(known as center tracking) and the alignment of both
wheels (known as coplanar tracking).
The wheels on this bandsaw were aligned at the factory,
so center tracking is the only adjustment that needs to be
performed when the saw is new (refer to Aligning.Whee ls.
on Page.47.for detailed instructions on coplanar tracking).
Note: Changes in the blade tension may change the
blade tracking. For best performance, regularly check and
maintain the proper blade tracking.
To.center.track.the.blade,.do.these.steps:
1. DISCONNECT BANDSAW FROM POWER!
2. Adjust the upper and lower blade guides away from
the blade (refer to.Adjusting.Blade.Guide.Bearings
on Page.24 for detailed instructions).
Note: When adjusting the blade tracking for the
test run in this procedure, the blade must have a
reasonable amount of tension to simulate operating
conditions. After the test run is successfully
completed, you will perform a thorough version of
the following steps to correctly tension the blade.
3. Move the blade tension quick release lever all the
way right (as viewed from the rear of the machine)
to apply tension to the blade (see Figure.14).
4. Use the tension knob on top of the bandsaw to
bring the upper edge of the indicator block to the
appropriate blade tension scale mark for the blade
width (see Figure.14).
Note:.If you are using the blade that was shipped
with the machine, this would be
3
⁄8".
5. Open the upper wheel cover.

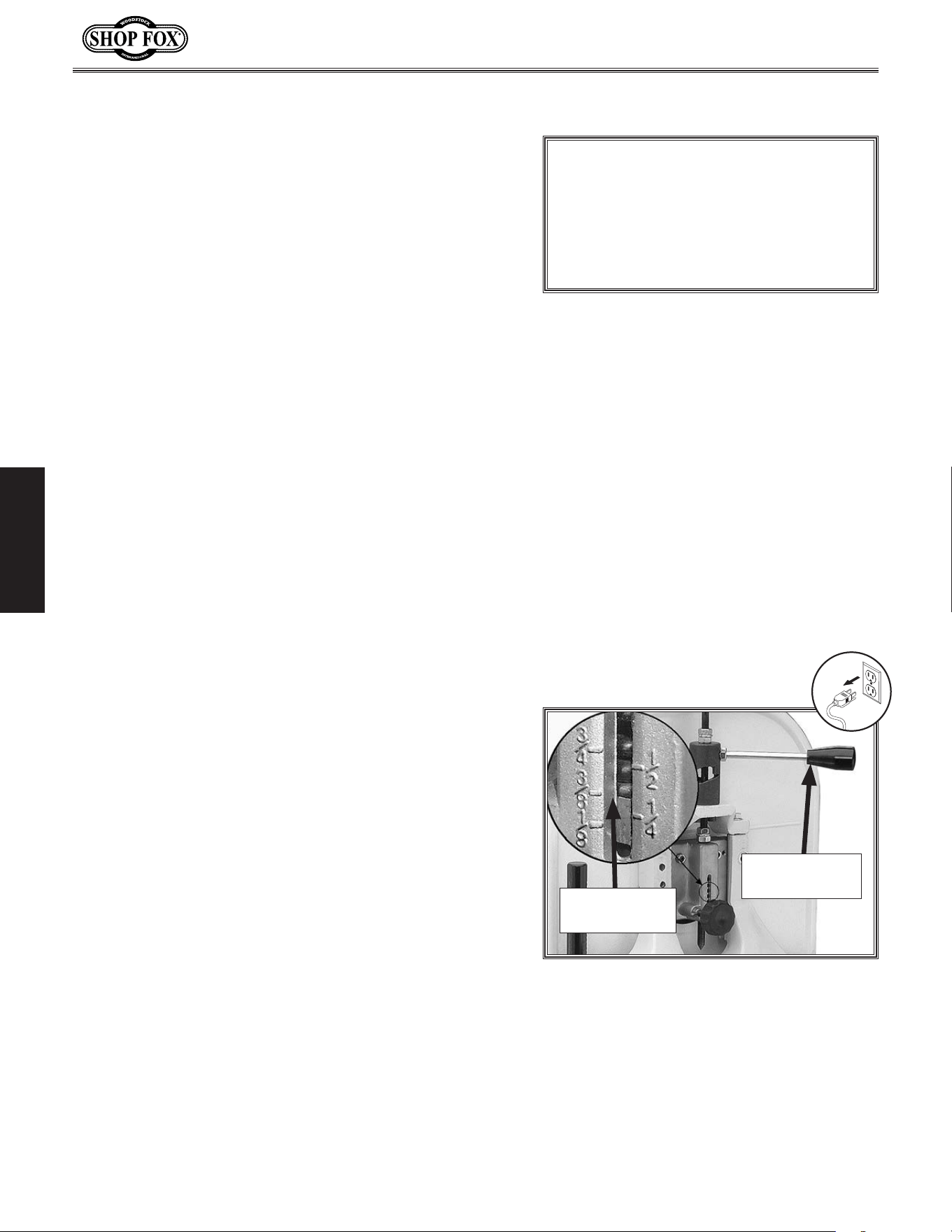

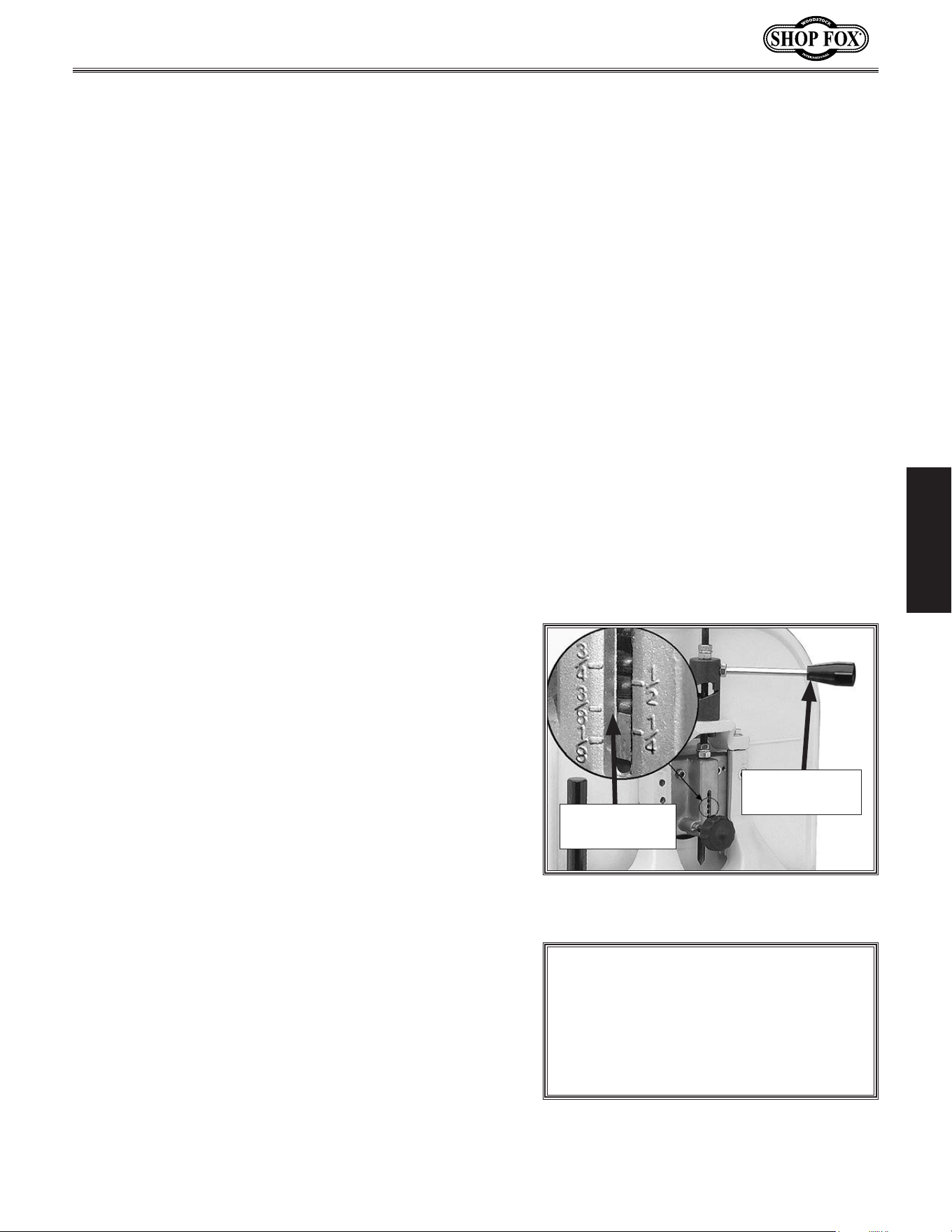

Figure.14. Tension applied for a
3
⁄8" blade.
Quick Release
Lever
Tensioned for
a
3
⁄8" Blade
NOTICE
If,.after.properly.performing.the. blade.
tracking. procedure,. the. blade. is. still.
not.tracking.correctly,.refer.to.Aligning
Wheels on. Page 47. for. additional.
solutions.
-15-
Model W1706 (Mfg. Since 3/13)
SETUP

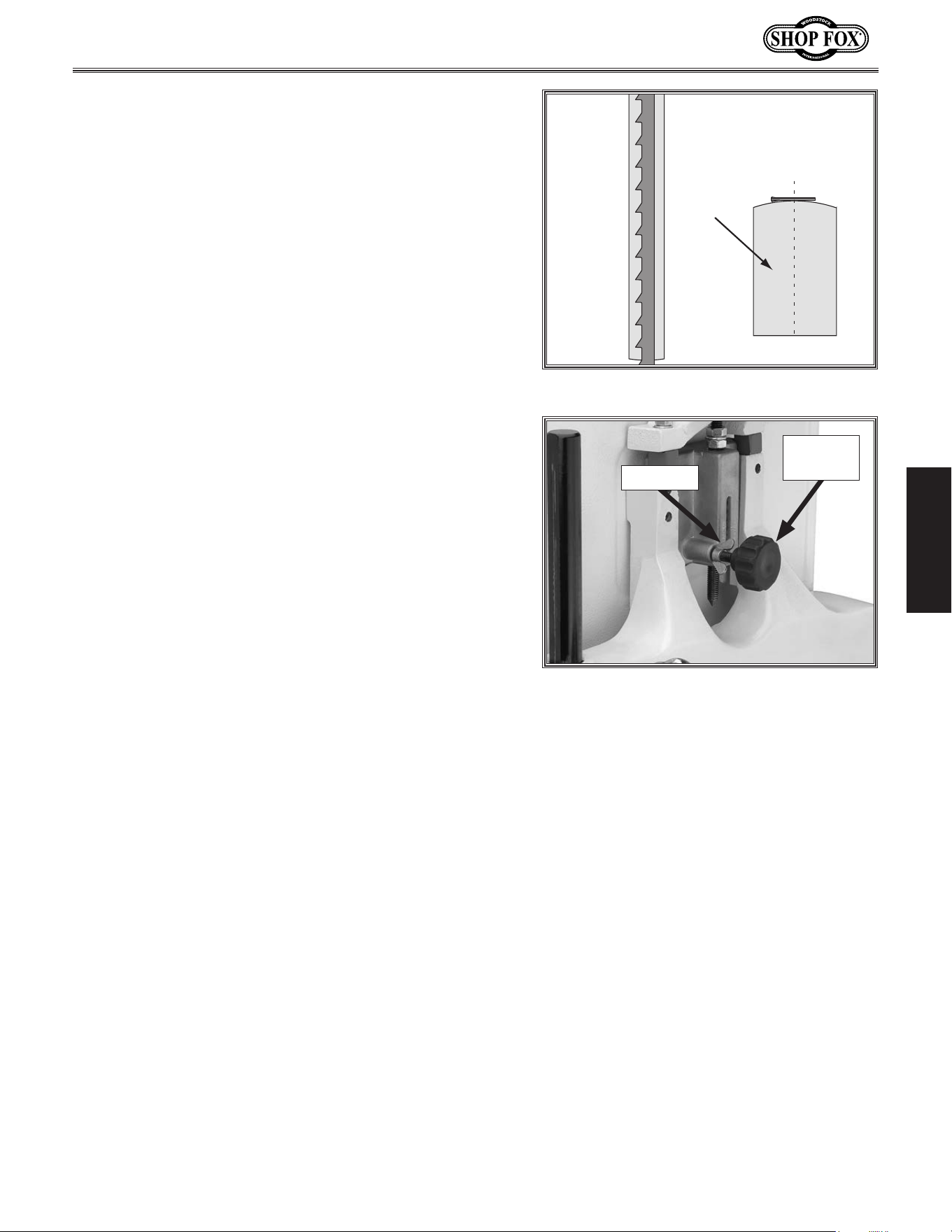

6. Rotate the upper wheel by hand several times (at
least three) and watch how the blade rides on the
wheel crown. See Figure.15 for an illustration of
this concept.
— If the blade rides in the center of the upper wheel
and is centered on the peak of the wheel crown,
then the bandsaw is already properly center-
tracked and no further tracking adjustments are
needed at this time.
— If the blade does NOT ride in the center of the
upper wheel and is not centered on the peak
of the wheel crown, then continue with this
procedure.
7. Loosen the wing nut on the tracking knob (see
Figure.16), then rotate the knob a small amount.
Note: When the tracking knob is rotated, the lower
portion of the upper wheel will tilt out or in, which
affects the way the blade tracks.
8. Spin the upper wheel with one hand and slowly
adjust the tracking knob with the other until the
blade rides in the center of the wheel tire without
wandering.
9. Tighten the wing nut to secure the setting, then spin
the upper wheel again to confirm the tracking. If
necessary, repeat Steps.6–8 until you are satisfied
with the blade tracking.
10. Re-adjust the blade guide bearings toward the blade
(refer to.Adjusting.Blade.Guide.Bearings on Page.
24 for detailed instructions).
11. Close and secure the upper wheel cover before
beginning operation.
Blade Centered
on Peak of Crown
Blade
Centered
on Wheel
CENTER TRACKING
Wheel
Figure.15. Blade center tracking.
Power.Co nnection
Before the machine can be connected to the power
source, an electrical circuit and connection device must
be prepared per the POWER.SUPPLY section on Page.7,
and all previous setup instructions in this manual must be
complete to ensure that the machine has been assembled
and installed properly.
Always make sure the OFF button is pushed in before
connecting power.
Insert the plug attached to the machine
power cord into a matching power supply
receptacle. The machine is now connected
to the power source.
If you need to disconnect the machine from
power later, pull the plug completely out of
the receptacle.
Figure.16. Tracking knob and wing nut.
Wing Nut
Tracking
Knob
-16-
Model W1706 (Mfg. Since 3/13)
SETUP
Once the assembly is complete, test run your machine to
make sure it runs properly.
If, during the test run, you cannot easily locate the source
of an unusual noise or vibration, stop using the machine
immediately, then review the Troubleshooting on Page.
52.
If you still cannot remedy a problem, contact our Tech
Support at (360) 734-3482 for assistance.
To.test.run.the.machine,.do.these.steps:
1. Make sure you understand the safety instructions
at the beginning of the manual, and verify that the
machine is setup properly.
2. Ensure all tools and objects used during set up are
cleared away from the machine.
3. Turn the machine ON.
4. Listen to and watch for abnormal noises or actions.
The machine should run smoothly with little or no
vibration or rubbing noises.
— Strange or unusual noises should be investigated
and corrected before operating the machine
further. Always disconnect the machine from
power when investigating or correcting potential
problems.
5. Turn the machine OFF.
Test. Run
Projectiles. thrown. from. the. machine.
could. cause. serious. eye. injury.. Wear.
safety. glasses. to. reduce. the. risk. of.
injury.
Loose. hair. and. clothing. could. get.
caught.in.machinery.and.cause.serious.
personal. injury.. Keep. loose. clothing.
rolled. up. and. long. hair. tied. up. and.
away.from.machinery.
Additional.Adjustments
After successfully completing the Test.Run, the
adjustment procedures listed below must be performed to
ensure safe and accurate cutting operations (refer to the
following subsections for detailed instructions):
• Properly tension the blade (Page.17).
• Adjust the positive stop bolt (Page.18).
• Align the table with the blade (Page.19).
• Square the miter gauge body to the blade (Page.20).
• Align the fence with the blade (Page.21).
• Adjusting the blade support bearings (Page.22).
• Adjusting the blade guide bearings (Page.24).
-17-
Model W1706 (Mfg. Since 3/13)
SETUP
Tensioning.Blade
A properly tensioned blade is essential for making
accurate cuts, extending the life of the blade, and
making many other bandsaw adjustments. For instance,
every time you replace the blade, you must perform this
procedure because all blades tension differently.
Note: Before you performed the Test Ru n, you set the
blade to its approximate tension. The following procedure
fine-tunes the blade tension to ensure accurate cutting
results.
To.correctly.tension.the.bandsaw.blade,.do.these.steps:
1. DISCONNECT BANDSAW FROM POWER!
2. Move the upper and lower guide/support bearings
as far away from the blade as possible (refer to
Adjusting.Blade.Guide.Bearings on Page.24 for
detailed instructions).
Note: This procedure will NOT work correctly if
the guide/support bearings are in contact with the
blade.
3. Move the blade tension quick release lever all the
way right (as viewed from the rear of the machine)
to apply tension to the blade (see Figure.17).
4. Use the tension knob on top of the bandsaw to
bring the upper edge of the indicator block to the
appropriate blade tension scale mark for the blade
width (see Figure.17).
5. Re-connect the bandsaw to power, then turn it ON
and wait for the blade to reach full speed.
6. Decrease blade tension very slowly by rotating the
tension knob counterclockwise (as viewed from
above) until the blade just starts to flutter or
vibrate, then stop decreasing the tension.
7. Now, increase the tension by rotating the knob in
the opposite direction (clockwise) until the blade
stops fluttering, then rotate the knob another
1
⁄4
turn clockwise.
8. Turn the bandsaw OFF.
9. Re-adjust the blade tracking (refer to Page.14) and
the blade guides (refer to Pages.22 and 24).
Figure.17. Example of tension control
settings
Quick Release
Lever
Tensioned for
a
3
⁄8" Blade
NOTICE
When. not. in. use,. move. the. tension.
quick. release. lever. to. the. left. to.
release. blade. tension,. which. will.
increase.blade.life.and.reduce.machine.
wear.
-18-
Model W1706 (Mfg. Since 3/13)
SETUP
Adjusting.Positive.Stop
After using the table at a tilt of other than 0°, the
positive stop allows the table to be quickly and accurately
returned to the horizontal position in relation to the
blade. This is important for accurate cutting results.
Note:.The height of the positive stop is lowered when the
table is tilted to the left. Properly re-adjust the positive
stop after returning the table to 0° or greater.
Tools.Needed. Qty
Wrench 13mm ...................................................1
Machinist's Square ..............................................1
Phillips Screwdriver.............................................1
To.adjust.the.positive.stop,.do.these.steps:
1. Make sure the blade is properly tensioned as
instructed on the previous page.
2. DISCONNECT BANDSAW FROM POWER!
3. Place the machinist's square flat on the table and
against the side of the blade, as shown in Figure.19.
— If the square sits on the table and against the
blade without any gaps, no adjustments are
necessary.
— If there are gaps between the square, table, and
blade, continue with Step.4.
4. Loosen both trunnion lock knobs (see Figure.18) to
allow the table to tilt.
5. Loosen the hex nut on the positive stop shown in
Figure.20, then adjust the height of the positive
stop until the square is flat against the table and
blade.
6. When you are satisfied with the setting, re-tighten
the hex nut to secure the positive stop in place.
7. Loosen the screw on the tilt scale pointer shown in
Figure.18, then align the pointer with the "0" on the
scale before re-tightening the screw.

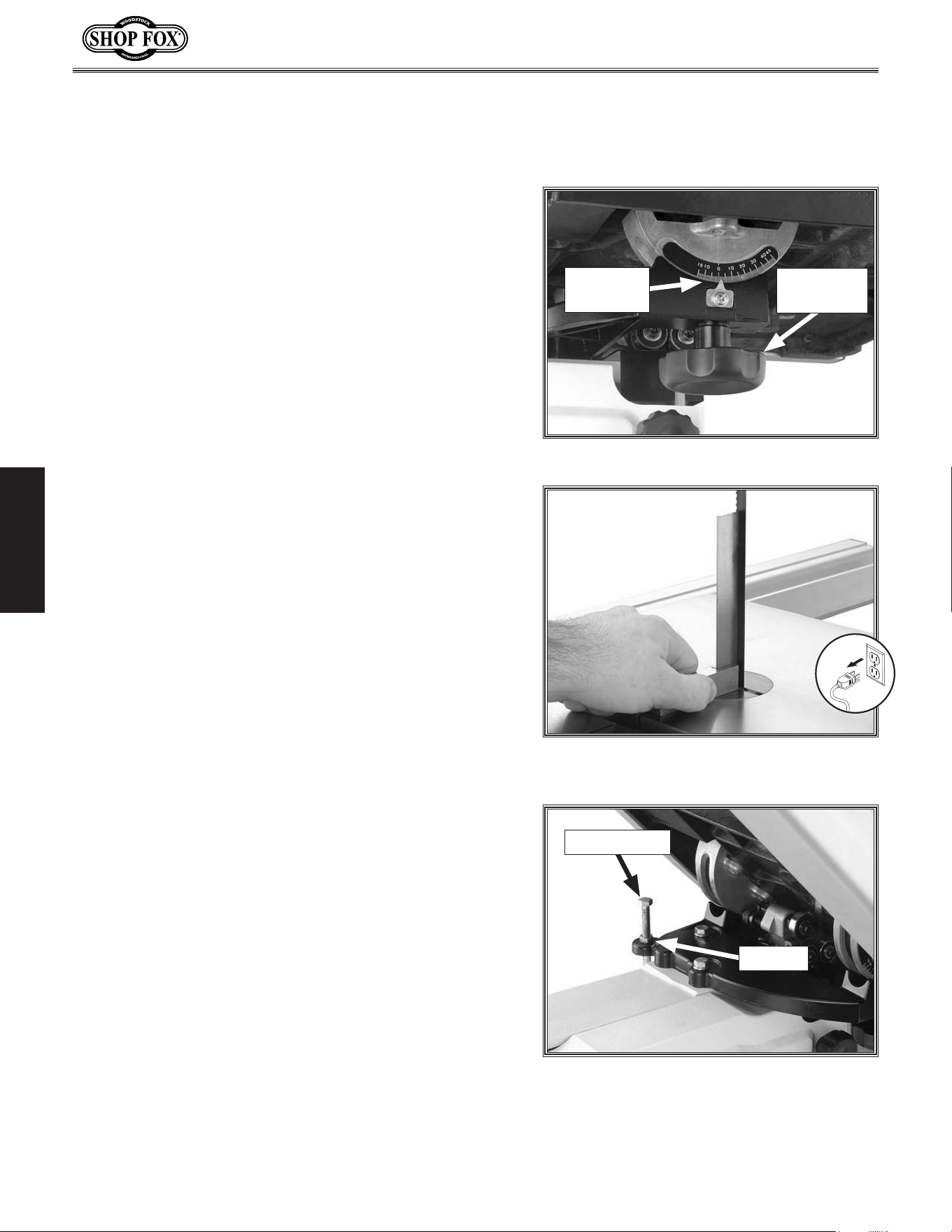

Figure.19. Using a machinist's square to
adjust the table tilt.
Figure.20. Positive stop (table tilted to
the right for photo clarity).
Positive Stop
Hex Nut
Figure.18. Table tilt controls.
Lock Knob
(1 of 2)
Tilt Scale
& Pointer
-19-
Model W1706 (Mfg. Since 3/13)
SETUP

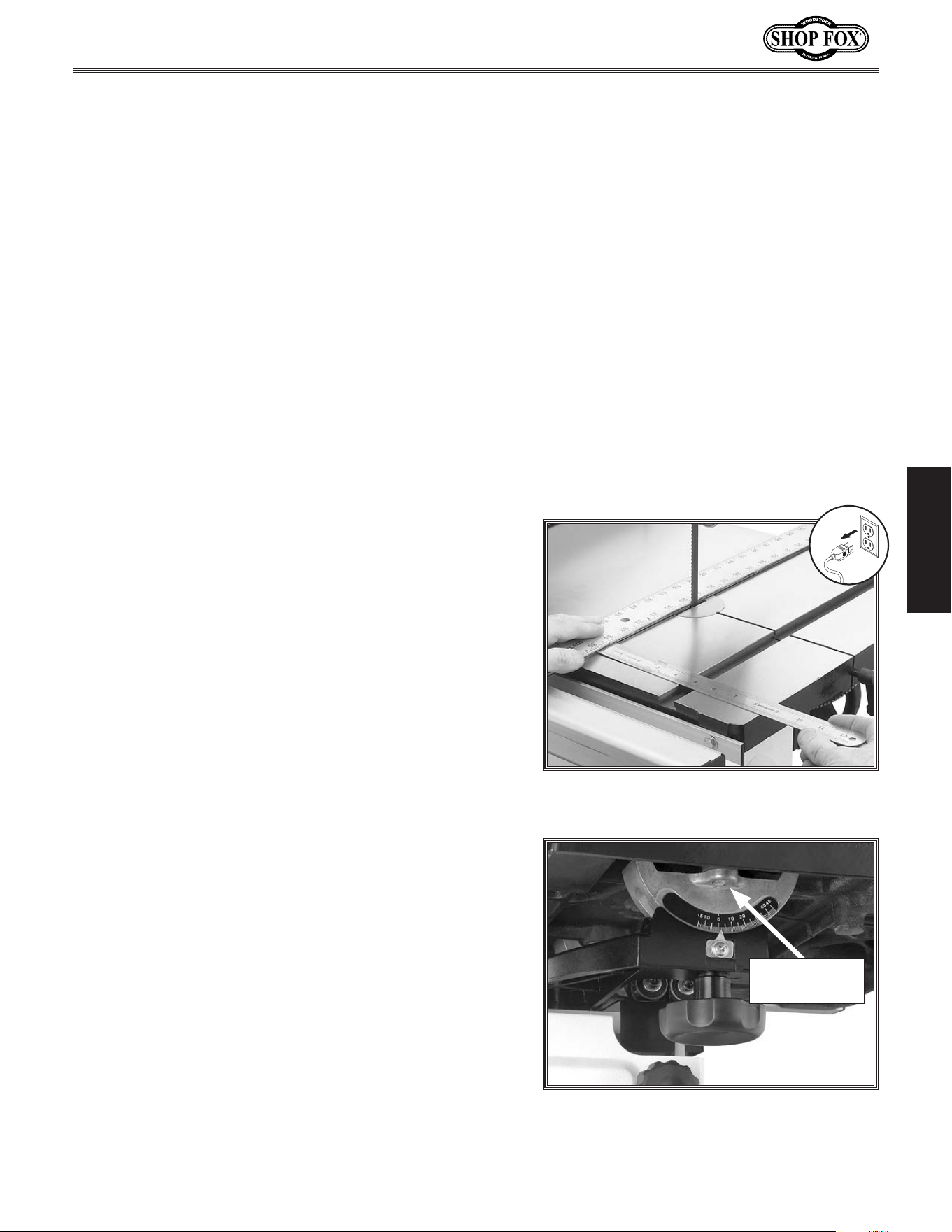

Aligning.Table
To ensure cutting accuracy when the table is first
installed, the table should be aligned so the miter slot is
parallel to the bandsaw blade. This procedure works best
with a
3
⁄4" blade.
Tools.Needed. Qty
Wrench or Socket 10mm .......................................1
Straightedge 24" ................................................1
Fine Ruler 12" ...................................................1
To.align.the.miter.slot.parallel.to.the.bandsaw.blade,.
do.these.steps:
1. Make sure that the blade is correctly tensioned
(refer to Page.17) and is tracking properly (refer to
Page.14).
2. DISCONNECT BANDSAW FROM POWER!
3. Place an accurate straightedge along the blade. The
straightedge should lightly touch both the front and
back of the blade without resting on a tooth (see
Figure.21). Take care not to move the blade in this
step.
4. Use a fine ruler to gauge the distance between the
blade and the miter slot. The distance you measure
should be the same at both the front and back ends
of the miter slot.
— If the measurements at the front and back ends of
the miter slot are the same, no adjustments are
necessary.
— If the measurements are not the same, continue
with Step.5.
5. Loosen the six trunnion bolts that secure the
trunnions to the table (see Figure.22).
6. Adjust the table as needed until the distance
between the blade and miter slot is equal at both
ends, as measured in Step.4.
7. Tighten the trunnion bolts to secure the setting.
Figure.22. Location of trunnion bolt.
Trunnion Bolt
(1 of 6)
Figure.21. Taking measurements for
aligning the table with the blade.
-20-
Model W1706 (Mfg. Since 3/13)
SETUP

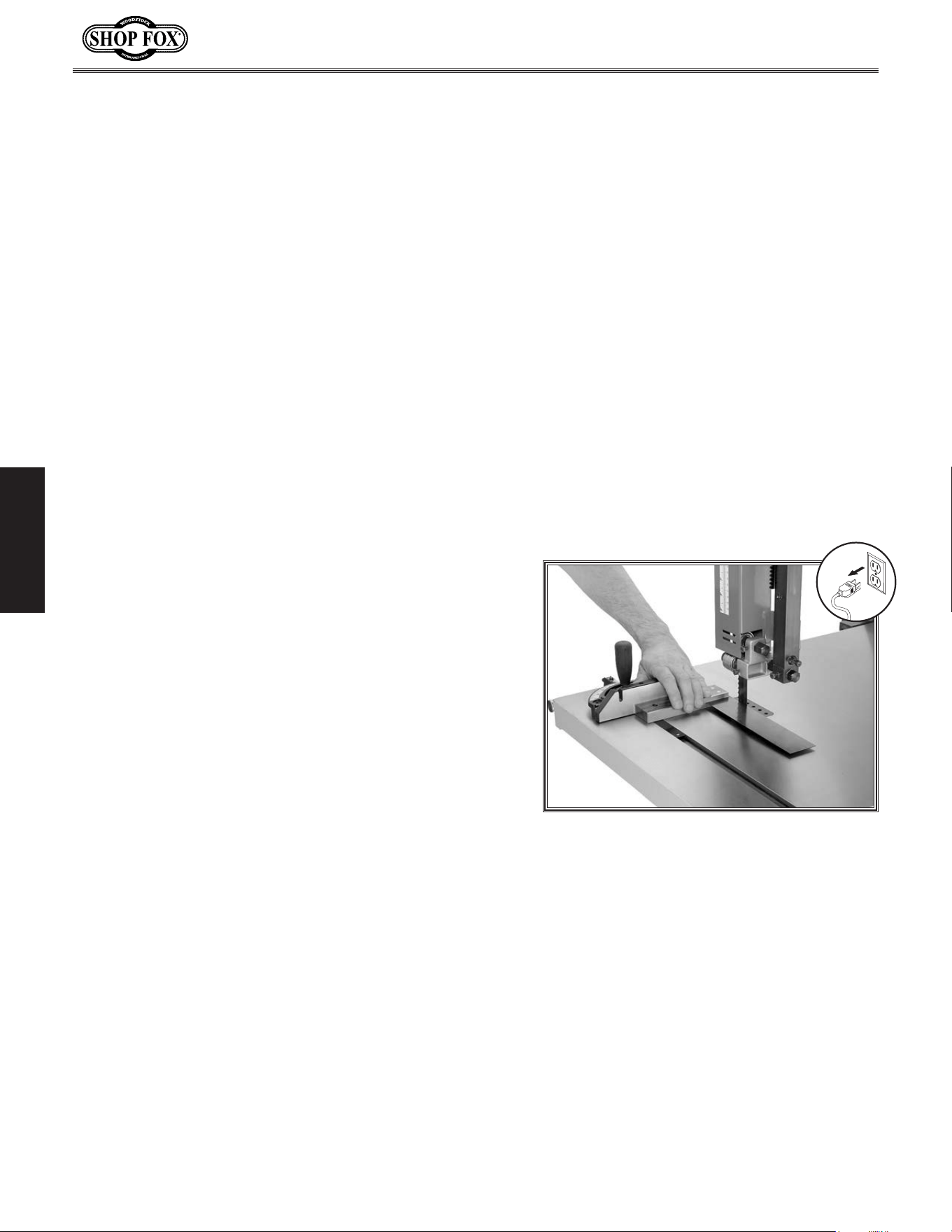

Aligning.Miter.Gauge.
Body
To ensure accurate cutting results when using the miter
gauge, the miter gauge body must be aligned with the
blade.
Tools.Needed. Qty
Machinist's Square ..............................................1
Phillips Screwdriver.............................................1
To. align.the.miter.gauge.body,.do.these.steps:
1.. Install the widest blade possible, then make sure the
blade is properly tensioned (refer to Page.17) and is
tracking correctly (refer to Page.14).
2. DISCONNECT BANDSAW FROM POWER!
3. Make sure the table is properly aligned with the
blade (refer to Page.19).
4. Lay the machinist's square flat on the table and up
against the blade without touching any blade teeth
(see Figure.23 for an example).
5. Without moving the square, bring the miter gauge
body up to the square.
— If there are no gaps between the miter gauge body
and the square, no adjustments are needed.
— If there are gaps between the miter gauge body
and the square, continue with this procedure.
6. Loosen the miter gauge lock knob and rotate the
gauge body until it is flat against the square, then
re-tighten the lock knob.
7. Loosen the screw that secures the miter gauge
pointer, set the pointer to the 0° mark on the scale,
then re-tighten the screw.
Figure.23. Aligning the miter gauge body
with the blade.
-21-
Model W1706 (Mfg. Since 3/13)
SETUP
Adjusting.Fence
The fence must be aligned with the blade to ensure
accurate cutting results. This is best done by aligning
the fence with the miter slot after the table is properly
aligned.
Tools.Needed. Qty
Hex Wrench 5mm ...............................................1
Wrench 10mm ...................................................1
To.align.the.fence.with.the.miter.slot,.do.these.steps:
1. DISCONNECT BANDSAW FROM POWER!
2. Make sure the table is properly aligned with the
blade (refer to Page.19).
3. Mount the fence on the right side of the blade
and even with the miter slot (see Figure.24 for an
example).
— If the fence face is even with the miter slot from
front-to-back, skip to Step.5.
— If the fence face is not even with the miter slot
along its length, continue with Step.4.
4. Loosen the four cap screws shown in Figure.25,
adjust the fence until it is even with the miter slot
from front-to-back, then re-tighten the cap screws
to secure the setting.
Note:.If cuts are tapered after aligning the fence
with the miter slot, refer to Blade Lead on
Page 46.
5. Note the gap between the fence and the table along
the entire length of the blade.
— If the gap is not even, loosen the hex nut on the
rub foot (see Figure.26), adjust the foot in or
out until the gap is even along the length of the
fence. When you are satisfied, re-tighten the hex
nut to secure the setting.

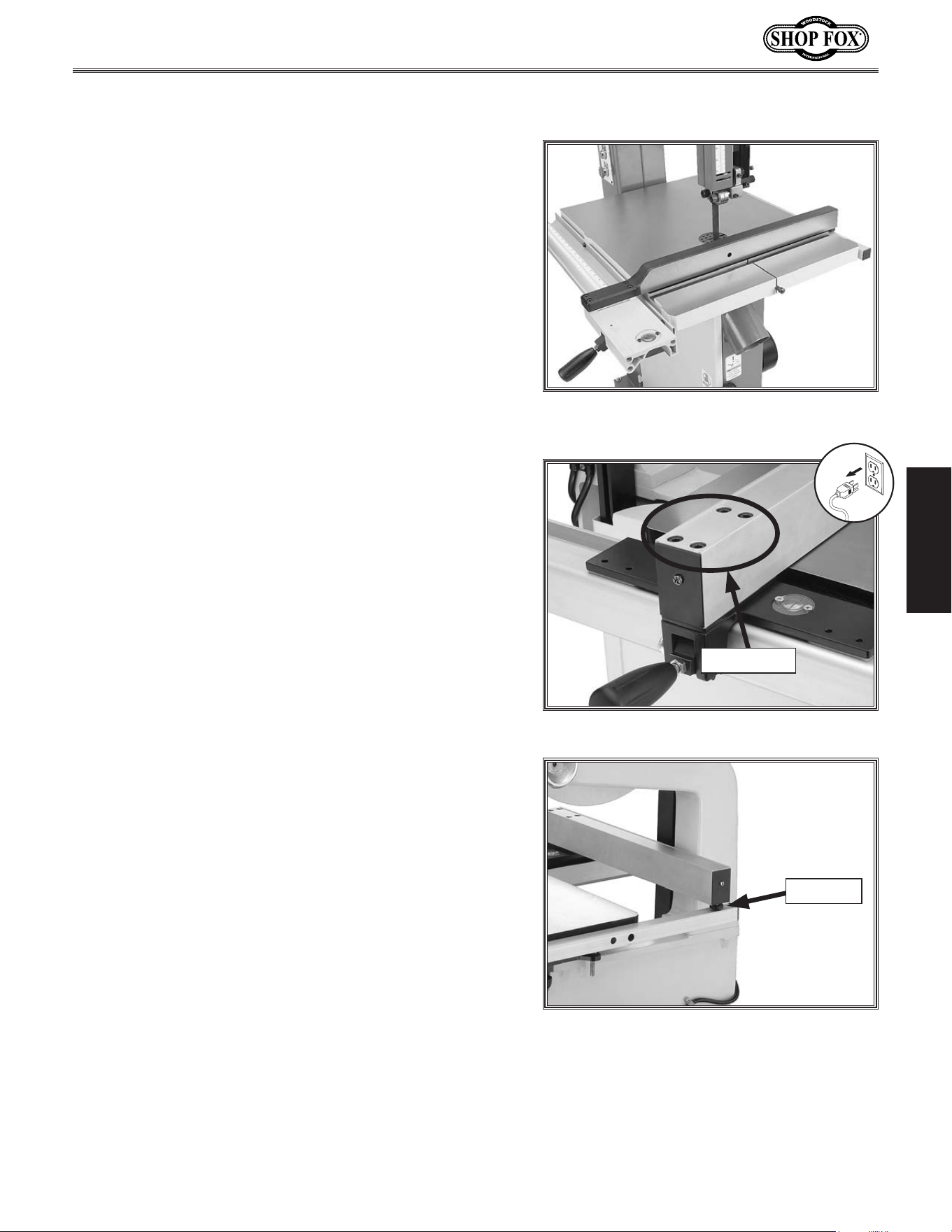

Figure.24. Example of aligning the fence
with the table miter slot.
Figure.25. Fence alignment cap screws.
Cap Screws
Figure.26. Fence rub foot.
Rub Foot
-22-
Model W1706 (Mfg. Since 3/13)
SETUP
Adjusting.Blade.Support.
Bearings
The support bearings are positioned behind the blade and
support the back of the blade during cutting operations.
Proper adjustment of the support bearings is an important
part of making accurate cuts and also keeps the blade
teeth from coming in contact with the guide bearings
while cutting. There are support bearings on the upper
lower blade guide assemblies—both sets adjust in the
same manner.
To.adjust.the.support.bearings,.do.these.steps:
1. Make sure that the blade is correctly tensioned
(refer to Page.17) and is tracking properly (refer to
Page.14).
2. DISCONNECT BANDSAW FROM POWER!
3. Familiarize yourself with the blade support bearing
controls shown in Figure.27.
4. Loosen the assembly lock bolt.
5. Look at the face of the support bearing and rotate
the blade guide assembly side-to-side, until the
blade is perpendicular with the face of the support
bearing, as illustrated in Figure.28.
6. Re-tighten the assembly lock bolt to secure the
setting.
Figure.27. Blade support bearing controls.
Assembly
Lock Bolt
Thumbscrew
Knurled
Knob
Support
Bearing
90°
Blade
Support
Bearing
Figure.28. Support bearing perpendicular
to the blade.
NOTICE
Whenever.changing.a.blade.or.adjusting.
the.tension .or.tracking,.the. upper.and.
lower.blade.support.bearings.and.guide.
bearings. must. be. properly. adjusted.
before.cutting.operations..
-23-
Model W1706 (Mfg. Since 3/13)
SETUP
7. Loosen the thumbscrew on the support bearing
adjustment shaft (see Figure.27).
8. Use the knurled knob to position the support
bearing approximately 0.016" away from the back of
the blade, as illustrated in Figure.29.
. Tip:.For a quick gauge, fold a crisp dollar bill
in half twice (four thicknesses of a dollar bill
is approximately 0.016") and place it between
the support bearing and the blade, as shown in
Figure 30.
9. Re-tighten the thumbscrew to keep the support
bearing locked in place.
0.016"

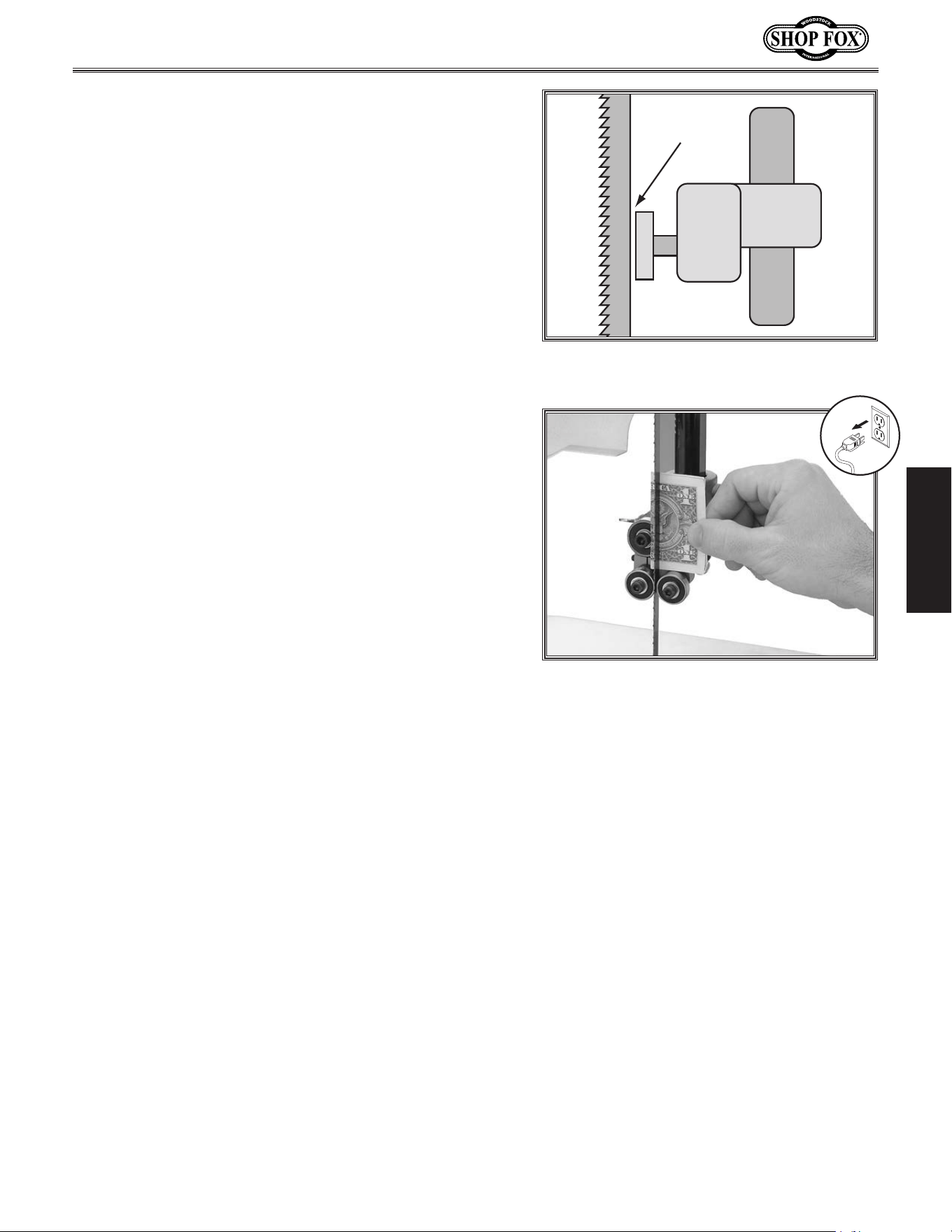

Figure.29. Support bearing positioned
0.016" away from the back of the blade.
Figure.30. Dollar bill folded twice in half
for a quick 0.016" gauge.
-24-
Model W1706 (Mfg. Since 3/13)
SETUP

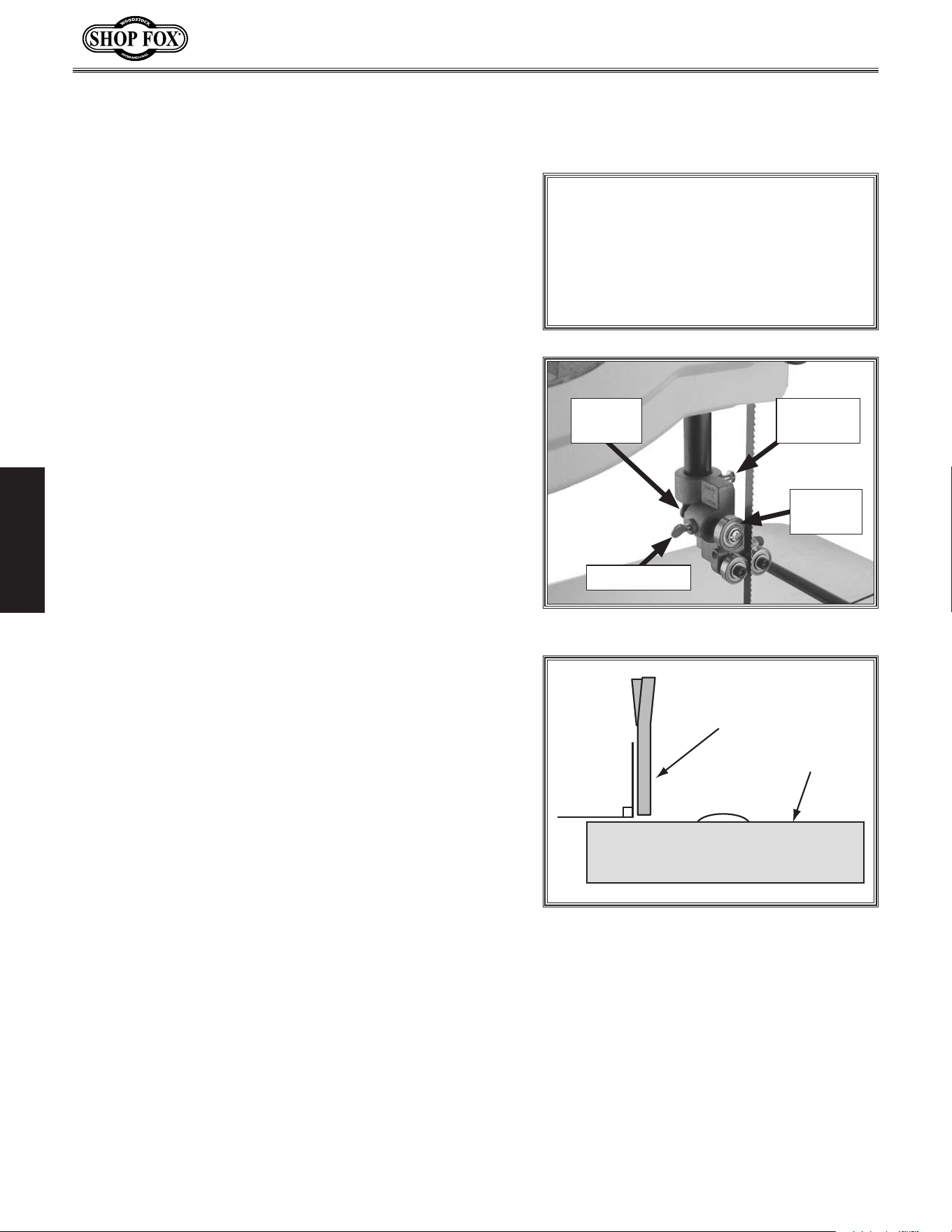

Adjusting.Blade.Guide.
Bearings
The blade guides provide side-to-side support to keep
the blade straight while cutting. The blade guides are
designed to be adjusted in two ways—forward/backward
and side-to-side. Properly adjusted blade guides are
essential to making accurate cuts.
Tools.Needed. Qty
Hex Wrench 4mm ...............................................1
To.adjust.the.blade.guide.bearings,. do.these.steps:
1. Make sure that the blade is correctly tensioned
(refer to Page.17) and is tracking properly (refer to
Page.14).
2. DISCONNECT BANDSAW FROM POWER!
3. Familiarize yourself with the blade guide bearing
controls shown in Figure.31.
4. Loosen the thumbscrew.
5. Rotate the knurled knob behind the blade guide
bearings to position them so that the edges of the
bearings are as forward as possible without going
past the gullets (see the illustration in Figure.32).
Note:.The goal in this step is to position the guide
bearing so that when the blade is deflected back
against the support bearing it will not come in
contact the blade teeth.
6. When you are satisfied with the guide bearing
positions, re-tighten the thumbscrew.

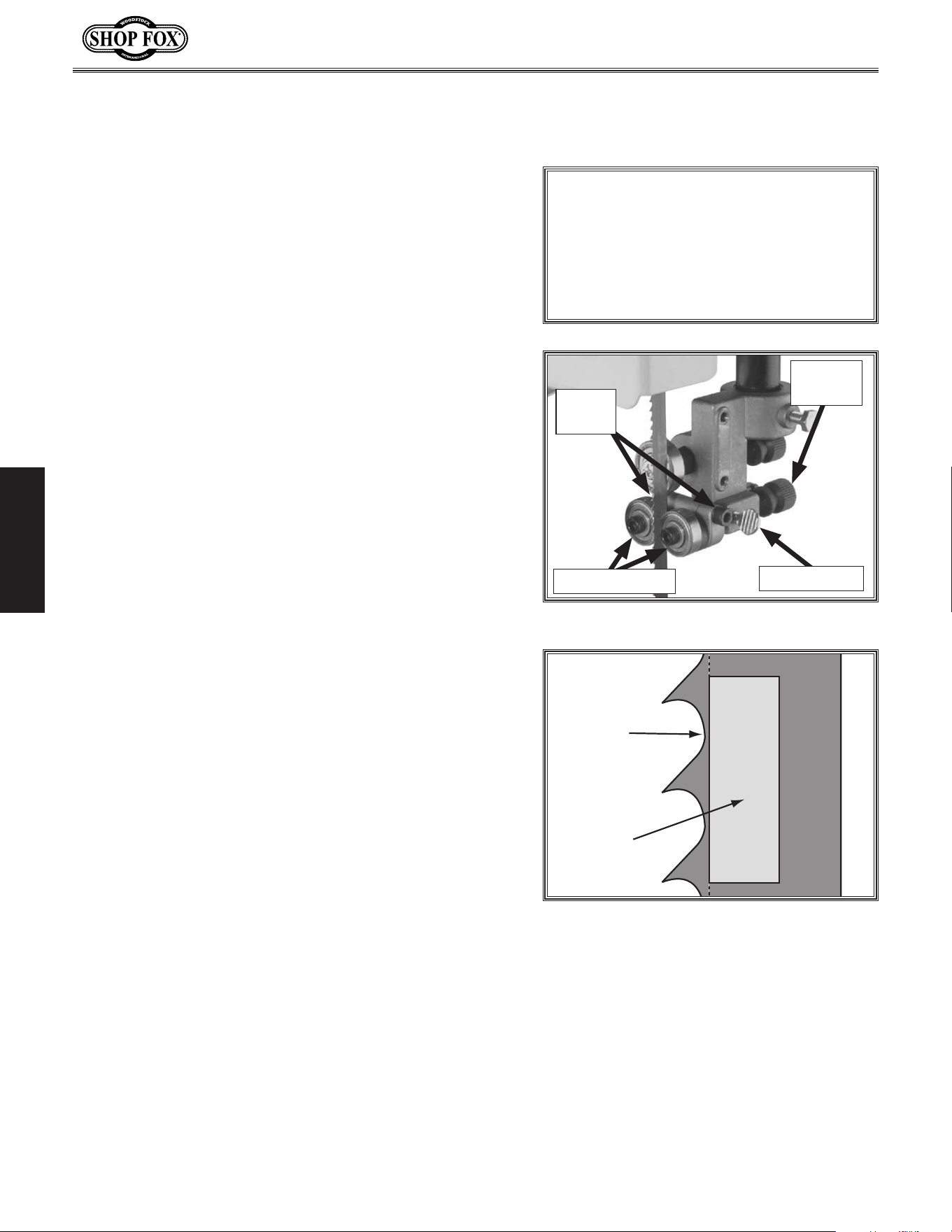

Figure.31. Blade guide bearing controls.
Guide Bearings
Thumbscrew
Knurled
Knob
Cap
Screws
Blade
Gullet
Guide
Bearing
Figure.32. Guide bearing positioned
behind the blade gullets.
NOTICE
Whenever.changing.a.blade.or.adjusting.
the.tension .or.tracking,.the. upper.and.
lower.blade.support.bearings.and.guide.
bearings. must. be. properly. adjusted.
before.cutting.operations..
-25-
Model W1706 (Mfg. Since 3/13)
SETUP
7. Loosen the cap screws behind the guide bearings
(see Figure.31), then open the upper wheel cover.
8. Rotate the upper wheel with one hand, and use the
hex wrench to rotate the eccentric guide bearings
until they just begin to rotate with the blade (see
Figure.33). The guides should just lightly touch the
blade.
9. When you are satisfied with blade guide bearing
positions, re-tighten the cap screws behind them to
secure the settings.

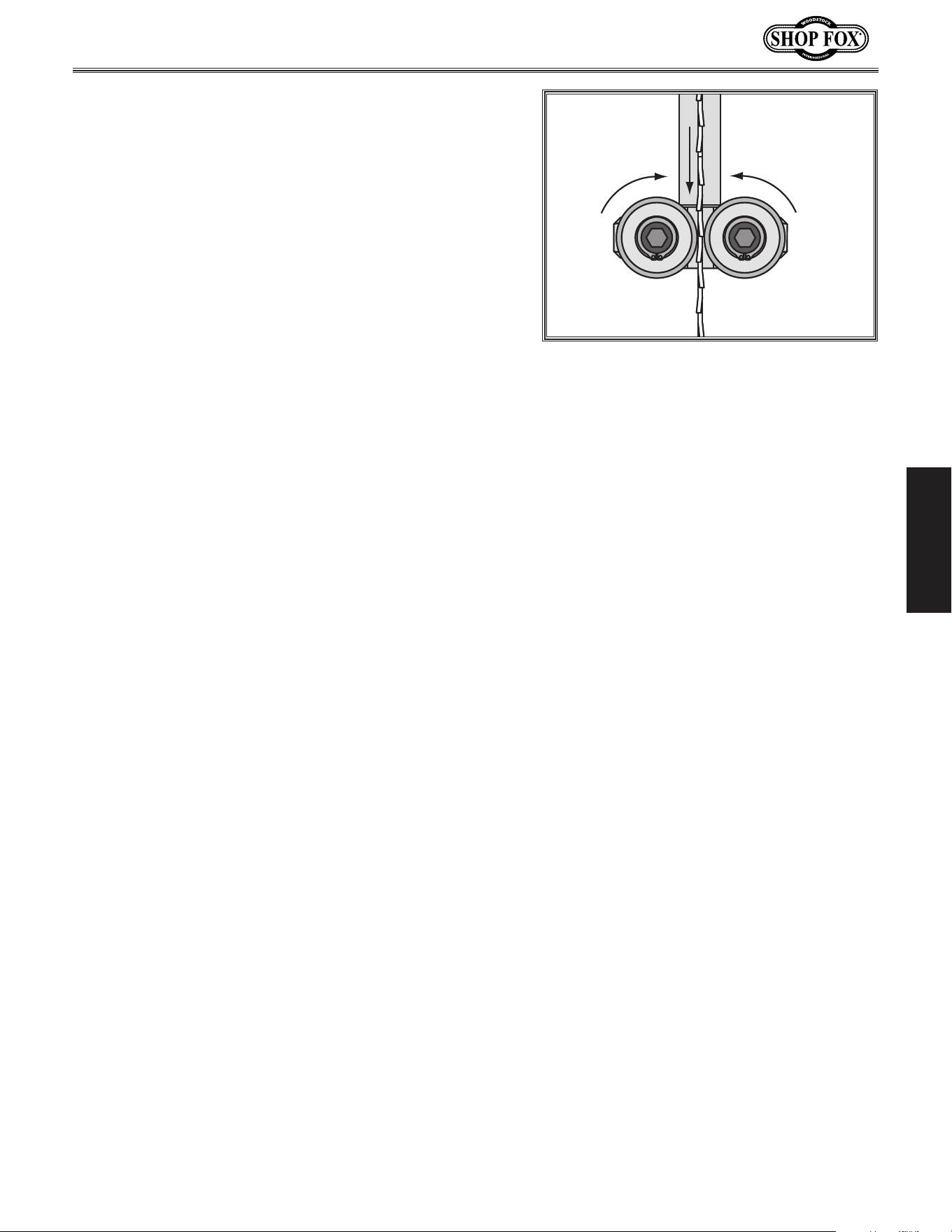

Figure.33. Rotating the blade guide
bearings toward the blade.
-26-
Model W1706 (Mfg. Since 3/13)
OPERATIONS
OPERATIONS
General
This machine will perform many types of operations
that are beyond the scope of this manual. Many of these
operations can be dangerous or deadly if performed
incorrectly.
The instructions in this section are written with the
understanding that the operator has the necessary
knowledge and skills to operate this machine. If.at.any.
time.you.are.experiencing.difficultie s.performing.any.
operation,.stop.using.the.machine!
If you are an inexperienced operator, we strongly
recommend that you read books or trade articles, or seek
training from an experienced Bandsaw operator before
performing any unfamiliar operations. Above.all,. your.
safety.should.come.first!
DO.NOT.investigate.problems.or.adjust.
the.machine.while. it. is.running..Wait.
until. the. machine. is. turned. OFF,.
unplugged. and. all. working. parts.
have.come.to.a.complete.stop.before.
proceeding!
READ.and.understand.this.entire.instruc-
tion. manual. before. using.this. machine..
Serious. personal. injury. may. occur. if.
safety.and.operational.information.is.not.
understood. and. followed.. DO. NOT. risk.
your.safety.by.not.reading!
Damage.to.your.eyes.and.lungs.could.
re sult.from.using.this.machine.without.
proper.protective.gear..Always.wear.
safety.glasses.and.a.respirator.when.
operating.this.machine.
-27-
Model W1706 (Mfg. Since 3/13)
OPERATIONS
Ope ration.Overview
The purpose of this overview is to provide the novice
machine operator with a basic understanding of how
the machine is used during operation, so the machine
controls/components discussed later in this manual are
easier to understand.
Due to the generic nature of this overview, it is not
intended to be an instructional guide. To learn more
about specific operations, read this entire manual and
seek additional training from experienced machine
operators, and do additional research outside of this
manual by reading "how-to" books, trade magazines, or
web sites.
To.complete.a.typical.o peration,.the.operator.does.the.
following:
1. Examines the workpiece to make sure it is suitable
for cutting.
2. Adjusts the fence for the width of the cut and then
locks it in place.
3. Adjusts the table tilt, if necessary, to the correct
angle of the desired cut.
4. Loosens the guide post lock knob, adjusts the blade
guide height to between
1
⁄4" and 1" from the top
of the workpiece using the guide post elevation
handwheel, then tightens the guide post lock knob.
5. Checks to make sure the workpiece can safely pass
all the way through the blade without interference
from other objects.
6. Puts on safety glasses and a respirator.
7. Starts the dust collector and bandsaw, and waits for
the blade to come to full speed.
8. Holds the workpiece firmly and flatly against both
the table and fence, and then pushes the workpiece
into the blade at a steady and controlled rate until
the workpiece moves completely beyond the blade.
The operator is very careful to keep fingers away
from the blade and uses a push stick to feed narrow
workpieces.
9. Stops the bandsaw.

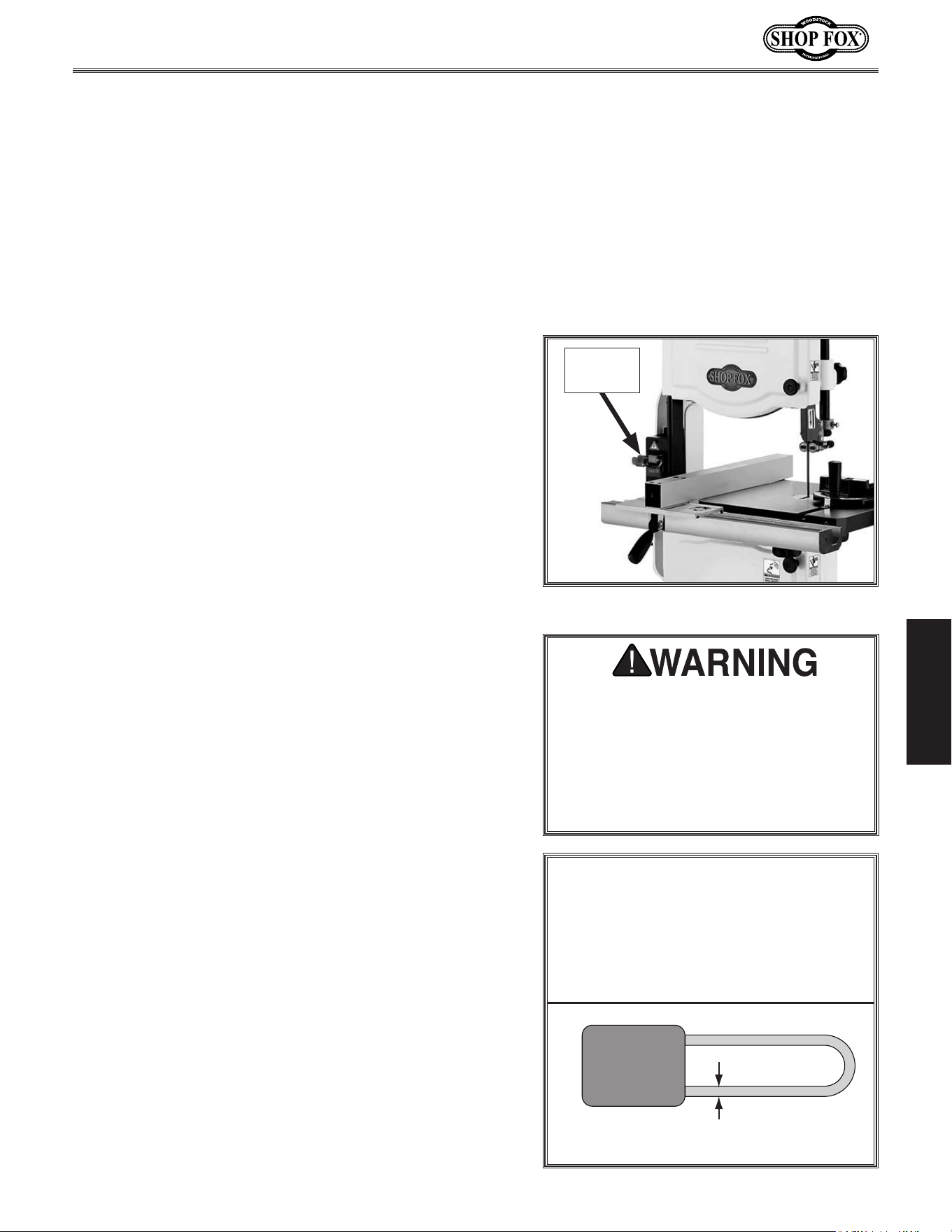

Disabling.&.Locking.
Switch
The ON/OFF switch can be disabled and
locked with the provided padlock (see
Figure.34). While the padlock is inserted
through the ON button, the motor
cannot be started, which reduces the
risk of accidental startup by children of
unauthorized users.
Children. or. untrained. people. can.
be. killed. or. seriously. injured. by. this.
machine..If.the.machine.is.accessible.to.
children.or.other.people,.always.disable.
and.lock.the. switch.before. leaving. the.
machine.unattended..Place.the.key.in.a.
well-hidden.or.secure.location.
NOTICE
The. switch. can. only. be. disabled. if.
the. installed. padlock. shaft. meets. the.
minimum. diameter. shown. below;.
otherwise,.the.shaft.may.be.too.small.
to. properly.disable.the.switch.
Minimum Shaft Diameter = 0.192" – 0.2"
(4.8 – 5mm)
Figure.34. Padlock installed in the switch.
Padlock
Installed
-28-
Model W1706 (Mfg. Since 3/13)
OPERATIONS
Basic.Controls
Refer to Figures.35–37 and the descriptions below to
better understand the basic controls and components of
this bandsaw.
A.. ON/OFF.Buttons:.Turns the motor ON and OFF.
B.. Upper.Wheel.Cover.Knob:.Enables access to the
upper wheel compartment.
C.. Fence.and.Miter.Gauge:.Allows for controlled
cutting at various angles.
D.. Upper.Blade.Guide.Assembly:.Supports the sides
and back of the blade when cutting. The lower guide
assembly underneath the table is similar.
E.. Fence.Lock.Lever:.Locks the fence to the front rail.
F.. Fence.Pointer.&.Scale:.Displays the fence position
relative to the blade.
G.. Blade.Tension.Scale: Indicates the approximate
tension for each blade width. Rotate the blade
tension knob on top of the bandsaw to adjust the
indicator block inside the aluminum housing of the
scale and align it with the appropriate mark on the
scale for the blade width.
H.. Blade.Tension.Quick.Release.Lever:.Quickly
releases or engages full blade tension.
I.. Blade.Tracking.Knob:.Adjusts the tilt of the upper
wheel for proper blade tracking.
J.. Guide.Post.Handwheel:.Adjusts the height of the
guide post and blade guide assembly above the
workpiece.
K.. Positive.Stop:.Allows the table to be quickly
returned to 0° after tilting to the right.
L.. Trunnion.Lock.Knob.(1.of.2):.Secure the table tilt
position.
M.. Table.Slot.Locking.Pin:.Keeps the table on each side
of the slot even.
N.. Guide.Post.Lock.Knob:.Secures the guide post in
position.
O.. Blade.Tension.Knob:.Adjusts the blade tension.
Figure.36. Rear controls.
H
G
I
N
J
K
L
M
Figure.37. Blade tension knob.
O
Figure.35. Front Controls
E
A
D
B
C
F
-29-
Model W1706 (Mfg. Since 3/13)
OPERATIONS
Cutting .Overview
The Model W1706 is capable of performing the following
cuts:
• Miters • Compound Angles
• Angles • Simple/Complex Curves
• Resawing • Duplicate Parts
• Ripping • Circles
• Crosscutting • Beveled Curves
Workpiece.Inspection
Some wood workpieces are not safe to cut or may require
modification before they are safe to cut.
Before.cutting .wood,.get.in.the.habit.of.inspecting.all.
workpieces.for.the. following:
• Material.Type: This machine is intended for
cutting natural and man-made wood products, and
laminate-covered wood products. Cutting drywall or
cementitious backer board creates extremely fine
dust, which may reduce the life of the bearings. This
machine is NOT designed to cut metal, glass, stone,
tile, etc.
• Foreign.Objects.(Figure.38): Nails, staples, dirt,
rocks and other foreign objects are often embedded
in wood. While cutting, these objects can become
dislodged and hit the operator or break the blade,
which might then fly apart. Always visually inspect
your workpiece for these items. If they can't be
removed, DO NOT cut the workpiece.
• Large/Loose.Knots: Loose knots can become
dislodged during the cutting operation. Large knots
can cause blade damage. Choose workpieces that do
not have large/loose knots or plan ahead to avoid
cutting through them.

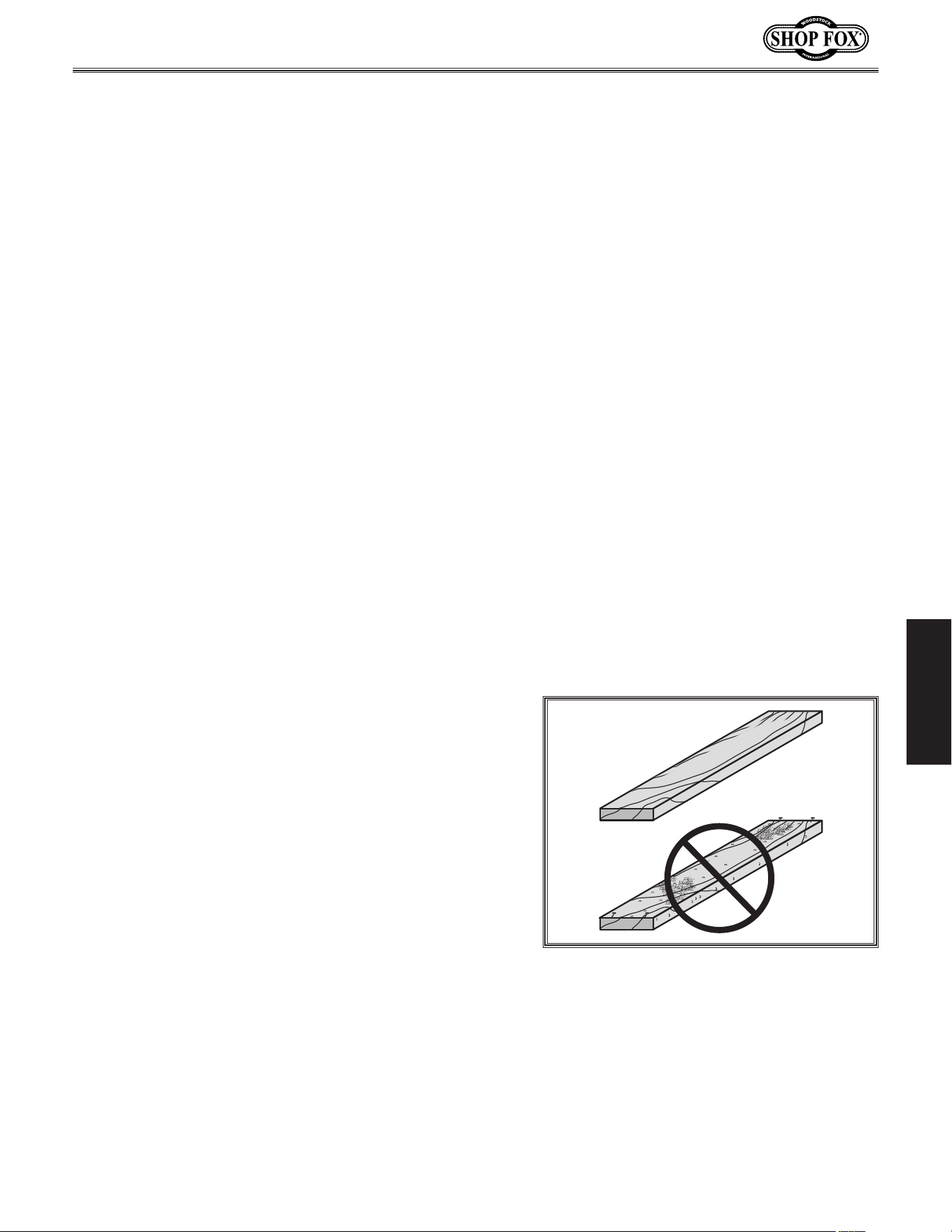

Figure.38. Selecting the board without
embedded foreign materials.
-30-
Model W1706 (Mfg. Since 3/13)
OPERATIONS
• Wet.or."Green".Stock: Cutting wood with a moisture
content over 20% causes unnecessary wear on the
blade and yields poor results.
• Excessive.Warping: Workpieces with excessive
cupping, bowing, or twisting are dangerous to
cut because they are unstable and can move
unpredictably when being cut. DO NOT cut
excessively warped wood.
• Minor.Warping: Workpieces with slight cupping
can be safely supported if the cupped side faces
the table or fence, as shown in Figure.39. On the
contrary, a workpiece supported on the bowed side
will rock during a cut, leading to loss of control.
Here.are.some.basic.tips.to.follow.when.operating.the.
bandsaw:
• Keep the upper blade guide assembly adjusted to
within 1" of the workpiece.
• Use the correct blade for the operation.
• Replace, sharpen, and clean blades as necessary.
Make adjustments periodically to keep the saw
running in top condition.
• Use light and even pressure while cutting. Light
contact with the blade makes it easier to follow
lines and prevents extra friction, which reduces
blade life.
• Avoid twisting the blade when cutting around tight
corners. Allow the blade to saw around the corners.
• Do not back the workpiece away from the blade
while the saw is running.
Basic.Cutting.Tip s
Because.of.th e.unpredictable.nature.
of.cutting.warped.stock,.use.extreme.
caution..The.difference.between.
acceptable.and.unacceptable.warped.
stock.varies.from.machine.to.machine..
If.you.are.in.doubt,.square-up.the.
stock.first.or.do.not.cut.it.
Cut with
this side down
Cut with
this side down

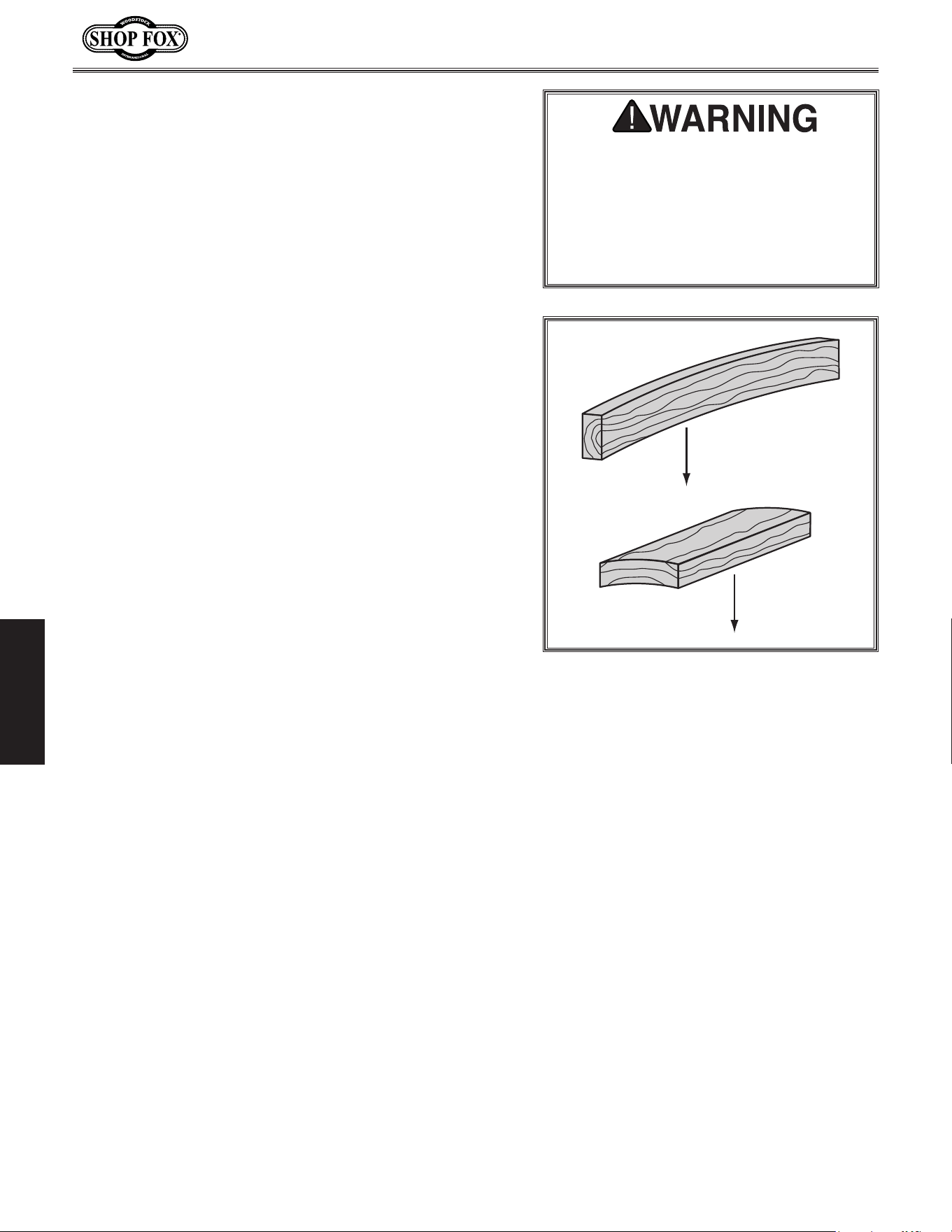

Figure.39. Cutting workpieces with minor
warping.
-31-
Model W1706 (Mfg. Since 3/13)
OPERATIONS

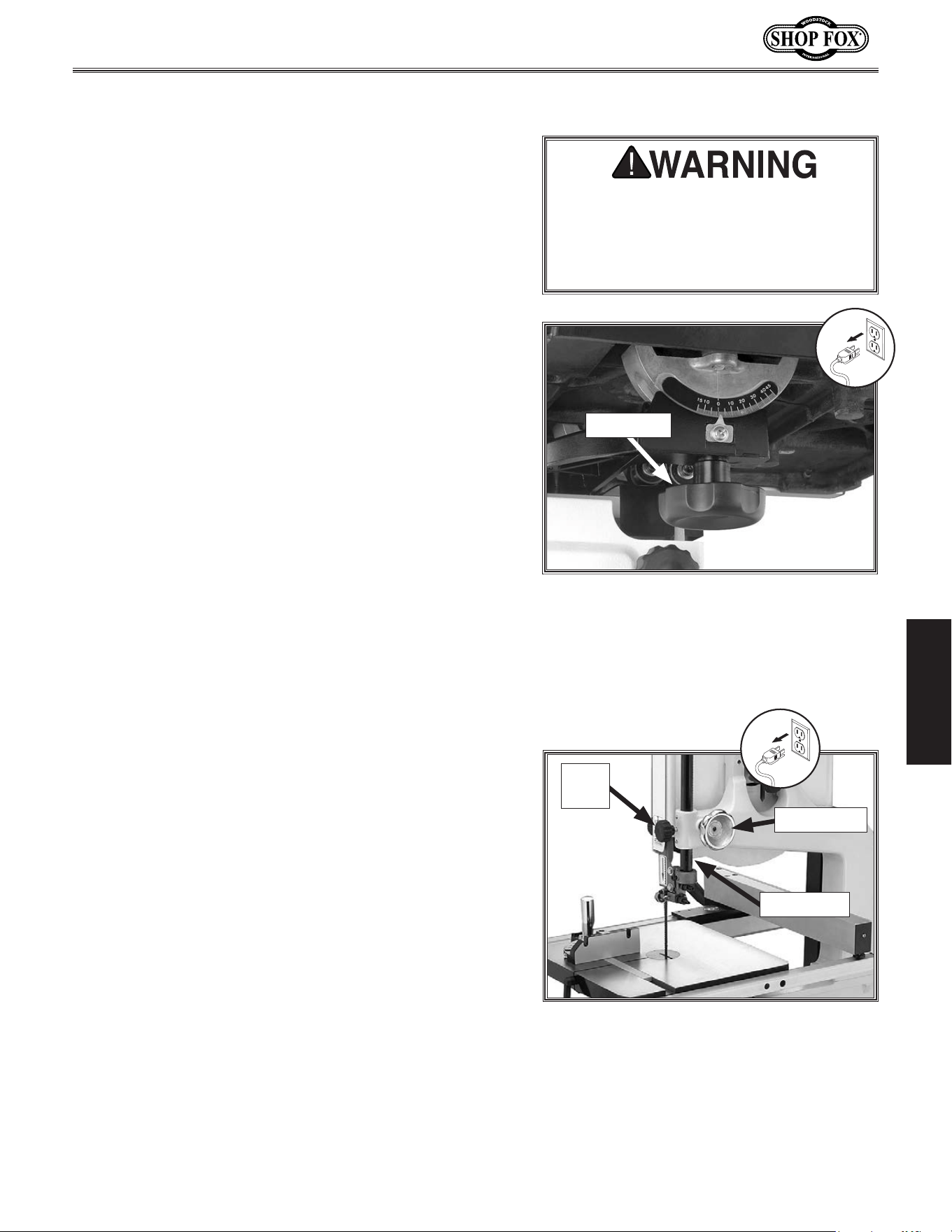

Table. Tilt
The table tilts 45° to the right and 10° to the left for a
wide range of cutting options.
To.tilt.the.table,.do.these.steps:
1. DISCONNECT BANDSAW FROM POWER!
2. Loosen the two trunnion lock knobs underneath the
table (see Figure.40), then use the tilt scale on
the front of the trunnion to bring the table to the
desired angle.
Note:.When tilting the table to the left, the
positive stop must be lowered or removed.
Remember to properly re-adjust it after returning
the table from a left-hand tilt (refer to Page 18).
3. Tighten both trunnion lock knobs to secure the table
in place.
If. the. bandsaw. should. unexpectedly.
start.when.making.adjustments,.severe.
personal. injury. could. result.. ALWAYS.
disconnect. the. bandsaw. from. power.
before.making.any.adjustments.
Figure.40. Location of trunnion lock knob
(1 of 2).
Lock Knob
Adjusting.Guide.Post
The guide post (see Figure.41) moves the blade guide
assembly up or down. To cut accurately and safely, the
bottom of the blade guide assembly must be no more
than 1" above the workpiece during cutting operations—
this positioning provides the greatest blade support and
minimizes the length of moving blade that is exposed to
the operator.
To.adjust.the.guide.post,.do.these.steps:
1. DISCONNECT BANDSAW FROM POWER!
2. Make sure that the blade tension, blade tracking,
support bearings, and blade guides are adjusted
correctly.
3. Loosen the guide post lock knob shown in Figure.41.
4. Rotate the guide post handwheel to properly position
the blade guide assembly above the workpiece, then
re-tighten the lock knob to secure the setting.
Figure.41. Guide post controls.
Handwheel
Lock
Knob
Guide Post
-32-
Model W1706 (Mfg. Since 3/13)
OPERATIONS
Ripping
Ripping is the process of cutting with the grain of the
wood stock. For plywood and other processed wood,
ripping simply means cutting down the length of the
workpiece. For ripping, a wider blade is better. In most
ripping applications, a standard raker tooth style will be
sufficient (refer to Blade.Information on Page.37).
To.make.a.rip.cut,.do.these.steps:
1. Adjust the fence to match the width of the cut on
your workpiece and lock the fence in place.
2. Adjust the blade guide assembly to the correct
height.
3. After all safety precautions have been met, turn
the bandsaw ON and wait for the blade to reach full
speed.
4. Slowly feed the workpiece into the blade and
continue with the cut until the blade is completely
through the workpiece.
.Figure.42 shows a typical ripping operation.
Note: If you are cutting narrow pieces, use a push
stick to protect your fingers.
NE VER.place.fingers.or.hands.in.the.
line.of.cut..In.the.event.that.something.
unexpected.happens,.your.hands.or.
fingers.may.be.pulled.into.the.blade..
ALWAYS.use.a.push.stick.when.ripping.
narrow. pieces..Failure.to.follow.these.
warnings.may.result.in.serious.personal.
i njury !

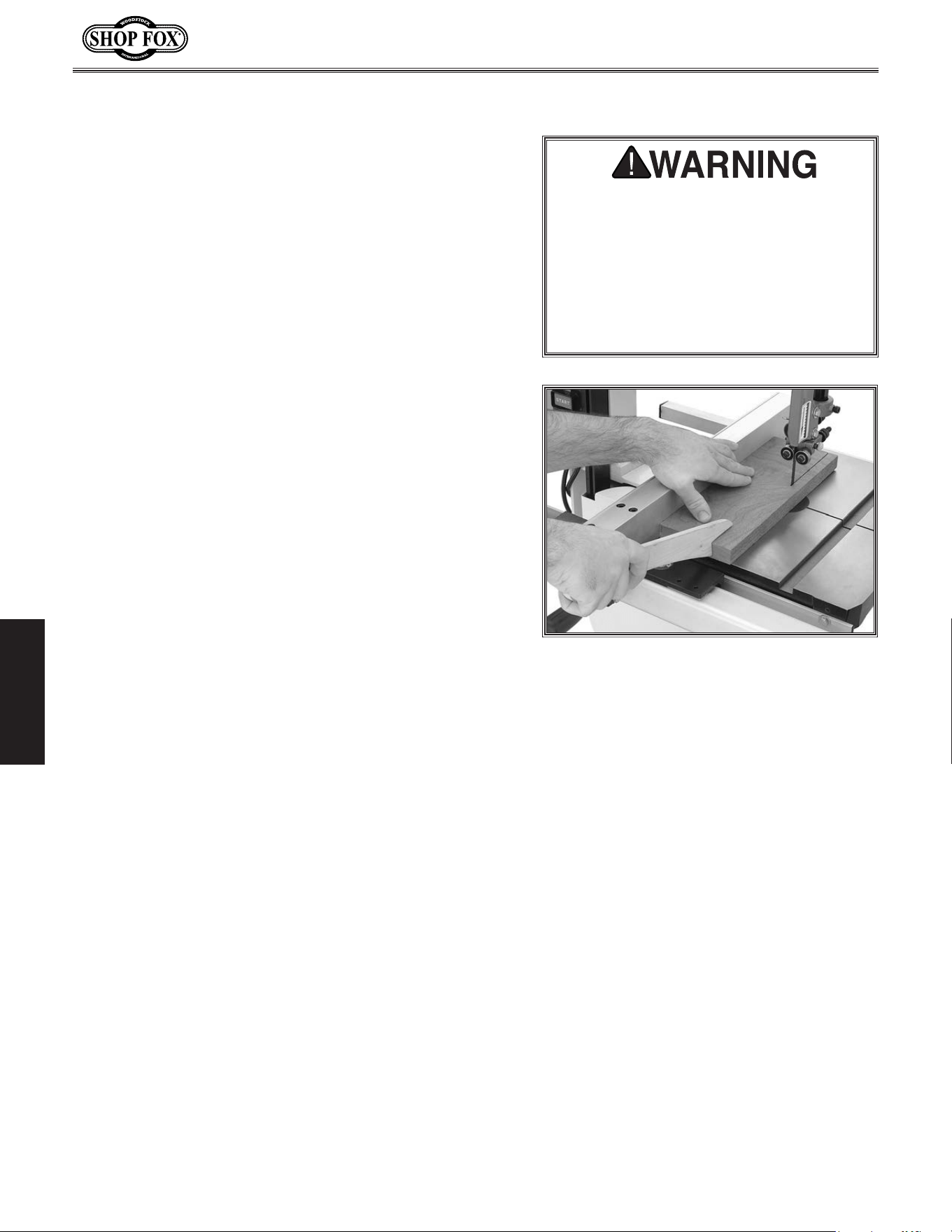

Figure.42. Example of ripping.
-33-
Model W1706 (Mfg. Since 3/13)
OPERATIONS

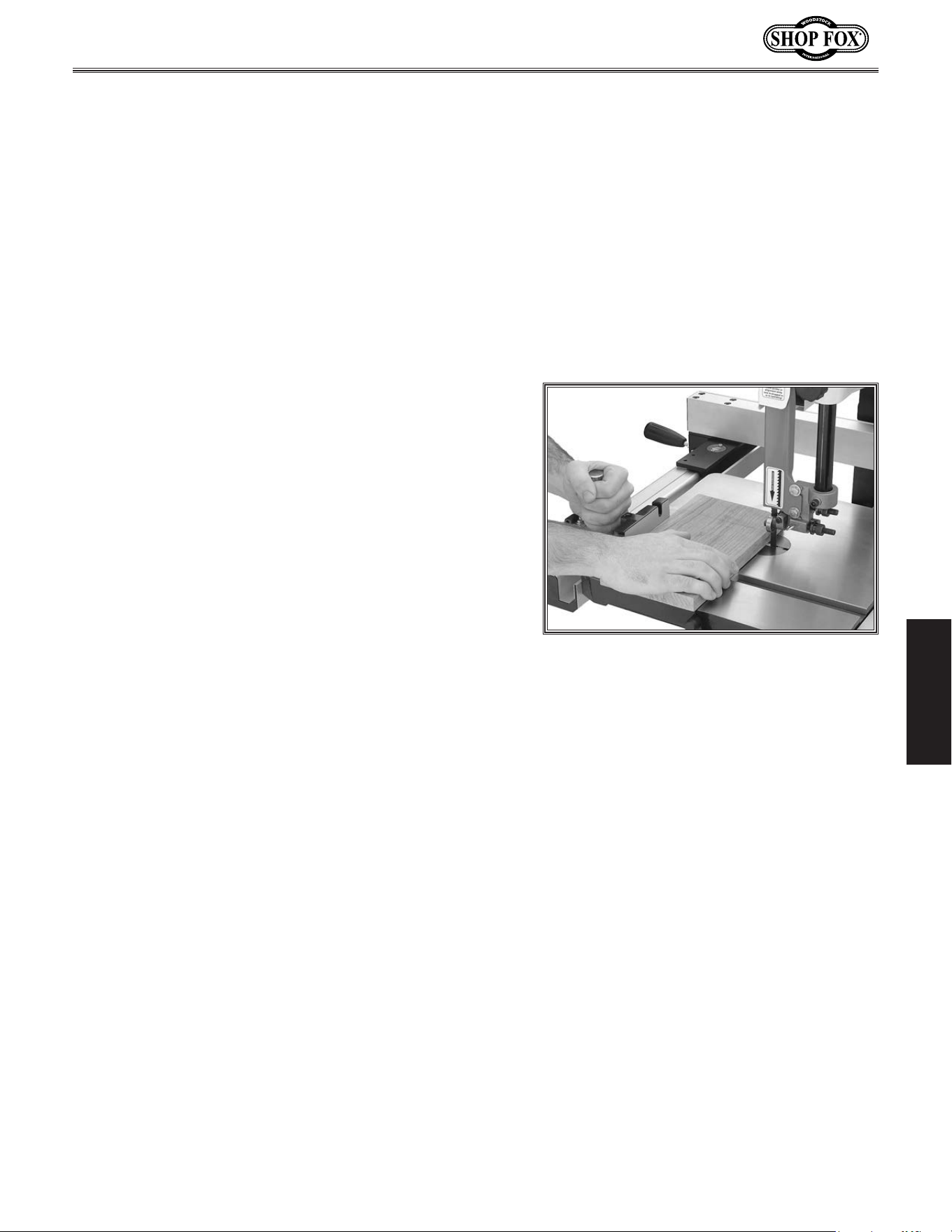

Crosscutting
Crosscutting is the process of cutting across the grain
of wood. For plywood and other processed wood,
crosscutting simply means cutting across the width of the
material.
To.make.a.90˚.crosscut, .do.these.steps:
1. Mark the workpiece on the edge where you want to
begin the cut.
2. Adjust the blade guide assembly to the correct
height and make sure the miter gauge is set to 0°
(or other angle for angled cuts).
3. Move the fence out of the way. Place the workpiece
evenly against the miter gauge.
4. Hold the workpiece against the miter gauge and line
up the mark with the blade.
5. After all safety precautions have been met, turn
the bandsaw ON and wait for the blade to reach full
speed.
6. Slowly feed the workpiece into the blade and
continue the cut until the blade is all the way
through the workpiece.
Figure.43 shows a typical crosscutting operation.
Figure.43. Making a 90° crosscut.
-34-
Model W1706 (Mfg. Since 3/13)
OPERATIONS

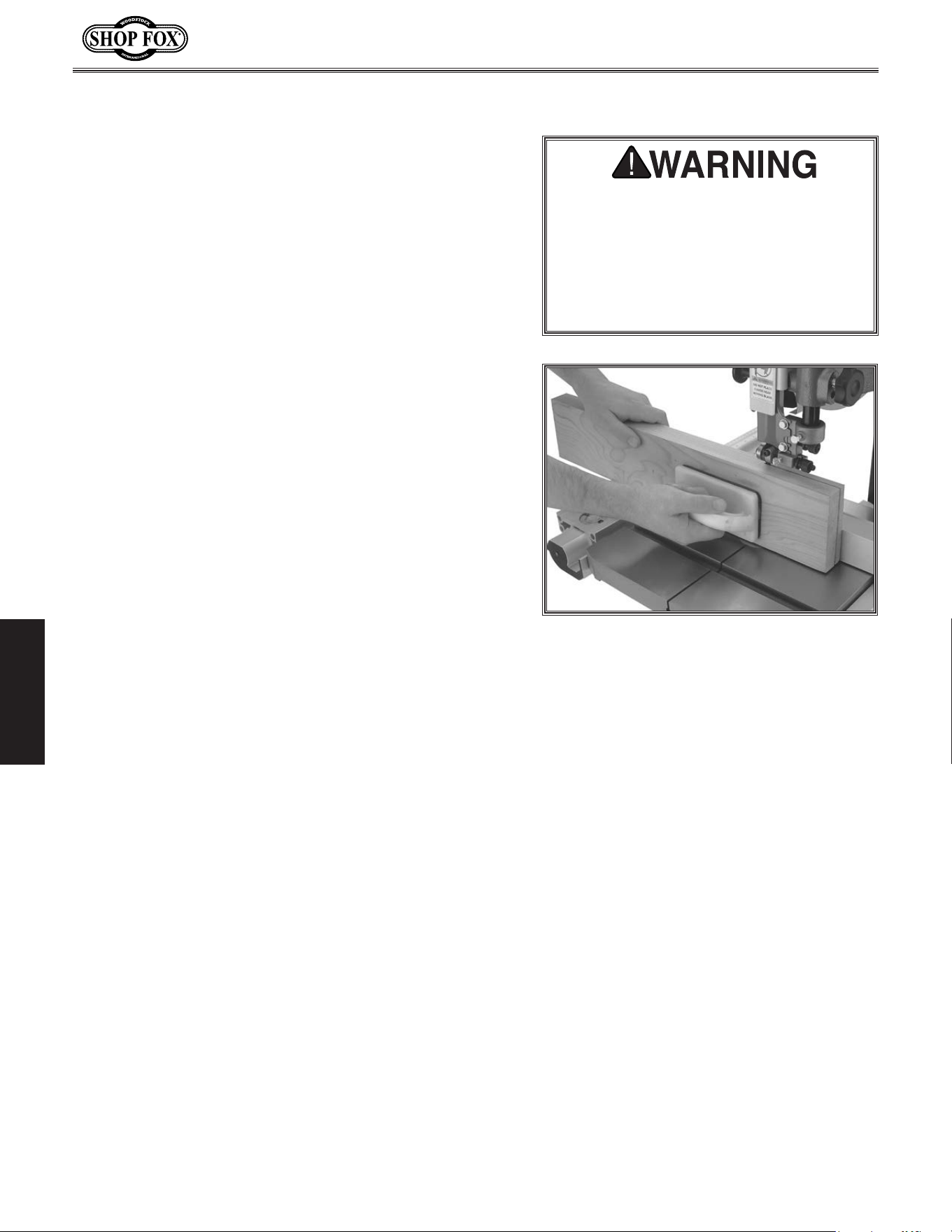

Resawing
Resawing (see Figure.44 for an example) is the process
of cutting a board into two or more thinner boards. The
maximum board width that can be resawn is limited by
the maximum cutting height of the bandsaw. Maximum
cutting height for this bandsaw is 6".
The Model W1706 is capable of resawing, provided the
saw is set up properly. Use common sense when resawing.
Attempting to resaw too wide or too dense of a board
may put excessive strain on the blade and cause it to
break.
One of the most important considerations when resawing
is blade selection. Use the widest blade possible when
resawing—a wide blade cuts straighter and is less prone to
blade lead (refer to Blade.Lead.on Page.46 for additional
information). In most applications, a hook or a skip tooth
style will be desirable.
Also, since most resawn lumber will be planed smooth,
you should choose blades with fewer teeth-per-inch
(from 3 to 6 TPI). While blades with fewer teeth-per-inch
produce rougher cuts, these types of blades offer larger
gullet capacities for clearing sawdust.
To.resaw.a.workpiece,.do.these.steps:
1. Verify that the bandsaw is setup properly and that
the table is perpendicular to the blade.
2. Use the widest blade your bandsaw will accept. The
blade must also be sharp and clean.
3. Set the fence to the desired width of cut and lock it
in place.
Tip:.You can also draw a reference line on the edge
of the board, place the board against the fence, line
up the reference line with the blade, then lock the
fence in place.
4. Support the ends of the board if necessary.
5. Turn the bandsaw ON and wait for the blade to reach
full speed.
6. Keeping even pressure against the fence and table
with the workpiece, slowly feed it into the moving
blade until the blade is completely through the
workpiece.
When.resaw ing.thin.pieces,.a.
wandering.blade.(blade.lead).can.tear.
through.the.surface.of.the.workpiece,.
exposing.your.hands.to.the. blade.
teeth..ALWAYS.keep.your.hands.clear.
of.the.blade.by.using.push.blocks.and.
push.sticks .when.resawing.
Figure.44. Example of resawing.
-35-
Model W1706 (Mfg. Since 3/13)
OPERATIONS

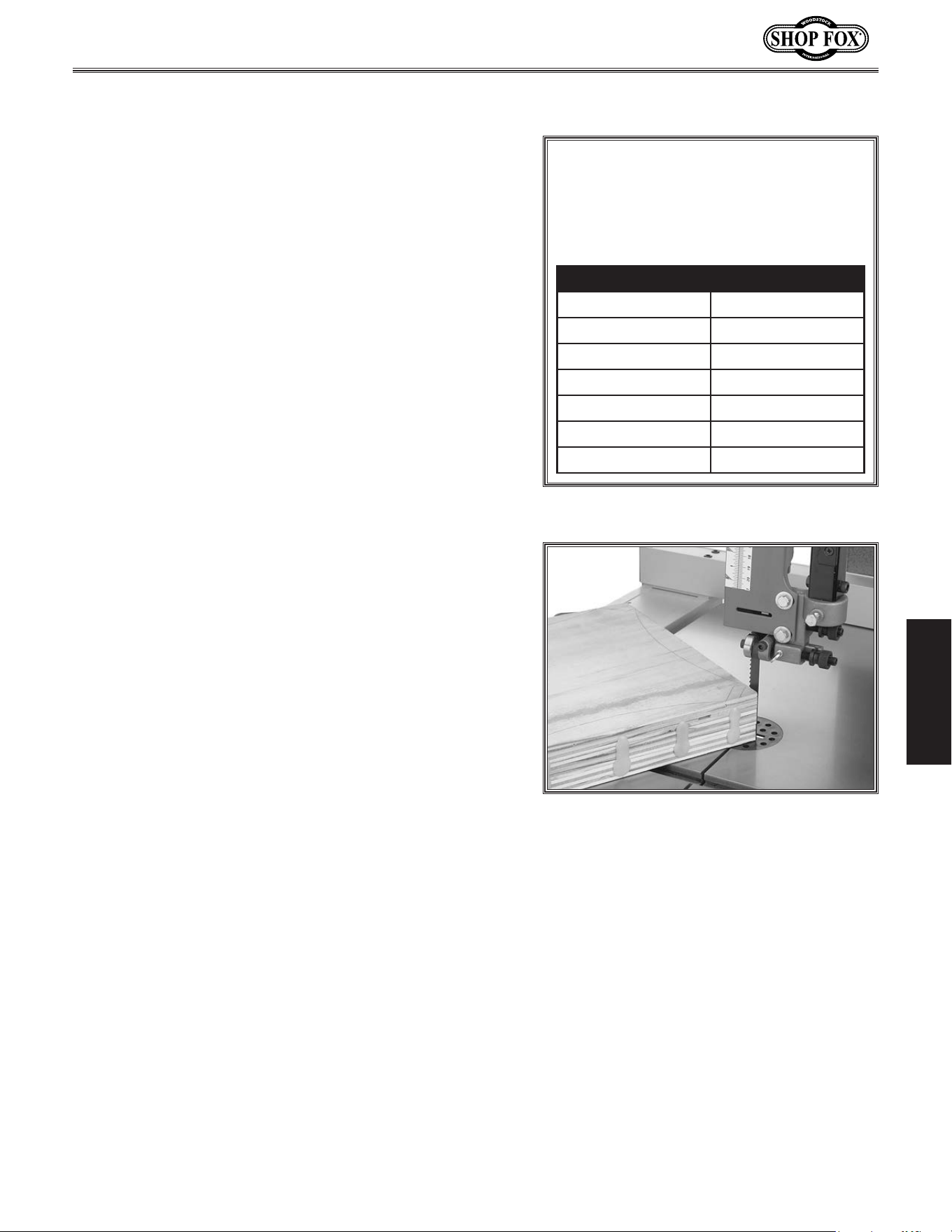

When cutting curves, simultaneously feed and turn the
stock carefully so that the blade follows the layout line
without twisting. Use either a narrower blade or a blade
with more TPI (teeth per inch), or make more relief cuts,
to avoid having to back the workpiece away from the
blade, especially if the curve is sharp.
Always make short cuts first, then proceed to the longer
cuts. Relief cuts will also reduce the chance that the
blade will be pinched or twisted. Relief cuts are cuts
made through the waste portion of the workpiece and
are stopped at the layout line. As you cut along the
layout line, waste wood is released from the workpiece,
alleviating any pressure on the back of the blade. Relief
cuts also make backing the workpiece out easier once the
saw blade has come to a stop, if needed.
Cu tting.Curves
NOTICE
The.chart.below.displays.blade.widths.
and.the.corresponding.minimum.radii.
for.those.widths.
Width Radius
1
⁄8"
1
⁄8"
3
⁄16"
3
⁄8"
1
⁄4"
5
⁄8"
3
⁄8" 1.
1
⁄4"
1
⁄2" 2.
1
⁄2"
5
⁄8" 3.
3
⁄4"
3
⁄4" 5.
1
⁄2"
Stacked.Cuts
One of the benefits of a bandsaw is its ability to cut
multiple copies of a particular shape by stacking a number
of workpieces together (see Figure.45 for an example).
Before making stacked cuts, ensure that both the table
and the blade are properly adjusted to 90°. Otherwise,
any error will be compounded.
To.complete.a.stacked.cut,.do.these.steps:
1. Align your pieces from top to bottom to ensure that
each piece has adequate scrap to provide a clean,
unhampered cut.
2. Secure all the pieces together in a manner that
will not interfere with the cutting. Hot glue on the
edges works well, as do brad nails through the waste
portion. (Be careful not to cut into the brads or you
may break the blade!)
3. On the face of the top piece, lay out the shape you
intend to cut.
4. Make relief cuts perpendicular to the outline of your
intended shape in areas where changes in blade
direction could strain the woodgrain or cause the
blade kerf to bind.
5. Cut the stack of pieces as though you were cutting a
single piece. Follow your layout line with the blade
kerf on the waste side of your line.
Figure.45. Example of stacked cutting.
-36-
Model W1706 (Mfg. Since 3/13)
OPERATIONS
The Model W1706 offers blade speeds of 1800 and 3100
FPM (Feet Per Minute). For general woodworking and most
cutting operations, we recommend using the 3100 FPM
speed. Keep in mind, the results from different speeds
are related to the type of blade being used. Whenever
determining blade speed, also choose a type of blade that
is related to your operation. Use the chart below as a
general guide to blade speed:
Type.of.Cutting.Operation Blade.Speed
Most Species of Wood 3100 FPM
Super Dense Hardwood 1800 FPM
Fast/Average Feed Rate 3100 FPM
Requires Slow Feed Rate 1800 FPM
Rough Edges Tolerable 3100 FPM
Requires Smooth Edges 1800 FPM
Quick, Production Cuts 3100 FPM
Detailed, Intricate Cuts 1800 FPM
Speed changes are performed by moving the belt to one
of the two sets of pulleys.
Tools.Needed. Qty
Socket 12mm w/Extension ....................................1
To.change.the.blade.speed,.do.these.steps:
1. DISCONNECT BANDSAW FROM POWER!
2. Open the lower wheel cover, then loosen the motor
mount bolts (adjustment and hinge bolts) shown in
Figure.46.
3. Move the body of the motor so that the motor
adjustment bolt slides to the right-hand side (facing
bandsaw front) of the adjustment slot.
4. Place the belt in the wheel pulley and motor pulley
grooves, as illustrated in Figure.47, for your desired
speed.
5. Move the body of the motor so that the motor
adjustment bolt slides to the left-hand side (facing
bandsaw front) of the adjustment slot.
6. Hold the motor in position with one hand and tighten
the motor adjustment bolt with the other hand.
Blade.Speed
7. Push the center of the belt with
moderate force.
— If deflection is approximately
3
⁄4"
with moderate pressure from your
thumb or finger, then the tension is
correct.
— If the deflection is more than
3
⁄4",
repeat Steps.3–6.
8. When the belt tension is correct,
tighten the motor hinge bolt and close
the lower wheel cover.
3100 FPM 1800 FPM
Wheel Pulley
Motor Pulley
Figure.47. Belt positions for selecting the
blade speed.

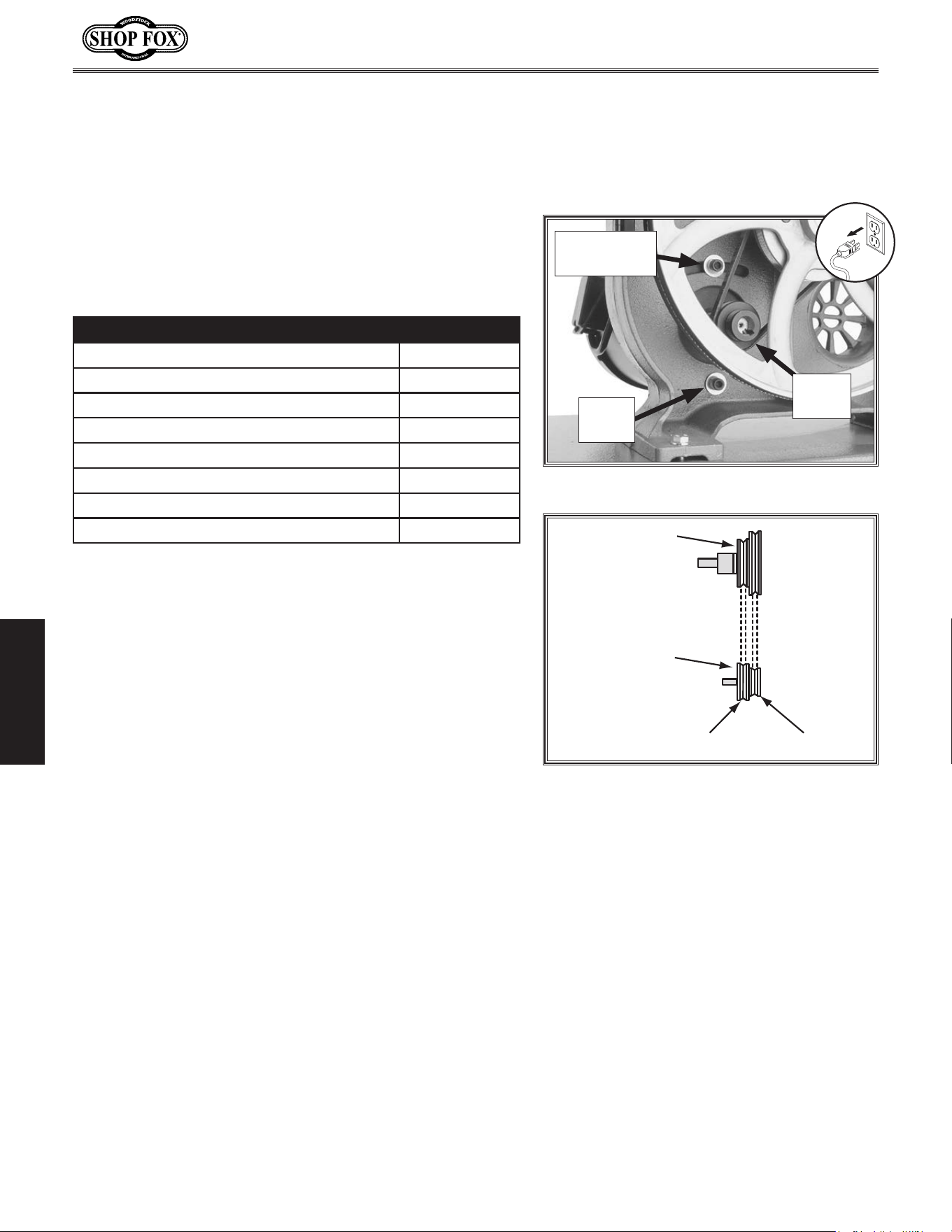

Figure.46. Blade speed controls.
Hinge
Bolt
Motor
Pulley
Adjustment
Bolt
-37-
Model W1706 (Mfg. Since 3/13)
OPERATIONS
Blade.Information
Selecting the right blade requires a knowledge of the
various blade characteristics to match the blade with the
particular cutting operation.
Blade.Length
Measured by the circumference, blade lengths are usually
unique to the brand of your bandsaw and the distance
between wheels. This saw uses 92
1
⁄2" to 93
1
⁄2" long
blades. Refer to Page. 40 for blade replacements.
Blade.Width
Measured from the back of the blade to the tip of the
blade tooth (the widest point), blade width is often the
first consideration given to blade selection. Blade width
dictates the largest and smallest curve that can be cut, as
well as how accurately it can cut a straight line.
This saw uses blades from
1
⁄8" to
3
⁄4" in width. Always pick
the size of blade that best suits your application.
• Curve.Cutting: Use the chart in Figure.48 to
determine the correct blade for curve cutting.
Determine the smallest radius curve that will be cut
on your workpiece and use the corresponding blade
width.
• Straight.Cutting: Use the largest width blade that
you own. Large blades excel at cutting straight lines
and are less prone to wander.
Blade Width
Cutting Radius
1
/
2
"
2
1
/
2
"
3
/
8
"
1
1
/
4
"
3
/
8
"
1
/
4
"
5
/
8
"
3
/
16
"
1
/
8
"
1
/
8
"
Figure.48. Blade width in relation to
cutting radius.
-38-
Model W1706 (Mfg. Since 3/13)
OPERATIONS
Tooth.Style
Figure.49.illustrates.th e.three.main.tooth.styles:
• Raker: Considered to be the standard because the
tooth size and shape are the same as the tooth
gullet. The teeth on raker blades usually are very
numerous, have no angle, and produce cuts by
scraping the material. As a result, smooth cuts can
be achieved without cutting fast or generating more
heat than other types.
• Skip: Similar to a raker blade that is missing every
other tooth. Because of the design, skip toothed
blades have a much larger gullet than raker blades,
and therefore, cut faster and generate less heat.
However, these blades also leave a rougher cut than
raker blades.
• Hook: The teeth have a positive angle (downward)
which makes them dig into the material, and the
gullets are usually rounded for easier waste removal.
These blades are excellent for the tough demands of
resawing and ripping thick material.
Tooth.Pitch
Measured as TPI (Teeth Per Inch), tooth pitch determines
the size of the teeth. More teeth per inch (fine pitch)
will cut slower, but smoother; while fewer teeth per inch
(coarse pitch) will cut rougher, but faster. As a general
rule, choose blades that will have at least three teeth
in the material at all times. Use fine-pitched blades on
harder woods and coarse-pitched blades on softer woods.
Blade.Care
A bandsaw blade is a thin piece of steel that is subjected
to tremendous strain. You can obtain longer use from a
bandsaw blade if you give it fair treatment and always use
the appropriate feed rate for your operation. Be sure to
select blades with the proper width, style, and pitch for
each application. The wrong choice of blades will often
produce unnecessary heat which will shorten the life of
your blade.
A clean blade will perform much better than a dirty
blade. Dirty or gummed up blades pass through the
cutting material with much more resistance than clean
blades. This extra resistance also causes unnecessary
heat. Resin/pitch cleaners are excellent for cleaning dirty
blades.

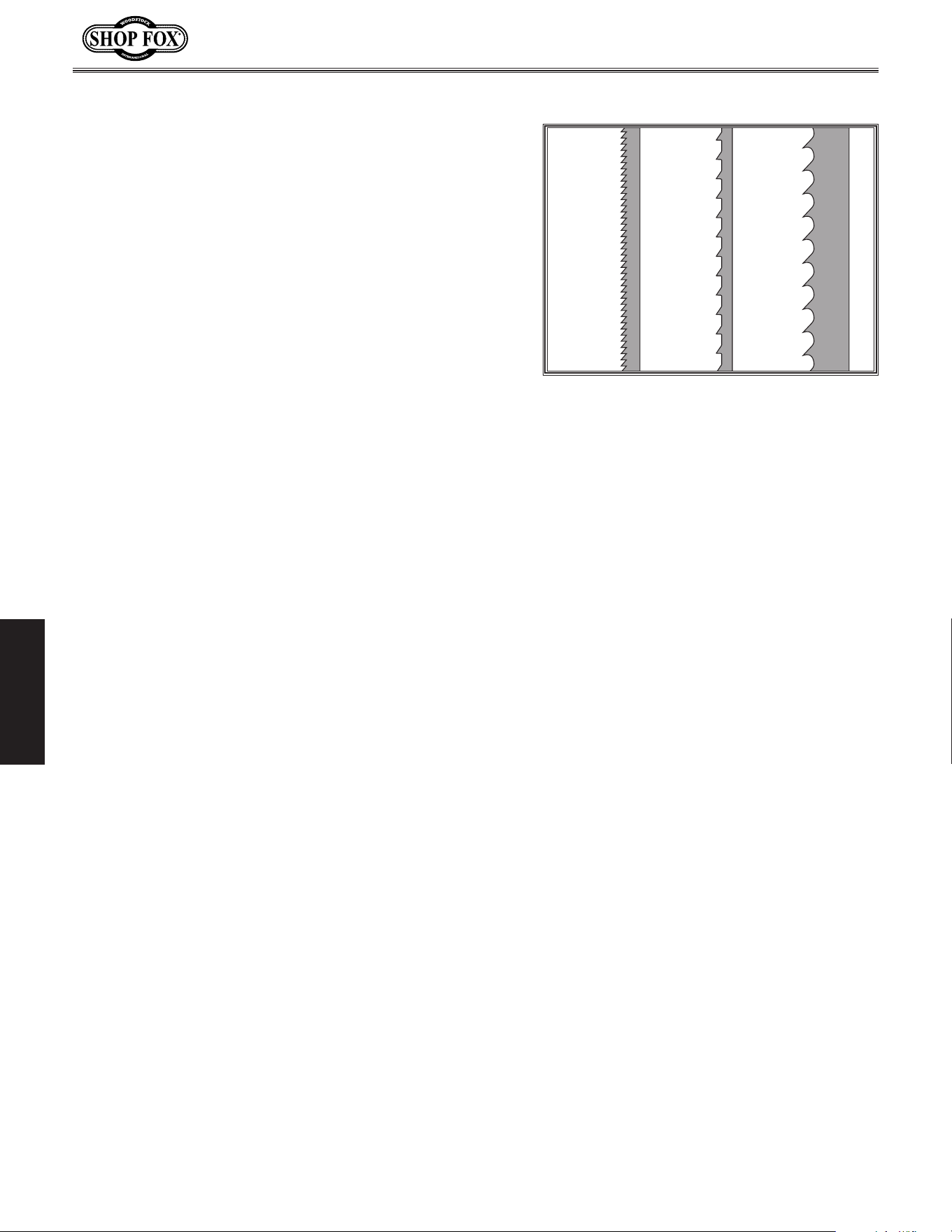

Raker Skip Hook
Figure.49. Three main tooth styles.
Blade.Breakage
Many conditions may cause a bandsaw
blade to break. Blade breakage is
unavoidable, in some cases, since it is
the natural result of the peculiar stresses
that bandsaw blades are subjected to.
Blade breakage is also due to avoidable
circumstances. Avoidable breakage is most
often the result of poor care or judgement
on the part of the operator when mounting
or adjusting the blade or support guides.
The.most. common.causes.of.blade.
breakage.are:
• Faulty alignment/adjustment of the
guides.
• Forcing/twisting a wide blade around
a short radius.
• Feeding the workpiece too fast.
• Dull teeth or damaged tooth set.
• Over-tensioned blade.
• Top blade guide assembly set too high
above the workpiece.
• Using a blade with a lumpy or
improperly finished braze or weld.
• Continuously running the bandsaw
when not in use.
• Leaving blade tensioned when not in
use.
• Using the wrong TPI for the workpiece
thickness. (The general rule of thumb
is three teeth in the workpiece at all
times.)
-39-
Model W1706 (Mfg. Since 3/13)
OPERATIONS

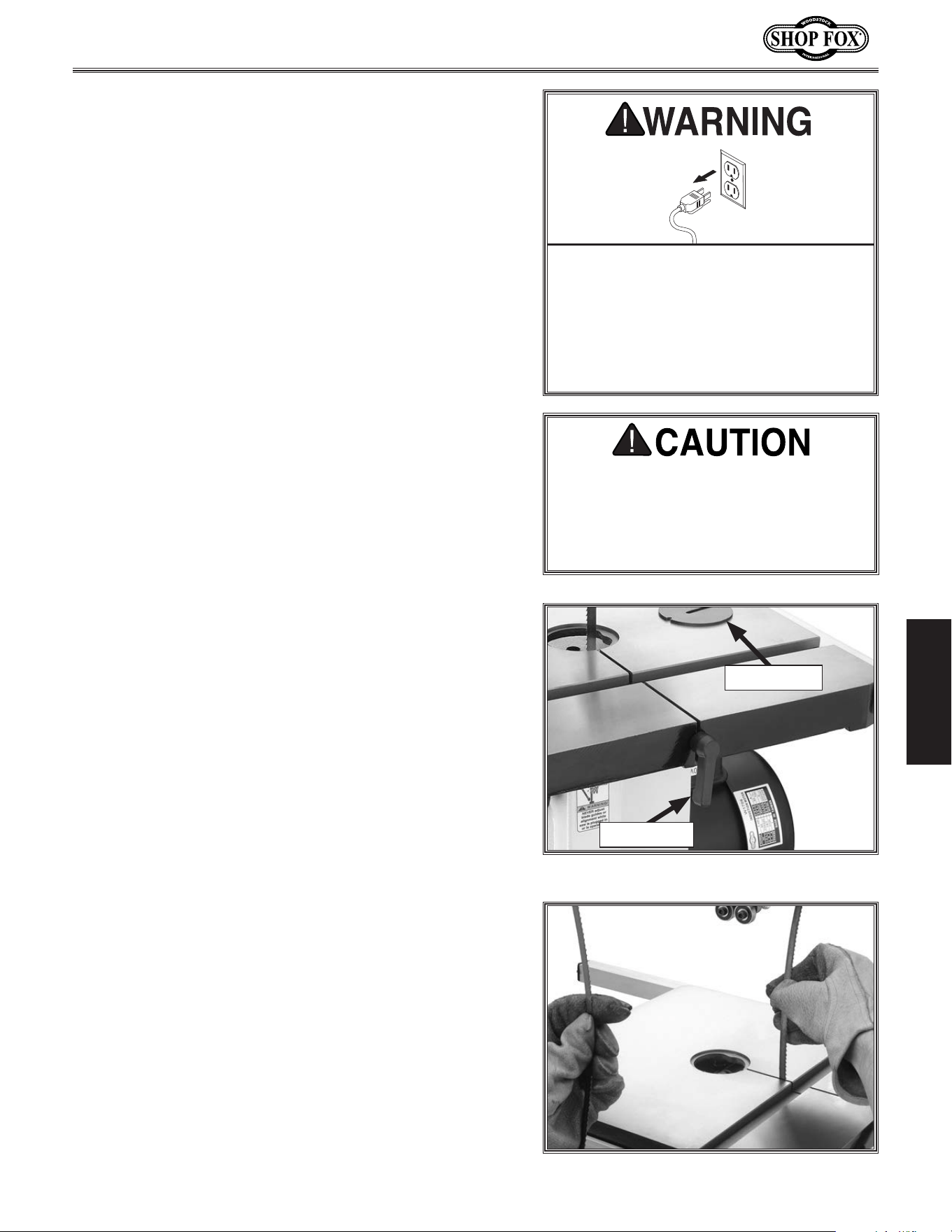

Blade.Cha nges
If. the. bandsaw. should. unexpectedly.
start. up. when. the. wheel. covers. are.
open. or. when. changing. the. blade,.
entanglement. or. amputation. injuries.
could. result.. ALWAYS. disconnect. the.
bandsaw. from. power. before. opening.
the.wheel.covers.
To.change.the.blade,.do.these. steps:
1. DISCONNECT BANDSAW FROM POWER!
2. Put on heavy leather gloves and safety glasses.
3. Release the blade tension by moving the tension
quick release lever all the way left.
4. Remove the table insert and the table locking pin
(see Figure.50).
5. Adjust the upper and lower guide bearings as far
away as possible from the blade.
6. Open the both wheel covers and slide the blade off
of both wheels.
7. Slide the blade through the slot in the table.
8. Slide the new blade through the table slot, ensuring
that the teeth are pointing forward and down toward
the table, as shown in Figure.51.
Note: If the teeth will not point downward in any
orientation, the blade is inside-out. Remove the
blade and twist it right side-out.
9. Slip the blade through the guides, and mount it on
the upper and lower wheels.
10. Adjust the blade tension as described on Page.17.
11. Adjust the blade tracking if needed (refer to
Page.14).
12. Align the upper and lower support bearings (refer
to Page.22), then adjust the blade guide bearings
(refer to Page.24).
13. Replace the table insert and table locking pin.
14. Close the wheel covers.
Bandsaw.blades.are.sharp.and.can.spring.
open.when.uncoiled,.which.could.cause.
deep.punctures.or.lacerations..ALWAYS.
wear. heavy. leather. gloves. and. safety.
glasses.when.handling.bandsaw.blades.
Figure.51. Changing the blade.
Figure.50. Table insert and locking pin.
Table Insert
Locking Pin
-40-
Model W1706 (Mfg. Since 3/13)
OPERATIONS
ACCESSORIES

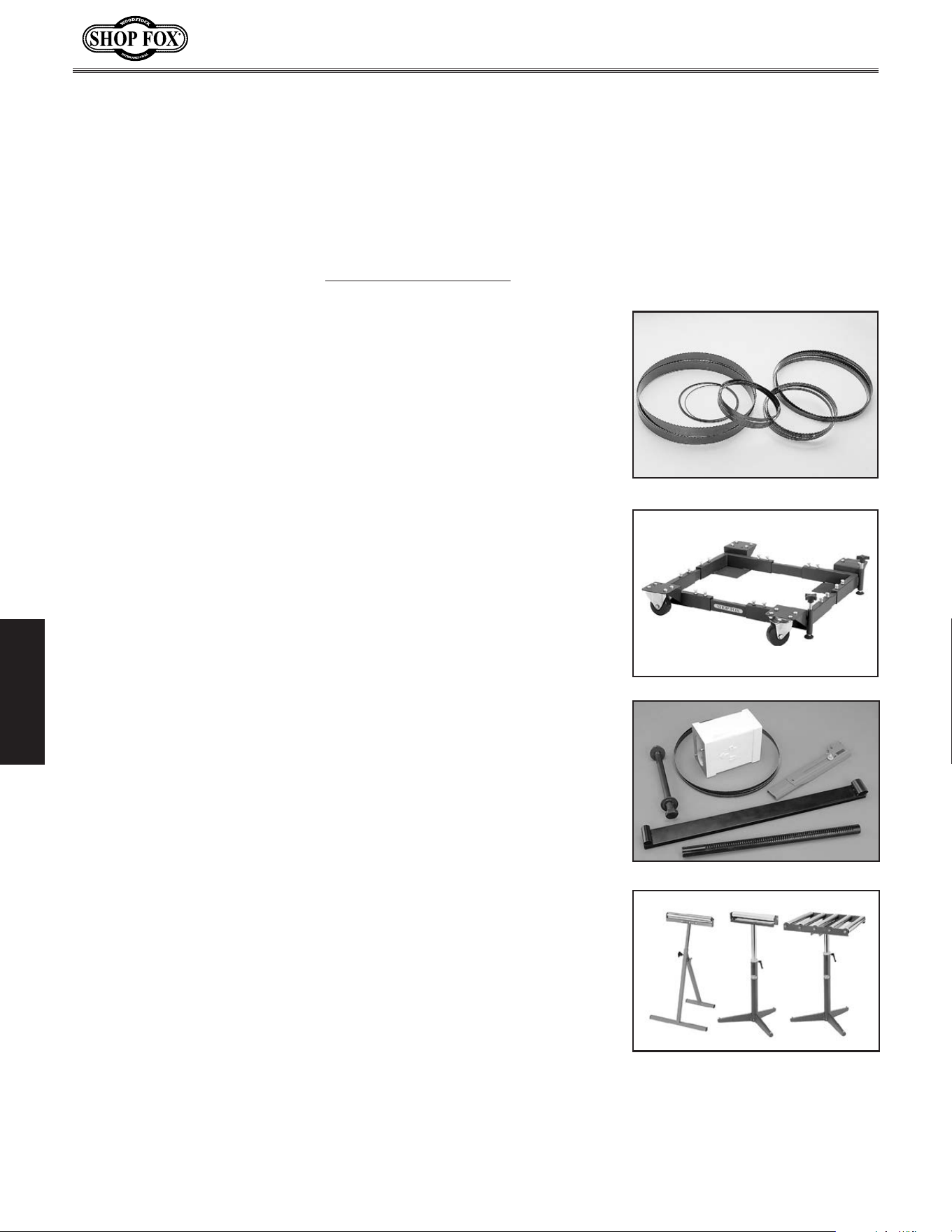

Bandsaw.Accessories
The following Bandsaw accessories may be available through your local Woodstock International Inc.
Dealer. If you do not have a dealer in your area, these products are also available through online
dealers. Please call or e-mail Woodstock International Inc. Customer Service to get a current listing of
dealers at: 1-800-840-8420 or at sales@woodstockint.com.
The Steelex
®
High-Carbon.Steel.Replacement.Blades for the Model
W1706 feature hardened teeth and a flexible back to provide extra
cutting sharpness and durability for all woodcutting applications. We
tested these against some of the highest-priced carbon blades on
the market and could tell no difference in performance. These great
blades are priced within reach of any shop. Available in raker and hook
styles with various TPI, and from
1
⁄8" to
3
⁄4" in width.
The D2260A.SHOP.FOX.Adjustable.Mobile.Base supports your
bandsaw so you can move it easily and lock it in position. All SHOP.
FOX Adjustable Mobile Bases are the first mobile bases designed
strong enough to move heavy machines on a continual basis. These
mobile bases are adjustable to fit a variety of machines and can be
leveled without the use of shims or tools.
The SHOP.FOX.D3348.6".Extension.Block.Kit.allows you to increase
the cutting capacity of the W1706 Bandsaw to 12". This kit contains
a 105" blade, a 6" spacer block, the extended blade guards, a blade
post extension, and all the mounting hardware. This is an excellent
and easy upgrade to your bandsaw.
The SHOP.FOX.Heavy-Duty.Roller.Stands.&.Roller.Tables make
using your bandsaw safer and easier. All models feature convenient
hand knobs for fast height adjustment and offer rigid steel construc-
tion. These stands are invaluable for supporting work on bandsaws to
reduce blade bend and pinch on long boards.
-41-
Model W1706 (Mfg. Since 3/13)
MAINTENANCE
MAINTENANCE
Lubricatio n
The table can be kept rust-free with regular applications
of products like SLIPIT
®
. For long term storage you may
want to consider products like Boeshield T-9™.
Protecting.Table
Frequently blow-off sawdust with compressed air. This is
especially important for the internal working parts and
motor. Dust build-up around the motor is a sure way to
decrease its life span. Additionally, open the wheel covers
and clean away any sawdust and built-up grime.
Clea ning
Regular periodic maintenance on your machine will
ensure its optimum performance. Make a habit of
inspecting your machine each time you use it.
On.a.daily.basis,.check.for.the.following.conditions.
and.repair.or.replace.when.necessary:
• Loose mounting bolts.
• Worn switch.
• Worn or damaged cords and plugs.
• Damaged or worn V-belt.
• Damaged or worn blade support and guide bearings.
• Damaged or glazed wheel rubber tires.
• Any other condition that could hamper the safe
operation of this machine.
General
MAKE. SURE. that. your. machine. is.
unplugged.during.all.maintenance. pro-
cedures!.If.this.warning.is.ignored,.seri-
ous.personal.injury.may.occur.
The sealed and pre-lubricated ball bearings
on this bandsaw require no lubrication for
the life of the bearings. All bearings are
standard sizes, and replacements can be
purchased from our parts department or a
bearing supply store.
As for other items on this machine, such as
adjustment controls, wipe off any sawdust
with a clean cloth, towel or dry paint
brush, then apply a small amount of light
machine oil.
Take care oil does not get on the pulleys
or belt that would cause belt deterioration
and slippage and a reduction in power
efficiency.
-42-
Model W1706 (Mfg. Since 3/13)
SERVICE
SERVICE
This section covers the most common service adjustments
or procedures that may need to be made during the life
of your machine.
If you require additional machine service not included
in this section, please contact Woodstock International
Technical Support at (360) 734-3482 or send e-mail to:
tech-support@shopfox.biz.
General
MAKE. SURE. that. your. machine. is.
unplugged. during. all. service. proce-
dures!. If. this. warning. is. ignored,. seri-
ous.personal.injury.may.occur.
Redres sing.Rubber.Tires
As the bandsaw ages, the rubber tires may need to
be redressed if they become hardened or glazed over.
Redressing the rubber tires improves blade tracking and
reduces vibration/blade lead.
If the rubber tires become too worn, then blade tracking
will become extremely difficult. At that point, redressing
will no longer be effective and the tires must be
replaced.
To.redress.the.rubber.tires,.do.these.steps:
1. DISCONNECT BANDSAW FROM POWER!
2. Put on heavy leather gloves, then remove the blade.
3. Clean any built-up sawdust from the rubber tires.
4. Hold 100 grit sandpaper against the rubber tire and
rotate the wheel by hand. Only redress the rubber
enough to expose a fresh rubber surface.
6. Re-install the blade, then check blade tension (refer
to Page.17) and tracking (refer to Page.14).
-43-
Model W1706 (Mfg. Since 3/13)
SERVICE
Belt.Service
To ensure optimum power transmission from the motor to
the blade, the belt must be in good condition and operate
under proper tension. The belt should be checked for
cracks, fraying, and wear. Belt tension should be checked
at least every 3 months—more often if the bandsaw is
used daily.
Checking.Belt
1. DISCONNECT BANDSAW FROM POWER!
2. Open the lower wheel cover.
3. Note the condition of the belt. If the belt is cracked,
frayed, or glazed, it should be replaced.
4. Press the belt with moderate pressure midway
between the pulleys. The deflection should be
approximately
1
⁄4", as illustrated in Figure.52.
— If the deflection is not approximately
1
⁄4",
continue with the next procedure to properly
tension the belt.
Adjusting.Belt.Tension
Tools.Needed. Qty
Socket 12mm w/Extension ....................................1
To.tension.the.belt,.do.these.steps:
1. DISCONNECT BANDSAW FROM POWER!
2. Open the lower wheel cover and loosen the motor
mount bolts (adjustment and hinge) shown in
Figure.53.
4. Move the motor so that the motor adjustment bolt
slides to the left-hand side (facing bandsaw front) of
the adjustment slot.
5. Hold the motor in position with one hand and tighten
the motor adjustment bolt with the other hand.
6. Press the center of the belt. If deflection is
approximately
1
⁄4" with moderate pressure from your
thumb or finger, then the tension is correct. If the
deflection is more than
1
⁄4", repeat Steps 4-6.
7. When the belt tension is correct, tighten the motor
hinge bolt and close the lower wheel cover.
Pulley
1
⁄
4
"
Deflection
Pulley

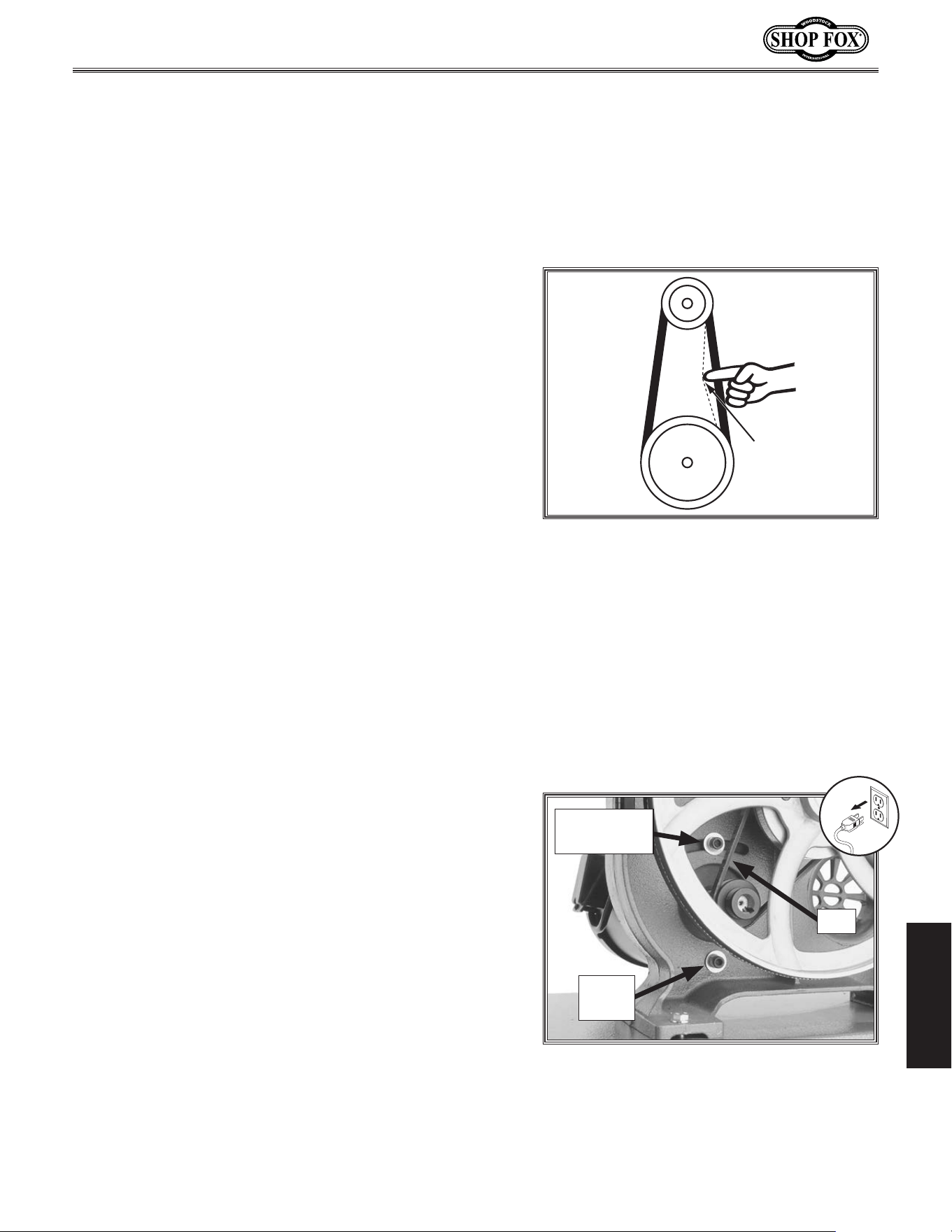

Figure.52. Testing for proper belt tension.
Figure.53. Belt tensioning controls.
Hinge
Bolt
Belt
Adjustment
Bolt
-44-
Model W1706 (Mfg. Since 3/13)
SERVICE
Replacing.Belt
Tools.Needed. Qty
Socket 12mm w/Extension ....................................1
Wrench or Socket 13mm .......................................1
To.replace.the.belt,.do.these.steps:
1. DISCONNECT BANDSAW FROM POWER!
2. Open both wheel covers, remove the bandsaw
blade, and loosen the motor mount bolts shown in
Figure.54 on the previous page.
3. Move the body of the motor so that the motor
adjustment bolt slides to the right-hand side (facing
bandsaw front) of the adjustment slot and pull the
belt off of the motor pulley.
4. Unthread the lower wheel mount bolt shown in
Figure.55, then slide the lower wheel off of the
bearing shaft.
Note:.The wheel mount bolt is a left-hand bolt and
unthreads clockwise.
5. Slip the old belt off of the wheel pulley and install
the new belt in its place.
6. Position the belt on the pulleys for the desired blade
speed.
7. Slide the lower wheel back onto the bearing shaft
and replace/tighten the wheel mount bolt.
8. Move the body of the motor so that the motor
adjustment bolt slides to the left-hand side (facing
bandsaw front) of the adjustment slot.
9. Hold the motor in position and tighten the motor
adjustment bolt with the other hand.
10. Check and adjust the belt tension as instructed on
the previous page.
11. When the belt tension is correct, tighten the motor
hinge bolt, re-install the blade, then close both
wheel covers.
12. Make sure that the blade is correctly tensioned
(refer to Page.17) and is tracking properly (refer to
Page.14).

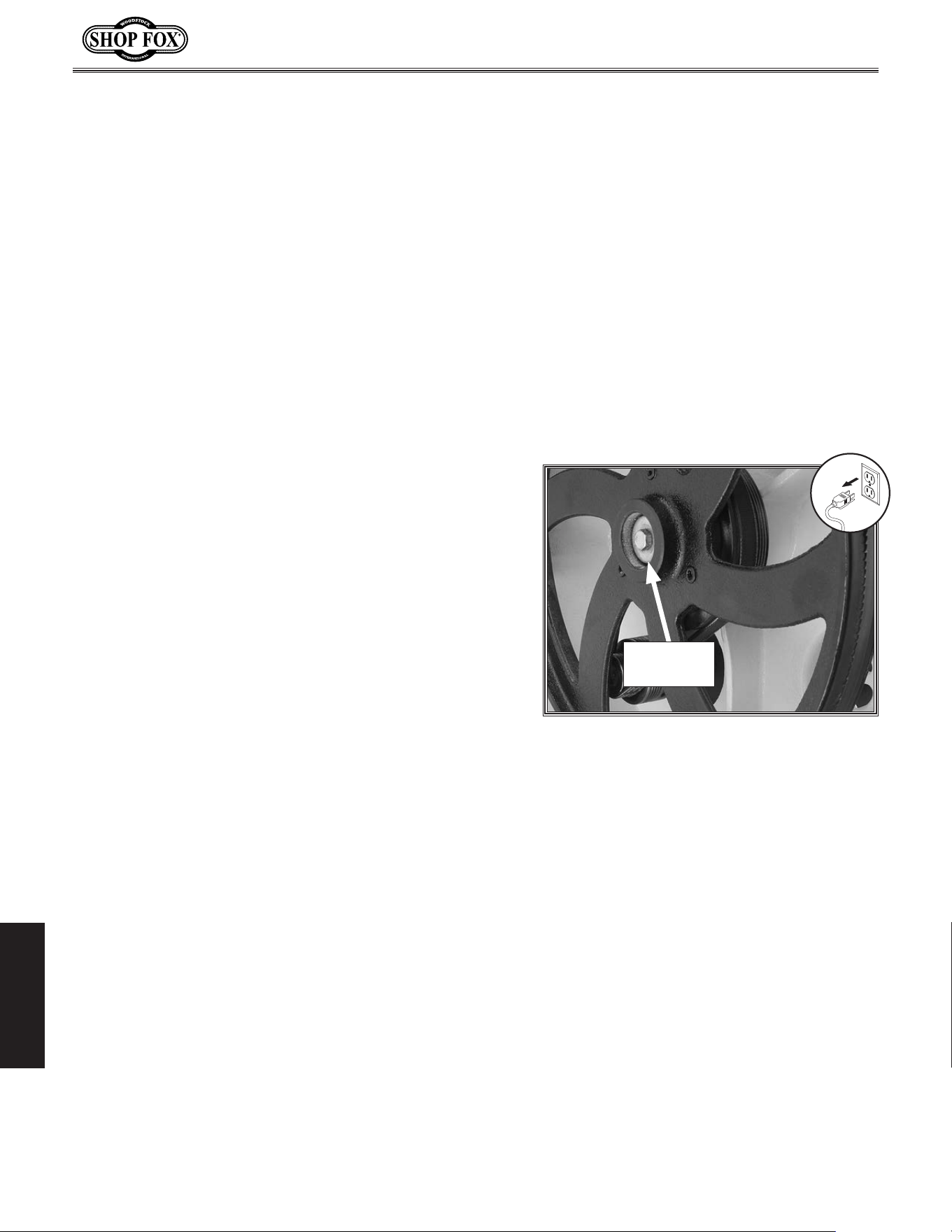

Figure.55. Lower wheel mount bolt.
Wheel
Mount Bolt
-45-
Model W1706 (Mfg. Since 3/13)
SERVICE

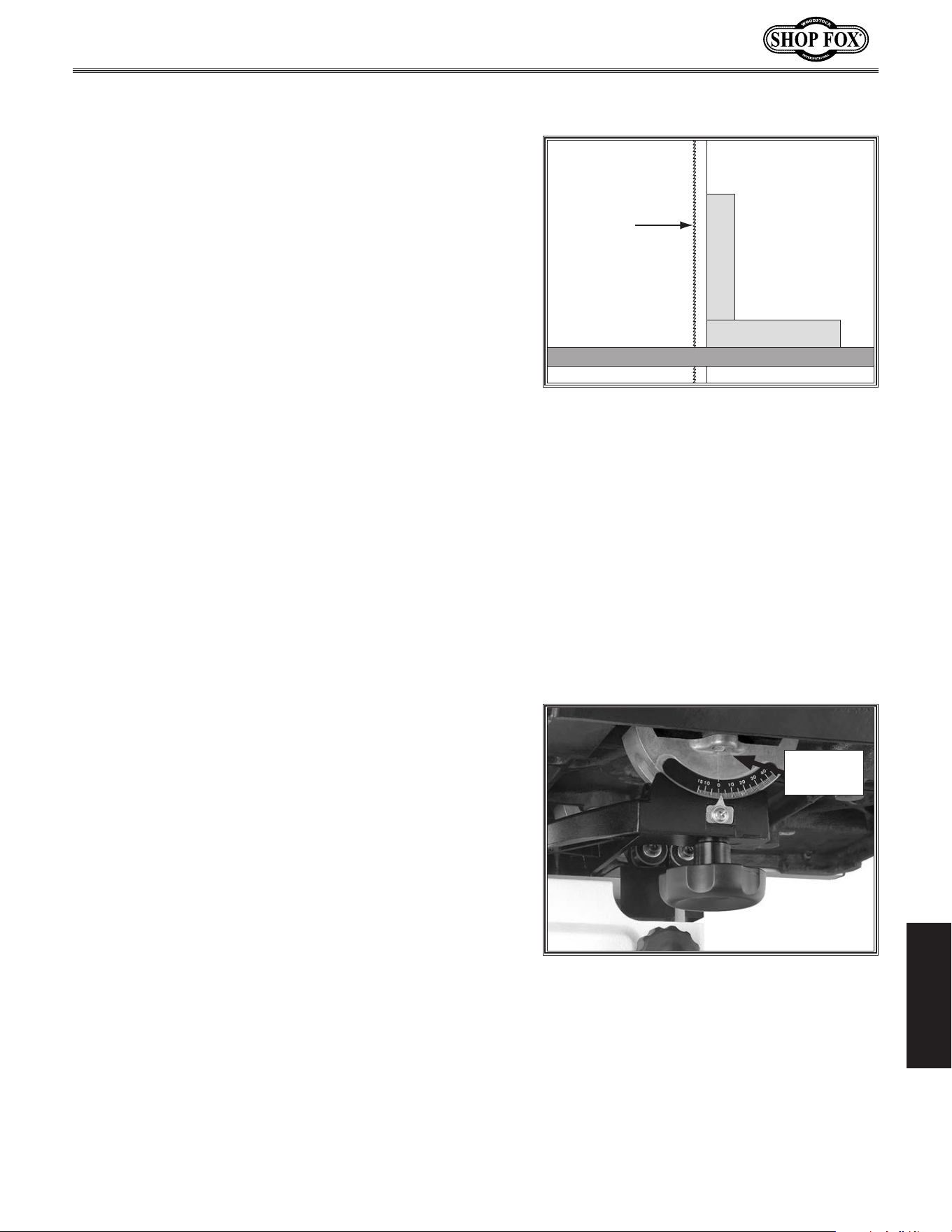

Shimming.Table
To ensure accuracy when cutting stacked workpieces
or circles, the table should be 90° to the back of the
blade, as illustrated in Figure.56. If the table is not
perpendicular to the back of the blade, the table will
need to be shimmed.
Items.Needed. Qty
Wrench or Socket 10mm .......................................1
Machinist's Square ..............................................1
Metal Shims .......................................... As Needed
To.shim.the.table,.do.these.steps:
1. Make sure that the blade is tracking properly and
that it is correctly tensioned.
2. DISCONNECT BANDSAW FROM POWER!
3. Bring the table to 0° tilt, then place the machinist's
square flat on the table and against the back of the
blade.
— If there is not a gap between the square and the
blade, no further adjustments need to be made.
— If there is a gap between the square and the
blade, continue with Step.4.
4. Loosen the six trunnion bolts that secure the
trunnions to the table (see Figure.57).
5. Place shim stock between the table and the two
trunnions to shim the table in the desired direction.
Another way to shim the table is to add washers
between the table and the trunnion. Electrical
washers are a good choice for this procedure
because they are very thin and will allow for fine
adjustment.
6. Check, and if necessary, align the table (refer to
Page.19).
Blade
Square
Table
Figure.56. Checking if the table is
perpendicular to the back of the blade.
Figure.57. Location of trunnion bolt
(1 of 6).
Trunnion
Bolt
-46-
Model W1706 (Mfg. Since 3/13)
SERVICE

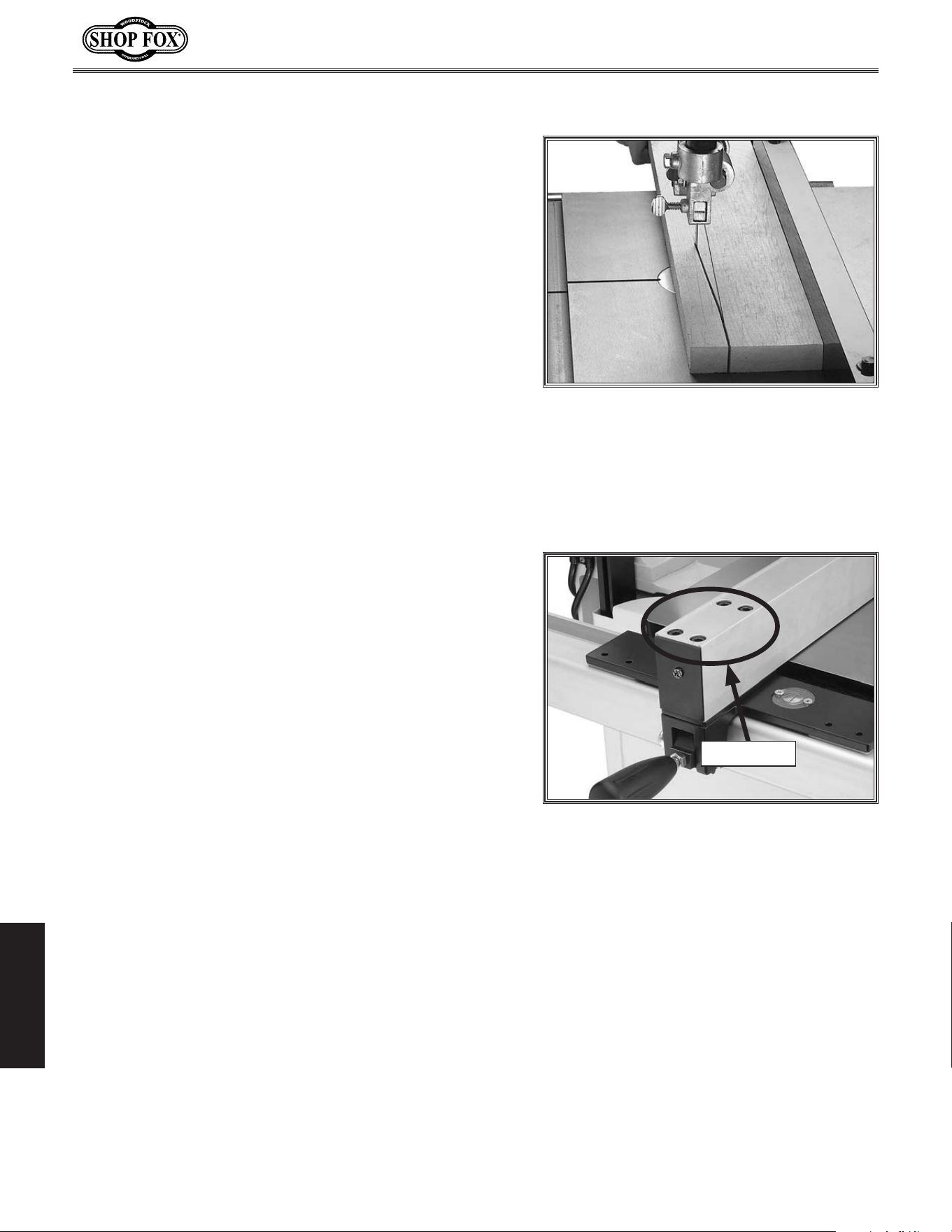

Blade.Lead
Bandsaw blades may wander off the cut line when sawing,
as shown in Figure.58—this is called blade lead. Blade
lead is usually caused by too fast of a feed rate, a dull or
damaged blade, or improper blade tension. If your blade
is sharp/undamaged, properly tensioned and you still have
blade lead, perform the following procedures.
Correcting.Blade.Lead
1. Use less pressure when feeding the workpiece
through the cut.
2. Make sure that the fence is parallel to the blade
line, and the miter gauge body is perpendicular to
the blade.
3. Check for proper blade tension. If the blade tension
is correct and it is not convenient to replace the
blade, compensate for lead by skewing the fence or
shifting the table.
Items.Needed. Qty
Board
3
⁄4"T x 3"W x 17"L .......................................1
Hex Wrench 5mm ...............................................1
To.skew.the.fence,.do.these.steps:
1. On the wide face of the board, draw a straight line
parallel to the long edge.
2. Slide the fence out of the way and cut free-hand
along the line. Stop at the halfway point. Turn the
bandsaw OFF and wait for the blade to stop.
3. Clamp the board to the bandsaw table without
moving it. Now slide the fence over to the board so
it barely touches one end of the board.
4. Loosen the four fence alignment cap screws shown in
Figure.59.
5. Skew the fence left or right so it is parallel to the
edge of the scrap piece.
6. While maintaining the skew, tighten the cap screws.
Figure.58. Example of blade lead.
Figure.59. Fence alignment cap screws.
Cap Screws
-47-
Model W1706 (Mfg. Since 3/13)
SERVICE

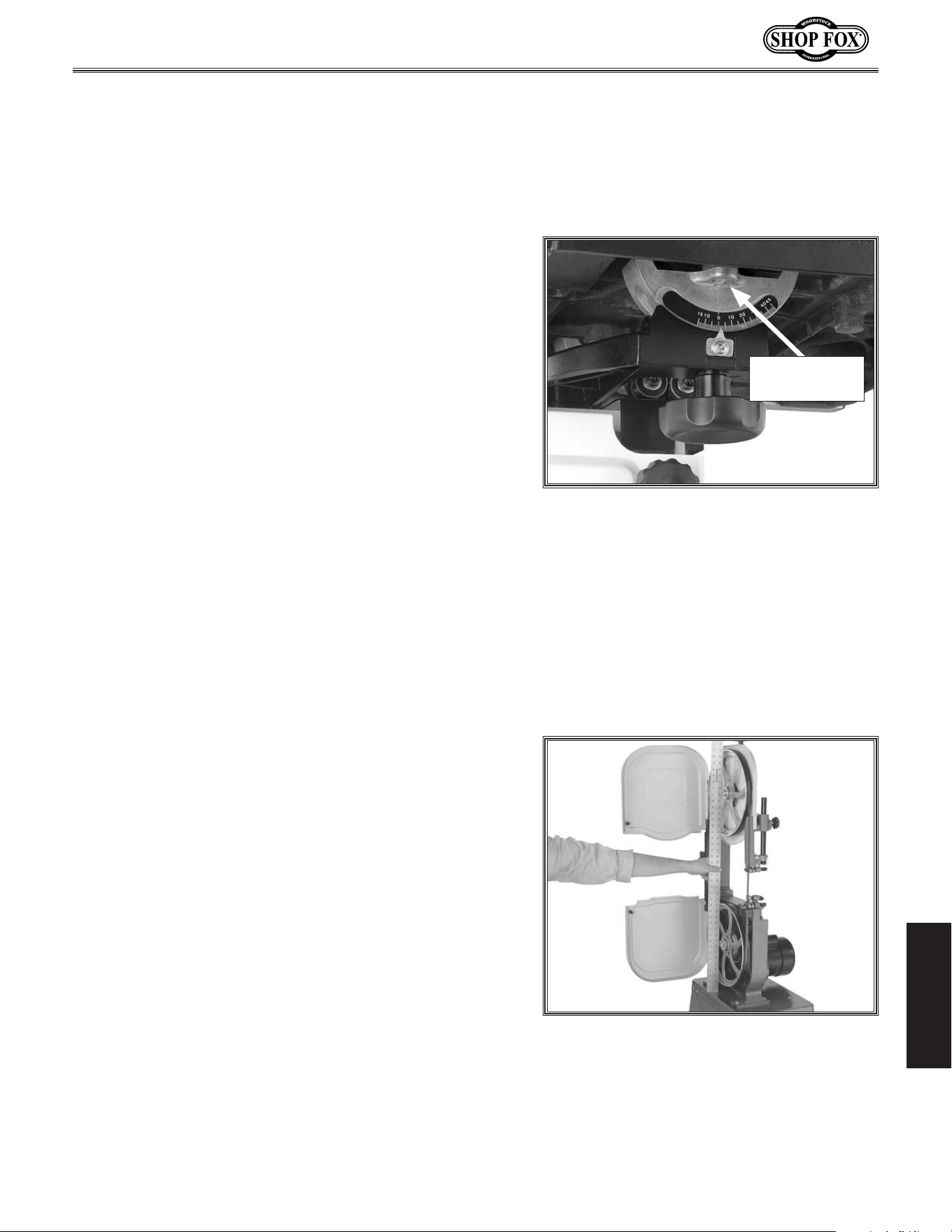

Tool.Needed. Qty
Wrench or Socket 10mm .......................................1
The.skew.the.table,.do.these.steps:
1. On a scrap piece of wood, mark a line that is
perpendicular to the front edge. Starting where the
line begins, cut the board by pushing it through the
blade with the miter gauge.
2. Loosen the six trunnion bolts that secure the table
(see Figure.60). Shift the table to compensate
for the difference between the cut edge of the
workpiece and the mark you made in Step.1.
Note:.Keep in mind that as the table alignment is
changed, so is the fence alignment.
3. Repeat Steps.1–2 until the blade cuts straight when
wood is pushed through with the miter gauge.
4. Re-tighten the trunnion bolts to secure the setting.
Figure.60. Location of trunnion bolt.
Trunnion Bolt
(1 of 6)
Aligning.Wheels
Wheel alignment is one of the easiest ways to ensure
you get optimal performance from your bandsaw. When
wheels are aligned, or coplanar, the bandsaw is more
likely to cut straight without wandering; and vibration,
heat, and blade wear are considerably decreased because
the blade is automatically balanced on the wheel. This is
known as “Coplanar Tracking.”
Tools.Needed. Qty
Wrench or Socket 10mm .......................................1
Wrench or Socket 13mm .......................................1
Wrench or Socket
3
⁄4" ..........................................1
Straightedge 48" ................................................1
Fine Ruler ........................................................1
Shim Washers ........................................ As needed
To.verify.if.the.upper.and.lower.wheels.are.coplanar,.
do.these.steps:
1. DISCONNECT BANDSAW FROM POWER!
2. Remove the table and open both wheel covers.
Figure.61. Checking wheel alignment with
a straightedge.
-48-
Model W1706 (Mfg. Since 3/13)
SERVICE

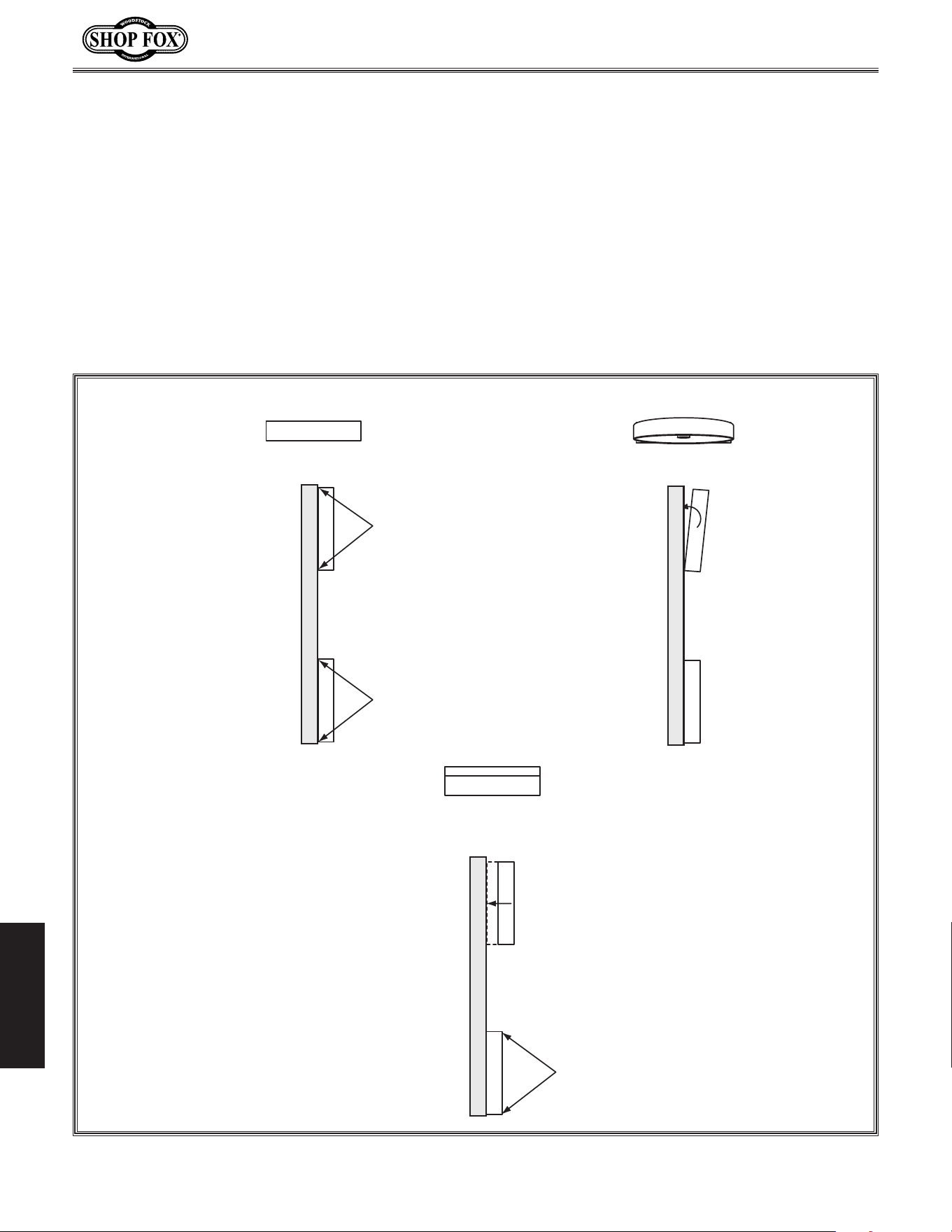

3. With the blade installed and properly tensioned, hold a straightedge close to the center of both
wheels. Make sure the straightedge fully extends across the wheels, as shown in Figure.61 on the
previous page.
— If the wheels are coplanar (see Figure.62, "A"), the straightedge will evenly touch the top and
bottom of both wheels.
— If the wheels are not coplanar (see Figure.62, "B"), place the straightedge on the lower wheel
first (ensuring that it touches both the top and bottom rim), then adjust the upper wheel
tracking knob to make the upper wheel coplanar with the lower wheel.
— If the wheels are coplanar (parallel with each other), but the straightedge does not touch the
rims of both wheels (see Figure.62, "C"), then shim the wheels as instructed on the next page.
Coplanar
Straightedge
Contacts Top
And Bottom of
Both Wheels
Straightedge
A
Not Coplanar
Straightedge Only
Contacts Bottom
Wheel. Top Wheel
Needs to Be Tilted.
Solution:
Adjust
Tracking
Knob
B
Parallel, Not
Coplanar
Straightedge
Does Not
Contact Rims
Of Both Wheels
Solution:
Shim Wheel
Out
C
Figure.62. Coplanar conditions.
-49-
Model W1706 (Mfg. Since 3/13)
SERVICE
Shimming.a.Wheel
1. DISCONNECT BANDSAW FROM POWER!
2. With a straightedge touching both points of
whichever wheel is forward most, measure the
distance the straightedge is away from the out-
of-adjustment upper wheel (see Figure.63 for an
example).
3. Remove the blade from the saw, then remove the
wheel that needs to be shimmed.
4. Determine the amount of shim washers necessary to
compensate for the distance measured in Step.3,
then place them on the wheel shaft.
5. Replace the wheel and the blade.
6. Properly tension the blade, then check the wheels
with the straightedge.
Note:.Wheel coplanarity changes as the blade is
tightened, so it is best to check the wheel alignment
when the blade is fully tensioned as it would be for
normal operations.
7. When the wheels are coplanar and even with each
other, place a mark on each wheel where you held
the straightedge. This assures repeated accuracy
every time you adjust your wheels.
Note: When wheels are properly coplanar, the blade
may not be centered on the crown of the wheel, but
it will be balanced.
8. Secure the wheel covers and re-install the table
before re-connecting the bandsaw to power.
9. Make sure that the blade is tracking properly (refer
to Page.14).

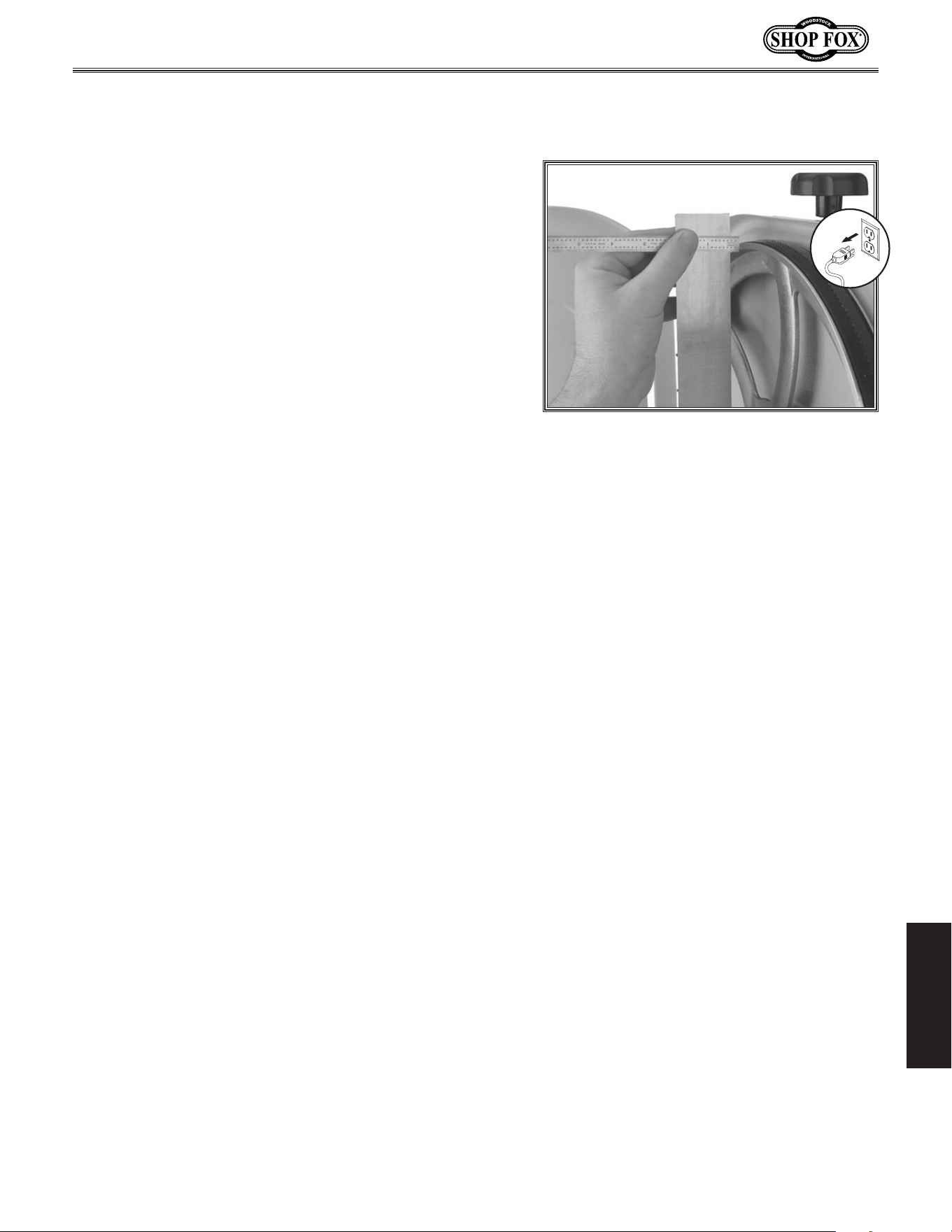

Figure.63. Measuring the distance the
wheel is out of adjustment.
-50-
Model W1706 (Mfg. Since 3/13)
SERVICE
These pages are current at the time of printing. However, in the spirit of improvement, we may
make changes to the electrical systems of future machines. Study this diagram carefully. If you notice
differences between your machine and these wiring diagrams, call Woodstock International Technical
Support at (360) 734-3482.
SHOCK HAZARD.
Working on wiring that is
connected to a power source is extremely
dangerous. Touching electrified parts will
result in personal injury including but not
limited to severe burns, electrocution,
or death. Disconnect the power from
the machine before servicing electrical
components!
QUALIFIED ELECTRICIAN
. Due to the inherent
hazards of electricity, only a qualified
electrician should perform wiring tasks on this
machine. If you are not a qualified electrician,
get help from one before attempting any kind
of wiring job.
WIRE CONNECTIONS.
All connections must be
tight to prevent wires from loosening during
machine operation. Double-check all wires
disconnected or connected during any wiring
task to ensure tight connections.
WIRE/COMPONENT DAMAGE
. Damaged wires
or components increase the risk of serious
personal injury, fire, or machine damage.
If you notice that any wires or components
are damaged while performing a wiring task,
replace those wires or components before
completing the task.
MOTOR WIRING
. The motor wiring shown in these
diagrams is current at the time of printing,
but it may not match your machine. Always
use the wiring diagram inside the motor
junction box.
MODIFICATIONS. Using aftermarket parts or
modifying the wiring beyond what is shown
in the diagram may lead to unpredictable
results, including serious injury or fire.
CAPACITORS/INVERTERS. Some capacitors and
power inverters store an electrical charge for
up to five minutes after being disconnected
from the power source. To avoid being
shocked, wait at least this long before working
on these components.
ELECTRICAL REQUIREMENTS. You MUST follow
the electrical requirements at the beginning
of this manual when connecting your machine
to a power source.
EXPERIENCING DIFFICULTIES. If you are
experiencing difficulties understanding the
information included in this section, contact
our Technical Support at (360) 734-3482.
Electrical.Safety.Instr uctions
The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.shopfox.biz.
BLACK
WHITE
GREEN
RED
BLUE
BROWN
GRAY
ORANGE
YELLOW
YELLOW
GREEN
PURPLE
PINK
LIGHT
BLUE
BLUE
WHITE
TUR-
QUOISE

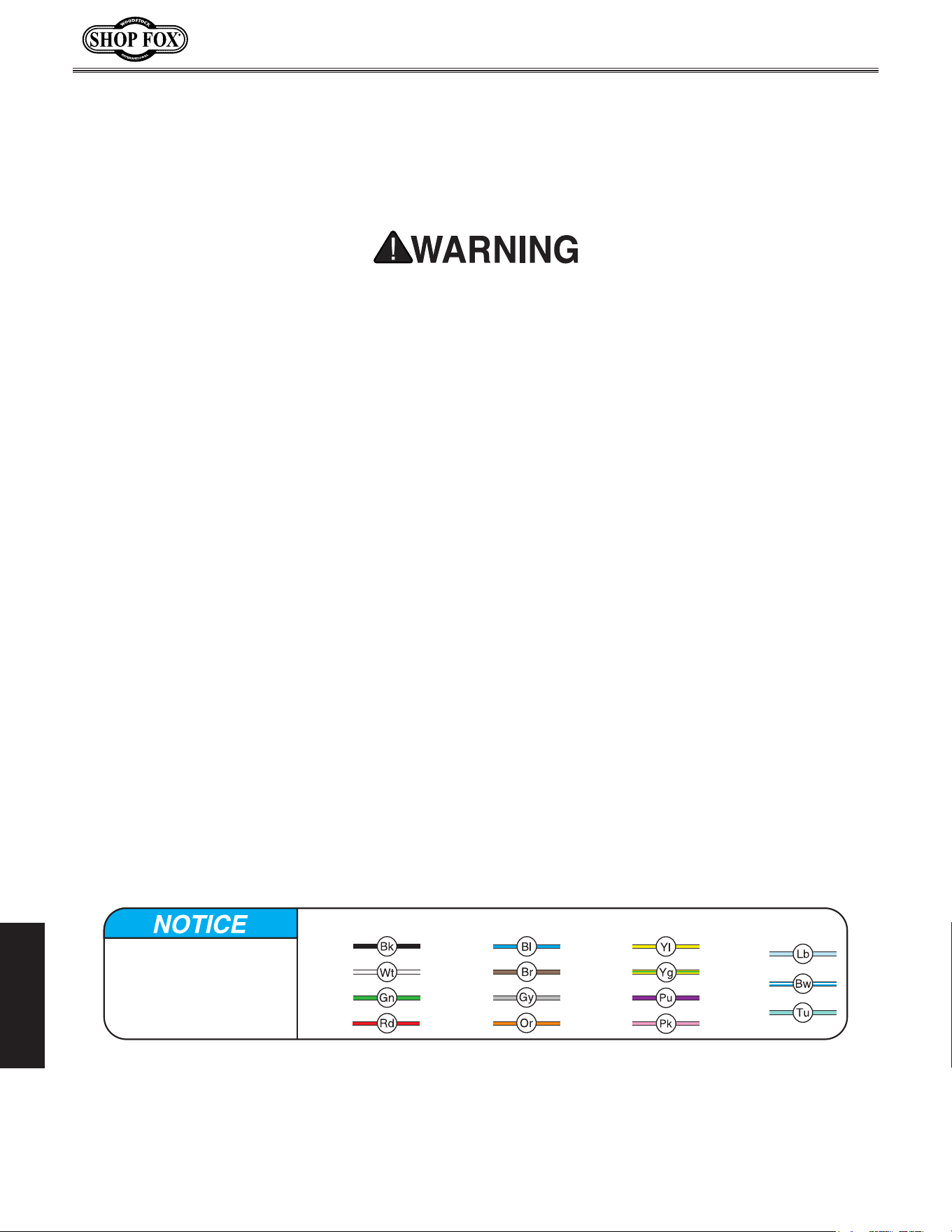

WIRING DIAGRAM COLOR KEY
-51-
Model W1706 (Mfg. Since 3/13)
SERVICE
STOP
Read
Page 50
Before
Wiring
W1706.Wiring.Diagram
-52-
Model W1706 (Mfg. Since 3/13)
SERVICE
Troubleshooting
This section covers the most common problems and corrections with this type of
machine. WARNING!.DO.NOT.make.any.adjustments.until.power.is.disconnected.and.
moving.parts.have.come.to.a.complete.stop!
PROBLEM POSSIBLE.CAUSE CORRECTIVE.ACTION
Motor will not start. 1. Low voltage.
2. Open circuit in motor or loose
connections.
3. Faulty start capacitor.
1. Check power supply for proper voltage.
2. Inspect all lead connections on motor and magnetic
switch for loose or open connections.
3. Replace start capacitor.
Fuses or circuit breakers
trip open.
1. Short circuit in line cord or plug.
2. Short circuit in motor or loose
connections.
3. Incorrect fuses or circuit breakers
in power supply.
1. Inspect cord or plug for damaged insulation and
shorted wires and replace extension cord.
2. Inspect all connections on motor for loose or
shorted terminals or worn insulation.
3. Install correct fuses or circuit breakers.
Motor overheats. 1. Motor overloaded.
2. Air circulation through the motor
restricted.
1. Reduce load on motor.
2. Clean motor to provide normal air circulation.
Motor fails to develop full
power.
1. Power line overloaded with other
electrical devices.
2. Low power from the power source.
1. Reduce load on power line.
2. Request a power check from the power company.
Motor stalls (resulting in
blown fuses or tripped
circuit).
1. Short circuit in motor of loose
connections.
2. Low voltage.
3. Incorrect fuses or circuit breakers
in power line.
4. Motor overloaded.
1. Inspect connections on motor for loose or shorted
terminals or worn insulation.
2. Correct the low voltage conditions.
3. Install correct fuses or circuit breaker.
4. Reduce load on motor.
Machine slows when
operating.
1. Excessive feed rate.
2. Dull blade.
3. Incorrect blade for operation.
4. Binding the blade when cutting
curves.
5. Workpiece wet.
1. Reduce feed rate.
2. Sharpen/replace blade.
3. Use correct blade for workpiece.
4. Make more relief cuts; use correct blade width for
operation.
5. If moisture content is higher than 20%, sticker and
allow to dry.
Blade does not run evenly
on wheels or runs off.
1. Tracking is not properly adjusted.
2. Wheels are not coplanar.
1. Properly adjust blade tracking (see Page.14).
2. Adjust wheel alignment (see Page.47).
Blade slows when cutting;
machine makes a squealing
noise upon startup.
1. Belt loose.
2. Belt excessively worn.
1. Adjust belt tension (see Page.43).
2. Replace belt (see Page.44).
Ticking sound when
bandsaw is running.
1. Blade weld contacting guide bear-
ings.
2. Motor fan or cover damaged.
3. Damaged blade; bent teeth.
1. Use a stone to smooth blade weld.
2. Replace.
3. Replace blade.
Blade contacting table
insert.
1. Excessive side pressure on blade
when cutting.
2. Table not properly adjusted.
1. Reduce side pressure on blade.
2. Properly align the table with the blade (see
Page.19).
Excessive vibration when
bandsaw is running.
1. Machine sits on floor unevenly.
2. Wheels not coplanar.
3. Tires incorrectly installed.
4. Belt worn out.
5. Bent or damaged blade.
6. Wheel(s) out of balance.
1. Adjust rubber feet; shim if necessary.
2. Adjust wheel alignment (see Page.47).
3. Check/re-install/replace.
4. Replace belt (see Page.44).
5. Replace blade (see Page .39).
6 Replace wheel(s).
-53-

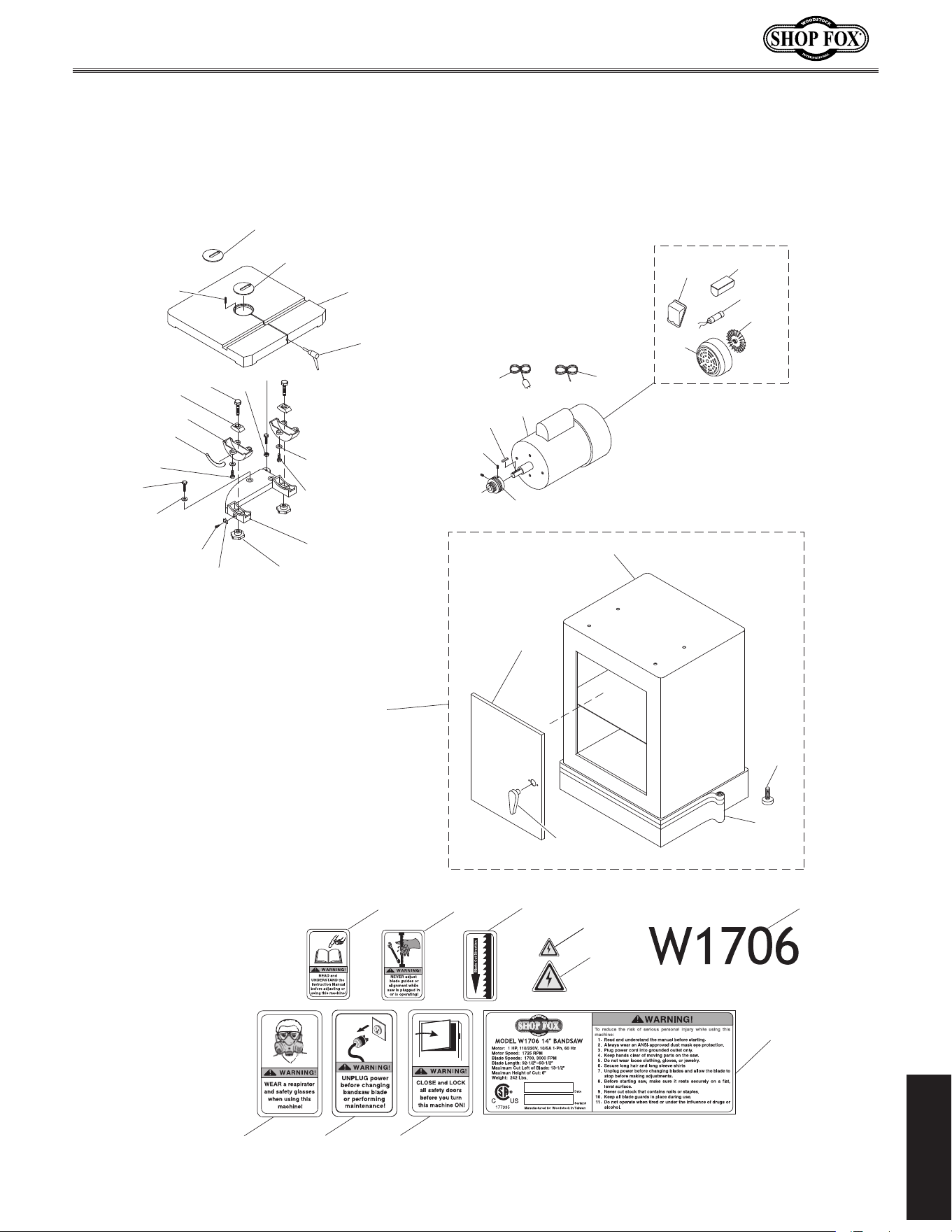

Model W1706 (Mfg. Since 3/13)
PARTS
1
1-1
1-2
1-3
1-4
1-5
8
11
11-1
11-2
11-3
11-4
11-5
12
13
25V2
26V2
73
97
98
98-1
99
100
101
102
103
104
104-1
105
106
108
109
110
111
112
113
174V2
175
176
177
178
179
180
181
182
184
104
PARTS
Cabinet.Stand
-54-
Model W1706 (Mfg. Since 3/13)
PARTS
Cabinet.Stand.Parts.List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 X1706001 CABINET STAND ASSEMBLY 101 X1706101 TRUNNION
1-1 X1706001-1 CABINET STAND 102 X1706102 TILT SCALE
1-2 X1706001-2 CABINET DOOR 103 X1706103 TRUNNION CLAMP SHOE
1-3 X1706001-3 BOTTOM BLACK STRIPE 104 X1706104 HEX BOLT 1/4-20 X 1/2
1-4 X1706001-4 HANDLE 104-1 X1706104-1 FLAT WASHER 1/4
1-5 X1706001-5 CABINET RUBBER FOOT 105 X1706105 TRUNNION BASE
8 X1706008 KEY 5 X 5 X 25 106 X1706106 HEX BOLT 5/16-18 X 1-1/4
11 X1706011 MOTOR 1HP 110V/220V 1PH 108 X1706108 POINTER
11-1 X1706011-1 MOTOR FAN 109 X1706109 PHLP HD SCR 10-24 X 1/4
11-2 X1706011-2 MOTOR FAN COVER 110 X1706110 TRUNNION LOCK KNOB 3/8-16
11-3 X1706011-3 MOTOR JUNCTION BOX 111 X1706111 HEX BOLT 3/8-16 X 2
11-4 X1706011-4 CAPACITOR COVER 112 X1706112 HEX BOLT 5/16-18 X 1-3/4
11-5 X1706011-5 S CAPACITOR 300M 125V 113 X1706113 HEX NUT 5/16-18
12 X1706012 MOTOR PULLEY 174V2 X1706174V2 MACHINE ID LABEL CSA V2.08.10
13 X1706013 SET SCREW 1/4-20 X 1/2 175 X1706175 ELECTRICITY LABEL LARGE
25V2 X1706025V2 POWER CORD 16G 3C 5-15 V2.08.10 176 X1706176 ELECTRICITY LABEL SMALL
26V2 X1706026V2 MOTOR CORD 16G 3C V2.08.10 177 X1706177 CLOSE DOOR WARNING LABEL
73 X1706073 LOCK WASHER 5/16 178 X1706178 BANDSAW ADJUST LABEL
97 X1706097 TABLE 179 X1706179 BLADE DIRECTION LABEL
98 X1706098 LARGE TABLE INSERT 180 X1706180 UNPLUG WARNING LABEL
98-1 X1706098-1 SMALL TABLE INSERT 181 X1706181 RESPIRATOR WARNING LABEL
99 X1706099 ROLL PIN 3 X 8 182 X1706182 READ MANUAL LABEL SMALL
100 X1706100 TABLE LOCK PIN 184 X1706184 MODEL NUMBER LABEL
Body.Parts.List
REF PART # DESCRIPTION REF PART # DESCRIPTION
2 X1760002 HEX BOLT 5/8-11 X 2-1/2 22 X1706022 WHEEL PULLEY
3 X1760003 FLAT WASHER 5/8 23 X1706023 PHLP HD SCR 10-24 X 5/8
4 X1706004 HEX NUT 5/8-11 24V2 X1706024V2 STRAIN RELIEF V2.08.10
5 X1706005 GUIDE PIN 6 X 5MM 28 X1706028 UPPER FRAME ARM
6 X1706006 LOWER WHEEL SHAFT 29 X1706029 KNOB BOLT 5/16-18 X 3/4
7 X1706007 BALL BEARING 6204-2RS 29-1 X1706029-1 KNOB BOLT 5/16-18 X 2
8 X1706008 KEY 5 X 5 X 25 30 X1706030 TENSION SPRING HOUSING
9 X1706009 FLAT WASHER 5/16 31 X1706031 WING NUT 5/16-18
10 X1706010 HEX BOLT 5/16-18 X 3/4 33 X1706033 TENSION BOLT 3/8-16 X 11-5/8
14V2 X1706014V2 PUSH BUTTON SWITCH V2.08.10 34 X1706034 PIVOT PIN
15 X1706015 TAP SCREW #10 X 3/4 35 X1706035 UPPER WHEEL SHAFT
16 X1706016 FLAT WASHER #10 35-1 X1706035-1 SHAFT BRACKET
17 X1706017 PHLP HD SCR 10-24 X 1/2 35-2 X1706035-2 ROLL PIN 4 X 30
19 X1706019 EXT TOOTH WASHER #10 38 X1706038 TENSION SPRING 3.8 X 76
20V2 X1706020V2 SWITCH BOX V2.08.10 39 X1706039 INDICATOR NUT 3/8 X 16
21 X1706021 SWITCH BRACKET 40 X1706040 UPPER WHEEL
-55-

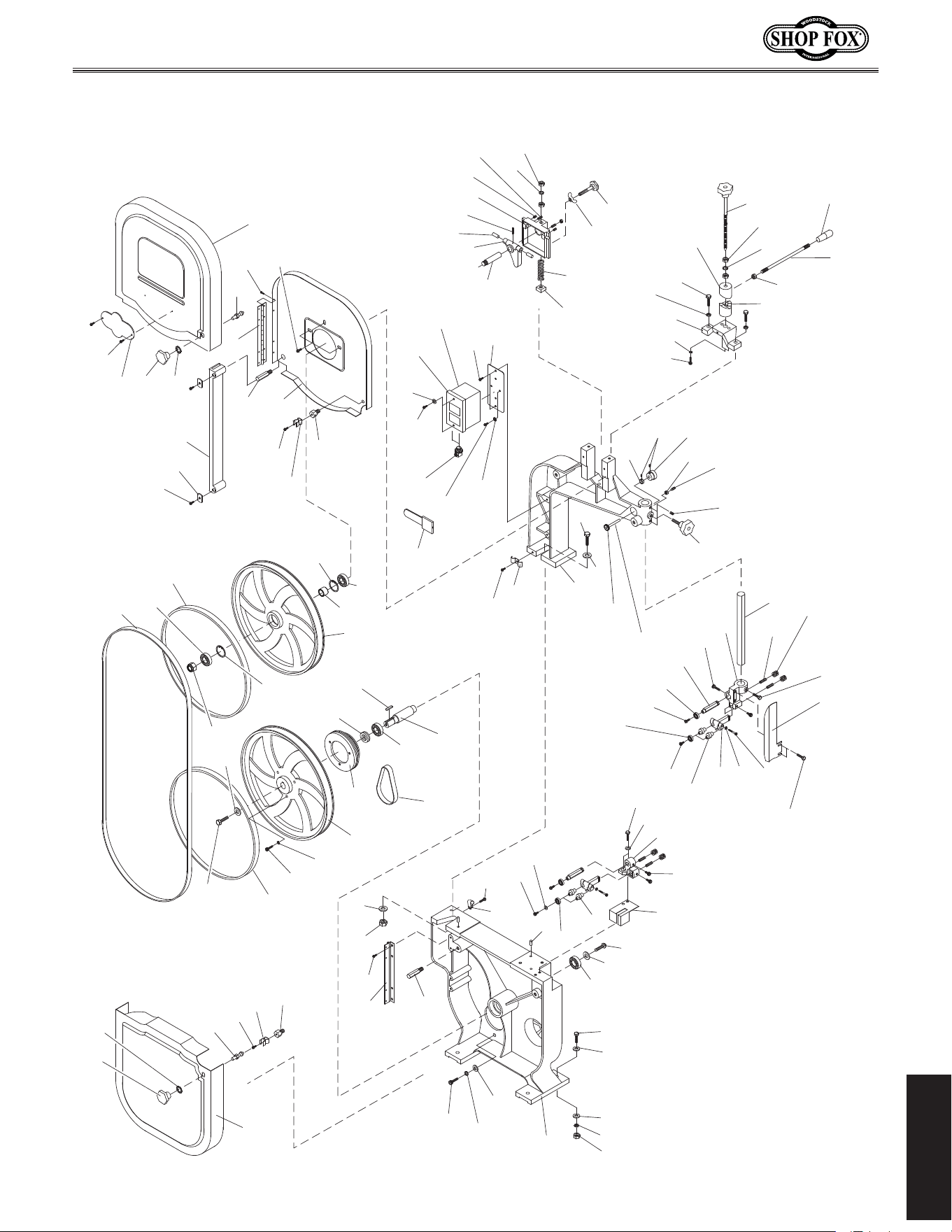

Model W1706 (Mfg. Since 3/13)
PARTS
Body
2
3
4
5
6
7
8
9
10
14V2
15
16
17
19
20V2
21
22
23
24V2
28
29
29-1
30
31
33
34
35
35-1
35-2
38
39
40
173
41
42
43
44
45
45-1
46
47
48
51
55
56
57
59
60
61
63
64
65
67
68
69
70
71
72
73
74
75
76
79
80
81
82
83
84
85
86
88
89
92
93
94
95
113
115
116
117
118
118-1
119
120
121
122
123
124
127
128
129A
131
133
134
135
135-1
138
139
140
141
150
151
154
155
162
167
168
170
185
58
49
50
66
62
43
44
41
49
50
51
55
56
57
64
72
7
125
96
129A
96
128
80
90
3
154
167
131
141
155
131
186
-56-
Model W1706 (Mfg. Since 3/13)
PARTS
Body.Parts.List
REF PART # DESCRIPTION REF PART # DESCRIPTION
41 X1706041 WHEEL TIRE 89 X1706089 GUIDE SHAFT BRACKET
42 X1706042 LOCK NUT 1/2-20 THIN 90 X1706090 GUIDE POST GUARD
43 X1706043 INT RETAINING RING 35MM 92 X1706092 PHLP HD SCR 10-24 X 3/8
44 X1706044 BALL BEARING 6202-2RS 93 X1706093 LOWER BLADE GUIDE CASTING
45 X1706045 LOWER WHEEL 94 X1706094 FLAT WASHER 1/4
45-1 X1706045-1 SHIM 19 X 29 X 1MM BRASS 95 X1706095 HEX BOLT 1/4-20 X 3/4
46 X1706046 LOWER WHEEL FLAT WASHER 5/16 96 X1706096 CAP SCREW 10-32 X 1/4
47 X1706047 HEX BOLT 5/16-18 X 3/4 LH 113 X1706113 HEX NUT 5/16-18
48 X1706048 LOWER WHEEL COVER 115 X1706115 HEX BOLT 5/16-18 X 1
49 X1706049 WHEEL COVER KNOB 5/16-18 116 X1706116 LOCK WASHER 5/16
50 X1706050 INT TOOTH WASHER 8MM 117 X1706117 FLAT WASHER 5/16
51 X1706051 STUD LATCH 118 X1706118 PINION SHAFT
55 X1706055 PHLP HD SCR 10-24 X 1/2 118-1 X1706118-1 PINION GEAR
56 X1706056 CATCH 119 X1706119 LOCK COLLAR
57 X1706057 LOCATING BOLT 3/8-16 X 1-3/32 120 X1706120 KNURLED KNOB 1/4-24
58 X1706058 TAP SCREW #8 X 3/8 121 X1706121 SET SCREW 5/16-24 X 1-3/4
59 X1706059 UPPER WHEEL COVER 122 X1706122 KNURLED KNOB 5/16-24
60 X1706060 SAW BLADE 6TPI X 93-1/2 X 3/8 123 X1706123 CAP SCREW 1/4-20 X 5/8
61 X1706061 UPPER WHEEL HOUSING 124 X1706124 CORD CLAMP 3/4"
62 X1706062 FLANGE SCREW 10-24 X 5/16 125 X1706125 PHLP HD SCR 10-24 X 1/2
63 X1706063 UPPER WHEEL COVER HINGE 127 X1706127 FLAT WASHER #10
64 X1706064 BLADE GUARD STUD 128 X1706128 BALL BEARING 608-2RS
65 X1706065 BLADE GUARD 129A X1706129A ECCENTRIC SHAFT 3/8" V2.09.04
66 X1706066 FLAT WASHER 28 X 16 X 2 131 X1706131 HEX NUT 3/8-16
67 X1706067 TAP SCREW #10 X 1/2 133 X1706133 QUICK RELEASE LEVER
68 X1706068 MULTI-GROOVE BELT 200J5 134 X1706134 LEVER KNOB
69 X1706069 LOWER WHEEL COVER HINGE 135 X1706135 UPPER CLUTCH
70 X1706070 PHLP HD SCR 10-24 X 3/8 135-1 X1706135-1 LOWER CLUTCH
71 X1706071 HEX BOLT 5/16-18 X 1-1/2 138 X1706138 HEX BOLT 5/16-18 X 1-1/4
72 X1706072 FLAT WASHER 5/16 139 X1706139 LOCK WASHER 5/16
73 X1706073 LOCK WASHER 5/16 140 X1706140 CLUTCH SUPPORT BRACKET
74 X1706074 HEX NUT 5/16-18 141 X1706141 LOCK WASHER 3/8
75 X1706075 DOUBLE CORD CLAMP 150 X1706150 SHOP FOX LOGO
76 X1706076 PHLP HD SCR 10-24 X 1/2 151 X1706151 TAP SCREW #4 X 3/8
79 X1706079 UPPER BLADE GUIDE CASTING 154 X1706154 CAP SCREW 1/4-20 X 1
80 X1706080 THUMBSCREW 1/4-20 X 1/4 155 X1706155 SET SCREW 1/4-20 X 5/16
81 X1706081 BEARING ARBOR 1/4-20 162 X1706162 BALL PLUNGER 1/4-20 X 1/2
82 X1706082 BALL BEARING 6000ZZ 167 X1706167 LOCK WASHER 1/4
83 X1706083 FLANGE SCREW 1/4-20 X 3/8 168 X1706168 SET SCREW 1/4-20 X 3/4
84 X1706084 GUIDE POST 170 X1706170 DOG POINT SET SCREW 1/4-20 X 1/2
85 X1706085 LOCK WASHER #10 173 X1706173 BUSHING
86 X1706086 CAP SCREW 10-24 x 1-1/4 185 X1706185 LOWER FRAME
88 X1706088 LOWER BLADE GUIDE BRACKET 186 X1706186 SWITCH PADLOCK
-57-

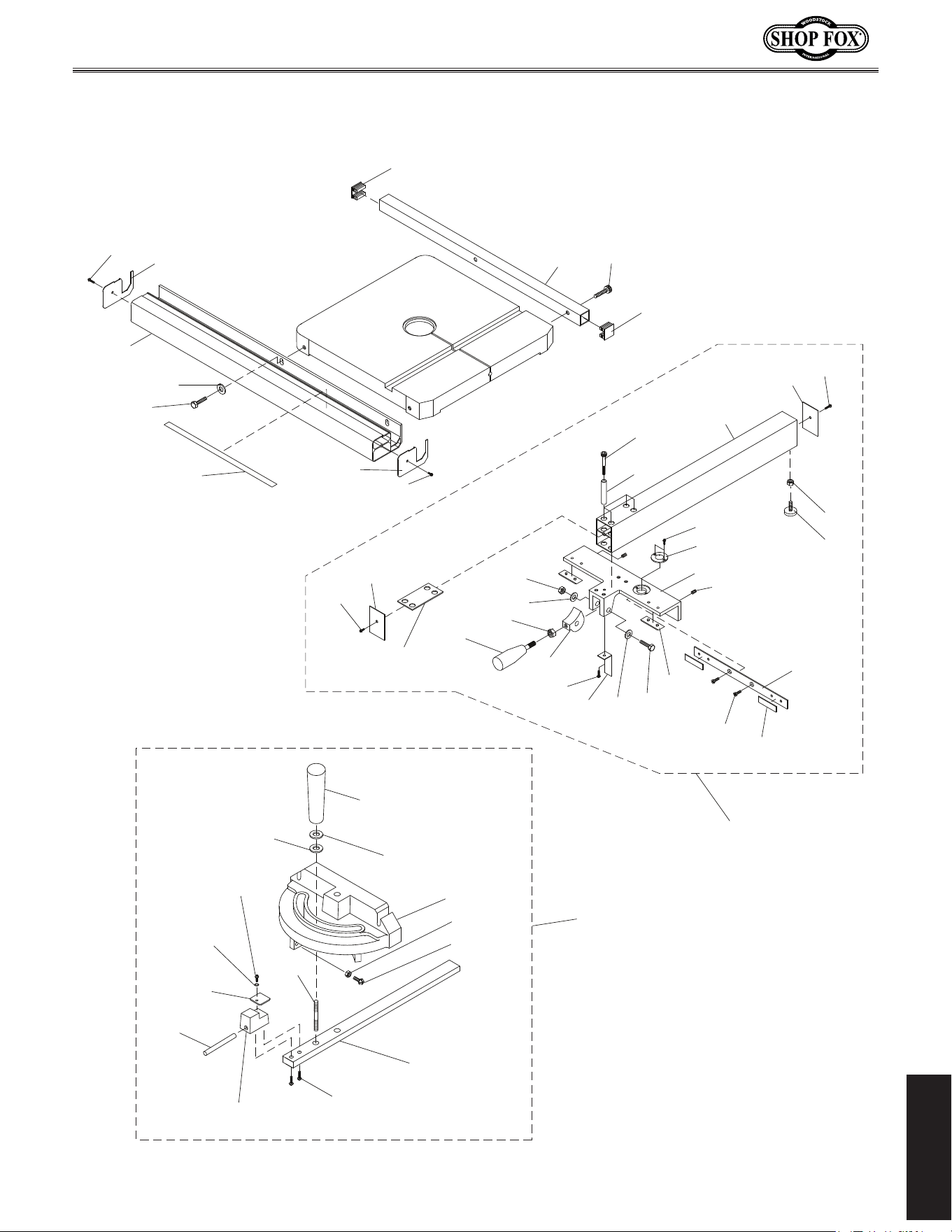

Model W1706 (Mfg. Since 3/13)
PARTS
Fence.&.Miter.Gauge
23
27
32
36
37
52
53
54
58
77
77-1
77-2 Fence Assembly
With Rails
77-3
78
87
94
95
107
107-1
113
114
114-1
114-2
114-3
114-4
114-5
114-6
114-7
114-8
114-9
114-10
114-11
114-12
114-13
114-14
126
130
131
132
153
156
157
158
159
160
161
163
166
161
53
58
58
58
87
156
130
-58-
Model W1706 (Mfg. Since 3/13)
PARTS
Fence.&.Miter.Gauge.Parts.List
REF PART # DESCRIPTION REF PART # DESCRIPTION
23 X1706023 PHLP HD SCR 10-24 X 5/8 114-4 X1706114-4 STOP DOWEL
27 X1706027 CAP SCREW 1/4-20 X 2-1/2 114-5 X1706114-5 HANDLE 1/4-20
32 X1706032 PHLP HD SCR 8-32 X 1-1/4 114-6 X1706114-6 POINTER
36 X1706036 LOCK CAM 114-7 X1706114-7 STUD 1/4-20 X 1-1/8
37 X1706037 FRONT FENCE RAIL 114-8 X1706114-8 PLASTIC FLAT WASHER 1/4"
52 X1706052 REAR FENCE RAIL 114-9 X1706114-9 FLAT WASHER 1/4
53 X1706053 FRONT RAIL END CAP 114-10 X1706114-10 HEX NUT 10-24
54 X1706054 FENCE POINTER LENS 114-11 X1706114-11 PHLP HD SCR 10-24 X 3/4
58 X1706058 TAP SCREW #8 X 3/8 114-12 X1706114-12 PHLP HD SCR 10-24 X 1/4
77 X1706077 FENCE TUBE 114-13 X1706114-13 FLAT WASHER 5MM
77-1 X1706077-1 FENCE INSET PLATE 114-14 X1706114-14 PHLP HD SCR 10-24 X 1/4
77-2 X1706077-2 FENCE ASSEMBLY W/RAILS 126 X1706126 SET SCREW 5/16-18 X 3/8
77-3 X1706077-3 FENCE ASSEMBLY W/O RAILS 130 X1706130 BEARING PAD
78 X1706078 SLEEVE 131 X1706131 HEX NUT 3/8-16
87 X1706087 FENCE END CAP 132 X1706132 FENCE LOCK LEVER 5/16-18 X 5/8
94 X1706094 FLAT WASHER 1/4 153 X1706153 CAM WEAR PLATE
95 X1706095 HEX BOLT 1/4-20 X 3/4 156 X1706156 FLAT WASHER 3/8
107 X1706107 FENCE CARRIAGE 157 X1706157 HEX BOLT 3/8-16 X 2
107-1 X1706107-1 LOCKING PLATE 158 X1706158 HEX NUT M6-1
113 X1706113 HEX NUT 5/16-18 159 X1706159 RUB FOOT M6-1 X 15
114 X1706114 MITER GAUGE ASSEMBLY 160 X1706160 CAP SCREW 1/4-20 X 5/8
114-1 X1706114-1 MITER GAUGE BODY 161 X1706161 REAR RAIL END CAP
114-2 X1706114-2 MITER BAR 163 X1706163 FLAT HD SCR M6-1 X 6
114-3 X1706114-3 STOP BLOCK 166 X1706166 FENCE SCALE
Model W1706 (Mfg. Since 3/13)
tape along edges--please do not staple
Fold along dotted lIne
Fold along dotted lIne
Woodstock international inc.
p.o. box 2309
bellingham, Wa 98227-2309
place
stamp
Here
WARRANTY
Woodstock International, Inc. warrants all Shop Fox machinery to be free of defects from workmanship
and materials for a period of two years from the date of original purchase by the original owner.
This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence or
accidents, lack of maintenance, or reimbursement of third party expenses incurred.
Woodstock International, Inc. will repair, replace, or arrange for a dealer refund at its expense and
at its option, the Shop Fox machine or machine part, which in proper and intended use has proven to
be defective, provided that the original owner returns the product prepaid to an authorized warranty
or repair facility as designated by our Bellingham, Washington office with proof of their purchase of
the product within two years, and provides Woodstock International, Inc. reasonable opportunity to
verify the alleged defect through inspection. If it is determined there is no defect, or that the defect
resulted from causes not within the scope of Woodstock International Inc.'s warranty, then the original
owner must bear the cost of storing and returning the product.
This is Woodstock International, Inc.’s sole written warranty and any and all warranties that may be
implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited
to the duration of this written warranty. We do not warrant that Shop Fox machinery complies with
the provisions of any law, acts or electrical codes. We do not reimburse for third party repairs. In no
event shall Woodstock International, Inc.’s liability under this limited warranty exceed the purchase
price paid for the product, and any legal actions brought against Woodstock International, Inc. shall be
tried in the State of Washington, County of Whatcom. We shall in no event be liable for death, injuries
to persons or property or for incidental, contingent, special or consequential damages arising from the
use of our products.
Every effort has been made to ensure that all Shop Fox machinery meets high quality and durability
standards. We reserve the right to change specifications at any time because of our commitment to
continuously improve the quality of our products.
WARRANTY
