Visit our website at: http://www.harborfreight.com
email our technical support at: [email protected]
71113
16" VARIABLE SPEED
SCROLL SAW
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 24a
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright
©
2023 by Harbor Freight Tools
®
. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Page 2 For technical questions, please call 1-888-866-5797. 71113
SaFety OperatiOn MaintenanceSetup
table of contents
Safety ......................................................... 2
Specifications ............................................. 6
Setup .......................................................... 6
Operation .................................................... 8
Maintenance .............................................. 10

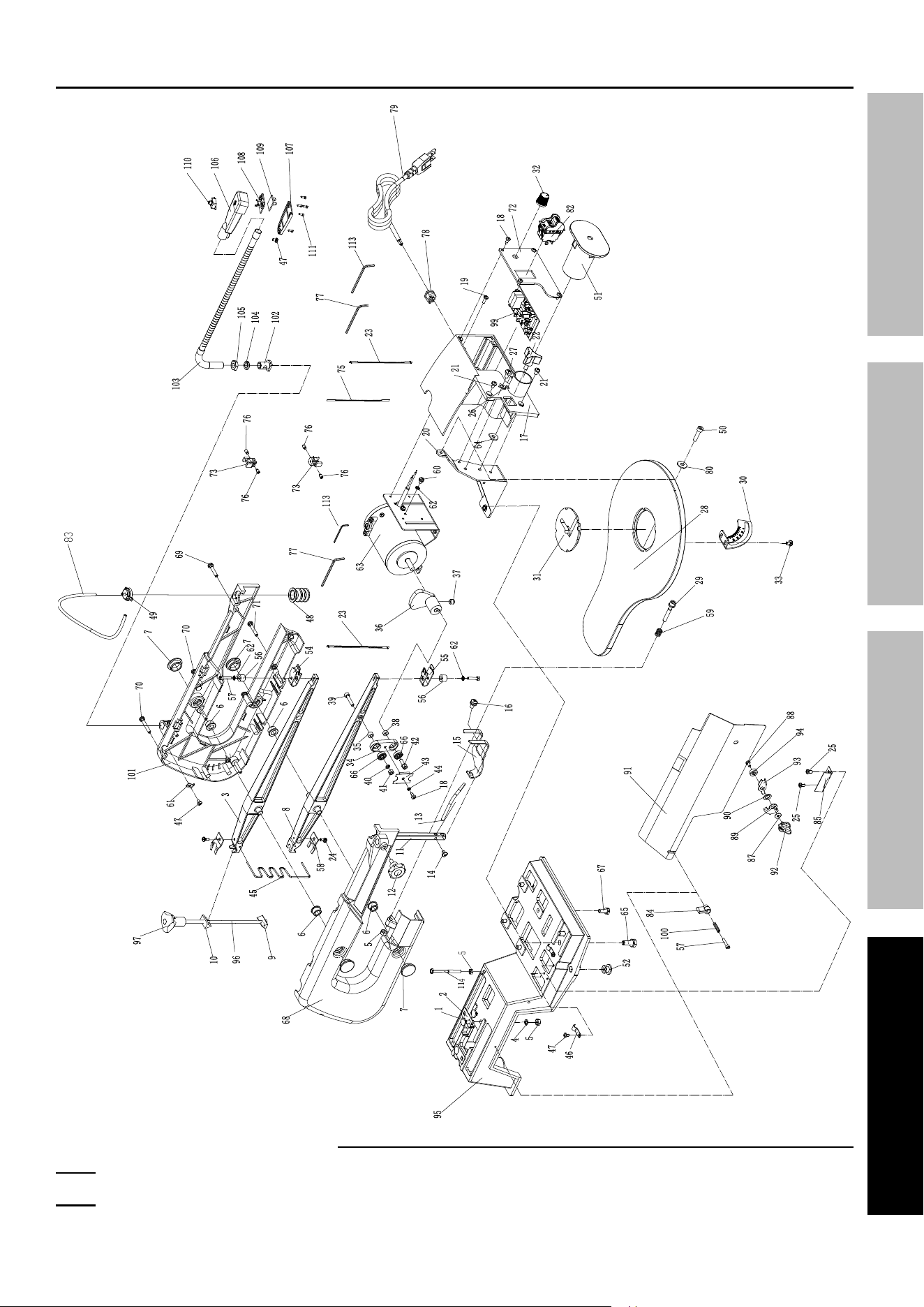

Parts List and Diagram .............................. 14
Warranty .................................................... 16
WarninG SyMBOLS anD DeFinitiOnS
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
iMpOrtant SaFety inFOrMatiOn
General tool Safety Warnings
read all safety warnings and instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
1. KEEP GUARDS IN PLACE and in working order.
2. REMOVE ADJUSTING KEYS AND
WRENCHES. Form habit of checking to
see that keys and adjusting wrenches are
removed from tool before turning it on.
3. KEEP WORK AREA CLEAN.
Cluttered areas and benches invite accidents.
4. DON’T USE IN DANGEROUS ENVIRONMENT.
Don’t use power tools in damp or wet locations,
or expose them to rain. Keep work area well lighted.
5. KEEP CHILDREN AWAY. All visitors should
be kept safe distance from work area.
6. MAKE WORKSHOP KID PROOF with padlocks,
master switches, or by removing starter keys.
7. DON’T FORCE TOOL. It will do the job better
and safer at the rate for which it was designed.
8. USE RIGHT TOOL. Don’t force tool or attachment
to do a job for which it was not designed.
Page 3For technical questions, please call 1-888-866-5797.71113
SaFetyOperatiOnMaintenance Setup
table a: recOMMenDeD MiniMuM Wire GauGe
FOr eXtenSiOn cOrDS
(120 VOLt)
naMepLate
aMpereS
(at full load)
eXtenSiOn cOrD
LenGtH
25′ 50′ 100′ 150′
0 – 6 18 16 16 14
6.1 – 10 18 16 14 12
10.1 – 12 16 16 14 12
12.1 – 16 14 12 Do not use.
9. USE PROPER EXTENSION CORD. Make sure
your extension cord is in good condition. When
using an extension cord, be sure to use one heavy
enough to carry the current your product will draw.
An undersized cord will cause a drop in line voltage
resulting in loss of power and overheating.
Table A shows the correct size to use depending
on cord length and nameplate ampere rating.
If in doubt, use the next heavier gauge.
The smaller the gauge number, the heavier the cord.
10. WEAR PROPER APPAREL. Do not wear
loose clothing, gloves, neckties, rings, bracelets,
or other jewelry which may get caught in moving
parts. Nonslip footwear is recommended.
Wear protective hair covering to contain long hair.
11. ALWAYS USE SAFETY GLASSES. Also
use face or dust mask if cutting operation is
dusty. Everyday eyeglasses only have impact
resistant lenses, they are NOT safety glasses.
12. SECURE WORK. Use clamps or a vise to
hold work when practical. It’s safer than using
your hand and it frees both hands to operate tool.
13. DON’T OVERREACH.
Keep proper footing and balance at all times.
14. MAINTAIN TOOLS WITH CARE. Keep
tools sharp and clean for best and safest
performance. Follow instructions for
lubricating and changing accessories.
15. DISCONNECT TOOLS before servicing;
when changing accessories, such as
blades, bits, cutters, and the like.
16. REDUCE THE RISK OF UNINTENTIONAL
STARTING. Make sure switch is in
off position before plugging in.
17. USE RECOMMENDED ACCESSORIES.
Consult the owner’s manual for recommended
accessories. The use of improper accessories
may cause risk of injury to persons.
18. NEVER STAND ON TOOL.
Serious injury could occur if the tool is tipped or
if the cutting tool is unintentionally contacted.
19. CHECK DAMAGED PARTS. Before further use
of the tool, a guard or other part that is damaged
should be carefully checked to determine that
it will operate properly and perform its intended
function – check for alignment of moving parts,
binding of moving parts, breakage of parts,
mounting, and any other conditions that may
affect its operation. A guard or other part that is
damaged should be properly repaired or replaced.
20. DIRECTION OF FEED.
Feed work into a blade or cutter against the
direction of rotation of the blade or cutter only.
21. NEVER LEAVE TOOL RUNNING UNATTENDED.
TURN POWER OFF. Don’t leave tool
until it comes to a complete stop.
Page 4 For technical questions, please call 1-888-866-5797. 71113
SaFety OperatiOn MaintenanceSetup
Grounding instructions
tO preVent eLectric SHOcK anD DeatH FrOM incOrrect
GrOunDinG Wire cOnnectiOn reaD anD FOLLOW tHeSe inStructiOnS:
110-120 Vac Grounded tools: tools with three prong plugs
1. In the event of a malfunction or breakdown,
grounding provides a path of least resistance for
electric current to reduce the risk of electric shock.
This tool is equipped with an electric cord having an
equipment-grounding conductor and a grounding
plug. The plug must be plugged into a matching
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
2. Do not modify the plug provided – if it will
not fit the outlet, have the proper outlet
installed by a qualified electrician.
3. Improper connection of the equipment-grounding
conductor can result in a risk of electric shock.
The conductor with insulation having an outer
surface that is green with or without yellow
stripes is the equipment-grounding conductor.
If repair or replacement of the electric cord or
plug is necessary, do not connect the equipment-
grounding conductor to a live terminal.
4. Check with a qualified electrician or service
personnel if the grounding instructions are
not completely understood, or if in doubt as
to whether the tool is properly grounded.
5. Use only 3-wire extension cords that
have 3-prong grounding plugs and 3-pole
receptacles that accept the tool’s plug.
6. Repair or replace damaged or
worn cord immediately.
Grounding
pin

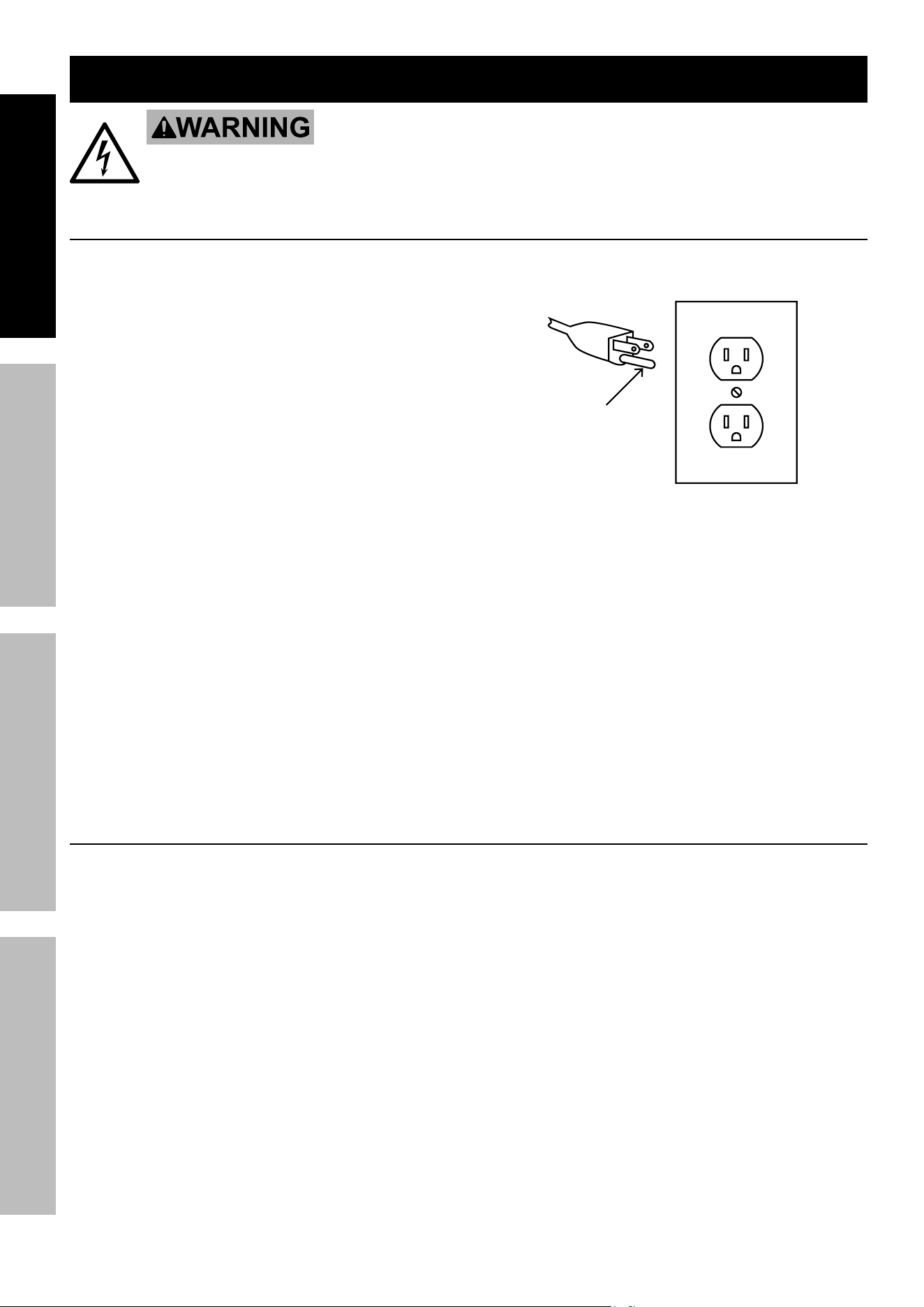

125 Vac 3-prong plug and Outlet
(for up to 125 Vac and up to 15 a)
7. This tool is intended for use on a circuit that has
an outlet that looks like the one illustrated above in
125 Vac 3-prong plug and Outlet. The tool has
a grounding plug that looks like the plug illustrated
above in 125 Vac 3-prong plug and Outlet.
8. The outlet must be properly installed and grounded
in accordance with all codes and ordinances.
9. Do not use an adapter to connect
this tool to a different outlet.
Scroll Saw Safety Warnings
For your Own Safety read instruction
Manual Before Operating Scroll Saw
1. Wear eye protection.
2. DO nOt Operate WitH any GuarD
DiSaBLeD, DaMaGeD, Or reMOVeD. Moving
guards must move freely and close instantly.
3. The use of accessories or attachments not
recommended by the manufacturer may
result in a risk of injury to persons.
4. When servicing use only identical replacement parts.
5. Remove the Safety Key after each use.
Store the Safety Key separate from
the tool and out of children's reach.
6. Only use safety equipment that has been approved
by an appropriate standards agency. Unapproved
safety equipment may not provide adequate
protection. Eye protection must be ANSI-approved
and breathing protection must be NIOSH-approved
for the specific hazards in the work area.
7. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the influence of drugs, alcohol or medication.
A moment of inattention while operating power
tools may result in serious personal injury.
8. Industrial applications must follow OSHA guidelines.
9. Maintain labels and nameplates on the tool.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
Page 5For technical questions, please call 1-888-866-5797.71113
SaFetyOperatiOnMaintenance Setup
10. Avoid unintentional starting.
Prepare to begin work before turning on the tool.
11. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in
close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure.
12. The warnings, precautions, and instructions
discussed in this instruction manual cannot cover all
possible conditions and situations that may occur.
It must be understood by the operator that
common sense and caution are factors
which cannot be built into this product,
but must be supplied by the operator.
Vibration Safety
This tool vibrates during use. Repeated or
long-term exposure to vibration may cause
temporary or permanent physical injury,
particularly to the hands, arms and shoulders.
To reduce the risk of vibration-related injury:
1. Anyone using vibrating tools regularly or for an
extended period should first be examined by a
doctor and then have regular medical check-ups
to ensure medical problems are not being caused
or worsened from use. Pregnant women or
people who have impaired blood circulation to
the hand, past hand injuries, nervous system
disorders, diabetes, or Raynaud’s Disease should
not use this tool. If you feel any medical or
physical symptoms related to vibration (such as
tingling, numbness, and white or blue fingers),
seek medical advice as soon as possible.
2. Do not smoke during use. Nicotine reduces
the blood supply to the hands and fingers,
increasing the risk of vibration-related injury.
3. Use tools with the lowest vibration when there
is a choice between different processes.
4. Include vibration-free periods each day of work.
5. Grip workpiece as lightly as possible (while still
keeping safe control of it). Let the tool do the work.
6. To reduce vibration, maintain the tool as
explained in this manual. If any abnormal
vibration occurs, stop use immediately.
SaVe tHeSe inStructiOnS.
Page 6 For technical questions, please call 1-888-866-5797. 71113
SaFety OperatiOn MaintenanceSetup
Specifications
Electrical Rating 120VAC / 60Hz / 1.2A
Table Tilt 0 to 45 degrees (left)
Cutting Thickness 2″
Blade Type
5" L Pin End blade; Can use plain end blade with provided
adapters. 15 TPI blade mounted on machine.
Throat Depth 16″
Blade Stroke 9/16″
Cutting Speed 550 to 1650 SPM; Variable
Base Mounting Holes 4 - 5/16 inch diameter holes
Accessories
2 Hex Keys
1 Pinless Blade
2 Pinned Blade
2 Adapters
Setup - Before use:
read the entire iMpOrtant SaFety inFOrMatiOn section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
tO preVent SeriOuS inJury FrOM acciDentaL OperatiOn:
turn the power Switch of the tool off, remove the Safety Key, and unplug the tool
from its electrical outlet before performing any procedure in this section.
note: For additional information regarding the parts listed in the following pages,
refer to the Assembly Diagram near the end of this manual.
assembly/Mounting
1. Pick a solid, wood workbench to mount
the Scroll Saw. The workbench must be
stable, and able to support the weight of
the Saw and the material being cut.
2. Find the three 5/16 inch mounting holes
in the Base (95) and mark through the
holes for drilling with a 3/8 inch drill bit.
Remove Scroll Saw and drill holes.
3. Replace Scroll Saw over holes and mount with
the following hardware (not included):
three sets of 1/4″ bolts, washers,
lock washers, and nuts.
4. Check that all Scroll Saw screws and nuts
are tight before using the machine.
check and align Bevel Scale indicator
1. Loosen Bevel Lock Knob (22) and move
the Saw Table until it is approximately
perpendicular (right angle) to the Saw Blade.
2. Use a small combination square to set
the Table at 90 degrees to the Blade.
note: The Stop Bolt beneath the Table should be
set to contact the Table at exactly 90 degrees.
3. Tighten the Table Lock Knob.
4. Loosen Screw (21) holding the Bevel Scale
Indicator (26) and adjust Indicator to point
to “0” degrees. Retighten Screw.
note: The Bevel Scale Indicator is only a guide and
should not be relied upon for precision settings.
Make practice cuts in scrap wood to determine if
the angle settings are correct.
Page 7For technical questions, please call 1-888-866-5797.71113
SaFetyOperatiOnMaintenance Setup

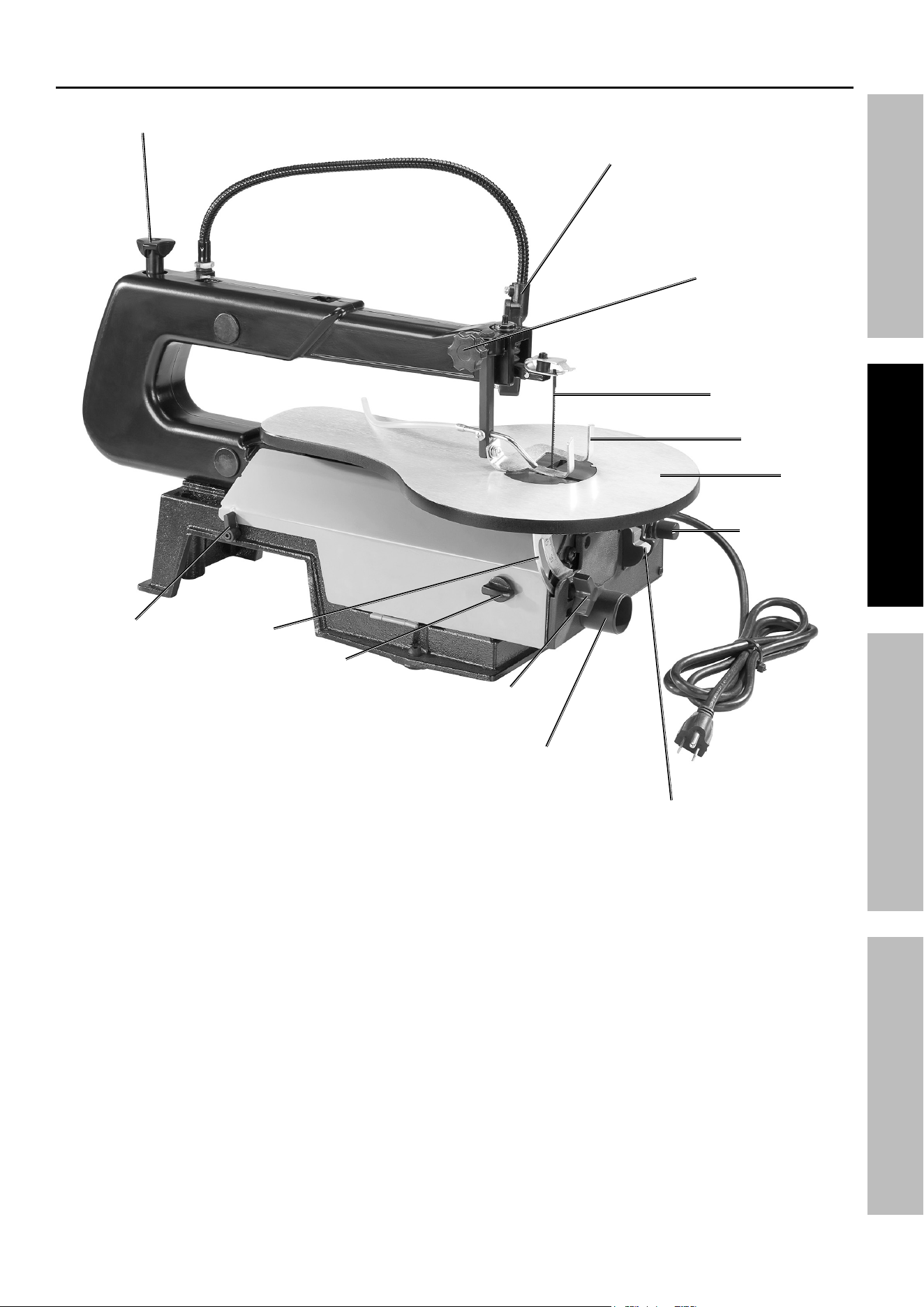

Functions
Front Lock
Knob
Bevel
Scale
Switch with
Safety Key
Bevel Lock
Knob
Work
Light
Blade tension
Knob
Foot Lock
Knob
Saw
Blade
Workpiece
Foot
table
Variable
Speed
Knob
Vacuum Hose
connection
rear Lock
Page 8 For technical questions, please call 1-888-866-5797. 71113
SaFety OperatiOn MaintenanceSetup
Operating instructions
read the entire iMpOrtant SaFety inFOrMatiOn section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
tO preVent SeriOuS inJury FrOM acciDentaL OperatiOn:
turn the power Switch of the tool off, remove the Safety Key, and unplug the tool
from its electrical outlet before performing any procedure in this section.
tO preVent SeriOuS inJury:
DO nOt Operate WitH any GuarD DiSaBLeD, DaMaGeD, Or reMOVeD.
Moving guards must move freely and close instantly.
table angle adjustment
The Saw Table can be adjusted between
0 and 45 degrees as follows:
1. Loosen the Bevel Lock Knob (22) and move
the table until the desired angle is reached
as indicated on the Bevel Scale (30).
2. Tighten the Bevel Lock Knob.
Workpiece and Work area Set up
1. Designate a work area that is clean and well-lit.
The work area must not allow access by children
or pets to prevent distraction and injury.
2. Route the Power Cord along a safe route to reach
the work area without creating a tripping hazard or
exposing the Cord to possible damage. The Power
Cord must reach the work area with enough extra
length to allow free movement while working.
3. There must not be objects, such as utility lines,
nearby that will present a hazard while working.
turning On and adjusting Speed
The Switch (82) needs to have the Safety Key
inserted before the Switch can be used. This feature
prevents unauthorized use of the Scroll Saw.
1. Insert Safety Key into Switch.
2. To turn Saw On, push Switch upward.
3. To turn Saw Off, push Switch downward.
4. Turn the Variable Speed Knob (32) clockwise
to increase the strokes per minute.
WarninG! tO preVent SeriOuS
inJury: Keep hands and fingers away
from the moving Saw Blade.
5. To prevent accidents, turn off the tool,
remove the Safety Key, and unplug the tool from
its electrical outlet after use.
Clean, then store the tool indoors out of
children’s reach. Store the Safety Key
separately also out of children's reach.
Straight, cross, Bevel cuts, and ripping
1. Using a pencil, mark the cut-line on the workpiece.
2. Slide the workpiece underneath the Workpiece
Foot (15). If necessary, adjust the Workpiece
Foot by loosening the Foot Lock Knob (12)
and sliding the Workpiece Foot up or down
until it lightly rests on the workpiece. Tighten
the Workpiece Foot Lock Knob. Do not allow
the workpiece to contact the blade yet.
3. Turn the Switch On. The Saw Blade starts moving.
4. Using both hands, carefully guide the workpiece into
the Blade. Press down on the workpiece and slowly
guide it through the Saw Blade. Do not force the
material through the Blade or the Blade could break.
Page 9For technical questions, please call 1-888-866-5797.71113
SaFetyOperatiOnMaintenance Setup
inside cuts
1. Using a pencil, mark the cut-line on the workpiece.
2. Drill a 1/4 inch hole in the workpiece.
3. Follow the procedure for removing the
Saw Blade as described in Removing
and Installing Blades on page 11.
4. Place the workpiece on the Saw Table so that the
hole is centered over the Blade access hole.
5. Insert the Blade through the hole in the
workpiece and the Saw Table.
6. Reinstall the Blade and set the proper tension
as described in Removing and Installing
Blades on page 11. Make sure Blade
teeth are facing forward and down.
7. While holding the workpiece with
one hand, turn the Switch On.
8. Hold the workpiece with both hands
while guiding and pressing down on the
workpiece until the cut is complete.
9. Turn the Switch Off.
10. Follow the procedure for removing the
Saw Blade as described in Removing
and Installing Blades on page 11.
11. With the Blade removed, the workpiece
can be removed from the Saw Table.
12. Reinstall the Blade and set the proper
tension as described in Removing and
Installing Blades on page 11.
curved cuts
1. Mark the entire cutting line with a pencil. If a
template is available, use it as a marking guide.
2. Slide the workpiece underneath the Workpiece
Foot without touching the Saw Blade.
3. Turn the Switch On.
4. Using both hands, carefully guide the workpiece
into the Saw Blade. Press down on the workpiece
and slowly guide it through the Blade. Do not
force the material through the Blade. When cutting
curves, be careful not to twist the Blade out of line.
5. If the curve cut is forced off the cut-line,
back the material off the Saw Blade and
start a new, straight cut through a scrap
section of the material. Begin the curved cut
again from an appropriate angle point.
6. Turn the Switch Off and remove the
Safety Key when finished cutting.
Jamming of Saw Blade and Workpiece
1. If the Saw Blade jams in the workpiece, immediately
turn the Switch Off, remove the Safety Key, and
unplug the Power Cord from its electrical outlet.
2. Wait until the Saw Blade has come to a complete
stop, then remove the Saw Blade as described in
Removing and Installing Blades on page 11.
The workpiece will come with it.
3. Place a flat bladed screwdriver in the cut and
force it open. Remove the Saw Blade.
4. Reinstall the Saw Blade on the machine and set
the proper tension as described in Removing
and Installing Blades on page 11.
Page 10 For technical questions, please call 1-888-866-5797. 71113
SaFety OperatiOn MaintenanceSetup
Maintenance and Servicing
procedures not specifically explained in this manual must
be performed only by a qualified technician.
tO preVent SeriOuS inJury FrOM acciDentaL OperatiOn:
turn the power Switch of the tool off, remove the Safety Key, and unplug the tool
from its electrical outlet before performing any procedure in this section.
tO preVent SeriOuS inJury FrOM tOOL FaiLure:
Do not use damaged equipment. if abnormal noise or vibration
occurs, have the problem corrected before further use.
cleaning and Maintenance
1. BeFOre eacH uSe, inspect the general
condition of the tool. Check for:
• loose hardware
• misalignment or binding of moving parts
• cracked or broken parts
• damaged electrical wiring
• any other condition that may
affect its safe operation.
2. aFter uSe, wipe external surfaces
of the tool with clean cloth.
3. Periodically recheck all nuts, bolts,
and screws for tightness.
4. Applying a light coat of paste wax on the Saw
Table allows the material being cut to glide
smoothly across the Saw Table surface. Buff
the wax off with a clean cloth after application.
5. Clean the Scroll Saw by using compressed
air to blow off dirt and dust.
6. Store in a clean and dry location.
7. Over time, if the performance of the Scroll Saw
diminishes, or it stops working completely, it may
be necessary to replace the Carbon Brushes in the
Motor by removing the Carbon Brush Holder and
inspecting the Carbon Brushes. This procedure
should be completed by a qualified technician.
If the Carbon Brushes are not worn down, try
cleaning the Carbon Brush tips with an ink eraser.
WarninG! tO preVent SeriOuS
inJury: if the supply cord of this power
tool is damaged, it must be replaced only
by a qualified service technician.
Page 11For technical questions, please call 1-888-866-5797.71113
SaFetyOperatiOnMaintenance Setup
removing and installing Blades
note: Replacement blades sold separately.
1. Loosen the Blade Tension Knob (97)
by turning counterclockwise about two full
turns. Refer to Functions on page 7.
2. Unlock Front Locking Knob (92) and
Rear Lock (84) to open Side Panel.
3. Remove Saw Blade:
a. For Pinned Blade, Push down slightly on the
Upper Blade Support (54) and remove Saw Blade
by pulling forward. Then pull upward to remove
Saw Blade from Lower Blade Holder (55).
b. For Pinless Blade, loosen set screws in
Upper and Lower Blade Adapters (73), then
remove Saw Blade. See Mounting Plain
Ended (Pinless) Blades on page 12.

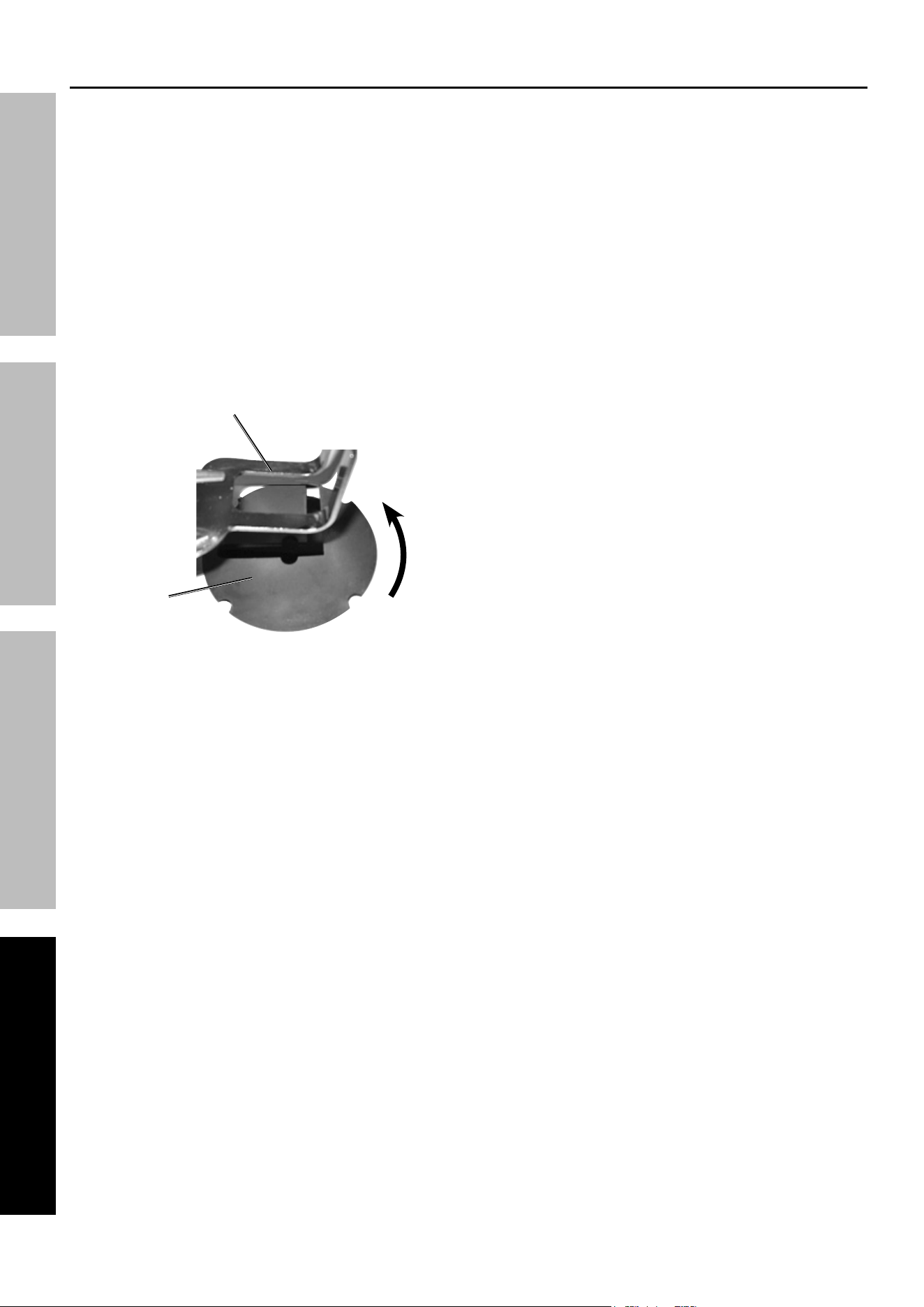

upper Blade
Support (54)
Lower Blade
Support (55)
note: The Saw Blade must be installed so that its
teeth are facing forward (front cutting), or to the
side (side cutting), and always pointing down.
4. Install new five inch Saw Blade:
a. For Pinned Blade, hook Blade pins in the recess
of Lower Blade Support (55). Insert Blade
pins into recess of Upper Blade Support (54)
by pushing down on the Blade Support.
b. For Pinless Blade, loosen set screws in Upper
and Lower Blade Adapters (73). Insert Saw Blade
and secure in place by tightening Set Screws.
5. Close Side Panel and lock Front
Locking Knob and Rear Lock.
6. Tighten the Blade Tension Knob by turning
clockwise about two full turns.
note: The Blade is at the proper tension when the slack
is just barely removed. Over or under tensioning of the
blade causes premature breakage during operation.

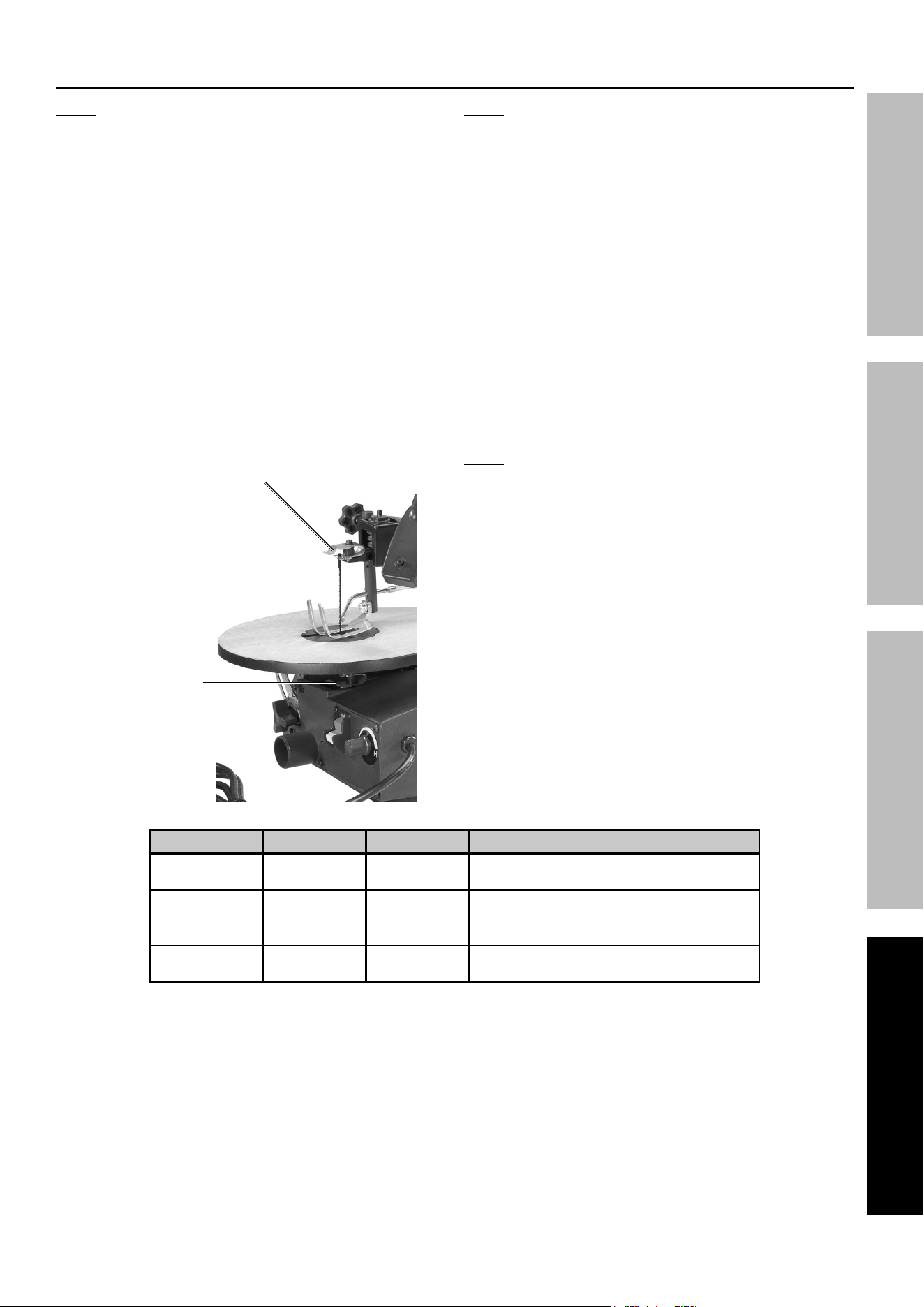

The Scroll Saw can use a variety of blade widths
and thicknesses. Blades must be five inches long.
Blades should have the cross pin for mounting. If
pinless, blades should be used with the adapters.
These are used for cutting various types
of materials as listed below:
teeth / inch Width thickness Material cut
10 0.11" 0.02"
Medium turns on 1/4 to 1-3/4" wood,
soft metals, wallboard, hardboard.
15 0.11" 0.02"
Medium turns on 1/4 to 1-3/4″ soft
metals, wallboard, hardboard.
Cuts wood from 1/8 to 1-1/2″ thick.
18 0.095" 0.01"
Extra thin cuts on soft woods and
other materials up to 1/4".
Page 12 For technical questions, please call 1-888-866-5797. 71113
SaFety OperatiOn MaintenanceSetup
Mounting plain ended (pinless) Blades
Included as an accessory are two Plain End Blade
Adapters. When installed, they enable the mounting of
plain end saw blades. To install blades of this type:
1. Using a Hex Key, loosen both set screws on
each of the Plain End Blade Adapters.
2. Slide the gap between the two set
screws over each end of the blade.
3. Evenly tighten all set screws. Pull on the
Adapters slightly to make sure they are secure.
4. Remove the old Blade. Pull the Saw
Table Insert (31) out and rotate it 90°
to the position shown in Figure A.
90°
Workpiece Foot
Saw table
insert
Figure a
5. Loosen the Blade Tension Knob (97) by turning
counterclockwise about two full turns.
6. Place the Blade Adapter’s bar under the end of
the Lower Blade Support (55). Make sure that
the blade’s teeth point in the right direction.
7. Push down slightly on the Upper Rocker Arm,
and place the other Blade Adapter’s bar over
the end of the Upper Blade Support (54).
8. Tighten the Blade Tension Knob by turning
clockwise about two full turns.
Page 13For technical questions, please call 1-888-866-5797.71113
SaFetyOperatiOnMaintenance Setup
troubleshooting
problem possible causes Likely Solutions
Blades breaking 1. Wrong blade tension.
2. Over-working blade.
3. Wrong blade application.
4. Blade twisting in wood.
1. Adjust blade tension.
2. Reduce feed cut rate.
3. Use narrow blades for cutting thin wood,
wide blades for cutting thicker wood.
4. Avoid side pressure on blade.
Motor does
not run
1. No power at outlet.
2. Defective power cord or plug.
3. Defective motor.
1. Check power source.
2. Repair or replace defective parts.
3. Have motor repaired or replaced by
a qualified service technician.
Excessive
Vibration
1. Improper base mounting.
2. Unsuitable mounting surface.
3. Loose motor mounting.
1. Make sure mounting hardware is secure.
2. The heavier the work bench, the
less vibration will occur.
3. Check that motor mounting hardware is secure.
Blade not in line
with arm motion
Blade holders not aligned. Loosen hex bolts and re-align upper and
lower blade holders. Tighten hex bolts.
Tool will
not start
1. Power cord not connected.
2. No power at outlet.
3. Tool’s thermal reset breaker
tripped (if equipped).
4. Internal damage or wear. (Carbon
brushes or switch, for example.)
1. Check that cord is plugged in.
2. Check power at outlet. If outlet is unpowered,
turn off tool and check circuit breaker.
If breaker is tripped, make sure circuit is right
capacity for tool and circuit has no other loads.
3. Turn off tool and allow to cool.
Press reset button on tool.
4. Have technician service tool.
Tool operates
slowly
Extension cord too long or
wire size too small.
Eliminate use of extension cord. If an extension cord
is needed, use one with the proper diameter for
its length and load. See table a on page 3.
Performance
decreases
over time
1. Saw blade dull or damaged.
2. Carbon brushes worn or damaged.
1. Replace saw blade.
2. Have qualified technician replace brushes.
Excessive noise
or rattling
Internal damage or wear. (Carbon
brushes or bearings, for example.)
Have technician service tool.
Overheating 1. Forcing machine to work too fast.
2. Saw blade dull or damaged.
3. Motor being strained by long or
small diameter extension cord.
1. Allow machine to work at its own rate.
2. Replace saw blade.
3. Eliminate use of extension cord.
If an extension cord is needed, use one with
the proper diameter for its length and load.
See table a on page 3.
Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect power supply and remove the Safety Key before service.
Page 14 For technical questions, please call 1-888-866-5797. 71113
SaFety OperatiOn MaintenanceSetup
parts List and Diagram
pLeaSe reaD tHe FOLLOWinG careFuLLy
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
partS LiSt
part Desc Qty
1 Dome Screw M6×20 4
2 Fixed Plate 2
3 Upper Rocker Arm 1
4 Spring Washer 6 4
5 Nut Type I M6 5
6 Oil Bushing 4
7 Oil Cap 4
8 Lower Rocker Arm 1
9 Fixed Block 1
10 Moveable Block 1
11 Drop Foot Pole 1
12 Foot Lock Knob 1
13 Blast Pipe 1
14 Phillips Screw M5×6 1
15 Workpiece Foot 1
16 Phillips Screw M6×12 1
17 Switch Box 1
18
Phillips Screw-
ST4.2 X 10-F Type
5
19
Phillips Screw
M4X12
4
20 Table Bracket 1
21 Phillips Screw M5X8 2
22 Bevel Lock Knob 1
23 Pin Blade 15 TPI 1
24 Phillips Screw M4×10 2
25 Phillips Screw M4×8 2
26 Bevel Scale Pointer 1
27 Phillips Screw M6×10 1
28 Work Table 1
29 Phillips Screw M6×40 1
30 Bevel Scale 1
31 Table Insert 1
32 Variable Knob 1
33
Phillips Screw
M5×8 S3 N
2
34 Eccentric Connection
Bracket
1
35 Big Cushion Pad 1
36 Eccentric Wheel 1
37
Hex Socket
Screw M8X8
1
38 Small Cushion Pad 1
part Desc Qty
39
Hex Socket
Screw M5X25
1
40 Spring Washer Ø5 1
41 Nut Type I M5 1
42
Hex Socket
Screw M5X16
1
43
Connection Bracket
Pressure Plate
1
44 Spring Washer Ø4 1
45 Extension Spring 1
46 Wire Clip 2
47 Phillips Screw M4X6 8
48 Bellows 1
49 Bellows Cap 1
50
Hex Socket
Screw M6X25
1
51 Packaging Support 1
52 Rubber Foot 3
54 Upper Blade Support 1
55 Lower Blade Support 1
56
Stand Cushion
(Nylon)
2
57
Hex Socket
Screw M4X20
3
58 Pressure Plate 2
59 Pressure Spring 1
60 Phillips Screw M4×8 2
61 Wire Plate 5
62 Star Washer Ø4 4
63 DC Motor 1
64 PVC Washer 1
65 Hex Bolt M8X20 2
66 Ball Bearing 625-2z 2
67 Hex Bolt M6X16 4
68 Left Housing Set 1
69
Phillips Screw
M5X28-8.8
1
70
Phillips Screw
M5X35-8.8
5
71
Phillips Screw
M5X30-8.8
2
72 Switch Box Cover 1
73 Blade Adapter 2
75 Pinless Blade 18 TPI 1
part Desc Qty
76
Hex Socket Screw
M5X8-12.9
4
77 Hex Wrench 1
78 Cord Clip 1
79 Power Cord 1
80 Big Flat Washer Ø6 1
81 Cord Bush 1
82 Switch 1
83 PVC Pipe 1
84 Rear Lock 1
85 Upper Hinge 1
86 Lower Hinge 1
87 Big Flat Washer 1
88 Phillips Screw 1
89 Stop Plate 1
90
Curved Spring
Washer
1
91 Side Panel 1
92 Front Lock Knob 1
93 Lock Plate 1
94 Guide Sleeve 1
95 Base 1
96 Tension Lever 1
97 Blade Tension Knob 1
98 Spring Pin 2.5X14 1
99 PCB 1
100 Back Lock Spring 1
101 Right Housing Set 1
102 Fixing Nut 1
103 Lamp Pole 1
104 Spring Washer Ø10 1
105 Thin Nut M10 1
106 LED Box 1
107 Battery Box Cover 1
108 LED Cover 1
109 LED PCB 1
110 Lamp Switch 1
111
Phillips Screw-
ST2.9×8
5
112 Pin Blade 18 TPI 1
113 Hex Wrench 1
114
Hex Head Bolt
M6 x 80
1
Page 15For technical questions, please call 1-888-866-5797.71113
SaFetyOperatiOnMaintenance Setup
assembly Diagram
70
record product’s Serial number Here:
note: If product has no serial number, record month and year of purchase instead.
note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 193175528278 when ordering parts.
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
26677 agoura road • calabasas, ca 91302 • 1-888-866-5797
