Acklen Fandelier
User Manual
Read and save these instructions before use
Home
Model #51910
EN I 2

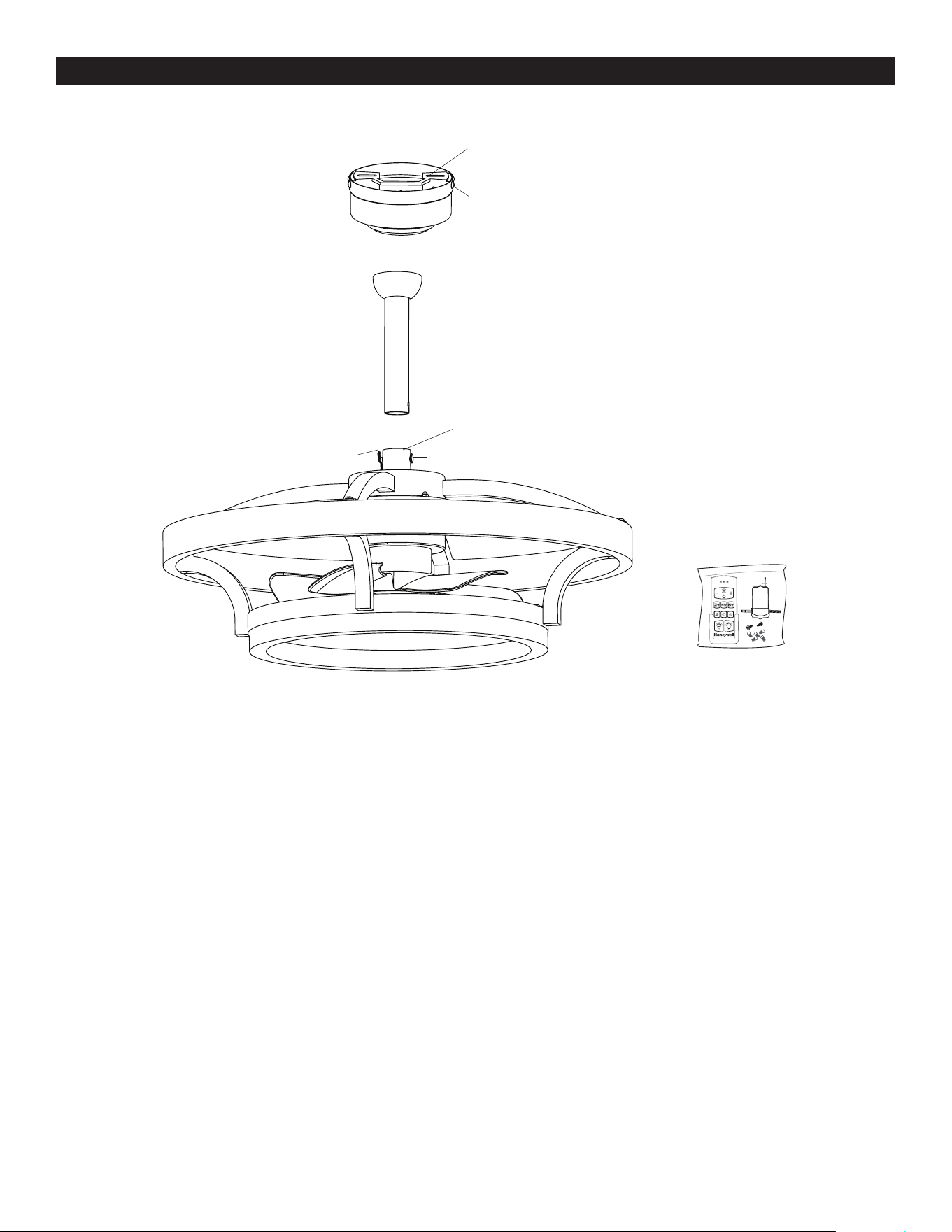

PACKAGE CONTENTS
Mounting Bracket Screw (x 4)
Mounting Bracket
Canopy
Downrod
Downrod Clip
Motor Assembly
Remote Pack
Downrod Pin
Yoke
EN I 3
SAFETY INFORMATION
THANK YOU
Please read and understand this entire manual before attempting to assemble, operate or install the product.
• RATED FOR INDOOR OR DAMP USE. This fan is not suitable for outdoor locations.
• The weight of the fan is 13.62 lb.
WARNING:
• To avoid risk of electric shock, be sure to shut off power at the main fuse or circuit breaker box before installing or servicing
this fixture. Turning off the electrical power by using the light switch is not sufficient to prevent electrical shock.
• To reduce the risk of injury, install the fan so that the blades are at least 7 feet (2.1 Meters) above the floor and at least 18
inches (0.5 Meters) from the tip of the blades to the wall.
• To reduce the risk of fire, electric shock or personal injury, mount the fan to an outlet box marked “ACCEPTABLE FOR FAN
SUPPORT” and use the mounting screws provided with the outlet box. Most outlet boxes commonly used for the support of
lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified electrician if in doubt.
Secure the outlet box directly to the building structure. The outlet box and its support must be able to support the moving
weight of the fan (at least 35 lbs.).
• The installation has to be in accordance with the national electrical code, ANSI/NFPA 70-1999 and local codes. If you are
unfamiliar with the methods of installing electrical wiring, seek the services of a qualified licensed electrician.
• Using a full-range dimmer switch to control fan speed will cause a loud humming noise from the fan. To reduce the risk of fire
or electric shock, do NOT use a full-range dimmer switch to control the fan speed.
CAUTION:
• CAN ICES-003 (B) / NMB-003 (B)
• CAN ICES-005 (B) / NMB-005 (B)
• This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device (if applicable).
• This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
• This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
HKC-US, 3350 Players Club Parkway #225, Memphis, TN 38125, 1-877-361-3883
Honeywell Ceiling Fans feature a collection of fans in various sizes and specifications to ensure your choice of indoor or outdoor
fan delivers optimum performance for your room’s size. You can trust the quality of Honeywell Ceiling Fans to deliver maximum
airflow and stylish lighting options. Honeywell Ceiling Fans use high-quality materials that are long lasting and durable to
deliver a great look and last for years to come.
EN I 4
CARE AND MAINTENANCE
Important: Shut off the main power supply before you begin any maintenance task. Do NOT use water or a damp cloth to clean
the fan.
At least twice each year, lower the canopy to check the downrod assembly and tighten all screws on the fan. Clean the fan
assembly with a soft brush or lint-free cloth to avoid scratching the finish.
Bulb Replacement: Total fixture wattage is 23 watts; do not attempt to replace LED.
Battery Replacement for Remote: Use CR2032 lithium batteries. WARNING: Keep batteries out of reach of children. May be fatal
if swallowed. In the event that a battery is swallowed, immediately consult a doctor. Non-rechargeable batteries are not to be
recharged. Do not mix different types of batteries such as alkaline, carbon-zinc, or rechargeable batteries. Do not mix old and
new batteries. Batteries are to be inserted with the correct polarity. Exhausted batteries are to be removed from the product.Do
not dispose of batteries in fire, as they may explode or leak.
EN I 5
D
D
INITIAL INSTALLATION
1. Loosen all four mounting bracket screws and completely remove the two screws from the round holes in the canopy. Then
remove mounting bracket from the canopy and save them for later. Remove the canopy from the mounting bracket (Figure 2.1).
2. Install the mounting bracket to the outlet box (sold separately) using the screws and washers provided with the outlet box
(Figure 2.2).
3. Remove the downrod clip and downrod pin from the yoke at the top of the motor assembly (Figure 2.3).
Figure 2.1
Downrod Mount
Angle Mount
Downrod
Pin
Yoke
Downrod
Clip
Figure 2.2 Figure 2.3
Mounting
Bracket Screw
Canopy

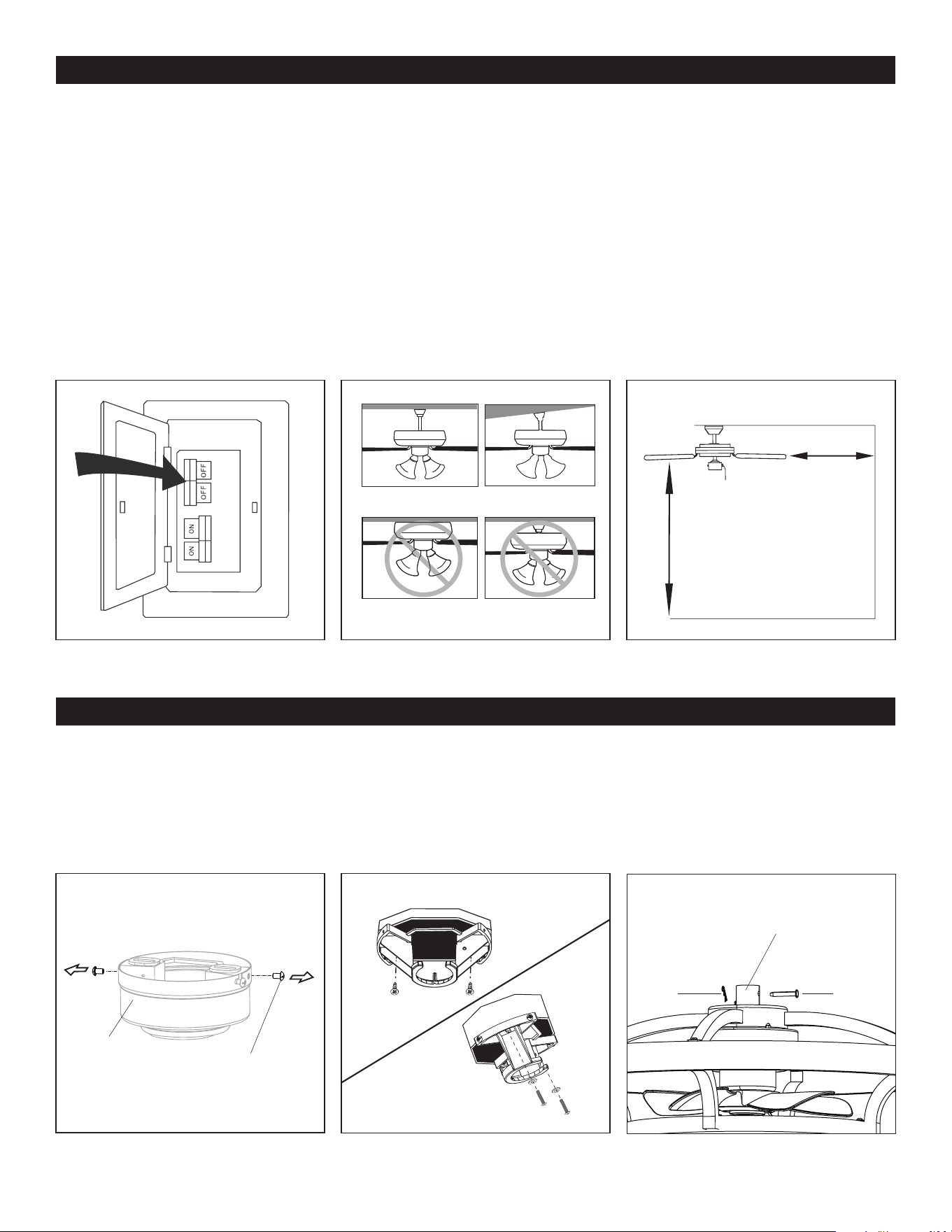

PREPARATION
Before beginning the assembly of this product, ensure all parts are present. Compare all parts with the package contents list
and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.
Estimated assembly time: 1 hour
Tools required (not included): Phillips Screwdriver, Safety Glasses, Step Ladder, and Wire Cutters
1. Turn off power to the fan at the breaker box and the wall switch (Figure 1.1). DANGER: Failure to disconnect the power supply
prior to installation may result in serious injury or death.
2. Choose one of the following mounting options (Figure 1.2) :
Standard Mount - best suited for ceilings 8 feet or higher. For very high ceilings, use a longer downrod (not included).
Angle Mount - best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to ensure proper blade
clearance. Ensure the ceiling angle is not steeper than 10 degrees.
Flushmount Installation - not available for this model.
Closemount Installation - not available for this model.
3. Ensure the blades will be at least 30 inches from any obstructions. Also check the downrod length to ensure the blades will be
at least 7 feet above the floor (Figure 1.3).
Figure 1.1 Figure 1.2 Figure 1.3
Standard Mount
Flushmount
Angle Mount
Closemount
7 feet
minimum
30 in.
minimum
EN I 6
Black (hot/power)
White (neutral)
Bare/Green
(ground)
White
White
Black
Blue
Blue
Black
Green
Green
Receiver
Red
White

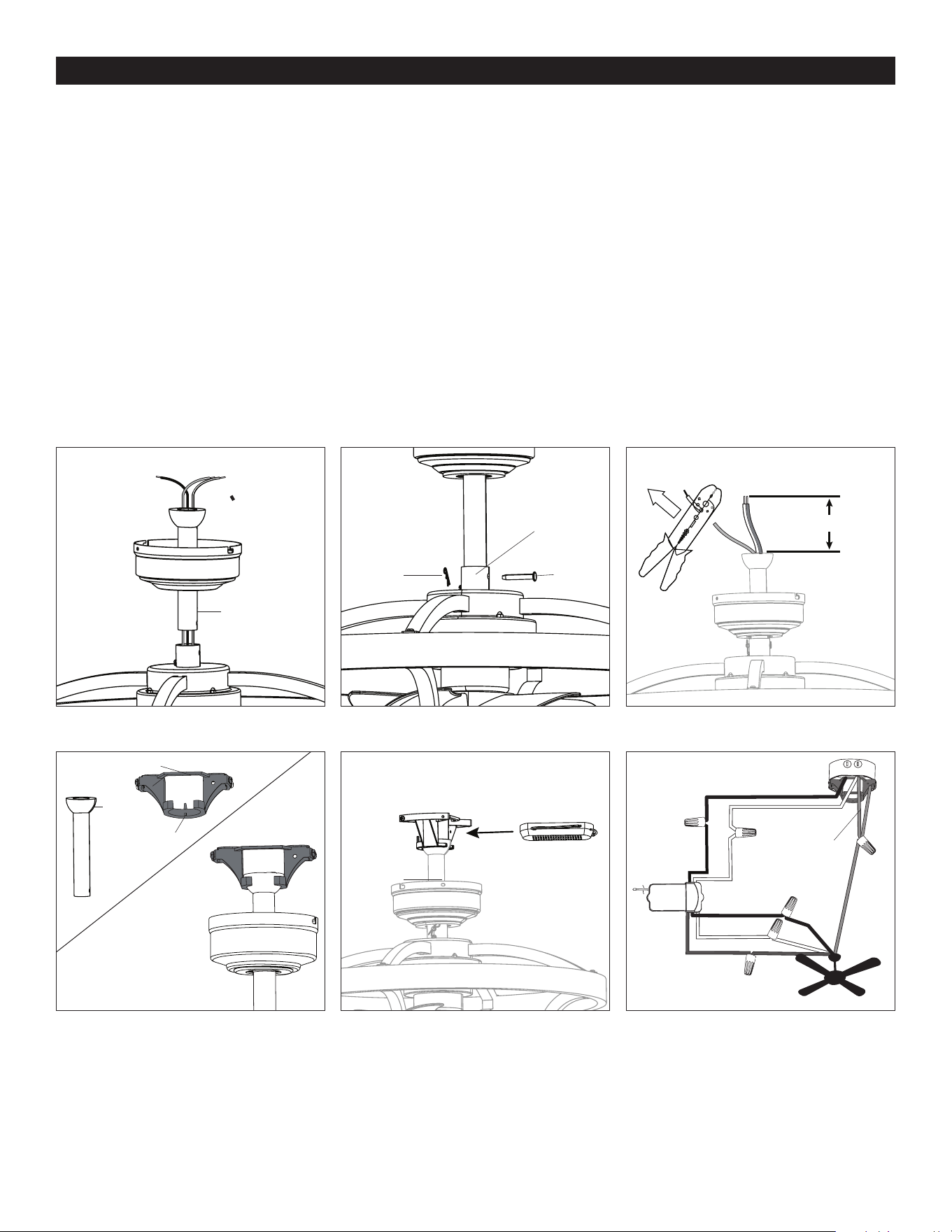

STANDARD OR ANGLE MOUNT INSTRUCTIONS
1. Insert the downrod through the canopy. Then feed the wires from the motor assembly through the downrod (Figure 3.1).
2. Slide the downrod into the yoke of the motor assembly, align the holes, then re-install the downrod pin and downrod clip
(Figure 3.2).
3. With wiring extending out of the downrod, measure 8 inches of lead wire from the top of the downrod and cut the excess wire
with wire cutters (not included). Then strip 1/2” of insulation from the end of each wire (Figure 3.3).
4. Install the ball end of the downrod into the opening of the mounting bracket. WARNING: Failure to align the slot in the ball
with the tap on the mounting bracket may cause the fan to fall, which could result in injury or death (Figure 3.4).
5. Insert the receiver in the mounting bracket with antenna end first and flat side facing up. Note: The receiver rests directly on
the downrod (Figure 3.5).
6. Secure all wiring connections together with wire connector from hardware bag and the wire connectors from remote pack
according to the diagram and these steps (Figure 3.6):
• Connect the green wires from the downrod and mounting bracket to the bare/green (ground) supply wire.
• Connect the Blue wire (FOR LIGHT) from the receiver to the Blue fan wire.
• Connect the Black wire (TO MOTOR L) from the receiver to the Black fan wire.
• Connect the White wire (TO MOTOR N) from the receiver to the White fan wire.
• Connect the Red wire (AC IN L) from the receiver to the Black (hot/power) supply wire.
• Connect the White (AC IN N) from the receiver to the White (neutral) supply wire.
Important: After the connections have been made, the connected wires should be turned upward and pushed carefully up
into the outlet box. Place the black and white wire connections on opposite sides of the outlet box.
8 in.
Figure 3.1
Figure 3.4
Downrod
Tab
Slot
Mounting Bracket
Downrod
Receiver
Downrod
Pin
Downrod
Clip
Mounting Bracket
Figure 3.2
Figure 3.5 Figure 3.6
Figure 3.3
Downrod
Yoke
Canopy
EN I 7

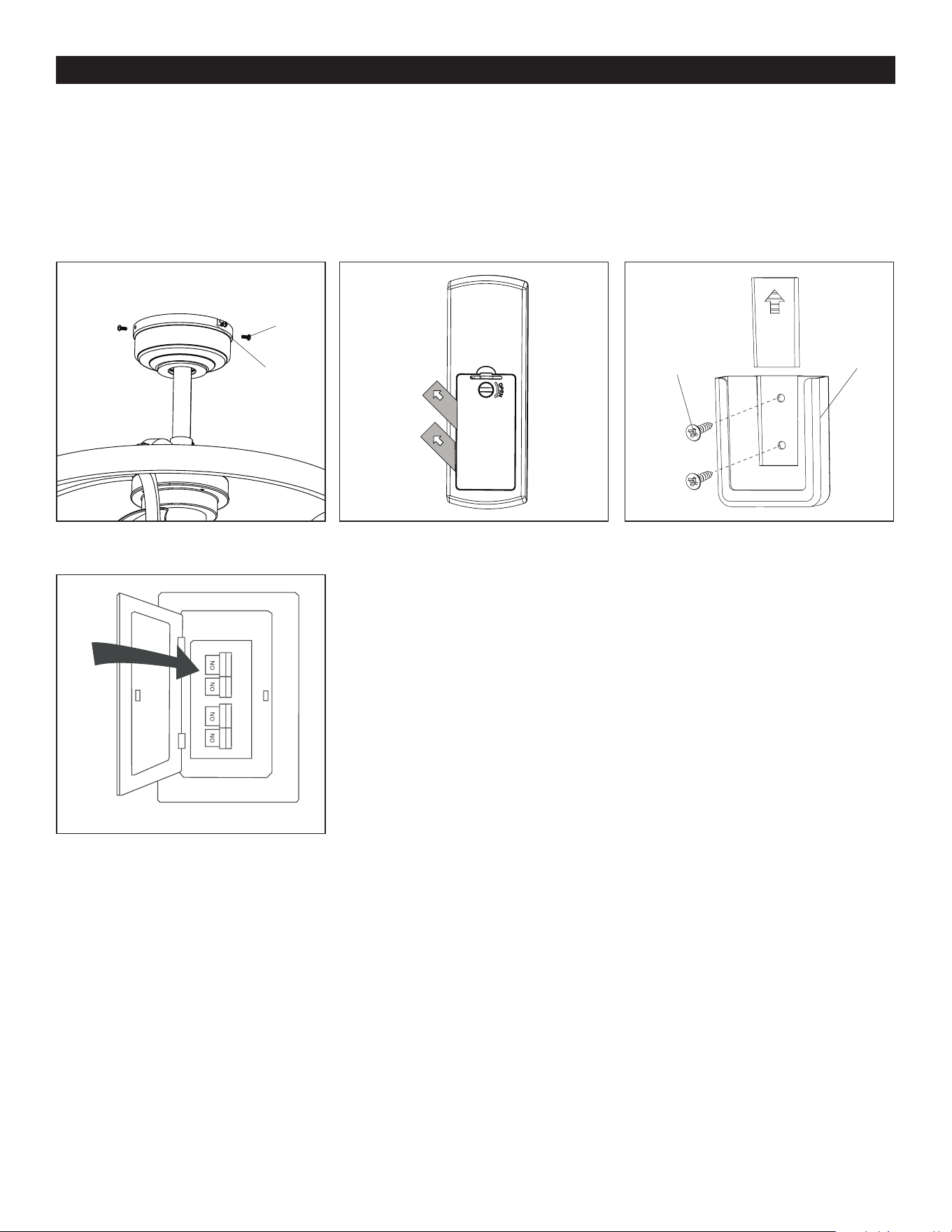

FINAL INSTALLATION
Figure 4.2Figure 4.1 Figure 4.3
Mounting Screw
Wall Bracket
Small Plate
Plastic Film
Canopy
1. Raise the canopy, ensure the two mounting bracket screws are aligned with the J-shaped slots in the canopy. Then turn the
canopy in a clockwise direction until the mounting bracket screws are completely engaged in the J-shaped slots. Install the two
previously removed mounting bracket screws in the round holes. Securely tighten all mounting bracket screws (Figure 4.1).
2. Batteries were preinstalled in the battery compartment of the remote. Pull the plastic film in the direction of the arrow to
remove, which will activate the batteries (Figure 4.2).
3. Remote control comes equipped with a wall bracket. If you wish to install the wall bracket, remove the small plate to expose
the screw holes. Insert wall brackets screws through holes and into wall, then cover with the previously removed small plate.
The remote can be stored in the wall bracket for easy access (Figure 4.3).
4. Turn ON the electrical power at the main fuse or circuit breaker and the wall switch. Assembly is complete (Figure 4.4).
J-Shaped Slot
Mounting
Bracket
Screw
Figure 4.4
EN I 8

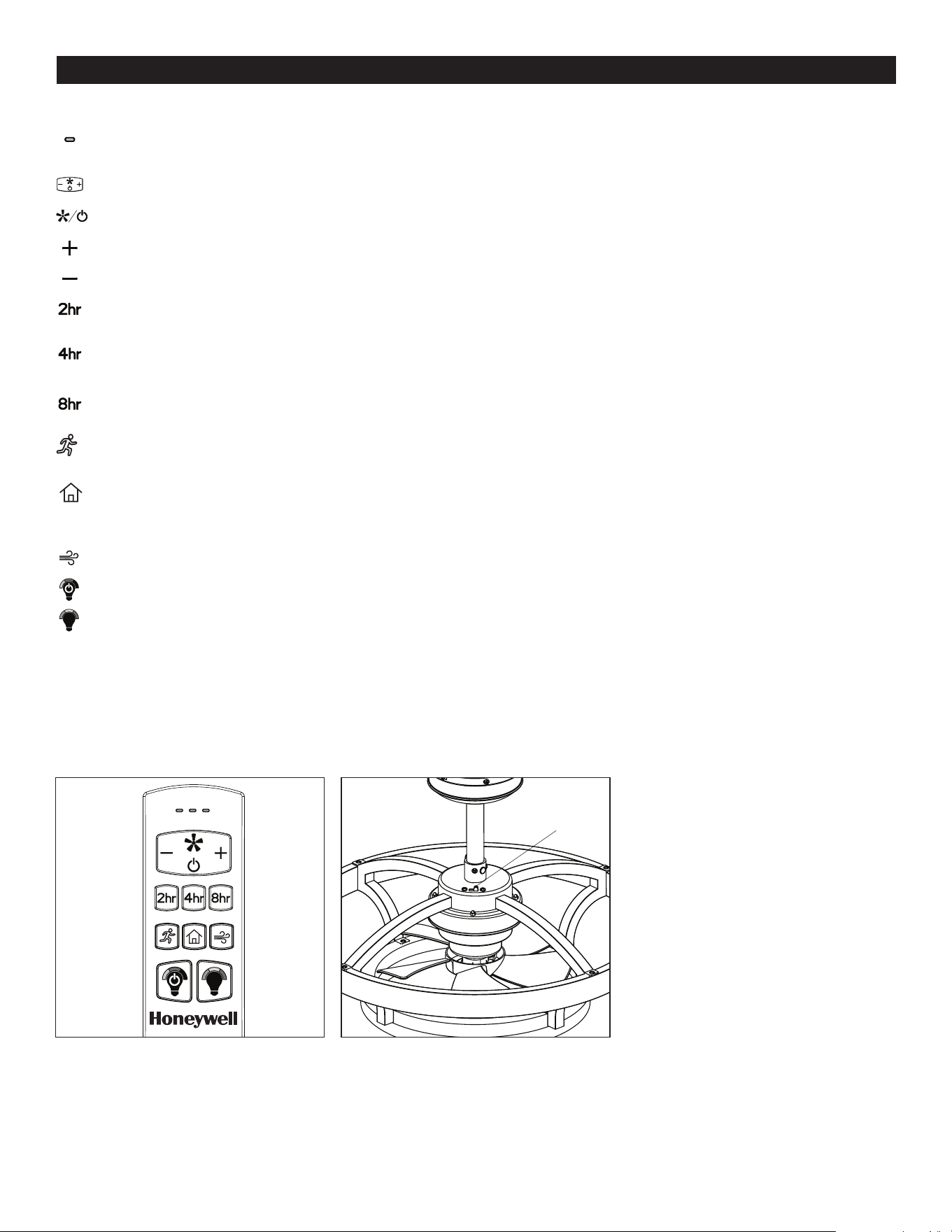

OPERATING INSTRUCTIONSOPERATING INSTRUCTIONS
Figure 5.1 Figure 5.2
1. To operate the fan using the remote, press and release the following buttons (Figure 5.1):
LED Indicator - Indicates the six speeds of the fan. It should illuminate when any remote button is pressed. If not, replace
the DC3V, CR2032 batteries.
Fan Power button has three options:
Turns the fan off or turns fan on at previously selected speed.
Increase fan speed
Lower fan speed
Sleep Timer - Turn off fan after 2 hours (2hr). Press Fan Power button to deactivate.
Sleep Timer - Turn off fan after 4 hours (4hr). Press Fan Power button to deactivate.
Sleep Timer - Turn off fan after 8 hours (8hr). Press Fan Power button to deactivate.
Light Delay - Delays turning off light for one minute which allows safe exit from room. Light blinks to confirm function is
active. Press Light Control button to deactivate and turn the light off.
Home Shield™ - Simulates occupancy while away from home. Fan remains off and the light randomly turns on for a
minimum of five minutes and a maximum of 20 minutes. The light remains off for 60 minutes between events. Press and
hold button to activate. Light will blink to confirm Home Shield is active. Press any button to cancel.
Variable Breeze - Simulates a breeze in nature. Press and hold button to activate. Press any fan speed button to cancel.
Light Control - Tap button to turn the light off and on. Press and hold button to dim or brighten the lights.
Light Color - Press and hold button to cycle through the color temperatures from 2700K (warm white) to 6500K (daylight).
2. Reverse Switch - In warmer weather, push the reverse switch left, which will result in downward airflow creating a wind chill
effect. In cooler weather, push the reverse switch right and the fan to low, which will result in upward airflow that can help
move stagnant, hot air off the ceiling area. Important: Wait for the fan to stop before moving the reverse switch. The reverse
switch must be set either completely left or right in order for the fan to function correctly. If the reverse switch is set in the
middle position, the fan will not operate (Figure 5.2).
Home
Reverse Switch
EN I 9
The fan does not
move.
Remote does not
move.
1. Firmly push the reverse switch completely left or right.
2. Make sure the wall switch is turned on.
3. Turn the power on or check the fuse (breaker).
4. Turn the power off and check all connections at the ceiling outlet box.
PROBLEM CORRECTIVE ACTION
TROUBLESHOOTING
If you experience any faults, please check the Troubleshooting section below. If a problem cannot be remedied or you are
experiencing difficulty in installation, please contact Customer Service: 1-877-361-3883, Monday - Friday, 8am - 5pm, Central.
WARNING: Shut off the power supply before you begin any maintenance task.
LIMITED LIFETIME WARRANTY
Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects in workmanship and
material for the life of the product. Also, subject to the limitations below, the manufacturer warrants all ceiling fan parts (“ceiling
fan parts” excludes the motor and parts made in whole or in part with glass) to be free from defects in workmanship and
material for a period of one year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser from an authorized dealer, whether such purchaser purchased the product
through a store or contractor. Ceiling fan part defects must be reported within the first year from the date of purchase. Parts
made in whole or in part with glass and the finishes of metal and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any part caused by ordinary
wear and tear, accident, misuse, or improper installation, is not covered by this warranty. The manufacturer assumes no
responsibility whatsoever for fan installation. Any service performed by a non-licensed electrician will render the warranty
invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within the terms stated above.
The manufacturer shall not be liable for any loss or damage of any kind, including any incidental or consequential damages
resulting directly or indirectly, from any breach of warranty, express or implied, or any other failure of this product. Some states
do not allow the exclusion or limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials within the warranty
period associated with the defective part, the manufacturer agrees to replace the defective part without charge, or at its option,
to replace the ceiling fan with a comparable or superior model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited lifetime warranty. All other
express and implied warranties, including, without limitation, the implied warranty of fitness for a particular purpose and
the implied warranty of merchantability is disclaimed. Some states do not allow the disclaimer of implied warranties, so this
disclaimer may not apply to you.
1. Power surge may have cleared the memory and remote needs to be resynced to the receiver.
Syncing instructions: Turn off the power at the breaker box for at least 10 seconds and then turn
the power back on. Within 30 seconds, press and hold the “LEARN” button (Figure 6.1) on the back
of the remote for 5 seconds. The fan will turn on at high speed and light will blink twice and stay on,
signaling a successful synchronization.
2. Insert new CR2032 batteries in battery compartment of the wall control.
3. If there are several remote fans in proximity, turn the power off to those fans and re-sync the fan.
10018 • 112223
The Honeywell Trademark is used under license
from Honeywell International Inc.
Honeywell International Inc. makes no
representations or warranties with respect to
this product.
This product is manufactured for
Hong Kong China Electric Appliance, LTD.
3350 Players Club Parkway, Suite 225
Memphis, TN 38125
1 (877) 361-3883
Home
