SKU: 370-1946
Model No: Z-XY601

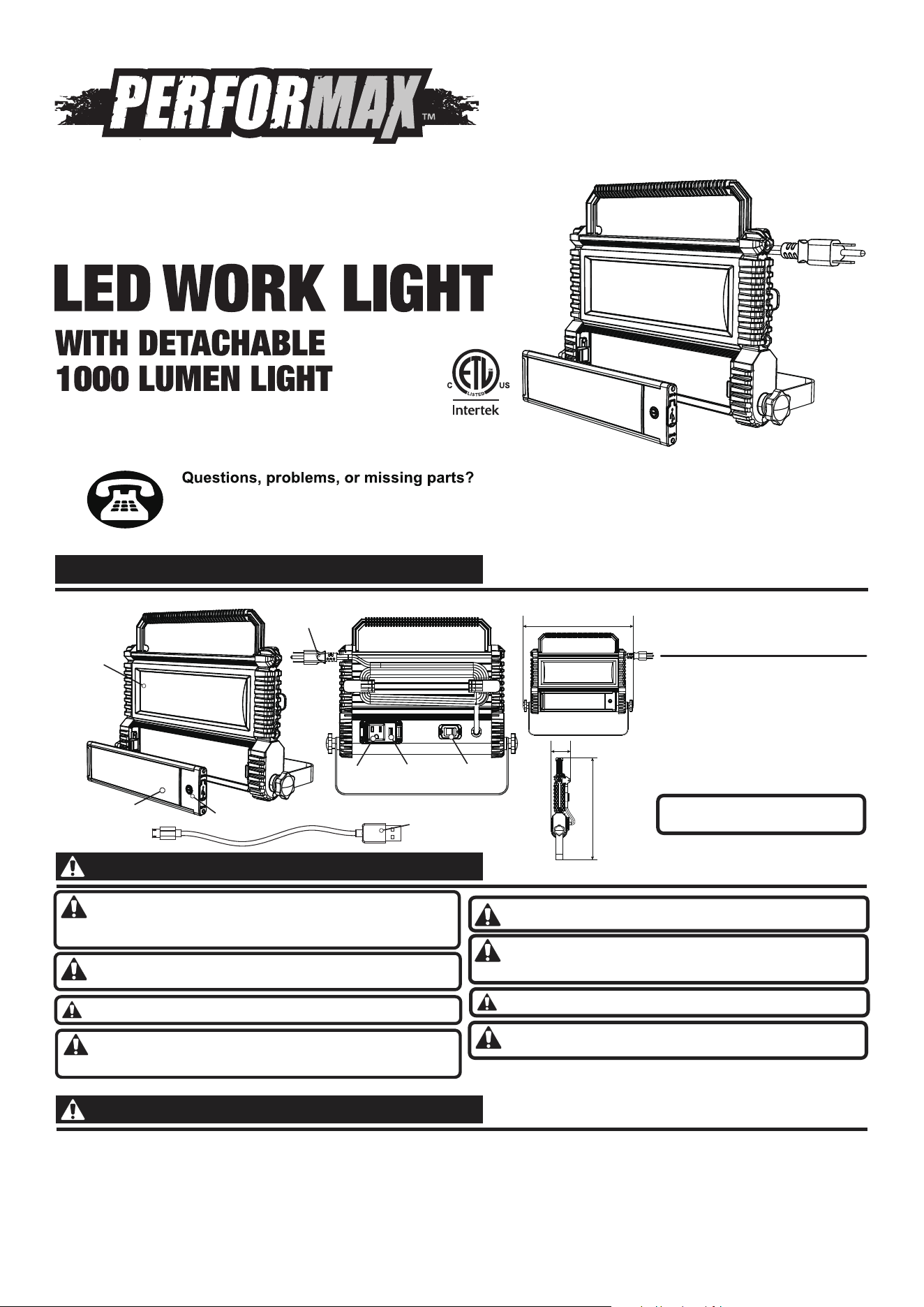

PACKAGE CONTENTS
Before returning to your retailer, call our customer service at 1-855-508-3883 or
email us at: [email protected] Monday - Friday 9:00 a.m. - 5:00 p.m. CST.
5500 Lumen
Lumens: 4500/2250lm
Watt:40W/20W 0.4A
Volt: 120V/60Hz
CCT:5000K
CRI: 75
Led life: 50000hrs
Cord: 5’18/3 SJTW Power cord
Warranty: 2 years
LED Facts:
This fixture is rated for
indoor/outdoor use.
SAFETY AND PRECAUTIONS
1. Suitable for indoor and outdoor use. Not to be used in direct contact with water.
2. Do NOT look directly at LED light sources.
3. The LED modules used in this fixture are not serviceable.
4. This product is inspected prior to shipping. Do not use if product is cracked, broken or missing parts.
5. Suitable for use in operating environments ranging between -13° to 122° F (-25° to 50° C). Lifetime of this product may be
reduced with prolonged exposure to extreme temperatures.
WARNINGS
WARNING: DO NOT alter or disassemble the fixture. It is completely
enclosed and does not contain replaceable or serviceable parts.
WARNING: The plug is made to only fit in a grounded outlet.
Never use with an extension cord unless plug can be fully inserted.
DO NOT ALTER THE PLUG OR CORD.
WARNING: BURN HAZARD! Light fixture is hot,
allow cooling time before touching.
WARNING: This product may represent a possible shock or fire
hazard if improperly installed or mounted. Products should be
installed following these instructions, local electrical codes and/or the
current National Electric Code (NEC).
WARNING: Avoid using this product in the immediate
vicinity of highly flammable materials, liquids and gases.
WARNING: Do NOT look directly at LED light sources.
WARNING: This light is not waterproof. Avoid direct contact with
water.DO NOT use with extension cord near water or wherever
water may accumulate.
WARNING: Use only in 120VAC, 60Hz circuits.
Plug
USB
Outlet
Grounded
Outlet
Switch
308.6mm
285mm
55mm
USB charging cable
Work Light
On/Off Button
Portable Light
2 YEAR LIMITED WARRANTY
This product is guaranteed against failure due to factory defects in materials or workmanship for two(2) years from the date of
purchase. This warranty is non-transferable and applies only to the original owner. Proof of purchase is required for repair or
replacement. This warranty does not cover normal wear of parts or damage resulting from any misuse of the product. Misuse of the
product includes, but is not limited to: washing the product, using in extreme weather conditions, opening the product, or trying to
remodel the product. Important: this warranty is only valid if the product has been purchased through an authorized reseller.
TROUBLESHOOTING GUIDE
CLEANING INSTRUCTIONS
Using a soft cloth, clean the fixture using a mild, non-abrasive glass cleaner. DO NOT use solvents. DO NOT use cleaners containing
abrasive agents. NEVER spray liquid cleaner directly onto the light or LED.
Light does not turn on.
Circuit breaker trips or fuse blows
when light is turned on.
Problem
Probable Cause Solution
Stand will not stay up.
1. Switch is off.
2. Not plugged in.
3. Light malfunction.
1. Discontinue use
immediately.
1. Knobs are not tight.
2. Stand legs are too close
together.
1. Turn on switch.
2. Plug cord in.
1. Call an electrician.
1. Tighten knobs.
2. Re-adjust position of stand legs.

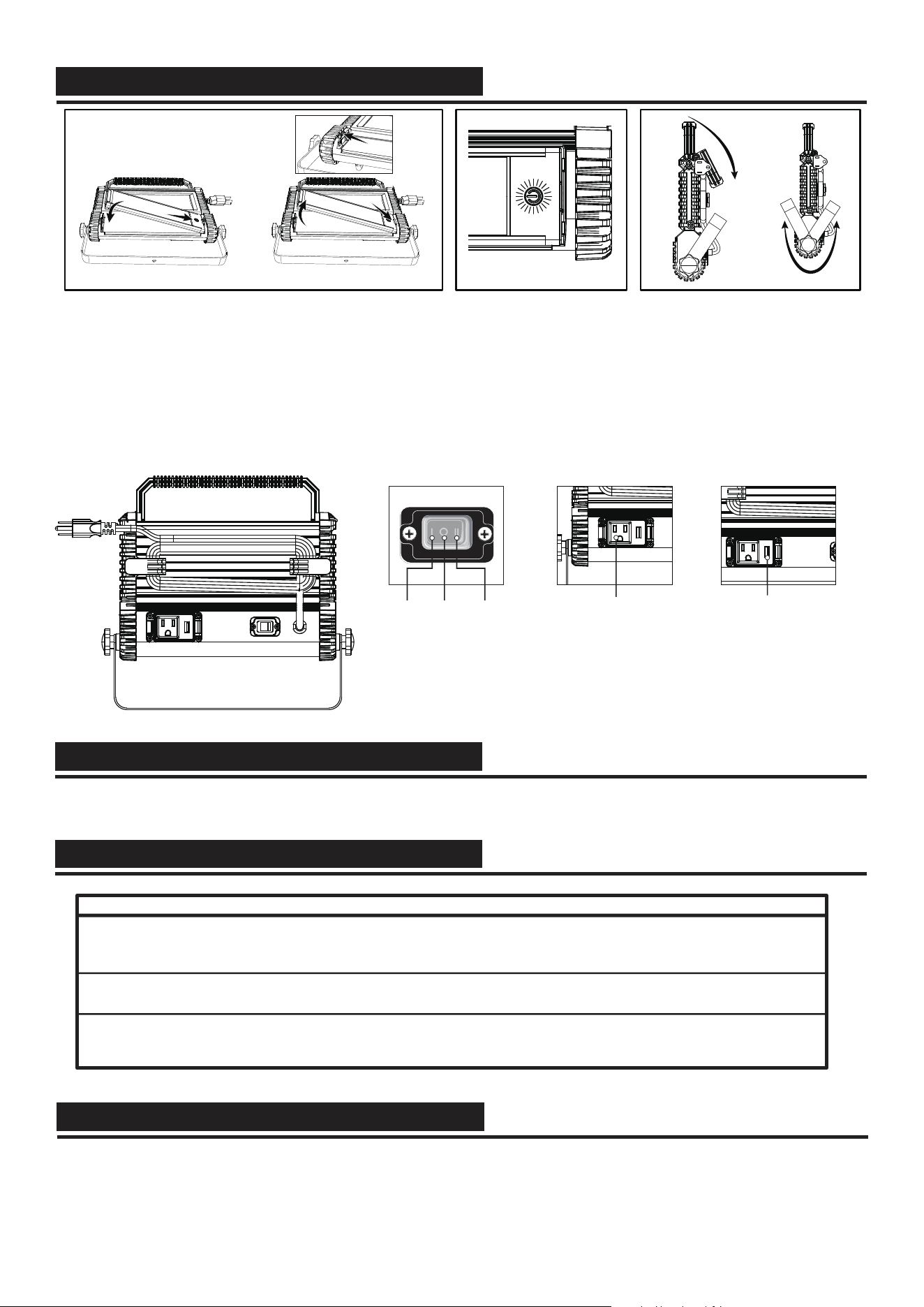

ASSEMBLY INSTRUCTIONS
Portable light installation
1. Align the portable light with the right slot of the lamp body.
2. Insert portable light into the left side of the work light until you
feel/hear a click, indicating the portable light is secure. (Fig.a).
3. When disassembly is required, push the left buckle to the
left (Figure b), and then lift the small light from the left to remove
it. (Figure c).
4. The Portable light can be used separately for illumination or
installed on the work light.
5. The portable light can be charged by placing it on the lamp
or using a USB cable.
The on/off button has two
modes, high and low brightness.
It can be turned off by holding
it for 1.5 seconds.
When charging the portable light,
the power indicator shows a red
light. Once fully charged, the red
light turns off. When the battery is
low, the yellow light will turn on,
indicating that it needs to be
charged promptly.
Handle
The handle can rotate backwards.
The U-shaped bracket can rotate back
and forth by about 310 degrees.
II High Mode
Grounded Outlet Max.8A
Pressing the button to the left
indicates low brightness,
pressing it to the middle turns
it off, and pressing it to the
right indicates high brightness.
USB Outlet Output 5V 1A I Low Mode Off
160°
310°
(a) (c)
(b)
