USER MANUAL
30” CURVED LED MONITOR
eiQ-30CVWF200VAFSGHAS
Thank you for choosing electriQ.
Please read the user manual before using this monitor and keep it safe for future
reference.
Visit our page www.electriQ.co.uk to view our entire range of Intelligent Electricals.
3
CONTENTS
SAFETY
4
WHAT IS SUPPLIED
6
PREPARING FOR USE
7
ATTACHING THE STAND
8
MONITOR ADJUSTMENT
9
WALL MOUNTING
10
GETTING STARTED
11
CONNECTIONS AVAILABLE
11
MONITOR CONTROLS
11
INITIAL SET UP
12
INDICATOR STATUS LIGHT
12
NAVIGATING THE OSD MENU
13
GAME SETTINGS
14
PICTURE SETTING
15
COLOUR SETTINGS
16

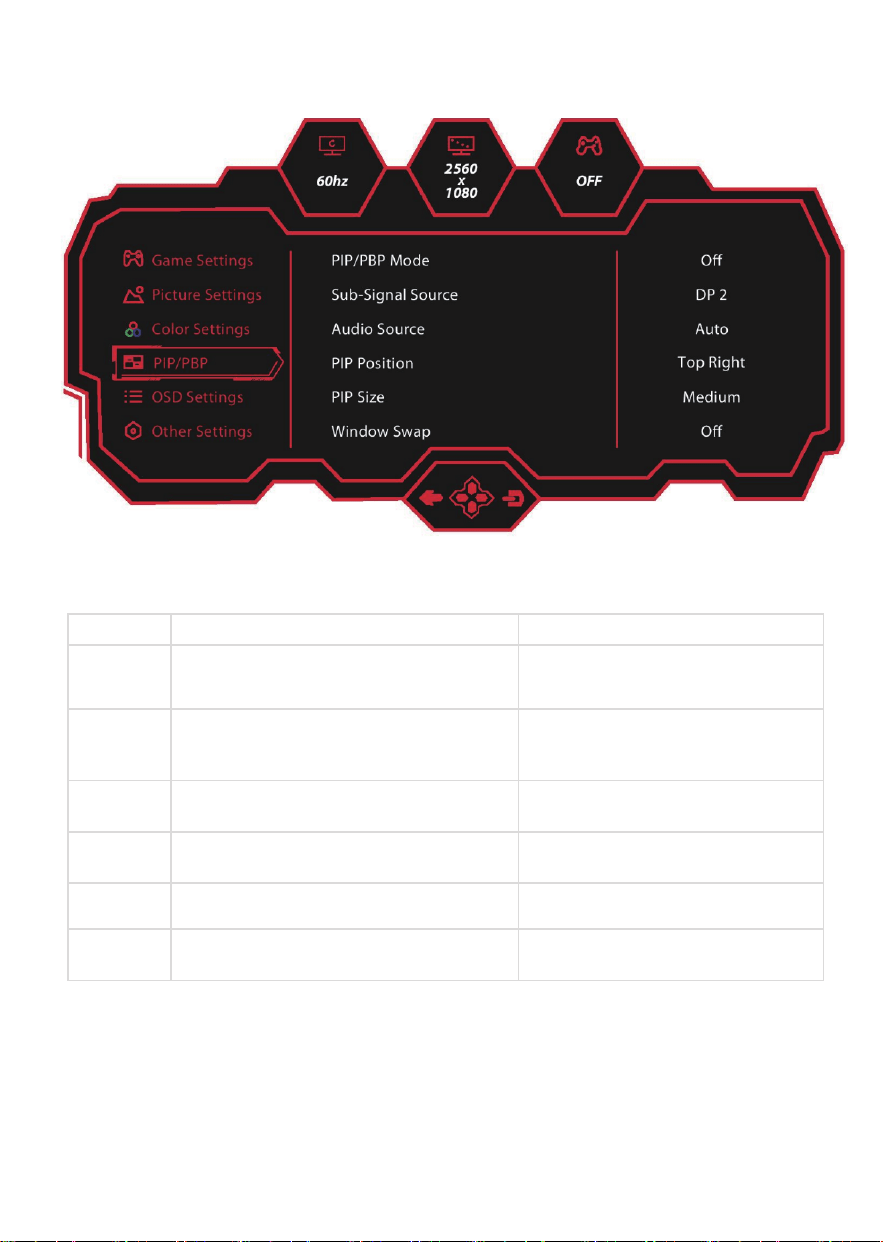

PIP (PICTURE IN PICTURE)
PBP (PICTURE BY PICTURE)
17
OSD SETTINGS
18
OTHER SETTINGS
19
SPECIFICATION
20
TROUBLESHOOTING
21
PRODUCT DISPOSAL
22
SUPPORT
22
4
SAFETY INFORMATION
Read these instructions – All the safety and operating instructions should
be read before this product is installed or operated.
Keep these instructions – The safety and operating instructions should
be retained for future reference.
Heed all warnings – All warnings on the appliance and in the operating
instructions should be adhered to.
Follow all instructions – All operating and usage instructions should be
followed.
Do not use this equipment near water – The appliance should not be
used near water or moisture e.g. in a wet basement or near a swimming
pool.
This monitor is designed for indoor use only.
Clean only with a dry cloth. Do not use solvents or petroleum-based fluids.
Do not block any ventilation openings.
Do not install near any heat sources such as radiators, stoves or other
apparatus (including amplifiers) that produce heat.
Do not tamper with the supplied plug. This plug is a BS1363 standard plug.
Protect the power cord from being walked on or pinched, particularly at the
plug and at the point where it exits from the appliance.
Only use attachments/accessories specified by the manufacturer.
Unplug the apparatus during lightning storms or when unused for long
periods of time.
Refer all servicing to qualified personnel. Servicing is required when the
apparatus has been damaged in any way, such as:
The power supply cord or plug has been damaged.
Liquid has been spilled or the monitor has been exposed to rain or
moisture.
Objects have fallen into the apparatus.
It does not operate normally or has been dropped.
Please keep the unit in a well-ventilated environment.
The monitor should only be connected to a mains power supply using the
supplied power adaptor.
To prevent overload, do not share the same power supply socket with too
many other electronic components.
Do not place any connecting wires where they may be stepped on or
tripped o
ver.
Do not place heavy items on the cable as this may cause damage.
When removing from a socket grip the plug, not the cable.
Disconnect the plug immediately and seek professional help if the plug or
cable is damaged, liquid has spilt onto the monitor, if accidentally exposed
5
to water or moisture, if anything accidentally penetrates the ventilation slots
or if the set does not work normally.
Do not remove the safety covers. There are no user serviceable parts
inside.
Do not block ventilation slots on the back cover. The monitor can be placed
in a cabinet but ensure the guidance on clearances (see next page) are
followed.
Do not tap or shake the screen, this may damage internal components.
Diagrams within the manual are for illustrative purposes only, and as such
there may be differences to the actual product received.
This is a CLASS I product and as such requires an earth connection.
WARNINGS
Never place a monitor in an unstable location. A monitor may fall, causing
serious personal injury or death. Many injuries, particularly to children, can
be avoided by taking simple precautions such as:
Use cabinets or stands recommended by the manufacturer of the
monitor.
Only use furniture that can safely support the monitor.
Ensure the monitor is not overhanging the edge of the supporting
furniture.
Do not place the monitor on tall furniture (for example, cupboards or
bookcases) without anchoring both the furniture and the monitor to a
suitable support.
Do not place the monitor on cloth or other materials that may be located
between the monitor and the supporting furniture.
Educate children about the dangers of climbing on furniture to reach the
monitor or its controls.
If your existing monitor is being retained and relo
cated, the same
considerations as above should be applied.
AT FULL VOLUME, PROLONGED LISTENING MAY DAMAGE THE
USER’S HEARING.
This warning sign is to
warn of dangerous
voltage inside the
product.
CAUTION: To reduce the risk of
electric shock, DO NOT remove the
cover (or back). No user serviceable
parts inside. Refer servicing to
qualified service personnel.
This warning sign is to alert
you of important instructions
accompanying the product.
6

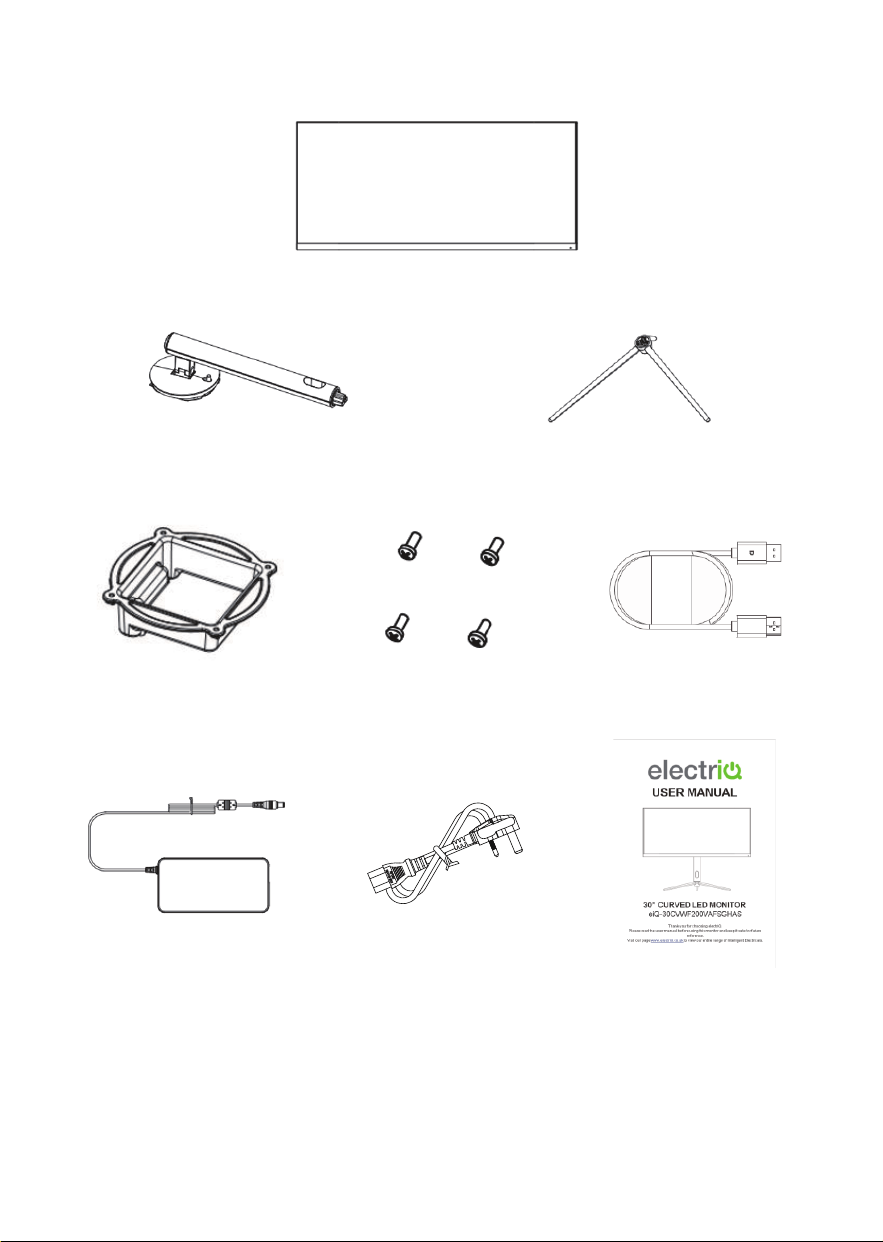

WHAT IS SUPPLIED
Monitor
Stem
Base
VESA Adaptor
Bolts
DP Cable
Power Adaptor
Power Cable
User Manual
7
PREPARING THE MONITOR FOR USE

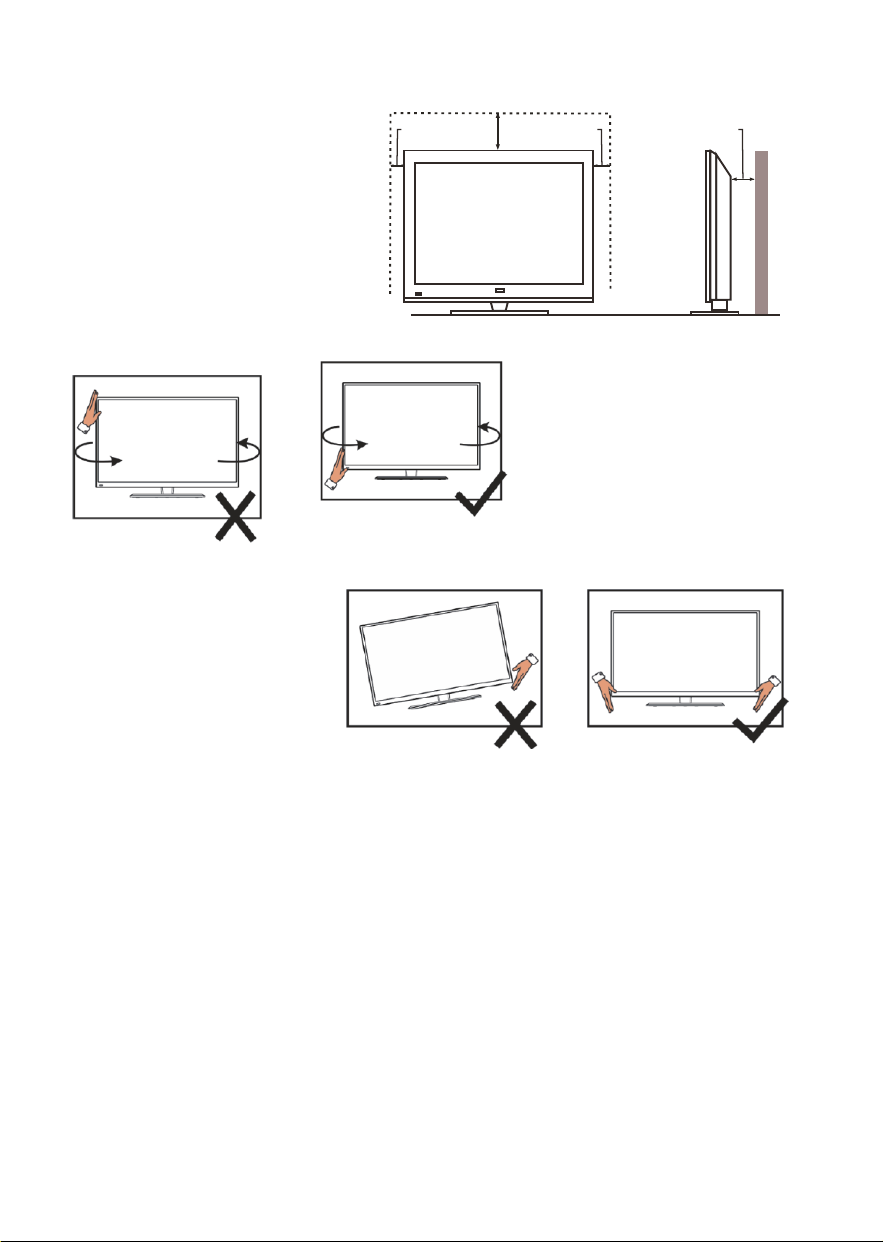

Place the monitor on a firm and
flat surface, leaving a space of
at least 10cm around the unit
and 30cm from the top of the
unit to the ceiling or cabinet.
Ensure the monitor is positioned
close to the wall to avoid it falli
ng
when pushed.
When twisting the monitor,
do not hold by the top, you
should twist from the base.
When lifting the monitor, do
not use one hand to handle
it, you should lift the
monitor using two hands,
ensuring pressure is not pu
t
on the screen itself.
10cm
30cm
10cm
10cm
8
ATTACHING THE STAND
Due to the heavy weight and dimensions of the screen and its fragile nature, we recommend
that it is unpacked and assembled by 2 people.
electriQ and its distributors and dealers are not liable or responsible for damage or injury
caused by improper installation, improper use or failure to observe these safety instructions. In
such cases any guarantee will be void.
Keep the foam underneath the monitor before attaching the stand.
To avoid damage, do not touch the screen when moving the monitor.

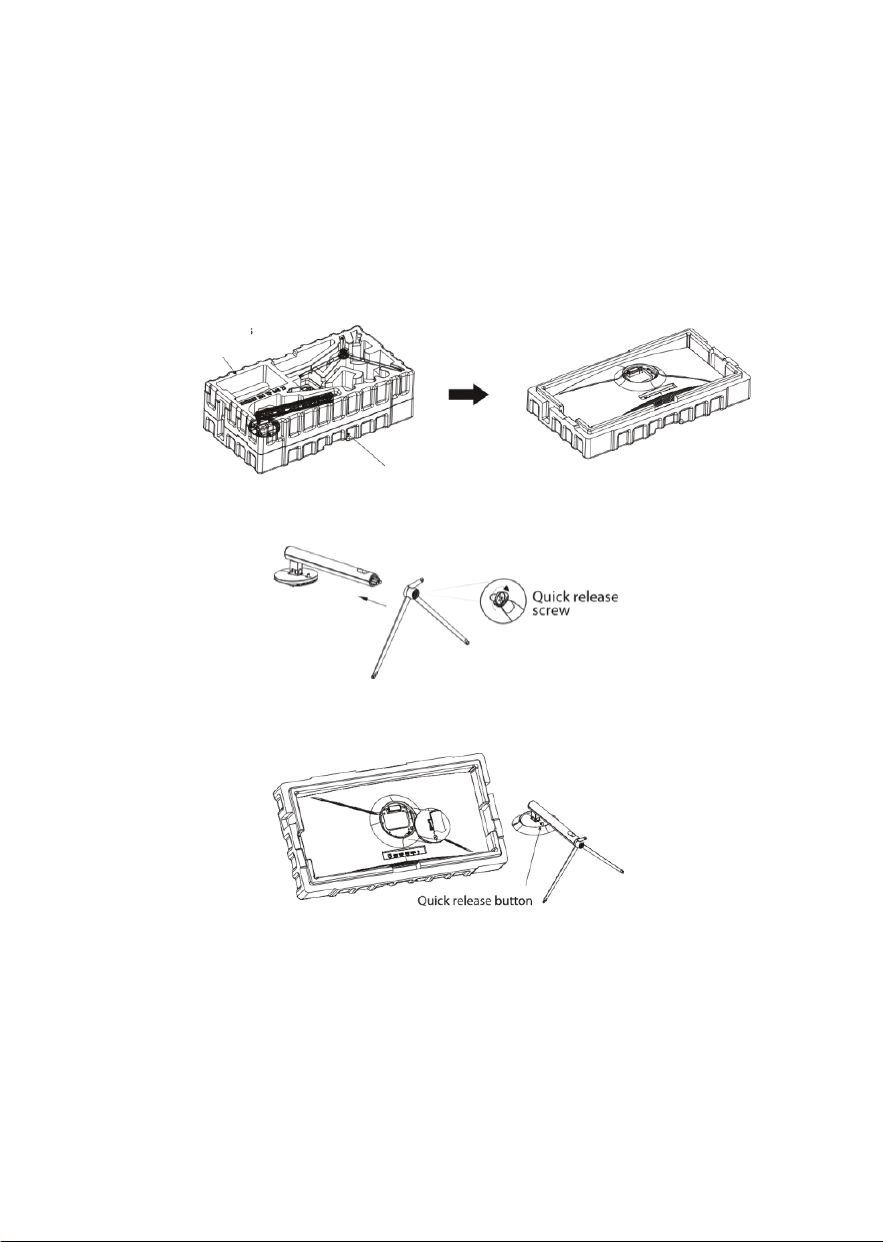

1. Open the packaging, take out the monitor with polystyrene still attached and gently place it on
a desk or table with the screen facing down. Remove the polystyrene from the rear of the
monitor.
2. Take out the base and the stem. Press together and then secure together using the quick
release screw.
3. Align the stand stem bracket with the opening on the back of the monitor and carefully insert
the bracket, locating the top of the bracket, and ensuring that the quick release button clicks
to lock it in place.
4. Lift the monitor to stand in the upright position by holding the stand. Never put pressure on
the screen as this may result in damage.
HOW TO REMOVE THE STAND
Lay the monitor on a suitable surface with the screen suitably supported (Preferably using the
polystyrene) and press the quick release button to unclip the bottom of the stand from the rear of
the monitor, before tilting and sliding the stand off the rear of the monitor.
Rear Polystyrene
Front Polystyrene
9
MONITOR ADJUSTMENT

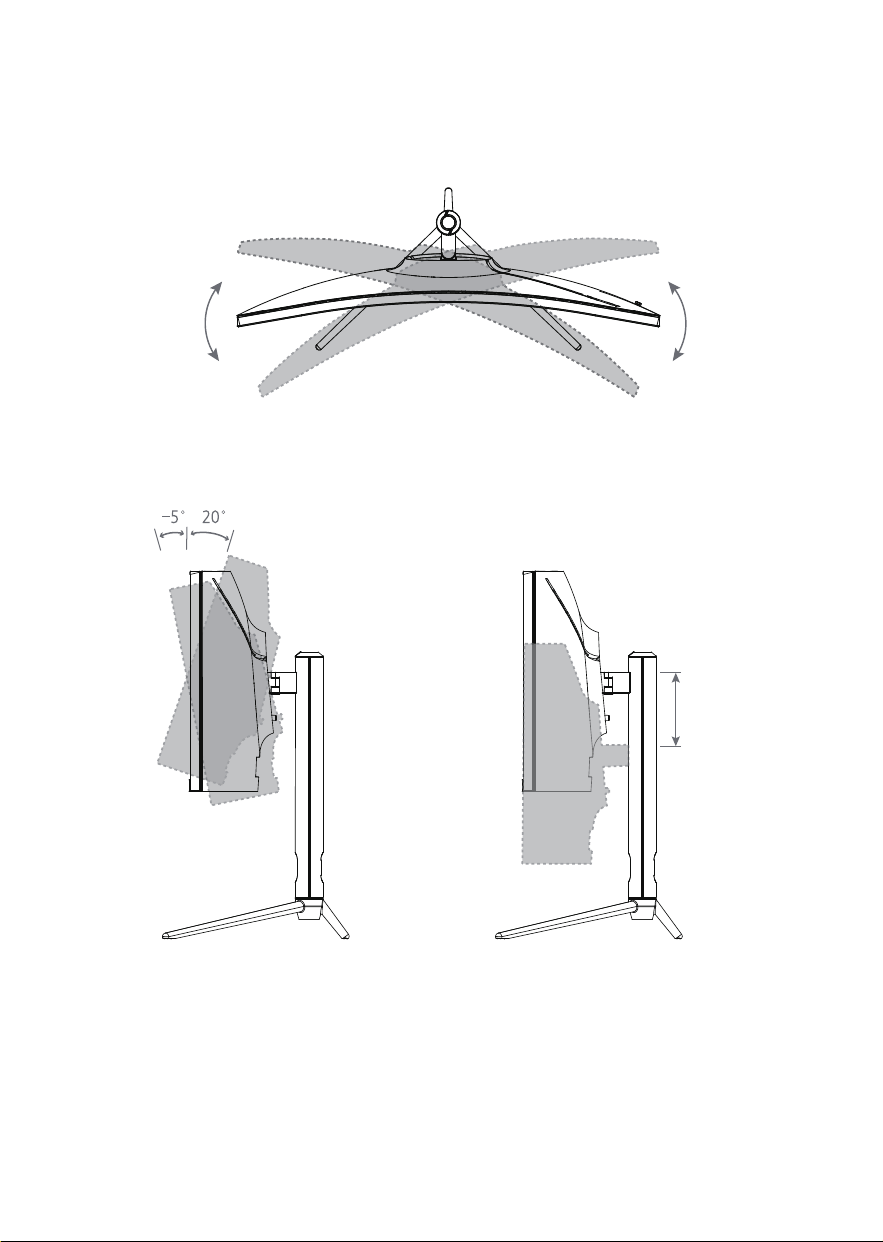

The stand provided with your monitor is fully adjustable in order to ensure you can get it in the
perfect position.
It can rotate 25°(±2.0°) in either direction
It can tilt downwards by 5.0°(±2.0°)
or up 20°(±2.0°)
There is also 115mm (±5.0mm)
of height adjustment
115mm
10
WALL MOUNTING
The monitor is provided with a mounting
adaptor to connect a VESA approved wall
mounting bracket (not supplied).
The VESA mounting pattern is: 100x100mm
and the size of the screws is 4 x M6 x 10 (not
supplied)
Do not use screws longer than specified or
damage will occur to the internal components.
NOTE: As the monitor is considered heavy, please consult with a professional wall mount installer to
perform the installation.

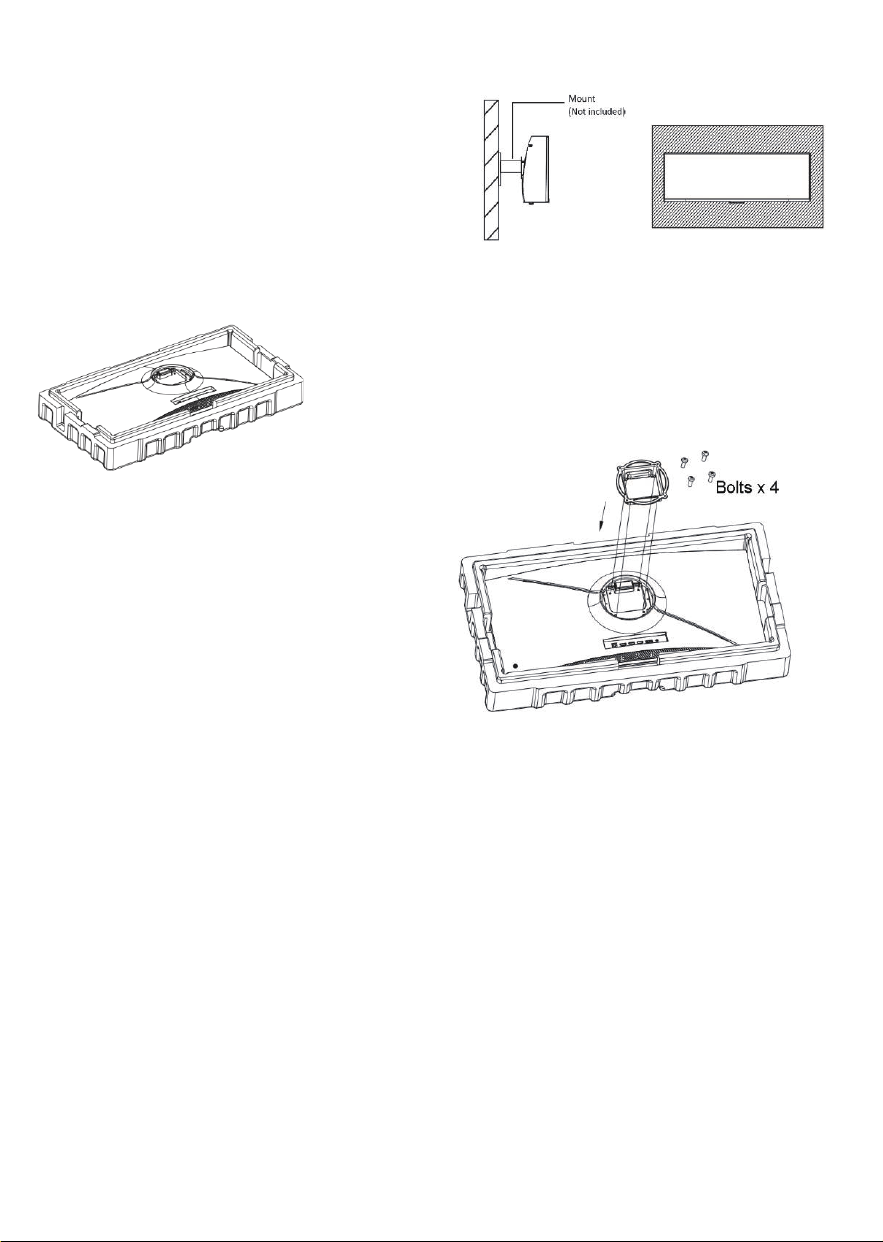

1. Open the package, take out the
product with foam still
attached, and gently place it on a desk or table. Remove
the accessories and the foam covering the rear of the
monitor. If the monitor was already attached to the stand,
remove the stand.
2. Install the VESA adaptor using the 4 bolts
provided. Follow the directions received with
your mount, stand, or accessory and install
the monitor on the wall or fixture as desired.
NOTES:
Do not pinch the screen directly with your hand when hanging the product to prevent the
screen from breaking.
Due to the heavy weight and dimensions of LCD screens and their fragile nature, we
recommend that they are unpacked and assembled by 2 people an
d professional installers are
used to wall mount them (wall mounting is optional).
If you do not understand the instructions, or are unsure how to install this product, please
contact a professional for assembly advice and assistance.
Careful consideration should be made regarding the location the monitor is to be wall mounted
as some walls are not suitable for installation. If the monitor is to be mounted on drywall, the
mount must be anchored into a wooden stud, concrete bl
ock or brick behind the drywall.
Installing on drywall alone may not support the weight of the display.
When drilling holes, it is particularly important to take care of electrical cables, water or gas
pipes in the wall. Please follow the instructions provided by the wall bracket manufacturer and
ensure that all fixing bolts supplied are used.
electriQ and its distributors and dealers are not liable or responsible for damage or injury
caused by improper installat
ion, improper use or failure to observe these safety instructions. In
such cases any guarantee will expire.
11
GETTING STARTED

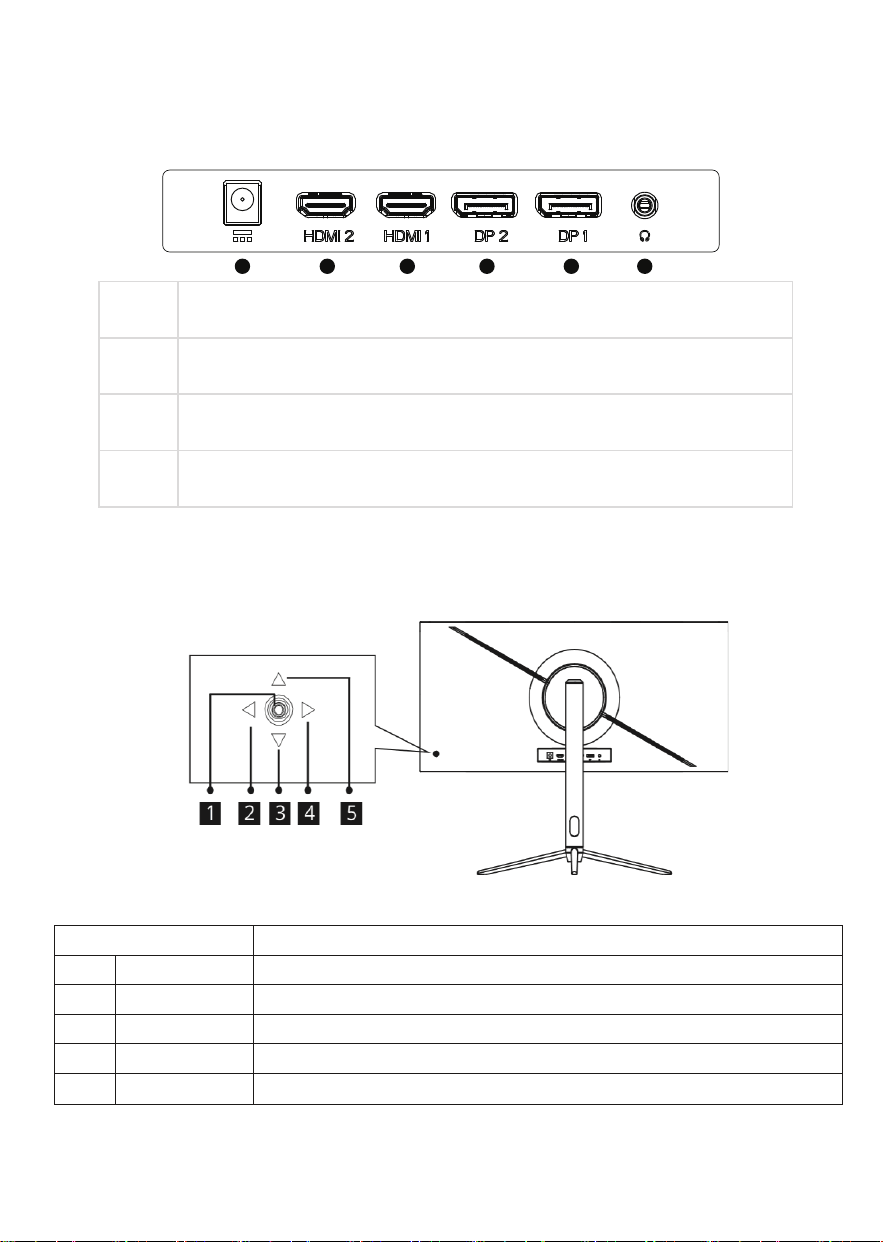

CONNECTIONS AVAILABLE ON THE MONITOR
1 DC power Inlet: Insert the power adaptor cable.
2 & 3
HDMI Port 2.0: Insert one end of the HDMI cable into a suitable HDMI
output and connect the other end to the monitor’s HDMI port.
4 & 5
DP (Display Port) 1.4: Insert one end of the DP cable into the computer’s
DP output and connect the other end to the monitor’s DP port.
6
Audio Output: Insert an Audio cable into the monitor to output sound to a
device, such as headphones or speakers.
MONITOR CONTROLS
Bu�on
Func�on
1
Power bu�on
Press to turn the monitor on/off.
2
Menu bu�on
Press to enter sub-menus/ enter the main menu.
3
Down bu�on
Press to navigate down in the menu/ adjust the game crosshair (HOTKEY 1).
4
Exit/hot key
Press to return to the previous menu/ adjust the input signal (HOTKEY 3).
5
Up bu�on
Press to navigate up in the menu/ enter the scene mode .)2(HOTKEY
1 2 3 4 5 6
12
INITIAL SETUP
1. Attach the stand or wall mount the product following the guidance on the
previous pages.
2. Connect the source device (such as PC) using the correct cable.
3. Connect the power cable to the monitor and plug into a suitable socket.
4. Press the POWER button on the monitor or to turn it on.

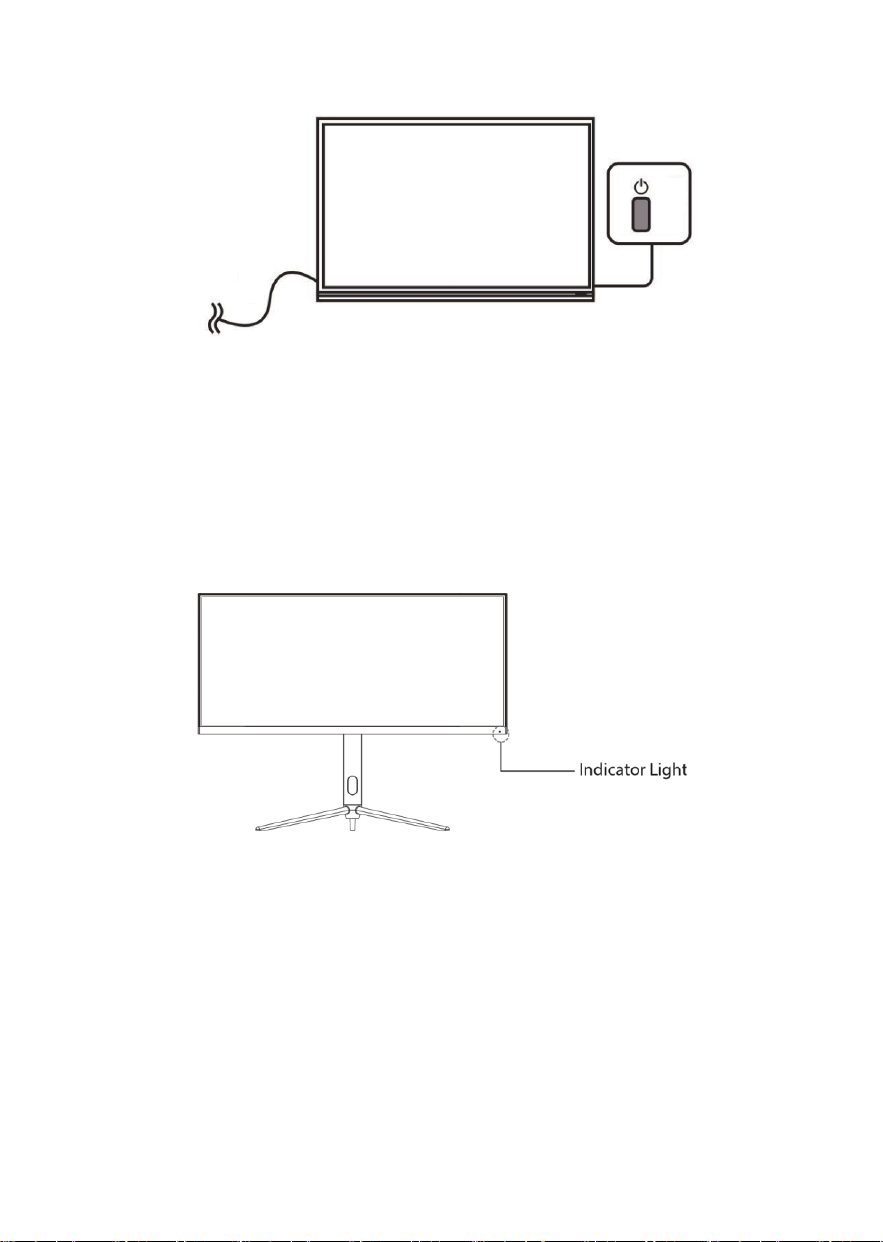

INDICATOR STATUS LIGHT
Your monitor includes an indicator to show the status
Colour
Description
Blue
Power is on and monitor operating normally
Red
Monitor in standby, No video signal
13
NAVIGATING THE OSD MENU
NOTE: Due to continuous product development, the OSD menu shown may differ slightly
from the product.
The screen display (OSD) menu can be used to adjust the settings of the monitor and is
shown on the screen after the monitor is powered on and the menu is accessed using the
joystick on the rear of the monitor.
1. Press the Joystick right to enter the OSD menu.
2. Move the joystick up and down to navigate through the desired func
tions.
Move the joystick right to select /confirm the option.
Move the joystick left to cancel the current option and return to the
previous level of the menu.
14

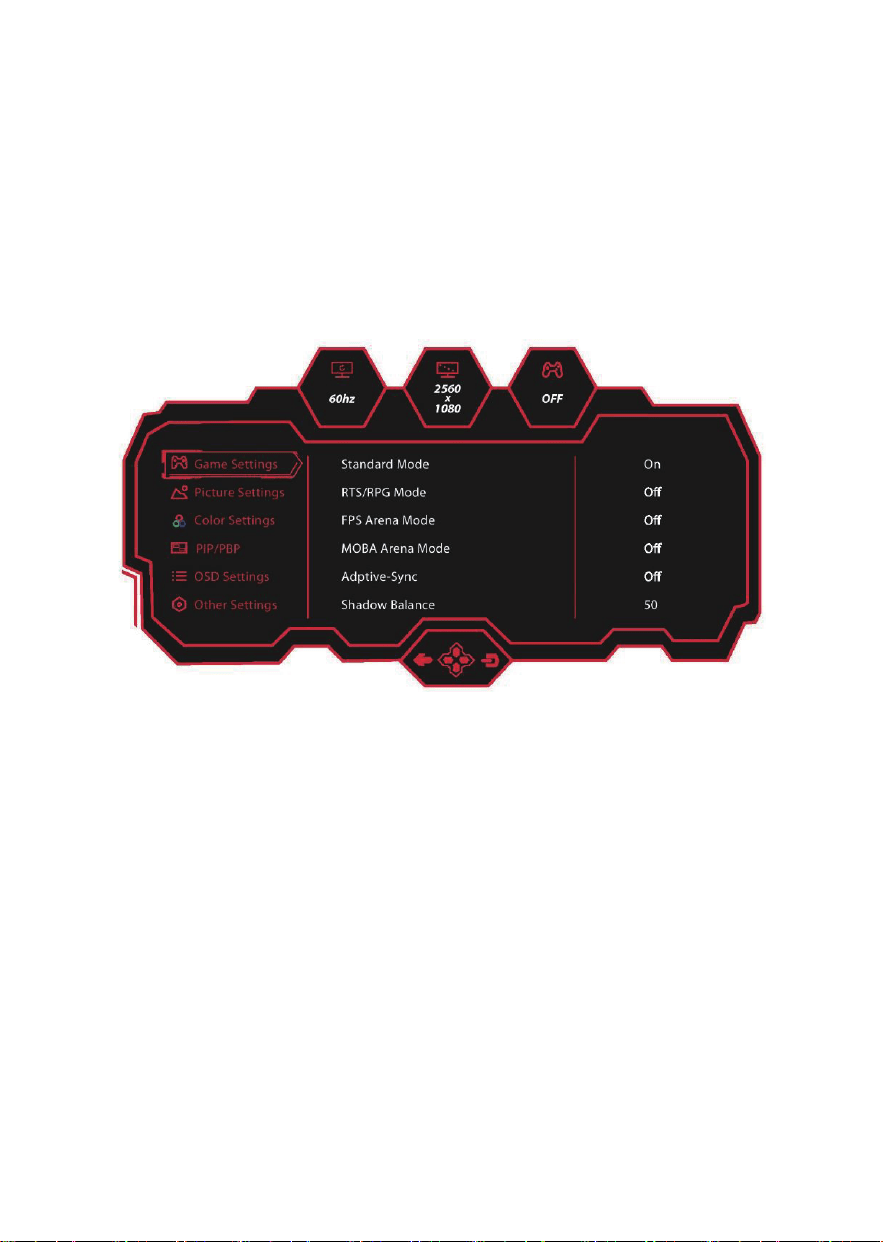

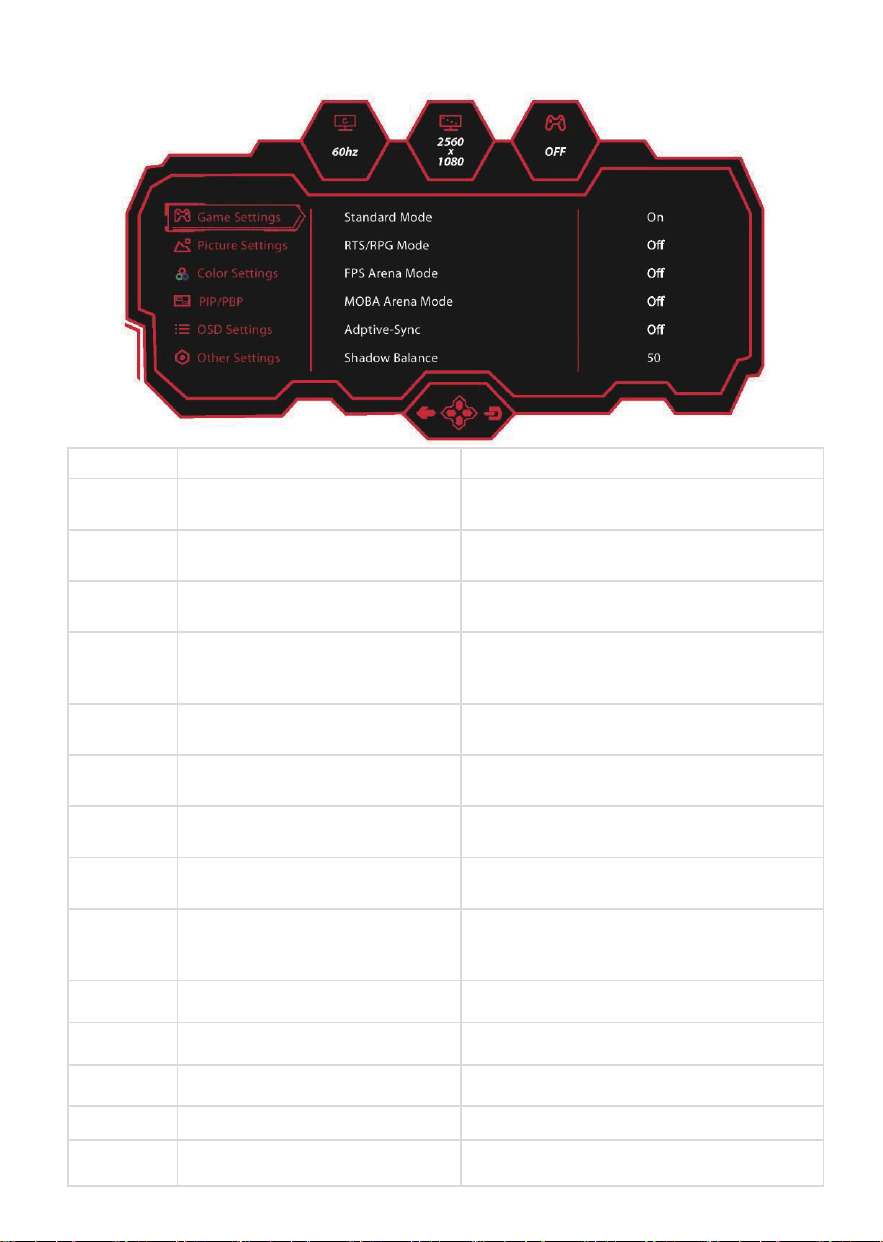

GAME SETTINGS
Setting
Options
Description
Standard
Mode
On / Off
Settings optimised for standard use of the
monitor.
RTS/RPG
Mode
On / Off
Settings are optimised for real time strategy and
role playing games.
FPS Arena
Mode
On / Off
Settings are optimised for first person shooter
games.
MOBA
Arena
Mode
On / Off
Settings are optimised for multiplayer online battle
arena games.
Adaptive-
Sync
On / Off
Helps to reduce tearing, stuttering and judder
while playing fast moving games.
Shadow
Balance
0 – 100
Adjust the darkness / detail within shadows on the
screen
Response
Time
Off, Normal, Fast, Ultrafast
Overdrive to increase the response time of the
monitor.
Refresh
Rate
Off, On, Position (Top Right, Top
Left, Bottom Right, Bottom Left)
Select whether to display the refresh rate on the
screen and its position.
Game
Crosshair
Off, Crosshair 1, Crosshair 2,
Crosshair 3, Crosshair 4,
Crosshair 5, Crosshair 6,
Select whether to display crosshairs on the
screen and the style of the crosshairs.
Game
Time
Off, 15:00, 30:00, 45:00, 60:00,
Set the length of the timer.
Dynamic
Brightness
Off, Standard, Expert, Elaboration
Set if the screen compensates when images are
dark or bright, and to what extent.
MPRT
Off, On
Off, On
Use to help to prevent motion blur.
Ambient
Lighting
Set the ambient lighting of the monitor.
HDR
Off, On
Use with HDR (High dynamic range) sources to
increase the range of colours / brightness shown.
increase the range of colours / brightness shown.
15
PICTURE SETTINGS
Setting
Options
Description
Brightness 0 - 100
Adjust the brightness of the image on the screen.
Contrast 0 - 100
Adjust the contrast of the image on the screen
DCR On / Off
Turn DCR (Dynamic Contrast Ratio) on or off, which
may help the clarity of the image.
Contextual
Model
Off, Movie Mode, Reading
Mode, Night Mode
Select to automatically adjust the picture to suit one
of the pre set modes.
Low Blue
Light
0 - 100
Set to adjust the amount of low blue light which is
emitted from the monitor.
Sharpness 0 - 5
Enhances the edges of items on screen to make
them appear sharper.
Gamma 1.8, 2.0, 2.2,2.4, 2.6, S.Curve
Change to match the gamma output of the source
for better colour reproduction.
Aspect
Ratio
Widescreen, 4:3, 1:1, Auto
Change the shape of the image on screen. If a non
widescreen option is chosen, the sides of the screen
will be black.
16

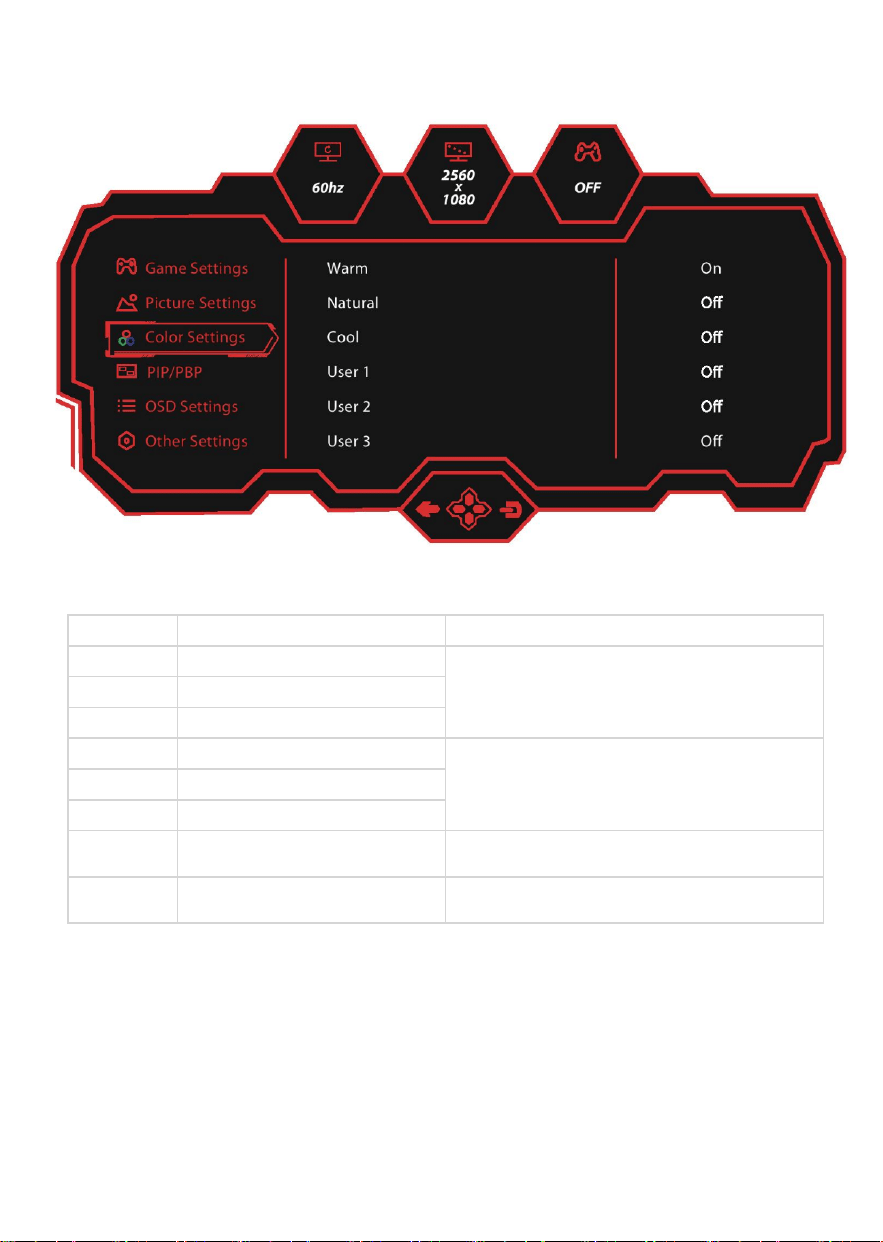

COLOUR SETTINGS
Setting
Options
Description
Warm
On / Off
3 different pre set colour temperatures that can be
applied to the image.
Natural
On / Off
Cool
On / Off
User 1
On (R, G, B) / Off
3 separate user adjustable colour temperatures,
allowing you to select the Red, Green and Blue
values of the output manually
User 2
On (R, G, B) / Off
User 3
On (R, G, B) / Off
Hue 0 - 100
Adjusts the colour of the image displayed on the
screen.
Saturation 0 - 100
Increase to make colours appear sharper, reduce to
make them appear more faded.
17
PIP (Picture in Picture) / PBP (Picture by Picture)
Setting
Options
Description
PIP/PBP
Mode
Off/PIP Mode/PBP 2Win 1:1
Turn PIP/PBP on and of, and select
which option is used for displaying
multiple video sources.
Sub-
Signal
Source
DP1, DP 2, HDMI1, HDMI2
Select which input source is used for the
second input.
Audio
source
Auto/DP1/DP2/HDMI1/HDMI2
Select which input source is used for the
audio input
PIP
Position
TopRight/TopLeft/BottomRight/BottomLeft
Select the position of the secondary video
source on the screen in PIP modes.
PIP Size Small, Medium, Large
Select the size of the secondary video
source on the screen in PIP modes.
Window
Swap
On / Off
Swaps the primary and secondary
sources on the screen.
18

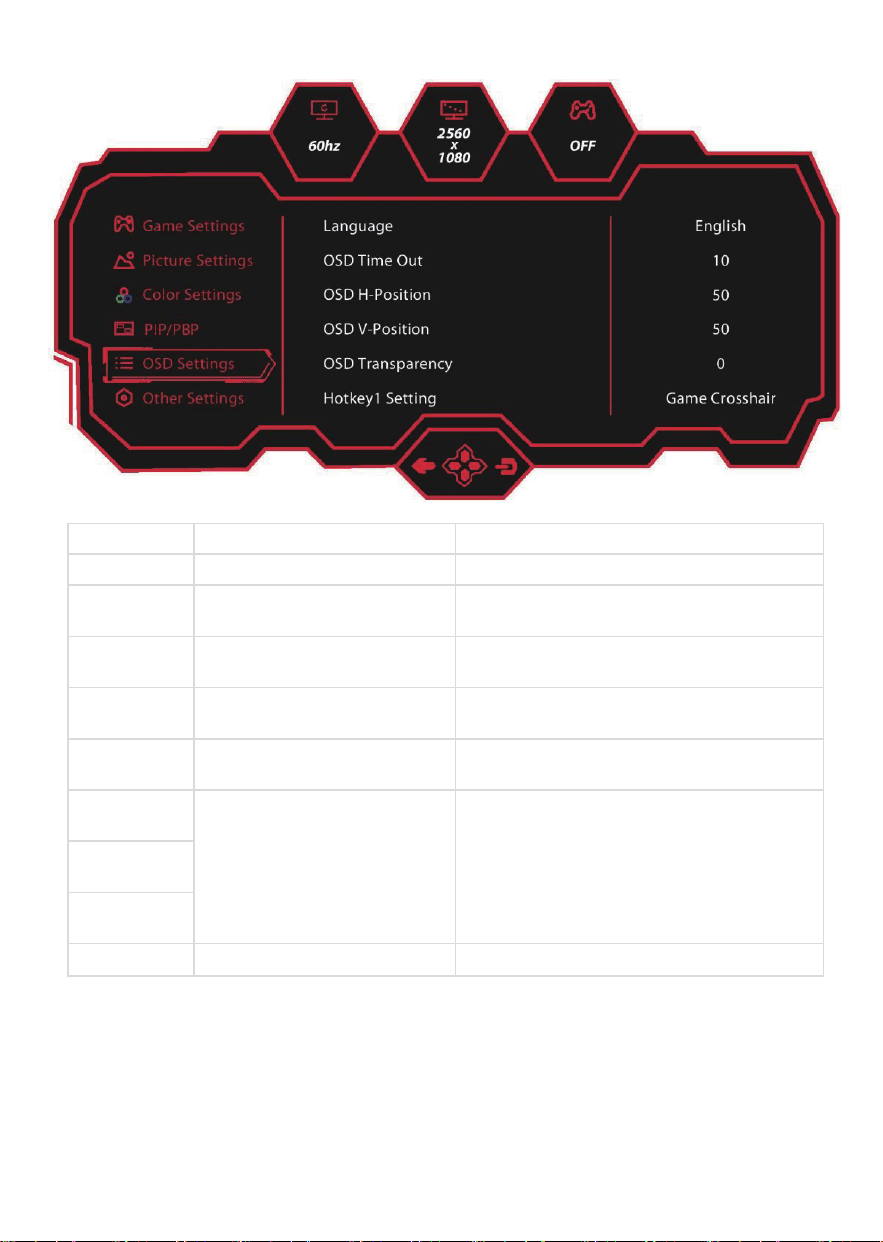

OSD SETTINGS
Setting
Options
Description
Language
23 Languages to select from
Select which language the OSD is displayed in
OSD Time
Out
5 – 60
Select how long (in seconds) the OSD is displayed
when no buttons are pressed.
OSD H-
Position
0 – 100
Select the horizontal position of the OSD.
OSD V-
Position
0 – 100
Select the vertical position of the OSD.
OSD
Transparency
0 – 5
Select how see-through the OSD is.
Hotkey1
Setting
Brightness, Contrast, Volume,
Mute, Shadow Balance,
Game Crosshair, Refresh
Rate, Game Time, Contextual
Model, PIP/PBP Mode, Input
Signal, Dynamic Brightness,
HDR
Set what menu / action is displayed when the
relevant hotkey is pressed.
HotKey2
Setting
Hotkey 2
Setting
OSD Lock
On / Off
Lock the OSD to prevent unauthorised changes.
19

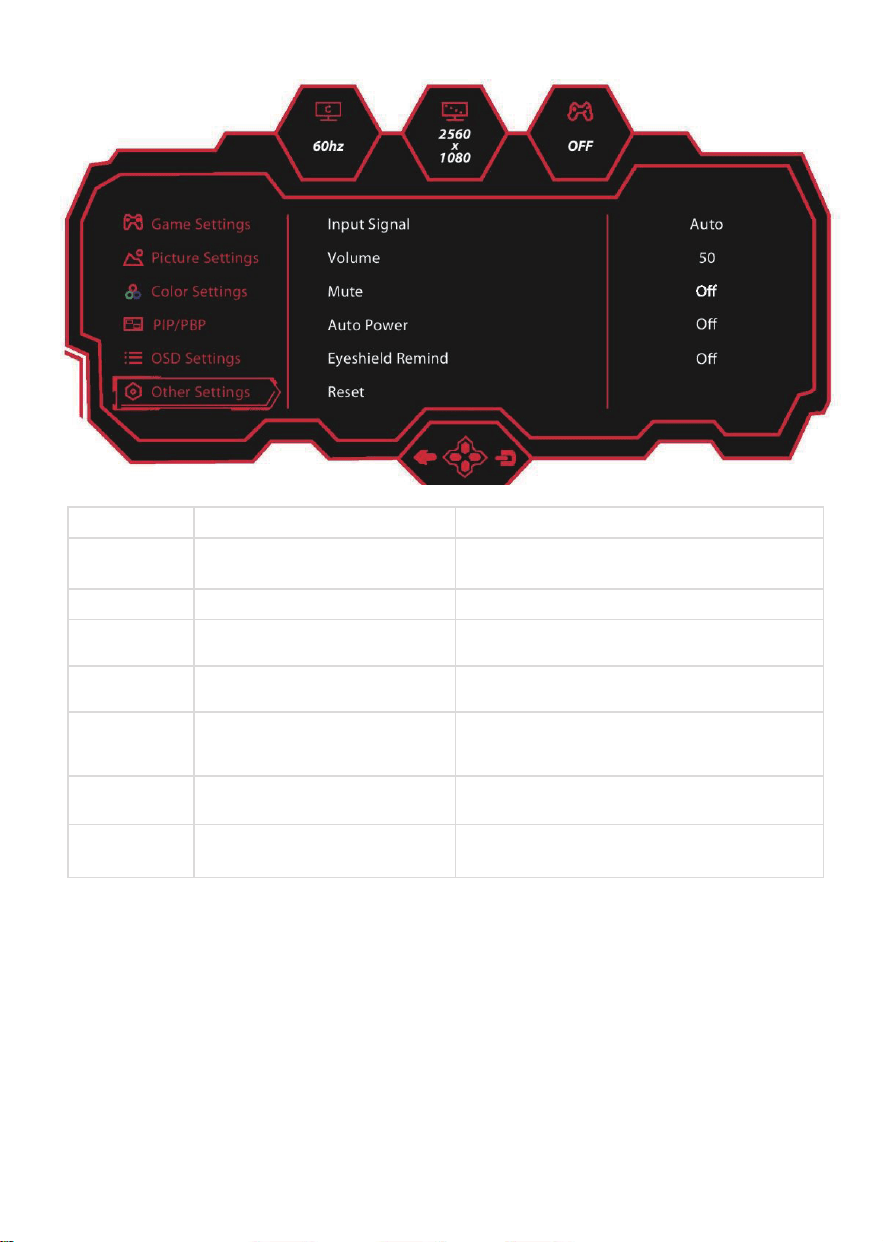

OTHER SETTINGS
Setting
Options
Description
Input Signal
Auto, DP1, DP 2, HDMI1,
HDMI2
Choose the input source which is displayed on the
monitor.
Volume
0 – 100
Adjust the volume output by the monitor
Mute On / Off
Mute the audio output from the speakers / audio
out port.
Auto Power On / Off
Set whether the monitor will automatically turn on
when a source starts to output to the monitor.
Eyeshield
Remind
On / Off
Allows you to set up regular reminders to take a
break from looking at the monitor to prevent eye
strain.
Reset Yes / No
Reset the monitor back to factory settings.
Information
Input Source, Resolution,
Mode, HDR Ver
Display information about the monitor.
20
SPECIFICATION
Product Model
eiQ-30CVWF200VAFSGHAS
Screen Size
30” (Diagonal)
Panel Type
VA Panel
Aspect Ratio
21:9
Radius of Curve
R1500
Power Supply
12.0V 4.0A
Dimensions (With Stand)
701 x 269 x 536mm
Dimensions (Without Stand)
701 x 122 x 318mm
Net / Gross Weight
6.5kg / 8.5 kg
VESA Wall Mount
Dimensions (not included)
100 x 100 mm
Maximum Resolution
2560 x 1080
Brightness
≥250nit
Response Time
7ms / 1ms MPRT
Refresh Rate (Max)
200 Hz
Static Contrast
3000:1
Viewing Angle (H/V)
178° / 178°
HDMI Input HDMI 2.0 x 2
Display Port Input DP 1.4 x 2
Audio Output x 1 (Headphone Socket)
Working Temperature
0°C - 40°C
Working Humidity
10% - 85% Non-condensing
Notes:
Due to continued product development the specification shown above may change
without notice.
Maciumum resolution and refresh rate achievable is dependant on the input source
and the quality / specification of cables used.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI Logo are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc. in the United States and other countries.
21
TROUBLESHOOTING
If the display fails or the performance changes dramatically, check the display in accordance
with the following instructions. Remember to check the peripherals to pinpoint the source of
the failure.
Symptom
Solution
Power cannot be turned
on. (Power indicator does
not illuminate.)
Check that both ends of the power cable are plugged
into the socket correctly and the wall socket is
operational.
No Input Signal message
appears.
Check that the input cable is connected properly.
Check that the power of the relevant peripherals is
turned on. Check that the selected source matches the
input.
Factory reset the monitor, using the RESET option within
the main menu.
Flashing spots or stripes
appear on the screen.
Check that there is no emission (car, HV cable or neon
lamp) or other possible interference sources.
Image colour or quality
deteriorates.
Check that all the video settings are adjusted
appropriately, such as brightness, contrast, colour etc.
For more information about video settings, refer to OSD
Functions.
Screen position and size
are incorrect.
Check that the screen position and size is adjusted
appropriately.
Image or colour is
incorrect.
Check that the signal line is connected properly.
When connecting to a PC, you can change the resolution
of the PC to acquire the correct image. Discrepancies in
the PC output signal may affect the display of the image.
Display warning
message.
Check that the input signal line is properly fixed.
Select the correct input source.
For more information, refer to Supported Signal Modes.
22
PRODUCT DISPOSAL
Do not dispose this product as unsorted municipal waste. Collection of such waste must be handled
separately as special treatment is necessary.
Recycling facilities are now available for all customers at which you can deposit your
old electrical products. Customers will be able to take any old electrical equipment
to participating civic amenity sites run by their local councils. Please remember that
this equipment will be further handled during the recycling process, so please be
considerate when depositing your equipment. Please contact the local council for
details of your local household waste recycling centres.
electriQ UK SUPPORT
support@electriQ.co.uk
0330 390 3061
Office hours: 9 AM - 5 PM, Monday to Friday
www.electriQ.co.uk
Unit 2A, Trident Business Park,
Neptune Way, Leeds Road,
Huddersfield, HD2 1UA.
V20231219
