User Manual
Please read these instructions before operating the product
Bien lire ces instructions avant d’utiliser le produit
Lea estas instrucciones antes de utilizar el producto
3 x 360° Laser Level
D12 PLUS model no.: MTM350B
English
Warranty
Index
01~14
15
3
1
2
4
5
8
10
9
11
6 7

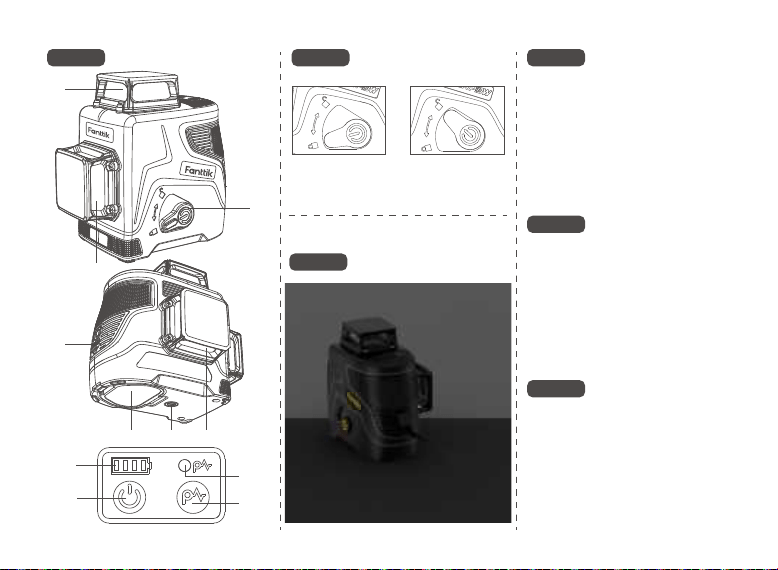

Figure B Figure D
Figure E
Figure A
Figure C
Locked Unlock
Figure F
Contents
1.Safety Warning

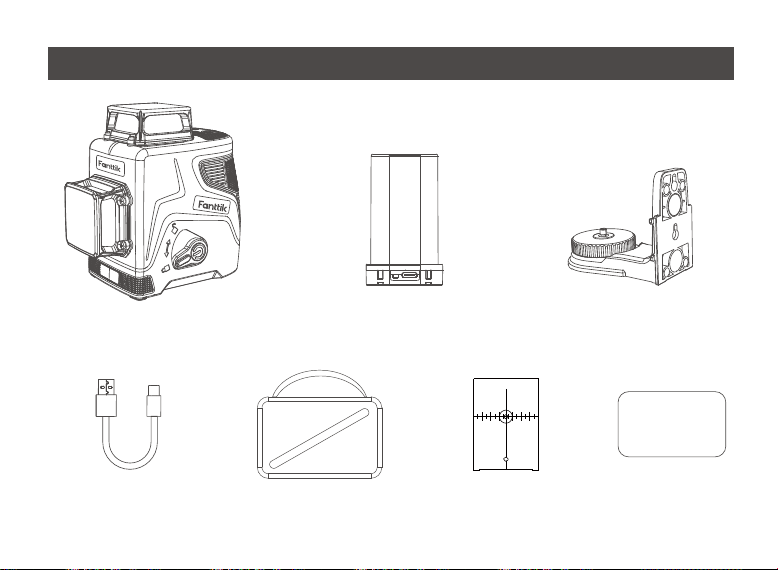

2.Package Content

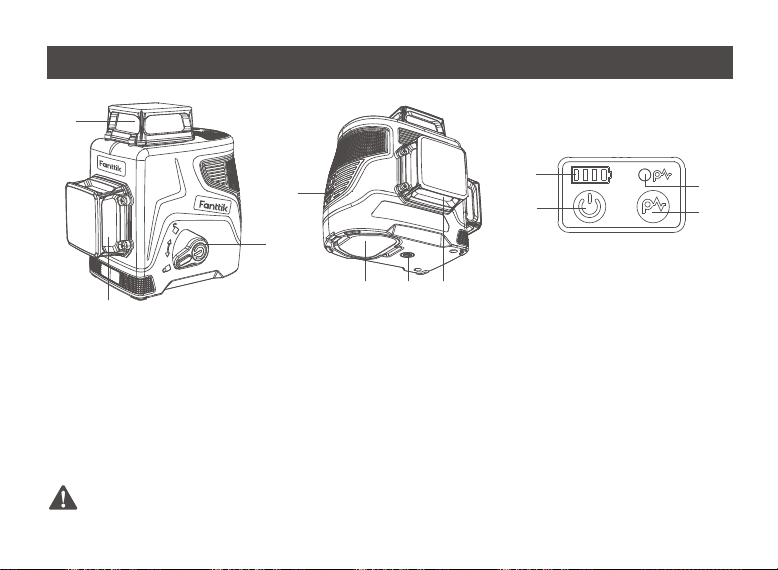

3.Product Overview
4.Operation and Function
5.Specifications
6.Troubleshooting
02
08
09
10
12
13
- 01 -
1. Safety Warning
Definitions: Safety Guidelines
The definitions below describe the level of severity for each signal word. Please read the manual and
pay attention to these symbols.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death
or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor
or moderate injury.
WARNING: Read and understand all instructions. Failure to follow the warnings and
instructions may result in electric shock,fire and/or serious injury.
NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in
property damage.
- 02 -
SAVE THESE INSTRUCTIONS
The label on your tool may include the following symbols.
Warning Labels
For your convenience and safety, the following labels are on your laser.
WARNING: Laser Radiation Exposure. Do not disassemble or modify the laser level. There are
no user serviceable parts inside. Serious eye injury could result.
WARNING: Hazardous Radiation. Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation exposure.
V
mW
nm
2
volts
milliwatts
laser warning symbol
wavelength in nanometers
Class 2 Laser
WARNING: To reduce the risk of injury, user must read instruction manual.
WARNING: LASER RADIATION. DO NOT STARE INTO BEAM. Class 2 Laser Product
- 03 -
•
•
•
•
•
•
•
•
•
Do not operate the laser in explosive atmospheres, such as in the presence of flammable liquids,
gases, or dust. Power tools create sparks which may ignite the dust or fumes.
Store idle laser out of reach of children and other untrained persons. Lasers are dangerous in the
hands of untrained users.
Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the
switch is dangerous and must be repaired.
Do not use optical tools such as a telescope or transit to view the laser beam. Serious eye injury
could result.
Do not place the laser in a position which may cause anyone to intentionally or unintentionally
stare into the laser beam. Serious eye injury could result.
Do not position the laser near a reflective surface which may reflect the laser beam toward
anyone’s eyes. Serious eye injury could result.
Turn the laser off when it is not in use. Leaving the laser on increases the risk of staring into the
laser beam.
Do not modify the laser in any way. Modifying the tool may result in hazardous laser radiation
exposure.
Do not operate the laser around children or allow children to operate the laser. Serious eye injury
may result.
•
•
WARNING:Read and understand all instructions. Failure to follow allinstructions listed below
may result in electric shock, fire and/ or serious personal injury.
Work Area
•
•
•
Do not remove or deface warning labels. If labels are removed user or others may inadvertently
expose themselves to radiation.
Position the laser securely on a level surface. Damage to the laser or serious injury could result if
the laser falls
Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
Do not operate laser tools in explosive atmospheres, such as in the presence of flammable
liquids, gases, or dust.
Keep children and bystanders away while operating a laser tool.Distractions can cause you to
lose control.
Personal Safety
•
•
•
Tool Use and Care
•
•
•
Stay alert, watch what you are doing and use common sense when operating a laser tool. Do not
use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inatten-
tion while operating power tools may result in serious personal injury.
Do not overreach. Keep proper footing and balance at all times. Proper footing and balance
enables better control of the tool in unexpected situations.
Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hard hat, or
hearing protection may be required for appropriate conditions.
Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the
switch is dangerous and must be repaired.
Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the
hands of untrained users.
Use only accessories that are recommended by the manufacturer for your model. Accessories that
may be suitable for one tool, may become hazardous when used on another tool.
Service
•
•
Tool service must be performed only by qualified repair personnel. Service or maintenance
performed by unqualified personnel could result in a risk of injury.
When servicing a tool, use only identical replacement parts. Follow instructions in the Mainte-
nance section of this manual. Use of unauthorized parts or failure to follow Maintenance
Instructions may create a risk of electric shock or injury.
- 04 -
•
•
•
•
•
•
•
•
•
Do not operate the laser in explosive atmospheres, such as in the presence of flammable liquids,
gases, or dust. Power tools create sparks which may ignite the dust or fumes.
Store idle laser out of reach of children and other untrained persons. Lasers are dangerous in the
hands of untrained users.
Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the
switch is dangerous and must be repaired.
Do not use optical tools such as a telescope or transit to view the laser beam. Serious eye injury
could result.
Do not place the laser in a position which may cause anyone to intentionally or unintentionally
stare into the laser beam. Serious eye injury could result.
Do not position the laser near a reflective surface which may reflect the laser beam toward
anyone’s eyes. Serious eye injury could result.
Turn the laser off when it is not in use. Leaving the laser on increases the risk of staring into the
laser beam.
Do not modify the laser in any way. Modifying the tool may result in hazardous laser radiation
exposure.
Do not operate the laser around children or allow children to operate the laser. Serious eye injury
may result.
•
•
WARNING:Read and understand all instructions. Failure to follow allinstructions listed below
may result in electric shock, fire and/ or serious personal injury.
Work Area
•
•
•
Do not remove or deface warning labels. If labels are removed user or others may inadvertently
expose themselves to radiation.
Position the laser securely on a level surface. Damage to the laser or serious injury could result if
the laser falls
Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
Do not operate laser tools in explosive atmospheres, such as in the presence of flammable
liquids, gases, or dust.
Keep children and bystanders away while operating a laser tool.Distractions can cause you to
lose control.
Personal Safety
•
•
•
Tool Use and Care
•
•
•
Stay alert, watch what you are doing and use common sense when operating a laser tool. Do not
use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inatten-
tion while operating power tools may result in serious personal injury.
Do not overreach. Keep proper footing and balance at all times. Proper footing and balance
enables better control of the tool in unexpected situations.
Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hard hat, or
hearing protection may be required for appropriate conditions.
Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the
switch is dangerous and must be repaired.
Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the
hands of untrained users.
Use only accessories that are recommended by the manufacturer for your model. Accessories that
may be suitable for one tool, may become hazardous when used on another tool.
Service
•
•
Tool service must be performed only by qualified repair personnel. Service or maintenance
performed by unqualified personnel could result in a risk of injury.
When servicing a tool, use only identical replacement parts. Follow instructions in the Mainte-
nance section of this manual. Use of unauthorized parts or failure to follow Maintenance
Instructions may create a risk of electric shock or injury.
- 04 -
•
•
•
•
•
•
•
•
•
Do not operate the laser in explosive atmospheres, such as in the presence of flammable liquids,
gases, or dust. Power tools create sparks which may ignite the dust or fumes.
Store idle laser out of reach of children and other untrained persons. Lasers are dangerous in the
hands of untrained users.
Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the
switch is dangerous and must be repaired.
Do not use optical tools such as a telescope or transit to view the laser beam. Serious eye injury
could result.
Do not place the laser in a position which may cause anyone to intentionally or unintentionally
stare into the laser beam. Serious eye injury could result.
Do not position the laser near a reflective surface which may reflect the laser beam toward
anyone’s eyes. Serious eye injury could result.
Turn the laser off when it is not in use. Leaving the laser on increases the risk of staring into the
laser beam.
Do not modify the laser in any way. Modifying the tool may result in hazardous laser radiation
exposure.
Do not operate the laser around children or allow children to operate the laser. Serious eye injury
may result.
•
•
WARNING:Read and understand all instructions. Failure to follow allinstructions listed below
may result in electric shock, fire and/ or serious personal injury.
Work Area
•
•
•
Do not remove or deface warning labels. If labels are removed user or others may inadvertently
expose themselves to radiation.
Position the laser securely on a level surface. Damage to the laser or serious injury could result if
the laser falls
Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
Do not operate laser tools in explosive atmospheres, such as in the presence of flammable
liquids, gases, or dust.
Keep children and bystanders away while operating a laser tool.Distractions can cause you to
lose control.
Personal Safety
•
•
•
Tool Use and Care
•
•
•
Stay alert, watch what you are doing and use common sense when operating a laser tool. Do not
use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inatten-
tion while operating power tools may result in serious personal injury.
Do not overreach. Keep proper footing and balance at all times. Proper footing and balance
enables better control of the tool in unexpected situations.
Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hard hat, or
hearing protection may be required for appropriate conditions.
Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the
switch is dangerous and must be repaired.
Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the
hands of untrained users.
Use only accessories that are recommended by the manufacturer for your model. Accessories that
may be suitable for one tool, may become hazardous when used on another tool.
Service
•
•
Tool service must be performed only by qualified repair personnel. Service or maintenance
performed by unqualified personnel could result in a risk of injury.
When servicing a tool, use only identical replacement parts. Follow instructions in the Mainte-
nance section of this manual. Use of unauthorized parts or failure to follow Maintenance
Instructions may create a risk of electric shock or injury.
- 05 -
•
•
•
•
•
•
•
•
•
Do not operate the laser in explosive atmospheres, such as in the presence of flammable liquids,
gases, or dust. Power tools create sparks which may ignite the dust or fumes.
Store idle laser out of reach of children and other untrained persons. Lasers are dangerous in the
hands of untrained users.
Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the
switch is dangerous and must be repaired.
Do not use optical tools such as a telescope or transit to view the laser beam. Serious eye injury
could result.
Do not place the laser in a position which may cause anyone to intentionally or unintentionally
stare into the laser beam. Serious eye injury could result.
Do not position the laser near a reflective surface which may reflect the laser beam toward
anyone’s eyes. Serious eye injury could result.
Turn the laser off when it is not in use. Leaving the laser on increases the risk of staring into the
laser beam.
Do not modify the laser in any way. Modifying the tool may result in hazardous laser radiation
exposure.
Do not operate the laser around children or allow children to operate the laser. Serious eye injury
may result.
•
•
WARNING:Read and understand all instructions. Failure to follow allinstructions listed below
may result in electric shock, fire and/ or serious personal injury.
Work Area
•
•
•
Do not remove or deface warning labels. If labels are removed user or others may inadvertently
expose themselves to radiation.
Position the laser securely on a level surface. Damage to the laser or serious injury could result if
the laser falls
Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
Do not operate laser tools in explosive atmospheres, such as in the presence of flammable
liquids, gases, or dust.
Keep children and bystanders away while operating a laser tool.Distractions can cause you to
lose control.
Personal Safety
•
•
•
Tool Use and Care
•
•
•
Stay alert, watch what you are doing and use common sense when operating a laser tool. Do not
use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inatten-
tion while operating power tools may result in serious personal injury.
Do not overreach. Keep proper footing and balance at all times. Proper footing and balance
enables better control of the tool in unexpected situations.
Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hard hat, or
hearing protection may be required for appropriate conditions.
Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the
switch is dangerous and must be repaired.
Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the
hands of untrained users.
Use only accessories that are recommended by the manufacturer for your model. Accessories that
may be suitable for one tool, may become hazardous when used on another tool.
Service
•
•
Tool service must be performed only by qualified repair personnel. Service or maintenance
performed by unqualified personnel could result in a risk of injury.
When servicing a tool, use only identical replacement parts. Follow instructions in the Mainte-
nance section of this manual. Use of unauthorized parts or failure to follow Maintenance
Instructions may create a risk of electric shock or injury.
- 06 -
•
•
•
•
•
•
•
•
•
Do not operate the laser in explosive atmospheres, such as in the presence of flammable liquids,
gases, or dust. Power tools create sparks which may ignite the dust or fumes.
Store idle laser out of reach of children and other untrained persons. Lasers are dangerous in the
hands of untrained users.
Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the
switch is dangerous and must be repaired.
Do not use optical tools such as a telescope or transit to view the laser beam. Serious eye injury
could result.
Do not place the laser in a position which may cause anyone to intentionally or unintentionally
stare into the laser beam. Serious eye injury could result.
Do not position the laser near a reflective surface which may reflect the laser beam toward
anyone’s eyes. Serious eye injury could result.
Turn the laser off when it is not in use. Leaving the laser on increases the risk of staring into the
laser beam.
Do not modify the laser in any way. Modifying the tool may result in hazardous laser radiation
exposure.
Do not operate the laser around children or allow children to operate the laser. Serious eye injury
may result.
•
•
WARNING:Read and understand all instructions. Failure to follow allinstructions listed below
may result in electric shock, fire and/ or serious personal injury.
Work Area
•
•
•
Do not remove or deface warning labels. If labels are removed user or others may inadvertently
expose themselves to radiation.
Position the laser securely on a level surface. Damage to the laser or serious injury could result if
the laser falls
Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
Do not operate laser tools in explosive atmospheres, such as in the presence of flammable
liquids, gases, or dust.
Keep children and bystanders away while operating a laser tool.Distractions can cause you to
lose control.
Personal Safety
•
•
•
Tool Use and Care
•
•
•
Stay alert, watch what you are doing and use common sense when operating a laser tool. Do not
use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inatten-
tion while operating power tools may result in serious personal injury.
Do not overreach. Keep proper footing and balance at all times. Proper footing and balance
enables better control of the tool in unexpected situations.
Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hard hat, or
hearing protection may be required for appropriate conditions.
Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the
switch is dangerous and must be repaired.
Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the
hands of untrained users.
Use only accessories that are recommended by the manufacturer for your model. Accessories that
may be suitable for one tool, may become hazardous when used on another tool.
Service
•
•
Tool service must be performed only by qualified repair personnel. Service or maintenance
performed by unqualified personnel could result in a risk of injury.
When servicing a tool, use only identical replacement parts. Follow instructions in the Mainte-
nance section of this manual. Use of unauthorized parts or failure to follow Maintenance
Instructions may create a risk of electric shock or injury.
- 07 -
2.Package Content
Manual
Use Manual x 1
handbag x 1
Target plate x 1
D12 Plus Laser level x 1 Li-ion battery x 1
USB cablex 1
Super magnet Bracket x 1
- 08 -
3.Product Overview
WARNING:
Never modify the tool or any part of it. Damage to the laser or personal injury could result.
1 - Horizontal Laser outlet
2 - Vertical Laser outlet
3 - Pendulum Lock
4 - Charging Port
5 – Battery Chamber
6 - Tripod thread fitting (1/4”-20)
7 - Vertical Laser outlet
8 – Power display
9 – Pulse Indicator
10 - Power Switch
11 - Pulse Switch
- 09 -
3
1
2
4
5 6 7
8
10
9
11
Part function brief/guide (See figure A)
-
-
•
-
•
-
•
•
•
-
•
-
•
•
-
•
•
•
•
Two working mode- Manual and Self-level (See Figure B )
Pendulum lock ③ has two position – Locked/Unlock
Locked position:
The laser beam is fixed and flash every 5s, rotate the unit to get any angle beam you expected.(see
figure D)
Unlock position:
The lasers are designed to self-level. If the laser has been tilted so much that it cannot self-level ( >
3° ), the laser beam will flash every 0.5s. THE LASER IS NOT LEVEL (OR PLUMB) AND
SHOULD NOT BE USED FOR DETERMINING OR MARKING LEVEL OR PLUMB. Try repositioning the
laser on a more level surface.
To Turn the Lasers On and Off
With the laser off (initially, Pendulum lock ③ on locked position), place it on a flat level surface. Two
ways to turn the laser on/off,
Way one: turn on the laser by pressing Power Switch ⑩0.5s, and shut it off by pressing 2s
Way two: turn on by pushing the Pendulum Lock③ to the Unlocked position, Turn off by pushing
it back.
Swith laser line
When laser is on, short press the power switch⑩ then get the line you wanted.
Pulse Mode(See Figure F)
Active pulse function by press Pulse Switch
⑪ shortly when Pendulum lock ③ at unlock position.
Under pulse mode, the unit can match with detector for working in a brighter environment.
Charging tips(See Figure C )
The machine is equipped with 3.7V lithium battery, which is a removable one.
You can charge machine directly, or take the battery out to charge Individually,
if battery is low or no power to turn on. you should charge machine directly with type C cable,
The battery indicator will be displayed in flash way during charging process.
The battery indicator will be displayed as solid after battery is full charged.
- 11 -
5.Specifications
Light Source
Laser Wavelength
Laser Power
Accuracy (Level):
Leveling/Compensation Range
Power Source
Working time per full charge
Operating Temperature
Storage Temperature
Environmental
Laser diodes
510-530nm
≤1 mw (each beam) CLASS 2
100ft(30m) @100lux
200ft(60m) with detector
± 1/8in per 30ft(±3mm per 10m)
±3 °
3.7V 5200mAh Li-ion
7hr
20°F to 115°F (-10°C to 45°C)
-5°F to 140°F (-20°C to 60°C)
Water & Dust Resistant to IP54
Working Range
Maximum relative humidity 80% for temperatures up
to 88°F (31°C) decreasing linearly to 50% relative
humidity at 104°F (40°C)
Humidity
- 12 -
6.Troubleshooting
The Laser Does Not Turn On
•
•
The Laser Beams Flash
The lasers are designed to self-level up to an average of 3° in all directions If the laser is tilted so much
that the internal mechanism cannot level itself, the laser beams will flash indicating that the tilt range
has been exceeded. THE FLASHING BEAMS CREATED BY THE LASER ARE NOT LEVEL OR PLUMB
AND SHOULD NOT BE USED FOR DETERMINING OR MARKING LEVEL OR PLUMB. Try repositioning
the laser on a more level surface.
Make sure the unit have power
If the laser unit is heated above 120˚F (50˚C), the unit will not turn on. If the laser has been stored in
extremely hot temperatures, allow it to cool. The laser level will not be damaged by pressing
the on/off button before cooling to its proper operating temperature.
The Laser Beams Will Not Stop Moving
The laser is a precision instrument. Therefore, if it is not positioned on a stable (and motionless)
surface, the laser will continue to try to find level. If the beam will not stop moving, try placing the
laser on a more
stable surface. Also, try to make sure that the surface is relatively flat,so that the laser is stable.
- 13 -
The Laser Does Not Turn On
•
•
The Laser Beams Flash
The lasers are designed to self-level up to an average of 3° in all directions If the laser is tilted so much
that the internal mechanism cannot level itself, the laser beams will flash indicating that the tilt range
has been exceeded. THE FLASHING BEAMS CREATED BY THE LASER ARE NOT LEVEL OR PLUMB
AND SHOULD NOT BE USED FOR DETERMINING OR MARKING LEVEL OR PLUMB. Try repositioning
the laser on a more level surface.
The Laser Beams Will Not Stop Moving
The laser is a precision instrument. Therefore, if it is not positioned on a stable (and motionless)
surface, the laser will continue to try to find level. If the beam will not stop moving, try placing the
laser on a more
stable surface. Also, try to make sure that the surface is relatively flat,so that the laser is stable.
- 14 -
- 15 -
Warranty Info
Your Warranty Includes
24-Month Coverage
Within 24 months of purchase, we will provide timely and effective online after-sales service. We will
repair or replace any defective product (due to manufacturing fault).
How to Return Your Fanttik Product
Contact [email protected] with your order number.
If your purchase was fulfilled by Amazon, please use Amazon’s 30-day return service.
