Contents
Q & A
Safety Precautions
Operation & Installation
Maintenance & Tips
Troubleshooting Guide
Warranty
01
02
05
10
11
12
Congratulations!
Dear Customer:
Welcome to the our family. Thank you for purchasing one of our products.
Our goal is to provide you with superior service. If there is anything missing from
or wrong with your order, or if you have any questions about using our product,
PLEASE contact us.
Email: after-sales-services@hotmail.com
Our team is available 24/7 to address your questions, comments, and concerns.
Your satisfaction is our ultimate goal. We want to make everything right so you'll
share your positive experience with other shoppers.
If you experience any problems, please send an email to
after-s[email protected]
Our mission:
* To be the most trusted appliance brand.
* To create practical, compact appliances that better your life.
1. How often do I need to clean my ice maker?
Depending on your usage habits, if you use it frequently, it is recommended that you clean it at least once a week.
Failure to clean the machine will cause scale accumulation, which will eventually block the pump and cause the
product to fail to work.
2. How should I clean the machine?
It is recommended to use lemon water or weak acid vinegar for cleaning. Drain immediately after cleaning, and
then clean it with pure water.
It is recommended to drain water at least once every three days. Draining can not only ensure that the hardness
of the water is not too high, but also ensure that impurities can be discharged well, and it is not easy to produce
scale in the water tank.
3. Why is my ice cube cloudy?
It means that your water quality is turbid. It is recommended to use drinking water and distilled water. If your
waterqualityproblemisserious,itisrecommendedthatyouinstallawater�ilterkit.
4. Can I put milk and juice into the water tank to make ice cubes?
It is recommended that you do not do that. Our research has found that the high concentration of milk and
beverages can easily block the pump and reduce the life of the pump. At the same time, the protein in milk is
pronetocalci�ication,whichchemicallyreactswiththePUwaterpipeinsidethemachine,whicheasilybreaksit,
making the product unable to continue working.
5. Why does my ice cube melt easily?
Because the ice maker is not a refrigerator, it does not have a heat preservation function. The high ambient
temperature in summer will accelerate the melting of ice cubes. You can close the lid of the machine to keep the
internal temperature. Some customers also put electric fans on the side of the machine to blow away the hot air
around, thus solving the problem, you can try. However, if you are not using ice cubes for a long time, we
recommend removing them from the ice basket and storing them in the refrigerator.
6. Why is my ice cube so thick and what should I do?
It may be that your ice making time is set too long, or it may be that the temperature of your environment is low.
You can try to adjust the size of the ice cubes.
7. Why does the ice cube I made have a plastic smell?
The ice cube itself has no taste. If you feel there is a plastic smell, try to clean the inside of the machine with
lemonwater,thenrunafewcycles,and�inallyrinsewithdistilledwater.
8. Why is there noise in the operation of my machine?
There is a faint sound when the machine is running. Closing the lid can reduce the noise. If the water pump makes
noiseduringuse,itisrecommendedtoturnoffthemachine�irst,andthenturnonthemachineaftercleaningthe
�ilterinthewatertanktoobservewhetherthenoisedisappears.
9. Why is water leaking from my machine?
ItmaybethatthePUAtubeinsidethemachinefelloffduringtransportation.Youcanremovethebackcoverofthe
machine and connect it by yourself. If you don't know how to operate, please contact the Euhomy team. We will
give you a professional video to help you solve the problem.
10.Whyistherewater�lowingbutnotmakingice?
If you make sure that the ambient temperature is not abnormal, then the refrigerant of the machine has leaked.
Please provide a video or picture and send it to us, and the Euhomy team will help you.
Q & A
01
Do not use this appliance near water.
Clean only with a damp cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
Do not install near any heat sources, such as radiators, heat registers, stoves, or other apparatus
(includingampli�iers)thatproduceheat.
Refrain from defeating the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades, one wider than the other. A grounding-type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided for your safety. If the provided
plugdoesnot�itintoyouroutlet,consultanelectriciantoreplacetheobsoleteoutlet.
Protect the power cord from being walked on or pinched, particularly at plugs, convenience
receptacles, and the point where they exit from the appliance.
Do not attempt to modify or extend the power cord of this appliance.
Unplugthisapplianceduringlightningstormsorwhenitwillnotbeusedforlongperiodsof
time.
Unplugthisappliancebeforecleaningit.
Make sure that the available AC power matches the voltage requirements of this appliance.
Do not handle the plug with wet hands. This could result in an electric shock.
Unplugthepowercordbyholdingtheplug,neverbypullingtheline.
Do not turn the appliance on or off by plugging or unplugging the power cord.
Please turn off the appliance before unplugging it.
Referallservicingtoquali�iedservicepersonnel.Servicingisrequiredwhentheappliancehas
been damaged in any way, such as the power-supply cord or plug being damaged, liquid having
been spilled, or objects having fallen into the appliance. Or the appliance has been exposed to
rain or moisture, does not operate normally, or has been dropped.
Toreducetheriskof�ireorelectricshock,donotexposethisappliancetorain,moisture,
dripping,orsplashing,andnoobjects�illedwithliquidsshouldbeplacedontopofit.
Thisapplianceisnotintendedforusebypersons(includingchildren)withreducedphysical,
sensory or mental capabilities, or lack of experience and knowledge unless they have been given
supervision or instruction concerning the use of the appliance by a person responsible for their
safety.
Do not use your ice maker outdoors. Place the ice maker away from direct sunlight, and make
sure that there are at least four inches of space between the back of your unit and the wall. Keep
a minimum distance of four inches on each side of your team free.
Do not use liquids other than water to make ice cubes.
Donotcleanyouricemakerwith�lammable�luids.Thefumescancreatea�irehazardor
explosion.
Do not tip over.
When using electrical appliances, basic safety precautions should
be always followed:
SAVE THIS INSTRUCTION / For Household Use Only
Safety Precautions
02
Fill with potable water only. Only use drinking water.
Please do not touch the evaporator when the ice maker is making ice. It may burn your skin.
This appliance must be earthed.
DoNotUseMechanicalDevicesToDefrosttheIceMaker.DoNotPunctureRefrigerantTubing.
To Be Repaired Only By Trained Service Personnel. Do Not Puncture Refrigerant Tubing.
Consult the Repair Manual/Owner’s GuideBefore Attempting To Install or Service This
Product.All Safety Precautions Must be Followed.
Dispose Of Property In Accordance With Federal Or Local Regulations.
Follow Handling Instructions Carefully.
The ice maker should be installed in accordance with the safety standard for Refrigeration
Systems, ASHRAE15. The ice maker shall not be installed in corridors or hallways of public
buildings.
If the unit is with the problem, it needs to be maintained and replaced with like components and
that servicing shall be done by factory-authorized service personnel, so as to minimize the risk
of possible ignition due to faulty parts or improper service.
Thisappliancemustbepluggedintoatleasta15A,110-115V,60HzGROUNDEDOUTLET.
This appliance must be grounded. It is equipped with a 3-wire cord grounding plug. The plug
must be plugged into an outlet that is properly installed and grounded.
Failuretofollowtheseinstructionscanresultinelectricshock,�ire,ordeath.
Keep ventilation openings in the ice maker clear of obstruction.
Do not damage the refrigerant tubing when handling, moving, or using the ice maker.
Never allow children to play with or operate the ice maker.
Unplugtheicemakerbeforecarryingoutusermaintenanceonit.
Risk Of Fire or Explosion- Flammable Refrigerant Used
Electric Shock Hazard
03
Safety Precautions
03
If a component part is damaged, it must be replaced by the manufacturer, its service agent, or
similarlyquali�iedpersonsinordertoavoidahazard.
All refrigeration products contain refrigerants, which under the guidelines of federal law, must be
removed before disposal. It is the consumer's responsibility to comply with federal and local
regulations when disposing of this product.
This ice maker is intended to be used in households and similar environments.
We do not recommend the use of an extension cord with this appliance. If you must use an
extension cord, use one with a minimum of 14 AWG wiring and rated at no less than 1875 Watts.
Pleaseavoidtheuseofanextensioncordbecauseitmayoverheatandcauseariskof�ire.
However, if it is necessary to use an extension cord:
Useonly3-wireextensioncordswitha3-bladegroundingplug.
It should be positioned such that it does not drape over the counter or tabletop where it can be
pulled on by children.
Followlocalregulationsregardingdisposaloftheicemakerdueto�lammablerefrigerantandgas.
The marked rating of an extension cord must be equal to or greater than the rating of this
appliance.
Safety Precautions
04
Operation & Installation

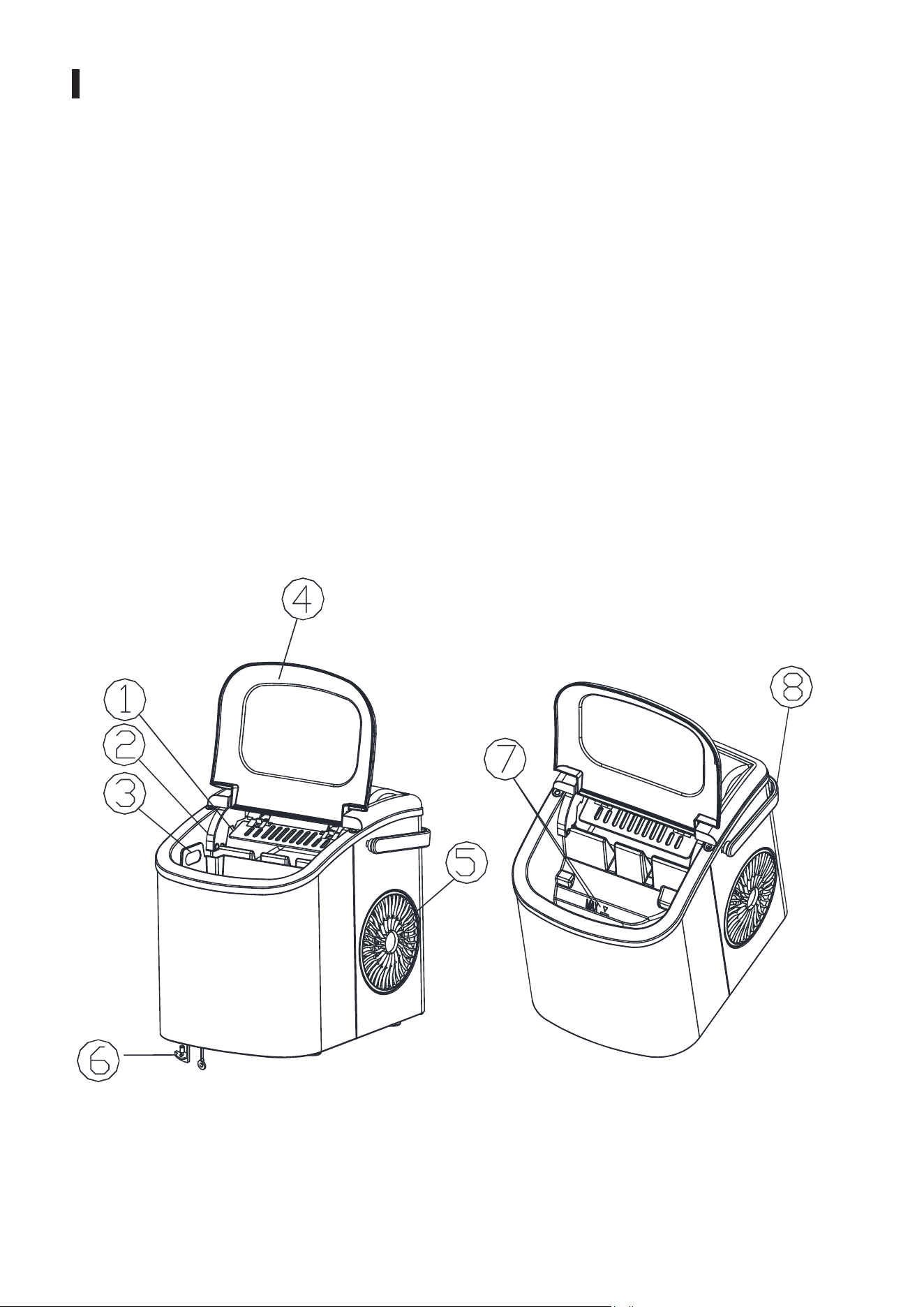

MAIN UNIT CONSTRUCTION
1.Ice scoop
2.Ice Full sensor
3.Ice basket
4.Top cover with transparent window
5.Air exhaust
6.Water drain cap: at bottom front of the unit
7. Maximum wvater level indicator:-
Remove the ice basket to see the water level mark.
8.Handle
05

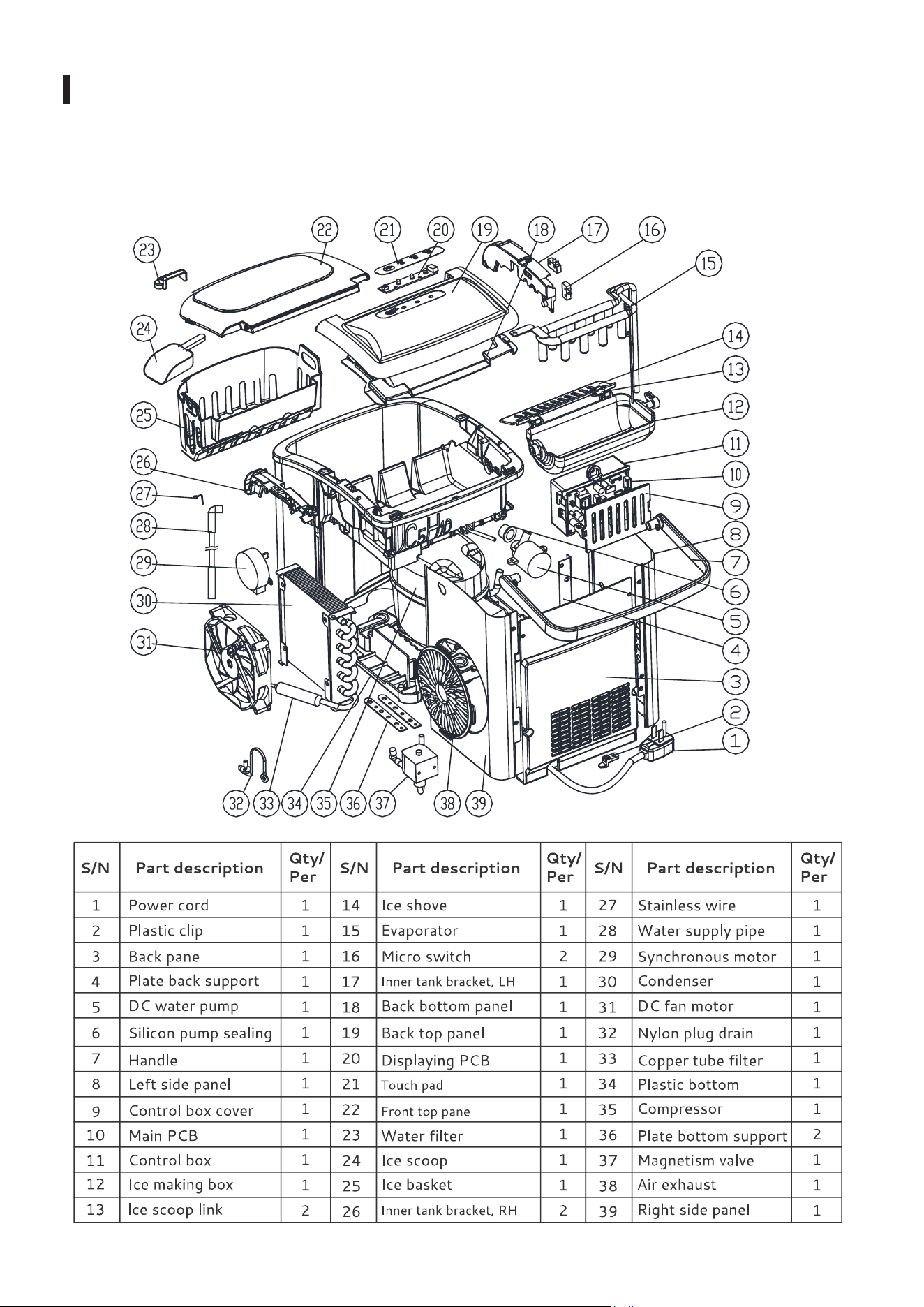

EXPLODED IEW DRAWING
Operation & Installation
06
UNPACKING YOUR ICE MAKER
· Remove the exterior and interior packaging. Check if ice basket and ice scoop inside.
If any parts are missing,please contact our customer service.
· Remove the tape securing the ice shovel, ice basket, and ice scoop. Clean the tank and ice basket.
·Puttheicemakerona�lat,levelcountertop,outofdirectsunlightandawayfromothersourcesofheat
(e.g.,stove,furnace,radiator).Ensurethatthereisagapofatleast4inchesbetweentheunitandanywalls
or other vertical surfaces.
·Allowonehourfortherefrigerant�luidtosettlebeforepluggingtheicemakerin.
· The appliance must be positioned so that the plug is accessible.
WARNING:Fillwithpotable(drinking)wateronly.ASSEMBLEHANDLE
Rotate the handle to the same angle as the mounting hole on the machin,Put It on the machine.
Operation & Installation
07
Wipe out the interior of your ice maker with a clean, damp cloth before each use.Before using
your ice maker each time, wipe out the interior with a clean, damp cloth.
When the machine is operating, please ensure the drain plug is closed and the water is
enough.Plug the ice maker into a wall outlet and the green power indicator light.
Open the cover and remove the ice basket.
Fill the water tank. NOTE: Do not add water above the Max Water Level mark at the back of the
tank.
Replace the ice basket and close the cover.
Press the Power button. The green light should illuminate, signifying that the unit is on.
To choose small or large ice cubes, press the Select button until the desired ice size is indicated.
USE YOUR ICE MAKER
Operation & Installation
08
The ice-making cycle will last about 8 to 13 minutes, depending on the ice size you select. The
ice-makingcyclestartswithwater�lowingintothewatertraybelowtheevaporator�ingers.Over
thenext8to13minutes,iceformsontheevaporator�ingers.Oncethishappens,theicetraywill
tilt back and any water remaining in the ice tray will drain into the water tank. Next, the ice cubes
dropfromtheevaporator�ingers.Then,theiceshovelpushesthecubesforwardintotheicebasket.
Theicetraywillautomaticallymovebackintopositionundertheevaporator�ingersandstartthe
next cycle.
When the ice basket is full, the Ice Full indicator will light up and the ice maker will automatically
stop the ice-making cycle. Gently remove the ice from the ice basket with the ice scoop. Once the
ice basket has been emptied and the cover is closed, the ice maker will restart its ice-making
function automatically.
When the water tank is empty, the Add Water indicator will light up and the ice-making cycle will
stopautomatically.ThePowerbuttonwill�lashevery5seconds.PressthePowerbuttononce,
remove the ice basket, and add water to the water tank.
Iftheroomtemperatureisbelow60°F(15.6°C),selecttheSmallicecubesizetoprevent
the ice cubes from sticking together.
Press and hold the Select button for 5 seconds to run 8 continuous cycles, even when the Ice Full
indicator is on.
Whenyouhave�inishedmakingice,transfertheicetoafreezer.
Whenyouhave�inishedmakingice,transfertheicetoafreezer.Theicewilllastintheicemaker
for up to 18 hours, depending on the ambient temperature.
Stoptheice-makingcyclebypressingthePowerbutton.Unplugtheunitfromthewalloutlet.
Open the cover and allow the ice maker to reach room temperature. Follow the directions in the
Care and Cleaning section.
Directorre�lectedsunlightmaycausetheinfraredsensortomalfunction.Iftheunitdoesnotstop
making ice cubes even when the ice basket is full, move the ice maker to a darker location.
You must change the water in the tank at least every 24 hours to keep the unit hygienic and prevent
bad-smelling ice.
Donot�illthewatertankabovetheMaxWaterLevelmarkatthebackofthetank.
Wait 3 minutes. Then press the Power Button to restart the ice-making function.
Operation & Installation
09
Your ice maker is designed for year-round use and needs minimal cleaning and maintenance. When
you�irstreceivetheunit,wipetheoutsidewillwarm,soapywater.Wipeagainwithaclean,wetr
cloth. Then wipe the unit dry with a soft, dry cloth Do this periodically to keep your ice maker .
looking new.
Topreventdamagetothe�inish,donotusethefollowing:
Gasoline, benzine, thinner, or other solvents.
Abrasive cleaners.
MAINTENANCE
TIPS&SUGGESTIONS
Stop the ice-making cycle by pressing the Power button. The green power indicator will go out,
indicatingtheicemakerisoff.Unplugtheicemakerfromthewalloutletandallowtheunitto
warm up to room temperature.
Ifthewatertrayisnotintheverticalpositionbehindtheevaporator�ingers,gentlypushthe
water tray back so that all water drains into the water tank.
Open the drain plug to drain out excess water.
Remove the ice basket.
Remove the water tube screen and rinse it under running water.
Clean the interior of the ice maker with a soft cloth dampened in a weak solution of warm water
and white vinegar. Rinse by wiping with a clean, damp cloth.
Replace the drain plug and the water tube screen. Wash the ice basket and ice scoop in warm,
soapy water. Rinse and dry.
Clean the exterior of the ice maker with a soft, damp cloth. If needed, use a solution of mild
dishwashing liquid and water.
Donotcleantheevaporator�ingers.
Locate your ice maker in the coolest area of the room, away from heat-producing appliances and
heatingducts,andoutofdirectorre�lectedsunlight.
Makesurethattheapplianceissuf�icientlyventilated,withadequateaircirculationbehindit.
Maintenance & Tips
10
PROBLEM
POSSIBLE CAUSES
SOLUTION
The Add Water
indicator light is on.
No indicators are lit
on the control panel.
The ice cubes stick
together.
The Ice Full indicator
light is on.
The Ice Full and Add
Water indicators light
up simultaneously.
No ice is being made.
The ice-making cycle
seems normal, but no
ice is made.
The ice maker won't
stop making ice.
Move the ice maker to a darker
location.
Low or no water in the tank.
Plug is disconnected.
Add water and the ice maker will
operate normally again.
Electrical power surge.
Air or blockage in lines. Water
tank cannot detect water level.
Check that the plug is plugged
into the electrical outlet.
Replace the water with warmer
water.
Stop the ice maker. Wait for the
ice to melt. Select Small Ice and
restart the ice maker.
Remove ice from the ice storage
basket to make more.
Turn off the unit. Let the ice
block melt. Then, restart the unit.
You can also switch to small ice
cubes.
The room temperature or
water temperature is too high.
The room temperature should
be 50°F to 105°F (10°C to
40.6°C).Thewatertempera -
ture should be 40°F to 90°F
(4.44°Cto32.2°C).
Consultaquali�iedtechnician
or call customer service.
Power is not being supplied to
the unit. The ambient
temperature or the water
temperature is too high.
Making ice takes too long.
Plug the unit into a standard
110/120 V, 60 Hz power source.
Be sure to operate the unit in a
room temperature of less than
90 x F and / or pour colder water
into the water reservoir.
Turn off and unplug the ice maker.
Add water if needed. Plug in and
restart the unit.
Inspect the related parts. Remove
the drain cap on the back of the
unit. Drain out a smal amount ol
water. Replace the cap and restart
the unit.
See if ice is blocking the ice pusher.
Turn of the ice maker. Let the ice
melt. Then restart the unit.
The water temperature is too
cold.
The ice-making cycle is too
long.
The ice basket is full.
Directorre�lectedsunlightcan
cause the sensor to malfunction.
Refrigerant is leaking. A pipe
in the cooling system is blocked.
Troubleshooting Guide
The unit does not
operate
11
Warranty
Weoffersalimited1-yearwarranty("warrantyperiod")onallofourproductspurchasednewand
unused from us with an original proof of purchase and where a defect has arisen, wholly or
substantially, as a result of faulty manufacture, parts, or workmanship during the warranty period.
The warranty does not apply where damage is caused by other factors, including without limitation:
(a)normalwearandtear;
(b)abuse,mishandling,accident,orfailuretofollowoperatinginstructions;
(c)exposuretoliquidorin�iltrationofforeignparticles;
(d)servicingormodi�icationsoftheproductotherthanbyourcompany;
Our warranty covers all costs related to restoring the proven defective product through repair or
replacement of any defective part and necessary labor so that it conforms to its original
speci�ications.Areplacementproductmaybeprovidedinsteadofrepairingadefectiveproduct.Our
sole obligation under this warranty is limited to such repair or replacement. A receipt indicating the
purchase date is required for any claim, so please keep all receipts in a safe place. Although greatly
appreciated, the product registration is not required to activate any warranty, and product
registration does not eliminate the need for the original proof of purchase. The warranty will be
voided if repairs are performed by a non-authorized third party and/or if spare parts other than
those provided by the Company are used. You may also arrange for service after the warranty
expires, at an additional cost.These are our general terms for warranty service, but we always urge
our customers to reach out to us with any issue, regardless of warranty terms. If you have an issue
withourproducts,pleasecontactus([email protected]),andwewilldoourbestto
resolve it for you.
12
